RCA DVD/CD Receiver Speaker System User manual

DVD/CD Receiver
Speaker System

2
READ INSTRUCTIONS — All the safety and
operating instructions should be read before
the product is operated.
RETAIN INSTRUCTIONS — The safety and
operating instructions should be retained for
future reference.
HEED WARNINGS — All warnings on the
product and in the operating instructions should
be adhered to.
FOLLOW INSTRUCTIONS — All operating and
use instructions should be followed.
CLEANING — Unplug this product from the wall
outlet before cleaning. The product should be
cleaned only with a polishing cloth or a soft dry
cloth. Never clean with furniture wax, benzine,
insecticides or other volatile liquids since they
may corrode the cabinet.
ATTACHMENTS — Do not use attachments not
recommended by the product manufacturer as
they may cause hazards.
WATER AND MOISTURE — Do not use this
product near water — for example, near a
bathtub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming
pool; and the like.
ACCESSORIES — Do not place this product on
an unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to a
child or adult, and serious damage to the
product. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the product. Any
mounting of the product should follow the
manufacturer’s instructions, and should use a
mounting accessory recommended by the
manufacturer.
CART — A product and cart
combination should be moved with
care. Quick stops, excessive force,
and uneven surfaces may cause the
product and cart combination to
overturn.
VENTILATION — Slots and openings in the
cabinet are provided for ventilation and to
ensure reliable operation of the product and to
protect it from overheating, and these openings
must not be blocked or covered. The openings
should never be blocked by placing the product
on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in
installation such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer’s instructions have been adhered
to.
POWER SOURCES — This product should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your home,
consult your product dealer or local power
company.
LOCATION – The appliance should be installed
in a stable location.
NONUSE PERIODS – The power cord of the
appliance should be unplugged from the outlet
when left unused for a long period of time.
GROUNDING OR POLARIZATION
• If this product is equipped with a polarized
alternating current line plug (a plug having one
blade wider than the other), it will fit into the
outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
• If this product is equipped with a three-wire
grounding type plug, a plug having a third
(grounding) pin, it will only fit into a grounding
type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet,
contact your electrician to replace your
obsolete outlet. Do not defeat the safety
purpose of the grounding type plug.
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product's enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to persons.
IMPORTANT
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

3
POWER-CORD PROTECTION — Power-supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from
the product.
OUTDOOR ANTENNA GROUNDING — If an
outside antenna or cable system is connected
to the product, be sure the antenna or cable
system is grounded so as to provide some
protection against voltage surges and built-up
static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of
the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of
antenna-discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode. See Figure A.
LIGHTNING — For added protection for this
product during a lightning storm, or when it is
left unattended and unused for long periods of
time, unplug it from the wall outlet and
disconnect the antenna or cable system. This
will prevent damage to the product due to
lightning and power-line surges.
POWER LINES — An outside antenna system
should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can fall into such
power lines or circuits. When installing an
outside antenna system, extreme care should
be taken to keep from touching such power
lines or circuits as contact with them might be
fatal.
OVERLOADING — Do not overload wall outlets,
extension cords, or integral convenience
receptacles as this can result in a risk of fire or
electric shock.
OBJECT AND LIQUID ENTRY — Never push
objects of any kind into this product through
openings as they may touch dangerous voltage
points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any
kind on the product.
SERVICING — Do not attempt to service this
product yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
DAMAGE REQUIRING SERVICE — Unplug this
product from the wall outlet and refer servicing
to qualified service personnel under the
following conditions:
• When the power-supply cord or plug is
damaged.
• If liquid has been spilled, or objects have fallen
into the product.
• If the product has been exposed to rain or
water.
• If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the
operating instructions as an improper
adjustment of other controls may result in
damage and will often require extensive work
by a qualified technician to restore the product
to its normal operation.
• If the product has been dropped or damaged in
any way.
• When the product exhibits a distinct change in
performance — this indicates a need for
service.
REPLACEMENT PARTS — When replacement
parts are required, be sure the service
technician has used replacement parts
specified by the manufacturer or have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
SAFETY CHECK — Upon completion of any
service or repairs to this product, ask the
service technician to perform safety checks to
determine that the product is in proper
operating condition.
WALL OR CEILING MOUNTING — The product
should not be mounted to a wall or ceiling.
HEAT — The product should be situated away
from heat sources such as radiators, heat
registers, stoves, or other products (including
amplifiers) that produce heat.
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND
CLAMP
Fig. A
NEC — NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN WIRE
ELECTRIC
SERVICE
EQUIPMENT
WARNING:TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.

4
WARNING:
Handling the cord on this product or cords
associated with accessories sold with the
product will expose you to lead, a chemical
known to the State of California and other
governmental entities to cause cancer and
birth defects or other reproductive harm.
Wash hands after handling
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
CAUTION:
This product satisfies FCC regulations when
shielded cables and connectors are used to
connect the unit to other equipment. To
prevent electromagnetic interference with
electric appliances such as radios and
televisions, use shielded cables and connec-
tors for connections.
Information to User
Alteration or modifications carried out without
appropriate authorization may invalidate the
user's right to operate the equipment.
This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
CAUTION
• Use of controls or adjustments or
performance of procedures other than those
specified herein may result in hazardous
radiation exposure.
• The use of optical instruments with this
product will increase eye hazard.
This product is for general household purposes.
Any failure due to use for other than household
purposes (such as long-term use for business
purposes in a restaurant or use in a car or ship)
and which requires repair will be charged for
repair even during the warranty period.
This product includes FontAvenue®fonts
licenced by NEC corporation. FontAvenue is
a registered trademark of NEC Corporation.
Changes or modifications not expressly
approved by the manufacturer (party
responsible) for Compliance could not
void the user's authority to operate the
equipment.

5
5

6
Table of Contents
Table of Contents
Introductory Information
Supplied Accessories ........................... 10
Putting the Batteries in the Remote
Control................................................ 10
Using the Remote Control................ 10
Disc / Content Format Playback Compati-
bility.................................................... 11
General Disc Compatibility.............. 11
CD-R/RW Compatibility .................. 11
DVD-R/RW Compatibility................ 11
PC-Created Disc Compatibility ........ 12
About WMA .................................... 12
Compressed Audio Compatibility .... 12
JPEG File Compatibility................... 13
Making Connections

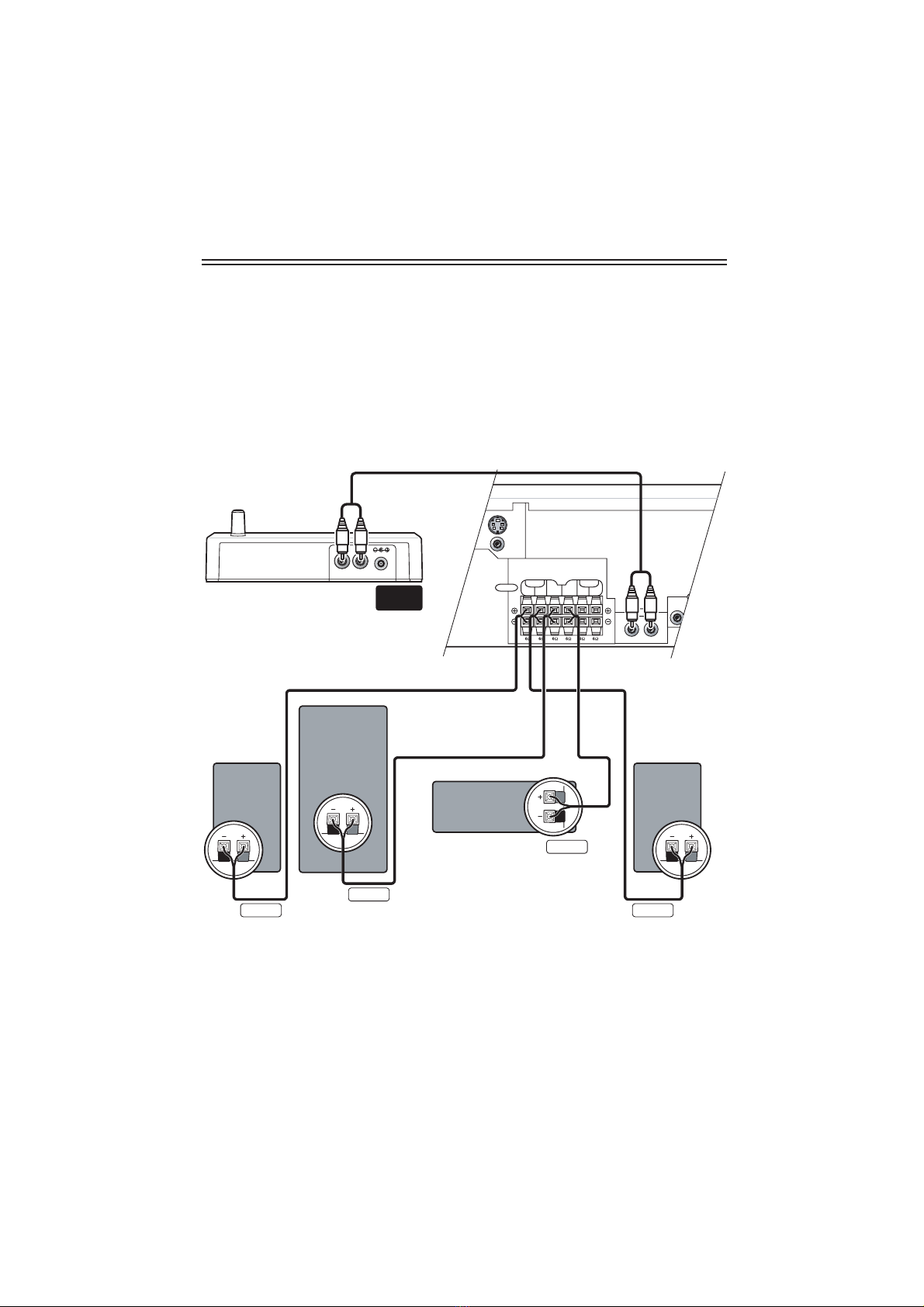

Connecting the Speakers and Wireless
Speaker System ................................... 14
Placing the Speakers and Wireless
Speaker System................................ 16
Wall-mounting the Center and
Surround Speaker System................ 16
Connecting the Surround Speakers
to the Wireless Speaker System........ 17
Connecting to Your TV........................ 18
Connecting Using the S-video
Output............................................. 18
Connecting Using the Component
Video Output................................... 19
Listening to TV Audio Through This
System ............................................. 19
Connecting the Supplied Antennas...... 20
Assembling the Loop Antenna ......... 20
AM Loop Antenna ........................... 20
FM Wire Antenna ............................ 21
Connecting the Power ......................... 21
Controls and Displays
Front Panel.......................................... 22
Display................................................ 23
Remote Control................................... 25
Transmitter ......................................... 28
Wireless Speaker – Front .................... 28
Wireless Speaker – Rear...................... 29
Getting Started
Switching on and Setting Up............... 31
Setting the Clock............................. 31
Using the Room Setup ........................ 31
Using the On-screen Displays ............. 32
Playing Discs....................................... 33
Basic Playback Controls................... 34
Resume and Last Memory ............... 35
Changing Discs ................................... 36
DVD-Video Disc Menus ...................... 37
Video CD PBC Menus ......................... 38
Listening to the Radio ......................... 38
Improving Poor FM Reception ........ 39
Memorizing Stations........................ 39
Listening to Station Presets.............. 39
Listening to Other Sources.................. 40
Using the Wireless Surround
Speaker............................................... 40
Home Theater Sound
Auto Listening Mode........................... 41
Listening in Surround Sound .............. 41
Dolby Pro Logic II Music Settings.... 42
Listening in Stereo .............................. 42
Listening with Headphones................. 42
Using the Advanced Surround Effects . 42
Adjusting the Advanced Surround
Effect Level...................................... 43
Enhancing Dialogue............................ 44
Listening with a Virtual Surround Back
Speaker............................................... 44
Using Quiet and Midnight Listening
Modes................................................. 44
Adjusting the Bass and Treble ............. 45
Boosting the Bass Level ....................... 45

Table of Contents
7
Muting the Sound............................... 45
Playing Audio and Video Discs
Introduction ....................................... 46
Playing Only CDs, MP3 and WMA Discs
(CD Mode) ......................................... 46
Using the Disc Navigator to Browse the
Contents of a Disc .............................. 46
Scanning Discs ................................... 48
Playing in Slow Motion....................... 48
Frame Advance/Frame Reverse ........... 48
Looping a Section of a Disc................. 49
Using Repeat Play ............................... 49
Using Random Play ............................ 50
Creating and Editing a DVD Program
List ..................................................... 51
Creating and Editing a Non-DVD
Program List ....................................... 53
Other Functions Available from the
Program Menu ................................ 54
Searching a Disc ................................. 55
Switching DVD Audio Language......... 55
Switching Subtitles ............................. 56
Switching Audio Channel when
Playing a Video CD............................. 56
Zooming the Screen............................ 56
Switching Camera Angles ................... 57
Displaying Disc Information ............... 57
Front Panel Display Information ..... 58
Viewing JPEG Discs
Playing a JPEG Slideshow ................... 59
Using the JPEG Disc Navigator and
Photo Browser .................................... 59
Zooming the Screen............................ 60
Using the Timer
Setting the Wake-up Timer................. 61
Turning the Wake-up Timer
On/Off ............................................ 62
Setting the Sleep Timer....................... 62
Surround Sound Setup
Setting Up Surround Sound ................ 64
System Setup Menu Options............ 64
Setting the Channel Levels............... 65
Video Adjust Menu
Video Adjust ....................................... 66
Creating Your Own Presets.............. 66
Initial Settings Menu
Using the Initial Settings Menu ........... 67
Video Output Settings......................... 67
TV Screen........................................ 67
Component Out .............................. 68
S-Video Out .................................... 69
Language Settings................................ 69
Audio Language............................... 69
Subtitle Language ............................ 69
DVD Menu Language ...................... 70
Subtitle Display ............................... 70
Display Settings................................... 70
OSD Language................................. 70
On Screen Display........................... 70
Angle Indicator................................ 70
Options............................................... 71
Parental Lock................................... 71
PhotoViewer........................................ 73
Additional Information
Child Lock .......................................... 74
Changing the Clock Format ................ 74
Changing the Frequency Step.............. 74
Resetting the System ........................... 74
Using and Taking Care of Discs........... 75
Titles, Chapters and Tracks ............. 75
DVD Video Regions......................... 75
Handling Discs ................................ 75
Storing Discs ................................... 76
Discs to Avoid ................................. 76
Proper Installation and Maintenance
of This System..................................... 76

Table of Contents
8
Hints on Installation ........................ 76
Cleaning the Unit’s Exterior............. 77
Cleaning the Pickup Lens ................ 77
Problems with Condensation ........... 77
Moving the System Unit................... 77
Radio Wave Caution ........................ 77
Scope of Operation .......................... 77
Connecting External Antennas ............ 78
Connecting Auxiliary Components...... 79
Reducing the TV and Line Signal
Levels .............................................. 79
Recording Mode .............................. 80
Troubleshooting .................................. 81
General............................................ 81
DVD/CD/Video CD Player ............... 82
WMA/MP3/JPEG Discs .................... 83
Tuner............................................... 83
Wireless Speaker System.................. 84
Error Messages................................. 85
Screen Sizes and Disc Formats............. 86
Widescreen TV Users....................... 86
Standard TV Users ........................... 86
Selecting Languages Using the Language
Code List............................................. 86
Language Code List ............................. 87
Country Code List ............................... 87
Glossary .............................................. 88
Specifications ...................................... 90
DVD/CD Receiver ............................ 90

9
Introductory Information
Congratulations on buying this fine RCA product.
Please read through these operating instructions so you will know how to operate your model
properly. After you have finished reading the instructions, put them away in a safe place for
future reference.
Your RCA DVD/CD receiver system has the following benefits:
DTS* (Digital Theater Systems) Decoder Equipped — DTS is a digital sound system
introduced in theaters. Playback of DVDs and CDs recorded in DTS audio creates the
environment of a theater or the sensation of a concert hall in your home.
Dolby** Digital and Dolby Pro Logic II — No need to worry about program formats! When
playing Dolby Digital or Dolby Surround software in the Standard mode, decoding switches
automatically according to the input signal. You can also use Dolby Pro Logic II to create a
surround sound listening experience with stereo sources.
Advanced Surround Modes — Five sound modes that enhance DTS and Dolby Surround
performance by simulating the ambience of listening environments such as a movie theater
(MOVIE) or a concert hall (MUSIC). The EXPANDED mode lets you enjoy Dolby Surround
encoded software in simulated Dolby Digital. 6-CHANNEL STEREO gives multi-channel
sound from stereo sources, and the VIRTUAL SURROUND BACK CHANNEL effect gives you
an incredible surround sound listening experience by adding a simulated back surround
speaker to your setup!
24-bit/96kHz Compatible DAC — RCA DVD/CD receiver system is fully compatible with
high sampling-rate discs, capable of delivering better-than-CD sound quality in terms of
dynamic range, low-level resolution and high-frequency detail.
MP3 and WMA Compatibility — RCA DVD/CD receiver system is compatible with CD-R,
CD-RW and CD-ROM discs that contain MP3 or WMA audio tracks.
Graphical On-screen Displays — Setting up and using your RCA DVD/CD receiver system is
made very easy using the graphical on-screen displays.
Progressive Scan — When connected to a progressive scan-compatible TV or monitor using
the component video outputs, you can enjoy extremely stable, flicker free images, with the
same frame refresh rate as the original movie.
* “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc..
* * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol
are trademarks of Dolby Laboratories.
©2003 RadioShack Corporation.
All Rights Reserved.

Introductory Information
10
Supplied Accessories
Please confirm that the following accessories
are in the DVD/CD receiver box when you
open it.
• Remote control
• Video cable (yellow plugs)
• AM loop antenna
• FM wire antenna
• Power cable
• This owner’s manual
• Quick Start
Please confirm that the following accessories
are in the speaker system box when you open
it.
• Speaker cables (x6)
• non-skid pads for speakers (1 sheet)
Please confirm that the following accessories
are in the digital wireless rear speaker system
box when you open it.
• Transmitter
• Wireless speaker
• AC adapter
• RCA stereo cord
Putting the Batteries in
the Remote Control
1 Open the battery compartment
cover on the back of the remote
control.
2 Insert two AA/R6P batteries (not
supplied) into the battery
compartment following the
indications (,) inside the
compartment.
3 Close the cover.
Note:
Incorrect use of batteries can result in
hazards such as leakage and bursting. Please
observe the following:
• do not mix new and old batteries together.
• do not use different kinds of batteries
together—although they may look
similar, different batteries may have
different voltages.
• Make sure that the plus and minus ends of
each battery match the indications in the
battery compartment.
• Remove batteries from equipment that
isn’t going to be used for a month or more.
• When disposing of used batteries, please
comply with governmental regulations or
environmental public instruction’s rules
that apply in your country or area.
H048 En
Using the Remote Control
Keep in mind the following when using the
remote control:
• Make sure that there are no obstacles
between the remote and the remote sensor
on the system unit.

Introductory Information
11
• The remote has a range of about 23 ft. /
7 m at an angle of less than 30º.
• Remote operation may become unreliable
if strong sunlight or fluorescent light is
shining on the system unit’s remote
sensor.
• Remote controls for different devices can
interfere with each other. Avoid using
remotes for other equipment located close
to this system.
• Replace the batteries when you notice a
fall off in the operating range of the
remote.
Disc / Content Format
Playback Compatibility
General Disc Compatibility
This system was designed and engineered to
be compatible with software bearing one or
more of the following logos:
• KODAK Picture CD
• is a trademark of Fuji Photo Film Co.
Ltd.
Other formats, including but not limited to
the following, are not playable in this system:
DVD-Audio / SACD / DVD-RAM
DVD-ROM / CD-ROM*
*Except those that contain MP3, WMA or
JPEG. See also Compressed Audio
Compatibility and JPEG File Compatibility
below.
DVD-R/RW and CD-R/RW discs (Audio CDs
and Video CDs) recorded using a DVD
recorder, CD recorder or personal computer
may not be playable on this system. This may
be caused by a number of possibilities,
including but not limited to: the type of disc
used; the type of recording; damage, dirt or
condensation on either the disc or the
player’s pick-up lens. See below for notes
about particular software and formats.
CD-R/RW Compatibility
• This system will play CD-R and CD-RW
discs recorded in CD Audio or Video CD
format, or as a CD-ROM containing MP3,
WMA or JPEG files. However, any other
content may cause the disc not to play, or
create noise/distortion in the output.
• This system cannot record CD-R or CD-
RW discs.
• Unfinalized CD-R/RW discs recorded as
CD Audio can be played, but the full
Table of Contents (playing time, etc.) will
not be displayed.
DVD-R/RW Compatibility
• This unit will play DVD-R/RW discs
recorded using the DVD-Video format
that have been finalized using a DVD
recorder.
• This unit will play DVD-RW discs
recorded using the Video Recording (VR)
format.
•DVD-RW shows in the display when a VR
format DVD-RW disc is loading.
• When playing a VR format DVD-RW discs
that was edited on a DVD recorder, the
screen may go momentarily black at
edited points and/or you may see scenes
from immediately before the edited point.
• This system unit cannot record DVD-R/
RW discs.
DVD-Video DVD-R DVD-RW
Video CD
Fujicolor CD
Audio CD CD-R CD-RW

Introductory Information
12
• Unfinalized DVD-R/RW discs cannot be
played in this system.
PC-Created Disc Compatibility
• If you record a disc using a personal
computer, even if it is recorded in a
“compatible format” as listed above, there
will be cases in which the disc may not be
playable in this machine due to the setting
of the application software used to create
the disc. In these particular instances,
check with the software publisher for
more detailed information.
• Check the DVD-R/RW or CD-R/RW
software disc boxes for additional
compatibility information.
About WMA
WMA is short for Windows Media Audio and
refers to an audio compression technology
developed by Microsoft Corporation. WMA
data can be encoded by using Windows
Media Player version 8 (or less) or Windows
Media Player for Windows XP.
Windows Media, and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States and/
or other countries.
Compressed Audio Compatibility
• This system unit will play CD-ROM, CD-
R, and CD-RW discs containing files saved
in the MPEG-1 Audio Layer 3 (MP3) or
Windows Media Audio (WMA) format
with a sampling rate of 32*, 44.1 or
48kHz. Incompatible files will not play
and the message Can not play this format
will be displayed (NO PLAY in the front
panel display).
* This unit will not play 32kHz WMA files
encoded at 20kbps.
• Fixed bit-rate files are recommended.
Variable bit-rate (VBR) MP3 files are
playable, but playing time may not be
shown correctly.
• This system is compatible with WMA data
encoded using Windows Media Player
version 8 (or less) or Windows Media
Player for Windows XP.
• This system is not compatible with
lossless-encoding or variable bit-rate
(VBR) WMA files.
• WMA files encoded with DRM (Digital
Rights Management) copy protection will
not play and the message Can not play
this format will be displayed (NO PLAY
in the front panel display).
• The CD-ROM used to compile your MP3,
WMA must be ISO 9660 Level 1 or 2
compliant. CD physical format: Mode1,
Mode2 XA Form1. Romeo and Joliet file
systems are both compatible with this
system.
• Use CD-R or CD-RW media for recording
your files. The disc must be finalized (i.e.
the session must be closed) in order to
play in this system unit. This system is not
compatible with multi-session discs. Only
the first session of a multi-session disc will
be recognized.
• This system only plays tracks that are
named with the file extension .mp3,
.MP3, .wma, or .WMA.
• When naming MP3 and WMA files, add
the corresponding file name extension
(.mp3 or .wma). Files are played
according to the file extension. To prevent
noise and malfunctions, do not use these
extensions for other kinds of files.
• This system can recognize up to 999 files
(WMA/MP3) and up to 499 folders. If a
disc exceeds these limits, only files and
folders up to these limits will be playable.
Files and folders are read/displayed in
alphabetical order. Note that if the file
structure is very complex, you may not be
able to read/play all the files on the disc.
• Folder and track names (excluding the file
extension) are displayed.

Introductory Information
13
• There are many different recording bit-
rates available to encode MP3 files. This
system unit was designed to be
compatible with all of them. Audio
encoded at 128Kbps should sound close
to regular CD Audio quality. This system
will play lower bit-rate files, but please
note that the sound quality becomes
noticeably worse at lower bit-rates.
JPEG File Compatibility
• Baseline JPEG and EXIF 2.1* still image
files up to 8 mega-pixels are supported
(maximum vertical and horizontal
resolution is 5120 pixels). (*File format
used by digital still cameras)
• The CD-ROM used to compile your JPEG
files must be ISO 9660 Level 1 or 2
compliant. CD physical format: Mode1,
Mode2 XA Form1. Romeo and Joliet file
systems are both compatible with this
system.
• This system can recognize up to 999 files
(JPEG) and up to 499 folders. If a disc
exceeds these limits, only files and folders
up to these limits will be playable. Files
and folders are read/displayed in
alphabetical order. Note that if the file
structure is very complex, you may not be
able to read/play all the files on the disc.
• Folder and file names (excluding the file
extension) are displayed.
• This system only displays files that are
named with the file extension .jpg or
.JPG.

14
Making Connections
Notes:
Before making or changing any rear panel
connections, make sure that all the
components are switched off and unplugged
from the power supply.
•CAUTION: These speaker terminals can
be under HAZARDOUS VOLTAGE.
When you connect or disconnect the
speaker cables, to prevent the risk of
electric shock, do not touch uninsulated
parts before disconnecting the power
cord. (H047 En)
Connecting the Speakers and Wireless Speaker
System
Notes:
• Connect each speaker using the color-
coded speaker cable. Match them to the
colored labels above the speaker
terminals.
•You can also choose to connect a pair of
surround speakers to the SURROUND
speaker terminals on this unit. Make sure
that the wireless mode is set to W. Off (see
"Using the Wireless Surround Speaker" on
page 40 for more on this). Alternately, see
"Connecting the Surround Speakers to the
Wireless Speaker System" on page 17.
RL
IN
WIRELESS
WIRELESS
(IN)
Transmitter
AUDIO
PBY
ONENT VIDEO OUT
L
LINE 2
OUT
L
R
COAXIAL IN
CENTER
SUB
WOOFER
LRLR
FRONT
SURROUND
S-VIDEO
OUT
VIDEO
OUT
SPEAKERS
WIRELESS
OUT
LR
Front right Front left
Subwoofer
Center
WhiteRed
Purple
Green

Making Connections
15
• Do not connect any of the supplied
speakers to any other amplifier. This may
result in malfunction or fire.
This system has been designed for best
performance when connected to the
supplied speakers. We do not, therefore,
recommend that you connect and use
other speakers with this system.
1 Twist and pull off the protective
shields on each wire.
2 Connect to the speaker terminals
on the rear of the system unit.
Match the colored wire with the color-coded
label (above the tabs), then insert the colored
wire into the red (+) tab and the other wire
with the black (–) tab.
3 Connect to the speaker terminals
on the rear of the speakers in the same
way.
Note:
Remove the supplied non-skid pads from the
paper, and stick four onto the base of each
satellite speaker. Actual speakers supplied
may differ from those shown.
4 Connect the WIRELESS (IN) jack on
the transmitter to the WIRELESS (OUT)
jack on the rear panel of the receiver,
using the supplied RCA stereo cord.
The wireless speaker system can be used for
multi-channel sound.
5 Connect the supplied AC adapter
to the DC IN inlet on the rear panel of
the unit, then plug into a power
outlet.
AUDIO
ANTENNA
AM LOOP
ANTENNA
FM
UNBAL
75
LINE 1
LINE 2
TV
OUT IN IN
L
R
L
R
COAXIAL IN
L
UND
WIRELESS
OUT
LR
R L
To power outlet
WIRELESS
(IN)
Transmitter

Making Connections
16
Placing the Speakers and Wireless
Speaker System
Where you put your speakers and wireless
speaker system in the room has a big effect on
the quality of the sound. The following
guidelines should help you to get the best
sound from your system.
• The subwoofer can be placed on the floor.
Ideally, the other speakers should be at
about ear-level when you’re listening to
them. Putting the speakers on the floor
(except the subwoofer), or mounting
them very high on a wall is not
recommended.
• For the best stereo effect, place the front
speakers 6–9 ft. / 2–3 m apart, at equal
distance from the TV.
• Install the center speaker above or below
the TV so that the sound of the center
channel is localized at the TV screen.
• The illustration below shows a typical
speaker setup using the wireless speaker
for multichannel sound (in W.Surr. /
SURROUND mode).
Notes:
• Make sure that all speakers are securely
installed. This not only improves sound
quality, but also reduces the risk of
damage or injury resulting from speakers
being knocked over or falling in the event
of external shocks such as earthquakes.
• The front and center speakers supplied
with this system are magnetically
shielded. However, placing them
extremely close to a television may result
in color distortion on the screen. If this
happens, move the speakers a little further
away and switch off the television for 15–
30 minutes.
• The subwoofer is not magnetically
shielded and so should not be placed near
a TV or monitor.
• For best surround sound, make sure to
place the wireless speaker directly behind
the center of the listening position and no
higher than ear level. Also, make sure you
don't move the wireless speaker too far
behind the listening position or you will
lose much of the surround sound effect.
For a greater surround sound effect from
the wireless speaker, see "Setting the
Channel Levels" on page 65 to increase
the surround channel levels.
• As well as setting the wireless mode on the
speakers, you must also set the mode on
the main unit. See "Using the Wireless
Surround Speaker" on page 40 for more
on this.
Wall-mounting the Center and
Surround Speaker System
Before Mounting
• Remember that the speaker system is
heavy and that its weight could cause the
wood screws to work loose, or the wall
material to fail to support it, resulting in
the speaker falling. Make sure that the
wall you intend to mount the speakers on
is strong enough to support them. Do not
mount on plywood or soft surface walls.
• Mounting screws are not supplied. Use
screws that are suitable for the wall
material and that will support the weight
of the speaker.
Wireless speaker
Front R
Front L Sub-
woofer
Center
Transmitter
CHANNEL
to AC outlet

Making Connections
17
Notes:
• If you are unsure of the qualities and
strength of the walls, consult a
professional for advice.
• RadioShack is not responsible for any
accidents or damage that result from
improper installation.
Connecting the Surround Speakers
to the Wireless Speaker System
You can choose to connect your surround
speakers to the wireless speaker system to get
more enveloping surround sound from your
home theater setup.
1 Connect to the speaker terminals
on the rear of the speakers.
Match the colored wire with the color-coded
label (above the tabs), then insert the colored
wire into the red (+) tab and the other wire
with the black (–) tab.
2 Connect your left surround speaker
(blue) to the left SURROUND (LS)
terminal and the right surround
speaker (grey) to the right SURROUND
(RS) terminal of the wireless speaker.
Insert the colored wire into the red (+) tab
and the other wire with the black (–) tab.
3 Set to EXTERNAL SPEAKER to use
the external speakers.
No sound comes from the internal speakers.
If you use the speakers in this unit, set to
INTERNAL SPEAKER.
Notes:
• For best surround sound, make sure to
place the wireless speaker directly behind
the center of the listening position and no
higher than ear level. Also, make sure you
don't move the wireless speaker too far
behind the listening position or you will
lose much of the surround sound effect.
For a greater surround sound effect from
the wireless speaker, see "Setting the
Channel Levels" on page 65 to increase
the surround channel levels.
Wood screw
Protrusion: 5-7mm
5 mm
5 mm
10 mm
R
LS
L
RS
STEREO
SURROUND
SPEAKERS
Surround right
Surround left
Blue Grey
SPEAKER
SELECTOR
INTERNAL
SPEAKER
EXTERNAL
SPEAKER
Wireless speaker
Front R
Front L Sub-
woofer
Center
Transmitter
CHANNEL
Surround L Surround R
to AC outlet

Making Connections
18
Connecting to Your TV
This system has three different kinds of video
output that you can use to connect up your
TV. Check the available inputs on your TV to
see which you can use.
Note:
Do not connect a VCR between this system
and your TV as DVD playback will be
affected.
Use the supplied video cable to
connect the VIDEO OUT jack to a video
input on your TV.
Note:
Placing the system unit too close to your TV
may cause interference, especially if you’re
using an indoor antenna. If you notice
interference, move the system unit away from
the TV.
Connecting Using the S-video
Output
If your TV has an S-video input, you can use
this instead of the standard video output for
a better quality picture.
Use an S-video cable (not supplied) to
connect the S-VIDEO OUT to an S-video
input on your TV.
Line up the small triangle below the jack with
the same mark on the plug before plugging
in.
Note:
The S-video output is switchable between S1
and S2 formats for compatibility with all TVs.
See "S-Video Out" on page 69 for more on
this.
VIDEO
PRPBY
COMPONENT VIDEO OUT
CENTER
SUB
WOOFER
LR
FRONT
S-VIDEO
OUT
VIDEO
OUT
SPEAKERS
TV
VIDEO
INPUT
VIDEO
PRPBY
COMPONENT VIDEO OUT
CENTER
SUB
WOOFER
LR
FRONT
S-VIDEO
OUT
VIDEO
OUT
SPEAKERS
TV
S-VIDEO
INPUT

Making Connections
19
Connecting Using the Component
Video Output
If your TV has component video inputs, you
can use these instead of the standard video
output to connect this system to your TV.
This should give you the best quality picture
from the three types of video output
available.
Use a component video cable (not
supplied) to connect the COMPONENT
VIDEO OUT to a set of component
inputs on your TV.
Note:
The component video output is switchable
between interlaced and progressive formats.
See "Component Out" on page 68 for more
on this.
Listening to TV Audio Through This
System
You can connect the audio output of your TV
to this system so that broadcast TV sound is
played through this system.
Connect a stereo audio cable (not
supplied) from the audio outputs of
your TV to the TV IN jacks on this
system.
Note:
If you find that the TV audio is distorting
when played through this system, you can set
the input attenuator to reduce the input
signal level. See"Reducing the TV and Line
Signal Levels" on page 79.
VIDEO
PRPBY
COMPONENT VIDEO OUT
CENTER
SUB
WOOFER
LR
FRONT
S-VIDEO
OUT
VIDEO
OUT
SPEAKERS
TV
COMPONENT
INPUT
AUDIO
ANTENNA
AM LOOP
ANTENNA
FM
UNBAL
75
LINE 1
LINE 2
TV
OUT IN IN
L
R
L
R
COAXIAL IN
ELESS
L
TV
AUDIO
OUTPUT

Making Connections
20
Connecting the Supplied Antennas
The supplied antennas provide a simple way to listen to AM and FM radio. If you find that
reception quality is poor, an outdoor antenna should give you better sound quality—see
"Connecting External Antennas" on page 78 for more on how to do this.
Assembling the Loop Antenna
1 Bend the stand in the direction
indicated.
2 Clip the loop onto the stand.
AM Loop Antenna
1 Pull off the protective shields of
both AM antenna wires.
2 Press the antenna terminal tabs to
open and insert one wire into each
terminal.
3 Release the tabs to secure the AM
antenna wires.
4 Place the AM antenna on a flat
surface and point in the direction
giving the best reception.
Avoid placing near computers, television sets
or other electrical appliances and do not let it
come into contact with metal objects.
AUDIO
ANTENNA
AC IN
AM LOOP
ANTENNA
FM
UNBAL
75
LINE 1
LINE 2
TV
OUT IN IN
L
R
L
R
AL IN
AM loop antenna
FM wire antenna
