RealFlame C11800LP User manual

C11800LP Board Form Fire Table NG Conversion Kit
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
!
!
IMPORTANT
WARNING
SAVE THESE INSTRUCTIONS
!DANGER
If you smell gas:
1. Shut o gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
USC
For Technical Support Please Contact Real Flame® At: 1-800-654-1704

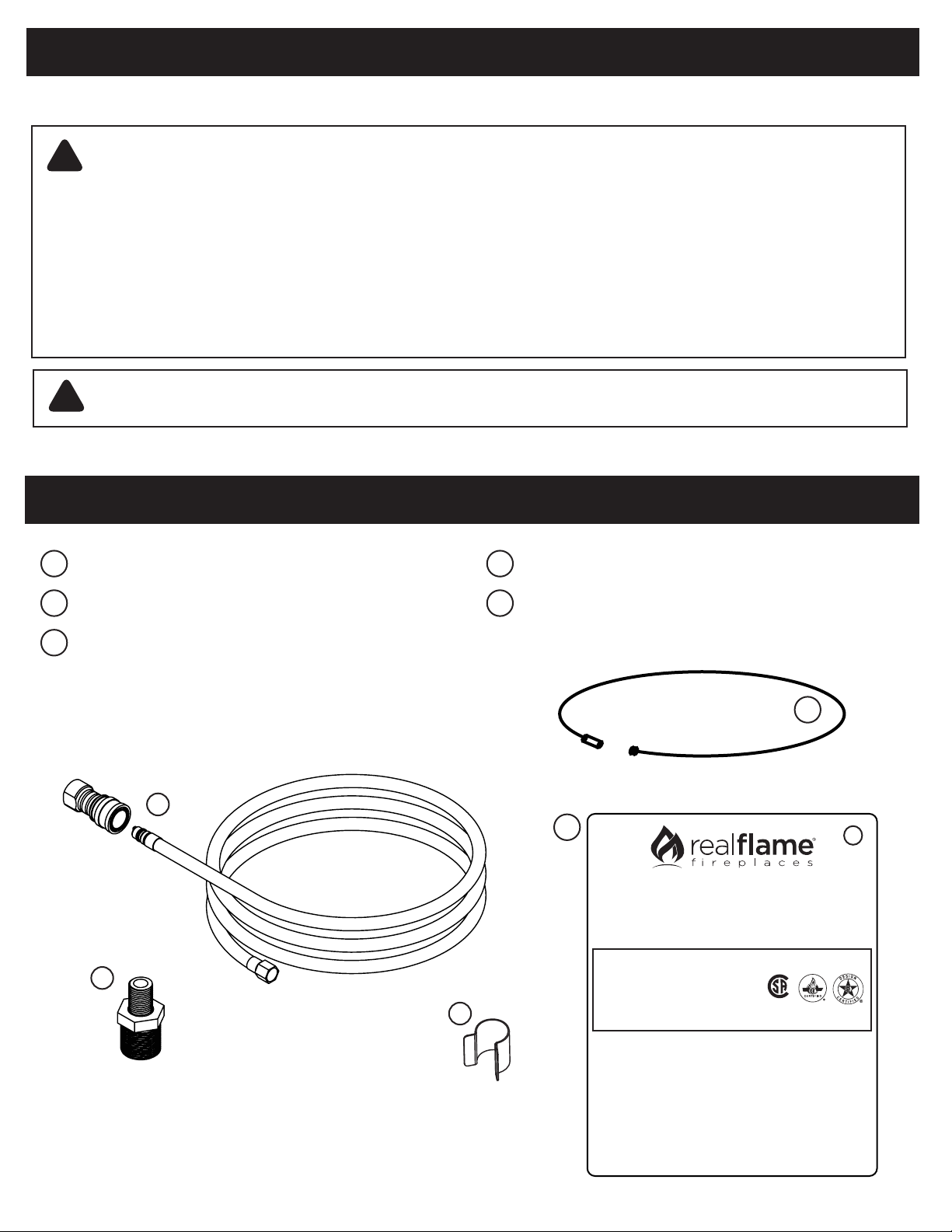

PARTS LIST 00023109S
1
2
3
NATURAL GAS CONVERSION KIT
NOTE
This conversion kit is for changing a Liquefied Petroleum (LP) fire table into a Natural Gas
fire table.
!
This conversion kit shall be installed by a qualified service agency in accordance with
Real Flame’s instructions and all applicable codes and requirements of the Authority
Having Jurisdiction. If the information in these instructions is not followed exactly, a fire,
explosion or production of carbon monoxide may result causing property damage,
personal injury or loss of life. The qualified service agency is responsible for the proper
installation of this kit. The installation is not proper and complete until the operation of
the converted appliance is checked as specified in the manufacturer’s instructions
supplied with this kit.
WARNING
!
Natural Gas Hose and Quick Disconnect
NG Orifice Spud - 4.05mm
Primary Air Mixer Sleeve
4
4
5
Conversion Plaque
Cable Kit
5
1
3
1
2
Conversion for Model Numbers
C11800LP, C11801LP, C11810LP, C11811LP,
C11812LP, C11813LP
Type of Gas / Type de gaz: NG/Natural Gas
Normal Hourly Input/Entrée horaire normal:
65,000 BTU/Hr. (19.05 kW)
Manifold Pressure/Pression d'admission:
7.0” water column (1.74 kPa)
The minimum inlet pressure for this fire table is:
3.5” water column (0.87 kPa)
The maximum inlet pressure for this fire table is:
10.5” water column (2.61 kPa)
®
USC
This appliance was converted on _________________
(DD/MM/YY)
to Natural Gas with Kit No._______________________
(Found on Box)
by___________________________________________,
(Name and address of organization making this conversion)
which accepts the responsibility that this conversion has
been properly made.
After converting this fire table, this plaque must be hung from the
center of the control panel with the provided cable.
Après avoir transformé cette table à feu, cette plaque doit être
suspendue au centre du panneau de commande avec le câble fourni.
This fire table has been converted to use Natural Gas.
Cette table a été convertie en gaz naturel.
For technical support call: 1-800-654-1704
Cet appareil a été converti le
qui accepte la responsabilité que cette conversion a été faite correctement.
en gaz naturel avec le kit no.
par
NG Orifice 4.05 mm

NATURAL GAS CONVERSION
2
1.) Flip unit upside down. Place on a soft surface to avoid damaging
the finish.
2.) Disconnect LP hose from the valve.

NATURAL GAS CONVERSION
3
3.) Disconnect bellows (Corrugated Stainless Steel Tube/CSST) from
burner base.

4
NATURAL GAS CONVERSION
4.) Remove the existing LP orifice spud.
LP Orifice Spud

5
NATURAL GAS CONVERSION
5.) Locate the new NG orifice spud, verify it is the correct size.
4.05mm should be on the end of the orifice spud.
6.) Slip sleeve over primary air opening. See fig. 1
Next, screw the new NG orifice spud into the burner base. See fig. 2
NG Orifice
Spud
4.05mm
Sleeve
Primary Air
Opening
1
2

6
NATURAL GAS CONVERSION
7.) Re-attach bellows (CSST) to new spud.
8.) Attach NG hose to the input side of the valve.
Bellows

7

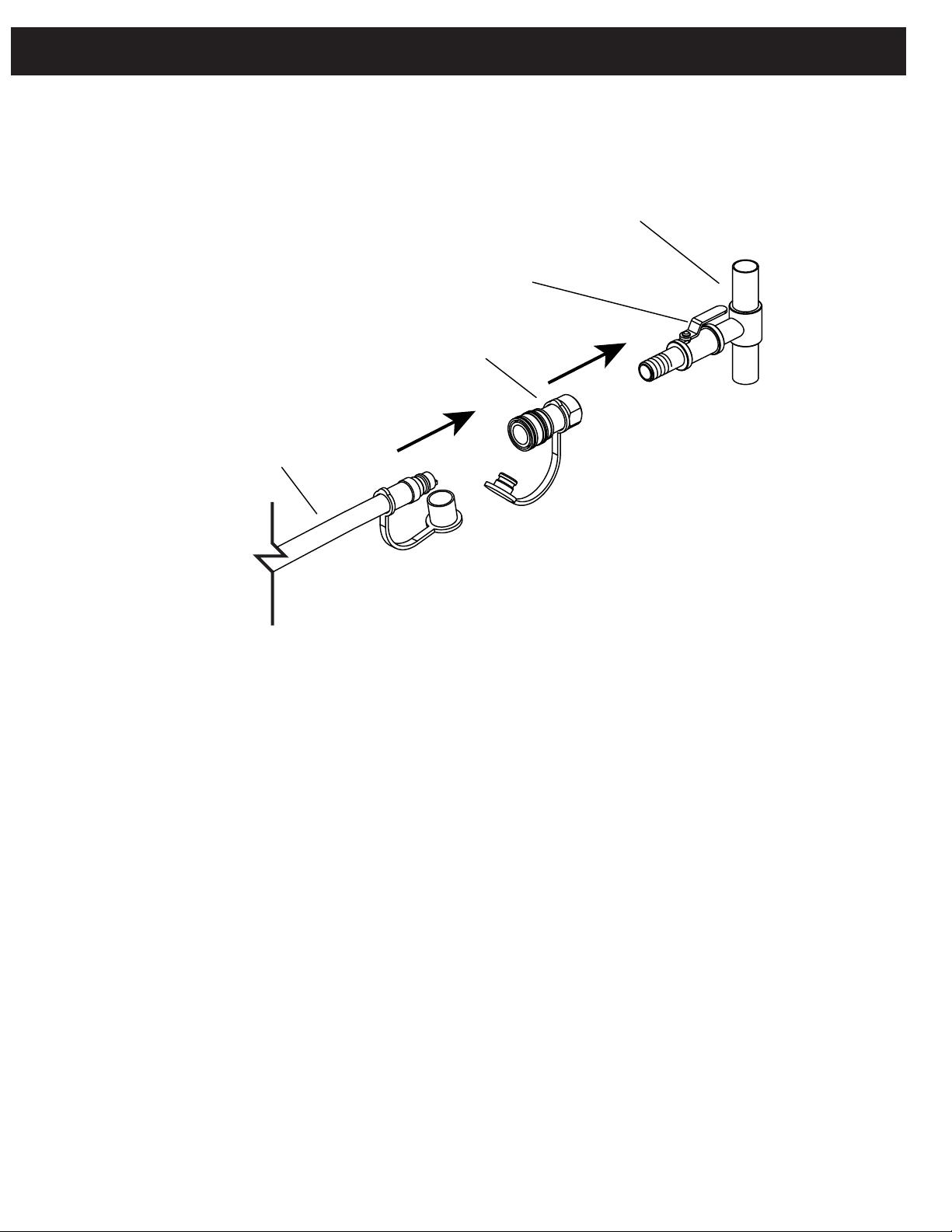

9.) Attach quick disconnect to gas supply.
NATURAL GAS CONVERSION
House Natural Gas Piping
Shut-o Valve
Quick Disconnect Socket
NG Gas Hose
To Fire Table

10.) After installing the conversion kit, verify the location of the
Thermocouple and Igniter Pin using the illustration below.
Installing at Altitude
For installations at elevations above 2000 ft. contact your local dealer or gas
supplier before installing as input rating should be reduced approximately 4%
for each 1000 ft. above sea level. Refer to the National Fuel Gas Code.
Contact the Real Flame for more information at 1-800-654-1704
11.) Note to installation technicians. Verify the manifold pressure by using a
3/8” flared T-junction at the location marked by the arrow below. Then using
a digital manometer verify that the pressure before the orifice is 7” W.C. Also
verify that the orifice spud has 4.05mm marked. This will allow you to verify
that the input rating of the appliance is correct.
NATURAL GAS CONVERSION
8
To Manometer
Igniter Pin
NOTE: Igniter housing removed for example only.
Thermocouple
.25”

13.) Cut the existing French Plaque o of the control panel using wire cutters. Re-attach
French plaque and NG conversion plaque included with this kit to the fire table using
the included cable kit.
Cut Cable Re-attach both plaques
NOTE: The proper manifold pressure for this converted appliance is 7” water column.
NOTE: The maximum inlet gas pressure for this unit is 10.5 in wc (2.61 kPa)
The minimum inlet gas pressure for this unit is 3.5 in wc (0.87 kPa)
NATURAL GAS CONVERSION
WARNING Before using this outdoor fire table, make sure you have read, understand and
are following all information provided in the important Safety Information section of this
manual. Failure to follow those instructions can cause death, serious injury or property damage.
!
Check for leaks at these locations
12. CHECKING FOR LEAKS
Make a leak check solution by mixing 1 part dishwashing soap
with 3 parts water in a spray bottle.
Make sure the control knob is“OFF.”Then, turn the Natural Gas on
at its source.
Spray leak solution on the valve connections, paying particular
attention to the areas indicated by the arrows.
If any bubbles appear turn the Natural Gas o at its source, recon-
nect and re-test. If you continue to see bubbles after several
attempts, disconnect the Natural Gas Source and Contact Real
Flame® at 1-800-654-1704 for assistance.
If no bubbles appear after one minute turn the gas
source “OFF”, wipe away solution and proceed.
9
French
French
NG
Conv.

14.) Lighting
Lighting Instructions
LIGHT
LOW
Control Knob
PUSH
IN
10
1. Read and understand all operating instructions before lighting.
2. Burner control knob must be in the OFF position.
When using this method to light yourfire table use heat resistant gloves and follow the step
by step instructions. Failure to do so could result in severe injury.
If burner flame goes out during operation, immediately turn the control knob OFF and let the
gas clear a minimum of 5 minutes before attempting to re-light the fire table.
Using the Igniter
!
!WARNING
WARNING
Using a Long Match or Lighter
8-13”
20.3 - 30.5 cm
3. Ensure that gas supply is connected and open
4. Push and hold igniter button to create sparks.
5. While holding the igniter button with one hand, use your other
hand to push and turn the control knob to the LIGHT position
to light the burner.
6. Keep Burner Control Knob pressed in for 15-30 seconds
after ignition.
7. If ignition does not occur in 30 seconds, turn control knob to
the OFF position and turn gas o at the source, wait 5
minutes until gas has cleared and repeat lighting procedure.
8. After lighting, rotate the Burner Control Knob counter
clockwise to LOW setting. Observe flame, make sure all
burner ports are lit.
9. Adjust the flame to the desired height with the
control knob. Flames should be between 8-13” in height.
1. Wearing heat resistant gloves, position the burning
long match or burning butane lighter near the side of
the burner. DO NOT lean over the fire table while
lighting.
2. Turn control knob counterclockwise to LIGHT.
3. Remove long match/long butane lighter.
4. After lighting, rotate the Burner Control Knob counter
clockwise to LOW setting. Observe flame, make sure
all burner ports are lit.
5. Adjust the flame to the desired height with the
control knob.

NOTES AND TECHNICAL SUPPORT
Type of Gas / Type de gaz: NG/Natural Gas
Normal Hourly Input/Entrée horaire normal:
65,000 BTU/Hr. (19.04 kW)
Manifold Pressure/Pression d'admission:
7.0” water column (1.74 kPa)
The minimum inlet pressure for this fire table is:
3.5” water column (0.87 kPa)
The maximum inlet pressure for this fire table is:
10.5” water column (2.61 kPa)
®
USC
This appliance was converted on _________________
(DD/MM/YY)
to Natural Gas with Kit No._______________________
(Found on Box)
by___________________________________________,
(Name and address of organization making this conversion)
which accepts the responsibility that this conversion has
been properly made.
For additional technical support call: 1-800-654-1704
Cet appareil a été converti le
en gaz naturel avec le kit no.
par
NOTES: ______________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
11

l’information fournie dans ce
manuel n’est pas suivi à la lettre,
un incendie ou une explosion
entr nant des dommages
corporels ou laperte devie.
Une mauvaiseinstallation,
d’ajustement, modification,
service ou d’entretien peut
causer des blessures ou des
dommages matériels.
Lisez l’installation, l’opération et
des instructions de maintien à
fond avant stallation ou
entretien de cet équipement.
!
!
IMPORTANT
!DANGER
immédiatement votre fournisseur de gaz ou le service des incendies.
C SU
our le support technique veuillez contacter ame à
AVERTISSEMENT
CONSERVEZ CES INSTRUCTIONS
Kit de conversion NG de C11800LP Board Form Table d’incendie

LISTE DES PIECES 00023109S
1
2
3
KIT DE CONVERSION DU GAZ NATUREL
NOTE
Ce kit de conversion est pour changer un table de feu de Pétrole Liquéfié (LP) dans une
table de feu de Gaz naturel.
!
Ce kit de conversion doit être installé par un service d’entretien qualifié conformément
aux instructions du Real Flame et tous les codes applicables et les exigences de
l’autorité ayant la Juridiction. Si l’information dans ces instructions n’est pas suivi
exactement, un incendie, une explosion ou la production de monoxyde de carbone peut
causer des dommages matériels, des blessures corporelles ou la pertes de vie. Le
service d’entretien qualifié est responsable de l’installation appropriée de ce kit.
L’installation n’est pas bon et complet jusqu’à la fonctionnement de l’appareil converti
est contrôlé comme spécifié dans les instructions du fabricant fournies avec ce kit.
Tuyau de gaz naturel et déconnexion rapide
Patate d’orifice NG - 4.05mm
Gaine de mixage d’air principal
4
4
5
Plaque de Conversion
Kit de câble
5
!
AVERTISSEMENT
1
3
1
2
Conversion for Model Numbers
C11800LP, C11801LP, C11810LP, C11811LP,
C11812LP, C11813LP
Type of Gas / Type de gaz: NG/Natural Gas
Normal Hourly Input/Entrée horaire normal:
65,000 BTU/Hr. (19.05 kW)
Manifold Pressure/Pression d'admission:
7.0” water column (1.74 kPa)
The minimum inlet pressure for this fire table is:
3.5” water column (0.87 kPa)
The maximum inlet pressure for this fire table is:
10.5” water column (2.61 kPa)
®
USC
This appliance was converted on _________________
(DD/MM/YY)
to Natural Gas with Kit No._______________________
(Found on Box)
by___________________________________________,
(Name and address of organization making this conversion)
which accepts the responsibility that this conversion has
been properly made.
After converting this fire table, this plaque must be hung from the
center of the control panel with the provided cable.
Après avoir transformé cette table à feu, cette plaque doit être
suspendue au centre du panneau de commande avec le câble fourni.
This fire table has been converted to use Natural Gas.
Cette table a été convertie en gaz naturel.
For technical support call: 1-800-654-1704
Cet appareil a été converti le
qui accepte la responsabilité que cette conversion a été faite correctement.
en gaz naturel avec le kit no.
par
NG Orifice 4.05 mm

CONVERSION DU GAZ NATUREL
2
2.)
Retournez la bol de feu sur son côté. Placez sur une surface souple pour
éviter d’endommager la finition.
1.)
Débranchez le tuyau LP de la valve.

CONVERSION DU GAZ NATUREL
3
3.) Débrancher le souet (Tubes en acier inoxydable ondulé/CSST)
de la base de brûleur.

4
CONVERSION DU GAZ NATUREL
4.)
Orifice de patate LP

5
CONVERSION DU GAZ NATUREL
5.)
numéro. Le numéro 4.05mm devrait être sur l’extrémité d’orifice de patate.
6.) issez le gaine sur l’ouverture aérienne princiir fig.
Ensuite, vissez la nouvelle patate d ifice N ans la base de brûleur.
ir fig.
Gaine
Patate
d’orifice LP
4.05mm
L’ouverture
d’air principal
1
2

6
CONVERSION DU GAZ NATUREL
7.) Rattachez les souets (CSST) à la nouvelle patate.
Souets
8.)

7
9.)
CONVERSION DU GAZ NATUREL
Tuyauterie de Gaz naturel de Maison
Soupape d'arrêt
Prise de déconnexion rapide
Tuyau de Gaz NG
Au Table de Feu
