RealFlame Elegance Series Installation instructions

ELEGANCE®
DECORATIVE FIREBOX
INSTALLATION & OPERATING MANUAL
Elegance fire boxes are approved to be installed as a zero clearance firebox
and are designed to operate on Natural Gas and ULPG gases ONLY.
Approval Number: GMK10099
Installed primarily as a decorative appliance. Not certified as a Space Heater.
VERSION 10

2
WARRANTY INFORMATION
The benefits provided to you under the following warranty are in addition to any other rights and remedies available to
you under the law.
1. Warranty
If:
(a) during the first 15 years from the date of purchase (Firebox Warranty Period), there is a defect in the firebox of the
Gas Burner; or
(b) during the first 2 years from the date of purchase (Parts Warranty Period), there is a defect in the gas valves or
other parts of the Gas Burner,
due to improper workmanship or material, Glen Dimplex will replace or repair the Gas Burner without charge. Any
replacement product is warranted only for the time remaining on the original Firebox Warranty Period or the Parts
Warranty Period as relevant.
2. Registration
You must register to receive the benefit of this warranty by completing the warranty registration on our website
(www.realflame.com.au) or completing and mailing the attached registration card within 30 days of purchase of
your Gas Burner (or, if the Gas Burner is fitted to a new home, within 30 days of the date of settlement of purchase
of such new home).
3. Exclusions
Glen Dimplex is not obliged to replace or repair the Gas Burner under clause 1 if:
(a) it has been improperly stored, installed, connected, used, operated or repaired, or damaged, abused, tampered
with, altered (without our written approval), or not maintained in strict accordance with our installation and
operating instructions; or
(b) it has been installed in an outdoor setting.
4. Limit of Liability
The warranty provided under this warranty is limited to replacement or repair of the Gas Burner only, at our option.
To the extent permitted by law, Glen Dimplex excludes liability for consequential loss or any other loss or damage
caused to property or persons arising from any cause whatsoever, and damage arising from normal wear and tear.
5. Claiming under the Warranty
In order to claim under this warranty you must, within the Firebox Warranty Period or the Parts Warranty Period
(as relevant), contact Glen Dimplex, providing the original proof of purchase and the details below:
Supplier Name___________________________________________________________________________
Date Of Purchase / settlement of property if new home _________________
Model / Serial Number_______________________
This warranty does not cover the cost of claiming under the warranty or transporting the Gas Burner to and from the
supplier.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
If you would like to speak to someone about your Gas Burner or claiming under this warranty, please contact the
Service Warranty Desk on 1300 554 155.
Glen Dimplex Australia Pty Ltd ACN 69 118 275 460
ead Office: 1340 Ferntree Gully Road, Scoresby 3179
Telephone: [phone] Facsimile: [phone]

INSTALLATION NOTICE
The installation of this appliance is only to be carried out by an authorised person in accordance with
the Manufacturer’s Instructions, local gas fitting regulations, AS/NZS 5601.1-2013 installation code for
gas burning appliances and any other relevant statutory regulations.
In all cases the installation of this appliance shall meet the requirements as set out in AS/NZS 5601.1-2013.
NOTE: A slight smell may be apparent for the first few hours of use. This is due to the heat resistant
paint curing. It is recommended to open windows in the room for the first lighting of the fire. In some
instances a slight discolouration may occur inside the firebox. This is a normal condition and is not
covered by warranty.
WARNING
This firebox has a naked flame, care should be taken when it is operating if children or the infirm are in
close proximity. A safety screen is recommended if constant supervision is not possible. It is recommended
that a secondary guard complying with AS-NZS2286 be installed.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilitites, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
IMPORTANT SAFETY NOTICES
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIAL NEAR THE APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN OPERATION.
CARE MUST BE TAKEN TO ENSURE THAT ANY RETURN AIR REGISTER OR EXHAUST SYSTEM
DOES NOT ADVERSLEY AFFECT THE OPERATION OF THE APPLIANCE OR DRAUGHT OF
CHIMNEY OR FLUE.
DO NOT MODIFY THIS APPLIANCE.
THIS APPLIANCE IS DESIGNED TO OPERATE WITH LUMINOUS FLAMES. THIS MAY EXHIBIT
SLIGHT CARBON DEPOSITS.
VENTILATION REQUIREMENTS
MODEL SIZE EFFECTIVE VENTILATION
ELEGANCE 1000 50,000mm2
ELEGANCE 1500 72,000mm2
ELEGANCE 1800 72,000mm2
ELEGANCE 3300L 72,000mm2
ELEGANCE 3300R 72,000mm2
3
NOT INTENDED AS A FIREPLACE INSERT.
SERVICING
It is recommended you service your gas fire every 2 years as a minimum.

CONTENTS
Contents .................................................................................................................4
Data Plate ...............................................................................................................5
Zero Clearance Modular Installation & Dimensions................................................6
Dimensions Elegance 1000 ....................................................................................7
Dimensions Elegance 1500 ....................................................................................8
Dimensions Elegance 1800 ....................................................................................9
Dimensions Elegance 3300 ..................................................................................10
Zero Clearance Modular Installation
Timber Frame Installation ......................................................................11
Installation Check List............................................................................12
Lighting/Testing and Failure Procedure ................................................................13

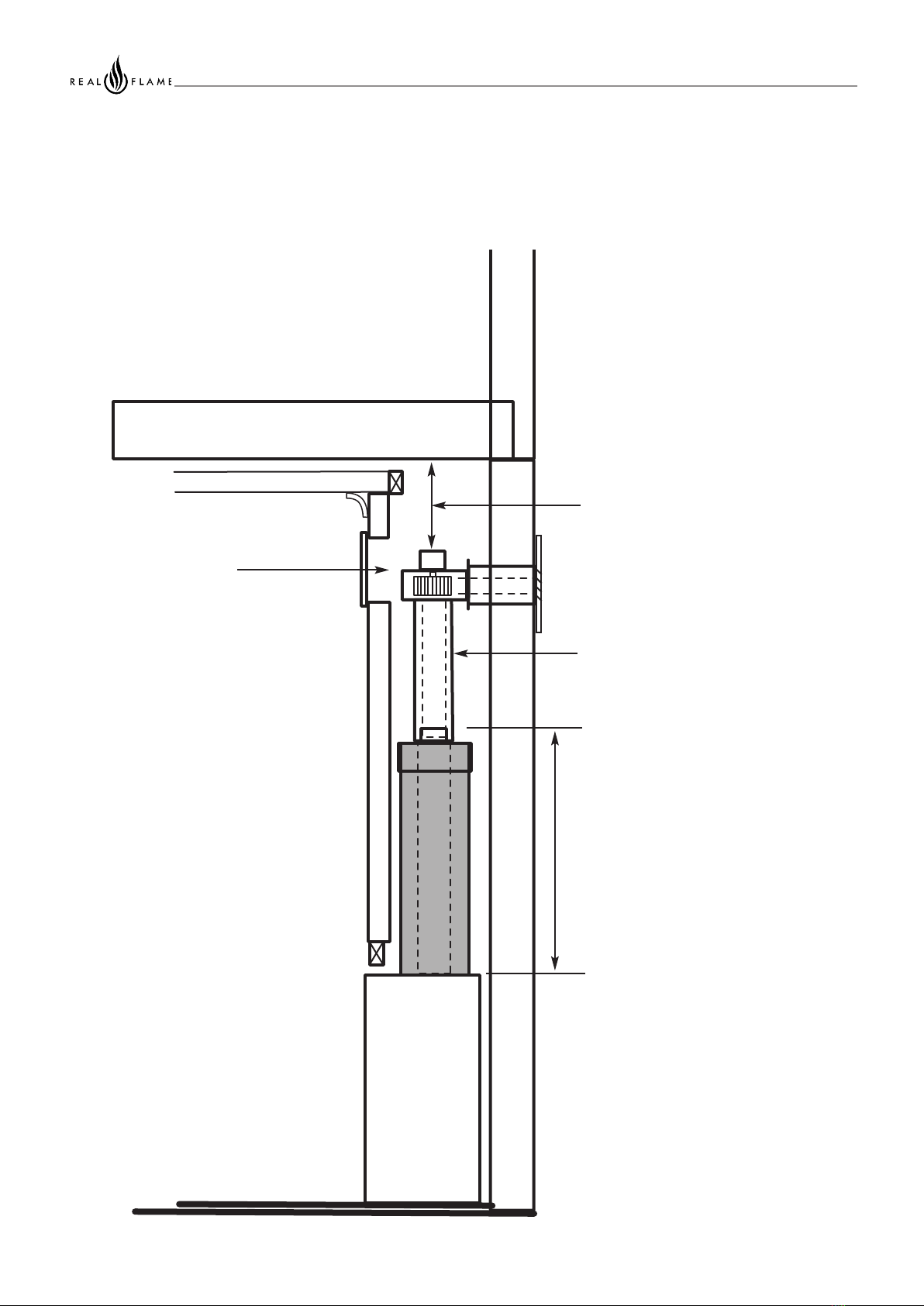

Flue Requirements (Standard) .............................................................................14
Flue Requirements (Power Flue Kit).....................................................................15
Optional Power Flue .............................................................................................16
Introduction............................................................................................16
Installation .............................................................................................16
Commissioning......................................................................................19
Motor Clearance....................................................................................20
Frameout ...............................................................................................21
Motor .....................................................................................................21
Internal Motor ........................................................................................22
External Motor .......................................................................................22
Dimensions............................................................................................23
Troubleshooting Electronic Ignition and Power Flue System ................25
Wiring Diagram......................................................................................27
Parts ...............................................................................................................28
Trims ...............................................................................................................29
Glen Dimplex contact information.........................................................................32
4

DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption)
5
Elegance 1000 & Elegance Signature 1000
Fitted with Magiglo 750 or 750EI burner
Gas Injector Size (mm) TPP N.G.C. (Mj/ r)
Natural Gas 3 x 1.90 0.75 kPa 39
ULPG 3 x 0.95 2.55 kPa 34
Elegance 1500 & Elegance Signature 1500
Fitted with 1000 or 1000EI burner
Gas Injector Size (mm) TPP N.G.C. (Mj/ r)
Natural Gas 3 x 2.25 0.75 kPa 49
ULPG 3 x 1.12 2.60 kPa 49
Fitted with 1200 burner
Gas Injector Size (mm) TPP N.G.C. (Mj/ r)
Natural Gas 4 x 2.20 0.80 kPa 55
ULPG 4 x 0.95 2.55 kPa 48
Elegance 1800 & Elegance Signature 1800
Fitted with 1400 or 1400EI burner
Gas Injector Size (mm) TPP N.G.C. (Mj/ r)
Natural Gas 4 x 2.25 0.85 kPa 60
ULPG 4 x 0.95 2.55 kPa 48
Elegance 3300L & Elegance 3300R, Elegance signature 3300L & Elegance signature 3300R
Fitted with 1400EI burner
Gas Injector Size (mm) TPP N.G.C. (Mj/ r)
Natural Gas 4 x 2.25 0.85 kPa 60
ULPG 4 x 0.95 2.55 kPa 48

ZERO CLEARANCE MODULAR INSTALLATION
• The Firebox is designed to be installed into a new frame out as shown on page 11.
• The fire can be installed at ground level or raised to what ever height is required providing
the flue length is 2.7 meters or more.
• The firebox can sit directly onto a wooden surface.
• The Firebox requires twin skin flue with an AGA approved cowl (or optional Power Flue –
refer pages 15 to 27)
• The control valve on the Firebox is an electronic ignition system and as such, electrical work
is required.

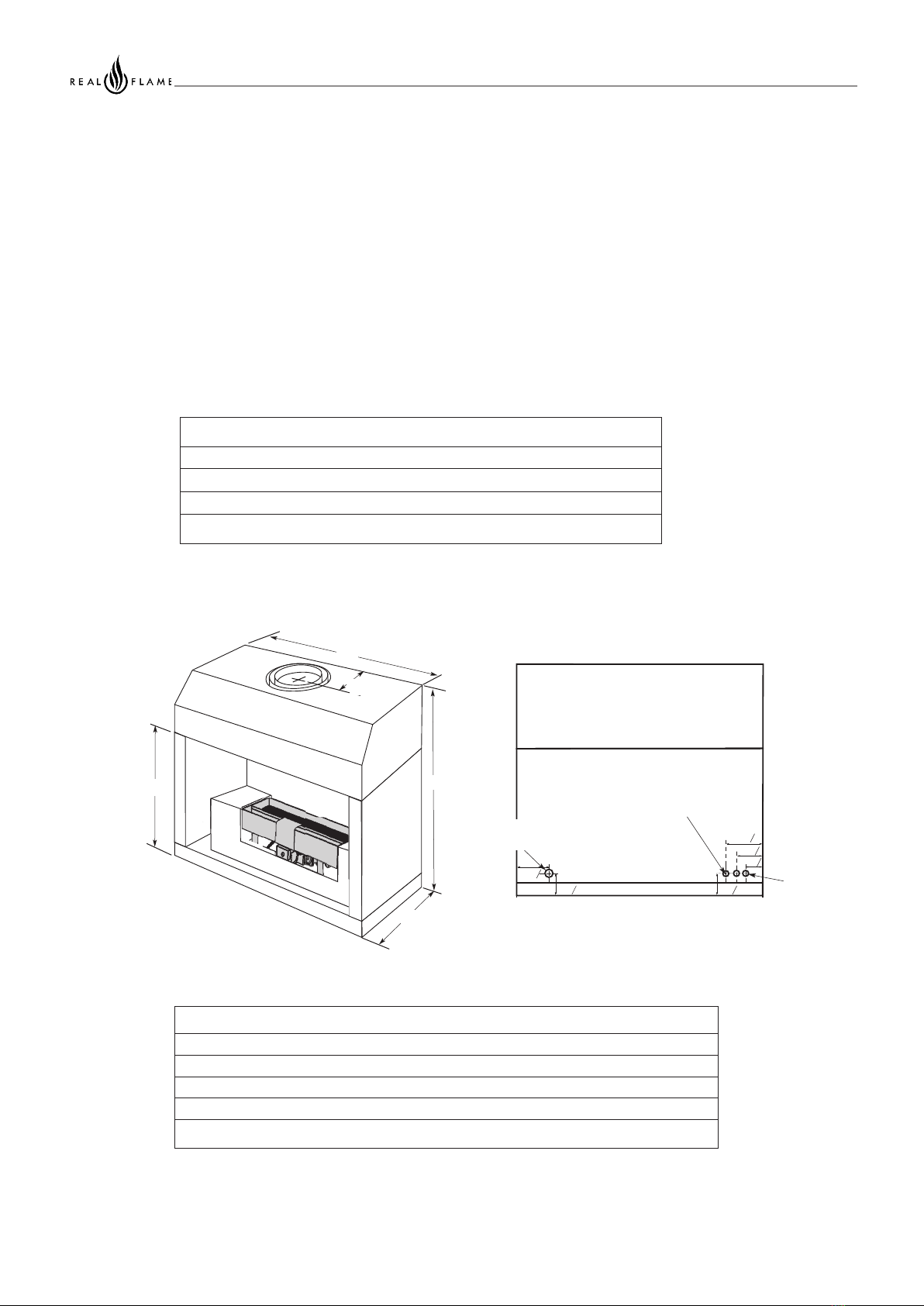

Overall Dimensions (in mm)
MODEL Size Inner Outer
ELEGANCE 1000 250 300
ELEGANCE 1500 300 350
ELEGANCE 1800 300 350
ELEGANCE 3300L / 3000R 300 x 2 350 x 2
POWER FLUE (optional) Refer pages 15-27
Flue Sizes (in mm)
MODEL ABCD E
1000 920 1100 450 570 155
1500 1000 1600 450 500 190
1800 1140 1900 450 500 190
3300 L&R Assembled 1135 3400 450 500 190
D
B
E
A
C
12mm Gas Line
Inlet Point
Connection to Power Flue
or electronic ignition
(Optional)
125c
90c Power Lead
(Optional)
REAR OF FIREBOX
130c
100c
70c
90c
6

7
FRONT - 3 SIDEDFRONT - 4 SIDED
B
A
D
C
E

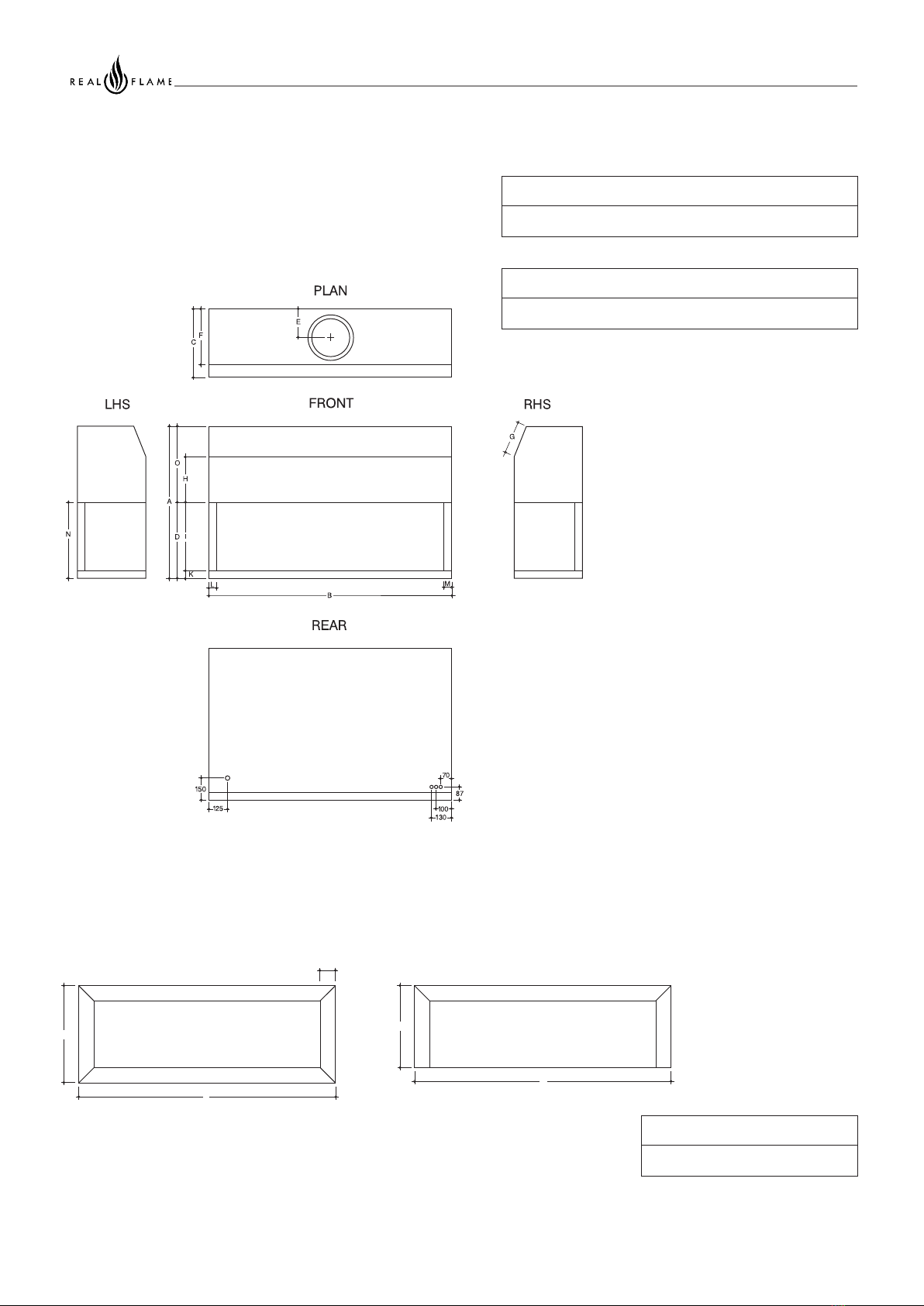

DIMENSIONS
Elegance 1000
Elegance 1000 Trim
ABCDE
1193 713 1193 613 100
ABCDEF G
920 1100 450 570 165 335 230 150
IJKLMNO
520 - 50 50 50 520 350

8
FRONT - 3 SIDEDFRONT - 4 SIDED E
B
A
D
C
DIMENSIONS
Elegance 1500
Elegance 1500 Trim
ABCDEF G
1000 1600 450 500 190 370 215 300
IJKLMNO
450 - 50 50 50 450 500
ABCDE
1690 640 1690 540 100

9
FRONT - 3 SIDEDFRONT - 4 SIDED E
B
A
D
C
DIMENSIONS
Elegance 1800
Elegance 1800 Trim
ABCDEF G
1135 1900 450 500 190 370 215 435
IJKLMNO
450 - 50 50 50 450 635
ABCDE
1990 640 1990 540 100

10
DIMENSIONS
Elegance 3300
ABCDEF G
1135 3400 450 500 190 370 215 435
IJKLMNO
330 - 50 50 50 450 635

Timber Frame Installation
ZERO CLEARANCE MODULAR INSTALLATION
IMPORTANT
Install unit and
luing be ore
plasterboard.
A
B
C
D
(Recommended only)
HEATER
TRIM
Floor 0 mm
Sides 25 mm
Top 100 mm
Flue Outer 25 mm
CLEARANCES FROM
COMBUSTIBLES
NOTE: All Modular fires and
flue kits are to be installed
PRIOR to plasterboard.
Plasterboard is to be run past
stud frame and up to fire
opening either terminating in
square edge, or for Elegance
a 3 or 4 sided trim finish.
MODEL AB C D
ELEGANCE 1000 1020 1150 475 2100
ELEGANCE 1500 1100 1650 475 2100
ELEGANCE 1800 1235 1950 475 3000
ELEGANCE 3300L&R Assembled 1235 3450 475 3600
Frameout Dimensions (in mm)
Plaster to run
beyond stud and
behind trim
11

Installation Procedure
Check frame out has been constructed correctly and has not been plastered.
Check frame out and structure above is clear of any structures that may impede the flue run. If the
flue needs to be off set with 45 deg bends, the offset length can be no more than 20% of the total
flue run. It is recommended that after the last bend at least two full lengths of flue are added in the
vertical.
Ensure an adequately sized gas connection is available within the frame out, a 15mm gas copper
pipe is to be provided into the firebox. An access hole is provided in the back of the firebox.
A 500mm tail is required into the firebox to allow for connection to the burner.
Position the unit ensuring the wiring loom and gas pipe are accessible.

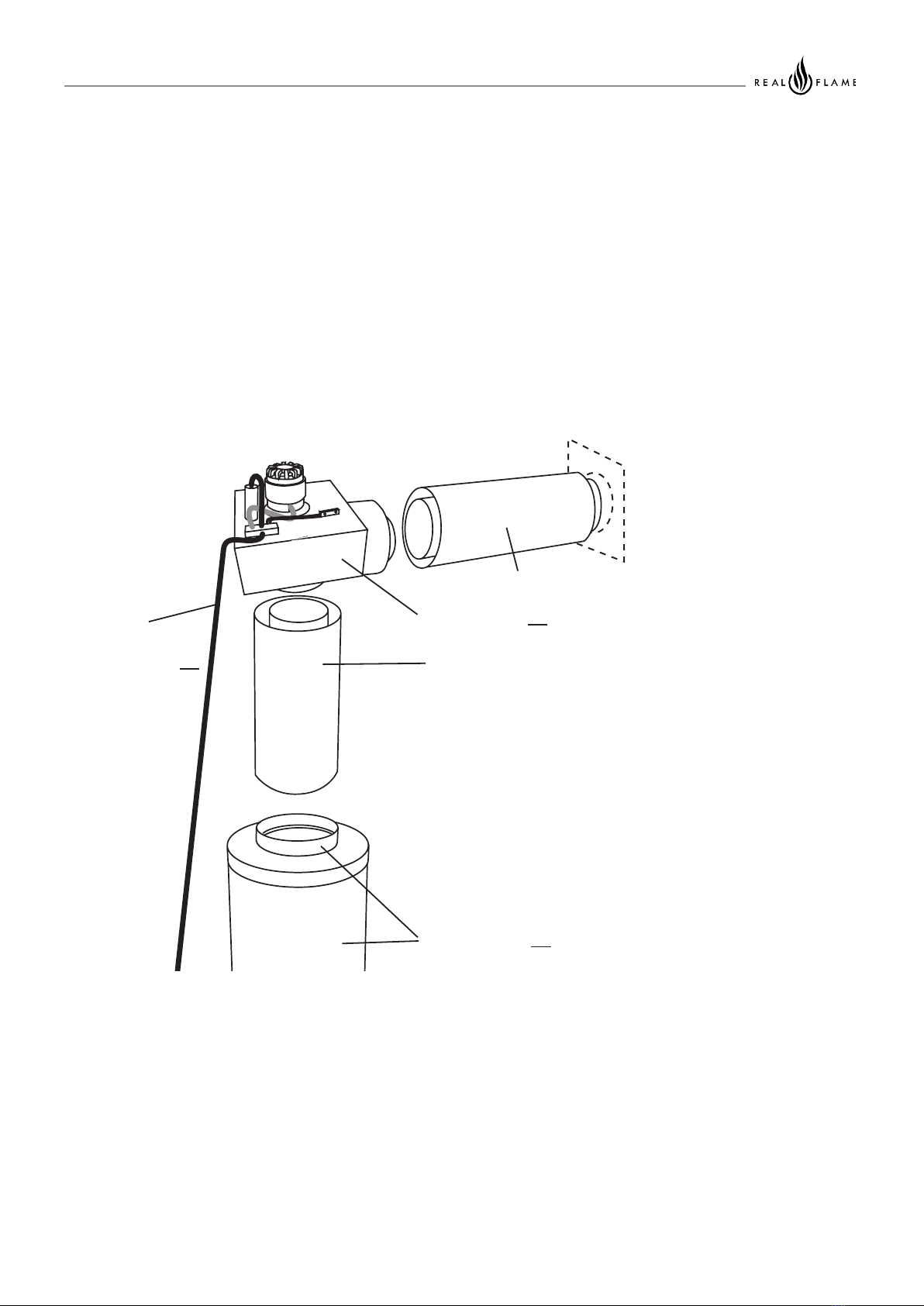

Connect the twin skin flue (or Optional Power Flue if supplied).
Install an AGA approved gas cowl ensuring the termination meets all relevant code requirements.
Connect the gas line to the burner connection using the 15mm flared copper union (supplied).
Connect the wiring terminals to the ignition pack as shown below.
Note: Do not locate the switch further than 6 meters from the firebox.
Place the burner surround or optional front or marble base over the burner.
Place the coals or optional pebbles randomly on the ceramic blanket. If coals and logs option is
supplied, place logs on top of coals randomly.
IMPORTANT! Only ceramics supplied by Glen Dimplex are to be used.

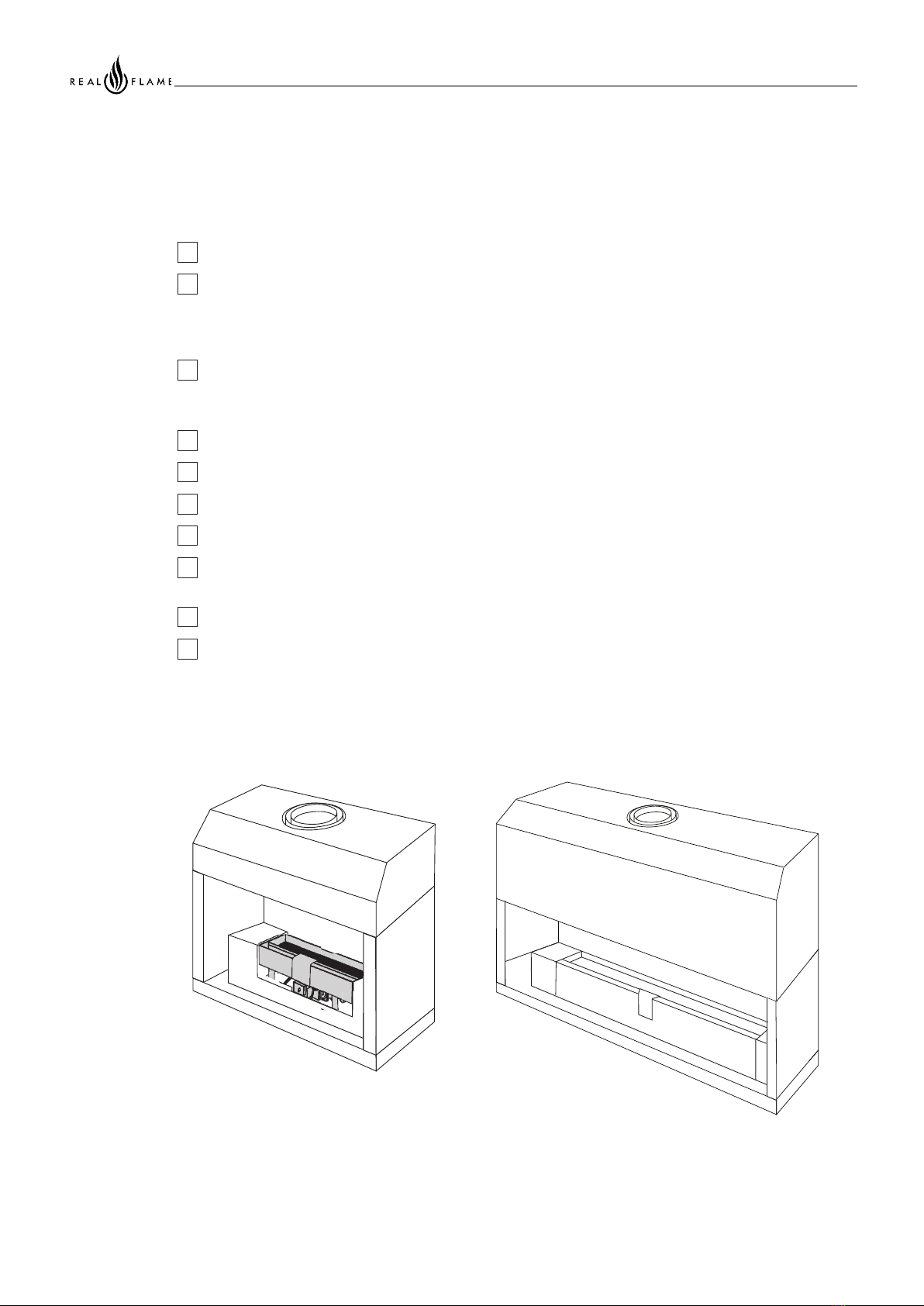

TICK BOXES
ZERO CLEARANCE MODULAR INSTALLATION
12

FOR YOUR SAFETY READ BEFORE LIGHTING
Before igniting the fire, check for gas leaks.
Use only the ignition components supplied.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and replace any part of the control system and any gas control
that has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information before proceeding.
2. Turn on the remote wall switch.
• If the fire will not stay lit after several tries turn the switch to “OFF” and call your service
technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1. Turn off the remote wall switch.
LIGHTING MAIN BURNER
TESTS TO BE CARRIED OUT BY INSTALLER
1. Carry out a smoke test to ensure the fireplace is drawing.
2. Test that the Test Point Pressures are correctly set.
3. Check that there are no gas leaks form any of the fittings.
4. Explain to the customer how the unit operates and how to turn it on and off.
FAILURE PROCEDURE
1. Ensure that the wiring terminals are not loose.
2. Test that the inlet and working pressures are both correct.
If when the wall switch is turned to the “ON” position and the fire fails to ignite, check the
following:
13

FLUE REQUIREMENTS
Natural Draught
The standard natural draught flue kit consists of 4 x 900mm lengths of twin skin flue (refer to
page 5 for correct sizing) and an AGA approved cowl.
3.6m Flue Kit
complete with cowl
These notes must be read in conjunction with AGA code 601.
Floor 0 mm
Sides 25 mm
Back 25 mm
Top 100 mm
Flue Outer 25 mm
CLEARANCES
A minimum of
3.6m flue is
required to
protrude
500mm above
roof line.
500mm Min.
3.6m Min.
Flue can be
offset with two
45° bends no
more than 20%
of overall height
of flue.
500mm
200mm
2 lengths
above
last bend
Max. 20% of
total flue run
200mm
Min. 3.6m
twin skin
flued
Firebox
14

Power Flue Kit (Optional – re er to pages 15 to 27 or details)
The standard Power Flue Kit consists of ;
• 1 x Power Flue Fan
•1 x Power Flue Motor
• 1 x Control Module
• 1 x Electronic Ignition Pack
• 1 x Baffle
• 1 x Pressure Differential Switch
• 1 x Loom
• 1 x Termination Cowl (horizontal or vertical)
FLUE REQUIREMENTS

Electrical
Wiring
between
Fan / Unit / Kit
Fan Casing / Kit
Twin Skin Flue 150mm /200mm
Optional for additional height if required
Baffled Flue / Kit
Twin Skin Flue 150mm/200mm or 200mm/250mm
or 200mm/250mm
15

INTRODUCTION - THE POWER FLUE SYSTEM
INSTALLATION INSTRUCTIONS
POWER FLUE DESIGN
A ‘flue’ using a fan to remove or assist in removing combustion products from an appliance, is
known as a ‘power flue’.
A power flue application can be used to enable a client to have a decorative fire with a horizontal
flue run or a vertical flue run where flue space is inadequate for the normal flue.
W ERE FITTED A POWERFLUE SYSTEM MUST BE DESIGNED AND INSTALLED TO MEET
GAS INSTALLATION CODES AS5601.1.2013 CLAUSE 2 - POWER FLUE DESIGN.
Where the powerflue option described in this manual is installed, it represents a Power Flue
installed in accordance with AS/NZS 5601.1 Paragraph 2. The powerflue system when installed
to the instructions is designed to comply with the requirements of AS/NZS5601.
The powerflue must be installed and commissioned by the installer in accordance with Paragraph
2.2.7 AS/NZS 5601.1.
VENTILATION REQUIREMENTS
A requirement of the gas installation code AS/NZS5601.1-2013 is that ventilation is required as per
the manufacturers instructions. Clause 6.10.9.5 of AS/NZS5601.1-2013 sets out the ventilation
requirements.
ACCESS TO POWER FLUE MOTOR
Access must be provided to the flue motor, this access MUST be at least 400mm x 400mm.
There MUST be a minimum clearance of 250mm between the top of the motor and any fixed
object i.e. ceiling or stud work. This is so the top of the fan box can be removed.
WIRING OF THE POWER FLUE
All wiring for the power flue is carried out at the factory and plug connectors are fitted for easy
installation. The power supply for the power flue is via a 3-pin plug at the rear of the firebox that
can be plugged into a power socket within the cavity.
ISOLATION SWITCH
If the power point is within a cavity an isolation switch accessible from outside the cavity must be
provided.
WIRING CLEARANCES
Wiring must at all times have a clearance of at least 150mm from the flue.
FAN FAILURE SENSING DEVICE
All Glen Dimplex Power Flue systems are fitted with a sensing device within the unit to ensure that,
in the event of flow failure, the safety shut off valve within the module will go into lockout and shut
off the gas supply to the unit. The device should ALWAYS be in the vertical position. Refer to the
pressure differential switch on page 15.
‘LOCKOUT’
‘Lockout’ is the term used when the module in the unit senses a fault. When a fault is detected by
the module it will shut off the gas and go into lockout. If this occurs contact the manufacturer.
MODELS Ventilation Sq mm
Double Vision, ot Box and all eatseekers 18,000
Pure Vision, Simplicity, Elegance, Signature, ybrid 1000 & 1500 Sizes 18,000
Pure Vision, Simplicity, Elegance, Signature, ybrid 1800 Sizes 32,000
Pure Vision, Simplicity, Elegance, Signature, ybrid 3300 Size 64,000
Ventilation requirements o models installed with Power Flue
16

INSTALLATION INSTRUCTIONS (continued)
LOCATION OF FLUE TERMINAL FOR POWER FLUE
Listed below are the minimum clearances required for fan-assisted terminations:
1. Below eaves, balconies and other projections. .........................................................200mm
1a. Below eaves, balconies and other projections for a 1500 & 1800 model ..................300mm
2. From the ground, above a balcony or other surface..................................................300mm
3. From a return wall or external corner.........................................................................300mm
4. From a Gas meter....................................................................................................1000mm
5. From an electricity meter or fuse box. .......................................................................500mm
6. From a drainpipe or soil pipe. ......................................................................................75mm
7. orizontally from any building structure or obstruction facing a terminal. .................500mm
8. From any other flue terminal. Cowl, or combustion air intake. ..................................300mm
9. orizontally from any openable window, door, non-mechanical air inlet,
or any other opening into a building with the exception of sub floor ventilation.........300mm
10. From a mechanical air inlet including a spa blower.................................................1000mm
11. Vertically below an openable window, non-mechanical air inlet,
or any other opening into a building with the exception sub floor ventilation.............500mm
ELECTRICAL
SHOULD THE SUPPLY FLEX AT THE BACK OF THE FIREBOX BE DAMAGED, A SPECIALLY
PREPARED FLEX IS RE UIRED. FOR REPLACEMENT CONTACT THE MANUFACTURER.
THE ON/OFF WALL SWITCH MUST NEVER BE ATTACHED TO A METAL FRAME.
WARNING
Whenever servicing the power flue system, always turn off the electrical power supply and
close the manual gas control valve.
IMPORTANT INFORMATION
In addition to the instructions in this manual all national, state and local regulations must be
adhered to. These include but are not limited to:
• Australian Standards AS3000 - Electrical Installation.
• Australian Standards AS/NZS5601.1-2013 - Gas Installation.
• Local Gas and Electrical Authority Regulations.
• Municipal Building Codes.
The power flue should be serviced every 12 months by an authorised technician. If repairs
are needed an authorised technician must carry them out.
FITTING THE MOTOR
The Power Flue motor is fitted with two sets of spigots. The set on the base of the Power Flue box
sit on top of the vertical flue and the set mounted on the side plate connect to the horizontal flue.
The 1800, 3000 and 3300 units have a power flue motor with a 200mm spigot and a twin spigot of
200mm and 250mm.
17

INSTALLATION INSTRUCTIONS (continued)
INSTALLATION OF POWER FLUE KIT
HORIZONTAL FLUE RUN
The maximum length of horizontal flue run is to be 13.5 metres with a maximum of four (4) bends;
these bends can be 45° or 90°. The horizontal flue run is to have a grade downwards from the
motor to the termination.
VERTICAL FLUE RUN (see page 22)
The minimum vertical flue run is 900mm from the top of the firebox (1500mm from the floor). If a
longer vertical run is required twin skin flue 150mm & 200mm can be added between the muffler
top and the fan. The flue can be cut to the required height. For 1800 and 3300 units
200mm/250mm flue is required.
FLUE CLEARANCES
All flue clearances are as per the requirements listed in the heater specifications.
TERMINATION
The termination to be used for all horizontal installations is to be either a small flush cowl or if used
as a service access panel, a large flush cowl is required. For vertical termination a vertical
approved cowl must be used. An external motor can be used as an option on horizontal and
vertical terminations.
POWER FLUE MUFFLER
The power flue muffler has a spigot at each end. The end that attaches to the firebox has a spigot
equivalent to the inner flue spigot diameter of the firebox, the top of the muffler has a 150mm
spigot which the motor fits to, or the 150/200 twin skin flue if required. The flow arrow on the
muffler is to be pointing up. If a 1800 or 3300 unit is used the flue is 200mm/250mm.
WIRING (see wiring diagram page 27)
A 3 metre lead is supplied with the power flue, this lead has a different connection on each end,
one end is plugged into the connection on the left hand side of the firebox and the other end is to
be plugged into the fan. The wire coming from the rear of the firebox with the standard 3-pin plug
attached is to be plugged into a power point. A single gang wall switch is also supplied attached to
the 3 metres of lead; this wall switch is to be attached at a location accessible to the client. No
other wiring is required.
SERVICING OF THE POWER FLUE MOTOR
The Glen Dimplex Power Flue motor is designed so as to make servicing the motor a simple task.
The power lead connected to the motor is to be disconnected (unplugged) and the screws are to
be undone, the fan motor will then lift out for servicing. The fan Motor box connected
to the flue does not have to be disconnected from the flue.
FLUE SIZE
The flue size for each model is different. Please refer to the table below.
B
A
MODELS A mm B mm
Double Vision, ot Box and all eatseekers 150 200
Pure Vision, Simplicity, Elegance, Signature,
ybrid 1000 & 1500 Sizes 150 200
Pure Vision, Simplicity, Elegance, Signature,
ybrid 1800 & 3300 Sizes 200 250
NOTE: Ensure all power flue inner and outer flue lengths are sealed at joins.
18

COMMISSIONING THE POWER FLUE SYSTEM
T E INSTALLER MUST COMMISSION T E POWERFLUE SYSTEM AS PER CLAUSE 2.2.7
(AS5601.1.2013)
The correct CO2concentration shall be established by adjustment of dampers and checked by flue
gas analysis. A check that the controls are operating in the manner specified shall be carried out.
The check shall include a simulation of fan failure.
Commissioning the powerflue system is an additional requirement to commissioning the appliance.
The appliance must also be commissioned as per AS5601.1.2013.
Sizing o the an
In order to select a suitable fan, it is necessary to determine the volume and temperature of the
flue gases. Before this can be done the percentage of CO2in the flue gases shall be decided.
If discharge is at a low level, 1% CO2may be used in the design formula. For other situations,
values between 4% and 8% may be used. These values will give flue gas temperatures of 140°C
and 220°C respectively.
For appliances with modulating burners, the CO2concentration in the flue shall be considered
when the appliance is operating at normal rate, i.e. 8% CO2in the combustion chamber.
The quantity of flue gases to be handled by the fan may be determined by the following simplified
formula, which is sufficiently accurate for most flue gases currently distributed. A suitable fan may
then be selected.
Q =
Where Q = volume of flue gases, litres per second
T = total gas consumption of appliances connected to flue megajoules per hour
R = desired % CO2concentration by volume in the flue gases at the discharge point
FLUE GASES - RELATIONS IP BETWEEN % CO2VOLUME FLOW RATE & % EXCESS AIR
CO2% Volume Flow Rate L/s/MJ/h Excess Air %
10 0.10 33
9 0.11 50
8 0.13 67
7 0.14 90
6.7 0.15 100
6 0.17 120
5 0.20 170
4.4 0.23 200
4 0.25 230
3.3 0.30 300
3 0.33 400
2.2 0.45 500
2 0.50 500
1.7 0.60 700
1.2 0.80 1000
1.0 1.00 1200
0.8 1.20 1500
0.6 1.60 2000
0.5 2.00 2600
T
R
19

POWER FLUE MOTOR CLEARANCE
Minimum clearance
250mm
150mm/200mm
twin skin flue - optional
for additional height
Ensure there is
adequate ventilation
within this cavity to
prevent motor over-
heating.
Baffle eight 980mm
and diameter 350mm
or 200mm/250mm
20
