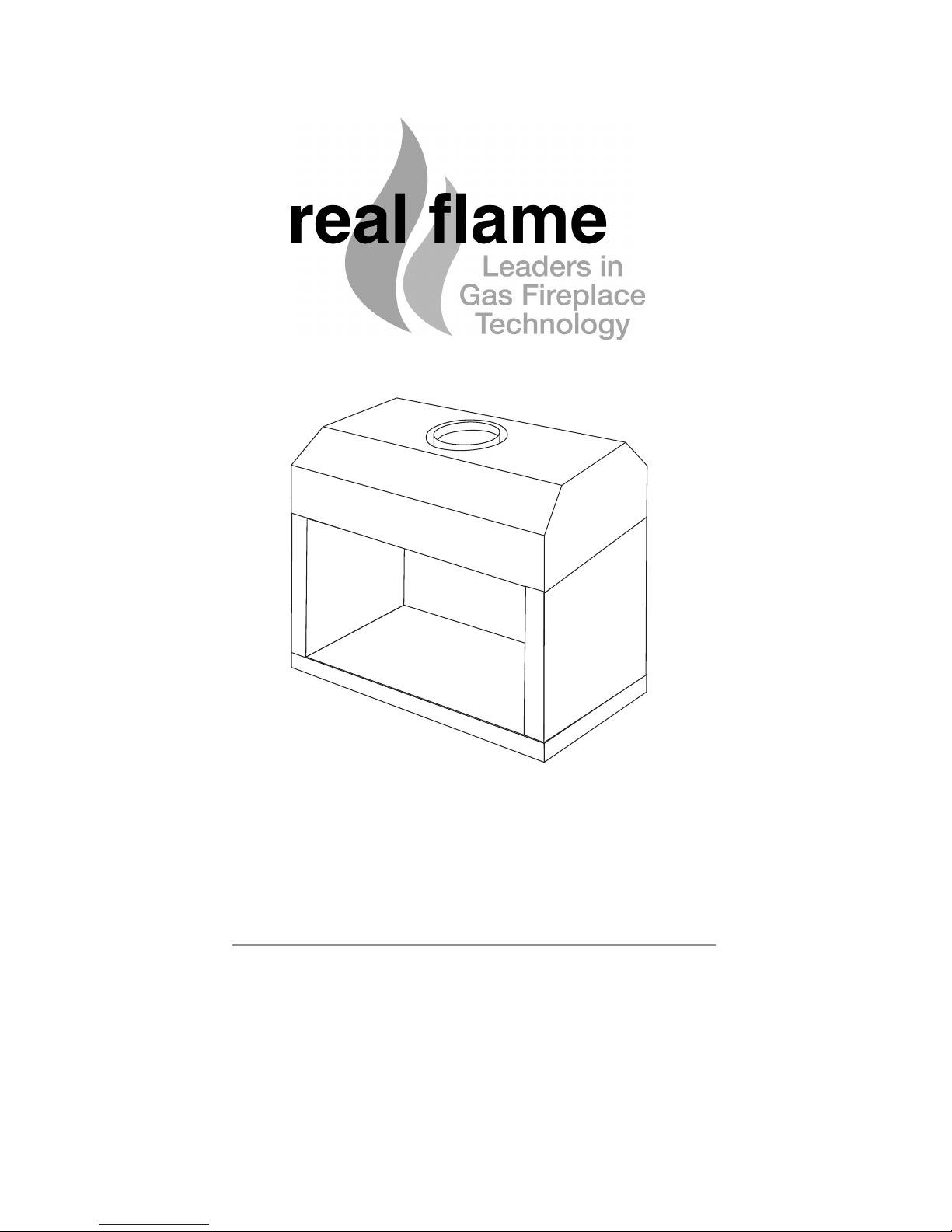

RealFlame DOUBLE VISION Installation instructions

DOUBLE VISION®
DECORATIVE FIREBOX
INSTALLATION & OPERATING MANUAL
The Double Vision gas firebox is approved to be installed as a zero
clearance firebox and is designed to operate on Natural Gas and
Propane (LPG) gases ONLY. Approval Number GMK10099.
VERSION 23

2
WARRANTY INFORMATION
The benefits provided to you under the following warranty are in addition to any other rights and remedies available to
you under the law.
1. Warranty
If:
(a) during the first 15 years from the date of purchase (Firebox Warranty Period), there is a defect in the firebox of the
Real Flame Gas Burner; or
(b) during the first 2 years from the date of purchase (Parts Warranty Period), there is a defect in the gas valves or
other parts of the Real Flame Gas Burner,
due to improper workmanship or material, Real Flame will replace or repair the Real Flame Gas Burner without
charge. Any replacement product is warranted only for the time remaining on the original Firebox Warranty
Period or the Parts Warranty Period as relevant.
2. Registration
You must register to receive the benefit of this warranty by completing the warranty registration on our website
(www.realflame.com.au) or completing and mailing the attached registration card within 30 days of purchase of
your Real Flame Gas Burner (or, if the Real Flame Gas Burner is fitted to a new home, within 30 days of the date
of settlement of purchase of such new home).
3. Exclusions
Real Flame is not obliged to replace or repair the Real Flame Gas Burner under clause 1 if:
(a) it has been improperly stored, installed, connected, used, operated or repaired, or damaged, abused, tampered
with, altered (without our written approval), or not maintained in strict accordance with our installation and
operating instructions; or
(b) it has been installed in an outdoor setting.
4. Limit of Liability
The warranty provided under this warranty is limited to replacement or repair of the Real Flame Gas Burner only,
at our option. To the extent permitted by law, Real Flame excludes liability for consequential loss or any other loss
or damage caused to property or persons arising from any cause whatsoever, and damage arising from normal
wear and tear.
5. Claiming under the Warranty
In order to claim under this warranty you must, within the Firebox Warranty Period or the Parts Warranty Period
(as relevant), contact Real Flame, providing the original proof of purchase and the details below:
Supplier Name___________________________________________________________________________
Date Of Purchase / settlement of property if new home _________________
Model / Serial Number_______________________
This warranty does not cover the cost of claiming under the warranty or transporting the Real Flame Gas Burner to and
from the supplier.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
If you would like to speak to someone about your Real Flame Gas Burner or claiming under this warranty, please
contact the Real Flame Service Warranty Desk on 03 8706 2000.
Real Flame Pty Ltd ACN 006 311 155
Head Office: 1340 Ferntree Gully Road, Scoresby 3179
Telephone: [phone] Facsimile: 03 8706 2001

INSTALLATION NOTICE
The installation of this appliance is only to be carried out by an authorised person in accordance
with the Manufacturer’s Instructions, local gas fitting regulations, AS5601-2004 installation code for
gas burning appliances and any other relevant statutory regulations.
In all cases the installation of this appliance shall meet the requirements as set out in AS5601-2004.
Not intended for use as fireplace insert.
NOTE: A slight smell may be apparent for the first few hours of use. This is due to the heat resistant
paint curing. It is recommended to open windows in the room for the first lighting of the fire. In some
instances a slight discolouration may occur inside the firebox. This is a normal condition and is not
covered by warranty.
NOTE: The Double Vision Modular fire is primarily a decorative appliance and is not certified as
a space heater.
IMPORTANT SAFETY NOTICES
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIAL NEAR THE APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN OPERATION.
CARE MUST BE TAKEN TO ENSURE THAT ANY RETURN AIR REGISTER OR EXHAUST SYSTEM
DOES NOT ADVERSLEY AFFECT THE OPERATION OF THE APPLIANCE OR DRAUGHT OF
CHIMNEY OR FLUE.
DO NOT MODIFY THIS APPLIANCE.
THIS APPLIANCE IS DESIGNED TO OPERATE WITH LUMINOUS FLAMES. THIS MAY EXHIBIT
SLIGHT CARBON DEPOSITS.
VENTILATION REQUIREMENTS
MODEL SIZE EFFECTIVE VENTILATION
Double Vision 850 40,000 sq mm
WARNING
This firebox has a naked flame, care should be taken when it is operating if children or the infirm are
in close proximity. A safety screen is recommended if constant supervision is not possible. It is
recommended that a secondary guard complying with AS-NZS2286 be installed.
3
THIS IS PRIMARILY A DECORATIVE APPLIANCE AND IS NOT CERTIFIED AS A SPACE HEATER.
SERVICING
It is recommended you service your gas fire every 2 years as a minimum.

CONTENTS
Contents ..................................................................................................................4
Data Plate.................................................................................................................5
Firebox dimensions..................................................................................................6
Dimensions ..............................................................................................................7
Zero Clearance Timber Frame Installation ..............................................................8
Inbuilt Installation Procedure ...................................................................................9
Lighting pilot and main burner...............................................................................10
Tests to be carried out by installer .........................................................................11
Failure procedure...................................................................................................11
Maintenance...........................................................................................................12
Troubleshooting the Millivolt Gas System Control ................................................13
Service - Igniter and Burner ...................................................................................14
Parts Kit, Gas Control Assembly, Burner Assembly ..............................................15
Flue requirements ..................................................................................................16
Optional Power Flue...............................................................................................17
Introduction.............................................................................................17
Installation...............................................................................................17
Motor Clearance .....................................................................................20
Frameout.................................................................................................21
Motor.......................................................................................................21
Internal Motor..........................................................................................22
External Motor ........................................................................................22
Dimensions.............................................................................................23
Troubleshooting Electronic Ignition and Power Flue System................25
Wiring Diagram.......................................................................................27
Real Flame contact information .............................................................................28
4

Gas Injector Size (mm) TPP N.G.C. (Mj/hr)
Natural Gas 2 x 2.80 0.87 kPa 54
ULPG 2 x 1.35 2.64 kPa 43
DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption)
5
Double Vision and Double Vision Signature
Fitted with 540 Double Vision burner
Gas Injector Size (mm) TPP N.G.C. (Mj/hr)
Natural Gas 2 x 2.80 0.87 kPa 54
ULPG 2 x 1.35 2.64 kPa 43
Double Vision and Double Vision Signature
Fitted with 540 Double Vision Pattern burner

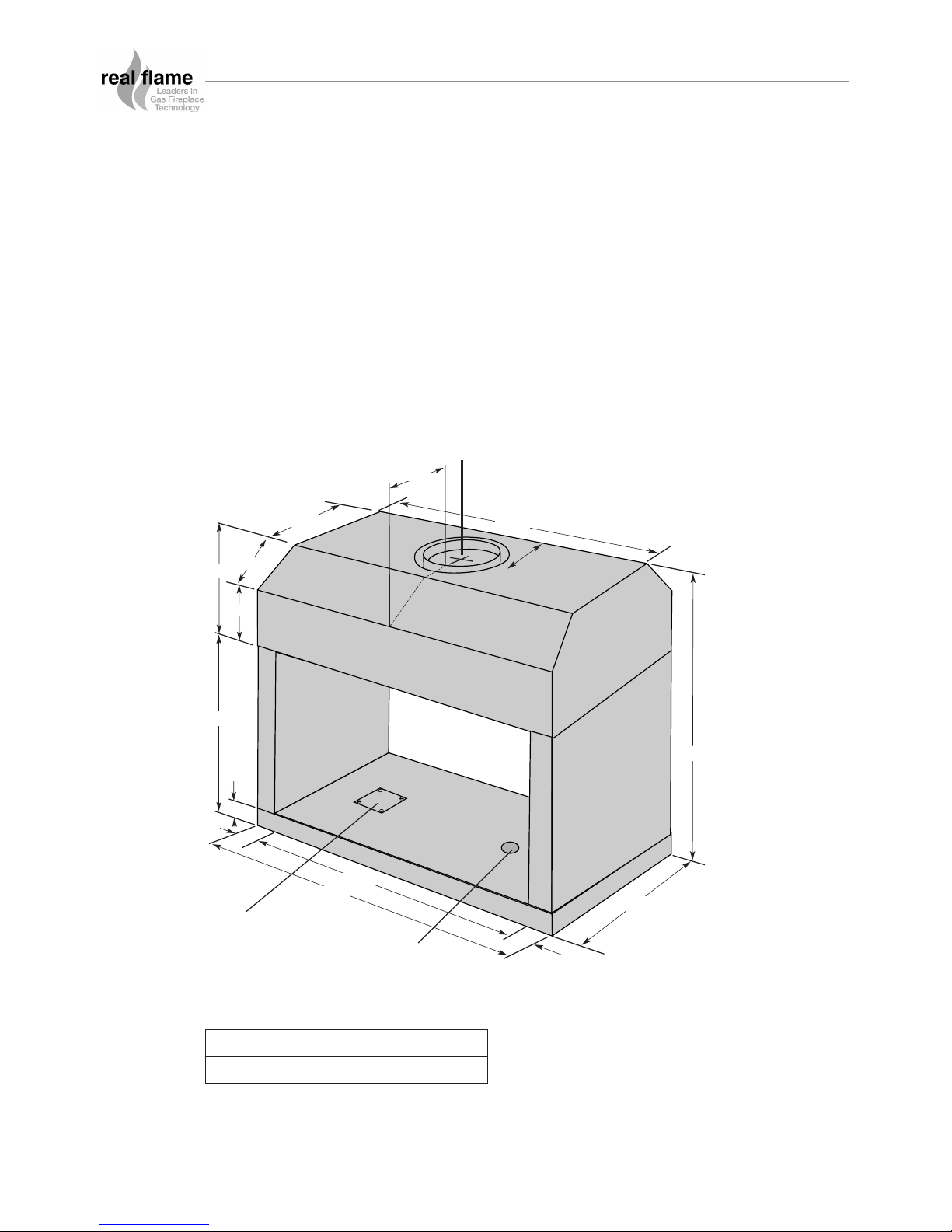

380mm
950mm
155mm
600mm
850mm
50mm
50mm
50mm
950mm
850mm
210mm
230mm
300mm
160mm
470mm
FLUE
Inner 225mm
Outer 275mm
COVER PLATE
FOR ELECTRONICS
GAS LINE INLET
DOUBLE VISION FIREBOX
• The Double Vision is designed to be installed into a new frame out as shown on page 6.
• The fire can be installed at ground level or raised to what ever height is required providing
the flue length is 2.7 meters or more.
• The firebox can sit directly onto a wooden surface.
• The Double Vision requires twin skin flue with an AGA approved cowl
• The control valve on the Double Vision is a millivolt system and as such, no electrical work
is required
Overall Dimensions (in mm)
MODEL Inner Outer
850 225mm 275mm
6

FRONT - 4 SIDED FRONT - 3 SIDED
B
A
C
D
DIMENSIONS
Trim
AB CDEF GH
850 950 600 470 272.5 295 210 230
IJKLMNO
420 - 50 50 - 420 380
AB CD
1043 613 513 100
7

DOUBLE VISION FIREBOX
Double Vision Zero Clearance Timber Frame Installation
Floor 0 mm
Sides 25 mm
Top 100 mm
Flue Outer 25 mm
CLEARANCES FROM
COMBUSTIBLES
Plasterboard to run beyond stud as shown.
If unit requires trim only, frameout remains the same.
NOTE
PLAN
Plaster to run
beyond stud and
behind trim A
B
C
D
(Recommended only)
HEATER
TRIM
AB C D
950 1000 600 2100
Frameout Dimensions (in mm)
8

Check frame out has been constructed correctly and has not been plastered.
Check frame out and structure above is clear of any structures that may impede the flue run.
TICK BOXES
DOUBLE VISION FIREBOX
Double Vision Inbuilt Installation Procedure
• Ensure an adequately sized gas connection is available within the frame out, a 15mm gas
copper pipe is to be provided into the firebox. An access hole is provided in the base of the
firebox. A 500mm tail is required into the firebox to allow for connection to the burner.
• Position the unit ensuring the millivolt loom and gas pipe are accessible.
• Connect the twin skin flue (or Optional Power Flue if supplied).
• Install an AGA approved 225mm gas cowl ensuring the termination meets all relevant code
requirements.
• Place the burner in the double sided firebox.
• Connect the gas line to the burner connection using the 15mm flared copper union
(supplied).
• Connect the two core wiring terminals to the millivolt system as shown below.
Note: The valve is pre wired and completely self contained to generate its own power. DO
NOT connect any external power to it.
Note: Do not locate the switch further than 6 meters from the firebox.
• Screw the four burner legs to the base of the firebox in the holes provided.
• Place the burner surround over the burner.
• Place the coals (or optional pebbles) randomly on the ceramic blanket. If coals and logs
option is supplied, place logs on top of coals randomly.
IMPORTANT! Only ceramics supplied by Real Flame are to be used.
GAS LINE INLET
9

FOR YOUR SAFETY READ BEFORE LIGHTING
The Double Vision has a pilot which must be lit using the piezo ignition. When lighting the pilot
follow the instructions exactly.
Before lighting the pilot, check for gas leaks.
Use only your hand to push in and turn the gas control knob, never use tools. If the knob will not
push in or turn by hand, don’t try to repair it, call a qualified service technician. Force or attempt to
repair may result in a fire or explosion.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and replace any part of the control system and any gas control
that has been under water.
Before lighting the pilot make sure that the gas line is connected.

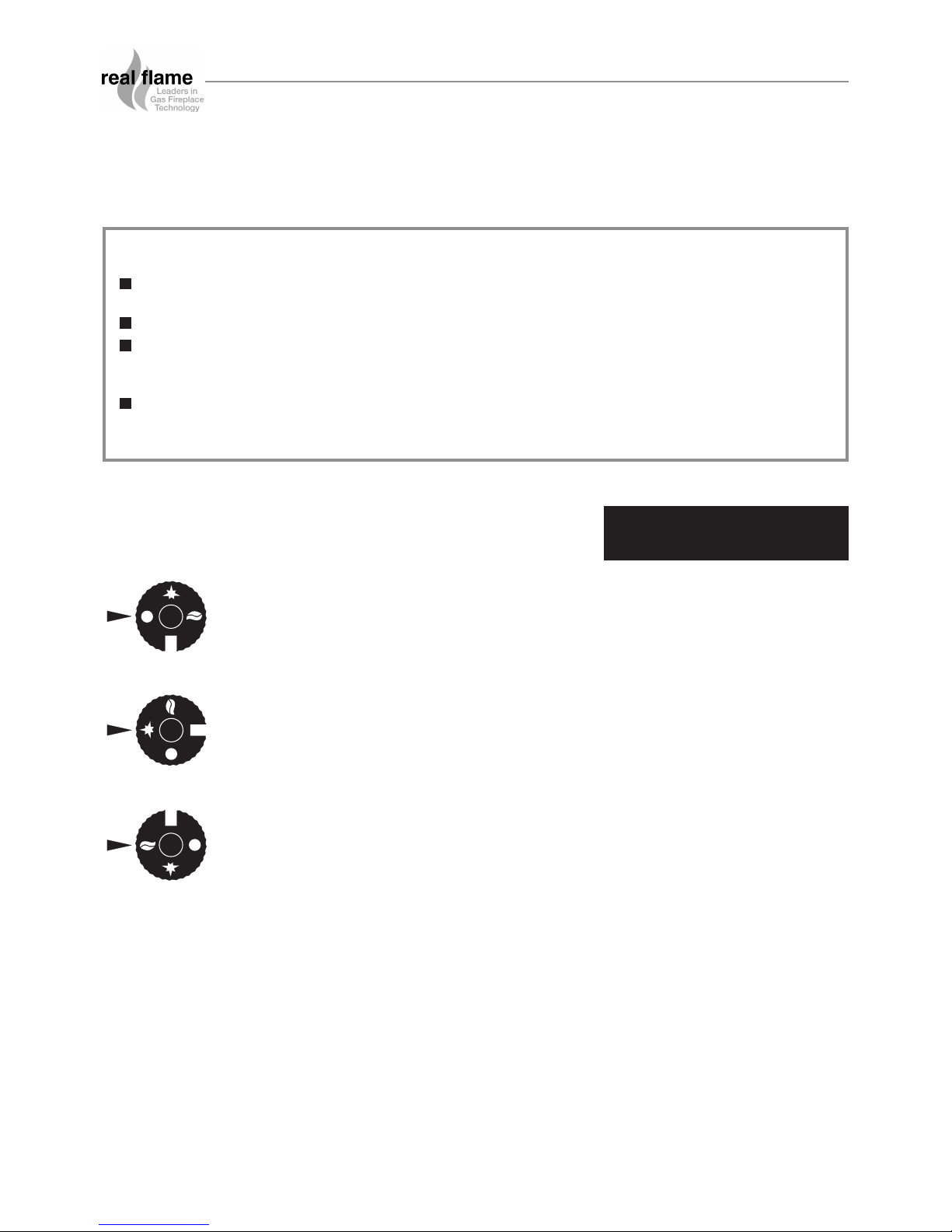

LIGHTING PILOT AND MAIN BURNER
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information.
2. Push in gas control knob and turn to “PILOT”
3. NOTE: Control knob cannot be turned from “OFF” to “PILOT” unless the knob is pushed in
slightly. Do not force.
4. Light pilot burner following steps below.
5. When the control knob is set at pilot, push it all the way in and hold it in. Immediately light the
pilot using the piezo igniter. Red igniter button may need to be pressed rapidly several times.
Once the pilot has lit keep holding the control knob in for about 45 seconds. Release the knob
and it will “pop” back out, the pilot should remain lit. If pilot goes out repeat steps 1 to 5
6. Turn gas control knob to the “ON” position
7. Turn the switch on to ignite the burner. The switch is supplied with the unit and should be
installed within 6m of the fire.
• After lighting the pilot, if the control knob does not “pop” out when released, stop and
immediately call your service technician.
• If the pilot will not stay lit after several tries turn the gas control knob to “OFF” and call your
service technician.
N.B: WHEN THE CONTROL KNOB IS TURNED TO THE “OFF” POSITION IT WILL TAKE
APPROXIMATELY 60 SECONDS FOR THE VALVE TO RELEASE AND ALLOW YOU TO MOVE
THE KNOB. DO NOT FORCE THE KNOB.
TO TURN OFF GAS TO APPLIANCE
A. Turn switch to “OFF” position.
B. Push in gas control knob slightly and turn to the off position.
OFF
Visit www.realflame.com.au
to view a video instruction.
PILOT
ON
10

TESTS TO BE CARRIED OUT BY INSTALLER
1. Carry out a smoke test to ensure the fireplace is drawing.
2. Test that the Test Point Pressures are correctly set. Refer to Data Plate on page 5 for
correct setting.
3. Check that there are no gas leaks form any of the fittings.
4. Explain to the customer how the unit operates and how to turn it on and off.
FAILURE PROCEDURE
1. The pilot is burning.
2. Ensure that the wiring terminals on the control valve are not loose.
3. Test that the inlet and working pressures are both correct.
If when the control knob is turned to the “ON” position and the wall switch is turned to the
“ON” position, the fire fails to ignite, check the following:
11

MAINTENANCE
The appliance should be thoroughly inspected before initial use and at least annually by a
qualified service technician. If any abnormal condition is observed the home owner must contact
a qualified service technician.
IMPORTANT: TURN OFF GAS BEFORE SERVICING THE APPLIANCE.
MAINTENANCE SCHEDULE
Annually (Before Winter Season)
Maintenance Task
Inspection/Cleaning
burner, logs and
controls.
Accomplishing Person
Qualified Service
Technician
Procedure
Inspect valve and ensure that it is operating
correctly. Check piping for leaks. Vacuum the
control compartment, fireplace logs and
burner area.
Check Flame pattern
and flame heights.
Qualified Service
Technician
Ensure that the flame pattern is consistent
and not impinged by the logs.
Inspecting/Cleaning
Pilot and Burner
Qualified Service
Technician
Remove any surface build up on pilot and
burner assembly. Wipe the pilot nozzle,
ignitor/flame rod and hood. Ensure the pilot
flame engulfs the Thermocouple and
Thermopile.
12

TROUBLESHOOTING THE MILLIVOLT GAS SYSTEM CONTROL
IMPORTANT
Valve system troubleshooting should only be carried out by a qualified service technician.
If supply cord is damaged or the unit needs repairing, it shall be repaired by the manufacturer or
its service agent or similarly qualified person in order to avoid a hazard.
Symptom
Spark ignitor will not
light pilot after
repeated triggering
of igniter button
Pilot will not stay lit
after carefully
following the
lighting instruction
Possible Cause
A. Defective ignitor
B. Defective or
misaligned electrode at
pilot (spark at electrode).
C. Gas supply pressure
errant.
D. Pilot orifice plugged.
A. Defective pilot
generator (thermocouple)
Corrective Action
Check for spark at electrode and pilot. If no spark and
electrode wire is properly connected, replace ignitor
Using a match, light the pilot. If pilot lights, turn off pilot and
trigger the igniter button again. If pilot lights, an improper
gas mixture caused the bad lighting and a longer purge
period is recommended. If pilot will not light - check gap at
electrode and pilot - should be 1/8” to have a strong spark.
If gap measures 1/8”, replace pilot.
Check inlet gas pressure. It should be :
• 0.87 kpa for Natural Gas
• 2.64 kpa for L.P.G.
Refer Data information plate.
Clean or replace pilot orifice.
Check pilot flame, it must impinge on thermocouple. Clean
and/or adjust pilot for maximum flame impingement on the
thermocouple. Ensure that the connection between the
valve and the thermocouple is tight and secure.
Pilot burning, no gas
to burner, valve
knob “ON”, Wall
switch “ON”
A. Wall switch or wires
defective.
Check wall switch and wires for proper connections.
Jumper wires across terminals at wall switch, if burner
comes on, replace defective wall switch. If okay, jumper
across wall switch wires at valve, if burner comes on wires
are faulty or connections are bad.
Frequent
pilot/burner outage
A. Pilot flame may be too
low or blowing (High)
causing the pilot/valve
safety to drop out.
Clean and/or adjust pilot flame for maximum flame
impingement on thermocouple.
B. Thermopile may not be
generating sufficient
millivoltage.
Check thermopile with millivolt meter. Take reading at
thermopile terminals of gas valve. Should read 325 millivolts
minimum with optional wall switch “OFF”. Replace faulty
thermopile if reading is below specified minimum.
C. Blocked burner orifice. Check burner orifice for blockage and remove.
13

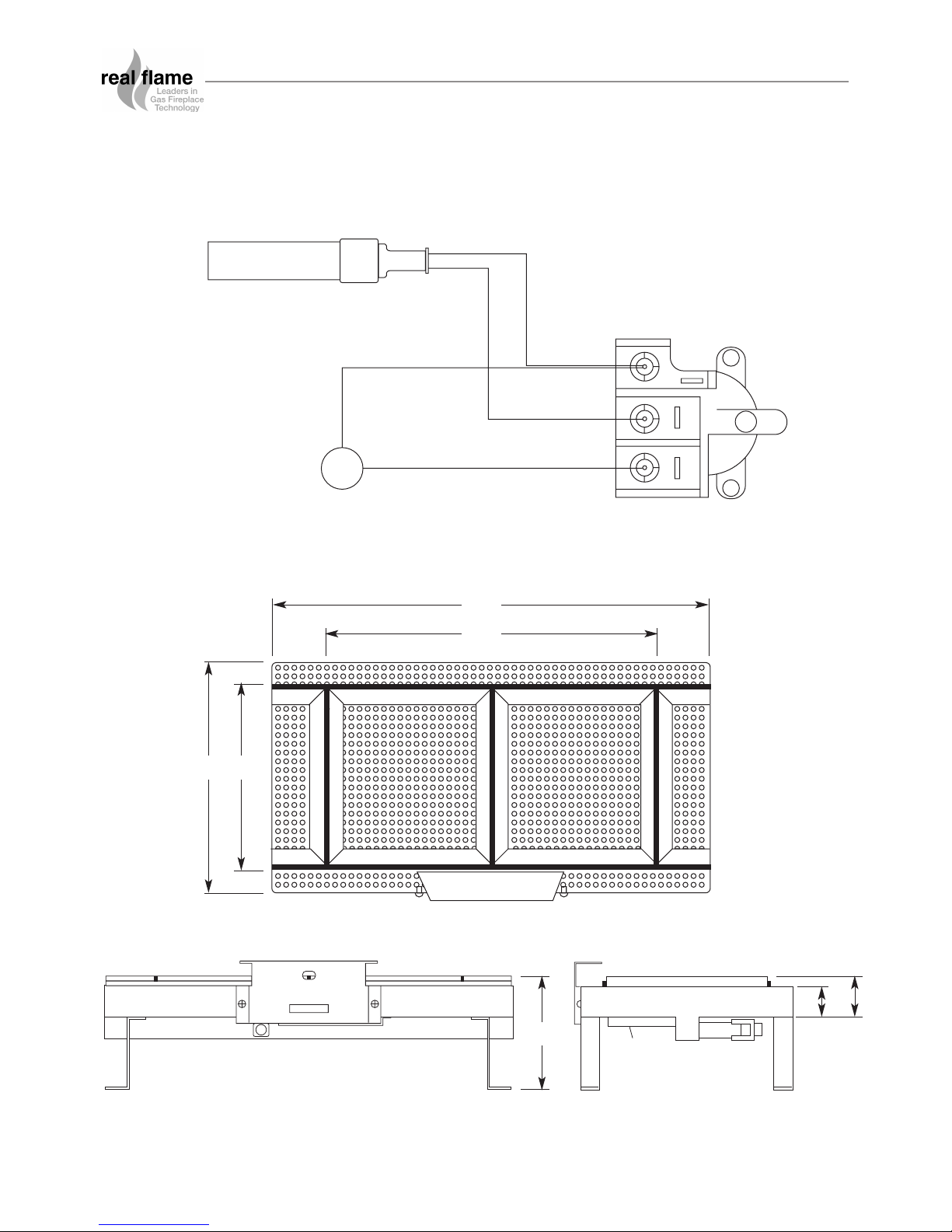

SERVICE
Igniter
Burner
THERMO PILE
RED WIRE
WHITE WIRE
THERMO
GENERATOR
TP TH TP TH
HEAT SWITCH
14
540.0
402.8
283.2 225.2
147.6 52.641.6

GAS CONTROL ASSEMBLY
PART PART No. AGA Approval
SIT 820 NOVA Mv 0820332-NAT GAS 4032
SIT 820 NOVA Mv 0820331-LPG 4032
SIT THERMOCOUPLE 200261 4032
SIT PILOT ASSEMBLY 190610 4032
SIT THERMAL GENERATOR 240002 4032
PIEZO WITH LEAD 28510 4032
PIEZO IGNITOR PUSH BUTTON 73953 4032
PIEZO BRACKET 978099 4032
Thermocouple
Pilot
Power Generator
Valve
Piezo Ignitor
PARTS KIT
Piezo Lead
Control Valve
Pilot Cover
Mesh
Ceramic Logs
Ceramic Fibre Coals
50mm Ceramic Blanket
280mm
90mm
50mm
60mm
200mm
540mm
200mm
1.6mm STEEL
BURNER ASSEMBLY
All spare parts
listed are
available from
the manufacturer.
NOTE:
If pebbles are
used, lay them
randomly on top
of the ceramic
blankets.
15

FLUE REQUIREMENTS
Natural Draught
The standard natural draught flue kit consists of 4 x 900mm lengths of 225/275 twin skin flue
and an AGA approved cowl.
3.6m Flue Kit
complete with cowl
16
Power Flue Kit (Optional – refer to pages 17 to 27 for details)
The standard Power Flue Kit consists of ;
• 1 x Power Flue Fan
• 1 x Power Flue Motor
• 1 x Control Module
• 1 x Electronic Ignition Pack
• 1 x Baffle
• 1 x Pressure Differential Switch
• 1 x Loom
• 1 x Termination Cowl (horizontal or vertical)
FLUE REQUIREMENTS

Electrical
Wiring
between
Fan / Unit / Kit
100mm Gas cowl / Kit
Fan Casing / Kit
Twin Skin Flue 150mm /200mm
Optional for additional height if required
Twin Skin Flue 100mm & 180mm
Baffled Flue / Kit
Powered flue kit comprising:
(Indicated on Diagram as “Kit”)
1 x Fan motor
1 x Control module
1 x Electronic ignition to gas fire
1 x Muffler
1 x Sail switch
1 x All wiring from motor to gas fire
1 x 100mm gas cowl
Twin Skin Flue 150mm/200mm or 200mm/250mm
or 200mm/250mm

INTRODUCTION - THE POWER FLUE SYSTEM
INSTALLATION INSTRUCTIONS
POWER FLUE DESIGN
A ‘flue’ using a fan to remove or assist in removing combustion products from an appliance, is
known as a ‘power flue’.
POWER FLUE APPLICATION
A power flue application can be used to enable a client to have a decorative fire with a horizontal
flue run or a vertical flue run where flue space is inadequate for the normal flue.
VENTILATION REQUIREMENTS
Air supply to the unit is to be in accordance with ventilation Clause 5.4 of the Gas Code 601.
Ventilation requirements do not change by using a power flue. Refer page 19.
ACCESS TO POWER FLUE MOTOR
Access must be provided to the flue motor, this access MUST be at least 400mm x 400mm.
There MUST be a minimum clearance of 250mm between the top of the motor and any fixed
object i.e. ceiling or stud work. This is so the top of the fan box can be removed.
WIRING OF THE POWER FLUE
All wiring for the power flue is carried out at the factory and plug connectors are fitted for easy
installation. The power supply for the power flue is via a 3-pin plug at the rear of the firebox that
can be plugged into a power socket within the cavity.
ISOLATION SWITCH
If the power point is within a cavity an isolation switch accessible from outside the cavity must be
provided.
WIRING CLEARANCES
Wiring must at all times have a clearance of at least 150mm from the flue.
FAN FAILURE SENSING DEVICE
All Real Flame Power Flue systems are fitted with a sensing device within the unit to ensure that,
in the event of flow failure, the safety shut off valve within the module will go into lockout and shut
off the gas supply to the unit. The device should ALWAYS be in the vertical position. Refer to the
pressure differential switch on page 11.
‘LOCKOUT’
‘Lockout’ is the term used when the module in the unit senses a fault. When a fault is detected by
the module it will shut off the gas and go into lockout. If this occurs contact the manufacturer.
17

INSTALLATION INSTRUCTIONS (continued)
LOCATION OF FLUE TERMINAL FOR POWER FLUE
Listed below are the minimum clearances required for fan-assisted terminations:
1. Below eaves, balconies and other projections. .........................................................200mm
1a. Below eaves, balconies and other projections for a 1500 & 1800 model .................300mm
2. From the ground, above a balcony or other surface. ................................................300mm
3. From a return wall or external corner..........................................................................300mm
4. From a Gas meter. ....................................................................................................1000mm
5. From an electricity meter or fuse box.........................................................................500mm
6. From a drainpipe or soil pipe. ......................................................................................75mm
7. Horizontally from any building structure or obstruction facing a terminal.................500mm
8. From any other flue terminal. Cowl, or combustion air intake. ..................................300mm
9. Horizontally from any openable window, door, non-mechanical air inlet,
or any other opening into a building with the exception of sub floor ventilation.......300mm
10. From a mechanical air inlet including a spa blower.................................................1000mm
11. Vertically below an openable window, non-mechanical air inlet,
or any other opening into a building with the exception sub floor ventilation...........500mm
ELECTRICAL
SHOULD THE SUPPLY FLEX AT THE BACK OF THE FIREBOX BE DAMAGED, A SPECIALLY
PREPARED FLEX IS REQUIRED. FOR REPLACEMENT CONTACT THE MANUFACTURER.
THE ON/OFF WALL SWITCH MUST NEVER BE ATTACHED TO A METAL FRAME.
WARNING
Whenever servicing the power flue system, always turn off the electrical power supply and
close the manual gas control valve.
IMPORTANT INFORMATION
In addition to the instructions in this manual all national, state and local regulations must be
adhered to. These include but are not limited to:
• Australian Standards AS3000 - Electrical Installation.
• Australian Standards AS/NZS5601.1-2013 - Gas Installation.
• Local Gas and Electrical Authority Regulations.
• Municipal Building Codes.
The power flue should be serviced every 12 months by an authorised technician. If repairs
are needed an authorised technician must carry them out.
FITTING THE MOTOR
The Power Flue motor is fitted with two sets of spigots. The set on the base of the Power Flue box
sit on top of the vertical flue and the set mounted on the side plate connect to the horizontal flue.
The 1800 and 3300 units have a power flue motor with a 200mm spigot and a twin spigot of
200mm and 250mm.
18

INSTALLATION INSTRUCTIONS (continued)
INSTALLATION OF POWER FLUE KIT
HORIZONTAL FLUE RUN
The maximum length of horizontal flue run is to be 13.5 metres with a maximum of four (4) bends;
these bends can be 45° or 90°. The horizontal flue run is to have a grade downwards from the
motor to the termination.
VERTICAL FLUE RUN (see page 8)
The minimum vertical flue run is 900mm from the top of the firebox (1500mm from the floor). If a
longer vertical run is required twin skin flue 150mm & 200mm can be added between the muffler
top and the fan. The flue can be cut to the required height. For 1800 and 3300 units
200mm/250mm flue is required.
FLUE CLEARANCES
All flue clearances are as per the requirements listed in the heater specifications.
TERMINATION
The termination to be used for all horizontal installations is to be either a small flush cowl or if
used as a service access panel, a large flush cowl is required. For vertical termination a vertical
approved cowl must be used. An external motor can be used as an option on horizontal and
vertical terminations.
POWER FLUE MUFFLER
The power flue muffler has a spigot at each end. The end that attaches to the firebox has a spigot
equivalent to the inner flue spigot diameter of the firebox, the top of the muffler has a 150mm
spigot which the motor fits to, or the 150/200 twin skin flue if required. The flow arrow on the
muffler is to be pointing up. If a 1800 or 3300 unit is used the flue is 200mm/250mm.
WIRING (see wiring diagram pages 17 & 18)
A 3 metre lead is supplied with the power flue, this lead has a different connection on each end,
one end is plugged into the connection on the left hand side of the firebox and the other end is to
be plugged into the fan. The wire coming from the rear of the firebox with the standard 3-pin plug
attached is to be plugged into a power point. A single gang wall switch is also supplied attached
to the 3 metres of lead; this wall switch is to be attached at a location accessible to the client. No
other wiring is required.
SERVICING OF THE POWER FLUE MOTOR
The Real Flame Power Flue motor is designed so as to make servicing the motor a simple task.
The power lead connected to the motor is to be disconnected (unplugged) and the screws are to
be undone, the fan motor will then lift out for servicing. The fan Motor box connected
to the flue does not have to be disconnected from the flue.
FLUE SIZE
The flue size for each model is different. Please refer to the table below.
19
B
A
MODELS A mm B mm
Double Vision, Hot Box and all Heatseekers 150 200
Pure Vision, Simplicity, Elegance, Signature,
Hybrid 850, 1000 & 1500 Sizes 150 200
Pure Vision, Simplicity, Elegance, Signature,
Hybrid 1800 & 3300 Sizes 200 250
NOTE: Ensure all power flue inner and outer flue lengths are sealed at joins.

POWER FLUE MOTOR CLEARANCE
Minimum clearance
250mm
Minimum
height
150mm/200mm
twin skin flue - optional
for additional height
Ensure there is
adequate ventilation
within this cavity to
prevent motor over-
heating.
Baffle Height 980mm
and diameter 350mm
or 200mm/250mm
20
