Reconyx SC10 User manual

SC10 Solar Charger
Copyright: November 2022

©RECONYX, Inc.
Getting Started
1) Connect the SC10 internal battery.
The Battery in the SC10 is shipped with the red wire disconnected from the
positive terminal on the battery. It must be connected prior to use.
Loosen the Thumb Screw on the back of the unit and rotate the Solar Panel
forward from the base to reveal the battery.
Remove the protective plastic cap from the positive terminal on the battery and
plug the red wire onto the terminal.
Close the unit and tighten the thumb screw.
2) Connect the SC10 to the camera by plugging the shielded power cable into the
external power jack on the bottom of your cellular camera.
3) Test that the SC10 is providing power to your camera by turning the camera on
without the internal AA batteries installed.
4) We recommend installing a set of Energizer Ultimate Lithium batteries inside the
camera as a backup power source in case the power from the SC10 Solar Unit
gets interrupted.

www.reconyx.com 2
SC10 Solar Charger Overview
The SC10 Solar Charger is a great complement to your Reconyx Cellular camera.
The SC10 is a complete power supply system that includes a 10-Watt solar panel with
a 108 Watt Hour (9 Amp Hour) Sealed Lead Acid battery. The Lead Acid battery was
chosen because it is a tried and true battery chemistry that will run in the hottest
summers and coldest winters that most of us will ever experience.
With the SC10, you can power your cellular camera indefinitely with power from the
sun. We highly recommend that you place the SC10 in an open area that gets at
least a few hours of direct sunlight per day. If placed in this manner, the SC10 should
provide sufficient power to run your cellular camera indefinitely.
If you place the SC10 in full sunlight, at mid-latitude locations, it should provide
enough power to take and send 500 to1000 pictures per day through the cellular
modem.
If you cannot get enough sunlight, or you are needing to send a very large number of
photos, you can “daisy chain”multiple SC10’s together to increase the power
available to your camera.
Warranty
RECONYX®warrants this product to be free of manufacturer’s defects in materials and
workmanship for a period of 1 year from date of original purchase. If during this period, through
normal use, the product fails due to defects in materials or workmanship, RECONYX®will either
repair or replace the product at our sole discretion. This warranty is void if a product failure
results from “acts of God”, accident, abuse, improper use, disassembly, or unauthorized
maintenance and repair.
NOTE: If you have any questions or concerns relating to the operation or
functionality of your camera with the SC10 Solar Charger, please
contact our Technical Service Department by email at
[email protected] or by calling toll free 866-493-6064.

©RECONYX, Inc.
Mounting the SC10
Integrated T-Post (Star Post) Mount

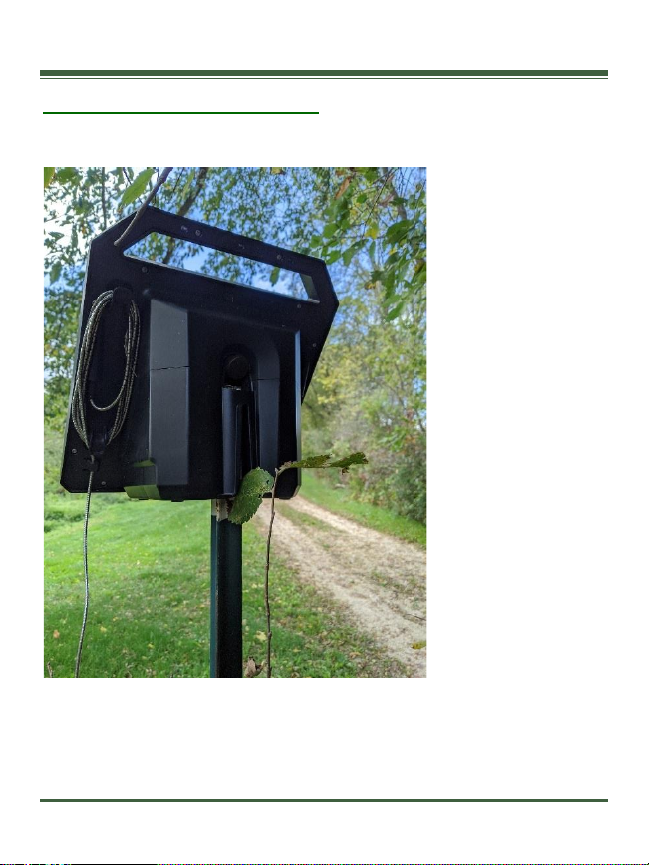

The SC10 is designed to sit atop almost any “T-post” style metal fencepost (also
works with "Y" and "Star" posts) and can be rotated 360 degrees.
Rotate the unit so that it is facing the direction where it will get the most hours of
sunlight during the day. Then lower it onto the post until the post is fully inserted in
the slot. Gravity will hold the unit on to the post.

www.reconyx.com 4
Using the Camera T-Post mount with the SC10
A great way to deploy your SC10 Solar unit and
HyperFire 2 Cellular camera is to mount both to the same
T-Post. This allows you to put the camera exactly where
you want it and more than likely get sun on the correct
face of the Solar unit at the same time.
The T-Post Camera Mount is sold separately and
can be purchased at www.reconyx.com.
Note: We do not recommend setting the SC10 on the ground. There are two primary
reasons for this: 1) snow, 2) foliage. You don’t want the unit covered by snow or
hidden by vegetation. You want the face of the SC10 to get as much sunlight as
possible.

©RECONYX, Inc.
Mounting with Screws
The SC10 can also be mounted on a post, wall, or tree using a couple of screws or
lag bolts; one to hang the unit on, and one to keep it from rotating.

www.reconyx.com 6
Mounting Bracket (Sold Separately)
The SC10 Mounting Bracket allows you to mount the bracket to a post, pole, wall or
tree, then simply slip the SC10 onto the bracket and secure it to the bracket with the
bolts supplied with the bracket.

©RECONYX, Inc.
Connecting the System
Connecting to Camera

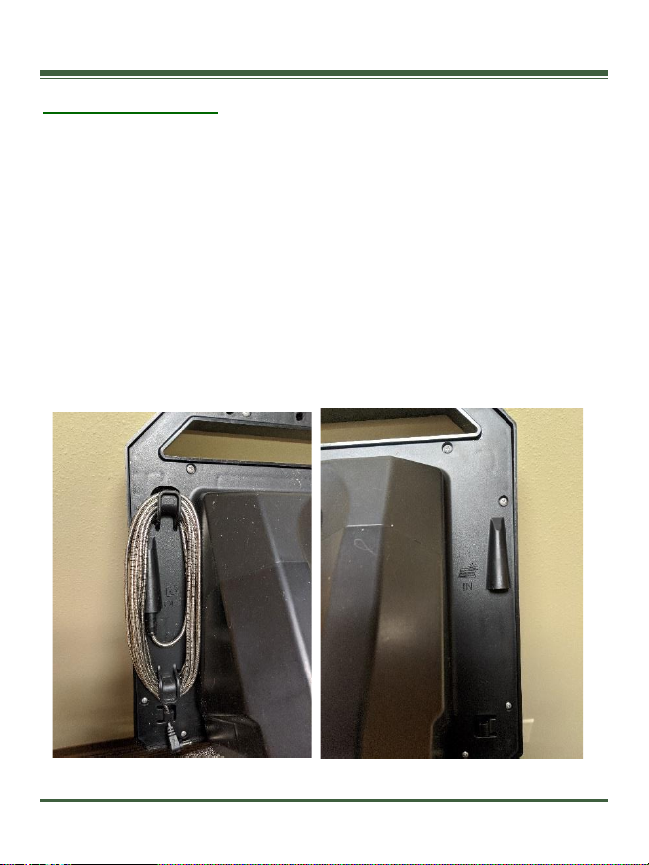

The SC10 includes a 12-foot power cable that is wound around the keeper cleats on
the back side of the unit. This provides you with enough cable to hopefully mount the
SC10 where it can get the most sunlight (up to 12 feet from the camera). There is a
hold down under these cleats to clip the cable into to hold excess wire on the cleats if
your camera is closer than 12 feet.
Note the Input Jack on the right side as you look at the back of the unit. This is the
input for daisy chaining more than one solar unit together. There are two basic
reasons you might daisy chain: 1) you need to take and send a lot of pictures, and
one unit won’t keep up, 2) you are under canopy and you are not getting enough
sunlight to recharge the SC10 internal battery to keep up with even a moderate level
of activity. To daisy chain the SC10s, just plug the output from one into the input of
the other, and then plug the output from that one, into the camera. You can add as
many units as you need to in this fashion.

www.reconyx.com 8
Using Desiccant in your Camera
Long Term Deployment with Internal Backup
When you are deploying your camera for long term operation (a year or greater), we
highly recommend that you use one of our desiccant options inside of your camera to
absorb any moisture that can penetrate the seals over time with the heating and
cooling cycles of the day. This will ensure your camera runs at an optimal level for as
many years as possible.

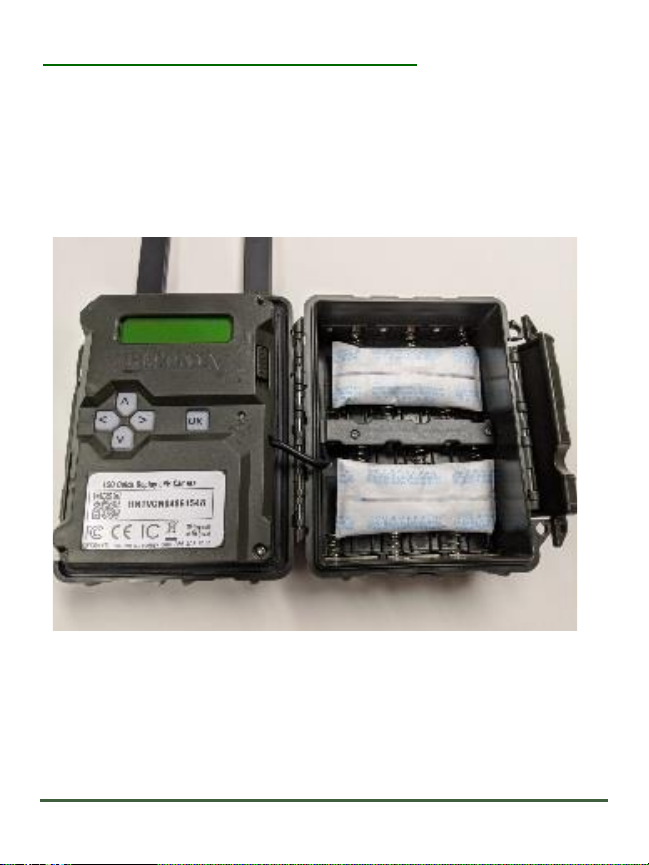

If you are using internal backup batteries, your desiccant option is to use our
desiccant sheets. They lay over top of the batteries and absorb moisture that may
enter the camera over time. These are available at www.reconyx.com.

©RECONYX, Inc.
Long Term Deployment without Internal Backup
If you choose to deploy without internal backup batteries, we recommend using the
14-gram indicating desiccant pouches available at www.reconyx.com. You can put
one or two of these in the cameras in place of a bank of batteries. These pouches are
indicating. The little strip across the middle allows you to see inside the pouch. If the
pellets are blue, they are dry. When they turn pink/white, they need to be recharged.
