USER MANUAL FOR E-SCOOTER RB-RTEN10
Red Bull® Marks and the Red Bull Racing Logo are licensed by Red Bull GmbH/Austria

2
Page 3-29 EN USER MANUAL
Page 31-59 PL INSTRUKCJA OBSŁUGI

3
RB-RTEN10
E-SCOOTER
WARNING FOR ELECTRIC KICKSCOOTER
Read and follow all the instruction in the user manual before using the e-scooter.
Collisions, falls, and loss of control can damage people and objects around you.
Owners of the e-scooter must check and obey any local laws applicable to e-scooter usage concerning
helmet use, speed limits, and accessible areas.
This e-scooter conforms to the decree of electric mobility.
This electric kickscooter is not a toy and is not suitable for children under the age of 10 (check your local laws).
Adult supervision is required for riders under the age of 18.
This product can not transport more than one person at time.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instructions concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Keep the battery out of the reach of small children.
Cleaning and user maintenance shall not be made by children without supervision.
WARNING FOR BATTERY CHARGER
This appliance is not a toy.
Children shall not play with the appliance.
Adult supervision is required for minors.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instructions concerning use of the
EN

4
appliance in a safe way and understand the hazards involved.
Cleaning and user maintenance shall not be made by children without supervision.
Donot recharge non-rechargeable batteries.
The battery is to be disposed of safely.
Introduction
For your better use experience, please read this product manual carefully. Keep this user manual for future references.
In order to avoid damage, carefully read and follow the instructions of this user manual.
The user is responsible of all consequences from the incorrect use of the electric kickscooter.
The Retailer and the Distributor are not responsible of damages to objects and/or people caused by the incorrect use of the device.
This e-scooter can be used by one user at one time only.
Please use the product if in good condition only. Please check whether the tires are damaged. If anything abnormal, please
provide for maintenance.
If you lose control during driving, you may cause damage to you or to other people.
For private use only. Forbid to use the electric kickscooter on vehicle roads (check the local laws).
Before riding the electric kickscooter, the battery must be fully charged or almost fully charged. Follow the instructions on this
user manual to avoid technical problems.
ATTENTION
The battery is the heart of the main energy resources of the device, pay attention to its habit when using the battery.
The battery cannot be discharged and should be fully powered before each use.
Avoid deep current discharge, recharge the battery in time when the level is very low.
Fully charge the battery every 2 months, even when the electric kickscooter is not used.
WARNING
When battery is completely empty (0% charge), a normal charge of 7-8 hours might not be sufficient.
It is necessary to proceed with an 8-hour charge.

5

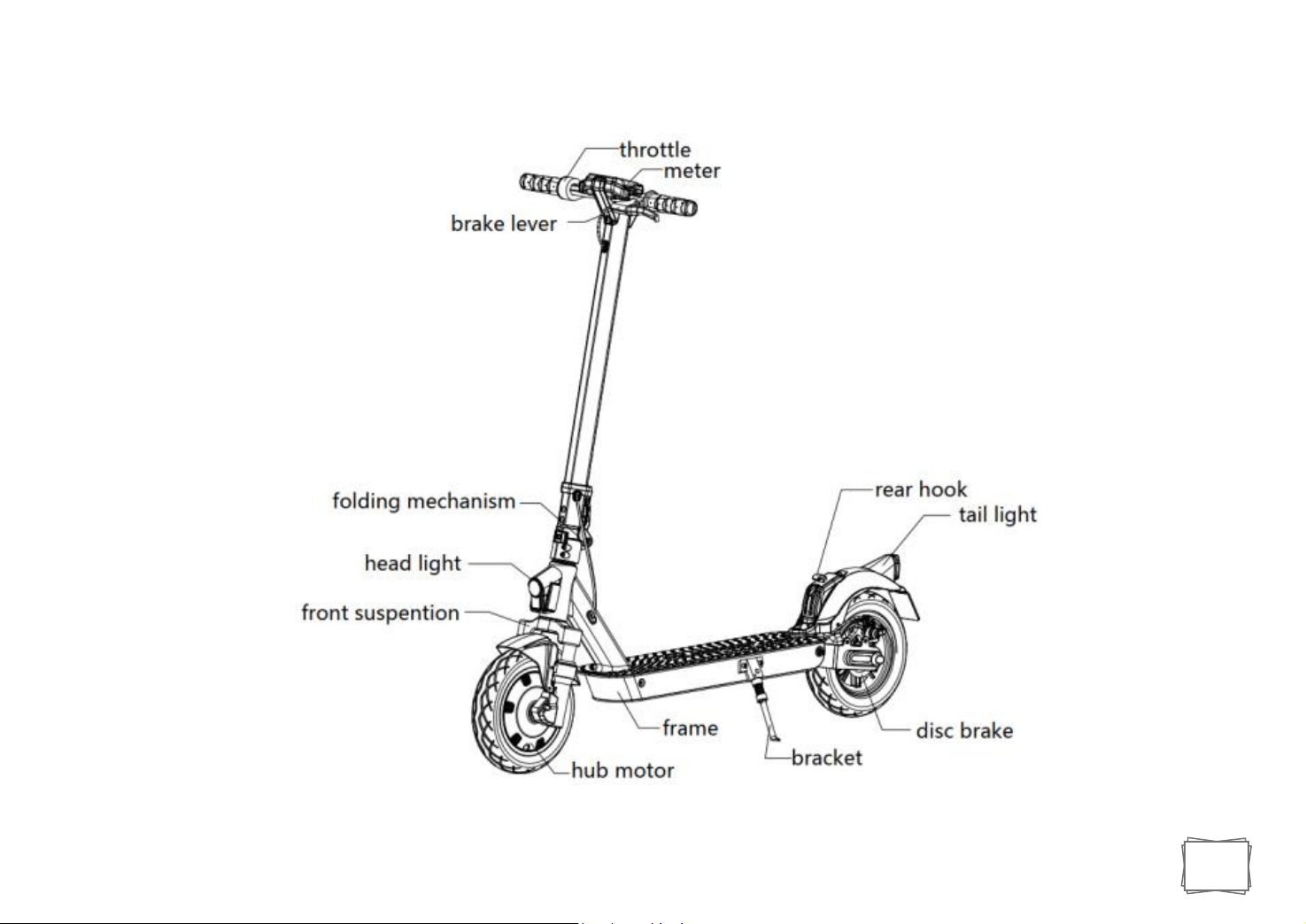

The product

6

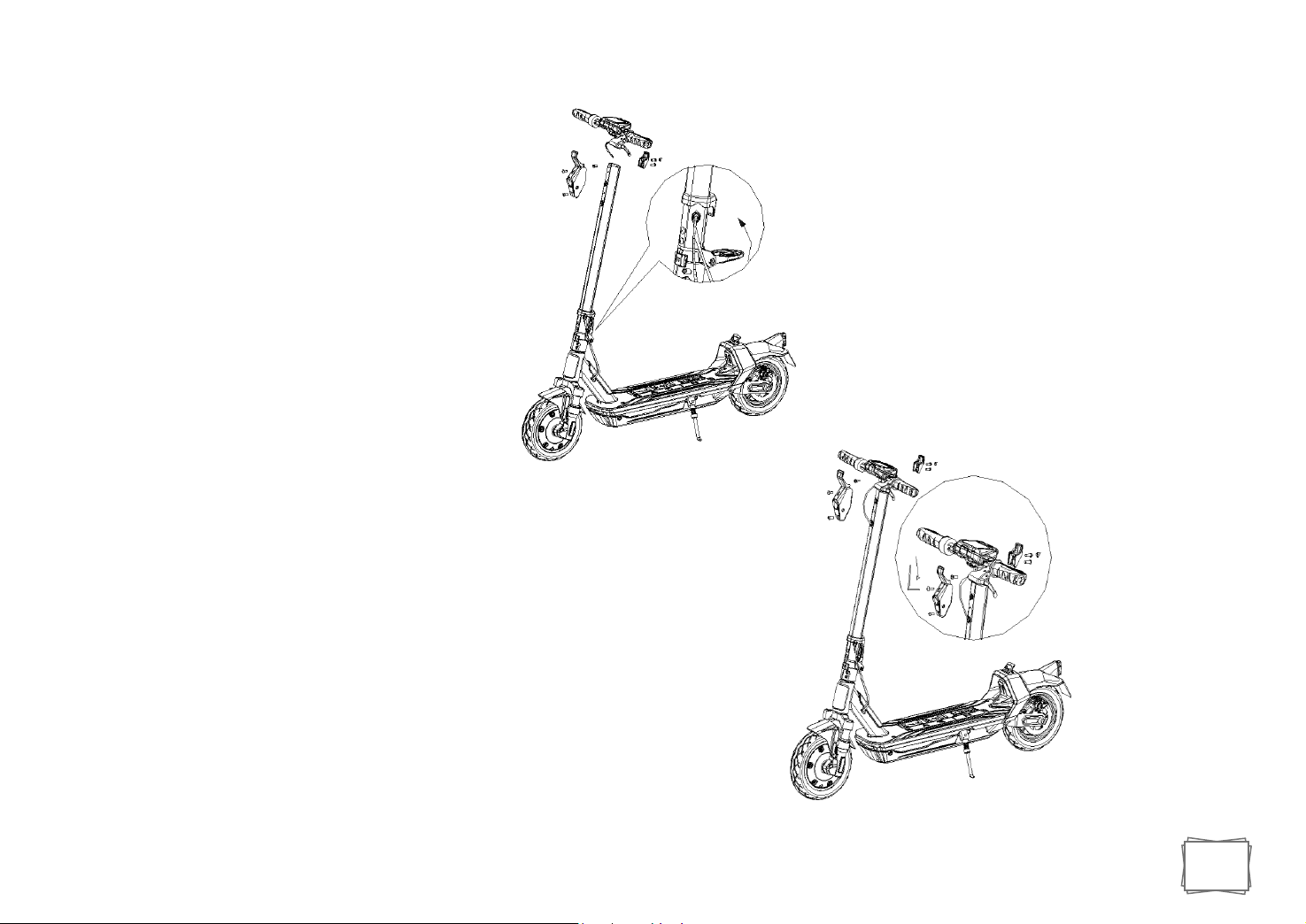

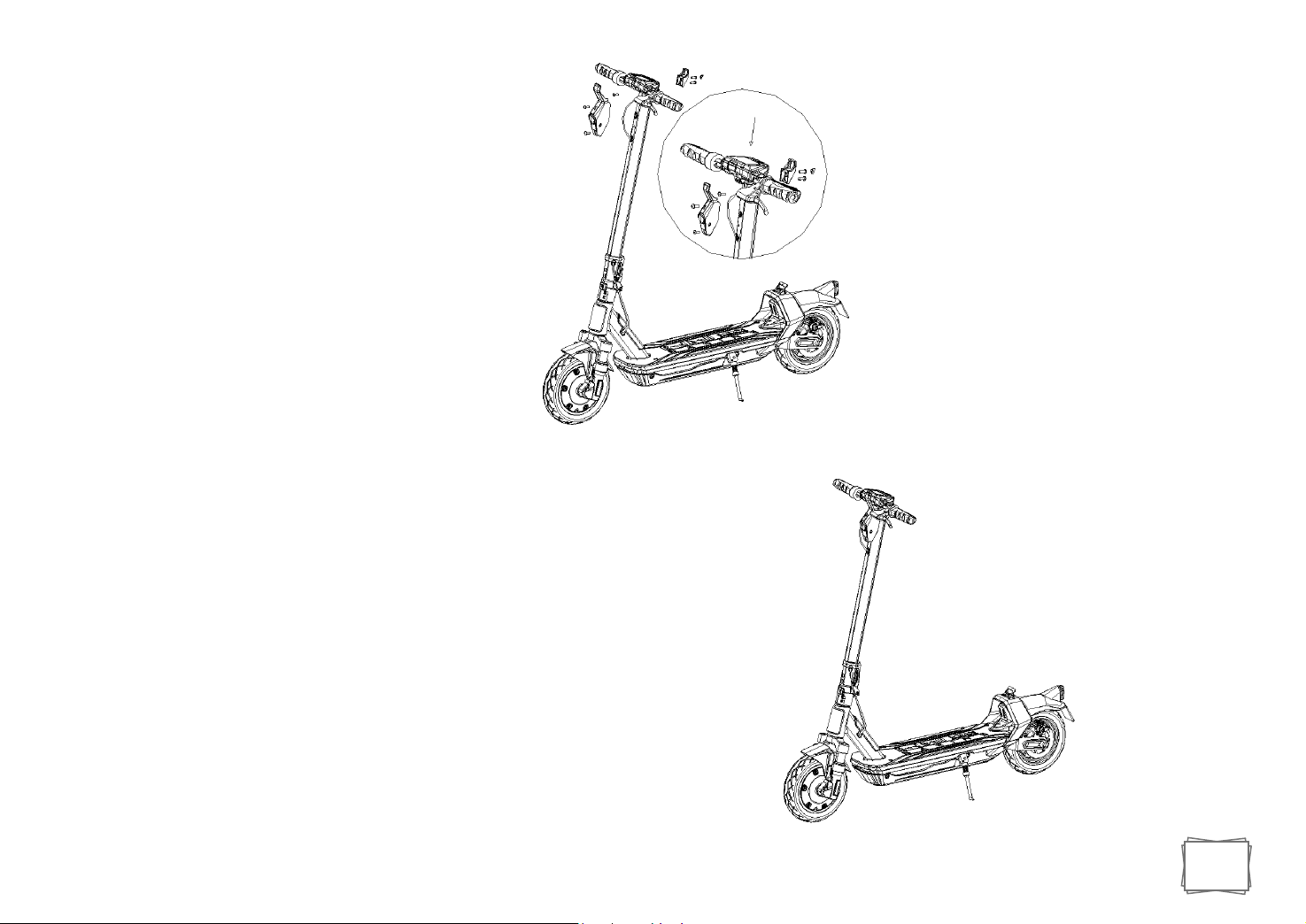

Assembling
The kickscooter is folded inside its box.
Hand pull the handlebar from the rear wheel.
Upward the handlebar.
Close the lever on the handlebar.
For the very first use, please assemble the vertical handlebar.
Use the hexagon wrench to tighten the 4 screws on the
handlebar.

7
Install the handlebar on the standpipe.
When the installation is done, please test the power switch of the display.
If the display turns-on, the installation is well done.
You can use the easel to keep the kickscooter standing alone.

8

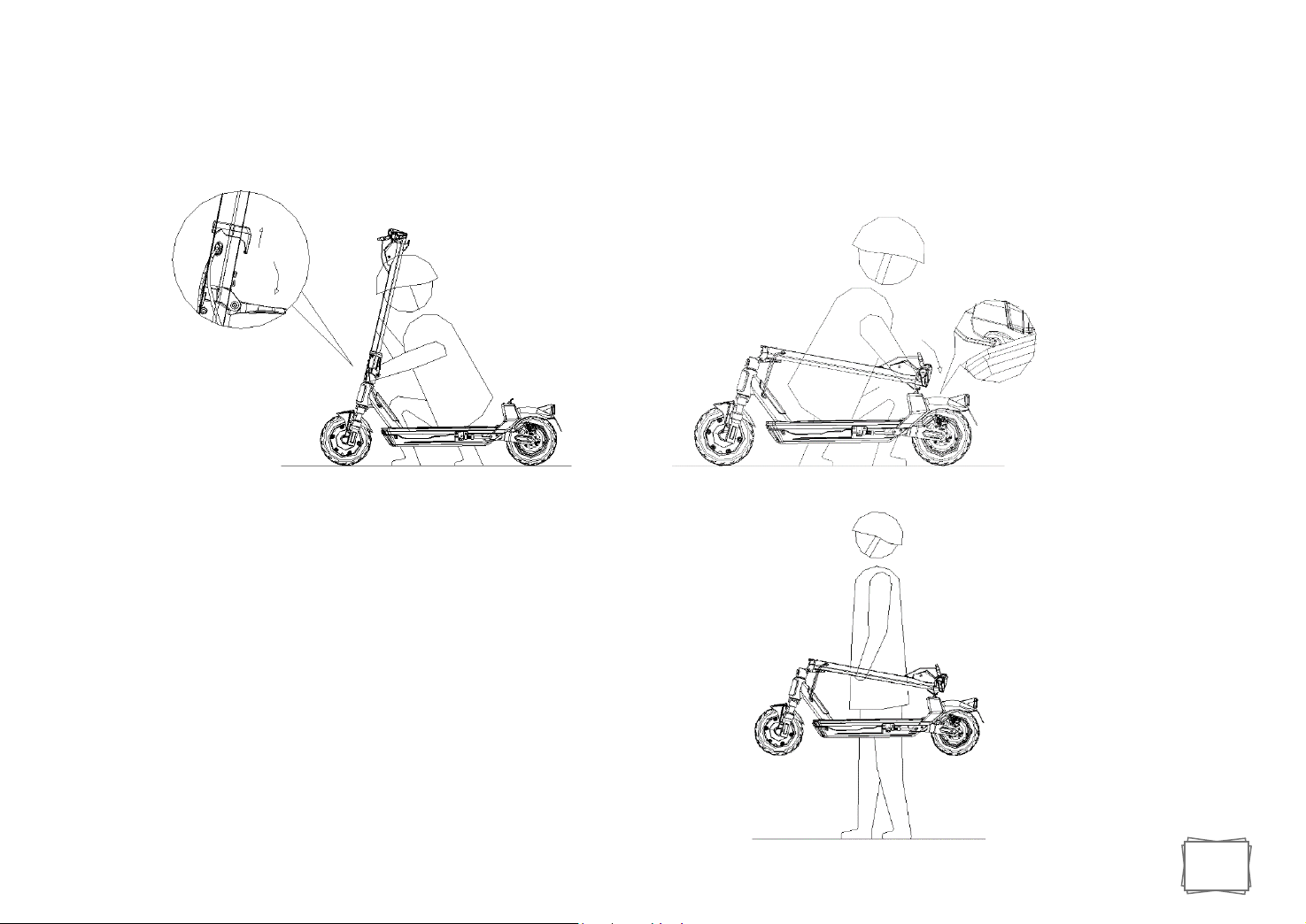

Folding steps
Make sure the electric scooter is powered off.
Hold the standpipe by hand, rotate the folding wrench and align the front hook and the rear hook.
Fold the handlebar. Hook the handlebar to the rear wheel.
The folding procedure is now completed.
The product can be easily carried.

9
LED Display
The LED display is on top of the handlebar, in front of the user.
Press the power button to turn on the e-scooter.
Press the button one time to switch from Pedestrian mode to ECO to D to S+ mode.
Quickly press the power button 5 times to switch from MPH to KM/H and vice versa.
Quickly press the power button to turn on/off the front LED light.
Press the power button for 5 seconds to turn the display off.
The unit will automatically turn off when not in use for 3 minutes.

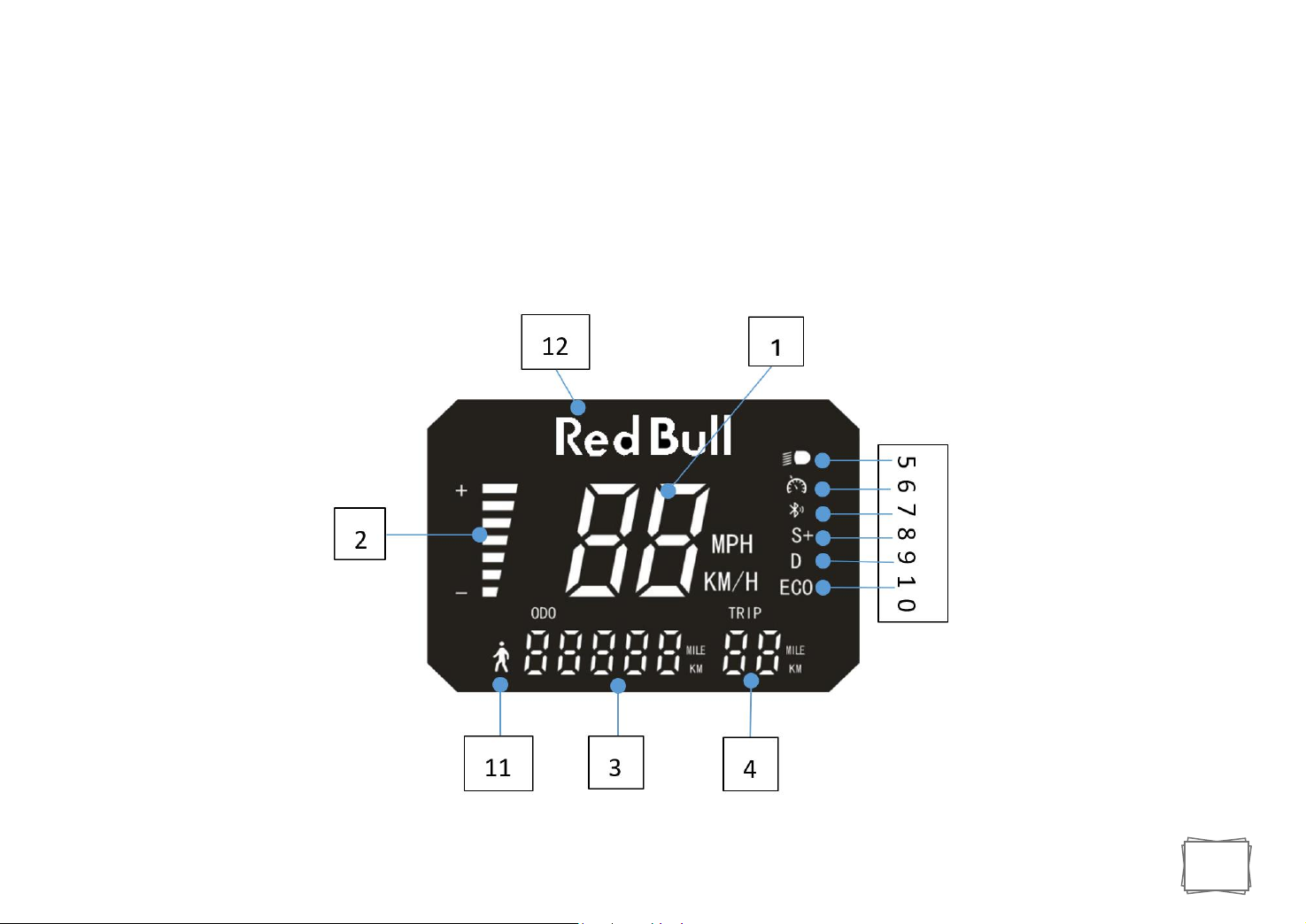

This is what the display looks like:

10
Current speed (1)
The speed is showed in Km/h. It will change along with the current speed.
Battery capacity (2)
The battery capacity of the e-scooter is displayed by bars, from 100% (full battery) to 0% (empty battery).
The display will light on all bars when the battery is full and one bar only for very low battery. During use the power of the
battery gradually decreases. When the energy of the battery is very low (one bar on only), please stop riding for your safety
and charge the battery for further use.
Remark: ERR 03 might appear on the display. It will disappear when the battery is charged again.
Mileage display (3) (4)
ODO info (total mileage) is visible when the unit is powered.
Trip info (single trip distance) is visible during normal use of the electric kickscooter.
Light indicator (5)
This symbol will turn-on when the front light is powered.
When the display is on, press the power button to turn on/off the front and rear LED light.
Cruise indicator (6)
The function is not working for this product. This indicator will never turn-on.
Bluetooth symbol (7)
The function is not working for this product. This indicator will never turn-on.
Modes (8) (9) (10)
Gear 1, pedestrian mode, is for low speed (6km/h max); gear 2, ECO mode, is for mid speed (15km/h max); gear 3, D mode,
is for high speed (20km/h max).
Short press twice the button to switch from one gear to the next one.
For safety reason, it is suggested to change the gear the kickscooter is stopped only.
Brake indicator (11)
Each time that the brake is used, this indicator turns on.
Logo (12)

11
Error status
When one of these error codes appear on the display, kindly contact your retailer or after-sale-service for immediate
assistance.
Remarks: When the above error occurs, the rear tail lamp will flash at 10Hz high frequency. The motor will not operate;
therefore, the motor cannot be seen as damage when it does not operate when error occurs.
Part
Status
Meaning
Description
Controller
E01
Over-current protection.
When the vehicle travels on a slope or
accelerates suddenly with huge load, it would
trigger the alarm due to over-current. Recovery
needs to reduce load (reduce current).
E02
Low-voltage protection. Battery is nearly
out of power.
It usually appears during use, meaning the
battery is low.
E03
Over-voltage protection.
Normally it will not happen during customer
use. If this situation occurs during proper use
with right speedometer, it may apply the
battery with larger voltage than the right
battery of this model.
If the battery is correct, please check the
speedometer if it is 36V or 48V. This situation
will occur when speedometer of 36V match
with 48V battery, because full battery level of
36V battery is 42V.
E04
Rotor-lock protection.
It usually happens when the climbing slope is
too big, which causes rotor overload and finally
the rotor would be locked.

12
E05
MOSFET up bridge-arm fault.
Due to program setting, it might trigger the
fault at the first use, but it would not happen
next time. If it happens during normal use, the
controller MOS tube may be damaged, please
replace controller.
E06
MOSFET down bridge-arm fault.
If it happens during normal use, the controller
MOS tube may be damaged, please replace
controller.
E07
Controller is broken. Hall of failure.
After-sales service is required.
E08
Over-temperature protection.
It is usually over-temperature with the
controller, due to continued travelling on
slopes or overload for a long time. The initial
protection will limit current output and will not
generate error code. If the temperature
continues to rise, it will trigger the alarm and
cut the electricity.
Speedometer
E09
Throttle failure.
It is because the throttler signal does not enter
the speedometer. After-sales service is
required.
E10
Brake failure.
The major reason is the bad contact between
brake and throttler or between brake and
speedometer, it is found the possibility of Hall
failure in throttler also. After-sales service is
required.

13
E11
Headlight switch malfunction.
This error is not valid for the current model.
E12
Communication failure.
It is usually due to bad contact for main cable
or connector clips and open circuit. After-sales
service is required.
E13
Start-switch failure.
This error is not valid for the current model.
Instructions for use
Before riding the electric kickscooter for the first time, the battery must be fully charged.
Follow the instructions on this user manual to avoid technical problems.
Try to recharge after each ride, which can greatly extend the service life of the battery.
First put the electric kickscooter on a flat surface.

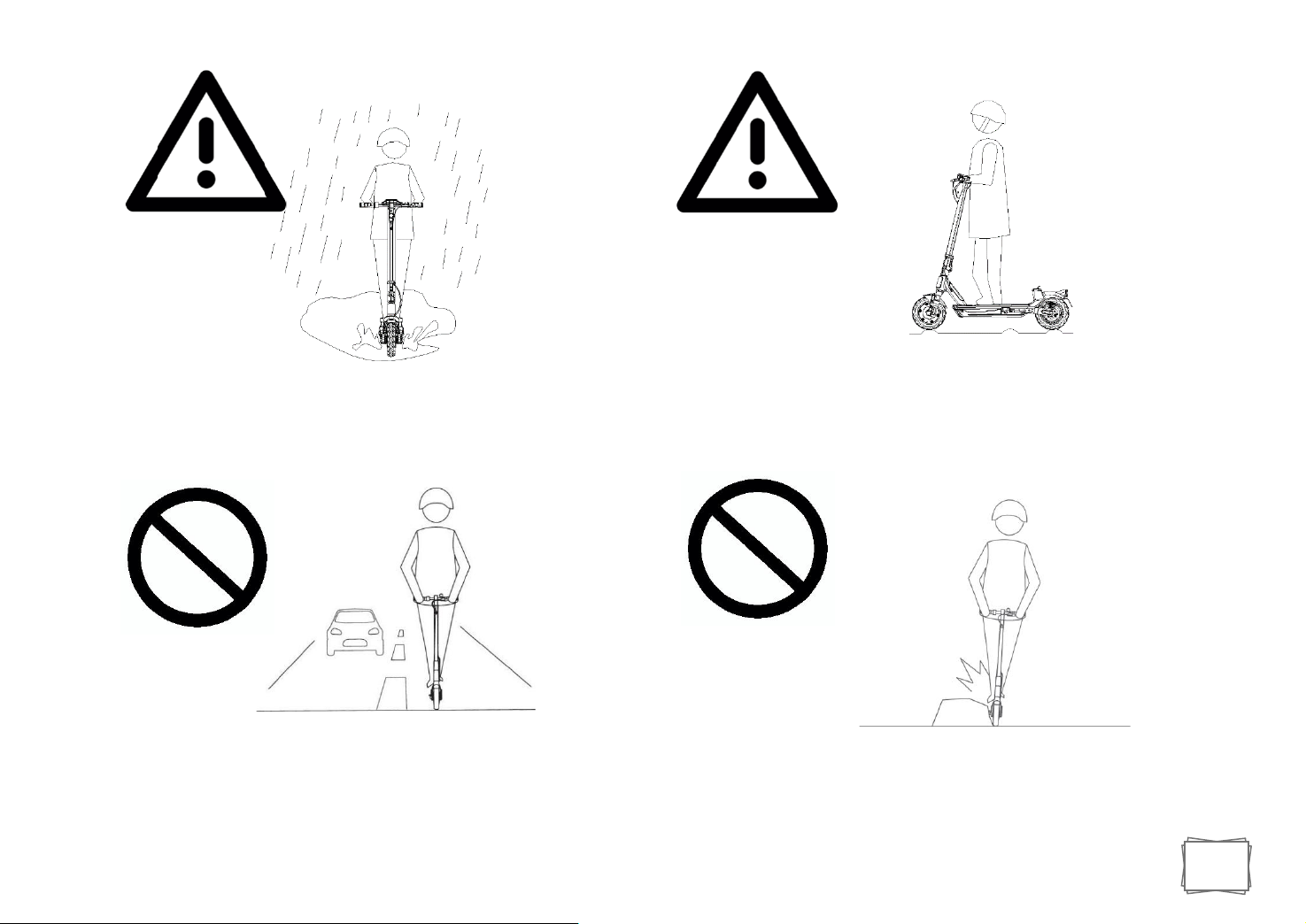

The electric kickscooter is developed for flat grounds. Take care of uneven and bumpy grounds.
Press the power button on the display, to turn-on the display and the unit.
Verify the level of the battery power on the display.
Select the desired gear.
Put one foot on the pedal. Stand on the pedal with one leg only. Keep the two hands on the handlebar.
This e-scooter has a “kick-and-go” function for your safety.
Just push with the foot your e-scooter forward and the motor will be activated when you reach 3km/h.
Gently press the lever on the right handle: the device will accelerate.
Step on with the other foot whilst the electric kickscooter is moving.

14
Release the acceleration lever to slow-down.
Pull the brake lever on the left handle: the electric kickscooter will brake.
Stop the electric kickscooter and remove the feet, one by one.
Turn off the display.
Use the easel to keep the electric kickscooter standing alone, when not in use.
Distance
The maximum range of the scooter is 35-40 km approx.
This maximum range is affected by the road type (flat and smooth ground will increase the distance, otherwise the distance
will be reduced), ambient temperature, maintenance (tyres, battery).
Loading
Driver’s maximum weight should be of 100 Kg and minimum weight should be 30 Kg.
These limits ensure the driver’s safety and reduce damages to the scooter.

15
Battery
The battery charge (and therefore the maximum distance) is affected by some factors like:
1. Ground (when ground is not flat, the discharge is increased).
2. Weight of the user.
3. Ambient temperature.
4. Drive style and speed will affect the life of the battery charge: a constant and moderate speed, positively affect the
charge of the battery; a high and inconsistent speed, will reduce the life of the battery charge.
5. Maintenance (battery must be kept in good condition by the user and must be charged in the correct way).
WARNING
Charge the battery before first use.
Fully charge the battery every 2 months, even when the kickscooter is not used.
WARNING
When battery is completely empty (0% charge), a normal charge of 7-8 hours might not be sufficient.
It is necessary to proceed with an 8-hour charge.
Battery Charging
Charge the battery before using the electric kickscooter for the first time.
When you find the power-indicator shows very low energy, please stop riding for your safety.
Try to recharge after each ride, which can greatly extend the service life of the battery.
Charging should be in a safe, dry, and clean environment.
The kickscooter must be powered-off before proceeding with charging.
Do not use the kickscooter when charging the battery.
INSTRUCTIONS FOR CHARGING

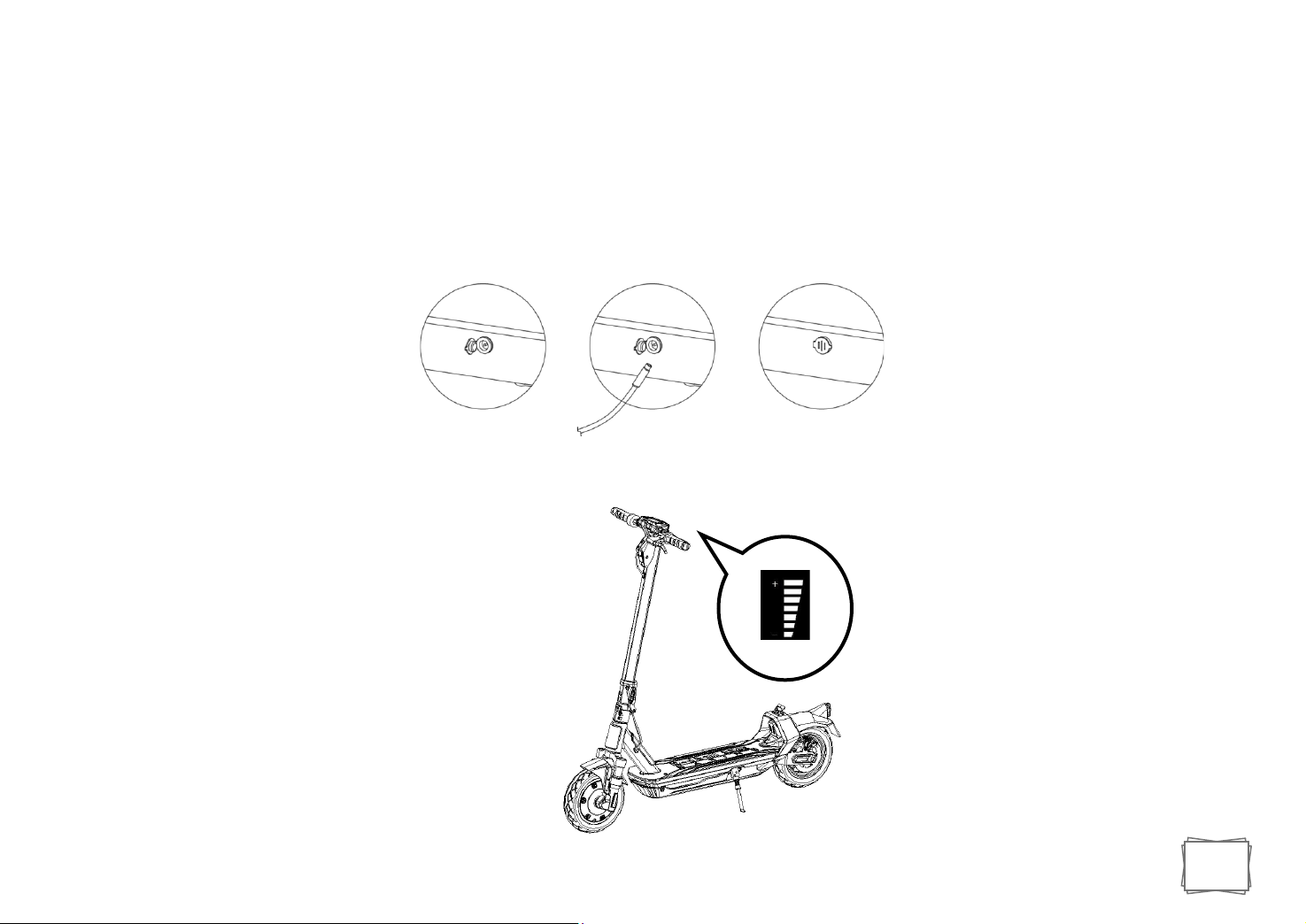

1. Ensure the charging port is dry. Open the protective cover and insert the charger into the e-scooter charging port. The
other end of the charger must be connected to the mains to activate the charger.

16
2. First connect the cable of the battery charger to the e-scooter. Then, connect the cable of the battery charger to the
mains.
3. The indicator light on the charger will be red: this grants that the charge is proceeding. Charging should be in a safe, dry,
and clean environment.
4. When the indicator light is turned to green colour, the battery is fully charged. Please stop charging or the battery life will
be reduced. Charging time is around 7-8 hours. Too long charging time will affect the battery life.
5. Remove the cable of the battery charger. Put the cover back to position.
Please check the battery capacity on the display.

17
Keep the product and the battery at the recommended temperature to keep the highest efficiency of the e-scooter and of
the battery. If used in an extreme cold or hot environment, the charging time sill be lengthened too. Working temperature:
0°C  40°C.
Please check the temperature of the battery during the charging process. Charging temperature must be: 0°C  40°C.
Humidity level during charge must be: 5% 95%.
If the temperature is higher than 40°C, the scooter functioning might be damaged and battery life might be reduced.
WARNING
When battery is completely empty (0% charge), a normal charge of 7-8 hours might not be sufficient.
It is necessary to proceed with an 8-hour charge.
WARNING/ATTENTION
The battery contains dangerous substances.
Do not charge the battery if the temperature is lower than 0°C.
Do not attempt to open the battery and do not insert objects inside it.
Do not charge overnight or when you are not able to observe the e-scooter.
Charge and store in an open dry area, away from combustibles (meaning items that can catch fire).
Do not charge directly after riding. Let the device cool for an hour before charging.
If giving to someone for the holidays, leave it in its partially charged state. Do not take it out of the package to bring it to a full
charge and then wrap it back up. Often, the product comes partially charged. Leave it in that state until it is ready to be used.
Correctly dispose and recycle the batteries according to local recycling and environmental regulation.
Never treat the batteries as common domestic waste, to prevent explosion and pollution.
Never throw the batteries into fire.
The battery must be removed from the kickscooter before it is scrapped.
Only the original charger must be used. Please refer to your retailer in case replacement is required.

18
CAUTIONS
Do not use the e-scooter if the battery is low.
Do not use the e-scooter in case of burning smell.
Do not use the e-scooter if anything leaks out from the battery.
Do not touch anything leaking out from the battery.
Do not let children or animals touch the battery.
Unplug the charger before riding the e-scooter.
Only use the supplied battery and the supplied charger.
Only professionals can disassemble and maintain the battery. Please refer to your Retailer.
Transport of the battery
Lithium batteries are considered dangerous goods.
Please check the local law about transportation.
Speed Limit
The maximum speed is 20 Km/h.
When the driver reaches the maximum speed, the e-scooter will keep the speed even if the driver accelerates.
Safety drive
1. Please carefully read this user manual before first use.
2. Please always wear helmet, knee protections, elbow pads, when riding (check your local laws).
3. Wear comfortable flat shoes.
4. Please always verify that the use of the electric kickscooter is allowed (check your local laws).
5. Always check the level of the battery. If too low, the e-scooter might suddenly stop and cause the fall of the driver.
6. This product is not suitable for children under the age of 10 (check your local laws).

19
7. Adult supervision is required for minors of 18.
8. The e-scooter is for personal entertainment only. It is prohibited to use it as public transportation (check your local laws).
9. It is forbidden to use the e-scooter on vehicle roads (check your local laws).
10. It is forbidden to carry goods whilst driving the e-scooter.
11. Pay attention to objects and people around.
12. Do not start or stop driving suddenly. Sudden movements will make the e-scooter out of control.
13. Do not use it on streets, in traffic and by night (check your local laws).
14. Do not drive in dark places.
15. Pay attention to the ground. The kickscooter is made for smooth and flat grounds.
16. Do not ride up or down from stairs or escalators.
17. Do not drive after drinking or taking drugs.
18. The e-scooter can be used by one person at one time only, even if the maximum weight is not reach.
19. Overweight is prohibited. Functions of the kickscooter might be damaged.
20. Underweight is prohibited. The e-scooter might not be under control anymore.
21. The speed of the e-scooter is affected by the road type, the ambient temperature, the maintenance of the battery.
22. Always keep safety distance between you and other vehicles, people, obstacles, to avoid any collision.
23. Do not drive when raining. Avoid wet floors and puddles. Avoid puddles deeper than 2cm.
The control of the e-scooter will be reduced. The user might fall. The electrical system of the e-scooter might be
damaged.
24. Avoid driving the e-scooter on grounds with snow or ice or mud. The e-scooter would not be under control.
25. Do not use the electric kickscooter in unsafe circumstances or dangerous places.
26. Keep away from fire.

20
DO NOT ride during rainy / wet weather. Ride at a controlled and slow speed while you ride through
uneven surfaces. Slightly bend your knees to absorb the
bumpy impacts.
DO NOT ride in traffic lanes or residential areas where Always steer clear of obstacles.
vehicles and pedestrians are both allowed.
