USER MANUAL FOR E-SCOOTER RB-RTENTAKEUP10-10
Red Bull® Marks and the Red Bull Racing Logo are licensed by Red Bull GmbH/Austria

2
Page 3-24 EN USER MANUAL
Page 25-46 CZ UŽIVATELSKÝ MANUÁL
Page 47-68 SK POUŽÍVATEĽSKÁ PRÍRUČKA

3
RB-RTENTAKEUP10-10
E-SCOOTER
WARNING FOR ELECTRIC KICKSCOOTER
Read and follow all the instruction in the user manual before using the e-scooter.
Collisions, falls, and loss of control can damage people and objects around you.
Owners of the e-scooter must check and obey any local laws applicable to e-scooter usage concerning
helmet use, speed limits, and accessible areas.
This e-scooter conforms to the decree of electric mobility.
This electric kickscooter is not a toy and is not suitable for children under the age of 14 (check your local laws).
Adult supervision is required for riders under the age of 18.
This product can not transport more than one person at time.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instructions concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Keep the battery out of the reach of small children.
Cleaning and user maintenance shall not be made by children without supervision.
WARNING FOR BATTERY CHARGER
This appliance is not a toy.
Children shall not play with the appliance.
Adult supervision is required for minors.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instructions concerning use of the
EN

4
appliance in a safe way and understand the hazards involved.
Cleaning and user maintenance shall not be made by children without supervision.
Do not recharge non-rechargeable batteries.
The battery is to be disposed of safely.
Introduction
For your better use experience, please read this product manual carefully. Keep this user manual for future references.
In order to avoid damage, carefully read and follow the instructions of this user manual.
The user is responsible of all consequences from the incorrect use of the electric kickscooter.
The Retailer and the Distributor are not responsible of damages to objects and/or people caused by the incorrect use of the device.
This e-scooter can be used by one user at one time only.
Please use the product if in good condition only. Please check whether the tires are damaged. If anything abnormal, please
provide for maintenance.
If you lose control during driving, you may cause damage to you or to other people.
For private use only. Forbid to use the electric kickscooter on vehicle roads (check the local laws).
Before riding the electric kickscooter, the battery must be fully charged. Follow the instructions on this user manual to avoid
technical problems.
ATTENTION
The battery is the heart of the main energy resources of the device, pay attention to its habit when using the battery.
The battery cannot be discharged and should be fully powered before each use.
Avoid deep current discharge, recharge the battery in time when the level is very low.
Fully charge the battery every 2 months for 6-7H, even when the electric kickscooter is not used.

5

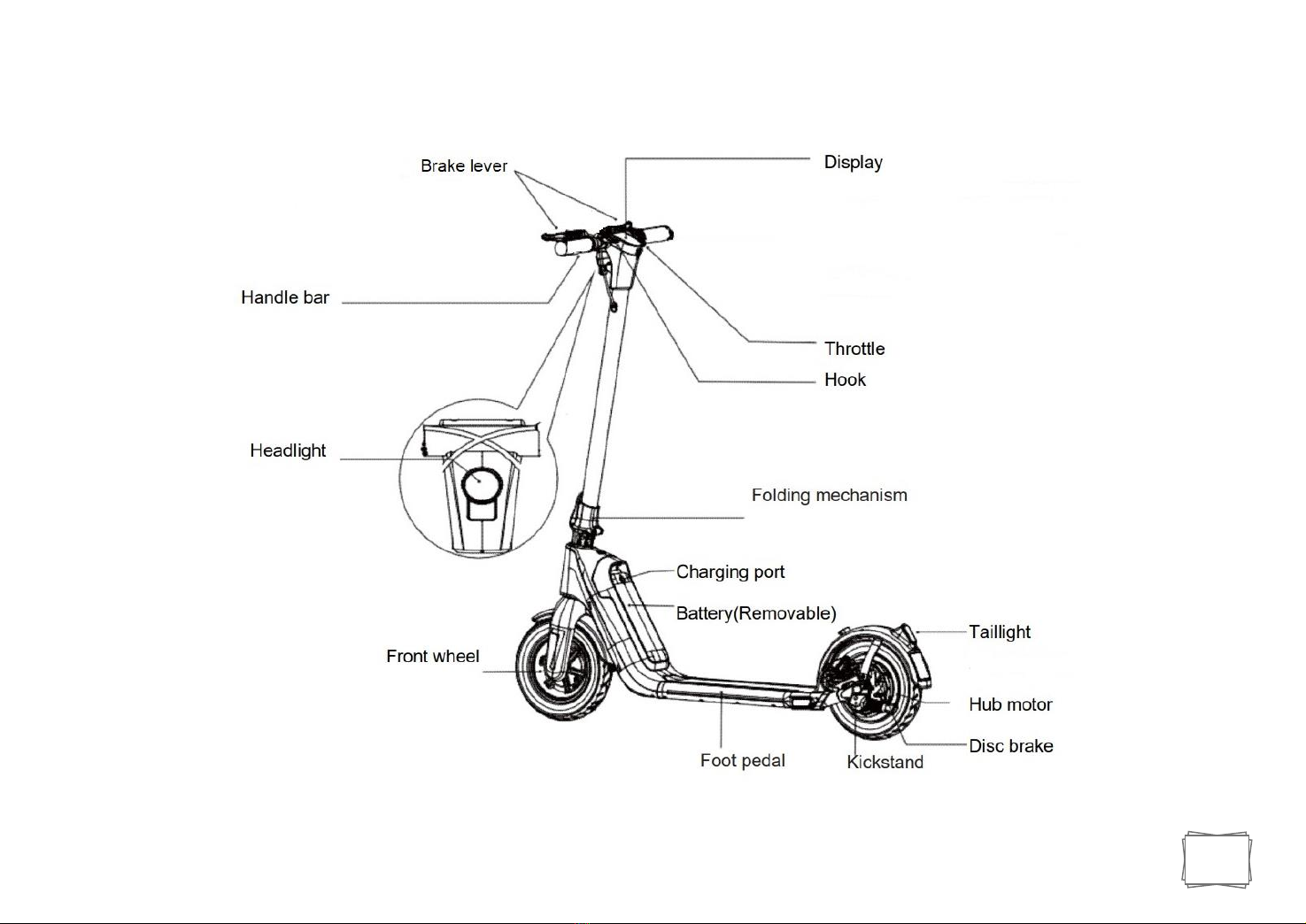

The product

6
Assembling
The kickscooter is folded inside its box.
Hand pull the handlebar from the rear wheel.
Upward the handlebar. Close the lever on the handlebar.
For the very first use, please assemble the handle grips to the handlebar.
A supplied phone holder can be also installed on the handlebar.
You can use the easel to keep the kickscooter standing alone.

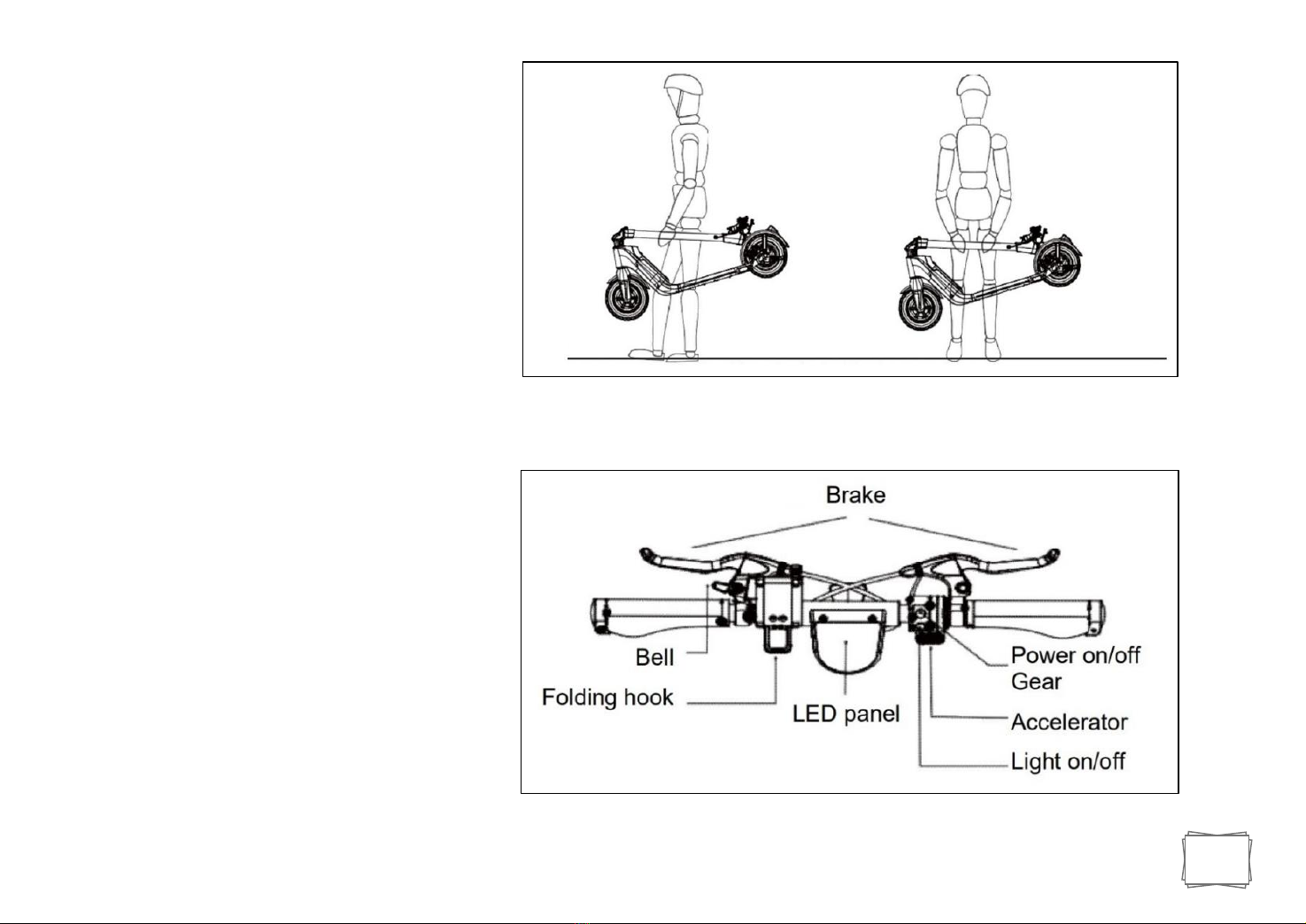

Folding steps
Make sure the electric scooter is powered off.
Hold the bar by hand and pull the folding buckle forward. Then fold down the bar slowly.
Hook the bar to the rear fender.

7
The folding procedure is now completed.
The product can be easily carried.
Unfolding procedure: press the rear fender to
release the bar.
Take up the tube and buckle up the folding
system.
LED Display
The LED display is on top of the handlebar, in
front of the user.
Long press the power button on your right to
turn the e-scooter on or off.
The unit will automatically turn off when not
in use for 15 minutes.
Nearby the display a USB charging port can
be used to charge the mobile phone.

8

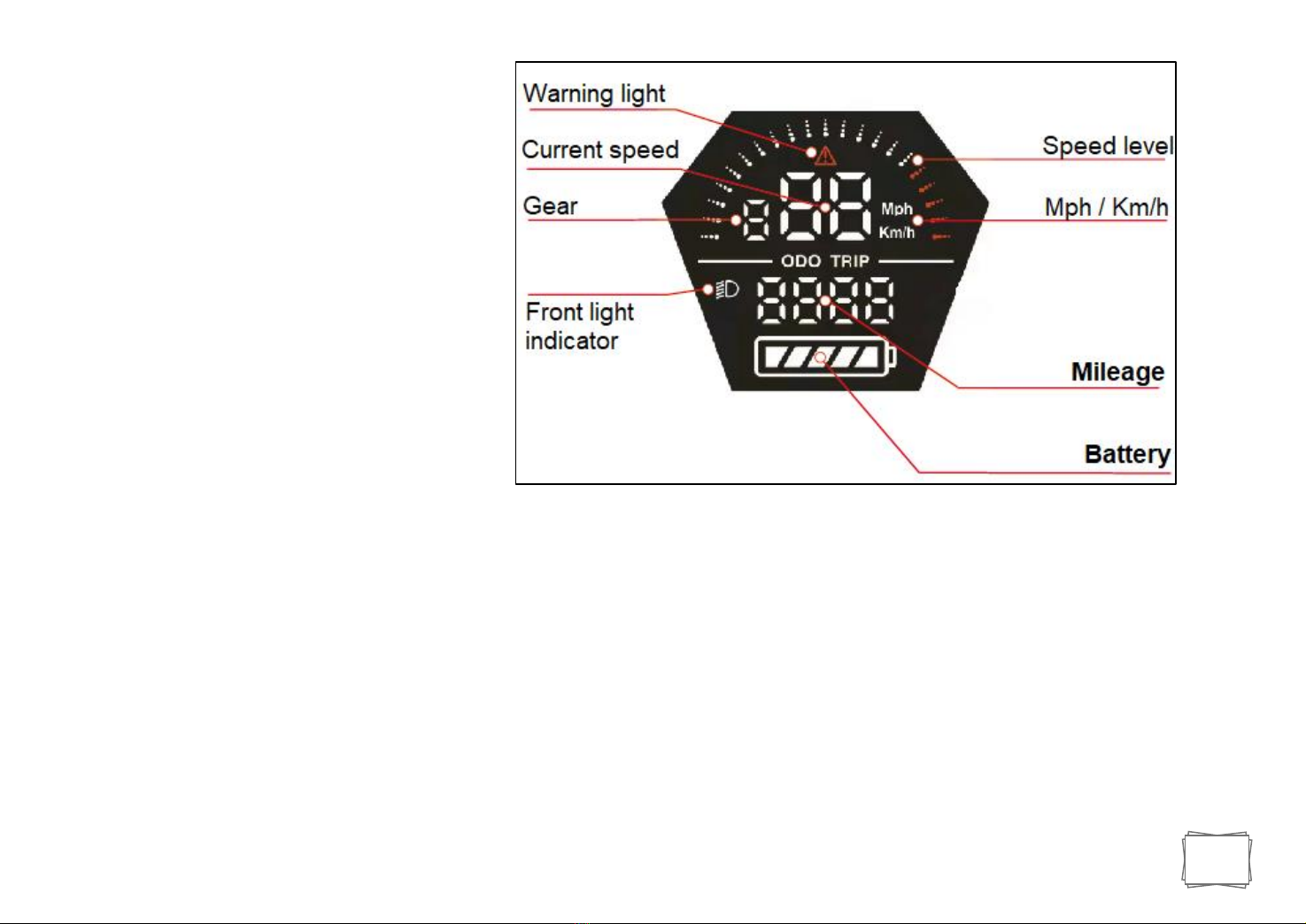

This is how the display looks like:
Current speed and Speed level
The speed is showed in Km/h. It will change along with the current speed.
Mph / Km/h
Press the light button 5 times to switch from one meter to the other.
Mileage
Double click the light button to switch from total mileage to single mileage.
Battery
The battery capacity of the e-scooter is displayed by bars, from 100% (full battery) to 0% (empty battery).
The display will light on all bars when the battery is full and one bar only for very low battery. During use the power of the
battery gradually decreases. It is not recommended to ride uphill when only two bars are on. When the energy of the battery
is very low (one bar on only) and the battery-frame flashes and the buzzer sounds, please stop riding for your safety and charge

9
the battery for further use.
Front Light indicator
This symbol will turn-on when the front light is powered.
When the display is on, long press the light button to turn on/off the front light.
Gears
Gear 1, pedestrian mode (the “walking man” indicator turns-on and the rear-light flashes), is for low speed (10km/h max);
gear 2, Comfort mode, is for mid speed (15km/h max); gear 3, Sport mode, is for high speed (25km/h max).
Double click the power button to switch gear.
For safety reason, it is suggested to change the gear the kickscooter is stopped only.
Cruise function
This product has Cruise function. If the e-scooter is used at a constant speed for more than 8 seconds, you will hear a “didi”
sound and it will automatically enter Cruise control function. Using the brake or the accelerator, the e-scooter will deactivate
the Cruise control.
Warning light
This indicator turns on when an error occurs. The indicator will turn off when the problem is solved.
Error status
When one error code appears on the display, kindly contact your retailer or after-sale-service for immediate assistance.
Remarks: When the above error occurs, the rear tail lamp will flash at 10Hz high frequency. The motor will not operate; therefore,
the motor cannot be seen as damage when it does not operate when error occurs.
“E1” Motor Hall fault
Suggestion: Check the wiring sequence of the motor Hall, the wiring terminals. After-sales service is required.
“E2” Communication failure
Suggestion: Check whether the communication lines, related terminals, and connectors are abnormal, whether the
instrument and controller are abnormal. After-sales service is required.
“E3” Throttle fault
Suggestion: Check whether the wiring sequence of the accelerator matches or not, and whether the accessories of the
accelerator are normal. After-sales service is required.

10
“E4” Over temperature fault
Suggestion: check whether the heat dissipation of the controller is good.
“E5” Over current fault
Suggestion: check whether the software version, hardware version, and motor version match.
“E6” Overvoltage fault
Suggestion: Check whether the battery parameters match.
“E8” Brake fault
Suggestion: Check whether the wiring sequence of the brake lever matches or not, and whether the brake lever accessories
are normal. After-sales service is required.
Instructions for use
Before riding the electric kickscooter for the first time, the battery must be fully charged.
Follow the instructions on this user manual to avoid technical problems.
Try to recharge after each ride, which can greatly extend the service life of the battery.
First put the electric kickscooter on a flat surface.
The electric kickscooter is developed for flat grounds. Take care of uneven and bumpy grounds.
Press the power button on the display, to turn-on the display and the unit.
Verify the level of the battery power on the display.
Select the desired gear.
Turn on the lights when driving at night or dark places. Wear a reflective vest, if required by the local laws.

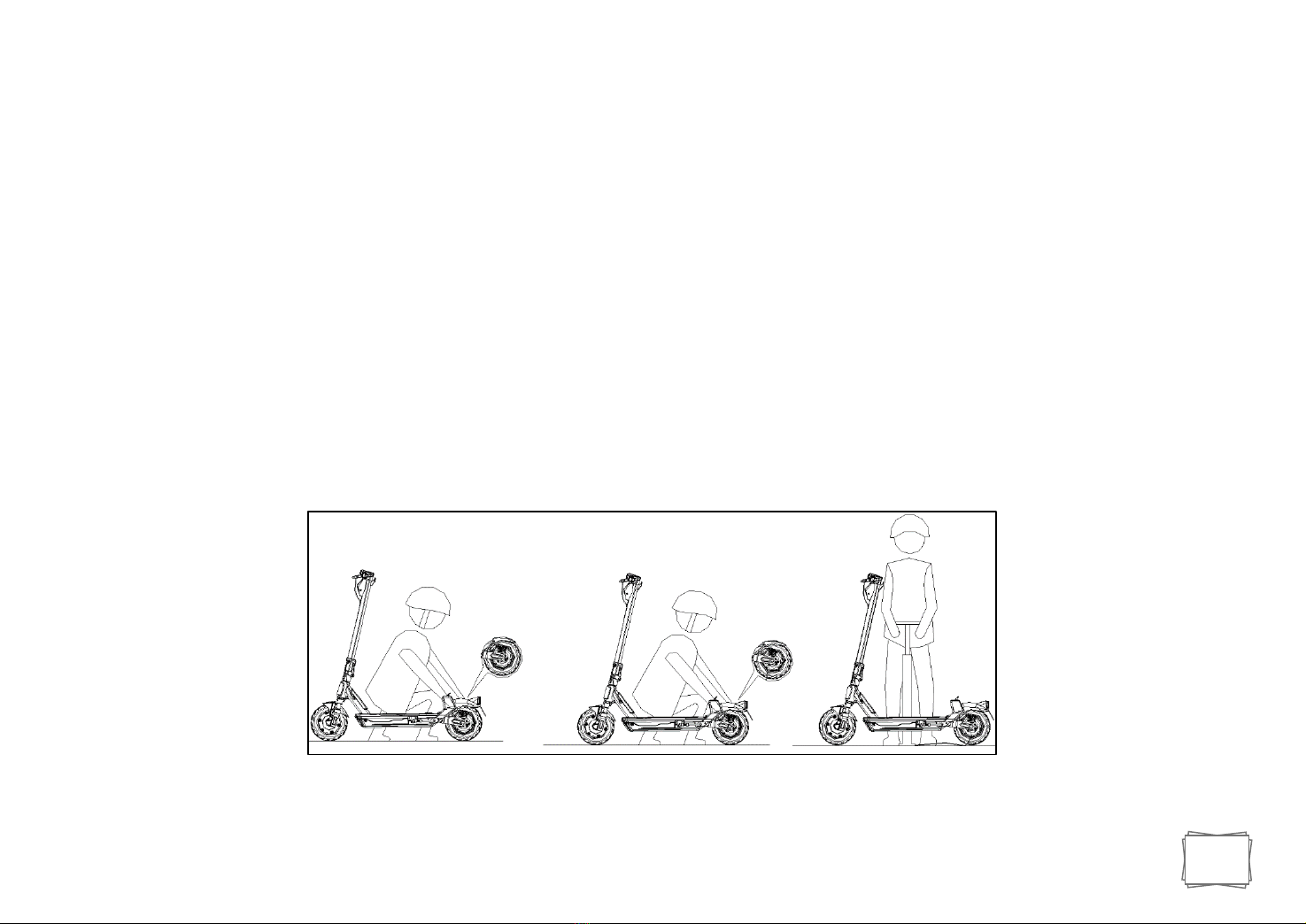

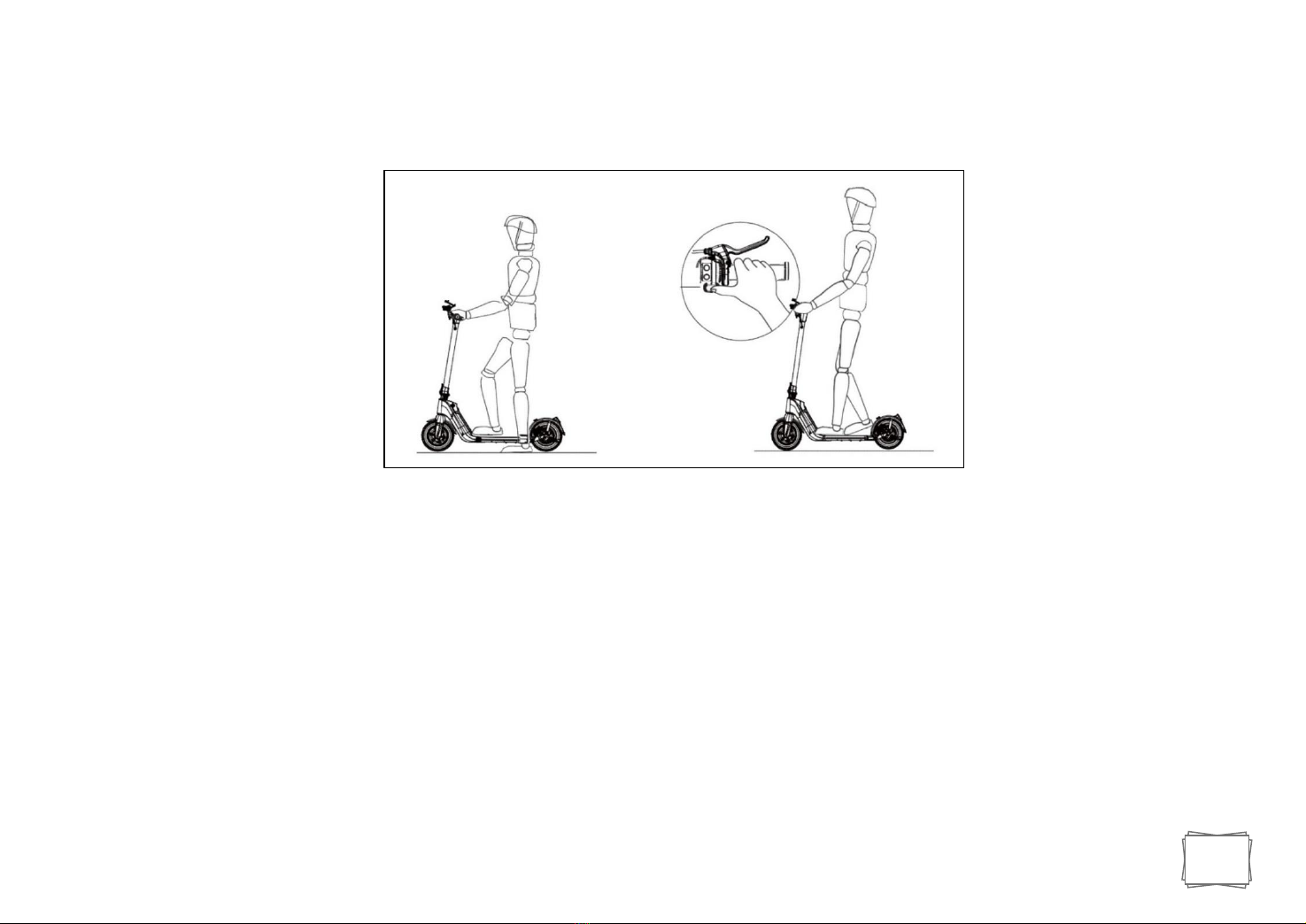

Put one foot on the pedal. Stand on the pedal with one leg only. Keep the two hands on the handlebar.
This e-scooter has a “kick-and-go” function for your safety: this will avoid a standing start.
Just push with the foot your e-scooter forward and the motor will be activated when you reach 3km/h.
Gently press the lever on the right handle: the device will accelerate.
Step on with the other foot whilst the electric kickscooter is moving.
Release the acceleration lever to slow-down. Pull the brake lever on the left handle: the electric kickscooter will brake.

11
Stop the electric kickscooter and remove the feet, one by one.
Turn off the display.
Use the easel to keep the electric kickscooter standing alone, when not in use.
The scooter is designed for flat terrain. Beware of uneven and/or bumpy terrain.
Distance
The maximum range of the scooter is 30-35 km approx.
This maximum range is affected by the road type (flat and smooth ground will increase the distance, otherwise the distance
will be reduced), by the ambient temperature, by the maintenance (tyres, battery), by the weight of the user (the heavier the
user is, the shorter the range is), the riding style (a lower speed extends the range).
Loading
Driver’s maximum weight should be of 100 Kg and minimum weight should be 30 Kg. These limits ensure the driver’s safety
and reduce damages to the scooter.

12
Battery
The battery charge (and therefore the maximum distance) is affected by some factors like:
1. Ground (when ground is not flat, the discharge is increased).
2. Weight of the user.
3. Ambient temperature.
4. Drive style and speed will affect the life of the battery charge: a constant and moderate speed, positively affect the charge
of the battery; a high and inconsistent speed, will reduce the life of the battery charge.
5. Maintenance (battery must be kept in good condition by the user and must be charged in the correct way).
WARNING
Charge the battery before first use. Fully charge the battery every 2 months (for 6-7H), even when the kickscooter is not used.
Battery Charging

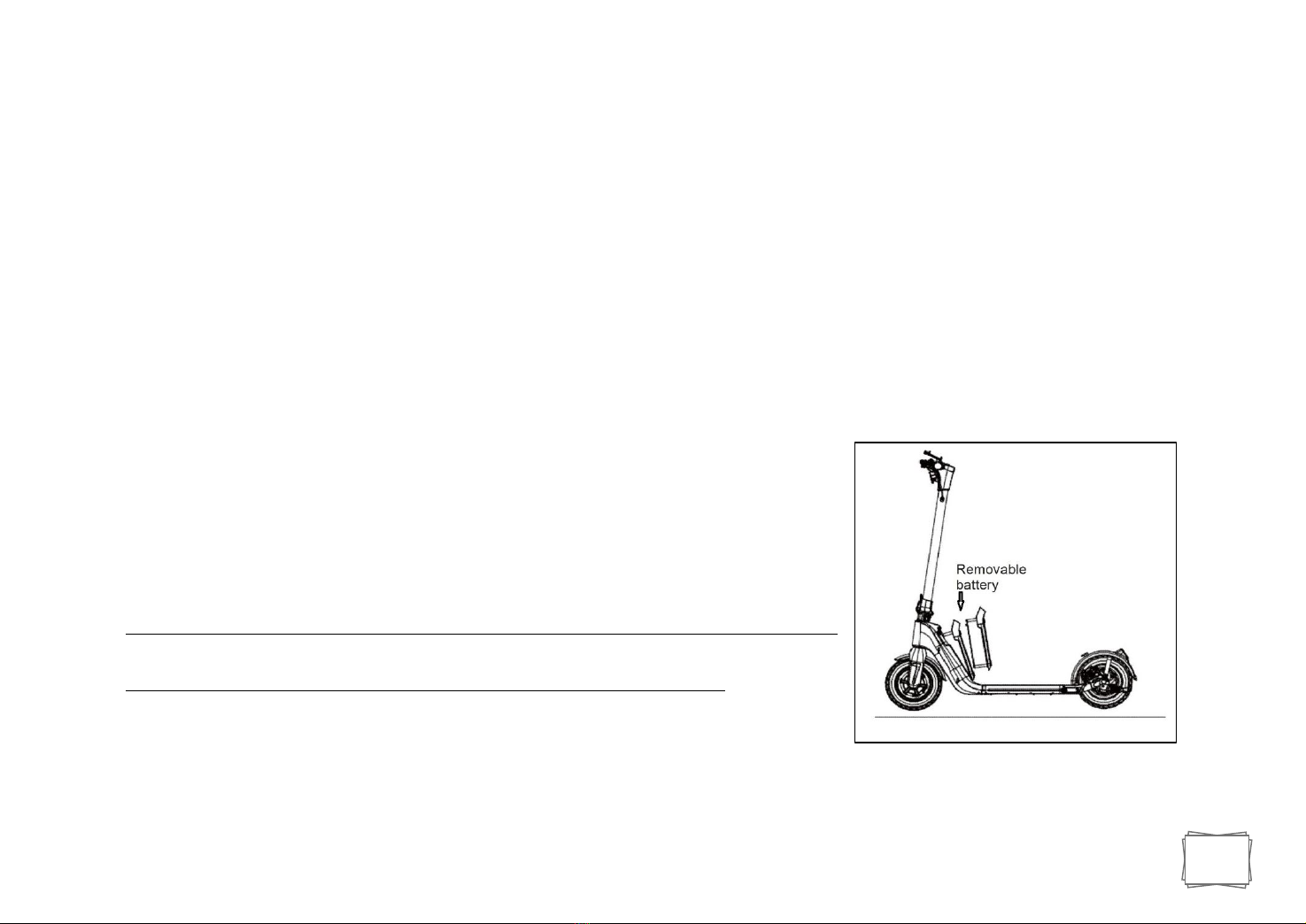

The battery of this device is detachable.
It means that the battery can be charged separately from the e-scooter too.

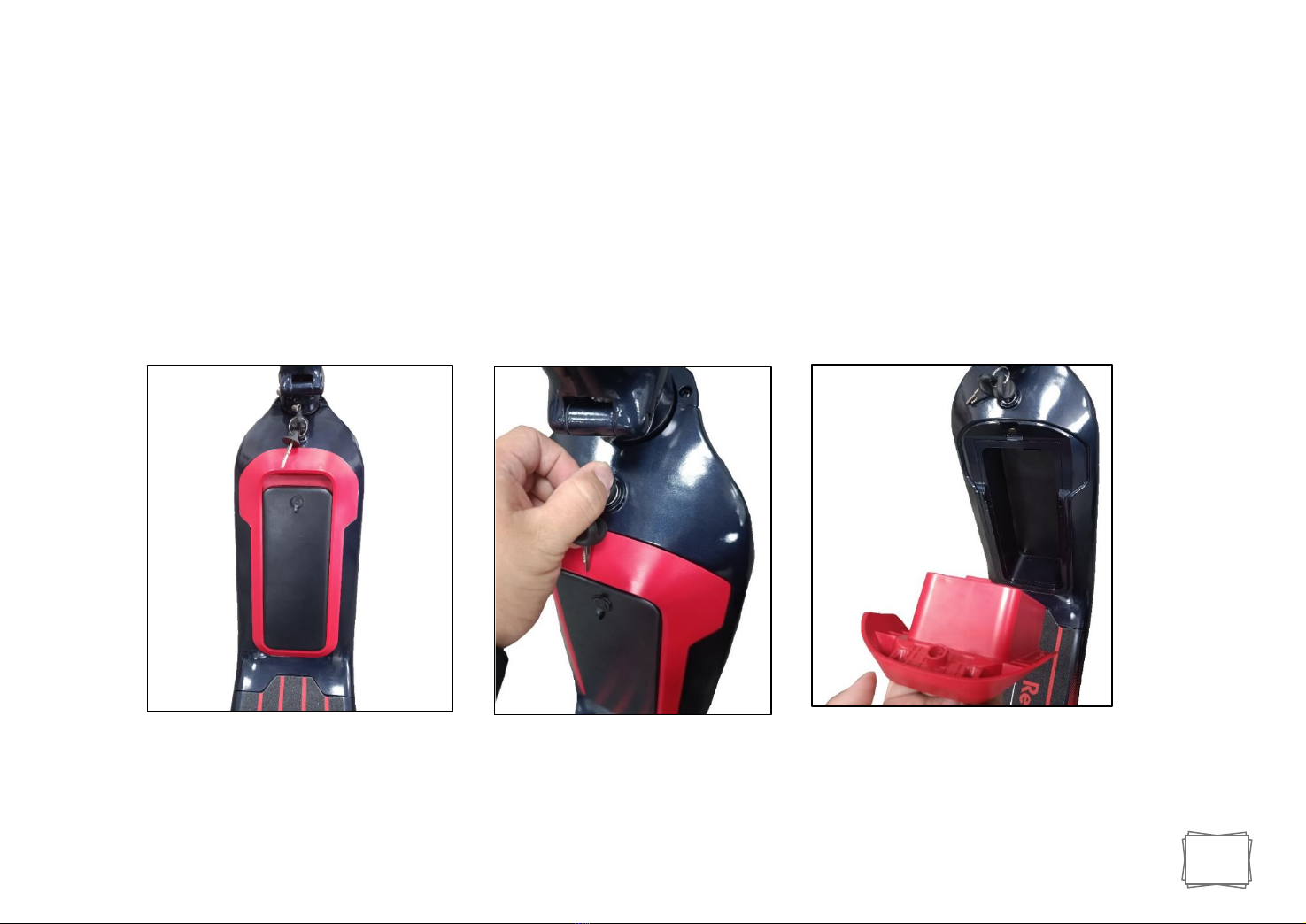

The battery can be disassembled from the e-scooter with the supplied key.
Charge the battery before using the electric scooter for the first time.
When you find the power-indicator shows very low energy, please stop riding for your
safety.
Try to recharge after each ride, which can greatly extend the service life of the battery.
Charging should be in a safe, dry, and clean environment.
The kickscooter must be powered-off before proceeding with charging.
Do not use the kickscooter when charging the battery.

13
WARNING/ATTENTION
The battery contains dangerous substances.
Do not charge the battery if the temperature is lower than 0°C.
Do not attempt to open the battery and do not insert objects inside it.
Do not charge overnight or when you are not able to observe the e-scooter.
Charge and store in an open dry area, away from combustibles (meaning items that can catch fire).
Do not charge directly after riding. Let the device cool for an hour before charging.
If giving to someone for the holidays, leave it in its partially charged state. Do not take it out of the package to bring it to a full charge
and then wrap it back up. Often, the product comes partially charged. Leave it in that state until it is ready to be used.
Correctly dispose and recycle the batteries according to local recycling and environmental regulation.
Never treat the batteries as common domestic waste, to prevent explosion and pollution.
Never throw the batteries into fire.
The battery must be removed from the kickscooter before it is scrapped.
Only the original charger must be used. Please refer to your retailer in case replacement is required.
CAUTIONS
Do not use the e-scooter if the battery is low.
Do not use the e-scooter in case of burning smell.
Do not use the e-scooter if anything leaks out from the battery.
Do not touch anything leaking out from the battery.
Do not let children or animals touch the battery.
Unplug the charger before riding the e-scooter.
Only use the supplied battery and the supplied charger.
Only professionals can disassemble and maintain the battery. Please refer to your Retailer.

14
INSTRUCTIONS FOR CHARGING
1. Ensure the charging port is dry. Open the protective cover and insert the charger into the e-scooter charging port. The other
end of the charger must be connected to the mains to activate the charger.
2. First connect the cable of the battery charger to the e-scooter.
Then, connect the cable of the battery charger to the mains.
3. The indicator light on the charger will be red: this grants that the charge is proceeding. Charging should be in a safe, dry,
and clean environment.
4. When the indicator light is turned to green colour, the battery is fully charged. Please stop charging or the battery life will
be reduced. Charging time is around 6-7 hours. Too long charging time will affect the battery life.
5. Remove the cable of the battery charger. Put the cover back to position. Please check the battery capacity on the display.
Keep the product and the battery at the recommended temperature to keep the highest efficiency of the e-scooter and of the
battery. If used in an extreme cold or hot environment, the charging time sill be lengthened too. Working temperature: 0°C 

15
40°C. Please check the temperature of the battery during the charging process. Charging temperature must be: 0°C  40°C.
Humidity level during charge must be: 5%  95%.
If the temperature is higher than 40°C, the scooter functioning might be damaged and battery life might be reduced.
Transport of the battery
Lithium batteries are considered dangerous goods. Please check the local law about transportation.
Speed Limit
The maximum speed is 25 Km/h.
When the driver reaches the maximum speed, the e-scooter will keep the speed even if the driver accelerates.
Safety drive
1. Please carefully read this user manual before first use.
2. Please always wear helmet, knee protections, elbow pads, when riding (check your local laws).
3. Wear comfortable flat shoes.
4. Please always verify that the use of the electric kickscooter is allowed (check your local laws).
5. Always check the level of the battery. If too low, the e-scooter might suddenly stop and cause the fall of the driver.
6. This product is not suitable for children under the age of 14 (check your local laws).
7. Adult supervision is required for minors of 18.
8. The e-scooter is for personal entertainment only. It is prohibited to use it as public transportation (check your local laws).
9. It is forbidden to use the e-scooter on vehicle roads (check your local laws).

16
10. It is forbidden to carry goods whilst driving the e-scooter.
11. Pay attention to objects and people around.
12. Do not start or stop driving suddenly. Sudden movements will make the e-scooter out of control.
13. Do not use it on streets, in traffic and by night (check your local laws).
14. Do not drive in dark places.
15. Pay attention to the ground. The kickscooter is made for smooth and flat grounds.
16. Ride at a controlled and slow speed while you ride through uneven surfaces. Slightly bend your knees to absorb the bumpy impacts.
17. Do not ride up or down from stairs or escalators.
18. Do not drive after drinking or taking drugs.
19. DO NOT press the accelerator when you are walking alongside the scooter.
20. The e-scooter can be used by one person at one time only, even if the maximum weight is not reach.
21. Overweight is prohibited. Functions of the kickscooter might be damaged.
22. Underweight is prohibited. The e-scooter might not be under control anymore.
23. The speed of the e-scooter is affected by the road type, the ambient temperature, the maintenance of the battery.
24. Always keep safety distance between you and other vehicles, people, obstacles, to avoid any collision.
25. Do not drive when raining. Avoid wet floors and puddles. Avoid puddles deeper than 2cm.
The control of the e-scooter will be reduced. The user might fall. The electrical system of the e-scooter might be damaged.
26. Avoid driving the e-scooter on grounds with snow or ice or mud. The e-scooter would not be under control.
27. Do not use the electric kickscooter in unsafe circumstances or dangerous places.
28. Keep away from fire.
29. Do not touch the disc-brake: it might be hot.
30. Do not hang bags or other heavy accessories on the handlebar.
31. Do not try to ride up or down stairs, or jump over the obstacles.

17
DO NOT ride during rainy / wet weather. Ride at a controlled and slow speed while you ride through
uneven surfaces. Slightly bend your knees to absorb the
bumpy impacts.
Always steer clear of obstacles. DO NOT press the accelerator when you are walking
alongside the scooter.

18
DO NOT turn the handlebar violently during high-speed riding.
Maintenance of the electric kickscooter
The e-scooter requires routine cleaning and maintenance.
First, make sure the charging cable is not connected. Fasten the rubber cover of the charging port on the deck. Second, the e-
scooter must be powered off. Now you can wipe the case of the e-scooter with a soft damp cloth.
Do not use alcohol, gasoline, kerosene or other corrosive, volatile chemical solvents for cleaning or the surface and the internal
structure may be severely damaged. Do not use a water canon to clean the e-scooter.
The sun, heat and cold can accelerate the aging of the wheels and reduce battery life.
Avoid water or other liquids seep into the e-scooter. The internal electronics would be permanently damaged.
CAUTIONS
1. Please refer to your local retailer if you want to replace any component.
Replacement of any component should be done by the Retailer of by authorized after-sale offices.
2. A note specifying that the self-tightening nuts as well as the other self-tightening fastenings may lose their efficiency
and that they may need to be retightened. Please periodically check that all screws are correctly tighten.

19
WARNING
As with any mechanical component, a PLEV is subject to high stresses and wear. The various materials and components may
react differently to wear or fatigue. If the expected service life for a component has been exceeded, it may break suddenly,
therefore risking causing injuries to the user. Cracks, scratches, and discoloration in the areas subject to high stresses indicate
that the component has exceeded its service life and should be replaced.
WARNING
Recommendation to not make any modifications that are not noted in the manufacturer’s instructions.
WARNING
Do not open the e-scooter for any reason. The user is responsible of any after-effect.
Non-professionals shall not dismantle the battery pack without permission, or severe accidents may be caused due to electric
shock or short circuit.
Deflated wheel
If the wheel deflates, connect a connecting pipe to a wheel nipple to pump it. Remove the pin cap first, then tighten a fitting.
Now, start to pump the wheel.

20
Storage of the electric kickscooter
Please make sure your e-scooter is fully charged before storing it.
If the e-scooter is stored for long time, ensure a full charge every 2 month.
The battery may be damaged due to over discharge if it is not recharged one time every 2 month. Such damage is irrecoverable.
Battery damages due to over discharge will not be recharged anymore and shall not be covered by the warranty service.
Do not store the e-scooter at less than 0°C. Store the e-scooter in a dry and cool indoor place when not in use.
Keep the e-scooter inside its own packaging or cover it to prevent dust.
Long-time sunlight exposure / over-heating / over- cooling outdoor environments will accelerate the aging of the product, the
wheels, and the battery.
WARNING
Do not open the e-scooter for any reason. The user is responsible of any after-effect. Non-professionals shall not dismantle the
battery pack without permission, or severe accidents may be caused due to electric shock or short circuit.
Parameters
Suitable age of the user 14 years and older (check your local laws)
Maximum loading 100 kg
Minimum loading 30 kg
Maximum speed 25 km/h
Motor power 500 W
Endurance mileage up to 35 km (depending on ground, inclination, speed, driving style)
Climbing gradient 10 degree
Power supply for charger AC 100-240V, 50/60Hz
Battery 10.000mAh Lithium rechargeable battery
