REEBOKFITNESS.COM
ZJET 430
TREADMILL ASSEMBLY GUIDE

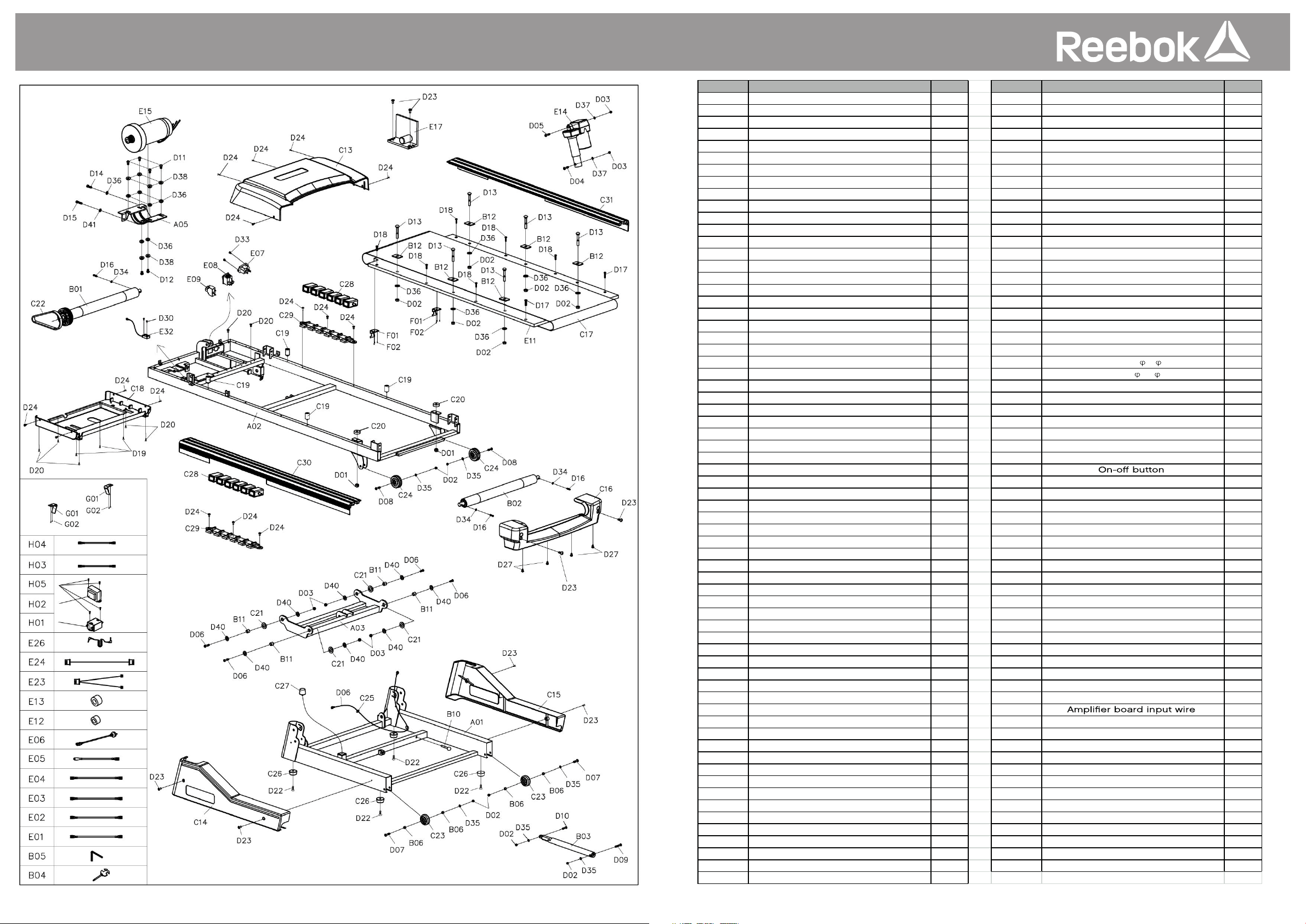

No.Part descriptionQty No.Part descriptionQty
A01Base frame1D17Bolt M6*40 2
A02Main frame1D18Bolt M6*25 6
A03Incline bracket 1D19 Screw ST4.2*20 3
A04Console bracket 1D20 Screw ST4.2*12 12
A05Motor bracket 1D21 Bolt M5*30 4
A06Left upright tube 1D22 Bolt M5*16 4
A07Right upright tube1D23Bolt M5*12 8
B01Front roller1D24Bolt M5*815
B02Back roller1D25Screw ST4.2*30 3
B03Cylinder1D26Screw ST4.2*20 2
B04Cross wrench with screw driver1 D27Screw ST4.2*12 4
B055# Allen wrench 1D28 Screw ST4.2*12 36
B06Transport wheel bushing 4D29 Screw ST2.9*163
B07Speaker net 1D30 Screw ST2.9*8 16
B08Pulse steel plate 4D31 Screw ST2.9*6 18
B09Safety key steel plate1D32Screw ST3.5*108
B10Locking pin 1D33 Screw ST2.9*8 4
B11Bushing 4D34 washer 6 3
B12Side rail pressing sheet6D35washer 8 14
C01Console top cover 1D36 Flat washer 8 13
C02Console bottom cover1D37Washer 102
C03Console panel 1D38 Spring washer 8 6
C04Plastic holder1D39Flat washer 5* 13*1.0 4
C05Left handle bar top cover 1D40 Big washer 10*26*2.0 8
C06Right handle bar top cover1 E01AC single wire 200mm blue 1
C07Left handle bar bottom cover1 E02AC single wire 200mm brown1
C08Right handle bar bottom cover 1E03 AC single wire 350mm blue1
C09Safety key1E04AC single wire 350mm brown 2
C10Handle bar decoration ring2 E05Grounding wire 350mm 1
C11Rubber pad1E06Power wire 1
C12Handle bar2E07Power socket 1
C13Motor top cover 1E08 1
C14Left upright tube cover 1E09 Overload protector 1
C15Right upright tube cover1E10Safety key sensor 1
C16Back end cover1E11Running board 1
C17Running belt 1E12 Magnet core 3
C18Motor bottom cover1E13Magnet ring 1
C19Black cushion 4E14 Incline motor 1
C20Blue cushion2E15DC motor 1
C21Plastic pad 4E16 Console 1
C22Motor belt1E17Control board 1
C23Transport wheel 2E18 Button board 1
C24Adjustable wheel2E19Top signal wire 1
C25Ring-shape wire plug2E20Bottom signal wire 1
C26Flat foot pad 4E21 Speed quick button board 1
C27Cone-shape cushion1E22Incline quick button board 1
C28Air cushion 2E23 Hand pulse top signal wire 1
C29Air cushion base2E24Hand pulse bottom signal wire 2
C30Left side rail1E25Speaker 2
C31Right side rail 1E26 Mp3 wire 1
D01Nut M6 2E27 Audio input and output board 1
D03Nut M106E29 Audio input and output wire 1
D04Bolt M10*901E30 USB power wire 1
D05Bolt M10*451E31 USB board 1
D06Bolt M10*304E32 Speed sensor 1
D07Bolt M8*506F01 Hide board 2
D08Bolt M8*402F02 Screw ST4.2*12 6
D09Bolt M8*451G01 Belt hook 2
D10Bolt M8*301G02 Screw ST4.2*12 4
D11Bolt M8*204H01 Filter 1
D12Bolt M8*158H02 Inductance 1
D13Bolt M8*356H03 AC single wire 1
D14Bolt M8*401H04 Grounding wire 1
D15Bolt M8*351H05 Screw ST4.2*12 5
