Thank you for purchasing your REED R5040 1000A AC/DC True RMS
Clamp Meter. Please read the following instructions carefully before using
your instrument. By following the steps outlined in this manual your meter
will provide years of reliable service.
Product Quality
This product has been manufactured in an ISO 9001 facility and has
been calibrated during the manufacturing process to meet stated product
specications. If a certicate of calibration is required please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.
Safety
• Neverattempttorepairormodifyyourinstrument.Dismantlingyour
product, other than for the purpose of replacing batteries, may cause
damage that will not be covered under the manufacturer's warranty.
Servicing should only be provided by an authorized service center.
• Donotexceedthemaximumallowableinputrangeofanyfunction.
• Donotapplyvoltagetothemeterwhenresistancefunctionisselected.
• SetthefunctionswitchOFF when the meter is not in use.
• Setthefunctionswitchtotheappropriatepositionbeforemeasuring.
• Whenmeasuringvoltsdonotswitchtocurrent/resistancemodes.
• Whenchangingrangesusingtheselectorswitchalwaysdisconnectthe
test leads from the circuit under test.
• Donotexceedthemaximumratedinputlimits.
• Improperuseofthismetercancausedamage,shock,injuryordeath.
• Readandunderstandthisusermanualbeforeoperatingthemeter.
• Alwaysremovethetestleadsbeforereplacingthebattery.
• Inspecttheconditionofthetestleadsandthemeteritselfforany
damage before operating.
continued...
www. .com [e-mail]1.800.561.8187

4
www.REEDINSTRUMENTS.com
• Removethebatteryifthemeteristobestoredforlongperiods.
• Alwaysdischargecapacitorsandremovepowerfromthedeviceunder
test before performing diode, resistance, or continuity tests.
• Voltagechecksonelectricaloutletscanbedifcultandmisleading
because of the uncertainty of connection to the recessed
electrical contacts.
• Iftheequipmentisusedinamannernotspeciedbythemanufacturer,
the protection provided by the equipment may be impaired.
Features
• MeasuresAC/DCcurrent/voltage,resistance,capacitance,frequency,
duty cycle, and temperature
• 50,000-countbacklitLCDdisplayandanalogbargraph
• Lowbatteryandoverrangeindicators
• Built-innon-contactvoltagedetectorwithLEDindicator
• TrueRMSACmeasurements
• Min/Max,displayholdandrelativemode
• Diodetestandcontinuitycheckfunctions
• Durabledoublemoldedplastichousing
• Cat.III600Vsafetyrating
Included
• TestLeads
• ThermocoupleWireProbe
• ThermocoupleAdapter
• SoftCarryingCase
• Battery
www. .com [e-mail]1.800.561.8187

5
www.REEDINSTRUMENTS.com
Specifications
AC/DC Current
Range: 500, 1000A
Accuracy: AC: ±(2.8% rdg. +30 dgt.)
DC: ±(2.5% rdg. +30 dgt.)
Resolution: 0.01, 0.1, 1A
AC/DC Voltage
Range: AC:500mV,5,50,500,750V
 DC:500mV,5,50,500,1000V
Accuracy: AC: ±(1.0% rdg. +30 dgt.)
DC: ±(0.1% rdg. +4 dgt.)
Resolution: AC/DC:0.1mV,0.001,0.01,0.1,1V
Resistance
Range: 500Ω, 5, 50, 500kΩ, 5, 50MΩ
Accuracy: ±(1.0% rdg. +4 dgt.)
0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ
Capacitance
Range: 500, 5000nF, 50, 500µF, 5mF
Accuracy: ±(3.5% rdg. +10 dgt.)
Resolution: 0.01, 0.1nF, 0.01, 0.1μF, 0.1mF
Frequency
Range: 10kHz
Accuracy: ±(0.3% rdg. +2 dgt.)
Resolution: 0.001Hz
Temperature
Range: -148 to 1832°F (-100 to 1000°C)
Accuracy: ±(1.0% rdg. + 4.5°F)
±(1.0% rdg. + 2.5°C)
Resolution: 1°F, 1°C
continued...
www. .com [e-mail]1.800.561.8187

6
www.REEDINSTRUMENTS.com
General Specifications
Range Selection: Autoranging/Manual
True RMS: Yes
Display: 50,000countLCDdisplay
Display Hold: Yes
Max/Min: Yes
Relative Mode: Yes
Diode Test: Yes
Backlit Display: Yes
Analog Bargraph: Yes (61-segment)
Continuity Check: Audible signal if resistance <35Ω
Duty Cycle: Yes
Non-ContactVoltageDetector: Yes
Autoshut Off: Yes (after 15 minutes)
PowerSupply: 9VBattery
LowBatteryIndicator: Yes
Jaw Opening: 1.5" (40mm), up to 500 MCM
OvervoltageCategory: CAT.III600V
Product Certications: CE
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Dimensions: 9.1x3.0x1.5"(232x77x39mm)
Weight: 9.6oz (271g)
www. .com [e-mail]1.800.561.8187

7
www.REEDINSTRUMENTS.com

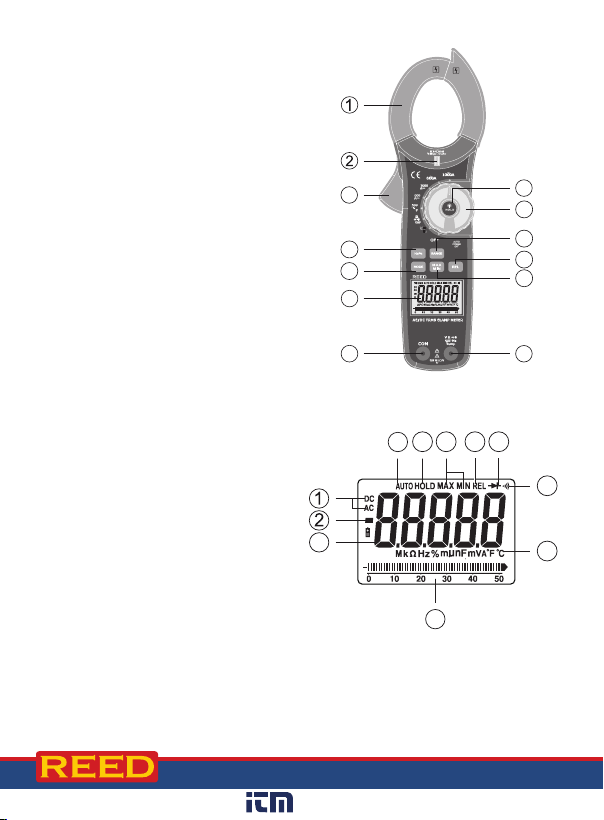

Instrument Description
1. Current Clamp
2. Non-ContactACVoltage
IndicatorLight
3. Clamp Trigger
4. Data Hold and Backlight Button
5. Rotary Function Switch
6. Hz% Hold Button
7. RANGESelectButton
8. MODE Select Button
9. Relative Button
10.MIN/MAXHoldButton
11.LCDDisplay
12. COM Input Jack
13. Positive Input Jack
Display Description
1. AC/DC Indicator
2. NegativeReadingIndicator
3. 50,000 Count Main Display
4. Analog Bargraph
5. Units of Measurement
6. Audible Continuity Indicator
7. Diode Test Mode Indicator
8. Relative Mode Indicator
9. Max/MinModeIndicator
10. Data Hold Indicator
11. Auto Range Mode Indicator
3
4
5
6
7
89
10
11
R5040
34
5
67
8
9
10
13
11
12
www. .com [e-mail]1.800.561.8187

8
www.REEDINSTRUMENTS.com
Operating Instructions
AC/DC Current Measurements
1. Set the rotary function switch to the
1000ADC, 600ADC, 1000AAC, or
600AAC range. If the range needed
is not known, select the higher range
rst then move to the lower range if
necessary.

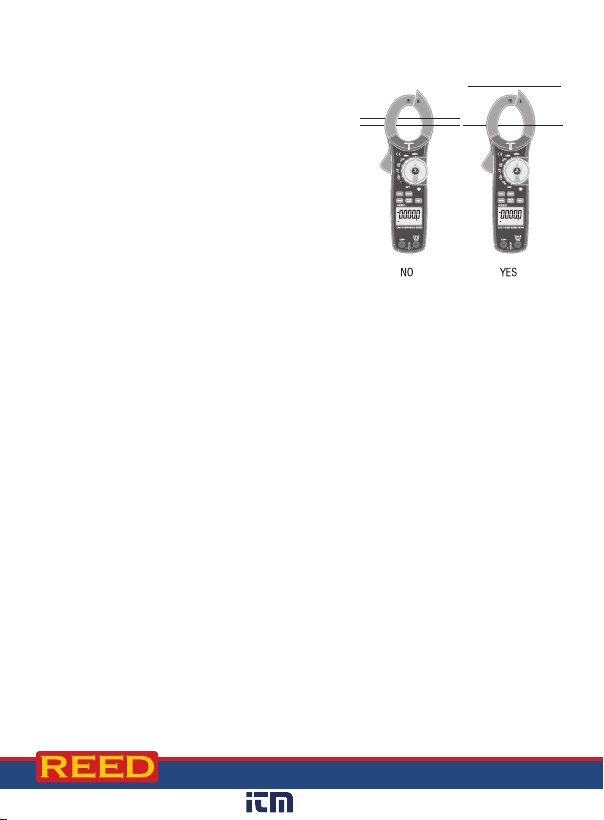

2. Pressthetriggertotheopenjawand
fully enclose one conductor.
3. TheLCDwilldisplaythereading.
AC/DC Voltage Measurements
1. Insert the black test lead into the negative COM terminal and the red
testleadintothepositiveVterminal.
2. SettherotaryfunctionswitchtotheVposition,andselecteitherAC
or DC with the MODE button.
3. SelectHz%orACVwiththeHz% button.
4. Connect the test leads in parallel to the circuit under test.
5. TheLCDwilldisplaythereading.
Resistance Measurements
1. Insert the black test lead into the negative COM terminal and the red
testleadintothepositiveVterminal.
2. Set the rotary function switch to the Ω position.
3. Touch the test probe tips across the circuit or component under test.
It is best to disconnect one side of the device under test so the rest
of the circuit will not interfere with the reading.
4. TheLCDwilldisplaythereading.
continued...
R5040 R5040
www. .com [e-mail]1.800.561.8187

9
www.REEDINSTRUMENTS.com
Diode and Continuity Measurements
1. Insert the black test lead into the negative COM terminal and the red
testleadintothepositiveVdiodeterminal.
2. Turn the rotary function switch to the Ω position. Press the MODE
button until the Diode Test indicator appears on the display.
3. Touch the test probes to the diode under test. Forward voltage will
indicate0.4Vto0.7V.Reversevoltagewillbeindicatedby"OL".
Shorteddeviceswillindicatenear0mVandanopendevicewillbe
indicatedby"OL"inbothpolarities.Forcontinuitytests,ifthe
resistance is <40Ω, a tone will sound.
Capacitance Measurements
1. To avoid electric shock, disconnect power to the unit under test and
discharge all capacitors before taking any capacitance measurements.
Remove the batteries and unplug the line cords.
2. Set the rotary function switch to the CAP position.
3. Insert the black test lead into the negative COM terminal and the red
testleadintothepositiveVterminal.
4. Touch the test leads to the capacitor under test.
5. TheLCDwilldisplaythereading.
Frequency or % Duty Cycle Measurements
1. SettherotaryfunctionswitchtotheVposition.
2. SelectACVwiththeMODE button and press the Hz/% button to
indicate "Hz" in the display.
3. Insert the black test lead into the negative COM terminal and the red
testleadintothepositiveVterminal.
4. Touch the test probe tips to the circuit under test.
5. TheLCDwilldisplaythereading.
continued...
www. .com [e-mail]1.800.561.8187

10
www.REEDINSTRUMENTS.com
Temperature Measurements
1. To avoid electric shock, disconnect both test probes from any source
of voltage before making a temperature measurement.
2. Set the function switch to TEMP. Press the MODE button to change
between °C and °F.
3. Insert the Temperature Probe into the negative COM and the
positiveVterminals,makingsuretoobservethecorrectpolarity.
4. Touch the Temperature Probe head to the area to be measured. Keep
the probe touching the part under test until the reading stabilizes
(about 30 seconds).
5. TheLCDwilldisplaythereading.
Note: To avoid electric shock, be sure the thermocouple has been removed
before changing to another function.
Non-Contact AC Voltage Measurements
1. SettherotaryfunctionswitchtotheVposition.
2. Touch the probe tip to the hot conductor or insert into the hot side of
the electrical outlet. If AC voltage is present, the detector will light up.
3. The conductors in electrical cord sets are often twisted. For best
results, rub the probe tip along a length of the cord to assure placing
thetipincloseproximitytotheliveconductor.
4. The detector is designed with high sensitivity. Static electricity or
other sources of energy may randomly trip the sensor.
Min/Max Recording
WhileinManualRange,selecttheproperrangebeforeselectingMIN/MAX
toensurethattheMIN/MAXreadingwillnotexceedthetestingrange.
Press the MIN/MAX button to select the minimum reading. Press the
MIN/MAXbuttonagaintoselectthemaximumreading.PresstheMIN/
MAXbuttonagaintoexitandresumenormalmeasuring.
Relative Mode
Press the RELbuttonforCapacitanceZero&OffsetAdjustment.
continued...
www. .com [e-mail]1.800.561.8187
