Reflex Exvoid User manual
Reflex ex separator 21.11.2016
Exvoid / Exvoid HC (HiCap)
Exdirt / Exdirt HC (HiCap)
Extwin /Extwin HC (HiCap)
GB
Operating manual
Contents
Reflex ex separator — 21.11.2016 English —
3
English
Refle x ex sep arato r
21.11.2016
Contents
1
Safety................................................................................................................................................................................................4
1.1 Explanation of symbols........................................................................................................................................................................4
1.2 Personnel requirements ......................................................................................................................................................................4
1.3 Notes to personnel ...............................................................................................................................................................................5
1.4 Intended use..........................................................................................................................................................................................5
1.5 Inadmissible operating conditions.....................................................................................................................................................6
1.6 Residual risks .........................................................................................................................................................................................6
2
Description of the device................................................................................................................................................................7
2.1 Devices....................................................................................................................................................................................................7
2.1.1 Exvoid / Exvoid HC.............................................................................................................................................................7
2.1.2 Exdirt / Exdirt HC................................................................................................................................................................7
2.1.3 Extwin / Extwin HC ............................................................................................................................................................7
2.2 Optional equipment.............................................................................................................................................................................7
2.2.1 Sludge separator................................................................................................................................................................7
2.3 Identification .........................................................................................................................................................................................8
3
Technical data .................................................................................................................................................................................8
4
Installation and assembly ..............................................................................................................................................................9
4.1Notes.......................................................................................................................................................................................................9
4.2 Space requirements..............................................................................................................................................................................9
4.3 Exvoid ...................................................................................................................................................................................................10
4.4 Exdirt.....................................................................................................................................................................................................10
4.5 Extwin...................................................................................................................................................................................................10
4.6 Exvoid/Extwin......................................................................................................................................................................................10
4.7 Exiso/heat insulation..........................................................................................................................................................................10
5
Maintenance..................................................................................................................................................................................11
5.1 Pressure test ........................................................................................................................................................................................11
5.2 Cleaning ...............................................................................................................................................................................................11
5.2.1 Sludge separator..............................................................................................................................................................11
5.2.2 Sludge separator with removable floor flange...........................................................................................................12
5.2.3 Sludge separator with magnet insert...........................................................................................................................12
6
Annex .............................................................................................................................................................................................13
6.1 Conformity and standards.................................................................................................................................................................13
6.2 Guarantee ............................................................................................................................................................................................13
Safe
ty
4
— English Reflex ex separator — 21.11.2016
1
Safety
1.1
Explanation of symbols
The following symbols and signal words are used in this operating manual.
DANGER
•Danger of death and/or serious damage to health
•The sign, in combination with the signal word "Danger", indicates imminent danger; failure to observe the safety information will
result in death or severe (irreversible) injuries.
WARNING
Serious damage to health
•The sign, in combination with the signal word "Warning", indicates imminent danger; failure to observe the safety information can
result in death or severe (irreversible) injuries.
CAUTION
Damage to health
•The sign, in combination with the signal word "Caution", indicates danger; failure to observe the safety information can result in
minor (reversible) injuries.
ATTENTION
Damage to property
•The sign, in combination with the signal word "Attention", indicates a situation where damage to the product itself or objects
within its vicinity can occur.
Note!
This
symbol, in combination with the signal word "Note", indicates useful tips and recommendations regarding the
efficient use of the product.
1.2
Personnel requirements
Only specialist personnel or specifically trained personnel may install and operate the equipment.
Regional regulations and directives must be adhered to.
Safety
Reflex ex separator — 21.11.2016 English —
5
1.3
Notes to personnel
Note!
Every person installing this equipment or performing any other work at the equipment is required to
carefully read this
manual prior to commencing work and to comply with its instructions. The manual is to be provided to the device
operator and must be stored near the device for access at any time.
•Modifications of the equipment are not permitted.
•For example, welding at other points than the connection piece (in equipment with welded connection)
•For example, mechanical deformations
•Use only original parts provided by the manufacturer when replacing parts.
•All required inspections must be ordered by the operator pursuant to the provisions of the applicable industrial safety regulations.
Required inspections and tests are:
•Inspections and tests prior to commissioning
•Inspections and tests after significant modifications of the installation
•Recurring inspections
•The devices to be installed and operated must not exhibit any visible exterior damage at the pressure component.
•Ignoring this manual and the safety information in particular, may cause the destruction and defects of the equipment, endanger
persons and adversely affect the functioning. Any contravention voids the guarantee and liability.
1.4
Intended use
The device is a pressure maintaining station for heating and cooling water systems. It is intended for maintaining the water pressure,
water make-up and degassing of water in a system. The devices may be used only in systems that are sealed against corrosion and with
the following water types:
•Non-corrosive
•Chemically non-aggressive
•Non-toxic
The ingress of atmospheric oxygen into the entire heating and cooling water system, make-up water, etc. must be reliably minimized
during operation.
Note!
•
To ensure fault-free operation of the system for the long-term, glycols whose inhibitors prevent corrosion
phenomena must always be used for systems operating with water/glycol mixtures.
•
The specifications of the respective manufacturer are always decisive for the specific properties and mixing ratio of
the water/glycol mixtures.
•
Types of glycol must not be mixed and the concentration is generally to be checked every year (see manufacturer
information).
Safety
6
— English Reflex ex separator — 21.11.2016
1.5
Inadmissible operating conditions
The device is
not
suited for the following conditions.
•In drinking water systems
•Outdoor operation
•Usage with mineral oils
•Usage with flammable media
•For the use with distilled water
•For use with foam-forming substances because this may compromise operation of the vent and result in leaks.
•For use with additives in a concentration above the permissible dosing quantity
•For use with chemical substances, for which no compatibility tests have been performed for all materials present in the system
•For use with water with a glycol content of greater than 50%
1.6
Residual risks
This device has been manufactured to the current state of the art. However, some residual risk cannot be excluded.
WARNING
Risk of injury due to heavy weight
The devices are heavy. Consequently, there is a risk of physical injury and accidents.
– Use suitable lifting equipment for transportation and installation.
CAUTION
Risk of burns
High media and surface temperatures in heating systems can cause burns to the skin.
•Allow the system to cool before working on the device.
•Maintain a sufficient distance from escaping medium.
•Wear suitable personal protective equipment (safety gloves and goggles).
•Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there is a risk of burns and other injuries at the connection
points, if pressurised hot water or hot steam suddenly escapes.
•Ensure proper installation, removal or maintenance work.
•Ensure that the system is de-pressurised before performing installation, removal or maintenance work at the connection points.
Description of the device
Reflex ex separator — 21.11.2016 English —
7
2
Description of the device
Note!
In general standard
separators are used for flow velocities up to 1.5 m/s. In general the HiCap (HC) model is used with flow
velocities of 1.5 to 3.0 m/s.
2.1
Devices
2.1.1
Exvoid / Exvoid HC
A gas/air separator with micro bubble separation removing circulating free air and gas bubbles.
The device is available in the following variants:
No.
Variant
1 Welded connection
2 Flange connection
2.1.2
Exdirt / Exdirt HC
A dirt/sludge separator removing circulating free dirt and sludge particles.
The device is available in the following variants:
No.
Variant
1 Welded connection
2 Flange connection
1 + 3 Welded connection and service flange
2 + 3 Flange connection and service flange
2.1.3
Extwin / Extwin HC
A combined dirt/sludge separator and gas/air separator removing circulating free air and gas bubbles and free dirt and sludge particles.
The device is available in the following variants:
No.
Variant
1 Welded connection
2 Flange connection
1 + 3 Welded connection and service flange
2 + 3 Flange connection and service flange
2.2
Optional equipment
2.2.1
Sludge separator
The devices can be expanded with the following accessories:
•Magnet insert Exferro
Technical data
8
— English Reflex ex separator — 21.11.2016
2.3
Identification
Information on nameplate
Meaning
XXX Device name
Type Device type
Connections Connection
Max. allowable pressure Maximum allowable pressure
Max. allowable temperature Maximum allowable
temperature
Year of manufacturing Year of manufacturing
Serial no. Serial number
Art.-No-
Article number
3
Technical data
Note!
The following values apply for all standard separators:
•
Max. temperature: 0-110 °C
•
Max. pressure: 10 bar
•
Special versions according to individual specification and nameplate.
Contact the
manufacturer to determine the weight of the separator.
Note!
You can find a detailed listing of all technical data at the end of the complete document.
Installation
and assembly
Reflex ex separator — 21.11.2016 English —
9
4
Installation and assembly
CAUTION
Risk of burns
Escaping hot medium can cause burns.
•Maintain a sufficient distance from the escaping medium.
•Wear suitable personal protective equipment (safety gloves and goggles).
4.1
Notes
The following items must be considered when assembling and installing the equipment:
•Do not install the device above sensitive components or close to electrical plant.
•Perform installation in dry and frost-proof locations.
•The flow direction is not pre-determined.
•Ensure a vertical and stress-free installation.
– Any stresses that may occur in some cases must be countered by appropriate constructive actions. Stresses may be caused by
temperature effects, for example.
•Ensure the device is readily accessible in its place of installation.
•
Ensure sufficient bearing capability of the installation site.
– This applies to filling the separator with water in particular.
– If necessary additional structural measures may be required to ensure adequate load
bearing capacity.
•
The device is not a load-bearing structural element.
– By default, the calculation of the vessels does not take lateral acceleration forces into
account. Avoid alternating stresses such as pressure shocks, abrupt pressure changes, or
strong vibrations.
•
Use only approved transport and lifting equipment.
– The eyes provided on the device are intended solely as installation aids.
•
The angle (1) of the lifting tackles must be maximum 60°.
•
After attachment of insulation, attach the additional sticker on the outside so that it is readily
visible.
•Thoroughly rinse the system through after installation of the Reflex Exdirt.
4.2
Space requirements
A:
Minimum free space above the top part of the ventilation
Type:
82511xx / 82513xx / 82531xx / 82532xx / 82533xx / 82534xx
50 mm
Note!
For connection size DN 450 or greater we recommend
increasing the minimum space requirement to provide access
for servicing of the vent.
B:
Minimum free space below the draw-off tap
•For installation of an Exferro magnetic insert
•For removal of a grid pipe for separators with service flange
Note!
•
You can find a detailed listing of all data at the end of the complete document.
•
Welded connection only up to DN 300
Installation and assembly
10
— English Reflex ex separator — 21.11.2016
4.3
Exvoid
•Fit the safety plug on the bottom side of the separator.
•Fit the large vent with 3-way valve bottom part on the top side of the separator. Maintain the large vent freely opened.
4.4
Exdirt
•Fit the draw-off tap on the bottom side of the separator. Close the valves.
•Fit the vent plug on the top side of the separator. Ensure the vent plug is always correctly closed, open it for manual venting.
•Installation of the Exferro magnetic insert on the bottom side of the separator:
First insert the Exferro component in the separator, as can be seen in the figure see chapter 5.2.3 "Sludge separator with magnet
insert" on page 12 . Then fit the draw-off tap (supplied with the Exdirt) correctly to the side on the T-piece of the magnetic insert.
Lastly close the valve.
4.5
Extwin
•Fit the draw-off tap on the bottom side of the separator. Close the valves.
•Fit the large vent with 3-way valve bottom part on the top side of the separator. Maintain the large vent freely opened.
•Installation of the Exferro magnetic insert on the bottom side of the separator:
First insert the Exferro component in the separator, as can be seen in the figure see chapter 5.2.3 "Sludge separator with magnet
insert" on page 12 . Then fit the draw-off tap correctly to the side on the T-piece of the magnetic insert. Lastly close the valve.
4.6
Exvoid/Extwin
Comply with the following instructions:
•To drain the released air or gases (odour, explosive gases), you may connect an additional hose or pipe at the ½“ thread of the blow-
off opening.
Note!
The device is now ready for use.
4.7
Exiso/heat insulation
Note!
If the separators are equipped with a Reflex Exiso heat insulation unit or another type of heat insulation, then tap
extensions must be fitted on the upper or lower side of the connection according to the thickness of the insulation.
These
are supplied with the insulation or made available on site. This ensures accessibility of the add
-on components.
Maintenance
Reflex ex separator — 21.11.2016 English —
11
5
Maintenance
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•Wait until hot surfaces have cooled down or wear protective safety gloves.
• The operating authority is required to place appropriate warning signs in the vicinity of the device.
CAUTION
Restriction during operation in respect of medical devices due to magnetic field
The device contains permanent magnets generating a static magnetic field. Magnets may affect the functioning of cardiac pacemakers
and implanted defibrillators.
•Persons with such medical devices or other metallic implants must maintain a sufficient safe distance relative to magnets.
•Provide warning information before people enter the sphere of influence of magnets.
The time intervals for maintenance work depend on the specific operating conditions.
5.1
Pressure test
•During a hydraulic pressure test, the pressure must not exceed 1½times the maximum working pressure.
•During a compressed air test of the system, the large vent valve of the separators Exvoid and Extwin must be closed for this period
by a site-provided suitable closing cap.
5.2
Cleaning
5.2.1
Sludge separator
•The cleaning interval depends on the accumulated dirt within the system.
•Provide a catching container and a pressure and temperature-resistant drain hose, if required.
For cleaning, proceed as follows:
1. Gradually open the desludging valve for a short time until sludge no longer drains off.
– Make sure that not much water escapes.
2. Subsequently, check the system pressure and add water as required.
Maintenance
12
— English Reflex ex separator — 21.11.2016
5.2.2
Sludge separator with removable floor flange
The separator element at the equipment can be cleaned and replaced, if required.
– The equipment must have cooled down, been emptied, and de-pressurised.
– Keep a suitable flange gasket at hand.
For cleaning, proceed as follows:
1. Use appropriate lifting gear to carefully lower the separator element and the bottom cover to the floor.
– Ensure that the separator element can neither topple nor roll away or execute other unintended movements.
– Avoid damage to the draw-off tap.
2. Remove any deposits from the separator element.
– Use a water jet or low-pressure cleaner.
Reassemble in reverse order.
3. Insert a functioning gasket and grease this with a suitable sealant.
4. Tighten the flange screws with a suitable torque.
– Tighten diagonally and step-by-step as per the state of the art.
5.2.3
Sludge separator with magnet insert
CAUTION
Restriction during operation in respect of medical devices due to magnetic field
The device contains permanent magnets generating a static magnetic field. Magnets may affect the functioning of cardiac pacemakers
and implanted defibrillators.
•Persons with such medical devices or other metallic implants must maintain a sufficient safe distance relative to magnets.
•Provide warning information before people enter the sphere of influence of magnets.
The device can be emptied without the operation being shut down.
For emptying, proceed as follows:
1
. Unscrew the magnet from the immersion sleeve.
2
. Provide a vessel to capture the drained material.
3
. Slowly or for a short time only open the draw-off tap.
4
. Screw the magnet into the immersion sleeve.
Note!
If no magnetic insert is fitted, steps 1 and 4 are not
needed.
Annex
Reflex ex separator — 21.11.2016 English —
13
6
Annex
6.1
Conformity and standards
EU-Declaration of conformity of Reflex Ex-Separators
Design – Manufacturing – Product Verification
This declaration of conformity is issued under the sole responsibility of the
manufacturer.
Air and Dirt Ex-Separators
Exvoid, Exvoid T, T Solar, Solar, HiCap / Exdirt, Exdirt M, HiCap / Extwin, Extwin M
universally applicable in heating, solar and cooling systems
type according to name plate of vessel
Serial no. according to name plate of vessel
Year of manufacture according to name plate of vessel
max. allowable pressure (PS) according to name plate of vessel
Test pressure (PT) according to name plate of vessel
min. / max. allowable temperature (TS) according to name plate of vessel
max. continious operating temperature according to name plate of vessel
Operating medium Water
The conformity of the product described
above with the provisions of the applied
Directive(s) is demonstrated by compliance
with the following standards / regulations:
Pressure Equipment Directive, AD 2000 according to name plate of vessel
The manufacturer herewith declares that Ex-Separators of the type Exvoid, Exdirt
und Extwin are designed and manufactured in accordance to the directive
2014/68/EU article 4 paragraph 3 listed requirements of the sound engineering
practice of the member States.
The chosen technical specification for the fulfillment of the basic safety requirements
of the directive 2014/68/EU are according to the name plate of the separator.
Signed for and on behalf of
Manufacturer
Reflex WinkelmannGmbH
Gersteinstraße 19
59227 Ahlen -Germany
Telefon: +49 2382 7069 -0
Telefax: +49 2382 7069 -588
E-Mail: i[email protected]
Ahlen, 19.07.2016
Norbert Hülsmann
Volker Mauel
Members of the Management
6.2
Guarantee
The respective statutory guarantee regulations apply.
Exvoid
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
A 60.3
3.0
60.3
12.5
260
132
625
153
A 76.1
6.5
76.1
20
260
132
625
163
A 88.9
9.0
88.9
27
370
206
740
159
A 114.3
9.0
114.3
47
370
206
740
169
A 139.7
22.0
139.7
72
525
354
915
214
A 168.3
24.0
168.3
108
525
354
915
229
A 219.1
44.0
219.1
180
650
409
1125
284
A 273.0
70.0
273.0
288
750
480
1402
351
A 323.9
112.0
323.9
405
850
634
1612
406
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
A 50
9.0
DN50/PN16
12.5
350
132
625
153
A 65
10.0
DN65/PN16
20
350
132
625
163
A 80
16.0
DN80/PN16
27
470
206
740
159
A 100
19.0
DN100/PN16
47
470
206
740
169
A 125
35.0
DN125/PN16
72
635
354
915
214
A 150
39.0
DN150/PN16
108
635
354
915
229
A 200
65.0
DN200/PN16
180
775
409
1125
284
A 250
108.0
DN250/PN16
288
890
480
1402
351
A 300
156.0
DN300/PN16
405
1005
634
1612
406
A 350
-
DN350/PN16
500
1128
650
1950
501
A 400
-
DN400/PN16
650
1226
750
2150
580
A 450
-
DN450/PN16
850
1330
750
2360
609
A 500
-
DN500/PN16
1060
1430
1000
2580
671
A 600
-
DN600/PN16
1530
1630
1200
3020
832
Exvoid-HiCap
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
A 60.3 HC
-
60.3
25
260
132
810
153
A 76.1 HC
-
76.1
40
260
132
810
163
A 88.9 HC
-
88.9
54
370
206
965
159
A 114.3 HC
-
114.3
94
370
206
965
169
A 139.7 HC
-
139.7
144
525
354
1225
214
A 168.3 HC
-
168.3
215
525
354
1225
229
A 219.1 HC
-
219.1
360
650
409
1495
284
A 273.0 HC
-
273.0
575
750
480
1609
351
A 323.9 HC
-
323.9
810
850
634
2225
406
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
A 50 HC
-
DN50/PN16
12.5
350
132
810
153
A 65 HC
-
DN65/PN16
20
350
132
810
163
A 80 HC
-
DN80/PN16
27
470
206
965
159
A 100 HC
-
DN100/PN16
47
470
206
965
169
A 125 HC
-
DN125/PN16
72
635
354
1225
214
A 150 HC
-
DN150/PN16
108
635
354
1225
229
A 200 HC
-
DN200/PN16
180
775
409
1495
284
A 250 HC
-
DN250/PN16
288
890
480
1609
351
A 300 HC
-
DN300/PN16
405
1005
634
2225
406
A 350 HC
-
DN350/PN16
500
1128
650
2460
501
A 400 HC
-
DN400/PN16
650
1226
750
2740
580
A 450 HC
-
DN450/PN16
850
1330
750
3030
609
A 500 HC
-
DN500/PN16
1060
1430
1000
3310
671
A 600 HC
-
DN600/PN16
1530
1630
1200
3160
832
Exdirt
Ø1
(mm)
(m3/h)
L
(mm)
Ø
(mm)
H
(mm)
HM
(mm)
D 60.3
3.0
60.3
12.5
260
132
521
165
D 76.1
3.0
76.1
20
260
132
521
175
D 88.9
9.0
88.9
27
370
206
636
170
D 114.3
9.0
114.3
47
370
206
636
180
D 139.7
22.0
139.7
72
525
354
811
225
D 168.3
24.0
168.3
108
525
354
811
240
D 219.1
44.0
219.1
180
650
409
1021
295
D 273.0
70.0
273.0
288
750
480
1324
358
D 323.9
112.0
323.9
405
850
634
1535
413
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
D 50
9.0
DN50/PN16
12.5
350
132
521
165
D 65
10.0
DN65/PN16
20
350
132
521
175
D 80
16.0
DN80/PN16
27
470
206
636
170
D 100
19.0
DN100/PN16
47
470
206
636
180
D 125
35.0
DN125/PN16
72
635
354
811
225
D 150
39.0
DN150/PN16
108
635
354
811
240
D 200
65.0
DN200/PN16
180
775
409
1021
295
D 250
108.0
DN250/PN16
288
890
480
1324
358
D 300
156.0
DN300/PN16
405
1005
634
1535
413
D 350
-
DN350/PN16
500
1128
650
1890
509
D 400
-
DN400/PN16
650
1226
750
2090
588
D 450
-
DN450/PN16
850
1330
750
2300
617
D 500
-
DN500/PN16
1060
1430
1000
2520
679
D 600
-
DN600/PN16
1530
1630
1200
2960
840
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
D 60.3 R
16.0
60.3
12.5
260
132
521
165
D 76.1 R
23.0
76.1
20
260
132
521
175
D 88.9 R
32.0
88.9
27
370
206
636
170
D 114.3 R
37.0
114.3
47
370
206
636
180
D 139.7 R
85.0
139.7
72
525
354
811
225
D 168.3 R
78.0
168.3
108
525
354
811
240
D 219.1 R
101.0
219.1
180
650
409
1021
295
D 273.0 R
158.0
273.0
288
750
480
1324
358
D 323.9 R
330.0
323.9
405
850
634
1535
413
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
D 50 R
18.0
DN50/PN16
12.5
350
132
521
165
D 65 R
19.0
DN65/PN16
20
350
132
521
175
D 80 R
43.0
DN80/PN16
27
470
206
636
170
D 100 R
51.0
DN100/PN16
47
470
206
636
180
D 125 R
89.0
DN125/PN16
72
635
354
811
225
D 150 R
94.0
DN150/PN16
108
635
354
811
240
D 200 R
121.0
DN200/PN16
180
775
409
1021
295
D 250 R
255.0
DN250/PN16
288
890
480
1324
358
D 300 R
390.0
DN300/PN16
405
1005
634
1535
413
D 350 R
-
DN350/PN16
500
1128
650
1890
509
D 400 R
-
DN400/PN16
650
1226
750
2090
588
D 450 R
-
DN450/PN16
850
1330
750
2300
617
D 500 R
-
DN500/PN16
1060
1430
1000
2520
679
D600 R
-
DN600/PN16
1530
1630
1200
2960
840
Exdirt-HiCap
Ø1
(mm)
(m3/h)
L
(mm)
Ø
(mm)
H
(mm)
HM
(mm)
D 60.3 HC
-
60.3
25
260
132
706
165
D 76.1 HC
-
76.1
40
260
132
706
175
D 88.9 HC
-
88.9
54
370
206
861
170
D 114.3 HC
-
114.3
94
370
206
861
180
D 139.7 HC
-
139.7
144
525
354
1121
225
D 168.3 HC
-
168.3
215
525
354
1121
240
D 219.1 HC
-
219.1
360
650
409
1391
295
D 273.0 HC
-
273.0
575
750
480
1532
358
D 323.9 HC
-
323.9
810
850
634
2148
413
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
D 50 HC
-
DN50/PN16
25
350
132
706
165
D 65 HC
-
DN65/PN16
40
350
132
706
175
D 80 HC
-
DN80/PN16
54
470
206
861
170
D 100 HC
-
DN100/PN16
94
470
206
861
180
D 125 HC
-
DN125/PN16
144
635
354
1121
552
D 150 HC
-
DN150/PN16
215
635
354
1121
240
D 200 HC
-
DN200/PN16
360
775
409
1391
295
D 250 HC
-
DN250/PN16
575
890
480
1532
358
D 300 HC
-
DN300/PN16
810
1005
634
2148
413
D 350 HC
-
DN350/PN16
1000
1128
650
2400
509
D 400 HC
-
DN400/PN16
1300
1226
750
2680
588
D 450 HC
-
DN450/PN16
1700
1330
750
2970
617
D 500 HC
-
DN500/PN16
2120
1430
1000
3100
679
D 600 HC
-
DN600/PN16
3000
1630
1200
3250
840
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
D 60.3 R-HC
-
60.3
25
260
132
706
165
D 76.1 R-HC
-
76.1
40
260
132
706
175
D 88.9 R-HC
-
88.9
54
370
206
861
170
D 114.3 R-HC
-
114.3
94
370
206
861
180
D 139.7 R-HC
-
139.7
144
525
354
1121
225
D 168.3 R-HC
-
168.3
215
525
354
1121
240
D 219.1 R-HC
-
219.1
360
650
409
1391
295
D 273.0 R-HC
-
273.0
575
750
480
1532
358
D 323.9 R-HC
-
323.9
810
850
634
2148
413
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM
(mm)
D 50 R-HC
-
DN50/PN16
25
350
132
706
165
D 65 R-HC
-
DN65/PN16
40
350
132
706
175
D 80 R-HC
-
DN80/PN16
54
470
206
861
170
D 100 R-HC
-
DN100/PN16
94
470
206
861
180
D 125 R-HC
-
DN125/PN16
144
635
354
1121
225
D 150 R-HC
-
DN150/PN16
215
635
354
1121
240
D 200 R-HC
-
DN200/PN16
360
775
409
1391
295
D 250 R-HC
-
DN250/PN16
575
890
480
1532
358
D 300 R-HC
-
DN300/PN16
810
1005
634
2148
413
D 350 R-HC
-
DN350/PN16
1000
1128
650
2400
509
D 400 R-HC
-
DN400/PN16
1300
1226
750
2680
588
D 450 R-HC
-
DN450/PN16
1700
1330
750
2970
617
D 500 R-HC
-
DN500/PN16
2120
1430
1000
3100
679
D600 R-HC
-
DN600/PN16
3000
1630
1200
3250
840
Extwin
Ø1
(mm)
(m3/h)
L
(mm)
Ø
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 60.3
4.0
60.3
12.5
260
132
785
335
450
TW 76.1
5.0
76.1
20
260
132
785
335
450
TW 88.9
12.0
88.9
27
370
206
940
413
527
TW 114.3
14.0
114.3
47
370
206
940
413
527
TW 139.7
34.0
139.7
72
525
354
1200
542
658
TW 168.3
31.0
168.3
108
525
354
1200
542
658
TW 219.1
113.0
219.1
180
650
409
1470
678
792
TW 273.0
215.0
273.0
288
750
480
1916
915
1001
TW 323.9
265.0
323.9
405
850
634
2237
1076
1161
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 50
10.0
DN50/PN16
12.5
350
132
785
335
450
TW 65
10.0
DN65/PN16
20
350
132
785
335
450
TW 80
18.0
DN80/PN16
27
470
206
940
413
527
TW 100
24.0
DN100/PN16
47
470
206
940
413
527
TW 125
41.0
DN125/PN16
72
635
354
1200
542
658
TW 150
46.0
DN150/PN16
108
635
354
1200
542
658
TW 200
79.0
DN200/PN16
180
775
409
1470
678
792
TW 250
156.0
DN250/PN16
288
890
480
1916
915
1001
TW 300
325.0
DN300/PN16
405
1005
634
2237
1076
1161
TW 350
-
DN350/PN16
500
1128
650
2600
1257
1343
TW 400
-
DN400/PN16
650
1226
750
2900
1407
1493
TW 450
-
DN450/PN16
850
1330
750
3150
1532
1618
TW 500
-
DN500/PN16
1060
1430
1000
3500
1707
1793
TW 600
-
DN600/PN16
1530
1630
1200
4100
2007
2093
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 60.3 R
13.0
60.3
12.5
260
132
785
335
450
TW 76.1 R
13.0
76.1
20
260
132
785
335
450
TW 88.9 R
46.0
88.9
27
370
206
940
413
527
TW 114.3 R
36.0
114.3
47
370
206
940
413
527
TW 139.7 R
102.0
139.7
72
525
354
1200
542
658
TW 168.3 R
78.0
168.3
108
525
354
1200
542
658
TW 219.1 R
182.0
219.1
180
650
409
1470
678
792
TW 273.0 R
180.0
273.0
288
750
480
1916
915
1001
TW 323.9 R
450.0
323.9
405
850
634
2237
1076
1161
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 50 R
18.0
DN50/PN16
12.5
350
132
785
335
450
TW 65 R
19.0
DN65/PN16
20
350
132
785
335
450
TW 80 R
43.0
DN80/PN16
27
470
206
940
413
527
TW 100 R
51.0
DN100/PN16
47
470
206
940
413
527
TW 125 R
89.0
DN125/PN16
72
635
354
1200
542
658
TW 150 R
94.0
DN150/PN16
108
635
354
1200
542
658
TW 200 R
138.0
DN200/PN16
180
775
409
1470
678
792
TW 250 R
355.0
DN250/PN16
288
890
480
1916
915
1001
TW 300 R
500.0
DN300/PN16
405
1005
634
2237
1076
1161
TW 350 R
-
DN350/PN16
500
1128
650
2600
1257
1343
TW 400 R
-
DN400/PN16
650
1226
750
2900
1407
1493
TW 450 R
-
DN450/PN16
850
1330
1000
3150
1532
1618
TW 500 R
-
DN500/PN16
1060
1430
3500
3500
1707
1793
TW 600 R
-
DN600/PN16
1530
1630
4100
4100
2007
2093
Extwin-HiCap
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 60.3 HC
-
60.3
25
260
132
1050
468
582
TW 76.1 HC
-
76.1
40
260
132
1050
468
582
TW 88.9 HC
-
88.9
54
370
206
1285
585
700
TW 114.3 HC
-
114.3
94
370
206
1285
585
700
TW 139.7 HC
-
139.7
144
525
354
1710
797
913
TW 168.3 HC
-
168.3
215
525
354
1710
797
913
TW 219.1 HC
-
219.1
360
650
409
2035
960
1075
TW 273.0 HC
-
273.0
575
750
480
2764
1339
1425
TW 323.9 HC
-
323.9
810
850
634
3330
1622
1708
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 50 HC
-
DN50/PN16
25
350
132
1050
468
582
TW 65 HC
-
DN65/PN16
40
350
132
1050
468
582
TW 80 HC
-
DN80/PN16
54
470
206
1285
585
700
TW 100 HC
-
DN100/PN16
94
470
206
1285
585
700
TW 125 HC
-
DN125/PN16
144
635
354
1710
797
913
TW 150 HC
-
DN150/PN16
215
635
354
1710
797
913
TW 200 HC
-
DN200/PN16
360
775
409
2035
960
1075
TW 250 HC
-
DN250/PN16
575
890
480
2764
1339
1425
TW 300 HC
-
DN300/PN16
810
1005
634
3330
1622
1708
TW 350 HC
-
DN350/PN16
1000
1128
650
3600
1757
1843
TW 400 HC
-
DN400/PN16
1300
1226
750
4000
1957
2043
TW 450 HC
-
DN450/PN16
1700
1330
750
4500
2207
2293
TW 500 HC
-
DN500/PN16
2120
1430
1000
4900
2407
2493
TW 600 HC
-
DN600/PN16
3000
1630
1200
5800
2857
2943
Ø1
(mm)
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 60.3 R-HC
-
60.3
25
260
132
1050
468
582
TW 76.1 R-HC
-
76.1
40
260
132
1050
468
582
TW 88.9 R-HC
-
88.9
54
370
206
1285
585
700
TW 114.3 R-HC
-
114.3
94
370
206
1285
585
700
TW 139.7 R-HC
-
139.7
144
525
354
1710
797
913
TW 168.3 R-HC
-
168.3
215
525
354
1710
797
913
TW 219.1 R-HC
-
219.1
360
650
409
2035
960
1075
TW 273.0 R-HC
-
273.0
575
750
480
2764
1339
1425
TW 323.9 R-HC
-
323.9
810
850
634
3330
1622
1708
Ø1
(m3/h)
L
(mm)
Ø2
(mm)
H
(mm)
HM1
(mm)
HM2
(mm)
TW 50 R-HC
-
DN50/PN16
25
350
132
1050
468
582
TW 65 R-HC
-
DN65/PN16
40
350
132
1050
468
582
TW 80 R-HC
-
DN80/PN16
54
470
206
1285
585
700
TW 100 R-HC
-
DN100/PN16
94
470
206
1285
585
700
TW 125 R-HC
-
DN125/PN16
144
635
354
1710
797
913
TW 150 R-HC
-
DN150/PN16
215
635
354
1710
797
913
TW 200 R-HC
-
DN200/PN16
360
775
409
2035
960
1075
TW 250 R-HC
-
DN250/PN16
575
890
480
2764
1339
1425
TW 300 R-HC
-
DN300/PN16
810
1005
634
3330
1622
1708
TW 350 R-HC
-
DN350/PN16
1000
1128
650
3600
1757
1843
TW 400 R-HC
-
DN400/PN16
1300
1226
750
4000
1957
2043
TW 450 R-HC
-
DN450/PN16
1700
1330
750
4500
2207
2293
TW 500 R-HC
-
DN500/PN16
2120
1430
1000
4900
2407
2493
TW 600 R-HC
-
DN600/PN16
3000
1630
1200
5800
2857
2943
B:
Exdirt / Extwin
82521xx / 82523xx /
82531xx / 82533xx
- [mm] HiCap [mm]
DN 50 / DN 65 /
DN 80 / DN 100
60.3 76.1 88.9 -
114.3
370 430
DN 125 / DN 150 /
DN 200
139.7 / 168.3 /
219.1
430 500
DN 250 / DN 300 273.0 / 323.9 500 600
DN 350 / DN 400 /
DN 450 / DN 500 /
DN 600
- 600 700
Exdirt R / Exdirt R-HC
Extwin R / Extwin R-HC
82522xx / 82524xx 82532xx / 82534xx
- [mm] HiCap [mm] - [mm] HiCap [mm]
DN 50 /
DN 65
60.3 /
76.1
300 570 370 640
DN 80 /
DN 100
88.9 /
114.3
400 660 550 900
DN 125 /
DN 150
139.7 /
168.3
500 870 750 1300
DN 200 219.1 700 1030 1000 1600
DN 250 273.0 850 1050 1350 2100
DN 300 323.9 1000 1600 1850 2900
Other manuals for Exvoid
1
This manual suits for next models
5
Table of contents
Other Reflex Water Filtration System manuals
Popular Water Filtration System manuals by other brands
Atlas Filtri
Atlas Filtri OASIS SANIC Instruction for installation and maintenance
Getinge
Getinge 46-2 Instructions for use
BWT
BWT bestaqua 14 Fitting and operating instructions
Pureway
Pureway ECO II+ manual
Kimseed
Kimseed Vacuum Separator operating manual
Della Toffola
Della Toffola OMNIA Series Use and maintenance instruction manual
Simple Water Service

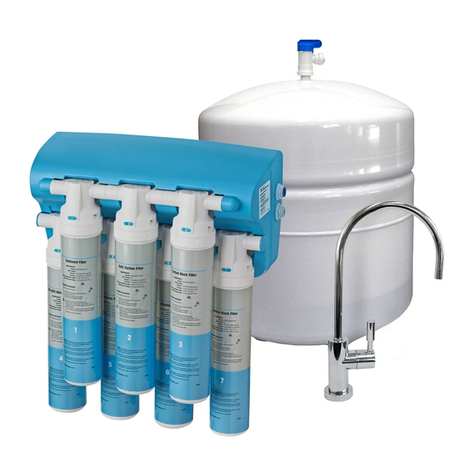

Simple Water Service 7QCRO Installation, operation & service
Whirlpool
Whirlpool WHES60 Installation and operation manual
Streamline
Streamline FILTERPLUS INSTR-MINI-MAXI-RO instruction manual
CSI
CSI Signature 2 Series Installation and operation manual
Philips
Philips WP3970/01 user manual
JOWA

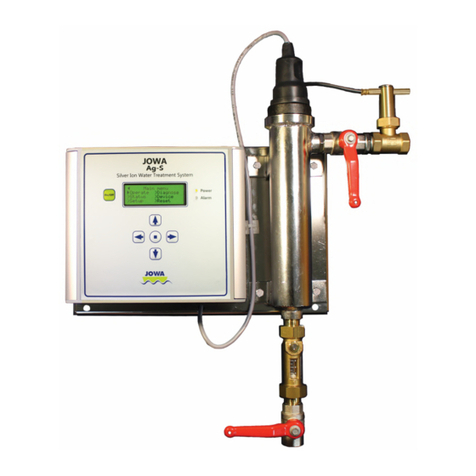

JOWA Ag-S Quick start manual
