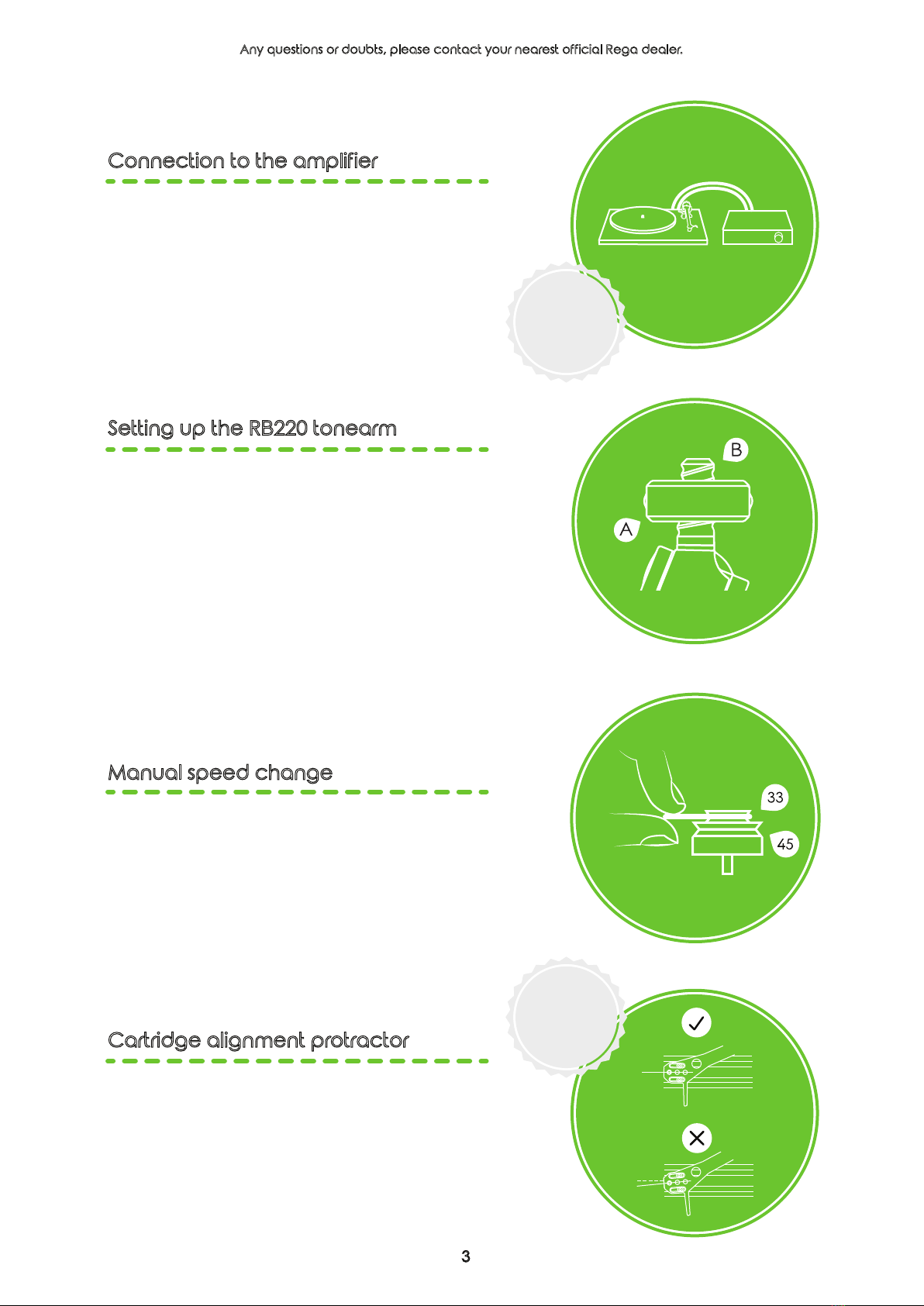

Cartridge alignment protractor
The Planar 2 comes with the Rega Carbon cartridge
aligned ready for play. If you need to replace or upgrade
the cartridge please use the cartridge alignment
protractor provided along with the cartridge
manufacturers guidelines.**
Manual speed change
You can change playing speed by simply removing the
glass platter and moving the drive belt between either the
33 ⅓rpm or 45rpm wheels of the drive pulley as shown.
Any questions or doubts, please contact your nearest official Rega dealer.
The tonearm external phono leads must be connected to
a suitable phono stage.
Connect as follows: Red=right channel. Black=left channel.
If your amplifier does not have an integrated phono stage
you will require an external stage.*
Connection to the amplifier
To set up the RB220 tonearm, screw on the balance
weight (A) along its shaft (B) until the stylus is floating
1mm clear of a record on the platter. Tracking force can
now be applied, half a turn of the weight (180 degrees) = 1
gram of force. Turn the weight to the suggested force of
your cartridge manufacturer’s guidelines. The suggested
force for the supplied Carbon cartridge is 2 grams (360
degrees). Use the plastic plugs on the weight as a guide.
Bias adjustment is automatic on the RB220 tonearm.
Setting up the RB220 tonearm
*Rega
Phono stages
are sold
separately.
**Upgrade
with the Rega
performance
pack.
3
