PLANAR 6 / EN
1
www.rega.co.uk MADE IN ENGLAND

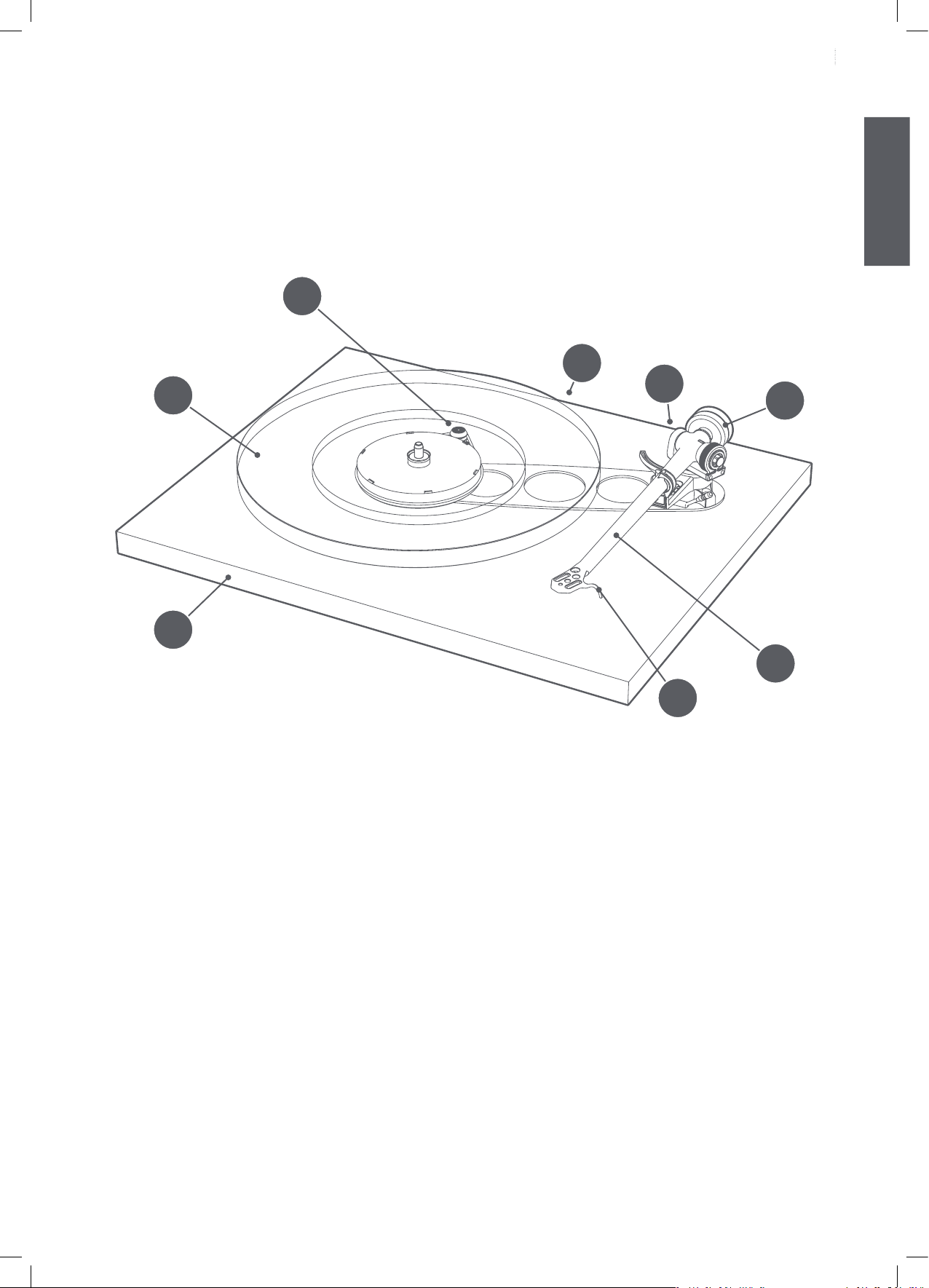

1. GLASS PLATTER
2. DRIVE BELT / PULLEY
3. TONEARM
4. BALANCE WEIGHT
5. PLINTH
6. POWER INPUT
7. PHONO OUTPUT
8. FINGER LIFT
1
2
3
8
4
5
67
THANK YOU FOR PURCHASING THIS REGA PRODUCT
Please follow this quick set up guide to ensure optimum performance
and perfect operation. Failure to do so may invalidate your warranty. For
more information on this product, please visit www.rega.co.uk.
UNPACKING AND SETTING UP THE PLANAR 6 TURNTABLE
• 
• 
• Save the packaging in case you need to transport your turntable in

• 
• Ensure the drive belt is in place and remove the transport hub card

• 


PLANAR 6 / EN
2
MADE IN ENGLAND www.rega.co.uk
B
A
C
SETUP AND CONNECTIONS
 
 Connect the power DIN lead (supplied) between the rear of the

 
 


 When the power supply is switched on, if the Rega logo illuminates

 
 

Note: To minimise the risk of hum picked up by the cartridge, the Neo
should be situated as far from the turntable as the interconnect cable
will allow.
CONNECTING TO THE AMPLIFIER
The tonearm external phono leads must be connected to a suitable
phono stage.
Connect as follows:
Red = right chanel
Black = le channel
Depending on the type of cartridge you have chosen, you will require
the appropriate moving magnet (MM) or moving coil (MC) stage. If your

external stage (sold separately).

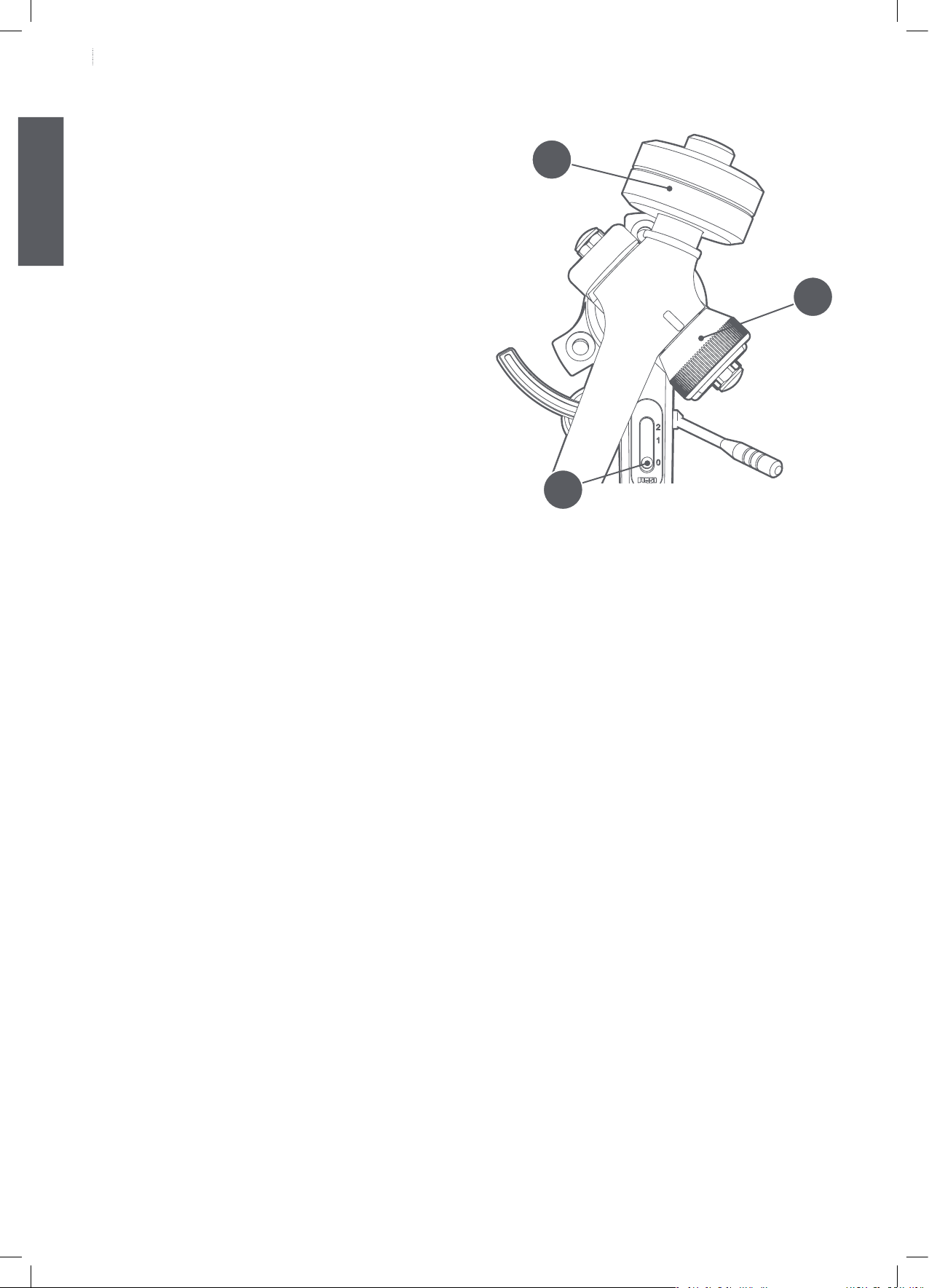

CARTRIDGE MOUNTING AND SETTING UP THE RB330 TONEARM


(supplied) to accurately set the position of the cartridge. Ensure that the
tracking force dial (A) and bias adjustment slider (B) are both set to zero.
Place the balance weight (C) on to the balance weight shaft. With the
stylus guard removed, position the cartridge above the lead-in groove of
an LP. Whilst supporting the headshell, carefully push the weight further

The recommended tracking force can now be applied using the tracking
force dial. Always use a force which corresponds to the upper limit of the
cartridge makers recommended range. Finally, push the bias adjustment
slider to the same number as the tracking force control.

PLANAR 6 / EN
3
www.rega.co.uk MADE IN ENGLAND
SPEED ADJUSTMENT (FACTORY SET - ONLY ADJUST IF NECESSARY)
The speed control functions are sited on the back panel of the Neo:
Speed program switch: This enables the set speed mode.
Program mode LED: This indicates the two modes of operation: Factory
default mode and speed adjustment mode.
Speed adjustment: This encoder is used to adjust the speed. The step

ADJUSTING THE SPEED
Note: We recommend the Rega Strobe kit to accurately measure the
speed during adjustment (sold separately).
Note:

rpm.
 
 


 





 


seconds indicating the speed has been changed from the factory

RETURNING THE NEO TO FACTORY SETTINGS

turntable or after a service, to help optimise the range of adjustment
available to you.
 
 


 

Note:

result in lower performance and variation in speed stability.
USE OF MOBILE PHONE APPS TO CHECK AND ADJUST THE
SPEED
Rega, along with a London mastering studio, have used the iPhone ‘RPM’
app (available on the App Store) developed by Philip Broder to check and
adjust the speed of a turntable using the Neo, with positive results. We

speed measuring equipment, but as this is a third-party app we cannot
guarantee the readings because of uncertainties, which could be caused
by the age, condition, and operating system of the phone the app is
installed on. If you are in any doubt, you should check the calibration of
the ‘RPM’ app using a suitable reference.
REGA STROBE AND STROBOSCOPIC DISC (SOLD SEPARATELY)
The best way to adjust the speed of your Planar 6 is to use the Rega
Stobe kit. A stroboscopic disc is an optical instrument used to measure
the speed of the turntable by freezing the bars on the disc. The bars are

USING THE STROBE KIT



they move clockwise, the turntable is running fast, and conversely, if they
move anti-clockwise, the turntable is running slow.
If over one minute the bars appear to move by one bar to the left or one


Note: If over one minute the bars appear to move by two bars to the



Warning: Because of the nature of the stroboscopic effect of the disc
and the LED light, we strongly recommend anyone with photo-induced
epilepsy not to use this device. Although this condition is very rare,
we must make the user aware of this condition. Ask your dealer for
assistance if required.
WARNINGS
• Do not unplug the power supply from the turntable whilst the unit

• 
• 

• 
• 
• 
• 

from overcurrent faults, which will cause the turntable to run erratically
or not at all. If in the rare circumstance these are activated, they are

seconds. If the fault should persist, consult your dealer.

PLANAR 6
4
 
SERVICE

damp if necessary). Do not remove any coverings; there are no user serviceable parts
inside. If the unit performs erratically or emits smoke or odour, disconnect from the power

WARRANTY
All Rega products are covered by a lifetime warranty against manufacture defects. This

the Rega recommended guidelines may invalidate the warranty. If returning goods for
inspection to your retailer, the original packaging must be used to preserve the warranty.
Damage caused during transport due to incorrect packaging may invalidate your warranty.
Replacement packaging is available from any Rega retailer. Your statutory rights are not
affected.
SAFETY INSTRUCTIONS
Do not use this unit near liquids or expose to moisture. Do not use near sources of heat
such as radiators, vents, stoves, or candles. Ensure adequate ventilation around the

long carpet and fabric. Do not open the product enclosure or force objects into openings in



unused for extended periods of time.
