SAFETY
Safety is emphasized throughout this user manual. These are safety
alert symbols and signal words. They alert the user to potential per-
sonal injury hazards. Obey all safety messages to avoid possible injury
or death or damage to equipment and other property.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE identies potential equipment damage or failure conditions
and alerts personnel to potentially dangerous situations.
DANGER
NOTICE

1 Introduction
The VGreen® 085 is a premium efciency variable speed motor that
provides tremendous program exibility in terms of motor speed
and time settings. The variable speed VGreen 085 is intended to
enable running at the lowest speeds needed to maintain a sanitary
environment, which in turn minimizes energy consumption. Pool size,
the presence of additional water features, chemicals used to maintain
sanitary conditions, and environmental factors will impact optimal
programming necessary to maximize energy conservation.
The integrated electronics interface controls the speed settings as
well as the run durations. The VGreen 085 can run at speeds ranging
between 600 and 3450 RPM and is rated for 115 Vrms at an input
frequency of 60/50 Hz.
2 Navigation Overview
➢+, - Increases/decreases selected value
➢Pressing any key following a change accepts the current value
displayed inside the setting

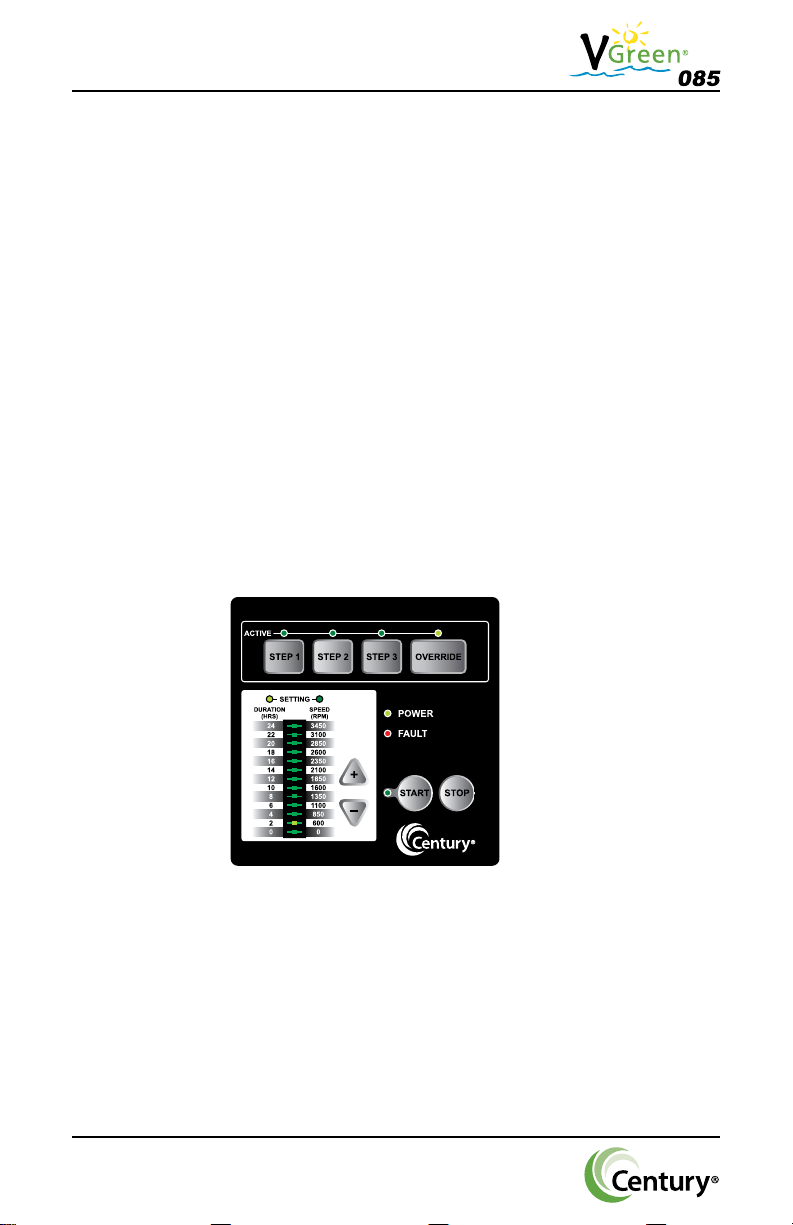

Figure 1: VGreen 085 User Interface Button Descriptions
3
Programming Buttons (4x)
Power LED
Fault LED
Stop Button
Start Button
Active Step LEDs (4x)
Speed LED
Duration LED
Bar Graph
+/- Buttons
The VGreen 085 is for use with 115 Vrms nominal, and in pool pump applications ONLY.
Connection to the wrong voltage, or use in other application may cause damage
to equipment or personal injury.

4
Note: The START button must be pressed for the VGreen 085 to
operate. The START LED will illuminate after the button has been
pressed indicating the VGreen 085 is capable of operating. Pressing
the stop button will turn off the START LED and stop the motor if
running.
VGreen 085 Features
• Simple user interface
• Digital inputs for compatibility with pool automation systems
• Motor design reduces noise emissions
• UV and rain-proof enclosure
• Freeze Protection
• Manual OVERRIDE
• Compatibility w/ VGreen 270 user interface
(sold as a separate accessory)
• High efciency electromechanical motor and control design
BenetsofaddinganoptionalVGreen270
user interface with the VGreen 085 motor
• Ability to conduct eld troubleshooting (i.e., view FAULT codes and
real time operating parameters).
• Ability to set a pump running schedule based on a real clock setting
(i.e., must input actual time which then determines pump start and
stop times).
• Ability to remotely mount the VGreen 270 user interface (provides
easy access of user interface depending on pump location).
• Ability to congure prime speed and prime duration.
If power is connected to the VGreen 085 motor, pressing any of the following buttons
referred to in section 2 could result in the motor starting. Failure to recognize this could
result in personal injury or damage to equipment.

5
• Ability to congure freeze protection temperature.
• Ability to view actual speed and power of the VGreen 085 in real time.
• Ability to adjust the VGreen 085 motor speed in 25 RPM
increments (to ne tune ow for certain pool installations).
• Battery backup to store time setting.
3 Quick Start Instruction
3.1 Quick Start Guide (Using the factory default schedule)
The following table describes the factory default settings for DURATION
and SPEED order:
Pressing the START key will start the VGreen 085 based on the factory
default schedule.
NOTE: If power is cycled to the VGreen 085 and the user does not
press the STOP key, the VGreen 085 will automatically start and run
the programmed default schedule shown in the chart above. This
feature ensures that the VGreen 085 will re-start in the event of a power
outage.
Button Duration
(In Hours)
Speed
(In RPM)
STEP 1 4 3100
STEP 2 4 2600
STEP 3 8 1600
OVERRIDE 2 3450
If power is connected to the VGreen 085 motor, pressing any of the following buttons
referred to in section 3 could result in the motor starting. Failure to recognize this could
result in personal injury or damage to equipment.

6

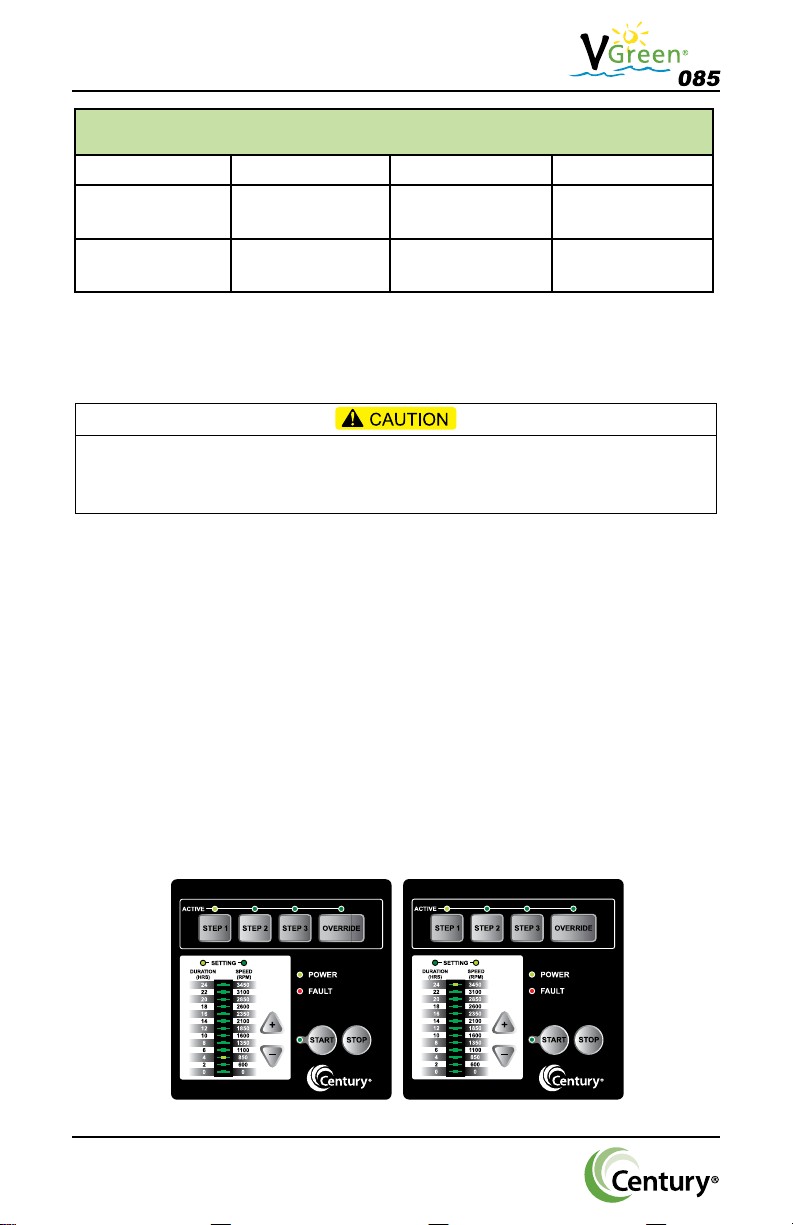

3.2 Quick Start Guide (User-denedcustomschedule)
A VGreen 085 user can set the program DURATION and SPEED for
STEP 1, STEP 2, STEP 3 & OVERRIDE keys.
NOTE: VGreen 085 must be Stopped (Press STOP Key) for program-
ming DURATION and SPEED of the STEP 1, STEP 2, and STEP 3
keys. OVERRIDE DURATION and SPEED can be programmed when
the VGreen 085 is either stopped or running.
Press the STEP 1 key. The STEP 1 button and DURATION setting
LEDs will illuminate. The bar graph will show default DURATION for
STEP 1.
1. Press UP (+) or DOWN (-) arrows to change the DURATION
2. Press the STEP 1 key again to change the SPEED setting.
The SPEED setting LED will illuminate. The bar graph will
show default SPEED for STEP 1.
3. Press UP (+) or DOWN (-) arrows to change the SPEED.
4. Press any STEP or OVERRIDE key to save the DURATION
and SPEED settings for STEP 1. If the user decides not to
save the settings, pressing the STOP key will revert back to the
previously stored setting.

5. Press STEP 2, STEP 3, or OVERRIDE key. Repeat steps 1- 4
to program the corresponding DURATION and SPEED for each
button.
6. Press START to run the VGreen 085 based on the pro-
grammed 24 hour schedule.
7. Pressing the STOP button will stop the VGreen 085.
NOTE: The VGreen 085 can only be set to operate on a 24-hour sched-
ule. If a user attempts to program a schedule with a combined dura-
tion for all three steps greater than 24 hours, the VGreen 085 software
will retain the current STEP time duration only, and will zero out the
other two STEP time settings. As an example, if STEP 1 equals eight
(8) hours, STEP 2 equals nine (9) hours, and STEP 3 equals eight
(8) hours – for a combined 25 hours – the VGreen 085 will retain the
setting for the current Step being programed and zero out the remain-
ing two. For details regarding the set-up of the three steps as part of a
24-hour schedule, see section 6.
7

8
4 Overview
Program customization may require some trial-and-error to determine
the most satisfactory settings as dictated by the conditions. In all cases,
setting the VGreen 085 at the lowest speed for the longest duration is
the best strategy to minimize energy consumption. However, conditions
may require running the VGreen 085 at a higher speed for some dura-
tion of time each day to maintain proper ltration to achieve satisfactory
sanitation.
The User Interface is located on top of the VGreen 085 . To the right of
the STEP buttons is the OVERRIDE button. This button can be used
to operate the VGreen 085 at speeds outside of the normal operating
schedule.

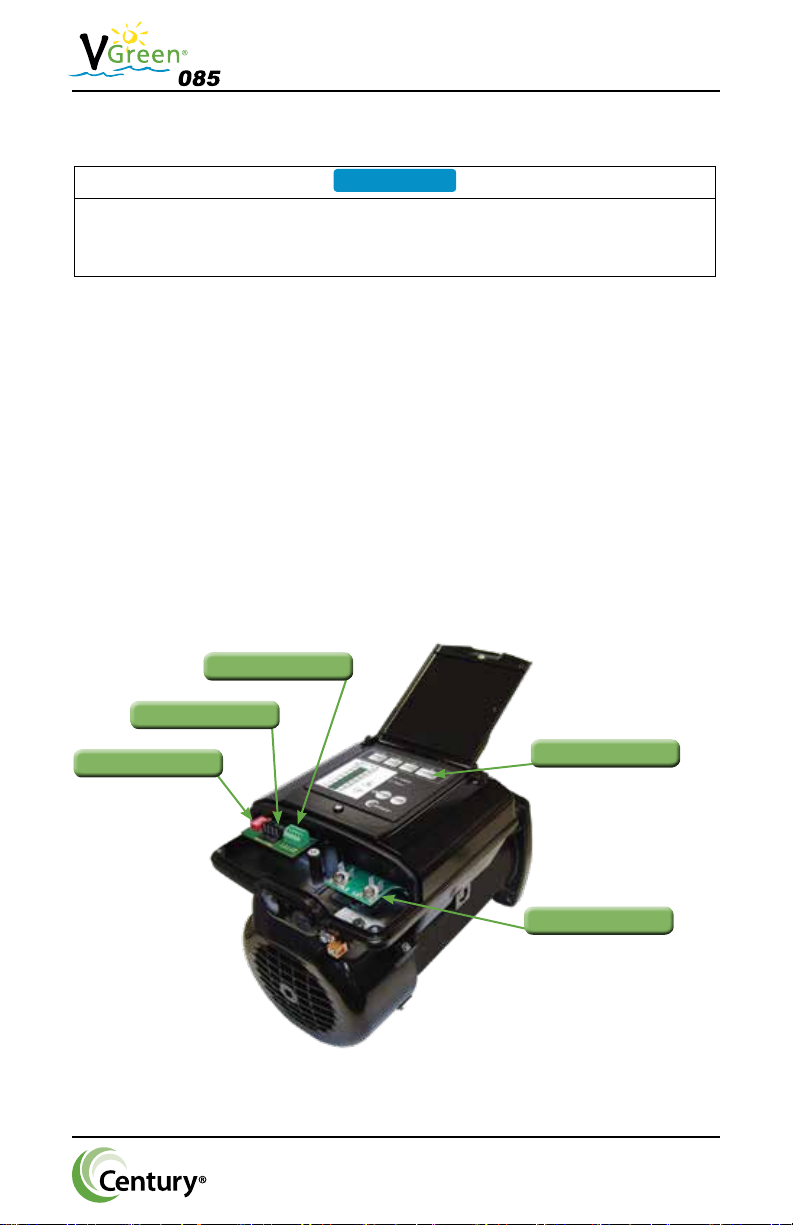

Figure 2: VGreen 085 Overview
DIP Switch
Serial Connector
Digital Inputs
Mains Connections
Keypad Buttons
NOTICE
The VGreen 085 can and should be optimized to suit individual pool conditions. Specic
conditions including pool size, other devices, features, and environmental factors can
all impact the optimal settings.

9
5 Wiring
The VGreen 085 controller must be wired according to the locally adopt-
ed version of the NEC. A licensed, qualied electrician should complete
the wiring for this product.
The controller is designed to operate with 115 Vrms, single phase
power.
The VGreen 085 is designed to handle either a bare wire connection or
a quick disconnect connection. The quick disconnect tab is 0.250” and
will handle any commonly available mating connectors. For a direct wire
connection, the wire insulation should be stripped to a length of approxi-
mately 0.33.” The terminal block is capable of handling solid or stranded
wire up to 12 AWG in size. The screw for the mains connections should
be properly tightened to a torque value of 10 in-lb.
Pin # Wire Color Description
L1 Black Hot 1
L2 Red or White Hot 2
Green screw Green Earth
Table 1: Mains Connection
Pin # Wire Color Description
J201 - 1 Red +12V
J201 - 2 Black A
J201 - 3 Yellow B
J201 - 4 Green COM
Table 2: Communication Connection
The VGreen 085 controller must be wired according to the locally adopted version of the
NEC. A licensed, qualied electrician should complete the wiring for this product. Failure
to comply with this may result in death, serious personal injury or property damage.

10

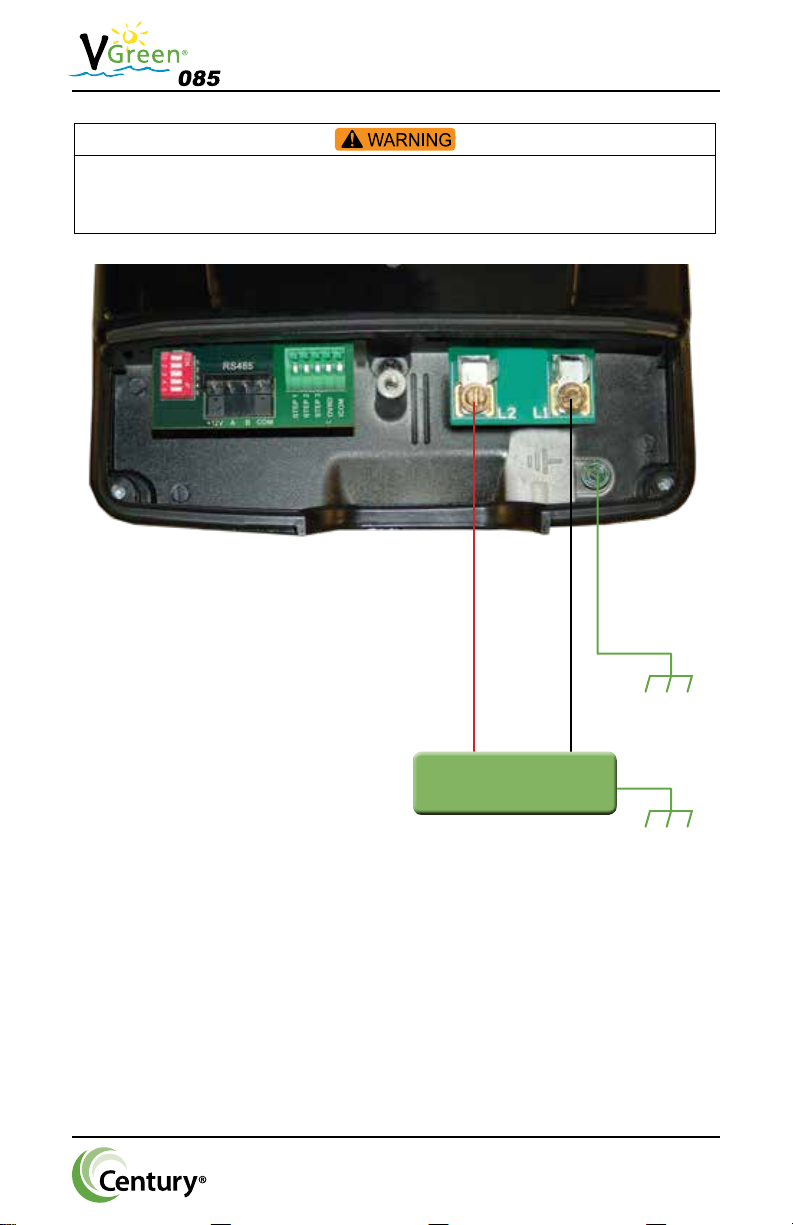

Figure 3: Mains Connection Diagram
EARTH
L2
(RED OR WHITE)
EARTH
L1
(BLACK)
115V POWER
SOURCE
Power should be turned off when installing, servicing, or repairing electrical components.
Observe all warning notices posted on the existing equipment, VGreen 085, and in
these installation instructions.

External Supply Range:
18-30V AC (24V AC+/- 20%)
9-30V DC (12/24V DC +/- 20%)
11
Figure 4: Wiring Diagram for Digital Inputs
UI DIGITAL
INPUT CONNECTOR
J202
STEP 1
(pin 1)
STEP 2
(pin 2)
STEP 3
(pin 3)
OVER RIDE
(pin 4)
COMMON
(pin 5)
Vac or
VDC
GND
EXTERNAL SUPPLY
Automation System or
Solar System Controller
VGreen 085 Controller
Figure 5: Digital Input connector
Access to these terminals is in close proximity to the mains connectors which carry line
voltage capable of causing personal injury or damaging the equipment if contact is made.
Power should be turned off when accessing this area.

12
6 User Interface Operation
6.1 LED and Function Overview
Figure 6: LED Functionality Table
X
*
**
#
LED→
Function↓ Power START FAULT STEP1 STEP2 STEP3 OVERRIDE
SPEED
SETTING
DURATION
SETTING
BARGRAPH
PowerOn X
Step1 X X X ** ** **
Step2 X X X ** ** **
Step3 X X X ** ** **
Override X X X ** ** **
Keypadlock X * * *
KeypadUnlock X X X X
ScheduleAdvance X * X X
RestoreDefaultsettings X #(AllLED)
Motorpause X * * X X
Temporarystop X *(0RPM)
DI1ON X * X X
DI2ON X * X X
DI3ON X * X X
DI4ON X * X X
SerialCommunication X *
Motorspinning X * X
FreezeProtection X * X
UIfault X *
Controllerfault X X
FreezeProtection
FaultHandling
DigitalInputFunctions
KeypadFunctions
Blinkforthreetimes@1sec
AlternatesbetweenDURATIONandSPEED
Blinking@1sec
SolidONIndication
KeyforLEDs
V-Green 165 UI LED Indication and respective functionalities
SerialCommunicationFunctions
X
*
**
#
LED→
Function↓ Power START FAULT STEP1 STEP2 STEP3 OVERRIDE
SPEED
SETTING
DURATION
SETTING
BARGRAPH
PowerOn X
Step1 X X X ** ** **
Step2 X X X ** ** **
Step3 X X X ** ** **
Override X X X ** ** **
Keypadlock X * * *
KeypadUnlock X X X X
ScheduleAdvance X * X X
RestoreDefaultsettings X #(AllLED)
Motorpause X * * X X
Temporarystop X *(0RPM)
DI1ON X * X X
DI2ON X * X X
DI3ON X * X X
DI4ON X * X X
SerialCommunication X *
Motorspinning X * X
FreezeProtection X * X
UIfault X *
Controllerfault X X
FreezeProtection
FaultHandling
DigitalInputFunctions
KeypadFunctions
Blinkforthreetimes@1sec
AlternatesbetweenDURATIONandSPEED
Blinking@1sec
SolidONIndication
KeyforLEDs
V-Green 165 UI LED Indication and respective functionalities
SerialCommunicationFunctions

13
6.2 User Interface Key Pad Overview
1. STEP 1 (Set Schedule) è DURATION and SPEED
2. STEP 2 (Set Schedule) è DURATION and SPEED
3. STEP 3 (Set Schedule) è DURATION and SPEED
4. OVERRIDE (Settings) è DURATION and SPEED
5. START
6. STOP
6.3 Set the Schedule
Set the DURATION and SPEED for the VGreen 085 using the keys on
the User Interface. The schedule is based on a 24-hour schedule and
will repeat each day of the week.
The highest speed rating for the VGreen 085 is 3450 RPM and the
lowest is 600 RPM. Unless a new user-dened schedule is entered, the
VGreen 085 will operate based on the following factory default schedule:
If power is connected to the VGreen 085 motor, pressing any of the following buttons
referred to in this section 6.2 could result in the motor starting. Failure to recognize this
could result in personal injury or damage to equipment.
If power is connected to the VGreen 085 motor, pressing any of the following buttons
referred to in this section 6.3 could result in the motor starting. Failure to recognize this
could result in personal injury or damage to equipment.

Table 3: Factory default schedule
Button Duration
(In Hours)
Speed
(In RPM)
STEP 1 4 3100
STEP 2 4 2600
STEP 3 8 1600
OVERRIDE 2 3450
Schedule Tables
Use the tables below to record a personalized operating schedule.
Recording the planned schedule in the table below will make the pro-
gramming process easier and will help the user remember the custom
settings in case of inadvertent loss of schedule. The user interface will
not allow the user to program an overlap between different STEPs of the
schedule. The STEP currently being set will always take priority over
any previous settings. In the event a user attempts to program with a
combined duration greater than 24 hours, the current STEP setting will
be retained whereas the other two STEP settings will be cleared to zero
hours requiring the user to reset them. Prior to beginning the actual
programming process, it is advisable for the user to review the planned
schedule as outlined in chart form to ensure the cumulative duration is
not greater than 24 hours and no overlaps exist. It is always a good idea
to double check your programmed settings for accuracy once you have
completed the programming process.
14
Setup #1
Step 1 Step 2 Step 3
Duration
Speed

15
Table 4: Custom Schedule
Setup #2
Step 1 Step 2 Step 3
Duration
Speed
6.4 Running VGreen 085 from Keypad
1. Press the START key and the VGreen 085 will run the programmed
24 hour duration schedule. The START event will be stored in the
controller. Should a power outage occur, the VGreen 085 will
automatically re-start at STEP 1 when power is restored.
2. The VGreen 085 will always run the PRIMING sequence when it
starts from the OFF state, including when it automatically restarts
following a power outage. The default Prime setting is dened in the
“Priming” section of this document.
3. The VGreen 085 then starts running in STEP 1 at the programmed
DURATION and SPEED. The “ACTIVE LED” for STEP 1 will turn
ON. The DURATION and SPEED setting LEDs along with the re-
spective bar graph LED will blink back and forth every three (3)
seconds.
If power is connected to the VGreen 085 motor, pressing any of the following buttons
referred to in this section 6.4 could result in the motor starting. Failure to recognize this
could result in personal injury or damage to equipment.

16
4. This sequence will then repeat for STEP 2 and then STEP 3 with-
out the VGreen 085 stopping.
5. At the end of STEP 3, the VGreen 085 will wait if necessary for the
completion of the 24-hour schedule. During this waiting period (if
applicable), all of the “active step LEDs” will remain OFF. However,
the START LED will still be illuminated. After completion of the 24
hour schedule, the system restarts at STEP 1 and this cycle will
repeat indenitely until the user presses the STOP key.
NOTE: Pressing a STEP key other than for the STEP currently running
will cause an immediate transition to the newly selected STEP. The
VGreen 085 will continue with the programmed schedule from that point
forward.
NOTE: If STOP is pressed during normal schedule operation, the 24
hour schedule will stop. When START is pressed again, the 24 hour
schedule will start from STEP 1.
NOTE: If power is lost while the VGreen 085 is running a 24 hour sched-
ule, upon restoration of power the VGreen 085 will start the 24 hour
schedule from STEP 1.
NOTE: If a digital input (provided from an external source) is detected,
the VGreen 085 will start running on the STEP 1, STEP 2, STEP 3, or
OVERRIDE speed corresponding to the digital input. Upon removing
the digital input (provided from an external source), the VGreen 085 will
stop and the user will need to press START to begin the 24 hour sched-
ule operation. However, if START was already pressed prior to receiv-
ing a digital input, then the VGreen 085 will resume running the 24 hour
schedule once the digital input is removed.
NOTE: Pressing STOP at any time turns the VGreen 085 OFF and
clears the start time for the 24 hour schedule.

6.5 OVERRIDE
The VGreen 085 is equipped with an OVERRIDE feature, which can be
engaged to temporarily run at higher or lower speeds ranging between
600 to 3450 RPM. Once the OVERRIDE duration has elapsed, the
VGreen 085 will automatically return to the programmed schedule.
1. Pressing the OVERRIDE key while the VGreen 085 is running will
cause the VGreen 085 to start running in the OVERRIDE mode
at the programmed DURATION and SPEED. The “active LED” for
OVERRIDE will illuminate. The DURATION and SPEED setting
LEDs along with its respective bar graph LED will blink back and
forth at three (3) second intervals.
2. The UP (+) / DOWN (-) arrows allow the user to congure OVER
RIDE DURATION and SPEED. These settings can be changed
while the VGreen 085 is running. These settings are stored each
time the UP (+) / DOWN (-) arrows are pressed.
NOTE: When the OVERRIDE duration ends, the VGreen 085 resumes
the 24 hour schedule at the point in the currently programmed 24 hour
schedule where it normally would be running at that time. The OVER-
RIDE duration will not affect the start or stop times of the 24 hour sched-
ule. For example, if OVERRIDE runs during a period overlapping with a
later part of STEP 1 and an early part of STEP 2, the start time of STEP
3 is not affected.
17

18
NOTE: Pressing/Holding OVERRIDE key for more than three (3)
seconds will cancel OVERRIDE mode.
NOTE: During the OVERRIDE mode, the VGreen 085 will not start with
the priming sequence.
NOTE: It is recommended that you do not set the OVERRIDE duration
to 0 HRS. Setting the OVERRIDE duration to 0 HRS will not allow you
to change the duration setting while the motor is running. The motor will
have to be stopped in order to change the OVERRIDE settings if the
duration is set to 0 HRS.
6.6 Schedule Advance
The Schedule Advance mode allows the user to press the START button
at one time of the day, with the 24-hour schedule starting at a different
time of day. The VGreen 085 can run in the Schedule Advance mode
(by using the OVERRIDE button) and upon completion will begin the
programmed 24 hour schedule at STEP 1 DURATION and SPEED.
The following steps should be followed to set Schedule Advance mode:

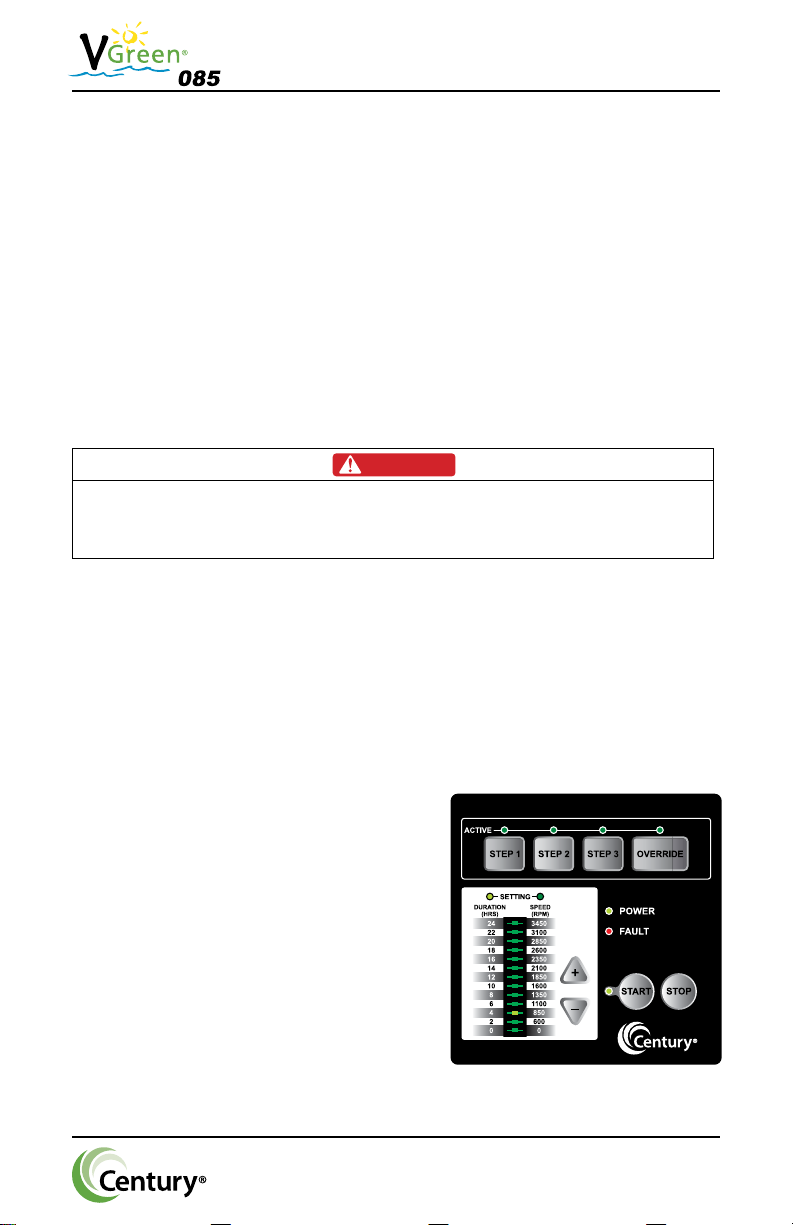

1. With the VGreen 085 stopped,
press and hold the START key for
more than three (3) seconds. The
START LED will blink at a rate of one
second per pulse. The DURATION
setting LED and respective bar graph
LED will remain turned ON until the
Schedule Advance mode is complete.
Do not perform any maintenance on the motor while the motor is in Schedule Advance
Mode. The motor may start without warning. This event could cause death or serious
personal injury.
DANGER
