Regency Fireplace Products CI1200 Alterra Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-893
CI1200 / CI1250
Alterra®
Wood Inserts
04/07/11
Owner's & Installation Manual
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.

2Regency CI1200 Wood Cast Insert
2
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Shouldyouhaveanyquestionsaboutyourproductthatarenotcoveredinthismanual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this Insert is not properly installed, a house fire may result. For your safety,
follow the installation instructions, contact local building or fire officials about restrictions and
installation inspection requirements in your area.
The authority having jurisdiction (such as municipal building department, fire department,
fire prevention bureau, etc.) should be consulted before installation to determine the need
to obtain a permit.

Regency CI1200 / CI1250 Wood Cast Insert 3
3
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Label.....................................................4
DIMENSIONS
Unit Dimensions CI1200................................................6
(no blower option)..........................................................6
Unit Dimensions CI1250................................................7
(with standard blower)...................................................7
Optional backing plate dimensions................................8
INSTALLATION
Before Installing Your Insert...........................................9
Chimney Specifications.................................................9
Fireplace Specifications.................................................9
Masonry And Factory Built Fireplace Clearances .......10
How To Determine If Alternate.....................................10
Floor Protection Materials AreAcceptable...................10
Installing Your Insert....................................................11
Installation Into a Masonry Fireplace...........................13
Installation Into a Factory Built Fireplace.....................13
Cast faceplate installation............................................14
3 piece backing plate installation.................................17
Door reversal...............................................................18
Brick Flue Baffle & Secondary Air Tube Installation ....19
Firebrick Assembly ......................................................19
Draft Control................................................................19
OPERATING INSTRUCTIONS
First Fire ......................................................................20
Fan Operation..............................................................21
Cord reversal...............................................................21
Ash Disposal................................................................22
Some Safety Guidelines..............................................22
Creosote......................................................................22
MAINTENANCE
Door Gasket ................................................................23
Glass Cleaning............................................................23
Door Removal..............................................................23
Glass Replacement.....................................................23
Handle Replacement...................................................24
Door catch Adjustment ................................................24
Fan maintenance.........................................................24
Fan removal CI1250 Only............................................25
PARTS LIST
Main Assembly CI1200................................................26
Main Assembly CI1250................................................27
Cast Faceplate ............................................................28
Firebrick.......................................................................28
WARRANTY
Warranty......................................................................23

4Regency CI1200 / CI1250 Wood Cast Insert
SAFETY LABEL
Thisisacopyofthelabelthataccompanieseach
CI1200 Wood Insert. We have printed a copy
of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: CI1200
TESTED TO:
ULC S628-M93 / UL 1482-2006 / ULC S627-00 WN # 16601
DO NOT REMOVE THIS LABEL
365
COMPONENTS REQUIRED FOR INSTALLATION:5.5" (140mm) OR 6" (152mm) STAINLESS STEEL LINER. STANDARD ADAPTOR (171-932) OR OFFSET
ADAPTOR (171-936)
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE
FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH
CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR
RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.

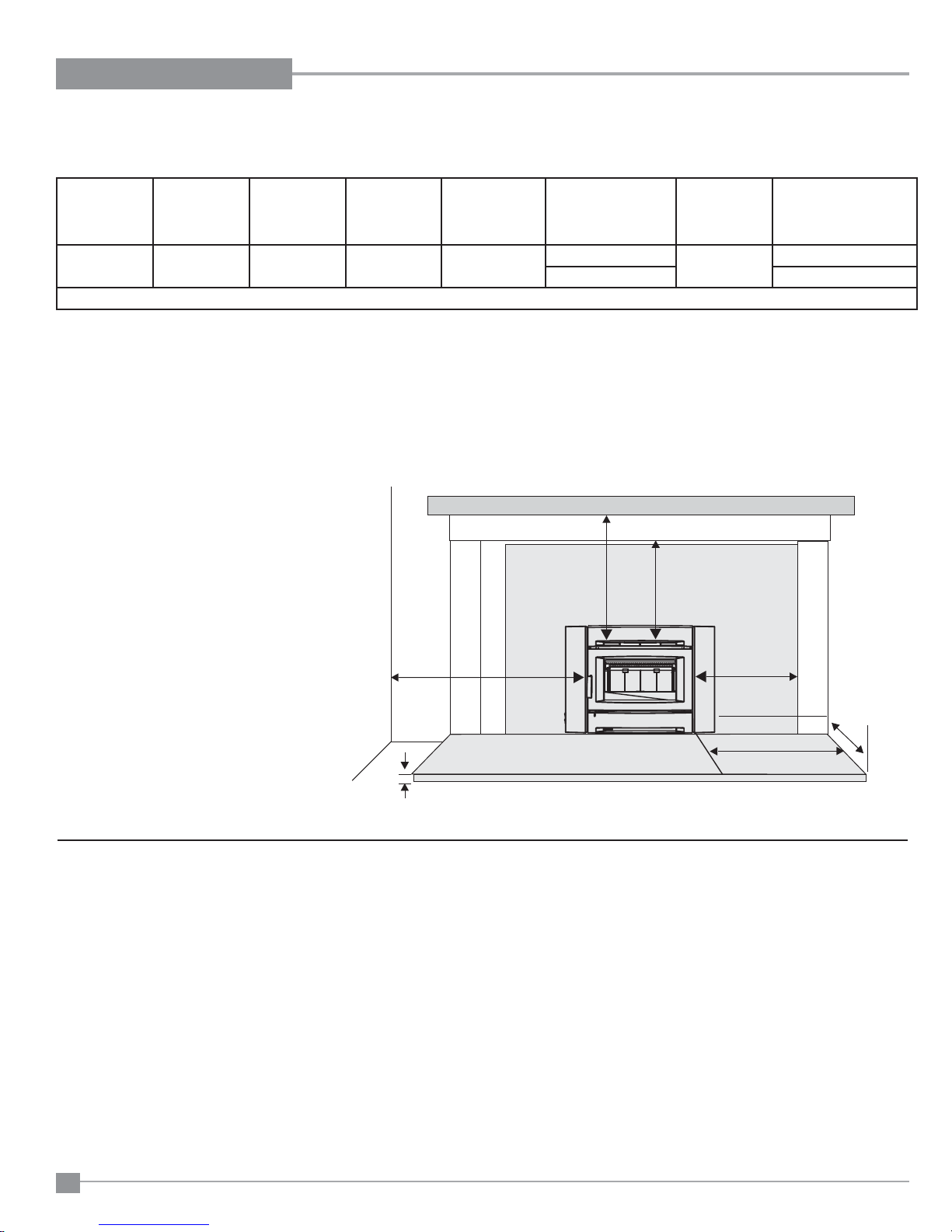

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5IN / 38MM
ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST
BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING
(E) 16 IN / 405MM (US), 18 IN / 457MM (CAN) TO FRONT AND (G) 8 IN / 205MM
TO SIDES FROM FUEL DOOR.
918-894
MANUFACTURED BY:
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
READ ABOVE INSTRUCTIONS.
CHAUD LORS DE FONCTIONNEMENT.
NE PAS TOUCHER. GARDEZ LES EN-
FANTS, VÊTEMENTS ET MEUBLES AU
LOIN.
UN CONTACT AVEC LE PEAU PEUT OC-
CASIONER DES BRULURES.BRÛLURES
CUTANÉES.
LIRE CETTE ÉTIQUETTE.
CAUTION
ATTENTION:
ADJACENT SIDEWALL A) 15in / 380mm
MANTLE B) 20in / 510mm
TOP FACING C 14in / 355 mm
SIDE FACING D) 7.375in / 185mm
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY
IN MASONRY FIREPLACE OR FACTORY BUILT FIREPLACE.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.
UNITED STATES ENVIRONMENTAL PROTECTION
AGENCY CERTIFIED TO COMPLY WITH JULY 1990,
PARTICULATE EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
2010 2011 2012
(Duplicate
Serial #)
MADE IN CANADA
365
DATE OF
MANUFACTURE
INSTALLER ET UTILISER SELONS LES INSTRUCTIONS DU FABRICANT. INSTALLER ET UTILISER DANS UN FOYER DE MACONNERIE OU PRÉFAB-
RIQUÉ. APPELER VOTRE INSPECTEUR DE BÂTIMENT OU LE DÉPARTMENT D’INCENDIE LOCAL POUR LES CODES LOCAUX ET POUR INSPECTÉE
VOTRE INSTALLATION ET FOYER.
PIÈCES NÉCESSAIRES POUR INSTALLATION :5.5" (140MM) OR 6" (152MM) CONDUITS EN ACIER INOXYDABLE. ADAPTATEUR DE CONDUIT DE
FUMÉE STANDARD (171-932) OU COUDÉ (171-936)
N'ENLEVER NI BRIQUES NI MORTIER DU FOYER LORSQUE VOUS EFFECTUEZ L'INSTALLATION DU POÊLE ENCASTRABLE. UTILISER SEULEMENT
DU BOIS DE CHAUFFAGE. NE PAS UTILISER UNE GRILLE, ÉTABLIR LE FEU DIRECTEMENT SUR LES BRIQUES DANS LE FOND DU POÊLE. OPÉREZ
AVEC LA PORTE DE NOURRITURE FERMÉE, OUVERTE POUR NOURRIR LE FEU SEULEMENT. REMPLACEZ LE VERRE SEULEMENT AVEC LE VERRE
CÉRAMIQUE (5 MM). INSPECTEZ ET NETTOYEZ VOTRE CHEMINÉE FRÉQUEMMENT. LA FRÉQUENCE D’UTILISATION ET LA TEMPÉRATURE AUX-
QUELS LE POÊLE EST UTILISÉ DE FAÇON RÉGULIÈRE PEUT AFFECTER CETTE ACCUMULATION DE CRÉOSOTE. NE PAS SURCHAUFFER.
INSTALLER SUR UN ÂTRE DE MATÉRIAU NOM COMBUSTIBLE SURÉLEVÉ
(F) 1,5 POUCES / 38MM-DESSUS DU PLANCHER COMBUSTIBLE ADJACENT.
LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR LE MATÉRIAU NOM
COMBUSTIBLE QUI ÉTENDRE
(E) 16 IN / 405MM (ETATS-UNIS), 18 IN / 457 MM (CAN) EN AVANT ET (G) 8IN /
205MM LES CÔTÉ DE LA PORTE.

Regency CI1200 / CI1250 Wood Cast Insert 5
SAFETY LABEL
Thisisacopyofthelabelthataccompanieseach
CI1250 Wood Insert. We have printed a copy
of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: CI1250
TESTED TO:
ULC S628-M93 / UL 1482-2006 / ULC S627-00 WN # 16600
DO NOT REMOVE THIS LABEL
367
COMPONENTS REQUIRED FOR INSTALLATION: 5.5" (140mm) OR 6" (152MM) STAINLESS STEEL LINER. STANDARD ADAPTOR (171-932) OR OFFSET
ADAPTOR (171-936). STANDARD COMPONENT: FAN ELECTRICAL RATING: VOLTS 115, 60HZ.
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE.
BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAM-
IC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY.
DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
918-916
MANUFACTURED BY:
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
READ ABOVE INSTRUCTIONS.
ADJACENT SIDEWALL A) 15in / 380mm
MANTLE B) 20in / 510mm
TOP FACING C 14in / 355 mm
SIDE FACING D) 7.375in / 185mm
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY
IN MASONRY FIREPLACE OR FACTORY BUILT FIREPLACE.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.
UNITED STATES ENVIRONMENTAL PROTECTION
AGENCY CERTIFIED TO COMPLY WITH JULY 1990,
PARTICULATE EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
2010 2011 2012
(Duplicate
Serial #)
MADE IN CANADA
367
DATE OF
MANUFACTURE
INSTALLER ET UTILISER SELONS LES INSTRUCTIONS DU FABRICANT. INSTALLER ET UTILISER DANS UN FOYER DE MACONNERIE OU PRÉFAB-
RIQUÉ. APPELER VOTRE INSPECTEUR DE BÂTIMENT OU LE DÉPARTMENT D’INCENDIE LOCAL POUR LES CODES LOCAUX ET POUR INSPECTÉE
VOTRE INSTALLATION ET FOYER.
CAUTION
ATTENTION:
CHAUD LORS DE FONCTIONNEMENT.
NE PAS TOUCHER. GARDEZ LES EN-
FANTS, VÊTEMENTS ET MEUBLES AU
LOIN.
UN CONTACT AVEC LE PEAU PEUT OC-
CASIONER DES BRULURES.BRÛLURES
CUTANÉES.
LIRE CETTE ÉTIQUETTE.
PIÈCES NÉCESSAIRES POUR INSTALLATION :5.5" (140MM) OR 6" (152MM) CONDUITS EN ACIER INOXYDABLE. ADAPTATEUR DE CONDUIT DE
FUMÉE STANDARD (171-932) OU COUDÉ (171-936) COMPONENT STANDARD : FAN ELECTRICAL RATING: VOLTS 115, 60HZ.
N'ENLEVER NI BRIQUES NI MORTIER DU FOYER LORSQUE VOUS EFFECTUEZ L'INSTALLATION DU POÊLE ENCASTRABLE. UTILISER SEULEMENT
DU BOIS DE CHAUFFAGE. NE PAS UTILISER UNE GRILLE, ÉTABLIR LE FEU DIRECTEMENT SUR LES BRIQUES DANS LE FOND DU POÊLE. OPÉREZ
AVEC LA PORTE DE NOURRITURE FERMÉE, OUVERTE POUR NOURRIR LE FEU SEULEMENT. REMPLACEZ LE VERRE SEULEMENT AVEC LE VERRE
CÉRAMIQUE (5 MM). INSPECTEZ ET NETTOYEZ VOTRE CHEMINÉE FRÉQUEMMENT. LA FRÉQUENCE D’UTILISATION ET LA TEMPÉRATURE AUX-
QUELS LE POÊLE EST UTILISÉ DE FAÇON RÉGULIÈRE PEUT AFFECTER CETTE ACCUMULATION DE CRÉOSOTE. NE PAS SURCHAUFFER.
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5IN / 38MM
ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST
BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING
(E) 16 IN / 405MM (US), 18 IN / 457MM (CAN) TO FRONT AND (G) 8 IN / 205MM
TO SIDES FROM FUEL DOOR.
INSTALLER SUR UN ÂTRE DE MATÉRIAU NOM COMBUSTIBLE SURÉLEVÉ
(F) 1,5 POUCES / 38MM-DESSUS DU PLANCHER COMBUSTIBLE ADJACENT.
LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR LE MATÉRIAU NOM
COMBUSTIBLE QUI ÉTENDRE
(E) 16 IN / 405MM (ETATS-UNIS), 18 IN / 457 MM (CAN) EN AVANT ET (G) 8 IN /
205MM LES CÔTÉ DE LA PORTE.

6Regency CI1200 / CI1250 Wood Cast Insert
6" (152mm) Diameter
STANDARD FLUE ADAPTOR (171-932)
UNIT DIMENSIONS CI1200
(NO BLOWER OPTION)
25” (635mm)
17-1/8” (436mm)
35-15/16” (912mm)
22-13/16” (580mm)
2-5/16” (58mm)
19-9/16” (498mm)
9-9/16”
15” (381mm)
18-13/16” (478mm)
17-11/16” (449mm)
22-9/16” (574mm)
(244mm)
21-3/8” (543mm)
15-1/16” (383mm)
9.15/16”
(250mm)
NOTE:
Before assembling your In-
sert, use these dimensions
to ensure appropriate clear-
ances will be met (refer to
Masonry and Factory Built
Fireplace Clearances sec-
tion).
DIMENSIONS
6" (152mm) Diameter
OFFSET FLUE ADAPTOR (171-936)
14-1/8” from flue centerline to rear of faceplate
16-15/16” (430mm)

Regency CI1200 / CI1250 Wood Cast Insert 7
DIMENSIONS
25-3/4” (655mm)
9.15/16”
22-1/8”(561mm)
17-1/8” (436mm)
35-15/16” (912mm)
22-13/16” (580mm)
21-3/8” (543mm)
17-15/32” (444mm)
25” (635mm)
9-9/16”
(244mm)
15” (381mm)
22-13/16”(579mm)
(250mm)
NOTE:
Before assembling your In-
sert, use these dimensions
to ensure appropriate clear-
ances will be met (refer to
Masonry and Factory Built
Fireplace Clearances sec-
tion).
UNIT DIMENSIONS CI1250
(WITH STANDARD BLOWER)
6" (152mm) Diameter
STANDARD FLUE ADAPTOR (171-932)
5.5" or 6" (152mm) Diameter
OFFSET FLUE ADAPTOR (171-936)
14-1/8” from flue centerline to rear of faceplate
16-15/16” (430mm)

8Regency CI1200 / CI1250 Wood Cast Insert
DIMENSIONS
OPTIONAL BACKING PLATE DIMENSIONS
40” (1016mm)
40” (1016mm)
37” (940mm) 37” (914mm)
29-1/2” (749mm)
27” (686mm)
26” (660mm)
23-5/8” (600mm)
CI1250 Standard
CI1250 Custom - Minimum Dimensions CI1200 Custom - Minimum Dimensions
CI1200 Standard

Regency CI1200 / CI1250 Wood Cast Insert 9
INSTALLATION
CHIMNEY
SPECIFICATIONS
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condition,
seek professional advice. Your Regency Insert is
designed for installation into a masonry fireplace
that is constructed in accordance with the require-
mentsof "The Standard for Chimneys, Fireplaces,
Vents,andSolid FuelBurningAppliance",N.F.P.A.
211, the National Building Code of Canada, or the
applicable local code requirements.
Theappliance, wheninstalled,must beelectrically
grounded in accordance with local codes or, in the
absenceoflocalcodes,withtheNationalElectrical
Code, ANSI/NFPA 70, or the Canadian Electrical
code, CSA C22.1.
Regency Inserts are designed to use either a 5.5"
or 6" (152mm) flue.
Thisinsertmustbeconnectedtoacode-approved
masonry chimney or listed factory-built fireplace
chimney with a direct flue connector into the first
chimney liner section.
Requirements for Installing
Solid-fuel Inserts in Factory-built
Fireplaces.
1) Theinsertmustbetestedandmeettherequire-
ments of UL 1482 (U.S.) and or ULC S628
(Canada) when tested in a masonry fireplace
built per ULC S628.
2) The factory-built fireplace must be listed per
UL 127 or ULC S610.
3) Clearancesobtainedfromthemasonryfireplace
testsarealsorelevantforinstallationinfactory-
built fireplaces.
4) Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC S635
(Canada).Theliner mustbe securelyattached
to the insert flue collar and the chimney top.
5) Means must be provided to prevent room air
passageto the chimney cavity of thefireplace.
This may be accomplished by sealing the
damper area around the chimney liner, or
sealing the fireplace front.
Regency Inserts are constructed with the highest
qualitymaterialsandassembledunderstrictquality
controlproceduresthatensureyearsoftroublefree
and reliable performance.
It is important that you read this manual thoroughly
and fully understand the installation and operating
procedures. Failuretofollowinstructionsmayresult
inpropertydamage,bodilyinjuryorevendeath.The
moreyou understand the wayyour Regency Insert
operates, the more enjoyment you will experience
from knowing that your unit is operating at peak
performance.
BEFORE INSTALLING
YOUR INSERT
Note: The CI1200 does not include a blower and
one cannot be added to this appliance. If a blower
is required, you must purchase the CI1250 which
comes with a standard blower. The CI1250 has
an increased height to accommodate the blower.
1) Read all instructions before installing and us-
ing your fireplace insert. Install and use only
in accordance with manufacturer’s installation
and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
WARNING: Careless installation is the ma-
jor cause of safety hazard. Check all local
buildingandsafetycodesbeforeinstallation
of unit.
3) Notify your home insurance company that you
plan to install a fireplace insert.
4) Your fireplace insert is heavy and requires two
ormorepeopletomoveitsafely. Theinsertand
surrounding structure can be badly damaged
by mishandling.
5) If your existing fireplace damper control will
become inaccessible once you have installed
yourRegency Insert, youshouldeither remove
or secure it in the open position.
6) Inspect your fireplace and chimney prior to
installing your insert to determine that it is free
from cracks, loose mortar or other signs of
damage. If repairs are required, they should
be completed before installing your insert. Do
notremove bricksormortar fromyourmasonry
fireplace.
7) Do not connect the insert to a chimney flue
servicinganotherapplianceoranairdistribution
duct.
6) Alteration of the fireplace in any manner is not
permitted with the following exceptions;
a. external trim pieces which do not affect the
operation of the fireplace may be removed
providing they can be stored on or within
the fireplace for re-assembly if the insert is
removed.
b. the chimney damper may be removed to
install the chimney liner.
7) Circulating air chambers (i.e. in a steel fire-
place liner or metal heat circulator) shall not
be blocked.
8) Means must be provided for removal of the
insert to clean the chimney flue.
9) Insertsthatprojectinfrontofthe fireplace must
besuppliedwithappropriatesupportingmeans.
10) Installermust mechanicallyattach thesupplied
label to the inside of the firebox of the fireplace
into which the insert is installed.
FIREPLACE
SPECIFICATIONS
Your fireplace opening requires the following
minimum sizes:
CI1200
Height: 19-5/8" (499mm)
Width: 25" (635mm)
Depth:
(w/ standard flue adaptor) 15-1/16" (383mm)
(w/ offset flue adaptor) 17-11/16" (449mm)
CI1250
Height: 23" (584mm)
Width: 25" (635mm)
Depth:
(w/ standard flue adaptor) 15-1/16" (383mm)
(w/ offset flue adaptor) 17-11/16" (449mm)
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
"WARNING: This fireplace has been
convertedforusewitha woodinsert onlyand
cannotbeusedforburningwoodorsolidfuels
unless all original parts have been replaced,
andthefireplacere-approvedbytheauthority
having jurisdiction."

10 Regency CI1200 / CI1250 Wood Cast Insert
INSTALLATION
Clearance diagram for installations
Side and Top facing is a maximum of 1.5" thick.
Floor protection must be non-combustible, insulative material with an R value of 1.1 or greater.
*If the hearth extension is flush with the floor (F) it must extend 19.5" in front of the body face (E).
Note: Hearth Extension Width (G) is measured from edge of fuel door to side of hearth.
** A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.
*** Mantel Depth, Maximum of 10" (254mm).
MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry or factory built fireplace are listed below.
A
BC
D
G
F
E
HOW TO DETERMINE IF ALTERNATE
FLOOR PROTECTION MATERIALS ARE ACCEPTABLE
Thespecifiedfloorprotectorshouldbe3/8"(18mm)
thick material with a K - factor of 0.84.
The proposed alternative is 4" (100mm) brick with
a C-factor of 1.25 over 1/8" (3mm) mineral board
with a K-factor of 0.29.
Step (a):
Use formula above to convert specification to
R-value.
R = 1/k x T = 1/0.84 x .75 = 0.893.
Step (b):
Calculate R of proposed system.
4" brick of C = 1.25, therefore
Rbrick = 1/C = 1/1.25 = 0.80
1/8"mineralboardofk=0.29,therefore
Rmin.bd. = 1/0.29 x 0.125 = 0.431
Total R = Rbrick + Rmineral board =
0.8 + 0.431 = 1.231.
Step (c):
CompareproposedsystemRof1.231tospeci-
fied R of 0.893. Since proposed system R is
greaterthanrequired,thesystemisacceptable.
DEFINITIONS
Thermal Conductance:
C = Btu = W
(hr)(ft2 )(oF) (m2))(K)
Thermal Conductivity:
k = (Btu)(inch) = W = Btu
(hr)(ft3)(oF) (m)(K) (hr)(ft)(oF)
Thermal Resistance:
R = (ft2)(hr)(oF) = (m2)(K)
Btu W
Floor Protection
Please check to ensure that your floor protection
andhearth will meet the standards for clearance to
combustibles.Yourhearthextensionmustbemade
from a non-combustible material.
Thermalfloor protection is not required if the unit is
raised3.5"minimum(measuredfromthe bottomof
the stove). However, standard ember floor protec-
tion is required. It will need to be non-combustible
material that covers 16" (406mm) in the US and
18" (450mm) in Canada to the front of the unit
and 8" (200mm)in Canada, 6" (152mm)in the US
to the sides.
If the unit is not raised, thermal floor protection
required is R value of 1.1 or greater.
Adjacent
Side Wall
(to Side)
**A
Mantel**
(to Top)
B
Top
Facing
(to Top)
**C
Side
Facing
(to Side)
**D
Minimum
Hearth
Extension
E
Minimum
Hearth
Thickness*
F
Minimum
Hearth Side
Extension
G
CI 1200
CI1250 15" (381mm) 20" (508mm) 14" (356mm) 7-3/8" (187mm) US 16" (406mm) 1-1/2" (38mm) US 6" (152mm)
CAN 18" (457mm) CAN 8" (203mm)
** Measured from side/top of door.

Regency CI1200 / CI1250 Wood Cast Insert 11
INSTALLATION
NOTE: You will be required to purchase either the standard or offset 6" di-
ameter (152mm) flue adaptor that is best suited for the specific installation.
List of Tools needed;
- Pull Rod (included with insert)
- 1/2” socket / ratchet
- 3/8 open face wrench
4) Installflexlinerintoexistingchimneyasperlinermanufacturer’sspecifica-
tions. See diagram 1.
5) Install the required flue adaptor onto the end of the flex liner. Secure the
adaptor using 3 screws - 1 on the front, left and right side as shown in
diagram 2.
Alignment of the flue adaptor can be critical during the install, it is recom-
mended that the flex liner be left as compressed as possible. Before
inserting the unit the adaptor should hang, when level, slightly above the
required height.
Secure adaptor using 3 screws - 1 in the front
and 1 each on the left and right side.
Flex Liner
Diagram 1
Yourinsertisveryheavyandwillrequiretwoorthreepeopletomove
it into position.
Whenhandlingcastparts,pleasehandlewithcareastheycanbedamaged.
1) Open door to a 45°angle
2) Holding door firmly from top and bottom - lift door up and off to remove.
3) LifttheunitupontotheHearthandslideintothefireplaceopening.Besure
to leave the unit out at least 3 to 4 inches in order to make the necessary
flue connections and to install the fan and faceplate.
Be sure to protect your hearth extension during the installation, ie.
with a heavy blanket.
INSTALLING YOUR INSERT
STOP! PLEASE READ CAREFULLY.
CAST COMPONENTS ARE VERY FRAGILE.
USE EXTREME CARE WHEN HANDLING.
NOTE: For Masonry installation make sure that the firebox is level with
the hearth using non-combustible materials and no more than 1/2 to 1
inch of the levelling bolt.
Flue Adaptor
Diagram 2
NOTE: Door is heavy.

12 Regency CI1200 / CI1250 Wood Cast Insert
INSTALLATION
6) Installtheunitbyfirstsettingtherearoftheunitintothefireplace.See
diagram 3. Ensure that the unit is centered in the existing fireplace
and lined up with the flue adaptor.
7) Slide the unit back until the flue adaptor is slightly engaged.
8) Atthispointitisrecommendedtoleveltheunitandensurethattheleveling
bolts rest on the surface of the fireplace. This will keep the adaptor from
binding as the unit is slid into position.
9) Insert the provided pull rod through the hole in the top center of the unit.
Securethethreadedendintotheflueadaptorasshownindiagram4.While
sliding the unit into place pull on the rod to ensure that the flue adaptor is
properly engaged. See diagram 5.
Pull Rod
10) Ensure that the unit is still level.
11) To complete the installation and to ensure a secure fit and connection of
the flue adaptor to the insert, it is essential that the two bolts, flat wash-
ers and lock washers (supplied with packaged manual) be installed and
tightened using a 1/2" socket as shown in diagram 6. This prevents the
possibility of creosote drip and exhaust gas leakage.
12) Remove the pull rod from the top center of the fireplace. See diagram 7.
NOTE: The pull rod should not be thrown away. It should be kept if
the stove is ever needed to be removed from the fireplace.
Diagram 5: Pull Rod In Place
Pull Rod
Diagram 3
Diagram 4
Diagram 6
Diagram 7

Regency CI1200 / CI1250 Wood Cast Insert 13
INSTALLATION
1) Positive Flue
Connection
with Cleanout
2) Direct Flue
Connection
with Cleanout
3a) Full Flue Liner
(No Cleanout
Required)
Note: Aclean-outdoorissometimesrequired,
by your inspector, to be installed when
either the Positive flue connection or
Direct flue connection method is used.
The use of one of the connection methods listed
on this page not only increases the safety of your
insertbydirectingthehotgasesupthe flue, but will
alsohelpincreasetheunit'sefficiencyanddecrease
creosote deposits in the chimney.
When a connected flue or liner is in use, the insert
is able to “breathe” better by allowing a greater
draftto be created. The greaterdraftcandecrease
problems such as, difficult start-ups, smoking out
the door, and dirty glass.
INSTALLATION INTO A
FACTORY BUILT
FIREPLACE
1) When installed in a factory built fireplace, a full
stainlesssteelrigidorflexiblefluelinerismanda-
tory,forbothsafetyandperformancepurposes.
When a flue or liner is in use, the insert is able
to breathe better by allowing a greater draft to
be created. The greater draft can decrease
problems such as, difficult start-ups, smoking
out the door, and dirty glass.
2) In order to position the flue liner, the existing
rain cap must be removed from your chimney
system. In most cases the flue damper should
also be removed to allow passage of the liner.
3) Inmostcasesopeningtheexistingsparkscreens
fully should give enough room for the insert
Whenreferencinginstallationorconnectionto
masonryfireplacesorchimneys,themasonry
constructionmustorshallbecodecomplying.
INSTALLATION INTO A
MASONRY FIREPLACE
Theinsertmustbeinstalledaspertherequirements
of your local inspection authority. Three methods
of flue connection are acceptable in most areas,
these include:
1) Positiveflueconnection,wherealargeblocking
plate and a short connector pipe is used.
2) Directflueconnection,whereasmallerblocking
plate and a connector pipe to the first flue liner
tile is used.
3) Full flue liner, where a stainless steel rigid or
flexiblelinerpipeisroutedfromtheinsertoutlet
collar to the top of the chimney.
Regency highly recommends the use of a full liner
as the safest installation and provides the most
optimumperformance. Yourretailershouldbeable
tohelp you decide which system would be the best
for your application.
In Canada this fireplace insert must be in-
stalledwithacontinuouschimneylinerof5.5"
or 6" diameter extending from the fireplace
insert to the top of the chimney. The chimney
liner must conform to the Class 3 require-
ments of CAN/ULC-S635 or CAN/ULC-S640,
StandardforLiningSystemsforNewMasonry
Chimneys.
4) If the floor of your fireplace is below the level
of the fireplace opening, adjust the insert's
levelling bolts to accommodate the difference.
When additional shimming is required, use
non-combustible masonry or steel shims.
5) Measure approximately the alignment of the
flue liner with the position of the smoke outlet
holeontheinserttocheckforpossibleoffset.If
anoffsetisrequired,usetheappropriate offset
adaptor in your installation.
6) Oncetheaboveitemshavebeenchecked,slide
your insert into position after first positioning
andsecuringthefluelinertotheoffsetadaptor.
Attach the rod to the adaptor and slide the
adaptor onto the unit as the unit is slid into
position. Ensure a positive connection.
Securetheadaptortothe unit by using 2 bolts,
flat washers, lock washers and one screw in
the front.
Re-install raincap at completion of installation.

14 Regency CI1200 / CI1250 Wood Cast Insert
INSTALLATION
Stop! Read Carefully.
Cast components are very fragile. Use extreme care when handling.
1) Open the door to about 45°- then remove it from the hinge by lifting
up and out. Put door to the side on a soft surface.
Note: Door is heavy.
2) Remove two bolts from the bracket on the unit as shown below.
Line up the left side casting bracket with the left side bracket on the
unit.
Note: the CI1200 right/left sides are reversible.
4) Secure the left cast surround with the two bolts removed in Step 2.
5) Repeat Steps 2 and 4 to install right cast surround.
CI1250 Only
3) Install fan controls into left surround with 2 screws as shown below.
Note: Left side faceplate (when facing unit) will have a notch on the side
as shown below. The extension cord should also be brought out to
the side prior to installation.
CAST FACEPLATE INSTALLATION

Regency CI1200 / CI1250 Wood Cast Insert 15
INSTALLATION
8) Slide the upper cast surround keyhole brackets over the loosened
screws from Step 7.
9) Slide the upper cast surround down over the screws until it is level
and in line with the side cast pieces.
10) Tighten both screws once all three cast pieces are level.
11) Remove the two (2) bolts from the lower part of the brackets on the
unit - see diagram below.
12) CI1250 only - Move the damper control lever to the right so it is out
of the way.
Note: If the fan power cord needs to be re-routed to the right side of the
unit - go to step 16, before installing the lower cast surround piece.
13) Line up the brackets on the lower cast surround piece with the lower
holes in the bracket on the unit. Replace two (2) screws - removed
in step 9.
14) Before tightening screws - adjust the position of the lower cast sur-
round, until it is level - by sliding the brackets up or down. When in
final and level position, tighten both screws.
7) Loosen the two (2) top screws (with 3/16" allen key) on the left and
right brackets on the unit as shown below.
CI1250
CI1200

16 Regency CI1200 / CI1250 Wood Cast Insert
INSTALLATION
15) Reinstall door.
16) The fan cord can be re-routed to the right side of the unit if necessary.
Before installing the lower cast surround - run the cord between the
left cast surround and the unit. Then run the cord along the lower
part of the lower cast surround and out in between the right cast and
the unit.
17) With the cord re-routed, follow steps 13-15 to complete the installa-
tion.

Regency CI1200 / CI1250 Wood Cast Insert 17
INSTALLATION
An optional backing plate is available in either a standard or custom
size.
1) The backing plate is packaged in three pieces and requires assem-
bly. The legs of the backing plate are attached to the top plate with
2 screws on each side. See diagram 1 below.
Diagram 1
Leg
Top plate
Diagram 2
Flush front face of
backing plate
Diagram 3Hex bolts
Diagram 4
Diagram 5 Standard backing plate shown on the
CI1250
2) The pointed end of the screws should be facing the front of the back-
ing plate.
3) Install 2 clips to the back of the top cast faceplate with hex bolts.
If the unit is already installed - remove the top cast faceplate from
the unit if access is too difficult - see 'Cast Faceplate Installation' in
the owners manual for instructions.
4) Slide the backing plate over the clips on the back of the cast top.
There are notches in the backing plate where it sits on the clips. If
the stove is installed - slide it out at least 6" to install the backing
plate.
5) Slide stove back into position after backing plate is installed.
3 PIECE BACKING PLATE INSTALLATION

18 Regency CI1200 / CI1250 Wood Cast Insert
INSTALLATION
DOOR REVERSAL
1) The door can be reversed - so that it will open to the left. Make sure stove
hascooledtoroomtemperature. Openthedoortoabout45°-thenremove
it from the hinge by lifting up and out. Note: Door is heavy.
2) Remove the 2 bolts securing the door hinge to the unit.
Note: Once hinge is removed - reinstall the bolts and ensure they are tight
to prevent air leakage.
3) Remove the 2 bolts securing the door catch assembly to the unit.
6) Remove the glass from the door and flip it around 180° - so the painted
strip is at the bottom of the door.
7) Flip the handle around 180°and reattach to the door with 2 botls.
4) Flip the door hinge 180° - install on the left side of the unit with 2 bolts.
5) Reattach the door catch assembly on the right side with 2 bolts from step
3.
Door
Catch
Door
Catch
Door
Hinge
Door
Hinge
8) Removedoorpins(2)frombacksideofdoorbyremoving4bolts. reinstall
on other side of door by rotating 180°and reinstalling door pins.
9) Reattach the door to the door hinge.

Regency CI1200 / CI1250 Wood Cast Insert 19
INSTALLATION
BRICK FLUE BAFFLE &
SECONDARY AIR TUBE
INSTALLATION
The flue baffle system located in the upper area
of the firebox is removable to make cleaning your
chimney system easier. The brick baffles must be
installed prior to your first fire. Smoke spillage
and draft problems may occur if the baffles
areimproperlypositioned. Checkthepositionof
the brick baffles on a regular basis as they can be
dislodgediftoomuchfuelisforcedintothefirebox.
Side View
Front View
Front View
DRAFT CONTROL
Beforeestablishingyourfirstfire,itisimportantthat
you fully understand the operation of draft control.
1) If the two air tubes are installed continue on
to Step 2), if not, follow the instructions below.
Install the air tube into the holes in the side
channels. The notch goes on the right hand
side with the air holes facing toward the door.
Slide the tube into the left hand side, as far as
possible and then bring it back into the hole on
the right hand side until it locks into position.
If the tube will not slide in easily simply use a
pair of vise grips or pliers and tap it into place
with a hammer.Atighter fit will ensure the tube
will not move when the unit is burning.
2) Slide the left baffle brick over the front air tube
and then slide it back over the rear air tube.
3) Tilt the left baffle brick up on top of the side
channel and it will leave enough room to posi-
tion the right baffle brick in the same manner
asStep1)above.Thenrepositiontheleftbaffle
brick flat on the air tube.
4) Important: push both baffle bricks so they
are tight against the side walls and to the
back.
Note: When getting the chimney cleaned, re-
move the baffle bricks for access to the
flue, then replace them when cleaning is
completed.
The draft control rod is on the left side of the Insert
andit controls the intensity of the fire byincreasing
or decreasing the amount of air allowed into the
firebox.Toincreasethedraft,slidetherodtotheleft
and to decrease the draft, slide the rod to the right.
Aswellasaprimaryandglasswashairsystem,the
unit has a full secondary draft system that allows
air to the induction ports at the top of the firebox,
just below the flue baffle.
Left - Open Right - Closed
FIREBRICK ASSEMBLY
Firebrickisincludedtoextendthelifeofyourinsert
and radiate heat more evenly. Check to see that
allfirebricksareintheircorrectpositionsandhave
not become misaligned during shipping.

20 Regency CI1200 / CI1250 Wood Cast Insert 20
OPERATING INSTRUCTIONS
WARNING: To build a fire in ignorance or to
disregard the information contained in this
section can cause serious permanent damage
to the unit and void your warranty.
FIRST FIRE
Whenyourinstallationiscompletedandinspected,
you are ready for your first fire.
1) Open draft control fully.
2) Open firebox door and build a small fire using
paper and dry kindling, wait a few minutes for
a good updraft in the flue to establish the fire.
Leaving the door slightly open will help your
fire start more rapidly.
CAUTION: Never leave unit unattended
if door is left open. This procedure is for
fire start-up only, as unit may over-heat if
door is left open for too long.
3) Withthe draftstillin thefullyopen position,add
two or three seasoned logs to your fire. Form
a trench in the ash bed to allow air to reach the
rear of the firebox prior to closing the door.
4) After about 15 to 20 minutes, when your wood
has begun to burn strongly, adjust your draft
control down to keep the fire at a moderate
level.
WARNING: Never build a roaring fire in a
cold stove. Always warm your stove up
slowly!
5) Oncea bed ofcoalshas been established,you
may adjust the draft control to a low setting to
operate the unit in its most efficient mode.
6) During the first couple of hours, keep the com-
bustion rate at a moderate level and avoid a
large fire until the paint is cured. Only then can
you operate the insert at its maximum setting,
and only after the metal has been warmed.
7) Forthefirstfewhours,theinsertwillgiveoffan
odour from the paint. This is to be expected as
thehightemperaturepaintbecomesseasoned.
Windows and/or doors should be left open to
provide adequate ventilation while this tempo-
rary condition exists. Burning the insert at a
very high temperature the first few times may
damage the paint. Burn fires at a moderate
level the first few days.
8) Do not place anything on the insert top during
the curing process. This may result in damage
to your paint finish.
9) Duringthefirstfewhoursitmaybemoredifficult
to start the fire. As you dry out your fire brick
andyourmasonryflue(ifapplicable),yourdraft
will increase.
10) Forthoseunitsinstalledathigherelevationsor
intosub-standard masonry fireplaces, drafting
problems may occur. Consult an experienced
dealerormasononmethodsofincreasingyour
draft.
11) Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
12) Beforeopening your door to reload, open draft
fully for approximately 10 to 15 seconds until
firehasbeenre-established.Thiswillminimize
any smoking.
13) All fuel burning appliances consume oxygen
duringoperation.Itisimportantthatyousupply
a source of fresh air to your unit while burning.
A slightly opened window is sufficient for this
purpose.
CAUTION: If the body of your unit starts
to glow you are overfiring. Stop loading
fuelimmediatelyandclosethedraftcontrol
until the glow has completely subsided.
14) Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
openthedraftcontrolfullyuntilallmoisturehas
been dispersed by the intense fire. Once all
moisture has been removed, the draft control
may be adjusted to maintain the fire.
15) If you have been burning your insert on a low
draft,usecautionwhenopeningthedoor. After
openingthedamper,openthedooracrack,and
allow the fire to adjust before fully opening the
door.
16) The controls of your unit should not be altered
to increase firing for any reason.
