Regency Fireplace Products P90-NG10 Quick start guide

MODELS: P90-NG10 Natural Gas P90-LP10 Propane
P90 Zero Clearance Direct Vent Gas Fireplace
Owners &
Installation Manual
www.regency-re.com
- Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach you gas supplier, call the re department.
- Installation and service must be performed by a qualied installer, service agency or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
REGENCY FIREPLACE PRODUCTS. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-495 06.09.15
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.

2| Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Excalibur®Gas Fireplace by FPI FIREPLACE PRODUCTS
INTERNATIONAL LTD. The P90 is a hand crafted appliance and has been designed to provide
you with all the warmth and charm of a wood replace at the ick of a switch. The model P90 has
been approved by Warnock Hersey/Intertek for both safety and efciency. As it also bears our own
mark, it promises to provide you with economy, comfort and security for many trouble free years
to follow. Please take a moment now to acquaint yourself with these instructions and the many
features of your Excalibur®Fireplace.

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 3
3
|
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Excalibur® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: VENTED GAS FIREPLACE
HEATERS ANSI Z21.88-2014/CSA 2.33-2014 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CAN/CGA 2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities
ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current
National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation
Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This Excalibur® Mobile/Manufactured Home Listed appliance
comes factory equipped with a means to secure the unit.
This Excalibur® Mobile/Manufactured Home listed appliance
comes equipped with a dedicated #8 ground lug to which an
18 gauge copper wire from the steel chassis ground must
be attached.
This appliance may only be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certied kit is used.

4| Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
4table of contents
Gas Line Installation....................................................32
Pilot Adjustment...........................................................32
Gas Pipe Pressure Testing ..........................................32
Conversion from NG to LP .........................................33
Optional Brick Panels ..................................................34
Log set Installation.......................................................35
Glass Door Installation ................................................39
Double Door Installation ..............................................39
Arch surround (with safety screen) Installation............39
Wiring Diagrams .........................................................40
Aeration Adjustment ....................................................41
Operating Instructions .................................................42
Lighting Procedure ......................................................42
Shutdown Procedure...................................................42
First Fire ......................................................................42
Normal operating Sounds of Gas Appliances..............43
Copy Of The Lighting Plate Instructions......................43
Maintenance Instructions.............................................44
Log Replacement ........................................................44
Thermopile/Thermocouple...........................................44
Glass Gasket...............................................................44
Door Glass...................................................................44
Fan Maintenance.........................................................45
Removing Valve...........................................................46
Installing Valve.............................................................46
Main Assembly ............................................................47
Burner Assembly & Log Set.........................................49
Arch surround and safety screen assembly ................50
Warranty ......................................................................51
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................9
Installation Checklist......................................................9
Heatwave Duct System Optional Kit ...........................10
Clearances ..................................................................10
Locating Your Gas replace.........................................10
Manufactured Mobile Home Additional Requirements 10
Unit Base Stand-offs.................................................... 11
Framing And Finishing................................................. 11
Combustible Mantels..................................................12
Mantel leg clearance ...................................................12
Facing Requirement ....................................................13
Hearth Requirements ..................................................13
optional framing kit .....................................................14
Wall mount On / Off Switch installation........................15
Unit Assembly Prior To Installation ..............................16
Venting Introduction.....................................................16
Venting.........................................................................17
Exterior Vent Termination Locations ............................18
4” x 6-5/8” Rigid Pipe Cross Reference Chart.............19
5” x 8” Rigid Pipe Cross Reference Chart ...................21
Rigid Pipe Venting Systems ........................................23
Rigid Pipe Venting Arrangements -
Horizontal Terminations ...............................................25
Rigid Pipe Venting Arrangements -
Vertical Terminations ..................................................26
Horizontal terminations................................................29
Vertical Terminations ...................................................30
Installation Procedures................................................31
High Elevation .............................................................32

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 5
5
|
dimensions

6| Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
6safety decal
This is a copy of the label that accompanies each
P90 Zero Clearance Direct Vent Gas Fireplace.
We have printed a copy of the contents here for
your review. The safety label is located on the
front inside base of the unit, visible when the
bottom louver is open.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.

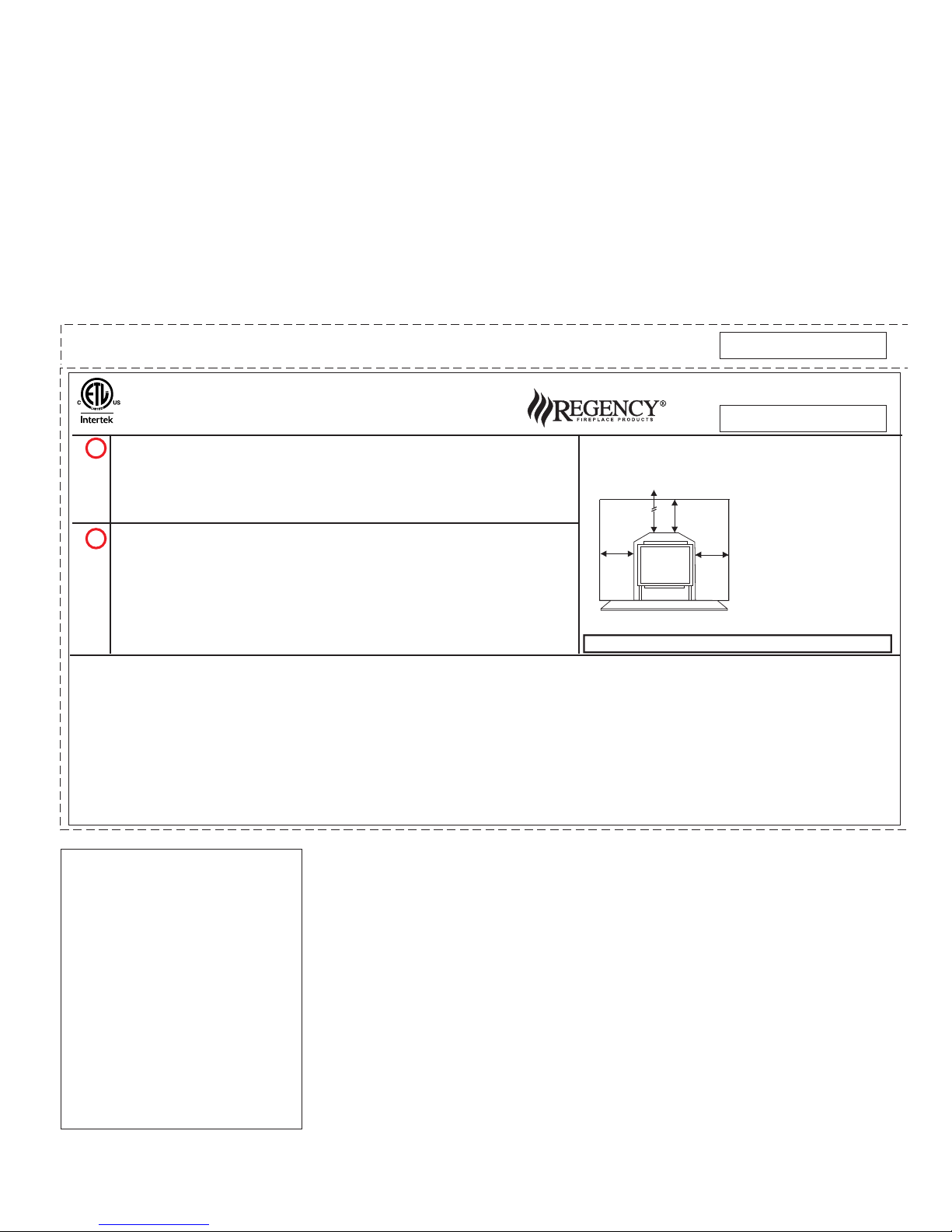

Copy of Safety Decal for P90
For the State of Massachusetts, installation
and repair must be done by a plumber or
gastter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, exible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
309
309
DOOR SEAL: Please check that the door is properly sealed
FPI Fireplace Products International Ltd.
Delta, BC, Canada
DUPLICATE SERIAL NO.
Serial No./ No de serie
919-496a
Model/Modele: P90-NG10 Model/Modele:
P90-LP10
Made in Canada/ Fabrique au Canada
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States, or
when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See owner's manual for
details. Optional Fan (Part # 910-331) Optional Heat Wave Kit # 946-556 Optional Heat Release Kit # 946-570
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si ces normes
ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux
le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
For use with glass doors certified with the appliance only Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil
(See Instruction Manual for
Detailed Instructions)
Minimum Clearances to Combustibles
/Degagement Minimum De Materiaux Combustibles
0" Clearance to
combustibles from:
Top, bottom, sides & rear of unit
Mantel Clearances from Top:
Min. 19" (483mm)
Side Wall Clearance
from Side Facing
6-1/2" (165mm)
Minimum Vent Clearances:
Horizontal Top 2-1/2" (64mm)
Horizontal Side 1-1/2" (38mm)
Horizontal Bottom 1-1/2" (38mm)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 72" (1829mm),
Min. Height 72" (1829mm)
6-1/2" 6-1/2"
Wall
Wall
19"
44" To Ceiling
NATURAL GAS: Model P90-NG10
L
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
5" WC (1.25 kPa)
3.8" WC (0.95 kPa)
1.1" WC (0.27 kPa)
# 34 DMS
18,200 Btu/h (5.42 kW)
35,000 Btu/h (10.26 kW)
0-4500 ft/pi (0-1372 m)
APPAREIL FONCTIONNANT AU NATURAL GAZ
CONCU POUR ETRE POELE: Modéle P90-NG10
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev eé é é
Pression à la tubulure d' chappement basseé
Grandeur de l'injecteur
D bit Calorifique minimum seloné
D bit Calorifique maximum seloné
l'altitude
APPAREIL FONCTIONNANT AU GAZ PROPANE
CONCU POUR ETRE POELE: Modéle P90-LP10
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev eé é é
Pression à la tubulure d' chappement basseé
l'altitude
Grandeur de l'injecteur
D bit Calorifique minimum seloné
D bit Calorifique maximum seloné
l'altitude
Grandeur de l'injecteur
D bit Calorifique minimum seloné
D bit Calorifique maximum seloné
PROPANE: Model P90-LP10
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Altitude
Orifice size
Minimum input
Maximum input
High Altitude
Orifice size
Minimum input
Maximum input
12" WC (3.00 kPa)
11" WC (2.74 kPa)
2.9" WC (0.72 kPa)
0-2000 ft/pi (0-610 m)
# 51 DMS
17,950 Btu/h (5.26 kW)
35,000 Btu/h (10.26 kW)
2000-4500 ft/pi (610-1372 m)
# 52 DMS
15,500 Btu/h (4.54 kW)
31,000 Btu/h (9.08 kW)
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE. FOYER AU GAZ À ÉVACUATION -
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed: VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION
Certified for/Certifi e pour: CANADA and U.S.A.é
Certified to: CAN/CGA-2.17-M91(R2009)
ANSI Z21.88-2014/ CSA 2.33-2014Tested to:
4001172
Part #: 919-496a
Colour: Everything black on grey except what is highlighted is printed red.
Material: 2 ml silver matt polyester (DPM SMS)
Size: 100%
Dec.10/2014: Created decal.
Jan 26/15: Rev. A updated Alcove width
*Printer: Continue number sequence from 918-503 - do not restart at 0
ELECTRICAL SUPPLY/ALIMENTATION ELECTRIQUE: 115V_60HZ less than/moins de 2 AMP
For Use Only with Barrier (Part #792-920) Follow installation instructions. Utiliser uniquement avec l’écran ( n ° 792-920) Suivre les instructions d'installation.

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 7
7
|
requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

8| Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
8installation
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The P90-NG10 or P90-LP10 Direct Vent Fireplace
must be installed in accordance with these
instructions. Carefully read all the instructions in
this manual rst. Consult the "authority having
jurisdiction" to determine the need for a permit prior
to starting the installation. It is the responsibility of
the installer to ensure this replace is installed in
compliance with manufacturer's instructions and
all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI
ANCE. TODDLERS, YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND
ED IF THERE ARE AT RISK INDIVIDUAL
IN THE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
THE APPLIANCE, MUST BE REPLACED
PRIOR TO OPERATING THE APPLIANCE.
IF THE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITH THE MANUFACTURER'S BARRIER
FOR THIS APPLIANCE.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER ATRISK
INDIVIDUALS

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 9
9
|
installation
INSTALLATION
CHECKLIST
1. Locate appliance, refer to the following sections:
a) Locating Your Gas Fireplace
b) Combustible Mantels
c) Unit Base Stand-offs
d) Framing & Finishing
e) Facing Requirements
f) Hearth Requirements
g) Venting
2. Assemble Top Standoffs, page 9. (Refer to the
"Unit Assembly Prior to Installation" section.)
NOTE: must be done before installing unit into
replace.
3. Install vent, refer to the "Venting" section.
4. Install 4-AA batteries into receiver. This will
enable operation of appliance manually
when in "ON" position.
6. Make gas and electrical connections. Test the
pilot. Must be as per diagram. Refer to the "Pilot
Adjustment" section.
7. Install standard and optional features. Refer
to the following sections where applicable:
a. Brick Panels
b. Log Set Installation
c. Arch Surround
d. Glass Door Installation
e.Remote receiver and wall switch
f. Install 1 AA battery into DC spark box
(See instructions in manual)
8. Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is ring
correctly and operation fully explained to
customer.
This includes:
1. Clocking the appliance to ensure the correct
ring rate (rate noted on label 35,000 Btu/h)
after burning appliance for 15 minutes.
2. If required, adjusting the primary air to ensure
that the ame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
GENERAL SAFETY
INFORMATION
1. The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Canadian or National Gas
Codes, CAN1-B149 or ANSI Z223.1 Installation
Codes.
2. The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with the
current National Electrical Code, ANSI/NFPA
70 or CSA C22.1 Canadian Electrical Code.
3. See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4. This appliance must be connected to the
specied vent and termination cap to the outside
of the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is tted as per Venting instructions.
5. Inspect the venting system annually for
blockage and any signs of deterioration.
6. Venting terminals shall not be recessed into a
wall or siding.
7. Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the replace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11. Under no circumstances should this appliance
be modied. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12. Installation and any repairs to this appliance
should be done by a qualied service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used
in this appliance.
15. The appliance area must be kept clear and
free of combustible materials, (gases and other
ammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

10 | Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
10 installation
Side Wall Clearance 6-1/2" (165mm)
Horizontal Vent Clearances
Top 2-1/2" (64mm)
Side 1-1/2" (38mm)
Bottom 1-1/2" (38mm)
Vertical Vent Clearances 1-1/4" (32mm)
Alcove Clearances**:
Max. Depth 36" (914mm)
Min. Width 72" (1829mm)
Min. Height 72" (1829mm)
* see mantle clearance instructions
(Refer to the "Combustible Mantels" section).
CLEARANCES
The clearances listed below are Minimum
distances unless otherwise stated:
A major cause of chimney related res is
failure to maintain required clearances (air
space) to combustible materials. It is of the
greatest importance that this replace and
vent system be installed only in accordance
with these instructions.
LOCATING YOUR
GAS FIREPLACE
1. When selecting a location for your replace,
ensure that the clearances outlined on this
page are met.
2. Provide adequate clearances for servicing.
3. The appliance must be installed on a at,
solid, continuous surface (e.g. wood, metal,
concrete). This may be the oor, or raised up
on a platform to enhance its visual impact.
If the appliance is going to be installed
on carpeting, combustible linoleum tile or
other combustible material other than wood
ooring, the appliance must be installed on
a metal or wood panel extending the full
width and depth of the appliance.
4. The P90 Direct Vent Gas Fireplace can
be installed in a recessed position or
framed out into the room as in A, B, C, D.
See Diagram 1.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1. Ensure that structural members are not cut
or weakened during installation.
2. Ensure proper grounding using the #8 ground
lug provided. See the "Wiring Diagram"
section.
5. This appliance is Listed for bedroom
installations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6. The P90 Direct Vent Gas Fireplace is approved
for alcove installations, which meet the
clearances listed on this page.
7. We recommend that you plan your installa-
tion on paper using exact measurements for
clearances and oor protection before actu-
ally installing this appliance. Have a qualied
inspector, dealer, or installer review your plans
before installation.
Note: For vent terminations see the "Exterior
Vent Termination
Locations" section.
Diagram 1
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into
Wall/Alcove
D) Corner
HEATWAVE
DUCT SYSTEM
OPTIONAL KIT
#946-556
The HeatWave Air Duct Kit increases the
effectiveness of your replace by dispersing
warm air from the replace to remote locations in
the same room or other rooms in your home.
Up to two kits may be installed on the replace.
Please Note: Only 1 HeatWave kit may be
operated at one time. This includes the internal
blower option as well.
OPTIONAL
HEAT RELEASE KIT
#946-570
The Heat Release Kit expels warm air from
the replace to the outside of the building,
allowing the replace to be operated with less
heat entering the room. The kit may be used
on either the left or right side.
WARNING:
Fire hazard is an extreme risk
if these clearances are not
adhered to.
Clearances for HeatWave and
Heat Release Kit
Heat Release Kit
The HeatWave Duct Kit and the Heat Release
Kit have different clearance and framing
requirements, check the HeatWave and Heat
Release manual for details.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum oor clearance must be
maintained from the top surface of the carpeting,
tile, etc.
See Hearth Requirements in this manual.

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 11
11
|
installation
FRAMING AND FINISHING
1. Determine the total thickness of facing
material (e.g. drywall plus ceramic tiles) to
allow the nished surface to be ush with
the front of the unit. Total facing thickness
can vary from 1/2" (13mm) to 3-3/8" (86mm)
thick.
2. Frame in the enclosure for the unit with
framing material. The framed opening is
45-1/4" high(46-3/8" - if using base
standoffs) x 46-1/2" wide x 21-1/2" deep
(1149mm high x 1181mm wide x 546mm
deep).
3. For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate the
replace itself.)
UNIT BASE STAND-OFFS
To accommodate varying thicknesses and nishes
of hearth materials, we have increased the overall
height of the appliance by a further 1 1/8”. This
increase is added with the inclusion of two stand-
offs at the bottom of the unit, below the outer box,
taking the overall height of the framing dimensions
from 45-1/4” up to 46-3/8”.
In the event that you should choose to use thinner
materials to nish the hearth, you can omit the
stand-offs provided for raising the unit. However, we
recommend that you leave the framing dimensions
as they are in the manual and alter only the facing
requirement by reducing it by the same distance
that you have lowered the unit.
Insert the 2 unit base stand-offs underneath the
unit as shown in the diagram below. Space the
stand-offs centrally, approximately 2 or 2-1/2 feet
apart. Ensure that the unit is not unstable.
Install Top Standoffs & Side Nailing Strips
before unit is slipped into position. See the
"Unit Assembly Prior to Installation" section
for assembly details.
Framing Dimensions
ABC D
46-1/2"
1181mm
45-1/4"
1149mm
21-1/2"
546mm
53-3/4"
1365mm
*46-3/8"
1178mm
*If raised 1-1/8" using base standoffs.
Note: After unit is framed in, steel studs can
be used inside of the wood framing to attach
the noncombustible material. An optional steel
stud framing kit is available for this purpose–see
manual for details. If choosing not to purchase
this kit, steel studs can be used in place–to
attach the non combustible material. Use the
optional steel stud kit instructions as a guide.

12 | Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
12 installation
COMBUSTIBLE MANTELS
Because of the extreme heat this replace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are shown in
Diagram below.
MANTEL LEG CLEARANCE
Note: A non-combustible mantel may be installed at a
lower height if the framing is made of metal studs
covered with a non-combustible board.
Mantel can be installed anywhere in shaded area or higher
using the above scale.
Note: Ensure the paint that is used on the mantel and the
facing is "heat resistant" or the paint may discolour.

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 13
13
|
installation
Fireplace
Stand
No hearth is
required when
the unit is
raised
3" (76mm) offof
the floor surface
Flooring
HEARTH REQUIREMENTS
Floor Mounted Fireplaces
Raised Fireplaces
FACING REQUIREMENT
This replace requires a non-combustible material extending from the
framing header and sides.
The anges on the front face of the replace are for a facing thickness
of 3-3/8" (86mm).
Facing Over 3-3/8" (86mm) Thick
If the facing material is over 3-3/8" (86mm) thick (example: brick or river
rock), install the facing around the perimeter of the face. You may wish
to make a face template as shown on the diagram.
Regency provides a
template on the box.
NOTE: If using a brick
hearth, the replace will
need to be raised to
accommodate the brick
thickness. Example: If the
brick is 2" thick, the unit
must be raised 1".
Note: 48" (11219mm) is the
minimum height for
both ex termination
or Rigid Pipe venting.
4. Note: The unit does not
have to be completely
enclosed in a chase. The
clearance on top of the
unit is 0" to the standoffs
so combustible building
materials can be laid
directly on top of the
standoffs. You must
maintain clearance from
the vent to combustible
materials for both
rigid and ex, see the
"Clearances" section.
You must take into account
the depth of the oor covering
(carpet, tile, linoleum, etc.) when
determining the height of the
replace stand.
The HeatWave Duct Kit has different
clearance and framing requirements, check
the HeatWave manual for details.
Please note that all vertical measurements are taken from the
base of the unit excluding risers or bottom stand-offs.

14 | Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
14 installation
102.12.15
919-508
P90
1. Fold out side nailing strips from the side of the unit to 90º as shown
below.
Determine the overall combined thickness of the non-combustible board
+ nished material being used. The nailing strips can be adjusted up to
3-3/8".
OPTIONAL FRAMING KIT
An optional framing kit is available to facilitate easier installation of the noncombustible board.
The optional framing kit is to be installed within the existing wood framing. The framed opening is 46-1/2" wide x 45-1/4" high or 46-3/8" high if using the base stand-
os and 21-1/2" deep. See instruction manual for complete details.
2. Adjust the nailing strips by loosening 2 screws on each nailing strip -
adjust and retighten screws.
3. Attach both vertical studs and secure using pointed wood screws to pen-
etrate steel studs to secure. There are 6 screws which are not provided.
(2 at bottom, 2 at top and 2 on sides). (Corner framing shown in diagram).
NOTE: Ensure the at side of the steel stud is facing the wood framing.
4. Slide the unit into position. Hook up gas, venting and electrical prior to
installing the remaining steel studs.
5. Secure the top horizontal steel stud as shown with 2 screws per side.
6.Secure the wide horizontal stud with with 2 screws per side..
7. Secure 2 thin vertical studs on either side of the appliance with 4 screws
each. Above screws are provided.
Horizontal stud -
see Step 5
Wide Horizontal
stud - see Step 6
Fold out nailing strips to 90º
Adjust nailing strips
Thin Vertical
studs - see Step 7
Framing kit dimensions
Attach tall vertical studs from
framing kit to existing wood
framing.

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 15
15
|
installation
J-Box
Receiver
Wall Plate
Slider Switch
Low Voltage Junction Box
Diagram 1
10 ft. wire harness with
12 pin connector
IMPORTANT INSTALLATION NOTE:
The Receiver must be placed inside the supplied (Low Voltage)
junction type wall box and installed into the wall only.
DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE.
Remote Receiver Installation
1. Install the low voltage junction box to the framing, at desired location within 10 ft. from fi replace.
2. Feed the 12 pin connector through the opening at back of junction box.
3. Connect the 12 pin connector to the back of the receiver.
4. Install the Receiver in the Low Voltage Junction box.
5. Insert the 4 AA type batteries in the battery compartment with the correct polarity.
6. Place the slider into the cover plate.
7. Put the Receiver switch in the “OFF” position, to allow correct lineup for slider switch.
8. Make sure the Receiver and cover plate words “ON” and “UP” are on the same side.
9. Align the slider with the switch on the Receiver and couple the switch into the slider.
10. Align the screw holes.
11. Using the two (2) screws provided secure the cover plate to the Receiver.
Proflame Receiver
WALL MOUNT ON / OFF SWITCH AND REMOTE RECEIVER INSTALLATION
REQUIRED FOR ALL INSTALLATIONS - INCLUDING PROFLAME REMOTE CONTROLS

16 | Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
16 installation
VENTING
INTRODUCTION
The P90 uses the "balanced ue" technology
Co-axial system. The inner liner vents products
of combustion to the outside while the outer liner
draws outside combustion air into the combustion
chamber thereby eliminating the need to use heated
room air for combustion and losing warm room air
up the chimney.
Note: Theseuepipesmustnotbeconnected
toanyotherappliance.
The gas appliance and vent system must be vented
directly to the outside of the building, and never
be attached to a chimney serving a separate solid
fuel or gas burning appliance. Each direct vent gas
appliance must use it's own separate vent system.
Common vent systems are prohibited.
Side Nailing Strips
The side nailing strips come attached to the unit.
There are 2 plates, one on the top and bottom
that can be folded out as required.
Plates can be
folded out.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.
Top Standoff Assembly
The top standoffs are shipped in a at position
and must be folded into shape and attached.
1. Remove the standoffs from the replace
top.
2. Take each standoff and bend into the
correct shape. Bend up at the bend lines
until the screw holes in the standoff and the
pre-punched screw holes on the replace
top line up.
3. Attach the standoff securely to the top with
2 screws per standoff (on opposite corners).

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 17
17
|
installation
VENTING
FPI Direct Vent System (Flex) Horizontal Terminations Only
These venting systems, in combination with the P90 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey/Intertek. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in the
"Exterior Vent Termination Locations" section.
FPI Direct Vent (Flex) System Termination
Kit (Part # 946-515. includes all the parts
needed to install the P90 with a maximum
run of 4 feet.
1. 6-7/8" dia. exible liner (4 ft. length)
2. 4" dia. exible liner (4 ft. length)
3. spring spacers (4.
4. thimble (2.
5. AstroCap termination cap (1.
6. screws (12.
7. tube of Mill Pac (1.
8. plated screws (8.
9. screws #8 x 1-1/2" Drill Point, Stainless
Steel (4.
If a longer run is needed, the FPI Direct Vent
system (Flex) kit is 946-516 which includes
all the parts needed to install the P90 with
a maximum 10' run.
1. 6-7/8" dia. exible liner (10 ft. length)
2. 4" dia. exible liner (10 ft. length)
3. spring spacers (7.
4. thimble (2.
5. AstroCap termination cap (1.
6. screws (12.
7. tube of Mill Pac (1.
8. plated screws (8.
9. screws #8 x 1-1/2" Drill Point, Stainless
Steel (4.
Notes:
1. Liner sections should be
continuous without any joints or
seams.
2. Only Flex pipe purchased from FPI may
be used for Flex installations.
3. Horizontal vent must be supported every
3 feet.

18 | Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
18 installation
EXTERIOR VENT TERMINATION LOCATIONS
Minimum Clearance Requirements Canada1USA2
A Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
B Clearance to window or door that may be opened 12"(30cm) 9" (23cm)
C Clearance to permanently closed window * *
D Vertical clearance to ventilated sot located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
18"(46cm) 18"(46cm)
E Clearance to unventilated sot 15"(38cm) 15"(38cm)
F Clearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)
Clearance to outside corner: with all other approved Termination Caps. 14"(36cm) 14"(36cm)
G Clearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(12cm)
Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)
H Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
J Clearance to service regulator vent outlet 36"(90cm) *
K Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
L Clearance to a mechanical air supply inlet
#3' (91cm) above if within 10' (3m) horizontally.
72"(1.8m) 36"(90cm)b
M Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
N Clearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor
*Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally

Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace | 19
19
|
installation
4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
Description Simpson
Direct Vent Pro®
Selkirk
Direct Temp™
American Metal
Products®
Amerivent Direct
Metal-Fab™
Sure Seal
Security
Secure- Vent®
ICC Excel
Direct
6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6
6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B
7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A
7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A
9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A TC-4DL9
9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A TC-4DL9B
12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1
12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B
18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18
18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B
24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2
24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B
36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3
36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B
48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4
48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B
60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A
60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A
Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT
Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB
Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A
Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A
Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A
Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A
Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 TC-4dLSI
Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 TC-4dLSIB
Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A
Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A
45ºElbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45
45ºElbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B
45ºElbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A
45ºElbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A
90ºElbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90
90ºElbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B
90ºElbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A
90ºElbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A
90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A
Adaptor* N/A N/A N/A 4D90L N/A N/A
4” X 6- 5/8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency.
Note: The listed manufacturers may have other lengths not shown on this chart, which would also be approved.
Regency Fireplace Products . 6988 Venture St. . Delta, BC . Canada . V4G 1H4 . 604-946-5155 . www.regency-fire.com
Ceiling Support N/A 4DT-CS 4DSP 4DFSP SV4SD TM4-RDS
Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TM4-SDS
Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM TM-SWS
Offset Support46DVA-ES - N/A from FPI 4DT-OS N/A N/A SV4SU TM-SOS
Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM N/A
Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF N/A
Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF TM-4CS
Tr im Plate-Black N/A 4DT-TP 4DFPB 4DcP SV4LA TM-4TP

20 | Regency Excalibur®P90-10 Zero Clearance Direct Vent Gas Fireplace
|
20 installation
Description Simpson
Direct Vent Pro®
Selkirk
Direct Temp™
American Metal
Products®
Amerivent Direct
Metal-Fab™
Sure Seal
Security
Secure- Vent®
ICC Excel
Direct
Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A
Attic Insulation Shield - Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS
High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT
High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT
Horizontal Square Te rmination Cap See 46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT
Vertical Te rmination Cap 46DVA-VC 4DT-HVC 4DVC 4DVT SV4CGV-1 N/A
Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC
Restrictor Disk N/A N/A N/A N/A N/A TM-4DS
Extended Vertical Te rmination Cap N/A N/A N/A N/A N/A N/A
Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6
Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7
Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8
Chimney Conversion Kit Masonry
(USA only)
46DVA-KMC N/A N/A N/A N/A N/A
Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR
Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A
Adjustable Flashing 0/12-6/12 46DVA-F6 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA
Adjustable Flashing 6/12-12/12 46DVA-FLA 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB
Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS
Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A
Snorkel Te rmination 14” 46DVA-SNKL N/A N/A N/A N/A TM-4ST14
Snorkel Te rmination 36” N/A N/A N/A N/A N/A TM-4ST36
Basic Horizontal Te rmination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK TM4-HTK
Horizontal Te rmination Kit (B) 46DVA-KHA
(Changed Components)
4DT-HKB 4DHTK1 4DHTKB SV-HK TM4-HTK
Vertical Te rmination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A
FPI
946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Te rminal
510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Te rminal
640-530/P Riser Vent Te rminal 946-523/P AstroCap Horizontal Cap
946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high temperatures and may present a possible fi re hazard.
Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length
(L)
4” x 6-5/8” Venting For specific instructions on venting components - visit the
manufacturers website listed below.
Run (X) Rise (Y)
0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com
6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com
9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com
12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com
24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com
36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com
48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)
Regency Fireplace Products . 6988 Venture St. . Delta, BC . Canada . V4G 1H4 . 604-946-5155 . www.regency-fire.com
