Owners & Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com
fire-parts.com

Regency Wood Insert & Hearth Heater2
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this Insert is not properly installed, a house fire may result. For your safety,
follow the installation instructions, contact local building or fire officials about restrictions and instal-
lation inspection requirements in your area.
fire-parts.com

Regency Wood Insert & Hearth Heater 3
REGENCY FIREPLACE INSERTS
& HEARTH HEATER
TABLE OF CONTENTS
SAFETY LABEL
Safety Label For I1100S & I3100L.................................4
Safety Label For H2100M .............................................5
INSTALLATION
Before Installing Your Insert ..........................................6
Chimney Specifications .................................................6
Fireplace Specifications ................................................6
Installing Your Insert ......................................................6
Optional Flue Connector Kit ..........................................7
Masonry and Factory Built Fireplace Clearances .........7
Leg Option on H2100 Hearth Heater.............................8
Flue Connector Bracket.................................................8
Installation Into a Factory Built Fireplace ......................8
Installation Into a Masonry Fireplace.............................8
Faceplate and Trim .......................................................9
Fan / Blower ................................................................10
Floor Protection ........................................................... 11
Firebrick Assembly ...................................................... 11
Door Handle ................................................................ 11
Brick Flue Baffle & Secondary Air Tube Installation .... 11
Draft Control ................................................................12
Screen Door ................................................................12
OPERATING INSTRUCTIONS
First Fire ......................................................................13
Fan Operation (All Units).............................................13
Ash Disposal ...............................................................13
Some Safety Guidelines..............................................13
Creosote......................................................................14
MAINTENANCE
Maintenance of Gold-Plated Doors .............................14
Door Gasket ................................................................14
Door Latch Adjustment ................................................14
Glass Cleaning ............................................................14
Glass Replacement .....................................................14
Glass Removal ............................................................14
PARTS LIST
I1100 & I3100 Main Assembly .....................................15
I1100 & I3100 Faceplates............................................16
H2100 Main Assembly.................................................17
I1100, I3100 & H2100 Firebrick ...................................18
WARRANTY
Warranty ......................................................................19
fire-parts.com

Regency Wood Insert & Hearth Heater4
LISTEDFACTORYBUILTFIREPLACEINSERT CERTIFIEDFORUSEIN CANADA AND U.S.A. MODEL: I3100L TESTEDTO: ULC S628-M93 / UL 1482-1998 / ULC S627-00 / UL 737-2000 REPORT NO. 632-323500 (MAR.1994)
DO NOT REMOVE THIS LABEL
106
COMPONENTS REQUIRED FOR INSTALLATION: 6" (150mm) STAINLESS STEEL LINER. OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5mm). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
2007
DATE OF MANUFACTURE 20062005
CAUTION
908-343b rev. 11/05
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP
CHILDREN, CLOTHING
AND FURNITURE AWAY.
CONTACT MAY CAUSE
SKIN BURNS. READ ABOVE
INSTRUCTIONS.
Install and use only in accordance with the manufactuerer's installation and operating instructions. Install and use only in masonry
fireplace or factory built fireplace. Contact local building or fire officials about restrictions and installation inspection in your area.
MADE IN CANADA
Manufactured by:
FPIFIREPLACEPRODUCTS
INTERNATIONAL LTD.
6988 Venture Street Delta, BC V4G 1H4
(Duplicate Serial #)
Minimum Clearances to Combustibles (Measured from insert body)
ADJACENTSIDEWALL A) 13"(330mm) MANTLE B) 19"(480 mm) TOPFACING C) 18"(455 mm) SIDEFACING D) 6.5"(165mm)
A
G
F
D
B
C
E
ADJAC E N TSI D EW A LL
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5" (38mm) ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 16" (405mm) TO FRONT AND (G) 8" (205mm) TO SIDES FROM FUEL DOOR.
UNITED STATES
ENVIRONMENTAL PROTECTION
AGENCY CERTIFIED TO COMPLY
WITH JULY 1990, PARTICULATE
EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
SAFETY LABEL
This is a copy of the label that accompanies each
Regency Small Flush Insert and Large Flush
Insert. We have printed a copy of the contents
here for your review.
LISTEDFACTORYBUILTFIREPLACEINSERT CERTIFIEDFORUSEINCANADAANDU.S.A. MODEL: I1100S TESTEDTO: ULC S628-M93 / UL 1482-1998 / ULC S627-00 / UL 737-2000 REPORT NO. 632-3198 (SEPT.1993)
DO NOT REMOVE THIS LABEL
104
A
G
F
D
B
C
E
ADJ AC E N TSI D EW A LL
COMPONENTS REQUIRED FOR INSTALLATION: 6IN / 150MM STAINLESS STEEL LINER. OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5IN / 38MM ABOVEANADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BEPROTECTEDBYNON-COMBUSTIBLE MATERIAL EXTENDING (E) 16 IN / 405MM TO FRONT AND (G) 8IN / 205MM TO SIDES FROM FUEL DOOR.
908-306b 10/03
(Duplicate Serial #)
MANUFACTURED BY:
FPI FIREPLACE PRODUCTS
INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
HOT
HOT
WHILE
WHILE
IN
IN
OPERATION
OPERATION
DO
DO
NOT
NOT
TOUCH.
TOUCH.
KEEP
KEEP
CHILDREN,
CHILDREN,
CLOTHING
CLOTHING
AND
AND
FURNITURE
FURNITURE
AWAY.
AWAY.
CONTACT
CONTACT
MAY
MAY
CAUSE
CAUSE
SKIN
SKIN
BURNS.
BURNS.
READ
READ
ABOVE
ABOVE
INSTRUCTIONS.
NSTRUCTIONS.
CAUTION
ADJACENTSIDEWALL A) 15in / 380mm MANTLE B) 20in / 510mm TOPFACING C 14in / 355 mm SIDEFACING D) 7.375in / 185mm
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY FIREPLACEORFACTORYBUILT FIREPLACE. CONTACTLOCALBUILDINGORFIREOFFICIALSABOUTRESTRICTIONSANDINSTALLATIONINSPECTIONINYOURAREA.
UNITED STATES ENVIRONMENTAL PROTECTION AGENCY CERTIFIED TO COMPLY WITH JULY 1990, PARTICULATE EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
2005 2006 2007
DATE OF MANUFACTURE MADE IN CANADA
104
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.
SAFETY LABEL FOR I1100S AND I3100L
fire-parts.com

Regency Wood Insert & Hearth Heater 5
SAFETY LABEL
This is a copy of the label that accompanies each
Regency Hearth Heater. We have printed a
copy of the contents here for your review.
103
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5 MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
MANUFACTURED BY:
FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST. DELTA, BC V4G 1H4
UNITED STATES ENVIRONMENTAL PROTEC- TION AGENCY CERTIFIED TO COMPLY WITH JULY 1990, PARTICULATE EMISSION STAND- ARDS.
908-389b 11/05
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE
SKIN BURNS. READ ABOVE
INSTRUCTIONS.
CAUTION
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
ADJACENT SIDEWALL A) 10 in / 255 mm MANTEL B) 25 in / 635 mm TOP FACING C) 14 in / 355 mm SIDE FACING D) 8.5 in/ 216mm HEARTH EXTENSION (DEPTH) E) 18 in / 455 mm HEARTH EXTENSION (ELEVATION) F) 1.5 in/ 38 mm HEARTH EXTENSION (WIDTH) G) 6 in / 150 mm
A
G
F
D
B
C
E
ADJ AC E N TSI D EW A LL
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5 IN / 38 MM ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PRO- TECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 18 IN / 455 MM TO FRONT AND (G) 6 IN / 150 MM TO SIDES. COMPONENTS REQUIRED FOR INSTALLATION MUST HAVE A 6IN/150MM STAINLESS STEEL LINER.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
LISTED FACTORY BUILT FIREPLACE ACCESSORY HEARTH STOVE CERTIFIED FOR USE IN CANADA AND U.S.A. MODEL: H2100M TESTED TO: ULC S628-M93 / UL 1482-1998 REPORT NO. 6255 (JULY 1991)
2005 2006 2007
DATE OF MANUFACTURE
MADE IN CANADA
(Duplicate Serial #)
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.
DO NOT REMOVE THIS LABEL
103
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL FOR H2100M
fire-parts.com

Regency Wood Insert & Hearth Heater6
INSTALLATION
CHIMNEY
SPECIFICATIONS
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condi-
tion, seek professional advice. Your Regency
Insert is designed for installation into a masonry
fireplace that is constructed in accordance with
the requirements of "The Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel Burning Ap-
pliance", N.F.P.A. 211, the National Building
Code of Canada, or the applicable local code
requirements.
The appliance, when installed, must be electri-
cally grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code,ANSI/NFPA70, or the Canadian
Electrical code, CSA C22.1.
Regency Inserts are designed with a 6" (152mm)
flue.
Requirements for Installing
Solid-fuel Inserts in Factory-built
Fireplaces.
1) The insert must be tested and meet the
requirements of UL 1482 (U.S.) and or ULC
S628 (Canada) when tested in a masonry
fireplace built per ULC S628.
2) The factory-built fireplace must be listed per
UL 127 or ULC S610.
3) Clearances obtained from the masonry fire-
place tests are also relevant for installation
in factory-built fireplaces.
4) Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC
S635 (Canada). The liner must be securely
attached to the insert flue collar and the
chimney top.
5) Means must be provided to prevent room
air passage to the chimney cavity of the
fireplace. This may be accomplished by
sealing the damper area around the chimney
liner, or sealing the fireplace front.
6) Alteration of the fireplace in any manner is not
permitted with the following exceptions;
a. external trim pieces which do not affect
the operation of the fireplace may be
removed providing they can be stored
on or within the fireplace for re-assembly
if the insert is removed.
b. the chimney damper may be removed
to install the chimney liner.
7) Circulating air chambers (i.e. in a steel
fireplace liner or metal heat circulator) shall
not be blocked.
8) Means must be provided for removal of the
insert to clean the chimney flue.
Regency Inserts are constructed with the high-
est quality materials and assembled under strict
quality control procedures that insure years of
trouble free and reliable performance.
It is important that you read this manual thor-
oughly and fully understand the safe instal-
lation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experi-
ence from knowing that your unit is operating
at peak performance.
BEFORE INSTALLING
YOUR INSERT
1) Read all instructions before installing and
using your fireplace insert. Install and use
only in accordance with manufacturer’s
installation and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
WARNING: Careless installation is the
major cause of safety hazard. Check all
local building and safety codes before
installation of unit.
3) Notify your home insurance company that
you plan to install a fireplace insert or hearth
heater.
4) Your fireplace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishan-
dling.
5) If your existing fireplace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open posi-
tion.
6) Inspect your fireplace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
your insert. Do not remove bricks or mortar
from your masonry fireplace.
7) Do not connect the insert to a chimney
system servicing another appliance or an
air distribution duct.
9) Inserts that project in front of the fireplace
must be supplied with appropriate supporting
means.
10) Installer must mechanically attach the sup-
plied label to the inside of the firebox of the
fireplace into which the insert is installed.
In order for a solid-fuel insert to be certified
for use in factory-built fireplaces, the above
information must be clearly stated in the instal-
lation manual and appropriate markings. Final
approval is contingent on the authority having
jurisdiction.
FIREPLACE
SPECIFICATIONS
Your fireplace opening requires the following
minimum sizes:
Height Width Depth
Small (I1100S) 20" 23" 13.25"
Large (I3100L) 25" 28" 17"
Hearth Heater (H2100M) 20.0" -- --
Two faceplates are available to seal the fire-
place opening:
Standard Oversize
Small (I1100S)
36"W x 26"H 39.875"W x 30"H
Large (I3100L)
44"W x 32"H 50"W x 34.5"H
Hearth Heater (H2100M)
40 1/4"W x 30"H 48"W x 33"H
INSTALLING YOUR
INSERT
Your insert is very heavy and will require two
or three people to move it into position. The
insert can be made a little lighter by removing
the cast iron door by opening it and lifting it
off its hinges. Be sure to protect your hearth
extension with a heavy blanket or carpet scrap
during the installation.
Convection Grills for
I3100L
The convection grills are installed before the
unit is positioned inside the fireplace.
Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
"WARNING: This fireplace has been converted
for use with a wood insert only and cannot be
used for burning wood or solid fuels unless
all original parts have been replaced, and the
fireplace re-approved by the authority having
jurisdiction."
fire-parts.com

Regency Wood Insert & Hearth Heater 7
Clearance diagram for installations
INSTALLATION
Side and Top facing is a maximum of 1.5"
thick.
Floor protection must non-combustible, insula-
tive material with an R value of 1.1 or greater.
*If the hearth extension is flush with the floor
(F) it must extend 19.5" in front of the body
face (E).
Note: Hearth Extension Width (G) is meas-
ured from edge of fuel door to side
of hearth.
** A non-combustible mantel may be in-
stalled at a lower height if the framing
is made of metal studs covered with a
non-combustible board.
MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry or factory built fireplace are listed below.
Adjacent Mantle** Top Side Minimum Minimum Minimum
Unit Side Wall (to Top) Facing Facing Hearth Hearth Hearth Side
(to Side) (to Top) (to Side) Extension* Thickness* Extension
A B C D E F G
Small Flush
Insert (I1100S) 15"/380mm 20"/510mm 14"/355mm 7.375"/187mm 16"/406mm 1.5"/38mm 8"/205mm
Large Flush
Insert (I3100L) 13"/330mm 19"/480mm 18"/455mm 6.5"/165mm 16"/406mm 1.5"/38mm 8"/205mm
Hearth Heater
(H2100M) 10"/255mm 25"/635 mm 14"/355mm 8.5"/216mm 18"/455mm 1.5"/38mm 6"/152mm
View from Rear of Insert
OPTIONAL FLUE
CONNECTOR KIT
The optional Flue Connector Kit (Part # 846-527)
and the Straight Flue Adaptor (Part #846-504)
shown here, may be used to produce a secure
connection between your flue connector and the
insert collar. Detailed installation instructions are
included with the kit.
Position the grill on the inside bodyface side and
fasten using the bolts, washers and nuts provided
(2 per side) as shown in the diagrams.
Note: The grill has a front and rear, the holes
on the front side have rounded edges
and the rear holes have flat edges.
fire-parts.com

Regency Wood Insert & Hearth Heater8
1) Positive Flue
Connection
with Cleanout
FLUE CONNECTOR
BRACKET
Package contains: 3 brackets and 6 screws.
These brackets are to be used to hold the flue
liner (not supplied) to the Insert and keep the
connection. The brackets are screwed into the
top of the Insert in the pre-punched holes and
then screwed into the flue liner.
INSTALLATION
2) Direct Flue
Connection
with Cleanout
3a) Full Flue Liner
(No Cleanout
Required)
3b) Hearth Heater with
Full Flue Liner
(No Cleanout
Required)
Note: A clean-out door is sometimes
required, by your inspector, to be
installed when either the Positive flue
connection or Direct flue connection
method is used.
NOTE: Adding the
legs changes the
height of the unit,
make sure you have
sufficient clearance
(min. 28") for your flue
connection.
LEG OPTION ON H2100
HEARTH HEATER
The addition of legs to the Hearth Heater does
not alter its certification, it does not become a
freestanding woodstove. The H2100 can only
be installed as a Hearth Heater i.e. vented into
a masonry or factory built fireplace.
The instructions below apply to the steel leg,
painted cast leg and the gold plated cast leg.
It will be easier to attach the legs to the stove
if it is tipped on its back (preferably on a soft
surface to prevent scratching).
1) Thread the bolt and washer through the
leg, and then into the nutsert in the base
of the stove and tighten.
2) Level the stove by adjusting the levelling
bolts in the bottom of each leg.
The use of one of the connection methods listed
on this page not only increases the safety of your
insert by directing the hot gases up the flue, but
will also help increase the unit's efficiency and
decrease creosote deposits in the chimney.
When a connected flue or liner is in use, the
insert is able to “breathe” better by allowing a
greater draft to be created. The greater draft can
decrease problems such as, difficult start-ups,
smoking out the door, and dirty glass.
INSTALLATION INTO A
FACTORY BUILT
FIREPLACE
1) When installed in a factory built fireplace, a
full stainless steel rigid or flexible flue liner
is mandatory, for both safety and perform-
ance purposes. When a flue or liner is in
use, the insert is able to breathe better by
allowing a greater draft to be created. The
greater draft can decrease problems such
as, difficult start-ups, smoking out the door,
and dirty glass.
2) In order to position the flue liner, the exist-
ing rain cap must be removed from your
chimney system. In most cases the flue
damper should also be removed to allow
passage of the liner.
3) In most cases opening the existing spark
screens fully should give enough room for
the insert installation. If it does not, remove
and store.
When referencing installation or connec-
tion to masonry fireplaces or chimneys, the
masonry construction must or shall be code
complying.
INSTALLATION INTO A
MASONRY FIREPLACE
The insert must be installed as per the require-
ments of your local inspection authority. Three
methods of flue connection are acceptable in
most areas, these include:
1) Positive flue connection, where a large
blocking plate and a short connector pipe
is used.
2) Direct flue connection, where a smaller
blocking plate and a connector pipe to the
first flue liner tile is used.
3) Full flue liner, where a stainless steel rigid
or flexible liner pipe is routed from the insert
outlet collar to the top of the chimney.
Regency highly recommends the use of a full
liner as the safest installation and provides the
most optimum performance. Your retailer should
be able to help you decide which system would
be the best for your application.
In Canada this fireplace insert must be in-
stalled with a continuous chimney liner of 6"
diameter extending from the fireplace insert
to the top of the chimney. The chimney liner
must conform to the Class 3 requirements
of CAN/ULC-S640, Standard for Lining Sys-
tems for New Masonry Chimneys.
fire-parts.com

Regency Wood Insert & Hearth Heater 9
INSTALLATION
Diagram 4:
H2100M and I3100L
Faceplate Assembly
B) H2100M and I3100L Insert
Diagram 2: I1100S
Rear View
Diagram 3: I1100S
1) Slide the spring nuts (supplied) over the
slots in the insert’s side convection panels
(the spring nuts may need to be squeezed
with a pair of pliers first, to help them stay
in position).
2) Screw the side faceplate panels, (item A in
Diagram 4) one to each side.
3) Using the top panel (item B in the diagram)
as a gauge, check that the side panels are
within approximately 1/4" of the overall width.
If the difference is greater than this, use
the supplied washers to attain the required
width.
C) All units
The unit may now be slid into final position and
attached to the connection system.
Once connection is made, the insulation strips
should be installed between the insert faceplates
and the fireplace face. The faceplate top may
now be installed (with insulation strip behind)
by aligning its brackets with the top flange on
the side shields and the angle iron bar on the
insert top. The faceplate trim may be installed
to the edge of the faceplate at this time.
I1100S: Drill two 5/32" diameter holes through
the trim and side panels and screw the trim to the
panels using the gold plated screws provided.
Note: It may be easier to install the insula-
tion, faceplate top and faceplate trim
with the unit pulled slightly away from
the fireplace face. If this is done, be
very careful not to disturb the con-
nector when shifting the unit to its
final position.
Now that your insert is installed, check once
more that all the clearances from the unit to
any combustible materials are correct as listed
earlier.
Diagram 1: I1100S
6) Once the above items have been checked,
slide your insert into position after first po-
sitioning the flue liner and offset if required.
(Re-install raincap at completion of installa-
tion).
FACEPLATE AND TRIM
Prior to sliding your insert into its final position
and attaching the connector or liner pipe, the
faceplate side panel plates must be installed
as follows:
A) I1100S Small Insert
1) Fasten the faceplate mounting bracket to the
side of the insert (one on each side) using
the screws provided (2 screws per bracket)
(refer to Diagram 1).
2) Assemble the faceplate sides and top with
4 screws (see Diagram 2).
3) Attach the assembled faceplate to the
faceplate mounting brackets.
Flush Inserts Hearth Heater
4) If the floor of your fireplace is below the
level of the fireplace opening, adjust the
insert's levelling bolts to accommodate the
difference. When additional shimming is
required, use non-combustible masonry or
steel shims.
5) Measure approximately the alignment of
the flue liner with the position of the smoke
outlet hole on the insert to check for pos-
sible offset. If an offset is required, use a
proper stainless steel unit available with
the chimney liner.
fire-parts.com

Regency Wood Insert & Hearth Heater10
Ground
Fan Fan
Ground Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black
High (Black)
Low (Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz
Thermo Switch Sensor
Thermo Switch Sensor
INSTALLATION
FAN / BLOWER
Blower/Fan Wiring Diagram
3) Slide the supports into the clips. The tension
holding the clips in place may be adjusted by
increasing or decreasing the offset spacing
of the clips.
4) Ensure that the power cord is not in contact
with any hot stove surfaces.
5) Push the Regency logo plate into the two
holes in the front bottom left corner of the
fan.
Your fan should only be installed once the unit is
in place in order to prevent any damage to the
fan. To attach, follow the instructions provided
with the fan. Make sure to install the rubber
grommet to the fan housing before it is installed
on the insert.
1) Remove the protective covering from the
brass trim on the fan.
2) Align the fan support with the offset clip on
the bottom of the ashlip.
CAUTION: Label all wires prior
to disconnection when servic-
ing controls. Wiring errors can
cause improper and dangerous
operation.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
Do not turn fan ON until your insert has
reached operating temperature or at least
30 minutes after starting fire.
fire-parts.com

Regency Wood Insert & Hearth Heater 11
BRICK FLUE BAFFLE &
SECONDARY AIR TUBE
INSTALLATION
The flue baffle system located in the upper area
of the firebox is removable to make cleaning
your chimney system easier. The brick baffles
must be installed prior to your first fire. Smoke
spillage and draft problems may occur if the
baffles are improperly positioned. Check the
position of the brick baffles on a regular basis as
they can be dislodged if too much fuel is forced
into the firebox.
The Large Insert I3100L is shipped with one of
the secondary air tubes loose inside the firebox.
It needs to be installed after the brick baffle are
installed. Follow the directions below.
Large Insert I3100L
The unit arrives with the third air tube (from the
front) and the 2 baffle bricks on the floor of the
firebox. The baffle bricks are positioned first and
then the air tubes are installed.

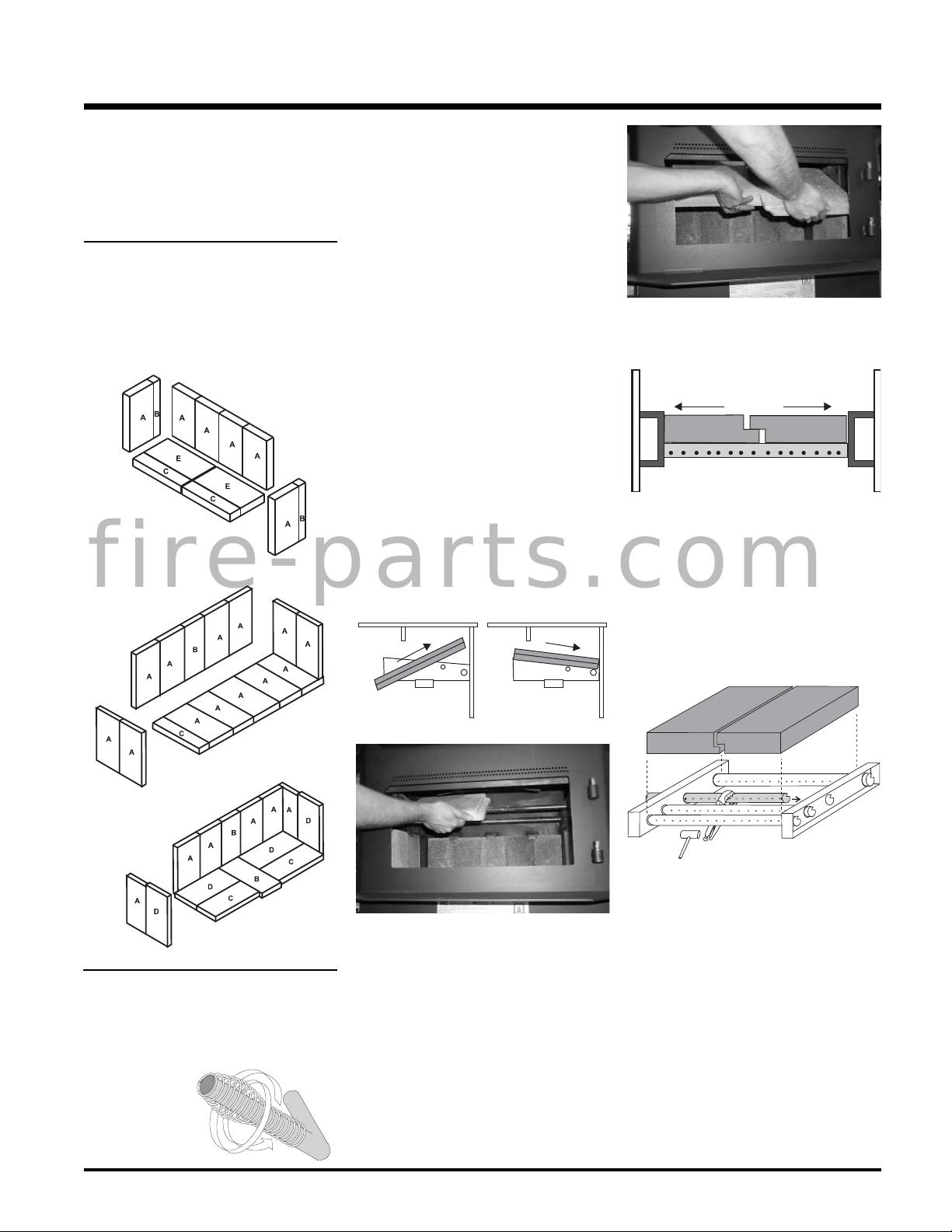

1) Slide the left baffle brick over the two rear
air tubes and then push it all the way to the
left side of the firebox.
Front View
Large Insert (I3100L)
Small Insert (I1100S)
Hearth Heater (H2100M) 2) Tilt the first Baffle Brick down and then slide
the 2nd Baffle Brick up and back. Reposition
both baffle bricks flat on the air tubes.
3) Important: push both baffle bricks so
they are tight against the side walls.
4) Install the third air tube into the holes on the
side channels. The notch goes on the right
hand side with the air holes facing forward
toward the door opening. If the tube will not
slide in easily, simply use a pair of vise grips
or pliers and tap it into place with a hammer.
A tighter fit will ensure the tube will not move
when the unit is burning.
INSTALLATION
FLOOR PROTECTION
Please check to ensure that your floor protection
and hearth will meet the standards for clearance
to combustibles. Your hearth extension must be
made from a non-combustible material.
FIREBRICK ASSEMBLY
Firebrick is included to extend the life of your
insert and radiate heat more evenly. Check to
see that all firebricks are in their correct posi-
tions and have not become misaligned during
shipping.
DOOR HANDLE
Attach spring handle by rotating counter clock-
wise onto rod. Ensure that the rod fits into the
entire length of the spring handle.
Note: When cleaning the chimney reverse
the above procedures, removing
the air tube and baffle bricks and
then replace them when cleaning is
completed.
fire-parts.com

Regency Wood Insert & Hearth Heater12
Pull Open Push Closed
INSTALLATION
Side View
Front View
Front View
Hearth Heater (H2100M)
Steel Baffle
Place the insulation batt on top of the baffle.
Make sure that this batt is laying flat and does
not obstruct the smoke from getting up the flue
opening. This insulating batt may be wrapped
in paper for handling purposes and does not
require removal. Batt hold down weights are
supplied with the unit and are to be placed on
the insulation to either side of the flame spreader
as shown in the diagram and at the rear, directly
in front of the flue opening.
Lift the front end of the baffle up and over
the rear of the
air tube. On
Hearth Heater
(H2100M) re-
move center
tube by slid-
ing it sideways
first and then
down.
Small Insert I1100S
1) If the two air tubes are installed continue on
to Step 2), if not, follow the instructions below.
Install the air tube into the holes in the side
channels. The notch goes on the right hand
side with the air holes facing toward the door.
Slide the tube into the left hand side, as far
as possible and then bring it back into the
hole on the right hand side until it locks into
position. If the tube will not slide in easily
simply use a pair of vise grips or pliers and
tap it into place with a hammer. A tighter fit
will ensure the tube will not move when the
unit is burning. There are only two air tubes
in the small units (refer to the diagram in the
Large Insert I3100L section).
2) Slide the left baffle brick over the front air
tube and then slide it back over the rear air
tube.
3) Tilt the left baffle brick up on top of the side
channel and it will leave enough room to
position the right baffle brick in the same
manner as Step 1) above. Then reposition
the left baffle brick flat on the air tube.
4) Important: push both baffle bricks so
they are tight against the side walls.
Note: When getting the chimney cleaned,
remove the baffle bricks for access
to the flue, then replace them when
cleaning is completed.
Lift the rear of the baffle, pivoting it on the air
tube, until it clears the rear air channel.
Slide the rear of the baffle on top of the rear
air channel in front of the locating tabs. Make
sure that the insulation is lying flat and does
not obstruct the smoke from getting up the flue
opening. Place hold down weights on top of
the insulation - one on each side.
DRAFT CONTROL
Before establishing your first fire, it is important
that your fully understand the operation of you
draft control. The draft rod is on the left side of
the Inserts and it controls the intensity of the fire
by increasing or decreasing the amount of air
allowed into the firebox. To increase your draft
- pull open, and to decrease - push closed.
As well as a primary and glass wash air system,
the unit has a full secondary draft system that
allows air to the induction ports at the top of
the firebox, just below the flue baffle.
WARNING: To build a fire in ignorance or to
disregard the information contained in this
section can cause serious permanent dam-
age to the unit and void your warranty.
SCREEN DOOR
Hook screen to the inside on the right side
of the firebox door opening. Lock in place by
turning handle.
Back Side of Screen Shown
WARNING
Fireplace Stoves equipped with doors
should be operated only with doors
fully closed. If doors are left partly
open, gas and flame may be drawn out
of the fireplace stove opening, creat-
ing risks from both fire and smoke.
When operated with doors open the
manufacturer supplied screen must
be used.
NOTE: The handle must be positioned at 10
o'clock when closed to avoid the handle from
getting hot and to ensure the screen stays in
place.
Handle Lock
Hooks
Handle at 10 o'clock position.
fire-parts.com

Regency Wood Insert & Hearth Heater 13
automatic temperature sensor will engage the
blower when the unit is at temperature and will
shut off the blower once the fire has gone out
and the unit has cooled to below a useful heat
output range.
To manually operate the fan system, push the
first switch to "Man" and second switch to either
"high" or "Low". This will bypass the sensing
device and allow full control of the fan. Switch-
ing from "Auto" to "Manual" or "High" to "Low"
may be done at any time.
ASH DISPOSAL
During constant use, ashes should be removed
every few days. Please take care to prevent the
build-up of ash around the start-up air housing
located inside the firebox, under the loading
door lip.
DO NOT ALLOW ASHES TO BUILD UP TO
THE LOADING DOORS.
Only remove ashes when the fire has died down.
Even then, expect to find a few hot embers.
Always leave 1 to 2 inches of ash in the bottom
of the firebox. This helps in easier starting and
a more uniform burn of your fire.
Ashes should be placed in a metal container with
a tight fitting lid. The closed container of ashes
should be placed on a noncombustible floor or
on the ground, well away from all combustible
materials, pending final disposal. If the ashes
are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the
closed container until all cinders have thoroughly
cooled. Other waste should not be placed in
the ash container.
SOME SAFETY
GUIDELINES
1) Never use gasoline, gasoline type lantern
fuels, kerosene, charcoal lighter fuel, or
similar liquids to start or ‘freshen up’ a fire
in your heater. Keep all such liquids well
away from the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn large quantities of paper in your
insert.
4) If you have smoke detectors, prevent smoke
spillage as this may set off a false alarm.
5) Do not overfire your insert. If the insert or its
flue baffle begin to glow, you are overfiring.
Stop adding fuel and close the draft control.
Overfiring can cause extensive damage to
your stove including warpage and premature
steel corrosion. Overfiring will void your
warranty.
OPERATING INSTRUCTIONS
FIRST FIRE
When your installation is completed and in-
spected, you are ready for your first fire.
1) Open draft control fully.
2) Open firebox door and build a small fire using
paper and dry kindling, wait a few minutes
for a good updraft in the flue to establish the
fire. Leaving the door slightly open will help
your fire start more rapidly.
CAUTION: Never leave unit unat-
tended if door is left open. This
procedure is for fire start-up only,
as unit may over-heat if door is left
open for too long.
3) With the draft still in the fully open position,
add two or three seasoned logs to your fire.
Form a trench in the ash bed to allow air to
reach the rear of the firebox prior to closing
the door.
4) After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the fire at a
moderate level.
WARNING: Never build a roaring
fire in a cold stove. Always warm
your stove up slowly!
5) Once a bed of coals has been established,
you may adjust the draft control to a low
setting to operate the unit in its most efficient
mode.
6) During the first couple of hours, keep the
combustion rate at a moderate level and
avoid a large fire until the paint is cured.
Only then can you operate the insert at its
maximum setting, and only after the metal
has been warmed.
7) For the first few hours, the insert will give
off an odour from the paint. This is to be
expected as the high temperature paint
becomes seasoned. Windows and/or doors
should be left open to provide adequate
ventilation while this temporary condition
exists. Burning the insert at a very high
temperature the first few times may damage
the paint. Burn fires at a moderate level the
first few days.
8) Do not place anything on the insert top
during the curing process. This may result
in damage to your paint finish.
9) During the first few hours it may be more dif-
ficult to start the fire. As you dry out your fire
brick and your masonry flue (if applicable),
your draft will increase.
10) For those units installed at higher elevations
or into sub-standard masonry fireplaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
11) Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
12) Before opening your door to reload, open
draft fully for approximately 10 to 15 seconds
until fire has been re-established. This will
minimize any smoking.
13) All fuel burning appliances consume oxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
sufficient for this purpose.
CAUTION: If the body of your unit
(or in the H2100M flue baffle) starts
to glow you are overfiring. Stop
loading fuel immediately and close
the draft control until the glow has
completely subsided.
14) Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
open the draft control fully until all moisture
has been dispersed by the intense fire.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the fire.
15) If you have been burning your insert on a low
draft, use caution when opening the door.
After opening the damper, open the door
a crack, and allow the fire to adjust before
fully opening the door.
16) The controls of your unit should not be altered
to increase firing for any reason.
FAN OPERATION
(ALL UNITS)
The fan is to be operated only with the draft
control rod pulled out at least 1/2" from the
fully closed position. The fan is not to be
operated when the draft control rod is in the
closed position (pushed in). The fully closed
position is the low burn setting.
The fan unit must not be turned on until a fire
has been burning for at least 30 minutes and
the unit is hot enough. As well, after each fuel
loading the fan must be shut off until 30 minutes
has elapsed.
To operate fan automatically, push switch on
side of fan housing to "Auto" and second switch
to either "High" or "Low" for fan speed. The
fire-parts.com

Regency Wood Insert & Hearth Heater14
6) Do not permit creosote or soot buildup in the
chimney system. Check and clean chimney
at regular intervals.
7) Your Regency Insert can be very hot. You
may be seriously burned if you touch the
insert while it is operating. Warn children of
the burn hazard.
8) The insert consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the insert is
in use.
9) Do not use grates, irons or other methods
for supporting fuel. Burn directly on the
bricks.
10) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the fire.
11) Do not connect your unit to any air distribu-
tion duct.
12) Your insert should burn dry, standard fire-
wood only. The use of “mill ends” is discour-
aged as this fuel can easily overheat your
insert. Evidence of excessive overheating
will void your warranty. As well, a large
portion of sawmill waste is chemically
treated lumber, which is illegal to burn in
many areas. Chemically treated fire logs
also must not be burned in your insert.
13) Do not store any fuel closer than 2 feet from
your unit.
14) Do not burn salt drift wood as it will corrode
your unit and void the warranty.
15) Do not operate the unit if the glass is broken
or missing. Do not operate the unit if the
gasketing is worn out and not sealing the
door or the glass.
It is very important to carefully maintain your
insert, including burning seasoned wood and
maintaining a clean stove and chimney system.
Have the chimney cleaned before the burning
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your insert require no lubrication.
CREOSOTE
When wood is burned slowly, it produces tar and
other organic vapors, which form creosote when
combined with moisture. The creosote vapors
condense in the relatively cool chimney flue of a
slow-burning fire. As a result, creosote residue
accumulates on the flue lining. When ignited, this
creosote can make an extremely hot fire.
Removal for Cleaning etc.
Removal of your insert for cleaning purposes
is usually not required if a proper installation
has been done. In the event that removal is re-
quired, be sure not to damage any parts needed
for re-installation. In most cases removal and
replacement of the baffle system should allow
full access for cleaning.
WARNING: Things to remember in case
of chimney fire:
1) Close draft control
2) Call the Fire Department
Ways to Prevent and
Keep Unit Free of Creosote
1) Burn insert with draft control wide open for
about 15 minutes every morning during burn-
ing season. This helps to prevent creosote
deposits within the heating system.
2) Burn insert with draft control wide open for
about 10 - 15 minutes every time you add
fresh wood. This allows the wood to achieve
the charcoal stage faster and burns up any
wood vapors which might otherwise be
deposited within the system.
3) Only burn seasoned wood! Avoid burning
wet or green wood. Seasoned wood has
been dried at least one year.
4) A small hot fire is preferable to a large
smouldering one that can deposit creosote
within the system.
5) Check the chimney at least twice a month
during the burning season for creosote
build-up.
6) Have chimney system and unit cleaned by
competent chimney sweeps twice a year
during the first year of use and at least once
a year thereafter or when needed.
MAINTENANCE OF
GOLD-PLATED DOORS
The gold electroplated finish on the doors
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abrasive
materials or chemical cleaners, as they may
harm the finish and void the warranty.
DOOR GASKET
If the door gasket requires replacement, 7/8"
diameter material must be used. A proper high
temperature gasket adhesive is required. A
gasket repair kit, Part # 846-570 is available
from your local Regency dealer.
DOOR LATCH
ADJUSTMENT

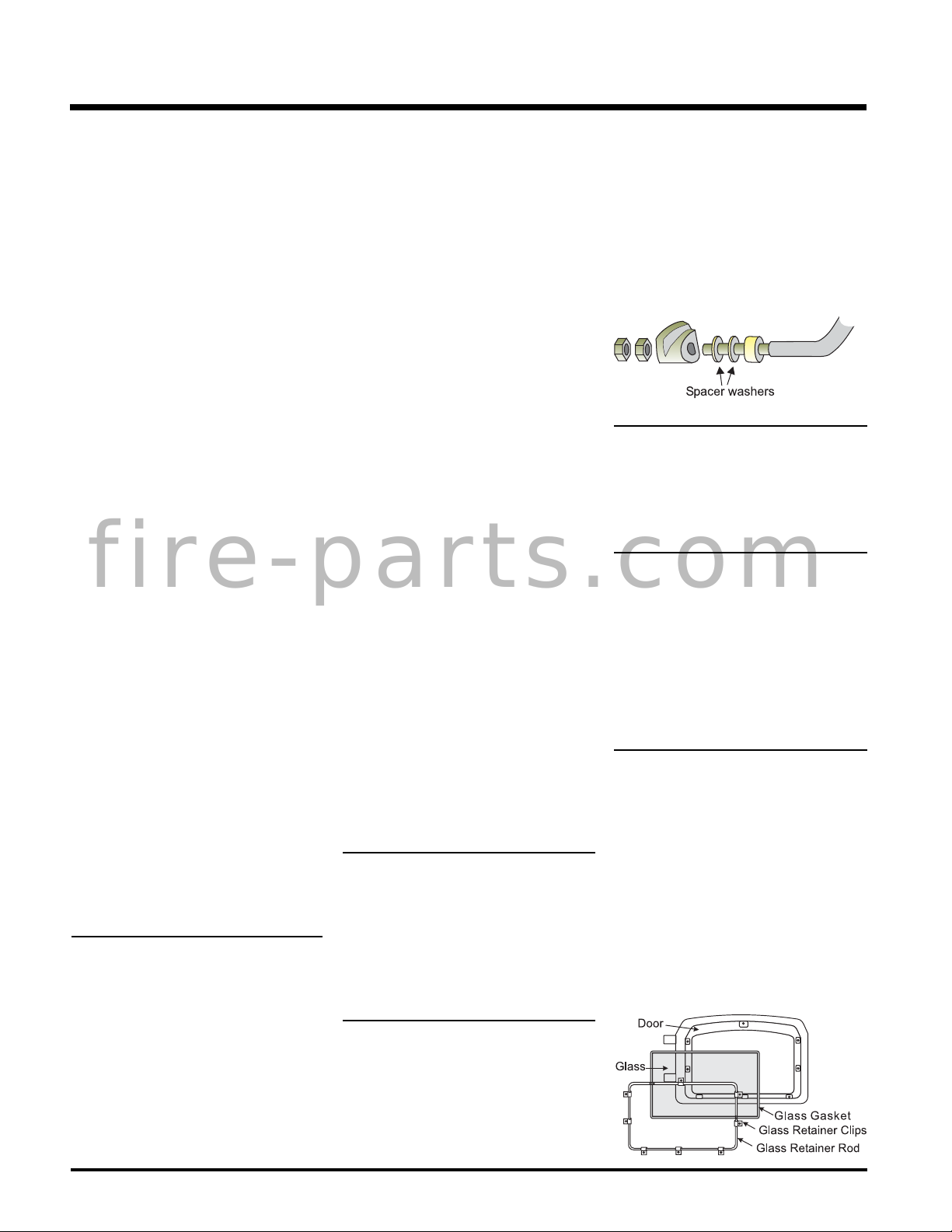

The door latch may require adjustment as the
door gasket material compresses after a few
fires. Removal of the spacer washer, shown
in the diagram below, will allow the latch to
be moved closer to the door frame, causing
a tighter seal. Remove and replace the nuts,
washer as shown.
GLASS CLEANING
Only clean your glass window when it is cool.
Your local retailer can supply you with special
glass cleaner if plain water and a soft cloth does
not remove all deposits.
GLASS
REPLACEMENT
Your Regency Insert is supplied with 5 mm.
Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. In
the event that you break your glass by impact
- purchase your replacement from an authorized
Regency dealer only, and follow our step-by-step
instructions.
GLASS REMOVAL
Allow the stove to cool before removing or replac-
ing glass. Remove the door from the insert and
remove the glass retainer. Use caution when
removing broken glass to prevent injury.
When placing the replacement glass in the
door, make sure that the glass gasketing will
properly seal your unit. Replace the retainer
and tighten securely, but do not wrench down
on the glass as this may cause breakage. Do
not substitute materials. If your glass door does
break, do not continue to use your unit until it
has been replaced.
MAINTENANCE
fire-parts.com

Regency Wood Insert & Hearth Heater 15

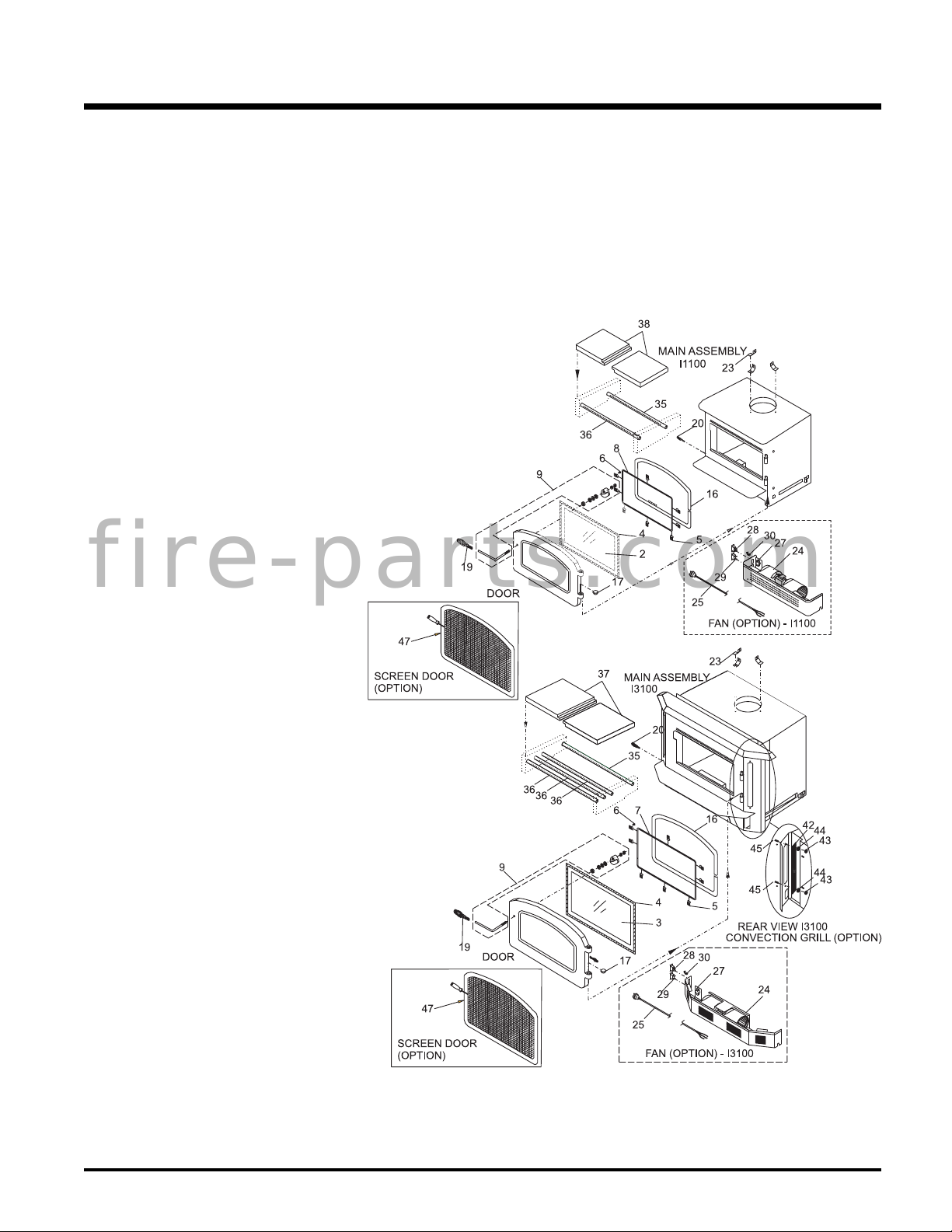

I1100 & I3100 MAIN ASSEMBLY
Part # Description
846-913 Door Assembly-Small Gold (I1100)-no glass
846-915 Door Assembly-Small Black (I1100)-no glass
846-910 Door Assembly-Large Gold (I3100)-no glass
846-916 Door Assembly-Large Black (I3100)-no glass
2) 846-302 Glass - Replacement - (I1100)
3) 846-304 Glass - Replacement - (I3100)
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips (set of 8)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large (I3100)
8) 948-170/P Glass Retainer - Small (I1100)
9) 846-973 Door Handle Assembly
16) 846-570 Med. Density Door Gasket Kit
17) 846-918 Hinge Caps (2/set)
19) 948-101 Spring Handle - Large
20) 948-102 Spring Handle - Small
23) 820-235 Flue Brackets (Pkg)
163-915 I3100L Fan/Blower Assembly
170-915 I1100S Fan/Blower Assembly
24) 910-157/P Blower/Fan Motor
25) 910-678 Power Cord (120 Volts)
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Switch
HI/OFF/LOW (3-way)
29) 910-138 Switch - Auto/Manual (2-way)
30) * Grommet Strain Relief
35) 063-954 Air Tube - 1" I3100 (Qty:1)
074-954 Air Tube - 1" I1100 (Qty: 1)
36) 033-953 Air Tube - 3/4" I1100 (Qty: 1)
063-953 Air Tube - 3/4" I3100 (Qty: 3)
37) 063-955 Baffle (2/set) I3100
38) 073-955 Baffle (2/set) I1100
42) 163-932 Convection Grill-Gold (I3100)
163-930 Convection Grill-Black (I3100)
43) * Hex Nut 10-24 Zinc coated
44) * Washer #10 Flat
45) * Bolt, 10-24 x 3/4" Black Carriage
47) 846-101 I1100 Wood Screen
846-103 I3100 Wood Screen
948-216 Regency Logo
908-332 Manual
*Not available as a replacement part.
PARTS LIST
fire-parts.com

Regency Wood Insert & Hearth Heater16
PARTS LIST

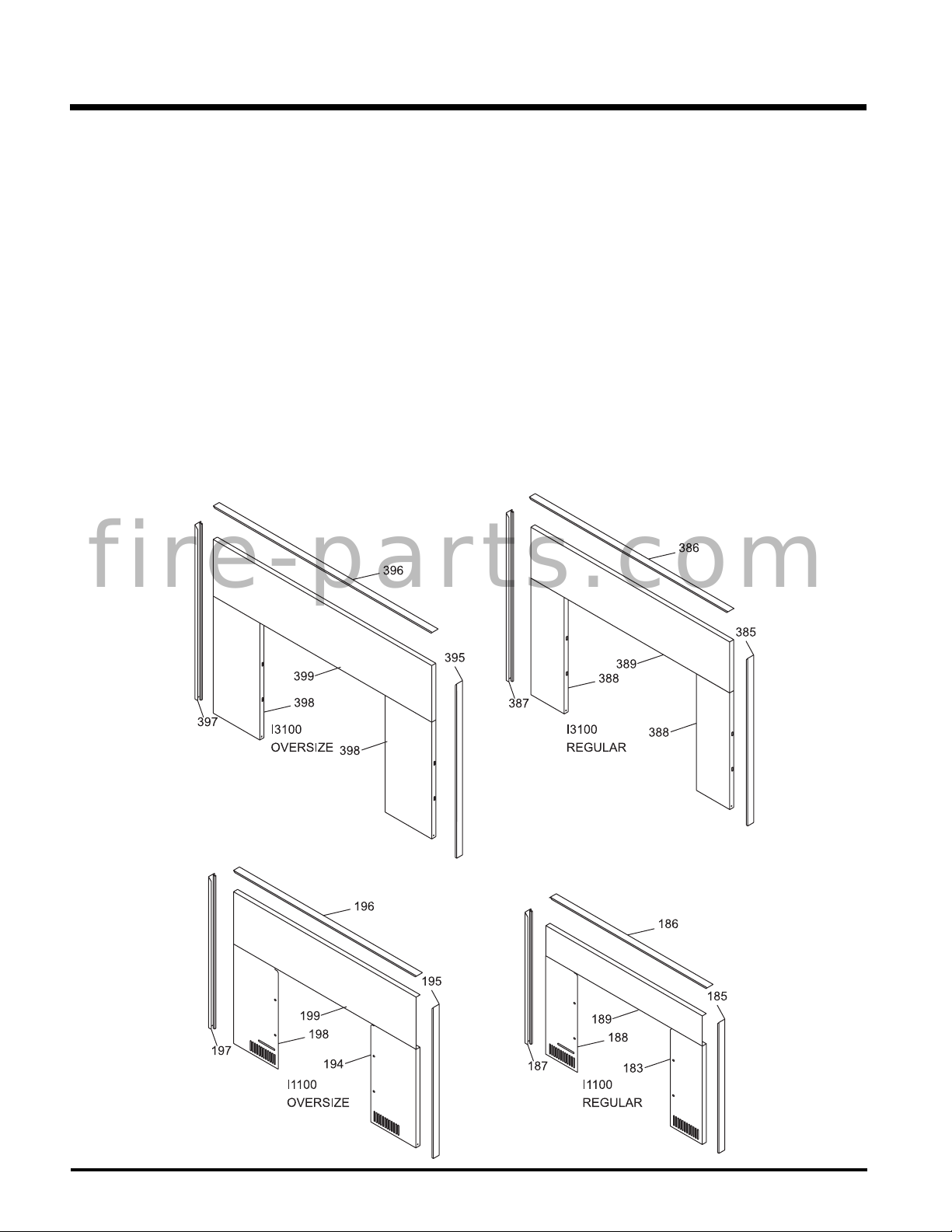

I1100 & I3100 FACEPLATES
Part # Description
Faceplate: I3100L
163-910 Faceplate & Trim Set - Regular
385) 163-165 Trim Right Regular
386) 163-160 Trim Top Regular
387) 163-161 Trim Left Regular
388) * Faceplate Side Regular
389) * Faceplate Top Regular
163-912 Faceplate & Trim Set - Oversize
395) 163-164 Trim Right Oversize
396) 163-162 Trim Top Oversize
397) 163-163 Trim Left Oversize
398) * Faceplate Side Oversize
399) * Faceplate Top Oversize
Part # Description
Faceplate: I1100S
170-911 Faceplate & Trim Set - Regular
185) 170-160 Trim Right Regular
186) 170-159 Trim Top Regular
187) 170-162 Trim Left Regular
183) * Faceplate Right Side Regular
188) * Faceplate Left Side Regular
189) * Faceplate Top Regular
170-913 Faceplate & Trim Set - Oversize
195) 143-161 Trim Right Oversize
196) 170-168 Trim Top Oversize
197) 143-160 Trim Left Oversize
194)* Faceplate Right Side
Oversize
198)* Faceplate Top Oversize
199)* Faceplate Left Side Oversize
*Not available as a replacement part.
fire-parts.com

Regency Wood Insert & Hearth Heater 17

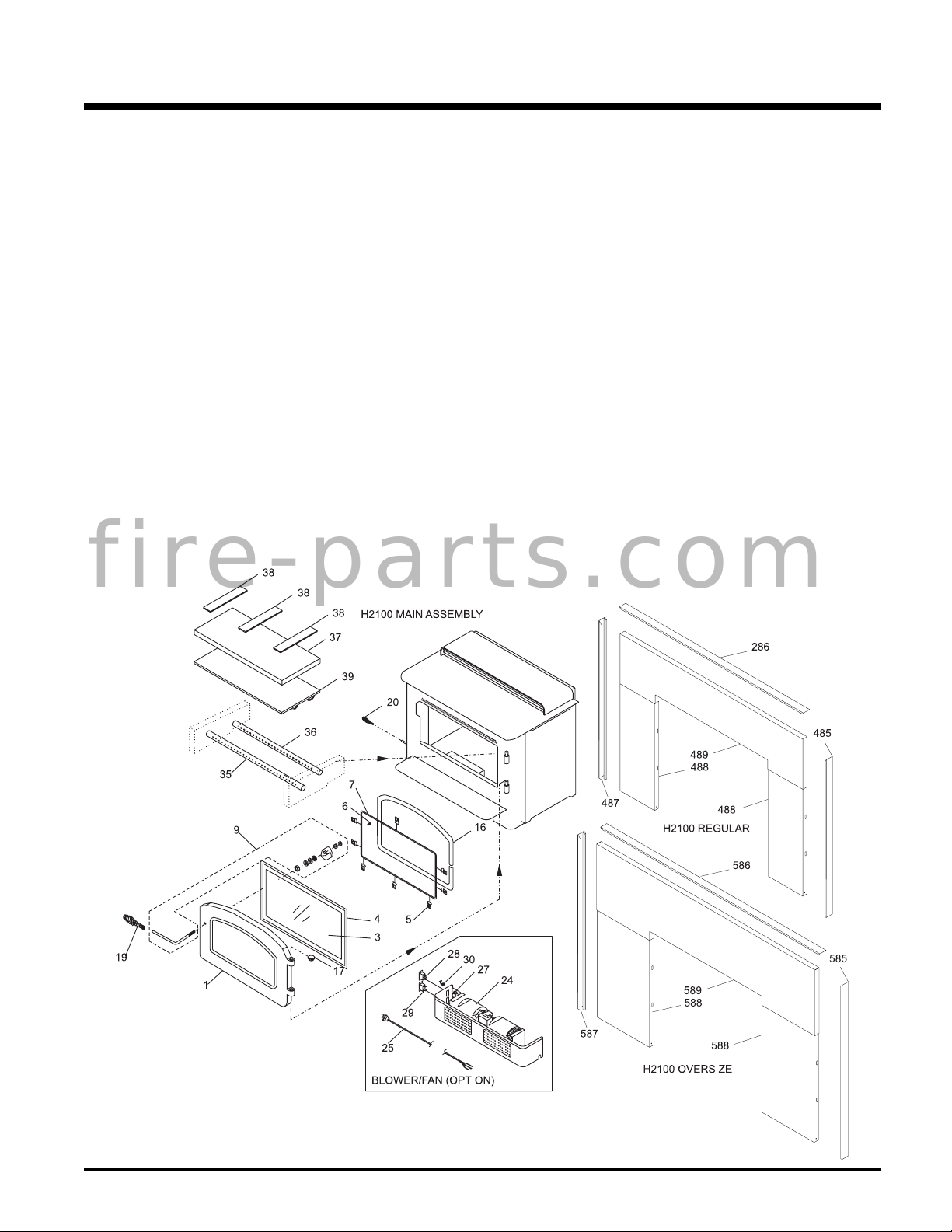

H2100 MAIN ASSEMBLY
Part # Description Part # Description
1) 846-910 Door Assembly-Large Gold - no glass
846-916 Door Assembly-Large Black - no glass
3) 846-304 Glass - Replacement
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips (set of 8)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large
9) 846-973 Door Handle Assembly
16) 846-570 Med. Density Door Gasket Kit
17) 846-918 Hinge Caps (2/set)
19) 948-101 Spring Handle - Large
20) 948-102 Spring Handle - Small
120-915 H2100M Fan/Blower Assembly
24) 910-157/P Blower/Fan Motor (120 Volts)
25) 910-678 Power Cord (120 Volts)
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Switch HI/OFF/LOW (3-way)
29) 910-138 Switch - Auto/Manual (2-way)
30) * Grommet Strain Relief
35) 120-954 Air Tube Front
36) 120-953 Air Tube Rear
37) 836-212 Baffle Insulation
38) * Insulation Weights
39) 120-950 Steel Baffle
948-216 Regency Logo
Faceplate: H2100M
120-910 Faceplate & Trim Set - Regular
485) 120-161 Trim Right Regular
286) 143-158 Trim Top Regular
487) 120-162 Trim Left Regular
488)* Faceplate Side Regular
489) * Faceplate Top Regular
120-912 Faceplate & Trim Set - Oversize
585) 120-164 Trim Right Oversize
286) 120-163 Trim Top Oversize
587) 120-165 Trim Left Oversize
588)* Faceplate Side Oversize
589) * Faceplate Top Oversize
846-532 Trim Clips
836-300 Yellow Insulation 48" x 4"
846-531 Faceplate Hardware Pkg.
*Not available as a replacement part.
PARTS LIST
fire-parts.com

Regency Wood Insert & Hearth Heater18
PARTS LIST
I1100, I3100 & H2100 FIREBRICK
Part # Description
70) 902-111 Brick Regular Full Size: 1-1/4" x 4-1/2" x 9"
71) 802-104 Brick Partial: 1-1/4" x 4" x 9"
72) 802-146 Brick Partial: 1-1/4" x 1-3/4" x 9"
75) 802-139 Brick Partial: 1-1/4" x 4" x 8-3/4"
76) 802-152 Brick Partial: 1-1/4" x 2" x 9"
78) 802-143 Brick Partial: 1-1/4" x 2-1/4" x 2-1/4"
81) 802-135 Brick Partial: 1-1/4" x 1-1/4" x 9"
84) 802-107 Brick Partial: 1-1/4" x 4-1/2" x 8"
85) 802-156 Brick Partial: 1-1/4" x 4-1/4" x 8"
fire-parts.com

Regency Wood Insert & Hearth Heater 19
WARRANTY
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects
each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the
original purchaser of a Regency Product. This warranty is not transferable.
The Warranty: Lifetime
Covered under the agreement are the following components:
Firebox, ceramic baffle, vermiculite baffle, steel baffles (H2100), convector airmate, castings, ashdrawer, glass (thermal breakage), gold plating (against
defective manufacture), airtubes (against warpage) and door handles.
The above will be covered for parts and subsidized labour for the first five years and parts only thereafter with the exception of the fireboxes (see below).
FPI is not liable for freight or labor on any wood burning appliance replaced in field.
Electrical components such as blowers, switches and thermodisc's are covered for two years parts and one year subsidized labour* from date of purchase.
Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a
receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distribu-
tor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI
and evaluated for manufacturer defect.
The authorized selling dealer is responsible for all in-field service work carried out on your Regency product. FPI will not be liable for results or costs of
workmanship from unauthorized service persons or dealers.
At all times FPI reserves the right to inspect product in the field which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including
customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing, firebrick or trim. It does not cover installation and operational related
problems such as over-firing, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains,
inadequate venting or ventilation, excessive offsets, negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers etc.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit
once manufactured. ie. as products evolve, field modifications or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty
policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may
nullify your warranty on this product.
* Subsidy according to job scale as predetermined by FPI.
fire-parts.com

Printed in Canada
Installer: Please complete the following information
Dealer Name & Address:______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.:__________________________________________________________
Printed in Canada
Regency fireplace products are designed
with reliability and simplicity in mind. In
addition, our internal Quality Assurance
Team carefully inspects each unit thor-
oughly before it leaves our door.
Fireplace Products International
Ltd. is pleased to extend this
Limited Lifetime Warranty to the
original purchaser of a Regency
Product.
See the inside back cover for details.
Regency and Classic are trademarks of FPI Fireplace Products International Ltd.
Register your Regency online at
http://www.regency-fire.com
© Copyright 2007, FPI Fireplace Products International Ltd. All rights reserved.
fire-parts.com
