Regency Fireplace Products Liberty LRI4E-NG Quick start guide

Liberty®LRI4E / Regency Horizon®HRI4E
Gas Insert
Owners &
Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.

Horizon®HRI4E
Liberty®LRI4E

appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
 
 
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
MODELS: LRI4E-NG Natural Gas LRI4E-LP Propane
HRI4E-NG Natural Gas HRI4E-LP Propane
919-380c FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 08.05.16

2| LRI4E / HRI4E Direct Vent Gas Insert
|
2
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Insert by Regency.
The Regency Gas Insert Series of hand crafted appliances has been designed to provide you with all the warmth


with economy, comfort and security for many trouble free years to follow.

Regency Fireplace.
Horizon HRI4ELiberty Gas
Inserts Beneits
Horizon Gas
Inserts Beneits
Liberty LRI4E

LRI4E / HRI4E Direct Vent Gas Insert | 3
| 3
table of contents
Heat exchange return..................................................28
Brick panel installation.................................................29
Enamel panel installation.............................................30
Glass door removal / installation .................................31
Vignette faceplate with Safety screen installation .......32
Inlay installation...........................................................33

installation....................................................................34
4 sided faceplate with safety screen installation..........35
Spacer installation .......................................................36
Backing plate installation.............................................37
......38
...........39
Optional hearth trim installation...................................40
Operating Instructions ................................................42
First Fire ......................................................................42
Automatic Convection Fan Operation.........................42
Lighting Procedure ......................................................43
Shutdown Procedure...................................................43
Normal Operating Sounds Of Gas Appliances ............44
Copy Of Lighting Instruction Plate...............................44
Maintenance Instructions............................................45
Door Glass ..................................................................45
Pilot Adjustment...........................................................46
General Vent Maintenance ..........................................46
Log Replacement ........................................................46
Glass Gasket...............................................................46
Glass crystal burner removal / installation - HRI4E.....47
Glass Burner Removal ................................................47
Glass Burner install .....................................................47
LRI4E ceramic burner Removal / installation .............48
Fan maintenance - with GTMF remote control............49
Valve replacement .......................................................50
Main Assembly ............................................................52
Vignette faceplate........................................................54
....................................................54
Warranty ......................................................................56
Unit dimensions with vignette faceplate ........................4
.....................5
Unit dimensions with 4 sided vignette faceplate............6
Copy of Safety Label .....................................................7
MA Code - CO Detector.................................................8
(for the State of Massachusetts only)............................8
Important Message ......................................................9
Before You Start ............................................................9
Important Message ......................................................9
For Your Safety..............................................................9
 ................................................................9
Gas Pressure Testing ..................................................10
Installation Into A Solid Fuel Burning Fireplace
Or Factory Built Fireplace............................................10
Factory-Built (Metal) Wood-Burning Fireplace
Requirements ..............................................................10
Installation Checklist.................................................... 11
Materials Required ...................................................... 11

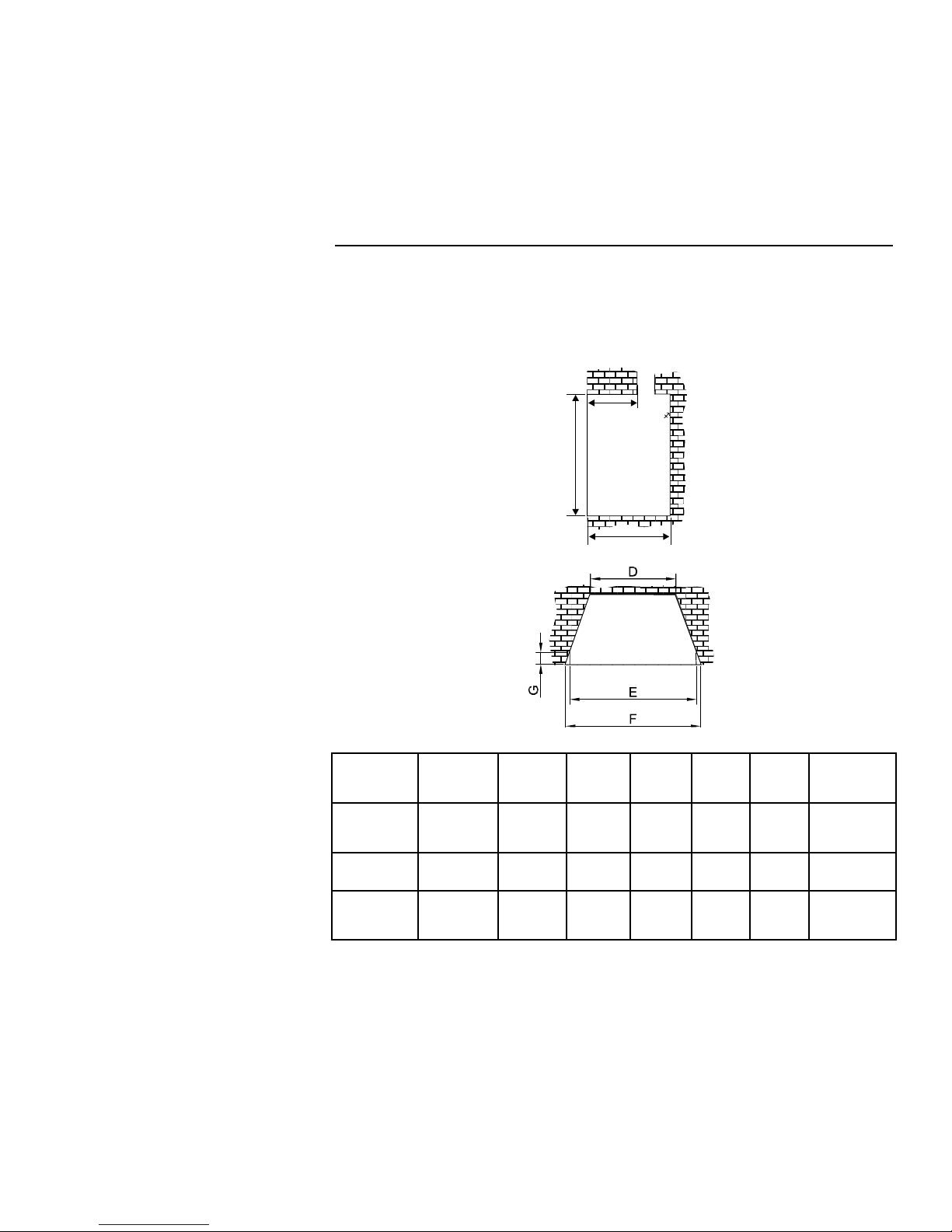

Minimum Fireplace Dimensions .................................. 11
Minimum Clearances to combustibles.........................12
Gas Connection...........................................................13
Venting.........................................................................13
Flue / vent installation..................................................14
Levelling leg adjustment..............................................15

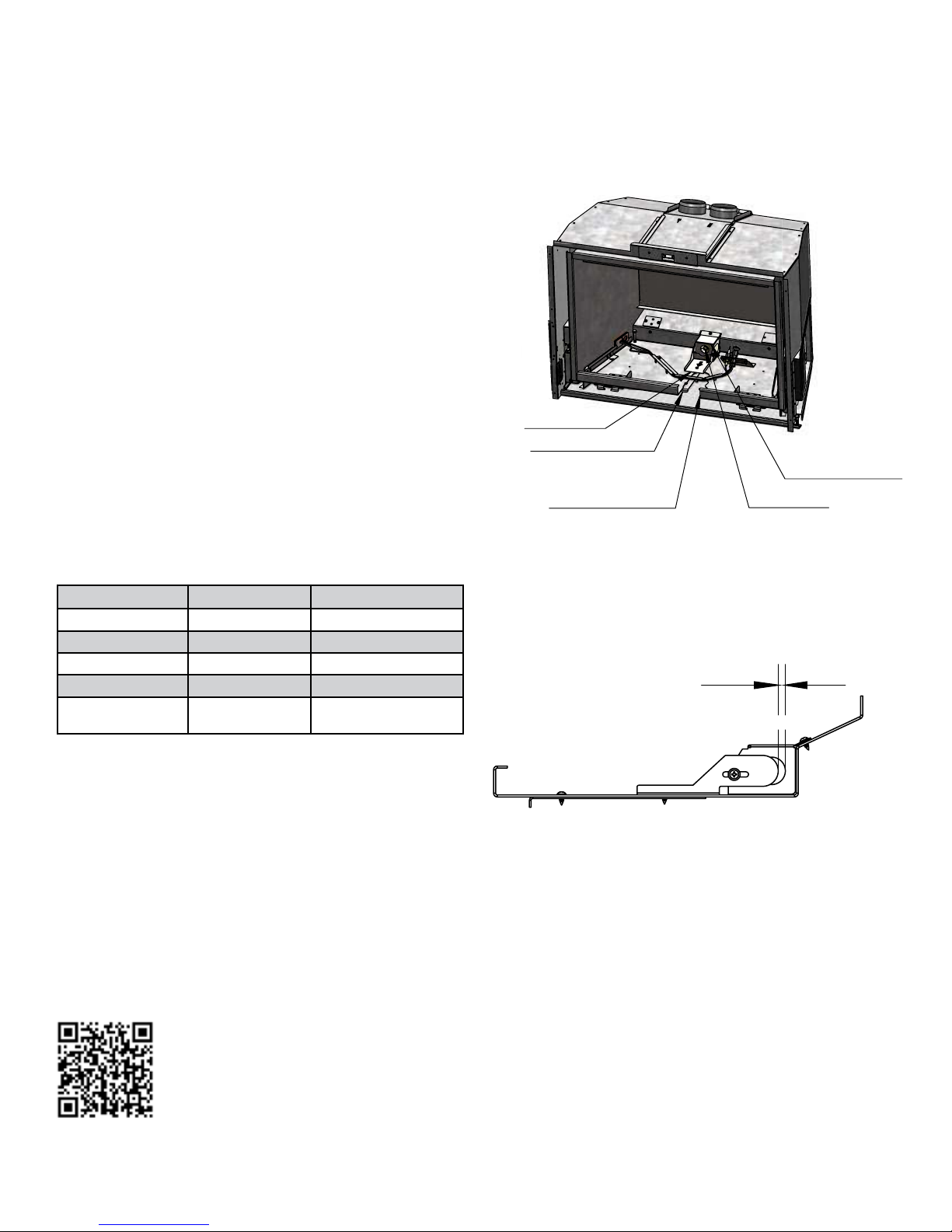

Air shutter Adjustment .................................................16
High Elevation .............................................................17
Gas Line Installation....................................................17
Gas Pipe Pressure Testing ..........................................17
885 S.I.T. Valve Description.........................................17

(LRI4E / HRI4E)...........................................................18
Optional wall thermostat installation............................19
Conversion from NG to LP ........................................20
Media installation.........................................................22
HRI4E optional log set installation...............................24
LRI4E log set installation ...........................................26
Standing pilot ..............................................................28

4| LRI4E / HRI4E Direct Vent Gas Insert
|
4dimensions

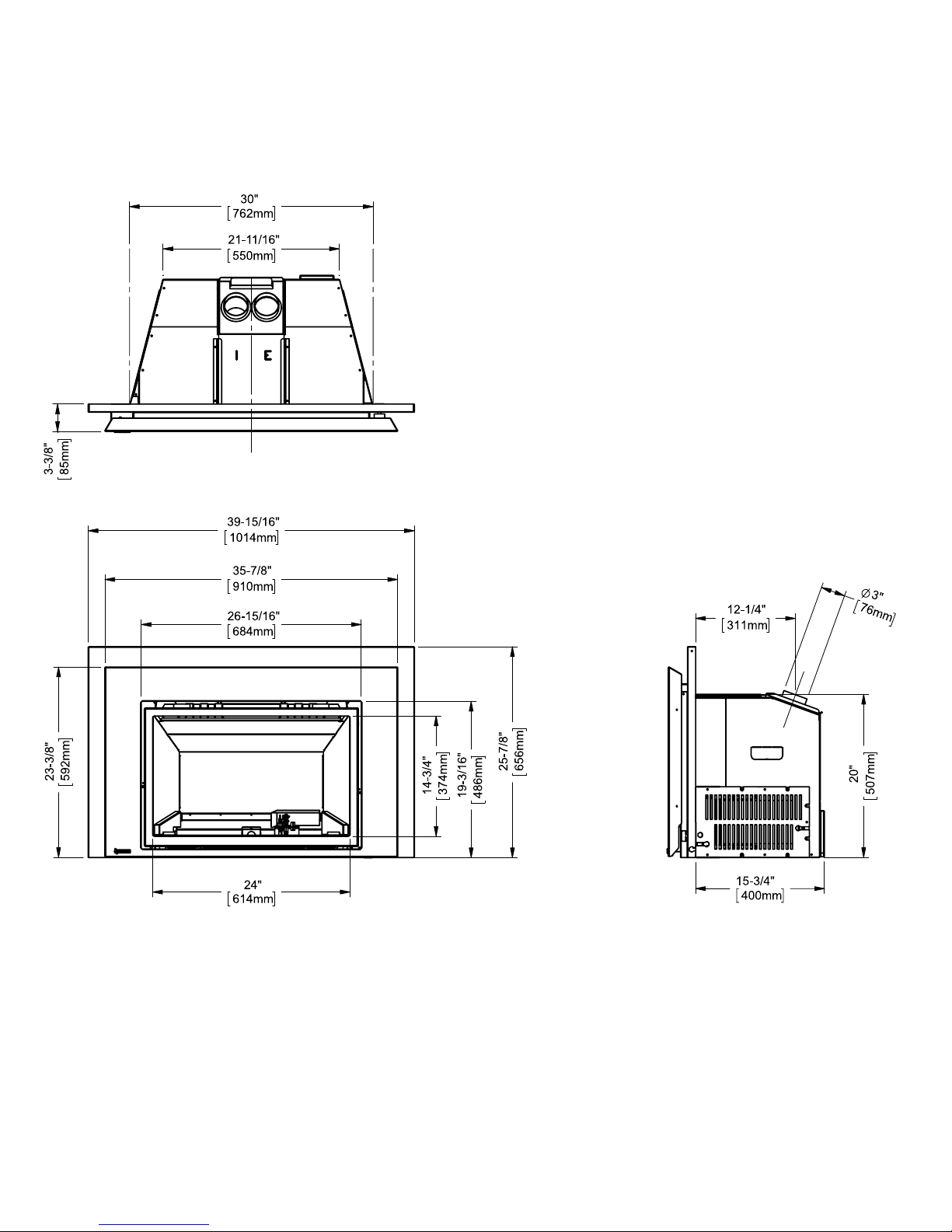

UNIT DIMENSIONS WITH VIGNETTE FACEPLATE
41-5/8"
35-1/8"
22-7/8"
26-1/8"
14-3/4"
24 "-3/16
( mm)614
30"
1-1/8"
21-11/16"
20"
3"
14-7/16"
(762mm)
(550mm)
(27mm)
(1056mm)
(366mm)
(891mm)
(580mm)
(374mm)
(622mm)
(507mm)
(76mm
)
18
(457mm)

LRI4E / HRI4E Direct Vent Gas Insert | 5
| 5
dimensions
UNIT DIMENSIONS WITH LOW PROFILE FACEPLATE

6| LRI4E / HRI4E Direct Vent Gas Insert
|
6dimensions
UNIT DIMENSIONS WITH 4 SIDED VIGNETTE FACEPLATE

LRI4E / HRI4E Direct Vent Gas Insert | 7
| 7
safety decal
This is a copy of the labels that accompany each LRI4E Gas Insert. We
have printed a copy of the contents here for your review.
NOTE: Regency units are constantly being improved. Check the label on
the unit and if there is a difference, the label on the unit is the correct one.
NATURAL GAS FIREPLACE INSERT: MODEL L E-NGRI4
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. supply pressure 5 WC (1.25 kpa)
Low Setting Man. pressure 1.6" WC (0.41 kpa)
Max. Manifold pressure 3.5" WC (0.87 kpa)
Orifice size #3 DMS5
Minimum input 22,000 Btu/h (6.45 kW)
Maximum input 31,000 Btu/h (9.09 kW)
PROPANE GAS FIREPLACE INSERT: MODEL L E-LPRI4
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. supply pressure 11"WC (2.73 kpa)
Low Setting Man. pressure 6.4" WC (1.59 kpa)
Max. Manifold pressure 10" WC (2.48 kpa)
Orifice size #53 DMS
Minimum input 26,000 Btu/h (7.62 kW)
Maximum input 31,000 Btu/h (9.09 kW)
Model/Mod le:è
L E-NGRI4
91 -9 381
DO NOT REMOVE THIS LABEL /
NE PAS ENLEVER CETTE TIQUETTEÉ
Serial No. / No de s rieé
434
434
Duplicate Serial number/Copie No de série
Listed: VENTED GAS FIREPLACE HEATER
/ FOYER AU GAZ À ÉVACUATION
CANADA and U.S.A.Certified for/Certifi e pour :é
Tested to: CAN/CGA-2.17-M91(R2009)
Conforms to: ANSI Z21.88-2014
14Certified to: CSA 2.33-20
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
FOYER AU GAZ À ÉVACUATION - NE PAS UTILISER AVEC COMBUSTIBLE SOLIDE.UN
Model/Mod le:è
- LP
L ERI4
ÉÉQUIP USINE POUR GAZ PROPANEEN
MODL LE-LPÈE RI4
ÉÉQUIP SINE POUR GAZ NATURLEN UE
MODL LE-NGÈE RI4
Pression d'alimentation minimum
Pression bassede sortie (manifold) -
Pression de sortie (manifold) - max.
Taille de l'orifice
D bit alorifique minimumcé
Dcbit alorifique maximumé
Min. Hearth Width/
Largeur min. âtre D14 (356mm)
Min. Hearth Length/
Longueur min. âtre E40 (1016mm)
Max. Mantle Depth/
Prof. max. manteau G 12" (305mm)
Mantel Clearances / Dégagements manteau
Regency Fireplace Products
Delta BC, CANADA
Side wall A6 (152mm)/mur latéral
Ceiling B60 (1524mm)/Plafond
Mantel C( mm)/Manteau 35 889
Min. Alcove Width/Largeur min. alcôve K 54" (1372mm)
Max. Alcove Depth/Prof. max. alcôve L36 (914mm)
MADE IN CANADA /FABRIQU AU CANADAÉ
Minimum Clearances to Combustibles
from Insert/Dégagements min. combustibles
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and
Propane Installation Code, CSA B149.1.
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases unless a certified kit is used.
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured
(mobile) home where not prohibited by local codes. See owner's manual for details
WARNING.This fireplace has been converted for use with a gas fireplace insert only and cannot be used for burning wood or solid fuels unless all original
parts have been replaced, and the fireplace re-approved by the authority having jurisdiction.
Cet doit être installé conformément aux et conformément auappareil codes règlements locaux, ou, en l'absence de tels règlements, National Fuel Gas
Code ANSI Z223.1, ou CSA-B149.1 en vigueur.au
Cet appareil doit être utili uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maisonsé
préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de
renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
Cet appareil n'est pas convertible pour une utilisation avec d'autres gaz, sauf si un kit certifié est utilisé.
AVERTISSEMENT :Ce foyer a été converti pour avec un foyer au gaz encastrable et ne peut être utilis pour brûler du bois ou d'autresêtre utilisé é
combustibles solides à moins que toutes les pièces d'origine aient été rem es et que le foyer ait été éde nouveau par autoritéis en place homologu une
compétente.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
For use with glass doors certified with the appliance only. Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil.
For use only with barrier (Part # 399-100) Follow installation instructions. Pour utilisation uniquement avec lécran(Pièce n°399-100)
Suivre les consignes d'installation.
4001172
Pression d'alimentation minimum
Pression bassede sortie (manifold) -
Pression de sortie (manifold) - max.
de l'orificeTaille
D bit alorifique minimumcé
D bit alorifique maximumcé
Electrical supply / lectrique 115VAC, 2.5 A, 60Hz, Less than 10AAlimentation é Fan Part # 911-071/Pièce ventilateur
A
C
B
E
K
D
L
G
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with
battery back up in the same room where the gas appliance is installed.
COPY OF SAFETY LABEL

8| LRI4E / HRI4E Direct Vent Gas Insert
|
8requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

LRI4E / HRI4E Direct Vent Gas Insert | 9
| 9
installation
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The LRI4E / HRI4E Gas Inserts must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual first. Consult the
"authority having jurisdiction" to determine the need
for a permit prior to starting the installation. It is the
responsibility of the installer to ensure this fireplace
is installed in compliance with manufacturers
instructions and all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROLCOMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHE MANUFACTURER'S BARRIER
FOR THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
AN APPLIANCE MUST BE REPLACED
PRIORTO OPERATINGTHE APPLIANCE.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Regency Gas Insert must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual first. Consult the
building authority having jurisdiction to determine
the need for a permit prior to starting the installation.
NOTE: Failure to follow the instructions could cause
a malfunction of the heater which could result in
death, serious bodily injury, and/or property damage.
Failure to follow these instructions may also void
your fire insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion.
Always provide adequate combustion and ventilation
air. Follow instructions and information in CAN/CGA
B149 (in Canada) or the National Fuel Gas Code
ANSI Z223.1 (in the USA), regarding requirements
for combustion and ventilation air.
SPECIFICATIONS
At pressures over 1/2 psig, the pipe to the unit must
be disconnected.
Gas Input Capacity:
Natural Gas 31,000 Btu/h
Propane 31,000 Btu/h
Min. Input
(with Proflame GTM or GTMF remote)
Natural Gas 22,000 Btu/h
Propane 26,000 Btu/h
Fuels: Approved for use with both natural gas,
and propane. Approved as is for use at 0' to 4,500'
(0-1370m).
Electrical: 120V A.C. system.
Circulation Fan: Variable speed, 140 CFM.
Log Set: Ceramic fibre, 7 per set - LRI4E
Glass Crystals: 7lbs of glass crystals - HRI4E
Optional Log Set: Ceramic fibre, 6 per set + 5lbs
of glass crystals - HRI4E
Vent System: 3" co-linear aluminum flex.
The efficiency rating of the appliance is a
product thermal efficiency rating determined
under continuous operating conditions and was
determined independent of any installed system.

10 | LRI4E / HRI4E Direct Vent Gas Insert
|
10 installation
General Safety Information
1) The appliance installation must conform with
local codes or in the absence of local codes,
with CAN/CGA B149 (in Canada) or the National
Fuel Gas Code ANSI Z223.1 in the U.S.A. This
appliance should be installed by a qualified gas
fitter technician only.
2) Installation and repair should be done by a
qualified service person.
3) The appliance should be inspected before use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, animal hair, etc. It is imperative that
control compartments, burners and circulating
air passageways of the appliance be kept clean.
4) See general construction and assembly
instructions. This appliance may only be
installed in a vented, noncombustible fireplace.
5) This appliance is listed for bedroom installations
when used with a listed Millivolt Thermostat.
Some areas may have further requirements,
check local codes before installation.
6) Always connect this insert to a vent system
venting to the outside of the building envelope.
Never vent to another room or inside a building.
Make sure that the vent is properly sized and is
of adequate height to provide the proper draft.
7) Inspect the venting system annually for blockage
and any signs of deterioration.
8) Any glass removed for servicing must be
replaced prior to operating the appliance.
9) To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
10) This appliance cannot be operated without brick
or enamel panels in place.
11) Due to high temperatures, the appliance should
be located out of high traffic areas and away
from furniture and draperies. Children and
adults should be alerted to the hazards of high
surface temperatures, especially the fireplace
glass and gold trims, and should stay away to
avoid burns or clothing ignition. Young children
should be carefully supervised when they are
in the same room as the appliance. Clothing or
other flammable material should not be placed
on or near the appliance.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
GAS PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa).
INSTALLATION INTO A SOLID FUEL
BURNING FIREPLACE OR FACTORY
BUILT FIREPLACE
The LRI4E / HRI4E Gas Inserts have been tested
and approved to be vented into any masonry fire-
place or approved solid fuel burning factory built
fireplace that will allow the insert to physically fit into
the firebox. Refer to "Minimum Fireplace Dimen-
sions" section for minimum fireplace clearances.

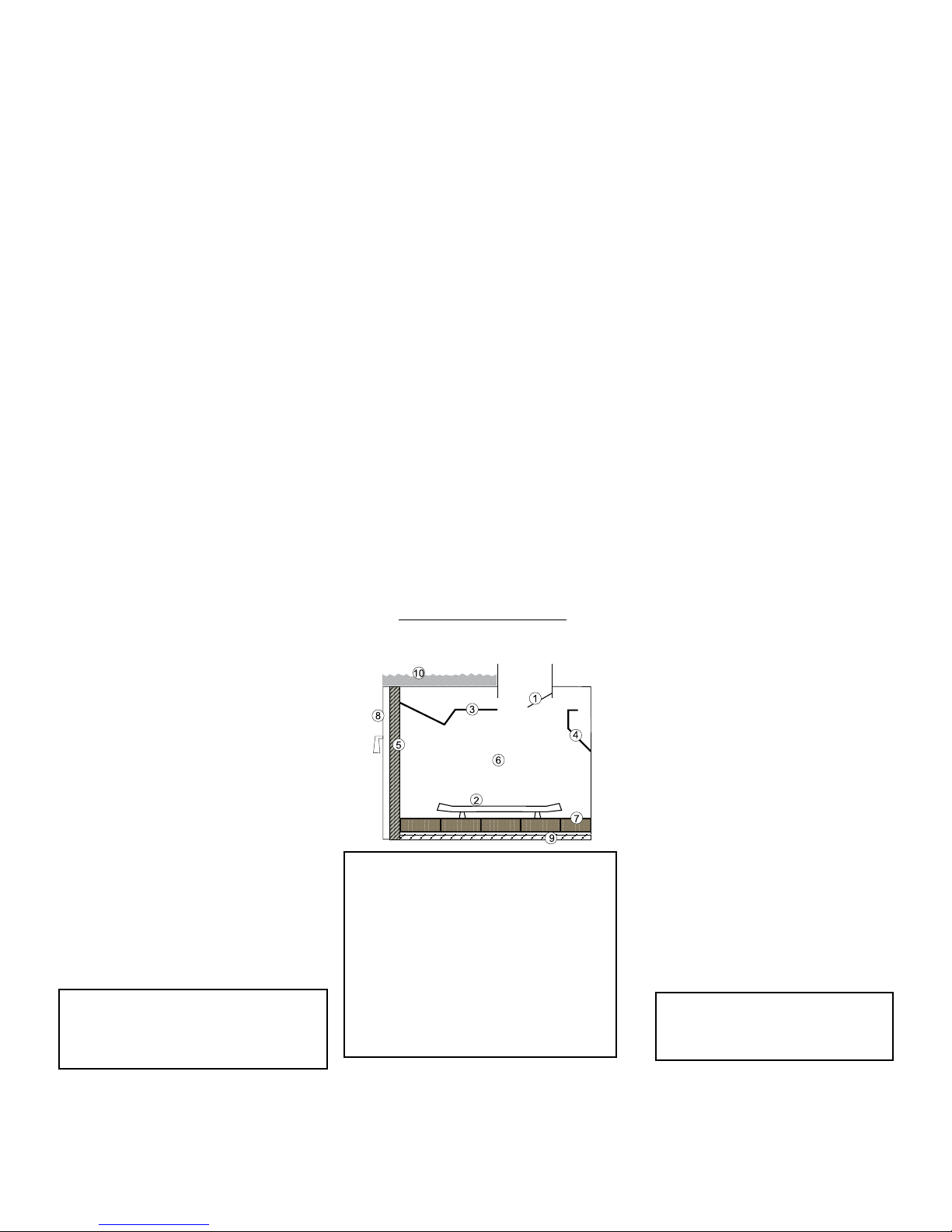

If the factory built fireplace* height is too low for
your Insert, you may remove the smoke baffle
plate, damper, refractory (firebricks), glass doors,
screen rails, screen mesh and log grates from the
factory built fireplace as long as these items are
saved and are reinstalled in the event that the Insert
is removed. The fireplace flue damper can be fully
blocked open or removed for installation of the gas
fireplace insert.
Smoke shelves, shields and baffles may be removed
if attached by mechanical fasteners. If any part is
removed it must not weaken the structural integrity
of the factory built fireplace.
The fireplace and fireplace chimney must be clean
and in good working order and constructed of non-
combustible materials.
The surround panels should not seal ventilation
openings on the fireplace.
Chimney clean outs should fit properly.
NOTE: Any alterations made to the listed solid fuel
burning factory built fireplace may void the listing
of the fireplace.
Cutting any sheet metal part of the fireplace, in
which the gas fireplace insert is to be installed is
prohibited.
*Check with your local inspector before commencing
with this installation.
Installer must mechanically attach the supplied
label to the inside of the firebox of the fireplace into
which the gas fireplace insert is installed.
"WARNING: This fireplace has been converted
for use with a gas fireplace insert only and cannot
be used for burning wood or solid fuels unless all
original parts have been replaced, and the fireplace
re-approved by the authority having jurisdiction."
FACTORY-BUILT (METAL) WOOD-
BURNING FIREPLACE
REQUIREMENTS
NOTE: Any parts that are removed must be removed
in a way that would allow them to be re-installed if
the insert is ever removed (removal of rivets or
screws is acceptable).
To reference parts—see illustration below.
Must be removed:
1 -Damper
2- Grate (with log set)
May be removed (if applicable):
3- Smoke shelf
4- Internal baffles
5 - Screen
6 & 7 - Masonry lining or refractory
8 - Metal or glass doors
The fireplace must be permanently marked to
indicate that it has been altered and is no longer
suitable for burning solid fuel (wood), unless the
removed parts are re-installed. Cutting of any sheet
metal parts is prohibited.
May be removed (in certain cases):
9 -Metal floor of the firebox
10 - The insulation and any structured rigid frame
members must not be removed or altered (side and
top of door frame, side and top of the face of the
fireplace, metal sides, etc.).
If the factory-built fireplace has no gas access
hole(s) provided, an access hole of 1.5 inch (37.5
mm) or less may be drilled through the lower sides
or bottom of the firebox in a proper workmanship
like manner. This access hole must be plugged
with non-combustible insulation after the gas
supply line has been installed.
CAUTION:
Firebox floor removal is not covered under the
appliance safety standard (ANSI Z21.88, CSA
2.33) used in the safety certification of this ap-
pliance. The Intertek safety certification does
not apply to this method of installation. Before
installing the appliance using this method, contact
the Authority Having Jurisdiction to determine
if this installation is acceptable in your area.
The sheet metal base of the fireplace must be
left in place and a minimum 1/2" cement board
sheet placed under the entire length and width
of the appliance.

LRI4E / HRI4E Direct Vent Gas Insert | 11
| 11
installation
A
B
C
MATERIALS REQUIRED
A 120 Volt AC power cord is hooked up to operate the fan and operate the gas valve when batteries are
not installed in the receiver. Plug the 3 wire cord into a suitable receptacle. Do not cut the ground
terminal off under any circumstances. When connected with 120 volts, the appliance must be
electrically grounded in accordance with local codes, current version of CSA C22.1 (in Canada) or in
the absence of local codes, with the National Electrical Code ANSI/NFPA 70-1987.
INSTALLATION
CHECKLIST
Before installing vent system ensure that the damper
plate is open and secure to prevent the damper plate
from falling down and crushing the liner.
The Regency Gas Insert is installed as listed.
1) Check all clearances to combustibles, (Refer to
sections "Minimum Fireplace Dimensions and
Clearances to Combustibles)
2) Make the gas connection. (Refer to section "Gas
Connection")
3) Install the two 3" flue liners (intake and exhaust)
to the sliding connector plate. (Refer to section
"Flue Liner Installation.")
4) Slide the unit half way into the fireplace.
5) Pull the vent connector plate through the tapered
brackets and fasten to the front plate. Refer to
section "Flue Liner Installation.")
6) Slide the unit fully into the fireplace. Level if
necessary.
7) Hook up 120 volt AC power cord into a suitable
receptacle. Optional: Install 4 batteries in
receiver. Batteries only serve as back up if
power is lost within the home.
8) Test gas pressure (Refer to section "Gas Pipe
Pressure Testing"). Check aeration system
(Refer to section "Gas Insert Aeration System").
9) Install standard and optional features. Refer to
the following sections:
a. Brick Panels or Enamel Panels
(must be installed)
b. Log Set
c. Glass Crystals
d. Spa stones
e Standard Faceplate
f. Low Profile Faceplate
g. 4 sided faceplate.
10) Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is firing correctly. This includes:
a) Clocking the appliance to ensure the correct

b) Adjusting the primary air, if required, to

"Gas Insert Aeration System" section.
c) Ensuring that the appliance is venting
correctly.
MINIMUM FIREPLACE DIMENSIONS
The minimum fireplace clearances & dimensions for the Regency gas insert are shown in the following
diagrams:
Max Lintel Bar
Depth
A
Height
B
Depth
C
Width
(rear)
D
Width
(front)
E
Width
F
Front Depth
To Taper
G
Low

Faceplate
10" 20" 15.75" 22" 30" 31-1/4" 2-1/8"
Vignette
Faceplate
12.25" 20" 18" 22" 30" 35-5/8" 4-3/8"
Vignette
Faceplate
w/Spacer
10" 20" 15.75" 22" 30" 31-1/4" 2-1/8"

12 | LRI4E / HRI4E Direct Vent Gas Insert
|
12 installation
Diagram 1
Diagram3
Diagram 2
      
mantel height to 32" from bottom of unit
@ 1"depth.
A noncombustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
noncombustible board.
Note: All material used must be completely
non-combustible.
MINIMUM CLEARANCES TO COMBUSTIBLES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this
decorative gas appliance be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Sides 6" / 152 mm From inside edge of faceplate / doors
B: Ceiling 60" / 1524 mm From Base of Unit
C: Mantel (Min. Height) *32" / 813mm
35"/ 889mm
From Base of Unit
From Base of Unit
D:Min. Hearth Depth 14" / 356mm
E: Min. Hearth Length 40"/ 1016mm
G: Max. Mantle Depth 0-12" / 305 mm @ 44" (1118mm) from bottom of unit
K: Min. Alcove Width 54" / 1372 mm
L: Max. Alcove Depth 36" / 914 mm
M: Mantel Deflector 3-1/2"/ 89mm
NOTE: 40” (1016 mm) wide x 14” (356mm) deep hearth is required, unless the unit is raised
6” (152 mm) off the floor surface.
*An optional 3-1/2" deflector, reduces the mantel height to 32" from bottom of unit
@ 1"depth.
Door
Opening
15" Min
From Top of
24
26
28
30
32
34
36
38
0
2
4
6
8
10
12
14
16
18
20
22
24
Allowable
Mantel Area
35"
From bottom
of unit
22
20
18
16
14
Door
Opening
12" Min
From Top of
24
26
28
30
32
34
36
38
0
2
4
6
8
10
12
14
16
18
20
22
24
Allowable
Mantel Area
32"
From bottom
of unit
22
20
18
16
14
12
MANTEL CLEARANCES WITHOUT DEFLECTOR MANTEL CLEARANCES WITH 3-1/2" DEFLECTOR
WARNING
Although this appliance passes safety
certification, the hearth in front of the fireplace
becomes very hot when the fireplace heats. Do
not use the hearth as a seat or shelf.

LRI4E / HRI4E Direct Vent Gas Insert | 13
| 13
installation
VENTING
THE APPLIANCE MUST NOT BE
CONNECTED TO A
CHIMNEY FLUE SERVING A
SEPARATE SOLID FUEL
BURNING APPLIANCE.
This appliance is designed to be attached to two
3" (76mm) co-linear aluminium flex running the full
length of the chimney. The flue length must be a
minimum length of 8 ' (2.44m) and a maximum of
35' (10.7m). See chart for minimum distances from
roof. Periodically check that the vent is unrestricted.
Masonry chimneys may take various contours which
the flexible liner will accommodate. However, keep
the flexible liner as straight as possible, avoid
unnecessary bending.
The Air Intake pipe must be attached to the inlet
GAS CONNECTION
1) If the appliance is to be installed into an existing
chimney system, thoroughly clean the masonry
or factory built fireplace.
2) The appliance is provided with an opening on
the left hand side of the control compartment.
A 3/8" NPT gas supply pipe must be brought
near this inlet hole.
3) Locate the center point where the vent will pass
through the chimney above the appliance. Move
the appliance into the exact location where it is
to be installed. Ensure that the Insert is level.
4) Do not cut any sheet-metal parts of the fire-
place, in which the gas fireplace insert is to
be installed.
5) If the factory-built fireplace has no gas access
hole(s) provided, an access hole of 1-1/2"
(37.5mm) or less may be drilled though the
lower sides or bottom of the firebox in a
proper workmanship like manner. This access
hole must be plugged with a non-combustible
insulation after the gas supply line has been
installed.
Alternate Approved Caps
46DVA-VC Vertical Termination Cap
46DVA-VCH High Wind Cap
46DVA-GK 3" Co-linear Adaptor with flashing
In areas of consistently high winds, we recommend
using the Simpson Dura-Vent System (46DVA-GK
adapter and 46DVA-VCH high-wind cap).
The Air Intake pipe must be attached to the inlet
air collar of the termination cap.
GAS CONNECTION WARNING:
Only persons licensed to work
with gas piping may make the
necessary gas connections
to this appliance.
Air
Intake Exhaust
Flue
air collar of the termination cap.
Part # Description
948-305 3" Flex - 35 ft.
946-529 Co-linear DV Vertical
Termination Cap
Gas & Electrical Connections

14 | LRI4E / HRI4E Direct Vent Gas Insert
|
14 installation
Properly installed Flue
Connector Plate
Rear tabs fully engaged
1) Detach the Flue Connector Plate from the unit by removing the
Connector Plate Screws and sliding the Flue Connector Plate forward
and off the unit.
NOTE: Flue Plate Connector Gasket
must not be damaged or removed.
Care must be taken to ensure that this
gasket remains intact to prevent flue
leakage.
5) When the Flue Connector Plate is close to the front of the unit, engage
the Flue Connector Screws and carefully tighten the Flue Connector
Plate the final amount.
** Make sure the Rear Tabs connect into their respective slots in the Flue
Connector Plate. Failure to do so will result in flue gas leakage and
degrade the operation of the unit ** (See diagram below of location.)
The Flue connection is complete when the Flue Connector Plate is fully
forward and the Rear Tabs are fully engaged.
6) Remove the Flue Connector Tool and store for future use.
2) Attach the Flue Liners onto the Flue Connector Plate using non RTV
type sealant, then fasten with 3 screws.
See the section in this manual on Venting installation.
3) Position the unit in front of the fireplace opening, start the Flue Connec-
tor Plate into the Flue Connector Plate Guides.
Flue Connector Plate
Flue Connector Slide Tool
Connector plate screws
4) Use the Flue Connector Slide Tool to slowly pull the Flue Connector
Plate forward as you move the Insert rearward into the Fireplace Chase.
FLUE / VENT INSTALLATION
WARNING:
Failure to position the parts in accordance with these diagrams or failure
to use only parts specifically approved with this appliance may result in
property damage or personal injury.
Connecting the Vent Liners
Intake Liner
Exhaust Liner
Vent Connectors
Flue Connector
Plate Gasket
Flue Connector
Plate Guides
Flue Connector
Slide Tool
Flue Connector
Screws
Flue Connector
Plate

LRI4E / HRI4E Direct Vent Gas Insert | 15
| 15
installation
LEVELLING LEG ADJUSTMENT
The LRI4E / HRI4E inserts are equipped with 2 rear levelling legs that are accessible while the appliance is in its final installation position. The unit can be
adjusted up to 5/16" (16mm).
Remove left and right side filler pieces. The rear levelling bolts are located in the back corners of the firebox and can be adjusted using a 7/16" wrench.
Rotate the bolts clockwise to raise the rear of the firebox.
When the appliance is in position, adjust the bolts to level the appliance, making sure that the appliance is also level and is sitting on the 2 bolts to prevent
rocking.
Levelling legs

16 | LRI4E / HRI4E Direct Vent Gas Insert
|
16 installation
Air Shutters are required to increase or decrease the amount of air that is
mixed with the fuel before combustion. This will have an affect on how well
the fuel combusts and how the flame appears physically.
Low primary air will leave a taller, yellower flame while higher primary air will
leave a lower, bluer flame.
This setting is largely for appearance, however, not enough primary air may
lead to carboning, sooting or a flame that reaches the top of the firebox.
Situations that may require more primary air are; units that are burning
propane, units installed at higher elevations or units that are run on high
most of the time.
The LRI4E / HRI4E are equipped with an air shutter that is accessible from
outside the firebox and can be adjusted during operation.
Aeration adjustments should only be made after the unit has been on for 30
minutes to 1 hour.
Slide the Air Shutter Lever towards you to increase the primary air setting.
Slide the Air Shutter away from you to decrease the primary air setting.
Below you will see a chart showing the minimum primary air settings.
These are set from the factory, but due to fuel conversions or installation
conditions, the air setting may need to be adjusted.
Close Open
Unit Fuel Type Min. Air Setting
LRI4E NG 3/16" (5mm)
LRI4E LP 1/4" (6mm)
HRI4E NG 3/16" (5mm)
HRI4E LP 1/4" (6mm)
HRI4E w/optional
driftwood logs
NG Fully Open
AIR SHUTTER ADJUSTMENT
1) Slide the Air Shutter Lever towards you to increase the primary air set-
ting.
2) Slide the Air Shutter away from you to decrease the primary air setting.
Below you will see a chart showing the minimum primary air settings.
CAUTION: Carbon will be produced if air shutter is closed too much.
Note: any damage due to carboning resulting from improperly setting
the aeration controls is NOT covered under warranty.
Note: Aeration Adjustment should only be performed by an authorized
Regency Installer at the time of installation or service.
Note: The HRI4E with optional driftwood logs is only approved for use
with NG. This is not approved when using propane.
Push to close - Pull to open
Unit Front
Unit Back
First Fire & Aeration
Air Shutter
Burner Mounting
Bracket
Gas Orifice
Air Shutter Lever
Firebox cut-away
to show location
of the Air Shutter

LRI4E / HRI4E Direct Vent Gas Insert | 17
| 17
installation
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure
tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with
the unit burning and the setting should be within
the limits specified on the safety label.
6) When finished reading manometer, turn off the
gas valve, disconnect the hose and tighten the
screw (clockwise) with a 1/8" flat screwdriver.
Note:Screw should be snug, but do not over
tighten.
HIGH ELEVATION
This unit is approved for altitude 0 to 4500 ft. (CAN1
2.17-M91).
GAS LINE
INSTALLATION
Since some municipalities have additional local
codes it is always best to consult with your local
authorities and the CAN/CGA B149 installation
code.
For USA installations follow local codes and/or the
current National Fuel Gas Code, ANSI Z223.1.
When using copper or flex connectors use only
approved fittings. Always provide a union so that
gas lines can be easily disconnected for servicing.
Flare nuts for copper lines and flex connectors are
usually considered to meet this requirement.
NOTE: A shutoff / dante valve should be sup-
plied in or near the unit (or as per local codes)
for ease of servicing this appliance.
IMPORTANT: Always check for gas leaks with
a soap and water solution or gas leak detector.
Do not use open flame for leak testing.
LRI4E-NG / HRI4E-NG
SYSTEM DATA
Min. Supply Pressure 5" WC (1.25 kpa)
Manifold Pressure 3.5" WC (0.87 kpa)
 #35 DMS
Maximum Input 31,000 Btu/h
(9.09 kW)
LRI4E-LP / HRI4E-LP
SYSTEM DATA
Min. Supply Pressure 11" WC (2.73 kpa)
Manifold Pressure 10" WC (2.49 kpa)
 #53 DMS
Maximum Input 31,000 Btu/h
(9.09 kW)
 
contact your Regency®dealer for further
instructions.
Incorrect flame pattern will have small,probably
yellow flames, not coming into proper contact
with the rear burner or flame sensor.
Burner
Flame Sensor
Pilot Ignitor
885 S.I.T. VALVE
DESCRIPTION
1) 6 Stage flame adjustment
2) Pilot adjustment
3) Inlet Pressure Tap
4) Outlet Pressure Tap
5) Pilot Outlet
6) Main Gas Outlet
7) Main Gas Inlet
1
2
3
4
6
5
7

18 | LRI4E / HRI4E Direct Vent Gas Insert
|
18 installation
GTMF REMOTE SYSTEM - IMPORTANT: The 120V fan control module serves as the power source for this unit. The AA batteries in the
receiver only serve as a backup in case 120 volt power lost within the home.
PROFLAME REMOTE SYSTEM GTMF WITH FAN (LRI4E / HRI4E)
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.
Caution: Ensure that the wires do not touch any
hot surfaces and are away from sharp edges.
Prolame Remote
Operation
Prolame Remote
Battery Change
Proflame System
Configuration
886 GTMF
Wire Diagram
885

LRI4E / HRI4E Direct Vent Gas Insert | 19
| 19
installation
OPTIONAL WALL THERMOSTAT INSTALLATION
This installation must be completed during intial install prior to the faceplate being installed.
A wall thermostat may be installed if desired.
1) Run wires from thermostat into the unit.
2) Remove the green wire marked (TH) at the white connector-shown below. The noted wires will be located near the gas valve.
Disconnect greenTH wire
Green Wires
White Connector
3) Connect one thermostat lead to female connector, using male spade con-
nector - see picture below.
CAUTION
Do not wire
Thermostat wires
to 120V wire.
4) Connect the other thermostat lead to male connector disconnected
from Step1using a female spade connector - see picture below.
When complete turn remote receiver to the ON position.
Unit will now operate using the wall thermostat.
NOTE: When the remote receiver is set to ON position, the
remote control transmitter and all of its features are now dis-
abled.

20 | LRI4E / HRI4E Direct Vent Gas Insert
|
20 installation
Before you begin:
Shut off the gas supply to the unit.
Disconnect all electrical supply to the unit.
Always let the appliance cool to room temperature before servicing.
1) Remove the left side control cover.
2)
Loosen both screws at the top of the valve about ½ way out. Lift the
valve body and lean outward. The Valve Brackets will rest open as
shown on the right.
3) Disconnect the Cable coming from the Pressure Regulator Motor.
WARNING
This conversion kit shall be installed by a qualified service agency in
accordance with the manufacturer’s instructions and all applicable codes
and requirements of the authority having jurisdiction. If these instructions
is not followed exactly, a fi re, explosion or production of carbon monoxide
may result causing property damage, personal injury or loss of life. The
qualified service agency is responsible for the proper installation of this
kit. The installation is not proper and complete until the operation of the
converted appliance is checked as specified in the manufacturer’s instruc-
tions supplied with the kit.
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION!
Side control cover
Cable from motor
The valve in the LRI4E is attached using 2 screws and 2 hooks located
below the valve. Loosening the screws part way and lift the valve to
disengage the hooks.
The valve will then hinge outward allowing access to the components
and pressure taps located on the top of the valve without completely
removing the valve.
Conversion Kit 396-972 includes:
1 911-011 Stepper Motor LP for 885 SIT
1 904-947 Orifice #53
1 910-101 Pilot Orifice #35
1 918-590 Decal - Conversion to LP
1 908-528 Label Propane
1 904-529 5/32" long Allen Key
4) Remove and discard 2 Pressure regulator screws A (T20 or slot), Pres-
sure Regulator B, Spring and Diaphragm C.
5) Ensure the rubber gasket, which is prefitted as part of the Assembly,
is properly positioned. Install the new Pressure Regulator using the 2x
M4 x .7 screws supplied. Tighten the screws to 25lb-in. In the ev
ent that
the screw threads are cross threaded or stripped, replace the valve
assembly.
Install the enclosed propane identification label to the valve body where it
can be easily seen.
CONVERSION FROM NG TO LP
LRI4E /HRI4E using SIT 885 NOVA Gas Valve
