Regency Fireplace Products I2400M Quick start guide
918-171a
MODELS: I2400M
10/18/11
Installer
Homeowner:
2Regency I2400M
Thank-you for purchasing a
.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the in your area.
Keep those burning.
If this Insert is not properly installed, a house re may result. For your safety,
follow the installation instructions, contact local building, re ofcials, or authority having jurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.
Regency I2400M
33
TABLE OF CONTENTS
Safety Label ..................................................................4
Unit Dimensions ...........................................................5
Before InstallingYour Insert ...........................................6
Chimney Specications .................................................6
Wood Insert Specications ............................................6
Installing Your Insert ......................................................7
Optional Flue Connector Kit ..........................................7
Masonry And Factory Built Fireplace Clearances .........8
How To Determine If Alternate
Floor Protection Materials Are Acceptable.....................8
Flue Connector Bracket .................................................9
Installation Into a Masonry Fireplace .............................9
Installation Into a Factory Built Fireplace.......................9
Installation of the Faceplate and Trim..........................10
Installation of the Fan/blower....................................... 11
Floor Protection ...........................................................12
Firebrick Assembly ......................................................12
Draft Control ................................................................12
Flue Bafe & Secondary Air Tube Installation .............12
Door Handle ................................................................12
Screen Door ................................................................12
First Fire ......................................................................13
Some Safety Guidelines ..............................................13
Wood Storage ..............................................................14
Ash Disposal................................................................14
Fan Operation .............................................................14
Creosote ......................................................................14
Maintenance of Gold-Plated Doors .............................15
Door Gasket ................................................................15
Door Latch Adjustment ................................................15
Glass Cleaning ............................................................15
Glass Replacement .....................................................15
Glass Removal ............................................................15
Annual Maintenance ....................................................15
Main Assembly & Options............................................16
Faceplates ..................................................................17
Brick Panels ................................................................18
Warranty .....................................................................19
http://oee.nrcan.gc.ca/residential/personal/retrot-homes/retrot-qualify-grant.cfm
4Regency I2400M
SAFETY LABEL
This is a copy of the label that accompanies
your . We have printed a copy
of the contents here for your review.
Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
Part #: 918-176c
Size: 3" H x 12-1/2" W (fi le at 100%)
Colour: Black on grey, except for what is indicated as being printed red on grey.
June 20/07: updated logo as per SCC requirements.
Mar. 1/10: Updated Logo
Apr. 7/11: Updated date of manufacture / added 5.5" liner
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY
CERTIFIED TO COMPLY WITH
July 1990, PARTICULATE
EMISSION STANDARDS.
MANUFACTURED BY FPI LTD.
SIGNATURE
Jan Feb Mar Apr May June
July Aug Sept Oct Nov Dec
2011
2012
2013
DATE OF
MANUFACTURE
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY
FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN
YOUR AREA.
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: I2400M
TESTED TO: ULC-S628-93 / UL-1482 / UL-737
REPORT NO.: 219-S-03-2
THE I2400M MEETS UL-737 STANDARD FOR FIREPLACE STOVES WHEN A FIRESCREEN IS PROVIDED.
DO NOT REMOVE THIS LABEL
246
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
ADJACENT SIDEWALL A) 11 in / 280 mm
MANTLE B) 20 in / 508 mm
TOP FACING C) 12 in / 305 mm
SIDE FACING D) 8 in / 200 mm
COMPONENTS REQUIRED FOR INSTALLATION: 5.5" (140mm) or 6" (152mm) STAINLESS STEEL LINER.
OPTIONAL COMPONENT: FAN (142-917), ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR (846-102)
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF APPLIANCE. DO NOT CONNECT THIS UNIT
TO A CHIMNEY FLUE SERVICING ANOTHER APPLIANCE. DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE
OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. RISK OF SMOKE AND FLAME SPILLAGE, OPERATE ONLY WITH DOORS FULLY OPEN OR FULLY CLOSED. IF INSTALLED IN
A MOBILE HOME OPERATE ONLY WITH DOORS FULLY CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY. WHEN OPERATED WITH DOORS OPEN THE MANUFACTURER SUPPLIED SCREEN
MUST BE USED. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY
OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
CAUTION
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
READ ABOVE INSTRUCTIONS.
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 0.5IN / 13MM ABOVE AN
ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-
COMBUSTIBLE MATERIAL EXTENDING (E) 18 IN / 457 MM TO FRONT AND (G) 8 IN / 205 MM
TO SIDES FROM FUEL DOOR. 0.5" FLOOR PROTECTION NEEDS TO BE WITH k=0.84.
MADE IN CANADA 918-176c
(Duplicate Serial #) 246
Manufactured By
:
FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST., DELTA, BC V4G 1H4
Regency I2400M
5

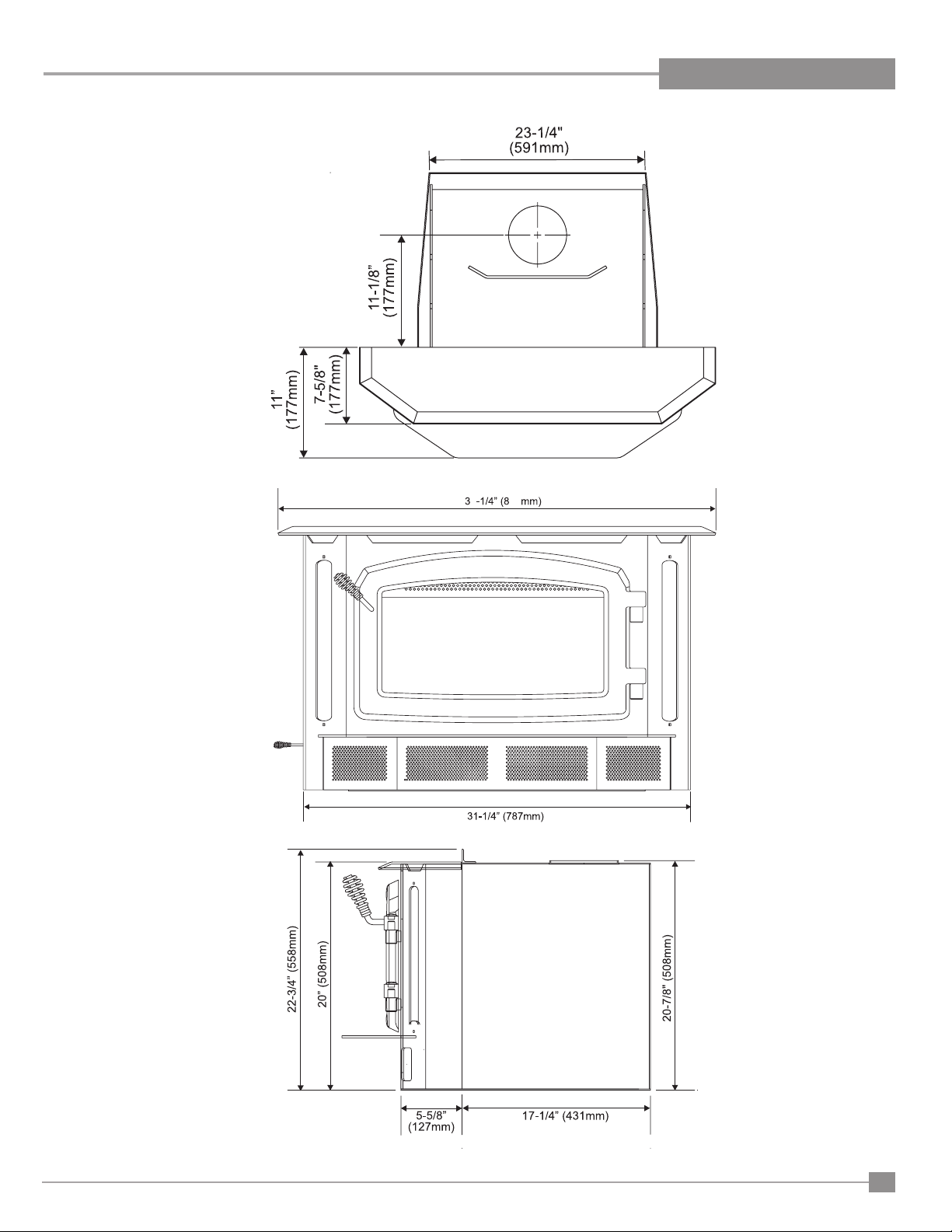

DIMENSIONS
55
9
6Regency I2400M
INSTALLATION
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condi-
tion, seek professional advice. Your Regency
Insert is designed for installation into a masonry
replace that is constructed in accordance with
the requirements of "The Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel Burning Ap-
pliance", N.F.P.A. 211, the National Building
Code of Canada, or the applicable local code
requirements.
The appliance, when installed, must be electri-
cally grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical code, CSA C22.1.
Regency Inserts are designed to use either a
5.5" (140mm) or 6" (152mm) ue.
The insert must be tested and meet the
requirements of UL 1482 (U.S.) and or ULC
S628 (Canada) when tested in a masonry
replace built per ULC S628.
The factory-built replace must be listed per
UL 127 or ULC S610.
Clearances obtained from the masonry re-
place tests are also relevant for installation
in factory-built replaces.
Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC
S635 (Canada). The liner must be securely
attached to the insert ue collar and the
chimney top.
Means must be provided to prevent room
air passage to the chimney cavity of the
replace. This may be accomplished by
sealing the damper area around the chimney
liner, or sealing the replace front.
Alteration of the replace in any manner is not
permitted with the following exceptions;
external trim pieces which do not affect
the operation of the replace may be
removed providing they can be stored
on or within the replace for re-assembly
if the insert is removed.
the chimney damper may be removed
to install the chimney liner.
Regency Inserts are constructed with the high-
est quality materials and assembled under strict
quality control procedures that insure years of
trouble free and reliable performance.
It is important that you read this manual thor-
oughly and fully understand the safe instal-
lation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experi-
ence from knowing that your unit is operating
at peak performance.
Please read this entire manual before you
install and use your new wood insert. Failure
to follow instructions may result in property
damage, bodily injury or even death. Install
and use only in accordance with manufactur-
er’s installation and operating instructions.
Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
Notify your home insurance company that
you plan to install a replace insert or hearth
heater.
Your replace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishan-
dling.
If your existing replace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open posi-
tion.
Inspect your replace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
your insert. Do not remove bricks or mortar
from your masonry replace.
Circulating air chambers (i.e. in a steel
replace liner or metal heat circulator) shall
not be blocked.
Means must be provided for removal of the
insert to clean the chimney ue.
Inserts that project in front of the replace
must be supplied with appropriate supporting
means.
Installer must mechanically attach the sup-
plied label to the inside of the rebox of the
replace into which the insert is installed.
In order for a solid-fuel insert to be certied
for use in factory-built replaces, the above
information must be clearly stated in the instal-
lation manual and appropriate markings. Final
approval is contingent on the authority having
jurisdiction.
Your replace opening requires the following
minimum sizes:
21.5"
25"
17"
Two faceplates are available to seal the replace
opening:
40" W x 30" H 48" W x 33" H
Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
": This replace has been converted
for use with a wood insert only and cannot be
used for burning wood or solid fuels unless
all original parts have been replaced, and the
replace re-approved by the authority having
jurisdiction."
Regency I2400M
7
INSTALLATION
View from Rear of Insert
The Straight Flue Adaptor (Part #846-504)
shown here, may be used to produce a secure
connection between your ue connector and the
insert collar. Detailed installation instructions are
included with the kit.
Your insert is very heavy and will require two
or three people to move it into position. The
insert can be made a little lighter by removing
the cast iron door by opening it and lifting it
off its hinges. Be sure to protect your hearth
extension with a heavy blanket or carpet scrap
during the installation.
The convection grills are installed the
unit is positioned inside the replace.
Position the grill on the inside bodyface side and
fasten using the bolts, washers and nuts provided
(2 per side) as shown in the diagrams.
8Regency I2400M
INSTALLATION
Clearance diagram for Installations
Side and Top facing is a maximum of 1.5" thick.
Floor protection must be non-combustible, insula-
tive material with an R value of 1.1 or greater.
Thermal oor protection is not required if the unit is
raised 3.5" minimum (measured from the bottom of
the stove). However, standard ember oor protec-
tion is required. It will need to be a non-combustible
material that covers 16" (406 mm) in the US and
18" (450 mm) in Canada to the front of the unit and
8" (200 mm) to the sides.
If the unit is not raised, thermal oor protection
required is 18" (450 mm) in the US and Canada.
All oor protection must be non-combustible (i.e.,
metals, brick, stone, mineral ber boards, etc.) Any
organic materials(i.e. plastics, wood paper prod-
ucts, etc.)are combustible and must not be used.
The oor protection specied includes some form
of thermal designation such as R-value (thermal
resistance) or k-factor (thermal conductivity).
The minimum required clearances to combustible materials when installed into a masonry or factory built replace are listed below.
11"/280mm 20"/508mm 12"/305mm 8"/200mm 18"/455mm 0.5"/13mm 8"/200mm
The specied oor protector should be 3/8"
(18mm) thick material with a K - factor of
0.84.
The proposed alternative is 4" (100mm) brick
with a C-factor of 1.25 over 1/8" (3mm) mineral
board with a K-factor of 0.29.
Use formula above to convert specication
to R-value.
R = 1/k x T = 1/0.84 x .75 = 0.893.
Calculate R of proposed system.
4" brick of C = 1.25, therefore
Rbrick = 1/C = 1/1.25 = 0.80
1/8" mineral board of k = 0.29, therefore
Rmin.bd. = 1/0.29 x 0.125 = 0.431
Total R = Rbrick + Rmineral board =
0.8 + 0.431 = 1.231.
Compare proposed system R of 1.231 to
specied R of 0.893. Since proposed system
R is greater than required, the system is
acceptable.
C = Btu = W
(hr)(ft2 )(oF) (m2))(K)
k = (Btu)(inch) = W = Btu
(hr)(ft3)(oF) (m)(K) (hr)(ft)(oF)
R = (ft2)(hr)(oF) = (m2)(K)
Btu W
Regency I2400M
9
INSTALLATION
Positive Flue
Connection
with Cleanout
Package contains: 3 brackets and 6 screws.
These brackets are to be used to hold the ue
liner (not supplied) to the Insert and keep the
connection. The brackets are screwed into the
top of the Insert in the pre-punched holes and
then screwed into the ue liner.
The insert must be installed as per the require-
ments of your local inspection authority. Three
methods of ue connection are acceptable in
most areas in the US, however
Positive ue connection, where a large
blocking plate and a short connector pipe
is used.
Direct ue connection, where a smaller
blocking plate and a connector pipe to the
rst ue liner tile is used.
Full ue liner, where a stainless steel rigid
or exible liner pipe is routed from the insert
outlet collar to the top of the chimney.
Regency highly recommends the use of a full
liner as the safest installation and provides the
most optimum performance. Your retailer should
be able to help you decide which system would
be the best for your application.
Flush Inserts
Direct Flue
Connection
with Cleanout
Full Flue Liner
(No Cleanout Required)
The use of one of the connection methods listed
on this page not only increases the safety of your
insert by directing the hot gases up the ue, but
will also help increase the unit's efciency and
decrease creosote deposits in the chimney.
When a connected ue or liner is in use, the
insert is able to “breathe” better by allowing a
greater draft to be created. The greater draft can
decrease problems such as, difcult start-ups,
smoking out the door, and dirty glass.
When installed in a factory built replace, a
full stainless steel rigid or exible ue liner
is mandatory, for both safety and perform-
ance purposes. When a ue or liner is in
use, the insert is able to breathe better by
allowing a greater draft to be created. The
greater draft can decrease problems such
as, difcult start-ups, smoking out the door,
and dirty glass.
In order to position the ue liner, the exist-
ing rain cap must be removed from your
chimney system. In most cases the ue
damper should also be removed to allow
passage of the liner.
In most cases opening the existing spark
screens fully should give enough room for
the insert installation. If it does not, remove
and store.
If the oor of your replace is below the
level of the replace opening, adjust the
insert's levelling bolts to accommodate the
difference. When additional shimming is
required, use non-combustible masonry or
steel shims.
Measure approximately the alignment of
the ue liner with the position of the smoke
outlet hole on the insert to check for pos-
sible offset. If an offset is required, use a
proper stainless steel unit available with the
chimney liner.
Once the above items have been checked,
slide your insert into position after rst po-
sitioning the ue liner and offset if required.
(Re-install raincap at completion of installa-
tion).
10 Regency I2400M
INSTALLATION
Faceplate Assembly
Prior to sliding your insert into its nal position
and attaching the connector or liner pipe, the
faceplate side panel plates must be installed
as follows:
Slide the spring nuts (supplied) over the
slots in the insert’s side convection panels
(the spring nuts may need to be squeezed
with a pair of pliers rst, to help them stay
in position).
Screw the side faceplate panels, (item A in
the diagram) one to each side.
Using the top panel (item B in the diagram)
as a gauge, check that the side panels are
within approximately 1/4" of the overall width.
If the difference is greater than this, use
the supplied washers to attain the required
width.
The unit may now be slid into nal position
and attached to the connection system.
Once connection is made, the insulation strips
should be installed between the insert face-
plates and the replace face. The faceplate
top may now be installed (with insulation
strip behind) by aligning its brackets with the
top ange on the side shields and the angle
iron bar on the insert top. The faceplate trim
may be installed to the edge
of the faceplate at this time.
Now that your insert is installed, check once
more that all the clearances from the unit to
any combustible materials are correct as listed
earlier.
Regency I2400M
11
INSTALLATION
Ground
Fan Fan
Ground Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black
High (Black)
Low (Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz
Thermo Switch Sensor
Blower/Fan Wiring Diagram
Push the Regency logo plate into the two
holes in the front bottom left corner of the
fan.
Your fan should only be installed once the unit is
in place in order to prevent any damage to the
fan. To attach, follow the instructions provided
with the fan.
Align the fan support with the offset clip
on the bottom of the ashlip.
Slide the supports into the clips. The tension
holding the clips in place may be adjusted by
increasing or decreasing the offset spacing
of the clips.
Installer: Please record unit serial number here before installing blower.
Serial No.______________________________
12 Regency I2400M
INSTALLATION
Pull Open Push Closed
ensure the tube will not move when the unit
is burning. Though there are four air tubes
in the medium units.
Slide the left bafe over the air tubes from
the front and then push it to the back.
Side View
Front View
Front View
Tilt the left bafe up on top of the side chan-
nel and it will leave enough room to position
the right bafe in the same manner as Step
1) above. Then reposition the left bafe at
on the air tubes.
Before establishing your rst re, it is important
that your fully understand the operation of you
draft control. The draft rod is on the left side of
the Inserts and it controls the intensity of the re
by increasing or decreasing the amount of air
allowed into the rebox. To increase your draft
- pull open, and to decrease - push closed.
As well as a primary and glass wash air system,
the unit has a full secondary draft system that
allows air to the induction ports at the top of the
rebox, just below the ue bafe.
The unit arrives with the 2 bafe plates on the
oor of the rebox.
If all 4 air tubes are installed continue on
to Step 2), if not, follow the instructions
below. Install the air tube into the holes in
the side channels. The notch goes on the
right hand side with the air holes facing
toward the door. Slide the tube into the left
hand side, as far as possible and then bring
it back into the hole on the right hand side.
Use a pair of vise grips or pliers and tap it
into place with a hammer. A tighter t will
The ue bafe system located in the upper area
of the rebox is removable to make cleaning your
chimney system easier. The bafes must be
installed prior to your rst re.
Check
the position of the bafes on a regular basis as
they can be dislodged if too much fuel is forced
into the rebox.
Please check to ensure that your oor protection
and hearth will meet the standards for clearance
to combustibles. Your hearth extension must be
made from a non-combustible material.
Firebrick is included to extend the life of your
insert and radiate heat more evenly. Check to
see that all rebricks are in their correct posi-
tions and have not become misaligned during
shipping.
Hook screen to the inside on the right side
of the rebox door opening. Lock in place by
turning handle.
Back Side of Screen Shown
Attach spring handle by rotating counter clock-
wise onto rod. Ensure that the rod ts into the
entire length of the spring handle.
The handle must be positioned at 10
o'clock when closed to avoid the handle from
getting hot and to ensure the screen stays in
place.
Handle Lock
Hooks
Handle at 10 o'clock position.
Regency I2400M
1313
INSTALLATION
When your installation is completed and in-
spected, you are ready for your rstre.
Open draft control fully.
Open rebox door and build a small re using
paper and dry kindling on the rebrick hearth,
wait a few minutes for a good updraft in the
ue to establish the re. Leaving the door
slightly open will help your re start more
rapidly.
With the draft still in the fully open position,
add two or three seasoned logs to your re.
Form a trench in the ash bed to allow air to
reach the rear of the rebox prior to closing
the door.
After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the re at a
moderate level.
Once a bed of coals has been established,
you may adjust the draft control to a low
setting to operate the unit in its most efcient
mode.
During the rst couple of hours, keep the
combustion rate at a moderate level and
avoid a large re until the paint is cured.
Only then can you operate the insert at its
maximum setting, and only after the metal
has been warmed.
For the rst few hours, the insert will give off
an odor from the paint. This is to be expected
as the high temperature paint becomes sea-
soned. Windows and/or doors should be left
open to provide adequate ventilation while
this temporary condition exists. Burning the
insert at a very high temperature the rst few
times may damage the paint. Burn res at
a moderate level the rst few days.
Do not place anything on the insert top
during the curing process. This may result
in damage to your paint nish.
Never use gasoline, gasoline type lantern
fuels, kerosene, charcoal lighter fuel, or
similar liquids to start or ‘freshen up’ a re
in your heater. Keep all such liquids well
away from the heater while it is in use.
Keep the door closed during operation and
maintain all seals in good condition.
Do not burn large quantities of paper in your
insert.
If you have smoke detectors, prevent smoke
spillage as this may set off a false alarm.
Do not overre your insert. If the insert begin
to glow, you are overring. Stop adding
fuel and close the draft control. Overring
can cause extensive damage to your stove
including warpage and premature steel cor-
rosion. Overring will void your warranty.
Do not permit creosote or soot buildup in the
chimney system. Check and clean chimney
at regular intervals.
Your Regency Insert can be very hot. You
may be seriously burned if you touch the
insert while it is operating. Warn children
of the burn hazard.
The insert consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the insert is in
use.
Do not use grates, irons or other methods
for supporting fuel. Burn directly on the
bricks.
Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the re.
Do not connect your unit to any air distribu-
tion duct.
Your insert should burn dry, standard re-
wood only. The use of “mill ends” is discour-
aged as this fuel can easily overheat your
insert. Evidence of excessive overheating
will void your warranty. As well, a large por-
tion of sawmill waste is chemically treated
lumber, which is illegal to burn in many areas.
Chemically treated re logs also must not
be burned in your insert.
Do not store any fuel closer than 2 feet from
your unit.
Do not burn salt drift wood as it will corrode
your unit and void the warranty.
Do not operate the unit if the glass is broken
or missing. Do not operate the unit if the
gasketing is worn out and not sealing the
door or the glass.
It is very important to carefully maintain your
insert, including burning seasoned wood and
maintaining a clean stove and chimney system.
Have the chimney cleaned before the burning
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your insert require no lubrication.
14 Regency I2400M
14
During constant use, ashes should be removed
every few days. Please take care to prevent the
build-up of ash around the start-up air housing
located inside the rebox, under the loading
door lip.
Only remove ashes when the re has died down.
Even then, expect to nd a few hot embers.
Always leave 1 to 2 inches of ash in the bottom
of the rebox. This helps in easier starting and
a more uniform burn of your re.
Ashes should be placed in a metal container with
a tight tting lid. The closed container of ashes
should be placed on a noncombustible oor or
on the ground, well away from all combustible
materials, pending nal disposal. If the ashes
are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the
closed container until all cinders have thoroughly
cooled. Other waste should not be placed in the
ash container.
Removal of your insert for cleaning purposes
is usually not required if a proper installation
has been done. In the event that removal is re-
quired, be sure not to damage any parts needed
for re-installation. In most cases removal and
replacement of the bafe system should allow
full access for cleaning.
:
Burn insert with draft control wide open for
about 45 minutes every morning during burn-
ing season. This helps to prevent creosote
deposits within the heating system.
Burn insert with draft control wide open for
about 10 - 15 minutes every time you add
fresh wood. This allows the wood to achieve
the charcoal stage faster and burns up any
wood vapors which might otherwise be
deposited within the system.
Do not burn
wet or green wood. Seasoned wood that
has been dried at least one year must be
used.
A small hot re is preferable to a large
smouldering one that can deposit creosote
within the system.
Check the chimney at least twice a month
during the burning season for creosote
build-up.
When wood is burned slowly, it produces tar and
other organic vapors, which form creosote when
combined with moisture. The creosote vapors
condense in the relatively cool chimney ue of a
slow-burning re. As a result, creosote residue
accumulates on the ue lining. When ignited, this
creosote can make an extremely hot re.
The fan is to be operated only with the draft
control rod
The fan is not to be oper-
ated when the draft control rod is in the closed
position (pushed in). The fully closed position is
the low burn setting.
The fan unit must not be turned on until a re
has been burning for at least 30 minutes and
the unit is hot enough. As well, after each fuel
loading the fan must be shut off until 30 minutes
has elapsed.
To operate fan automatically, push switch on
side of fan housing to "Auto" and second switch
to either "High" or "Low" for fan speed. The
automatic temperature sensor will engage the
blower when the unit is at temperature and will
shut off the blower once the re has gone out
and the unit has cooled to below a useful heat
output range.
To manually operate the fan system, push the
rst switch to "Man" and second switch to either
"high" or "Low". This will bypass the sensing
device and allow full control of the fan. Switching
from "Auto" to "Manual" or "High" to "Low" may
be done at any time.
During the rst few hours it may be more
difcult to start the re. As you dry out
your re brick and your masonry ue (if
applicable), your draft will increase.
For those units installed at higher elevations
or into sub-standard masonry replaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
Before opening your door to reload, open
draft fully for approximately 10 to 15 seconds
until re has been re-established. This will
minimize any smoking.
All fuel burning appliances consume oxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
sufcient for this purpose.
Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
open the draft control fully until all moisture
has been dispersed by the intense re.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the re.
If you have been burning your insert on a
low draft, use caution when opening the
door. After opening the damper, open the
door a crack, and allow the re to adjust
before fully opening the door.
The controls of your unit should not be
altered to increase ring for any reason.
Store wood under cover, such as in a shed, or
covered with a tarp, plastic, tar paper, sheets
of scrap plywood etc., as uncovered wood can
absorb water from rain or snow, delaying the
seasoning process.
Regency I2400M
15
The gold electroplated nish on the doors requires
little maintenance, and need only be cleaned with
a damp cloth. DO NOT use abrasive materials or
chemical cleaners, as they may harm the nish
and void the warranty.
If the door gasket requires replacement, 7/8"
diameter material must be used. A proper high
temperature gasket adhesive is required. A gasket
repair kit, Part # 846-570 is available from your
local Regency dealer.
The door latch may require adjustment as the
door gasket material compresses after a few
res. Removal of the spacer washer, shown in the
diagram below, will allow the latch to be moved
closer to the door frame, causing a tighter seal.
Remove and replace the nuts, washer as shown.
Only clean your glass window when it is cool.
Your local retailer can supply you with special
glass cleaner if plain water and a soft cloth does
not remove all deposits.
Your Regency Insert is supplied with 5 mm.
Neoceram ceramic glass (Part #846-304) that
will withstand the highest heat that your unit will
produce. In the event that you break your glass
by impact - purchase your replacement from an
authorized Regency dealer only, and follow our
step-by-step instructions.
Allow the stove to cool before removing or replacing
glass. Remove the door from the insert and remove
the glass retainer. Use caution when removing
broken glass to prevent injury.
When placing the replacement glass in the door,
make sure that the glass gasketing will properly seal
your unit. Replace the retainer and tighten securely,
but do not wrench down on the glass as this may
cause breakage. Do not substitute materials. If your
glass door does break, do not continue to use your
unit until it has been replaced.
Annual Maintenance
Completely clean out entire unit Annually
Inspect air tubes, baffles and bricks Replace any damaged parts.
Adjust door catch / latch If unable to obtain a tight seal on the door - replace door gasket seal.
Readjust latch after new gasket installed.
Inspect condition and seal of:
Glass Gasket
Door Gasket Perform paper test - replace gasket if required
Paper Test Test the seal on the loading door with a paper bill.
Place a paper bill in the gasketed area of the door on a cold stove–close
the door.
Try to remove the paper by pulling.
The paper should not pull out easily, if it does, try adjusting the door latch,
if that doesn't solve the problem replace the door gasket.
Check and lubricate door hinge + latch Use only high temperature anti seize lube. (ie. never seize)
Check glass for cracks Replace if required.
Clean blower motor Disconnect power supply.
Remove and clean blower.
*DO NOT LUBRICATE*
Inspect and clean chimney Annual professional chimney cleaning recommended.
16 Regency I2400M
PARTS LIST
142-917 Fan Assembly
24) 910-157/P Fan Motor 120 Volts
25) 910-678 Power Cord 120 Volts
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Hi / OFF / Low
Switch (3-way)
29) 910-138 Auto / Manual On /
OFF Switch
30) * Grommet Strain Relief
36) 033-953 Air Tube 3/4" (Qty:4) (each)
37) 020-957 Bafe (2/set)
42) 163-932 Convection Grill - Gold (Opt)
163-930 Convection Grill - Blk (Opt)
43) * Hex Nut 10-24 Zinc Coated
44) * Washer #10 Flat
45) * Bolt, 10-24 x 3/4"
Blk Carriage
47) 846-102 Screen Door
948-223 Regency Logo - Nickel
948-216 Regency Logo - Gold
918-171 Manual
*Not available as a replacement part.
1) 850-152 Door Assy - Large Gold
850-151 Door Assy - Large Black
850-153 Door Assy - Large Nickel Accent
850-154 Door Assy - Large Gold Accent
2) 846-304 Glass - Replacement
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips (8/set)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large
9) 846-973 Door Handle Assembly
16) 846-570 Door Gasket Kit
17) 846-918 Hinge Caps - Gold Plated
(2/set)
948-079 Hinge Caps - Nickel (each)
19) 948-101 Spring Handle - Large Gold
20) 948-102 Spring Handle - Small Gold
948-135 Spring Handle - Large Nickel
948-136 Spring Handle - Small Nickel
23) 846-235 Flue Brackets Package
Regency I2400M
17
PARTS LIST
140-911 Faceplate & Trim Set - Regular
180-570 Black Trim Regular (set of 3)
285) * Trim Right Regular
286) * Trim Top Regular
287) * Trim Left Regular
288) * Faceplate Side Regular
289) * Faceplate Top Regular
140-913 Faceplate & Trim Set - Oversize
180-572 Black Trim Oversize (set of 3)
295) * Trim Right Oversize
296) * Trim Top Oversize
297) * Trim Left Oversize
298) * Faceplate Side Oversize
299) * Faceplate Top Oversize
*Not available as a replacement part.
285
286
287
288
288
289
REGULAR
296
295
297
298
299
298
OVERSIZE
18 Regency I2400M
PARTS LIST
180-960 Firebrick - Complete Set
70) 902-111 Brick Regular Full Size: 1-1/4" x 4-1/2" x 9"
75) * Brick Partial: 1-1/4 x 4-1/2" x 2"
76) * Brick Partial: 1-1/4" x 2" x 9"
Regency I2400M
19
WARRANTY
WARRANTY
Revised: 01-04-07
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects
each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the
original purchaser of a Regency Product. This warranty is not transferable.
The Warranty: Lifetime
Covered under the agreement are the following components:
Firebox, ceramic baffl e, vermiculite baffl e, steel baffl es (H2100), convector airmate, castings, ashdrawer, glass (thermal breakage), gold plating (against
defective manufacture), airtubes (against warpage) and door handles.
The above will be covered for parts and subsidized labour for the fi rst fi ve years and parts only thereafter with the exception of the fi reboxes (see below).
FPI is not liable for freight or labor on any wood burning appliance replaced in fi eld.
Electrical components such as blowers, switches and thermodisc's are covered for two years parts and one year subsidized labour* from date of purchase.
Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a
receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distribu-
tor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI
and evaluated for manufacturer defect.
The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency product. FPI will not be liable for results or costs of
workmanship from unauthorized service persons or dealers.
At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including
customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing, fi rebrick or trim. It does not cover installation and operational related
problems such as over-fi ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains,
inadequate venting or ventilation, excessive offsets, negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers etc.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit
once manufactured. ie. as products evolve, fi eld modifi cations or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty
policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may
nullify your warranty on this product.
* Subsidy according to job scale as predetermined by FPI.
For Model: F1100 F3100 S3100 H2100 I1100 I3100 F2400
S2400 I2400 Z2510 FP90
Regency and Classic are trademarks of FPI Fireplace Products International Ltd.
© Copyright 2011, FPI Fireplace Products International Ltd. All rights reserved.
Installer: Please complete the following information
Table of contents
Other Regency Fireplace Products Indoor Fireplace manuals
Regency Fireplace Products
Regency Fireplace Products P42 Quick start guide
Regency Fireplace Products
Regency Fireplace Products B41XTE-NG1 Service manual
Regency Fireplace Products
Regency Fireplace Products L390E Quick start guide
Regency Fireplace Products
Regency Fireplace Products Horizon HZ40E Quick start guide
Regency Fireplace Products
Regency Fireplace Products PG33-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products Cascades I2500 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Horizon HZO42-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products Bellavista B41XTCE User manual
Regency Fireplace Products
Regency Fireplace Products P33-4 Quick start guide
Regency Fireplace Products
Regency Fireplace Products E33-NG10 Service manual
Regency Fireplace Products
Regency Fireplace Products CI2600 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Grandview G600C-1 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Pro Series Quick start guide
Regency Fireplace Products
Regency Fireplace Products Pro CI2700 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Excalibur P90EX Quick start guide
Regency Fireplace Products
Regency Fireplace Products CARDINIA Quick start guide
Regency Fireplace Products
Regency Fireplace Products Liberty LRI4E-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products Contura Ri50 Quick start guide
Regency Fireplace Products
Regency Fireplace Products HZ54EPV-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products L540E Quick start guide
Regency Fireplace Products
Regency Fireplace Products NARRABRI F100B-1 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Greenfire GF950L Series Quick start guide
Regency Fireplace Products
Regency Fireplace Products Grandview G800EH Quick start guide
Regency Fireplace Products
Regency Fireplace Products P36-NG4 Natural Gas Quick start guide
Popular Indoor Fireplace manuals by other brands
Quadra-Fire
Quadra-Fire VOYA-GRAND-MBK owner's manual
Amantii
Amantii E 50 Fix Manual
Empire
Empire OLP36FP72S(N Installation instructions and owner's manual
Vermont Castings
Vermont Castings RHE32 Installation instructions & homeowner's manual
Arlec
Arlec Dekkar EFH432 user manual
Travis Industries
Travis Industries 564 Cleanface installation manual
Superior
Superior 828 installation instructions
Valor
Valor quantum BR644 VA owner's guide
Escea
Escea IB1100 Service manual
Desa
Desa CGEFP33PRB OWNER'S OPERATION AND INSTALLATION MANUAL
Town & Country Fireplaces
Town & Country Fireplaces TCWS38 Installation and operating instructions
Elmira Stove Works
Elmira Stove Works HEARTHMOUNT 1400 owner's manual
