Bellavista®B36XTE
Gas Fireplace
Owners &
Installation Manual
www.regency-fire.com
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODEL: B36XTE-10
Medium DV Gas Fireplace
Bellavista B36XT Video
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
919-390e FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 08.20.18

2| Bellavista® B36XTE-10 Gas Fireplace
|
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The Bellavista™ B36XTE has been designed to provide
you with all the warmth and charm of a wood replace at the ick of a switch. The Bellavista™ B36XTE has been approved
by Warnock Hersey/Intertek for both safety and e󰀩ciency. As it also bears our own mark, it promises to provide you with
economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with
these instructions and the many features of your Regency®Fireplace.

Bellavista® B36XTE-10 Gas Fireplace | 3
| 3
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2014 / CSA 2.33-2014 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES
CAN / CGA 2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home
Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes
follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the
current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to
local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not prohibited
by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
Ensure that structural members are not cut or weakened during installation.
Bellavista B36XT Video Bellavista Benets Video

4| Bellavista® B36XTE-10 Gas Fireplace
|
4table of contents
Copy of Safety Decal .....................................................5
MA Code - CO Detector ................................................6

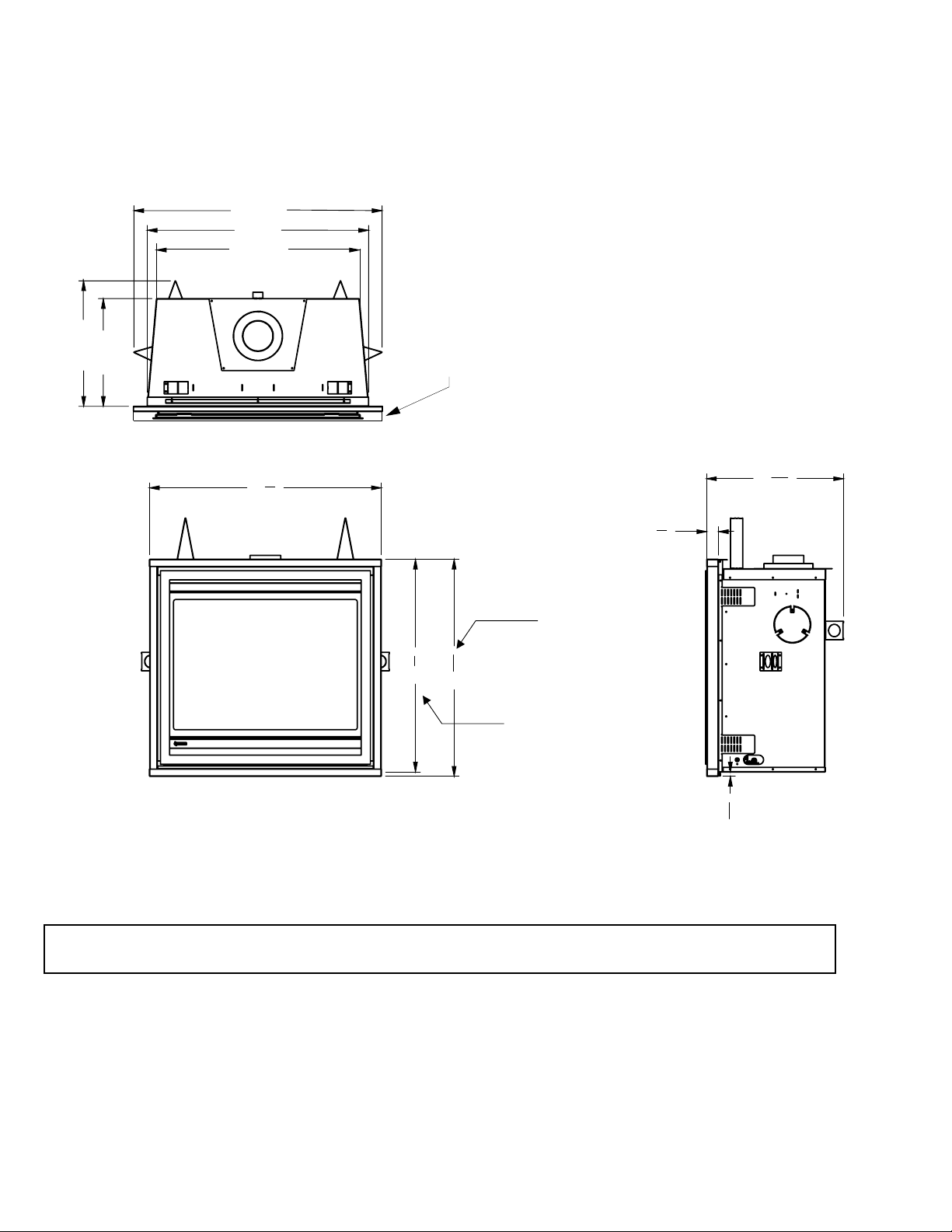

Unit Dimensions with vignette & vignette finishing trim . 7
Unit Dimensions w/optional Flush Panels + screen .......8
IInstallation
General Safety Information ............................................9
Installation Checklist ...................................................10
Locating Your Gas Fireplace ........................................10
Clearances ..................................................................11
Mantel Leg Clearances ................................................13
Framing ........................................................................13
Framing with vignette and vignette trim (flush finish)...15
Non- Combustible Requirements: ................................16

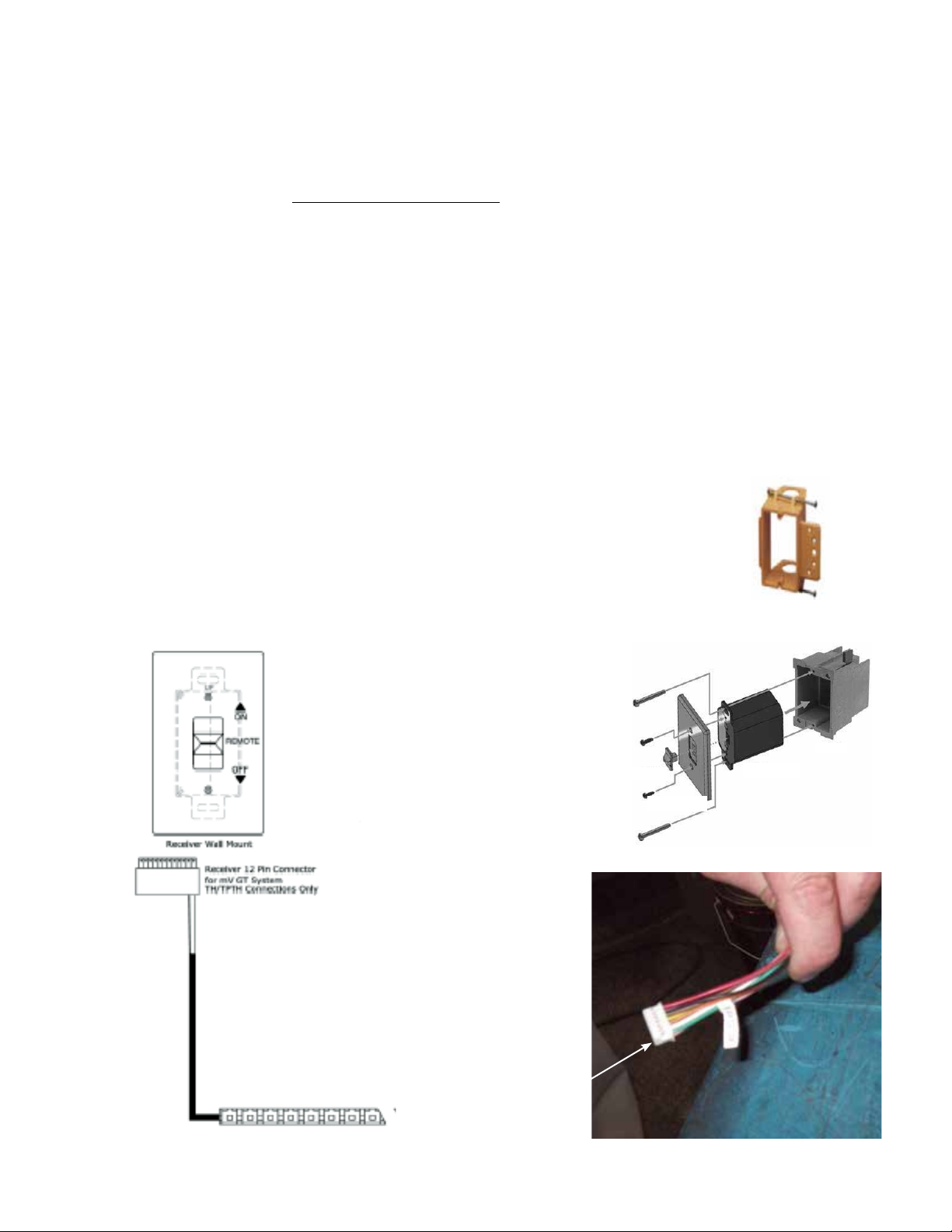

Wall mount On / Off Switch and REMOTE receiver
installation ....................................................................17
Finishing ......................................................................18

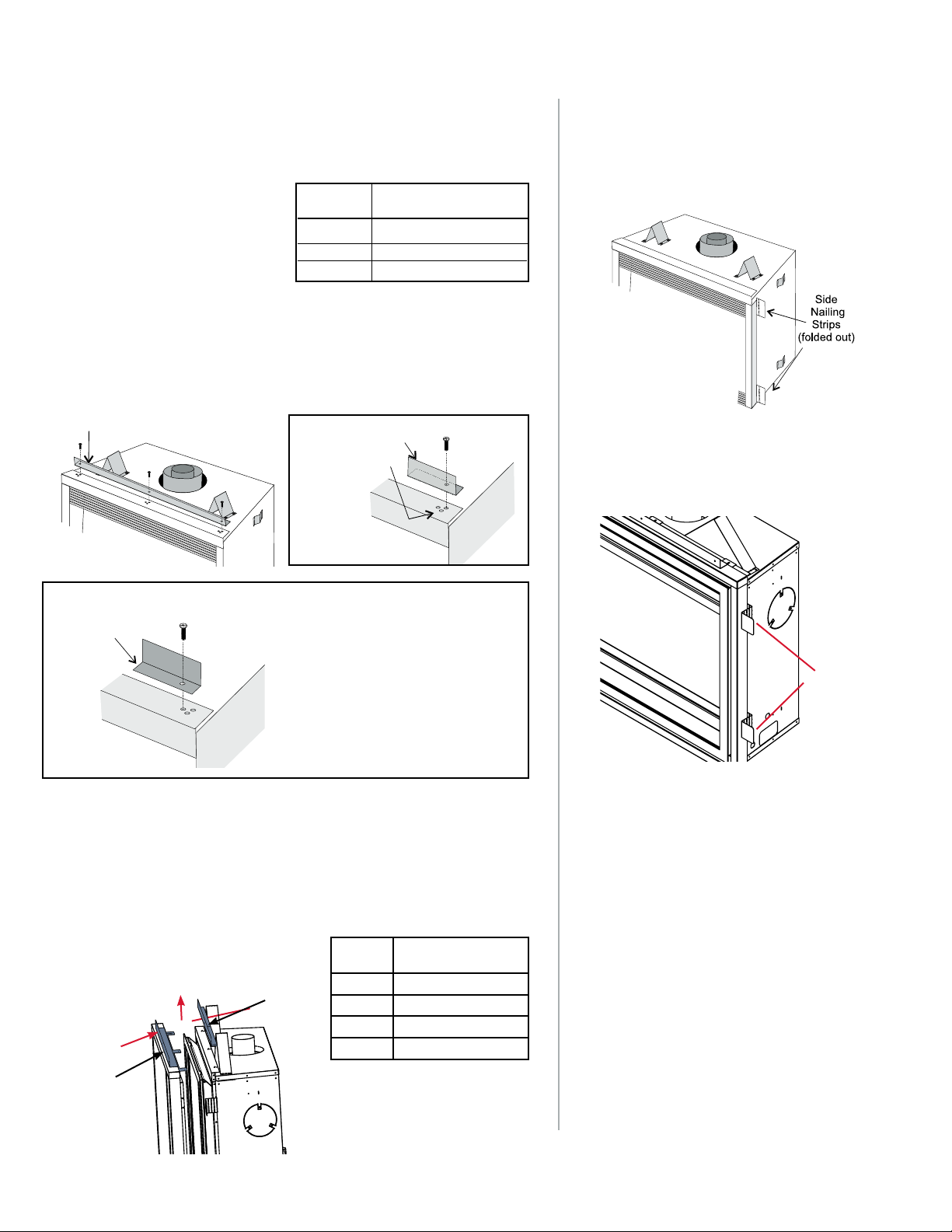

Unit Assembly Prior to Installation ...............................18
Top Standoff Assembly ........................................18
Top Facing Support (if not using vignette finishing trim)
19
Side Nailing Strips ...............................................19
Vent Restrictor, Baffle & Heat Deflector Installation ....22
Venting
Introduction ..................................................................22
Exterior Vent Termination Requirements .....................23
Top vent reducer installation—from 5" X 8" to 4" X 6-5/8"
.....................................................................................24
Venting .........................................................................25
Direct Vent System (Flex) ..................................25
Vertical Termination - 4"x6-7/8" venting (part#946-755) 2 6
Venting Cross Reference Chart only ...........................28
AstroCap XL & Rigid rear vent kit for corner installations 3 2
RIGID PIPE 5" x 8" -
when using vignette finishing trim ........................32
Horizontal 5” x 8” rigid rear vent kit .............................33
AstroCap XL & Rigid rear vent kit for corner installations
rIGID PIPE 5" x 8" - when installed with Vignette and Vignette
finishing trim - finished flush ..................................................33
Venting Arrangements for horizontal terminations 3 4
Flex Vent or RIGID PIPE 5" x 8" ..........................34
Horizontal Terminations ...............................................35
Flex Vent 5" x 8" ..................................................35
RIGID PIPE 5" x 8" ..............................................36
venting arrangements For Horizontal TerminationS 3 7
RIGID PIPE 4" x 6-5/8" ........................................37
Horizontal terminations ................................................39
Two (2) 90o Elbows (Rigid Pipe 4" x 6 - 5/8") ...............39
Horizontal terminations ................................................39
Three (3) 90o Elbows (Rigid Pipe 4" x 6 - 5/8") ............39
venting arrangements For Vertical Terminations . . 40
Rigid pipe 4" x 6-5/8" ...........................................40
Vertical terminations ...................................................41
Three (3) 90o Elbows (Rigid Pipe 4" x 6 - 5/8") ............41
venting arrangements ..........................................42
With Co-linear Flex System .................................42
Vertical Terminations ...........................................43
Co-linear Flex System Into Masonry Fireplaces . 43
Unit Installation with Horizontal
Termination .................................................................44
4" x 6-5/8" or 5" x 8" venting .......................................44
Unit Installation with Horizontal Termination ...............45
5" x 8" venting ..............................................................45
Unit installation with Vertical Termination .....................46
4" x 6-5/8" venting .......................................................46
Gas Line
Installation ...................................................................46
Pilot Adjustment ...........................................................47
High Elevation ..............................................................47
885 S.I.T. Valve Description .........................................47
Gas Pipe Pressure Testing ..........................................47
Conversion from NG to LP...........................................48
Brick panel installation .................................................49
Optional enamel panel installation ...............................50
Log set installation .......................................................51
Aeration Adjustment ....................................................54
Wiring Diagram ............................................................54
Optional Fan installation ..............................................55
Wiring diagram with optional fan .................................57
optional wall thermostat installation .............................58
Optional accent light Installation ..................................59
Flush glass door Installation ........................................63
Vignette frame and safety screen Installation ..............64
Optional vignette inlay installation ...............................65
Optional vignette finishing trim Installation ..................66
Premium flush front installation ..................................67
Safety screen installation ............................................68
Optional 3 sided finishing trim Installation ...................68
Operating Instructions
Operating Instructions .................................................69
First Fire ......................................................................69
Normal Operating Sounds of Gas Appliances .............69
Lighting Procedure ......................................................70
Shutdown Procedure ...................................................70
Copy of Lighting Plate Instructions ..............................71
Maintenance
Maintenance Instructions ............................................72
Log Replacement ........................................................72
Door Glass ...................................................................72
Bulb Replacement .......................................................72
Removing Valve ...........................................................73
Installing Valve .............................................................73
Parts
Main Assembly ............................................................74
Burner Assembly .........................................................76
Optional Accessories ...................................................77
Warranty
The Warranty: Limited Lifetime ...................................78

Bellavista® B36XTE-10 Gas Fireplace | 5
| 5

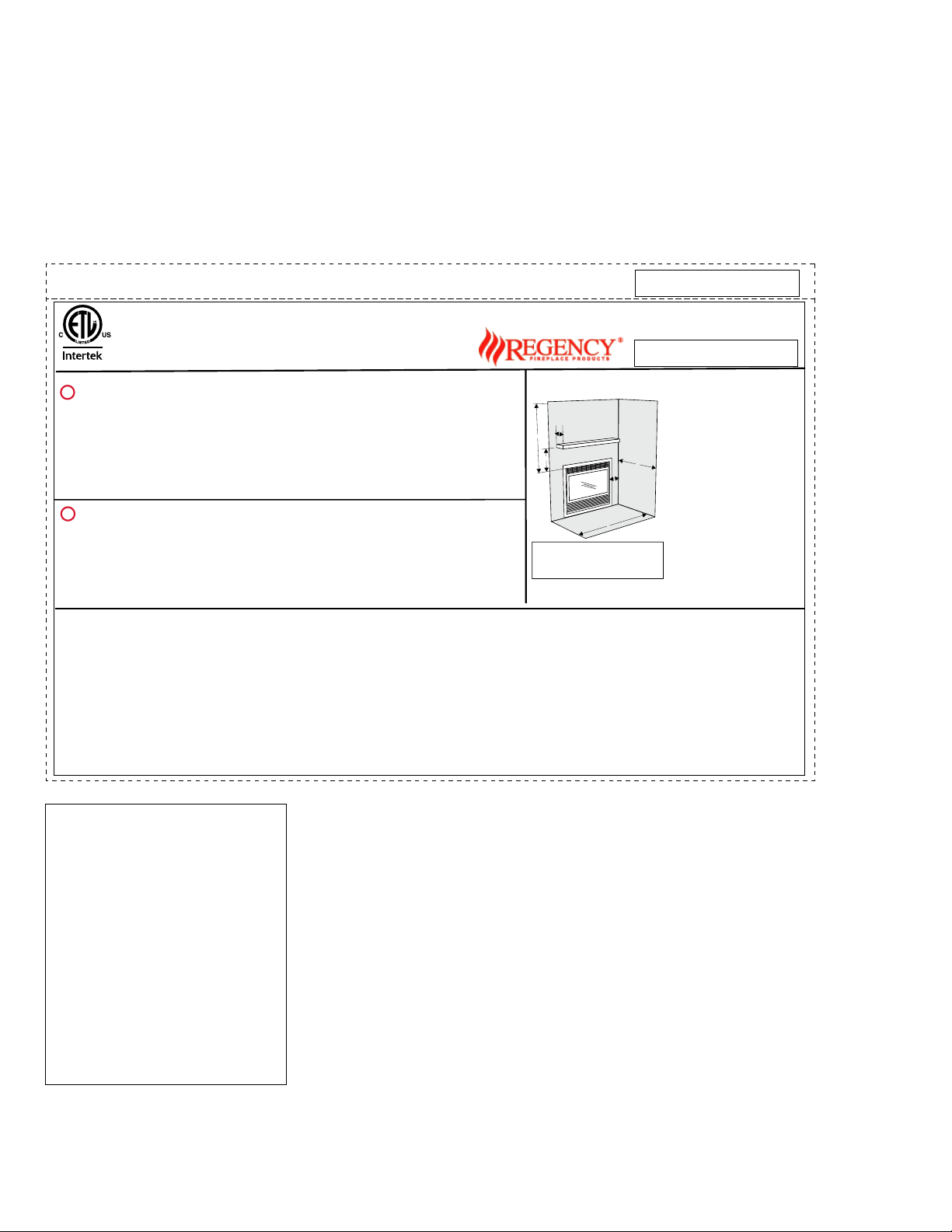

safety decal
This is a copy of the label that accompanies each Bellavista™ B36XTE Direct Vent Gas Fireplace. We
have printed a copy of the contents here for your review.
NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a di󰀨erence,
the label on the unit is the correct one.
COPY OF SAFETY DECAL
For the State of Massachusetts, installation
and repair must be done by a plumber or
gas tter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, exible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-o󰀨 must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
377
377
DOOR SEAL: Please
check that the door is
properly sealed
FPI Fireplace Products International Ltd. Delta, BC, Canada
Minimum Clearances to Combustibles /
Degagement Minimum De Materiaux Combustibles
Serial No./ No de serie
919-391a
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Electrical supply/Électrique 115VAC, 1.13 A, 60Hz.
NOT FOR USE WITH SOLID FUELS. / NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.
Made in Canada/ Fabrique au Canada
Duplicate S/N

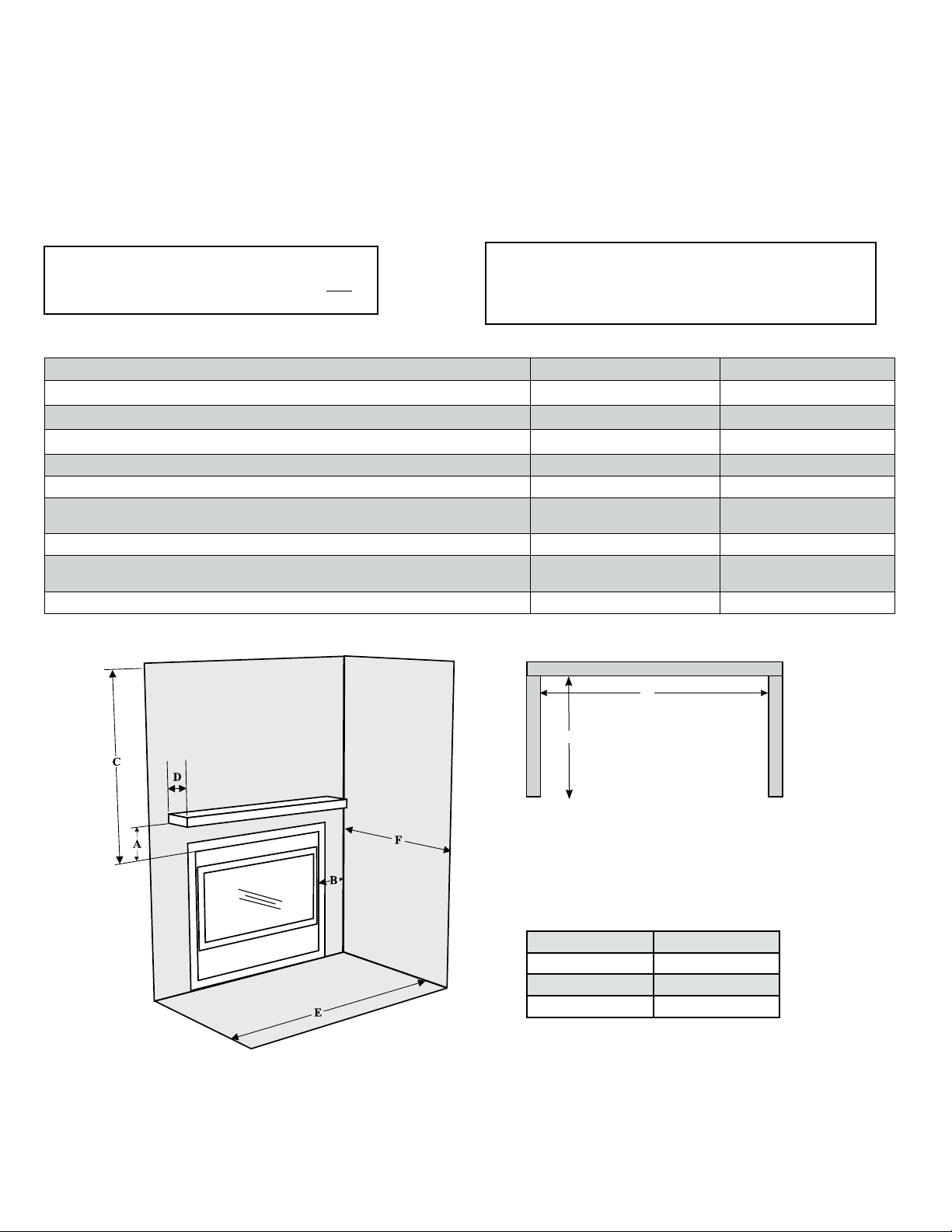

0" Clearance to
combustibles from:
Top, sides, bottom and rear of unit
Mantel Clearances from
Fireplace Opening:
(A) Min. 13" (330mm)
Side Wall Clearance
from Fireplace Opening
B) Min. 12” (305mm)(on one side)
Ceiling from Top of
Fireplace Opening:
C) 36-3/4” (933mm)
Mantel Depth:
D) Max. 12” (304mm)
Alcove Clearances:
E) Min. Width 84" (2134mm),
F) Max. Depth 36" (914mm)
Minimum Vent Clearances:
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2" (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)
(See Instruction Manual for
detailed instructions)
É ÉQUIP A L'UISINE POUR GAZ PROPANE
CONCU POUR ETRE POELE: Mod le B36XTE-LP10é
PROPANE GAS: Model B36XTE-LP10
NATURAL GAS: Model B36XTE-NG10
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR ETRE POELE: Mod le B36XTE-NG10é
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev eé é é
Pression à la tubulure d' chappement basseé
Grandeur de l'injecteur
D bit Calorifique minimum seloné
D bit Calorifique maximum seloné
l'altitude
5.0" WC/C.E. (1.25 kPa)
3.5" WC/C.E. (0.87 kPa)
1.6" WC/C.E. (0.40 kPa)
# 35 DMS
21,500 Btu/h (6.3 kW)
31,000 Btu/h (9.09 kW)
0-4500 ft/pi (0-1372 m)
Part #: 919-391
Colour: Everything black on grey except what is highlighted is printed red.
Size: File@100%
June 17/14 : Created Draft
May 11/15: Rev. A - added screen part # with Louvers
Jan.7/16: Updated part #'s
*Printer: Continue number sequence from 918-953 - do not restart at 0
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev eé é é
Pression à la tubulure d' chappement basseé
Grandeur de l'injecteur
D bit Calorifique minimum seloné
D bit Calorifique maximum seloné
l'altitude
11" WC/C.E. (2.74 kPa)
10" WC/C.E. (2..49 kPa)
6.4" WC/C.E. (1.60 kPa)
# 51 DMS
25,000 Btu/h (7.33 kW)
31,000 Btu/h (9.09 kW)
0-4500 ft/pi (0-1372 m)
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in
the United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. (Kit #578-972).
Fan Part # 578-917.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety
Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational
Vehicles.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si
les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE CERTIFIÉES AVEC L'APPAREIL
For Use Only with Barrier (Part #578-005 with Vignette) or (Part #578-929 Installed with Flush Panels) Follow installation instructions.
Utiliser uniquement avec l’écran ( n ° 578-005 avec Vignette) ou ( n ° 578-929 Installation avec Panneaux Plats) Suivre les instructions d'installation.
E
B
A
C
D
F
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in
the United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard.
ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. (Kit #556-969).
Certified for use with Heat Wave (Kit #946-556). Fan Part # 910-215/P.
«Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.»
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety
Standard. Si ces normes ne sont pas pertinentes, utilisez la norme.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si
les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE CERTIFIÉES AVEC L'APPAREIL
4001172
Listed: VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION
Certified for/Certifi e pour: CANADA and U.S.A.é
Tested to: CAN/CGA-2.17-M91(R2009)
ANSI Z21.88-2014Conforms to:
CSA 2.33-2014Certified to:

6| Bellavista® B36XTE-10 Gas Fireplace
|
6requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, butidentifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Bellavista® B36XTE-10 Gas Fireplace | 7
| 7
dimensions
UNIT DIMENSIONS WITH VIGNETTE & VIGNETTE FINISHING TRIM
33-1/16"
36"
20-7/16"
18-1/4”
(1025mm)
(518mm)
(914mm)
(838mm)
40-3/8"
(463.5mm)
Front view : shown with 3 sided finishing trim.
37 3
4
"
34 5
8
"
35 5
16
"
17
8
"
22 5
16
"
11
16
"
(959mm) (567mm)
(897mm)
(879mm)
(48mm)
(18mm)
3 Sided Vignette Trim
4 Sided Vignette Trim
Vignette Finishing Trim
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

8| Bellavista® B36XTE-10 Gas Fireplace
|
8dimensions
UNIT DIMENSIONS WITH OPTIONAL FLUSH PANELS AND SAFETY SCREEN
3-sided nishing trim not shown: 40-1/2" wide x 35-3/4" high

Bellavista® B36XTE-10 Gas Fireplace | 9
| 9
installation
3. See general construction and assembly in-
structions. The appliance and vent should be
enclosed.
4. This appliance must be connected to the speci-
fied vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5. Inspect the venting system annually for blockage
and any signs of deterioration.
6. Venting terminals shall not be recessed into a
wall or siding.
7. Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11. Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12. Installation and any repairs to this appliance
should be done by a qualified service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15. The appliance area must be kept clear and
free of combustible materials, (gases and other
flammable vapours and liquids).
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The B36XTE Gas Fireplace must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual rst. Consult the
"authority having jurisdiction" to determine the
need for a permit prior to starting the installation.
It is the responsibility of the installer to ensure
this replace is installed in compliance with
manufacturers instructions and all applicable
codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
GENERAL SAFETY
INFORMATION
1. The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Canadian or National Gas
Codes, CAN1-B149 or ANSI Z223.1 Installation
Codes.
2. The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with the
current National Electrical Code, ANSI/NFPA
70 or CSA C22.1 Canadian Electrical Code.

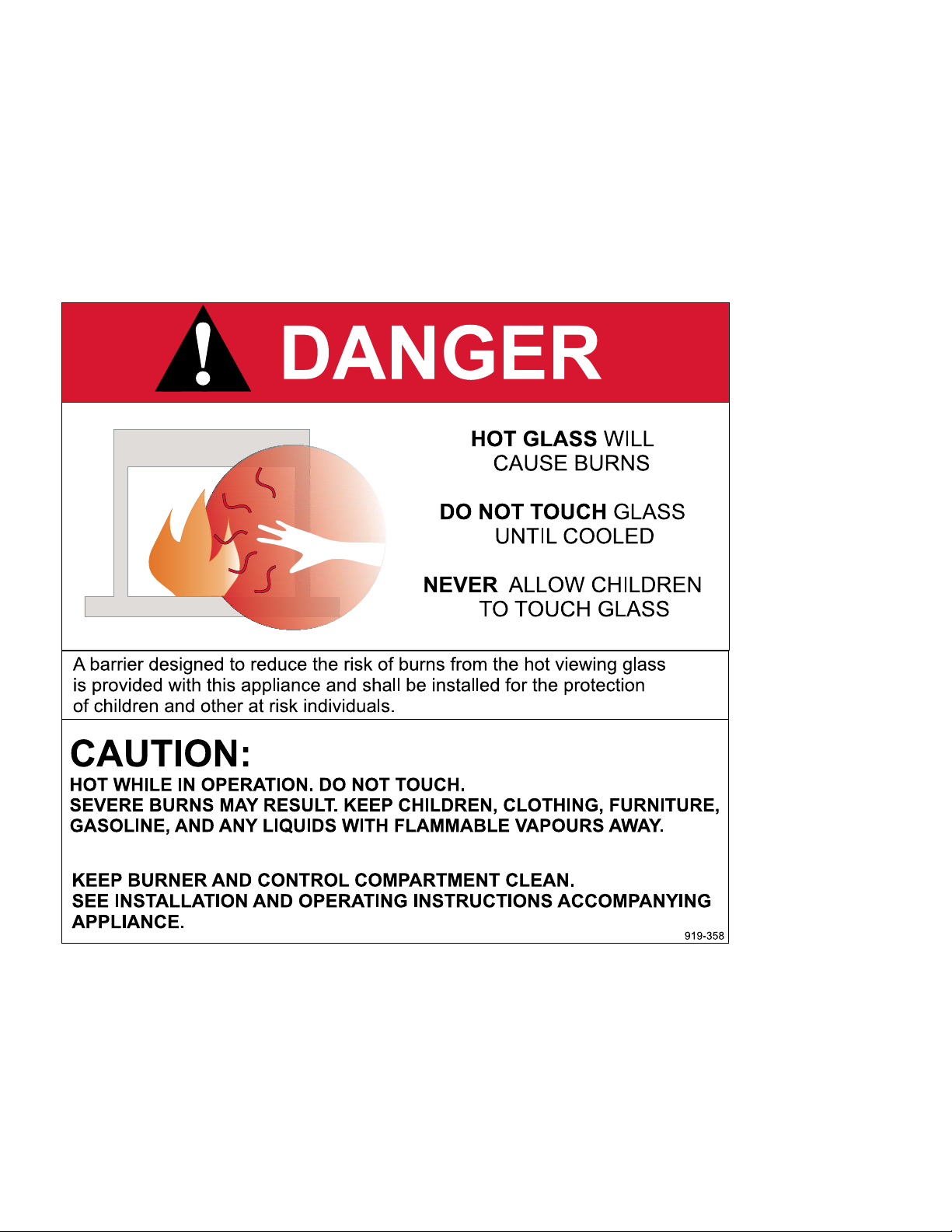

CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROLCOMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
THE APPLIANCE,MUST BE REPLACED
PRIORTOOPERATINGTHEAPPLIANCE.
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHEMANUFACTURER'SBARRIER
FOR THIS APPLIANCE.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS

10 | Bellavista® B36XTE-10 Gas Fireplace
|
10 installation
This includes:
1. Clocking the appliance to ensure the correct
firing rate (rate noted on label 31,000 Btu/h,
after burning appliance for 15 minutes.
2. If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1. When selecting a location for your fireplace,
ensure that the clearances are met.
2. The appliance must be installed on a flat,
solid, continuous surface For example a
wood, metal or concrete floor or in a raised (on
the wall) application. The appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
3. The B36XTE Gas Fireplace can be installed
in a recessed position or framed out into the
room as in A, B, C and D. See Diagram 1.
INSTALLATION CHECKLIST
1. Locate appliance:
a) Room location (Refer to "Locating Your
Gas fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Combustible
Mantel Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2. Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to
"Unit Assembly Prior to Installation" Section).
NOTE: Must be done before installing unit
into place.
3. Install vent (Refer to "Venting" sections).
4. Make gas connections. Test the pilot. Must be
as per Diagram (Refer to "Pilot Adjustment "
section).
Convert to propane if desired (Refer to "Gas
Line Installation" and "Conversion Kit from
NG to LPG" sections).
5. Make electrical connections to receptacle
supplied with unit (recommended).
6. Install standard and optional features. Refer
to the following sections:
a. Install 4AA batteries into remote receiver
/ hookup AC power adaptor
b. Inner Panels or Brick Panels (Optional)
c. Log Set Installation
d. Standard Flush Door
e. Fan Installation (Optional)
f. Light Installation (Optional)
g. Finishing Trim (Optional)
h. Flush Panels and safety screen (Optional)
i. Vignette Inlay (Optional)
7. Final check.
4. This appliance is Listed for bedroom instal-
lations using the standard Remote (millivolt
thermostat system). Some areas may have
further requirements, check local codes
before installation.
5. The B36XTE Gas Fireplace are approved for
alcove installations, see "Clearances" section
for details.
6. We recommend that you plan your instal-
lation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations refer to "Exterior
Vent Termination Locations" section.

Bellavista® B36XTE-10 Gas Fireplace | 11
| 11
installation
Alcove
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this replace and vent system be installed only in accordance with these instructions.
B36XTE Clearance Requirements
Minimum Vent Clearances
to Combustibles
Clearance: Dimension Measured From:
A: Mantel Height (min.) with Vignette +Vignette Trim (Stepped nish) 13" (330mm) Top of Fireplace Opening
A: Mantel Height (min.) with Flush Panels and Safety Screen 13" (330mm) Top of Fireplace Opening
A: Mantel Height (min.) with Vignette + Vignette Trim Finished Flush 22" (559mm) Top of Fireplace Opening
B: Sidewall 12" (304mm) one side only Side of Fireplace Opening
C: Ceiling 36-3/4" (933mm) Top of Fireplace Opening
D: Mantel Depth (max.) 12" (304mm) (See Dimension A) from
Top of Fireplace Opening
E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall
(Maximum)
Notes: 0" No Hearth Required
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2 " (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)
E
F

12 | Bellavista® B36XTE-10 Gas Fireplace
|
12 installation
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.
Mantel Clearances
B36XTE
A B C D
From Top of Fireplace
Opening
32"
(813mm)
22"
(559mm)
17-1/2""
(445mm)
13"
(330mm)
Stepped finish.
Vignette finishing
trim in front of
finished material
Flush finish.
Finishing material flush
with top and side of Vignette
finishing trim
COMBUSTIBLE MANTEL CLEARANCES
Because of the extreme heat this replace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the diagram below.
Note: Mantel starts at *1" deep and ends at *12" deep. **For Vignette with Vignette Finishing Trim ush nish, all materials (framing & nishing) below
the mantel and the width of the Vignette nishing trim, (37-3/4") must be non-combustible if a lower mantel is desired.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Mantel Clearance with Vignette + Vignette Trim (stepped
nish) or Flush Panels and Safety Screen
Mantel Clearance with Vignette and Vignette
Finishing Trim (flush finish)

Bellavista® B36XTE-10 Gas Fireplace | 13
| 13
installation
Install Side Nailing Strips, Top Facing Support, and Top Stando󰀨s
before unit is slipped into position. See the "Unit Assembly Prior to
Installation" section for assembly details.
2. For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapour barrier and drywall, as per local
installation codes. (Do not insulate the fireplace itself.)
3. The top of the fireplace opening must not be closer than 36-3/4"
(933mm) to the ceiling.
Note: Secure the non-combustible board directly above
the unit as shown. Install a steel stud directly above the
unit as shown to secure the non -combustible material.
Diagram 1 Diagram 2
Vignette + Vignette Finishing Trim (Flush Finished)
Vignette + Vignette Trim (stepped nish) or with Flush
Panels and Safety Screen
1. Determine the total thickness of facing material (e.g. non combustible plus ceramic tiles) to allow the finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick with Vignette only and Safety Screen and Flush Panels. When installing the
Vignette + Vignette Finishing Trim Flush Finish the facing thickness is up to maximum of 3-1/8".
Shown with Vignette and
Vignette Finishing Trim,
Flush Finished
FRAMING
Shown with
Optional Vignette
MANTEL LEG CLEARANCES
12” Side Wall
(Measured from side of
Fireplace Opening)
6.5"
3.5”
Mantel leg
Mantel leg
Allowable mantel leg
projection.
3"
1-1/2"

14 | Bellavista® B36XTE-10 Gas Fireplace
|
14 installation
FRAMING WITH VIGNETTE + VIGNETTE TRIM (STEPPED FINISH)OR WITH FLUSH PANELS AND SAFETY SCREEN
- SEE NEXT PAGE FOR FRAMING FOR VIGNETTE AND VIGNETTE TRIM (FLUSH FINISH)
Framing Dimensions Description B36XTE
MFraming Width 40-5/8"(1032mm)
NFraming Height 42" (1067mm)
O (Rear Vent) Framing Depth - Rear Vent 20-3/4" (527mm)
O (Top Vent) Framing Depth - Top Vent 20-1/2" (521 mm)
P (Top Vent) Corner Facing Wall Width 48 - 5/8" (1235mm)
P (Rear Vent) Corner Facing Wall Width 53" (1346mm) AstroCapXL
61-1/2" (1562mm) - other approved caps
Q (Top Vent) Corner Facing Wall Width 68-3/4" (1746mm)
Q (Rear Vent) Corner Facing Wall Width 75" (1905mm) AstroCapXL
87" (2209mm) - other approved caps
R (Rear Vent) Framed Chase Ceiling - Rear 42" (1067mm)
R (Top Vent) Framed Chase Ceiling - Top 50-1/2" (1283mm)
S (Rear Vent) Vent Centerline Height - Rear 26-1/2" (673mm)
S (Top Vent) (5" x 8") Vent Centerline Height - Top 42-1/8" (1070mm) Flex 44-1/4" (1123mm) Rigid
S (Top Vent) (4" x 6-5/8") Vent Centerline Height - Top -49" (1245mm) Rigid
TGas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 4-1/8" (105mm)
VGas Connection Width 3-1/4" (82mm)
WNon-combustible Height 8-3/4" (222mm)
** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
Optional Flush Panels and Safety Screen Vignette

Bellavista® B36XTE-10 Gas Fireplace | 15
| 15
installation
FRAMING WITH VIGNETTE AND VIGNETTE TRIM (FLUSH FINISH)
M
N
O
Q
P
R
U
V
T
Opening for gas
connection
11" (279mm)
dia. Hole through
wall Vent.
Non-Combustible
Header
(steel stud) on edge
Drywall
(or other
facing)
W
Non-Combustible Facing
S
S
Non-Combustible
Header
(steel stud)
on edge
Framing Dimensions Description B36XTE
MFraming Width 42-1/4"(1073mm)
N* Framing Height 42" (1067mm)
O (Rear Vent) Framing Depth - Rear Vent 22-1/8" (559mm)
O (Top Vent) Framing Depth - Top Vent 21-7/8" (553 mm)
P (Top Vent) Corner Facing Wall Width 51 - 5/16" (1303mm)
P (Rear Vent) Corner Facing Wall Width 55-11/16" (1414mm) AstroCapXL
64-3/16" (1630mm) - other approved caps
Q (Top Vent) Corner Facing Wall Width 72-1/2" (1842mm)
Q (Rear Vent) Corner Facing Wall Width 78-3/4" (2000mm) AstroCapXL
90-3/4" (2305mm) - other approved caps
R (Rear Vent) Framed Chase Ceiling - Rear 42" (1067mm)
R (Top Vent) Framed Chase Ceiling - Top 50-1/2" (1283mm)
S (Rear Vent) Vent Centerline Height - Rear 26-1/2" (673mm)
S (Top Vent) (5" x 8") Vent Centerline Height - Top 42-1/8" (1070mm) Flex 44-1/4" (1123mm) Rigid
S (Top Vent) (4" x 6-5/8") Vent Centerline Height - Top -49" (1245mm) Rigid
TGas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 4-1/8" (105mm)
VGas Connection Width 3-1/4" (82mm)
WNon-combustible Height 8-3/4" (222mm)
*NOTE: When using the optional Vignette nishing trim, this can be installed as a 3-sided or 4 sided nish trim. If choosing to use this as a 4 sided nish trim
the framing would need to be increased by 11/16" inches minimum in order for this to t. This
must be to the nished oor. (Eg :42" framing height + 11/16" to bottom of 4-sided nishing trim +1/2 thick nished oor = 43 3/16
** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
Vignette + Vignette Finishing Trim Finished Flush

16 | Bellavista® B36XTE-10 Gas Fireplace
|
16 installation
NON- COMBUSTIBLE REQUIREMENTS:
Diagram 1 Diagram 2
Vignette + Vignette Finishing Trim (Flush Finish)Vignette +Vignette Trim (Stepped Finish) or with Flush
Panels and Safety Screen

Bellavista® B36XTE-10 Gas Fireplace | 17
| 17
installation
WALL MOUNT ON / OFF SWITCH AND REMOTE RECEIVER INSTALLATION
REQUIRED FOR ALL INSTALLATIONS - INCLUDING PROFLAME REMOTE CONTROLS
J-Box
Receiver
Wall Plate
Slider Switch
Low Voltage Junction Box
Diagram 1
10 ft. wire harness with
12 pin connector
IMPORTANT INSTALLATION NOTE:
The Receiver must be placed inside the supplied (Low Voltage)
junction type wall box and installed into the wall only.
DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE.
Remote Receiver Installation
1. Install the low voltage junction box to the framing, at desired location within 10 ft. from fi replace.
2. Feed the 12 pin connector through the opening at back of junction box.
3. Connect the 12 pin connector to the back of the receiver.
4. Install the Receiver in the Low Voltage Junction box.
5. Insert the 4 AA type batteries in the battery compartment with the correct polarity.
6. Place the slider into the cover plate.
7. Put the Receiver switch in the “OFF” position, to allow correct lineup for slider switch.
8. Make sure the Receiver and cover plate words “ON” and “UP” are on the same side.
9. Align the slider with the switch on the Receiver and couple the switch into the slider.
10. Align the screw holes.
11. Using the two (2) screws provided secure the cover plate to the Receiver.
Proflame Receiver

18 | Bellavista® B36XTE-10 Gas Fireplace
|
18 installation
FINISHING
Non-combustible
Material
J-style Trim
or metal corner bead
maybe used to finish these
edges
Non-combustible
Material
Non-combustible
Material
Diagram 2
Diagram 1

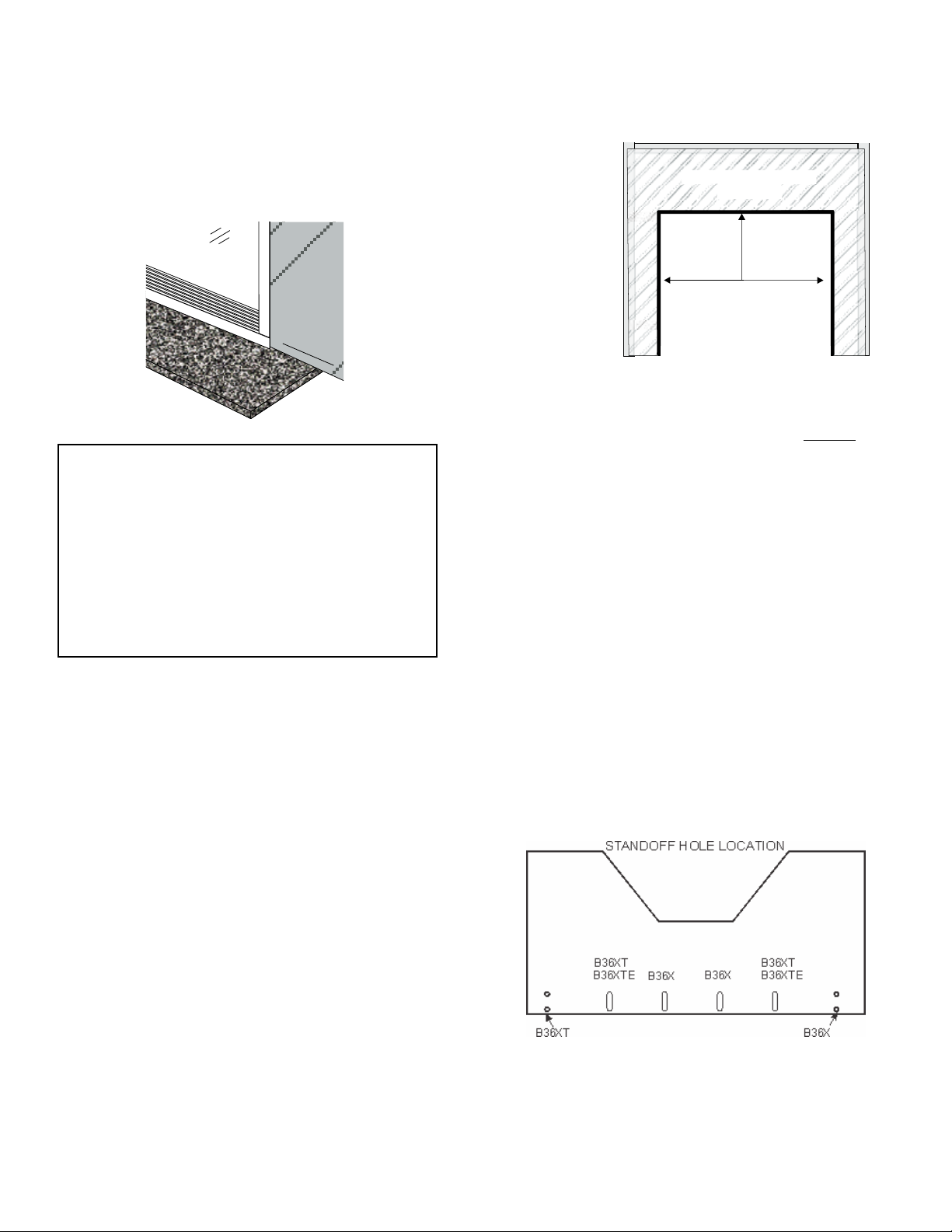

IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into nal position - it is important to know the total
thickness / height of nished hearth (tile, carpet, etc.) The base of the
replace should be level or higher than the nished hearth height.
Important:
Finishing materials such as tile, river rock, etc, must not protrude
beyond the front facing flanges at the sides and top of the firebox
opening.
Note: All non-combustible facing material should butt up cleanly
to the flanges around the firebox opening.
Rough edges will be visible from the front view with the flush
louvers or flush panels - if not using the optional finishing trim.
To maintain a clean finished edge - it is recommended to
install the non-combustible facing material with the finished
edge against the fireplace / nailing strips.
Alternatively, you can use J Style Trim or Metal Corner Bead
to cover cut edges of the non-combustible facing material.
UNIT ASSEMBLY PRIOR TO INSTALLATION
BEFORE YOU START
The Top Facing Support, the Side Nailing Strips, the 2 Top Stando󰀨s and the Flue Collar must be correctly positioned and attached before the replace
is moved into position.
TOP STANDOFF ASSEMBLY
The top stando󰀨s are shipped in a at position and must be folded into shape and
attached.
1. Take each standoff and bend into the correct shape. Bend up at the bend lines
until the screw holes in the standoff and the pre-punched slots on the fireplace
top line up. Be sure to use correct slots, they are marked.
2. Attach the standoff securely to the top with 2 screws per standoff (on opposite
corners).

Bellavista® B36XTE-10 Gas Fireplace | 19
| 19
installation
TOP FACING SUPPORT (IF NOT USING VIGNETTE FINISHING TRIM)
Determine the total thickness of facing material (e.g. non combustible, drywall or wood plus
ceramic tiles) to allow the nished surface to be ush with the front of the unit. Total facing
thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.
The Top Facing Support can be mounted in
3 di󰀨erent positions depending on the
thickness of the facing material.
1) Mount Top Facing Support using the 3 supplied screws into the three pre-punched
screw holes on the top front of the unit. Use hole positions A, B, or C depending on your
facing depth.
Screw Facing Material
Position Depth
A 1/2" / 13mm
B 7/8" / 22mm
C* 1-1/4" / 32mm
* For "C" screw position the top facing
support is reversed.
Top Standoff
(flat shipping
position)
Top Standoff
after bending
Top Facing Support
Top Facing
Support
Side
Nailing
Strip
Nail1.eps
Nail2.eps
Nail3.eps
Nail4.eps
Nail5.eps
bend
here
Before
After
A
AB
C
B
C
Top Facing Support
is reversed
for “C” hole position
A
ABC
B
C
Screw holes for
Top Facing
Support
Screw holes
for Side
Nailing Strip
Before
After
Bend
here
Top Facing Support
Nail6.eps
A
B
C
Screw holes for
Top Facing
Support
Top Facing Support
is reversed
for “C” hole position
A
B
C
Top Facing
Support
Top Standoff
(flat shipping
position)
Top Standoff
after bending
Top Facing Support
Top Facing
Support
Side
Nailing
Strip
Nail1.eps
Nail2.eps
Nail3.eps
Nail4.eps
Nail5.eps
bend
here
Before
After
A
AB
C
B
C
Top Facing Support
is reversed
for “C” hole position
A
ABC
B
C
Screw holes for
Top Facing
Support
Screw holes
for Side
Nailing Strip
Before
After
Bend
here
Top Facing Support
Nail6.eps
A
B
C
Screw holes for
Top Facing
Support
Top Facing Support
is reversed
for “C” hole position
A
B
C
Top Facing
Support
"C" Screw Position:
For a facing material depth of 1-1/4" (32mm),
the top facing support must be reversed.
Top Standoff
(flat shipping
position)
Top Standoff
after bending
Top Facing Support
Top Facing
Support
Side
Nailing
Strip
Nail1.eps
Nail2.eps
Nail3.eps
Nail4.eps
Nail5.eps
bend
here
Before
After
A
AB
C
B
C
Top Facing Support
is reversed
for “C” hole position
A
ABC
B
C
Screw holes for
Top Facing
Support
Screw holes
for Side
Nailing Strip
Before
After
Bend
here
Top Facing Support
Nail6.eps
A
B
C
Screw holes for
Top Facing
Support
Top Facing Support
is reversed
for “C” hole position
A
B
C
Top Facing
Support
SIDE NAILING STRIPS
The side nailing strips come attached to the unit.
There are 2 plates, one on the top and bottom
that can be folded out as required.
If nishing ush with the Vignette Finishing Trim
-bend nailing strips around side trim pieces as
shown below.
NOTE:
If nishing ush with the Vignette Finishing Trim–
there are 2 nailing strips that may be used. If the
total thickness of material is between 2- 3/8 inches
to 3-1/8 inches,use the nailing strip provided for
positions A,B,C. Nailing strip marked D may be
discarded.
If the thickness of material is between 1/2" to
1-7/8 "use nailing strip provided marked D. The other
nailing strip for positions A,B,C may be discarded.
Side
nailing
strips bent.
When using the Vignette nishing trim
the adjustment would be as follows:
Screw
Position
Facing Material depth
A 2-3/8"
B 2-3/4"
C 3-1/8"
D 1/2" to 1-7/8"
Determine the total thickness of facing
material (e.g. drywall or wood plus ce-
ramic tiles) to allow the nished surface
to be ush with the front of the unit.
Total facing thickness can vary from
1/2" (13mm) to 3-1/8" thick.
Side nailing strips can be adjusted from 1/2"
to 2-5/8".
Nailing strip
supplied with
trim
D
A,B,C

20 | Bellavista® B36XTE-10 Gas Fireplace
|
20 installation
CONVERSION TO TOP VENT
Note: This conversion must be done prior to the unit being placed in position.
The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.
Top Collar Assembly Kit
1Intake Collar Assembly with Gasket
1Intake Cover Plate with Gasket
1Top/Rear Exhaust Assembly with Gasket
1Heat Deector
1Ba󰀪e Plate
29 1/4" x 1/2" Screws (4 spares)
1 Restrictor
1Intake Collar Gasket (spare)
1Exhaust Assembly Gasket (spare)
1Insulation Plate Cover
1Insulation Filling
Exhaust Assembly
w/ gasket
Intake Cover Plate
w/gasket
Insulation cover
plate
Insulation lling
Intake Collar Assembly
w/gasket
2. From inside the firebox, remove the top heat deflector by removing
2 screws.
Heat Deector Diagram 2
1. Remove the door assembly by releasing the adjustable latches and lifting up off the door frame assembly.
Adjustable Tension
Latch location
Diagram 1
Note: Components shown are installed on unit.
3. From inside the firebox, remove the baffle plate by removing 4 screws
- remove top front screw first. See Diagram 3.
Bae Plate Diagram 3
4. From the inside of the firebox, remove the exhaust assembly by
removing the 8 screws. See Diagram 4.
Diagram 4
