Regency Fireplace Products City Series ACV40ENG Quick start guide

City Series®
Zero Clearance Direct Flue Gas Fireplace
Owners &
Installation Manual
STYLE MODEL
Three sided ACB40ENG / ACB40ELP / ACB40EULPG
www.regency-re.com.au
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Warning
Fire or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
920-121 03.12.20
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
LISTINGS AND CODE APPROVALS
These gas appliances have been
tested in accordance with AS/NZS
5263.0 & AS/NZS 5263.1.8:2016
and have been certified by IAPMO for
installation and operation as described
in these Installation and Operating
Instructions.
Must be installed as per AS/NZS5601.
Your unit should be serviced
annually by an authorised service
person.
PRIMARILY A DECORATIVE AND NOT A
HEATING APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.

4| City Series ACB40E
safety decal
Part #: 920-215 - Side A Colours: Black on white, except for parts indicated as being Red. Punch out .25" hole top right corner where indicated. Size: 100% W- 6.198" x L- 9.18" Feb. 18/20: Created decal March 2/20: Updated serial and lighting plate decals. Material: Printable white polyester 7mm Start serial sequence @ 000001 NOTE: This is a double sided decal
Part #: 920-215 - Side B Colours: Black on white, except for parts indicated as being Red. Punch out .25" hole top right corner where indicated. Size: 100% w- 6.52" h- 11.13" Feb. 18/20: Created decal
Part #: 920-111d
Colour: Black on Grey
Size: 100% 7" W x 2.7" H
June10/19: Created decal
June 13/19: Removed -11 as per Daniela
Feb. 12/20: Updated gas consumption low value and injector size.
Feb. 19/20: Added label “Primarily a decorative and not a heating appliance”
Mar. 2/20: Changed some consumption and pressure values.
Serial
Number
Regency Gas Fireplace
527
Distributed by:
Western Australia:
Air Group Australia
28 Division St
Welshpool, WA 6106
Eastern Australia
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
New Zealand
Aber Holdings
17 Main Street Place
Te Rapa, HA 3200
To be installed by an authorised person in
accordance with installation instructions
provided with the appliance.
Electrical: 240V 50/60 Hz
920-111d
Gas Type NG Propane ULPG
Model ACV40ENG ACV40ELP
ACV40EULPG
Gas Consumption High 30 MJ/h 30 MJ/h 24 MJ/h
Manifold Pressure High 0.96 kPa 2.60 kPa 2.60 kPa
0.30 kPa 0.70 kPa 0.63 kPa
Injector Size 2.40 mm 1 x #53 1 x #54
Approval No. GMK10594
AS/NZS 5263.0 & AS/NZS 5263.1.8
Gas Consumption Low 17.1 MJ/h 16.0 MJ/h 11.7 MJ/h
Manifold Pressure Low
ACB40ENG ACB40ELP ACB40EULPG
Supply Pressure (Min.)
1.13 kPa 2.75 kPa 2.75 kPa
1.51 mm 1.39 mm
PRIMARILY A DECORATIVE AND NOT A
HEATING APPLIANCE
920-214
Part #: 920-214 Colours: Black on Grey, except for parts indicated as being Red. Punch out .25" hole top right corner where indicated. Size: 100% w- 6.52" h- 11.13" Feb 18/20: Created decal Mar 2/20: Added: "SUITABLE ONLY FOR INDOOR INSTALLATION", removed French.
DO NOT REMOVE THIS INSTRUCTION PLATE
SUITABLE ONLY FOR INDOOR INSTALLATION
This appliance must be installed in accordance with local codes, if any. If none, follow the current AS/INZS 5601.
CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having ammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency, or gas supplier.
A) BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the oor because some gas is
heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS - Do not try to light any appliance - Do not touch any electric switch, do not use any phone in your building - Immediately call your gas supplier from a neighbors phone. Follow the gas supplier’s instructions. - If you cannot reach your gas supplier, call the re department. B) Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.
STOP! Read the safety information above on this label.
1) Ensure the Main switch is in the ON position and/or the wall mounted battery holder (if equipped) is in the <REMOTE> position. 2) Press and release the ON/OFF button on the remote handheld transmitter. An audible beep should be heard from the receiver. If not
using the remote, the unit can also be turned on by sliding the battery holder switch to the <ON> position (if equipped).
3) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.
4) The unit will turn on. Note: The rst attempt to ignition will last approximately 60 seconds. If there is no ame ignition (rectication) the board will stop spark- ing for approximately 35 seconds. After this wait time, the board will start a second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the second attempt the board will go into lock out. The system will need to be reset as follows (after going into lock out mode): a) Wait 5 minutes - turn the system o󰀨 by pressing the ON/OFF button on the remote. b) After approximately 2 seconds, press the ON/OFF button again. c) Unit will repeat step 2.
TO TURN OFF GAS APPLIANCE
1. Press the ON/OFF button once. 2. Turn o󰀨 all electric power to the unit if service is to be performed.
920-215
920-215
This is a copy of the label that accompanies Direct Flue Gas
Fireplace. We have printed a copy of the contents here for your
review. The safety label is located on the front inside base of
the unit, visible when the outer front panel is removed.
NOTE: Regency® units are constantly being improved. Check
the label on the unit and if there is a difference, the label on
the unit is the correct one.
Copy of Data Badge
Part #: 908-602c
Colour: Black on White, expect what is indicated in yellow.
Size: printed at 100%
July 18/17: Rev. C - Changed wording on Line 3 as per AGA -
removed Lines 4, 6 and 7 - updated caution
symbol size and font size to 10pt
May 7/14: Changed wording on Line 3 as per AGA
Dec 12/12: Removed redundant ‘do not’ from the last line
Mar. 3/09: Rev. A - added information
Nov. 6/06: no changes to artwork.
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
DO NOT OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.908-602c

City Series ACB40E | 5

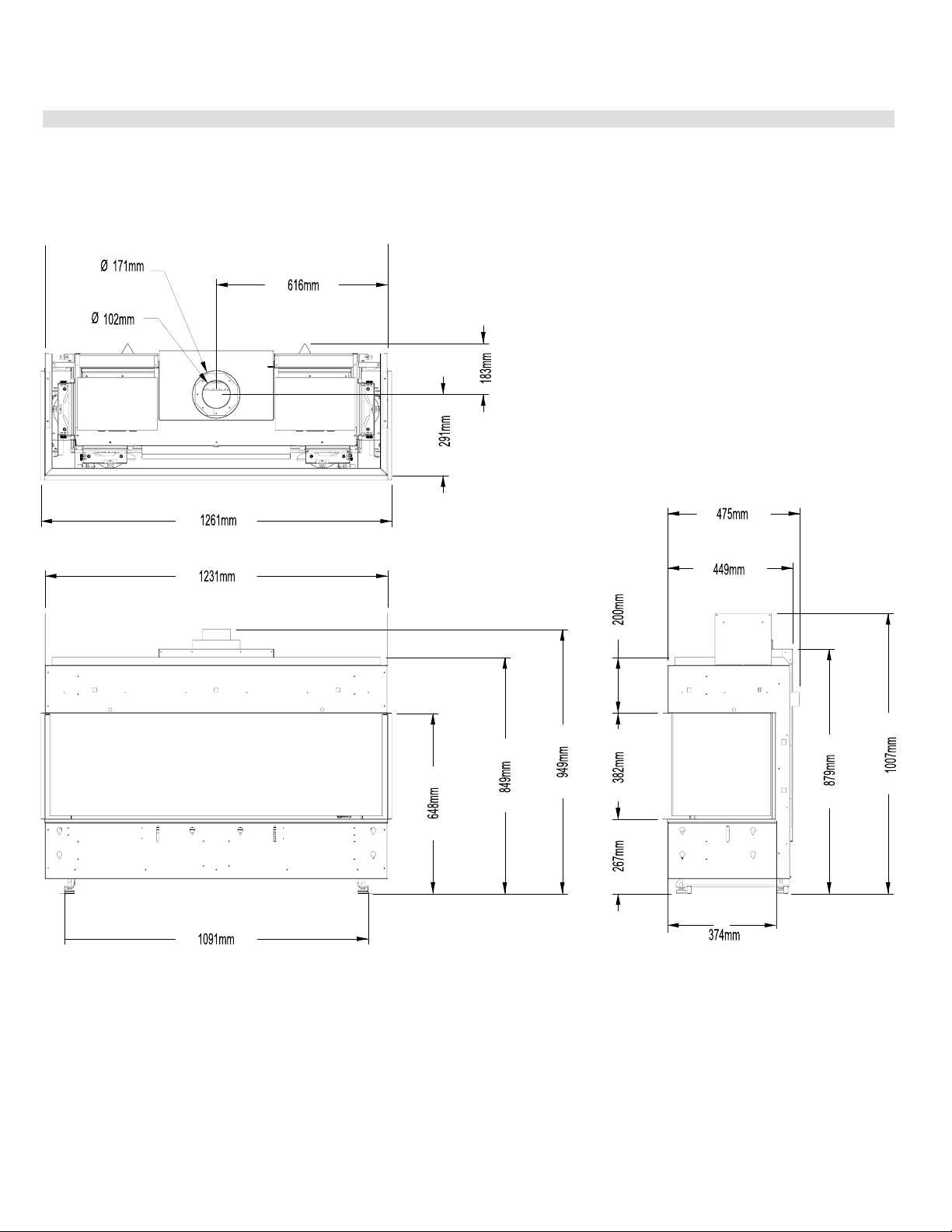

dimensions
Dimensions
Note: Height Dimension may vary depending on the height of the leveling legs.
Note: These units are non-load bearing.

City Series ACB40E | 21
installation
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and flue
system be installed only in accordance with these instructions.
Clearances
Clearance: 3 sided Dimension Measured From:
A: From Floor Min. 0mm Bottom of Fireplace Opening
A1 : Mantel Height (min.) ** Top of Fireplace Opening
B: Sidewall (on one side) 216mm Side of Fireplace Opening
C: Enclosure Width (min.) 1230mm Minimum inside dimensions
D: Mantel Depth (max.) **
E: Alcove Width 2134mm Side wall to side wall (min.)
F: Alcove Depth 914mm Front of Unit
G: To Enclosure Ceiling (min/max) 76mm From top of enclosure
H: Convection Air outlet 306sq cm (min) * Top/front or side of enclosure
I: Enclosure Depth (min.) 483mm Minimum inside dimensions
J: Opening Height 383mm Bottom/Top of Fireplace Opening
K: To Ceiling (min) All 3 sides 38mm To Top of Ceiling
L: Chase Enclosure (min.) 1600mm From base of unit/floor
M: Clearance to sprinkler head (Min.) 914mm Perpendicular from chase grill
Hearth 0mm No hearth required
** See mantel clearances chart in this manual
* A minimum of 774 square centimetres of open area, not lower than 76mm from top of enclosure,
required for all installations — this can be achieved by having an open area in front, each side, and/or

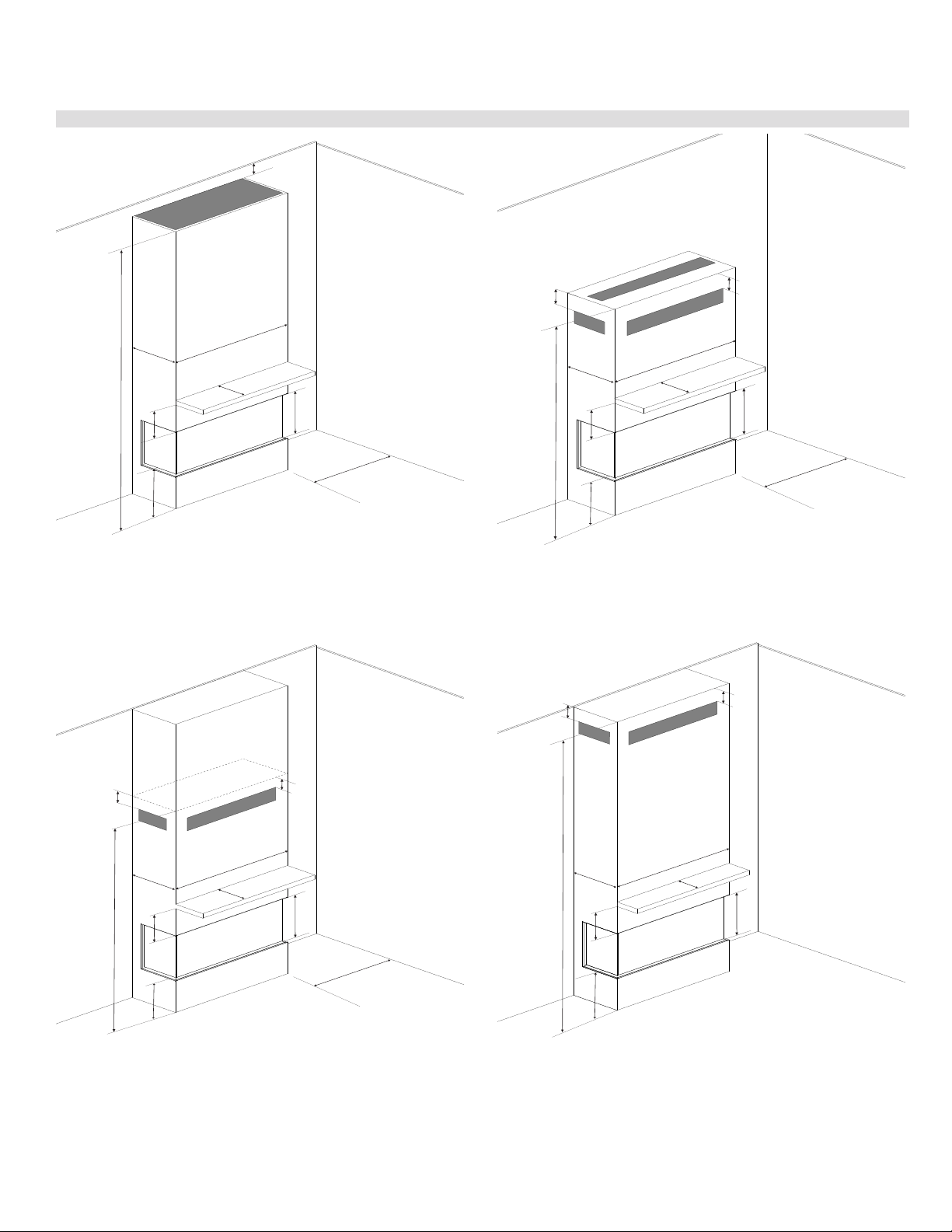

above as shown in the four diagrams on the next page.
E
F
Alcove
Side view
L
Chase grill
Sprinkler
M
Flue Clearances to Combustibles
Horizontal - Top 76mm
Horizontal - Side 51mm
Horizontal - Bottom 51mm
Vertical 51mm
Passing through wall/
floor/ceiling - when
firestop is used.
38mm
The HeatWave Duct Kit has differ-
ent clearance and framing require-
ments, check the HeatWave manual
for details.

22 | City Series ACB40E
installation
Clearances
Floor to ceiling with top opening Low framing with flues in front/sides or top
Full framing with low flues in front or sides Full framing with flues in front or sides
K
C
I
A1
A
D
L
J
H
B
L
I
C
D
A1
A
J
G
G
H
H
H
B
I
C
G
A
A1
G
D
J
L
H
H
B
I
B
A
D
C
J
G
G
L
H
H

City Series ACB40E | 23
installation

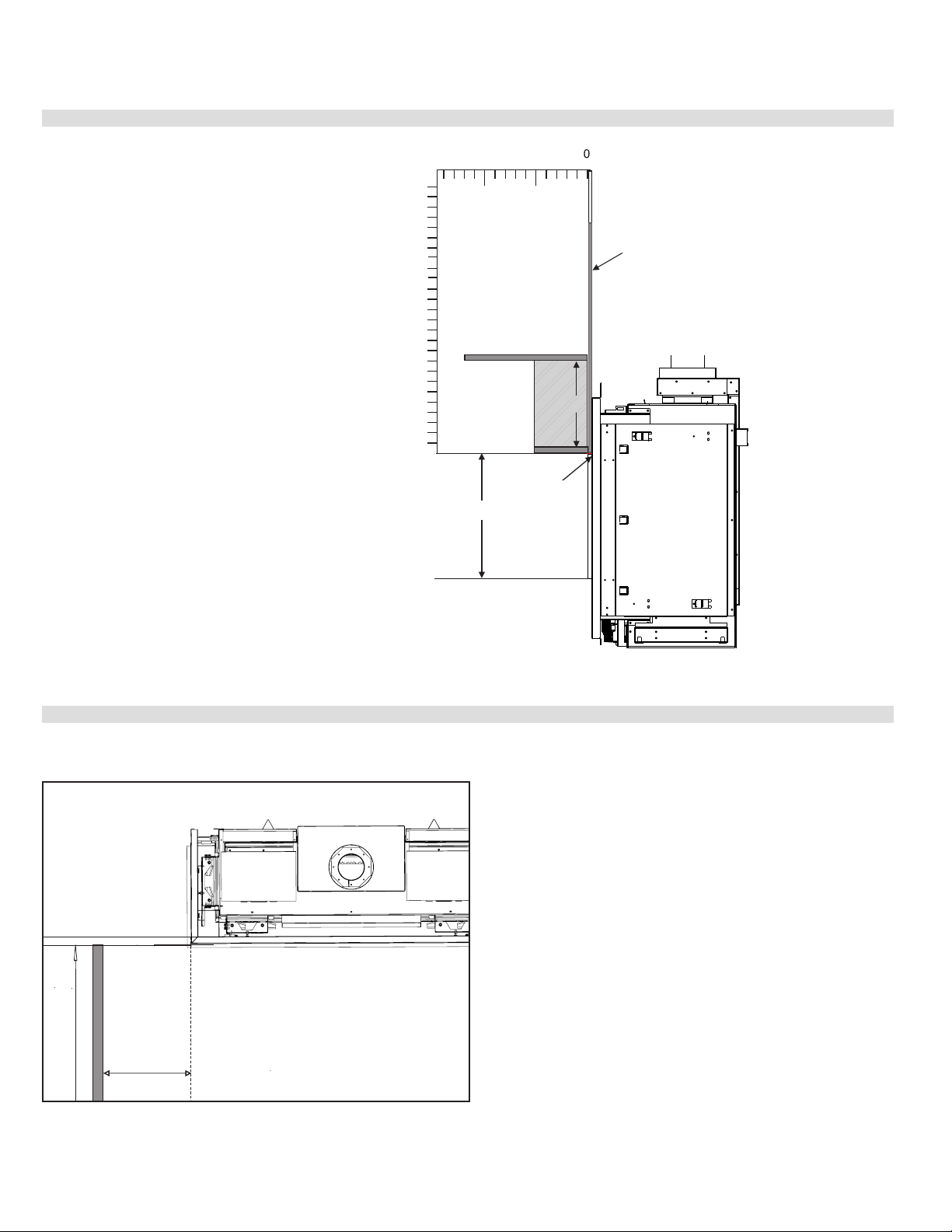

Mantel Clearances
Combustible mantel clearances from top of front facing
are shown in the diagram on the right.
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram:
305mm
MANTEL LEG
216mm
254
0
229mm
383mm
254
508
To p of
Fireplace
Opening
305mm
13mm Plasterboard, timber, timber panel, etc.
To
Bottomof
Fireplace
Opening
130mm
127

24 | City Series ACB40E
installation

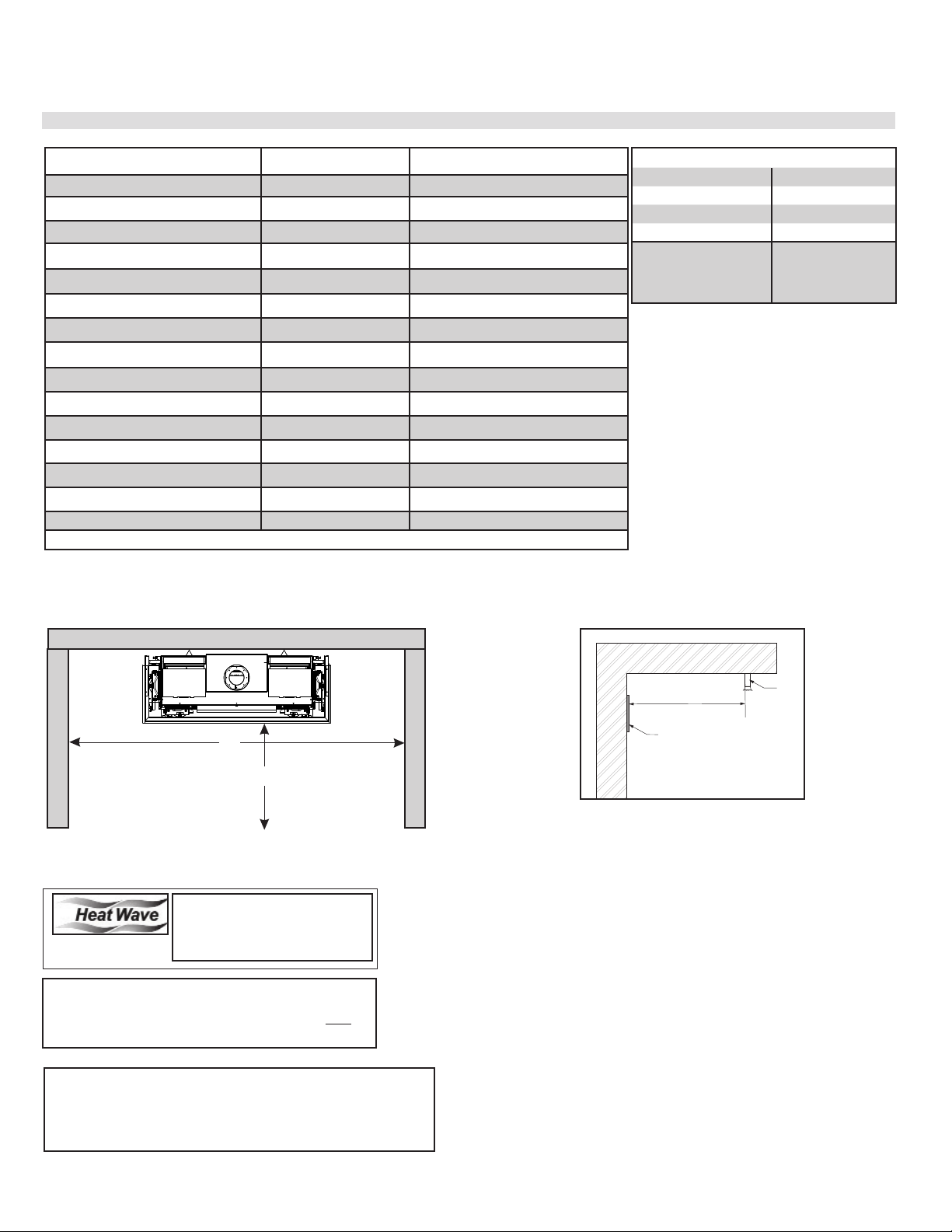

Framing Dimensions
NOTE: Framing may be constructed of combustible material (ie. 51x102mm) and does not require steel studs. Two (2) optional steel stud kits may also be
purchased. These kits may be used in place of the conventional wood framing as shown below. It comes as a compact kit (flush to the appliance on
all sides)or an extended kit. The extended kit protrudes beyond each side of the appliance as shown on the front cover of this manual. There is also
an optional hearth kit which may be purchased as shown on the front cover of this manual. These kits are highly recommended as it was designed
specifically for the product to facilitate ease of installation. See instructions in this manual for details.
Framing
Dimensions Description ACB40E
A Framing Height 949mm
B Framing Width 1232mm
C Framing Depth 483mm
D Minimum Height to Combustibles 1600mm
G Flue Centerline Height 1429mm
I Gas Connection Opening Height 51mm
J Gas Connection Height 106mm
K Gas Connection Inset 330mm
L Gas Connection Opening Width 89mm
Note: A combined minimum of 774 square centimetres of open area is required for the convection air outlet to cool the enclosure. Ensure clearances for
Convection Air Outlets are met. See clearances ACB40E (3 sided) in this manual as there are different methods as to how this can be achieved.
Note: Only basic framing dimensions are shown. The framing may also extend beyond the appliance on either side and also extend out front if a hearth is
desired. See clearance/finishing requirements for details.
Note: Unit is not load bearing. All finished materials must be supported by framing.
Note: This appliance must be installed on
a solid surface such as a plywood floor
which must be the full width and depth of
the appliance.
Maximum mate-
rial dimensions 51mm
x 102mm for Header
studs (installed on edge
and flat)

City Series ACB40E | 39
installation
TV Recessed into Wall - Typical Installs
Maximum TV Recess TV Flush with Hearth
ACB40E shown ACB40E shown

City Series ACB40E | 45
installation
Flueing Introduction
The ACB40E uses the "balanced flue" technology Co-Axial system. The inner liner flues products of combustion to the outside while the outer liner draws
outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and flue system must be flueed directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or
gas burning appliance. Each direct flue gas appliance must use it's own separate flue system. Common flue systems are prohibited.

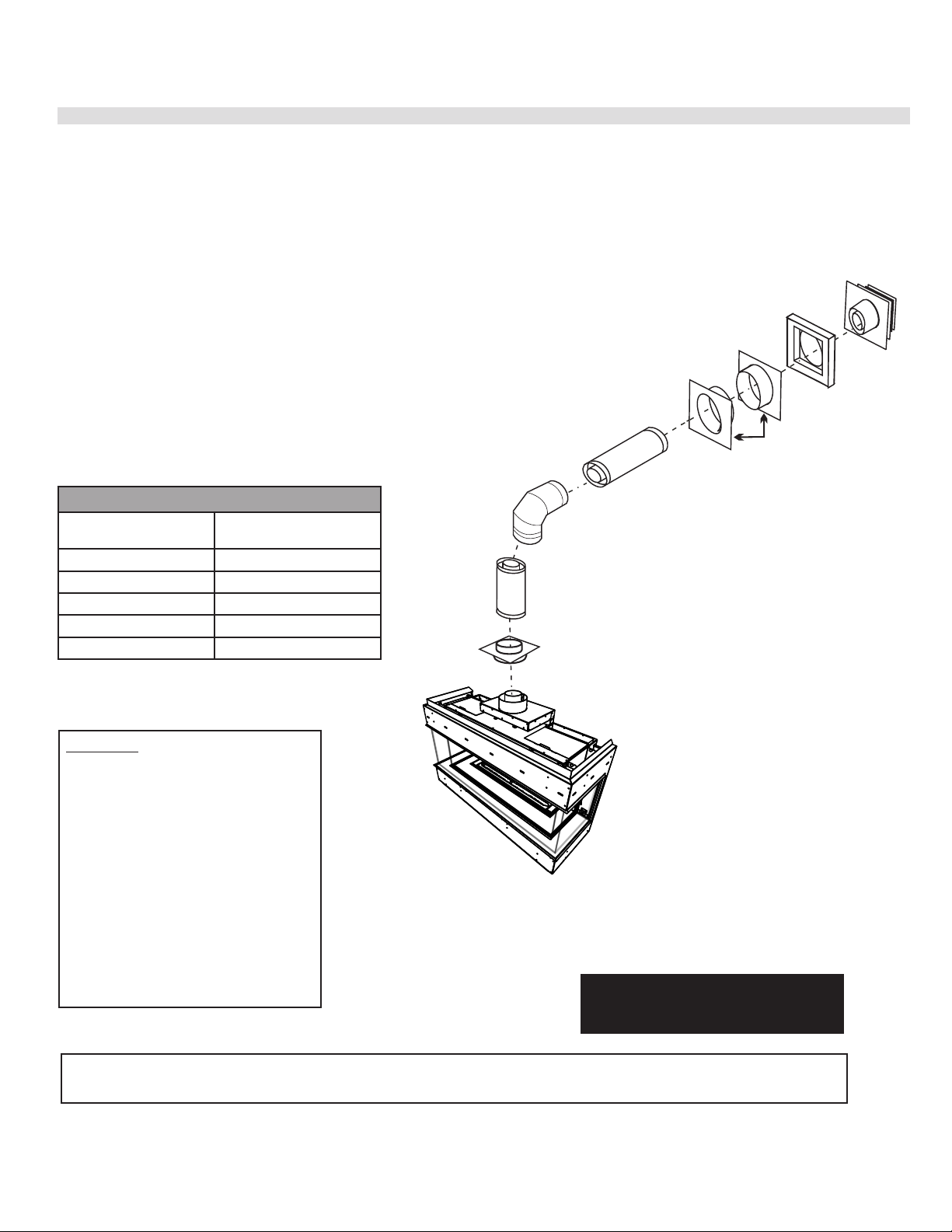

Flueing Arrangement for Horizontal Terminations
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o (two 45o elbows equal one 90o elbow).
Note: Must use optional rigid pipe adapter (Part# 510-994) when using Rigid Pipe Flueing Systems.
• Maintain clearances to combustibles as listed in "Clearances" section
• Horizontal flue must be supported every 0.9m.
• Firestops are required at each floor level and whenever passing through a wall.
• A flue guard should be used whenever the termination is lower than the specified minimum or as per local codes.
• Flex system can only be used up to 3m - otherwise rigid flueing must be used.

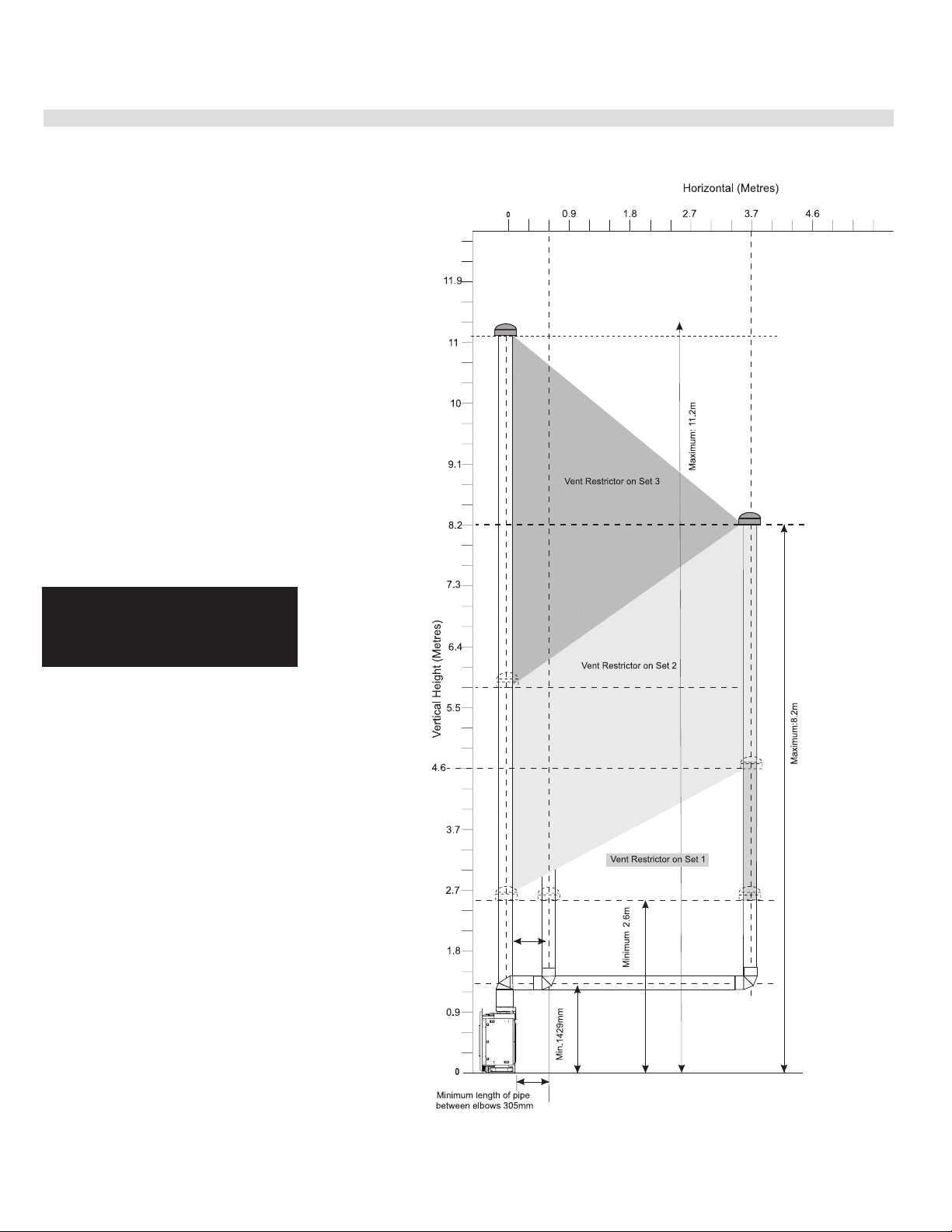

Flue RESTRICTOR SETTING:
Flue restrictor factory set at Set 0.
Refer to the "Flue Restrictor Position" section for details on how to change the flue restrictor from the factory setting of Set 0 to Set 2 if required.
Note: For horizontal terminations the Regency Direct Flue Flex System may be used for installations with a maximum continuous flue length of up to 3m.
If longer runs are required, rigid pipe must be used.
1429mm
Metre
1.8
3
4.2
0.9
0.9 1.8 3
5.1
6.1
(Metres)
4.2
3.7
"THIS UNIT MUST ALWAYS
TERMINATE / FLUE
DIRECTLY TO THE OUTDOORS."

44 | City Series ACB40E
installation
FPI Kit # Length Contains:
#946-515 1.2m 1. 175mm flexible outer liner (Kit length)
2. 102mm flexible inner liner (Kit length)
3. spring spacers
4. thimble
5. AstroCap termination cap
6. screws
7. tube of Mill Pac
8. plated screws
9. S.S. screws #8 x 38mm drill point
#946-516 3m
102mm
Notes:
1. Liner sections should be continuous without any joints
or seams.
2. Only Flex pipe purchased from Regency® may be used
for Flex installations
3. Horizontal vent must be supported every 0.9m.
4. Regency® Direct Vent System (Flex) is only approved for
horizontal terminations.
5. Flex system can only be used up to a maximum continu-
ous vent length of up to 3m. If longer runs are required,
rigid pipe must be used.
Flueing Arrangements Horizontal Terminations
Flex Vent 102mm x 173mm
These flueing systems, in combination with the ACV40E Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system. The location
of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section.
Regency®Direct Vent (Flex) System Termination Kits includes all the parts needed to install the ACV40E using a flexible vent.

46 | City Series ACB40E
installation
Horizontal Terminations
Rigid Pipe 102mm x 175mm
The minimum components required for a basic horizontal
termination are:
1 Horizontal Termination Cap
1 Rigid Pipe Adaptor (510-994)
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back standoffs to the inside
mounting surface of termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl siding standoff,
to create a level surface to mount the flue terminal. The Terminal
must not be recessed into siding. Measure the wall thickness
including furring strips.
If a Vinyl Siding Standoff is required (it must be used with vinyl
siding), measure to outside surface of wall without siding and
add 51mm.
When using Rigid Flue other than
Simpson Dura-vent, 3 screws must be
used to secure rigid pipe to adaptor.
Pipe Length
Vertical Terminal
Storm Collar
Flashing
Ceiling Firestop
Adj.Pipe Length
Horizontal
Termination Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)
Rigid Pipe Adapter
o
90 Elbow
Pipe Length
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
with DuraVent Direct-Vent, Selkirk Direct-
Temp, Ameri Vent Direct Venting, ICC Excel
Direct, Olympia Chimney and Security Secure
Flue systems. Use of these systems with the
Rigid Pipe adaptor is deemed acceptable and
does not affect the Intertek/ WHI listing of
components.
WARNING:
Do not combine flueing components from
different flueing systems.
Use of the AstroCapTM and FPI Riser is accept-
able with all systems.
The FPI AstroCapTM and FPI Riser Flue terminal are certified for installations using FPI flueing systems as well as Simpson Dura-vent® Direct Flue, American
Metal Products Ameri Flue Direct Flue, Security Secure Flue®, ICC Excel, Selkirk Direct-Temp and Olympia Chimney. AstroCapTM is a proprietary trade-
mark of FPI Fireplace Products International Ltd. Dura-vent® and Direct Flue are registered and/or proprietary trademarks of Simpson Dura-vent Co. Inc.
Flat Wall Installation
Wall Thickness
(mm)
Vent Length Required
(mm)
102mm-140mm 152mm
178mm-216mm 229mm
254mm-292mm 305mm
229mm-368mm 279mm-371mm Adj. Pipe
381mm-597mm 432mm-610mm Adj. Pipe

City Series ACB40E | 47
installation
Horizontal Terminations
Rigid Pipe 102mm x 175mm
The diagrams below shows examples of horizontal termination arrangements using one, two, or three 90o elbows (two 45o elbows equal one 90o elbow)
1. A maximum of three 90o elbows are permitted.
2. Minimum distance between elbows is 305mm.
• Maintain clearances to combustibles as listed in the "Clearances" section.
• Horizontal flue must be supported every 0.9m.
• Firestops are required at each floor level and whenever passing through a wall.
• Must use optional rigid pipe adaptor (Part# 510-994) when using rigid pipe flue systems.
• A flue guard should be used whenever the termination is lower than the specified minimum or as per local codes.
• Flex system can only be used up to 3m - otherwise rigid flueing must be used.
Horizontal Flueing with Two (2) 90oElbows Horizontal Flueing with Three (3) 90oElbows
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.
Option V H + H1
With these options,
maximum total pipe length
is 9.1m with minimum of
1.8m feet total vertical
and maximum 2.4m total
horizontal.
Please note minimum
0.3m between 90oelbows
is required.
Min. Max.
A) 0.3m 0.6m
B) 0.6m 1.2m
C) 0.9m 1.5m
D) 1.2m 1.8m
E) 1.5m 2.1m
F) 1.8m 2.4m
Restrictor Set 0 - Factory Setting
Option V H V + V1 H + H1
With these options,
max. total pipe
length is 9.1m with
min. of 3.6m total
vertical and max.
2.7m total horizon-
tal.
Please note min.
0.3m between 90o
elbows is required.
Min. Max. Min. Max.
A) 0.3m 0.3m 0.6m 0.6m
B) 0.3m 0.6m 0.9m 0.9m
C) 0.6m 0.6m 1.5m 1.2m
D) 0.9m 0.6m 2.1m 1.5m
E) 1.2m 0.9m 2.7m 1.8m
F) 1.5m 1.2m 3m 2.1m
G) 1.8m 1.5m 3.3m 2.4m
H) 2.1m 1.8m 3.6m 2.7m
Restrictor Set 0 - Factory Setting

City Series ACB40E | 49
installation
Flueing Arrangement for Vertical Terminations
Vertical Flueing with Straight Vertical Flueing and or with a max. of two (2) 90oElbows (1 - 90o = 2 - 45o)
The shaded area in the diagram shows all allowable combinations
of straight vertical and offset to vertical terminations, using two
90o elbows, with Rigid Pipe Flueing Systems.
Two 45o elbows equal to one 90o elbow.
• Vent must be supported at offsets.
• Minimum distance between elbows is 305mm.
• Maintain clearances to combustibles as listed in the
"Clearances" section.
• Horizontal vent must be supported every 0.9m.
• Firestops are required at each floor level and whenever
passing through a wall.
• Must use optional rigid pipe adaptor (Part# 510-994) when
using rigid pipe vent systems.
• Refer to the "Vent Restrictor Position" section for details on
how to change the vent restrictor from the factory setting
of Set 0 through to Set 3 if required.
"THIS UNIT MUST ALWAYS
TERMINATE / FLUE
DIRECTLY TO THE OUTDOORS."

48 | City Series ACB40E
installation

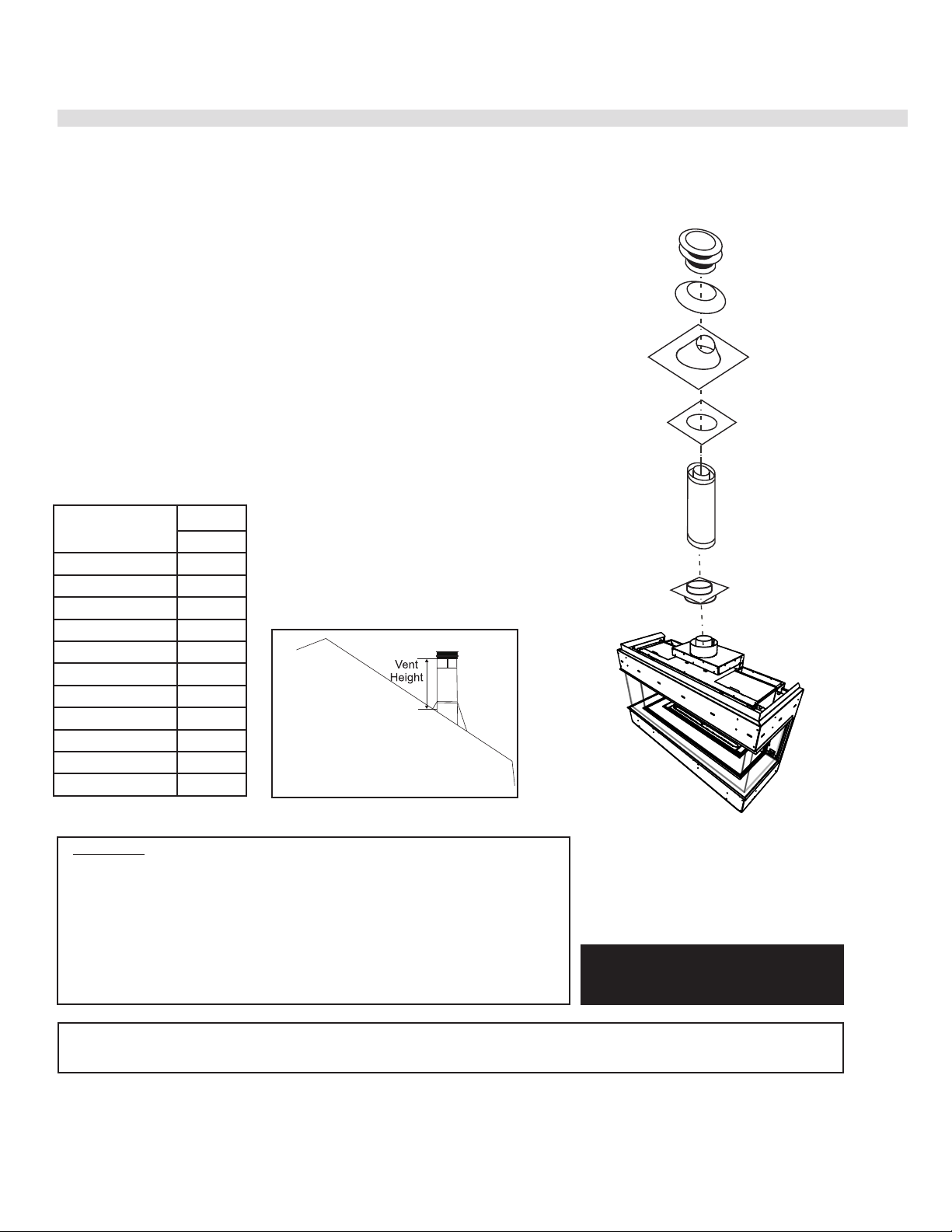

Vertical Terminations
Rigid Pipe 102mm x 175mm
The minimum components required for a basic vertical
termination are:
1 Vertical Termination Cap
1 Rigid Pipe Adaptor (510-994)
1 Ceiling Firestop
1 Flashing
1 Storm Collar
1 Length of pipe to suit wall thickness
(see chart)
When using Rigid Flue other than
Simpson Dura-vent, 3 screws must be
used to secure rigid pipe to adaptor.
Galvanized pipe is desirable above the roofline due to its higher
corrosion resistance. Continue to add pipe sections through the
flashing until the height of the flue cap meets the minimum height
requirements specified in table below or local codes. Note that
for steep roof pitches, the vertical height must be increased. A
poor draft, or down drafting can result from high wind conditions
near big trees or adjoining roof lines, in these cases, increasing
the flue height may solve the problem.
Roof Pitch
Meters
flat to 7/12 0.61
over 7/12 to 8/12 0.61
over 8/12 to 9/12 0.61
over 9/12 to 10/12 0.76
over 10/12 to 11/12 0.99
over 11/12 to 12/12 1.22
over 12/12 to 14/12 1.52
over 14/12 to 16/12 1.83
over 16/12 to 18/12 2.13
over 18/12 to 20/12 2.29
over 20/12 to 21/12 2.44
Pipe Length
Vertical Terminal
Storm Collar
Flashing
Ceiling Firestop
Rigid Pipe Adapter
This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction
with Duravent Direct-Vent, Selkirk Direct-Temp, Ameri Vent Direct Venting, ICC Excel
Direct, Olympia Chimney, and Security Secure Vent systems. Use of these systems with
the Rigid Pipe adaptor is deemed acceptable and does not affect the Intertek WHI listing
of components.
WARNING:
Do not combine flueing components from different flueing systems.
Use of the the AstroCapTM and FPI Riser is acceptable with all systems.
The FPI AstroCapTM and FPI Riser Vent terminal are certified for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent, American
Metal Products Ameri Vent Direct Vent, Security Secure Vent®, ICC Excel, Selkirk Direct-Temp and Olympia Chimney. AstroCapTM is a proprietary trade-
mark of FPI Fireplace Products International Ltd. Dura-vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

50 | City Series ACB40E
installation
Vertical Terminations
Rigid Pipe 102mm x 175mm
• Two 45o elbows equal to one 90o elbow. Maximum of six 45o elbows allowed.
• Flue must be supported at offsets.
• Minimum distance between elbows is 305mm.
• Maintain clearances to combustibles as listed in the "Clearances" section.
• Horizontal flue must be supported every 0.9m.
• Firestops are required at each floor level and whenever passing through a wall.
• Must use optional rigid pipe adaptor (Part# 510-994 when using rigid pipe flue systems)
Vertical Flueing with Three (3) 90oElbows
One 90oelbow = Two 45oelbows.
V
H1 H
V1
Option V H + H1 V + V1
With these options,
max. total pipe length
is 9.1m with min.
of 3m total vertical
and max. 2.4m total
horizontal.
Please note min.
0.3m between 90o
elbows is required.
Min. Max. Min.
A) 0.3m 0.6m 0.9m
B) 0.6m 0.9m 1.2m
C) 0.9m 1.2m 1.8m
D) 1.2m 1.5m 2.1m
E) 1.5m 1.8m 2.4m
F) 1.8m 2.1m 2.7m
G) 2.1m 2.4m 3.0m
Lengths do not include elbow indicated
