Regency Fireplace Products Horizon HZ40E-NG10 Service manual

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-360
Regency Horizon™HZ40E
Gas Fireplace
09.09.14
Owners &
Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: HZ40E-NG10 Natural Gas
HZ40E-LP10 Propane
www.regency-fire.com
Horizon HZ40E Product Video
- Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach you gas supplier, call the re department.
- Installation and service must be performed by a qualied installer, service agency or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.

2| Regency Horizon™ HZ40E-10 Gas Fireplace
|
2
This appliance can only be used with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in
Canada.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2014 / CSA 2.33-2014 and GAS-FIRED APPLIANCES FOR
USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,
where not prohibited by local codes.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria
for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA
70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1
in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as
applicable to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Ensure that structural members are not cut or weakened during installation.
Regency Horizon Gas Inserts Video

Regency Horizon™ HZ40E-10 Gas Fireplace | 3
| 3
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ40E has been
designed to provide you with all the warmth and charm of a replace at the ick of a switch. The
model HZ40E has been approved by Warnock Hersey/Intertek for both safety and efciency. As
it also bears our own mark, it promises to provide you with economy, comfort and security for
many trouble free years to follow. Please take a moment now to acquaint yourself with these
instructions and the many features of your Regency®Fireplace.

4| Regency Horizon™ HZ40E-10 Gas Fireplace
|
4table of contents
Copy of Safety Decal.....................................................5
MA Code - CO Detector.................................................6
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................8
Installation Checklist......................................................9

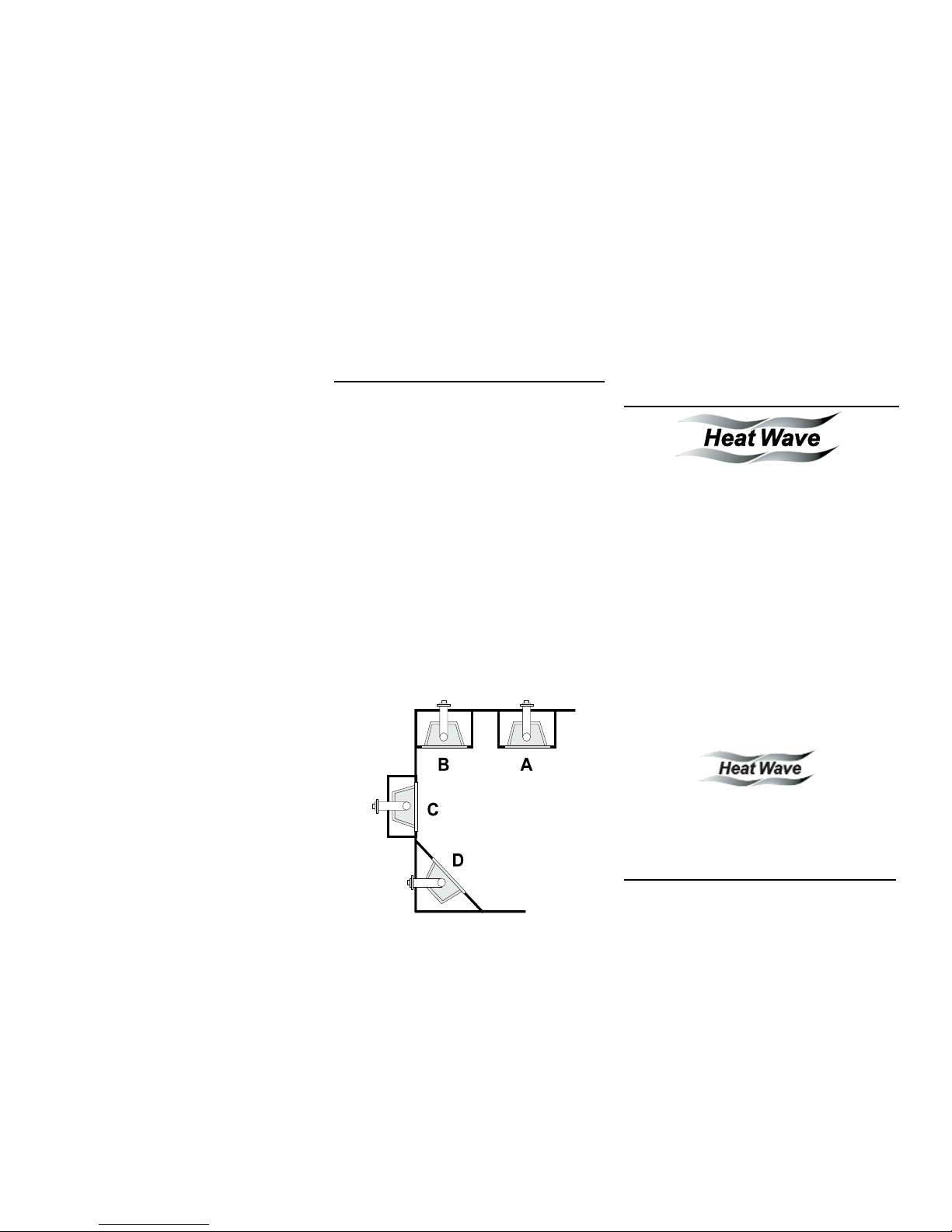

Locating Your Gas Fireplace .........................................9
Heatwave Duct System .................................................9
Heat Release kit ............................................................9
Clearances ..................................................................10
Mantel Clearances....................................................... 11
Mantel Leg Clearances................................................ 11

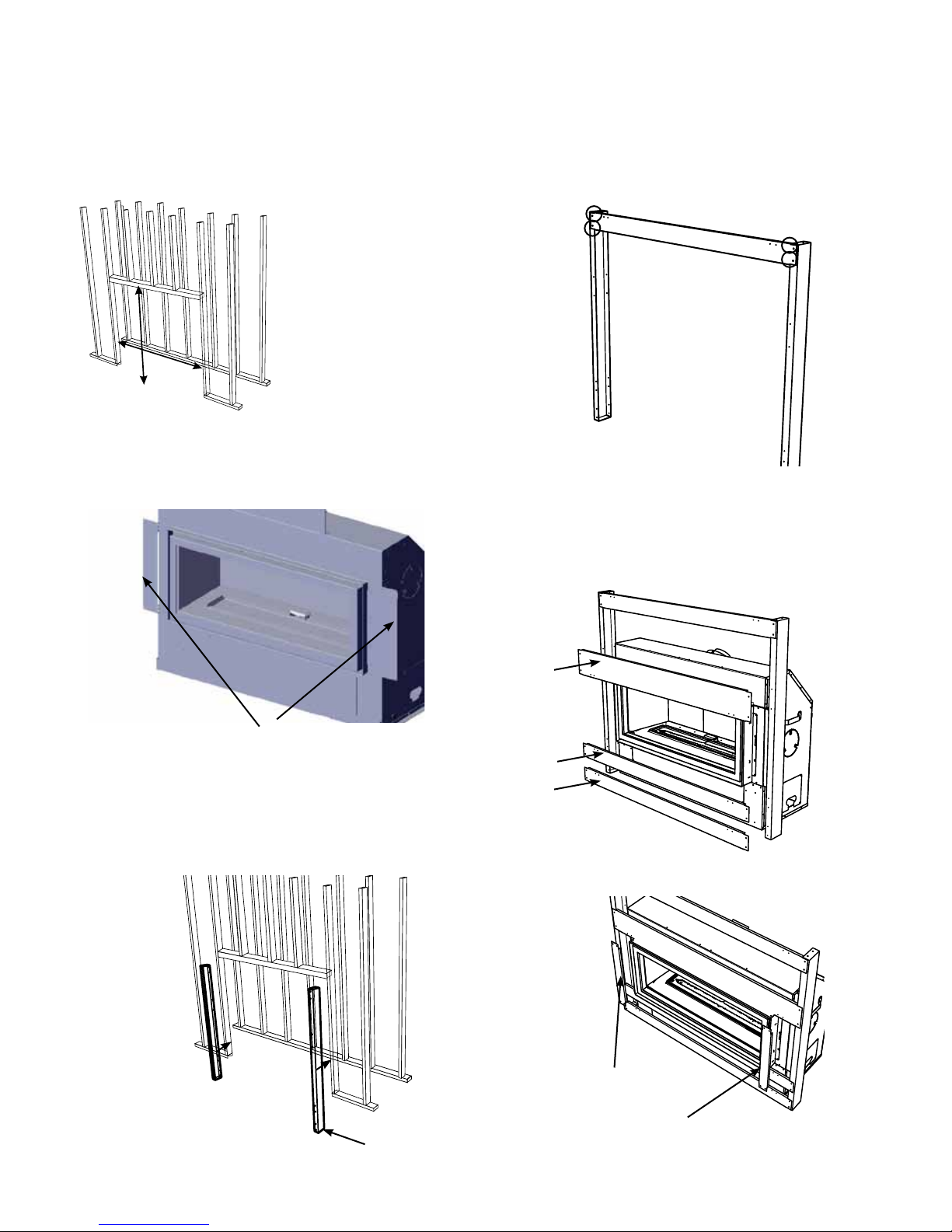

Unit Assembly Prior To Installation ..............................12
Nailing Strips........................................................12
Installation Access panel .....................................12
Framing Dimensions....................................................13
Optional Framing kit ....................................................14
Wall mount On / Off Switch and REMOTE receiver
installation....................................................................15
Non-Combustible Requirements .................................16
Non-combustible facing installation ............................16
Framing & Finishing.....................................................17
Exterior Vent Termination Requirements .....................19
4” x 6-5/8” Rigid Pipe ..................................................20
Vent Restrictor Position ...............................................22
Venting Introduction.....................................................23
Venting Arrangement for Horizontal Terminations .......23
Horizontal Terminations Flex Vent 4" x 6-7/8" .............24
Horizontal terminations Rigid Pipe 4" x 6-5/8".............25
Horizontal Terminations Rigid Pipe 4" x 6-5/8" ............26
Vertical terminations Rigid Pipe 4" x 6-5/8" .................29
Venting Arrangement for Vertical Terminations............30
Vertical Termination with Co-Linear Flex System ........31
Vertical Terminations Rigid Pipe 4" x 6-5/8" ................32
Venting Arrangements - Vertical Terminations ............34
Unit Installation with Horizontal Termination ...............35
4" x 6-5/8" venting .......................................................35
Unit Installation with Horizontal Termination ...............36
Unit installation with Vertical Termination ....................37
4" x 6-5/8" venting .......................................................37
High Elevation .............................................................38
Gas Line Installation....................................................38
Pilot Adjustment...........................................................38
Gas Pipe Pressure Testing ..........................................38
885 S.I.T. Valve Description.........................................38
Aeration Adjustment ....................................................38
Wiring diagram ............................................................39
Optional fan Installation - initial install .........................40
Optional fan Installation - existing install .....................42
Wiring diagram with optional fan .................................44
Inner Panel Installation................................................45
Glass Crystals or optional stones................................46
Installation On Burner..................................................46
Optional PebbleS / glass crystal Installation for Firebox
Base ...........................................................................46
Optional driftwood Log set Installation.........................47
Glass door Installation.................................................49
Mesh barrier removal / installation...............................50
4 piece faceplate installation .......................................51
Inner and outer door frame installation........................52
Operating Instructions .................................................53
First Fire ......................................................................53
Normal Operating Sounds of Gas Appliances.............53
Lighting Procedure ......................................................54
Shutdown Procedure...................................................54
Copy of Lighting Plate Instructions..............................55
Maintenance Instructions.............................................56
Glass Gasket...............................................................56
Glass Door...................................................................56
Glass Replacement .............................................56
General Vent Maintenance..........................................56
Valve assembly Replacement .....................................57
Main Assembly ............................................................58
Accessories .................................................................59
The Warranty: Limited Lifetime ...................................63

Regency Horizon™ HZ40E-10 Gas Fireplace | 5
| 5

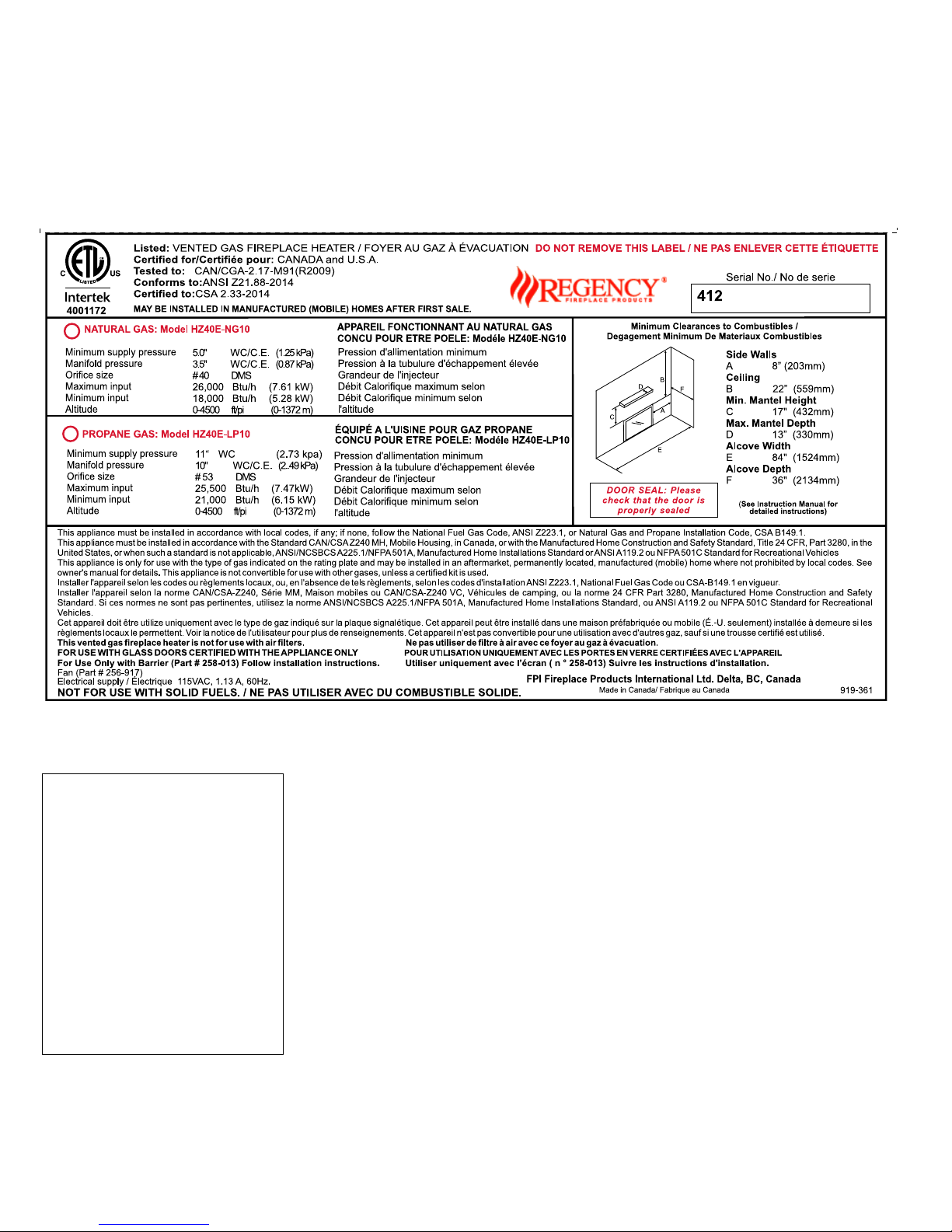

safety decal
This is a copy of the label that accompanies each HZ40E-NG10 and HZ40E-LP10 Direct Vent Gas Fireplace. We have printed a copy of the contents here
for your review.
NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
COPY OF SAFETY DECAL
For the State of Massachusetts, installation
and repair must be done by a plumber or
gastter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, exible con-
nectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.

6| Regency Horizon™ HZ40E-10 Gas Fireplace
|
6requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency Horizon™ HZ40E-10 Gas Fireplace | 7
| 7
dimensions
(1092mm)
(972mm)
(522mm)
(902mm)
(318mm)
(388mm)
1514
Inner/Outer Faceplate 4 Piece Faceplate/Verona Surround

8| Regency Horizon™ HZ40E-10 Gas Fireplace
|
8installation
4. This appliance must be connected to the
specified vent and termination cap to the outside
of the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5. Inspect the venting system annually for blockage
and any signs of deterioration.
6. Venting terminals shall not be recessed into a
wall or siding.
7. Any safety glass removed for servicing must be
replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11. Under no circumstance should this
appliance be modified. Parts that have
to be removed for servicing should be
replaced prior to operating this appliance.
12. Installation and any repairs to this appliance
should be done by a qualified service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15. The appliance area must be kept clear and free
of combustible materials, (gases and other flam-
mable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Gas Fireplace must be installed in accordance
with these instructions. Carefully read all the
instructions in this manual first. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation. It is the responsibility
of the installer to ensure this fireplace is installed
in compliance with manufacturers instructions and
all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
GENERAL SAFETY
INFORMATION
1. The appliance installation must conform with
local codes or, in the absence of local codes, with
the current Canadian or National Gas Codes,
CAN1-B149 or ANSI Z223.1 Installation Codes.
2. The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with the
current National Electrical Code, ANSI/NFPA 70
or CSA C22.1 Canadian Electrical Code.
3. See general construction and assembly
instructions. The appliance and vent should be
enclosed.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC.IT IS IMPERATIVETHAT
CONTROLCOMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHE MANUFACTURER'S BARRIER
FOR THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
AN APPLIANCE MUST BE REPLACED
PRIORTO OPERATINGTHE APPLIANCE.

Regency Horizon™ HZ40E-10 Gas Fireplace | 9
| 9
installation
This includes:
1. Clocking the appliance to ensure the correct
ring rate (rate noted on label 26,000 Btu/h
(NG), 25,500 Btu/h (LP) after burning appliance
for 15 minutes.
2. If required, adjusting the primary air to ensure
that the ame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results in dam-
age is not the responsibility of the manufacturer.
INSTALLATION
CHECKLIST
1. Locate appliance
a) Room location (Refer to "Locating Your Gas
replace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantel Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2. Position nailing strips (Refer to "Unit Assembly
Prior to Installation).
3. Slide unit into place.
4. Remove installation access panel.
5. Install vent (Refer to "Venting Arrangement"
sections).
6. Make gas connections (Refer to "Gas Line
Installation section).
7. Make electrical connections to receptacle
supplied with unit (recommended).
8. Install 4 AA batteries into receiver/switch box
or use AC power adaptor supplied with this
appliance.
9. See remote control instructions for operation
of this device.
10. Test the pilot (Refer to "Pilot Adjustment" section).
11. Test Gas Pressure (Refer to "Gas Pipe Pressure
Testing" section).
12. Install standard and optional features. Refer to
the following sections:
a) Glass Crystals/ Optional Ceramic
Stones
b) Optional Firebox Base Pebbles
c) Optional Reective Panels
d) Optional Fan
e) Faceplate
13. Reinstall installation access panel.
14. Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is ring
correctly and operation fully explained to
customer.
LOCATING YOUR
GAS FIREPLACE
1. When selecting a location for your replace,
ensure that the clearances are met.
2. The appliance must be installed on a at, solid,
continuous surface For example a wood, metal
or concrete oor or in a raised (on the wall) ap-
plication. The appliance must be installed on
a metal or wood panel extending the full width
and depth of the appliance.
3. The HZ40E Direct Vent Gas Fireplace can be
installed in a recessed position or framed out
into the room as in A, B, C and D.
See Diagram 1.
Diagram 1
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
4. This appliance is Listed for bedroom
installations using the standard Remote
(thermostat system). Some areas may have
further requirements, check local codes before
installation.
5. The HZ40E Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
6. We recommend that you plan your installation
on paper using exact measurements for
clearances and oor protection before actually
installing this appliance. Have an authorized
inspector, dealer, or installer review your plans
before installation.
Note: For vent terminations refer to "Exterior
Vent Termination Locations" section.
HEATWAVE
DUCT SYSTEM
OPTIONAL KIT #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your replace by dispersing warm
air from the replace to remote locations in the same
room or other rooms in your home.
Up to two kits may be installed on the replace.
Please Note: Only 1 HeatWave kit may be oper-
ated at one time. This includes the internal blower
option as well.
OPTIONAL
HEAT RELEASE KIT
#946-570
The Heat Release Kit expels warm air from the
replace to the outside of the building, allowing
the replace to be operated with less heat entering
the room. The kit may be used on either the left
or right side.
The HeatWave Duct Kit has different
clearance and framing requirements, check
the HeatWave manual for details.

10 | Regency Horizon™ HZ40E-10 Gas Fireplace
|
10 installation
Caution Requirements
The top, back and sides of the replace are dened by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this replace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 17" (330mm) Top of Fireplace Opening
B: Sidewall (on one side) 8" (203mm) Side of Fireplace Opening
C: Ceiling
(room and/or alcove) 22" (559mm) Top of Fireplace Opening
D: Mantel Depth (max.) 13" (330mm) 22" Above Fireplace Opening
E: Alcove Width 84" (2134mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: From Floor 27" (686mm) Top of Fireplace Opening
Note: 0" No hearth required
Installed close
to ceiling.
Flue Clearances to Combustibles
Horizontal - Top 3"
Horiztonal - Side 2"
Horiztonal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
restop is used.
1-1/2"
Alcove
E
F
F
E
D
A
B
Installed Close
to Floor
G
The HeatWave Duct Kit and the Heat
Release Kit have different clearance
and framing requirements, check
the HeatWave and Heat Release
manual for details.
Heat Release Kit

Regency Horizon™ HZ40E-10 Gas Fireplace | 11
| 11
installation
MANTEL CLEARANCES
Due to the extreme heat this replace emits, the
mantel clearances are critical. Combustible mantel
clearances from top of front facing are shown in the
diagram on the right.
Note: Ensure the paint that is used on the mantel
and the facing is "high quality" or the paint
may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Combustible Material
212 64810
13" (330mm)
Standoff
Metal Stud
(On Edge)
0
14
Non-combustible
Facing
To Unit
Base
1" (25mm)
22”
17”
27”
10
20
26
To pof
Fireplace
Opening
(559mm)
4"
A
llowable mantel
legp
rojection
7-1/8” (181mm)
10”(203mm)
13”( 279mm)
1.5" (38mm)
MANTELLEG 5-11/16”(144mm)
Non-Combustible
7”

12 | Regency Horizon™ HZ40E-10 Gas Fireplace
|
12 installation
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The nailing Strips must be correctly positioned and attached before unit is
slid into position.
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side.
The side nailing strips are secured to the framing.
IMPORTANT NOTE
Framing depth measurement is noted with the nailing strips
set as far forward on the rebox as possible. The nailing
strips can be adjusted back up to 3-1/4” to allow for varying
thicknesses in non-combustible material & wall nishes.
Nailing Strips
INSTALLATION ACCESS PANEL
The unit is equipped with a removable access panel for pre-nish installation
of optional components - this panel is located on the lower front face.
1. Remove 8 screws to remove access panel.
2. Easier access to gas connection with panel removed.
3. Install any optional components with access panel removed.
4. Reinstall access panel with 8 screws - prior to installing any facing material
Note: Access panel is no longer usable once facing material installed.
Installation Access Panel

Regency Horizon™ HZ40E-10 Gas Fireplace | 13
| 13
installation
FRAMING DIMENSIONS
NOTE: If not purchasing the optional steel stud kit - adhere to the same framing if purchasing steel studs elsewhere. The use of the optional kit is highly
recommended as it was designed specifically for the product to facilitate ease of installation.
Framing
Dimensions Description HZ40E
AFraming Height 42” (1067mm)
B Framing Width 49-7/8" (1266mm)
C*Framing Depth*
C1 Horizontal Vent 21-3/16" (538mm)
C2 Vertical Vent 25-3/16" (640mm)
Vertical rise -terminating horizontal
D Minimum Height to Combustibles 43-7/8" (1004mm)
E Corner Wall Depth 61" (1549mm)
F Corner Facing Wall Width 86-1/4" (2191mm)
G Vent Centerline Height 36 - 1/4" (921mm)
H Non-combustible facing height 17” (432mm)
I Gas Connection Opening Height 2" (51mm)
J Gas Connection Height 4 - 3/16" (106mm)
K Gas Connection Inset 8 - 5/16" (211mm)
LGas Connection Opening Width 3 - 1/2" (89mm)
* Framing depth measurement is noted with the nailing strips set as far forward on the rebox as possible.
The nailing strips can be adjusted back up to 3-1/4” to allow for varying thicknesses in non-combustible
material & wall nishes.

14 | Regency Horizon™ HZ40E-10 Gas Fireplace
|
14 installation
OPTIONAL FRAMING KIT
919-430 08/26/14
OptiOnal framing kit
1. Construct the wood framing, ensure inside dimensions are 53"W x 45-
1/2"H as shown below.
53"
45-1/2"
2. Bend both side nailing strips from the side of the appliance until
positioned as shown below.
Determine the overall combined thickness of the non-combustible board
+ finished material being used. The nailing strips can be adjusted up to
3-1/4".
Nailing Strips
3. Adjust the nailing strips by loosening 2 screws on each nailing strip -
adjust and retighten screws.
4. Attach both vertical studs and secure using 6 screws (2 at bottom, 2 at
top and 2 on sides) as shown.
NOTE: Ensure the flat side of the steel stud is facing the wood framing.
Flat side out
5. Secure horizontal steel header stud with 2 screws per side as per
diagram.
6. Slide the unit into position. Hook up gas, venting, electrical and fan (if
purchased) prior to installing the remaining steel studs.
7. Secure the large horizontal steel studs as shown with 2 screws per side.
8. Secure 2 horizontal studs on the lower side of the appliance with 2
screws per side for each stud as shown.
9. Secure 2 vertical studs on either side of the appliance with 4 screws per
side stud as shown.
Large stud
Header stud
Horizontal
studs
Vertical studs
1
HZ40E

Regency Horizon™ HZ40E-10 Gas Fireplace | 15
| 15
installation
WALL MOUNT ON / OFF SWITCH AND REMOTE RECEIVER INSTALLATION
REQUIRED FOR ALL INSTALLATIONS - INCLUDING PROFLAME REMOTE CONTROLS
J-Box
Receiver
Wall Plate
Slider Switch
Low Voltage Junction Box
Diagram 1
10 ft. wire harness with
12 pin connector
IMPORTANT INSTALLATION NOTE:
The Receiver must be placed inside the supplied (Low Voltage)
junction type wall box and installed into the wall only.
DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE.
Remote Receiver Installation
1. Install the low voltage junction box to the framing, at desired location within 10 ft. from fi replace.
2. Feed the 12 pin connector through the opening at back of junction box.
3. Connect the 12 pin connector to the back of the receiver.
4. Install the Receiver in the Low Voltage Junction box.
5. Insert the 4 AA type batteries in the battery compartment with the correct polarity.
6. Place the slider into the cover plate.
7. Put the Receiver switch in the “OFF” position, to allow correct lineup for slider switch.
8. Make sure the Receiver and cover plate words “ON” and “UP” are on the same side.
9. Align the slider with the switch on the Receiver and couple the switch into the slider.
10. Align the screw holes.
11. Using the two (2) screws provided secure the cover plate to the Receiver.
Proflame Receiver

16 | Regency Horizon™ HZ40E-10 Gas Fireplace
|
16 installation
NON-COMBUSTIBLE FACING INSTALLATION
Non-combustible board
shipped with unit.
Non-combustible board-faces and edges
MUST BE PRIMED.
Non-combustible board
shipped with unit.
Caution: The non-combustible board supplied with this unit can
be damaged if dropped or struck. Handle with care.
1. Using drywall screws - secure non combustible material
around unit, framing and top nailing strip every 6 inches.
Important Note: To avoid cracking the board - pre-drill holes prior to
securing to unit/ framing.
2. Wipe any debris/dust from the non combustible
material and drywall.
3. Prior to securing it is mandatory to prime the facing and edges using a quality
primer. This will ensure proper adhesion of both the tape and mud. The
supplied board is very porous.
Failure to follow this procedure will result in cracked seams.
4. Tape the seams using a mesh type tape.
5. Mud seams as normal. We recommend using a
product called Durabond high strength compound - for the first coat.
This product can be found at any hardware store.
Mud must be cured as per manufacturer’s recommendations.
6. Prime wall for a second time for proper adhesion of paint
7. Paint walls using a high quality paint which will withstand
the high temperatures being emitted from this appliance.
NON-COMBUSTIBLE REQUIREMENTS
* Installation of the Receiver must be completed before installing non-combustible facing.
All three pieces (top, 2 sides) are supplied to meet the non combustible requirements.
Calcium silicate board is a high - grade material
with cement, quartz, natural and selected
minerals as the main raw materials. It is widely
used for partitions and ceilings in buildings.
It is fire proof and earthquake proof.
If finishing the wall above the unit with materials
such as tile, brick, marble, etc. non-combustible
board available from the building supply store
can be used.
Note: Calcium Silicate is 1/2' thick
33 -13/16" (859mm)
5-11/16"
(144mm)
13-13/16”
(351mm)
20"
(508mm)
51-5/16" (1303mm)
Non-combustible
Material
Non-combustible
Non-combustible
Non-combustible
Metal Stud (header)
on edge
Metal Stud
Metal Stud
10"
(252mm) May be combustible (ie. 1/2” drywall)

Regency Horizon™ HZ40E-10 Gas Fireplace | 17
| 17
installation
FRAMING & FINISHING
Note: When constructing the framed opening, please ensure there
is access to install the gas lines when the unit is installed.
2. For exterior walls, insulate the enclosure to the same degree as the
rest of the house, apply vapour barrier and drywall, as per local instal-
lation codes. (Do not insulate the replace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside
of the exterior wall will result in operational and performance
problems including, but not limited to: excessive condensation
on glass doors, poor ame package, carbon, blue ames etc.
These are not product related issues.
3. The unit does not have to be completely enclosed in a chase. You
must maintain clearances from the vent to combustible materials: See
"Clearances" section. Combustible materials can be laid against the
side and back standoffs and the stove base.
4. Non-combustible material (ie. tile, slate, etc) may be brought up to and
overlap the unit (top and bottom) ensuring that the maximum thickness
does not go beyond the 3-1/4" as shown in the diagram below. The
faceplate will not be able to be mounted if nished material is beyond
3-1/4" .
1. Frame in the enclosure for the unit with framing material.
IMPORTANT: The framed opening must be of non-combustible
material.
IMPORTANT: 1/2" gap is required between the faceplate and the nished
wall when using 4 piece Faceplate (Part # 258-954, 258-957)
or Verona Glass Surround (Part # 256-951, 256-957)
1/2" required
between faceplate
+ finished wall
5. If material such as brick, stone, etc extends past the faceplate depth (3-1/4"),
when nishing around the faceplate, the minimum opening dimensions noted
below must be adhered to ensuring for the removal of the faceplate and for
the safe operation of this appliance.
NOTE: Spacing of 1" around the completed surround must be adhered to.
Unit shown with inner door frame only
Unit shown with inner and outer door frame
Unit shown with 4 piece faceplate/Verona
Glass Surround
39-13/16”
16-7/8
”
2 - /8"2 7
46”

18 | Regency Horizon™ HZ40E-10 Gas Fireplace
|
18 installation
FRAMING & FINISHING
Important:
Determine the nailing strip position by determining the facing material being used.
Examples:
1/2" non-combustible wall board for clean nish = 2-3/4" adjustment.
1/2" non-combustible wall board + 1/2" tile = 1" of nished material
= 2-1/4" adjustment.
Note:
Depending on the material used for nishing, the nailing strips must be set ac-
cordingly so that the nished material is always at the 3-1/4" edge of the ange.
Finished
Material
Nailing Strip
Position
1/2" 2-7/8"
1" 2-1/4"
3-1/4" 0" (ush)
Unit
Nailing Strip
1” Forward
Unit
Nailing Strip
½” Forward
Unit
Nailing Strip
Flush w/unit
Factory Set
2-3/4"
2-1/4"
Finished material
Finished material
Finished material
IMPORTANT
Regency Fireplace Products are designed, produced, tested and certified to the highest industry standards.
The finishing of the walls surrounding your Regency Horizon Fireplace is as critical as the installation itself.
The temperatures around linear gas fireplaces are typically higher than would be acceptable for combustible materials. Your Regency
Horizon Fireplace is no exception to this rule. Therefore, the units are specified with non-combustible required materials to specific
dimensions above and around the units. This is due to these areas reaching higher temperature levels than required/acceptable for a
combustible material. To obtain the best, most durable finish around your fireplace, this calls for a high level of care and attention to the
preparation and finish around this appliance, using only the highest quality materials, able to withstand the temperatures produced.
By following the installation instructions in the manual exactly, you will increase your chances of a damage free finish.
While every precaution is taken in providing the recommendations on preparation and finish, given the variations in paint quality, with
temperature limits and workmanship in application, Regency is unable to guarantee the life of the joint compounds, paint or any other
finish materials or workmanship applied to or used in any application surrounding the fireplace. This includes framing as well as finishing.
Over time natural convection from any fireplace can cause discoloration in the area directly above the appliance. Lower quality paints,
under-prepared finishes, poor applications, and any framing discrepancies or in the installation can cause this discoloration process to be
expedited.
Discoloration is not the responsibility of Regency Fireplace Products. This is out of the control of Regency Fireplace Products Ltd.,
therefore not covered under any part of the warranty policy.
While discoloration is not the responsibility of Regency Fireplace Products, we believe careful attention to the recommendations provided
here will result in an aesthetically pleasing result free of issues outlined above.

Regency Horizon™ HZ40E-10 Gas Fireplace | 19
| 19
installation
EXTERIOR VENT TERMINATION REQUIREMENTS
Minimum Clearance Requirements Canada1USA2
AClearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
BClearance to window or door that may be opened 12"(30cm) 9" (23cm)
CClearance to permanently closed window * *
DVertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
19"(48cm) 19"(48cm)
EClearance to unventilated soffit 19"(48cm) 19"(48cm)
FClearance to outside corner: with AstroCap Termination Cap. 7"(18cm) 7"(18cm)
Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
GClearance to inside corner: with AstroCap Termination Cap 7"(18cm) 7"(18cm)
Clearance to inside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
HClearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
JClearance to service regulator vent outlet 36"(90cm) *
KClearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
LClearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally. 72"(1.8m) 36"(90cm)b
MClearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
NClearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1 In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2 In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼ A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor
* Clearance in accordance with local installation codes and the requirements of the gas supplier
a 3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b 3 feet (91cm) above - if within 10 feet (3m) horizontally

20 | Regency Horizon™ HZ40E-10 Gas Fireplace
|
20 installation
4” X 6-5/8” RIGID PIPE
CROSS REFERENCE CHART ONLY
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
Description Simpson
Direct Vent Pro®
Selkirk
Direct Temp™
American Metal
Products®
Amerivent Direct
Metal-Fab™
Sure Seal
Security
Secure- Vent®
ICC Excel
Direct
6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6
6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B
7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A
7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A
9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A
9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A
12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1
12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B
18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18
18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B
24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2
24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B
36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3
36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B
48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4
48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B
60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A
60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A
Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT
Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB
Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A
Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A
Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A
Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A
Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A
Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A
Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A
Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A
45ºElbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45
45ºElbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B
45ºElbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A
45ºElbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A
90ºElbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90
90ºElbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B
90ºElbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A
90ºElbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A
90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A
Adaptor* N/A N/A N/A 4D90L N/A N/A
Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45
Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B
Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A
Offset Support 46DVA-ES (N/A - FPI) 4DT-OS N/A N/A SV4SU N/A
Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM TE-4DE90
Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF TE-4DE90B
Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF N/A
Tr im Plate-Black N/A 4DT-TP 4DFPB 4DCP SV4LA N/A
4” X 6- 5/8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency.
