Regency Fireplace Products P33-4 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-520
MODELS: P33-NG4 Natural Gas P33-LP4 Propane
P33-4 Zero Clearance
Direct Vent Gas Fireplace
06/08/06
Owners &
Installation Manual
WARNING:
If the information in these instructions are not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The
P33-4 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch.
The P33-4 has been approved by Warnock Hersey for both safety and efficiency. As it also bears our own mark,
it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a
moment now to acquaint yourself with these instructions and the many features of your Regency®Fireplace.
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2002/CSA 2.33-2002 and GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDES CAN/CGA-2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manu-
factured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard
in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This Regency®Mobile/Manufactured Home Listed
appliance comes factory equipped with a means
to secure the unit.
This Regency®Mobile/Manufactured Home listed
appliance comes equipped with a dedicated #8
ground lug to which an 18 gauge copper wire from
the steel chassis ground must be attached.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 3
TABLE OF CONTENTS
Full Screen doors .......................................................34
Optional Wall Thermostat ..........................................36
Optional Remote Control............................................36
Optional Wall Switch...................................................36
Wiring Diagrams ........................................................37
Installing the Optional Fan..........................................39
OPERATING INSTRUCTIONS
Copy of the Lighting Plate Instructions.......................40
Operating Instructions ................................................41
Lighting Procedure .....................................................41
Shutdown Procedure..................................................41
First Fire .....................................................................41
Aeration Adjustment ...................................................41
MAINTENANCE
Maintenance Instructions ...........................................42
General Vent Maintenance.........................................42
Gold-Plated or Brass Louvers/trim .............................42
Log Replacement .......................................................42
Normal Operating Sounds of Gas Appliances............42
Thermopile/Thermocouple .........................................43
Glass Gasket..............................................................43
Door Glass .................................................................43
Removing Valve..........................................................44
Installing Valve............................................................44
PARTS LIST
Main Assembly ...........................................................45
Burner & Log Assembly..............................................47
Flush Front & Louvers ................................................48
Bay Front & Louvers...................................................49
WARRANTY
The Warranty: Limited Lifetime..................................51
SAFETY LABEL
Safety Label ..................................................................4
REQUIREMENTS
MA Code - CO Detector ................................................5
INSTALLATION
Important Message ......................................................6
Before You Start ............................................................6
General Safety Information ...........................................6
Manufactured Mobile Home Additional Requirements ..6
Installation Checklist......................................................7
Locating Your Fireplace .................................................7
Unit Dimensions ............................................................7
Duct System Option ......................................................7
Combustible Mantels.....................................................8
Mantel Leg Clearances .................................................8
Clearances ....................................................................8
Framing and Finishing...................................................9
Unit Assembly Prior to Installation...............................10
Venting Introduction.....................................................10
Exterior Vent Termination Locations ............................ 11
Regency®Direct Vent flex System ..............................12
Installation Procedures................................................13
Rigid Pipe Venting Systems ........................................14
Rigid Pipe Venting Components List ...........................15
Rigid Pipe Venting Arrangements ...............................16
Vertical Termination with Co-Linear Flex System .......22
Venting Arrangements - Vertical Terminations ............23
Unit Installation with Horizontal Termination................24
Unit Installation with Vertical Termination ....................25
Gas Line Installation....................................................25
Pilot Adjustment...........................................................26
High Elevation .............................................................26
Gas Pipe Pressure Testing ..........................................26
S.I.T. Valve Description................................................26
Conversion Kit# 434-969 from NG to LP.....................27
Optional Brick Panels ..................................................30
Log Set Installation......................................................30
Standard Flush Door ...................................................31
Optional Flush Trim .....................................................31
Double Screen Door....................................................32
Optional Bay Door .......................................................32
Optional Bay Trim........................................................32
Flush Louvers..............................................................32
Bay Louvers ................................................................33

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
4
SAFETY LABEL

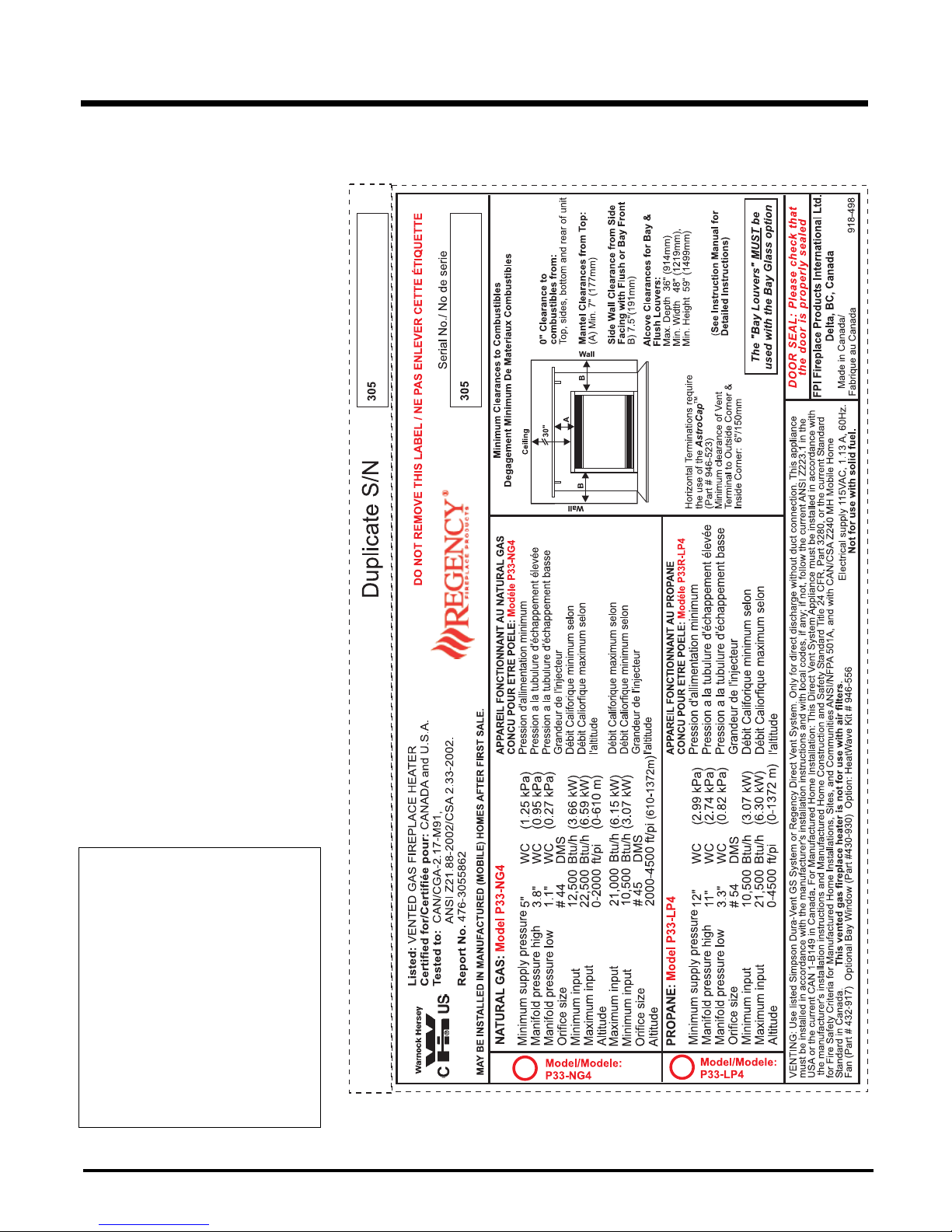

This is a copy of the label that accompanies each
P33-4 Zero Clearance Direct Vent Gas Fireplace.
We have printed a copy of the contents here for
your review. The safety label is located on the
front inside base of the unit, visible when the
bottom louver is open.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 5
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
6
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The P33-NG4 or P33-LP4 Direct Vent Fireplace
must be installed in accordance with these
instructions. Carefully read all the instructions
in this manual first. Consult the "authority
having jurisdiction" to determine the need for
a permit prior to starting the installation. It is
the responsibility of the installer to ensure
this fireplace is installed in compliance with
manufacturer's instructions and all applicable
codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Canadian or National
Gas Codes, CAN1-B149 or ANSI Z223.1
Installation Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes, or in the absence of local codes
with the current National Electrical Code,
ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code.
3) See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wearglovesandsafetyglassesforprotection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11) Under no circumstances should this
appliance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service
person. A professional service person
should be called to inspect this appliance
annually. Make it a practice to have all of
your gas appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not
cut or weakened during installation.
2) Ensure proper grounding using the #8
ground lug provided. Refer to "Wiring
Diagram" Section.
INSTALLATION AND REPAIR
SHOULD BE DONE BY A
QUALIFIED SERVICE PERSON.
THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE
AND AT LEAST ANNUALLY
BY A PROFESSIONAL
SERVICE PERSON. MORE
FREQUENT CLEANING MAY BE
REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING,
BEDDING MATERIAL, ETC.
IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING
AIR PASSAGEWAYS OF
THE APPLIANCE BE KEPT
CLEAN.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM
AS THE APPLIANCE.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
DUE TO HIGH TEMPERATURES,
THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING: FAILURE TO INSTALL
THIS APPLIANCE CORRECTLY
WILL VOID YOUR WARRANTY
AND MAY CAUSE A SERIOUS
HOUSE FIRE.
CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE
TEMPERATURES, ESPECIALLY
THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING
IGNITION.
CLOTHING OR OTHER
FLAMMABLEMATERIALSHOULD
NOT BE PLACED ON OR NEAR
THE APPLIANCE.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 7
DUCT SYSTEM OPTION
kit #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warm air from the fireplace to remote locations
in the same room or other rooms in your
home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be
operated at one time. This includes the internal
blower option as well.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location
(Refer to "Locating Your Fireplace"
Section)
b) Clearances to Combustibles
(Refer to "Clearances" Section)
c) Mantle Clearances
(Refer to "Combustible Mantels"
Section)
d) Framing & Finishing Requirements
(Refer to "Framing & Finishing"
Section)
e) Venting Requirements
(Refer to "Venting" Sections)
2) Assemble Top Facing Support and Side
Nailing Strips (Refer to "Unit Assembly Prior
to Installation" Section). NOTE: Must be
done before installing unit into fireplace.
3) Install vent (Refer to "Venting" Sections)
4) Make gas and electrical connections. Test
the pilot. Must be as per diagram.
(Refer to "Gas Line Installation" and "Pilot
Adjustment" Section).
Convert to Propane if desired.
(Refer to "Conversion Kit from NG to LPG"
Section).
5) Install standard and optional features. Refer
to the following sections:
a. Optional Brick Panels
b. Log Set Installation
c. Standard Flush Door
d. Optional Flush Trim
e. Double Screen Door
f. Optional Bay Door
g. Optional Bay Trim
h. Flush Louvers
i. Bay Louvers
j. Full Screen Doors
k. Optional Wall Themostat
l. Optional Remote Control
m. Optional Wall Switch
n. Installing the Optional Fan
6) Final check.
Before leaving this unit with the customer,
the installer must ensure that the appliance is
firing correctly and operation fully explained
to customer.
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
Diagram 1
INSTALLATION
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
FIREPLACE
1) When selecting a location for your fireplace,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for
servicing.
3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, metal,
concrete). This may be the floor, or raised up
on a platform to enhance its visual impact.
If the appliance is going to be installed
on carpeting, combustible linoleum tile or
other combustible material other than wood
flooring, the appliance must be installed on a
metal or wood panel extending the full width
and depth of the appliance.

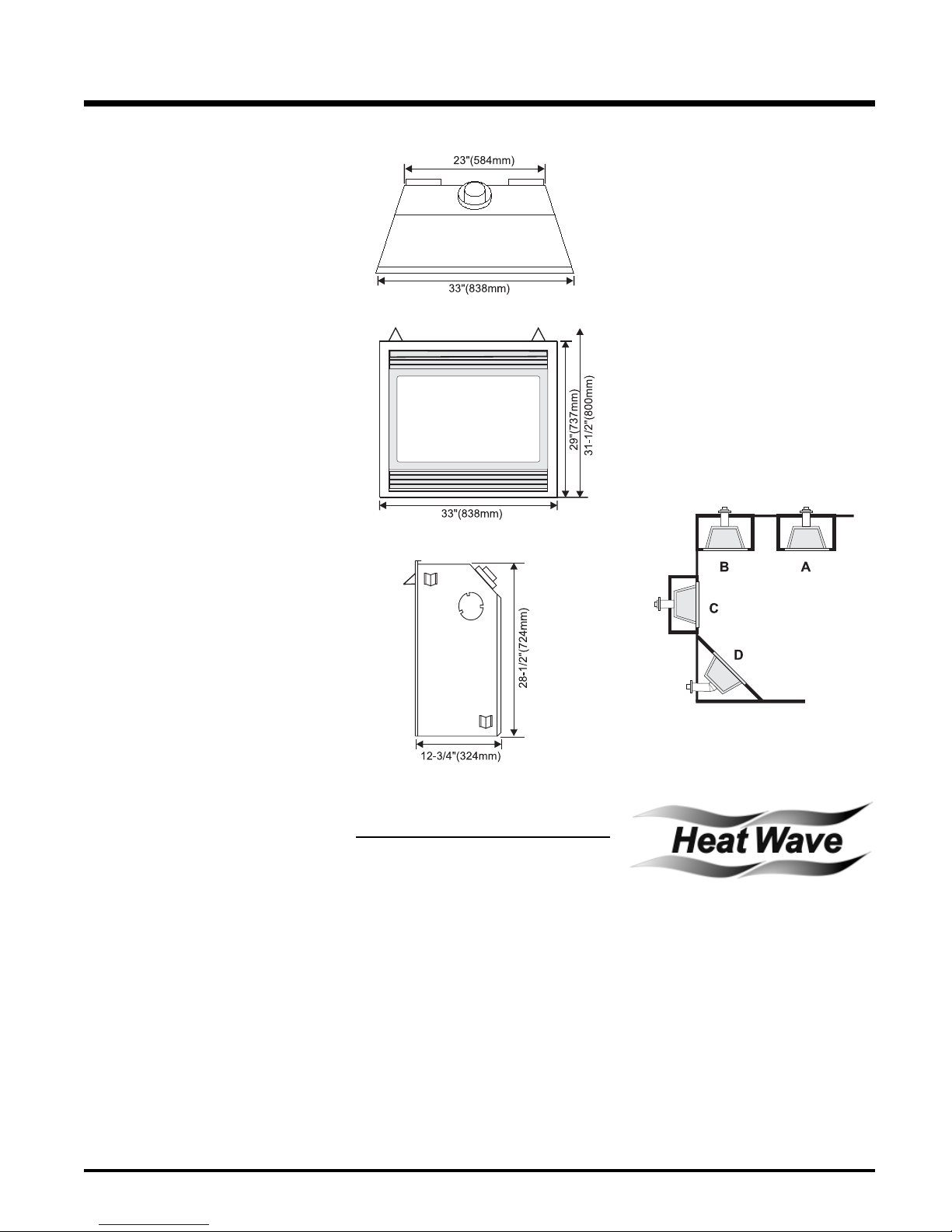

UNIT DIMENSIONS 4) The P33-4 can be installed in a recessed
position or framed out into the room as in
A, B, C, D. See Diagram 1 below.
5) This appliance is Listed for bedroom
installations when used with a Listed
Millivolt Thermostat. Some areas may
have further requirements, check local
codes before installation.
6) The P33-4 Direct Vent Gas Fireplace
is approved for alcove installations,
which meet the clearances listed on the
"Clearances" Section.
7) We recommend that you plan your
installation on paper using exact
measurements for clearances and floor
protection before actually installing this
appliance. Have a qualified inspector,
dealer, or installer review your plans before
installation.
Note: For vent terminations see "Exterior
Vent Termination Locations" Section.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
8

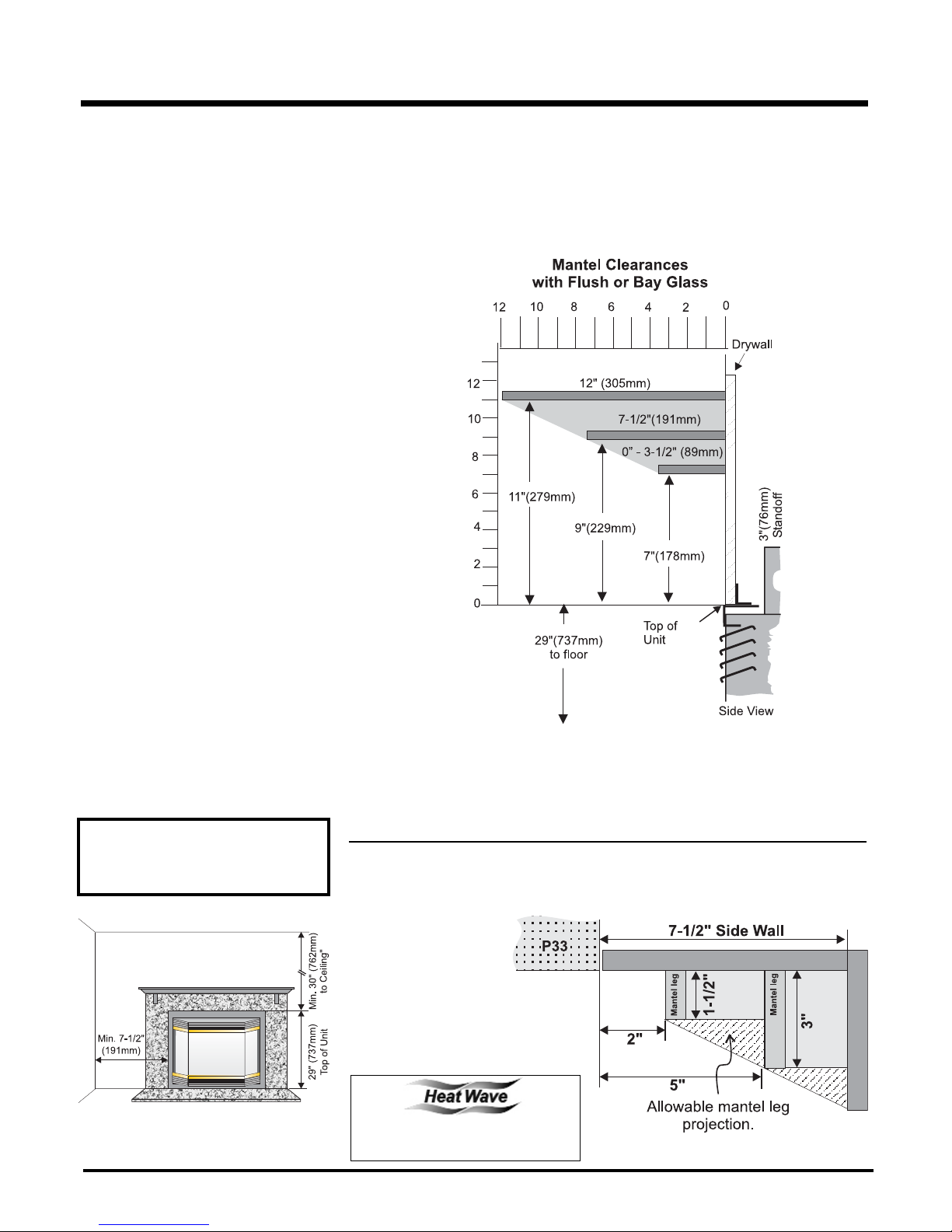

COMBUSTIBLE MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made
of metal studs covered with a non-combustible board.
INSTALLATION
Clearances for Bay or Flush Front
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram below:
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded
area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or
the paint may discolour.
CLEARANCES
The clearances listed below are Minimum
distances unless otherwise stated:
A major cause of chimney related fires is
failure to maintain required clearances (air
space) to combustible materials. It is of the
greatest importance that this fireplace and
vent system be installed only in accordance
with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be
maintained from the top surface of the carpeting,
tile, etc.
Minimum Clearance from Top of Unit to:
Mantel* min. 7" (177mm)
Ceiling 30" (762mm)
from top of unit.
Side Wall Clearance
Bay or Flush Front 7-1/2" (191mm)
Minimum Vent Clearances:
2-1/2" (64mm) Horizontal Top
1-1/2" (38mm) Horizontal Side
1-1/2" (38mm) Horizontal Bottom
1-1/4" (32mm) Vertical Vent Clearance
(Rigid Vent)
1-1/2" (38mm) Vertical Vent Clearance
(Flex Vent)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
* see mantel clearance instructions.
Maximum
1-1/2" projection at 2"
minimum clearance.
WARNING
Fire hazard is an extreme risk if
these clearances are not adhered
to.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 9
INSTALLATION
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) The top of the unit must not be closer than
30" (762mm) to the ceiling.
5) Combustible material may be brought up to
the top and sides of the unit and be covered
with ceramic tiles, bricks, rock or other
suitable combustible finishing materials.
Note: Theunit doesnothavetobe completely
enclosed in a chase. The clearance on
top of the unit is 0" to the standoffs so
combustible building materials can be
laid directly on top of the standoffs.
You must maintain clearance from
the vent to combustible materials
for flex or for Rigid Vent (Refer to
"Clearances" Section).
1) Determine the total thickness of facing
material (e.g. drywall plus ceramic tiles) to
allow the finished surface to be flush with
the front of the unit. Total facing thickness
can vary from 1/2" (13mm) to 1-1/4" (32mm)
thick.
6) Use steel studs for framing where the
1-1/2" (38mm) clearance from the vent
to combustible material cannot be
maintained.
2) Frame in the enclosure for the unit with
framing material.
FRAMING AND FINISHING
16-1/2”
(419mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
30”
(762mm)
10" (254mm)
dia. Hole through
wall for Dura-Vent
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
12-3/4”
(324mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
26”
(660mm)
10" (254mm)
dia. Hole through
wall for Flex
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
Rigid Vent
Minimum Clearances
Flex Vent
Minimum Clearances
Vertical Termination or
Vertical Rise with Horizontal
Termination
NOTE: If this is an outside corner, the
minimum distance between the vent and the
outside corner is 6" (15cm) with AstroCap
termination cap or 12" (30cm) with Rigid Vent
termination cap. (For example Dura-Vent).
For Both Rigid & Flex
Rear Termination
NOTE: If this is an outside corner, the minimum
distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination
cap or 12" (30cm) with Rigid Vent termination
cap. (For Example Dura-Vent).
For Rigid Vent
For Flex Vent
For Both Rigid & Flex
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
Install Side Nailing Strips, and Top Facing
Support before unit is slipped into position.
See "Unit Assembly Prior to Installation"
Section

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
10
The Top Facing Support, the Side Nailing Strips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before the
unit is put into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be pulled up and bent into the correct
shape.
1) Remove the standoffs from on top of the
firebox by undoing the screws.
2) Take each standoff and bend into the correct
shape. Bend up at the bend lines until the
screw holes in the standoff and the pre-
punched screw holes on the firebox top
line-up.
3) Attach the standoffs securely to the top with
4 screws per standoff.
Note: Secure the standoffs to the holes
closest to the edge of the firebox top.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing material
(e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips
can be mounted in various positions depending
on the thickness of the facing material.
1) Mount Top Facing Support using the 3
supplied screws into the three pre-punched
screw holes on the top front of the unit.Adjust
support to desired facing material depth.
2) Mount Side Nailing Strip using the 3
supplied screws into the three pre-punched
screw holes at the front sides of the unit.
Adjust support to desired facing material
thickness.
UNIT ASSEMBLY PRIOR TO INSTALLATION
INSTALLATION
VENTING INTRODUCTION
The P33-4 uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer
liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing
warm room air up the chimney.
There are 5 vent systems approved for use with the P33-4: the Regency®Direct Vent Flex System for Horizontal Terminations only and the Simpson
Dura-Vent, Selkirk Direct-Temp, Amerivent Direct Vent and Security Secure Vent Systems for Horizontal and Vertical Terminations (see following
"Venting" Sections for more details).
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate
solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.
(See "Rigid Pipe Venting System" for more details and exceptions).
NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.
For a facing material depth of
1-1/4"(32mm), the top facing
support must be reversed.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 11
EXTERIOR VENT TERMINATION LOCATIONS
INSTALLATION
A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm) B= Clearance to window or door that may be opened *(12"/30cm) #(9"/23cm) C= Clearance to permanently closed window *(min. 12"/30cm) D= Vertical clearance to ventilated soffit located above the terminal within a horizontal
distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with local code.
E= Clearance to unventilated soffit (min. 15"/38cm) F= Clearance to outside corner: with AstroCap Termination Cap (min. 6"/15cm), with
Dura-Vent Termination Cap (12"/30cm)
G= Clearance to inside corner: with AstroCap Termination Cap (min. 6"/15cm), with Dura-
Vent Termination Cap (12"/30cm)
H= Not to be installed above a meter/regulator assembly within (3'/90cm) horizontally
from the centerline of the regulator.
J= Clearance to service regulator vent outlet *(min. 36"/90cm) K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to
any other appliance *(12"/30cm) #(9"/23cm)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m) #3' (91cm) above if within 10' (3m) horizontally. M= Clearance above paved sidewalk or a paved driveway located on public property
*(min. 84"/2.1m)
N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)
Note: - A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings. - Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor. - If the vent termination is accessible, a certified guard shall be installed. * As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances. # In accordance with the current ANSI Z223.1/NFPA 54, Natioinal Fuel Gas Code.
B
A
G
M
24”
A
A
B
A
C
Fixed Closed
Openable Openable
D
E
A
K
B
F
Fixed Closed
H
24” 18”
L
N
J
Vent Termination AAirSupplyOutlet Areawhereterminalisnotpermitted
Do
this Never
dothis
2ft.
(600mm)
B-Vent Only:
Ifvent
isless
than
10ft.
(3m)
from
wall-locate
raincapnotless
than
2ft.(600mm)
above
wall.
Feet Meters
Minimum
VentHeight
Roof
Pitch
over
7/12
to8/12
over
8/12
to9/12
over
9/12
to10/12
over
10/12
to11/12
over
11/12
to12/12
over
12/12
to14/12
over
14/12
to16/12
over
16/12
to18/12
over
18/12
to20/12
over
20/12
to21/12
flat
to7/12 0.61
0.61
0.61
0.76
0.99
1.22
1.52
1.83
2.13
2.29
2.44
2
2
2
2.5
3.25
4
5
6
7
7.5
8

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
12
IMPORTANT
If using any Cabinet Mantels with Part #
510956, 510958, 510962, 510964 and
510834 the wall thimble must be secured first
and venting must be attached to unit before
sliding into final position.
Also Rigid Vent venting cannot be used with
any of the mantels noted above. See Price
Pages for alternative options.
Wherever necessary due to
external location of cap, the
AstroCap can be replaced with
the FPI Riser Vent Termination
Cap or the Dura-Vent Snorkel
Termination Cap.
INSTALLATION
REGENCY®DIRECT VENT FLEX SYSTEM
Horizontal Terminations Only
This venting system, in combination with the P33-4 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock
Hersey. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section .
Regency®Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33-4 with a maximum run of 2
feet. If installing the P33 with a continuous vent length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use Kit # 946-515 (4 ft) or 946-516
(10 ft) or see "Rigid Pipe Venting Systems" Section for alternate venting arrangements.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point,
stainless steel (4)
6-7/8"
(173mm)
dia. Flue pipe
4" (102mm)
dia. flue pipe
Wall Thimble (2 pc)
(required in
Canada only)
Termination Cap
(Part# 946-523/P)
AstroCapTM
spring
spacer
See Figure 1 below
for Alternate Caps.
Notes:
1) Liner sections should be continuous
without any joints or seams.
2) Only Flex pipe purchased from Regency®
may be used for Flex installations.
MINIMUM
FLEX KIT CENTER-LINE
MINIMUM
RIGID PIPE CENTER-LINE
Alternate
Horizontal
Termination
Caps
Figure 1

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 13
Termination Cap
Wall Thimble 2 pieces
(10" (254mm) Outer Diameter)
2”x4”or2”x6”
(21mm x 102mm
or 21mm x 152mm)
6-7/8"
(175mm)
dia. air intake
4" (102mm)
dia. flue pipe
with spring spacer
Screws
(4 per connection)
Screws
(3 per
connection)
INSTALLATION PROCEDURES
for Regency®Direct Vent System (Flex)
Minimum and Maximum Vent Clearances
INSTALLATION
1) Locate the unit in the framing, rough in the
gas (preferably on the right side of the unit)
and the electrical (Junction block is on the
left side) on the left. Locate the centerline of
the termination and mark wall accordingly.
Cut a 10"(254mm) hole in the wall (inside
dimension).
Note: To make the installation more
aestheticallypleasing,werecommend
framing out a square to mount the
terminal to.
*If this is an outside corner, the minimum distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination cap or 12" (30cm) with Dura-Vent
termination cap. See "F" in the diagram in "Exterior Vent Trmination Locations"
Section.

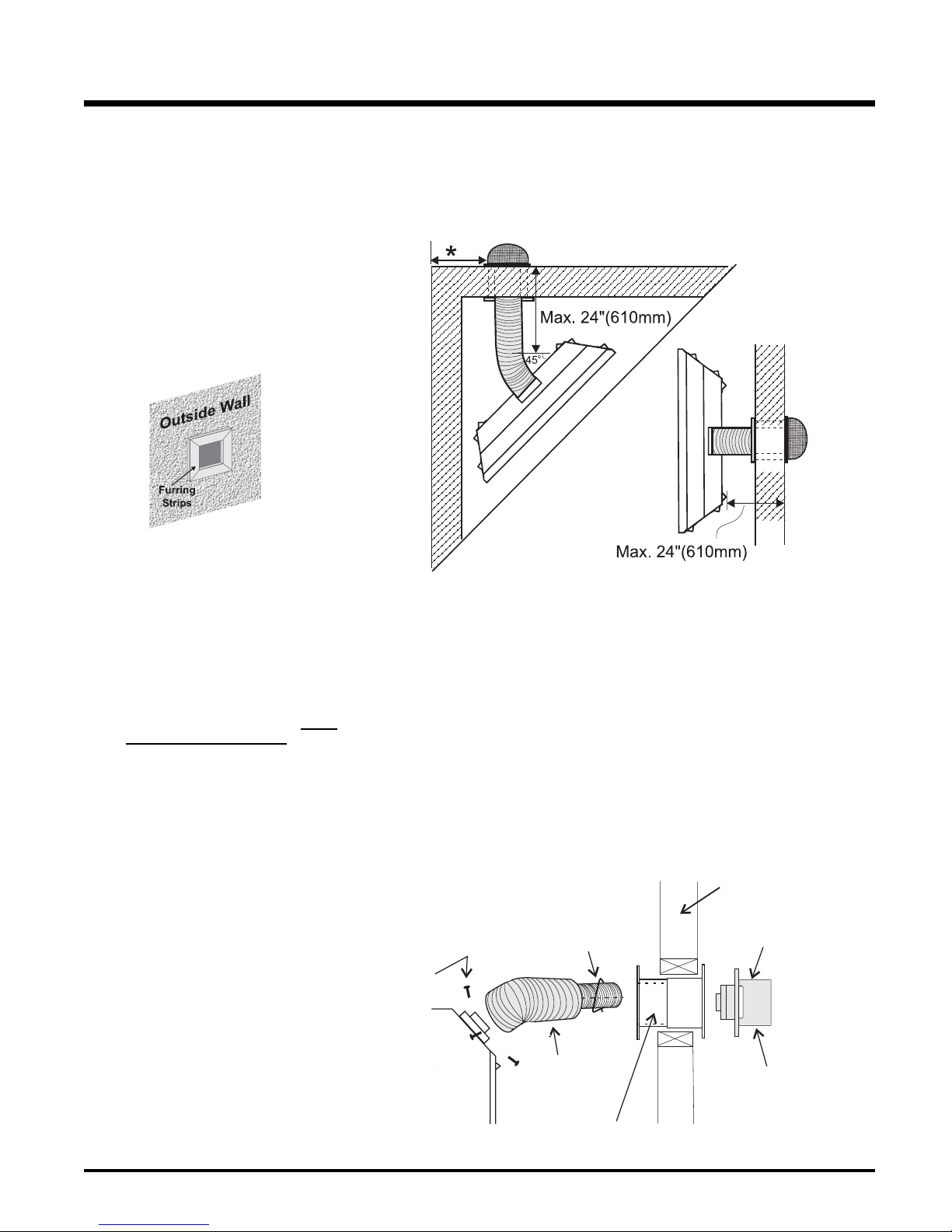

Note: A 2-1/2" (64mm) horizontal top and
1-1/2" (38mm) horizontal sides &
bottom clearance around the liner
must be maintained except that only
a 1" (25mm) clearance is needed at
the termination end. We recommend
framing a 10"(254mm) x 10"(254mm)
(inside dimensions) hole to give
structural rigidity for mounting the
termination.
Note: If installing termination on a siding
covered wall, furring strips must be
used to ensure that the termination
is not recessed into the siding.
2) Level the fireplace and fasten it to the framing
using nails or screws through the nailing
strips.
3) Assemble the vent assembly by applying
Mill Pac to the 4"(100mm) inner collar of the
termination and slipping the 4"(100mm) liner
over it at least 1-3/8" (35mm). Fasten with
the 3 screws (drilling pilot holes will make this
easier). Apply Mill Pac or high temperature
silicone to the 6-7/8"(175mm) flex pipe and
slip it over the 6-7/8" outer collar of the vent
terminal at least 1-3/8"(35mm) and fasten
with the 3 screws.
4) Separate the 2 halves of the wall thimble and
securely fasten the one with the tabs to the
outside wall making sure that the tabs are
on top and bottom. Fasten the other thimble
half to the inside wall. The thimble halves
slip inside each other and can be adjusted
for 2 x 4 or 2 x 6 walls. The liners must slip
over the collars a minimum of 1-3/8".
5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.
6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm) liner out enough to slip over
the flue collars of the fireplace.
7) Apply Mill Pac over the fireplace inner collar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.
8) Do the same with the 6-7/8"(175mm)
liner.
9) Apply a bead of silicone between the
thimble and termination and around the
outer edge of the terminal at the wall in
order to keep the water out.
IMPORTANT: Do not locate termination
hood where excessive snow or ice
buildup may occur. Be sure to check
vent termination area after snow
falls, and clear to prevent accidental
blockage of venting system. When
using snow blowers, make sure
snow is not directed towards vent
termination area.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
14
PipeLength
Vertical
Terminal
StormCollar
Flashing
CeilingFirestop
24"Length
Adj.PipeLength
11"-14-5/8”
90 Elbow
o
Horizontal
TerminationCap
#946-523
Wall Thimble
VinylSiding
Standoff(Optional)
RigidPipe Adapter
#510-994
45 Elbow
o
Adj.PipeLength
11"-14-5/8”
Horizontal
TerminationCap
#946-523
Wall Thimble
VinylSiding
Standoff(Optional)
INSTALLATION
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 45oElbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
For siding other than vinyl furring strips may
be used, instead of the vinyl siding standoff,
to create a level surface to mount the vent
terminal. The Terminal must not be recessed
into siding.
If a Vinyl Siding Standoff is required (it must
be used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.
Flat Wall Installation
Max. Wall Vent Length
Thickness (inches) Required (inches)
7 - 1/4" 6"
10 - 1/4" 9"
13 - 1/4" 12"
12-1/4" - 15-7/8" 11" - 14-5/8" Adj. Pipe
18-1/4" - 25-1/4" 11" - 14-5/8" Adj. Pipe
Alternate
Horizontal
Termination
Caps
This product has been evaluated by Intertek for
using a Rigid Pipe Adaptor in conjunction with
Duravent Direct-Vent GS, Selkirk Direct-Temp,
Ameri Vent Direct venting and Security Secure
Vent systems. Use of these systems with the
Rigid Pipe adaptor is deemed acceptable
and does not affect the Intertek WHI listing of
components.
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The FPI AstroCapTM and FPI Riser Vent terminal are certified for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent GS,
American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 15
FPI
946-506/P Vent Guard (Optional)
510-994 Rigid Pipe Adaptor (Must use with all Rigid Piping)
640-530/P Riser Vent Terminal
946-205 Vinyl Siding Shield for Riser Vent Terminal
946-208/P Vent Guard (Optional) - Riser Vent Terminal
946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff - AstroCap
INSTALLATION
RIGID PIPE VENTING COMPONENTS LIST
Simpson Dura-Vent components are available directly from FPI.
Description Simpson Dura-Vent Selkirk Amerivent®Security
Direct VentGS® Direct-TempTM Direct Vent Secure Vent®
6" Pipe Length, Galvanized 908 4DT-6 N/A
6" Pipe Length, Black 908B 4DT-6B N/A
7" Pipe Length, Galvanized N/A N/A 4D7
7" Pipe Length, Black N/A N/A 4D7B
9" Pipe Length, Galvanized 907 4DT-9 N/A
9" Pipe Length, Black 907B 4DT-9B N/A
12" Pipe Length, Galvanized 906 4DT-12 4D12
12" Pipe Length, Black 906B 4DT-12B 4D12B
18" Pipe Length, Galvanized N/A 4DT-18 N/A
18" Pipe Length, Black N/A 4DT-18B N/A
24" Pipe Length, Galvanized 904 4DT-24 4D2
24" Pipe Length, Black 904B 4DT-24B 4D2B
36" Pipe Length, Galvanized 903 4DT-36 4D3
36" Pipe Length, Black 903B 4DT-36B 4D3B
48" Pipe Length, Galvanized 902 4DT-48 4D4
48" Pipe Length, Black 902B 4DT-48B 4D4B
Adjustable Length, 11"-14", Galv. 911 4DT-AJ N/A
Adjustable Length, 11"-14", Black 911B 4DT-AJB N/A
Adjustable Length, 17"-24", Black 917B N/A N/A
Adjustable Length, 7" Galvinized N/A N/A 4D7A
Adjustable Length, 7" Black N/A N/A 4D7AB
Adjustable Length, 12" Galvinized N/A N/A 4D12A
Adjustable Length, 12" Black N/A N/A 4D12AB
45OElbow, Galvinized 945 4DT-EL45 4D45L
45OElbow, Black 945B 4DT-EL45B 4D45LB
45OElbow, Swivel, Galvinized 945G N/A N/A
45OElbow, Swivel, Black 945BG N/A N/A
90OElbow, Galvinized 990 4DT-EL90S 4D90LS
90OElbow, Black 990B 4DT-EL90SB 4D90LBS
90OElbow, Swivel, Galvinized 990G N/A N/A
90OElbow, Swivel, Black 990BG N/A N/A
Ceiling Support 949 - n/a from FPI 4DT-CS 4DFSP
Cathedral Support Box 941 4DT-CSS 4DRSB
Wall Support/Band 988 4DT-WS/B 4DWS
Offset Support 989 - n/a from FPI 4DT-OS N/A
Wall Thimble, Black 942 4DT-WT 4DWT
Wall Thimble Support Box/Ceiling Support 940 N/A N/A
Firestop Spacer 963 4DT-FS 4DFSP
Trim Plate, Black N/A 4DT-TP 4DFPB
Brass Trim for Wall Thimble/Ceiling Support 3951 N/A N/A
Attic Insulation Shield 12" N/A N/A 4DAIS12
Attic Insulation Shield - Cold Climates 36" N/A N/A 4DAIS36
Basic Horizontal Termination Kit (A) 970 4DT-HKA 4DHTK2
Horizontal Termination Kit (B) 971 4DT-HKB 4DHTK1
Vertical Termination Kit 978 4DT-VKC 4DVTK
High Wind Vertical Cap 991 N/A N/A
High Wind Horizontal Cap 985 N/A N/A
Horizontal Square Termination Cap 984 4DT-HHC 4DHC
Verical Termination Cap 980 4DT-HVC 4DVC
Storm Collar 953 4DT-SC 4DSC
Adjustable Flashing, 0/12-6/12 943 4DT-AF6 4DF
Adjustable Flashing, 6/12-12/12 943S 4DT-AF12 4DF12
Vinyl Siding Standoff 950 4DT-VS N/A
Vinyl Siding Shield Plate N/A 4DT-VSP N/A
Snorkel Termination 14" 982 4DT-ST14 4D12S
Snorkel Termination 36" 981 4DT-ST36 4D36S
SV4L6
SV4LB6
#N/A
#N/A
#N/A
#N/A
SV4L12
SV4LB12
SV4LA
SV4LA
SV4L24
SV4LB24
SV4L36
SV4LB36
SV4L48
SV4LB48
#N/A
#N/A
SV4LBA24
#N/A
#N/A
SV4LA12
SV4LBA12
#N/A
#N/A
SV4E45
SV4EB45
#N/A
SV4EBR90-1
SV4E90-1
SV4EB90-1
SV4SD
SV4CSB
SV4BM
SV4SU
SV4RSM
SV4PF
SV4BF
SV4LA
#N/A
SV4RSA
#N/A
SV - SHK
SV - HK
SV - FK
#N/A
#N/A
SV4CHC-1
SV4CGV-1
SV4FC
SV4FA
SV4FB
SV4VS
SV4VS
SV4STC14
SV4STC36

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
16
INSTALLATION
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional rigid pipe adapter when using rigid vent systems (Part # 510-994).
RIGID PIPE VENTING ARRANGEMENTS
Vertical Terminations
(Propane & Natural Gas)
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90oelbow, with
rigid pipe vent systems for Propane and Natural Gas.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 17

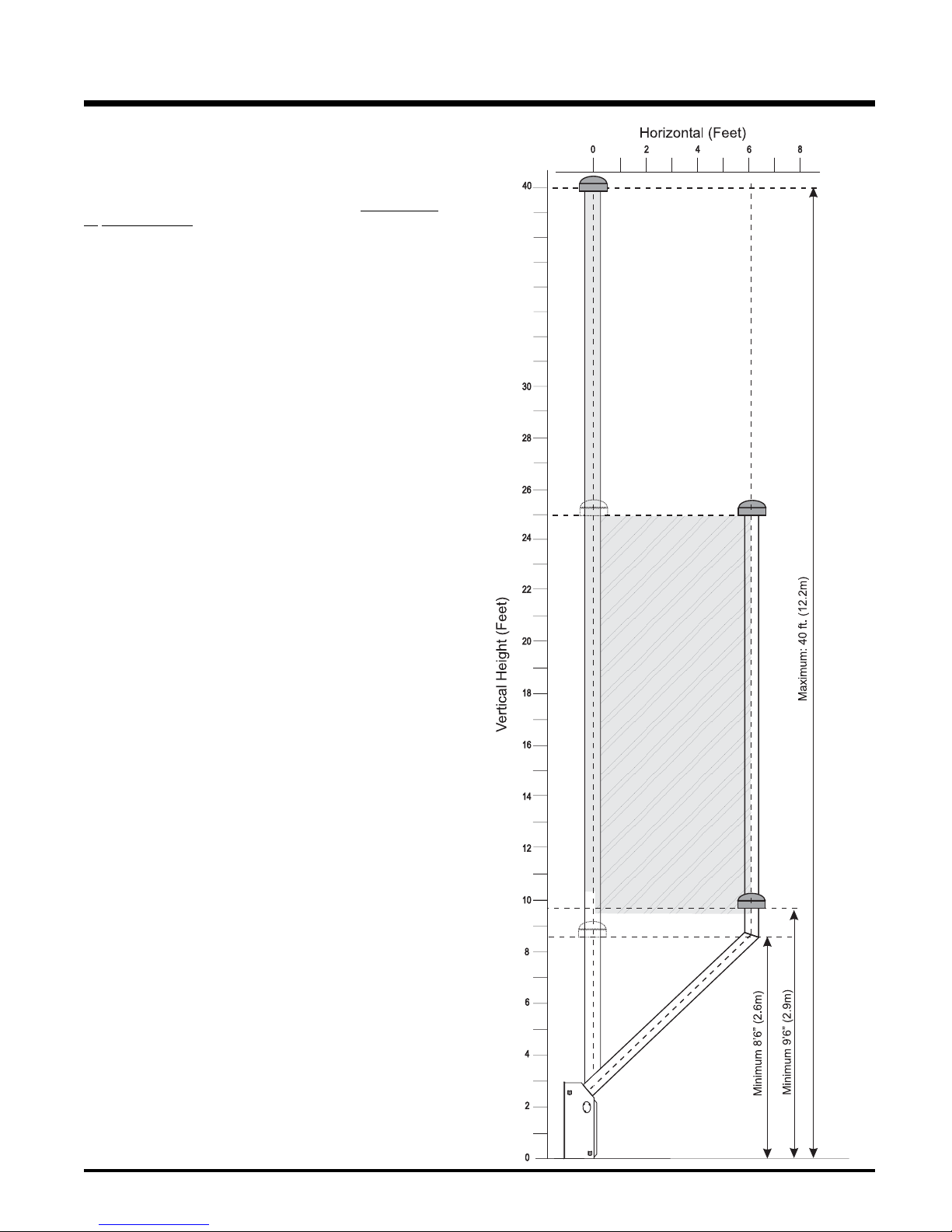

The P33-4 is approved for a maximum 40 ft. straight vertical, with
rigid pipe vent systems for Propane and Natural Gas.
The shaded area in the diagram shows all allowable combinations
of straight vertical and offset to vertical terminations with rigid
pipe vent systems for Propane and Natural Gas. Maximum two
45oelbows allowed.
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever
passing through a wall.
• Maintain clearances to combustibles.
INSTALLATION

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
18

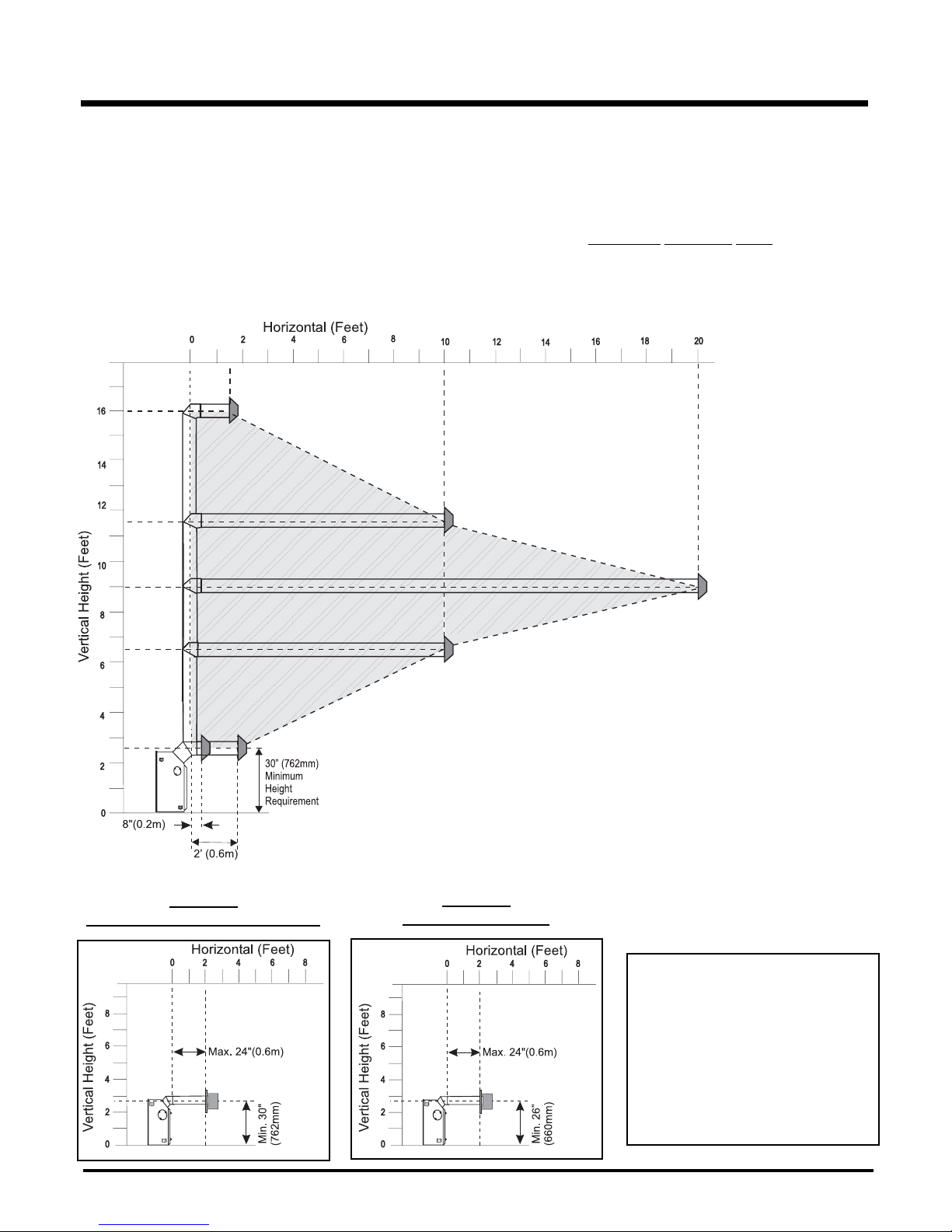

RIGID PIPE VENTING ARRANGEMENTS
Horizontal Terminations
REGENCY®DIRECT VENT SYSTEM (FLEX)
(Propane & Natural Gas)
This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45oand one 90oelbow (two 45o elbows
equal one 90oelbow).
Note: Must use optional rigid pipe adaptor (Part # 510-994) when using rigid pipe vent systems. (Refer "Rigid Pipe Venting Systems"
Section)
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
A vent guard should be used whenever the
termination is lower than the specified minimum
or as per local codes.
Note: Regency®Direct Vent System (Flex)
is only approved for horizontal
terminations.
INSTALLATION
Minimum
Simpson Dura-Vent Center-Line
Minimum
Flex Kit Center-Line
IMPORTANT
If using any Cabinet Mantels with Part #
510956, 510958, 510962, 510964 and
510834 the wall thimble must be secured first
and venting must be attached to unit before
sliding into final position.
Also Rigid Vent venting cannot be used with
any of the mantels noted above. See Price
Pages for alternative options.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 19

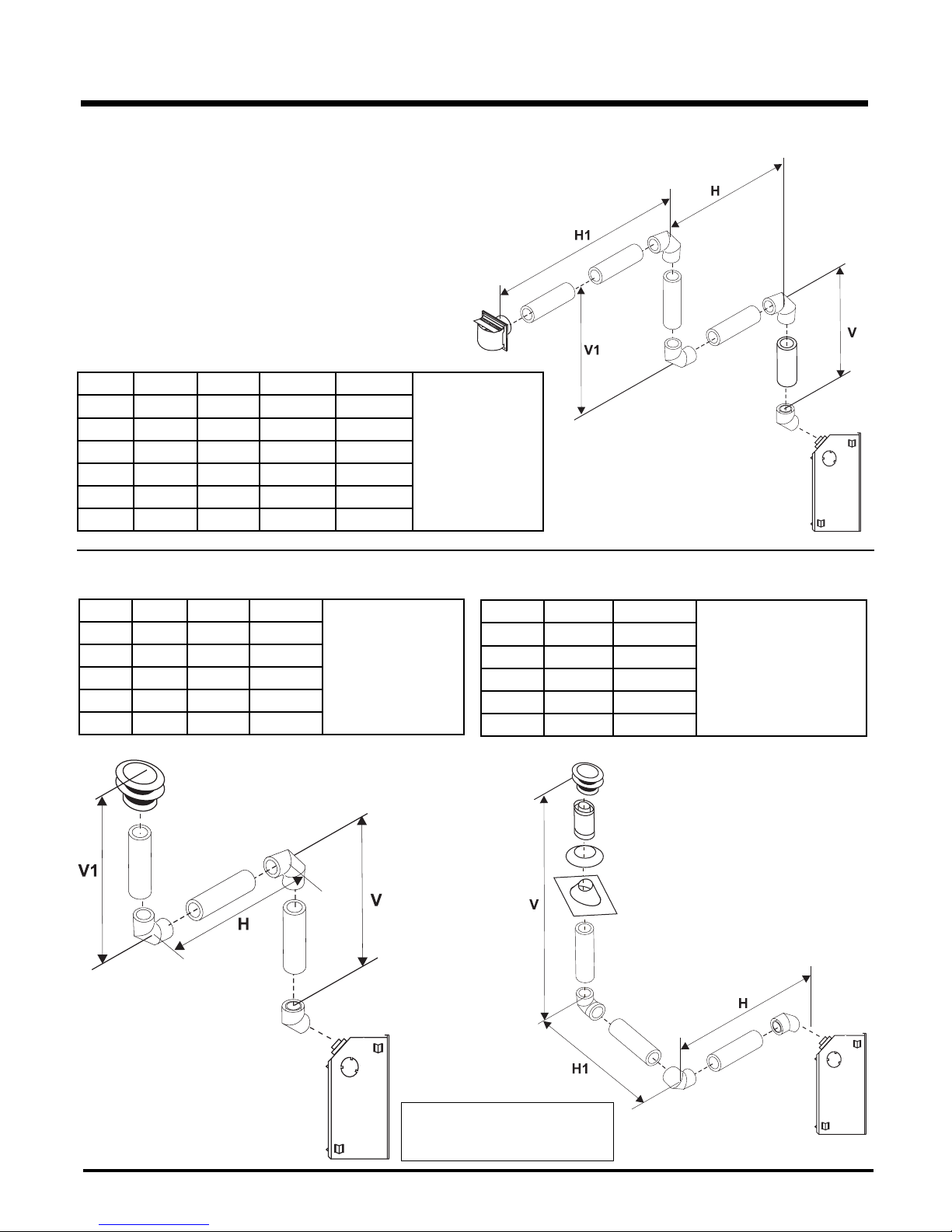

Horizontal Venting with Two (2) 90oElbows
Horizontal Venting with Two (2) 90oElbows
Horizontal Venting with Three (3) 90oElbows
INSTALLATION
One 90oelbow = Two 45oelbows.
Option V H + H1 With these options, maximum
total pipe length is 30 feet
with minimum of 6 feet total
vertical and maximum 8 feet
total horizontal.
Please note minimum 1
foot between 90oelbows is
required.
A) 1' Min. 3' Max.
B) 2' Min. 4' Max.
C) 3' Min. 5' Max.
D) 4' Min. 6' Max.
E) 5' Min. 7' Max.
F) 6' Min. 8' Max.
One 90oelbow = Two 45oelbows.
Option H V H+H1+H2 With these options,
maximum total pipe
length is 30 feet with
minimum of 11 feet
total vertical and
maximum 9 feet total
horizontal.
Please note
minimum 1 foot
between90oelbows
is required.
A) 1' Max. 1' Min. 3' Max.
B) 2' Max. 3' Min. 5' Max.
C) 3' Max. 5' Min. 6' Max.
D) 4' Max. 7' Min. 7' Max.
E) 5' Max. 9' Min. 8' Max.
F) 6' Max. 11' Min. 9' Max.
One 90oelbow = Two 45oelbows.
Option H V H+H1 With these options,
maximum total pipe
length is 30 feet with
minimum of 8 feet total
vertical and maximum 8
feet total horizontal.
Please note minimum
1 foot between 90o
elbows is required.
A) 1' Max. 1' Min. 3' Max.
B) 2' Max. 2' Min. 5' Max.
C) 3' Max. 4' Min. 6' Max.
D) 4' Max. 6' Min. 7' Max.
E) 5' Max. 8' Min. 8' Max.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
20

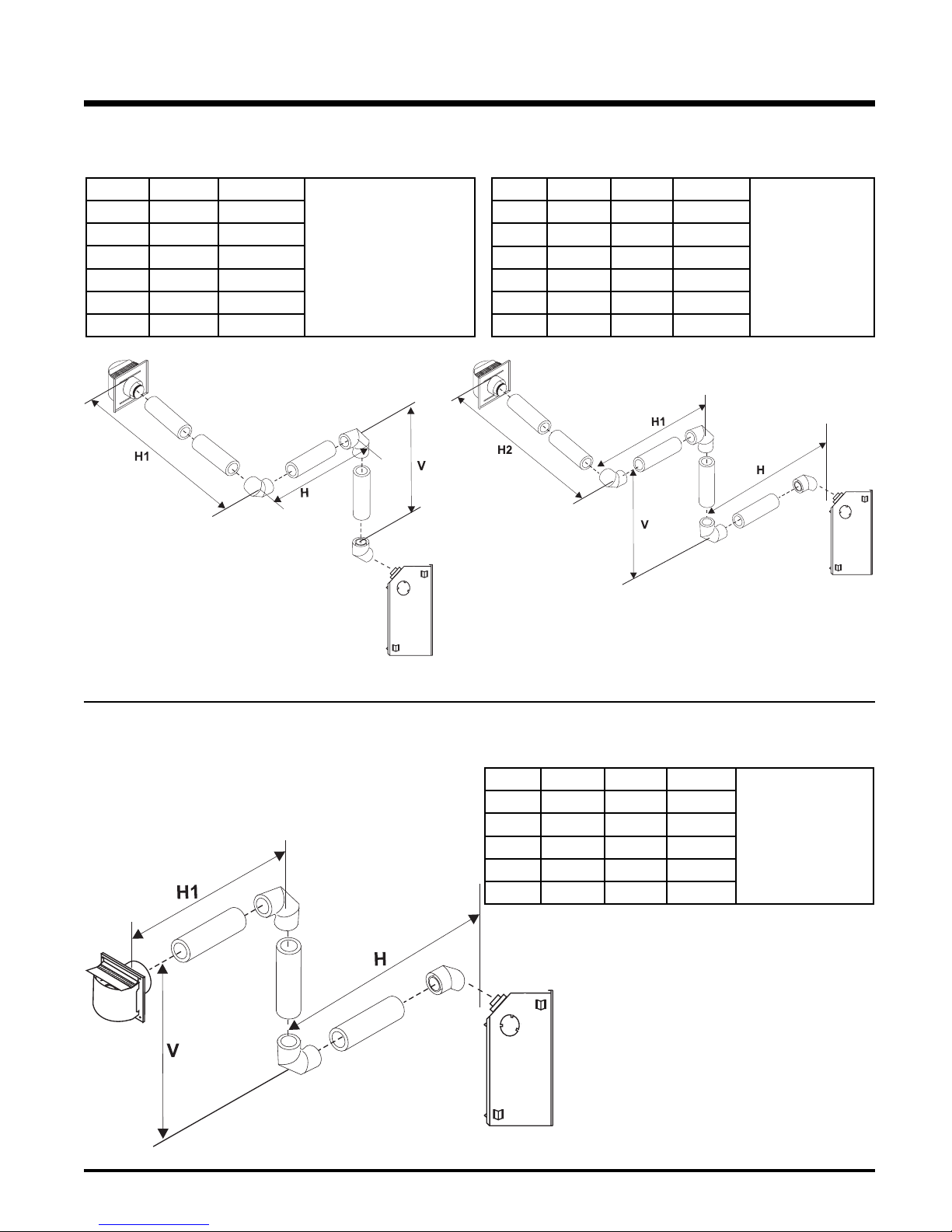

Horizontal Venting with Three (3) 90oElbows
Vertical Venting with Two (2) 90oElbows Vertical Venting with Two (2) 90oElbows
INSTALLATION
For additional vertical venting with
2 x 90oelbows, refer to "Rigid Pipe
Venting Arrangements" Section.
One 90oelbow = Two 45oelbows.
Option V H V+V1 H+H1 With these options,
maximum total pipe
length is 30 feet with
minimum of 12 feet
total vertical and
maximum 9 feet total
horizontal.
Please note
minimum 1 foot
between 90oelbows
is required.
A) 2' Min. 1' Max. 3' Min. 4' Max.
B) 3' Min. 2' Max. 4' Min. 5' Max.
C) 4' Min. 3' Max. 6' Min. 6' Max.
D) 5' Min. 4' Max. 8' Min. 7' Max.
E) 6' Min. 5' Max. 10' Min. 8' Max.
F) 7' Min. 6' Max. 12' Min. 9' Max.
One 90oelbow = Two 45oelbows.
Option V H V+V1 With these options,
maximum total pipe
length is 30 feet with
minimum of 6 feet total
vertical and maximum 8
feet total horizontal.
Please note minimum
1 foot between 90o
elbows is required.
A) 1' Min. 4' Max. 2' Min.
B) 2' Min. 5' Max. 3' Min.
C) 3' Min. 6' Max. 4' Min.
D) 4' Min. 7' Max. 5' Min.
E) 5' Min. 8' Max. 6' Min.
One 90oelbow = Two 45oelbows.
Option H + H1 V With these options, maximum
total pipe length is 30 feet
with minimum of 6 feet total
vertical and maximum 6 feet
total horizontal.
Please note minimum 1
foot between 90oelbows is
required.
A) 2' Max. 2' Min.
B) 3' Max. 3' Min.
C) 4' Max. 4' Min.
D) 5' Max. 5' Min.
E) 6' Max. 6' Min.
