Regency Fireplace Products I2403M Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-051c
MODELS: I2403M
WOOD
Fireplace
Insert
01.30.18
Owners & Installation Manual
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-re.com

2Regency I2403M
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this Insert is not properly installed, a house re may result. For your safety,
follow the installation instructions, contact local building, re o󰀩cials, or authority having jurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.

Regency I2403M
33
TABLE OF CONTENTS
SAFETY LABEL
Safety Label ..................................................................4
UNIT DIMENSIONS
Unit Dimensions ...........................................................5
INSTALLATION
Before Installing Your Insert...........................................6
Chimney Specications .................................................6
Wood Insert Specications............................................6
Installing Your Insert ......................................................7
Optional Flue Connector Kit ..........................................7
Masonry And Factory Built Fireplace Clearances .........8
How To Determine If Alternate
Floor Protection Materials Are Acceptable.....................8
Flue Connector Bracket.................................................9
Installation Into a Masonry Fireplace.............................9
Installation Into a Factory Built Fireplace.......................9
Stainless Smoke Deector Installation ........................10
Installation of the Faceplate and Trim.......................... 11
Installation of the Fan/blower.......................................12
Floor Protection ...........................................................13
Firebrick Assembly ......................................................13
Draft Control ................................................................13
Flue Ba󰀪e & Secondary Air Tube Installation .............13
Door Handle ................................................................13
Screen Door ................................................................13
First Fire ......................................................................14
OPERATING INSTRUCTIONS
Some Safety Guidelines..............................................14
Wood Storage..............................................................15
Ash Disposal................................................................15
Fan Operation .............................................................15
Creosote......................................................................15
MAINTENANCE
Maintenance of Gold-Plated Doors .............................16
Door Gasket ................................................................16
Door Latch Adjustment ................................................16
Glass Cleaning ............................................................16
Glass Replacement .....................................................16
Glass Removal ............................................................16
PARTS LIST
Main Assembly & Options............................................17
Faceplates ..................................................................18
Brick Panels ................................................................19
WARRANTY
Warranty .....................................................................20
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

4Regency I2403M
SAFETY LABEL
This is a copy of the label that accompanies
your Regency Insert. We have printed a copy
of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a di󰀨erence, the label on the unit is the
correct one.
Part #: 918-176g Size: 3" H x 20-1/2" W (file at 100%)
Colour: Black on grey, except for what is indicated as being printed red on grey. June 20/07: updated logo as per SCC requirements. Mar. 1/10: Updated Logo Apr. 7/11: Updated date of manufacture / added 5.5" liner Oct. 3/13 Rev D - updated yr of manufacture May 5/15: Rev. E - added French May 2/16: Rev. F - updated yr of manufacture 2017-2021 Feb.14/17: Rev. G - moved serial #
SIGNATURE
Jan Feb Mar Apr May June July Aug Sept Oct Nov Dec
DATE OF
MANUFACTURE
INSTALLAND USEONLY IN ACCORDANCE WITHTHE MANUFACTURER'S INSTALLATIONAND OPERATING INSTRUCTIONS. INSTALLAND USEONLY IN MASONRY
FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN
YOUR AREA. INSTALLER ET UTILISER SELONS LES INSTRUCTIONS DU FABRICANT. INSTALLER ET UTILISER DANS UN FOYER DE MACONNERIE OU PRÉFABRIQUÉ. APPELER VOTRE INSPECTEUR DE BÂTIMENT OU LE DÉPARTMENT D’INCENDIE LOCAL POUR LES CODES LOCAUX ET POUR INSPECTÉE VOTRE INSTALLATION ET FOYER.
LISTED FACTORY BUILT FIREPLACE INSERT CERTIFIED FOR USE IN CANADA AND U.S.A. MODEL: I2400M TESTED TO: ULC-S628-93 / UL-1482 / UL-737 REPORT NO.: 219-S-03-2 THE I2400M MEETS UL-737 STANDARD FOR FIREPLACE STOVES WHEN A FIRESCREEN IS PROVIDED.
DO NOT REMOVE THIS LABEL
246
MINIMUM CLEARANCES TO
COMBUSTIBLE MATERIALS (MEASURED
FROM INSERT BODY)
ADJACENT SIDEWALL A) 11 in / 280 mm
MANTLE B) 20 in / 508 mm TOP FACING C) 12 in / 305 mm SIDE FACING D) 8 in / 200 mm
COMPONENTS REQUIRED FOR INSTALLATION: 5.5" (140mm) or 6" (152mm) STAINLESS STEEL LINER. OPTIONAL COMPONENT: FAN (142-917), ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR (846-102) DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF APPLIANCE. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVICING ANOTHER APPLIANCE. DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. RISK OF SMOKE AND FLAME SPILLAGE, OPERATE ONLY WITH DOORS FULLY OPEN OR FULLY CLOSED. IF INSTALLED IN A MOBILE HOME OPERATE ONLY WITH DOORS FULLY CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY. WHEN OPER-
ATED WITH DOORS OPEN THE MANUFACTURER SUPPLIED SCREEN MUST BE USED. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAP-
IDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING. PIÈCES NÉCESSAIRES POUR INSTALLATION :5.5" (140MM) OR 6" (152MM) CONDUITS EN ACIER INOXYDABLE. COMPOSANT FACULTATIF : VENTILATEUR (142-917); CARACTÉRISTIQUES ÉLECTRIQUES NOMINALES : 115 VOLTS, 60 HZ, 0,6 A, PARE-
ÉTINCELLES (846-102) DANGER : RISQUE DE CHOC ÉLECTRIQUE. DÉBRANCHER L’APPAREIL AVANT TOUTE RÉPARATION. NE PAS FAIRE PASSER LE FIL ÉLECTRIQUE DEVANT L’APPAREIL NI EN DESSOUS. NE PAS RELIER CET APPAREIL À UNE CHEMINÉE DESTINÉE À L’ÉVACUATION D’UN
AUTRE APPAREIL. NE PAS ENLEVER DE BRIQUES NI DE MORTIER D’UNE CHEMINÉE DE MAÇONNERIE. N’UTILISER QUE DU COMBUS- TIBLE DE BOIS SOLIDE. NE PAS SURÉLEVER LES BÛCHES NI LES PLACER SUR DES GRILLES, MAIS LES DÉPOSER DIRECTEMENT SUR L’ÂTRE. RISQUE DE DÉGAGEMENT DE FUMÉE OU DE FLAMMES : TOUJOURS GARDER LES PORTES COMPLÈTEMENT OUVERTES OU FERMÉES LORSQUE L’APPAREIL FONCTIONNE. DANS UNE MAISON MOBILE, TOUJOURS GARDER LES PORTES BIEN FERMÉES
LORSQUE L’APPAREIL FONCTIONNE. OUVRIR LA PORTE UNIQUEMENT POUR ALIMENTER LE FEU. SI LES PORTES DU POÊLE RESTENT
OUVERTES, TOUJOURS UTILISER LE PARE-ÉTINCELLES FOURNI PAR LE FABRICANT. REMPLACER LA VITRE UNIQUEMENT PAR UNE
VITRE EN VITROCÉRAMIQUE (5 MM). INSPECTER ET NETTOYER FRÉQUEMMENT LA CHEMINÉE. SELON LE TYPE D’USAGE, LE CRÉO- SOTE PEUT S’ACCUMULER RAPIDEMENT. NE PAS SURCHAUFFER; SI L’ENCASTRABLE SE MET À ROUGIR, IL SURCHAUFFE.
CAUTION / ATTENTION
HOTWHILE INOPERATION DONOTTOUCH. KEEPCHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. READ ABOVE INSTRUCTIONS.
CHAUD LORS DE FONCTIONNEMENT.
NE PAS TOUCHER. GARDEZ LES ENFANTS, VÊTEMENTS ET
MEUBLES AU LOIN. UN CONTACT AVEC LE PEAU PEUT OCCASIONER DES BRULURES.BRÛLURES CUTANÉES. LIRE
CETTE ÉTIQUETTE.
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 0.5IN / 13MM ABOVEAN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECTED
BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 18 IN / 457 MM TO FRONT AND (G) 8 IN / 205 MM TO SIDES FROM FUEL DOOR. 0.5" FLOOR PROTECTION NEEDS
TO BE WITH k=0.84. INSTALLER SUR UN ÂTRE DE MATÉRIAU NOM COMBUSTIBLE SURÉLEVÉ (F) 0,5 POUCES / 13MM-DESSUS DU PLANCHER COMBUSTIBLE ADJACENT.
LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR LE MATÉRIAU NOM COMBUSTIBLE QUI ÉTENDRE (E) 18 IN / 457MM À L’AVANT ET (G) 8 PO / 205 MM DE
CHAQUE CÔTÉ DE LA PORTE. LE REVÊTEMENT DE PLANCHER DOIT AVOIR UNE ÉPAISSEUR DE 0,5 PO ET UN COEFFICIENT K DE 0,84.
MADE IN CANADA 918-176e
(Duplicate Serial #)
246
Manufactured By
:
FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST., DELTA, BC V4G 1H4
2017 2018 2019 2020 2021
Serial No./ No de série
918-176g
SAFETY LABEL FORI2403M

Regency I2403M
5

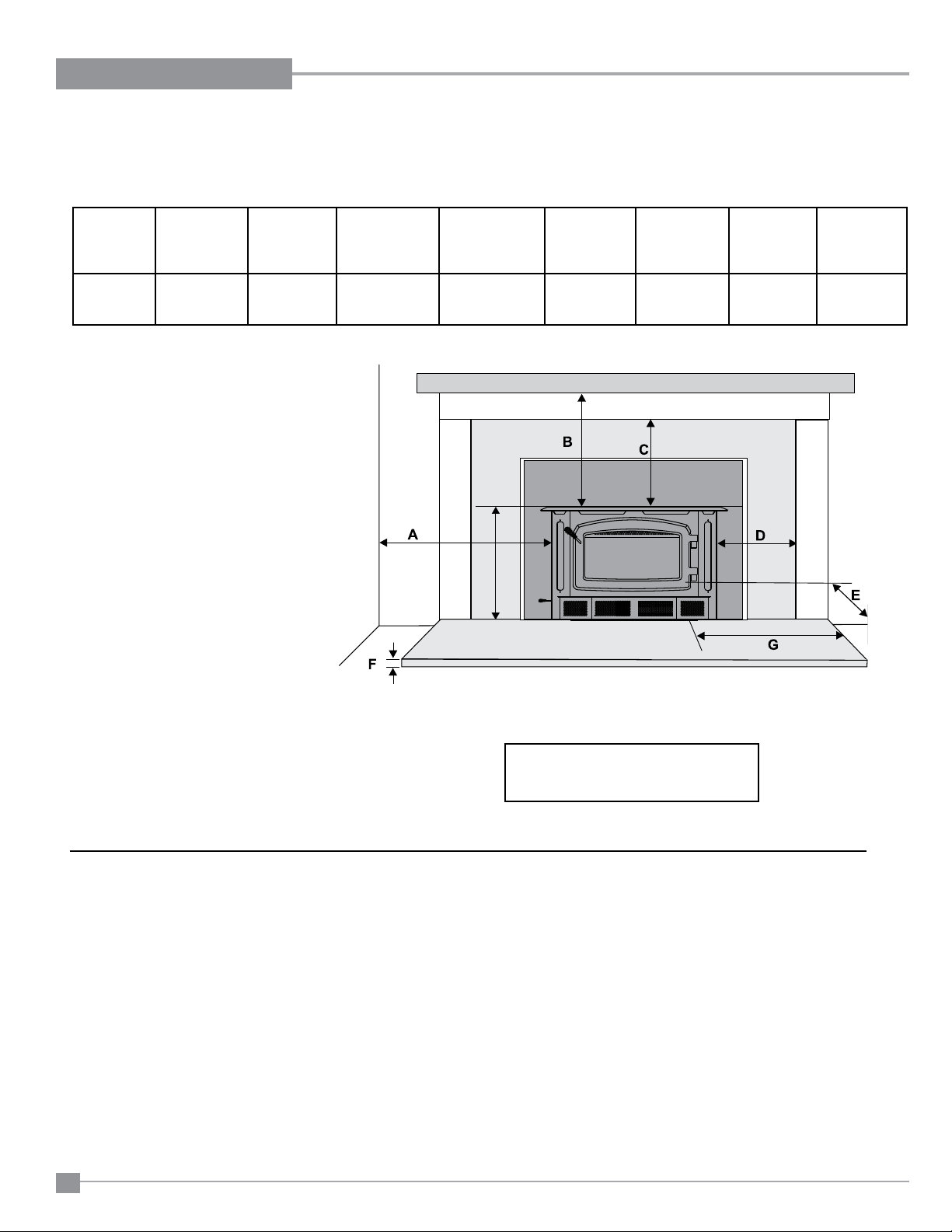

DIMENSIONS
55
9

6Regency I2403M
INSTALLATION
CHIMNEY
SPECIFICATIONS
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condi-
tion, seek professional advice. Your Regency
Insert is designed for installation into a masonry
replace that is constructed in accordance with
the requirements of "The Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel Burning Ap-
pliance", N.F.P.A. 211, the National Building
Code of Canada, or the applicable local code
requirements.
The appliance, when installed, must be electri-
cally grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical code, CSA C22.1.
Regency Inserts are designed to use either a
5.5" (140mm) or 6" (152mm) ue.
Requirements for Installing
Solid-fuel Inserts in Factory-built
Fireplaces.
1) The insert must be tested and meet the
requirements of UL 1482 (U.S.) and or ULC
S628 (Canada) when tested in a masonry
replace built per ULC S628.
2) The factory-built replace must be listed per
UL 127 or ULC S610.
3) Clearances obtained from the masonry re-
place tests are also relevant for installation
in factory-built replaces.
4) Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC
S635 (Canada). The liner must be securely
attached to the insert ue collar and the
chimney top.
5) Means must be provided to prevent room
air passage to the chimney cavity of the
replace. This may be accomplished by
sealing the damper area around the chimney
liner, or sealing the replace front.
6) Alteration of the replace in any manner is not
permitted with the following exceptions;
a. external trim pieces which do not a󰀨ect
the operation of the replace may be
removed providing they can be stored
on or within the replace for re-assembly
if the insert is removed.
b. the chimney damper may be removed
to install the chimney liner.
Regency Inserts are constructed with the high-
est quality materials and assembled under strict
quality control procedures that insure years of
trouble free and reliable performance.
It is important that you read this manual thor-
oughly and fully understand the safe instal-
lation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experi-
ence from knowing that your unit is operating
at peak performance.
BEFORE INSTALLING
YOUR INSERT
1) Please read this entire manual before you
install and use your new wood insert. Failure
to follow instructions may result in property
damage, bodily injury or even death. Install
and use only in accordance with manufactur-
er’s installation and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
WARNING: Careless installation is the
major cause of safety hazard. Check all
local building and safety codes before
installation of unit.
3) Notify your home insurance company that
you plan to install a replace insert or hearth
heater.
4) Your replace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishan-
dling.
5) If your existing replace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open posi-
tion.
6) Inspect your replace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
your insert. Do not remove bricks or mortar
from your masonry replace.
7) Do not connect the insert to a chimney
system servicing another appliance or
an air distribution duct.
7) Circulating air chambers (i.e. in a steel re-
place liner or metal heat circulator) shall not
be blocked.
8) Means must be provided for removal of the
insert to clean the chimney ue.
9) Inserts that project in front of the replace
must be supplied with appropriate supporting
means.
10) Installer must mechanically attach the supplied
label to the inside of the rebox of the replace
into which the insert is installed.
In order for a solid-fuel insert to be certied for use
in factory-built replaces, the above information
must be clearly stated in the installation manual and
appropriate markings. Final approval is contingent
on the authority having jurisdiction.
WOOD INSERT
SPECIFICATIONS
Your replace opening requires the following
minimum sizes:
Height: 21.5"
Width: 25"
Depth: 17"
Two faceplates are available to seal the replace
opening:
Standard Oversize
40" W x 30" H 48" W x 33" H
Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
"WARNING: This replace has been converted
for use with a wood insert only and cannot be
used for burning wood or solid fuels unless
all original parts have been replaced, and the
replace re-approved by the authority having
jurisdiction."
Important:
The blower to this appliance must be turned
o󰀨 anytime the fuel door is opened. Prior to
turning the blower back on, ensure there are no
embers near the blower which may have fallen
onto the hearth when the fuel door was opened.
Once the fuel door is closed, the blower may
be turned back on.

Regency I2403M
7
INSTALLATION
View from Rear of Insert
provided (2 per side) as shown in the diagrams.
OPTIONAL FLUE
CONNECTOR KIT
The Straight Flue Adaptor (Part #846-504)
shown here, may be used to produce a secure
connection between your ue connector and the
insert collar. Detailed installation instructions are
INSTALLING YOUR
INSERT
Your insert is very heavy and will require two
or three people to move it into position. The
insert can be made a little lighter by removing
the cast iron door by opening it and lifting it
o󰀨 its hinges. Be sure to protect your hearth
extension with a heavy blanket or carpet scrap
during the installation.
Convection Grills
The convection grills are installed before the
unit is positioned inside the replace.
Position the grill on the inside bodyface side
and fasten using the bolts, washers and nuts
Note: The grill has a front and rear, the holes
on the front side have rounded edges
and the rear holes have at edges.

8Regency I2403M
INSTALLATION
Clearance diagram for Installations
Side and Top facing is a maximum of 1.5" thick.
Floor protection must be non-combustible, insula-
tive material with an R value of 1.1 or greater.
* Hearth thickness of 0.5" with k value = 0.84",
r value = 0.6 or greater.
** A non-combustible mantel may be installed
at a lower height if the framing is made of
metal studs covered with a non-combustible
board.
** Max. mantle depth is 10" (254mm).
Thermal oor protection is not required if the unit is
raised 3.5" minimum (measured from the bottom of
the stove). However, standard ember oor protec-
tion is required. It will need to be a non-combustible
material that covers 16" (406 mm) in the US and
18" (450 mm) in Canada to the front of the unit and
8" (200 mm) to the sides.
If the unit is not raised, thermal oor protection
required is 18" (450 mm) in the US and Canada.
All oor protection must be non-combustible (i.e.,
metals, brick, stone, mineral ber boards, etc.) Any
organic materials (i.e. plastics, wood paper prod-
ucts, etc.) are combustible and must not be used.
The oor protection specied includes some form
of thermal designation such as R-value (thermal
resistance) or k-factor (thermal conductivity).
MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry or factory built replace are listed below.
H
HOW TO DETERMINE IF ALTERNATE
FLOOR PROTECTION MATERIALS ARE ACCEPTABLE
The specied oor protector should be 3/8"
(18mm) thick material with a K - factor of
0.84.
The proposed alternative is 4" (100mm) brick
with a C-factor of 1.25 over 1/8" (3mm) mineral
board with a K-factor of 0.29.
Step (a):
Use formula above to convert specication
to R-value.
R = 1/k x T = 1/0.84 x .75 = 0.893.
Step (b):
Calculate R of proposed system.
4" brick of C = 1.25, therefore
Rbrick = 1/C = 1/1.25 = 0.80
1/8" mineral board of k = 0.29, therefore
Rmin.bd. = 1/0.29 x 0.125 = 0.431
Total R = Rbrick + Rmineral board =
0.8 + 0.431 = 1.231.
Step (c):
Compare proposed system R of 1.231 to
specied R of 0.893. Since proposed system
R is greater than required, the system is
acceptable.
DEFINITIONS
Thermal Conductance:
C = Btu = W
(hr)(ft2 )(oF) (m2))(K)
Thermal Conductivity:
k = (Btu)(inch) = W = Btu
(hr)(ft3)(oF) (m)(K) (hr)(ft)(oF)
Thermal Resistance:
R = (ft2)(hr)(oF) = (m2)(K)
Btu W
Minimum Hearth Extension for the front
(E) and sides (G) are measured from the
fuel door opening.
Unit Adjacent
Side Wall
(to Side)
A
Mantle **
(to Top)
B
Top
Facing
(to Top of Unit)
C
Side
Facing
(to Side of Unit)
D
Minimum
Hearth
Extension*
E
Minimum
Hearth
Thickness
F
Minimum
Hearth Side
Extension*
G
From Top of
Unit
H
Medium
Flush Insert
(I2403)
11"/280mm 20" (508mm) 12"(305mm) 8"(200mm) 18"(455mm) 1/2"(13mm) 8" (203mm) 20"(508mm)

Regency I2403M
9
INSTALLATION
1) Positive Flue
Connection
with Cleanout
included with the kit.
FLUE CONNECTOR
BRACKET
Package contains: 3 brackets and 6 screws.
These brackets are to be used to hold the ue
liner (not supplied) to the Insert and keep the
connection. The brackets are screwed into the
top of the Insert in the pre-punched holes and
then screwed into the ue liner.
INSTALLATION INTO A
MASONRY FIREPLACE
The insert must be installed as per the require-
ments of your local inspection authority. Three
methods of ue connection are acceptable in
most areas in the US, however a full ue liner
is required in Canada.
1) Positive ue connection, where a large
blocking plate and a short connector pipe
is used.
2) Direct ue connection, where a smaller
blocking plate and a connector pipe to the
rst ue liner tile is used.
3) Full ue liner, where a stainless steel rigid
or exible liner pipe is routed from the insert
outlet collar to the top of the chimney.
Regency highly recommends the use of a full
liner as the safest installation and provides the
most optimum performance. Your retailer should
be able to help you decide which system would
Flush Inserts
2) Direct Flue
Connection
with Cleanout
3a) Full Flue Liner
(No Cleanout Required)
be the best for your application.
Note: A clean-out door is sometimes
required, by your inspector, to be
installed when either the Positive ue
connection or Direct ue connection
method is used.
The use of one of the connection methods listed
on this page not only increases the safety of your
insert by directing the hot gases up the ue, but
will also help increase the unit's e󰀩ciency and
decrease creosote deposits in the chimney.
When a connected ue or liner is in use, the
insert is able to “breathe” better by allowing a
greater draft to be created. The greater draft can
decrease problems such as, di󰀩cult start-ups,
smoking out the door, and dirty glass.
STEP-BY-STEP
INSTALLATION INTO A
FACTORY BUILT
FIREPLACE
1) When installed in a factory built replace, a
full stainless steel rigid or exible ue liner
is mandatory, for both safety and perform-
ance purposes. When a ue or liner is in
use, the insert is able to breathe better by
allowing a greater draft to be created. The
greater draft can decrease problems such
as, di󰀩cult start-ups, smoking out the door,
and dirty glass.
2) In order to position the ue liner, the exist-
ing rain cap must be removed from your
chimney system. In most cases the ue
damper should also be removed to allow
passage of the liner.
3) In most cases opening the existing spark
screens fully should give enough room for
the insert installation. If it does not, remove
and store.
4) If the oor of your replace is below the
level of the replace opening, adjust the
insert's levelling bolts to accommodate the
di󰀨erence. When additional shimming is
required, use non-combustible masonry or
steel shims.
5) Measure approximately the alignment of
the ue liner with the position of the smoke
outlet hole on the insert to check for pos-
sible o󰀨set. If an o󰀨set is required, use a
proper stainless steel unit available with the
chimney liner.
6) Once the above items have been checked,
slide your insert into position after rst po-
sitioning the ue liner and o󰀨set if required.
(Re-install raincap at completion of installa-
tion).
NOTE: Refer to "Requirements for Installing
Solid-fuel Inserts in Factory-built Fire-
places" section for the requirements
for installing solid fuel inserts in factory
built replaces.

10 Regency I2403M
INSTALLATION
STAINLESS STEEL SMOKE DEFLECTOR INSTALLATION
The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts
Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts.
To replace the deflector, loosen off both bolts and slide defector upward and out. Install new defector and hand tighten bolts. Ensure positive location of
the defector prior to hand tightening.
WARNING: Operation of the unit with out proper installation of smoke deflector will void warranty.
Smoke deector installed with 2 bolts.
Note: This is a view from the back of the unit
through the top.
Smoke deector is installed through the door
opening in location shown in diagram
Ensure defector is seated so bolts are situated
at the top of the keyhole before tightening.
Smoke deector
Ensure defector is seated so bolts are situated
at the top of the keyhole before tightening.

Regency I2403M
11
INSTALLATION
Faceplate Assembly
Prior to sliding your insert into its nal position
and attaching the connector or liner pipe, the
faceplate side panel plates must be installed
as follows:
1) Slide the spring nuts (supplied) over the
slots in the insert’s side convection panels
(the spring nuts may need to be squeezed
with a pair of pliers rst, to help them stay
in position).
2) Screw the side faceplate panels, (item A in
the diagram) one to each side.
3) Using the top panel (item B in the diagram)
as a gauge, check that the side panels are
within approximately 1/4" of the overall width.
If the di󰀨erence is greater than this, use
the supplied washers to attain the required
width.
4) The unit may now be slid into nal position
and attached to the connection system.
5) Once connection is made, the insulation strips
should be installed between the insert face-
plates and the replace face. The faceplate
top may now be installed (with insulation
strip behind) by aligning its brackets with the
top ange on the side shields and the angle
iron bar on the insert top. The faceplate trim
may be installed to the edge
of the faceplate at this time.
STEP-BY-STEP INSTALLATION
OF THE FACEPLATE AND TRIM
Note: It may be easier to install the insula-
tion, faceplate top and faceplate trim
with the unit pulled slightly away from
the replace face. If this is done, be
very careful not to disturb the con-
nector when shifting the unit to its
nal position.
Now that your insert is installed, check once
more that all the clearances from the unit to
any combustible materials are correct as listed
earlier.

12 Regency I2403M
INSTALLATION
Ground
Fan Fan
Ground Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black
High (Black)
Low (Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz
Wire98gr.eps
updated Jan. 27/00
updated: Aug. 09/05
capitalized the word Nut
Lockwasher
Ground wire
from power cord
Ground wire
from fan
#8 Groun Lugd
Star washer
Nut
Nut
Star washer
Grounding
Lug Detail
STEP-BY-STEP INSTALLATION
OF THE FAN/BLOWER
Blower/Fan Wiring Diagram
3) Ensure that the power cord is not in
contact with any hot stove surfaces.
NOTE: DO NOT ROUTE POWER CORD
UNDER OR IN FRONT OF UNIT.
4) Push the Regency logo plate into the two
holes in the front bottom left corner of the
fan.
Do not turn fan ON until your insert has
reached operating temperature or at least
30 minutes after starting re.
Your fan should only be installed once the unit is
in place in order to prevent any damage to the
fan. To attach, follow the instructions provided
with the fan.
1) Align the fan support with the o󰀨set clip
on the bottom of the ashlip.
2) Slide the supports into the clips. The tension
holding the clips in place may be adjusted by
increasing or decreasing the o󰀨set spacing
of the clips.
CAUTION: Label all wires prior
to disconnection when servic-
ing controls. Wiring errors can
cause improper and dangerous
operation.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
Installer: Please record unit serial number here before installing blower.
Serial No.______________________________
Thermo Switch Sensor

Regency I2403M
13
INSTALLATION
Pull Open Push Closed
ensure the tube will not move when the unit
is burning. Though there are four air tubes
in the medium units.
2) Slide the left ba󰀪e over the air tubes from
the front and then push it to the back.
4) Important: push both ba󰀪es so they are
tight against the side walls.
Side View
Front View
Front View
3) Tilt the left ba󰀪e up on top of the side chan-
nel and it will leave enough room to position
the right ba󰀪e in the same manner as Step
1) above. Then reposition the left ba󰀪e at
on the air tubes.
DRAFT CONTROL
Before establishing your rst re, it is important
that your fully understand the operation of you
draft control. The draft rod is on the left side of
the Inserts and it controls the intensity of the
re by increasing or decreasing the amount of
air allowed into the rebox. To increase your
draft - pull open, and to decrease - push closed.
As well as a primary and glass wash air system,
the unit has a full secondary draft system that
allows air to the induction ports at the top of the
rebox, just below the ue ba󰀪e.
WARNING: To build a re in ignorance or to
disregard the information contained in this
section can cause serious permanent dam-
age to the unit and void your warranty.
The unit arrives with the 2 ba󰀪e plates on the
oor of the rebox.
1) If all 4 air tubes are installed continue on
to Step 2), if not, follow the instructions
below. Install the air tube into the holes in
the side channels. The notch goes on the
right hand side with the air holes facing
toward the door. Slide the tube into the left
hand side, as far as possible and then bring
it back into the hole on the right hand side.
Use a pair of vise grips or pliers and tap it
into place with a hammer. A tighter t will
FLUE BAFFLE &
SECONDARYAIR TUBE
INSTALLATION
The ue ba󰀪e system located in the upper area
of the rebox is removable to make cleaning your
chimney system easier. The ba󰀪es must be
installed prior to your rst re. Smoke spill-
age and draft problems may occur if the
ba󰀪es are improperly positioned. Check
the position of the ba󰀪es on a regular basis as
they can be dislodged if too much fuel is forced
into the rebox.
FLOOR PROTECTION
Please check to ensure that your oor protection
and hearth will meet the standards for clearance
to combustibles. Your hearth extension must be
made from a non-combustible material.
FIREBRICK ASSEMBLY
Firebrick is included to extend the life of your
insert and radiate heat more evenly. Check to
see that all rebricks are in their correct posi-
tions and have not become misaligned during
shipping.
SCREEN DOOR
Hook screen to the inside on the right side
of the rebox door opening. Lock in place by
turning handle.
Back Side of Screen Shown
DOOR HANDLE
Attach spring handle by rotating counter clock-
wise onto rod. Ensure that the rod ts into the
entire length of the spring handle.
NOTE: The handle must be positioned at 10
o'clock when closed to avoid the handle from
getting hot and to ensure the screen stays in
place.
Handle Lock
Hooks
Handle at 10 o'clock position.

14 Regency I2403M 14
OPERATING INSTRUCTIONS
FIRST FIRE
When your installation is completed and in-
spected, you are ready for your rst re.
1) Open draft control fully.
2) Open rebox door and build a small re using
paper and dry kindling on the rebrick hearth,
wait a few minutes for a good updraft in the
ue to establish the re. Leaving the door
slightly open will help your re start more
rapidly.
CAUTION: Never leave unit unat-
tended if door is left open. This
procedure is for re start-up only,
as unit may over-heat if door is left
open for too long.
3) With the draft still in the fully open position,
add two or three seasoned logs to your re.
Form a trench in the ash bed to allow air to
reach the rear of the rebox prior to closing
the door.
4) After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the re at a
moderate level.
WARNING: Never build a roaring
re in a cold stove. Always warm
your stove up slowly!
5) Once a bed of coals has been established,
you may adjust the draft control to a low
setting to operate the unit in its most e󰀩cient
mode.
6) During the rst couple of hours, keep the
combustion rate at a moderate level and
avoid a large re until the paint is cured.
Only then can you operate the insert at its
maximum setting, and only after the metal
has been warmed.
7) For the rst few hours, the insert will give o󰀨
an odor from the paint. This is to be expected
as the high temperature paint becomes sea-
soned. Windows and/or doors should be left
open to provide adequate ventilation while
this temporary condition exists. Burning the
insert at a very high temperature the rst few
times may damage the paint. Burn res at
a moderate level the rst few days.
8) Do not place anything on the insert top
during the curing process. This may result
in damage to your paint nish.
SOME SAFETY
GUIDELINES
1) Never use gasoline, gasoline type lantern
fuels, kerosene, charcoal lighter fuel, or
similar liquids to start or ‘freshen up’ a re
in your heater. Keep all such liquids well
away from the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn large quantities of paper in your
insert.
4) If you have smoke detectors, prevent smoke
spillage as this may set o󰀨 a false alarm.
5) Do not overre your insert. If the insert begin
to glow, you are overring. Stop adding
fuel and close the draft control. Overring
can cause extensive damage to your stove
including warpage and premature steel cor-
rosion. Overring will void your warranty.
6) Do not permit creosote or soot buildup in the
chimney system. Check and clean chimney
at regular intervals.
7) Your Regency Insert can be very hot. You
may be seriously burned if you touch the
insert while it is operating. Warn children
of the burn hazard.
8) The insert consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the insert is in
use.
9) Do not use grates, irons or other methods
for supporting fuel. Burn directly on the
bricks.
10) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the re.
11) Do not connect your unit to any air distribu-
tion duct.
12) Your insert should burn dry, standard re-
wood only. The use of “mill ends” is discour-
aged as this fuel can easily overheat your
insert. Evidence of excessive overheating
will void your warranty. As well, a large por-
tion of sawmill waste is chemically treated
lumber, which is illegal to burn in many areas.
Chemically treated re logs also must not
be burned in your insert.
WARNING
Fireplace Stoves equipped with doors
should be operated only with doors fully
open or doors fully closed. If doors are
left partly open, gas and ame may be
drawn out of the replace stove open-
ing, creating risks from both re and
smoke.
When operated with doors open the
manufacturer supplied screen must
be used.
13) Do not store any fuel closer than 2 feet from
your unit.
14) Do not burn salt drift wood as it will corrode
your unit and void the warranty.
15) Do not operate the unit if the glass is broken
or missing. Do not operate the unit if the
gasketing is worn out and not sealing the
door or the glass.
It is very important to carefully maintain your
insert, including burning seasoned wood and
maintaining a clean stove and chimney system.
Have the chimney cleaned before the burning
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your insert require no lubrication.

Regency I2403M
1515
INSTALLATION
OPERATING INSTRUCTIONS
ASH DISPOSAL
During constant use, ashes should be removed
every few days. Please take care to prevent the
build-up of ash around the start-up air housing
located inside the rebox, under the loading
door lip.
DO NOT ALLOW ASHES TO BUILD UP TO
THE LOADING DOORS.
Only remove ashes when the re has died down.
Even then, expect to nd a few hot embers.
Always leave 1 to 2 inches of ash in the bottom
of the rebox. This helps in easier starting and
a more uniform burn of your re.
Ashes should be placed in a metal container with
a tight tting lid. The closed container of ashes
should be placed on a noncombustible oor or
on the ground, well away from all combustible
materials, pending nal disposal. If the ashes
are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the
closed container until all cinders have thoroughly
cooled. Other waste should not be placed in the
ash container.
Removal for Cleaning
Removal of your insert for cleaning purposes
is usually not required if a proper installation
has been done. In the event that removal is re-
quired, be sure not to damage any parts needed
for re-installation. In most cases removal and
replacement of the ba󰀪e system should allow
full access for cleaning.
WARNING: Things to remember in case
of chimney re:
1) Close draft control
2) Call the Fire Department
Ways to Prevent and
Keep Unit Free of Creosote
1) Burn insert with draft control wide open for
about 45 minutes every morning during burn-
ing season. This helps to prevent creosote
deposits within the heating system.
2) Burn insert with draft control wide open for
about 10 - 15 minutes every time you add
fresh wood. This allows the wood to achieve
the charcoal stage faster and burns up any
wood vapors which might otherwise be
deposited within the system.
3) Only burn seasoned wood! Do not burn
wet or green wood. Seasoned wood that
has been dried at least one year must be
used.
4) A small hot re is preferable to a large
smouldering one that can deposit creosote
within the system.
5) Check the chimney at least twice a month
during the burning season for creosote
build-up.
6) Have chimney system and unit cleaned
by competent chimney sweeps twice a
year during the rst year of use and at
least once a year thereafter or when a
signicant layer of creosote has accu-
mulated (3mm / 1/8" or more) it should be
removed to reduce the risk of a chimney
re.
CREOSOTE
When wood is burned slowly, it produces tar and
other organic vapors, which form creosote when
combined with moisture. The creosote vapors
condense in the relatively cool chimney ue of a
slow-burning re. As a result, creosote residue
accumulates on the ue lining. When ignited, this
creosote can make an extremely hot re.
FAN OPERATION
The fan is to be operated only with the draft
control rod pulled out at least 1/2" from the
fully closed position. The fan is not to be oper-
ated when the draft control rod is in the closed
position (pushed in). The fully closed position is
the low burn setting.
The fan unit must not be turned on until a re
has been burning for at least 30 minutes and
the unit is hot enough. As well, after each fuel
loading the fan must be shut o󰀨 until 30 minutes
has elapsed.
To operate fan automatically, push switch on
side of fan housing to "Auto" and second switch
to either "High" or "Low" for fan speed. The
automatic temperature sensor will engage the
blower when the unit is at temperature and will
shut o󰀨 the blower once the re has gone out
and the unit has cooled to below a useful heat
output range.
To manually operate the fan system, push the
rst switch to "Man" and second switch to either
"high" or "Low". This will bypass the sensing
device and allow full control of the fan. Switching
from "Auto" to "Manual" or "High" to "Low" may
be done at any time.
9) During the rst few hours it may be more
di󰀩cult to start the re. As you dry out
your re brick and your masonry ue (if
applicable), your draft will increase.
10) For those units installed at higher elevations
or into sub-standard masonry replaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
11) Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
12) Before opening your door to reload, open
draft fully for approximately 10 to 15 seconds
until re has been re-established. This will
minimize any smoking.
13) All fuel burning appliances consume oxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
su󰀩cient for this purpose.
CAUTION: If the body of your unit
starts to glow you are overring.
Stop loading fuel immediately and
close the draft control until the glow
has completely subsided.
14) Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
open the draft control fully until all moisture
has been dispersed by the intense re.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the re.
15) If you have been burning your insert on a
low draft, use caution when opening the
door. After opening the damper, open the
door a crack, and allow the re to adjust
before fully opening the door.
16) The controls of your unit should not be
altered to increase ring for any reason.
WOOD STORAGE
Store wood under cover, such as in a shed, or
covered with a tarp, plastic, tar paper, sheets
of scrap plywood etc., as uncovered wood can
absorb water from rain or snow, delaying the
seasoning process.

16 Regency I2403M
MAINTENANCE
MAINTENANCE OF
GOLD-PLATED DOORS
The gold electroplated nish on the doors
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abrasive
materials or chemical cleaners, as they may
harm the nish and void the warranty.
DOOR GASKET
If the door gasket requires replacement, 7/8"
diameter material must be used. A proper high
temperature gasket adhesive is required. A
gasket repair kit, Part # 846-570 is available
from your local Regency dealer.
DOOR LATCH
ADJUSTMENT
The door latch may require adjustment as the
door gasket material compresses after a few
res. Removal of the spacer washer, shown
in the diagram below, will allow the latch to
be moved closer to the door frame, causing
a tighter seal. Remove and replace the nuts,
washer as shown.
GLASS CLEANING
Only clean your glass window when it is cool.
Your local retailer can supply you with special
glass cleaner if plain water and a soft cloth does
not remove all deposits.
GLASS REPLACEMENT
Your Regency Insert is supplied with 5 mm.
Neoceram ceramic glass (Part #846-304) that
will withstand the highest heat that your unit will
produce. In the event that you break your glass
by impact - purchase your replacement from an
authorized Regency dealer only, and follow our
step-by-step instructions.
GLASS REMOVAL
Allow the stove to cool before removing or replac-
ing glass. Remove the door from the insert and
remove the glass retainer. Use caution when
removing broken glass to prevent injury.
When placing the replacement glass in the
door, make sure that the glass gasketing will
properly seal your unit. Replace the retainer
and tighten securely, but do not wrench down
on the glass as this may cause breakage. Do
not substitute materials. If your glass door does
break, do not continue to use your unit until it
has been replaced.
Avoid impact on glass doors such
as striking or slamming shut.

Regency I2403M
17

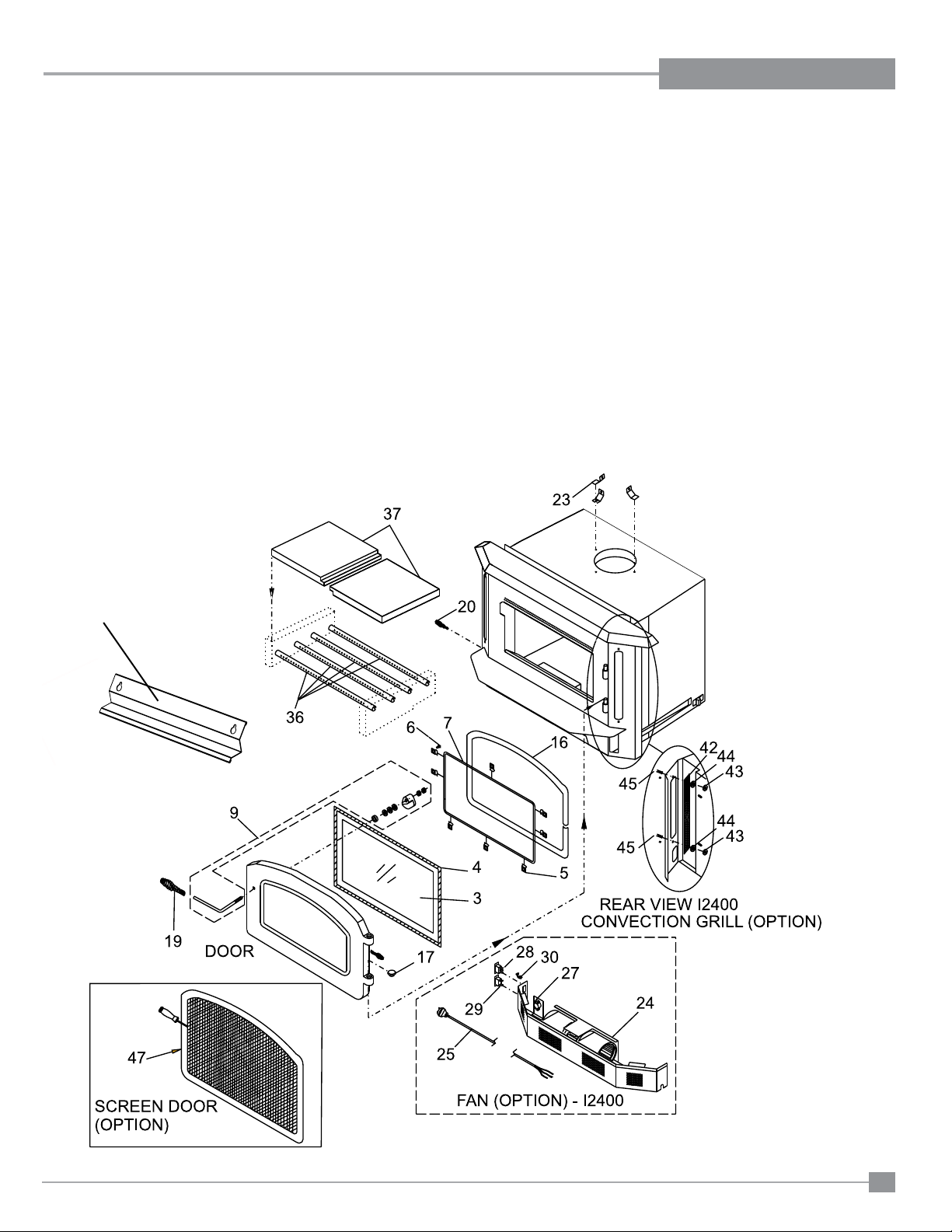

PARTS LIST
MAIN ASSEMBLY & OPTIONS I2403M
Part # Description
142-917 Fan Assembly
24) 910-157/P Fan Motor 120 Volts
25) 910-678 Power Cord 120 Volts
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Hi / OFF / Low
Switch (3-way)
29) 910-138 Auto / Manual On /
OFF Switch
30) * Grommet Strain Relief
36) 033-953 Air Tube 3/4" (Qty:4) (each)
37) 020-957 Ba󰀪e (2/set)
Part # Description
42) 163-932 Convection Grill - Gold (Opt)
163-930 Convection Grill - Blk (Opt)
43) * Hex Nut 10-24 Zinc Coated
44) * Washer #10 Flat
45) * Bolt, 10-24 x 3/4"
Blk Carriage
47) 846-102 Screen Door
948-223 Regency Logo - Nickel
948-216 Regency Logo - Gold
48) 820-482 Stainless smoke deector
918-993 Manual
*Not available as a replacement part.
Part # Description
1) 850-152 Door Assy - Large Gold
850-151 Door Assy - Large Black
850-153 Door Assy - Large Nickel Accent
850-154 Door Assy - Large Gold Accent
2) 846-304 Glass - Replacement
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips (8/set)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large
9) 846-973 Door Handle Assembly
16) 846-570 Door Gasket Kit
17) 846-918 Hinge Caps - Gold Plated
(2/set)
948-079 Hinge Caps - Nickel (each)
19) 948-101 Spring Handle - Large Gold
20) 948-102 Spring Handle - Small Gold
948-135 Spring Handle - Large Nickel
948-136 Spring Handle - Small Nickel
23) 846-235 Flue Brackets Package
48

18 Regency I2403M
PARTS LIST
FACEPLATES I2403M
Part # Description
140-911 Faceplate & Trim Set - Regular
180-570 Black Trim Regular (set of 3)
285) * Trim Right Regular
286) * Trim Top Regular
287) * Trim Left Regular
288) * Faceplate Side Regular
289) * Faceplate Top Regular
140-913 Faceplate & Trim Set - Oversize
180-572 Black Trim Oversize (set of 3)
295) * Trim Right Oversize
296) * Trim Top Oversize
297) * Trim Left Oversize
298) * Faceplate Side Oversize
299) * Faceplate Top Oversize
*Not available as a replacement part.
285
286
287
288
288
289
REGULAR
296
295
297
298
299
298
OVERSIZE

Regency I2403M
19
PARTS LIST
BRICK PANELS I2403M
Part # Description
180-960 Firebrick - Complete Set
70) 902-111 Brick Regular Full Size: 1-1/4" x 4-1/2" x 9"
75) * Brick Partial: 1-1/4 x 4-1/2" x 2"
76) * Brick Partial: 1-1/4" x 2" x 9"

20 Regency I2403M
WARRANTY
Limited Lifetime Warranty
FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S.
customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original
purchaser of this appliance provided the product remains in the original place of installation. The items covered by
this limited warranty and the period of such coverage is set forth in the table below.
Some conditions apply (see below).
The policy is not transferable, amendable or negotiable under any circumstances.
Wood Products
Component Coverage
Labor
Coverage
Components Covered Lifetime
5
years
2
years
1
year Warranty (Years)
Welded Firebox Steel

5
All Stainless Steel Components, Smoke Deflectors,
Heat Shields etc. 
3
Air Tubes
 3
Airmate

3
Door handle and latch assembly, all hardware

3
Glass Thermal Breakage Only

3
Steel Faceplates, Accessory Housings
 3
All Plating

3
Ash Drawer, Heatshields, Pedestal

All Baffles, Steel, Ceramic, Vermiculite

All castings, firebox, surrounds, doors, panels etc.

3
All Electrical, Blower, wiring, switches etc.

2
Glass - Crazing
 1
Catalyst Assembly
6 Years
Prorated
3
Venting/Chimney

1
Screens
 1
Conditions:
Warranty protects against defect in manufacture or FPI factory assembled components only, unless herein
specified otherwise.
Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at FPI’s
option through an accredited distributor, dealer or pre-approved and assigned agent provided that the defective
part is returned to the distributor, dealer or agent for inspection if requested by FPI. Alternatively, FPI may at its
own discretion fully discharge all of its obligations under the warranty by refunding the verified purchase price of
the product to the original purchaser. The purchase price must be confirmed by the original Bill of Sale.
The authorized selling dealer, or an alternative authorized FPI dealer if pre-approved by FPI, is responsible for all
in-field diagnosis and service work related to all warranty claims. FPI is not responsible for results or costs of
workmanship of unauthorized FPI dealers or agents in the negligence of their service work.
At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective
prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty.
Revision Date: December 2016 Regency Wood Products Warranty
