Regency Fireplace Products Horizon HZ40E Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
920-001f 03.12.21
www.regency-fire.com
Horizon HZ40E Product Video
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Warning
FIre or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
Regency Horizon®HZ40E
Gas Fireplace
Owners &
Installation Manual
MODELS: HZ40E-NG11 Natural Gas
HZ40E-LP11 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Certified to/Certifié pour: CSA 2.17-2017
ANSI Z21.88-2017
CSA 2.33-2017
Tested by:
French Manual: https://bit.ly/3bPXj09
Manuel en français : https://bit.ly/3bPXj09

2| Regency Horizon® HZ40E-11 Gas Fireplace
This appliance can only be used with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in
Canada.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2017 / CSA 2.33-2017 and GAS-FIRED APPLIANCES FOR
USE AT HIGH ALTITUDES CSA 2.17-2017.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,
where not prohibited by local codes.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria
for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA
70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1
in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as
applicable to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Ensure that structural members are not cut or weakened during installation.
Regency Horizon Gas Inserts Video

Regency Horizon® HZ40E-11 Gas Fireplace | 3
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ40E has been designed to provide
you with all the warmth and charm of a fireplace at the flick of a switch. The model HZ40E has been approved by
Warnock Hersey/Intertek for both safety and efficiency. As it also bears our own mark, it promises to provide you
with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint
yourself with these instructions and the many features of your Regency® Fireplace.
On Demand Pilot Light (seven day safety timer)
Important information if using the appliance in CPI (continuous pilot mode) only.
This appliance is a ProFlame 1 system fitted with the “On Demand” Pilot, a safety feature which will shut down
the gas valve completely by extinguishing the pilot light in the event of a continuous full seven days of inactivity.
This only applies if the CPI (continuous pilot) switch is in the “on” position.
Each time the main burner shuts down, manually or through the call from the thermostat, the seven day
timer starts again.
The seven day inactivity timer is controlled within the circuit board. Therefore, if in CPI mode and when the
pilot light is extinguished after seven straight days of inactivity, the IPI/CPI rocker switch will remain in the “on”
position. Therefore, all that is required to relight the pilot would be to press the on/off button on the remote
control transmitter from “on” to “off” and back to “on”. Once the pilot has re-established operation will resume
as normal. There is no requirement to do anything with the IPI/CPI rocker switch.
If the unit never goes as long as seven full days without a call for heat, the pilot will remain lit until it is manu-
ally shut-off.
If the unit is being operated in IPI (intermittent pilot) mode, neither the above instructions nor the seven day
timer will apply.
See the instructions in this manual and on the Lighting Instructions plate on the appliance to light or re-light
the pilot.

4| Regency Horizon® HZ40E-11 Gas Fireplace
table of contents
On Demand Pilot Light (seven day safety timer) ........................ 3
Copy of Safety Decal .....................................................5
Important Message ......................................................7
Before You Start .............................................................7
General Safety Information ............................................7
Lighting Procedure ........................................................8
Copy of Lighting Plate Instructions ................................9
Proflame 1 remote control operating instructions ........10
MA Code - CO Detector ..............................................14
(for the State of Massachusetts only) ..........................14
Installation Checklist ....................................................15
Locating Your Gas Fireplace ........................................15
Heatwave Duct System ...............................................15
Heat Release Kit ..........................................................15
Clearances ..................................................................16
Mantel Clearances .......................................................17
Mantel Leg Clearances ................................................17
Unit Assembly Prior To Installation ..............................18
Nailing Strips ...............................................................18
Installation Access Panel .............................................18
Framing Dimensions ....................................................19
Optional Framing Kit ....................................................20
Wall Mount On/Off Switch and Remote Receiver
Installation ...................................................................21
Non-Combustible Requirements..................................22
Non-Combustible Facing Installation ..........................22
Framing & Finishing .....................................................23
Framing & Finishing .....................................................24
Exterior Vent Termination Requirements .....................25
4” x 6-5/8” Rigid Pipe ..................................................26
Cross Reference Chart only ........................................26
Vent Restrictor Position ...............................................28
Venting Introduction .....................................................29
Venting Arrangement for Horizontal Terminations .......29
Horizontal Terminations ...............................................30
Flex Vent 4" x 6-7/8" ....................................................30
Horizontal Terminations ...............................................31
Rigid Pipe 4" x 6-5/8" ...................................................31
Horizontal Terminations ...............................................32
Rigid Pipe 4" x 6-5/8" ...................................................32
Vertical Terminations ...................................................35
Rigid Pipe 4" x 6-5/8" ...................................................35
Venting Arrangement for Vertical Terminations ............36
Vertical Termination with Co-Linear Flex System ........37
Vertical Terminations ...................................................38
Rigid Pipe 4" x 6-5/8" ...................................................38
Venting Arrangements - Vertical Terminations ............40
Unit Installation with Horizontal Termination ...............41
owner's information
installer's information
4" x 6-5/8" Venting .......................................................41
Unit Installation with Horizontal Termination ...............42
Dura-Vent Horizontal Terminations ..............................43
Unit Installation with Vertical Termination ....................44
4" x 6-5/8" Venting .......................................................44
Vertical Flue Extension Kit (Part #946-756).................46
Ceiling Firestop/Firestop Spacer (Part #946-757) .......46
High Elevation ..............................................................47
Gas Line Installation ....................................................47
Pilot Adjustment ...........................................................47
Gas Pipe Pressure Testing ..........................................47
885 S.I.T. Valve ...........................................................47
Description ..................................................................47
Aeration Adjustment ....................................................47
Wiring Diagram ............................................................48
Optional Fan Installation - Initial Install ........................49
Optional Fan Installation - Existing Install ....................51
Wiring Diagram with Optional Fan ...............................54
Optional Wall Thermostat Installation ..........................55
Inner Panel Installation ................................................56
Glass Crystals or Optional Stones ..............................57
Installation On Burner ..................................................57
Optional Pebbles/Glass Crystals Installation for Firebox
Base (Around Burner) .................................................57
Optional Driftwood Log Set Installation .......................58
Glass Door Installation ................................................60
Safety Screen/Inner Door Frame Removal/Installation 61
Verona/4 Piece Faceplate Installation .........................62
Outer Door Frame Installation .....................................63
Operating Instructions .................................................64
First Fire ......................................................................64
Normal Operating Sounds of Gas Appliances .............64
Copy of Lighting Plate Instructions ..............................65
Maintenance Instructions ............................................66
Glass Gasket ...............................................................66
Glass Door ...................................................................66
Glass Replacement .....................................................66
General Vent Maintenance ..........................................66
Valve Assembly Replacement .....................................67
Gas Maintenance ........................................................68
Main Assembly ............................................................69
Accessories .................................................................70
Warranty ......................................................................72

Regency Horizon® HZ40E-11 Gas Fireplace | 5
safety decal
This is a copy of the label that accompanies each HZ40E-NG11 and HZ40E-LP11 Direct Vent Gas Fireplace. We have printed a copy of the contents here
for your review.
NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
Copy of Safety Decal
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible con-
nectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
Part #: 920-002a
Colour: Black on grey except what is indicated as being printed red.
Size: (File at 100%) 9.318’’W x 5.892’’H
Material: 2 ml silver matt polyester (DPM SMS)
Dec. 17/18: Created draft
Jan. 22/19: Rev A - Remodeled decal and added ETL logo at the bottom
*Printer: Start serial sequence @ 00200001
DO NOT REMOVE THIS LABEL /
NE PAS ENLEVER CETTE ÉTIQUETTE
502
502
DOOR SEAL: Please
check that the door is
properly sealed
FPI Fireplace Products International Ltd. Delta, BC, Canada
Minimum Clearances to Combustibles /
Dégagements minimaux par rapport aux matériaux combustibles
Serial No./ No de série
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Fan (Part # 258-917)/Ventilateur (pièce n°258-917)
Electrical supply / Alimentation électrique 115VAC, 1.13 A, 60Hz. Made in Canada/ Fabriqué au Canada
Duplicate S/N
(See Instruction Manual for
detailed instructions)
APPAREIL FONCTIONNANT AU GAZ PROPANE
Modèle HZ40E-LP11
PROPANE GAS: Model HZ40E-LP11
APPAREIL FONCTIONNANT AU GAZ NATUREL
Modèle HZ40E-NG11
5.0" WC/C.E. (1.25 kPa)
3.5" WC/C.E. (0.87 kPa)
1.6" WC/C.E. (0.40 kPa)
# 40 DMS
26,000 Btu/h (7.61 kW)
18,000 Btu/h (5.28 kW)
0-4500 ft/pi (0-1372 m)
11" WC/C.E. (2.73 kpa)
10" WC/C.E. (2.49 kPa)
6.4" WC/C.E. (1.59 kPa)
# 53 DMS
25,500 Btu/h (7.47kW)
21,000 Btu/h (6.15 kW)
0-4500 ft/pi (0-1372 m)
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Maximum input
Minimum input
Altitude
D
E
F
A
B
C
Side Walls/Murs latéraux
A 8” (203mm)
Ceiling/Plafond
B 22” (559mm)
Min. Mantel Height/Hteur min.
manteau
C 17" (432mm)
Max. Mantel Depth/Prof. max.
manteau
D 13” (330mm)
Alcove Width/Largeur alcôve
E 84" (1524mm)
Alcove Depth/Prof. alcôve
F 36" (2134mm)
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the
United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si
ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles.
Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les
règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil n'est pas convertible pour une utilisation avec d'autres gaz, sauf si une trousse certifiée est utilisée.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY DOIT ÊTRE UTILISÉ UNIQUEMENT AVEC LES PORTES VITRÉES CERTIFIÉES AVEC L'APPAREIL
For Use Only with Barrier (Part # 258-013) Follow installation instructions. Utiliser uniquement avec un écran de protection (n°258-013). Suivre les consignes d'installation.
Pression d'alimentation minimale
Pression de sortie (manifold) - basse
Pression de sortie (manifold) - max.
Taille de l’orifice
D bit calorifique maximalé
D bit calorifique minimalé
Altitude
Pression d'alimentation minimale
Pression de sortie (manifold) - basse
Pression de sortie (manifold) - max.
Taille de l’orifice
D bit calorifique maximalé
D bit calorifique minimalé
Altitude
NOT FOR USE WITH SOLID FUELS. / NE PAS UTILISER AVEC UN COMBUSTIBLE SOLIDE.
Listed/Nom: VENTED GAS FIREPLACE HEATERS / APPAREIL DE CHAUFFAGE AU GAZ À ÉVACUATION.
Certified to/Certifi : é
ANSI Z21.88-2017 • CSA-2.33-2017
CSA 2.17-2017
Refer to Intertek's Directory of Building Products for detailed information.
Pour plus de détails, se reporter au Répertoire des produits de construction de Intertek.
NATURAL GAS: Model HZ40E-NG11
C #: 4001172
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Maximum input
Minimum input
Altitude
920-002a
CSA P.4.1 Fireplace Efficiency (FE) / Efficacité énergétique des foyers (EEF) CSA P.4.1
Natural Gas / Gaz naturel 64.44%
Propane Gas / Gaz propane 66.75%
CANADIAN ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ÉNERGÉTIQUE
VÉRIFIÉ
EP5011169
Decal Location
Remove Faceplate (see manual for instructions)
with the faceplate removed, the rating plate will
be located on the left hand side of the unit. It will
be located in-between the inner and outer firebox
(see picture).
DO NOT REMOVE DECAL FROM UNIT.

6| Regency Horizon® HZ40E-11 Gas Fireplace

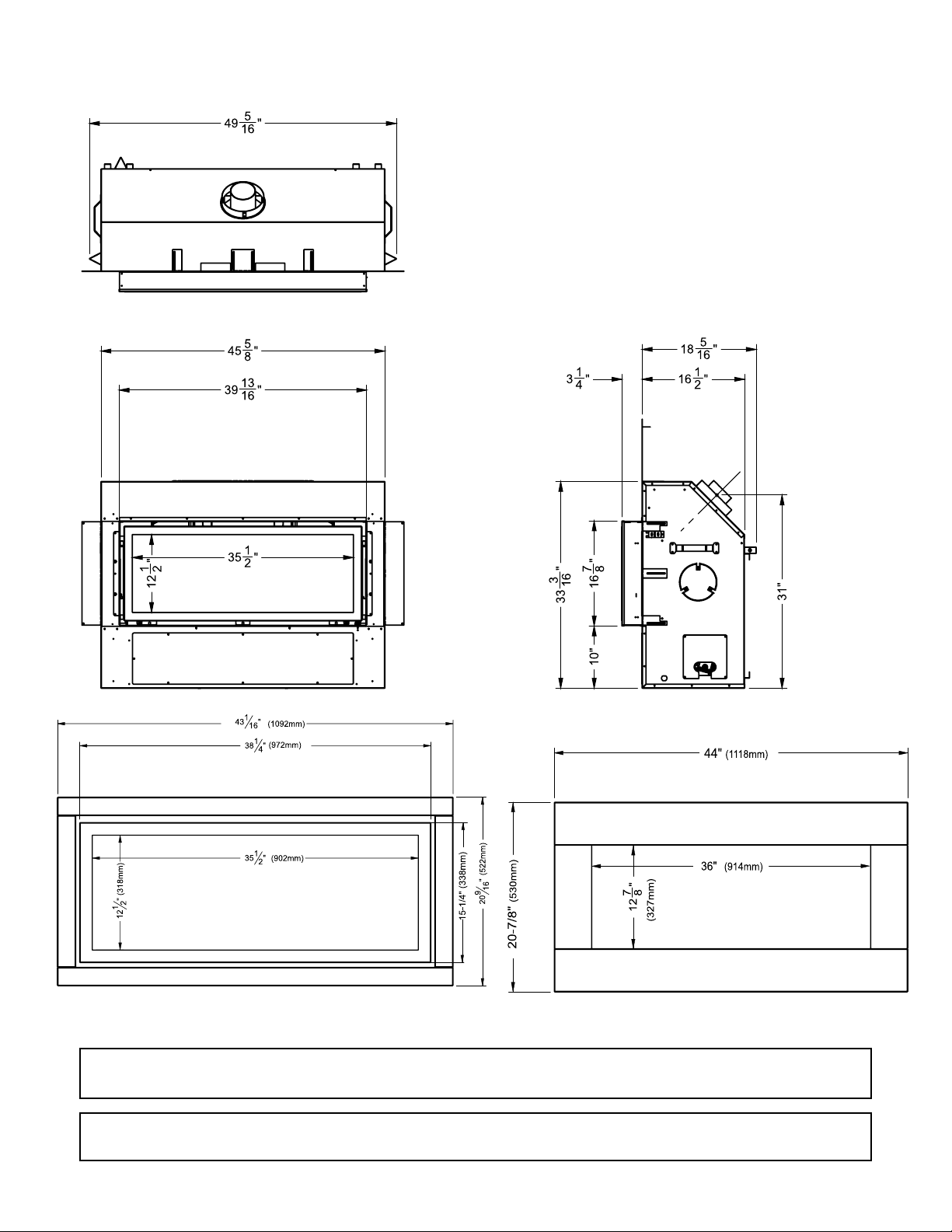

dimensions
Inner/Outer Faceplate 4 Piece Faceplate/Verona Surround
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.
Note: Gas connection is from the right hand side of the appliance & electrical connection on left hand side of the appli-
ance. A metal receptacle box is supplied/installed with the appliance to make all 120 volt electrical connections.

Regency Horizon® HZ40E-11 Gas Fireplace | 7
owner's information
4. This appliance must be connected to the
specified vent and termination cap to the outside
of the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5. Inspect the venting system annually for blockage
and any signs of deterioration.
6. Venting terminals shall not be recessed into a
wall or siding.
7. Any safety glass removed for servicing must be
replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11. Under no circumstance should this
appliance be modified. Parts that have
to be removed for servicing should be
replaced prior to operating this appliance.
12. Installation and any repairs to this appliance
should be done by a qualified service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15. The appliance area must be kept clear and free
of combustible materials, (gases and other flam-
mable vapours and liquids).
Important Message
Save these Instructions
The Gas Fireplace must be installed in accordance
with these instructions. Carefully read all the
instructions in this manual first. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation. It is the responsibility
of the installer to ensure this fireplace is installed
in compliance with manufacturers instructions and
all applicable codes.
Before You Start
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
General Safety
Information
1. The appliance installation must conform with
local codes or, in the absence of local codes, with
the current Canadian or National Gas Codes,
CAN1-B149 or ANSI Z223.1 Installation Codes.
2. The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with the
current National Electrical Code, ANSI/NFPA 70
or CSA C22.1 Canadian Electrical Code.
3. See general construction and assembly
instructions. The appliance and vent should be
enclosed.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC. IT IS IMPERATIVETHAT
CONTROLCOMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHE MANUFACTURER'S BARRIER
FOR THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
AN APPLIANCE MUST BE REPLACED
PRIORTOOPERATINGTHE APPLIANCE.

8| Regency Horizon® HZ40E-11 Gas Fireplace
owner's information

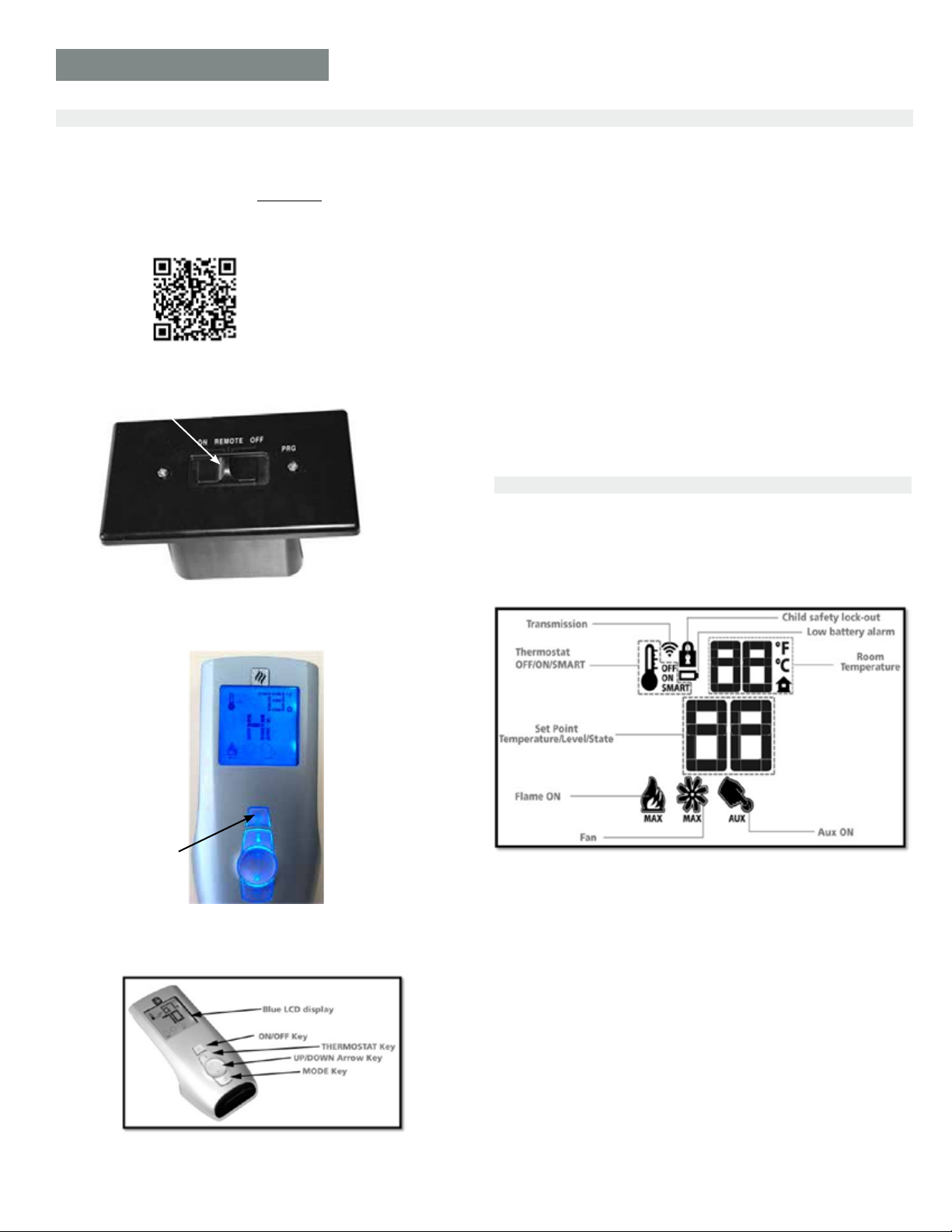

Lighting Procedure
IMPORTANT: The remote control system supplied with this appliance has
several options for starting/operating the appliance using the power button
and ON/OFF key on the hand held transmitter.
Prior to operating this appliance, please read the remote control operating
instructions (packaged with remote control) to understand how to operate
this remote control system. Option to download remote functions video
with QR code below.
1. Ensure the wall switch/receiver is in the remote position. (see Diagram 1).
3. After approximately 4 seconds the spark ignition system will spark for 60
seconds to light the pikot.
4. The unit will turn on.
Note: The first try for ignition will last approximately 60 seconds. If there is no
flame ignition (rectification) the board will stop sparking for approximately
35 seconds. After wait time , the board will start second try for ignition by
sparking for approximately 60 seconds. If there is still no positive ignition
the board will go into lock out.
The system will need to be reset as follows:
a) Turn the system off using ON/OFF switch or press ON/OFF button - if
using remote.
b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF
button if using remote.
c) Repeat step 2.
ON/OFF
Button
Diagram 1
Diagram 2
Set Switch to
Remote
Shutdown Procedure
1. Turn the wall mounted switch or remote to the "OFF" position.
2. Press "OFF" on the remote control.
3. Turn the gas control knob to the "OFF" position to turn off the pilot.
Remote shown in Manual Mode on Hi
Proflame
video
2. Press and release the ON/OFF button on the remote handheld transmit-
ter (see Diagram 2). An audible beep should be heard from the receiver.

Regency Horizon® HZ40E-11 Gas Fireplace | 9
owner's information
Copy of Lighting Plate Instructions
919-401a
Part #: 919-401a
Colours: Black on Grey, except
for parts indicated as being
Red.
Size: 100%
w- 5.16"
h- 10.3"
June 23/14: Created decal
Sept.29/14: Rev. A - Updated shut-
down procedure.
A) This appliance is equipped with an ignition device which automatically lights the pilot.
Do not try to light the pilot by hand.
B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the fl oor
because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any phone in your building.
- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
C) Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and replace any part of the control system and any
gas control which has been underwater.
A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse.
Ne tentez pas d’allumer la veilleuse manuellement.
B) AVANT LA MISE EN MARCHE, reniflez tout autour de l’appareil pour déceler une odeur de gaz. Reniflez au niveau
du plancher, car certains gaz sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne tentez pas d’allumer l’appareil
• Ne touchez à aucun interrupteur; n'utilisez pas de téléphones se trouvant dans le bâtiment.
• Appelez immédiatement votre fournisseur de gaz depuis un téléphone extérieur. Suivez les
instructions du fournisseur.
• Si vous ne pouvez pas rejoindre le fournisseur, appelez le service incendie.
C) N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement. Faites inspecter l’appareil par un tech-
nicien qualifié et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.
DO NOT REMOVE THIS INSTRUCTION PLATE
TO TURN OFF GAS APPLIANCE
This appliance must be installed in accordance with local codes, if any;
if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
Natural Gas and Propane Installation Codes, CSA B149.1.
CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface
temperatures keep children, clothing and furniture, gasoline and other liquids having flammable
vapors away. Keep burner and control compartment clean. See installation and operating
instructions accompanying appliance.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage. Refer to the owner’s
information manual provided with this appliance. For assistance or additional information
consult a qualified installer, service agency or gas supplier.
AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice
risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou
la mort.
Une installation, d'ajustement, de modification, de service ou d'entretien peut provoquer
des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de
l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémen-
taires consulter un installateur qualifié, une agence de service ou fournisseur de gaz.
1) Ensure the wall switch/receiver is in the remote position.
2) Press and release the ON/OFF button on the remote handheld transmitter. An audible beep should be
heard from the receiver.
3) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.
4) The unit will turn on.
Note: The first attempt to ignition will last approximately 60 seconds. If there is no flame ignition (rectifica-
tion) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a
second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the
second attempt the board will go into lock out.
The system will need to be reset as follows (after going into lock out mode):
a) Wait 5 minutes - turn the system off using ON/OFF switch or press ON/OFF button if using
remote
b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF button if using remote.
c) Unit will repeat step 2.
1) S’assurer que l’interrupteur mural/récepteur soit sur ''Remote''.
2) Appuyer sur la touche ON/OFF de la télécommande puis relâcher. Un bip se fera entendre depuis le
récepteur
3) Après environ 4 secondes, le système d'allumage par étincelles se mettra en marche pendant 60 secondes
pour allumer le brûleur principal.
4) L'appareil s’allume.
Remarque : Au premier allumage, le système tente d’allumer les flammes pendant 60 secondes. Si l’essai
est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectification.
Ce délai écoulé, le système tente à nouveau d'allumer les flammes en produisant des étincelles pendant 60
secondes. Si les flammes ne s’allument toujours pas, le système se met en mode verrouillage.
Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) :
a) Attendre 5 minutes puis éteindre l’appareil en utilisant l’interrupteur ou la touche ON/OFF de la
télécommande.
b) Attendre 2 secondes et rallumer le système à l’aide de l’interrupteur ou de la télécommande.
c) L'appareil répètera l'étape 2.
1) Turn the wall mounted switch or remote to the "OFF" position.
2) If service is to be performed–you must disconnect power and shut off gas to the unit.
1) Utiliser l'interrupteur mural ou la télécommande pour mettre le système sur ''OFF''.
2) Lors de l'entretien de l'appareil –débrancher l'alimentation électrique et couper le gaz de l'appareil.
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING

10 | Regency Horizon® HZ40E-11 Gas Fireplace
owner's information
Proflame I Remote Control Operating Instructions
WARNING:THETRANSMITTER AND RECEIVER ARE RADIO
FREQUENCY DEVICES. PLACING THE RECEIVER IN OR
NEAR METAL MAY SEVERELY REDUCETHE SIGNAL RANGE.
The Proflame 1 Transmitter provides for controlling the following hearth
appliance functions:
1. Main Burner On/Off
2. Main Burner flame modulation (6 levels)
3. Thermostat and Smart thermostat functions
4. Accent light modulation (6 levels)**
5. Comfort Fan speed modulation (6 levels)**
** This feature is not available on all models.
IMPORTANT:The Proflame Transmitter 1 is an integrated part of the
Proflame 1 System, which consists of these elements:
• Proflame 1 Transmitter, to be used in conjunction with:
• Integrated Fireplaces Control (Proflame 1 DFG)
The Proflame Transmitter uses a streamline design with a simple button
layout and informative LCD display (Fig. 1). A Mode Key is provided to
index between the features and a Thermostat Key is used to turn on/off
or index through Thermostat functions (Fig. 1 & 2). Additionally, a Key
Lock feature is provided (Fig. 22).
Figure 1: Proflame Transmitter
Figure 2: Transmitter LCD Display
TECHNICAL DATA
REMOTE CONTROL
Supply Voltage 4.5V (three 1.5V AAA batteries)
Ambient temperature
ratings
0 - 50oC (32 - 122oF)
Radio Frequency 315 MHZ
ATTENTION!
- Turn “OFF” the main gas supply of the appliance during installation or
maintenance of the Receiver device.
- Turn “OFF” main gas supply to the appliance prior to removing or rein-
serting the batteries.
- In case of remote control malfunction, turn off the IFC device using the
"ON/OFF" main switch.
- For installation / maintenance, switch off the IFC device removing main
power supply plug.
Operating Procedure
Initializing the System for the first time
Power the receiver. Press the PRG button located on the top right hand
corner of receiver, see the receiver instruction (*). The Receiver will
“beep” three (3) times to indicate that it is ready to synchronize with a
Transmitter. Install the 3 AAA type batteries in the Transmitter battery bay,
located on the base of the Transmitter. (fig. 3) With the batteries already
installed in the Transmitter, push the On button. The Receiver will “beep”
four times to indicate the Transmitter’s command is accepted and sets
to the particular code of that Transmitter. The system is now initialized.
(*) The receiver may be independent or integral to the IFC hearth ap-
pliance control module. The receiver instruction may not be indepen-
dent when part of the IFC.
Figure 3: Battery Compartment

Regency Horizon® HZ40E-11 Gas Fireplace | 11
owner's information
Figure 4: Remote Control dis-
play in Farenheit.
Temperature indication Display

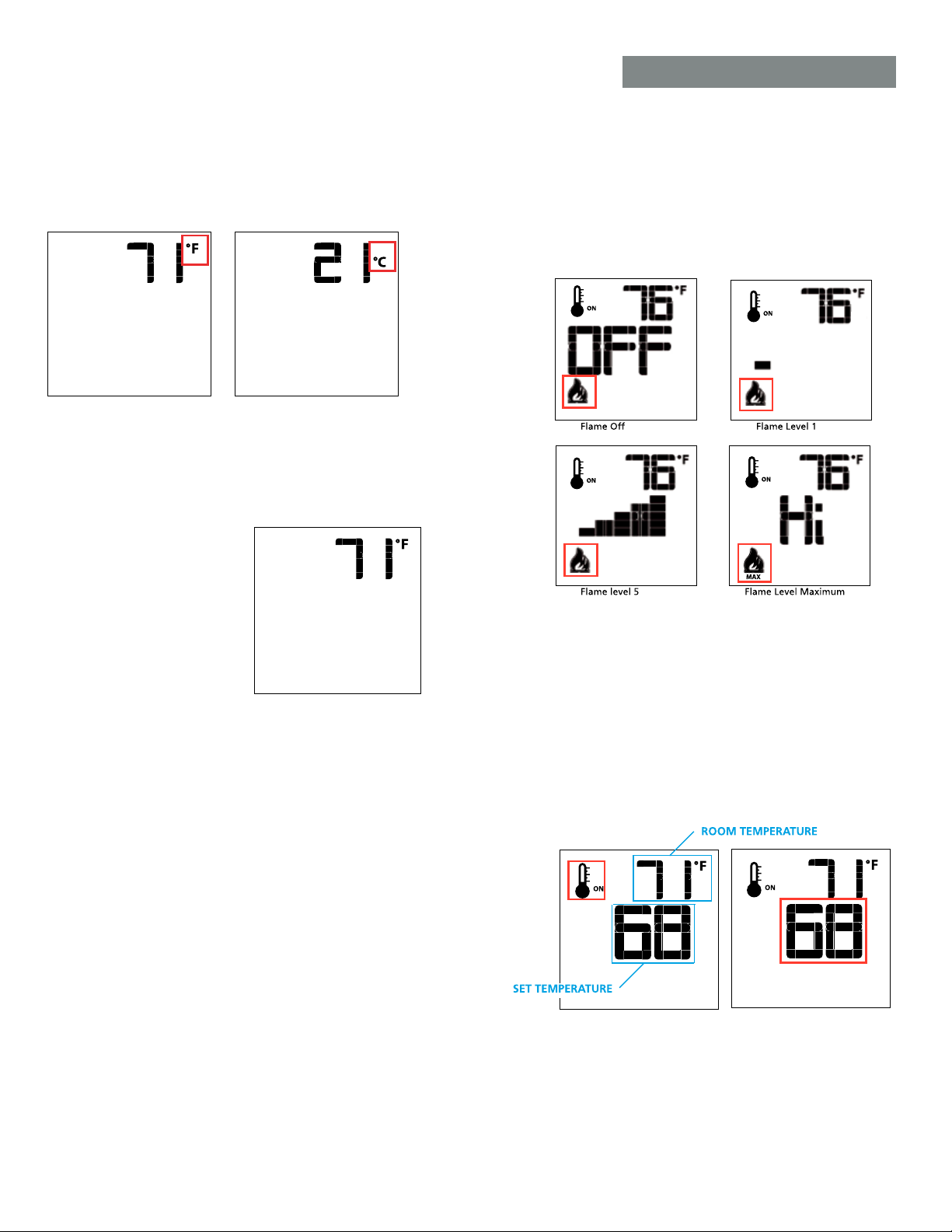

With the system in the "OFF" position, press the Thermostat Key and
the Mode Key at the same time. Look at the LCD screen on the transmit-
ter to verify that a C or F is visible to the right of the room temperature
display (Figures 4 & 5).
Figure 5: Remote Control dis-
play in Celsius.
Turn on the Appliance
With the system OFF, press the ON/
OFF Key on the Transmitter. The
Transmitter display will show some
other active Icons on the screen. At the
same time the Receiver will activate
the appliance. A single “beep” from
the Receiver will confirm reception of
the command.
Figure 6: Remote Control
display
Remote - Flame Control
The Proflame has six (6) flame levels. With the system on, and the flame
level at the maximum in the appliance, pressing the Down Arrow Key
once will reduce the flame height by one step until the flame is turned off.
The Up Arrow Key will increase the flame height each time it is pressed.
If the Up Arrow Key is pressed while the system is on but the flame is off,
the flame will come on in the high position. ( Fig. 7 & 8 ) A single “beep”
will confirm reception of the command.
Fig. 7
Fig. 8
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control the comfort level in a room.
To activate this function, press the Thermostat Key (Fig. 1). The Lcd
display on the Transmitter will change to show that the room thermostat
is “ON” and the set temperature is now displayed (Fig. 9). To adjust the
set temperature, press the Up or Down Arrow Keys until the desired set
temperature is displayed on the LCD screen of the Transmitter.
Figure 9 Figure 10
Turn off the Appliance
With the system ON, press the ON/OFF Key on the Transmitter. The
Transmitter LCD display will only show the room temperature (Fig. 6).
At the same time the Receiver will turn off the appliance. A single “beep”
from the Receiver confirms reception of the command.

12 | Regency Horizon® HZ40E-11 Gas Fireplace
owner's information
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the flame height in accordance
to the difference between the set point temperature and the actual room
temperatures. As the room temperature gets closer to the set point the
Smart Function will modulate the flame down.

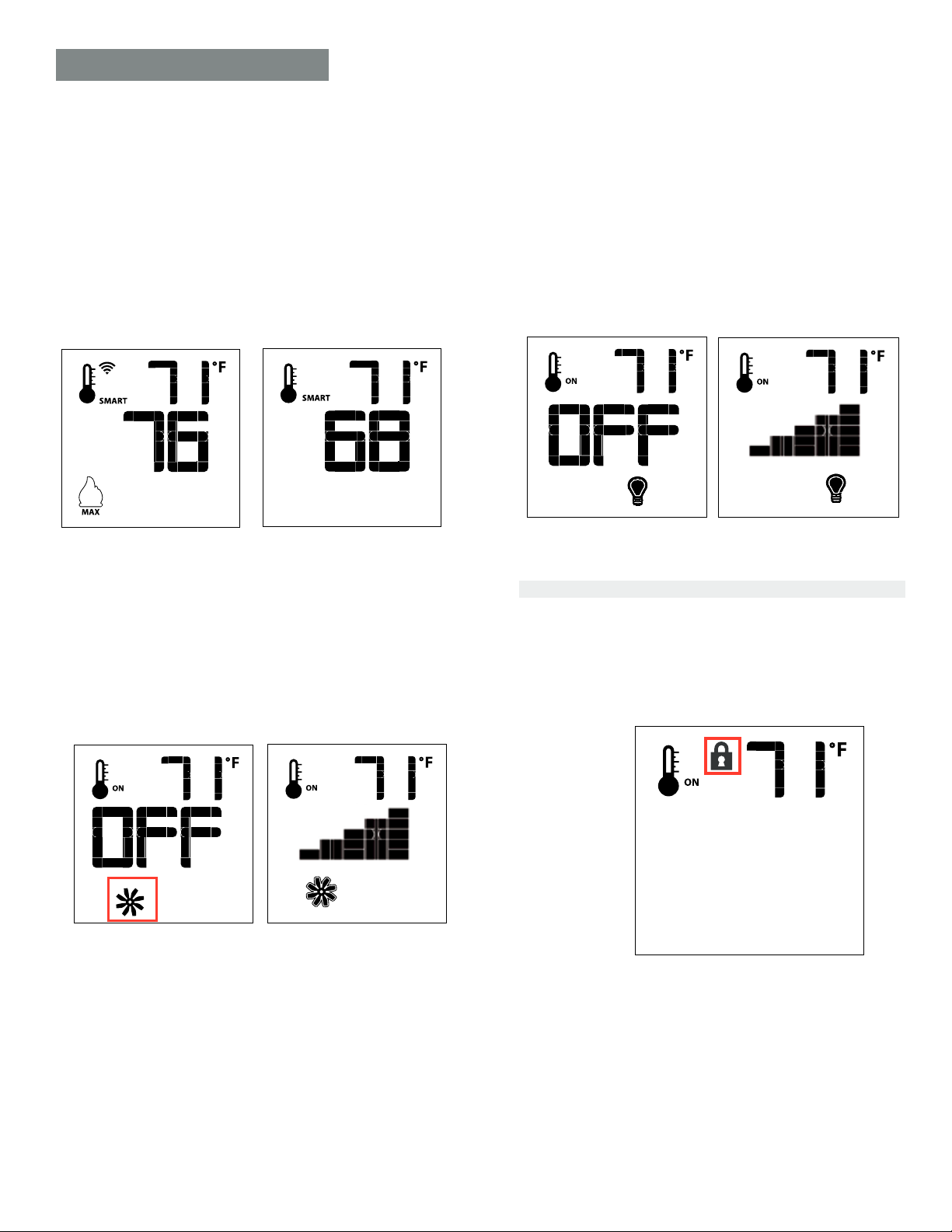

To activate this function, press the Thermostat Key (Fig. 1) until the word
"SMART" appears to the right of the temperature bulb graphic (Fig. 11).
To adjust the set temperature, press the Up or Down Arrow Keys until
the desired set temperature is displayed on the LCD screen of the
Transmitter (Fig. 12).
Note. When Smart Thermostat is activated, manual flame height adjust-
ment is disabled.
Figure 12Figure 11: Smart Flame Function
Fan Speed Control**
If the appliance is equipped with a hot air circulating fan, the speed of
the fan can be controlled by the Proflame system. The fan speed can be
adjusted through six (6) speeds. To activate this function use the Mode Key
(fig.1) to index to the fan control icon (Fig. 13). Use the Up/Down Arrow
Keys (fig.1) to turn on, off or adjust the fan speed (fig. 14). A single “beep”
will confirm reception of the command.
Figure 13 Figure 14
Remote Dimmer Control (Light)**
The auxiliary function controls the AUX power outlet by the dimmable
light control. To activate this function use the Mode Key (fig. 1) to index
to the AUX icon (fig. 15 & 16).
The intensity of the output can be adjusted through six (6) levels. Use
the Up/Down Arrow Keys (fig.1) adjust the output level (fig. 16). A single
“beep” will confirm reception of the command.
Note: This function is available only with the IFC Control Module.
Figure 15 Figure 16
Key Lock
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP Keys at the same
time (fig. 21).
To de-activate this function, press the MODE and UP Keys at the same time.
Figure 18

Regency Horizon® HZ40E-11 Gas Fireplace | 13
owner's information
The Surefire switch is discreetly hidden in
the bottom right corner of the unit.

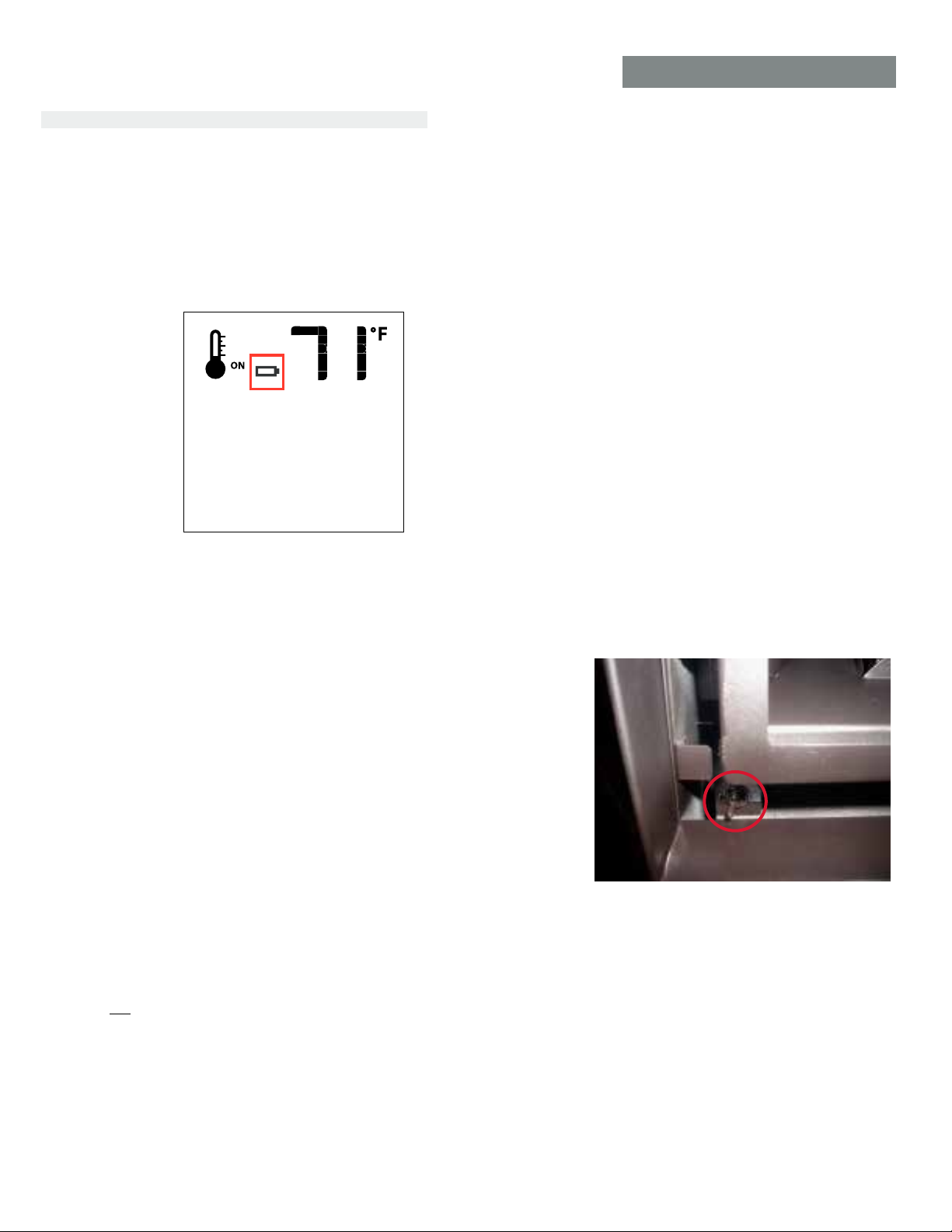

Low Battery Power Detection Transmitter
The life span of the remote control batteries depends on various factors:
quality of the batteries used, the number of ignitions of the appliance,
the number of changes to the room thermostat set point, etc.
When the Transmitter batteries are low, a Battery Icon will appear on the
LCD display of the Transmitter (Fig. 22) before all battery power is lost.
When the batteries are replaced this Icon will disappear.
Figure 19
CPI/IPI Switch
This appliance comes equipped with a CPI/IPI switch.
The functions of both the CPI/IPI switch are as follows:
Continuous pilot (CPI) - A pilot that, once placed in operation, is intended to remain ignited
continuously until it is manually interrupted.
Intermittent pilot (IPI) - A pilot that is automatically ignited when an appliance is called on to
operate and which remains continuously ignited during each period of main burner operation. The
pilot is automatically extinguished when each main burner operating cycle is completed
The mode of the fireplace is easily changed from an intermittent pilot ignition system (IPI) to a
continuous pilot ignition system (CPI) by using the silver toggle switch located on the fireplace.
(See noted location of CPI/IPI Switch)
The benefits of having CPI are as follows:
-Keeps venting primed for trouble free start-up under colder weather conditions or inversions.
-Keeps the unit glass warm, which decreases the amount of condensation on start-up.
-Provides owners with flexibility to choose a traditional continuous pilot. (7 day/Pilot on Demand)
The primary benefit of having the IPI function is a significant savings on fuel as the pilot will only
run when there is a call for heat.
ENABLE / DISABLE functions on the Proflame I remote only.
1. Remove one battery from the remote.
2. Press and hold both the ON/OFF and the MODE button at the same time
3. Reinstall the battery (removed in Step 1) while still holding both buttons (keep holding both
buttons and once all batteries are installed then release the MODE button only).
4. The screen will show CFG.
5. Use the up or down arrow button to program out the function on the remote.
Note: You should never program out the fan (If installed) feature on the remote.
It is not possible to remove the thermostat mode on this remote control.

14 | Regency Horizon® HZ40E-11 Gas Fireplace
requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency Horizon® HZ40E-11 Gas Fireplace | 15
requirements
installer's information
This includes:
1. Clocking the appliance to ensure the correct
firing rate (rate noted on label 26,000 Btu/h
(NG), 25,500 Btu/h (LP) after burning appliance
for 15 minutes.
2. If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results in dam-
age is not the responsibility of the manufacturer.
Installation Checklist
1. Locate appliance
a) Room location (Refer to "Locating Your Gas
fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantel Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2. Position nailing strips (Refer to "Unit Assembly
Prior to Installation).
3. Slide unit into place.
4. Remove installation access panel.
5. Wire 120 volt AC power to the supplied
receptacle box located on lower left hand side of
appliance. The Duplex receptacle and receptacle
cover are also included and will be located in
the manual package. Note : This heater does
not require 120 volt AC supply for operation
of the burner but is highly recommended as a
primary power source to eliminate the need for
4 AA batteries. Batteries should only be used
as a secondary power source when power is
lost within the home. 120 Volt AC power is also
required for the optional blower.
6. Install junction box supplied with appliance.
Install remote receiver inside of junction box.
Hook receiver to wire marked receiver. This will
enable operation of the burner. If 120 Volt AC
power was brought to appliance, batteries are
not required.
7. Install vent (Refer to "Venting Arrangement"
sections).
8. Make gas connections (Refer to "Gas Line
Installation section).
9. Install 4 AA batteries into receiver/switch box
or use AC power adaptor supplied with this
appliance.
10. See remote control instructions for operation
of this device.
11.Test the pilot (Refer to "Pilot Adjustment" section).
12. Test Gas Pressure (Refer to "Gas Pipe Pressure
Testing" section).
13. Install standard and optional features. Refer to
the following sections:
a) Glass Crystals/ Optional Ceramic
Stones
b) Optional Firebox Base Pebbles
c) Optional Reflective Panels
d) Optional Fan
e) Faceplate
f) Drifwood Log Set
14. Reinstall installation access panel.
15. Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
Locating Your
Gas Fireplace
1. When selecting a location for your fireplace,
ensure that the clearances are met.
2. The appliance must be installed on a flat, solid,
continuous surface For example a wood, metal
or concrete floor or in a raised (on the wall) ap-
plication. The appliance must be installed on
a metal or wood panel extending the full width
and depth of the appliance.
3. The HZ40E Direct Vent Gas Fireplace can be
installed in a recessed position or framed out
into the room as in A, B, C and D.
See Diagram 1.

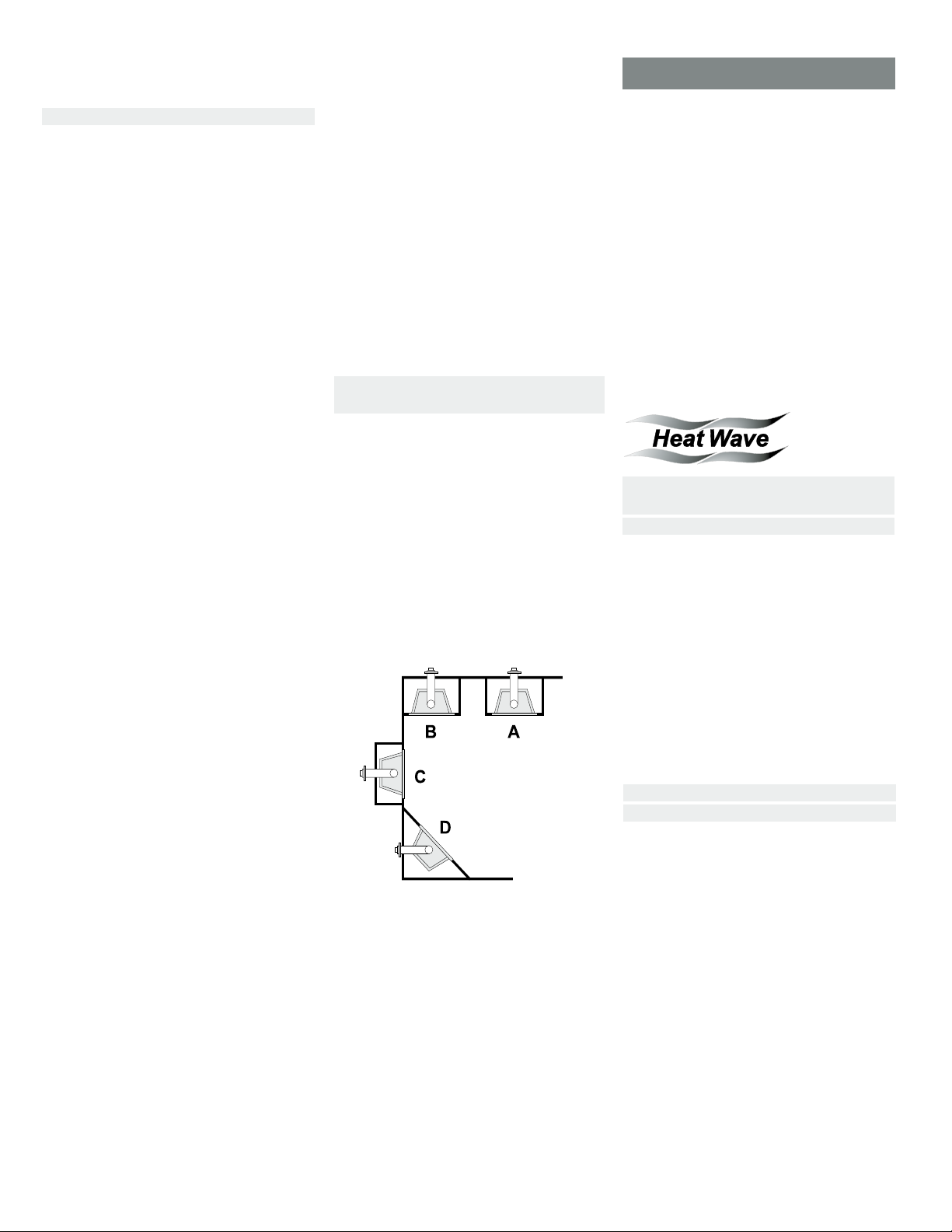

Diagram 1
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
4. This appliance is listed for bedroom installations
using the standard remote (thermostat system).
Some areas may have further requirements,
check local codes before installation.
5. The HZ40E Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
6. We recommend that you plan your installation on
paper using exact measurements for clearances
and floor protection before actually installing
this appliance. Have an authorized inspector,
dealer, or installer review your plans before
installation.
Note: For vent terminations refer
to "Exterior Vent Termination
Locations" section.
Heatwave
Duct System
Optional kit #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing warm
air from the fireplace to remote locations in the same
room or other rooms in your home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be oper-
ated at one time. This includes the internal blower
option as well.
Optional
Heat Release Kit #946-570
The Heat Release Kit expels warm air from the
fireplace to the outside of the building, allowing
the fireplace to be operated with less heat entering
the room. The kit may be used on either the left or
right side.
The HeatWave Duct Kit has different clearance
and framing requirements, check the HeatWave
manual for details.

16 | Regency Horizon® HZ40E-11 Gas Fireplace
installation
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.

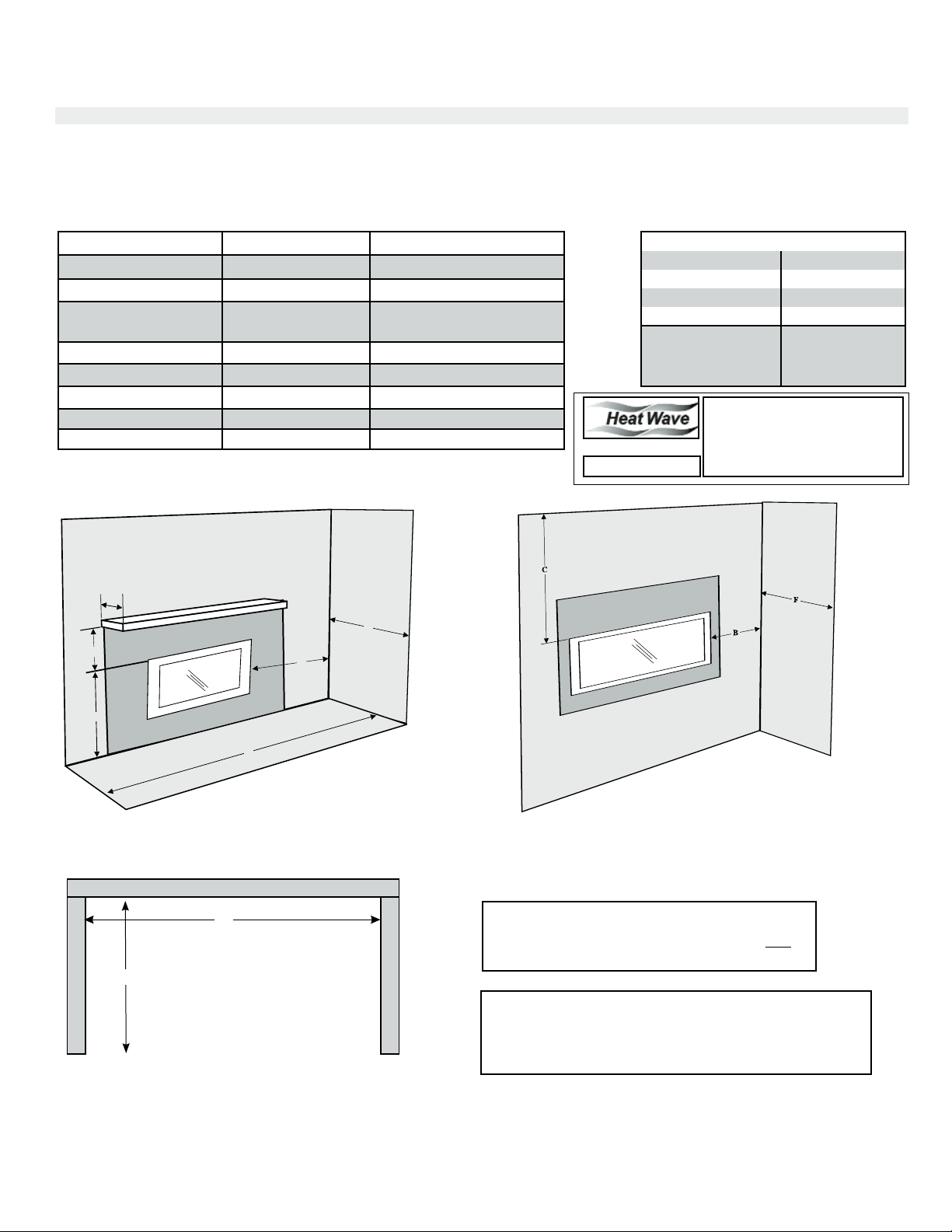

Clearances
The clearances listed below are minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 17" (330mm) Top of Fireplace Opening
B: Sidewall (on one side) 8" (203mm) Side of Fireplace Opening
C: Ceiling
(room and/or alcove) 22" (559mm) Top of Fireplace Opening
D: Mantel Depth (max.) 13" (330mm) 22" Above Fireplace Opening
E: Alcove Width 84" (2134mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: From Floor 27" (686mm) Top of Fireplace Opening
Note: 0" No hearth required
Installed close
to ceiling.
Flue Clearances to Combustibles
Horizontal - Top 3"
Horizontal - Side 2"
Horiztonal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
firestop is used.
1-1/2"
Alcove
E
F
F
E
D
A
B
Installed Close
to Floor
G
The HeatWave Duct Kit and the Heat
Release Kit have different clearance
and framing requirements, check
the HeatWave and Heat Release
manual for details.
Heat Release Kit

Regency Horizon® HZ40E-11 Gas Fireplace | 17
installation
Mantel Clearances
Due to the extreme heat this fireplace emits, the
mantel clearances are critical. Combustible mantel
clearances from top of front facing are shown in the
diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with
a non-combustible board. The non-
combustible mantle when installed
at a lower overall height may not be
lower than 6 inches from the top of
the fireplace opening.
Note: Ensure the paint that is used on the
mantel and the facing is "high quality"
or the paint may discolour.
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram:
Combustible Material
212 64810
13" (330mm)
Standoff
Metal Stud
(On Edge)
0
14
Non-combustible
Facing
To Unit
Base
1" (25mm)
22”
17”
27”
10
20
26
To pof
Fireplace
Opening
(559mm)
4"
Allowable mantel 7-1/8” (181mm)
10” (203mm)
13” (279mm)
1.5" (38mm)
MANTEL LEG 5-11/16”(144mm)
Non-Combustible
leg projection
7"

18 | Regency Horizon® HZ40E-11 Gas Fireplace
installation

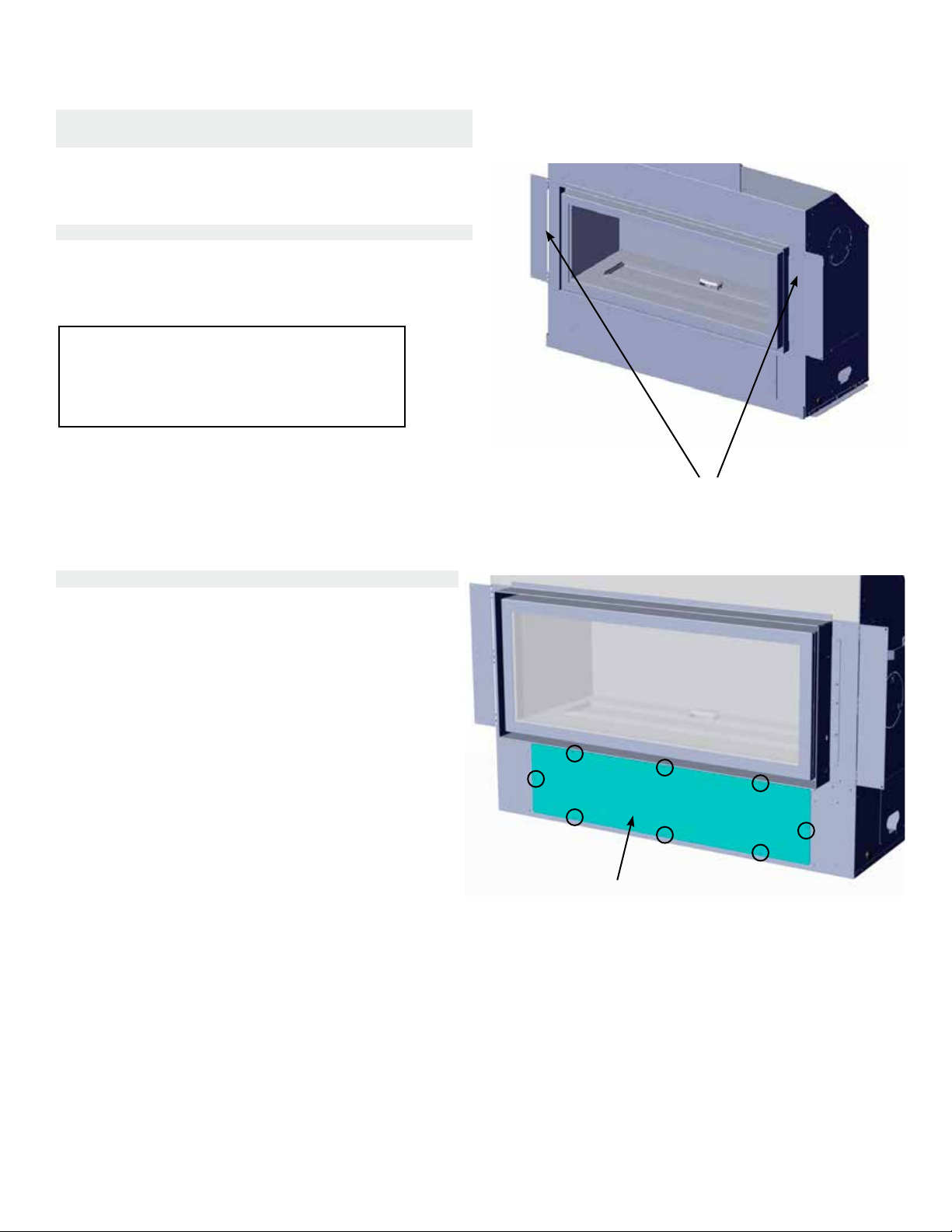

Unit Assembly Prior To
Installation
The nailing Strips must be correctly positioned and attached before unit is
slid into position.
Nailing Strips
The nailing strips come attached to the unit. There is 1 plate on each side.
The side nailing strips are secured to the framing.
IMPORTANT NOTE
Framing depth measurement is noted with the nailing strips
set as far forward on the firebox as possible. The nailing
strips can be adjusted back up to 3-1/4” to allow for varying
thicknesses in non-combustible material & wall finishes.
Nailing Strips
Installation Access Panel
The unit is equipped with a removable access panel for pre-finish installation
of optional components - this panel is located on the lower front face.
1. Remove 8 screws to remove access panel.
2. Easier access to gas connection with panel removed.
3. Install any optional components with access panel removed.
4. Reinstall access panel with 8 screws - prior to installing any facing material
Note: Access panel is no longer accessible once facing material installed.
Installation Access Panel

Regency Horizon® HZ40E-11 Gas Fireplace | 19
installation
Framing Dimensions
NOTE: If not purchasing the optional steel stud kit - adhere to the same framing if purchasing steel studs elsewhere. The use of the optional
kit is highly recommended as it was designed specifically for the product to facilitate ease of installation.
Framing
Dimensions Description HZ40E
A Framing Height 42” (1067mm)
B Framing Width 49-7/8" (1266mm)
C*Framing Depth*
C1 Horizontal Vent 21-3/16" (538mm)
C2 Vertical Vent 25-3/16" (640mm)
Vertical rise -terminating horizontal
D Minimum Height to Combustibles 43-7/8" (1114mm)
E Corner Wall Depth 61" (1549mm)
F Corner Facing Wall Width 86-1/4" (2191mm)
G Vent Centerline Height 36 - 1/4" (921mm)
H Non-combustible facing height 17” (432mm)
I Gas Connection Opening Height 2" (51mm)
J Gas Connection Height 4 - 3/16" (106mm)
K Gas Connection Inset 8 - 5/16" (211mm)
L Gas Connection Opening Width 3 - 1/2" (89mm)
* Framing depth measurement is noted with the nailing strips set as far forward on the firebox as possible.
The nailing strips can be adjusted back up to 3-1/4” to allow for varying thicknesses in non-combustible
material & wall finishes.
A
B
C
D
G
H
Non-Combustible
Facing
Metal Stud (Header)
Metal Studs
on edge
F
E
I
J
KL
Flex or Rigid Pipe
Finished Floor
Drywall or
other facing
C2
C1
Note:
All other framing
around the perimeter may
be of wood construction.
Note: Three horizontal
steel studs must be installed
after the unit is in position
and the venting, gas, and
electrical is installed. The
horizontal studs allow the
non-combustible wall board
to be attached and
supported.

20 | Regency Horizon® HZ40E-11 Gas Fireplace
installation

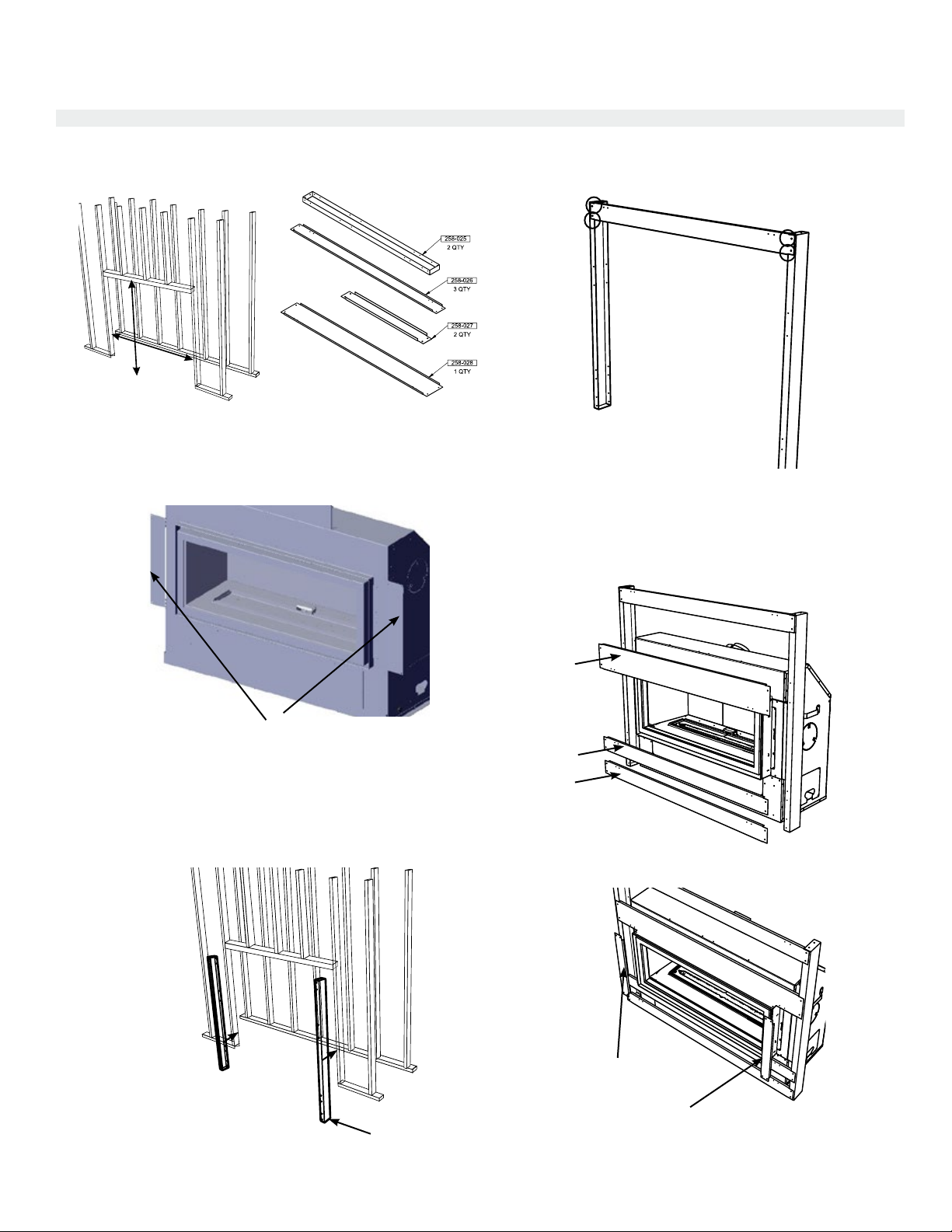

Optional Framing Kit
919-430 12.22.15
OPTIONAL FRAMING KIT
1. Construct the wood framing, ensure inside dimensions are 53"W x 45-
1/2"H as shown below.
53"
45-1/2"
2. Bend both side nailing strips from the side of the appliance until
positioned as shown below.
Determine the overall combined thickness of the non-combustible board
+ finished material being used. The nailing strips can be adjusted up to
3-1/4".
Nailing Strips
3. Adjust the nailing strips by loosening 2 screws on each nailing strip -
adjust and retighten screws.
4. Attach both vertical studs and secure using 6 screws (2 at bottom, 2 at
top and 2 on sides) as shown.
NOTE: Ensure the flat side of the steel stud is facing the wood framing.
(258-025)Flat side out
5. Secure horizontal steel header stud with 2 screws per side as per
diagram.
6. Slide the unit into position. Hook up gas, venting, electrical and fan (if
purchased) prior to installing the remaining steel studs.
7. Secure the large horizontal steel stud as shown with 2 screws per side.
8. Secure 2 horizontal studs on the lower side of the appliance with 2
screws per side for each stud as shown.
9. Secure 2 vertical studs on either side of the appliance with 4 screws per
side stud as shown.
Large stud
(258-028)
Framing kit parts
Header stud
(258-026)
Horizontal
studs
(258-026)
Vertical studs
(258-027)
1
HZ40E
