- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Warning
Fire or Explosion Hazard
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
Bellavista®B41XTCE
Gas Fireplace
Owners &
Installation Manual
MODELS: B41XTCE-NG11
B41XTCE-LP11
920-035d FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 06.23.20
Installer: Please complete the details on the back cover and leave this
manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Certified to/Certifié pour: CSA 2.17-2017
ANSI Z21.88-2017
CSA 2.33-2017
Tested by:

2| Regency Bellavista® B41XTCE -11 Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The Bellavista™ B41XTCE has been designed
to provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The Bellavista™ B41XTCE
has been approved by Warnock Hersey/Intertek for both safety and efficiency. As it also bears our own mark, it
promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a
moment now to acquaint yourself with these instructions and the many features of your Regency® Fireplace.

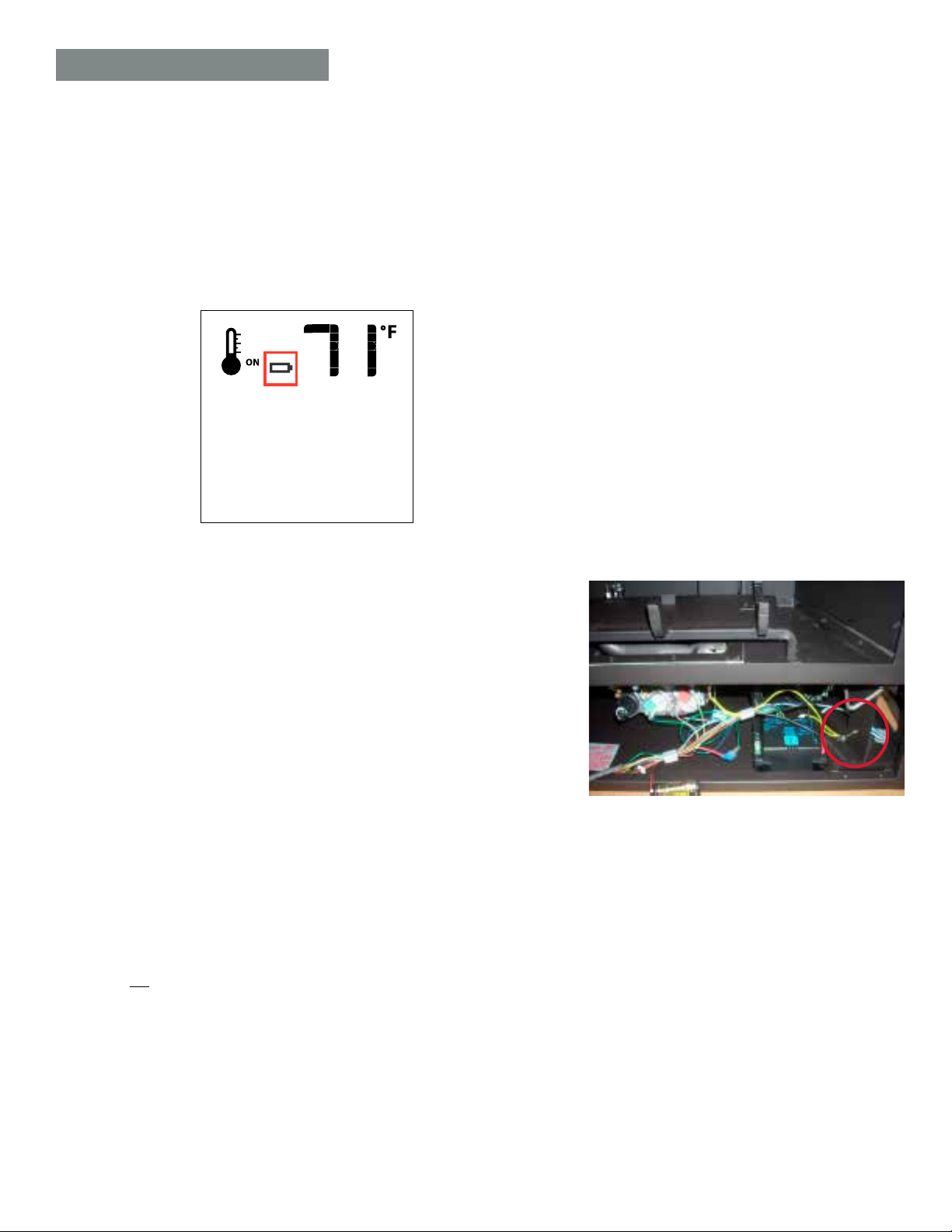

On Demand Pilot Light (seven day safety timer)
Important information if using the appliance in CPI (continuous pilot mode) only.
This appliance is a ProFlame 1 system fitted with the “On Demand” Pilot, a safety feature which will shut down the gas valve completely by extinguishing
the pilot light in the event of a continuous full seven days of inactivity.
This only applies if the CPI (continuous pilot) switch is in the “on” position.
Each time the main burner shuts down, manually or through the call from the thermostat, the seven day timer starts again.
The seven day inactivity timer is controlled within the circuit board. Therefore, if in CPI mode and when the pilot light is extinguished after seven straight
days of inactivity, the IPI/CPI rocker switch will remain in the “on” position. Therefore, all that is required to relight the pilot would be to press the on/off
button on the remote control transmitter from “on” to “off” and back to “on”. Once the pilot has re-established operation will resume as normal. There is no
requirement to do anything with the IPI/CPI rocker switch.
If the unit never goes as long as seven full days without a call for heat, the pilot will remain lit until it is manually shut-off.
If the unit is being operated in IPI (intermittent pilot) mode, neither the above instructions nor the seven day timer will apply.
See the instructions in this manual and on the Lighting Instructions plate on the appliance to light or re-light the pilot.

Regency Bellavista® B41XTCE -11 Gas Fireplace | 3
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: VENTED
GAS FIREPLACE HEATERS ANSI Z21.88-2017 • CSA 2.33-2017 and Gas-fired Appliances for Use at High Altitudes CSA 2.17-2017.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home
Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes
follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current
CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to local
codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not prohibited
by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
Ensure that structural members are not cut or weakened during installation.
Bellavista
B41XTCE Video
Bellavista B41XT
Gas Fireplace Benets

4| Regency Bellavista® B41XTCE -11 Gas Fireplace
table of contents
MA Code - CO Detector ................................................6

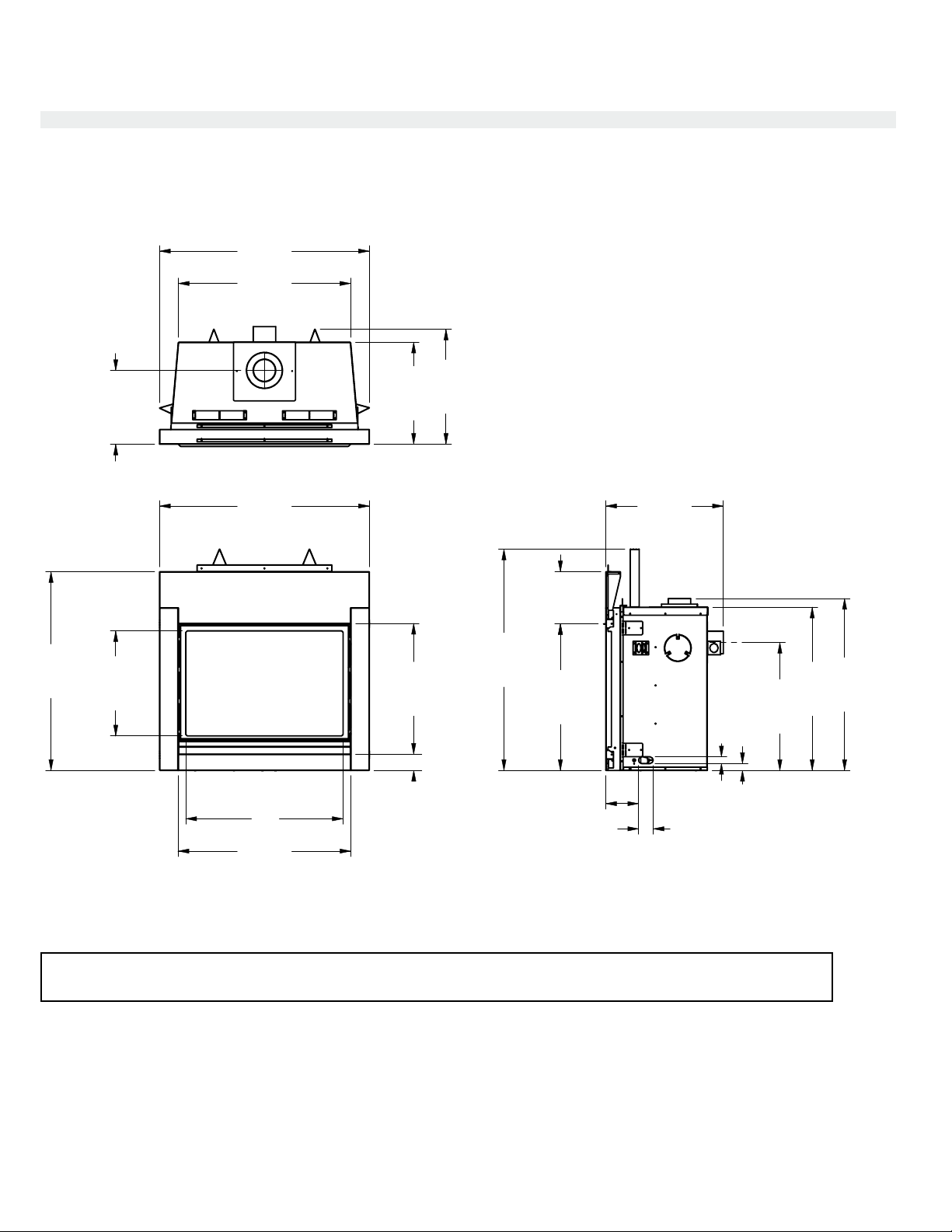

Unit Dimensions ............................................................7
Installation
Installation Checklist ...................................................15
Locating Your Gas Fireplace ........................................15

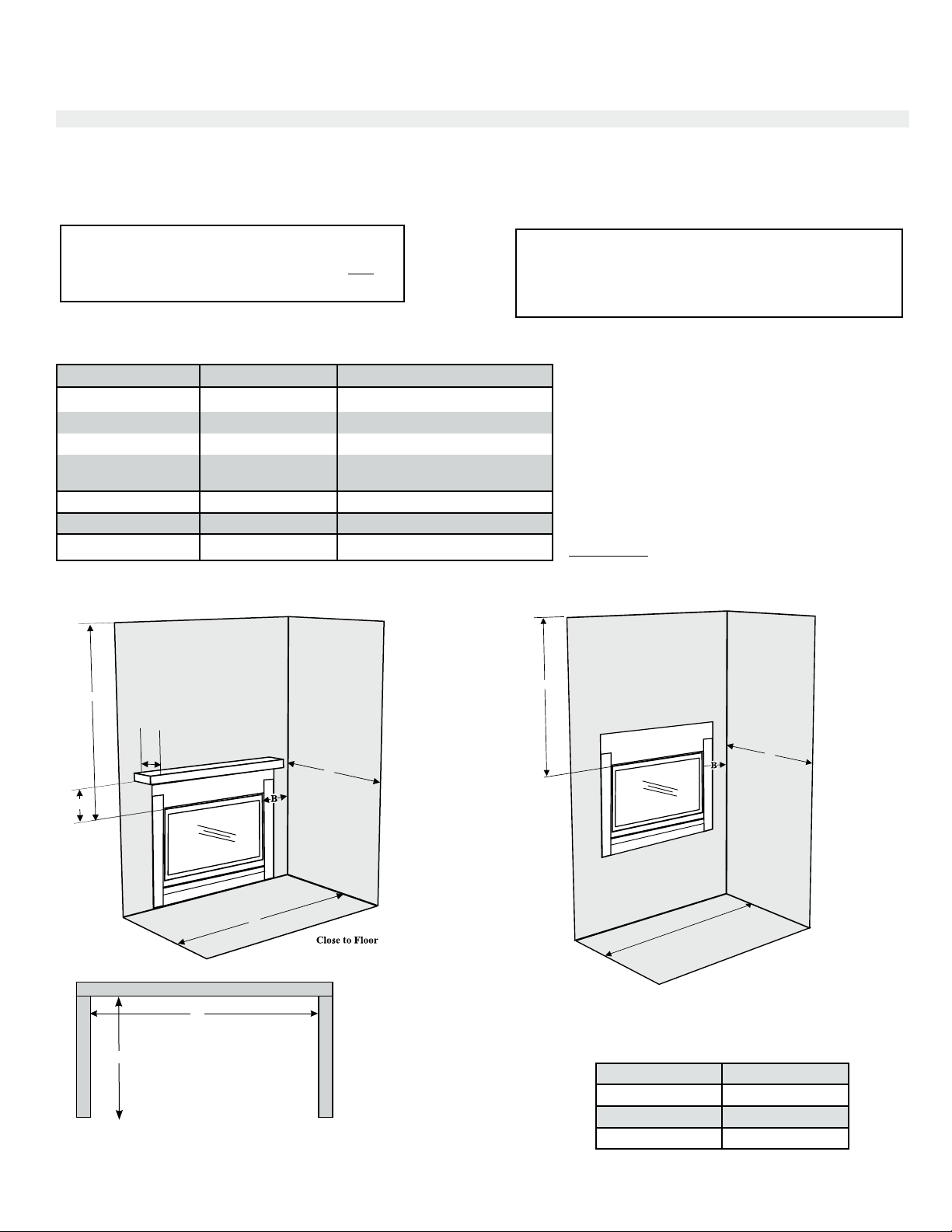

Clearances ..................................................................16

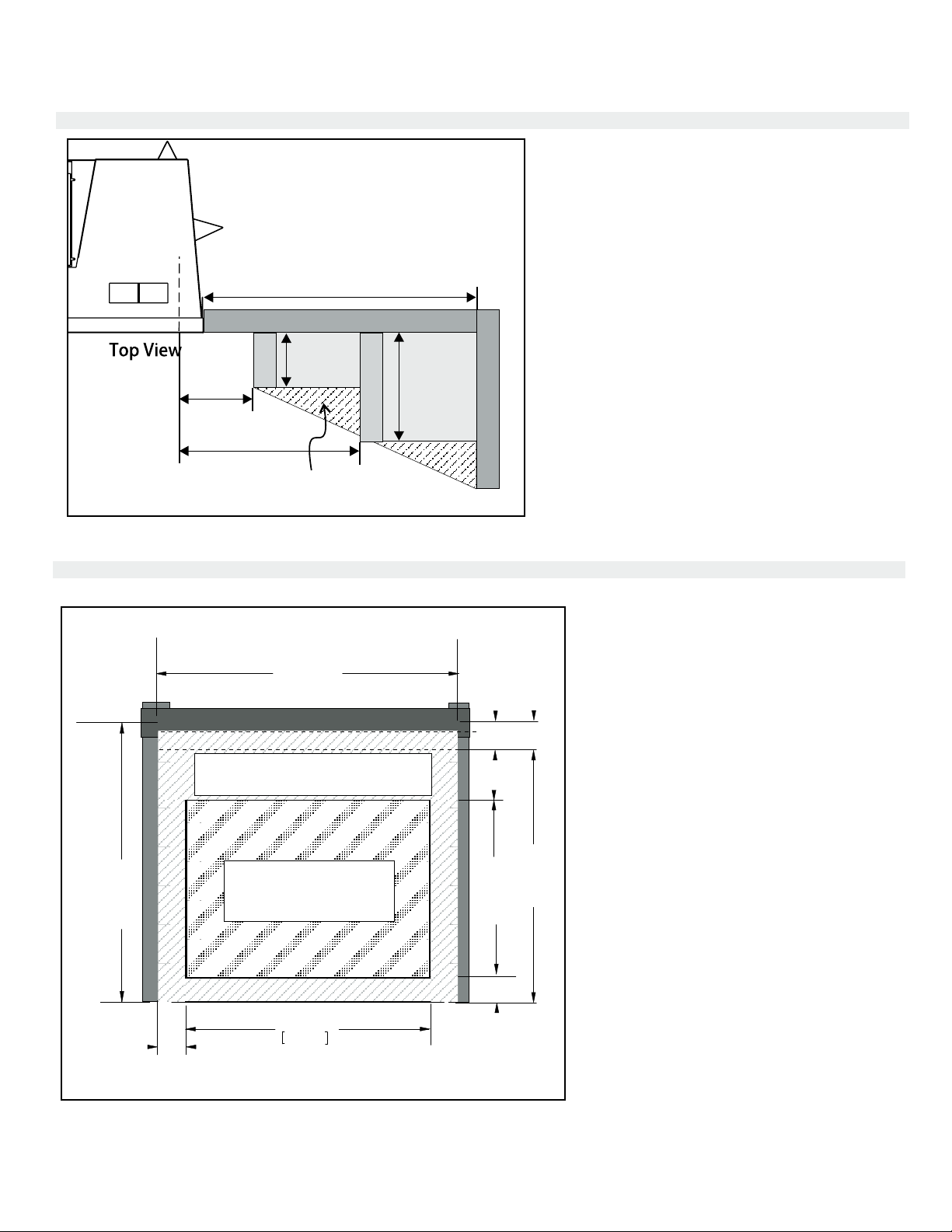

Mantel Clearances .......................................................17
Mantel Leg Clearances ................................................18
Non-Combustible Requirements..................................18
Framing .......................................................................19
Framing & Finishing .....................................................20
Tile Finish ............................................................20
Clean Finish .........................................................20
Unit Assembly Prior to Installation ...............................22
Top Standoff Assembly ........................................22
Nailing strips .......................................................22
Conversion to Top Vent ................................................23
Venting Introduction .....................................................25
Vent Restrictor & Baffle Installation .............................25
Exterior Vent Termination Requirements .....................26
5" x 8" Rigid Pipe - Cross Reference Chart only ...27-28
Venting Arrangements for Horizontal Terminations - Flex
Vent or Rigid Pipe 5" x 8" ...........................................29
Rear Venting Deflector Installation for Rear Vented Hori-
zontal Terminations ......................................................29
Horizontal Terminations ...............................................30
Flex Vent 5" x 8" ..................................................30
Rigid pipe 5" x 8" .................................................31
AstroCap XL & Rigid Rear Vent Kit for Corner in-
stallations - Rigid Pipe 5" x 8" ..............................32
Rigid Pipe Venting Systems - Basic Horizontal & Vertical
Terminations ................................................................33
Venting Arrangements for Horizontal Terminations......34
Horizontal terminations ................................................35
Two (2) 90o Elbows (Rigid Pipe 5" x 8") ...............35
Three (3) 90o Elbows (Rigid Pipe 5" x 8") ............35
Venting Arrangements for Vertical Terminations .........36
Vertical Terminations ...................................................37
Unit Installation with Horizontal Termination
5" x 8" Venting ............................................................38
Unit Installation with Horizontal Termination
5" x 8" Venting .............................................................39
Unit Installation with Vertical Termination
5" x 8" Venting .............................................................40
Gas Line Installation ....................................................40
Pilot Adjustment ...........................................................41
High Elevation ..............................................................41
Gas Pipe Pressure Testing ..........................................41
885 S.I.T. Valve Description .........................................41
Brick Panel Installation ................................................42
Optional Black Enamel Panel Installation ....................43
Log Set Installation ......................................................45
AC Power Adaptor Installation ....................................49
Wiring Diagram ............................................................50
Optional Fan Installation ..............................................51
Wiring Diagram With Optional Fan ..............................53
Optional Wall Thermostat Installation ..........................54
Flush Glass Door Installation .......................................55
Safety Screen ..............................................................55
Operating Instructions
Operating Instructions .................................................56
First Fire ......................................................................56
Normal Operating Sounds of Gas Appliances .............56
Aeration Adjustment ....................................................56
Lighting Procedure ......................................................57
Shutdown Procedure ...................................................57
Copy of Lighting Plate Instructions ..............................58
Maintenance
Maintenance Instructions ............................................59
Log Replacement ........................................................59
Glass Gasket ...............................................................59
Door Glass ...................................................................59
Valve Replacement ......................................................60
Installing Valve .............................................................60
Parts
Main Assembly ............................................................61
Burner Assembly .........................................................62
Warranty
Warranty ......................................................................64
Owner's Information
Installer's Information
On Demand Pilot Light ..................................................2
Manufactured Mobile Home Requirements ...................3
Copy of Safety Decal .....................................................5
Important Message ......................................................8
Before You Start .............................................................8
General Safety Information ............................................8
Lighting Procedure ........................................................9
Shutdown Procedure .....................................................9
Copy of Lighting Plate Instructions ..............................10

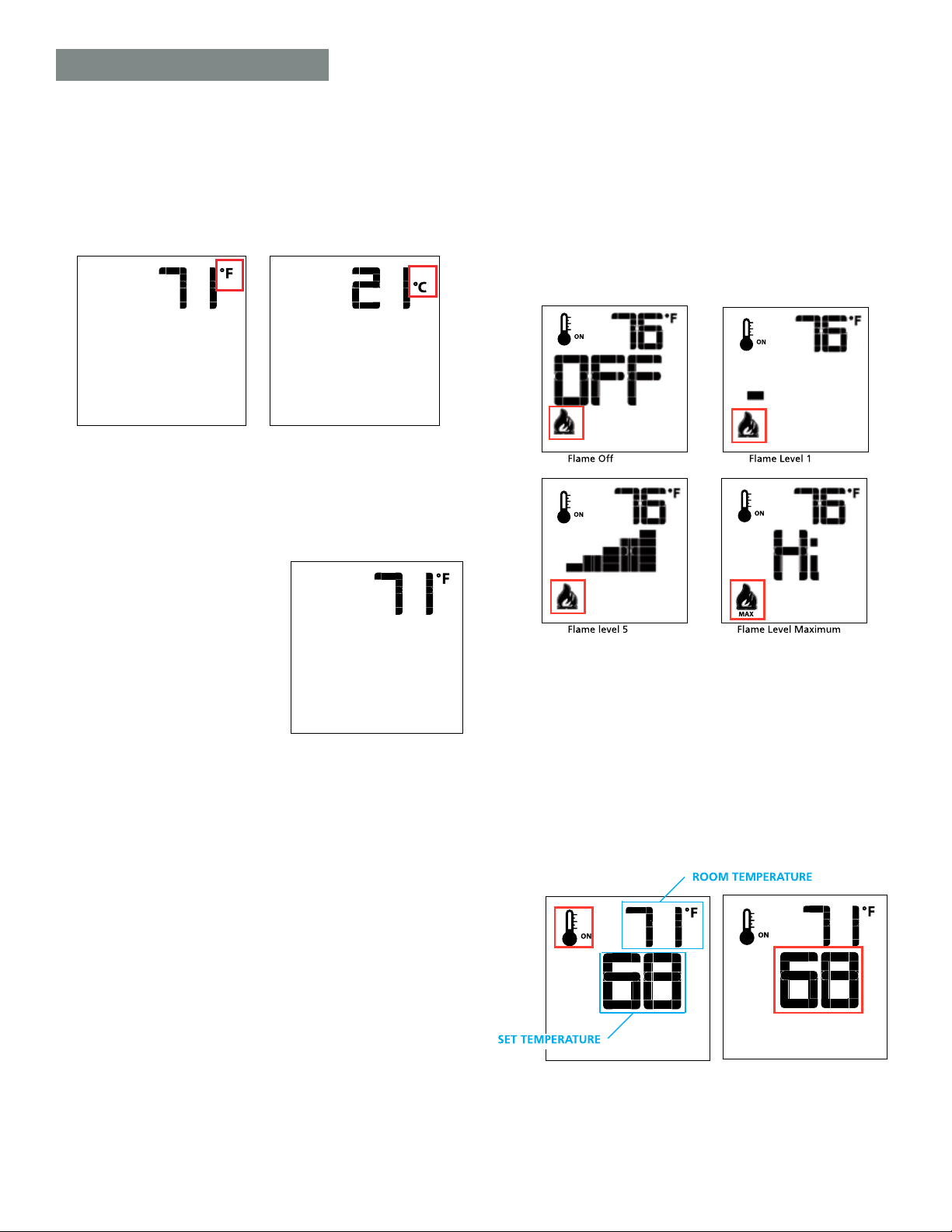

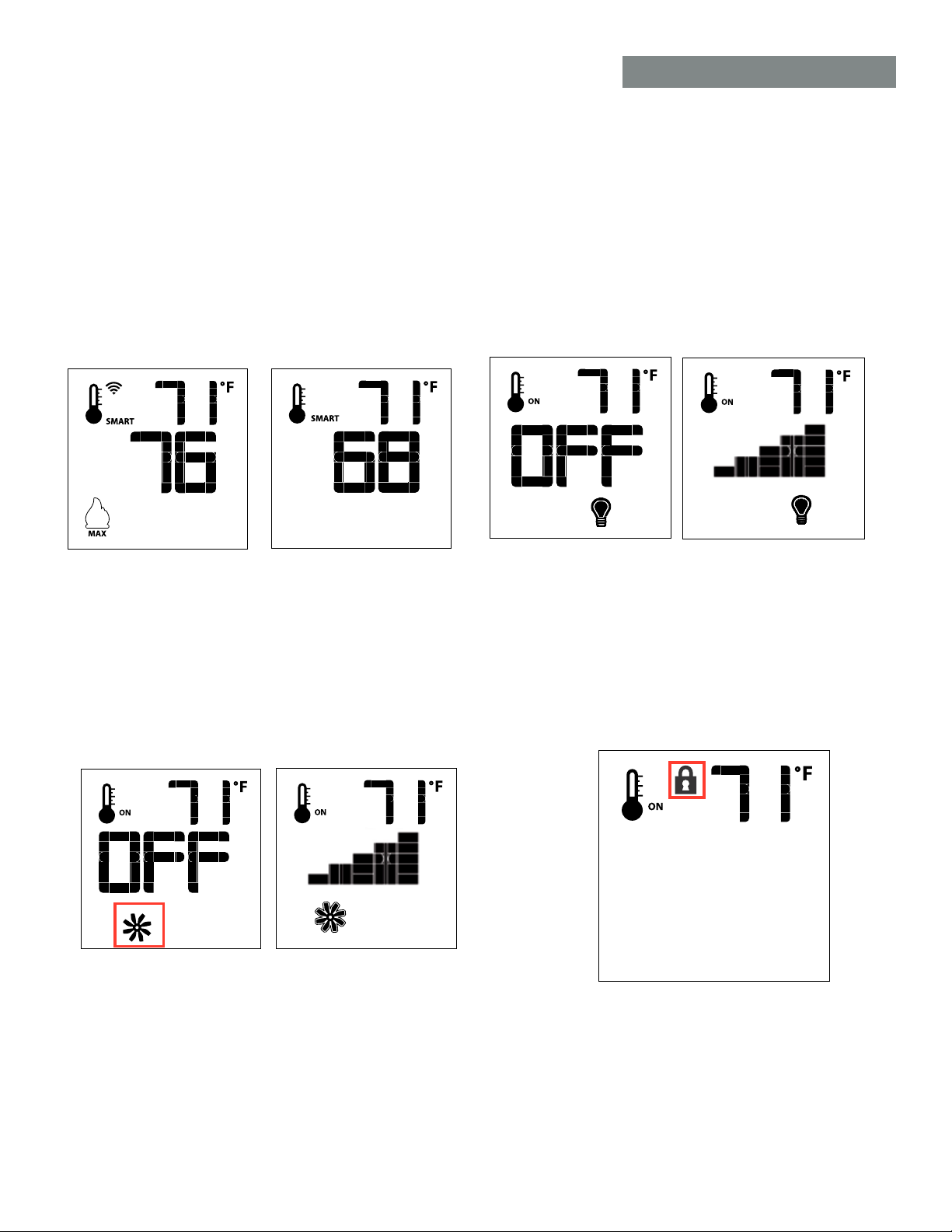

Proflame I Remote Control Operating Instructions ......11
Warranty .....................................................................64

Regency Bellavista® B41XTCE -11 Gas Fireplace | 5

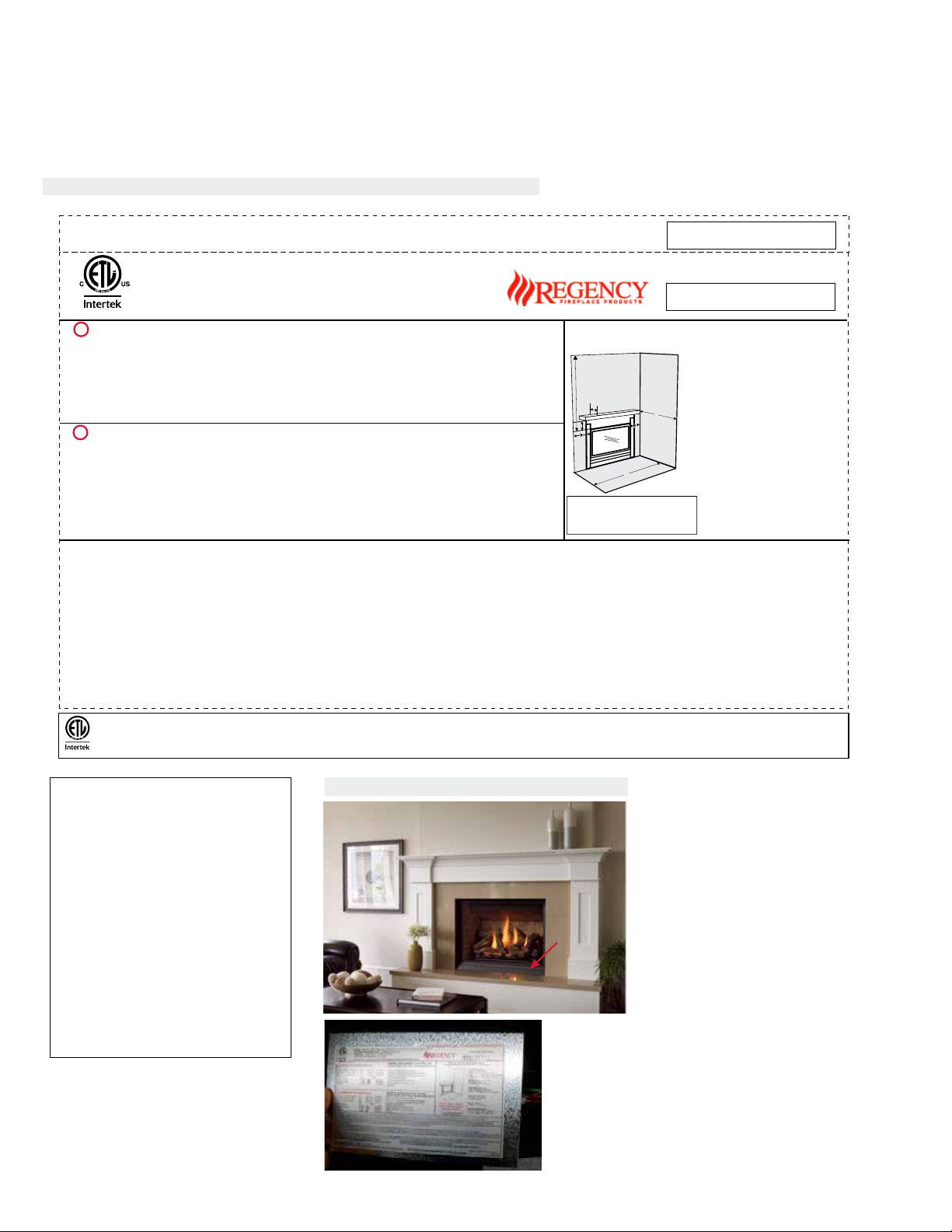

safety decal
This is a copy of the label that accompanies each Bellavista™ B41XTCE Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review.
NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
For the State of Massachusetts, installation
and repair must be done by a plumber or
gas fitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible con-
nectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
511
511
DOOR SEAL: Please
check that the door is
properly sealed
Minimum Clearances to Combustibles /
Dégagements minimaux par rapport aux matériaux combustibles
Serial No./ No de série
Duplicate S/N
(See Instruction Manual for
detailed instructions)
APPAREIL FONCTIONNANT AU GAZ PROPANE
Modèle B41XTCE-LP11
PROPANE GAS: Model B41XTCE-LP11
NATURAL GAS: Model B41XTCE-NG11
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
APPAREIL FONCTIONNANT AU GAZ NATUREL
Modèle B41XTCE-NG11
Pression d'alimentation minimale
Pression manifold - élevée
Pression manifold - basse
Taille de l’orifice
D bit calorifique minimal é
D bit calorifique maximalé
Altitude
5.0" WC/C.E. (1.25 kPa)
3.5" WC/C.E. (0.87 kPa)
1.6" WC/C.E. (0.40 kPa)
# 30 DMS
30,000 Btu/h (8.79 kW)
42,500 Btu/h (12.45 kW)
0-4500 ft/pi (0-1372 m)
Pression d'alimentation minimale
Pression manifold - élevée
Pression manifold - basse
Taille de l’orifice
D bit calorifique minimalé
D bit calorifique maximalé
Altitude
11" WC/C.E. (2.74 kPa)
10" WC/C.E. (2..49 kPa)
6.4" WC/C.E. (1.60 kPa)
# 49 DMS
29,500 Btu/h (8.65 kW)
37,500 Btu/h (10.99 kW)
0-4500 ft/pi (0-1372 m)
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
FPI Fireplace Products International Ltd.
Delta, BC, Canada
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the
United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard.
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard.
Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles.
Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les
règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
For use with glass doors certified with the appliance only À utiliser seulement avec les portes vitrées certifiées avec l'appareil
Electrical supply / Alimentation électrique 115VAC, 1.13 A, 60Hz. Made in Canada/ Fabriqué au Canada
For Use Only with Barrier (Part # 508-100) Follow installation instructions. Utiliser uniquement avec l’écran (n°508-100). Suivre les consignes d'installation.
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
NE PAS UTILISER AVEC UN COMBUSTIBLE SOLIDE. FOYER AU GAZ À ÉVACUATION -
Mantel Clearances from
Fireplace Opening:
(A) Min. 17-9/16" (446mm)
Side Wall Clearance
from Fireplace Opening
B) Min. 9” (229mm)
Ceiling from Top of
Fireplace Opening:
C) 36-5/8” (930mm)
Mantel Depth:
D) Max. 12” (304mm)
Alcove Clearances:
E) Min. Width 60" (1524mm),
F) Max. Depth 36" (914mm)
Minimum Vent Clearances:
Horizontal Top 3" (76mm)
Horizontal Side 2" (51mm)
Horizontal Bottom 2" (51mm)
Vertical Vent 2" (51mm)
C
Floor
Wall
Ceiling
A
F
E
D
Part #: 920-034a
Colour: Everything black on grey except indicated items to be printed red.
Size: File at 100% 9.08’’W x 6.231’’H
Material: 2 ml silver matt polyester (DPM SMS)
Jan 16/19: Created draft
Jan 24/19: Rev A - Remodeled decal + added ETL logo at the bottom
*Printer: Continue number sequence from 919-163 - do not restart at 0
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed/Nom: VENTED GAS FIREPLACE / FOYER AU GAZ À ÉVACUATION
Certified to/Certifi pour: é ANSI Z21.88-2017 • CSA-2.33-2017
CSA 2.17-2017
C #: 4001172
Refer to Intertek's Directory of Building Products for detailed information.
Pour plus de détails , se reporter au Répertoire des produits de construction de Intertek.
920-034a
CSA P.4.1 Fireplace Efficiency (FE) /Efficacité énergétique des foyers (EEF) CSA P.4.1
Natural Gas / Gaz naturel 68.15%
Propane Gas / Gaz propane 68.35%
CANADIAN ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ÉNERGÉTIQUE
VÉRIFIÉ
EP5011169
Copy of the safety decal
Decal Location
Remove the faceplate from unit (refer to
manual) the rating plate will be attached
to a black chain as shown below.
DO NOT REMOVE DECAL FROM UNIT.

6| Regency Bellavista® B41XTCE -11 Gas Fireplace
requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency Bellavista® B41XTCE -11 Gas Fireplace | 7
dimensions
Unit Dimensions
28-1/2"
38-3/8"
22-5/8"
46-11/16"
25-9/16"
16-7/16"
32-5/8"
38-1/4"
36-3/8"
26-3/16"
3-1/4"
49-1/4"
11-5/8"
7-5/16"
1-9/16"
1-1/2"
35"
44-1/4"
3-5/8" 29-1/8"
23-7/16"
38-7/16"
[1185mm]
[974mm]
46-11/16"
[1185mm]
[976mm]
[889mm]
[738mm]
[92mm]
[594mm]
[649mm]
[664mm]
[1251mm]
[38mm]
[1123mm]
[417mm]
[829mm]
[185mm]
[294mm]
[724mm]
[39mm]
[923mm]
[971mm]
[ 9mm]55
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

8| Regency Bellavista® B41XTCE -11 Gas Fireplace
installation
3. See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4. This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5. Inspect the venting system annually for block-
age and any signs of deterioration.
6. Venting terminals shall not be recessed into
a wall or siding.
7. Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11. Under no circumstances should this appliance
be modified. Parts that have to be removed
for servicing should be replaced prior to
operating this appliance.
12. Installation and any repairs to this appliance
should be done by a qualified service person.
A professional service person should be
called to inspect this appliance annually. Make
it a practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be
used in this appliance.
15. The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapors and liquids).
Important Message
SAVE THESE
INSTRUCTIONS
The B41XTCE-11 Gas Fireplace must be
installed in accordance with these instructions.
Carefully read all the instructions in this manual
first. Consult the "authority having jurisdiction"
to determine the need for a permit prior to
starting the installation. It is the responsibility of
the installer to ensure this fireplace is installed
in compliance with manufacturers instructions
and all applicable codes.
Before You Start
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
General Safety
Information
1. The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Canadian or National Gas
Codes, CAN1-B149 or ANSI Z223.1 Instal-
lation Codes.
2. The appliance when installed, must be elec-
trically grounded in accordance with local
codes, or in the absence of local codes with
the current National Electrical Code, ANSI/
NFPA 70 or CSA C22.1 Canadian Electrical
Code.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGH SURFACETEMPERATURES,ES-
PECIALLY THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURETO INSTALLTHIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME AREA AS
THE APPLIANCE. TODDLERS,YOUNG
CHILDREN AND OTHERS MAY BE
SUSCEPTIBLETO ACCIDENTAL CON-
TACTBURNS. A PHYSICALBARRIERS
IS RECOMMENDED IFTHERE ARE AT
RISK INDIVIDUAL IN THE HOUSE. TO
RESTRICT ACCESSTO A FIREPLACE
OR STOVE, INSTALL AN ADJUSTABLE
SAFETY GATE TO KEEP TODDLERS,
YOUNG CHILDREN AND OTHER AT
RISK INDIVIDUALS OUT OFTHE ROOM
AND AWAY FROM HOT SURFACES.
IF THE BARRIER BECOMES
DAMAGED, THE BARRIER
SHALL BE REPLACED WITH THE
MANUFACTURER'S BARRIER FOR
THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
THE APPLIANCE, MUST BE
REPLACED PRIOR TO OPERATING
THE APPLIANCE.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROMTHE HOT
VIEWING GLASS IS PROVIDEDWITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS

Regency Bellavista® B41XTCE -11 Gas Fireplace | 9
owner's information
Lighting Procedure
IMPORTANT: The remote control system supplied with this appliance has
several options for starting/operating the appliance using the power button
and ON/OFF key on the hand held transmitter.
Prior to operating this appliance, please read the remote control operating
instructions (packaged with remote control) to understand how to operate
this remote control system. Option to download remote functions video
with QR code below.
1. Ensure the wall switch/receiver is in the remote position. (see Diagram 1).
3. After approximately 4 seconds the spark ignition system will spark for 60
seconds to light the pilot.
4. The unit will turn on.
Note: The first try for ignition will last approximately 60 seconds. If there is no
flame ignition (rectification) the board will stop sparking for approximately
35 seconds. After wait time , the board will start second try for ignition by
sparking for approximately 60 seconds. If there is still no positive ignition
the board will go into lock out.
The system will need to be reset as follows:
a) Turn the system off using ON/OFF switch or press ON/OFF button - if
using remote.
b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF
button if using remote.
c) Repeat step 2.
ON/OFF
Button
Diagram 1
Diagram 2
Set Switch to
Remote
Shutdown Procedure
1. Turn the wall mounted switch or remote to the "OFF" position.
2. Press "OFF" on the remote control.
3. Turn the gas control knob to the "OFF" position to turn off the pilot.
Remote shown in Manual Mode on Hi
Proflame
video
2. Press and release the ON/OFF button on the remote handheld transmit-
ter (see Diagram 2). An audible beep should be heard from the receiver.

10 | Regency Bellavista® B41XTCE -11 Gas Fireplace
owner's information
Copy of Lighting Plate Instructions
919-401a
Part #: 919-401a
Colours: Black on Grey, except
for parts indicated as being
Red.
Size: 100%
w- 5.16"
h- 10.3"
June 23/14: Created decal
Sept.29/14: Rev. A - Updated shut-
down procedure.
A) This appliance is equipped with an ignition device which automatically lights the pilot.
Do not try to light the pilot by hand.
B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the fl oor
because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any phone in your building.
- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
C) Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and replace any part of the control system and any
gas control which has been underwater.
A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse.
Ne tentez pas d’allumer la veilleuse manuellement.
B) AVANT LA MISE EN MARCHE, reniflez tout autour de l’appareil pour déceler une odeur de gaz. Reniflez au niveau
du plancher, car certains gaz sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne tentez pas d’allumer l’appareil
• Ne touchez à aucun interrupteur; n'utilisez pas de téléphones se trouvant dans le bâtiment.
• Appelez immédiatement votre fournisseur de gaz depuis un téléphone extérieur. Suivez les
instructions du fournisseur.
• Si vous ne pouvez pas rejoindre le fournisseur, appelez le service incendie.
C) N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement. Faites inspecter l’appareil par un tech-
nicien qualifié et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.
DO NOT REMOVE THIS INSTRUCTION PLATE
TO TURN OFF GAS APPLIANCE
This appliance must be installed in accordance with local codes, if any;
if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
Natural Gas and Propane Installation Codes, CSA B149.1.
CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface
temperatures keep children, clothing and furniture, gasoline and other liquids having flammable
vapors away. Keep burner and control compartment clean. See installation and operating
instructions accompanying appliance.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage. Refer to the owner’s
information manual provided with this appliance. For assistance or additional information
consult a qualified installer, service agency or gas supplier.
AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice
risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou
la mort.
Une installation, d'ajustement, de modification, de service ou d'entretien peut provoquer
des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de
l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémen-
taires consulter un installateur qualifié, une agence de service ou fournisseur de gaz.
1) Ensure the wall switch/receiver is in the remote position.
2) Press and release the ON/OFF button on the remote handheld transmitter. An audible beep should be
heard from the receiver.
3) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.
4) The unit will turn on.
Note: The first attempt to ignition will last approximately 60 seconds. If there is no flame ignition (rectifica-
tion) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a
second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the
second attempt the board will go into lock out.
The system will need to be reset as follows (after going into lock out mode):
a) Wait 5 minutes - turn the system off using ON/OFF switch or press ON/OFF button if using
remote
b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF button if using remote.
c) Unit will repeat step 2.
1) S’assurer que l’interrupteur mural/récepteur soit sur ''Remote''.
2) Appuyer sur la touche ON/OFF de la télécommande puis relâcher. Un bip se fera entendre depuis le
récepteur
3) Après environ 4 secondes, le système d'allumage par étincelles se mettra en marche pendant 60 secondes
pour allumer le brûleur principal.
4) L'appareil s’allume.
Remarque : Au premier allumage, le système tente d’allumer les flammes pendant 60 secondes. Si l’essai
est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectification.
Ce délai écoulé, le système tente à nouveau d'allumer les flammes en produisant des étincelles pendant 60
secondes. Si les flammes ne s’allument toujours pas, le système se met en mode verrouillage.
Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) :
a) Attendre 5 minutes puis éteindre l’appareil en utilisant l’interrupteur ou la touche ON/OFF de la
télécommande.
b) Attendre 2 secondes et rallumer le système à l’aide de l’interrupteur ou de la télécommande.
c) L'appareil répètera l'étape 2.
1) Turn the wall mounted switch or remote to the "OFF" position.
2) If service is to be performed–you must disconnect power and shut off gas to the unit.
1) Utiliser l'interrupteur mural ou la télécommande pour mettre le système sur ''OFF''.
2) Lors de l'entretien de l'appareil –débrancher l'alimentation électrique et couper le gaz de l'appareil.
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING

Regency Bellavista® B41XTCE -11 Gas Fireplace | 11
owner's information
919-829 06.10.20
PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS
WARNING:THETRANSMITTER AND RECEIVER ARE RADIO
FREQUENCY DEVICES. PLACING THE RECEIVER IN OR
NEAR METAL MAY SEVERELY REDUCETHE SIGNAL RANGE.
The Proflame 2 Transmitter provides for controlling the following hearth
appliance functions:
1. Main Burner On/Off
2. Main Burner flame modulation (6 levels)
3. Choice of standing or intermittent pilot (CPI/IPI)
4. Thermostat and Smart thermostat functions
5. Accent light modulation (6 levels)**
6. Split flow valve**
7. Comfort Fan speed modulation (6 levels)**
** This feature is not available on all models.
IMPORTANT:The Proflame Transmitter 2 is an integrated part of the
Proflame 2 System, which consists of these elements:
• Proflame 2 Transmitter, to be used in conjunction with:
• Integrated Fireplaces Control (Proflame 2 IFC)
The Proflame Transmitter uses a streamline design with a simple button
layout and informative LCD display (Fig. 1). A Mode Key is provided to
index between the features and a Thermostat Key is used to turn on/off
or index through Thermostat functions (Fig. 1 & 2). Additionally, a Key
Lock feature is provided (Fig. 22).
Figure 1: Proflame Transmitter
Figure 2: Transmitter LCD Display
TECHNICAL DATA
REMOTE CONTROL
Supply Voltage 4.5V (three 1.5V AAA batteries)
Ambient temperature
ratings
0 - 50oC (32 - 122oF)
Radio Frequency 315 MHZ
ATTENTION!
- Turn “OFF” the main gas supply of the appliance during installation or
maintenance of the Receiver device.
- Turn “OFF” main gas supply to the appliance prior to removing or rein-
serting the batteries.
- In case of remote control malfunction, turn off the IFC device using the
"ON/OFF" main switch.
- For installation / maintenance, switch off the IFC device removing main
power supply plug.
OPERATING PROCEDURE
Initializing the System for the first time
Power the receiver. Press the "PRG" button located on the top right hand
side of receiver, see the receiver instruction (*). The Receiver will “beep”
three (3) times to indicate that it is ready to synchronize with a Transmitter.
Install the 3 AAA type batteries in the Transmitter battery bay, located on
the base of the Transmitter. (fig. 3) With the batteries already installed in
the Transmitter, push the On button. The Receiver will “beep” four times to
indicate the Transmitter’s command is accepted and sets to the particular
code of that Transmitter. The system is now initialized.
(*) The receiver may be independent or integral to the IFC hearth ap-
pliance control module. The receiver instruction may not be indepen-
dent when part of the IFC.
Figure 3: Battery Compartment
1
Proflame I Remote Control Operating Instructions

12 | Regency Bellavista® B41XTCE -11 Gas Fireplace
owner's information
919-829 12.17.18
Figure 4: Remote Control dis-
play in Farenheit.
Temperature indication Display
With the system in the "OFF" position, press the Thermostat Key and
the Mode Key at the same time. Look at the LCD screen on the transmit-
ter to verify that a C or F is visible to the right of the room temperature
display (Figures 4 & 5).
Figure 5: Remote Control dis-
play in Celsius.
Turn on the Appliance
With the system OFF, press the ON/
OFF Key on the Transmitter. The
Transmitter display will show some
other active Icons on the screen. At
the same time the Receiver will ac-
tivate the appliance. A single “beep”
from the Receiver will confirm recep-
tion of the command.
Figure 6: Remote Control
display
Remote‑Flame Control
The Proflame has six (6) flame levels. With the system on, and the flame
level at the maximum in the appliance, pressing the Down Arrow Key
once will reduce the flame height by one step until the flame is turned off.
The Up Arrow Key will increase the flame height each time it is pressed.
If the Up Arrow Key is pressed while the system is on but the flame is off,
the flame will come on in the high position. ( Fig. 7 & 8 ) A single “beep”
will confirm reception of the command.
Fig. 7
Fig. 8
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control the comfort level in a room.
To activate this function, press the Thermostat Key (Fig. 1). The Lcd
display on the Transmitter will change to show that the room thermostat
is “ON” and the set temperature is now displayed (Fig. 9). To adjust the
set temperature, press the Up or Down Arrow Keys until the desired set
temperature is displayed on the LCD screen of the Transmitter.
Figure 9 Figure 10
Turn off the Appliance
With the system ON, press the ON/OFF Key on the Transmitter. The
Transmitter LCD display will only show the room temperature (Fig. 6).
At the same time the Receiver will turn off the appliance. A single “beep”
from the Receiver confirms reception of the command.
2

Regency Bellavista® B41XTCE -11 Gas Fireplace | 13
owner's information
920-019 12.17.18
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the flame height in accordance
to the difference between the set point temperature and the actual room
temperatures. As the room temperature gets closer to the set point the
Smart Function will modulate the flame down.
To activate this function, press the Thermostat Key (Fig. 1) until the word
"SMART" appears to the right of the temperature bulb graphic (Fig. 11).
To adjust the set temperature, press the Up or Down Arrow Keys until
the desired set temperature is displayed on the LCD screen of the
Transmitter (Fig. 12).
Note. When Smart Thermostat is activated, manual flame height adjust-
ment is disabled.
Figure 12Figure 11: Smart Flame Function
Fan Speed Control**
If the appliance is equipped with a hot air circulating fan, the speed of
the fan can be controlled by the Proflame system. The fan speed can be
adjusted through six (6) speeds. To activate this function use the Mode Key
(fig.1) to index to the fan control icon (Fig. 13). Use the Up/Down Arrow
Keys (fig.1) to turn on, off or adjust the fan speed (fig. 14). A single “beep”
will confirm reception of the command.
Figure 13 Figure 14
Remote dimmer control (Light)**
The auxiliary function controls the AUX power outlet by the dimmable
light control. To activate this function use the Mode Key (fig. 1) to index
to the AUX icon (fig. 15 & 16).
The intensity of the output can be adjusted through six (6) levels. Use
the Up/Down Arrow Keys (fig.1) adjust the output level (fig. 16). A single
“beep” will confirm reception of the command.
Note: This function is available only with the IFC Control Module.
Figure 15 Figure 16
KEY LOCK
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP Keys at the same
time (fig. 21).
To de-activate this function, press the MODE and UP Keys at the same
time.
Figure 18
3

14 | Regency Bellavista® B41XTCE -11 Gas Fireplace
owner's information
920-019 01.16.19
LOW BATTERY POWER DETECTION
Transmitter
The life span of the remote control batteries depends on various factors:
quality of the batteries used, the number of ignitions of the appliance,
the number of changes to the room thermostat set point, etc.
When the Transmitter batteries are low, a Battery Icon will appear on the
LCD display of the Transmitter (Fig. 22) before all battery power is lost.
When the batteries are replaced this Icon will disappear.
Figure 19
CPI/IPI Switch
This appliance comes equipped with a CPI/IPI switch.
The functions of both the CPI/IPI switch are as follows:
Continuous pilot (CPI) - A pilot that, once placed in operation, is intended to remain ignited
continuously until it is manually interrupted.
Intermittent pilot (IPI) - A pilot that is automatically ignited when an appliance is called on to
operate and which remains continuously ignited during each period of main burner operation. The
pilot is automatically extinguished when each main burner operating cycle is completed
The mode of the fireplace is easily changed from an intermittent pilot ignition system (IPI) to a
continuous pilot ignition system (CPI) by using the silver toggle switch located on the fireplace.
(See noted location of CPI/IPI Switch)
The benefits of having CPI are as follows:
-Keeps venting primed for trouble free start-up under colder weather conditions or inversions.
-Keeps the unit glass warm, which decreases the amount of condensation on start-up.
-Provides owners with flexibility to choose a traditional continuous pilot. (7 day/Pilot on Demand)
The primary benefit of having the IPI function is a significant savings on fuel as the pilot will only
run when there is a call for heat.
ENABLE / DISABLE functions on the Proflame I remote only.
1. Remove one battery from the remote.
2. Press and hold both the ON/OFF and the MODE button at the same time
3. Reinstall the battery (removed in Step 1) while still holding both buttons (keep holding both
buttons and once all batteries are installed then release the MODE button only).
4. The screen will show CFG.
5. Use the up or down arrow button to program out the function on the remote.
Note: You should never program out the fan (If installed) feature on the remote.
It is not possible to remove the thermostat mode on this remote control.
4
The Surefire switch is located in the right corner
of the bottom louver/panel.
(See noted location of CPI/IPI switch)

Regency Bellavista® B41XTCE -11 Gas Fireplace | 15
installation
This includes:
1. Clocking the appliance to ensure the correct
firing rate (rate noted on label), after burning
appliance for 15 minutes.
2. If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
Locating Your
Gas Fireplace
1. When selecting a location for your fireplace,
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
ensure that the clearances are met.
2. The appliance must be installed on a flat,
solid, continuous surface For example a
wood, metal or concrete floor or in a raised (on
the wall) application. The appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
3. The B41XTCE Gas Fireplace can be installed
in a recessed position or framed out into the
room as in A, B, C and D. See Diagram 1.
Installation
Checklist
1. Locate appliance:
a) Room location (Refer to "Locating Your
Gas fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantel Clearances (Refer to "Combustible
Mantel Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2. Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to
"Unit Assembly Prior to Installation" Section).
Note: Must be done before installing unit into
place.
3. Install vent (Refer to "Venting" sections).
4. Make gas connections. Test the pilot. Must be
as per diagram (Refer to "Pilot Adjustment"
section).
5. Make electrical connections to receptacle
supplied with unit (recommended).
6. Install standard and optional features. Refer
to the following sections:
a. Plug AC adaptor into 120V receptacle
b. Install 4AA batteries into battery pack
(optional)
c. Inner Panels or Brick Panels (Required)
d. Log Set Installation
e. Standard Flush Door
f. Remote Control
g. Fan Installation (Optional)
7. Final check.
4. This appliance is Listed for bedroom instal-
lations using the standard Remote (millivolt
thermostat system). Some areas may have
further requirements, check local codes
before installation.
5. The B41XTCE Gas Fireplace are approved
for alcove installations, see "Clearances"
section for details.
6. We recommend that you plan your instal-
lation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations refer
to "Exterior Vent Termination
Locations" section.
Diagram 1

16 | Regency Bellavista® B41XTCE -11 Gas Fireplace
installation
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
Clearances
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
B41XTCE Clearance Requirements
Horizontal Top 3" (76mm)
Horizontal Side 2 " (51mm)
Horizontal Bottom 2" (51mm)
Vertical Vent 2" (51mm)
NOTE: A 16" deep non-combustible hearth pad is
recommended for hardwood flooring and carpet.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 17-9/16" (446mm) Top of Fireplace Opening
B: Sidewall 9" (229mm) Side of Fireplace Opening
C: Ceiling 36-5/8" (930mm) Top of Fireplace Opening
D: Mantel Depth (max.) 12" (304mm) 25-13/16" (651mm)
from Top of Fireplace Opening
E: Alcove Width 60" (1524mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
Notes: 0" No Hearth Required
Minimum Vent Clearances
to Combustibles
Alcove
E
F
C
D
A
E
F
C
Close to Ceiling
F
E
Diagram 2
Diagram 3
Diagram 4

Regency Bellavista® B41XTCE -11 Gas Fireplace | 17
installation
Mantel Clearances
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
the diagram on the right.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-
combustible board. The non-combustible mantel when installed at a lower overall height may not be lower than 6 inches
from the top of the fireplace opening.
Mantel Clearances
B41XTCE
A B C D
From Top of
Fireplace Opening
32-11/16"
(830mm)
25-13/16"
(656mm)
22-1/16"
(560mm)
17-9/16"
(446mm)
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
Opening
12”
1"
7”
A
BC
Non-combustible
Header
(steel stud)
on edge
14
To Floor
12
24
Inches
D
6” Non-combustible
Standoff

18 | Regency Bellavista® B41XTCE -11 Gas Fireplace
installation
Mantel Leg Clearances
Non-Combustible Requirements
38-7/16"
976mm
29"
[737mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
44-1/4"
[1124mm]
46-11/16"
[1186mm]
3-9/16"
[91mm]
11-5/8"
[295mm]
4-1/8"
[105mm]
6" [152mm]
50-1/4"
[1276mm]
NON-COMBUSTIBLE BOARD SUPPLIED W/UNIT
9” Side Wall
(Measured from side of
Fireplace Opening)
7”
4”
Mantel leg
Mantel leg
Allowable mantel leg
projection.
3"
1-1/2"
NOTE: The 6" x 46-11/16" supplied with the unit is secured directly above the unit as shown
above.
**All other non-combustible material is supplied by others.
Diagram 5
Diagram 6

Regency Bellavista® B41XTCE -11 Gas Fireplace | 19
installation
Framing
Framing Dimensions Description B41XTCE
M Framing Width 47-1/4"(1200mm)
N Framing Height 49-1/2" (1257mm)
O (Rear Vent) Framing Depth - Rear Vent 26-1/2" (673mm)
O (Top Vent) Framing Depth - Top Vent 25-7/8" (657mm)
P Corner Facing Wall Width 65-1/4" (1657mm)
Q Corner Facing Wall Width 91-11/16" (2329mm)
R (Rear Vent) Framed Chase Ceiling - Rear 49-1/2" (1257mm)
R (Top Vent) Framed Chase Ceiling - Top 54-1/2" (1384mm)
S (Rear Vent) Vent Centerline Height - Rear 28-1/2" (724mm)
S (Top Vent) Vent Centerline Height - Top 47-1/2" (1207mm) Rigid / Flex
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 5" (127mm)
V Gas Connection Width 3-1/4" (82mm)
WNon-Combustible Top Height 6" (152mm)
** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
M
N
O
Q
P
R
U
V
T
Opening for gas
connection
11" (279mm)
dia. Hole through
wall Vent.
Non-Combustible
Header
(steel stud) on edge
Drywall
(or other
facing)
WNon-Combustible Facing
S
S
Non-Combustible
Header
(steel stud)
on edge
Diagram 7

20 | Regency Bellavista® B41XTCE -11 Gas Fireplace
installation
Framing & Finishing
1. Frame in the enclosure for the unit with framing material.
Note: When constructing the framed opening, please ensure there is access to install the gas lines when the unit is installed.
2. For exterior walls, insulate the enclosure to the same degree as the rest of the house; apply vapour barrier and drywall, as per local installation codes. (Do
not insulate the fireplace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems in-
cluding, but not limited to: excessive condensation on glass doors, poor flame package, carbon, blue flames etc.These are not product related
issues.
3. The unit does not have to be completely enclosed in a chase. You must maintain clearances from the vent to combustible materials: See "Clearances"
section. Combustible materials can be laid against the side and back standoffs and the stove base.
4. Tile Finish Option 1: Drywall may be installed only in areas as shown below to create a surface to apply finishing materials such as tile, slate, etc.
5. Tile Finish Option 2: If applying a non-combustible finishing material (tile,slate,etc) the material can be installed directly onto the metal surface (clean front)
of the unit in the area shown below.
1/2" DRYWALL
NON-COMBUSTIBLE FACING
FOR CLEAN LOOK (ie. painted finish)
(SUPPLIED BY OTHERS)
46-11/16"
[1186mm]
1/2" DRYWALL
DO NOT EXTEND
DRYWALL ONTO METAL
SURFACE OF UNIT.
WOOD STUD
44-1/4"
[1124mm]
6"
[152mm] NON COMBUSTIBLE BOARD SUPPLIED W/UNIT
DO NOT EXTEND
DRYWALL ONTO METAL
SURFACE OF UNIT
1/2’’ DRYWALL
DO NOT EXTEND
DRYWALL ONTO METAL
SURFACE OF UNIT
38-7/16"
976mm
29"
[737mm]
Combustible and Non-combustible Facing and Finishing
Materials around unit.
Clean Finish
Tile Finish
6. If applying a non-combustible facing it may be installed over the metal surface (clean front) of the unit in the area shown below.
Combustible
Material "(ie: 1/2 Drywall)
Non-combustible
Finishing Material
(ie. tile)only
Non-combustible Material (6" x 46-11/16")
Finishing Material
(ie. tile)only
Nailing Strip -1/2" back from unit face
Combustible
Material "(ie: 1/2 Drywall)
Non-combustible Supplied with Unit
1-1/2
(38mm)
Ensure finished
material is
brought to lip
Combustible
Material
Non-combustible
Finishing Material
Non-combustible Material (6" x 46-11/16")
Finishing Material Nailing Strip-flush with unit face
Combustible
Material
Non-combustible Supplied with Unit
1-1/2
(38mm)
Ensure finished
material is
brought to lip
Note: The 6" x 46-11/16" non combustible material supplied with this unit can be replaced if trying to achieve a clean finish. A large piece of non
combustible material (ie. 4' x 8' x 1/2" can be used to eliminate taped seams on or near unit).
Diagram 8 Diagram 9
Diagram 10 Diagram 11
