Regency Fireplace Products I100B-1 Quick start guide

Model: I100B-1
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Manual
January-06-2014
918-731c
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual. For assistance
or additional information consult an authorised installer, service agency
or the distributor.
BERWICK FIREPLACE INSERT

Regency Berwick Fireplace Insert
2
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Shouldyouhaveany questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this wood fire is not properly installed, a house fire may result. For your safety,
followtheinstallationinstructions,contactlocalbuilding,fireofficials,orauthorityhavingjurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.

Regency Berwick Fireplace Insert 3
TABLE OF CONTENTS
OPERATING INSTRUCTIONS
Operating Instructions .........................................................12
Air Slide Control...................................................................12
First Fire ..............................................................................12
MAINTENANCE
Creosote..............................................................................13
- Ways to Prevent & Keep Units Free of Creosote.......13
Maintenance........................................................................13
Glass Maintenance..............................................................13
Door Latch Adjustment........................................................13
Wood Storage......................................................................13
PARTS LIST
Stove Assembly...................................................................14
WARRANTY
Warranty..............................................................................15
Data Badge............................................................................4
Unit Dimensions ....................................................................5
INSTALLATION
Before Installing Your Insert...................................................6
Residential Installation...........................................................6
Safety Guidelines and Warnings...........................................7
Chimney Specifications.........................................................7
Wood Insert Specifications....................................................7
Brick Installation ....................................................................7
Zero Clearance Dimensions..................................................8
Zero Clearance Box Dimensions...........................................8
Fireplace Clearances.............................................................9
Installation into a Masonry Fireplace...................................10
Installation into a Factory Built Fireplace.............................10
Faceplate & Fan Installation................................................11

Regency Berwick Fireplace Insert
4
This is a copy of the label that accompanies each
I100 -1 Fireplace Insert. We have printed a copy of
the contents here for your review.
SAFETY LABEL
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.

Regency Berwick Fireplace Insert 5
UNIT DIMENSIONS

Regency Berwick Fireplace Insert
6
INSTALLATION
1) Please read this entire manual before you
install and use your new wood fire. Failure
to follow instructions may result in property
damage, bodily injury or even death. Be
awarethatlocalCodesandRegulationsmay
override some items in this manual. Check
with your local inspector.
2) THE APPLIANCE AND FLUE-SYSTEM
SHALL BE INSTALLED IN ACCORD-
ANCE WITH AS/NZS 2918:2001 AND
THE APPROPRIATE REQUIREMENTS
OFTHERELEVANTBUILDINGCODEOR
CODES.
APPLIANCES INSTALLED IN ACCORD-
ANCE WITH THIS STANDARD SHALL
COMPLYWITHTHEREQUIREMENTSOF
AS/NZS4013WHEREREQUIREDBYTHE
REGULATORY AUTHORITY.
ANYMODIFICATIONOFTHEAPPLIANCE
THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY
IS CONSIDERED TO BE IN BREACH OF
THEAPPROVALGRANTEDFORCOMPLI-
ANCE WITH AS/NZS 4013.
RESIDENTIAL
INSTALLATION
Regency Inserts are constructed with the high-
estqualitymaterialsandassembledunderstrict
quality control procedures that ensure years of
trouble free and reliable performance.
It is important that you read this manual thor-
oughly and fully understand the safe instal-
lation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experi-
ence from knowing that your unit is operating
at peak performance.
BEFORE INSTALLING
YOUR INSERT
1) Please read this entire manual before you
installanduseyournewwoodinsert.Failure
to follow instructions may result in property
damage, bodily injury or even death. Install
anduseonlyinaccordancewithmanufactur-
er’s installation and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
awarethatlocalcodesandregulationsmay
override some items in the manual.
WARNING: Careless installation is the
major cause of safety hazard. Check all
local building and safety codes before
installation of unit.
3) Notify your home insurance company that
youplantoinstallafireplaceinsertorhearth
heater.
4) Your fireplace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishan-
dling.
5) If your existing fireplace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open posi-
tion.
6) Inspect your fireplace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
yourinsert. Do notremove bricks ormortar
from your masonry fireplace.
7) Do not connect the insert to a chimney
system servicing another appliance or
an air distribution duct.
CAUTION: MIXING OF APPLIANCE OR
FLUE-SYSTEM COMPONENTS FROM
DIFFERENT SOURCES OR MODIFYING
THE DIMENSIONAL SPECIFICATION OF
COMPONENTS MAY RESULT IN HAZ-
ARDOUS CONDITIONS. WHERE SUCH
ACTION IS CONSIDERED, THE MANU-
FACTURER SHOULD BE CONSULTED
IN THE FIRST INSTANCE.
3) Re-confirm the clearance from the insert to
combustibles to insure that they are within
the prescribed limits.
4) Installchimneyaccordingtochimneymanu-
facturers instructions. The performance of
your wood fire is governed to a very large
part by the chimney system. Too short a
chimney can cause difficult start-up, dirty
glass,backsmokingwhendoorisopen,and
evenreducedheatoutput.Tootallachimney
maypromptexcessivedraftwhichcanresult
invery short burntimes and excessiveheat
output.
5) Thefloorprotectormustbeofnon-combus-
tible material.
6) Do not connect this unit to a chimney
serving another appliance.

Regency Berwick Fireplace Insert 7
BRICK
INSTALLATION
Firebrick comes installed in each stove and is
made to extend the life of your stove and to
radiate heat more evenly.
Important: Remove the packing material from
above and below the top bricks. Check to see
thatallfirebricksareintheircorrectpositionsand
have not become misaligned during shipping.
SAFETY GUIDELINES
AND WARNINGS
1) Never use petrol, petrol type lantern fuels,
kerosene, charcoal lighter fuel, or similar
liquids to start or ‘freshen up’ a fire in your
heater.Keepallsuchliquidswellawayfrom
the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Donotburnanyquantitiesofpaper,garbage,
and never burn flammable fluids such as
petrol, naptha or engine oil in your stove.
4) Ifyouhavesmokedetectors,preventsmoke
spillage as this may set off a false alarm.
5) Do not overfire heater. If the chimney con-
nector, flue baffle or the stove top begin to
glow,youareoverfiring.Stopaddingfueland
closethedraftcontrol. Overfiringcancause
extensive damage to your stove including
warpage and premature steel corrosion.
Overfiring will void your warranty.
6) Do not permit creosote or soot build-up
in the chimney system. Check and clean
chimney at regular intervals. Failure to do
so can result in a serious chimney fire.
7) Your Regency stove can be very hot. You
may be seriously burned if you touch the
stove while it is operating, keep children,
clothing and furniture away. Warn children
of the burn hazard. For safety reasons a
guard around the fire is recommended.
8) The stove consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the stove is in
use.
9) Do not use grates or andirons or other
methods for supporting fuel. Burn directly
on the base or bricks where supplied.
10) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the fire.
11) Do not connect your unit to any air distribu-
tion duct.
12) Your wood fire should burn dry, standard
firewood only. The use of cut timber, ply-
wood,“mill ends”, etc. is notallowed asthis
fuel can easily overheat your wood fire.
Evidenceofexcessiveoverheatingwillvoid
your warranty. As well, a large portion of
sawmill waste is chemically treated timber,
which is illegal to burn in many areas. Salt
drift wood and chemically treated fire logs
also must not be burned in your wood fire.
13) DO NOT OPERATE WITH BROKEN
GLASS.
CHIMNEY
SPECIFICATIONS
Beforeinstalling,checkandcleanyourchimney
system thoroughly. If in doubt about its condi-
tion, seek professional advice. Your Regency
Insertisdesignedforinstallationintoamasonry
fireplace.
Theappliance,wheninstalled,mustbeelectrical-
ly grounded in accordance with local codes.
Height 589 mm
Width 640 mm
Depth 420 mm
WOOD INSERT
SPECIFICATIONS
Your fireplace opening requires the following
minimum sizes:
INSTALLATION

Regency Berwick Fireplace Insert
8
INSTALLATION
ZERO CLEARANCE
DIMENSIONS
ZERO CLEARANCE
BOX DIMENSIONS

Regency Berwick Fireplace Insert 9

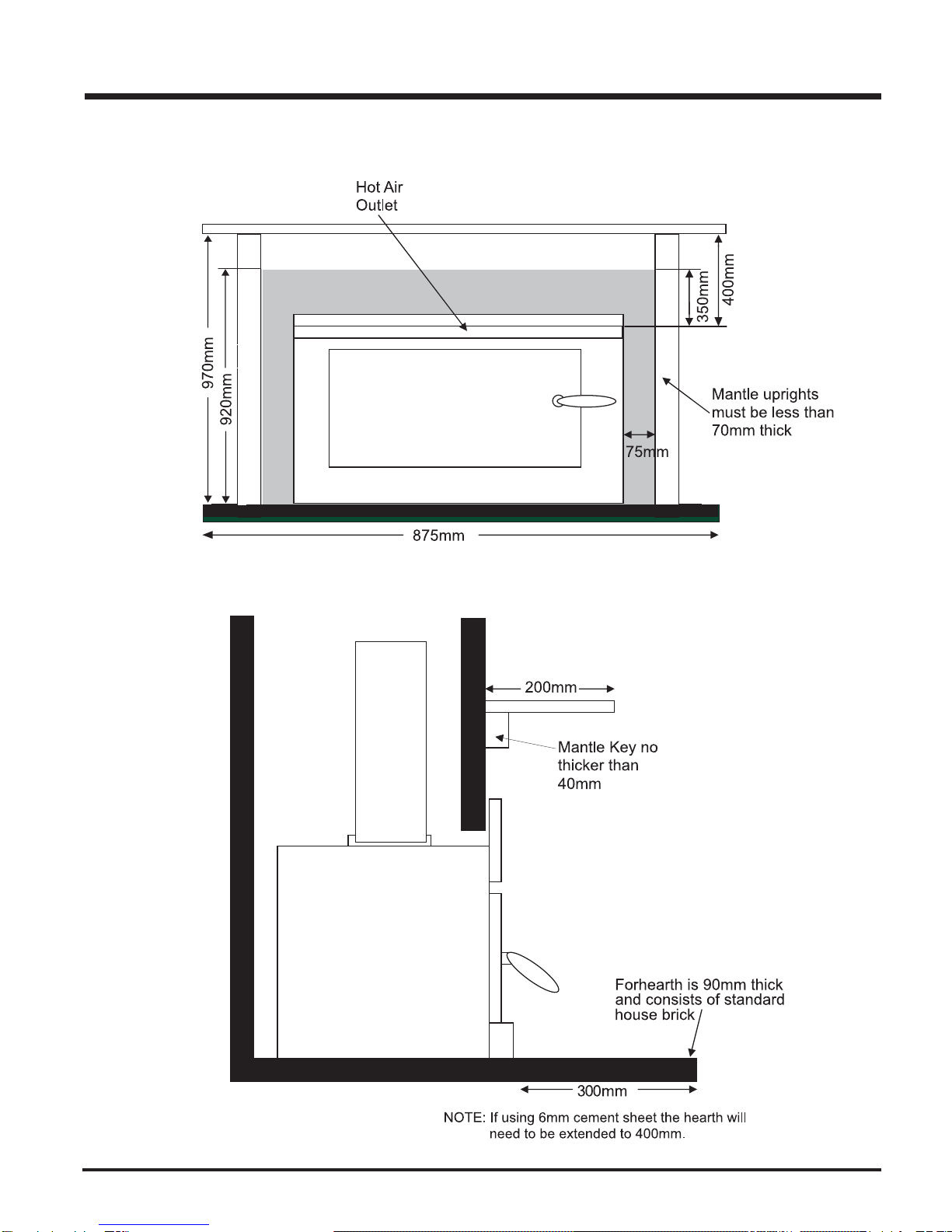

FIREPLACE CLEARANCES
INSTALLATION

Regency Berwick Fireplace Insert
10
INSTALLATION INTO A
MASONRY FIREPLACE
The insert must be installed as per the require-
ments of your local inspection authority.
Regency highly recommends the use of a full
liner as the safest installation and provides the
mostoptimumperformance. Yourretailershould
be able to help you decide which system would
be the best for your application.
Full Flue Liner
The use of this connection method not only
increases the safety of your insert by directing
the hot gases up the flue, but will also help
increase the unit's efficiency and decrease
creosote deposits in the chimney.
When a connected flue or liner is in use, the
insert is able to “breathe” better by allowing a
greaterdrafttobecreated. Thegreaterdraftcan
decrease problems such as, difficult start-ups,
smoking out the door, and dirty glass.
INSTALLATION INTO A
FACTORY BUILT
FIREPLACE
1) When installed in a factory built fireplace, a
fullstainlesssteelrigidismandatory,forboth
safety and performance purposes. When
a flue or liner is in use, the insert is able to
breathe better by allowing a greater draft to
becreated. Thegreaterdraft candecrease
problemssuchas,difficultstart-ups,smoking
out the door, and dirty glass.
2) In order to position the flue liner, the exist-
ing rain cap must be removed from your
chimney system. In most cases the flue
damper should also be removed to allow
passage of the liner.
3) In most cases opening the existing spark
screens fully should give enough room for
the insert installation. If it does not, remove
and store.
4) If the floor of your fireplace is below the
level of the fireplace opening, adjust the
inserttoaccommodatethedifference.When
shimmingisrequired, usenon-combustible
masonry or steel shims.
5) Measureapproximatelythealignmentofthe
flue liner with the position of the flue outlet
holeontheinserttocheckforpossibleoffset.
Ifanoffsetisrequired,useaproperstainless
steel unit available with the chimney liner.
6) Once the above items have been checked,
slide your insert into position after first po-
sitioning the flue liner and offset if required.
(Re-installraincapatcompletionofinstalla-
tion).
INSTALLATION
