FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-520b
MODELS: P33-NG4 Natural Gas P33-LP4 Propane
02/26/09
WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com
Owners &
Installation Manual
P33-4 Zero Clearance
Direct Vent Gas Fireplace

WARNING
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS
GLASS
UNTIL COOLED
ALLOW CHILDREN
TO TOUCH GLASS
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURES,
ESPECIALLY THE FIREPLACE GLASS, AND SHOULD
STAYAWAYTOAVOIDBURNSORCLOTHINGIGNITION.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The
P33-4 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch.
The P33-4 has been approved by Warnock Hersey/Intertek for both safety and efficiency. As it also bears our own
mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take
a moment now to acquaint yourself with these instructions and the many features of your Regency®Fireplace.
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2002/CSA 2.33-2002 and GAS-FIRED APPLIANCES FOR USE
AT HIGH ALTITUDES CAN/CGA-2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and CommunitiesANSI/NFPA501A, and with CAN/CSAZ240-MH Mobile Home Standard
in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code,ANSI Z223.1 and the current National Electrical Code ANSI/NFPA70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
ThisRegency®Mobile/ManufacturedHomeListed
appliance comes factory equipped with a means
to secure the unit.
ThisRegency®Mobile/ManufacturedHomelisted
appliance comes equipped with a dedicated #8
groundlugtowhichan18gaugecopperwirefrom
the steel chassis ground must be attached.
Thisappliancemaybeinstalledinanaftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 3
TABLE OF CONTENTS
Double Screen Door...................................................38
Optional Bay Door......................................................38
Optional Bay Trim.......................................................38
Flush Louvers.............................................................38
Bay Louvers................................................................39
Full Screen doors .......................................................40
Contemporary Faceplate Installation Part 1...............42
Contemporary Faceplate Installation Part 2...............43
Contemporary Faceplate Installation Part 3...............44
Optional Wall Thermostat ..........................................46
Optional Remote Control............................................46
Optional Wall Switch...................................................46
Wiring Diagrams ........................................................47
Installing the Optional Fan..........................................49
OPERATING INSTRUCTIONS
Copy of the Lighting Plate Instructions.......................50
Operating Instructions ................................................51
Lighting Procedure .....................................................51
Shutdown Procedure..................................................51
First Fire .....................................................................51
Aeration Adjustment ...................................................51
MAINTENANCE
Maintenance Instructions............................................52
General Vent Maintenance.........................................52
Normal Operating Sounds of Gas Appliances............52
Gold-Plated Louvers/trim............................................52
Log Replacement .......................................................52
Thermopile/Thermocouple..........................................53
Glass Gasket..............................................................53
Door Glass..................................................................53
Removing Valve..........................................................54
Installing Valve............................................................54
PARTS LIST
Main Assembly ...........................................................55
Burner & Log Assembly..............................................57
Flush Front & Louvers................................................58
Contemporary Faceplate............................................59
WARRANTY
Warranty ...................................................................63
SAFETY LABEL
Safety Label...................................................................4
REQUIREMENTS
MA Code - CO Detector ................................................5
INSTALLATION
Important Message ......................................................6
Before You Start ............................................................6
General Safety Information............................................6
Manufactured Mobile Home Additional Requirements ..6
Installation Checklist......................................................7
Locating Your Fireplace.................................................7
Duct System Option.......................................................7
INSTALLATION
Unit Dimensions ............................................................8
Unit Dimensions with Contemporary Faceplate ............8

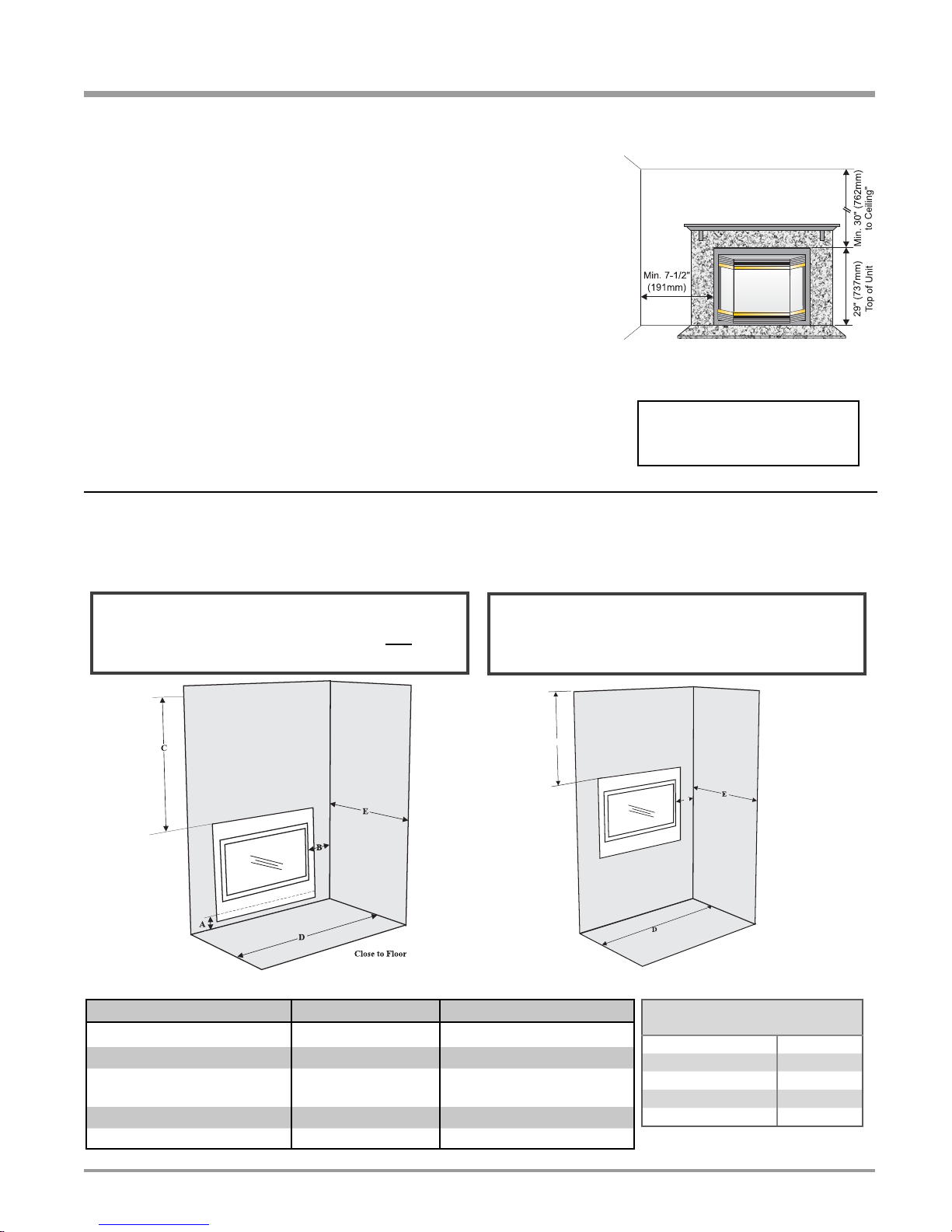

Clearances for Bay or Flush front..................................9
Clearances with Contemporary Faceplate ....................9

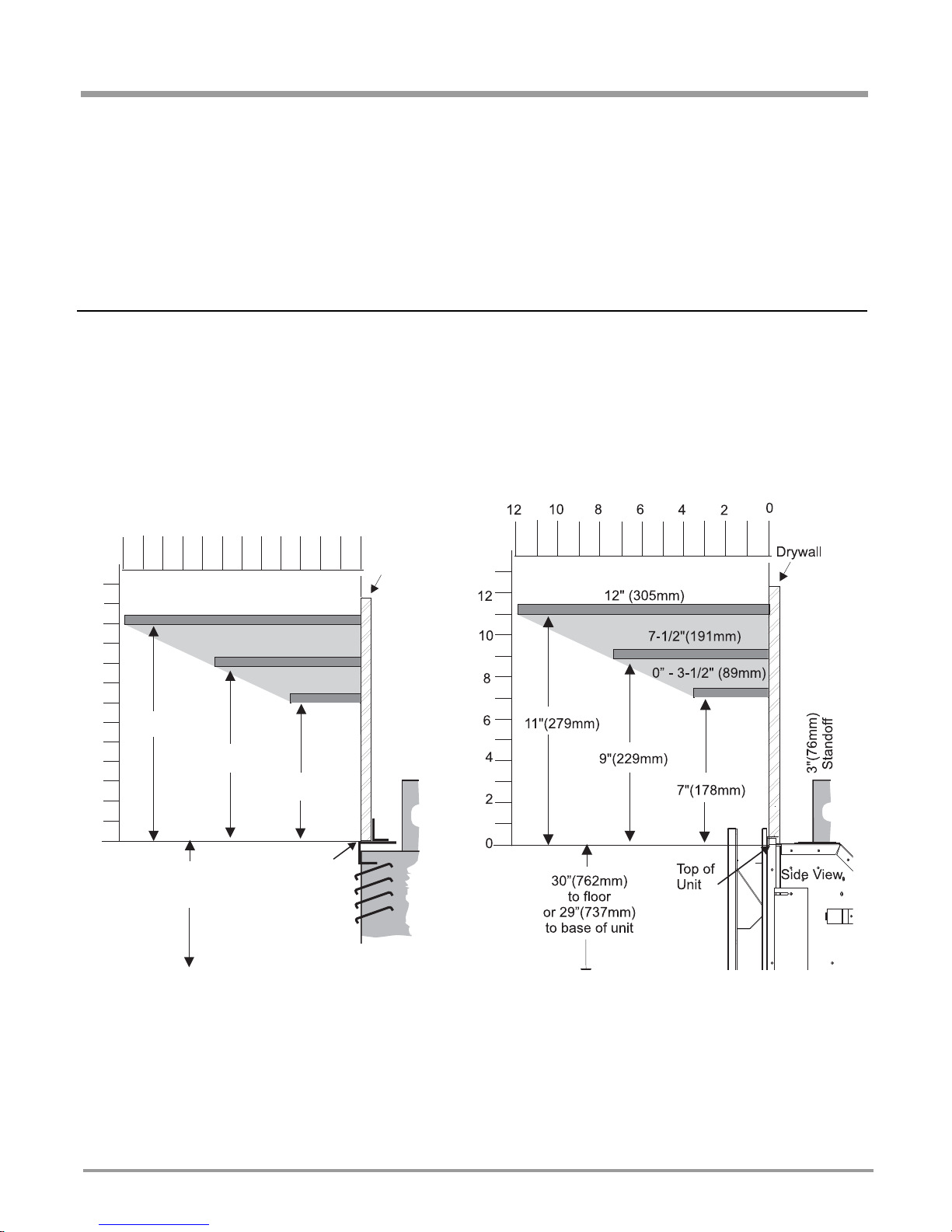

Combustible Mantels...................................................10

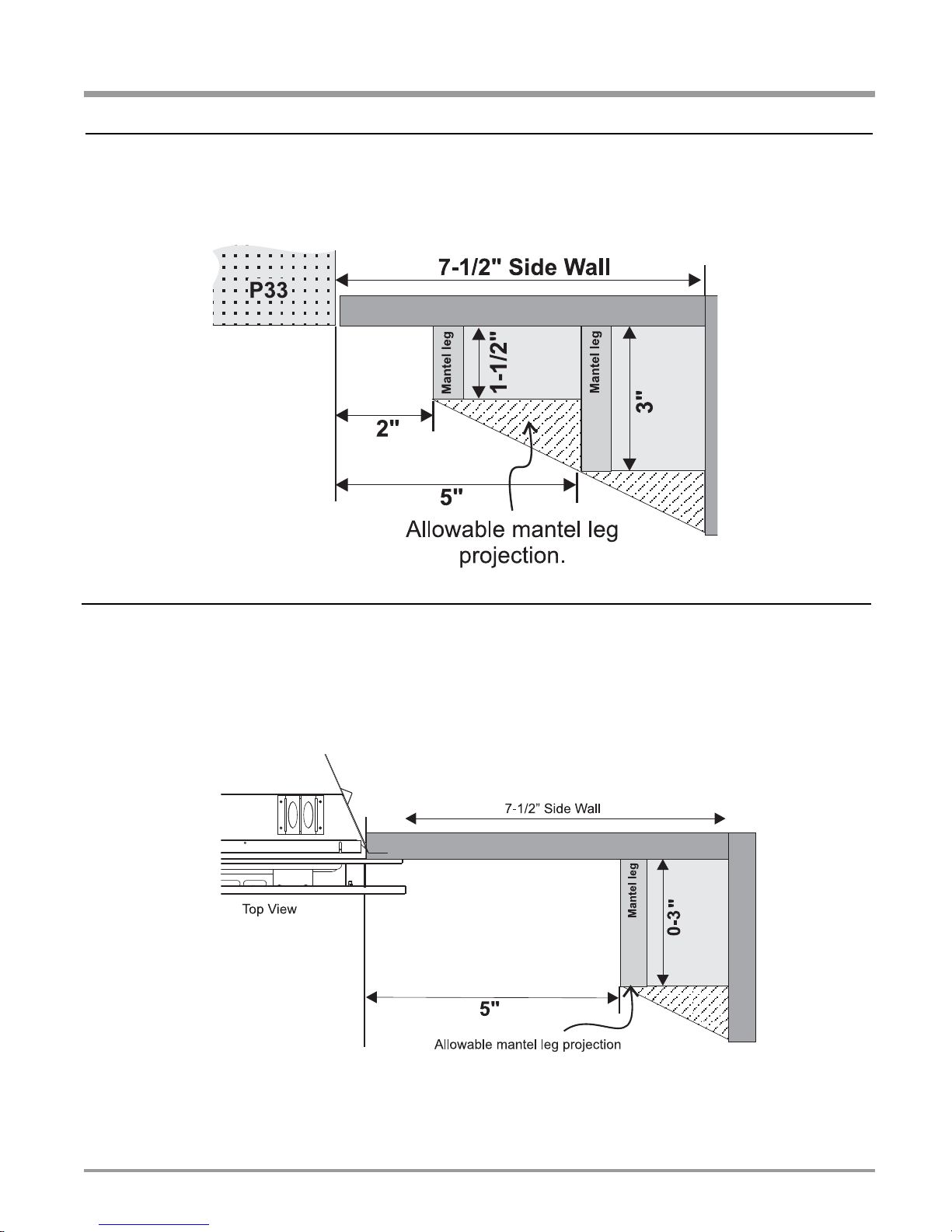

Mantel Leg Clearances with Flush or Bay Glass.........11
Mantel Leg Clearances w/Contemporary Faceplate ...11

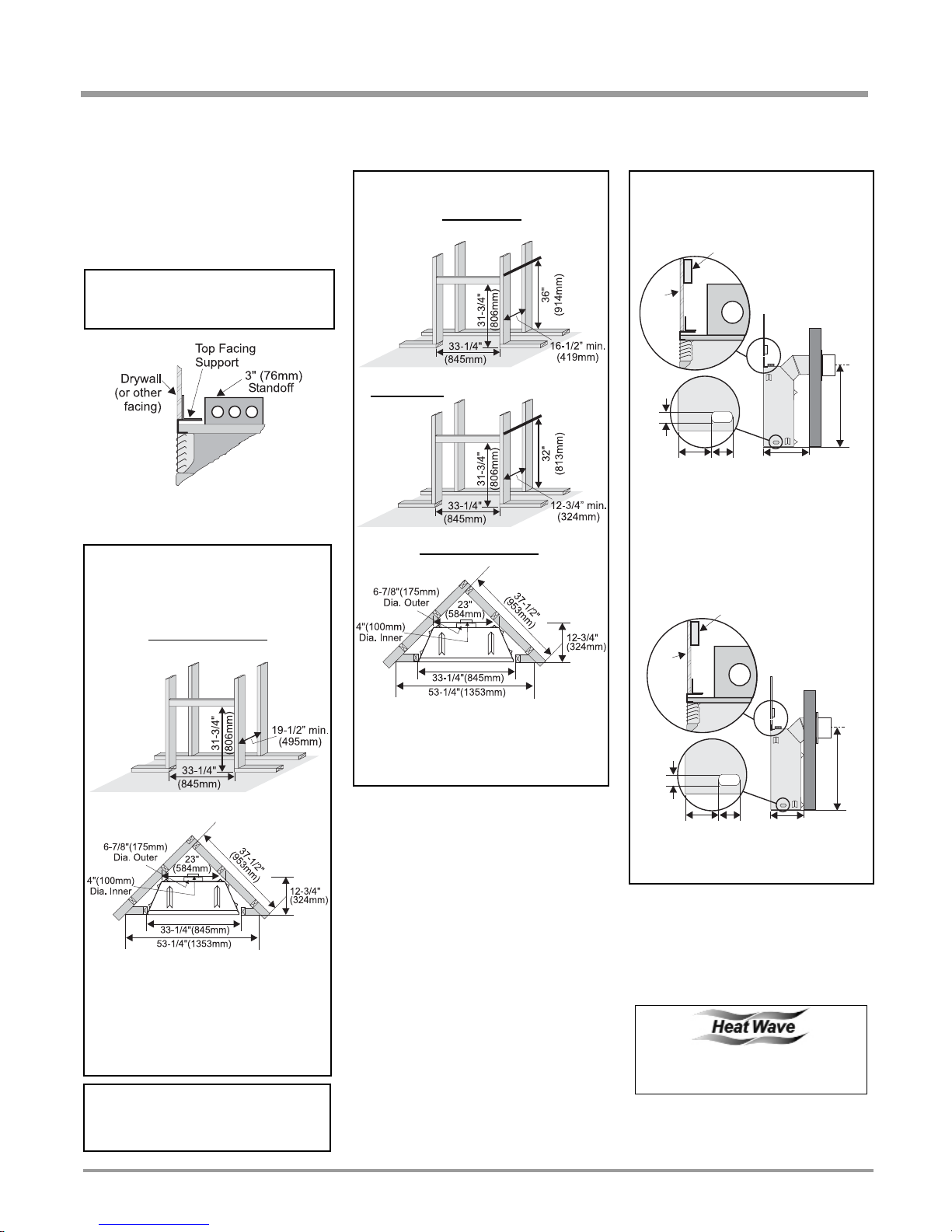

Framing and Finishing.................................................12
Framing Dimensions with Contemporary Faceplate....13
Framing & Finishing with Contemporary Faceplate.....14
Unit Assembly Prior to Installation...............................15
Venting Introduction.....................................................15
Exterior Vent Termination Locations............................16
Regency®Direct Vent flex System ..............................17
Installation Procedures................................................18
Rigid Pipe Venting Systems ........................................19
4” x 6-5/8” Rigid Pipe Cross Reference Chart.............20
Rigid Pipe Venting Arrangements ...............................22
Vertical Termination with Co-Linear Flex System........28
Venting Arrangements - Vertical Terminations ............29
Unit installation with Horizontal termination.................30
Unit installation with Vertical Termination ....................31
Gas Line Installation....................................................31
Pilot Adjustment...........................................................32
High Elevation .............................................................32
Gas Pipe Pressure Testing..........................................32
S.I.T. Valve Description................................................32
Conversion from NG to LP ..........................................33
Optional Brick Panels..................................................36
Log Set Installation......................................................36
Standard Flush Door ...................................................37
Optional Flush Trim .....................................................37

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
4
SAFETY LABEL
Thisisacopyofthelabelthataccompanieseach
P33-4ZeroClearanceDirectVentGasFireplace.
Wehave printedacopyofthecontents here for
your review. The safety label is located on the
front inside base of the unit, visible when the
bottom louver is open.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL
FortheState of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordancewithNFPA720 andaCOalarm
withbatterybackupinthesameroomwhere
the gas appliance is installed.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 5
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
6
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
TheP33-NG4 or P33-LP4DirectVent Fireplace
must be installed in accordance with these
instructions. Carefully read all the instructions
in this manual first. Consult the "authority
having jurisdiction" to determine the need for
a permit prior to starting the installation. It is
the responsibility of the installer to ensure
this fireplace is installed in compliance with
manufacturer's instructions and all applicable
codes.
BEFORE YOU START
Safeinstallationandoperationofthisappliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
GENERAL SAFETY
INFORMATION
1) Theapplianceinstallationmustconformwith
localcodesor,intheabsenceoflocalcodes,
with the current Canadian or National
Gas Codes, CAN1-B149 orANSI Z223.1
Installation Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
localcodes,orintheabsenceoflocalcodes
with the current National Electrical Code,
ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code.
3) See general construction and assembly
instructions.Theapplianceandventshould
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outsideofthebuildingenvelope.Nevervent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) Topreventinjury,donotallowanyone who
is unfamiliar with the operation to use the
fireplace.
9) Wearglovesandsafetyglassesforprotection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11) Under no circumstances should this
appliancebemodified.Partsthathavetobe
removed for servicing should be replaced
prior to operating this appliance.
12) Installationandanyrepairstothisappliance
should be done by a qualified service
person. A professional service person
should be called to inspect this appliance
annually. Make it a practice to have all of
your gas appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15) Theapplianceareamustbekeptclearand
free of combustible materials, (gases and
other flammable vapours and liquids).
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not
cut or weakened during installation.
2) Ensure proper grounding using the #8
ground lug provided. Refer to "Wiring
Diagram" Section.
INSTALLATION AND REPAIR
SHOULD BE DONE BY A
QUALIFIEDSERVICEPERSON.
THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE
AND AT LEAST ANNUALLY
BY A PROFESSIONAL
SERVICE PERSON. MORE
FREQUENTCLEANINGMAYBE
REQUIREDDUETOEXCESSIVE
LINT FROM CARPETING,
BEDDING MATERIAL, ETC.
IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING
AIR PASSAGEWAYS OF
THE APPLIANCE BE KEPT
CLEAN.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISEDWHEN
THEY ARE IN THE SAME ROOM
AS THE APPLIANCE.
Emissionsfromburning woodorgascould
contain chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
DUE TO HIGH TEMPERATURES,
THE APPLIANCE SHOULD BE
LOCATED OUTOFTRAFFICAND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING:FAILURETOINSTALL
THIS APPLIANCE CORRECTLY
WILL VOID YOUR WARRANTY
AND MAY CAUSE A SERIOUS
HOUSE FIRE.
CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE
TEMPERATURES, ESPECIALLY
THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING
IGNITION.
CLOTHING OR OTHER
FLAMMABLEMATERIALSHOULD
NOT BE PLACED ON OR NEAR
THE APPLIANCE.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 7
DUCT SYSTEM OPTION
Kit #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warmairfromthefireplacetoremotelocations
in the same room or other rooms in your
home.
Upto twokitsmaybeinstalledonthefireplace.
Please Note: Only 1 HeatWave kit may be
operatedatonetime.Thisincludestheinternal
blower option as well.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location
(Refer to "Locating Your Fireplace"
Section)
b) Clearances to Combustibles
(Refer to "Clearances" Section)
c) Mantle Clearances
(Refer to "Combustible Mantels"
Section)
d) Framing & Finishing Requirements
(Refer to "Framing & Finishing"
Section)
e) Venting Requirements
(Refer to "Venting" Sections)

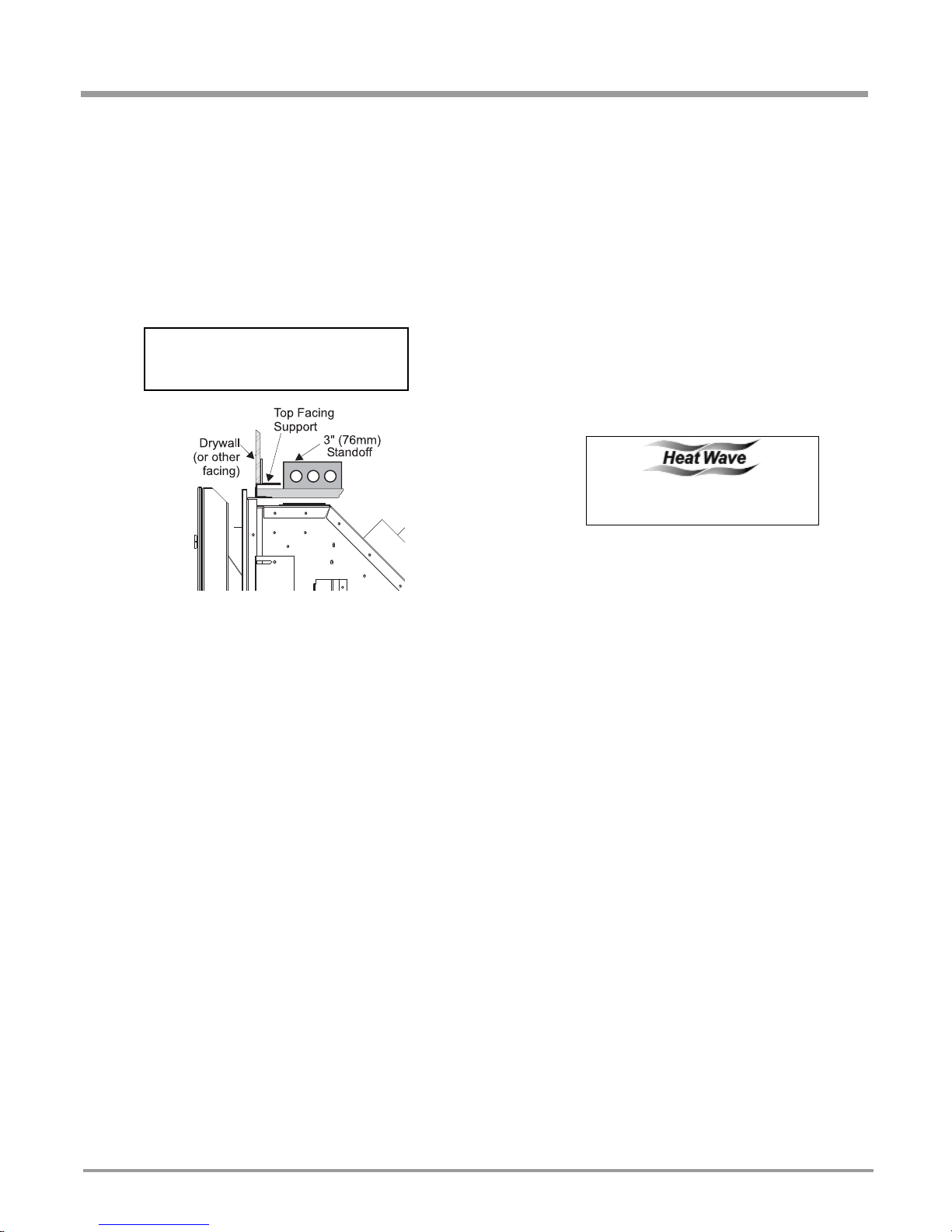

2) Assemble Top Facing Support and Side
NailingStrips(Referto"Unit AssemblyPrior
to Installation" Section). NOTE: Must be
done before installing unit into fireplace.
3) Install vent (Refer to "Venting" Sections)
4) Make gas and electrical connections. Test
the pilot. Must be as per diagram.
(Refer to "Gas Line Installation" and "Pilot
Adjustment" Section).
Convert to Propane if desired.
(Refer to "Conversion Kit from NG to LPG"
Section).
5) Installstandardandoptionalfeatures.Refer
to the following sections:
a. Optional Brick Panels
b. Log Set Installation
c. Standard Flush Door
d. Optional Flush Trim
e. Double Screen Door
f. Optional Bay Door
g. Optional Bay Trim
h. Flush Louvers
i. Bay Louvers
j. Full Screen Doors
k. Optional Contemporary Faceplate
l. Optional Wall Themostat
m. Optional Remote Control
n. Optional Wall Switch
o. Installing the Optional Fan
6) Final check.
Before leaving this unit with the customer,
the installer must ensure that the appliance is
firing correctly and operation fully explained
to customer.
This includes:
1) Clockingtheappliancetoensurethecorrect
firingrate (ratenotedon label)afterburning
appliance for 15 minutes.
2) Ifrequired,adjustingtheprimaryairtoensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION:Any alterationtothe productthat
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
Diagram 1
INSTALLATION
LOCATING YOUR
FIREPLACE
1) Whenselectingalocationforyourfireplace,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for
servicing.
3) The appliance must be installed on a flat,
solid,continuoussurface(e.g.wood,metal,
concrete).Thismaybethefloor,orraisedup
on a platform to enhance its visual impact.
If the appliance is going to be installed
on carpeting, combustible linoleum tile or
othercombustiblematerialotherthanwood
flooring,theappliancemustbeinstalledona
metalorwoodpanelextendingthefullwidth
and depth of the appliance.
4) The P33-4 can be installed in a recessed
position or framed out into the room as in
A, B, C, D. See Diagram 1 below.
5) This appliance is Listed for bedroom
installationswhenusedwithaListedMillivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The P33-4 Direct Vent Gas Fireplace is
approvedforalcoveinstallations,whichmeet
the clearances listed on the "Clearances"
Section.
7) Werecommendthatyouplanyourinstallation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have a
qualifiedinspector,dealer,orinstallerreview
your plans before installation.
Note: Forventterminationssee"ExteriorVent
Termination Locations" Section.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
8
INSTALLATION
UNIT DIMENSIONS WITH
CONTEMPORARY FACEPLATE
33"(838mm)
33"(838mm)
23"(584mm)
12-3/4"(324mm)
29"(737mm)
28-1/2"(724mm)
31-1/2"(800mm)
UNIT DIMENSIONS

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 9
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
CLEARANCES WITH CONTEMPORARY FACEPLATE
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: *Front Floor Clearance (min.) 1" (25mm) Underside of Unit
B: *Sidewall 7-1/2" (241mm) Side of Unit
C: *Ceiling
(room and/or alcove) 30" (889mm) Top of Unit
D: Alcove Width 48" (1219mm) Sidewall to Sidewall (Minimum)
E: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
B
C
Close to Ceiling
Flue Clearances to
Combustibles
Horizontal - Top 2-1/2"
Horizontal - Side 1-1/2"
Horizontal - Bottom 1-1/2"
Vertical (Flex Vent) 1-1/2"
Vertical (Rigid) 1-1/4"
*Note: All measurements are from the top/side of the unit, not optional front.
Clearances for Bay or Flush Front
The clearances listed below are Minimum
distances unless otherwise stated:
A major cause of chimney related fires is
failure to maintain
requiredclearances(airspace)tocombus-
tible materials.
It is of the greatest importance that this
fireplace and vent system
be installed only in accordance with these
instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be
maintained
from the top surface of the carpeting, tile,
etc.
CLEARANCES FOR BAY OR FLUSH FRONT
Minimum Clearance from Top of Unit to:
Mantel* min. 7" (177mm)
Ceiling 30" (762mm)
from top of unit.
Side Wall Clearance
Bay or Flush Front 7-1/2" (191mm)
Minimum Vent Clearances:
2-1/2" (64mm) Horizontal Top
1-1/2" (38mm) Horizontal Side
1-1/2" (38mm) Horizontal Bottom
1-1/4" (32mm) Vertical Vent Clearance
(Rigid Vent)
1-1/2" (38mm) Vertical Vent Clearance
(Flex Vent)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
* see mantel clearance instructions.
Warning
Firehazardisanextremeriskifthese
clearances are not adhered to.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
10
COMBUSTIBLE MANTELS
INSTALLATION
Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are
shown in the diagram below.
Note: Anon-combustiblemantelmay be installed at a lowerheightifthe framing is made ofmetalstudscovered with a non-combustible
board.
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Combustible mantel leg clearances as per diagrams below:
Drywall
Mantel Clearances
with Flush, Full Screens or Bay Glass
2
0
12 64
810
2
0
12
6
4
8
10
Side View
Top of
Unit
12" (305mm)
0” - 3-1/2" (89mm)
7-1/2"(191mm)
11"(279mm)
7"(178mm)
9"(229mm)
29"(737mm)
to floor
3"(76mm)
Standoff
Mantel Clearances with
Contemporary Faceplate

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 11
INSTALLATION
MANTEL LEG CLEARANCES WITH CONTEMPORARY FACEPLATE
Combustible mantel leg clearances from side of unit as per diagram:
MANTEL LEG CLEARANCES WITH FLUSH OR BAY GLASS
Combustible mantel leg clearances from side of unit as per diagram:
Maximum
1-1/2" projection at 2" minimum
clearance.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
12
INSTALLATION
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) The top of the unit must not be closer than
30" (762mm) to the ceiling.
5) Combustible material may be brought up to
the top and sides of the unit and be covered
with ceramic tiles, bricks, rock or other
suitable combustible finishing materials.
Note: Theunitdoesnothavetobecompletely
enclosedinachase.Theclearanceon
topoftheunitis0"tothestandoffsso
combustiblebuildingmaterialscanbe
laid directly on top of the standoffs.
You must maintain clearance from
the vent to combustible materials
for flex or for Rigid Vent (Refer to
"Clearances" Section).
1) Determine the total thickness of facing
material (e.g. drywall plus ceramic tiles) to
allow the finished surface to be flush with
the front of the unit. Total facing thickness
canvaryfrom1/2"(13mm)to1-1/4"(32mm)
thick.
6) Use steel studs for framing where the
1-1/2" (38mm) clearance from the vent
to combustible material cannot be
maintained.
2) Frame in the enclosure for the unit with
framing material.
FRAMING AND FINISHING
16-1/2”
(419mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
30”
(762mm)
10" (254mm)
dia. Hole through
wall for Dura-Vent
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
12-3/4”
(324mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
26”
(660mm)
10" (254mm)
dia. Hole through
wall for Flex
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
Rigid Vent
Minimum Clearances
Flex Vent
Minimum Clearances
Vertical Termination or
Vertical Rise with Horizontal
Termination
NOTE: If this is an outside corner, the
minimum distance between the vent and the
outside corner is 6" (15cm) with AstroCap
terminationcapor12"(30cm)withRigidVent
termination cap. (For example Dura-Vent).
For Both Rigid & Flex
Rear Termination
NOTE:Ifthisisanoutsidecorner,theminimum
distance between the vent and the outside
corneris 6" (15cm) withAstroCaptermination
cap or 12" (30cm) with Rigid Vent termination
cap. (For Example Dura-Vent).
For Rigid Vent
For Flex Vent
For Both Rigid & Flex
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
Install Side Nailing Strips, and Top Facing
Supportbeforeunitisslippedintoposition.
See "Unit Assembly Prior to Installation"
Section
NOTE: Framing is different when using the
faceplate option.
See framing section when using faceplate in
this manual.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 13
INSTALLATION
G
H
I
I
M
J
L
K
P
Q
O
N
10" (254mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
.
Wood, drywall
or other facing
JI
Floor
Framing Dimensions Description P33-4
G Framing Width 33-1/4"(845mm)
H Framing Height * 31-3/4" (806mm)
I Framing Rise from Floor 1" (25mm) Min.
J Framing Depth Vertical
Horizontal 19-1/2" (495mm) Vertical Rise 16-1/2" (419mm) Rigid / 12-3/4" (324mm) Flex
K Corner Wall Length 37-1/2" (953mm)
L Corner Facing Wall Width 53-1/4" (1353mm)
M Framed Chase Ceiling* 36" (914mm) Rigid 32" (812mm) Flex
NVent Centerline Height* 30" (762mm) Rigid 26" (660mm) Flex
OGas Connection Height* 1 1/2" (38mm)
P Gas Connection Inset* 4" (102mm)
Q Gas Connection Width* 3" (76mm)
FRAMING DIMENSIONS WITH CONTEMPORARY FACEPLATE
NOTE: If this is an outside corner, the
minimum distance between the vent
and the outside corner is 6" (15cm)
with AstroCap termination cap or 12"
(30cm) with Rigid Vent termination cap.
(For example Dura-Vent)
* Measured from base of unit.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
14
Note: When constructing the framed opening, please ensure there
is access to install the gas lines when the unit is installed.
3) For exterior walls, insulate the enclosure to the same degree as the
rest of the house, apply vapour barrier and drywall, as per local instal-
lation codes. (Do not insulate the fireplace itself.)
WARNING:Failuretoinsulateandaddvaporbarrierstotheinside
of the exterior wall will result in operational and performance
problems including, but not limited to: excessive condensation
on glass doors, poor flame package, carbon, blue flames etc.
These are not product related issues.
FRAMING & FINISHING WITH CONTEMPORARY FACEPLATE
2) Frame in the enclosure for the unit with framing material.
Wood,
1) Determine the total thickness of facing material (e.g. drywall, wood
plus ceramic tiles) to allow the finished surface to be flush with the
front of the unit. Total facing thickness can vary from 1/2" (13mm) to
1-1/4" (32mm) thick.
NOTE: Facing material may not protrude beyond unit, otherwise the
optional accesories will not be able to be mounted to the unit.
Install Side Nailing Strips, and Top Facing
Supportbeforeunitisslippedintoposition.
See "Unit Assembly Prior to Installation"
Section
4) Combustible material may be brought up to the top and sides of
the unit and be covered with wood, drywall, ceramic tiles, bricks,
rock or other suitable combustible finishing materials.
Note: Theunitdoesnothavetobecompletelyenclosedinachase.
The clearance on top of the unit is 0" to the standoffs so
combustible building materials can be laid directly on top
ofthestandoffs.Youmustmaintainclearancefromthevent
to combustible materials for flex or for Rigid Vent (Refer
to "Clearances" Section).
5) Use steel studs for framing where the 1-1/2" (38mm) clearance
from the vent to combustible material cannot be maintained.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
INSTALLATION
Important:
If the Contemporary Faceplate is used on the P33-NG4/P33-
LP4 Gas Fireplace, the burner orifice (Both NG/LP supplied in
this
package) must be replaced and an overlay decal (also supplied
with kit) must be affixed to the current serial number decal
supplied with unit.
Note: Also see framing dimensions for this optional front if
installed on the P33-4 unit.
Note: Unit must be raised up by 1' to allow for faceplate
installation.
NG LP
Current P33-4 orifice size: #44 #54
Must replace with: #47 #56
Warning: Fire hazard is an extreme risk if these changes are not
adhered to.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 15
TheTopFacingSupport,theSideNailingStrips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before the
unit is put into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be pulled up and bent into the correct
shape.
1) Remove the standoffs from on top of the
firebox by undoing the screws.
2) Takeeachstandoffandbendintothecorrect
shape. Bend up at the bend lines until the
screw holes in the standoff and the pre-
punched screw holes on the firebox top
line-up.
3) Attachthestandoffssecurelytothetopwith
4 screws per standoff.
Note: Secure the standoffs to the holes
closest to the edge of the firebox top.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing material
(e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips
canbemounted in various positions depending
on the thickness of the facing material.
1) Mount Top Facing Support using the 3
suppliedscrews into the three pre-punched
screwholesonthetopfrontoftheunit.Adjust
support to desired facing material depth.
2) Mount Side Nailing Strip using the 3
suppliedscrews into the three pre-punched
screw holes at the front sides of the unit.
Adjust support to desired facing material
thickness.
UNIT ASSEMBLY PRIOR TO INSTALLATION
INSTALLATION
VENTING INTRODUCTION
The P33-4 uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer
liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing
warm room air up the chimney.
Thereare5vent systems approved for use withtheP33-4:theRegency®Direct VentFlexSystemforHorizontalTerminationsonlyandtheSimpson
Dura-Vent, Selkirk Direct-Temp, Amerivent Direct Vent and Security Secure Vent Systems for Horizontal and Vertical Terminations (see following
"Venting" Sections for more details).
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate
solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.
(See "Rigid Pipe Venting System" for more details and exceptions).
NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.
For a facing material depth of
1-1/4"(32mm), the top facing
support must be reversed.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
16
EXTERIOR VENT TERMINATION LOCATIONS
INSTALLATION
Minimum Clearance Requirements Canada1USA2
A Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
B Clearance to window or door that may be opened 12"(30cm) 9" (23cm)
C Clearance to permanently closed window **
D Vertical clearance to ventilated sot located above the terminal within a horizontal distance of 2 feet (61cm) 18"(46cm) 18"(46cm)
E Clearance to unventilated sot 15"(38cm) 15"(38cm)
F Clearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)
Clearance to outside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)
G Clearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)
Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)
H Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
J Clearance to service regulator vent outlet 36"(90cm) *
K Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
L Clearance to a mechanical air supply inlet 72"(1.8m) 36"(90cm)b
M Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
N Clearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
*Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 17
Wherever necessary due to
external location of cap, the
AstroCapcanbereplacedwith
theFPIRiserVentTermination
Cap or the Dura-Vent Snorkel
Termination Cap.
INSTALLATION
REGENCY®DIRECT VENT FLEX SYSTEM
Horizontal Terminations Only
This venting system, in combination with the P33-4 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock
Hersey/Intertek. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section .
Regency®Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33-4 with a maximum run of 2
feet. If installing the P33 with a continuous vent length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use Kit # 946-515 (4 ft) or 946-516
(10 ft) or see "Rigid Pipe Venting Systems" Section for alternate venting arrangements.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point,
stainless steel (4)
6-7/8"
(173mm)
dia. Flue pipe
4" (102mm)
dia. flue pipe
Wall Thimble (2 pc)
(required in
Canada only)
Termination Cap
(Part# 946-523/P)
AstroCapTM
spring
spacer
See Figure 1 below for
Alternate Caps.
Notes:
1) Liner sections should be continuous
without any joints or seams.
2) OnlyFlexpipepurchasedfromRegency®
may be used for Flex installations.
MINIMUM
FLEX KIT CENTER-LINE
MINIMUM
RIGID PIPE CENTER-LINE Alternate
Horizontal
Termination
Caps
Note: for P33-NG4 with contemporary faceplate - unit must be raised by 1".
Figure 1

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace
18
Termination Cap
Wall Thimble 2 pieces
(10" (254mm) Outer Diameter)
2”x4”or2”x6”
(21mm x 102mm
or 21mm x 152mm)
6-7/8"
(175mm)
dia. air intake
4" (102mm)
dia. flue pipe
with spring spacer
Screws
(4 per connection)
Screws
(3 per
connection)
INSTALLATION PROCEDURES
for Regency®Direct Vent System (Flex)
Minimum and Maximum Vent Clearances
INSTALLATION
1) Locate the unit in the framing, rough in the
gas (preferably on the right side of the unit)
and the electrical (Junction block is on the
leftside)ontheleft.Locatethecenterlineof
the termination and mark wall accordingly.
Cut a 10"(254mm) hole in the wall (inside
dimension).
Note: To make the installation more
aestheticallypleasing,werecommend
framing out a square to mount the
terminal to.
*If this is an outside corner, the minimum distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination cap or 12" (30cm) with Dura-Vent
termination cap. See "F" in the diagram in "Exterior Vent Trmination Locations"
Section.
Note: A 2-1/2" (64mm) horizontal top and
1-1/2" (38mm) horizontal sides &
bottom clearance around the liner
must be maintained except that only
a 1" (25mm) clearance is needed at
the termination end. We recommend
framing a 10"(254mm) x 10"(254mm)
(inside dimensions) hole to give
structural rigidity for mounting the
termination.
Note: If installing termination on a siding
covered wall, furring strips must be
used to ensure that the termination
is not recessed into the siding.
2) Levelthefireplaceandfastenittotheframing
using nails or screws through the nailing
strips.
3) Assemble the vent assembly by applying
MillPac tothe4"(100mm)innercollarofthe
terminationand slippingthe4"(100mm)liner
over it at least 1-3/8" (35mm). Fasten with
the3screws(drillingpilotholeswillmakethis
easier).Apply Mill Pac or high temperature
silicone to the 6-7/8"(175mm) flex pipe and
slip it over the 6-7/8" outer collar of the vent
terminal at least 1-3/8"(35mm) and fasten
with the 3 screws.
4) Separatethe2halvesofthewallthimbleand
securely fasten the one with the tabs to the
outside wall making sure that the tabs are
ontopandbottom.Fastentheotherthimble
half to the inside wall. The thimble halves
slip inside each other and can be adjusted
for2x4or 2 x 6 walls.The liners must slip
over the collars a minimum of 1-3/8".
5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.
6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm)linerout enough toslipover
the flue collars of the fireplace.
7) ApplyMillPacoverthefireplaceinnercollar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.
8) Do the same with the 6-7/8"(175mm)
liner.
9) Apply a bead of silicone between the
thimble and termination and around the
outer edge of the terminal at the wall in
order to keep the water out.
IMPORTANT:Donotlocatetermination
hood where excessive snow or ice
buildup may occur. Be sure to check
vent termination area after snow
falls, and clear to prevent accidental
blockage of venting system. When
using snow blowers, make sure
snow is not directed towards vent
termination area.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 19
INSTALLATION
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 45oElbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
For siding other than vinyl furring strips may
be used, instead of the vinyl siding standoff,
to create a level surface to mount the vent
terminal. The Terminal must not be recessed
into siding.
If a Vinyl Siding Standoff is required (it must
be used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.
Flat Wall Installation
Max. Wall Vent Length
Thickness (inches) Required (inches)
7 - 1/4" 6"
10 - 1/4" 9"
13 - 1/4" 12"
12-1/4" - 15-7/8" 11" - 14-5/8" Adj. Pipe
18-1/4" - 25-1/4" 11" - 14-5/8" Adj. Pipe
Alternate
Horizontal
Termination
Caps
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
withDuraventDirect-Vent,SelkirkDirect-Temp,
AmeriVentDirectventingandSecuritySecure
Vent systems. Use of these systems with the
Rigid Pipe adaptor is deemed acceptable and
does not affect the Warnok Hersey/Intertek
listing of components.
WARNING:
Do not combine venting components from
different venting systems.
However use of theAstroCapTM and FPI Riser
is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The FPI AstroCapTM and FPI Riser Vent terminal are certified for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent Pro,
American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
