PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Models: IG34-NG
IG34-LPG
IG34-ULPG
Owners &
Installation
Manual
01/02/14
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553, NZS 5262 and
have been certified by the Australian Gas
Association for installation and operation as
describedintheseInstallationandOperating
Instructions.
Your unit should be serviced annually by
an authorised service person.
918-793c
IG34 GAS INBUILT
FOR YOUR SAFETY
What to do if you smell gas:
Donottrytolightanyappli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplierfromaneighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the fire
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byanauthorisedinstaller, service agencyor
the gas supplier.

2Regency IG34 Gas Inbuilt Fireplace
REGENCY
GAS INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! Youare theownerof a state-of-the-art GasInbuiltFireplace by FPI.TheRegency
Gas Fireplace Series of appliances has been designed to provide you with all the warmth and
charm of a fireplace, at the flick of a switch. The model IG34 of this series has been approved
by Australian Gas Association for both safety and efficiency. As it also bears our own mark, it
promises to provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of
your Regency Fireplace.

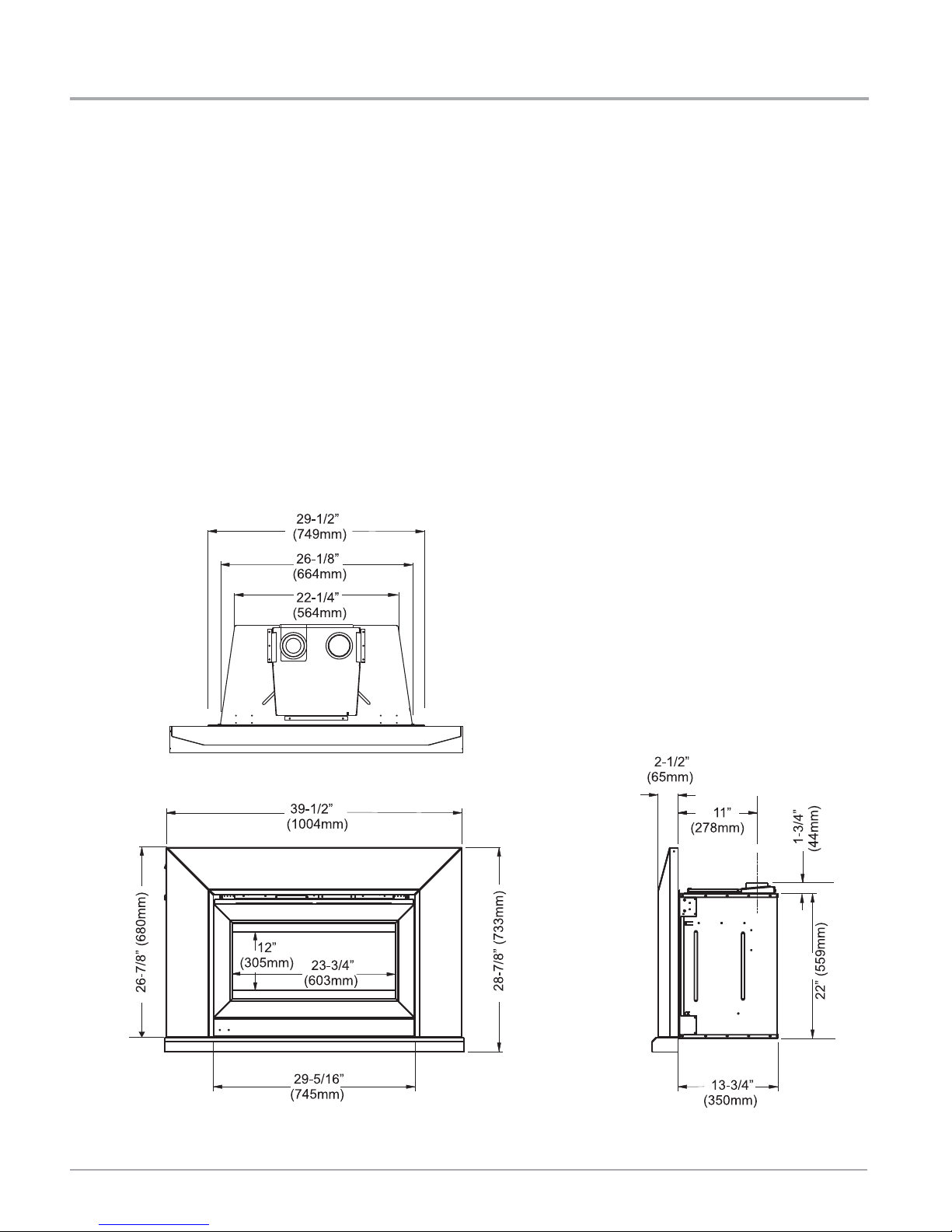

UNIT DIMENSIONS

3
Regency IG34 Gas Inbuilt Fireplace
TABLE OF CONTENTS
DATA BADGE
Copy of Data Badge .....................................................4
INSTALLATION
Important Message........................................................5
For Your Safety..............................................................5
Before You Start ............................................................5
Installation Checklist......................................................5
Materials Required ........................................................5
Minimum Fireplace Dimensions ....................................6
Clearances To Combustibles.........................................6
Gas Connection ............................................................6
Flueing...........................................................................6
Flue Liner Installation ....................................................7
Gas Pipe Pressure Testing............................................7
Installation in masonry or zero clearance chimney........8
Aeration Settings...........................................................9

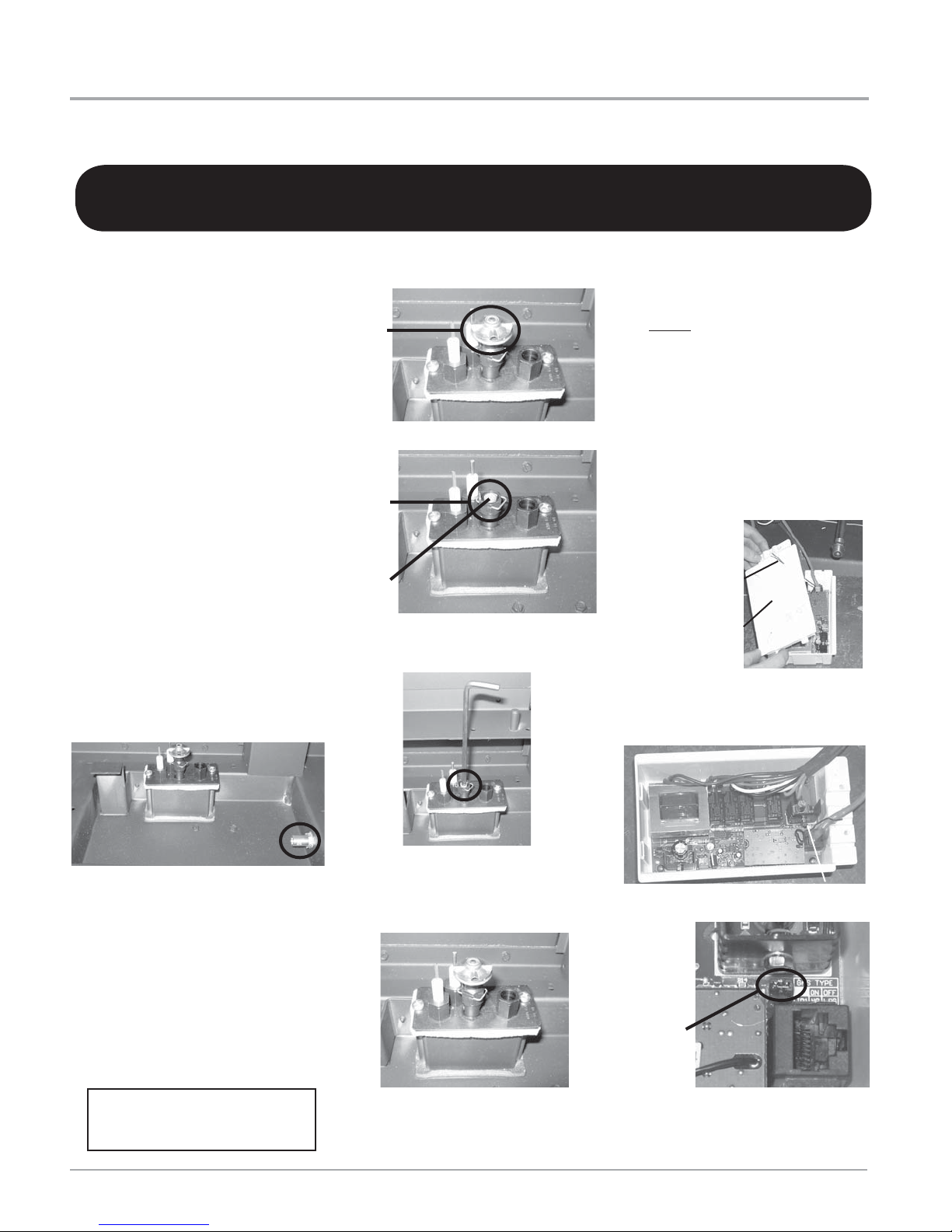

Conversion from NG to LPG........................................10

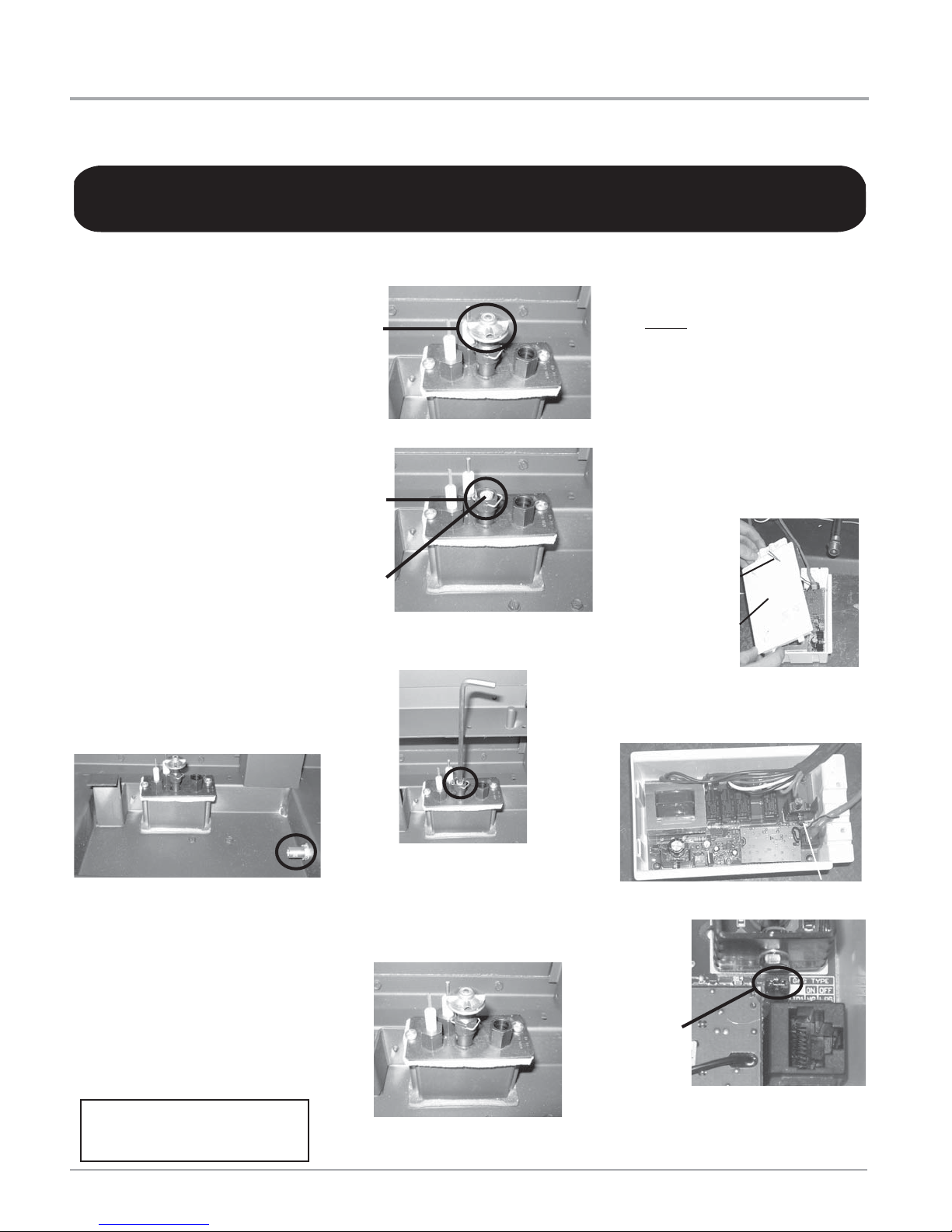

Conversion from NG to ULPG.....................................12
Optional Stainless steel inner panel install..................14
Log set installation.......................................................15
Glass Door installation.................................................18
Standard Flush Door ...................................................18
Optional Flush Trim .........................................................
Faceplate & Optional plinth trim Assembly..................19
Faceplate and door frame Installation.........................20
Thermodisc installation................................................21
Final Check..................................................................22
Wiring standard ...........................................................22
Operating Instructions ................................................23
Lighting Instructions.....................................................23
Shutdown Instructions.................................................23
First Fire ......................................................................23
Remote Control ..........................................................23
Summary of Controls ..................................................23
Fan Operation..............................................................23
Copy Of Lighting Instruction Plate...............................24
Normal Operating Sounds Of Gas Appliances............24
Resetting the unit.........................................................24
MAINTENANCE
Door Glass ..................................................................25
Replacement ...............................................................25
Glass Gasket...............................................................25
Fan Maintenance.........................................................26
Valve assembly replacement.......................................27
PARTS LIST
Electronic Components Parts List ...............................28
Main Assembly ............................................................29
Faceplate Assembly ....................................................30
WARRANTY
Warranty......................................................................31

4Regency IG34 Gas Inbuilt Fireplace
DATA BADGE
(Australia Only)
This is a copy of the label that accompanies each Regency IG34 Gas
Inbuilt fireplace. We have printed a copy of the contents here for your
review.
DATA BADGE NOTE: Regency units are constantly being improved.
Check the label on the unit and if there is a difference, the label on the
unit is the correct one.
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NO T
908-602a

5
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
IMPORTANT MESSAGE
The Regency Gas Inbuilt must be installed in
accordance with these instructions. Carefully
read all the instructions in this manual first.
Note: Failure to follow these instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or prop-
erty damage. Failure to follow these
instructions may also void your fire
insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combus-
tion. Always provide adequate combustion
and ventilation air. Follow instructions and
information in the current AS5601, NZS 5262
or local codes. Consult the "authority having
jurisdiction" to determine the need for a permit
prior to starting the installation.
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions, local gas fitting regulations,
municipal building codes, water supply
regulations, electrical wiring regulations,
with AS5601. (AGA gas installation code)
NZS 5262(New Zealand)
2) Installation and repair should be done
ONLY by an authorised person.
3) The appliance should be inspected before
use and at least annually by an authorised
serviceperson.Morefrequentcleaningmay
berequiredduetoexcessivelintfromcarpet-
ing, bedding material, etc. It is imperative
that control compartments, burners and
circulatingairpassagewaysoftheappliance
be kept clean and free from excessive lint
from carpeting.
4) See general construction and assembly
instructions.Thisappliance may only be in-
stalledinaflued,non-combustiblefireplace.
The appliance and flue should be enclosed
when installed or passing through a living
area, where children may come in contact
with it.
5) Alwaysconnectthisspaceheatertoachim-
ney and flue to the outside of the building
envelope.Neverfluetoanotherroom. Make
sure that the flue is properly sized and is of
adequateheightto providetheproperdraft.
6) Inspect the flueing system annually for
blockage and any signs of deterioration.
7) Anysafetyglassremovedforservicingmust
bereplacedpriortooperatingtheappliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Installer must mechanically attach the sup-
plied label to the inside of the firebox of the
fireplace into which the gas fireplace insert
is installed.
MATERIALS REQUIRED
A 240 Volt AC power cord is hooked up to the
unit.Plug3wire cordintoasuitablereceptacle.
Do not cut the ground terminal off under any
circumstances.
When connected with 240 volts, the appliance
must be electrically grounded in accordance
with local codes.
This unit is polarity sensitive and will not
operate if polarity is incorrect.
"WARNING:Thisfireplacehasbeenconverted
for use with a gas fireplace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fireplace re-approved by the authority
having jurisdiction."
WARNING:
Suitable for installation into a masonry
fireplace only.
INSTALLATION
CHECKLIST
Before installing vent system ensure that the
damperplate is openand secure toprevent the
damper plate from falling down and crushing
the liner.
The FPI Gas Inbuilt is installed as listed.
1) Checkallclearancestocombustibles,(Refer
tosections"MinimumFireplaceDimensions
and Clearances to Combustibles)
2) Make the gas connection. (Refer to section
"Gas Connection")

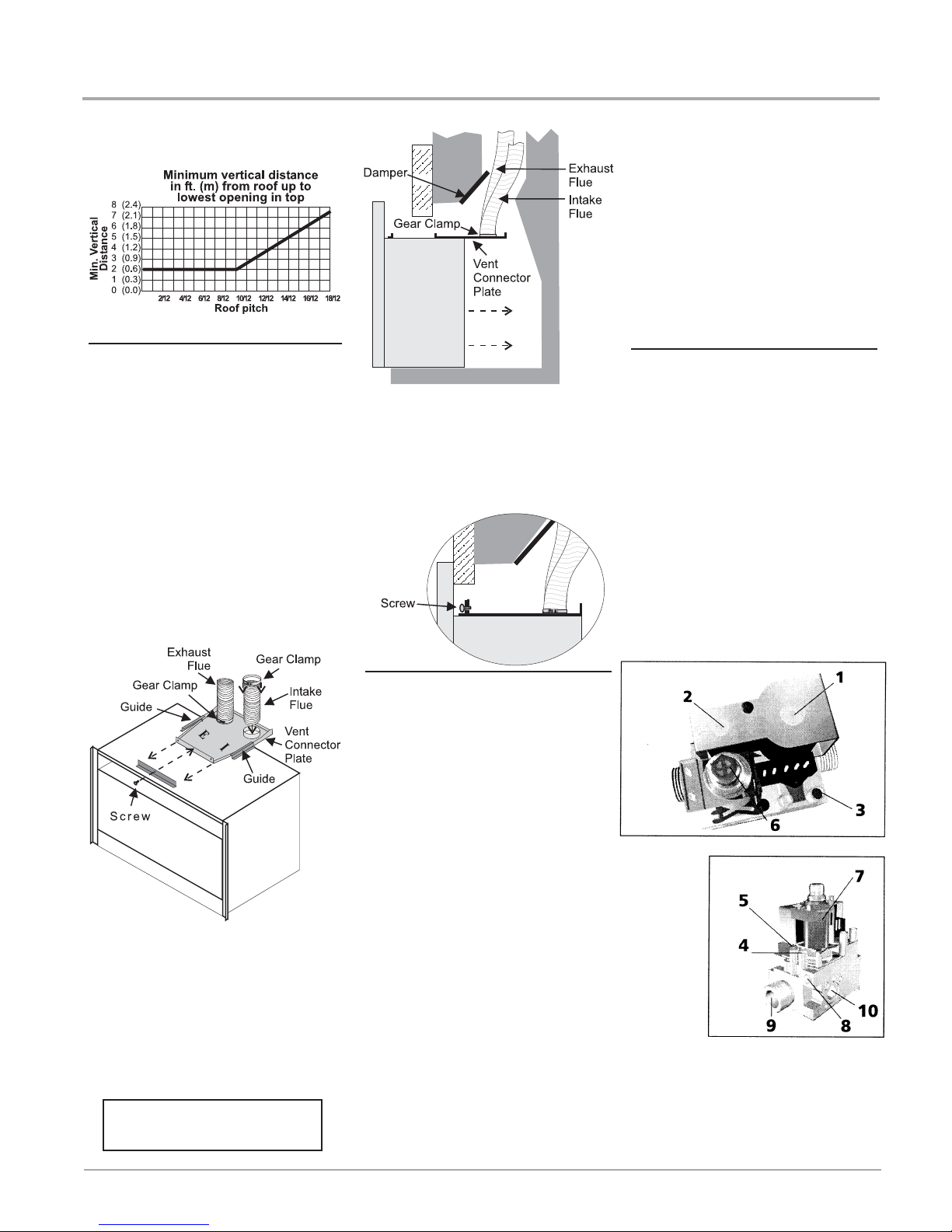

3) Installthe3"(76.2mm)fluelinertothesliding
connectorplate.(Refertosection"FlueLiner
Installation.")
4) Slide the unit half way into the fireplace.
5) Pull the vent connector plate through the
taperedbracketsandfastentothefrontplate.
Refer to section "Flue Liner Installation.")
6) Slide the unit fully into the fireplace.
7) Test gas pressure (Refer to section "Gas
Pipe Pressure Testing"). Check aeration
system(Refertosection"GasInsertAeration
System").
8) Installstandardandoptionalfeatures. Refer
to the following sections:
a. Log Set
b. Faceplate & Door Trim
c. Inner Stainless Panels
9) Finalcheck:Beforeleavingthisunitwiththe
customer, theinstallermust ensure thatthe
appliance is firing correctly. This includes:
a) Clocking the appliance to ensure the
correct firing rate.
b) Adjusting the primary air and restrictor
settings, if required, to ensure that the
flame does not carbon.
NOTE:
TO BE INSTALLED ONA
NON- COMBUSTIBLE FLOOR.

6Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
Mantel Clearances
Note: A non-combustible mantel may be
installedatalowerheightifthefram-
ing is made of metal studs covered
with a non-combustible board.
CLEARANCES TO
COMBUSTIBLES
Minimum Clearances to Combustibles
From Unit
Sides A10" / 255mm
Ceiling B47.5" / 1205mm
Mantel C13" / 330mm
Max. Mantle Depth E 12" / 305mm
(see Dia. 2)
Min. Alcove Width F48" / 1220 mm
Max. Alcove Depth G 36" / 915 mm
*No hearth required.
GAS CONNECTION
GAS CONNECTION WARNING:
Only persons licensed to work
with gas piping may make the
necessary gas connections
to this appliance.
1) If the appliance is to be installed into an
existing chimney system, thoroughly clean
the masonry fireplace.
2) The appliance is provided with an opening
on the right hand side of the control
compartment. The 9.5mm (3/8") flexible
gas hose provided needs to be brought in
from behind this opening. Ensure all gas
connections are tight.
3) Locate the center point where the vent
will pass through the chimney above the
appliance. Move the appliance into the
exact location where it is to be installed.
Ensure that the Insert is level.
C
L
Gas
Inlet
FLUEING
This appliance is designed to be attached to
two3"(76mm) co-linear aluminiumflex running
the full length of the chimney. The flue length
must be a minimum length of 8 ' (2.44m) and
a maximum of 35' (10.7m). See chart below for
minimumdistancesfromroof.Periodicallycheck
that the vent is unrestricted.
Masonry chimneys may take various contours
which the flexible liner will accommodate.
However,keeptheflexiblelinerasstraightas
possible, avoid unnecessary bending.
TheAirIntakepipemust beattachedtotheinlet
air collar of the termination cap.
Part # Description
948-305 76mm Flex - 10.6m
46dva-gk Simpson Duravent Adaptor
46dva-vch Simpson Vertical high wind cap
MINIMUM FIREPLACE
DIMENSIONS
The minimum fireplace dimensions for the
Regency gas space heater are shown in the
following diagrams:
THE APPLIANCE MUST NOT
BE CONNECTED TO A
CHIMNEY FLUE SERVING A
SEPARATE SOLID FUEL
BURNING APPLIANCE AND
MUST BE TERMINATED TO
THE OUTDOORS.
Note: When installing the flueing, identify
the flues.
Mark one exhaust and one intake as
indicated on the top of the unit.

7
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 1/2 psig.
(3.45 kPa). Disconnect piping from valve at
pressures over 3.45 kPa (14" w.c.).
The manifold pressure is controlled by a
regulatorbuilt intothe gas control, and should
be checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
shouldbecheckedusingthevalve
pressure ports on the valve.
1) Make sure the valve is in the "OFF"
position.
2) Loosen the "IN" (# 3) and/or "OUT" (# 4)
pressure tap(s), turning counterclockwise
with a 1/8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" (8mm) ID
hose.
4) Seal and or check the pilot outlet (# 8)
5) Thepressurecheck should becarriedout
withtheunitburningandthesettingshould
bewithin thelimits specifiedon thesafety
label.
6) When finished reading manometer, turn
offthegasvalve,disconnectthehoseand
tighten the screw (clockwise) with a 1/8"
flat screwdriver. Screw should be snug,
but do not over tighten.
S.I.T. Valve Description
1) On-Off Solenoid Valve EV1
2) On-Off Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) Connection for Pressure Regulator/
Combustion Chamber Compensation
6) Pressure Regulator for Minimum and
Maximum Outlet Pressure
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
10) Side Outlet
FLUE LINER
INSTALLATION
1) Cut the flex liner as required.
2) MarktheendofonelinertoindicateInlet.
3) Connect the other end of the above liner to
theinletsideoftheterminationadaptor,seal
connection with high temperature silicone.
Secure with gear clamp.
4) Connect the 2nd liner to the exhaust side
of the adaptor, seal connection with high
temperature silicone. Secure with gear
clamp.
5) Install flashing.
6) Insert both liners into chimney, passing
through the damper opening.
7) Install termination cap.
8) Connectthemarkedendofthelinertotheinlet
collaroftheventconnectorplatemarkedwith
an"I",seal connection withhightemperature
silicone. Secure with gear clamp.
The Air Intake pipe must be attached to the
inlet air collar of the termination cap.
9) Connect the 2nd liner to the exhaust collar
marked with an "E", seal connection with
hightemperaturesilicone.Securewithgear
clamp.
Be careful not to damage thermal insula-
tion when sliding on vent connector plate.
This could cause blockage.
Install to AS5601 (Australia) /
NZS 5262 (New Zealand)

8Regency IG34 Gas Inbuilt Fireplace
INSTALLATION

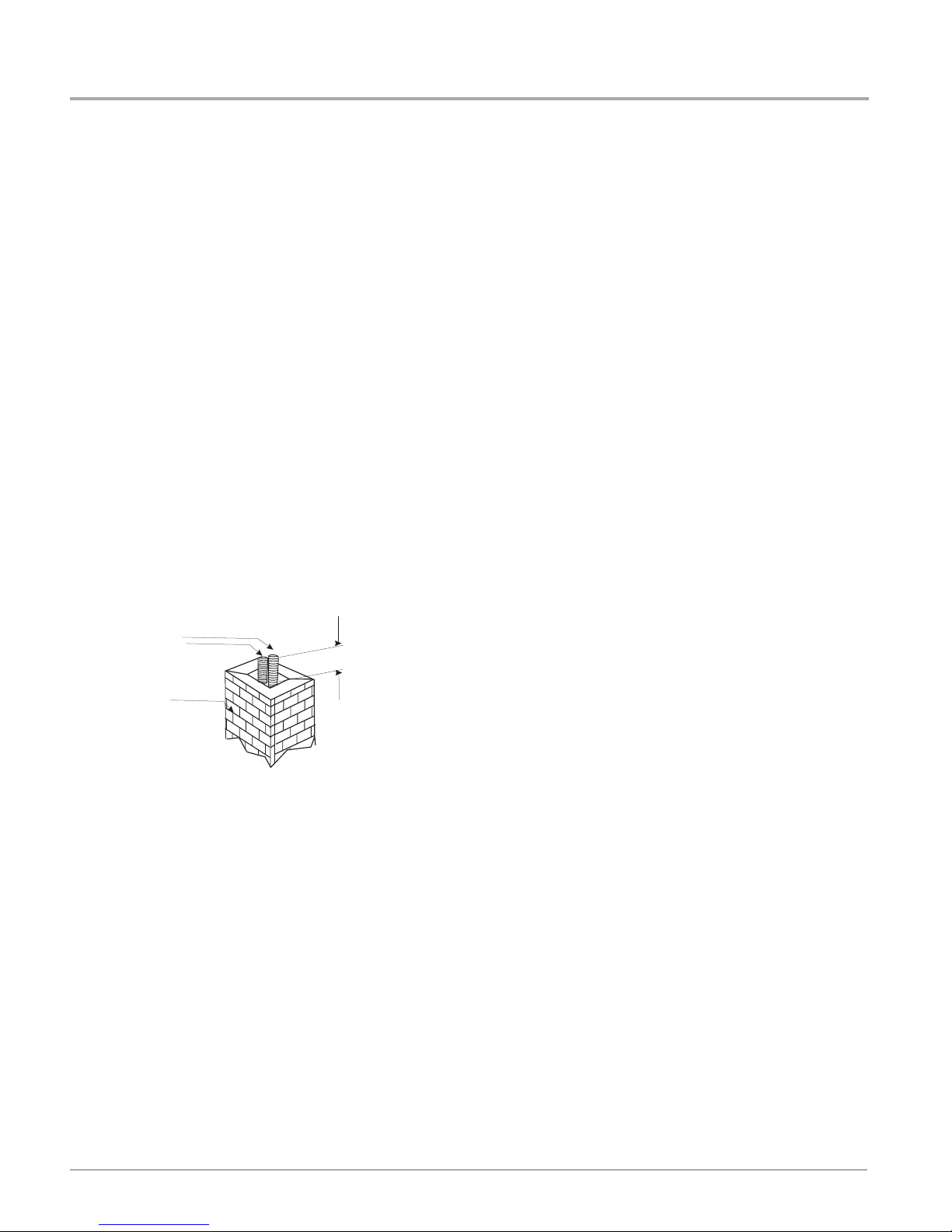

INSTALLATION IN MASONRY OR ZERO CLEARANCE CHIMNEY
1) Measure and record dimensions to determine total
Flex Liner length requirements (see instructions below
for details).
2) Carefully feed the liner down the chimney (masonry
or zero clearance) and out through the damper. One
person should feed the liner through the chimney, and
another person should pull the liner from the bottom.
3) After carefully feeding the Flex Liner down the chim-
ney to the bottom, form and angle to line up the Flex
Liner with the vent opening on the appliance.
Important: Do not let the Flex Liner sag below the level
at which it will connect to the appliance or connector.
This could allow hot gas to become trapped and poten-
tially become a fire hazard. The Flex Liner path should
always be sloped up toward the Termination Cap.
4) Temporarily secure the Flex Liner at the top of the
chimney. Be sure to leave 2-3 inches of flex above the
existing chimney to allow for connection to the Termina-
tion Kit (Baseplate and Adaptor).
5) Repeat Steps 1-4 for second length of Flex Liner.
6) At the top of the chimney, slide the Baseplate over
the tow ends of the Flex Liner and secure it to the sur-
rounding masonry using masonry anchor bolts. Before
installing the baseplate, run a bead of non-hardening
seal and between the Baseplate and the masonry to
prevent moisture from entering the chimney.
Note: Verify that there is sufficient room to mount the
Baseplate on to the masonry. You must have a level
surface in order to install the Baseplate properly.
7) Attach the Flex Liner ends at the top of the chimney
to the Co-Linear to Co-Axial Adaptor. Use four sheet
metal screws to connect each Flex Liner run to the
Adaptor.
8) Twist lock the Vertical Termination Cap to the Adap-
tor.
Note: If you are planning to extend the height of the
chimney using Direct Vent GS Pipe, please refer to the
Direct Vent Installation Instructions for information con-
cerning the proper procedure and restrictions of Direct
Vent Pipe.
Also, consult the appliance manufacturer for any height
restrictions of the chimney.
9) Connect the Co-Linear Flex to the two outlets on the
top of the appliance using four sheet metal screws each.
See the appliance manufacturer's instructions for de-
tails. Make sure the Flex Liners do not sag behind the
appliance. Finally, move the appliance into its appropri-
ate place. Mount the Adaptor to the Baseplate using
sheet metal screws.
51-76mm
Flex
Liners
Existing
Chimney

9
Regency IG34 Gas Inbuilt Fireplace
AERATION SETTINGS
The burner aeration is factory set but may need adjusting due to either the local gas supply, air supply or altitude. This adjustment is performed by
the installer. (Close the aeration for a more yellow flame, or open it to make the flame bluer).
NG: 13mm open
LPG: 13mm open
ULPG: 13mm open
Note: Any damage due to carboning resulting from improperly setting the aeration and restrictor setting controls is NOT covered
under warranty.
INSTALLATION
IG34-NG: For 0 to 610 meters altitude
IG34-LPG: For 0 to 610 meters altitude
IG34-ULPG: For 0 to 610 meters altitude
Burner Inlet Orifice Sizes:
NG LPG ULPG
Burner #37 #52 #53
Max. Input
NG 31.7 mj
LPG 30.6 mj
ULPG 26.4 mj
Min. Input
NG 21.1 mj
LPG 25.1 mj
ULPG 20.9 mj
Supply Pressure
NG 1.13 kPa
LPG 2.75 kPa
ULPG 2.75 kPa
Manifold Pressure HIGH LOW
NG 0.87 kPa 0.4kPa
LPG 2.51 kPa 1.6kPa
ULPG 2.51 kPa 1.6kPa
Electrical: 240 V. 50Hz.
Circulation: High/Off/LO speed fan,
150/89 CFM.
Log Set: Ceramic fiber, 7 per set.
Aeration Setting
NG 13mm open
LPG 13mm open
ULPG 13mm open
System Data
IG34

10 Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
Conversion Kit #486-968 for NG to LPG Model
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
C
onversion Kit 486-968 Contains:
Q
ty. Part # Description
1 904-345 Burner Orifice #51
1 918-273 Red "LPG" label
1 918-272 Label "Converted to LPG"
1 910-037 LPG Pilot Injector
1 918-823 Instruction Sheet
1
)Shut off the gas supply and unplug
the power cord.
2
)Remove the glass door, logs and
lava rock.
3
) Remove the rear log tray by remov-
ing the 2 screws. (Log tray must be
rotated to clear the burner.)
4
)Remove the grate.
5
)Remove the burner and ensure the
aeration setting is 13 mm open.
6
)Remove burner orifice with a 1/2"
wrench and discard. Use a wrench
to hold on to the elbow behind the
orifice.
Control Box
Cover
Antenna
Jumper Location
16) Remove the jumper using a plier.
7
)Reinstall new burner orifice LPG
stamped #51 and tighten.
8
)Apply the conversion label "This
unit has been converted to ULPG"
over top of the serial number decal.
12) Replace the yellow "NG" label with
the red "ULPG" label.
13) Carefully pull out the control box.
NOTE: The control box is held in
place with velcro.
14) Remove the heat shield from the
control box by removing the 2
screws.
15) Remove the control box cover by
undoing the 3 screws.
Manoeuvre through antenna.
17) Reverse steps 13, 12, 11, 6, 5, 4, 3
& 2.
Note: Aeration settings do not need
to be adjusted.
Burner
9) Pull out the pilot hood by hand.
Pilot
Hood
11) Put in the new LPG orifice with the
allen key. Then put back the pilot
hood.
Pilot
Hood
removed
10) Remove the pilot orifice with the
allen key.
Pilot
Orifice
Jumper

11
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
Installer Notice:
These instructions must be left
with the appliance.
After carrying out all adjustments, block the setting screws
with paint, taking care not to obstruct the breather orifice
of the pressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct operation of the modu-
lator it is necessary that the plastic cap (A) is returned to
its original location.
20) Turn on gas supply and plug in power cord.
21) At the end of all setting and adjustment operations, check
electrical installation and gas leaks.
22) Check operation of flame control.
23) Check for proper flame appearance and glow on logs.
C
B
A
18) Turn on gas supply and plug in power cord.
19) Adjusting the Outlet Pressure
All the adjustments must be
carried out in the following order:
Remove the modulator plastic cap (A) using needle nose
pliers.
Maximum pressure: Turn the unit ON to its highest input
rating. Screw in the nut (B) to increase the outlet pressure
and screw it out to decrease it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to maximum 2.51
kPa.
Minimum pressure: Remove one of the cables connect-
ed to the electric modulator. While holding the nut (B) with
a wrench, screw in the screw (C) to increase the pressure
and screw it out to decrease it. Use a screwdriver 6 x 1
blade.
NOTE: The outlet pressure must be set to minimum 1.6
kPa.
Cable
Electric
Modulator

12 Regency IG34 Gas Inbuilt Fireplace
Conversion Kit #486-967 for NG to ULPG
INSTALLATION
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit 486-967 Contains:
Qty. Part # Description
1 904-345 Burner Orifice #53
1 918-273 Red "ULPG" label
1 918-272 Label "Converted to ULPG"
1 910-037 LPG Pilot Injector
1 918-824 Instruction Sheet
1) Shut off the gas supply and unplug
the power cord.
2) Remove the glass door, logs and
lava rock.
3) Remove the rear log tray by remov-
ing the 2 screws. (Log tray must be
rotated to clear the burner.)
4) Remove the grate.
5) Remove the burner and ensure the
aeration setting is 13 mm open.
6) Remove burner orifice with a 1/2"
wrench and discard. Use a wrench
to hold on to the elbow behind the
orifice.
Control Box
Cover
Antenna
Jumper Location
16) Remove the jumper using a plier.
7) Reinstall new burner orifice ULPG
stamped #53 and tighten.
8) Apply the conversion label "This
unit has been converted to ULPG"
over top of the serial number decal.
12) Replace the yellow "NG" label with
the red "ULPG" label.
13) Carefully pull out the control box.
NOTE: The control box is held in
place with velcro.
14) Remove the heat shield from the
control box by removing the 2
screws.
15) Remove the control box cover by
undoing the 3 screws.
Maneuver through antenna.
17) Reverse steps 13, 12, 11, 6, 5, 4, 3
& 2.
Note: Aeration settings do not need
to be adjusted.
Burner
9) Pull out the pilot hood by hand.
Pilot
Hood
11) Put in the new LPG orifice with the
allen key. Then put back the pilot
hood.
Pilot
Hood
removed
10) Remove the pilot orifice with the
allen key.
Pilot
Orifice
Jumper

13
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
Installer Notice:
These instructions must be left
with the appliance.
After carrying out all adjustments, block the setting screw
s
with paint, taking care not to obstruct the breather orifice
of the pressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct operation of the modu-
lator it is necessary that the plastic cap (A) is returned to
its original location.
C
B
A
18) Turn on gas supply and plug in power cord.
19) Adjusting the Outlet Pressure
All the adjustments must be
carried out in the following order:
Remove the modulator plastic cap (A) using needle nose
pliers.
Maximum pressure: Turn the unit ON to its highest input
rating. Screw in the nut (B) to increase the outlet pressure
and screw it out to decrease it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to maximum 2.51
kPa.
Minimum pressure: Remove one of the cables connect-
ed to the electric modulator. While holding the nut (B) with
a wrench, screw in the screw (C) to increase the pressure
and screw it out to decrease it. Use a screwdriver 6 x 1
blade.
NOTE: The outlet pressure must be set to minimum 1.6
kPa.
Cable
Electric
Modulator
20) Turn on gas supply and plug in power cord.
21) At the end of all setting and adjustment operations, check
electrical installation and gas leaks.
22) Check operation of flame control.
23) Check for proper flame appearance and glow on logs.

14 Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
OPTIONAL STAINLESS STEEL INNER PANEL INSTALL
Before you start:
Stainless panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for
damage after installation will not receive consideration.
To protect the finish during installation and handling - cotton gloves MUST be worn at all times while handling the panels (even
when removing protective coating).
Stainless panels will discolor a little during normal operation. This is normal and should not be considered a defect.
All hand and finger marks MUST be cleaned off with a soft cloth and a stainless steel cleaner. Most stainless steel cleaners leave a
film/residue on the surface of the panels. Use an ammonia based cleaner (ie. glass cleaner) to remove this film before applying heat to
the unit. Failure to do this will result in burn stains on panels which you will be unable to remove. This is not a warranty item.
1) Remove faceplate, inner door frame and screen if
already installed. Refer to page 18 in the instruction manual.
2) Remove the glass door by undoing 2 latches - lift up and out.
Refer to page 17 in the manual for detailed instructions.
3) Remove all the logs if installed and set aside carefully.
4) Loosen the 4 screws securing the brackets that hold the existing
back and side panels in place.
5) Remove the two back brackets and screws (set aside) first, then
remove the back panel by lifting it up slightly, tilt it forward,
then lift it out.
6) Remove the two side brackets and screws (set aside) - then
remove the side panels by tilting the top in and lifting them out.
7) Orient the stainless side panels with the larger fold in the
panel facing in towards the burner and facing the back of the
firebox.
8) Secure the stainless panel with original bracket and screw - repeat
procedure on the opposite side.
9) Reinstall the (original black) back panel - secure with 2 brackets
and 2 screws (ones that were removed initially).
10) Reinstall the logs, glass door, inner door frame with screen
and finally the faceplate. See manual for detailed instructions.
Final installation of optional stainless panels.
Larger fold in the
metal.

15
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
LOG SET INSTALLATION
Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until
they are replaced. Broken logs can interfere with the pilot operation.
The gas log kit contains the following:
a) 02-43 Rear Log
b) 02-45 Front Right Log
c) 02-56 Middle Left Log
d) 02-46 Left Top Log
e) 02-47 Center Log
f) 02-48 Middle Right Log
g) 02-44 Front Left Log
h) 902-154 Embers
i) 902-153 Rockwool
j) 902-179/P Vermiculite
k) 946-669 Platinum Embers
(supplied with packaged manual)
Note: Install Optional Brick Panels prior to installing logs.
1) Carefully remove the logs from the box and unwrap
them. The logs are fragile, handle with care - do not
force into position.
2) Sprinkle the vermiculite around the firebox base. Take
some of the embers (approx. 1/3 of the bag) and
sprinkle over the vermiculite.
3) Place Rear Log A)02-43 on the two pins on the rear
log support.
Vermiculite
and embers Vermiculite
and embers
Vermiculite
and embers
Pins on Rear Log Support
4) Place Front Right Log B)02-45 on the two pins as
shown.
A)02-43
B)02-45
The "02" refer numbers (i.e. 02-43) are
molded into the rear of each log.

16 Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
Logs D)02-46 and E)02-47 in position.
6) Place the Left Top Log D)02-46 on the pin on Log
C)02-56 and on top of the cutout on Log A)02-43.
7) Place the notch in Center Log E)02-47 over Log B)02-
45 and across the cutout on Log A)02-43.
Cutout
Pin
Cutout
Notch
8) Position notch in Front Right Log F)02-48 on Log
E)02-47 and push the bottom right edge against the
bracket on the burner tray and the front edge of the
rear burner.
Notch
Bracket
D)02-46
E)02-47
F)02-48
C)02-56
A)02-43
B)02-45
A)02-43
B)02-45
E)02-47
Logs A)02-43, C)02-56, and B)02-45 in position
C)02-56
5) Place the Middle Left Log C)02-56 on the two pins as
shown.

17
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
10) Place the embers and Rockwool on the exposed front
burner tray.
9) Place Front Left Log G)02-44 onto the 2 front pins as
shown.
G)02-44
F)02-48
B)02-45
Bracket
A)02-43
Front edge of
rear burner
The bottom right edge of Log F)02-48 must sit snugly against
the bracket and the front edge of the rear burner.
Side View
11) Separate platinum embers and place on and around
the embers and rockwool on the burner tray. Avoid
stacking platinum embers.
12) Test fire to ensure proper light off (make sure flame
flows smoothly from one end of burner to the other. If
there is any flame hesitation, check that area for any
blockage of the burner port.
The "02" refer numbers (i.e. 02-43) are
molded into the rear of each log.
A) 02-43 D) 02-46 G) 02-48
C) 02-44 B) 02-56 F) 02-47 E) 02-45

18 Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
GLASS DOOR INSTALLATION
STANDARD FLUSH DOOR
The standard flush door comes with a black frame. To install the frame
and glass door, simply hook the top door flange onto the top of the unit
and swing the door towards the unit, diagram 1. Be careful that the glass
gasket does not roll up; there must be a gap between the gasket and the
door lip to ensure that the door sits securely on the unit. See Diagram 2.
Use the hook to pull the spring out until you can put the hook
into the slot on the bottom door bracket. Repeat for 2nd spring.
See diagram 3.
To remove the flush door, reverse the above steps.
To remove the flush door, reverse the above steps.
Diagram 2
Diagram 1
Diagram 3

19
Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
SCREEN INSTALLATION
Plinth Trim Option:
Plinth Trim Kits are an option that can be used to finish off the installation when the bottom of the fireplace is higher than the hearth or to raise t
h
fireplace.
1) Lay the faceplate side panels flat, face down on something soft so they don't scratch.
2) Attach the Plinth Trim to the bottom of the faceplate side panels with the screws provided.
3) Install faceplate on unit - see next page.
1) Lay the faceplate panels flat, face down on something soft so they don't scratch.
2) Take the top faceplate and align the holes in it with the holes in the side panels.
Secure with provided nuts and bolts.
3) Install faceplate on unit - see next page.
1) Hook the screen over the top of the door frame - lower until
screen is flush with the door frame. 2) Flip door frame and screen over - locate the bracket tab at
the bottom of the door frame - fold the tab over 90º to secure
the screen in place.
3) Install screen and door frame on to unit - follow directions
on next page.
IG34 Faceplate Assembly / Plinth
1 336-914 Faceplate / Trim Kit
1 366-942 Plinth Kit (optional)
1 336-016 Mesh Screen Door
1 336-072F Mesh Bottom Screen
6 904-576 #8 Phillips pan head screws
1 336-012 Bottom Door

20 Regency IG34 Gas Inbuilt Fireplace
INSTALLATION
Back of Faceplate
Back of Touch
Pad
Jack
Back of Faceplate
Bracket
Thermodisc

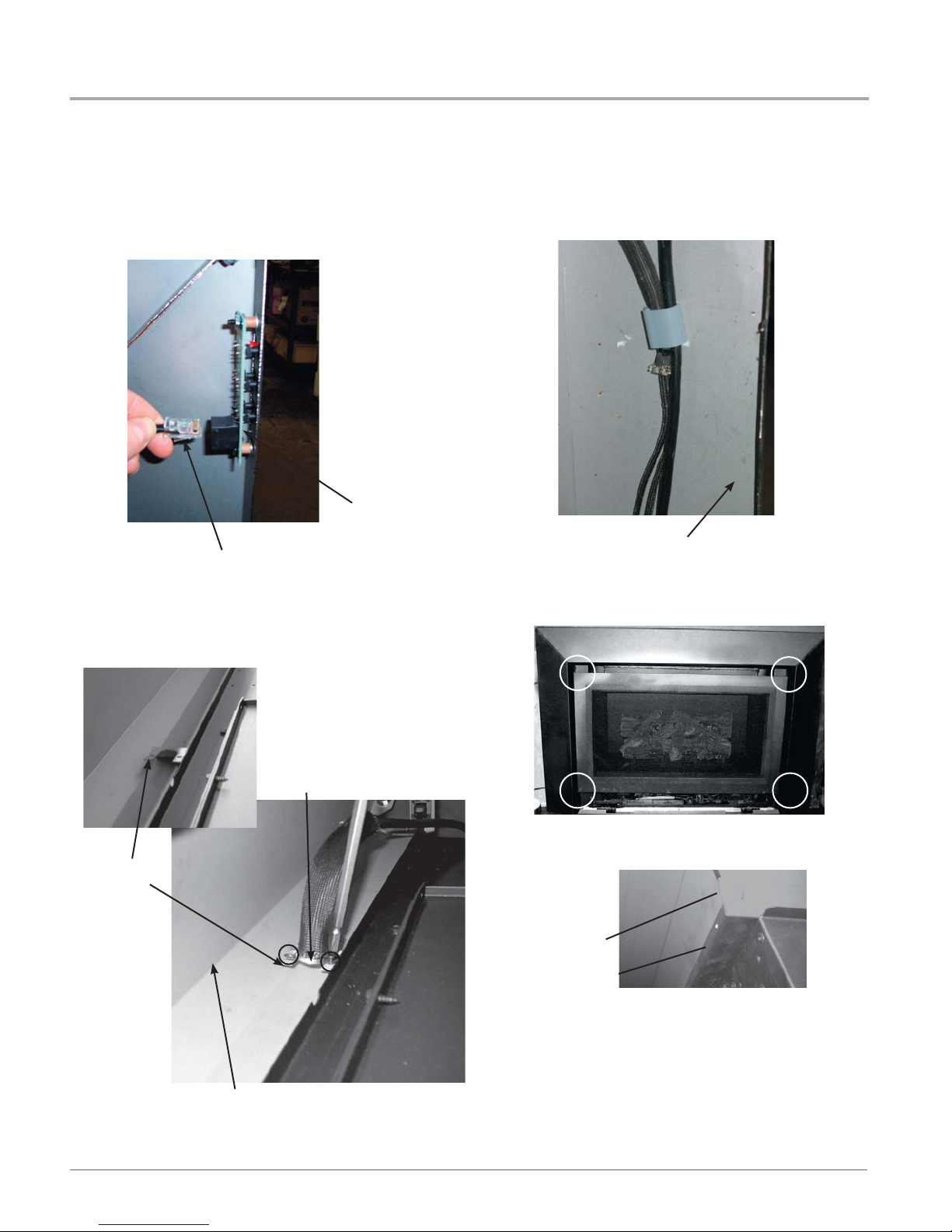

1) Position faceplate near the unit and plug the jack from the wiring
harness from the unit into the back of the touch pad - as shown
below.
3) Secure wiring along the vertical right side of the faceplate (facing
the back of the faceplate) with supplied grey adhesive clips.
2) Take the limit switch harness from the unit and slide the thermodisc
into the bracket located on the top backside of the faceplate. Se-
cure with 2 screws as shown below.
Note: Ensure that the flanges on the sides of the firebox
are on the outside, when installing the faceplate
(see below).
Faceplate
Flange on firebox
4) Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
THERMODISC & FACEPLATE/DOORFRAME INSTALLATION
