Regency Ultimate™U900E
Gas Fireplace
Owners &
Installation Manual
MODELS: U900E-NG11 Natural Gas
U900E-LP11 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Certified to/Certifié pour: CSA 2.17-2017
ANSI Z21.88-2017
CSA 2.33-2017
Tested by:
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appli-
ance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Warning
Fire or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.

2| Regency Ultimate™ U900E-11 Gas Fireplace
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with
other gases unless a certified kit is used.
This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in
Canada.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Intertek as a Direct Vent Wall Furnace to the following standards: to
Vented Gas Fireplace Heaters ANSI Z21.88-2017 • CSA 2.33-2017 and Gas-fired Appliances for Use at High Altitudes CSA
2.17-2017.
This appliance may only be installed in an aftermarket permanently located, manufactured home (U.S.A only) or mobile home,
where not prohibited by local codes.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria
for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA
70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1
in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as
applicable to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Ensure that structural members are not cut or weakened during installation.

Regency Ultimate™ U900E-11 Gas Fireplace | 3
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The U900E has been designed to provide
you with all the warmth and charm of a fireplace at the flick of a switch. The model U900E has been approved by
Warnock Hersey/Intertek for both safety and efficiency. As it also bears our own mark, it promises to provide you
with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint
yourself with these instructions and the many features of your Regency® Fireplace.
ON DEMAND PILOT LIGHT (SEVEN DAY SAFETY TIMER)
Important information if using the appliance in CPI (continuous pilot mode) only
This appliance is a ProFlame 2 system fitted with the “On Demand” Pilot, a safety feature which will shut down the gas valve completely
by extinguishing the pilot light in the event of a continuous full seven days of inactivity.
This only applies if the CPI (continuous pilot) switch is in the “on” position in your remote control transmitter.
Each time the main burner shuts down, manually or through the call from the thermostat, the seven day timer starts again.
The seven day inactivity timer is controlled within the circuit board. Therefore, if in CPI mode and when the pilot light is extinguished
after seven straight days of inactivity, the CPI setting on the remote control transmitter will remain in the “CPI” (continuous pilot) position.
Therefore, all that is required to relight the pilot would be to press the on/off button on the remote control transmitter from “on” to “off” and
back to “on”. Once the pilot has re-established operation will resume as normal. There is no requirement to do anything with the IPI/CPI
mode on the remote control transmitter.
If the unit never goes as long as seven full days without a call for heat, the pilot will remain lit until it is manually shut-off.
If the unit is being operated in IPI (intermittent pilot) mode, neither the above instructions nor the seven day timer will apply.
See the instructions in this manual and on the Lighting Instructions plate on the appliance to light or re-light the pilot.

4| Regency Ultimate™ U900E-11 Gas Fireplace
table of contents
On Demand Pilot Light (seven day safety timer) ............................3
Copy of Safety Decal ......................................................................5
Decal location .................................................................................5
Important Message .......................................................................7
Before You Start ..............................................................................7
General Safety Information .............................................................7
Lighting Procedure .........................................................................8
Shutdown Procedure ......................................................................8
Copy of the Lighting Plate Instructions ...........................................9

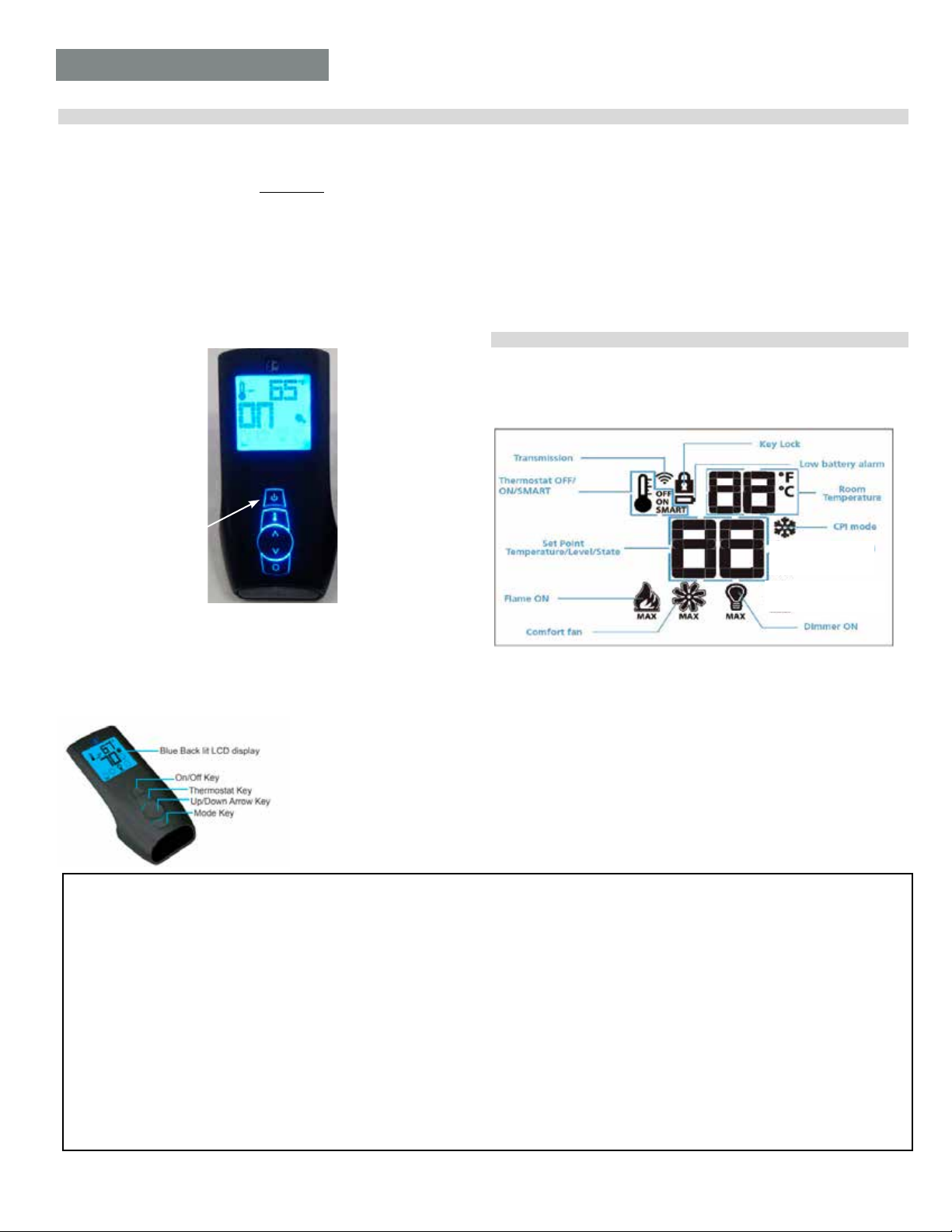

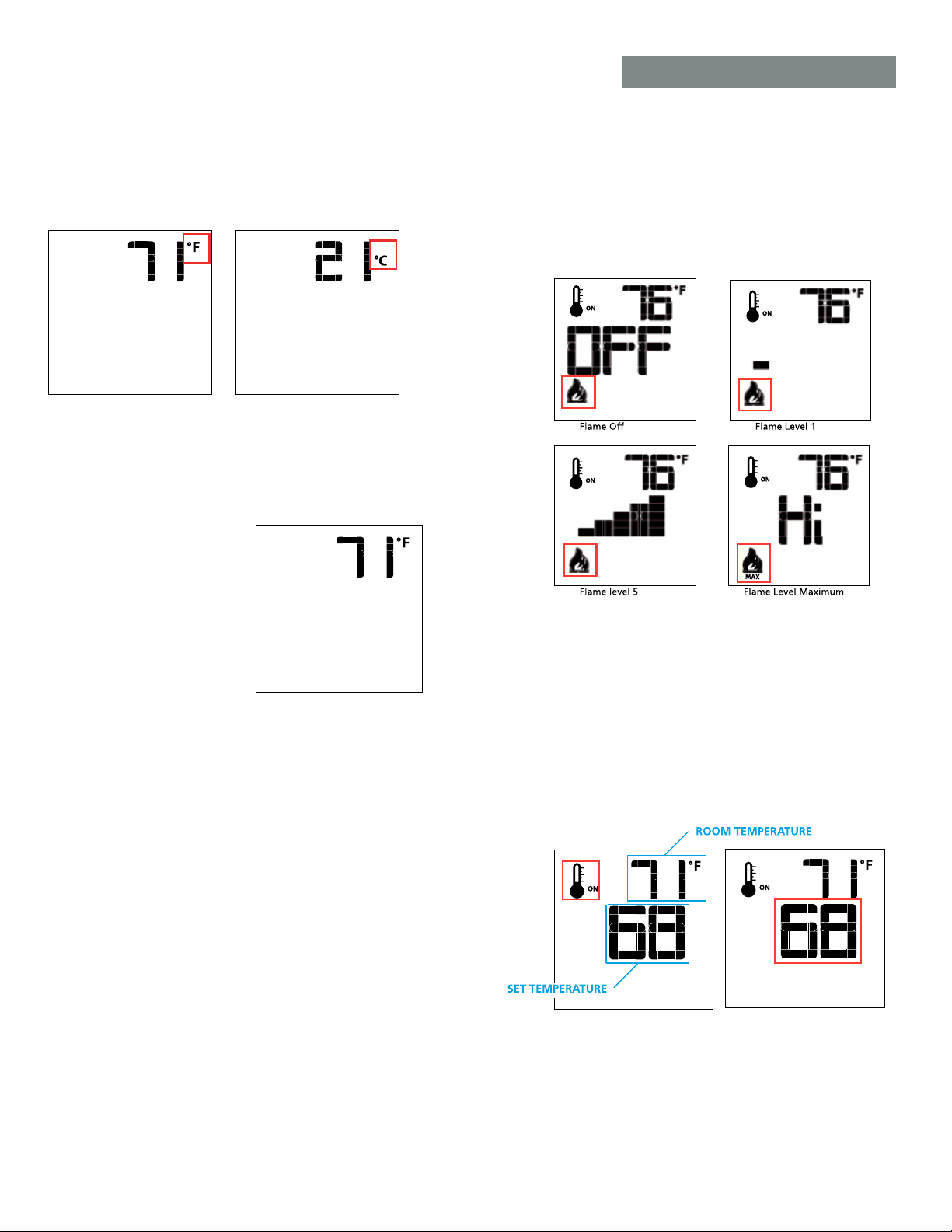

Proflame II Remote Control Operating Instructions ........................10
Installation Checklist .......................................................................14

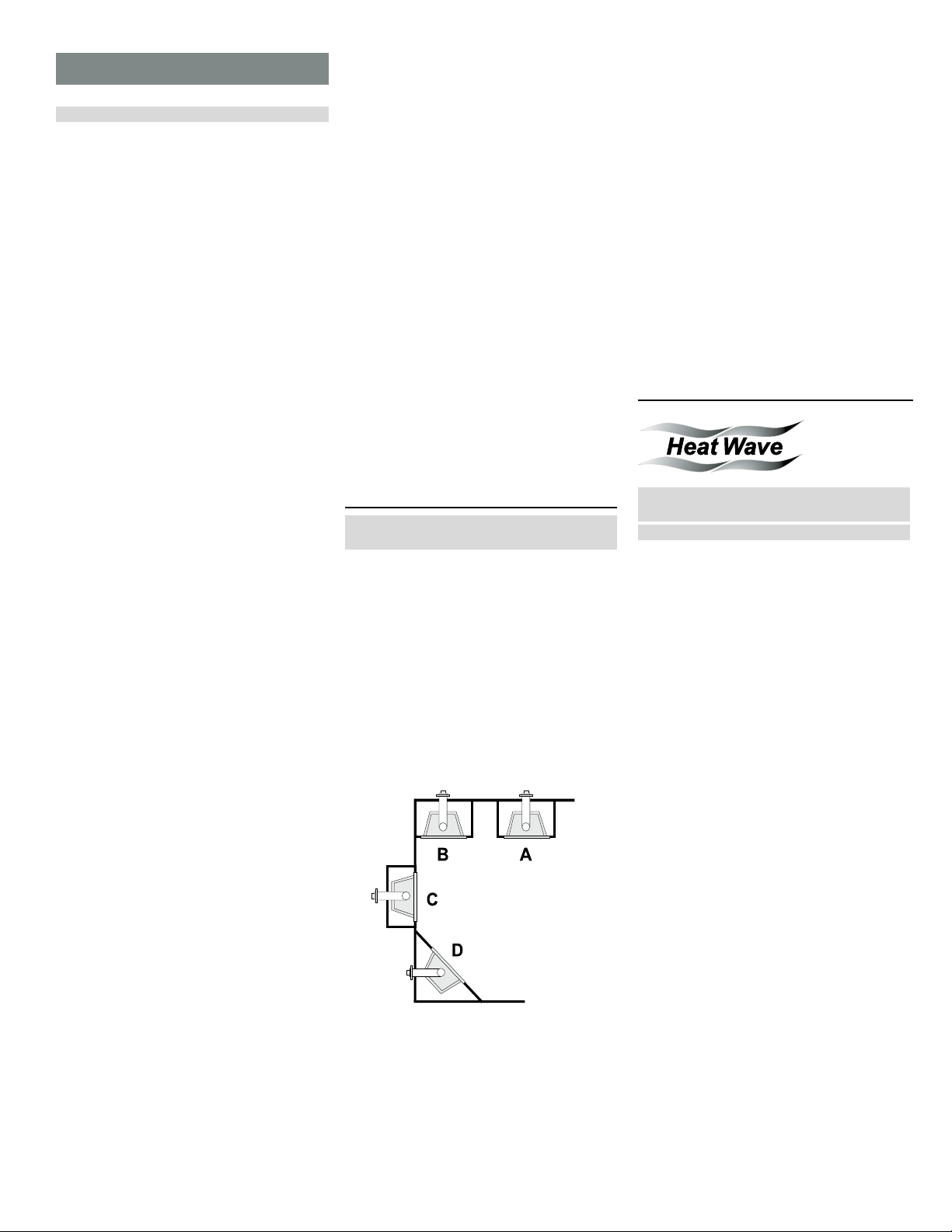

Locating Your Gas Fireplace ...........................................................14
Heatwave
Duct System .............................................................................14
MA Code - CO Detector .................................................................15
Clearances .....................................................................................16
Mantel Clearances ..........................................................................17
Mantel Leg Clearances ...................................................................17
Unit Assembly Prior To Installation .................................................18
Nailing Strips ..................................................................................18

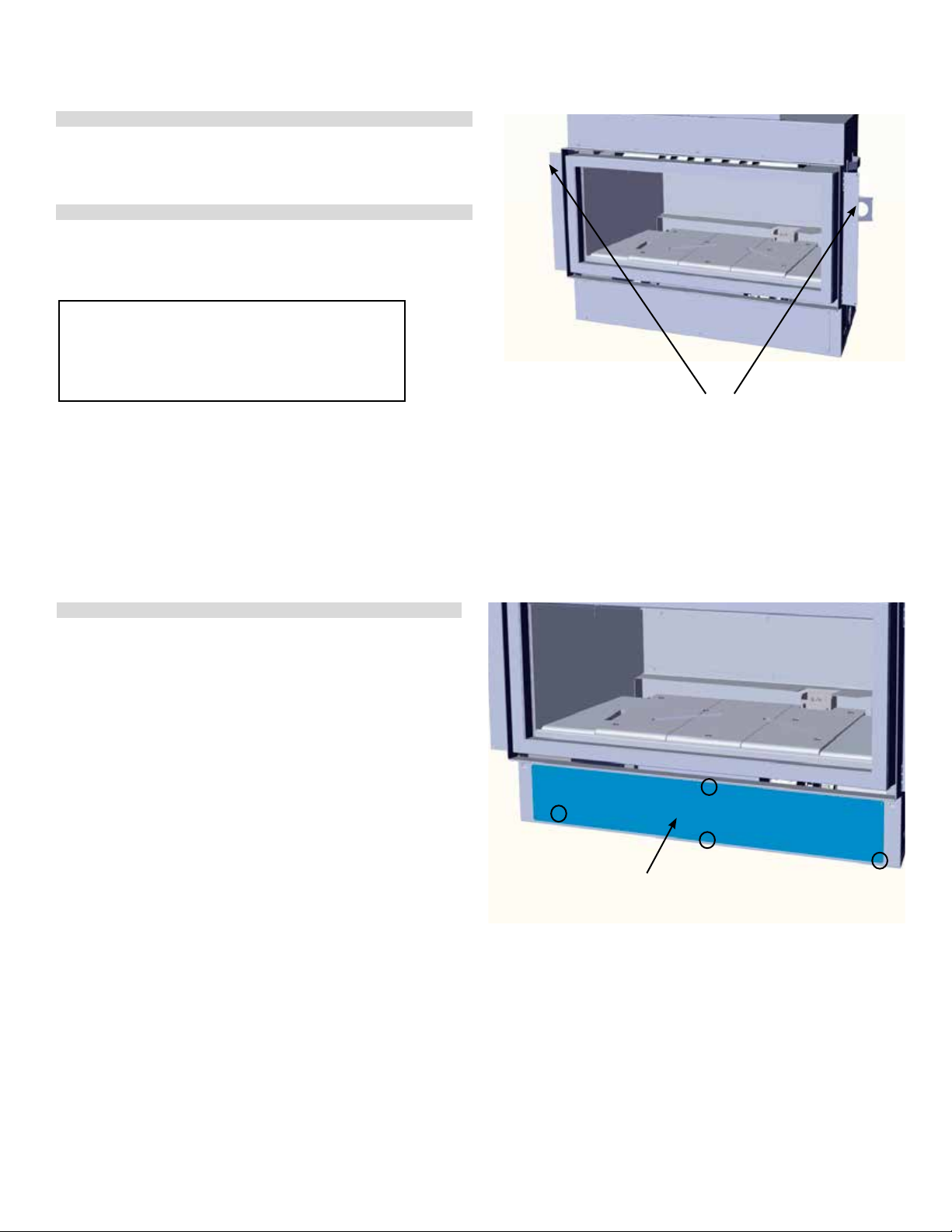

Installation Access panel ................................................................18

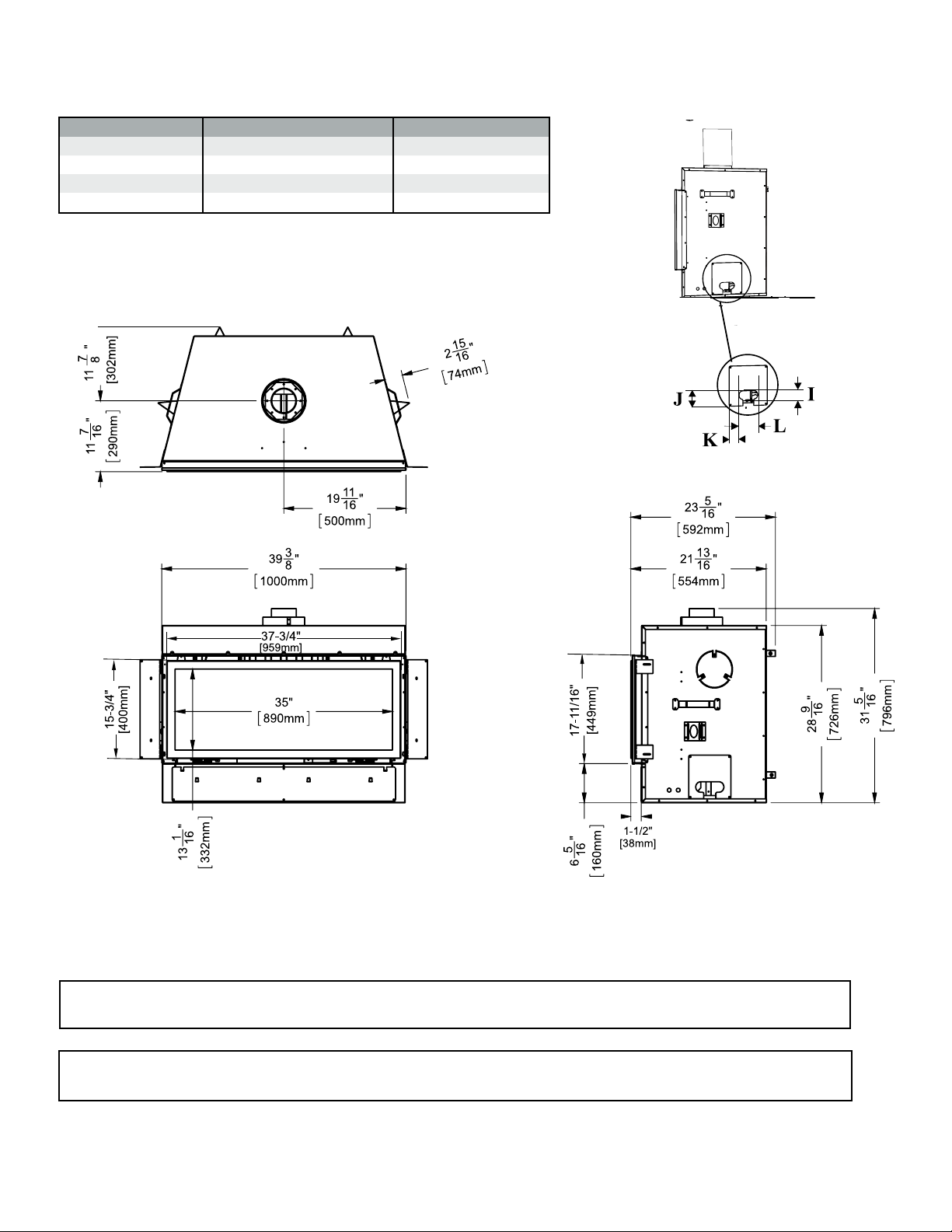

Framing Dimensions .......................................................................19
Optional Framing kit ........................................................................20
Horizontal vent deflector installation ...............................................21
Wall mount On / Off Switch and battery holder installation ............22
Non-Combustible Requirements.....................................................23
Non-combustible facing installation ...............................................23
Framing & Finishing ........................................................................24
Exterior Vent Termination Requirements ........................................26
Vent Restrictor Setting ....................................................................27
Venting ............................................................................................28
Direct Vent System (Flex) .............................................................28
4” x 6-5/8” Rigid Pipe .....................................................................29
Cross Reference Chart only ...........................................................29
Rigid Pipe Venting Systems ............................................................31
Venting Introduction ........................................................................32
Venting Arrangement for Horizontal Terminations ..........................32
Venting Arrangement for Vertical Terminations ...............................33
Vertical Termination -Co-linear Flex System ..................................36
Venting Arrangements - Vertical Termination ..................................37
with Co-linear Flex System for both ................................................37
Residential & Manufactured Homes into Masonry Fireplaces ........37
Unit Installation with Horizontal Termination ..................................38
4" x 6-5/8" venting ..........................................................................38
owner's information
installer's information
Unit Installation with Horizontal Termination ..................................39
Dura-Vent Horizontal terminations ..................................................40
unit installation with Vertical Termination ........................................41
4" x 6-5/8" venting ..........................................................................41
Vertical flue extension kit (part #946-756) ......................................43
Ceiling Firestop / firestop spacer (part #946-757) ..........................43
High Elevation .................................................................................44
Gas Line .........................................................................................44
Installation ......................................................................................44
Pilot Adjustment ..............................................................................44
Gas Pipe Pressure Testing .............................................................44
885 S.I.T. Valve ..............................................................................44
Description......................................................................................44
Aeration Adjustment .......................................................................45
Wiring Diagram ...............................................................................46
log set installation ...........................................................................47
Front trim removal / Installation ......................................................49
Inner panel removal / Installation ....................................................49
Screen & inner Door frame Installation ...........................................50
Glass surround installation .............................................................51
Optional finishing trim installation ...................................................51
Faceplate installation ......................................................................52
First Fire .........................................................................................53
Operating Instructions ....................................................................53
Coding/Pairing of remote control transmitter with on/off switch ......53
Lighting Procedure .........................................................................54
Shutdown Procedure ......................................................................54
Copy of the Lighting Plate Instructions ..........................................55
Normal Operating Sounds of Gas Appliances ................................56
Maintenance Instructions................................................................56
Glass Gasket ..................................................................................57
Glass Door ......................................................................................57
Glass Replacement ........................................................................57
General Vent Maintenance .............................................................57
Fan Service ....................................................................................58
Glass door removal.........................................................................59
Valve Tray Replacement .................................................................60
Gas Maintenance ...........................................................................61
Main Assembly ...............................................................................62
Main Assembly ...............................................................................62
Accessories ....................................................................................63
Warranty .........................................................................................66

Regency Ultimate™ U900E-11 Gas Fireplace | 5
safety decal
This is a copy of the label that accompanies each U900E-NG and U900E-LP Direct Vent Gas Fireplace. We have printed a copy of the contents here for your
review.
NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
COPY OF SAFETY DECAL
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible con-
nectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
Part #: 920-006a
Colour: Black on grey except what is indicated as being printed red.
Size: (File at 100%) 9.3"w x 6.05"h
Material: 2 ml silver matt polyester (DPM SMS)
Dec 19/18: Created draft
Jan. 24/19: Rev A - Remodeled decal + added ETL logo at the bottom
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
504
504
DOOR SEAL: Please
check that the door is
properly sealed
FPI Fireplace Products International Ltd. Delta, BC, Canada
Minimum Clearances to Combustibles /
Dégagements minimaux par rapport aux matériaux combustibles
Serial No./ No de Série
Electrical supply / Alimentation électrique 115VAC, 1.13 A, 60Hz.
Fan Part # 910-157/P
Made in Canada/ Fabriqué au Canada
Duplicate S/N
(See Instruction Manual for
detailed instructions)
(Voir manuel pour plus de détails)
APPAREIL FONCTIONNANT AU GAZ PROPANE
CONÇU POUR FOYER :
Modèle U900E-LP 11
PROPANE GAS: Model U900E-LP11
Minimum supply pressure
Manifold pressure - High
Manifold pressure - Low
Orifice size
Maximum input
Minimum input
Altitude
APPAREIL FONCTIONNANT AU GAZ NATUREL
CONÇU POUR FOYER : Modèle U900E-NG11
5.0" WC/C.E. (1.25 kPa)
3.5" WC/C.E. (0.87 kPa)
1.6" WC/C.E. (0.40 kPa)
# 35 DMS
34,000 Btu/h (9.96 kW)
23,500 Btu/h (6.89 kW)
0-4500 ft/pi (0-1372 m)
11" WC (2.73 kpa)
10" WC/C.E. (2.49 kPa)
6.4" WC/C.E. (1.60 kPa)
# 52 DMS
31,500 Btu/h (9.23kW)
25,000 Btu/h (7.33 kW)
0-4500 ft/pi (0-1372 m)
Minimum supply pressure
Manifold pressure - High
Manifold pressure - Low
Orifice size
Maximum input
Minimum input
Altitude
D
E
F
A
B
C
Side Walls / Murs latéraux
A 8” (203 mm)
Ceiling / Plafond
B 48” (1219 mm)
Min. Mantel Height / Hteur Min Manteau
C 20" (508 mm)
Max. Mantel Depth / Prof. Max Manteau
D 12” (305 mm)
Alcove Width / Largeur Alcôve
E 84" (1524 mm)
Alcove Depth / Profondeur Alcôve
F 36" (2134 mm)
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the
United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type(s) of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by
local codes. See owner's manual for details. This appliance is supplied with a conversion kit.
L'appareil doit être installé conformément aux codes et règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation National Fuel Gas Code ANSI Z223.1, ou CSA-B149.1 Natural Gas and
Propane Installation Code en vigueur.
L'appareil doit être installé conformément à la norme CAN/CSA-Z240, Série MM, Maisons mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction
and Safety Standard. Si ces normes ne sont pas applicables, veuillez vous référer à la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C
Standard for Recreational Vehicles.
Cet appareil doit être utilisé uniquement avec les types de gaz indiqués sur la plaque signalétique et peut être installé dans une maison préfabriquée (É.-U. seulement) ou mobile installée à demeure si les règlements
locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Une trousse de conversion est fournie avec cet appareil.
Cet appareil n'est pas convertible pour une utilisation avec d'autres gaz, sauf si une trousse de conversion certifiée est fournie.
For Use Only with Barrier (Part # 466-111) Follow installation instructions. Utiliser uniquement avec l’écran (n°466-111). Suivre les consignes d'installation.
Pression d'alimentation minimale
Pression de sortie (manifold) - Haute
Pression de sortie (manifold) - Basse
Taille de l’orifice
D bit calorifique maximal é
D bit calorifique minimalé
Altitude
Pression d'alimentation minimale
Pression de sortie (manifold) - Haute
Pression de sortie (manifold) - Basse
Taille de l’orifice
D bit calorifique maximalé
D bit calorifique minimalé
Altitude
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
NE PAS UTILISER AVEC UN COMBUSTIBLE SOLIDE. FOYER AU GAZ À ÉVACUATION -
o
Part No. 946-753 register kit may be used. La trousse de registre (pièce n 946-753) peut être utilisée.
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed/Nom: VENTED GAS FIREPLACE / FOYER AU GAZ À ÉVACUATION
Certified to/Certifi : é
ANSI Z21.88-2017 • CSA-2.33-2017
CSA 2.17-2017
Refer to Intertek's Directory of Building Products for detailed information.
Pour plus de détails , se reporter au Répertoire des produits de construction de Intertek.
C #: 4001172
NATURAL GAS: Model U900E-NG11
920-006a
CSA P.4.1 Fireplace Efficiency (FE) /Efficacité énergétique des foyers (EEF) CSA P.4.1
Natural Gas / Gaz naturel 68.28%
Propane Gas / Gaz propane 69.49%
CANADIAN ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ÉNERGÉTIQUE
VÉRIFIÉ
EP5011169
DECAL LOCATION
Remove outer faceplate and door (see manual for
instructions) once the Faceplate and Glass door have
been removed the rating plate will be attached to a chain.
DO NOT REMOVE DECAL FROM UNIT.

6| Regency Ultimate™ U900E-11 Gas Fireplace
dimensions
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.
Outer Faceplate size - 43-1/16" W x 25-1/4" H
Glass Surround size - 47" W x 25-1/4" H
Finishing Trim (Clean Edge Design) size - 40-1/8" W x 18-1/4" H
Steel header on edge
Reference Description Inches/Millimeters
I Gas Connection Opening Height 1-11/16" (43mm)
J Gas Connection Height 2-11/16" (67mm)
K Gas Connection Inset 1-1/8" (29mm)
L Gas Connection Opening Width 4-11/16" (119mm)
Note: Gas connection is from the right or left side of the appliance, and electrical connection is on the left side of the appliance. A
metal receptacle box is supplied/installed with the appliance to make all 120 volt electrical connections.

Regency Ultimate™ U900E-11 Gas Fireplace | 7
owner's information
4. This appliance must be connected to the
specified vent and termination cap to the outside
of the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5. Inspect the venting system annually for blockage
and any signs of deterioration.
6. Venting terminals shall not be recessed into a
wall or siding.
7. Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11. Under no circumstance should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12. Installation and any repairs to this appliance
should be done by a qualified service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15. The appliance area must be kept clear and
free of combustible materials, (gases and other
flammable vapours and liquids).
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Gas Fireplace must be installed in accordance
with these instructions. Carefully read all the
instructions in this manual first. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation. It is the responsibility
of the installer to ensure this fireplace is installed
in compliance with manufacturers instructions and
all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following: CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
GENERAL SAFETY
INFORMATION
1. The appliance installation must conform with
local codes or, in the absence of local codes, with
the current Canadian or National Gas Codes,
CAN1-B149 or ANSI Z223.1 Installation Codes.
2. The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with the
current National Electrical Code, ANSI/NFPA 70
or CSA C22.1 Canadian Electrical Code.
3. See general construction and assembly
instructions. The appliance and vent should be
enclosed.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROLCOMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHE MANUFACTURER'S BARRIER
FOR THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
AN APPLIANCE MUST BE REPLACED
PRIORTOOPERATINGTHEAPPLIANCE.

8| Regency Ultimate™ U900E-11 Gas Fireplace
owner's information
* Not offered on all models.
IMPORTANT: The remote control system supplied with this appliance has
several options for starting/operating the appliance using the battery holder
and ON/OFF key on the hand held transmitter.
Prior to operating this appliance, please read the remote control operating
instructions (packaged with remote control) to understand how to operate
this remote control system.
1. Ensure the battery holder switch is in the Remote position and / or wall
mounted battery holder (if equipped) is in the <REMOTE> position.
2. Press and release the ON/OFF button on the remote handheld transmitter
(see Diagram 1). An audible beep should be heard from the receiver. If
not using the remote, the unit can also be turned on by sliding the battery
holder switch to the <ON> position (if equipped).
Note: The first try for ignition will last approximately 60 seconds. If there is no
flame ignition (rectification) the board will stop sparking for approximately
35 seconds. After wait time , the board will start second try for ignition by
sparking for approximately 60 seconds . If there is still no positive ignition
the board will go into lock out.
The system will need to be reset as follows:
a) Turn the system off by pressing the ON/OFF button on the remote.
b) Wait 5 minutes then repeat from step 2.
SHUTDOWN PROCEDURE
1. Press the ON/OFF button on the remote
2. If service is to be performed- you must disconnect power and shut off gas
to the unit.
ON/OFF Button
Diagram 1
Remote shown in Manual Mode on Hi
3. After approximately 4 seconds the spark ignition system will spark for 60
seconds to light the pilot.
4. The unit will turn on.
LIGHTING PROCEDURE
Fan Operation: The standard fan can be operated by using the remote control
supplied with this unit. See remote control instructions.
Note: In thermostat mode: When the appliance is turned on, the fan will not
come on for the first 5 minutes (if fan is turned on). When the appliance is
turned off the fan will not turn off for 12 minutes (if in on position)
Manual mode: Fan will turn on and off immediately using the remote control
transmitter if the fan function is in the "on" position.
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
See remote control instructions for details.
*
*
*
On Demand Pilot (seven day safety timer)
Important information if using the appliance in CPI (continuous pilot mode) only
This appliance is a ProFlame 2 system fitted with the “On Demand” Pilot, a safety feature which will shut down the gas valve completely by extinguishing the
pilot light in the event of a continuous full seven days of inactivity.
This only applies if the CPI (continuous pilot) switch is in the “on” position in your remote control transmitter.
Each time the main burner shuts down, manually or through the call from the thermostat, the seven day timer starts again.
The seven day inactivity timer is controlled within the circuit board. Therefore, if in CPI mode and when the pilot light is extinguished after seven straight days
of inactivity, the CPI setting on the remote control transmitter will remain in the “CPI” (continuous pilot) position. Therefore, all that is required to relight the pilot
would be to press the on/off button on the remote control transmitter from “on” to “off” and back to “on”. Once the pilot has re-established operation will resume
as normal. There is no requirement to do anything with the IPI/CPI mode on the remote control transmitter.
If the unit never goes as long as seven full days without a call for heat, the pilot will remain lit until it is manually shut-off.
If the unit is being operated in IPI (intermittent pilot) mode, neither the above instructions nor the seven day timer will apply.
See the instructions in this manual and on the Lighting Instructions plate on the appliance to light or re-light the pilot.

Regency Ultimate™ U900E-11 Gas Fireplace | 9
owner's information
COPY OF THE LIGHTING PLATE INSTRUCTIONS
919-649
Part #: 919-649
Colours: Black on Grey, except for parts indicated as being Red.
Punch out .25" hole top right corner where indicated.
Size: 100%
w- 6.52"
h- 11.13"
Apr 05/16: Created decal
Apr. 26/16: Added Fr. Headers/warnings
w- 6.5"
h- 11"
A) This appliance is equipped with an ignition device which automatically lights the pilot.
Do not try to light the pilot by hand.
B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any phone in your building.
- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the re department.
C) Do not use this appliance if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and replace any part of the control system and any
gas control which has been underwater.
A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse.
Ne tentez pas d’allumer la veilleuse manuellement.
B) AVANT LA MISE EN MARCHE, reniez tout autour de l’appareil pour déceler une odeur de gaz. Reniez au niveau du plancher, car certains gaz
sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne tentez pas d’allumer l’appareil
• Ne touchez à aucun interrupteur; n'utilisez pas de téléphones se trouvant dans le bâtiment.
• Appelez immédiatement votre fournisseur de gaz depuis un téléphone extérieur. Suivez les instructions du fournisseur.
• Si vous ne pouvez pas rejoindre le fournisseur, appelez le service incendie.
C) N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement. Faites inspecter l’appareil par un technicien qualié et remplacez
tout élément du système de contrôle ou de commande qui a été plongé dans l’eau.
DO NOT REMOVE THIS INSTRUCTION PLATE
NE PAS ENLEVER CETTE ÉTIQUETTE D’INSTRUCTIONS
TO TURN OFF GAS APPLIANCE / POUR ÉTEINDRE UN APPAREIL AU GAZ
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or Natural Gas and Propane Installation Codes, CSA B149.1.
Cet appareil doit être installé conformément aux codes locaux, s’il y a lieu. En l’absence de tels codes, suivre le National Fuel Gas Code,
ANSI Z223.1/NFPA 54, ou les Natural Gas and Propane Installation Codes, CSA B149.1.
CAUTION: Hot while in operation. Do not touch. Severe burns may result. Due to high surface temperatures keep
children, clothing and furniture, gasoline and other liquids having ammable vapors away. Keep burner and control
compartment clean. See installation and operating instructions accompanying appliance.
ATTENTION : Surfaces chaudes lorsque l’appareil est en marche. Ne pas toucher. Risque de brûlures graves. En raison
des températures élevées, les enfants, les vêtements et le mobilier, le carburant et tout autre liquide aux vapeurs
inammables doivent être tenus éloignés de l’appareil. Nettoyer régulièrement le brûleur et le compartiment des
commandes. Voir les consignes d’installation et d’utilisation fournies avec l’appareil.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage,
personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or gas supplier.
AVERTISSEMENT : Quiconque ne respecte pas scrupuleusement les instructions de la présente notice risque de déclencher
un incendie ou une explosion pouvant entraîner des dégâts matériels ou des blessures pouvant être mortelles.
Tout défaut d'installation, de réglage, de modication, de service ou d'entretien peut entraîner des blessures ou des dom-
mages matériels. Reportez-vous au manuel d'utilisation fourni avec cet équipement. Pour obtenir de l'aide ou des informa-
tions complémentaires, consulter un installateur ou un service d'entretien qualié, ou le fournisseur de gaz.
1) Ensure the Main switch is in the ON position and/or the wall mounted battery holder (if equipped) is in the <REMOTE> position.
2) Press and release the ON/OFF button on the remote handheld transmitter. An audible beep should be heard from the receiver. If not
using the remote, the unit can also be turned on by sliding the battery holder switch to the <ON> position (if equipped).
3) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.
4) The unit will turn on.
Note: The rst attempt to ignition will last approximately 60 seconds. If there is no ame ignition (rectication) the board will stop spark-
ing for approximately 35 seconds. After this wait time, the board will start a second try for ignition by sparking for approximately 60
seconds. If there is still no positive ignition after the second attempt the board will go into lock out.
The system will need to be reset as follows (after going into lock out mode):
a) Wait 5 minutes - turn the system o󰀨 by pressing the ON/OFF button on the remote.
b) After approximately 2 seconds press the ON/OFF button again.
c) Unit will repeat step 2.
1) S’assurer que le commutateur principal est en position ON et/ou que le bloc-piles mural (le cas échéant) est en position <REMOTE>.
2) Appuyer sur la touche ON/OFF de la télécommande puis relâcher. Un bip sonore retentira depuis le récepteur. Si vous n'utilisez pas
la télécommande, l'appareil peut également être allumé en faisant glisser le commutateur du bloc-piles sur la position <ON> (le cas
échéant).
3) Après environ 4 secondes, le système d'allumage produira une étincelle pendant 60 secondes pour allumer le brûleur principal.
4) L'appareil s’allumera.
Remarque : Au premier allumage, le système tente d’allumer les ammes pendant 60 secondes. Si l’essai est infructueux, le système
fera une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectication. Ce délai écoulé, le système tente à nouveau d'allumer les
ammes en produisant des étincelles pendant 60 secondes. Si les ammes ne s’allument toujours pas, le système se met en mode ver-
rouillage.
Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) :
a) Attendre 5 minutes et éteindre l’appareil en appuyant sur la touche ON/OFF de la télécommande.
b) Attendre 2 secondes et appuyer encore une fois sur la touche ON/OFF.
c) L'appareil répètera l'étape 2.
1) Press the ON/OFF button on the remote.
2) If service is to be performed–you must disconnect power and shut off gas to the unit.
1) Appuyer sur la touche ON/OFF de la télécommande.
2) Lors de l'entretien de l'appareil, vous devez débrancher l'alimentation électrique et couper le gaz alimentant l'appareil.
LIGHTING INSTRUCTIONS / CONSIGNES D’ALLUMAGE
FOR YOUR SAFETY READ BEFORE LIGHTING
POUR VOTRE SÉCURITÉ – À LIRE AVANT LA MISE EN MARCHE

10 | Regency Ultimate™ U900E-11 Gas Fireplace
owner's information
PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS
Figure 2: Transmitter LCD Display
OPERATING PROCEDURE
Initializing the System for the First Time
Power the receiver. Press the PRG button located on the top right hand
corner of receiver. The receiver will beep three times to indicate that it
is ready to synchronize with a transmitter. Install the 3 AAA type batter-
ies in the transmitter battery bay, located on the base of the transmitter
(fig. 3). With the batteries already installed in the transmitter, opush
the ON button. The receiver's command is accepted and sets to the
particular code of that transmitter. The system is now initialized.
(*) The receiver may be independent or integral jto the IFC hearth appli-
ance control module. The receiver instruction may not be independent
when part of the IFC.
Figure 3: Battery Compartment
WARNING: THE TRANSMITTER AND IFC ARE RADIO FRE-
QUENCY DEVICES.
The Proflame 2 Transmitter provides for controlling the following hearth
appliance functions:
1. Main Burner On/Off
2. Main Burner flame modulation (6 levels)
3. Choice of standing or intermittent pilot (CPI/IPI)
4. Thermostat and Smart thermostat functions
5. Accent light modulation (6 levels)**
6. Split flow valve**
7. Comfort Fan speed modulation (6 levels)**
** This feature is not available on any Hampton models.
IMPORTANT:The Proflame Transmitter 2 is an integrated part of the
Proflame 2 System, which consists of these elements:
• Proflame 2 Transmitter, to be used in conjunction with:
• Integrated Fireplaces Control (Proflame 2 IFC)
The Proflame Transmitter uses a streamline design with a simple button
layout and informative LCD display (Fig. 1). A Mode Key is provided to
index between the features and a Thermostat Key is used to turn on/off
or index through Thermostat functions (Fig. 1 & 2). Additionally, a Key
Lock feature is provided (Fig. 22).
TECHNICAL DATA
REMOTE CONTROL
Supply Voltage 4.5V (three 1.5V AAA batteries)
Ambient temperature
ratings
0 - 50oC (32 - 122oF)
Radio Frequency 315 MHZ
ATTENTION!
- Turn “OFF” the main gas supply of the appliance during installation or
maintenance of the IFC.
- Turn “OFF” main gas supply to the appliance prior to removing or
reinserting the batteries.
- In case of remote control malfunction, turn off the IFC device using
the "ON/OFF" main switch.
- For installation / maintenance, switch off the IFC device removing
main power supply plug.
Figure 1: Proflame Transmitter

Regency Ultimate™ U900E-11 Gas Fireplace | 11
owner's information
Figure 4: Remote Control dis-
play in Farenheit.
Temperature indication Display
With the system in the "OFF" position, press the Thermostat Key and
the Mode Key at the same time. Look at the LCD screen on the transmit-
ter to verify that a C or F is visible to the right of the room temperature
display (Figures 4 & 5).
Figure 5: Remote Control dis-
play in Celsius.
Turn on the Appliance
With the system OFF, press the ON/
OFF Key on the Transmitter. The
Transmitter display will show some
other active Icons on the screen. At
the same time the IFC will activate
the appliance. A single “beep” from
the IFC will confirm reception of the
command.
Figure 6: Remote Control
display
Remote-Flame Control
The Proflame has six (6) flame levels. With the system on, and the
flame level at the maximum in the appliance, pressing the Down Arrow
Key once will reduce the flame height by one step until the flame is
turned off.
The Up Arrow Key will increase the flame height each time it is
pressed. If the Up Arrow Key is pressed while the system is on but the
flame is off, the flame will come on in the high position. ( Fig. 7 & 8 ) A
single “beep” will confirm reception of the command.
Fig. 7
Fig. 8
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control the comfort level in a
room.
To activate this function, press the Thermostat Key (Fig. 1). The LCD
display on the Transmitter will change to show that the room thermostat
is “ON” and the set temperature is now displayed (Fig. 9). To adjust the
set temperature, press the Up or Down Arrow Keys until the desired set
temperature is displayed on the LCD screen of the Transmitter.
Figure 9 Figure 10
Turn off the Appliance
With the system ON, press the ON/OFF Key on the Transmitter. The
Transmitter LCD display will only show the room temperature (Fig. 6).
At the same time the IFC will turn off the appliance. A single “beep”
from the IFC confirms reception of the command.

12 | Regency Ultimate™ U900E-11 Gas Fireplace
owner's information
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the flame height in accordance
to the difference between the set point temperature and the actual
room temperatures. As the room temperature gets closer to the set
point the Smart Function will modulate the flame down.
To activate this function, press the Thermostat Key (Fig. 1) until the
word "SMART" appears to the right of the temperature bulb graphic
(Fig. 11).
To adjust the set temperature, press the Up or Down Arrow Keys until
the desired set temperature is displayed on the LCD screen of the
Transmitter (Fig. 12).
Note. When Smart Thermostat is activated, manual flame height
adjustment is disabled.
Figure 12Figure 11: Smart Flame Function
Fan Speed Control**
If the appliance is equipped with a hot air circulating fan, the speed of
the fan can be controlled by the Proflame system. The fan speed can
be adjusted through six (6) speeds. To activate this function use the
Mode Key (fig.1) to index to the fan control icon (Fig. 13). Use the Up/
Down Arrow Keys (fig.1) to turn on, off or adjust the fan speed (fig. 14).
A single “beep” will confirm reception of the command.
Figure 13 Figure 14
Remote dimmer control (Light)**
The auxiliary function controls the AUX power outlet by the dimmable
light control. To activate this function use the Mode Key (fig. 1) to index
to the AUX icon (fig. 15 & 16).
The intensity of the output can be adjusted through six (6) levels. Use
the Up/Down Arrow Keys (Fig.1) adjust the output level (Fig. 16). A
single “beep” will confirm reception of the command.
Note: This function is available only with the IFC Control Module.
Figure 15 Figure 16
Split Flow control**
The secondary burner is controlled by the split Flow. To activate this
function use the Mode Key (fig. 1) to index to the SPLIT FLOW mode
icon (fig. 17 & 18).
Pressing the Up Arrow Key will activate the secondary burner. Pressing
the Down Arrow Key will turn the secondary burner off. A single “beep”
will confirm the reception of the command.
Figure 17 Figure 18

Regency Ultimate™ U900E-11 Gas Fireplace | 13
owner's information
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
Note: Power vent models do not have a Continuous
Pilot option.
With the system in "OFF" position press the Mode Key (fig. 1) to index
to the CPI mode icon (fig. 19 & 20).
Pressing the Up Arrow Key will activate the Continuous Pilot Ignition
mode (CPI). Pressing the Down Arrow Key will return to IPI. A single
“beep” will confirm the reception of the command.
Figure 19 Figure 20
KEY LOCK
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP Keys at the same
time (fig. 21).
To de-activate this function, press the MODE and UP Keys at the
same time.
Figure 21
LOW BATTERY POWER DETECTION
Transmitter
The life span of the remote control batteries depends on various fac-
tors: quality of the batteries used, the number of ignitions of the appli-
ance, the number of changes to the room thermostat set point, etc.
When the Transmitter batteries are low, a Battery Icon will appear on
the LCD display of the Transmitter (Fig. 22) before all battery power is
lost. When the batteries are replaced this Icon will disappear.
Figure 22
CPI/IPI SWITCH
This appliance comes equipped with a CPI/IPI switch. The functions of
both the CPI/IPI switch are as follows:
Continuous pilot (CPI) - A pilot that when in operation, is intended to
remain continuously ignited until it is manually interrupted.
Intermittent pilot (IPI) - A pilot that is automatically ignited when an
appliance is called on to operate and which remains continuously
ignited during each period of main burner operation. The pilot is
automatically extinguished when each main burner operating cycle is
completed. The mode of the fireplace is easily changed from an inter-
mittent pilot ignition system (IPI) to a continuous pilot ignition system
(CPI) by using remote control as noted above.
The benefits of having as CPI are as follows:
- Keeps venting primed for trouble free start-up under colder weather
conditions or inversions.
- Keeps the unit glass warm, which decreases the amount of conden-
sation on start-up
-Provides owners with flexibility to choose a traditional continuous pilot.
The primary benefit of having the IPI function is a significant savings
on fuel as the pilot will only run when there is a call for heat.
Thermostat Icon: If the thermostat icon is not present on the remote
transmitter, follow instructions noted below:
1. Remove one battery from the remote.
2. Press and hold down the Thermostat button on the remote.
3. Reinstall the battery(removed in Step 1) while still holding down
thermostat button.
4. If you see "Set" the thermostat option is now enabled. If you see
"Clr" the thermostat option is now disabled.
5. Repeat the procedure if the "Set" or "Clr" to remove or add the op-
tion back to the remote did not appear.
Enable all other functions if not present on the remote transmitter, fol-
low instructions noted below:
1. Remove one battery from remote.
2. Press and hold both the ON/OFF and MODE button at the same
time .
3. Reinstall battery removed in Step 1 while holding both buttons—
keep holding buttons, then release the MODE button only.
4. The screen will show either "Clr" or "Set" as the first option avail-
able is to disable or enable a mode.
5. "Clr" will remove a mode—use the up or down arrow while hold-
ing down ON/OFF and MODE (mode icon will disappear once
removed).
6. Use the "MODE" button to move to the next function.
7. "Set" will add a mode —use the up or down arrow while holding
down ON/OFF and MODE (mode icon will appear when added).
8. Use the "MODE" button to move to the next function.
Note: You should never program out the fan (if installed) or CPI/IPI
mode on the remote.

14 | Regency Ultimate™ U900E-11 Gas Fireplace
installer's information
This includes:
1. Clocking the appliance to ensure the correct
firing rate (rate noted on label 34,000 Btu/h
(NG), 31,500 Btu/h (LP) after burning appliance
for 15 minutes.
2. If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results in dam-
age is not the responsibility of the manufacturer.
INSTALLATION CHECKLIST
1. Locate appliance
a) Room location (Refer to "Locating Your Gas
fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantel Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2. Position nailing strips (Refer to "Unit Assembly
Prior to Installation).
3. Slide unit into place.
4. Remove installation access panel.
5. Install vent (Refer to "Venting Arrangement"
sections).
6. Make gas connections (Refer to "Gas Line
Installation section).
7. Wire 120 volt AC power to the receptacle box
located on the lower left side of appliance. The
Duplex receptacle and cover are included in the
manual package.
Note:This heater requires a 120V A.C.supply
for operation of the blower.While the burner
does not require a 120V A.C.power supply,it
is highly recommended as a primary power
source. Batteries (4 AA) should be used as
a secondary power source only.
8. Install the junction box supplied with the
appliance. Install the battery box inside the
junction box and hook it to the wire marked
"receiver".
9. Install batteries into the transmitter. Batteries
should not be installed into the battery holder/
switch box if electrical connections are made
to the receptacle. They can be installed during
power outages to run the main burner.
10. See remote control instructions for operation
of this device.
11.Test the pilot (Refer to "Pilot Adjustment" section).
12. Test Gas Pressure (Refer to "Gas Pipe Pressure
Testing" section).
13. Install standard and optional features. Refer to
the following sections:
a) Log Install
b) Inner Door Frame
c) Outer Faceplate/Verona surround
d) Finishing Trim
e) Enamel panels
f) Heatwave kit
14. Plug 3 prong plug from the IFC (Intermittent
Fireplace Control) into 120 volt receptacle.
LOCATING YOUR
GAS FIREPLACE
1. When selecting a location for your fireplace,
ensure that the clearances are met.
2. The appliance must be installed on a flat, solid,
continuous surface For example a wood, metal
or concrete floor or in a raised (on the wall) ap-
plication. The appliance must be installed on a
metal or wood panel extending the full width
and depth of the appliance.
3. The U900E Direct Vent Gas Fireplace can be
installed in a recessed position or framed out
into the room as in A, B, C and D.
See Diagram 1.
Diagram 1
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
4. This appliance is Listed for bedroom installations
using the standard Remote (thermostat system).
Some areas may have further requirements,
check local codes before installation.
5. The U900E Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
6. We recommend that you plan your installation on
paper using exact measurements for clearances
and floor protection before actually installing
this appliance. Have an authorized inspector,
dealer, or installer review your plans before
installation.
Note: For vent terminations refer to "Exterior
Vent Termination Locations" section.
HEATWAVE
DUCT SYSTEM
OPTIONAL KIT #946-753
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing warm
air from the fireplace to remote locations in the same
room or other rooms in your home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be oper-
ated at one time. This includes the internal blower
option as well.
The HeatWave Duct Kit has different clearance
and framing requirements, check the HeatWave
manual for details.
15. Reinstall installation access panel.
16. Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.

Regency Ultimate™ U900E-11 Gas Fireplace | 15
requirements
installer's information
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

16 | Regency Ultimate™ U900E-11 Gas Fireplace
installation
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 20" (508mm) Top of Fireplace Opening
B: Sidewall (on one side) 8" (203mm) Side of Fireplace Opening
C: Ceiling
(room and/or alcove) 48" (1219mm) Top of Fireplace Opening
D: Mantel Depth (max.) 12" (305mm) 29" Above Fireplace Opening
E: Alcove Width 84" (2134mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: From Floor 24" (610mm) Top of Fireplace Opening
Note: 0" No hearth required
Installed close
to ceiling.
Flue Pipe Clearances to Combustibles
Horizontal - Top 3"
Horizontal - Side 2"
Horizontal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
firestop is used.
1-1/2"
Alcove
E
F
E
D
A
B
Installed Close
to Floor
G
The HeatWave Duct Kit has differ-
ent clearance and framing require-
ments, check the HeatWave manual
for details.

Regency Ultimate™ U900E-11 Gas Fireplace | 17
installation
MANTEL CLEARANCES
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
the diagram on the right.
Note: Ensure the paint that is used on the mantel and the facing
is "high quality" or the paint may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Note: A non-combustible mantel may be installed at a lower
height if the framing is made of metal studs covered with
a non-combustible board. The non-combustible mantle
when installed at a lower overall height may not be lower
than 6 inches from the top of the fireplace opening.

18 | Regency Ultimate™ U900E-11 Gas Fireplace
installation
Nailing Strips
(DO NOT REMOVE NAILING
STRIPS)
UNIT ASSEMBLY PRIOR TO INSTALLATION
The nailing strips must be correctly positioned and attached before unit
is slid into position.
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side,
these nailing strips are secured to the framing.
IMPORTANT NOTE
Framing depth measurement is noted with the nailing strips
set as far forward on the firebox as possible. The nailing
strips can be adjusted back up to 1-1/2" (38mm) to allow
for varying thicknesses in non-combustible material & wall
finishes.
INSTALLATION ACCESS PANEL
The unit is equipped with a removable access panel for pre-finish installation
of optional components - this panel is located on the lower front face.
1) Remove 4 screws to remove access panel.
2) Easier access to gas connection with panel removed.
3) Install any optional components with access panel removed.
4) Reinstall access panel with 4 screws
Note: Access panel is no longer usable once facing material installed.
Installation Access Panel

Regency Ultimate™ U900E-11 Gas Fireplace | 19
installation
FRAMING DIMENSIONS
Framing
Dimensions Description U900E
A Framing Height 42-1/4" (1073mm)
B Framing Width 45" (1143mm)
C*Framing Depth 22-3/4" (578mm)
D Minimum Height to Combustibles 52-1/4" (1327mm)
E Corner Facing Wall Depth 51-1/2" (1308mm)
F Corner Facing Wall Width 72-1/2"(1842mm)
G Vent Centerline Height 39" (991mm)
H Non-combustible facing height 20" (508mm)
* Framing depth measurement is noted with the nailing strips set as far forward on the firebox as possible.
The nailing strips can be adjusted back up to 1-1/2" (38mm) to allow for varying thicknesses in non-combustible material & wall finishes.
The non combustible board is supplied to meet the requirements for this appliance. See non combustible section in this manual for details.
Steel header on edge

20 | Regency Ultimate™ U900E-11 Gas Fireplace
installation
OPTIONAL FRAMING KIT
919-633 02.09.16
OPTIONAL FRAMING KIT
1. Construct the wood framing, ensure inside dimensions are 42-7/8" H x
44-3/8" W as shown below.
42-7/8” 44-3/8”
2. Bend both side nailing strips from the side of the appliance until
positioned as shown below.
Determine the overall combined thickness of the non-combustible board
+ finished material being used. The nailing strips can be adjusted up to
1-1/2".
Nailing Strips
3. Adjust the nailing strips by loosening 2 screws on each nailing strip -
adjust and retighten screws.
4. Attach both vertical studs (466-126) to the vertical wood studs and
secure using 6 screws (2 at bottom, 2 at top and 2 on sides) as shown.
NOTE: Ensure the flat side of the steel stud is facing the wood framing.
(466-126)
Flat side out
5. Secure horizontal steel header stud (466-128) with 2 screws per side as
per diagram.
6. Slide the unit into position. Hook up gas, venting, electrical and
conversion kit (if purchased) prior to installing the remaining steel studs.
7. Secure the upper horizontal steel stud (466-128) as shown with 2
screws per side.
8. Secure the 2 remaining large horizontal studs (466-127) with 2 screws
per side as shown.
Large stud
(466-127)
Large stud
(466-127)
Header stud
(466-128)
Horizontal
stud
(466-128)
1
U900E
