Regency F33-NG3 Quick start guide

04/08/15
F33 Freestanding Gas Stove
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the re
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorized installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other am-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
by an authorized installer, service agency or
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Owners &
Installation
Manual
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553, NZS 5262 and
have been certied by the Australian Gas
Association for installation and operation
as described in these Installation and
Operating Instructions.
Your unit should be serviced annually
by an authorised service person.
918-532e
Models:
F33-NG3
F33-LPG3

2Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
To the New Owner:
Congratulations! You are the owner of a state-of-the-art Gas Stove by Fireplace Products International
Ltd. The Regency® Gas Series of hand crafted appliances has been designed to provide you with all the
warmth and charm of a woodstove, at the ick of a switch. The models F33-NG3 and F33-LPG3 have
been approved by the Australian Gas Association for both safety and efciency. As it also bears our
own mark, it promises to provide you with economy, comfort and security for many trouble free years to
follow. Please take a moment now to acquaint yourself with these instructions and the many features of
your F33-3 Freestanding Gas Stove.

Regency®F33-3 Freestanding Gas Stove 3
TABLE OF CONTENTS
DATA BADGE
Data Badge.................................................................4
INSTALLATION
Before You Start .........................................................5
General Safety Information.........................................5
Installation Checklist ...................................................5
Pedestal Assembly .....................................................6
Clearances to Combustibles.......................................6
Leg and Bottom Shield Assembly ...............................7
Wiring .........................................................................8
Draft Hood ..................................................................8
Flueing ........................................................................8
Gas Connection ..........................................................9
Gas Pipe Pressure Testing .........................................9
Valve Description ........................................................9
Test for Flue Spillage ................................................10
Log and Ember Installation .......................................10
Safety Latch.............................................................. 11
Door Handle ............................................................. 11
Optional Remote Wall Switch ..................................12
Optional Remote Control Installation ........................12
Optional Wall Thermostat Installation .......................12
Thermostat Wire Table ............................................12
Final Check...............................................................12
OPERATING INSTRUCTIONS
Operating Instructions ..............................................13
Lighting Procedure ...................................................13
Shutdown Procedure ................................................13
Copy of the Lighting Plate Instructions .................... 14
MAINTENANCE
Normal Operating Sounds of Gas Appliances ..........15
Maintenance Instructions..........................................15
General Flue Maintenance ....................................... 16
Log Replacement .....................................................16
Gold-plated Doors ....................................................16
Glass Replacement .................................................. 16
Aeration Adjustment .................................................17
Pilot Adjustment ........................................................17
Removing Valve Assembly .......................................17
Thermopile/thermocouple Replacement...................17
Installing Valve Assembly ......................................... 18
Fan Replacement ..................................................... 19
Troubleshooting The Gas Control System................20
PARTS LIST
Main Assembly .........................................................21
Burner & Log Assembly ............................................22
Pedestal & Leg Assembly .........................................23
WARRANTY
Warranty ...................................................................26

4Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
DATA BADGE
This is a copy of the label that accompanies each Regency® F33-3
Freestanding Gas Stove. We have printed a copy of the contents here
for your review.
DATABADGE NOTE: Regency® units are constantly being improved.
Check the label on the unit and if there is a difference, the label on
the unit is the correct one.
(Australia Only)
Gas Type NG LPG NG LPG
Model I43-NG I43-LPG F33-NG F33-LPG
Gas Consumption 40mj. 39mj. 33mj. 33mj.
Manifold Pressure .85kPa 2.55kPa .80kPa 2.38kPa
Injector Size 1x#31 1x#56 1x#36 1x#52
Part #: 918-092f
Colour: Black on Grey
Size: 100%
Sept. 22/09: updated standard (removed 2000 from As4553)
Feb. 3/10: Changed distributor address
Sept. 12/12: Updated Code
Dec. 24/13: Rev. F - updated E. Aus address and formatting of code.
Electrical: 240VAC 50Hz 1.0 amp max.
Serial
Number
918-092f
Model
N2134
Regency Gas Fireplace
3.0mm 1.15mm 2.7mm 1.6mm
AS4553
227
Distributed by:
Western Australia:
To be installed by an authorised person in
accordance with installation instructions
provided with the appliance.
Air Group Australia
28 Division St
Welshpool WA 6106
Eastern Australia:
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
AGA 5810 G AGA 5613 G

Regency®F33-3 Freestanding Gas Stove 5
INSTALLATION
10) Installation and any repairs to this appliance should be done by an
authorised service person. An authorised service person should
be called to inspect this appliance annually. Make it a practice to
have all of your gas appliances checked annually.
11) Do not strike the glass door.
12) Under no circumstances should any solid fuels (wood, paper,
cardboard, coal, etc.) be used in this appliance.
13) The appliance area must be kept clear and free of combustible
materials, (gases and other ammable vapours and liquids).
IMPORTANT
SAVE THESE INSTRUCTIONS
The F33-3 Freestanding Gas Stove must be installed in accordance
with these instructions. Carefully read all the instructions in this manual
rst. Consult the "authority having jurisdiction" to determine the need
for a permit prior to starting the installation.
INSTALLATION CHECKLIST
1) Locate your appliance. Refer to the "Clearance to Combustibles"
section.
2) Assemble stove base. Refer to the "Pedestal Assembly" or "Leg
and Bottom Shield Assembly" sections.
3) Install ueing. Refer to the "Flueing" section.
4) Make gas and electrical connections. Refer to the "Gas Connec-
tion" section.
Test the pilot. Must be as per diagram in the "Pilot Adjustment"
section.
5) Test gas pressure. Refer to the "Gas Pipe Pressure Testing"
section.
6) Test for ue spillage. Refer to the "Test for Flue Spillage"
section.
7) Install logs and embers and rockwool where indicated in the "Log
and Ember Installation" section
8) Install optional features. Refer to the following sections where
applicable.
a. Optional Remote Wall Switch
b. Optional Remote Control Installation
c. Optioanl Wall Thermostat Installation
9) Final check. Refer to the "Final Check" section.
Before leaving this unit with the customer, the installer must ensure
that the appliance is ring correctly and operation fully explained to
customer.
This includes:
1) Clocking the appliance to ensure the correct ring rate (rate noted
on label) after burning appliance for 15 minutes.
BEFORE YOU START
INSTALLATION AND REPAIR SHOULD BE DONE BY AN AU-
THORISED SERVICE PERSON. THE APPLIANCE SHOULD
BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY
BY AN AUTHORISED SERVICE PERSON. MORE FREQUENT
CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT
FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERA-
TIVE THAT CONTROL COMPARTMENTS, BURNERS AND
CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE
KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THEAPPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE
AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS APPLIANCE COR-
RECTLY MAY CAUSE A SERIOUS HOUSE FIRE AND WILL
VOID YOUR WARRANTY.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY
THE FIREPLACE GLASS,AND SHOULD STAYAWAY TOAVOID
BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE APPLI-
ANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT
BE PLACED ON OR NEAR THE APPLIANCE.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with local codes or, in the
absence of local codes, with AS5601-2004 or NZS 5261
2) The appliance when installed, must be electrically grounded in
accordance with local codes, or in the absence of local codes with
the current National Electrical Code, AS 3100
3) See general construction and assembly instructions.
4) This appliance must be connected to a ue and terminate to the
outside of the building envelope. Never ue to another room or
inside a building.
5) Inspect the ue system annually for blockage and any signs of
deterioration.
6) Any safety glass removed for servicing must be replaced prior to
operating the appliance.
7) To prevent injury, do not allow anyone who is unfamiliar with the
operation to use the replace.
8) Wear gloves and safety glasses for protection while doing required
maintenance.
9) Under no circumstances should this appliance be modied. Parts
that have to be removed for servicing should be replaced prior to
operating this appliance.

6Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
PEDESTAL ASSEMBLY
1) For easier assembly, tip the stove on its back (preferably onto a
soft surface to prevent scratching).
2) Unscrew the 4 bolts in the underside of the stove. Align the holes
in the corners of the pedestal top with the corresponding holes in
the base of the stove. Use washers which are supplied with the
pedestal as shown in diagram. Reinstall bolts.
3) Push the Regency®logo into the two holes in the front bottom left
corner of the pedestal cover plate.
Note: Any paint touch up should be done prior to placing logo
on pedestal.
4) See wiring instructions below.
Diagram 1
INSTALLATION
2) If required, adjusting the primary air to ensure that the ame does
not carbon. First allow the unit to burn for 15-20 min. to stabilize.
3) Check for proper draft.
CAUTION: Any alteration to the product that causes sooting or carboning
that results in damage is not the responsibility of the manufacturer.
CLEARANCES TO COMBUSTIBLES
The clearances listed below are MINIMUM distances. Measure the
clearance to both the appliance and the chimney connector. The
farthest distance is correct if the two clearances do not coincide. For
example, if the appliance is set as indicated in one of the diagrams but
the back wall is too close, move the stove until the correct clearance
to the connector is obtained.
This appliance may be installed only with the clearances as shown
in the situations pictured. Do not combine clearances from one type
of installation with another in order to achieve closer clearances. Use
the minimum clearances shown in the diagrams.
F33-3 Clearance to Combustibles
A Side Wall to Unit 250 mm
B Back Wall to Unit 150 mm
E Side Wall to Unit 38 mm
F33-3 Reference Dimensions
C Back Wall to Flue Centerline 292 mm
D Side Wall to Flue Centerline 559 mm
F Side Wall to Flue Centerline 330 mm
Minimum ceiling height is 914 mm from top of
unit.

Regency®F33-3 Freestanding Gas Stove 7
INSTALLATION
Pedestal & Leg/Bottom Shield
Wiring Instructions
1) Disconnect the fan harness plug.
2) Disconnect the 240V power cord from the terminal block
3) Disconnect the three wires from the 3-way fan switch.
4) Install the 3-way fan switch into the Bottom Shield or Pedestal.
Note: remove dummy switch rst.
5) Install the power cord through the small hole in the rear of the
Bottom Shield or Pedestal
6) Re-connect the power cord to the terminal block.
7) Ground the power cord and mount the terminal block if required.
8) Re-connect the 3 wires back to the 3-way fan switch (the white
wire is the middle connection).
9) Connect the yellow wire from the gas valve to the Burner
2-way switch supplied with the Bottom Shield or Pedestal.
10) Connect the orange wire from the spill switch to the Burner ON/OFF
switch.
11) Re-connect the fan harness plug.
12) Secure the power cord with the supplied grommet at the back of
the Bottom Shield or Pedestal.
LEG AND BOTTOM SHIELD
ASSEMBLY
These instructions apply to the black, gold and nickel cast legs. It
will be easier to attach the legs to the stove if it is tipped on its back
(preferably on a soft surface to prevent scratching).
1) Remove the 4 bolts in the underside of the base and discard.
2) Put the bottom shield up against the bottom of the stove and
loosely install the four supplied bolts and washers into the threaded
holes in the four corners of the bottom the unit. Once the bolts are
started, slip the leg under the washer and tighten the bolts.
3) Hook up wires to Burner ON/OFF switch and valve assembly as
per wiring instructions above. See Diagram 1.
4) Level the stove by adjusting the levelling bolts in the bottom of
each leg.

8Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
DRAFT HOOD
The heater has a draft hood built into its back. It must not be altered
or obstructed, and the unit must be installed so that the draft hood is
in the same atmospheric pressure zone as the combustion air inlet
to the burner.
FLUEING
This heater is a vented appliance and must be connected to a
chimney/ue in accordance with installation codes.
For your safety this heater is equipped with a ue safety switch. This
thermally actuated switch is located within the draft hood and will detect
INSTALLATION
either a blocked chimney or backdraft condition where the chimney
ow has reversed and will react by shutting off the gas supply.
Note: The spill switch is manually resettable and comes from
the factory in the open position. Before trying to start
up the unit, make sure the red button on the spill switch
is pushed in.
FLUEING REQUIREMENTS
100mm diameter ue is required in accordance with AS5601-2004,
NZS 5261 or any relevant local building codes. For altitudes above
610m. we recommend that a minimum ue height of 3.6m is used.
WIRING
CAUTION:
Label all wires prior to disconnection
when servicing controls.
Wiring errors can cause improper and
dangerous operation.
WARNING: Electrical Grounding
Instructions
This appliance is equipped with a three
pronged (grounding) plug for your
protection against shock hazard and
should be plugged directly into a prop-
erly grounded three-prong receptacle.
Do not cut or remove the grounding
prong from this plug.
No electrical power supply is required for the
gas control to operate. However, a 240V A.C.
power supply is needed for the fan/blower
operation.
Caution: Ensure that the wires do not
touch any hot surfaces and are away
from sharp edges.

Regency®F33-3 Freestanding Gas Stove 9
INSTALLATION
SYSTEM DATA
NG LPG
Injector size # 36 # 52
Input Rating 33 mj 33 mj
Manifold Pressure 0.8 kPa 2.38 kPa
GAS PIPE PRESSURE TESTING
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut-off valve during any pressure
testing of the gas supply piping system at test pressures equal to or
less than 3.45 kPa. Disconnect piping from valve at pressures over
3.45 kPa.
The manifold pressure is controlled by a regulator built into the gas
control, and should be checked at the pressure test point.
Note: To properly check gas pressure, both inlet and manifold
pressures should be checked using the valve pressure
ports on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s), turning counter-
clockwise with a 1/8" wide at screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a
5/16" ID hose.
GAS CONNECTION
The gas connection is a 1/2 inch BSP Male thread. The gas line can
be rigid copper pipe. Pipe size to ensure correct operating pressure.
For minimum and maximum supply pressure see the System Data
table below.
Note: During any pressure testing of the gas supply piping
system that exceeds test pressures of 3.45 kPa, this ap-
pliance and its individual shut-off valve must be discon-
nected from the piping system. If test pressures equal to
or less than 3.45 kPa are used then this appliance can be
isolated from the piping system by closing its individual
manual shut-off valve, if tted, during the testing.
INSTALLATION IS TO BE CARRIED OUT
ONLY BY AN AUTHORISED PERSON
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with the unit burning
and the setting should be within the limits specied on the safety
label.
6) When nished reading manometer, turn off the gas valve, discon-
nect the hose and tighten the screw (clockwise) with a 1/8" at
screwdriver. Screw should be snug, but do not over tighten.
1) Gas on/off knob
2) Manual high/low adjustment
3) Pilot Adjustment
4) Thermocouple Connection
5) Main Operator
6) Outlet Pressure Tap
7) Inlet Pressure Tap
8) Pilot Outlet
9) Main Gas Outlet
VALVE DESCRIPTION
10) Flange Securing Screw Holes
11) Alternative TC Connection Point
12) Thermoelectric Unit
13) Additional Valve Mounting Hole

10 Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
LOG AND EMBER INSTALLATION
WARNING: Dangerous operating conditions may occur if these
logs are not positioned in their approved locations. Read the
instructions below carefully and refer to the diagrams. If logs are
broken do not use the unit until they are replaced. Broken logs
can interfere with the pilot and burner operation.
The gas log kit contains the following:
a) Front Log
b) Rear Log
c) Small Cross Logs (2)
d) Bag of embers
e) Bag of rock wool
1) Remove the logs from the box and carefully unwrap them. The logs
are fragile, handle with care. Do not force into position.
2) Place the rear deector on the rear log support pins in the back of
the unit.
3) Place the rear log into the rear of the rebox, aligning the holes on
the underside of the log with the rear log support pins and carefully
push the log down onto the pins. See diagrams 1 and 2.
4) Ensure the front deector is over front log pins. See diagram 1.
5) Place the front log in the front of the unit, aligning the holes on the
underside of the log with the log support pins in the front of the
unit. Carefully push the log down onto the pins. See diagram 1.
6) Place the cross logs on top of the larger logs aligning the holes on
the underside of the cross log with the log pins in the larger logs.
See diagrams 1 & 2. Carefully push the cross logs onto the pins.
Diagram 1
TEST FOR FLUE SPILLAGE
This heater must be properly connected to a ue system.
WARNING: Operation of this heater when not connected to a
properly installed and maintained ue system or tampering with
the ue safety shutoff system can result in carbon monoxide (CO)
poisoning and possible death.
A “spillage” test must be made before the installed unit is left with the
customer. Follow the procedure below:
1) Start all exhaust fans in the home and then close all doors and
windows in the room.
2) Light the unit and set controls to maximum.
3) After ve minutes, test that there is a “pull” on the ue by placing
a smoke match, cigarette or similar device which gives off smoke,
on the edge of the draft hood. See Diagram below.
The smoke should be drawn into the draft hood. If the smoke is still
not drawn into the draft hood, turn the unit off and check for the cause
of the lack of draft and rectify before proceeding.
Note: If the ue is blocked or has a strong reverse ow, the thermally
actuated safety switch mounted in the draft hood will automatically
shut off the gas supply in less than 10 minutes. If the heater turns
off because of this during the spillage test, check for the cause
of the lack of draft and rectify before proceeding.
To reset the thermally actuated safety switch, let the unit cool for
10 minutes, then press the red reset button on the back of the
switch. See Diagram.
INSTALLATION

Regency®F33-3 Freestanding Gas Stove 11
Note: The door must be kept closed at all times, except during
maintenance. The unit must never be operated without
the glass in the door, or with the door open.
DOOR HANDLE
Attach spring handle by rotating counter clockwise onto rod. Ensure
that the spring ts into the entire length of the rod.
SAFETY LATCH
Secure door in the closed position using the door securing bracket
and the screw provided.
Note: Door securing bracket is there
for safety.
Diagram 2
7) Distribute the embers along the mesh ember tray, but do not cover
the burner ports. (Burner ports are the little holes on the top of
the burner tube.) Pull off ember size pieces from the rock wool.
Gently place the pieces on top of the embers. See diagram 3.
Do not put the rock wool directly on the burner. Close the door
and turn the unit on as per lighting instructions. Watch the ame
to see if it ows smoothly around from one end to the other. (Use
Extreme Caution and ensure proper light off of burner.)
8) If the ame hesitates at any point, check the area of hesitation
and see if there is an ember or rock wool blocking a burner port
or ports. If so, move the obstruction and then check the ame ow
again.
Diagram 3
INSTALLATION

12 Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
OPTIONAL REMOTE WALL
SWITCH
1) Run wire through the opening in the rear of the unit. Be careful not
to damage wire.
Note: We recommend a maximum of 4.5m of wire but if you
wish to go with a longer run use the Thermostat Wire
Table.
2) Connect wire to wall switch and install into receptacle box.
Caution:
Do not wire millivolt wall switch for gas appliance to a
240V power supply.
OPTIONAL REMOTE CONTROL
INSTALLATION
Use the Optional Regency® Remote Control Kit approved for this unit.
Use of other systems may void your warranty.
The remote control kit comes with a hand held transmitter, a receiver
and a wall mounting plate.
1) Choose a convenient location on the wall to install the receiver and
the receptacle box (protection from extreme heat is very important).
Run wires from the replace to that location. Use Thermostat Wire
Table.

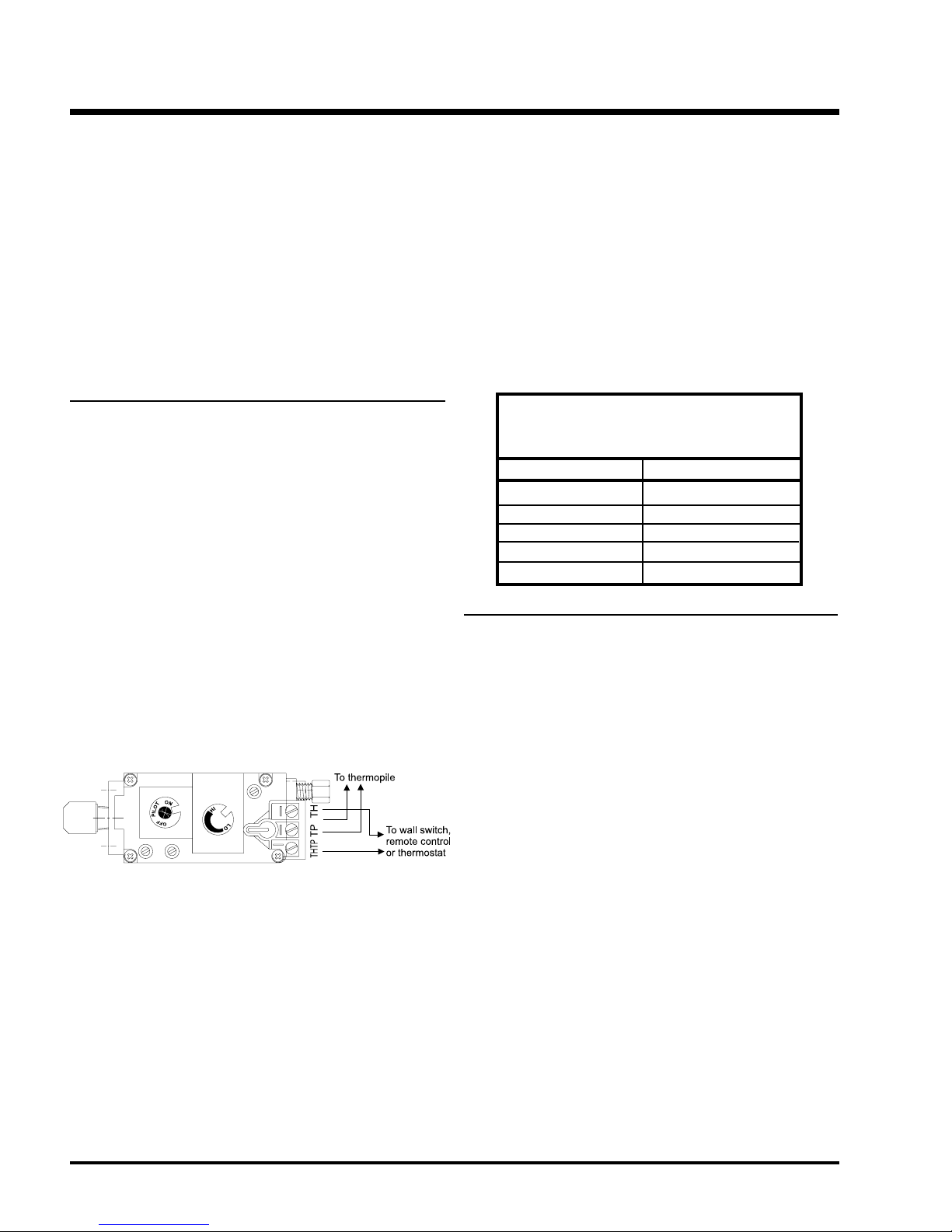

2) Connect the two wires to the gas valve. See diagram below.
3) Install a 9V alkaline battery in both receiver and the transmitter.
Install the receiver and cover in the wall. The remote control is
now ready for operation.
OPTIONAL WALL THERMOSTAT
INSTALLATION
A wall thermostat may be installed if desired.
Note: Preferable if the thermostat is installed on an interior
wall.
Use a CSA, UCL or UL approved millivolt thermostat, 250-750 millivolt
rated. A non-anticipator type thermostat must be used.
Thermostat Wire Table
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
15.24 m
9.75 m
6.10 m
3.66 m
2.71 m
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
FINAL CHECK
Before leaving this unit with the customer, the installer must ensure
that the appliance is ring correctly. This includes:
1) Checking the operating pressure (see data label)
2) If required, adjusting the primary air to ensure that the ame does
not carbon. First allow the unit to burn for 15 min. to stabilize.
3) Check for proper draft.
CAUTION: Any alteration to the product that causes sooting or
carboning that results in damage to the unit is not the responsibility
of the manufacturer and will not be covered by the warranty.
INSTALLATION

Regency®F33-3 Freestanding Gas Stove 13
SHUTDOWN PROCEDURE
1) Use the ON/OFF switch, wall switch, thermostat or remote control
to turn off the burner.
2) Push in the PILOT knob slightly and turn clockwise to off. Do not
force.
3) Turn off all electric power to the appliance if service is to be per-
formed.
OPERATING INSTRUCTIONS
LIGHTING PROCEDURE
IMPORTANT: Gas on/off knob cannot be turned from "PILOT" to
"OFF" unless it is partially depressed.
1) Turn burner OFF using "ON/OFF" switch.
2) Turn gas control knob so indicator points to "OFF" position and allow
5 minutes for any gas in the combustion chamber to escape.
3) Turn gas control knob counterclockwise so indicator points to the
"PILOT" position. Depress the gas control knob fully. Depress the
igniter button several times until the pilot lights. After approximately
one minute, release the gas control knob. The pilot ame should
continue to burn. If the pilot does not remain lit, repeat operation
allowing a longer period before releasing gas control knob.
4) When the pilot stays lit, turn the gas knob further counterclockwise
to the "ON" position.
5) Use the ON/OFF switch, wall switch, thermostat or remote control
to turn on the unit.
6) Rotate the ame height regulator (Hi/Lo) to adjust the ame height
higher or lower.
OPERATING INSTRUCTIONS
1) The FIRST FIRE in your stove is part of the paint curing process.
To ensure that the paint is properly cured, it is recommended that
you burn your replace for at least four (4) hours the rst time you
use it with the fan on. When rst operated, the unit will release an
odour caused by the curing of the paint and the burning off of any
oils remaining from manufacturing. Smoke detectors in the house
may go off at this time. Open a few windows to ventilate the room
for a couple of hours. The glass panel may require cleaning.
DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS STILL
HOT!
Note: When the glass is cold and the appliance is lit, it may cause
condensation and fog the glass. This condensation is normal
and will disappear in a few minutes as the glass heats up.
DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT
IN PLACE.
2) Read and understand these instructions before operating this
appliance.
3) Check to see that all wiring is correct and enclosed to prevent
possible shock.
4) Check to ensure there are no gas leaks.
5) Make sure the glass in the door frame is properly positioned. Never
operate the appliance with the glass removed.
6) Verify that the ueing is unobstructed.
7) Verify log placement. If the pilot cannot be seen when lighting the
unit - the logs have been incorrectly positioned.
8) The unit should never be turned off, and on again without a mini-
mum of a 60 second wait for purging.
WARNING
DO NOT SPRAY AEROSOLS IN THE
VICINITY OF THIS APPLIANCE WHILE
IT IS IN OPERATION

14 Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
COPY OF THE LIGHTING PLATE INSTRUCTIONS
OPERATING INSTRUCTIONS
         


        
 

 
         
        
   

      

   
     
     

        
 
           
 
     
    


       
 
 
   
          
        

     
     
 
          
      
       
       
        
         
       
     


        
   
 
       

Gas Inlet


If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage. Refer to the owners information manual
provided with this appliance. For assistance or additional information consult a qualified installer,
service agency or gas supplier.
     
    
 
      


  
        
        
   
 












    
    
 
    
 
         
   
             





Regency®F33-3 Freestanding Gas Stove 15
MAINTENANCE
NORMAL OPERATING SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds from your gas appliance.
This is perfectly normal due to the fact that there are various gauges
and types of steel used within your appliance. Listed below are some
examples. All are normal operating sounds and should not be con-
sidered as defects in your appliance.
Blower:
Regency® gas appliances use high tech blowers to push heated air
farther into the room. It is not unusual for the fan to make a "whirring"
sound when ON. This sound will increase or decrease in volume
depending on the setting of your fan switch.
Burner Tray:
The burner tray is positioned directly under the burner tube(s) and logs
and is made of a different gauge material from the rest of the rebox
and body. Therefore, the varying thicknesses of steel will expand and
contract at slightly different rates which can cause "ticking" and "crack-
ing" sounds. You should also be aware that as there are temperature
changes within the unit these sounds will likely re-occur. Again, this is
normal for steel reboxes.
Blower Thermodisc:
When this thermally activated switch turns ON it will create a small
"clicking" sound. This is the switch contacts closing and is normal.
Pilot Flame:
While the pilot ame is on it can make a very slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a dull clicking sound may
be audible, this is normal operation of a gas regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will expand and contract at
different rates resulting in some "cracking" and "ticking" sounds will
be heard throughout the cycling process.
MAINTENANCE INSTRUCTIONS
1) Always turn off the gas valve before cleaning. For relighting, refer
to lighting instructions. Keep the burner and control compartment
clean by brushing and vacuuming at least once a year.
When cleaning the logs, use a soft clean brush as the logs are
fragile and easily damaged.
2) Clean appliance and door with a damp cloth (never when unit is
hot). Never use an abrasive cleaner. The glass should be cleaned
with a gas replace glass cleaner (when it starts to cloud up).
3) The heater is nished in a heat resistant paint and should only be
renished with heat resistant paint. Regency® uses Stove Brite
Paint - Metallic Black #6309.
4) Make a periodic check of burner for proper position and condition.
Visually check the ame of the burner periodically, making sure
the ames are steady; not lifting or oating. If there is a problem,
call an authorised service person.
5) The appliance and ueing system must be inspected before use, and
at least annually, by an authorised eld service person, to ensure
that the ow of combustion and ventilation air is not obstructed.
During the annual service call, the burners should be removed
from the burner tray and cleaned. Replace the embers and rock
wool.
6) Each time the appliance is lit, it may cause condensation and fog
the glass. This condensation is normal and will disappear in a few
minutes as the glass heats up.
7) Caution: Label all wires prior to disconnection when servicing con-
trols. Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
WARNING:
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURES AND
SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING
IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CAUTION:
ANY SAFETY SCREEN OR GUARD REMOVED FOR
SERVICING AN APPLIANCE MUST BE REPLACED PRIOR
TO OPERATING THE APPLIANCE. DO NOT SPRAY
AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE
IN OPERATION.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD
NOT BE PLACED ON OR NEAR THE APPLIANCE.
NEVER OPERATE THE APPLIANCE WITHOUT
THE GLASS PROPERLY SECURED IN PLACE.

16 Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
GENERAL FLUE MAINTENANCE
Conduct an inspection of the ue system at least annually. Recom-
mended areas to inspect are:
1) Check areas of the Flueing System which are exposed to the ele-
ments for corrosion. These will appear as rust spots or streaks, and
in extreme cases, holes. These components should be replaced
immediately.
2) Remove the Cap, and shine a ashlight down the Flue. Remove
any birds nests, or other foreign material.
3) Check for evidence of excessive condensation, such as water
droplets forming in the liner, and subsequently dripping out the
joints, Continuous condensation can cause corrosion of caps,
pipe, and ttings. It may be caused by having excessive lateral
runs, too many elbows, or exterior portions of the system being
exposed to cold weather.
4) Inspect joints, to verify that no pipe sections or ttings have been
disturbed, and consequently loosened. Also check mechanical
supports such as Wall Straps for rigidity.
LOG REPLACEMENT
The unit should never be used with broken logs. Turn off the gas valve
and allow the unit to cool before opening door to carefully remove
the logs. The pilot light generates enough heat to burn someone. If
for any reason a log should need replacement, use only Regency®
replacement logs. The position of these logs must be as shown in the
diagram under Log Installation.
NOTE: Improper positioning of logs may create
carbon build-up and will alter the unit’s performance
which is not covered under warranty.
GOLD-PLATED DOORS
The 24 carat gold plated nish on the door requires little maintenance,
and need only be cleaned with a damp cloth. DO NOT use abrasive
materials or chemical cleaners, as they may harm the nish and void the
warranty. Clean any ngerprints off before turning the unit on.
GLASS REPLACEMENT
Your F33-3 stove is supplied with high temperature, 5 mm Neoceram
silica coated ceramic glass that will withstand the highest heat that your
unit will produce. In the event that you break your glass by impact,
purchase your replacement glass from an authorized Regency®dealer
only, and follow our step-by-step instructions for replacement.
1) Allow the stove to cool before removing or replacing glass.
2) To remove the door from the stove remove the securing screw lo-
cated between the ashlip and the door, then unfasten the latch.
3) Remove gold hinge caps from door.
4) Lift door off hinge and lay door on a soft, at surface.
5) Remove the screws in the glass retainer clips and remove the glass
retainer rod. Remove any remaining pieces of glass and ensure
that the door is free of debris. Use caution when removing broken
glass to avoid injury.
6) Install the door screen (Australia only).
7) Install the replacement glass. When placing the replacement glass
in the door, make sure that the glass gasketing will properly seal
your unit.
8) Put glass in place and then position glass retainer rod.
Note: Do not use substitute materials. If your glass does
break, do not continue to use your unit until it has been
replaced.
9) Position the glass retainer clips and door securing bracket. Secure
the glass retaining screws but do not overtighten as this may cause
the glass to break after the unit heats up.
10) Tighten all screws evenly. Do not overtighten as this may cause
breakage.
11) Slip door over hinge pins and put hinge caps back onto door. Latch
door securely using the handle and secure the security bracket
with the screw.
MAINTENANCE
NOTE: Door Screen only in Australia.

Regency®F33-3 Freestanding Gas Stove 17
REMOVING VALVE ASSEMBLY
1) Shut off gas supply.
2) If optional fan is installed, disconnect power source to stove.
3) Remove access panel.
a) Front panel on pedestal model. See diagram 1.
b) Panel from bottom of leg shield. See diagram 2.
Note: Access panel only has to be loosened to be taken out.
Diagram 1
Diagram 2
AERATION ADJUSTMENT
The burner aeration is factory set. Adjustment may be needed due to the
local gas supply or altitude. As a general rule if the ame is too yellow
open up the air shutter, if it is too blue close the air shutter.
NG 11 mm
LPG wide open
Note: This adjustment only to be made by an authorised
person.
PILOT ADJUSTMENT
Periodically check the pilot ames. Correct ame pattern has three
strong blue ames: 1 owing around the thermopile, 1 around the
thermocouple and 1 owing across the burner (it does not have
to be touching the burner).
Note: If you have an incorrect ame pattern, contact your
Regency®dealer for further instructions.
MAINTENANCE
Incorrect ame pattern will have small, probably yellow ames,
not coming into proper contact with the rear burner or thermopile
or thermocouple.
Top View of pilot ame
Top View of pilot ame
THERMOPILE/THERMOCOUPLE
REPLACEMENT
1) Loosen the thermocouple or thermopile with a 9mm spanner at
bracket.
2) Disconnect thermocouple by loosening nut from the valve with
a 9mm spanner. Disconnect thermopile by loosening 2 screws
marked TP on the valve.
3) Drop the thermocouple or thermopile down from the bracket and
pull it out of the unit.
4) Reinstall the new ones in reverse order.

18 Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
VIEW FROM BOTTOM OF THE STOVE
Front of Stove
Piezo
Ignitor
Hi/Lo
On/Off
Front Cover Screws
Thermopile
wires
Orifice assembly
mounting screws
Orifice
Thermocouple
wire
Thermocouple
nut
Gas Inlet
Gas Outlet
Valve
mounting screws
Thermodisc
Bracket Thermodisc
x
1
T-O-D
3
SA
9426
L200-40F
313717
T-O-D 60711
x
1
T-O-D
3
SA
9426
L200-40F
313717
T-O-D 60711
WARNING
240 Volts
Placement
of Decal
“Warning
240 Volts”
MAINTENANCE
4) Disconnect gas line to stove.
5) Disconnect 3/8" NPT pipe from 90o elbow on valve.
6) Disconnect the two (2) switch wires from valve.
7) Remove two (2) orice bracket screws inside rebox.
8) Remove thermodisc to bracket by removing three (3) phillips head
M5 screws.
9) Remove front cover with Piezo Igniter by removing two (2) sheet
metal screws.
10) Loosen four (4) phillips head M5 valve mounting screws from un-
derside of rebox. Push valve assembly forward on the teardrop
slots and drop down.
11) Disconnect Piezo wire.
To remove valve from valve assembly, continue.
12) Remove two (2) thermopile wires.
13) Remove thermocouple with a 9 mm (metric) spanner.
14) Remove pilot nut with an 11 mm spanner.
15) Remove valve to orice nut with a 13/16" spanner.
16) Remove inlet pipe with pipe spanner. Note orientation of 90oel-
bow.
17) Remove two (2) phillips head M5 screws on each side of the
valve.
18) Remove valve and remove gas out 90o brass tting. Note orienta-
tion of tting.
INSTALLING VALVE ASSEMBLY
1) To install a new valve assembly, reverse instructions for removing valve.
See assembly steps 1-11.
2) Check for leaks and manifold pressure. See Gas Pressure Test instruc-
tions.
3) To reinstall valve, reverse instructions for removing valve assembly, steps
12-18.

Regency®F33-3 Freestanding Gas Stove 19
View from back of stove
Strain relief
grommet
WARNING240 Volts
Turnoffpowerbeforeopening.
Placement of Decal
“Warning 240 Volts
Turn Off Power”
Wiring Diagram
Diagram 3
FAN REPLACEMENT
For Leg Unit: Remove 7 screws, remove bottom access panel and
replace fan assembly.
1) Disconnect power to fan.
2) Open pedestal door and remove door cover plate by removing 4
screws. See diagram 1.
Diagram 1
3) Remove valve cover plate by removing 2 screws.
4) Disconnect the molex plug (from inside the stove).
Note: The #8 ground lug is a dedicated ground for mobile
home use only.
5) Loosen the four 8-32 x 1/2 screws provided into the nutserts
as shown in diagram 3. NOTE: Make sure the fan is supported
as it may fall when the 4 screws are loosened.
Diagram 2: Ground Lug
6) Disconnect the 2 ground wires (green and yellow/green striped)
to the ground lug as per diagram 2.
Note: The #8 ground lug is a dedicated ground for mobile
home use only.
MAINTENANCE

20 Regency®F33-3 Freestanding Gas Stove
Regency Freestanding Gas
Note: Before troubleshooting the gas control system, be sure external gas shut off is in the "on" position.
TROUBLESHOOTING THE GAS CONTROL SYSTEM
WARNING: BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT.
POSSIBLE
PROBLEM CAUSES CORRECTIVE ACTION
TROUBLESHOOTING GUIDE
Spark igniter will not
light pilot.
Pilot will not stay lit
after carefully fol-
lowing lighting in-
structions.
Pilot burning, no gas
to burner.
Valve knob is on.
Wall switch is on.
Frequent pilot out-
age problems.
Piezo wire loose
Defective Piezo igniter.
Piezo wire grounding out.
Electrode is grounding out
and/or wrong location.
Defective thermopile.
Defective thermocouple.
Thermopile/thermocouple
grounding out.
Loose thermopile leads.
TP-THTP on valve.
Defective automatic gas
valve.
Valve wire connections are
loose.
Valve wires are defective.
Spill switch has not been
reset (B-vent F/S).
Spill switch is stuck in the
open position. (B-vent INS
- F/S).
Pilot ame may be too low
or blowing high causing the
pilot safety to drop out.
Two way switch wires may
be grounding out.
Thermopile and/or thermo-
couple may be grounding
out.
• Check for spark at electrode and pilot. If no spark, disconnect wire
at electrode and put wire to ground and try igniter again. If still no
spark follow Piezo wire to Piezo igniter to see where grounding may
be occurring.
• Bend electrode into pilot so gas may be able to contact spark.
• Check pilot ame, must impinge on thermopile and thermocouple.
• Clean and/or adjust pilot so pilot is enveloped around thermopile
and thermocouple.
• Be sure wire connections at gas valve terminals are tight and ther-
mopile and thermocouple are fully inserted into pilot bracket.
• One of the switch wires may be grounded. May be grounded to gas
appliance or gas supply.
• Check thermopile with millivolt meter. Take reading at thermopile
terminals of valve TP-TPTH. Should read 250 millivolts minimum
while holding valve knob in pilot position with pilot on and wall
switch/two way switch off.
• Replace if lower than specied minimum.
• Turn valve knob to on including pilot. Take reading at TP-TPTH with
on/off switch in the on position. Reading should be 100mv or greater.
If reading is okay and pilot does not hold, replace gas valve.
• Check two way switch/wall switch for proper connections. Jumper
wire across terminals at two way switch/wall switch. If burner comes
on, replace switch.
• If okay, jumper wire at valve at TH-THTP. If unit turns on, replace
wires and/or check where loose wires are.
• Clean and/or adjust pilot for maximum ame impingement on
thermopile and/or thermocouple.
• Trace wires from valve to two way switch/wall switch for possible
grounding against gas appliance and/or gas supply.
• Trace thermopile wires from valve to thermopile for possible
grounding against gas appliance and/or gas valve.
• Follow same steps for thermocouple.
Note: For service technicians only. See the Regency® Troubleshooting Guide for more detailed information.
(Troubleshooting Regency® Gas Products)
MAINTENANCE
ABNORMAL OPERATION
If the main burner does not light but pilot stays on shut down heater and contact your dealer
If excessive carbon on logs or glass contact your dealer
