Regency ULTIMATE U41FS-NG User manual

FIREPLACE PRODUCTS
INSTALLATION AND OPERATING INSTRUCTIONS
for the ULTIMATE
Freestanding Gas Stove
Model: U41FS-NG Natural Gas Heater
U41FS-LP Propane Heater
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with National Safety Standards,
and have been certified by Wamock frersey for
installation and operation as described in these
Installation and Operating Instructions in the
United States and Canada.
Check with your local building code agency
befpre you begin your installation to ensure
compliance with local codes, including the need
for "permits" and follow-up inspections. If any
problems are encountered regarding code
approvals, or if you wish clarification of any of
the instructions contained here, contact your
local dealer.
Your unit should be serviced annu^ly by a
qualified service person.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information consult a qualified installer,
service agency-o^the gas supplier,.
FOR YOUR SAFETY 4 '
Do hot store or use gasoline or ofher flammable
vapors and liquids in the vicinity of this or any other
appliance.
FOR YOlfR SAFETY
What to do if you smell gas:
1) Open windows.
2) Turn off main gas supply
3) Do not touch any electrical switch.
4) Extinguish any open flames.
5) Immediately call your gas supplier or
fire department from a neighbour's
phone.
Regency Industries Ltd. * t r
7830 Vantage Way, Delta, B.C.
Canada, V4G1A7
Tested by Warnock Hersey:
Wamock Hersey
908-360
09/09/94

REGENCY
ULTIMATE Freestanding Gas Stove

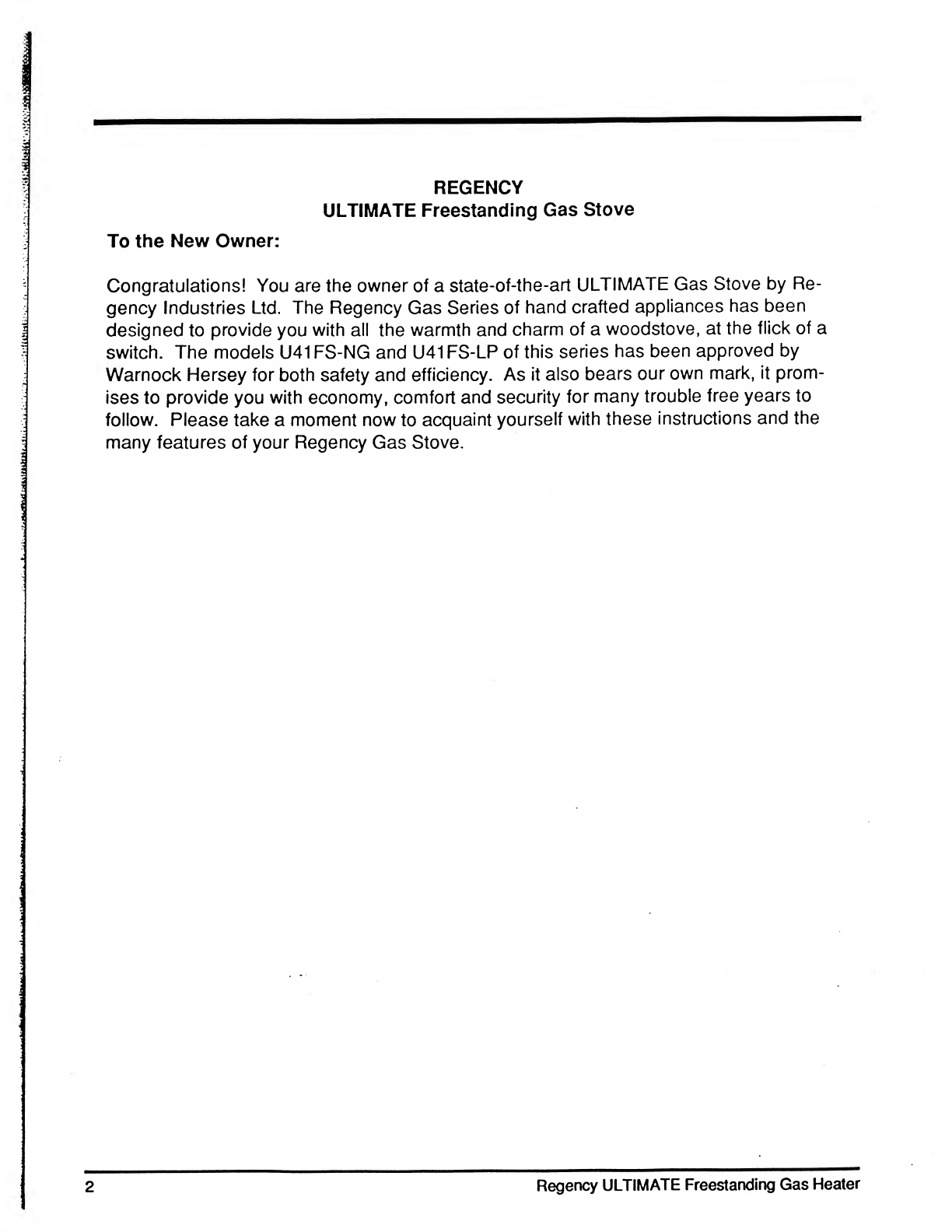

To the New Owner:
Congratulations! You are the owner of a state-of-the-art ULTIMATE Gas Stove by Re¬
gency Industries Ltd. The Regency Gas Series of hand crafted appliances has been
designed to provide you with all the warmth and charm of a woodstove, at the flick of a
switch. The models U41FS-NG and U41FS-LP of this series has been approved by
Warnock Hersey for both safety and efficiency. As it also bears our own mark, it prom¬
ises to provide you with economy, comfort and security for many trouble free years to
follow. Please take a moment now to acquaint yourself with these instructions and the
many features of your Regency Gas Stove.
2
Regency ULTIMATE Freestanding Gas Heater

TABLE OF CONTENTS
Page Page
Safety Label
Operating Instructions
Safety Label
4
Operating Instructions
13
Installation
Lighting Instructions
13
General Installation Information
5
Shutdown Instructions
13
Specifications
5
First Fire
13
Minimum Clearances to Combustibles
6
Copy of Lighting Plate Instructions
14
Optional Outside Air
6
Convection Fan
15
- Outside Air through Bottom of Pedestal
6
- Outside Air through Rear of Pedestal
6
Draft Hood
7
Maintenance
Venting
7
Maintenance Instructions
15
- Venting Requirements
7
16
- Common Venting
- Installation into Existing Woodstove
7
Log Replacement
16
Flue System
7
Gold Plated Doors
Gas Connection
8
Door and Glass Gasket
16
High Elevation
8
Glass Replacement
16
Log Installation
8

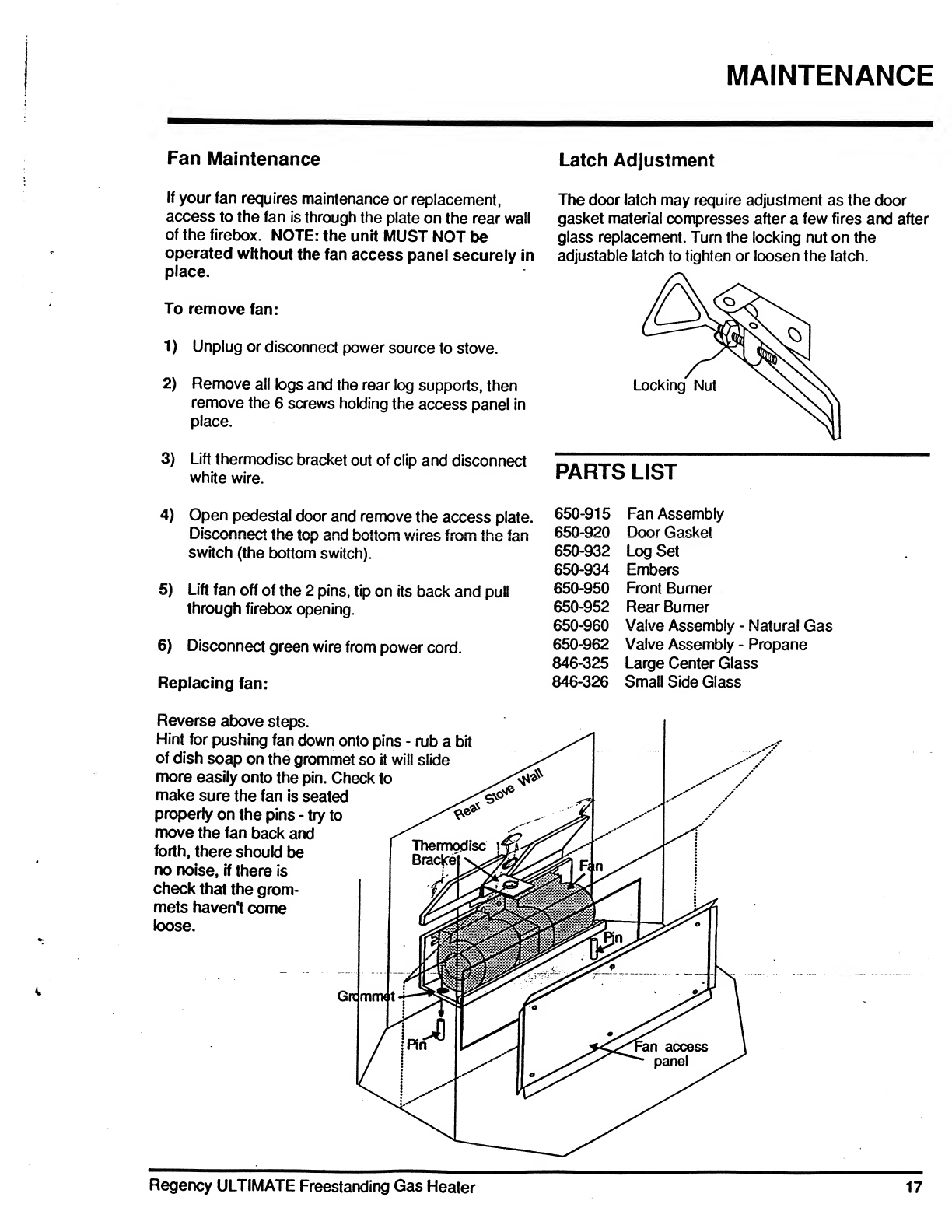

Fan Maintenance
17

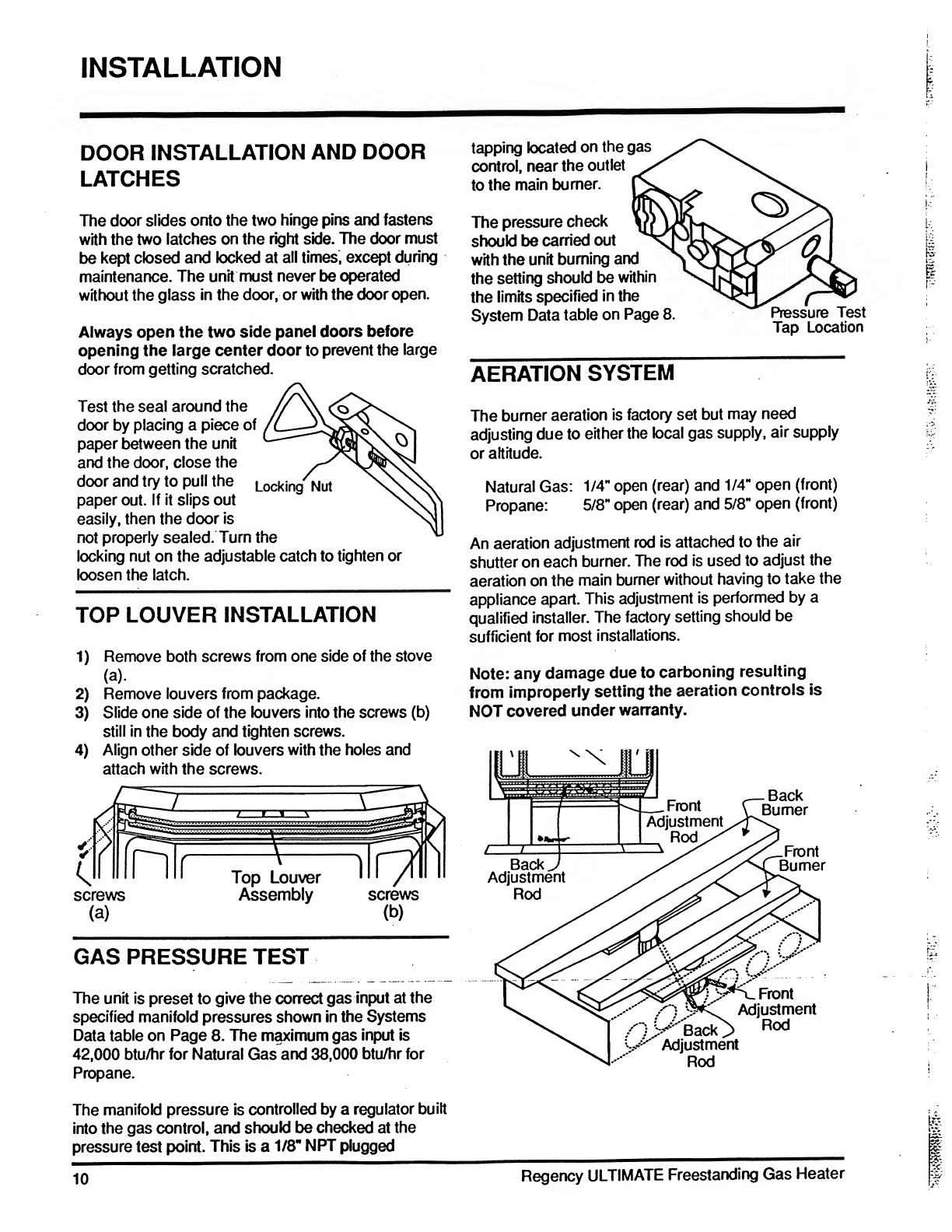

Door Installation and Door Latch
10
Latch Adjustment
17
Top Louver Installation
10
Parts List
17
Gas Pressure Test
10
10
Warranty
19
Aeration Adjustment
Warranty
Test for Flue Spillage
11
Optional Remote Control Installation
11
Optional Wall Thermostat
11
Wiring Diagram
12
Regency ULTIMATE Freestanding Gas Heater
3

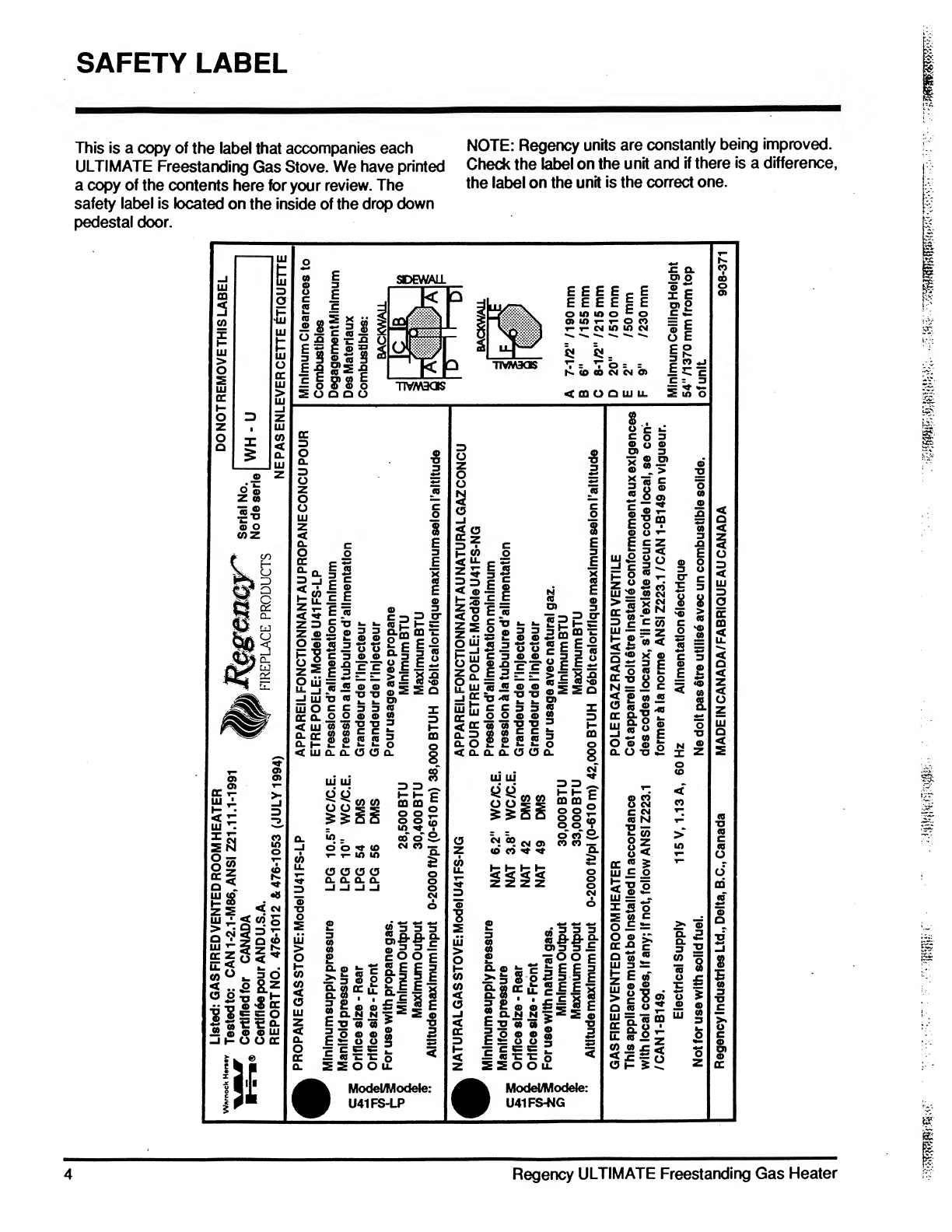

SAFETY LABEL
This is a copy of the label that accompanies each NOTE: Regency units are constantly being improved.
ULTIMATE Freestanding Gas Stove. We have printed Check the label on the unit and if there is a difference,
a copy of the contents here for your review. The the label on the unit is the correct one.
safety label is located on the inside of the drop down
pedestal door.
&
Si
tv
4
Regency ULTIMATE Freestanding Gas Heater

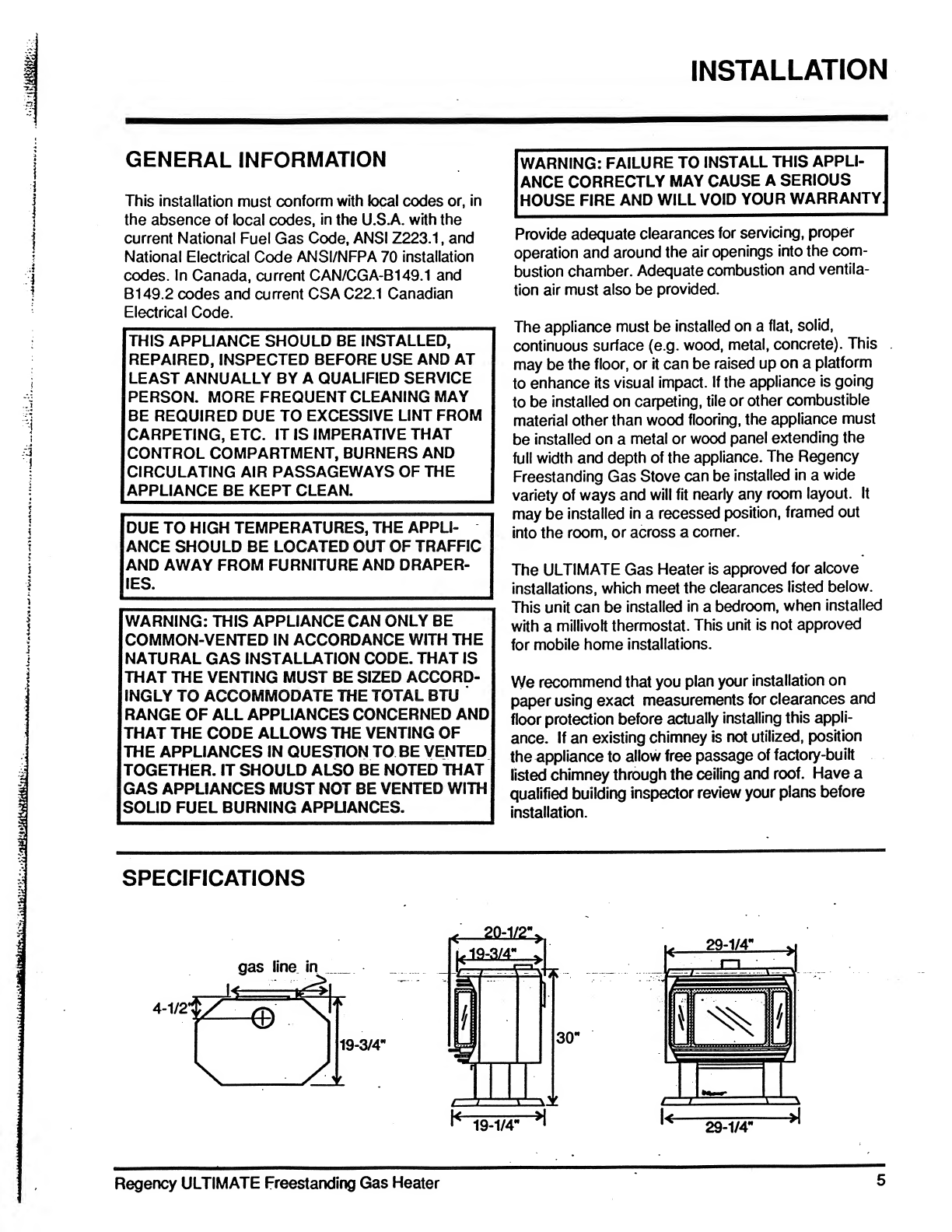

GENERAL INFORMATION
This installation must conform with local codes or, in
the absence of local codes, in the U.S.A. with the
current National Fuel Gas Code, ANSI Z223.1, and
National Electrical Code ANSI/NFPA 70 installation
codes. In Canada, current CAN/CGA-B 149.1 and
B 149.2 codes and current CSA C22.1 Canadian
Electrical Code.
THIS APPUANCE SHOULD BE INSTALLED,
REPAIRED, INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A QUALIFIED SERVICE
PERSON. MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE LINT FROM
CARPETING, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENT, BURNERS AND
CIRCULATING AIR PASSAGEWAYS OF THE
APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE APPLI¬
ANCE SHOULD BE LOCATED OUT OF TRAFFIC
AND AWAY FROM FURNITURE AND DRAPER¬
IES.
WARNING: THIS APPLIANCE CAN ONLY BE
COMMON-VENTED IN ACCORDANCE WITH THE
NATURAL GAS INSTALLATION CODE. THAT IS
THAT THE VENTING MUST BE SIZED ACCORD¬
INGLY TO ACCOMMODATE THE TOTAL BTU
RANGE OF ALL APPLIANCES CONCERNED AND
THAT THE CODE ALLOWS THE VENTING OF
THE APPLIANCES IN QUESTION TO BE VENTED
TOGETHER. IT SHOULD ALSO BE NOTED THAT
GAS APPUANCES MUST NOT BE VENTED WITH
SOLID FUEL BURNING APPUANCES.
Regency ULTIMATE Freestanding Gas Heater
INSTALLATION
WARNING: FAILURE TO INSTALL THIS APPLI¬
ANCE CORRECTLY MAY CAUSE A SERIOUS
HOUSE FIRE AND WILL VOID YOUR WARRANTY.
Provide adequate clearances for servicing, proper
operation and around the air openings into the com¬
bustion chamber. Adequate combustion and ventila¬
tion air must also be provided.
The appliance must be installed on a flat, solid,
continuous surface (e.g. wood, metal, concrete). This
may be the floor, or it can be raised up on a platform
to enhance its visual impact. If the appliance is going
to be installed on carpeting, tile or other combustible
material other than wood flooring, the appliance must
be installed on a metal or wood panel extending the
full width and depth of the appliance. The Regency
Freestanding Gas Stove can be installed in a wide
variety of ways and will fit nearly any room layout. It
may be installed in a recessed position, framed out
into the room, or across a comer.
The ULTIMATE Gas Heater is approved for alcove
installations, which meet the clearances listed below.
This unit can be installed in a bedroom, when installed
with a millivolt thermostat. This unit is not approved
for mobile home installations.
We recommend that you plan your installation on
paper using exact measurements for clearances and
floor protection before actually installing this appli¬
ance. If an existing chimney is not utilized, position
the appliance to allow free passage of factory-built
listed chimney through the ceiling and roof. Have a
qualified building inspector review your plans before
installation.

INSTALLATION

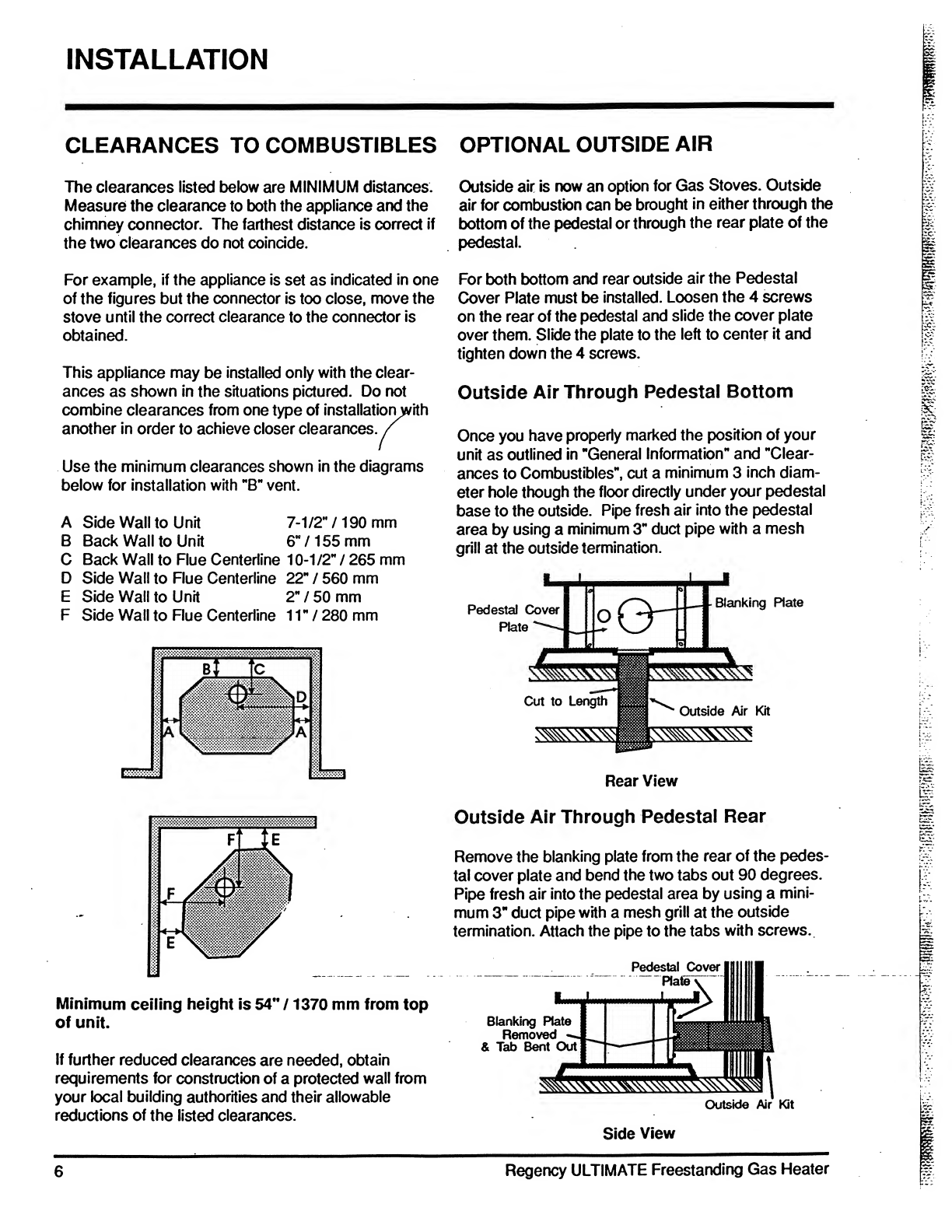

CLEARANCES TO COMBUSTIBLES OPTIONAL OUTSIDE AIR
The clearances listed below are MINIMUM distances.
Measure the clearance to both the appliance and the
chimney connector. The farthest distance is correct if
the two clearances do not coincide.
Outside air is now an option for Gas Stoves. Outside
air for combustion can be brought in either through the
bottom of the pedestal or through the rear plate of the
pedestal.
For example, if the appliance is set as indicated in one
of the figures but the connector is too close, move the
stove until the correct clearance to the connector is
obtained.
This appliance may be installed only with the clear¬
ances as shown in the situations pictured. Do not
combine clearances from one type of installation with
another in order to achieve closer clearances, f
Use the minimum clearances shown in the diagrams
below for installation with "B" vent.
A Side Wall to Unit 7-1/2" /190 mm
B Back Wall to Unit 6" /155 mm
C Back Wall to Flue Centerline 10-1/2" / 265 mm
D Side Wall to Rue Centerline 22" / 560 mm
E Side Wall to Unit 2" / 50 mm
F Side Wall to Rue Centerline 11"/ 280 mm
For both bottom and rear outside air the Pedestal
Cover Plate must be installed. Loosen the 4 screws
on the rear of the pedestal and slide the cover plate
over them. Slide the plate to the left to center it and
tighten down the 4 screws.
Outside Air Through Pedestal Bottom
Once you have properly marked the position of your
unit as outlined in "General Information" and "Clear¬
ances to Combustibles", cut a minimum 3 inch diam¬
eter hole though the floor directly under your pedestal
base to the outside. Pipe fresh air into the pedestal
area by using a minimum 3" duct pipe with a mesh
grill at the outside termination.
Pedestal Cover
Plate
0-1
j
Blanking Rate
Cuttol^ _
Rear View
Minimum ceiling height is 54" /1370 mm from top
of unit.
If further reduced clearances are needed, obtain
requirements for construction of a protected wall from
your local building authorities and their allowable
reductions of the listed clearances.
Outside Air Through Pedestal Rear
Remove the blanking plate from the rear of the pedes¬
tal cover plate and bend the two tabs out 90 degrees.
Pipe fresh air into the pedestal area by using a mini¬
mum 3" duct pipe with a mesh grill at the outside
termination. Attach the pipe to the tabs with screws.
Side View
i v
m
6
Regency ULTIMATE Freestanding Gas Heater

INSTALLATION

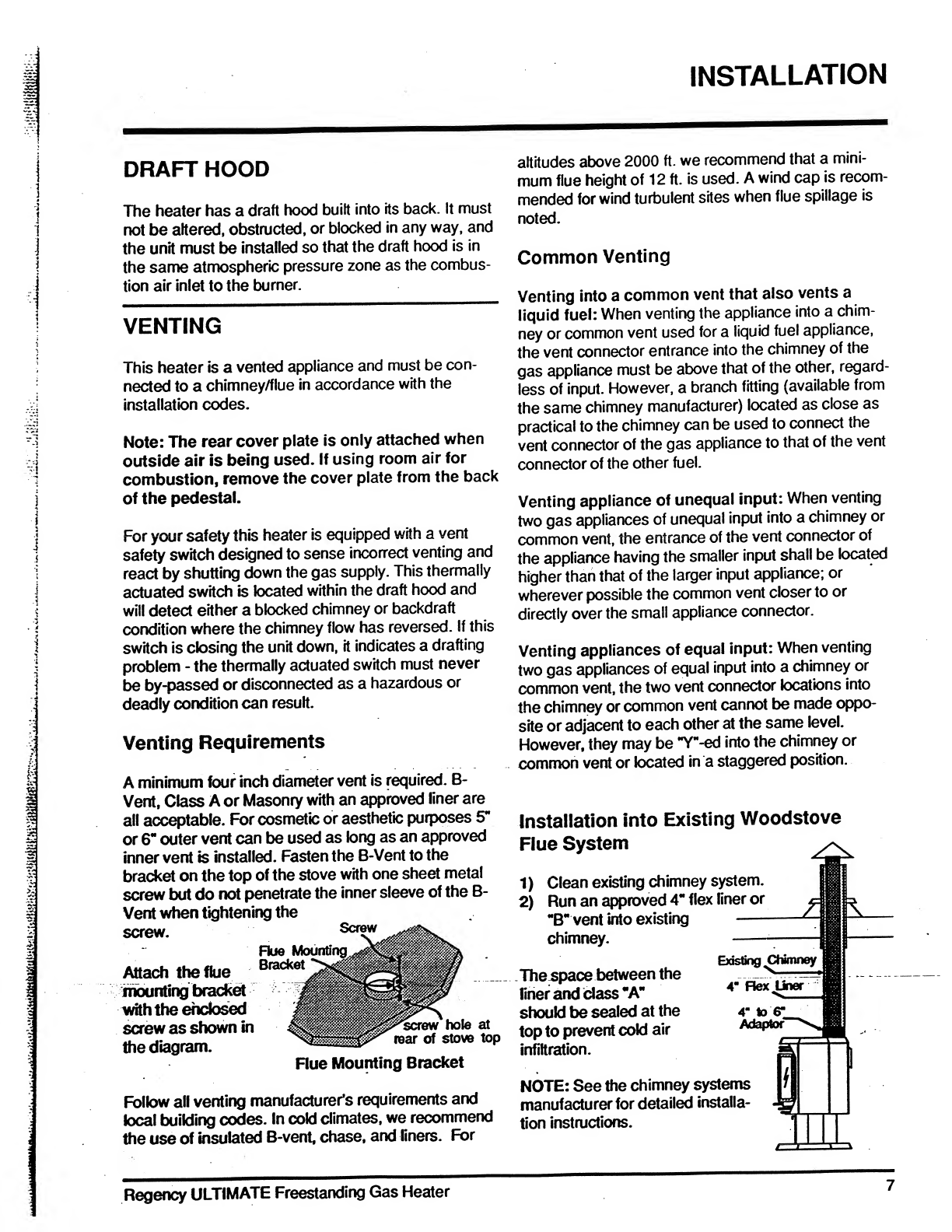

DRAFT HOOD
The heater has a draft hood built into its back. It must
not be altered, obstructed, or blocked in any way, and
the unit must be installed so that the draft hood is in
the same atmospheric pressure zone as the combus¬
tion air inlet to the burner.
VENTING
This heater is a vented appliance and must be con¬
nected to a chimney/flue in accordance with the
installation codes.
Note: The rear cover plate is only attached when
outside air is being used. If using room air for
combustion, remove the cover plate from the back
of the pedestal.
For your safety this heater is equipped with a vent
safety switch designed to sense incorrect venting and
react by shutting down the gas supply. This thermally
actuated switch is located within the draft hood and
will detect either a blocked chimney or backdraft
condition where the chimney flow has reversed. If this
switch is closing the unit down, it indicates a drafting
problem - the thermally actuated switch must never
be by-passed or disconnected as a hazardous or
deadly condition can result.
Venting Requirements
A minimum four inch diameter vent is required. 13-
Vent, Class A or Masonry with an approved liner are
all acceptable. For cosmetic or aesthetic purposes 5"
or 6" outer vent can be used as long as an approved
inner vent is installed. Fasten the B-Vent to the
bracket on the top of the stove with one sheet metal
screw but do not penetrate the inner sleeve of the B-
Vent when tightening the
screw.
Attach the flue
mounting bracket
with the enclosed
screw as shown in hole at
the diagram. rear of stoVB top
Flue Mounting Bracket
Screw
Flue Mounting
Bracket
Follow all venting manufacturer’s requirements and
local building codes. In cold climates, we recommend
the use of insulated B-vent, chase, and liners. For
altitudes above 2000 ft. we recommend that a mini¬
mum flue height of 12 ft. is used. A wind cap is recom¬
mended for wind turbulent sites when flue spillage is
noted.
Common Venting
Venting into a common vent that also vents a
liquid fuel: When venting the appliance into a chim¬
ney or common vent used for a liquid fuel appliance,
the vent connector entrance into the chimney of the
gas appliance must be above that of the other, regard¬
less of input. However, a branch fitting (available from
the same chimney manufacturer) located as close as
practical to the chimney can be used to connect the
vent connector of the gas appliance to that of the vent
connector of the other fuel.
Venting appliance of unequal input: When venting
two gas appliances of unequal input into a chimney or
common vent, the entrance of the vent connector of
the appliance having the smaller input shall be located
higher than that of the larger input appliance; or
wherever possible the common vent closer to or
directly over the small appliance connector.
Venting appliances of equal input: When venting
two gas appliances of equal input into a chimney or
common vent, the two vent connector locations into
the chimney or common vent cannot be made oppo¬
site or adjacent to each other at the same level.
However, they may be "Y"-ed into the chimney or
common vent or located in a staggered position.
Installation into Existing Woodstove
Flue System
1) Clean existing chimney system.
2) Run an approved 4” flex liner or
“B" vent into existing
chimney.
The space between the
finer and class "A"
should be sealed at the
top to prevent cold air
infiltration.
NOTE: See the chimney systems
manufacturer for detailed installa¬
tion instructions.
Regency ULTIMATE Freestanding Gas Heater
7

INSTALLATION

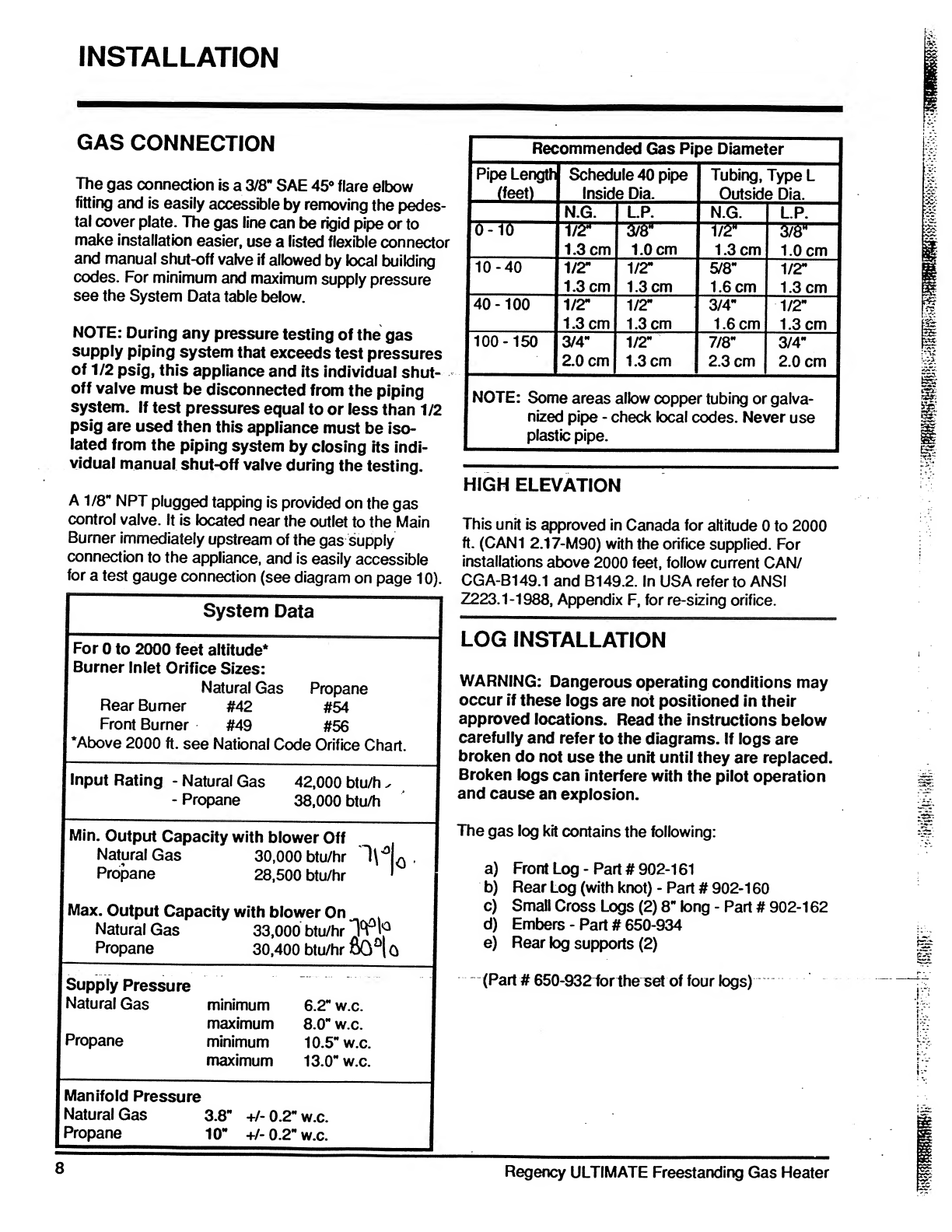

GAS CONNECTION
The gas connection is a 3/8" SAE 45° flare elbow
fitting and is easily accessible by removing the pedes¬
tal cover plate. The gas line can be rigid pipe or to
make installation easier, use a listed flexible connector
and manual shut-off valve if allowed by local building
codes. For minimum and maximum supply pressure
see the System Data table below.
NOTE: During any pressure testing of the gas
supply piping system that exceeds test pressures
of 1/2 psig, this appliance and its individual shut¬
off valve must be disconnected from the piping
system. If test pressures equal to or less than 1/2
psig are used then this appliance must be iso¬
lated from the piping system by closing its indi¬
vidual manual shut-off valve during the testing.
A1/8" NPT plugged tapping is provided on the gas
control valve. It is located near the outlet to the Main
Burner immediately upstream of the gas supply
connection to the appliance, and is easily accessible
for a test gauge connection (see diagram on page 10).
I System Data J
For 0 to 2000 feet altitude*
Burner Inlet Orifice Sizes:
Natural Gas Propane
Rear Burner #42 #54
Front Burner #49 #56
‘Above 2000 ft. see National Code Orifice Chart.
Input Rating - Natural Gas 42,000 btu/fw
- Propane 38,000 btu/h
Min. Output Capacity with blower Off
Natural Gas 30,000 btu/hr "l\’°L .
Propane 28,500 btu/hr '
Max. Output Capacity with blower On
Natural Gas 33,000 btu/hr "fa? ^
Propane 30,400 btu/hr oCn o
Supply Pressure
Natural Gas minimum
maximum
Propane minimum
maximum
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 10" +/- 0.2" w.c.
1 Recommended Gas Pipe Diameter |
Pipe Length
(feet)
Schedule 40 pipe
Inside Dia.
Tubing, Type L
Outside Dia.
N.G.
L.P.
N.G. L.P.
?TT(5
1/2"
1.3 cm
3/6
1.0 cm
T/2 U “
1.3 cm
”375"
1.0 cm
10-40
1/2"
1.3 cm
1/2"
1.3 cm
5/8"
1.6 cm
1/2"
1.3 cm
40-100
1/2"
1.3 cm
1/2"
1.3 cm
3/4"
1.6 cm
1/2"
1.3 cm
100-150 3/4"
2.0 cm
1/2"
1.3 cm
7/8"
2.3 cm
3/4"
2.0 cm
NOTE: Some areas allow copper tubing or galva¬
nized pipe - check local codes. Never use
plastic pipe.
HIGH ELEVATION
This unit is approved in Canada for altitude 0 to 2000
ft. (CAN1 2.17-M90) with the orifice supplied. For
installations above 2000 feet, follow current CAN/
CGA-B149.1 and B149.2. In USA refer to ANSI
2223.1-1988, Appendix F, for re-sizing orifice.
LOG INSTALLATION
WARNING: Dangerous operating conditions may
occur if these logs are not positioned in their
approved locations. Read the instructions below
carefully and refer to the diagrams. If logs are
broken do not use the unit until they are replaced.
Broken logs can interfere with the pilot operation
and cause an explosion.
The gas log kit contains the following:
a) Front Log - Part # 902-161
b) Rear Log (with knot) - Part # 902-160
c) Small Cross Logs (2) 8" long - Part # 902-162
d) Embers - Part # 650-934
e) Rear log supports (2)
(Part # 650-932 for the set of four logs)
6.2" w.c.
8.0" w.c.
10.5" w.c.
13.0" w.c.
8
Regency ULTIMATE Freestanding Gas Heater

INSTALLATION
Log Stand Installation
a) Loosen the 4 screws in the top of the rear
burner.
b) Slide the two rear log support brackets into
position as shown in the diagram.
c) Push the rear log support brackets tight
against the screws and then tighten down the
Rear Log
screws.
.Screws
Back
Rear Log
Support
Burner
Push bracket forward until
it is tight against the screws,
then tighten screws.
Top View
2) Remove the logs from the heater and carefully
unwrap them. The logs are fragile, handle with
care • DO NOT FORCE into position.
3) Place embers along full length of the front burner
tray. Put embers on top of the front burner but
keep embers clear of the pilot and make sure
the embers do not prevent the front log from
sitting properly on the front log stands. Do not put
any embers in the rear ember tray. Use only about
half of the embers in the package. Keep the
remaining embers for use after annual mainte¬
nance of cleaning the inside firebox.
See Maintenance on page 15.
Rear Log Cross Log Rear Log
Supports ^ / Rear Log Support
Rear fesilli
Ember
Front Log
Embers J§|
Front J / Front Log 1 Rear Log
Ember Front Support Rear Support
Tray Burner Burner
Diagram 2: Side View
4) Carefully place the rear log (with no cutouts) so it
rests on the rear supports (with the flat part of the
log to the back) and then push the log flush
against the back. Center the log, relative to the
rear burner. The knot in the log should sit just to
the right of center. See diagrams 1 & 2.
5) Place the front log (with the cutouts) on the two
front log supports, the log must be even with the
front edge of the supports. See diagrams
1 & 2 .
6) The cross logs must be positioned on the
front and rear logs as shown in diagram 3.
Incorrectly positioned cross logs will affect the
flame pattern and proper operation of the unit.
Use the two top holes in the front log for position¬
ing. The insideedge of the left log is even with
the left edge of the hole and the "thumb" just
touches the front edge of the hole. The inside
edge of the right log is even with the right edge of
the hole and the "thumb" is centered above the
knot in the rear log.
Front Loj
Support
my
Rear
-Burner
Front Log
"Support
Front
Ember
Tray
Embers / Front'Log Burner
Diagram 1: Top View
Regency ULTIMATE Freestanding Gas Heater
Diagram 3: Top View

INSTALLATION
DOOR INSTALLATION AND DOOR
LATCHES
The door slides onto the two hinge pins and fastens
with the two latches on the right side. The door must
be kept closed and locked at all times, except during
maintenance. The unit must never be operated
without the glass in the door, or with the door open.
Always open the two side panel doors before
opening the large center door to prevent the large
door from getting scratched.
Test the seal around the /y\v
door by placing a piece of /L ^.^
paper between the unit
and the door, close the
door and try to pull the Lo^ng^t \V
paper out. If it slips out \
easily, then the door is
not properly sealed. Turn the
locking nut on the adjustable catch to tighten or
loosen the latch.
Locking Nut
TOP LOUVER INSTALLATION
1) Remove both screws from one side of the stove
(a).
2) Remove louvers from package.
3) Slide one side of the louvers into the screws (b)
still in the body and tighten screws.
4) Align other side of louvers with the holes and
attach with the screws.
GAS PRESSURE TEST
The unit is preset to give the correct gas input at the
specified manifold pressures shown in the Systems
Data table on Page 8. The maximum gas input is
42,000 btu/hr for Natural Gas and 38,000 btu/hr for
Propane.
The manifold pressure is controlled by a regulator built
into the gas control, and should be checked at the
pressure test point. This is a 1/8" NPT plugged
tapping located on the gas
control, near the outlet
to the main burner. I
i
The pressure check
should be carried out
with the unit burning and
the setting should be within
the limits specified in the
System Data table on Page 8
Pressure Test
Tap Location
AERATION SYSTEM
The burner aeration is factory set but may need
adjusting due to either the local gas supply, air supply
or altitude.
Natural Gas: 1/4" open (rear) and 1/4" open (front)
Propane: 5/8" open (rear) and 5/8" open (front)
An aeration adjustment rod is attached to the air
shutter on each burner. The rod is used to adjust the
aeration on the main burner without having to take the
appliance apart. This adjustment is performed by a
qualified installer. The factory setting should be
sufficient for most installations.
Note: any damage due to carboning resulting
from improperly setting the aeration controls is
NOT covered under warranty.
10
Regency ULTIMATE Freestanding Gas Heater

—...
.-
,..
-i-w
-
_.,
iv/.vL\
tv
INSTALLATIOfv
v

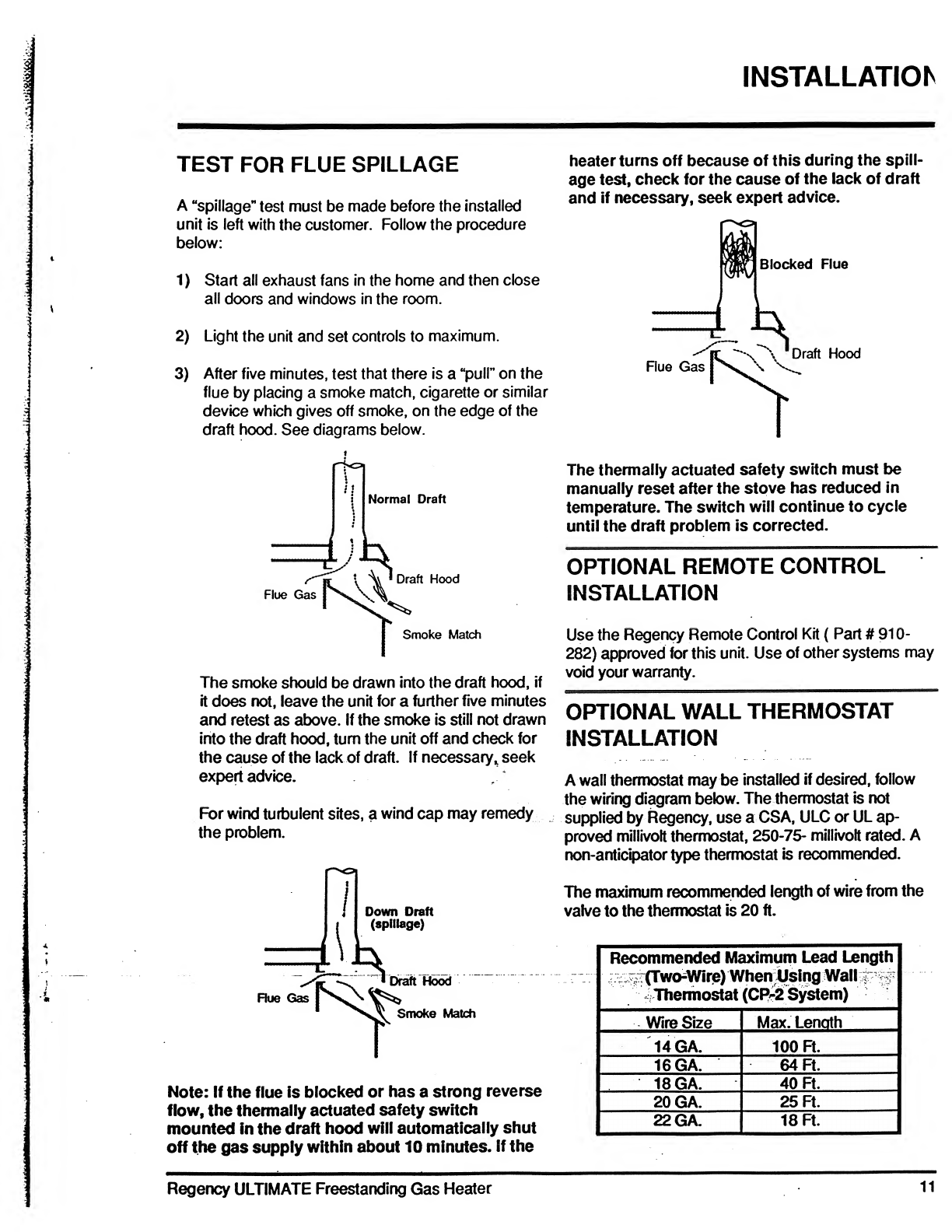

TEST FOR FLUE SPILLAGE
A “spillage” test must be made before the installed
unit is left with the customer. Follow the procedure
below:
1) Start all exhaust fans in the home and then close
all doors and windows in the room.
2) Light the unit and set controls to maximum.
3) After five minutes, test that there is a “pull” on the
flue by placing a smoke match, cigarette or similar
device which gives off smoke, on the edge of the
draft hood. See diagrams below.
The smoke should be drawn into the draft hood, if
it does not, leave the unit for a further five minutes
and retest as above. If the smoke is still not drawn
into the draft hood, turn the unit off and check for
the cause of the lack of draft. If necessary, seek
expert advice.
For wind turbulent sites, a wind cap may remedy
the problem.
Note: If the flue is blocked or has a strong reverse
flow, the thermally actuated safety switch
mounted in the draft hood will automatically shut
off the gas supply within about 10 minutes. If the
heater turns off because of this during the spill¬
age test, check for the cause of the lack of draft
and if necessary, seek expert advice.
The thermally actuated safety switch must be
manually reset after the stove has reduced in
temperature. The switch will continue to cycle
until the draft problem is corrected.
OPTIONAL REMOTE CONTROL
INSTALLATION
Use the Regency Remote Control Kit ( Part # 910-
282) approved for this unit. Use of other systems may
void your warranty.
OPTIONAL WALL THERMOSTAT
INSTALLATION
A wall thermostat may be installed if desired, follow
the wiring diagram below. The thermostat is not
supplied by Regency, use a CSA, ULC or UL ap¬
proved millivolt thermostat, 250-75- millivolt rated. A
non-anticipator type thermostat is recommended.
The maximum recommended length of wire from the
valve to the thermostat is 20 ft.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP"2 System)
Wire Size
Max. Lenath
14 GA.
100 Ft.
16 GA. 64 Ft.
18 GA.
40 Ft. 1
20 GA.
25 Ft.
22 GA. 18 Ft. j
Regency ULTIMATE Freestanding Gas Heater
11

INSTALLATION
Assembly
Regency ULTIMATE Freestanding Gas Heater

OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Before operating this appliance, proceed through the
following check list.
1) Read and understand these Instructions before
operating this appliance.
2) Check to see that all wiring is correct and en¬
closed to prevent possible shock.
3) Check to ensure there are no gas leaks.
6) Push in control knob all the way and hold in.
Immediately push red button on spark igniter
until pilot lights. Continue to hold the control
knob in for approximately one minute, then
release the gas control knob. The pilot flame
should continue to bum. If the pilot does not
remain lit, repeat operation allowing a longer
period before releasing gas control knob.
7) Turn gas control knob counterclockwise to "ON”.
8) Use rocker switch to operate main burner.
4) Make sure the three pieces of door glass are
properly positioned. Never operate the appliance
with any of the glass removed or with the door
open.
5) Verify that all venting and the cap is unobstructed.
6) Verify log placement. If the pilot cannot be seen
when lighting the unit - the logs or the embers
have been incorrectly positioned.
7) The unit should never to turned off and on without
a minimum of a 60 second wait.
LIGHTING PROCEDURE
9) R otate the variable flame control to adjust the
flame height higher or lower.
10) T he door must be closed when operating the
unit.
OFF
IMPORTANT: Gas cock knob cannot be turned
from "PILOT to "OFF" unless It is partially
depressed.
SHUTDOWN PROCEDURE
1) U se the rocker switch to turn off the main burner.
1) Open the door when lighting the pilot, but once
the pilot is lit, DO NOT operate the unit with the
door open.
2) If the control knob is in the "OFP position pro¬
ceed to Step 4.
3) Push in gas control knob slightly and turn clock¬
wise to "OFF". Knob cannot be turned from
"PILOT to "OFF" unless knob is pushed in
slightly. .Do not f<yoe.- •- •;, -
4) Wait five minutes to aliow gasrthat may have
accumulated in the main burner compartment, to
escape. If you do smell gas, follow the instructions
on the front of this manual. If you don't smell gas
continue on to the next step.
5) Turn the gas control counterclockwise to "PILOT.
2) Push in the gas control knob slightly and turn
clockwise to "OFP. Do not force.
3) Turn off all electric power to the appliance if
service is to be performed.
FIRST FIRE
The first fire in your stove is part of the paint curing
process. To ensure that the paint is properly cured,
fight theunit and leave it oh for 5 minutes and let it —
cool down for 30 minutes. Repeat 3 or 4 times. When
first operated, the unit will release an odour caused by
the curing of the paint, the burning off of any oils
: remaining from manufacturing and burning off the
starch in the gas logs.
The glass panel will require cleaning after the unit has
cooled down. DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS HOT.
Regency ULTIMATE Freestanding Gas Heater
13

OPERATING INSTRUCTIONS

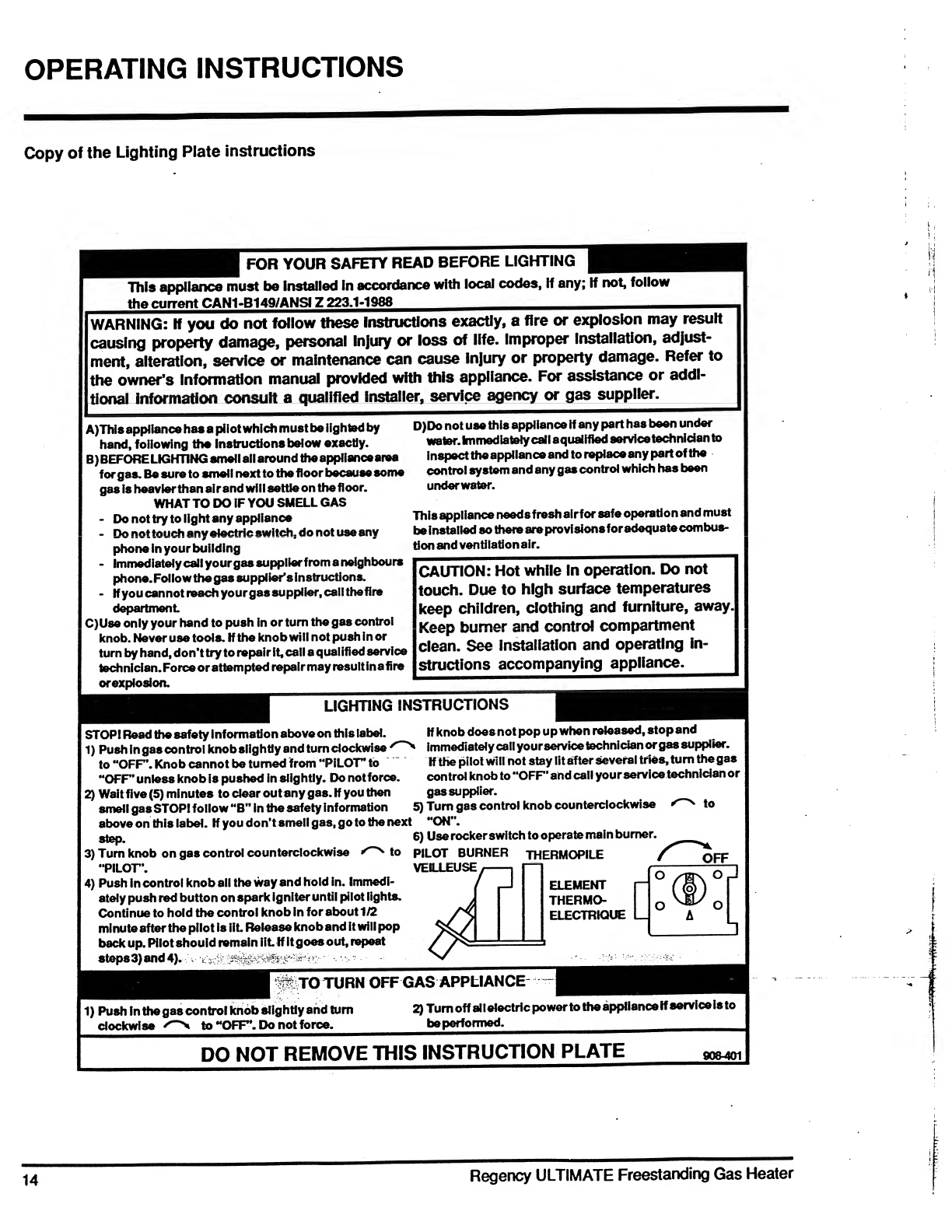

Copy of the Lighting Plate instructions
££££££ FOR YOUR SAFETY READ BEFORE LIGHTING
This appliance must be Installed In accordance with local codes, If any; If not, follow
the current CAN1-B149/ANSIZ 223.1-1988__
WARNING: If you do not follow these Instructions exactly, a fire or explosion may result
causing property damage, personal Injury or loss of life. Improper installation, adjust¬
ment, alteration, service or maintenance can cause Injury or property damage. Refer to
the owner’s information manual provided with this appliance. For assistance or addi¬
tional information consult a qualified installer, service agency or gas supplier.
A) This appliance has a pilot which must be lighted by
hand, following the Instructions below exactly.
B) BEFORELIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
. Do not touch any electric switch, do not use any
phone in your building
- immediately call your gas supplier from a neighbours
phone. Follow the gas supplier*© instructions.
- If you cannot rsach your gas supplier, call the Are
department
C) U se only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don’t try to repair It, call a qual ified service
technician. Force or attempted repair may result in a fire
or explosion.
D)Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
underwater.
This appliance needs fresh airfor safe operation and must
be installed so there are provisions for adequate combus¬
tion and ventilation air.
CAUTION: Hot while in operation. Do not
| touch. Due to high surface temperatures
keep children, clothing and furniture, away
Keep burner and control compartment
clean. See installation and operating in¬
structions accompanying appliance.
LIGHTING INSTRUCTIONS
STOP! Read the safety information above on this label.
1) Push in gas control knob slightly and turn clockwise **
to “OFF*. Knob cannot be turned from “PILOT” to
“OFF* unless knob Is pushed In slightly. Do not force.
2) Wait five (5) minutes to clear out any gas. If you then
smell gas STOP! follow “B” in the safety information
above on this label. If you don’t smell gas, go to the next
step.
3) Turn knob on gas control counterclockwise ^ to
“PILOT’.
4) Push in control knob all the way and hold in. Immedi¬
ately push red button on spark igniter until pilot lights.
Continue to hold the control knob in for about 1/2
minute after the pilot is lit Release knob and it will pop
back up. Pilot should remain lit. ff it goes out, repeat
8tep83)and4). , r . y* »• • •
If knob does not pop up when released, stop and
* immediately call your service technician or gas supplier.
If the pilot will not stay lit after several tries, turn the gas
control knob to “OFF* and call your service technician or
gas supplier.
5) Turn gas control knob counterclockwise ^ to
ON”.
6) Use rocker switch to operate main burner.
PILOT BURNER THERMOPILE
VEILLEUSE j -1
J I I ELEMENT
THERMO-
ELECTRIQUE L_| ~ A
TO TURN OFF GAS APPLIANCE
1) Push In the gas control knob slightly and turn
clockwise to “OFF*. Do not force.
2) Turn off alielectric power to the appliance If service Is to
be performed._
DO NOT REMOVE THIS INSTRUCTION PLATE
908-401
14
Regency ULTIMATE Freestanding Gas Heater

MAINTENANCE
AUTOMATIC CONVECTION FAN
OPERATION
The fan operates automatically, push the rocker
switch on the side of the pedestal to either "HIGH" or
"LOW" for fan speed. The fan will turn on as the stove
comes up to operating temperature. After the unit has
been turned off and the unit cooled to below a useful
heat output range the fan will shut off automatically.
MAINTENANCE INSTRUCTIONS
1) Always turn off the valve before cleaning. For re¬
lighting, refer to lighting instructions. Keep the
burner and control compartment clean by brush¬
ing and vacuuming at least once a year.
When cleaning the logs, use a soft clean paint
brush as the logs are fragile and easily damaged.
2) Clean glass (never when unit is hot), appliance,
louvers and door with a damp cloth. Never use an
abrasive cleaner. The gold louvers (and optional
gold door) may be scratched if abrasives are used
to clean them.
The heater is finished in a heat resistant paint and
should only be refinished with heat resistant paint
(not with wall paint). Regency uses Stove Brite
Paint - Metallic Black #6309.
3) Make a periodic check of burner for proper
position and condition. Visually check the flame of
the burner periodically, making sure the flames
are steady; not lifting or floating. If there is a
problem, call a qualified service person.
4) The appliance and venting system must be
inspected before use, and at least annually, by a
qualified field service person, to ensure that the
flow of combustion and ventilation air is not
obstructed.
During the annual service call, the burners should
be removed from the burner tray and cleaned.
Use' the remaining embers that were saved during
the installation to replace especially dirty or
fragmented embers. Do not block the pilot.
WARNING: CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND SHOULD STAY
AWAY TO AVOID BURNS OR CLOTHING IGNI¬
TION. YOUNG CHILDREN SHOULD BE CARE¬
FULLY SUPERVISED WHEN THEY ARE IN THE
SAME ROOM AS THE APPLIANCE.
CAUTION: ANY SAFETY SCREEN OR GUARD
REMOVED FOR SERVICING AN APPLIANCE
MUST BE REPLACED PRIOR TO OPERATING
THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL
SHOULD NOT BE PLACED ON OR NEAR THE
APPLIANCE.
6) Each time the appliance is lit, it may cause con¬
densation and fog the glass. This condensation
and fog is normal and will disappear in a few
minutes as the glass heats up.
Never operate the appliance without the glass
properly secured in place or with the door
open.
7) Periodically check the pilot flames, there should
be three strong blue flames approx. 1/2" long -1
flame to the front burner, 1 to the rear burner and
1 to the thermopile. See diagrams below.
If you have an incorrect flame pattern, contact
your Regency dealer for further instructions.
Correct flame pattern has three strong blue
flames: 1 flowing around the thermopile and
ignitor electrode, 1 flowing across the rear
burner and 1 reaching towards the front
burner (it does not have to be touching the
burner).
Rear Burner
- i -
1 /2* *|° ^^^^ ^afeblslalslgblgk
,Thermopile
gap of 1/8"
Ignitor Electrode
5) K eep the area near the appliance clear and free
from combustible materials, gasoline and other
flammable vapours and liquids.
. 4 . .
Front Burner
Top View of pilot flame.
Regency ULTIMATE Freestanding Gas Heater
15

MAINTENANCE
Incorrect flame pattern will have small, probably
yellow flames, not coming into proper contact
with the rear burner or thermopile.
Rear Burner
-/-
hermopile
Ignitor Electrode
Top View of pilot flame
Log Replacement
The unit should never be used with broken logs. Turn
off the gas valve and allow the unit to cool before
opening door to carefully remove the logs. The pilot
light generates enough heat to burn someone. If for
any reason a log should need replacement, you must
use the proper replacement log. The position of these
logs must be as shown in the diagram under Log
Installation.
NOTE: Improper positioning of logs may create
carbon build-up and will alter the unit’s perform¬
ance which is not covered under warranty.
Gold-Plated Doors
The 24 carat gold plated finish on the door requires
little maintenance, and need only be cleaned with a
damp cloth. DO NOT use abrasive materials or
chemical cleaners, as they may harm the finish and
void the warranty. Clean any fingerprints off before
turning the unit on. If the door starts to discolor,
check the gasket seal and replace if necessary.
Door Gasket and Glass Gasket
If the door gasket requires replacement use 7/8"
diameter oval door gasket (Part # 650-920). The glass
requires 5/8" flat glass gasket (Part # 846-530). See
your Regency Dealer.
Glass Replacement
Your Regency stove is supplied with high tempera¬
ture, 5 mm Neoceram ceramic glass that will with¬
stand the highest heat that your unit will produce. In
the event that you break your glass by impact, pur¬
chase your replacement from an authorized Regency
dealer only, and follow our step-by-step instructions
for replacement.
Glass Removal
1) Remove the door from the unit and place on a soft
surface to prevent scratching.
2) Pull out the door gasket.
3) Remove the nuts holding the glass retainers in
place.
4) Remove the glass retainers (sides, top and
bottom) and the door catch plate.
5) Replace the glass. The glass must have gasket¬
ing around it.
6) Reverse the previous steps, replace the retainers
and fasten with the nuts but do not overtighten, as
this can break the glass. Note: the door catch
plate fits on top of the left side retainer.
7) Put gasket glue on the retainers, but do not put
glue on the screws. Replace the door gasket, the
two ends butt tight together on the bottom edge of
the door.
8) Replace door on the stove and check the seal.
top edge of door
Glass_
Gasket
Side
Retainer
Door,
Catch
Plate
J—Side
Retainer
Long
Retainer
■ D oor Gasket
(gasket ends butt tight together
on bottom edge of door)
16
Regency ULTIMATE Freestanding Gas Heater

MAINTENANCE
Fan Maintenance
If your fan requires maintenance or replacement,
access to the fan is through the plate on the rear wall
of the firebox. NOTE: the unit MUST NOT be
operated without the fan access panel securely in
place.
To remove fan:
1) Unplug or disconnect power source to stove.
2) Remove all logs and the rear log supports, then
remove the 6 screws holding the access panel in
place.
3) Lift thermodisc bracket out of clip and disconnect
white wire.
Latch Adjustment
The door latch may require adjustment as the door
gasket material compresses after a few fires and after
glass replacement. Turn the locking nut on the
adjustable latch to tighten or loosen the latch.
Locking Nut
PARTS LIST
4) Open pedestal door and remove the access plate.
Disconnect the top and bottom wires from the fan
switch (the bottom switch).
5) Lift fan off of the 2 pins, tip on its back and pull
through firebox opening.
6) Disconnect green wire from power cord.
Replacing fan:
Reverse above steps.
Hint for pushing fan down onto pins - rub a bit
of dish soap on the grommet so it will slide
more easily onto the pin. Check to
make sure the fan is seated
properly on the pins - try to
move the fan back and
forth, there should be
no noise, if there is
check that the grom¬
mets haven't come
loose.
650-915 Fan Assembly
650-920 Door Gasket
650-932 Log Set
650-934 Embers
650-950 Front Burner
650-952 Rear Burner
650-960 Valve Assembly - Natural Gas
650-962 Valve Assembly - Propane
846-325 Large Center Glass
846-326 Small Side Glass
an access
- panel
Regency ULTIMATE Freestanding Gas Heater

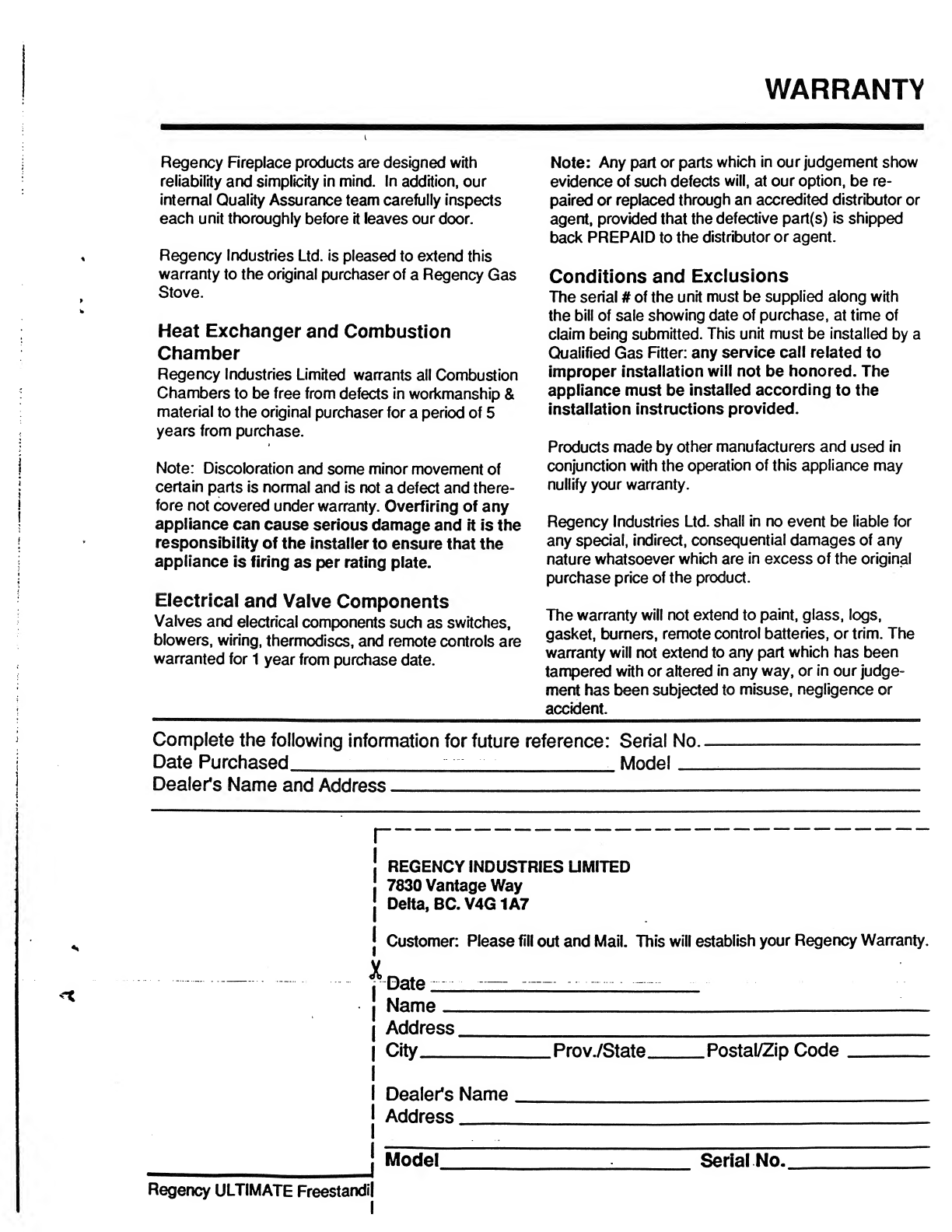

WARRANTY
Regency Fireplace products are designed with
reliability and simplicity in mind. In addition, our
internal Quality Assurance team carefully inspects
each unit thoroughly before it leaves our door.
Regency Industries Ltd. is pleased to extend this
warranty to the original purchaser of a Regency Gas
Stove.
Heat Exchanger and Combustion
Chamber
Regency Industries Limited warrants all Combustion
Chambers to be free from defects in workmanship &
material to the original purchaser for a period of 5
years from purchase.
Note: Discoloration and some minor movement of
certain parts is normal and is not a defect and there¬
fore not covered under warranty. Overfiring of any
appliance can cause serious damage and it is the
responsibility of the installer to ensure that the
appliance is firing as per rating plate.
Electrical and Valve Components
Valves and electrical components such as switches,
blowers, wiring, thermodiscs, and remote controls are
warranted for 1 year from purchase date.
Note: Any part or parts which in our judgement show
evidence of such defects will, at our option, be re¬
paired or replaced through an accredited distributor or
agent, provided that the defective part(s) is shipped
back PREPAID to the distributor or agent.
Conditions and Exclusions
The serial # of the unit must be supplied along with
the bill of sale showing date of purchase, at time of
claim being submitted. This unit must be installed by a
Qualified Gas Fitter: any service call related to
improper installation will not be honored. The
appliance must be installed according to the
installation instructions provided.
Products made by other manufacturers and used in
conjunction with the operation of this appliance may
nullify your warranty.
Regency Industries Ltd. shall in no event be liable for
any special, indirect, consequential damages of any
nature whatsoever which are in excess of the original
purchase price of the product.
The warranty will not extend to paint, glass, logs,
gasket, burners, remote control batteries, or trim. The
warranty will not extend to any part which has been
tampered with or altered in any way, or in our judge¬
ment has been subjected to misuse, negligence or
accident.
Complete the following information for future reference: Serial No.
Date Purchased. . .Model_
Dealer's Name and Address_
r-
j REGENCY INDUSTRIES LIMITED
7830 Vantage Way
| Delta, BC. V4G1A7
J Customer: Please fill out and Mail. This will establish your Regency Warranty.
Y
, Date __ - -
j Name_—
I Address____
I City_Prov./State_Postal/Zip Code_
I
I Dealer's Name__
! Address__
Model_-_Serial No.
Regency ULTIMATE Freestandil
