2U20/E21 Gas Insert Zero Clearance Kit
TABLE OF CONTENTS
U20/E21 GAS INSERT ZERO CLEARANCE KIT
CONTENTS PAGE
Listings & Code Approvals ..................................................3
Specifications .......................................................................3
General Information .............................................................4
Parts..................................................................................... 4
Clearances to combustibles .................................................4
Locating Your Fireplace .....................................................5
Framing ................................................................................5
Kit Assembly......................................................................... 6
Venting .................................................................................7
Insert Installation .................................................................. 8
Optional Outside Combustion Air Supply Installation ...........9
Gas supply line..................................................................... 9
ElectricalSupply ...................................................................9
Faceplate & Trim Installation.............................................. 10
Zero Clearance Top Louver ............................................... 11
Finished Facing Notes........................................................ 11

3
U20/E21 Gas Insert Zero Clearance Kit
Specifications
INSTALLATION
LISTINGS AND CODE APPROVALS
This gas component has been tested in accordance with National Safety Standards, and has been certified by
Warnock Hersey for installation and operation in the United States, Canada, Australia, and New Zealand as
described in these Installation and Operating Instructions.
Checkwithyourlocalbuildingcodeagencybeforeyoubeginyourinstallationtoensurecompliancewithlocalcodes,
including the need for "permits" and follow-up inspections. If any problems are encountered regarding code
approvals, or if you wish clarification on any of the instructions contained here, contact your local dealer.

4U20/E21 Gas Insert Zero Clearance Kit
PARTS
Included with Kit:
1 Main Body Assembly (5 pieces)
1 Faceplate Top Insulation
1 Zero Clearance Top Louver Assembly
Sold Separately: (Rq)=Required
(Rq) 1 402-918 Faceplate40-1/4"Wx26-1/4"H
(1020mm W x 665mm H)
c/w faceplate trim.
(Rq) 1 532-926 4"(102mm)HearthTrim
INSTALLATION
GENERAL INFORMATION
This kit consists of factory built parts that require minimal
assembly to form the Zero Clearance box for the U20/E21
GasInsert.TheZeroClearanceboxcanthenbefixedintoa
framed combustible construction, and a standard "B-vent"
installed on the assembly for the required venting. The
insert can be installed later. The faceplate will normally
overlapon topof thefinished wall. UsingKit# 530-936 you
can convert the U20/E21 Gas Insert models into highly
efficientheatproducingZeroClearanceFireplaces.
CLEARANCESTOCOMBUSTIBLES
The clearances for the Zero Clearance Kit are 0" to combustibles (back, side and floor) but when planning your
installation review the clearances required for the Insert (see below) after it is installed in the Zero Clearance Kit.
Clearances to Combustibles for Insert
The minimum clearance from the side of the appliance
to a combustible side wall is 9 inches (229mm). See the
"Mantel Clearances" chart (Diagram 2) for the minimum
clearance from the bottom of the Top Faceplate to a
combustible mantel. The minimum height from the
bottom of the Top Faceplate to the ceiling is 36 inches
(914mm). See diagram 1.
Diagram 2: Mantel can be installed anywhere in the
shaded area or higher. Use the grid to determine
height and depth of mantle.
Example: a 6" deep mantle must be 9" above the
bottom of the top faceplate.
Note: A non-combustible mantel may be installed
atalowerheightiftheframingismadeofmetalstuds
covered with a non-combustible board.
Note:Ensurethepaintthatisusedonthemantelandthe
facing is "heat resistant" or the paint may discolour.
Diagram1
Diagram2
TheZeroClearanceKit
must be installed on a
flat, solid, continuous
surface (e.g. wood,
metal, concrete). This
may be the floor, or
raiseduponaplatform
to enhance its visual
impact.
NOTE: The specified '0' inch floor clearance means that
thetopsurfaceoftheflooringmaterial,i.e.carpeting,tile,
etc., must not extend above the bottom edge of the 4"
Hearth Trim.

5
U20/E21 Gas Insert Zero Clearance Kit
INSTALLATION
A
D
E
C
F
B
LOCATING YOUR U20/E21 FIREPLACE
Due to high temperatures the Insert should be located out of traffic and
awayfromfurnitureanddraperies. Provideaminimumof48"(1220mm)
front clearance to the unit.
This appliance is Listed for bedroom installations when used with a
ListedMillivoltThermostat.Someareasmayhavefurtherrequirements,
check local codes before installation.
This appliance is Listed for Alcove installations, maintain minimum
Alcove clearances as follows, minimum ceiling height of 53-1/2",
minimum width of 48" and a maximum depth of 36".
This unit is not approved for installation into a mobile home.

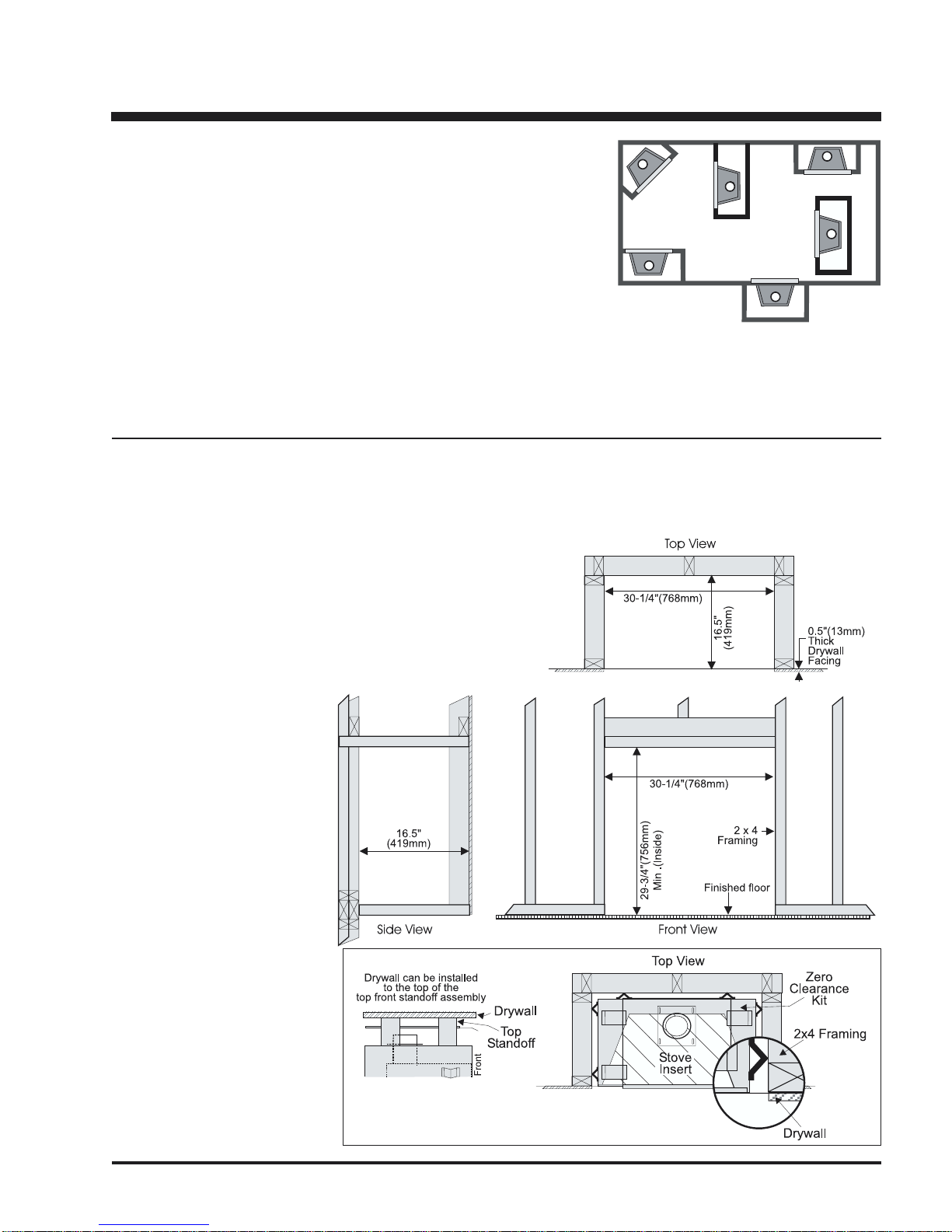

FRAMING
1) The trim kit allows for 1/2" (13 mm) of finish facing material. The kit may be installed directly on and/or against
standardcombustiblebuildingmaterials.
2) Frame in the Zero Clearance box for the Kit with framing
material.Theframedopeningfortheassembledkitis29-3/
4"(756mm) high x 30.25"(768mm) widex 16.5"(419mm)
(17"(432mm)includingdrywall)deep. Seediagrambelow.
3) For exterior walls, vapour barrier and insulate the Zero
Clearanceboxtothesame
degree as the rest of the
house,oraccordingtolocal
installation codes.
4) The appliance may be
enclosed above the
standoffs on the cabinet
but the clearances stated
on the b-vent chimney
must be maintained.
a) CrossCorner d) Island
b) Room Divider e) Flush with Wall
c) Flat on wall f) Flat on Wall
Corner

6U20/E21 Gas Insert Zero Clearance Kit
INSTALLATION

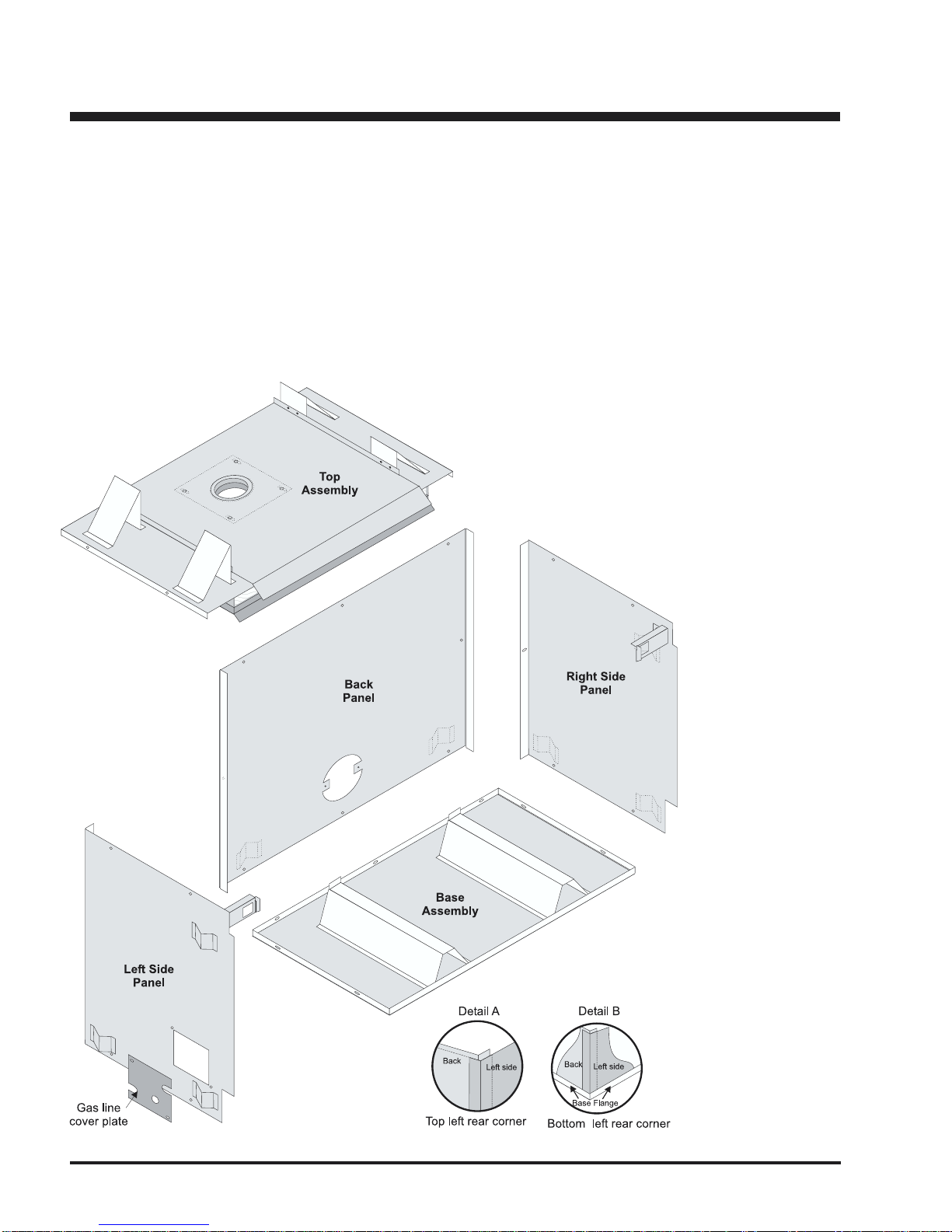

KITASSEMBLY
Parts
1) Top Assembly
2) Base Assembly
3) Back Panel
4) Left Side Panel
5) Right Side Panel
6) Gas Line Cover Plate
Kit Assembly
1) Lay the Base Assembly on a flat surface.
2) Attach the Left and Right Side panels to the Back
panel (one screw each side). NOTE: the Side
flanges are on the outside, Back flanges are on the
inside.
3) Liftthe Back/Side Assemblyontothe Base, position
as shown in the diagram. The Back and Sides rest
on the Base with the Base flanges on the outside.
Fasten the Back to the Base (3 screws) and the
Sides to the Base (2 screws for each side).
4) Attach the top assembly, with the top flanges on the
outside of the Sides and Back panels.
5) DonotinstalltheZeroClearanceTopLouveruntilthe
U20/E21Inserthasbeen installed.

7
U20/E21 Gas Insert Zero Clearance Kit
Variable Chimney Routes
VENTING
1) This fireplace must be vented with a 4" (100mm)
diameter Class “B” vent. The installation of the
ventingsystem must conformand bein accordance
with the natural gas installation code CAN/CGA -
B149 (Canada), ANSI Z223.1 (U.S.A.), AG 601
(Australia),andNZS5261(NewZealand). Minimum
chimney height from base of fireplace must be at
least 12 feet (3.7m).
2) Masonry Chimney Installation:
This application can be connected to a masonry
chimney flue. Make sure the masonry chimney is
clean and in good working order. When an existing
masonry chimney is unlined and local experience
indicates that gas condensation may be a problem
oriflocalcodesdictate,anapprovedlinershouldbe
installed. Use“B”Venttobridgethegapbetweenthe
fireplace and the masonry chimney. To ensure
proper flue sizing and operation it is recommended
thatthemasonrychimneybelinedwithanapproved
aluminiumchimneylinerofthesamediameterasthe
“B” Vent. Make sure connection between “B” Vent
andmasonryiscompletelysealed. Fluepipeexposed
to cold air should be insulated in a chase. If
condensation occurs, a trap should be installed at
bottom of flue.
Useamaximumoftwooffsets;four45oelbows,ortwo
90oelbowsforexample.Slopehorizontalpipeatleast
1/4" (6.4 mm) rise per foot of run. Horizontal runs
should not exceed the vertical rise. Keep horizontal
runs to a minimum. See chart below.
NOTE: Cold Climate Installation
When this appliance is to be installed against a non-
insulated wall or in a chase, fibreglass insulation should
be installed around the body of the fireplace.
Note: Thedrafthoodmustbeinstalledparalleltothe
fireplace opening, as shown below. See
InstructionsinU20/E21InstallationManual.
Installstove insert as per U20/E21 Installation Manual,
see also page 8.
INSTALLATION

8U20/E21 Gas Insert Zero Clearance Kit
INSTALLATION
INSERT INSTALLATION
1) Insertthe U20/E21 ZeroClearancebox into desired
location and frame according to the instructions on
page 5.
2) Run required gas and electrical connections to the
ZeroClearancebox,botharelocatedonthelefthand
sideoftheU20/E21Insert.See"GasSupplyLine"on
page 9 and "Electrical Supply" on page 9.
3) Removethe screw holding the draft hoodslideplate
ontheU20/E21unitandremove.
4) Attach the draft hood slide plate to the flue collar
assembly with three sheet metal screws.
NOTE: ensure that when the draft hood slide plate
is screwed in that it is the same height as the draft
hood guides or it will not slide into position.
Note: Donotoperateunitifdrafthoodisnotfastened
in original position.
5) Slidethegasinsertinallthewayback usingthedraft
hood guides. Draft hood must be in original position
and replace the screw holding the draft hood.
6) Makethefinal gas and electricalconnections as per
theInsertInstructionmanual.Usethegaslinecover
plate that is included with the Zero Clearance box.
7) Assemblethe FaceplateandTrimandthe 4"Hearth
Trim to the U20/E21 zero clearance box as per the
instructions on page 10.
8) AttachtheToplouverassemblytotheZeroClearance
Kitby placingthelouverclampsinto thesquarehole
onthelouverholdingbracketsaspertheinstructions
on page 11.

9
U20/E21 Gas Insert Zero Clearance Kit
INSTALLATION
OPTIONAL OUTSIDE COMBUSTIONAIR SUPPLYINSTALLATION
A4"(100mm)dia.aluminumflexpipeorequivalentmay
be installed from the outside (with a proper exterior
cover)totheZeroClearancecabinet.Thereisanoutside
hole provided on the rear wall of the kit. This will provide
adequate outside combustion air supply to the heater.

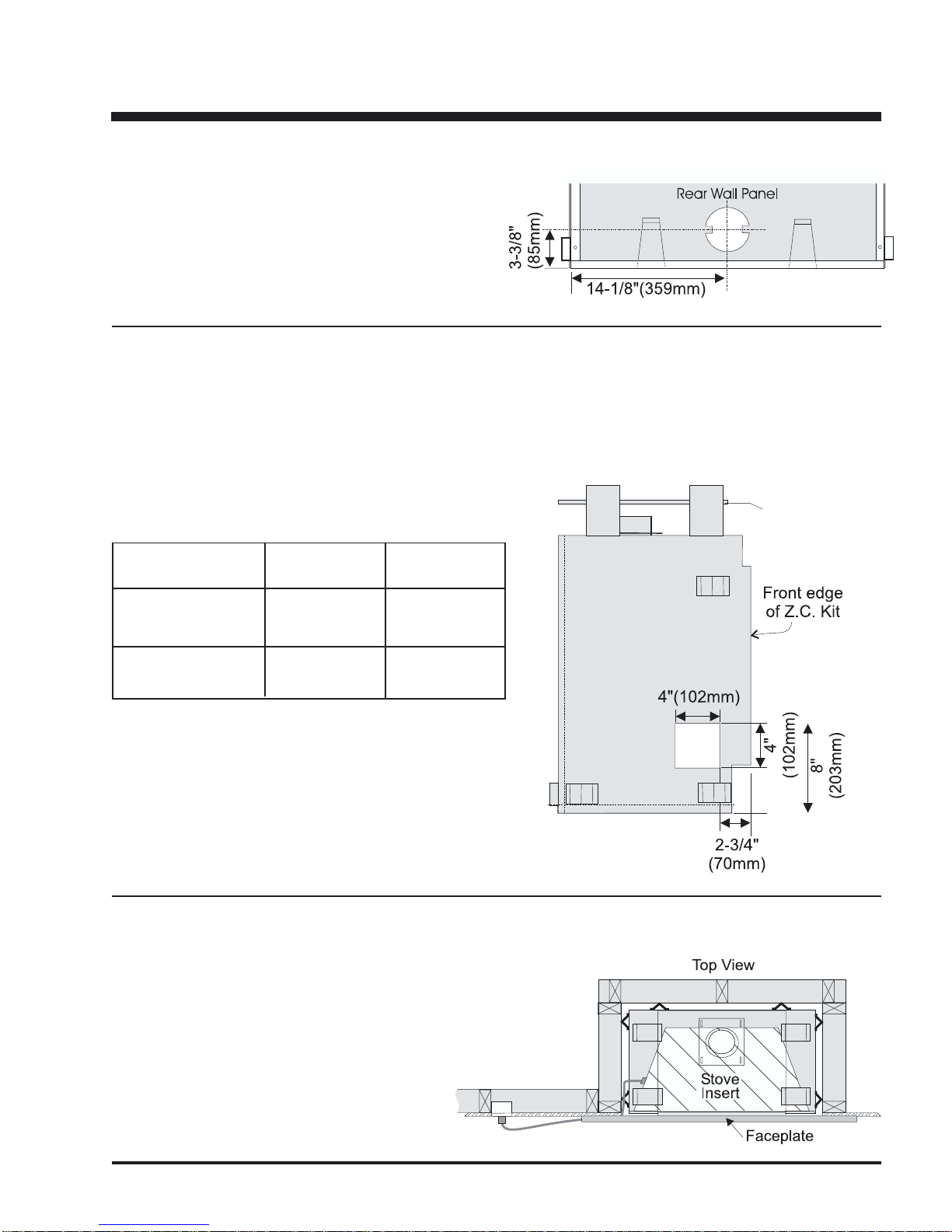

Specifications
Min. Inlet Input
Gas Pressure Rating
Natural Gas 4.5" w.c. 21,000 Btu/hr
1.12 kP 22 mj/h
Propane 11" w.c. 21,000 Btu/hr
2.74 kPa 22 mj/h
ELECTRICAL SUPPLY
Provide 120 VAC, 60 Hz (in Australia and New Zealand: 240 VAC,
50Hz)receptaclewithin24"(610mm)oftheleftsideoftheappliance
(not inside the Zero Clearance Cabinet). Plug the cord on the
appliance into the receptacle.
GAS SUPPLY LINE
An authorized service person should install the gas line in accordance with all local building codes. If codes permit,
flex gas line or coiled copper tubing may be used as gas supply line. The suggested way to install the gas supply
line is as follows: run 1/2" (9.5 mm) NPT gas line to the left side of the framed opening. (See U20/E21 installation
instructions for additional information).

10 U20/E21 Gas Insert Zero Clearance Kit
ON/OFF
Switch
Fan Speed
Switch
(Rear View)
Wires to
Fan Switch
Connectors
Self-adhesive
Wire Clip
For Gas
Connection
Wires to
On/Off
Switch
POWER CORD (3ft)
Diagram 3
INSTALLATION
Faceplate Assembly
Diagram 1
Trim
Clips
Trim Assembly
Diagram 2
FACEPLATE & TRIM
INSTALLATION
1) Laythefaceplatepanelsflat,facedownonsomething
soft so they don't scratch.
2) a) Take the top faceplate and align the holes in it
with the holes in the side panels. Using the
screwsprovided,attachfromthetopofthepanel
(holesinthetoppanelareslightlylargerthanthe
holes in the side panel to facilitate easier
installation). See diagram 1.
b) 4"(102mm)HearthTrim.AttachtheHearthTrim
to the bottom of the faceplate side panels with
the screws provided. See diagram 1.
Hint: Don't tighten the screws down completely at
this point, do a trial fit to the unit. Make any
necessary adjustments and when it fits properly
then tighten down the screws.
3) Using the trim clips provided, join the left side trim
(with the ON/OFF switch) to the top trim. See
diagram2.Connecttherightsidetrimtothetoptrim.
4) Place the trim on the assembled faceplate panels,
aligningthe wireconnectionsfromtheswitches with
the notch on the left side panel.
5) Connectthefanswitchwiresbytakingtheblackand
red wires with the male ends (in the grey harness)
and connect them with the 2 wire connectors from
the fan speed control.
6) Connect the ON/OFF switch wires by taking the
black and red wires with the female ends and
connect them to the ON/OFF switch.
7) Install these wires in the clips on the left faceplate
toensuretheydon'ttouchtheinsert.Seediagram3.
8) The power cord should be run behind the faceplate
panel from the U20/E21 to electrical outlet box.
9) Placetopinsulationinbehindthetopfaceplateas in
the diagram. Pressed securely into place.

11
U20/E21 Gas Insert Zero Clearance Kit
INSTALLATION
Diagram 410) Attachthebrasstrimtothefaceplatebydrillinga
1/8" (3mm) hole through the faceplate using the
holeinthetrimas aguide. Fastenthetrimtothe
faceplate panels using the plated screws. #10
x1/2". See diagram 4 detail 'B'.
11) Attach the faceplate panels to the insert body
usingthe4remainingblackscrews.Seediagram
4 detail 'A'. These screws will also fasten the
insert to the Zero Clearance sides.
12) Push the logo plate into the two holes in the
bottom left corner of the faceplate.
Note: This faceplate and Hearth Trim Assembly
replacesthestandardAssemblyasshown
inthe U20/E21 Installation Manual.
FINISHEDFACING
NOTES
Install finished facing surface
of 1/2"(13mm) thickness on
framing. Drywall 1/2" (13 mm)
thick can extend flush with the
appliance on all three sides of
the front face. The height at
which the mantle must be
installed above the top louver
depends on the depth of the
mantle. If the mantle is to be
painted, use a heat resistant
paint to prevent discolouration.
ZERO CLEARANCE TOP LOUVER
AttachtheToplouverassemblytotheZeroClearanceboxbyplacingthe
louver clamps into the square hole on the louver holding brackets.

Printed in Canada
