Rehasense City Series User manual

Version 01/21 Page 1 of 44 PAWS UM EN
Power
Assisted
Wheelchair
Systems
PAWS User’s manual (EN)
City, Cruiser and Tourer Series
City 12”/14” Cruiser 16” Tourer 20”
more than mobility

Version 01/21 Page 2 of 44 PAWS UM EN
INDEX
Section Topic Page
1 General Information, Intended Use and Quality Standards
2 Safety Warnings and Recommendations
3 General description
4 Cleaning and Storage
5 Recycling and Disposal
6 Maintenance and Service
7 Warranty and Liability
8 Scope of Delivery and Identification
9 Specification
10 Configurations, Controls and Display
11 Device Assembly
11.1. Naming of Parts
11.2. Assembly –Manual Clamp and Lift
11.3. Assembly –Auto Clamp and Lift
12 Operating
13 Accessories
14 Appendices
14.1. Appendix 1: Battery and Charger
14.2. Appendix 2: Headlight
14.3. Appendix 3: Smart Tyre Inflator
3
4
6
8
9
9
13
14
16
17
20
20
21
26
31
36
37
37
40
41

Version 01/21 Page 3 of 44 PAWS UM EN
1 General Information, Intended Use and Quality Standards.
Thank you for choosing a PAWS Power Add-On Device. This user manual contains a description of the device and
important guidelines to ensure a correct and safe usage.
Please read this manual carefully. It is especially important to read the safety requirements and to follow these.
In this User Manual, we use the following terminology: -
Device –refers to the PAWS Power Add-On Device
User –refers to the person using the device
Chair –the chair that is used with the device
Kerb –the edging of a pavement or sidewalk. Spelt “Curb” in Canada and the US,
Set-up –the way the device is configured according to the Users requirements
Docking/Undocking –the process of connecting/disconnecting and lifting/lowering the device to the chair
QR –refers to Quick Release, pertaining to the clamp housing and the device proper
THE MANUFACTURER® continuously develops its devices and reserves the right to change specifications and
functions of devices without notice.
If you have concerns or queries, please contact your dealer or THE MANUFACTURER® directly. The contact data is
located on the last page of this manual.
Intended use and indications for use.
Intended use: The device is intended to be used as an auxiliary drive unit for folding and rigid frame chairs. Any other
use is prohibited.
Indications: The device is indicated for individuals who require power assistance in propelling the chair in a seated
position. Specifically, for: -
who have been instructed in its handling,
can move and coordinate both hands and arms without major restrictions,
have the physical and mental ability to operate the chair in all possible situations.
Contra-indications: This type of device must not be used by persons with cognitive or processing limitations that
would prevent them from using the device as intended.
Use by people with partial or complete flaccid paralysis must be determined by a qualified chair fitting expert with
advice from a physician and/or an occupational or physical therapist.
The ability to safely control the device is essential to its use.
Chair pairing: It is important that the chair used can withstand the forces generated by clamping and driving with the
device. Significant stresses may be applied to the chair beyond what it was originally designed for. Please consult with
the supplier of the device before changing to chairs other than what the device was fitted to at the time of delivery.
Quality standards.
The Device has passed all necessary tests and it is in conformity with following European Standards:
EN 15194:2017, EN 60204-1:2006+A1:2009+AC:2010, EN 61000-6-2:2016, EN 61000-6-4:2018.
It also fulfils all CE requirements implemented by the 2006/42/EC (Machinery), 2014/35/EU (Low Voltage), 2014/30/EU
(Electromagnetic Compatibility) Medical Devices Directive.

Version 01/21 Page 4 of 44 PAWS UM EN
2 Safety Warnings & Recommendations.
It is important for the User to recognize and understand that there is a danger of personal injury from falling from the
device or colliding with objects if it is not handled or set-up correctly.
Therefore, it is very important that a thorough understanding of the use and limitations of the device is reached by
the User before using the device. Following are some points that are important to read and understand.
If there are any areas where the concepts are not clear, please contact your authorised The Manufacturer Dealer or
The Manufacturer directly ([e-mail]) for further clarification.
Consult –talk to a person qualified in supplying, fitting, and servicing the device.
Before deciding which model to choose, communicate with authorised The Manufacturer dealer –do
not purchase this device from non-qualified suppliers or in the open market.
As this is a powered device, it is important to consult with a physician and or therapist to determine if
the user has the physical and mental capabilities to control the device.
A one-to-one instruction session on handling and operating of device is included in the scope of
delivery.
Read –read the User Manual.
Make sure that this user manual is read by all persons using the device. The Manufacturer does not
take any responsibility for damages and/or injuries, caused by the fact that the user manual has not
been followed.
Follow the instructions and warnings on all device labels.
All “Attention” in UM should be carefully reviewed and understood.
Driving Environment –be aware of the conditions in which the device is used or exposed.
All wheels should ALWAYS be in contact with the floor during use. This will ensure the device is
properly balanced and should avoid incidents.
The device must only be used on a stable surface.
Do not use device in escalators or moving walkways.
It is not recommended to use the device on sand, in mud or in extreme weather conditions unless the
model indicates that this is an approved use environment.
The temperature range for use is between -25 degrees Celsius and plus 50 degrees Celsius.
The device is not recommended to be exposed to strong electric fields, excessive heat, or moisture.
The device’ s operation might interference with other electrical devices.
Please never exceed the technical limits mentioned in the UM.
Driving training, obstacles, and slopes.
We recommend having driving training when you receive the PAWS, to become familiar with the
device and its limitations.
The device can climb obstacles with a maximum height of 5 cm –do not exceed this obstacle height.

Version 01/21 Page 5 of 44 PAWS UM EN
When device is attached to the chair, it is regarded as a three-wheel vehicle. Reduce speed when
turning, going across kerbs, cambers, and bumps to avoid tipping over.
Always be mindful of your speed when driving on public roads or footpaths. Please observe and
follow the local road traffic regulations in the country of use,
Please practice driving on the level ground before attempting sloped surfaces, to become familiar
with the device and its limitations.
When driving, and after releasing the throttle, please be aware that the device will not stop
automatically. The handbrakes must be applied to bring the device to a full stop.
Unless the brakes are applied, there is the risk of the device moving on a sloping surface. Always
apply the brakes when not using the throttle.
Do not climb slopes (up to 10 degrees) in the “Walk mode” 0° only. We recommend the lowest speed
mode for climbing should be Mode 1.
Ensure a fully charged battery before attempting a trip that has sloping ground.
Use and Speed
Always drive within your ability to control the device to a safe stop. Using/driving the device at
uncontrollable speeds is the user’s responsibility and the manufacturer/dealer will deny/refuse any
responsibility of accidents or damages to third party,
Speed Modes 3 –5 are only available as a special order and must be accompanied by a
recommendation by a qualified Dealer that the User can manage the higher speeds resulting.
Attention –key points
The device must not be loaded with more than 120 kg,
Use the device only in good technical condition and only for the purpose it is intended for,
If defects or errors are detected bring the device to a gradual stop (if in use) and immediately contact
your dealer,
Do not remove by yourself any parts or make any constructive changes to the device. It may influence
device's stability and performance,
Avoid skin burns during usage of the device in direct sunlight. Various parts of the device might
become hot,
Attach any accessory which is not from the optional accessories list is not allowed,
Before using the device, please carefully check tire air pressure, battery residual power, whether the
horn works, the brakes are functioning and all elements are secured correctly,
The device is not used for any purpose of transferring goods, carrying additional people in the chair
or sue during sporting activities,
When driving on public roads or footpaths, please observe and follow the local road traffic
regulations in the country of use,
As lithium ion cells are used in the battery pack, transportation will be subject to all regulations for
portable power cells. Please consult with authorities or your travel company (e.g. railway, bus

Version 01/21 Page 6 of 44 PAWS UM EN
company, shipping company) to find the best way to transport your device’s batteries.
WARNING!
The device and chair are not designed as a seating option for a user in moving
vehicles (like e.g. buses, trains, metro, airplanes etc.).
It is forbidden to seat on the device in moving vehicle. The device and chair should
be safely stowed and secured for the time of transportation.
The user should be safely transferred and seated in a prompt seating system
included in the vehicle. It is a great risk of serious incident, injuries, and property
damage to not follow above rule .
The design of the device because of its functions includes many moving elements,
slots, holes, and gaps between device’s parts.
There is a risk of body part trapping during folding, unfolding, and adjusting
different elements of the device. It specially concerns fingers or hands.
It is also possible to have a finger cut by moving parts of the device. Always be
careful when you adjust or set-up a chair to not get your body parts squeezed and
injured.
3 General Description of the Device.
The device is an electrically powered towing device that is attached to a manual chair, converting it into a power-
assisted chair.
The range and performance of device greatly increases the chair users’ daily travel range under all but the most
conditions. This increased freedom of movement may facilitate the users’ life and broaden their activity range, which
fundamentally enhances the users’ independence and confidence.
Elements of the Device.
PAWS is a system where some elements of the devices are common, and some are discrete according to the Users
requirements: -
Common elements for each model are the frames, lights, display, warning system and battery,
Selected elements are the wheel size, the handlebar set-up (Tetra enabled or Standard) and the docking
system (Manual or Auto Lift and Clamp).
Selected Elements.
Wheel Diameter/(Model) –diameter is the main model determinant

Version 01/21 Page 7 of 44 PAWS UM EN
12”/14” Wheel (City): lowest weight, battery consumption, torque (35 Nm) and motor power. Most
manoeuvrable. Suitable for indoors and tarmac road. Best at low to middle speed range.
16” Wheel (Cruiser): middle weight, battery consumption, torque (60 Nm) and motor power. Suitable for
outdoors in most conditions. Best at middle to higher speeds across variable terrain. Speed Modes 3 –5 are
only available as a special order and must be accompanied by a recommendation by a qualified Dealer that
the User can manage the higher speeds resulting.
20” Wheel with fat tire (Tourer): greatest weight, battery consumption, torque (80 Nm) and motor power.
Suitable for outdoors in most conditions. Best at middle to higher speeds across difficult terrain Speed Modes
3 –5 are only available as a special order and must be accompanied by a recommendation by a qualified
Dealer that the User can manage the higher speeds resulting.
Docking set-up options
Manual Clamp and Lift: Users have enough strength to perform the lift and clamp operation without
assistance,
Manual Clamp and Auto lift: Users have enough strength to do the clamp operation but use assistance for the
lift,
Auto Clamp and Auto Lift: Users require assistance for the clamp and lift operation.
Handlebar control set-up options
Standard throttle and brake handle: Users who have enough hand control and strength operate the speed
and brake control without assistance
Tetra throttle and brake handle: Users who have reduced or negligible hand strength and control and require
Tetra Grips to operate the speed and brake control functions
Attention! It is very important that Users strength and coordination are tested before selecting set-up options
and test driving! See Section 2 “Safety Warnings and Recommendations” (above).
Figure 1. Main Elements for the Device (example shown is manual clamp and lift configuration)
Display
Handlebars
Lift
Mechanism
Clamp
Mechanism
Support
Legs
Driving
Light
Battery
Lock
Battery
Drive
Wheel
Disc
Brake

Version 01/21 Page 8 of 44 PAWS UM EN
4 Cleaning and Storage.
Attention! Water penetration can destroy the drive and the battery pack. The Manufacturer shall not be liable
for damage caused by water inside the device. Please Attention that water damage is not covered by our
warranty
Cleaning
Do not clean the individual components of the device under running water or with a high-pressure cleaner,
Always ensure that no liquid or moisture enters the wheel hub and the battery pack,
Whenever you clean components or the battery pack, use a dry or slightly damp cloth,
Never use scouring pads, abrasive detergents, or aggressive chemicals to clean the components.
Storing and Commissioning
Store in a dry room, out of direct sunlight,
Remove the battery pack after fully charging and wrap it in film,
Also protect the device with film to keep moisture out,
Ensure that unauthorised persons (especially children) do not have unsupervised access to this room.
Recommissioning
Check whether maintenance is required before recommissioning and arrange this if necessary,
The chair, the device and the battery pack must be cleaned prior to recommissioning,
There must not be any metallic particles on the plug on the charger and on the charger socket on the battery
pack.

Version 01/21 Page 9 of 44 PAWS UM EN
5 Recycling and Disposal
Support sustainability by adhering to local regulations for recycling and disposal of the device once its serviceable life
is ended.
The device is labelled in accordance with European Directive 2002/96/EC (WEEE Directive) with a “crossed-out
rubbish bin” symbol, reminding you that it must be recycled,
All materials may be recycled once the device has finished its serviceable life,
Be sure to dispose of the device correctly by returning to your Dealer or take to a recycling centre.
Attention - Do not add to landfill as batteries and other components may leak substances that are hazardous to
the environment.
6 Maintenance & Service.
7
Maintenance
Despite the solid construction and usage of resistant materials, the device is subject to wear. It is therefore
recommended to have a professional checking the device at regular intervals –usually at 2 years since purchase or
earlier if there is any doubt about the device’s performance.
This guideline value of 2 years may vary with the device's respective degree of utilization and the behavior of the user.
Checking the degree of utilization and the user behavior is the responsibility of the operator.
Attention! Please also consider the condition of the chair! The maintenance of the chair is equally important as
that of the device. Manufacturers recommendations may not consider the use of the chair with the device, so please
contact your chair supplier to ask about maintenance when using a device!
Parts (shown below) also include “generic” care instructions for the chair. These should be considered along with the
chair manufacturer’s own care instructions., which should be regularly inspected.

Version 01/21 Page 10 of 44 PAWS UM EN
Part name
Control type
Control frequency
Device
Battery and Charger
Ensure contact points are clean on the battery and its housing by
wiping with a dry cloth. Also check that the plug and battery socket
for charging are clear of any dirt or metal particles.
Whenever recharging
the battery.
Brake Levers
Brake cables may stretch over time. These can be adjusted by
loosening the lock nut and turning the adjustor next to the brake
lever housing. Retighten after adjusting.
As indicated through
use.
Handlebars
Check tightness of all fasteners on the handles bars to ensure
stability of parts. Only use the tools supplied.
Depending on use, and
/ or monthly.
Lights and Horn
Normal function check.
Before driving each
time.
Disc Brake
Assembly
Clean dirt off the Brake Disc and check for excessive wear such as
gouging or deep grooves.
Whenever the braking
performance feels
diminished or monthly.
Clamping
Mechanism to Chair
Frame
Check adjustments if slipping or excessive markings on the tube are
noticed or manual clamping becomes harder or easier than when
first delivered.
As indicated.
Clamping
Mechanism to
Device Frame
Check the tension and adjust to ensure a firm grip on the Width
Adjusting Rods.
As indicated, especially
when changing to
different chairs.
Common to both Chair and Device
Tyres
Tyre pressure (check manufacturers specifications), condition of
tread and tyres. One should take care, to keep the pressure in all
tyres on the same level. Harder tyres provide better maneuverability
and easiness of driving but reduce comfort on bumpy surfaces.
At least once a week;
see manufacturers
“Specifications”.
Spokes
Loose spokes can cause deformation of the rear wheels. Contact
your dealer or local bicycle service to manage the problem of loose
spokes.
If the problem occurs.
Chair only
Push Rims
Excessively scratched push rims ought to be exchanged because
they can wound the user’s hands while riding the device.
If necessary
Brakes
The braking force depends on the tyre pressure. The efficiency of
brake operation can be also affected with dirt accumulated on tyres.
Keep the brakes clean wiping them with a damp cloth to remove
dirt.
At least once a month,
depending on usage
conditions.
Frame and Rear
Axle Mount
Depending on the patterns of use and the possibility of abnormal
use and wear, check all frame welds, axles, back canes, and seat
mounts for evidence of cracking or other damage. Attention! If
noticed, do not use until rectified.
At least once a month,
depending on usage
conditions.

Version 01/21 Page 11 of 44 PAWS UM EN
Turning wheels
The area between the fork and the front wheel should be kept clean,
because dirt accumulating there can cause faster wear of caster
bearings. To do so, one should disassemble the front caster by
disassembling it from the fork, to remove all dirt, and then preserve
the metal elements of the wheel (i.e. to apply technical grease).
The maintenance ought
to be made once a
month or more often
depending on usual
surface type &
conditions.
Detachable
elements
Check the condition of detachable elements of the chair; if screws
are loose, they should be tightened.
In case of intensive
exploitation of the chair
and device the
inspection should be
carried out once a
month.
Service
Introduction
Regular service is important for the longevity of the device, which, along with repairs, must be carried out by
authorised dealers or the Manufacturer.
For authorised repairs and service, please contact the supplying dealer or contact the Manufacturer directly.
WARNING! Unauthorized repairs will cause loss of warranty. The Manufacturer does not guarantee proper
functioning of the device if it has been repaired by unauthorized service and/or not using original spare parts.
Regular Service will be scheduled at the time of purchase with the dealer.
One Month Check.
After the first month of use it is recommended that the device be returned to the dealer for an overall check,
Any adjustments to the fitting can be made along with an overall check of all fasteners and adjustable elements.
24 Month Service.
Apart from regular maintenance by the owner, a 24-month full Maintenance Service is required,
This will include check for all worn parts and replacement. The Pre-Delivery check will be repeated, and the chair
and device adjusted to the User’s needs,
The battery condition and power output of the drive wheel will be checked then also.
Failure
In case of any device failure we recommend you immediately contact the dealer.
The Display has some diagnostic functions –you may be required to relay this information to the Service Technician
if you are not able to rectify the issue directly.

Version 01/21 Page 12 of 44 PAWS UM EN
No.
Error alarm
Error description
Solution
1
Error 01
Normal condition
None
2
Error 03
Braking
Release the brake
3
Error 04
Throttle does not go to "0"
Release the throttle
4
Error 05
Throttle broken
1. Check the throttle cable
2. Change throttle
3. Contact dealer
5
Error 06
Low voltage protections
1. Check the voltage of battery
2. Charge the battery
6
Error 07
Over voltage protection
1. Check the voltage of battery
2. Contact dealer
7
Error 08
Motor hall sensor broken
1. Check motor cable
2. Check motor hall sensor
3. Contact dealer
8
Error 09
Motor phase broken
1. Check motor cable
2. Check motor resistance value
3. Contact dealer
9
Error 10
Motor temperature protection value
1. Allow motor to cool down
2. Still not work, contact the dealer
10
Error 11
Motor temperature sensor broken
1. Check motor cable
2. Contact dealer
11
Error 12
Current sensor broken
1. Check motor cable
2. Contact dealer
12
Error 13
Battery temperature sensor broken
1. Check battery temperature sensor
2. Contact dealer
13
Error 14
Controller temperature protection value
1. Allow motor to cool down
2. Still not work, contact the dealer
14
Error 15
Controller temperature sensor broken
Contact dealer
15
Error 21
Speed sensor broken
Contact dealer
16
Error 22
BMS communication broken
Contact dealer
17
Error 23
Head lamp broken
1. Check lamp
2. Check lamp cable
3. Contact dealer
18
Error 24
Head lamp sensor broken
1.Check lamp
2. Check lamp cable
3. Contact dealer
19
Error 30
Communication broken
1. Check the display cable
2. Contact dealer
Attention! If using a transport service to send the device for repair of service, please use the original packing or
ensure that the package used is enough to protect the device on both legs of the transport. If you are in doubt, please
contact the dealer for packing instructions before sending.
WARNING! The Manufacturer does not take responsibility for transport damages of the device or components
caused by improper packing.

Version 01/21 Page 13 of 44 PAWS UM EN
7Warranty and Liability
Warranty - If any defects or damages occur, the User should immediately inform the supplier.
Warranty for defects - The Manufacturer guarantees that the device is free of defects at the time of delivery. This
warranty expires 24 months after the date of delivery of the device,
During that period, all material, or parts defects (excluding the Battery), caused by manufacturing faults or usage
of improper materials during construction will be repaired or replaced free of charge.
Battery Exception: The Battery has a replacement guarantee of 12 months from the time of purchase. This is
because the condition and performance of the battery will depend on the recharging history as well as the
original manufacture.
The Warranty does not include:
Devices whose serial numbers have been tampered with or removed.
Worn parts such as tyres, grips, handles, levers, and spokes.
Defects caused by normal wear, incorrect handling including non-compliance with the instructions in this
operating manual, accidents, reckless damage, damage caused by fire, water, force majeure, and other events
that are outside the control of the Manufacturer.
Parts that may need to be serviced or replaced as due to normal wear and tear as part of normal use (e.g. tyre
change).
Device inspection without detection of a fault or defect.
All mechanical defects and damages caused by improper use or usage not intended by manufacturer are not
covered by warranty.
Unauthorized changes and modifications of the device will cause loss of warranty.
Range of responsibility - This Warranty does not cover
transport cost,
cover personal injury or other damages eventually related to a malfunction of this device,
damage caused by the inability to use the device,
damages caused as the result of inappropriate or incorrect understanding of this user's manual,
Modifications - If the device has any unauthorized modifications, then the Warranty is null and void. If you have any
questions or doubts concerning modifications, please contact the Manufacturer before you take any action.
Liability - The Manufacturer shall not be liable for the safety of the device, if:
The device is incorrectly handled
The device is not serviced at the prescribed two-year intervals by an authorised specialist dealer or the
Manufacturer
The device is operated in contravention to the instructions in this operating manual
The device is operated with insufficient battery charge
The device is repaired or modified by a person not authorised to carry out such work
Third-party parts are attached to the device
Parts of the device have been removed

Version 01/21 Page 14 of 44 PAWS UM EN
8Scope of Delivery and Identification
Scope of Delivery
The Device is delivered partially disassembled and requires setting up and adjusting after unpacking. This should be
done by an authorised dealer
Please check the contents of the box before proceeding to Assembly. Each delivery includes these items: -
Main frame, handlebar assembly and drive wheel - assembled
Manual or Auto Clamp
Battery
Battery Charger
Hexagonal Key Wrenches (for assembly and adjustment)
2 pcs of Open End and Socket Spanners
User Manual
Optional Accessories that may be included: -
Compact Smart Tyre Inflator
Taillight
Attention! If possible, please keep the original packing in case it needs to be transported to the Dealer of
Manufacturer. This is also useful in the event of long-distance travel.
Packaging Instruction
Please keep all original packaging materials –these may be needed if the device must be shipped for service or repair.
Identification
The Label located on the side of the main frame has important information about the device.

Version 01/21 Page 15 of 44 PAWS UM EN
Figure 2. Label
Type - The Type describes key elements of the device. The codes for each of the ten places in the Type is described below: -
Place 1 - The Manufacturer –“R” for Rehasense
Place 2 –The Family –“P” for PAWS
Place 3 –the Style. “I” for City; “C” for Cruiser; “T” for Tourer
Places 4 and 5 –the Wheel Diameter. 12”; 14”; 16”; 20”.
Places 6 and 7 - Docking. “MM” Manual Lift/Clamp; “AM” Auto Lift/Manual Clamp; “AA” Auto Lift/Clamp
Place 8 - Handlebar Control. “S” Standard; “T” Tetra
Place 9 and 10 –Tyre reference. “01” for Standard; “00” for Fat Tyres.
Type
Model
Dia
Dock
Handlebar
Description
RPI12AAS00
City
12"
AA
Standard
PAWS / CITY 12" / AUTOMATIC CLAMP & LIFT
RPI12AAT00
City
12"
AA
Tetra
PAWS / CITY 12" / AUTOMATIC CLAMP & LIFT / TETRA
RPI12MMS00
City
12"
MM
Standard
PAWS / CITY 12" / MANUAL CLAMP & LIFT
RPI12MMT00
City
12"
MM
Tetra
PAWS / CITY 12" / MANUAL CLAMP & LIFT / TETRA
RPI14AAS00
City
14"
AA
Standard
PAWS / CITY 14" / AUTOMATIC CLAMP & LIFT
RPI14AAT00
City
14"
AA
Tetra
PAWS / CITY 14" / AUTOMATIC CLAMP & LIFT / TETRA
RPI14MMS00
City
14"
MM
Standard
PAWS / CITY 14" / MANUAL CLAMP & LIFT
RPI14MMT00
City
14"
MM
Tetra
PAWS / CITY 14" / MANUAL CLAMP & LIFT / TETRA
RPC16AAS00
Cruiser
16"
AA
Standard
PAWS / CRUISER 16" / AUTOMATIC CLAMP & LIFT
RPC16AMT00
Cruiser
16"
AM
Tetra
PAWS / CRUISER 16" / AUTOMATIC CLAMP & MANUAL LIFT TETRA
RPC16MMS00
Cruiser
16"
MM
Standard
PAWS / CRUISER 16" / MANUAL CLAMP & LIFT
RPT20AAS00
Tourer
20"
AA
Standard
PAWS / TOURER 20" / AUTOMATIC CLAMP & LIFT Fat tyre 20" x 4"
RPT20AAS01
Tourer
20"
AA
Standard
PAWS / TOURER 20" / AUTOMATIC CLAMP & LIFT 20" x 2.125"
RPT20MMS00
Tourer
20"
MM
Standard
PAWS / TOURER 20" / MANUAL CLAMP & LIFT Fat tyre 20" x 4"
RPT20MMS01
Tourer
20"
MM
Standard
PAWS / TOURER 20" / MANUAL CLAMP & LIFT Normal tyre 20" x2.125"
Figure 3. Types and Descriptions.
Product name
Production date
Item number
Max. speed
Max. weight of
person
Range of battery
Max. gradeability
Can be used
outdoor
Serial number in
standard GS1 128
Barcode EAN –
GS1 128
Barcode EAN 13
in standard GS1

Version 01/21 Page 16 of 44 PAWS UM EN
9Specifications
Element
City 12"/14" Wheel
Cruiser 16" Wheel
Tourer 20" Wheel
Overall L*W*H: (mm)
800 x 490 x 810
820 x 490 x 860
1000 x 520 x 920
Packing L*W*H: (mm)
1070 x 600 x 290
1100 x 600 x 290
1260 x 705 x 290
Max. weight of person: (kg)
120
120
120
Max. overall weight:(kg)
140.8
143.8
148.8
Total weight less battery:(kg)
17.5 / 18
20.5
25.5
Battery Weight: (kg)
3.3
3.3
3.3
Total weight: (kg)
20.8 / 21.3
23.8
28.8
Motor Power: (W)
350
500
500
Motor Voltage: (V)
48
48
48
Battery Capacity:(Ah)
11.6
11.6
11.6
Battery Rated Energy: (Wh)
557
557
557
Battery: (mm) (LxWxH)
371 x 130 x 86
371 x 130 x 86
371 x 30 x 86
Battery Charger
Standard
Standard
Standard
Charge time: (Hour)
5
5
5
Docking - Auto/Manual
Option
Option
Option
Disc and "e" Brakes
Standard
Standard
Standard
Parking Brake
Standard
Standard
Standard
Turning Radius:(m)
1 / 1.1
1.2
1.5
Climbing capability (dg)
10
10
10
Step climbing height (mm)
50
40
55
Range On flat terrain: (km)
40
38
35
Max Speed: (km/h)
28 *
28 *
32 *
Modes:5 in range (km/h)
10 to 28
10 to 28
10 to 32
Reverse Gear
Yes
Yes
Yes
Cruise Control
Yes
Yes
Yes
Walking Mode
Yes
Yes
Yes
Tetra Function
Option
Option
Option
Frame Material
Steel & Aluminum
Steel & Aluminum
Steel & Aluminum
Tire: (Inches)
12.5*2.25 (57-203) /
14*3 (76-203)
16*3 (76-305)
20*4 (100-406) /
20*2.125 (57-406)
Rim
24 X 203
50 X 305
73 X 406
Rec. Tire Pressure:(Bar)
2.8
2.4-3.1
2
Bell or Horn
Horn
Horn
Horn
Front Light
Yes, 4 positions
Yes, 4 positions
Yes, 4 positions
Figure 4. Specifications
Attention!
Max speed is only for special orders of customers (users).
Speed mode 1-2 are for each product, X• Speed Modes 3 –5 are only available as a special order and must be
accompanied by a recommendation by a qualified Dealer that the User can manage the higher speeds resulting.

Version 01/21 Page 17 of 44 PAWS UM EN
(mm)
A
B
C
12”
800
810
490
16”
820
860
490
20”
1000
920
520
Device in Park Position
Battery
Table Dimensions

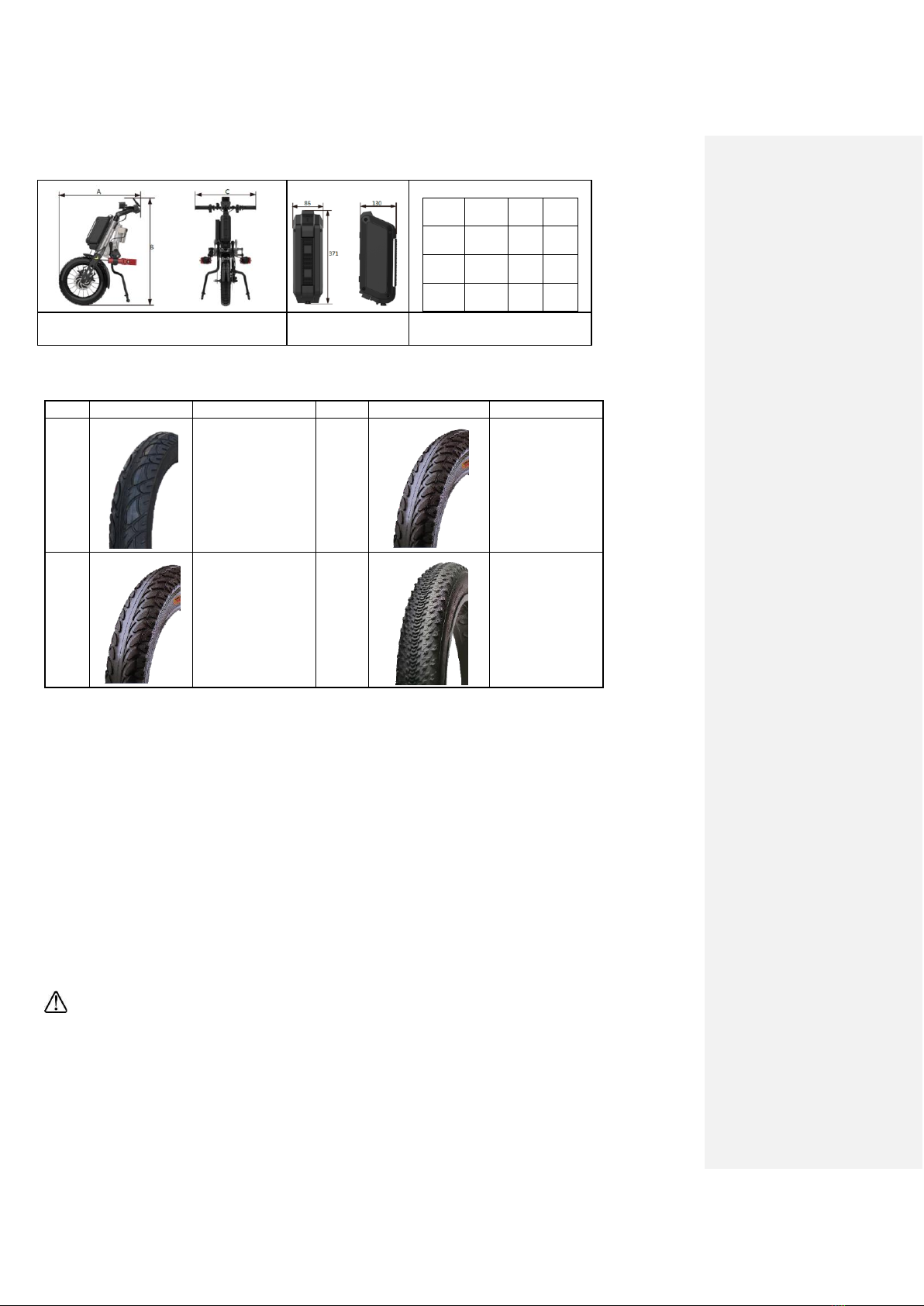

Figure 5. Device and Battery Dimensions
Dia.
Tread Pattern
Description
Dia.
Tread
Description
12”
Brand: CHAOYANG
Size:12 1/2 x 2 1/4
ETRTO: 52-203
Pattern:H-5
Air Pressure: 40 P.S.I
/2.8 Bar
Car Valve
20”
Brand: CST
Size:20X2.125
ETRTO: 57-406
Pattern:C-1488
Air Pressure: 35-
45 P.S. I /2.4-3.1
Bar
Car Valve
16”
Brand: CST
Size:16X3.0
ETRTO: 75-305
Pattern:C-1488
Air Pressure: 35-45
P.S.I /2.4-3.1 Bar
Car Valve
20”
Brand: CST
Size:20X4.0
ETRTO: 100-406
Pattern:C-1752
Air Pressure: 30
P.S.I /2.0 Bar
Car Valve
Figure 6. Tyre Specifications
10 Configurations, Controls and Display.
Description
The configuration of the device is made at the time of ordering and may involve a therapist with the dealer and Use
discussing the options that best suit the Users situation.
Thus, the set-up of controls of the device will be matched to the driving, braking, and docking options chosen by the
User at the time of ordering.
While most features are standard, there are options in the Docking, Driving and Braking Systems to allow the User to
have the level of control that does not exceed their physical abilities.
Generally, Users with neural damage and/or muscle atrophy will choose auto or assisted docking, driving and braking
controls.
Attention! These are set during manufacture and can only be changed by the Manufacturer or authorised
dealers with approved components.
Configuration
The needs of the User determine the set-up of the device and controls. The set-up offering the most assistance is for
Users with restricted neuro-muscular abilities.

Version 01/21 Page 18 of 44 PAWS UM EN
Assistance is in 2 forms
Power Assisted Docking –Clamping/Unclamping & Lifting/Lowering
Driving and Braking –Tetra controls to support these actions
The Tetra Handlebars for those with diminished trunk and upper extremity strength and fine motor control. The main
difference is the gripping method for the hand controls for throttle (right hand) and brake (left hand).
For the Tetra Handles, there are two additional prongs that allows the Users hands and wrists to be more actively
employed in the control movement.
The angle of the Tetra Handles will need to be set-up individually for optimal control.
Attention! The ability of the User to control the key functions of speed control and braking will determine if it is
safe to use or not.
Controls
The controls are switches, buttons or levers that are used to operate the device. They describe the 5 main “systems” of
the device: -
Power –Battery and Device
Safety –Lighting and Warning
Docking –Clamping/Unclamping & Lifting/Lowering
Driving –Accelerating/Decelerating
Braking –Slowing down & Parking
No
Systems
Name
Function
Stand
Tetra
1
Power
Battery
Powers device
x
2
Battery Lock
Key lock for Battery
x
3
Battery Power Button
Starts battery & charge level
x
4
Device Power Button
Device "on" or "off" button
x
5
Traction Control Switch
prevents wheelspin
x
6
Safety
Head Light Switch
Selects 3 headlight settings
x
7
Horn Button
Audible warning button
x
8
Docking
Auto Clamp/Lift Switch
Clamp/Unclamp & Lift/Lower
x
x
9
Manual Lift Control Lever
Control 3 Lift Positions
x
x
10
Drive
Screen
Driver Display
x
11
Direction Switch
Forward or Reverse
x
12
Throttle Handle
Controls acceleration
x
x
13
Tetra Throttle Handle
Controls acceleration
x
x
14
Walking Mode Switch
Sets to two walking speeds
x
15
Cruise Button
Cruise control on and off
x
16
Speed Mode Button - Up
Selects higher speed modes
x
17
Speed Mode Button - Down
Selects higher speed modes
x
18
Braking
Brake Handle Lever
Control braking during
driving
x
x
19
e-Driving Brake
Control braking during
driving
x
x
20
Parking Brake Catch
Controls stationary braking
x
x
21
e-Parking Brake
Controls stationary braking
x
x

Version 01/21 Page 19 of 44 PAWS UM EN
Figure 7. PAWS Device Controls
Figure 8. Standard Controls
Figure 9. Tetra Controls
Display
The Display is mounted in the middle of the handlebars and may be rotated to the best position by loosening,
adjusting, and retightening the clamp bolts on the Display Mounting Bracket.
It displays crucial information about the device system, driving controls and running performance.
Attention! The display is made from the same materials that are used in Smart Phones. It has a protective layer;
it is important to take care of it to ensure long life. Clean it with a soft cloth and lens cleaning solutions.
3
20
18
17
16
15
14
7
6
5
4
2
1
1
1
13
8
19
12
11
10
1
1
1
1
1
1
1
1
1
1
21
1
9
1
1
1

Version 01/21 Page 20 of 44 PAWS UM EN
Figure 10. Display Functions
11 Device Assembly
Introduction
This section will describe: -
Firstly, the assembly according to the clamping and lifting configuration chosen
secondly, the general operation, with exceptions where the configurations vary
11.1 Naming of Parts.
Description
This section shows and names all major assemblies and key functional parts in the device for Manual and Auto
Docking Assemblies.
Figure 11. Manual Clamp and Width Adjustment Assemblies
QR Lever
QR Nut
Locking Bolt
A (Angle)
Width Adjustment Rod
Width Setting Ring
Clamp Lever
Clamp Jaws
Clamp
Mechanism
Receiver
Locking Bolt
B (Depth and
Angle)
Clamp
Height
Adjustment
Plate
Residual Battery
Cruise
Reverse
Forward
Power
Comsumption
Efficiency
Walking Mode
Driving Status
Instant Power
Connection between
Controller and
Screen
Traction Mode
Instant Speed
Diving Mode
Total Travelling
Distance
Single Travelling
Time
