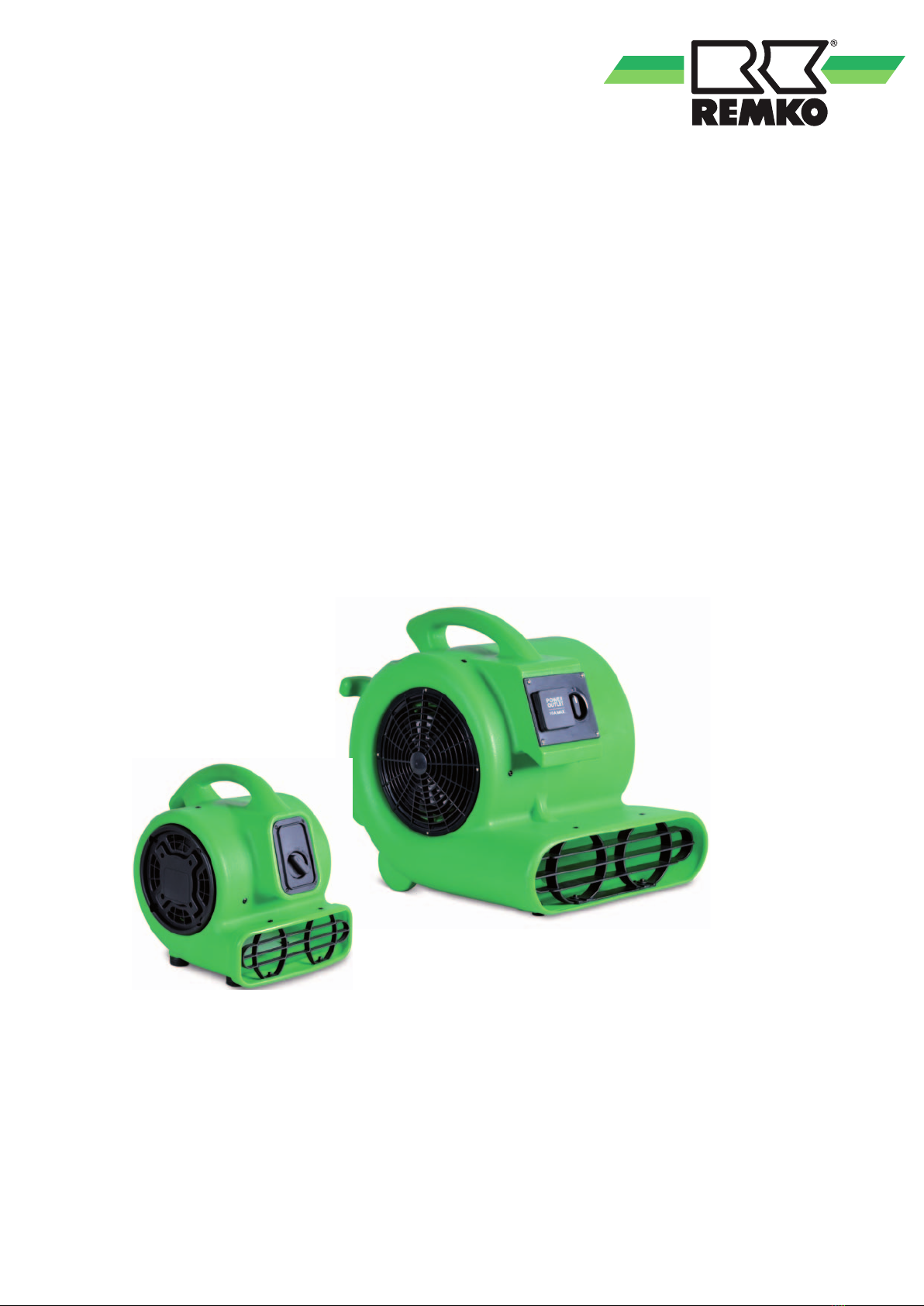

REMKO RTV 15 User manual

Edition GB – G12
REMKO RTV 15/30
High-performance fans for
construction and renovations
Operation Technology Spare parts

2

3
Contents
Safety notices 4
Description of the unit 4
Commissioning 5
Decommissioning 5
Care and maintenance 6
Intended use 6
Customer service and warranty 6
Environmental protection and recycling 6
Technical data 7
Spare parts list 7
These operating instructions must be read carefully
before commissioning/using the unit!
These instructions are part of the unit and must always be kept in the
direct vicinity of the site of installation or on the unit.
This operating manual is a translation of the German original.
We reserve the right to make changes; no liability for errors and misprints!

4
HIGH-PERFORMANCE FANS
Safety notices Description of the unit
NOTE
Only authorised electricians
may extend the connecting
cable, taking into account the
rating of the unit , cable length
and local use.
The units were subjected to ex-
tensive material, functional and
quality inspections and tests prior
to delivery.
The units can however constitute
a hazard if used improperly by
untrained persons or not for the
intended purpose.
Always observe the following
safety information:
■The locally applicable building
and other regulations must be
observed.
■The operator is responsible for
correct installation of the units,
correct electrical installation and
safe operation of the units.
■The units must always be set up
and operating in a stable man-
ner.
■The units may be set up and
operated only in an environment
not at risk of fire or explosion.
■The units must not be set up
and operated in aggressive envi-
ronments.
■Protect the environment and
yourself from any flying parts.
■Safety components such as
protection grids must be neither
dismantled nor decommissioned.
■The units must only be operated
within the specified capacity
limits.
■The air inlets including grilles
must be kept free of dirt and
loose objects at all times.
■The air inlet and outlet must not
be closed.
■Never insert foreign objects into
the device.
■The unit must not be subjected
to a direct jet of water.
■Never allow water to enter the
unit.
■All electric cables of the units
must be protected against dam-
age e.g. by animals, etc.
■The unit musst not be transport-
ed during operation.
■People who use the unit must
be familiar with the risks arising
with the use of conveying fans.
■Use hearing protection when
in the vicinity of the unit for a
longer period of time.
The combination of a powerful ra-
dial fan and thoroughly conceived
accessories (RTV 30 only) makes
the unit into a particularly versatile
solution for air circulation.
Due to its specially adapted air
guidance function, the turbo fan
generates a wide airflow close
to the floor over wet flooring or
moist screen. This airflow optimally
distributes the room air and thus
noticeably increases the drying
speed.
But even in the case of supported
wall and floor drying after water
damage or as an aid in the dry-
ing of screed and buildings under
construction, the units can render
valuable services.
Through the connection of tubes
(RTV 30 only), particularly targeted
ventilation or drying of hollow
spaces is possible.
The units are also ideal for the
effective support of dehumidifiers
in the drying of buildings under
construction.
Depending on the respective envi-
ronment and temperature, the dry-
ing time can be drastically reduced
by the combination of dehumidifi-
ers and the high-performance fan.
The units can be adjusted in three
different mounting angles (0°, 45°,
and 90°).
When high-performance fans
are used, people must be
aware of any risks that arise.
ATTENTION
!

5

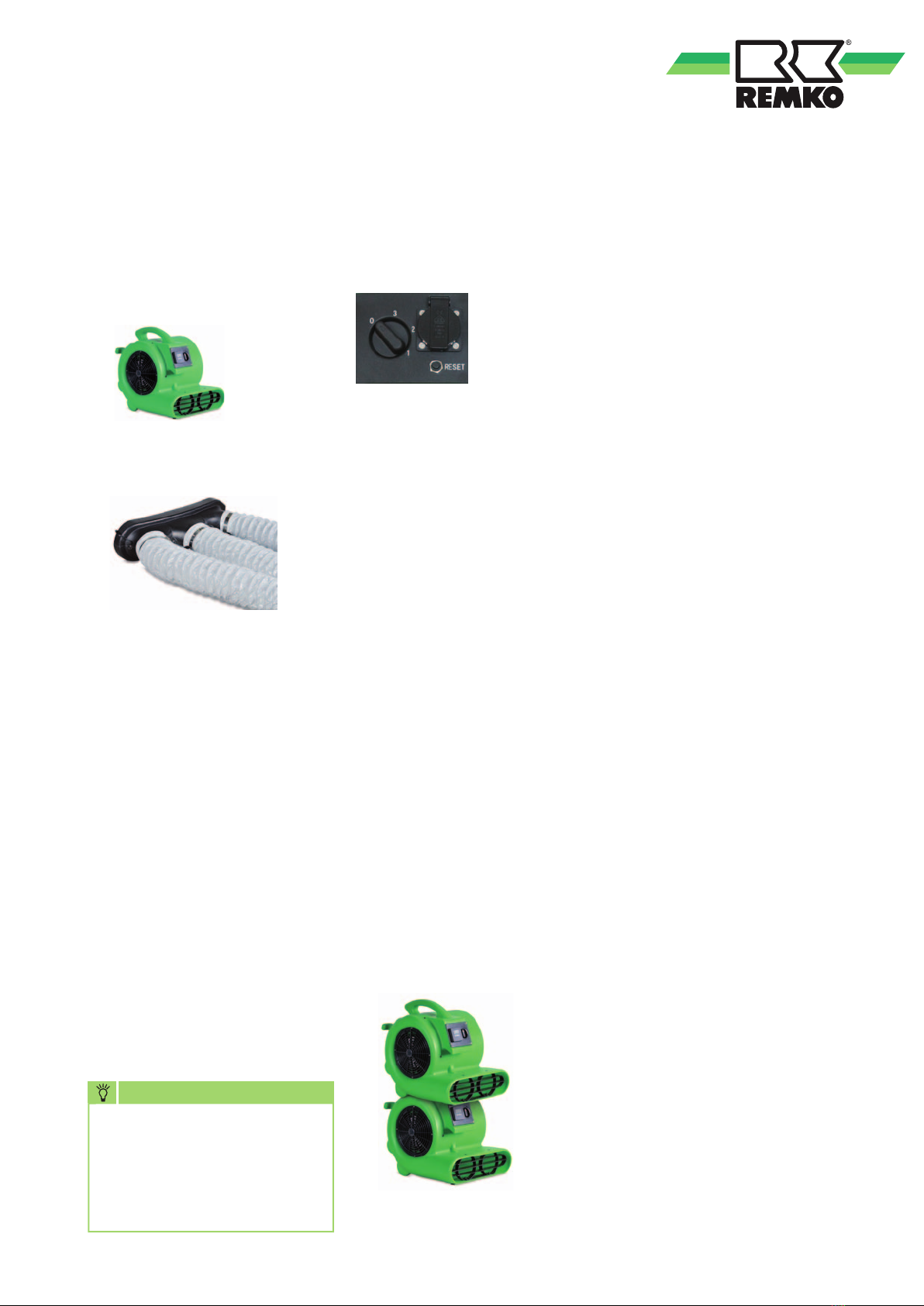

Before using for the first time
■ The correct unit setup and as-
sembly of any accessories used
must be checked.
Switching on the device
■ Switch the unit to the desired
power level using the 3-speed
selector switch.
Commissioning
NOTE
Electrical connection of the
units must be made at a
separate supply point using
a residual-current-operated
circuit-breaker according to
VDE 0100 § 55.
Decommissioning
Care and maintenance
The units are virtually mainte-
nance-free in normal operation.
To ensure trouble-free operation,
however, they should be inspected
regularly and cleaned and/or
repaired if necessary according to
the respective conditions for use.
Cleaning the units
■ The units must be disconnected
from the supply in all poles and
locked to prevent unauthorised
reconnection.
■ The protective grids for the air
inlets must be cleaned regularly
and replaced in case of dam-
age.
■ Clean all air inlets and air outlet
louvres.
■ Remove the protective grid
before cleaning the fan cylinder.
■ Remove heavy soiling on the
fan and fan housing with a
soap solution.
■ The units must be cleaned only
dry or with a moist cloth and a
small amount of soap solution if
necessary.
■ Under no circumstances use
high-pressure cleaners or steam
jet equipment.
■ Do not use caustic cleaning
agents or cleaning agents con-
taining solvents.
■ Avoid causing damage when
using compressed air.
■ Set the operating switch to the
“0” position.
■ Read the operating hours coun-
ter.
For extended periods of non-
use:
■ Disconnect the unit from the
mains supply.
■ Clean the unit and store it in a
dry location, free of dust and
direct sunlight.
Electrical connection
■ The 230V electrical connection
is implemented using a fitted
mains cable with safety plug.
■ Connect the mains plug with a
properly installed and secured
mains socket.
■ All cable extensions must only
be used uncoiled or unwound.
Free-blowing unit, directly above
the ground
Optional air distributor head #
1009530 with 3 x 10m WL tube #
1009532
ATTENTION!
Always attach the tubes with suit-
able straps or clamps.
Example 1:
Example 2, only for RTV 30:
■ The RTV 30 unit has either an
operating hours counter or an
additional 230V / 10A socket.
■ When required, read the oper-
ating hours counter and note
down the reading.
The RTV 30 unit can be stacked
for space-saving storage.
Fig.: Control panel with
RTV 30 operating
switch
and additional socket

6
HIGH-PERFORMANCE FANS
Based on their structural design
and equipment, the units are
conceived only for aeration and
ventilation, or air circulation under
observance of the technical data
and safety information.
The portable unit conception per-
mits a fast change of location and
may be implemented only in the
ex-works unit design.
The units must not be set up or
operated on boggy or flooded
foundations.
Damage due to incorrect operation
or commissioning by unauthorised
personnel is excluded from the
warranty.
The units comply with the basic
health and safety requirements of
the pertinent EU regulations and
have been multiply tested for per-
fect function at the factory.
Customer service and
warranty
The prerequisite for any warranty
claims is that the customer or its
recipient has returned the com-
pleted
"Warranty Document”
included in delivery to
REMKO GmbH & Co. KG
at the time of the sale and com-
missioning of the equipment.
The units were repeatedly tested
at the factory to ensure that they
function correctly.
If any malfunctions should oc-
cur, however, which cannot be
eliminated by trouble shooting
measures performed by the opera-
tor, please consult your dealer or
contract partner.
The manufacturer is not liable for
any damage attributed to failure
to observe the manufacturer's
instructions or applicable statu-
tory requirements or unauthorised
changes to the units.
Intended
use
Disposal of packaging
When disposing of the packag-
ing material, please think of the
environment.
Our units are carefully packed for
transport and delivered in sturdy
cardboard packaging on a wooden
pallet, if necessary.
The packaging materials are
environmentally-friendly and can
be recycled.
By reusing packaging materials,
you make a valuable contribution
towards waste reduction and the
conservation of raw materials.
Only dispose of packaging mate-
rial at the facilities provided.
Disposal of the old unit
Our unit production is subject to
constant quality controls.
Only high-quality materials are
used, the majority of which are
recyclable.
Make your contribution towards
environmental protection by
disposing of your old unit in an
environmentally-friendly manner.
Only dispose of your old unit at
an authorised recycling facility or
similar .
NOTE
Operation for any other pur-
pose than that described in
these operating instructions is
not permitted.
Non-observance will result in
all liability being disclaimed
and invalidate the warranty.
NOTE
Only authorised specialists
may undertake repairs and
maintenance.
Environmental
protection and
recycling
Copyright
Any copying of this document
in whole or part or use for pur-
poses other than that intended
is strictly forbidden without
the prior written permission of
REMKO GmbH & Co. KG
.
ATTENTION
!

7
RESET

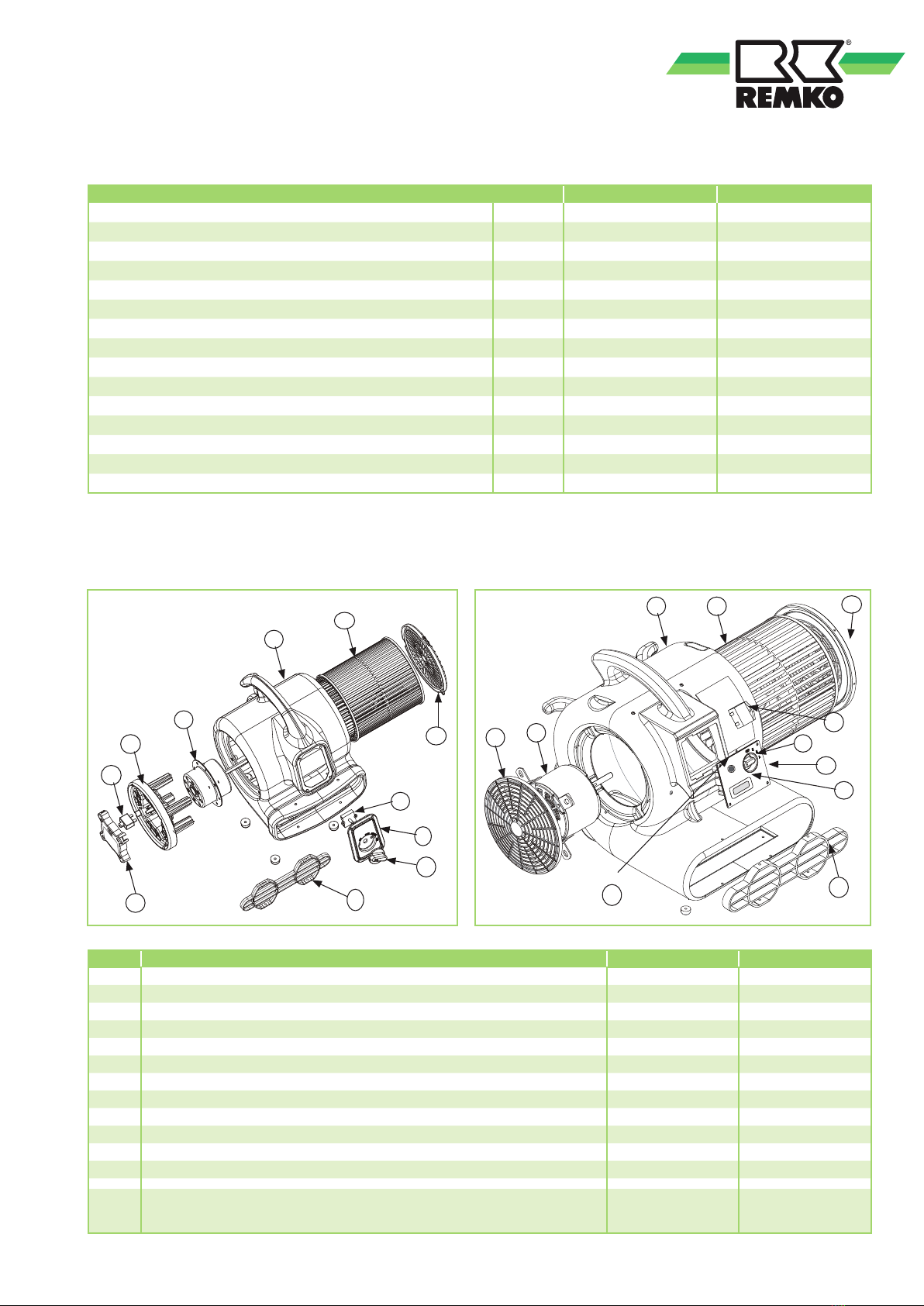

Technical data
Series RTV 15 RTV 30
Design Turbo fan Turbo fan
Ventilation capacity, 3-stage m3/h 1200/1000/580 2400/2300/2150
Max. pressure Pa 200 620
Electrical connection V/Hz 230/1~/50 230/1~/50
Max. power consumption Watt 220 680
Fuse protection (on site) A 10 10 / 16
Max. current consumption A 1.1 3.1
Type of protection IP 44 44
Sound pressure level dB (A) 58 69
Max. conveyor temperature °C 40 40
Hose connection Ø (optional multi-connection adapter) mm — 100
Max. tube length (optional multi-connection adapter) m — 3 x 10
Dimensions - height/width/depth mm 340/290/310 430/400/470
EDP No: 1610700 1610730 / 1610731
Weight kg 5 14
No. Designation RTV 15 / Ref. no. RTV 30 / Ref. no.
1Protection grid for air inlet 1113050 1113061
2 Electric motor 1113051 1113062
3 Fan housing 1113052 1113063
4 Fan cylinder 1113053 1113064
5 Control panel 1113054 1113065
5a Control panel for additional socket — — 1113066
6 3-speed operating switch, complete 1113055 1113067
7 Condenser — — 1113068
9 Operating hours counter / additional 230V socket not shown — — 1113048 / 1113069
10 Protection grid for air output 1113056 1113070
11 Protection grid for air inlet (for RTV 15 with motor support) 1113057 1113071
12 Protective switch with reset button 1113058 1113072
13 Cover plate 1113059 — —
Not
shown Mains cable with plug 1113060 1113073
Spare parts list
9
10
12
10
1 3
11
12
11
7
6
6
1
1
4
4
5
6
5
2
2
3
3
We reserve the right to make changes to dimensions and the design in the interest of technical advances.
RTV 15 RTV 30

Consulting
Through intensive training, we
ensure that the expert knowl-
edge of our consultants is always
up-to-date. This has given us the
reputation of being more than
just a good, reliable supplier
REMKO, a partner
who helps solve problems.
Sales
REMKO not only has an exten-
sive sales network in Germany
and abroad, but also unusually
highly qualified sales experts.
REMKO field employees are
more than just sales representa-
tives: they mainly provide our
customers with consulting serv-
ices in regard to air-conditioning
and heating technology.
Customer service
Our units operate precisely and
reliably. If a fault should occur,
REMKO Customer Service is
there to help you. Our extensive
network of experienced special-
ised dealers guarantees you a
fast and reliable service.
REMKO INTERNATIONAL
...and somewhere near you!
Take advantage of our experience and advice
REMKO GmbH & Co. KG
Klima- und Wärmetechnik
Im Seelenkamp 12 D-32791 Lage
Postfach 1827 D-32777 Lage
Telephone [phone]
Fax [phone]
E-mail [email protected]
Internet www.remko.de
Subject to technical changes, information supplied without liability!
