REMS E-Push User manual
TESTING
INSTRUCTION MANUAL
PART 1:
REMS E-PUSH
REMS E-PUSH 2
PART 2:
REMS Multi-Push S
REMS Multi-Push SL
REMS Multi-Push SLW
PART 3:
REMS Push
REMS Push INOX
2
PART 1
PART 1:
REMS E-PUSH
REMS E-PUSH 2
3
Fig. 1
9
1
8
7
6
3
4
5
2
11
12
10
REMS E-PUSH
4
eng eng
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired by a qualifi ed expert
or by an authorised REMS after-sales service facility before use.
Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Secure the workpiece.
Use clamps or a vice to hold the workpiece. This is safer
than holding it with your hand, and also it frees both hands to operate the equip-
ment.
h) Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power
tool, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in
a hazardous situation. All unauthorised modifi cations to the power tool are
prohibited for safety reasons.
E) Service
a) Have your power tool serviced by a qualifi ed repair person using only
identical replacement parts.
This will ensure that the safety of the power tool
is maintained.
b) Comply with maintenance instructions and instructions on tool replace-
ments.
c) Regularly check the connecting cable of the electrical device. If the connecting
cable needs to be replaced, this must be done by the manufacturer or his
representative to avoid a safety risk. Check extension cable regularly and
replace it when damaged.
Specifi c Safety Warnings
WARNING
●
Wear your personal protective equipment (e. g., your eye protectors).
●
Before every using of the machine, examine the high-pressure-hose for damages.
●
The electric pressure-testing pump develops a very high pressure. Therefore,
be particularly careful. When working with the electric pressure-testing pump,
keep out all the persons normally not being employed in this working area.
●
When operating, the electric pressure-testing pump must stand in an horizontal
position and be in a dry condition.
●
Do not switch-in the electric pressure-testing pump when the „Press“ pressure-
regulating valve is closed. And do not operate the pressure-testing pump for a
longer period of time as well. Otherwise, the pressure-testing pump will get
overheated.
●
Do not direct any liquid jets onto the electric pressure-testing pump. When cleaning
it, adhere to the same requirement as well.
●
Do not pump any combustible fl uids, acid solutions, or dissolvents.
●
Protect electric pressure-testing pump against frost. If necessary, let run idle for
approx. 1 min so that the remaining water runs out or suck glycol/water mixture.
●
Before starting any servicing work, draw out the mains plug, and make unpres-
surerized the pressure-testing pump. Before dismounting the pressure vessel,
make it unpressurerized. Otherwise, when dismounting, the remaining pressure
can catapult pieces out of the unit.
●
If it is necessary to change the plug or the connecting cable, this should only be
done by the manufacturer or his customer service.
●
Don’t exceed maximum pressure indication of the manometer!
Use for the intended purpose
WARNING
Only use the REMS E-Push for pressure and tightness tests of piping systems,
receptacles and for fi lling solar power systems.
All other uses are not for the intended purpose and are prohibited.
Explanation of symbols
Read the operating instructions
before
use
Power tool complies with protection class I
Power tool complies with protection class II
Environmentally friendly disposal
CE conformity mark
1. Specifi cations
1.1. Article No.
Electric pressure-testing pump 115100
Connecting piece together with both the
manometer (60 bar/6 MPa/870 psi) and stop valve 115110
Manometer with a microindication (16 bar/1,6 MPa/230 psi) 115045
1.2. Application area
Leak testing to sanitary and heating facilities.
Pumping water or hydrous solutions, emulisions
(not for continuous operation)
pH-rating of fl uids 7 – 10
Viscosity of fl uids ≤ 1.5 mPa s
Temperature of fl uids –30°C ... 60°C
Maximum pressure 60 bar (6 MPa/870 psi)
Maximum pumping capacity 7 l/min
Suction hose ½”
High-pressure hose ½”
Manometer (60 bar/6 MPa/870 psi), dampened by a fi lling
with glycerine Grade 1.6
1.3. Electric specifi cations
Voltage 230 V 1~
Frequency 50 Hz
Current consumption 7.5 A
Power 1750 W
Speed of rotation 2800 ¹/min
Protective system IP 25
Duty classifi cation S3 20%
1.4. Dimensions
450×200×300 mm
1.5. Weight
13 kg (29 lb)
1.6. Noise-immission information
Immission value referring to the workplace 83 dB(A)
The indicated weighted effective value of acceleration has been measured
against standard test procedures and can be used by way of comparison with
another device. The indicated weighted effective value of acceleration can also
be used as a preliminary evaluation of the exposure.
CAUTION
The indicated weighted effective value of acceleration can differ during opera-
tion from the indicated value, dependent on the manner in which the device is
used. Dependent upon the actual conditions of use (periodic duty) it may be
necessary to establish safety precautions for the protection of the operator.
2. Initial operation
2.1. Electric connection
WARNING
Care must be taken to the power-line voltage!
Before connecting the
pressure-testing pump, you must check and make sure that the electric voltage
indicated on the nameplate complies with the line / mains voltage supplied by
the power station. Put the (1) switch into the „0“ position. When employing an
extension cable, make sure that the required cross-sectional area (≥ 1,5 mm²)
will be used. If working in an humid environment, then it will be required that
the pressure-testing pump is operated via a 30 mA current-operated earth-
leakage circuit breaker.
2.2. Suction hose
Fasten the (2) suction hose by means of screws at the (3) connecting piece.
Do not kink the suction hose. Pump clean fl uids only. Do not remove the (4)
suction fi lter at the suction hose. Make sure that the pressure-testing pump
does not suck in any air. Otherwise, its function will be affected.
2.3. High-pressure hose
Fasten the (5) high-pressure hose by means of screws at the (6) connecting
piece.
3. Operating the unit
3.1. Leak testing to sanitary and heating facilities
Fill and de-air the sanitary and/or heating facility. Place the electric pressure-testing
pump onto an horizontal and smooth surface. Lay the (2) suction hose together
with the (4) suction fi lter into a container fi lled with approx. 10 l of water. Connect
the (5) high-pressure hose with the sanitary and/or heating facility which has
to be leak tested. Open both the (7) „Test“ stop valve and the (8) „Press“
pressure-regulating valve. In order to switch in the pressure-testing pump,
actuate the (1) switch. When turning the (8) „Press“ pressure-regulating valve,
the desired pressure can be adjusted at the (9) manometer, as described below:
When turning into clockwise direction, the pressure will be increased. However,
when turning into counter-clockwise direction, it will be decreased.
If required, de-air the sanitary and/or heating facility repeatedly. After any
de-airing action, repeat the pressure testing as well. As soon as achieving the
desired pressure, the following actions must be executed:, close the (7) „Test“
stop valve, open the (8) „Press“ pressure-regulating valve, and switch off the
pump.
Provided that both the (10) connecting piece with manometer (Don’t exceed
maximum pressure indication of the manometer!) and the stop valve between
the electrical pressure-testing pump and the sanitary and heating facility under
testing have been mounted, the following possibility will exist: while testing the
pressure, the electric pressure-testing pump can be separated from the sanitary
and heating facility being under leak test. Note: the stop valve is an accessory
part. In this case, after reaching the desired pressure, the following measures
must be taken: close the stop valve at the (10) connecting piece, open the (8)
5
„Press“ pressure-regulating valve, switch off the pump, and detach the high-
pressure hose at the (10) connecting piece as well.
3.2. Pumping fl uids
WARNING
Do not pump any combustible fl uids, acid solutions, or dissolvents!
Note
permitted ratings pH, viscosity and temperature of fl uids (see 1.2).
Lay the (2) suction hose with the (4) suction fi lter into the container with the
fl uid which must be pumped. Lay the (5) high-pressure hose into the container,
or to the facility which has to be fi lled. Close the (8) „Press“ pressure-regulating
valve, and open the (7) „Test“ stop valve. Switch in the pump (1), and pump
the fl uid.
3.3. Finalizing the operation of the unit
After finalizing the operation of the unit, open both the (8) „Press“
pressure-regulating valve and the (7) „Test“ stop valve. Subsequently, rinse the
pump with clean water for a few minutes.
4. Servicing
4.1. Inspecting the unit
WARNING
Before inspecting the unit, draw out the mains plug!
Before every using of
the machine, examine the high-pressure-hose for damages. Keep clean the
(4) suction fi lter!
4.2. Maintaining the unit
WARNING
Before maintaining the unit, draw out the mains plug!
Change the oil after
every 150 operating hours. For this, lay the pressure-testing pump on its side
area, detach the (11) screws at both the housing shells. Then, open and detach
the housing shells. Open the (12) plastic-material plug fi ttings at the bottom
side of the pump. Drain-off the oil. Now, fi ll in approx. 0.15 l of new SAE-30 oil.
When the pump is leaking oil, the complete pressure-testing pump must be
sent for inspection and/or repair to a service station authorized by REMS.
4.3. Repairing the unit
WARNING
Before repairing the unit, draw out the mains plug!
This work may only be
performed by qualifi ed personnel.
5. Instructions for eliminating malfunctions
5.1. Malfunction:
The pressure-testing pump is running. However, it is
not creating any pressure.
Cause:
●
The „Press“ stop valve has not been closed yet.
●
The pressure-testing pump has been sucking air.
●
The fi lter at the suction hose has been plugged.
●
The pressure-testing pump has become defective.
5.2. Malfunction:
The pressure at the manometer is varying irregularly.
Cause:
●
There is air in the system.
5.3. Malfunction:
The motor does not start working. It is humming.
Cause:
●
The pump has been locked.
●
There is an inappropriate voltage supply (is there an appropriate
extension cable?).
5.4. Malfunction:
When operating, the motor suddenly dies.
Cause:
●
The motor protective switch has disconnected it.
●
The pump has got hot, or is blocking.
6. Disposal
The units may not be thrown into the domestic waste at the end of use. They
must be disposed of properly by law.
7. Manufacturer’s Warranty
The warranty period shall be 12 months from delivery of the new product to the
fi rst user. The date of delivery shall be documented by the submission of the
original purchase documents, which must include the date of purchase and the
designation of the product. All functional defects occurring within the warranty
period, which are clearly the consequence of defects in production or materials,
will be remedied free of charge. The remedy of defects shall not extend or
renew the warranty period for the product. Damage attributable to natural wear
and tear, incorrect treatment or misuse, failure to observe the operational
instructions, unsuitable operating materials, excessive demand, use for unau-
thorized purposes, interventions by the customer or a third party or other
reasons, for which REMS is not responsible, shall be excluded from the warranty
Services under the warranty may only be provided by customer service stations
authorized for this purpose by REMS. Complaints will only be accepted if the
product is returned to a customer service station authorized by REMS without
prior interference in an unassembled condition. Replaced products and parts
shall become the property of REMS.
The user shall be responsible for the cost of shipping and returning the product.
The legal rights of the user, in particular the right to make claims against the
seller under the warranty terms, shall not be affected. This manufacturer’s
warranty only applies for new products which are purchased in the European
Union, in Norway or in Switzerland.
This warranty is subject to German law with the exclusion of the United Nations
Convention on Contracts for the International Sales of Goods (CISG).
8. Spare parts lists
For spare parts lists, see
www.rems.de
→ Downloads → Parts lists.
fra
Traduction de la notice d’utilisation originale
Consignes générales de sécurité
AVERTISSEMENT
Lire attentivement toutes les consignes de sécurité et instructions. Le non-
respect des consignes de sécurité et instructions peut entraîner un risque de
décharge électrique, de brûlures et d’autres blessures graves.
Conserver toutes les consignes de sécurité et instructions pour usage ultérieur.
A) Poste de travail
a) Maintenir le poste de travail propre et rangé.
Le désordre et un poste de travail
non éclairé peut être source d’accident.
b) Ne pas travailler avec l’appareil électrique dans un milieu où il existe un
risque d’explosion, notamment en présence de liquides, de gaz ou de
poussières infl ammables.
Les appareils électriques produisent des étincelles,
qui peuvent mettre le feu à la poussière ou aux vapeurs.
c) Tenir les enfants et des tierces personnes à l’écart pendant l’utilisation de
l’appareil électrique.
Il y a un risque de perte de contrôle de la machine en cas
de distraction.
B) Sécurité électrique
a) La fi che mâle de l’appareil électrique doit être appropriée à la prise de
courant. La fi che mâle ne doit en aucun cas être modifée. Ne pas utiliser
d’adaptateur de fi che mâle avec un appareil électrique avec mise à la terre.
Des fi ches mâles non modifi ées et des prises de courant appropriées réduisent
le risque d’une décharge électrique. Si l’appareil est doté d’un conducteur de
protection, ne brancher la fi che mâle que sur une prise de courant avec mise à
la terre. Sur chantier, en plein air ou sur un autre mode d’installation, n’utiliser
l’appareil électrique qu’avec un dispositif de protection à courant de défaut de
30 mA (déclencheur par courant de défaut) sur réseau.
b) Eviter le contact avec des surfaces avec mise à la terre, comme les tubes,
radiateurs, cuisinières et réfrigérateurs.
Il y a un risque élevé de décharge
électrique lorsque le corps est en contact avec la terre.
c) Tenir l’appareil électrique à l’écart de la pluie ou de milieux humides.
La
pénétration d’eau dans un appareil électrique augmente le risque de décharge
électrique.
d) Ne pas utiliser le câble pour des fi ns auxquelles il n’a pas été prévu, notam-
ment pour porter l’appareil, l’accrocher ou pour débrancher l’appareil en
tirant sur la fi che mâle. Tenir le câble éloigné de la chaleur, de l’huile, des
angles vifs et des pièces de l’appareil en mouvement.
Des câbles endom-
magés ou emmêlés augmentent le risque de décharge électrique.
eng eng / fra
Fig. 1
1 Interrupteur
2 Tuyau d’aspiration
3 Manchon pour tuyau d’aspiration
4 Filtre d’aspiration
5 Tuyau à haute pression
6 Manchon pour tuyau à haute
pression
7 Soupape d’arrêt „Test“
8 Régulateur de pression „Press“
9 Manomètre
10 Pièce de raccordement avec
manomètre et soupape d’arrêt
(accessoire)
11 Vis
12 Bouchons plastiques
6
Fig. 1
12
1
9
7
6
2
10
5
11
8
4
3
REMS E-PUSH 2
7
Translation of the Original Instruction Manual
Fig. 1
1 On/Off switch
2 Suction hose
3 Nozzle for suction hose
4 Suction fi lter
5 High-pressure hose
6 Nozzle for high-pressure hose
7 "Test" shutoff valve
8 "Pressure" regulating valve
9 Pressure gauge
10 Suction fi lter with check valve
11 Pressure limit adjusting wheel
12 Connection piece with pressure
gauge and shutoff valve (accessory)
General power tool safety warnings
WARNING
WARNING
Read all safety warnings, instructions, illustrations and specifi cations provided
with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the pres-
ence of fl ammable liquids, gases or dust.
Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distrac-
tions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodi-
fi ed plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplug-
ging the power tool. Keep cord away from heat, oil, sharp edges or moving
parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when oper-
ating a power tool. Do not use a power tool while you are tired or under
the infl uence of drugs, alcohol or medication.
A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protec-
tive equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool.
Carrying power tools with your fi nger on the switch or energising power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collec-
tion facilities, ensure these are connected and properly used.
Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles.
A careless action can cause
severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may affect
the power tool’s operation. If damaged, have the power tool repaired before
use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed.
Use of the power tool for operations different from those intended
could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control
of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualifi ed repair person using only
identical replacement parts.
This will ensure that the safety of the power tool
is maintained.
Safety instructions for electric pressure testing pump
WARNING
WARNING
●
Only connect the electrical device of protection class I to a socket/extension
lead with a functioning protective contact.
There is a danger of electric shock.
●
The electrical device develops a very high pressure of up to 6 MPa (60 bar,
870 psi).
So be very careful. Keep third parties away from the work area when
working with the electrical device.
●
Do not use the electrical device if it is damaged.
There is a danger of accident.
●
Examine the high-pressure hose for damage very time before using.
Damaged
high-pressure hoses can burst and cause injury.
●
Only use original high-pressure hoses, fi ttings and couplings for the elec-
trical device.
This ensures that the safety of the device is maintained.
●
Apply the electrical device horizontally and dry for operation.
Penetration
of water into the electrical device increases the risk of electric shock.
●
Do not aim liquid jets at the electrical device, not even for cleaning.
Pene-
tration of water into the electrical device increases the risk of electric shock.
●
Do not suck up infl ammable or explosive liquids, for example petrol, oil, alcohol,
solvent, with the electrical device.
The fumes or liquids can ignite or explode.
●
Do not operate the device in rooms where there is a risk of explosion.
The
fumes or liquids can ignite or explode.
●
Protect the electrical device against frost.
The device could be damaged. Let
the electrical device run empty for about 1 minute, if necessary, to drain off
remaining water.
●
Never let the electrical device operated unattended. Switch the electrical
device off at the On/Off switch (1) and pull out the mains plug for longer
work breaks.
Electrical devices can cause hazards which lead to material damage
or injury when left unattended.
●
Do not operate the electrical device for long periods on a closed sanitary
or heating system or with closed "Test" shutoff valve (7).
The electrical device
could be damaged by overheating.
●
The electrical device is not intended/suitable for permanent connection to
the installation. Disconnect all hoses from the installation after completing
the work.
Electrical devices can cause hazards which lead to material damage
or injury when left unattended.
●
Children and persons who, due to their physical, sensory or mental abilities
or lack of experience and knowledge are unable to operate the electrical device
safely may not use this electrical device without supervision or instruction
by a responsible person.
Otherwise there is a risk of operating errors and injuries.
●
Only allow trained persons to use the electrical device.
Apprentices may only
operate the electrical device when they are older than 16, when this is necessary
for their training and under the supervision of a trained operative.
●
Check the power cable of the power tool and extension leads regularly for
damage.
Have these renewed by qualifi ed experts or an authorised REMS
customer service workshop in case of damage.
●
Only use approved and appropriate marked extension leads with a suffi cient
cable cross-section at least with the protection class approved in 1.4.
Electrical data.
Use extension leads up to a length of 10 m with cable cross-
section 1.5 mm², from 10 – 30 m with cable cross-section 2.5 mm².
●
The mains connection must be made by a qualifi ed electrician according
to valid regulations. It is recommended to connect this machine to a power
supply which either has a residual current device (RCD) which cuts off the
power supply as soon as the leakage current to earth exceeds 30 mA for
30 ms or an earth tester.
Explanation of symbols
WARNING
WARNING
Danger with a medium degree of risk which could result in
death or severe injury (irreversible) if not heeded.
CAUTION
CAUTION
Danger with a low degree of risk which could result in minor
injury (reversible) if not heeded.
NOTICE
NOTICE
Material damage, no safety note! No danger of injury.
Read the operating manual before starting
eng eng
7
8
Use eye protection
Use hand protection
Power tool complies with protection class I
Environmental friendly disposal
CE conformity mark
1. Technical data
Use for the intended purpose
WARNING
WARNING
REMS E-Push 2 is designed for pressure and leak testing of pipe systems and
vessels. All other uses are not for the intended purpose and are therefore prohibited.
Attention: Use for the intended purpose also includes observing and following the
respectively valid national safety provisions, rules and regulations for the applica-
tion site.
1.1. Scope of Supply
Electric pressure test pump with pressure gauge. 1.5 m suction hose ½"
connection, suction fi lter, gasket, suction fi lter with check valve. 1.5 m high-
pressure hose with ½" connection, 2 gaskets Operating instructions.
1.2. Article numbers
Electric pressure test pump 115500
Connection piece with pressure gauge 6 MPa/60 bar /870 psi
and shutoff valve 115110
Fine scaled pressure gauge 1.6 MPa/16 bar/230 psi 115045
REMS CleanM 140119
1.3. Applications
Liquids water, aqueous solutions, emulsions
Maximum pressure 6 MPa (60 bar/870 psi)
Pressure limit adjustable from approx. 0.5 MPa (5 bar/73 psi)
in steps of approx. 1 MPa (10 bar/145 psi)
Pressure gauge 6 MPa (60 bar/870 psi), glycerine damped Class 1.6
Maximum performance 6.5 l/min (390 l/h)
Temperature of the liquids 5°C – 60°C
Storage temperature ≥ 5°C
pH value of the liquids 6.5 – 9.5
Viscosity of the liquids ≤ 1.5 mPa s
Self-sucking pump ≤ 500 mm
1.4. Electrical data
230 V~; 50 Hz; 1,300 W; 6 A
110 V~; 50 Hz; 1,300 W; 13 A
Protection class
I
Protection class IP 25
Operating mode continuous operation
1.5. Dimensions
395 × 270 × 295 mm (15.6” × 10.6” × 11.6”)
1.6. Weight
10 kg (22 lb)
1.7. Noise information
Work place-related
emission value L
PA
= 74 dB(A); L
PA = 74 dB(A); LPA
WA
= 74 dB(A); LWA= 74 dB(A); L
= 86 dB(A); K = 3 dB(A)
WA = 86 dB(A); K = 3 dB(A)WA
Evaluation standard for measurement: DIN EN 60335-2-79:2016
Evaluation standard for verifi cation: EN ISO 4871:2009
2. Start-up
NOTICE
NOTICE
REMS E-Push 2 is not intended/suitable for permanent connection to the
installation. Disconnect all hoses from the installation after completing the work.
REMS E-Push 2 may not be operated unattended.
2.1. Electrical connection
WARNING
WARNING
Caution: Mains voltage present!
Before connecting the electric pressure test
pump, check whether the voltage given on the rating plate corresponds to the
mains voltage. Only connect an electric pressure testing pump of protection
class I to a socket/extension lead with a functioning protective contact. On
building sites, in a humid environment, indoors or outdoors or in similar types
of installation, only operated the electric pressure test pump with a fault current
protection switch (FI switch) on the mains which cuts off the energy supply as
soon as the leakage current to earth exceeds 30 mA for 30 ms.
The motor of the REMS E-Push 2 is exempted from the directive (EU) 2019/1781
because the motor is installed in a hand-held, mobile, electric device.
2.2. Setting the pressure limit
CAUTION
CAUTION
Open the "Pressure" regulating valve (8) fully by turning to the left before
switching on the electric pressure test pump. If the pressure is set too high, the
pipe system or vessel to be tested could be damaged.
The "Pressure" regulating valve (8) can be preset with the pressure limit adjus-
ting wheel (11) in 6 pressure steps form approx. 0.5 – 6 MPa (5 – 60 bar/
73 – 870 psi). It is recommended to set the pressure limit adjusting wheel (11)
to pressure step 1 for normal pressure and leak testing of pipe systems. This
avoids undesirable overloading of the pipe system. The higher pressure settings
should only be chosen in special cases in which a higher test pressure is
required. The adjusting wheel should be set back to pressure step 1 after pres-
sure testing with the higher test pressure.
To set the pressure step, open the "Pressure" regulating valve (8) to the stop
(turn to the left), press in the pressure limit adjusting wheel (11) and set to the
desired step.
2.3. Suction hose
Screw the suction hose (2) to the suction hose nozzle (3). Do not kink the
suction hose. Only pump clean liquids.
Do not remove the suction fi lter (4) and
suction fi lter with check valve (10).
Make sure that the pressure test pump does
not suck in air.
NOTICE
NOTICE
Only operate REMS E-Push 2 with the suction fi lter (4) and suction fi lter with
check valve (10) fi tted.
2.4. high-pressure hose
Screw the high-pressure hose (5) with gasket to the high-pressure hose nozzle
(6).
3. Operation
NOTICE
NOTICE
REMS E-Push 2 is not intended/suitable for permanent connection to the
installation. Disconnect all hoses from the installation after completing the work.
REMS E-Push 2 may not be operated unattended.
3.1. Pressure and leak testing of pipe systems (observe EN 806-4 standard
and national regulations)
It is prohibited to connect the electric pressure test pump to the public water
supply. Water may only be sucked from open vessels (buckets).
Fill and vent the pipe system, e.g. sanitary or heating system. Place the electric
pressure test pump on a level surface.
Place the suction hose (2) with suction
fi lter with check valve (10) into a vessel (bucket) fi lled with about 10 litres of
water.
Connect the high-pressure hose (5) to the sanitary or heating system to
be checked for leaks. Open the "Test" shutoff valve (7) and the "Pressure"
regulating valve (8). Switch on the electric pressure test pump at the On/Off
switch (1). There is a pressure of approx. 0.5 MPa (5 bar/73 psi) on the pipe
system. If not, a tapping point is open in the pipe system. If the pressure is to
be increased, turn the "Pressure" regulating valve (8) and set the desired pres-
sure: turn clockwise = pressure increase, turn counterclockwise = pressure
drop. On reaching the desired pressure, close the "Test" shutoff valve (7), switch
off the electric pressure test pump at the On/Off switch (1).
The electric pressure test pump can be disconnected from the pipe system,
e.g. sanitary or heating system, to be checked for leaks during the pressure
test if the connection piece with pressure gauge and shutoff valve (12) (acces-
sory) is installed between the electric pressure test pump and the sanitary or
heating system to be checked for leaks (do not exceed the maximum pressure
display of the fi ne scaled pressure gauge!) In this case, on reaching the desired
pressure, close the shutoff valve on the connection piece (12), open the "Pres-
sure" regulating valve (8), switch off the pump and remove the high-pressure
hose at the connection piece (12).
Attention: Before connecting the high-pressure hose (5), make sure that
the pressure has been relieved completely. Note the pressure on the
pressure gauge (9).
NOTICE
NOTICE
Do not operate the electric pressure test pump for long periods on a closed
system or with a closed "Test" shutoff valve (7). The electric pressure test pump
could be damaged by overheating. Do not operate the electric pressure test
pump without water/liquid.
3.2. Pumping liquids
WARNING
WARNING
Do not pump infl ammable liquids, acids or solvents!
Observe permissible
values pH, viscosity and temperature of the liquids (see 1.3. Work area).
Place the suction hose (2) with suction fi lter (4) and suction fi lter with check
valve (10) in the vessel with liquid that is to be pumped.
Feed the high-pressure
hose (5) into the vessel or system that is to be fi lled. Open the "Pressure"
regulating valve (8) and "Test" shutoff valve (7). Switch on the pump (1) and
pump liquid.
eng eng
8
9
3.3. Ending the operation
After ending operation, open the "Pressure" regulating valve (8) and the "Test"
shutoff valve (7) and rinse out the pump with hoses (2) and (5) for a few minutes
with fresh water.
CAUTION
CAUTION
The nozzles for the suction hose (3) and the high-pressure hose (6) can get
very hot in operation. Do not touch them. To remove the hoses (2) and (5), wait
until they have cooled down or use suitable hand protection.
3.4. Storage and transport
Empty the electric pressure test pump and hoses completely to avoid damage.
Store the electric pressure test pump at ≥ 5°C and dry.
4. Maintenance
Notwithstanding the maintenance described below, it is recommended to send
in the electrical device to an authorised REMS contract customer service
workshop for inspection and periodic testing of electrical devices at least once
a year.
In Germany, such periodic testing of electrical devices should be
performed in accordance with DIN VDE 0701-0702 and also prescribed for
mobile electrical equipment according to the accident prevention rules DGUV,
regulation 3 "Electrical Systems and Equipment". In addition, the respective
national safety provisions, rules and regulations valid for the application site
must be considered and observed.
4.1. Maintenance
WARNING
WARNING
Pull out the mains plug before inspection!
Open the "Test" shutoff valve (7) and "Pressure" regulating valve (8) to release
pressure. The residual pressure could otherwise cause injury to the user by
fl ying parts during disassembly. Observe the pressure gauge (9).
Clean the electric pressure testing pump regularly, especially when it has not
been used for long periods of time. Store the electric pressure testing pump
free from frost. To clean the suction fi lter (4) and the suction fi lter with check
valve (10), unscrew the suction hose, pull the suction fi lter (4) out of the hose
with a suitable tool, e.g. fl at pliers, and clean both fi lters under running water.
Replace damaged suction fi lters. Check high-pressure hose and suction hose
for damage every time before using. Do no used damaged hoses.
Clean plastic parts (e.g. housing) only with REMS CleanM machine cleaner (Art.
No. 140119) or a mild soap and a damp cloth. Do not use household cleaners.
These often contain chemicals which can damage the plastic parts. Never use
petrol, turpentine, thinner or similar products for cleaning.
Make sure that liquids can get onto or inside of the electric pressure testing
pump. Never immerse the pressure testing pump in liquids.
4.2. Inspection / Maintenance
WARNING
WARNING
Pull out the mains plug before carrying out maintenance or repair work!
This work may only be performed by qualifi ed personnel.
Open the "Test" shutoff valve (7) and "Pressure" regulating valve (8) to release
pressure. The residual pressure could otherwise cause injury to the user by
fl ying parts during disassembly. Observe the pressure gauge (9).
If the pump loses grease, the complete pressure test pump must be sent to an
authorised REMS Customer Service Workshop for inspection and repair.
eng eng
5. Faults
WARNING
WARNING
To clear faults, switch off the electric pressure test pump at the On/Off switch (1) and pull out the mains plug!
5.1.
Fault:
Pressure test pump running but builds up no pressure.
Cause:
Remedy:
●
"Pressure" regulating valve (8) is open.
●
Set the desired pressure by turning the "Pressure" regulating valve (8) to the
right.
●
Pressure test pump sucks in air.
●
Check whether the suction fi lter with
check valve
(10) is immersed completely
in the water. Seal screw connections.
●
Suction fi lter (4) and/or suction fi lter with
check valve
(10) on the suction
hose are blocked.
●
Clean or replace the suction fi lter (4) and/or suction fi lter with
check valve
(10).
●
Electric pressure test pump defective.
●
Have the electric pressure test pump inspected by an authorised REMS
Customer Service Workshop.
5.2.
Fault:
Pressure on the pressure gauge (9) fl uctuates irregularly.
Cause:
Remedy:
●
Air in the pipe system.
●
Vent the pipe system.
5.3.
Fault:
Motor does not start, hums.
Cause:
Remedy:
●
Electric pressure test pump blocked.
●
"Pressure" regulating valve (8) is set to high or max. pressure, open by turning
to left or have the electric pressure test pump inspected by an authorised
REMS Customer Service Workshop.
●
Unsuitable voltage supply.
●
Have the voltage supply tested.
●
Unsuitable extension lead.
●
Use approved extension lead.
●
Pressure is applied in the pump with closed "Test" shutoff valve (7).
●
Open "Test" shutoff valve (7).
5.4.
Fault:
Motor stops suddenly during operation.
Cause:
Remedy:
●
Motor circuit breaker has tripped.
●
Switch off electric pressure test pump at the On/Off switch (1) and allow to cool
down for approx. 30 minutes.
●
Pump run hot or blocked.
●
Switch off electric pressure test pump at the On/Off switch (1) and allow to cool
down for approx. 30 minutes or have the electric pressure test pump inspected
by an authorised REMS Customer Service Workshop.
9
10
eng eng
6. Disposal
The electric pressure testing pump may not be thrown in the domestic waste
after use. It must be disposed of properly by law.
7. Manufacturer’s Warranty
The warranty period shall be 12 months from delivery of the new product to the
fi rst user. The date of delivery shall be documented by the submission of the
original purchase documents, which must include the date of purchase and the
designation of the product. All functional defects occurring within the warranty
period, which are clearly the consequence of defects in production or materials,
will be remedied free of charge. The remedy of defects shall not extend or
renew the warranty period for the product. Damage attributable to natural wear
and tear, incorrect treatment or misuse, failure to observe the operational
instructions, unsuitable operating materials, excessive demand, use for unau-
thorized purposes, interventions by the customer or a third party or other
reasons, for which REMS is not responsible, shall be excluded from the warranty
Services under the warranty may only be provided by customer service stations
authorized for this purpose by REMS.
Complaints will only be accepted if the
product is returned to a customer service station authorized by REMS without
prior interference and in a fully assembled condition. Replaced products and
parts shall become the property of REMS.
The user shall be responsible for the cost of shipping and returning the product.
A list of the REMS-authorized customer service stations is available on the
Internet under www.rems.de. For countries which are not listed, the product
must be sent to the SERVICE-CENTER, Neue Rommelshauser Strasse 4,
71332 Waiblingen, Deutschland. The legal rights of the user, in particular the
right to make claims against the seller in case of defects as well as claims due
to wilful violation of obligations and claims under the product liability law are
not restricted by this warranty.
This warranty is subject to German law with the exclusion of the confl ict of laws
rules of German International Private Law as well as with the exclusion of the
United Nations Convention on Contracts for the International Sales of Goods
(CISG). Warrantor of this world-wide valid manufacturer’s warranty is REMS
GmbH & Co KG, Stuttgarter Str. 83, 71332 Waiblingen, Deutschland.
8. Spare parts lists
For spare parts lists, see www.rems.de
→ Downloads → Parts lists.
10
11
PART 2
PART 2:
REMS Multi-Push S
REMS Multi-Push SL
REMS Multi-Push SLW
12
Fig. 1
Fig. 2
Fig. 4
4
10
6
5
8
9
33
11
35
36
37
1
1
39
39
2
2
3
3
14
14
13
13
24
34
15
25
26
23
13
31
29
32
30
47
46
28
22
27
7
Fig. 3
12
Fig. 5
Vol. ca. l/m
Cu
(
EN 1057
)
St
(
EN 10255
)
Plastik
Dim.
mm
Vol.
ca. l/m
Dim.
Zoll (Inch
)
Vol.
ca.l/m
Dim.
mm
Vol.
ca. l/m
12 × 1
0,08
¼"
0,06
14 × 2,0
0,08
15 × 1
0,13
⅜"
0,12
16 × 2,0
0,11
18 × 1
0,20
½"
0,20
18 × 2,0
0,15
22 × 1
0,31
¾"
0,37
20 × 2,25
0,19
28 × 1,5
0,49
1"
0,58
25 × 2,5
0,31
35 × 1,5
0,80
1¼"
1,01
32 × 3,0
0,50
42 × 1,5
1,19
1½"
1,37
40 × 4,0
0,80
54 × 2,0
1,96
2"
2,21
50 × 4,5
1,30
Fig. 6
2
13
Fig. 8
Fig. 7
383838
18
20
21
19
16
17
Fig. 9
max. 5,5 h
40
41
42
43
44
45
3
14
Translation of the Original Instruction Manual
Fig. 1 – 9:
Fig. 1 – 9:
Fig. 1: View of inputs with operating panel and PRCD
Fig. 2: Operating panel of the input and control unit
Fig. 3: Connection to the water supply/installation
Fig. 4: View of outputs
Fig. 5: Flushing heating system/heating circuits
Fig. 6: Volume in l/m of different pipes

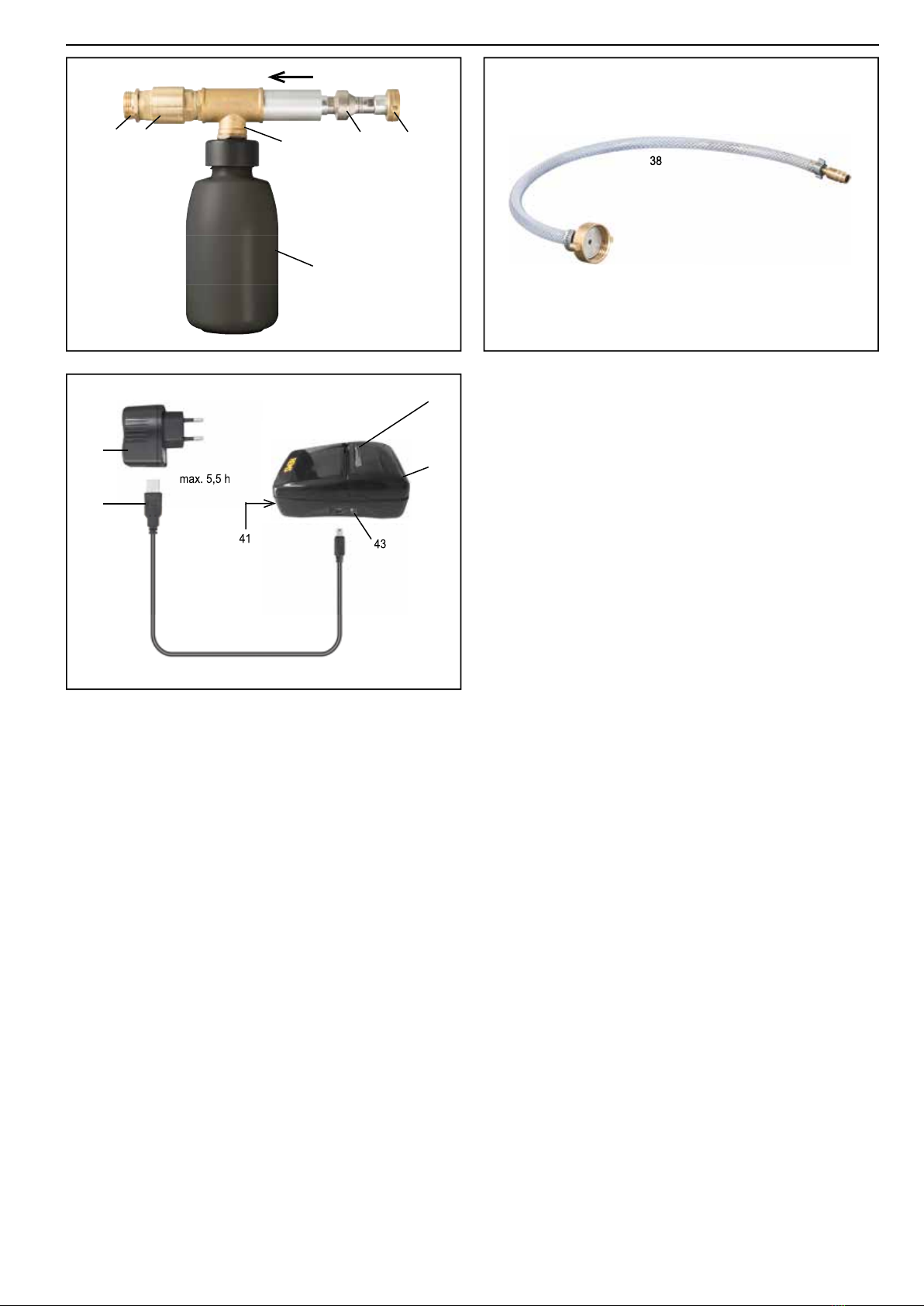

Fig. 7: Disinfection unit REMS V-Jet TW or cleaning and preservation
unit REMS V-Jet H
Fig. 8: Connecting hose compressor/water connections
Fig. 9: Printer
1 Fault current circuit breaker PRCD
2 RESET button
3 TEST button
4 On/Off button
5 Control lamp
6 Screen (LCD)
7 “?” button
8 Arrow buttons ↑ ↓
9 Enter button
10 Esc button
11 Arrow buttons ← →
12 Fine fi lter
13 Suction/pressure hose
14 Flush supply
15 Flush drain
16 Disinfection and cleaning unit supply REMS V-Jet TW or REMS V-Jet H
17 Pressure limiting valve
18 Non-return valve
19 Disinfection and cleaning unit drain REMS V-Jet TW or REMS V-Jet H
20 Flow head
21 Bottle (container) with dosing solution
22 Output pressure test with compressed air, compressed air pump
(REMS Multi-Push SL/SLW)
23 Compressed air hose (REMS Multi-Push SL/SLW)
24 Supply pressure test with water (REMS Multi-Push SLW)
25 Drain pressure test with water (REMS Multi-Push SLW)
26 High-pressure hose (REMS Multi-Push SLW)
27 Water drain pressure relief (REMS Multi-Push SLW)
28 Compressed air tools connection
29 Emergency Stop button compressor
30 Pressure gauge compressed air tank
31 Compressed air tools pressure setting
32 Compressed air tools pressure gauge
33 USB connection
34 Condensation screw plug
35 Compressed air tank
36 Operating panel
37 Protective hood
38 Connecting hose compressor/water connections
39 Control lamp PRCD
40 Printer
41 LED
42 Paper tray rail
43 On/Off button, paper feed
44 Charger
45 USB lead
46 Condensation and particle fi lter
47 Compressed air line compressor/ pressure vessel
General power tool safety warnings
WARNING
WARNING
Read all safety warnings, instructions, illustrations and specifi cations provided
with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the pres-
ence of fl ammable liquids, gases or dust.
Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodifi ed plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplug-
ging the power tool. Keep cord away from heat, oil, sharp edges or moving
parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when oper-
ating a power tool. Do not use a power tool while you are tired or under
the infl uence of drugs, alcohol or medication.
A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool.
Carrying power tools with your fi nger on the switch or energising power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used.
Use of dust collection
can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles.
A careless action can cause
severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may affect
the power tool’s operation. If damaged, have the power tool repaired before
use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed.
Use of the power tool for operations different from those intended
could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control
of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualifi ed repair person using only
identical replacement parts.
This will ensure that the safety of the power tool
is maintained.
Safety notes for the electronic fl ushing and
pressure testing unit with compressor
WARNING
WARNING
Read all safety warnings, instructions, illustrations and specifi cations provided
with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
●
Never use the power tool without the PRCD fault current circuit breaker
included.
The use of a fault current circuit breaker reduces the risk of electric shock.
●
Only connect the power tool of protection class I to a socket/extension lead
with a functioning PE conductor.
There is a danger of electric shock.
eng eng
19
15
eng eng
●
The power tool develops very high pressures, in applications with compressed
air of up to 1 MPa/10 bar/145 psi and in pressure tests with water of up to 1.8
MPa/18 bar/261 psi.
So be very careful. Never let the power tool operate unattended.
Keep third parties away from the work area when working with the electrical device.
●
Do not use the power tool if it is damaged.
There is a danger of accident.
●
The power tool is not intended/suitable for permanent connection to the
installation. Disconnect all hoses from the installation after completing the
work.
Electrical devices can cause hazards which lead to material damage or
injury when left unattended.
●
Never operate the REMS Multi-Push unattended on the drinking water supply
(mains).
This could cause water damage.
●
Examine the high-pressu
re hoses for damage every time before using.
Damaged high-pressure hoses can burst and cause injury.
●
Only use original high-pressure hoses, fi ttings and couplings for the power
tool.
This ensures
that the safety of the device is maintained.
●
Apply the power tool horizontally and dry fo
r operation.
Penetration of water
into the electrical device increases the risk of
electric shock.
●
Do not aim liquid jet at the power tool, not even for cleaning.
Penetration of
water into the electrical device increases the risk of electric shock.
●
Do not suck up infl ammable or explosive liquids, for example petrol, oil,
alcohol, solvent, with the power tool.
The fumes or liquids can ignite or explode.
●
Do not operate the power tool in rooms where there is a risk of explosion.
The fumes or liquids can ignite or explode.
●
Protect the power tool against frost.
The device could be damaged. Let the
power tool run empty for about 1 minute, if necessary, to drain off remaining water.
●
Never let the power tool operate unattended. Switch the power tool off at the
On/Off switch (4) and pull out the mains plug and remove the hoses from the
pipe network and from the installation for longer work breaks.
Electrical devices
can cause hazards which lead to material damage or injury when left unattended.
●
Do not operate the power tool on a closed pipe system for a prolonged
period of time.
The power tool could be damaged by overheating.
●
REMS Multi-Push S may only be operated with software as of “Update 03.40,
Date 2020-04-08”.
Installation of an older software version on REMS Multi-Push
S is not permitted and will lead to malfunctions. This could damage the power
tool/installation.
●
Children and persons who, due to their physical, sensory or mental abilities
or lack of experience and knowledge are unable to operate the power tool
safely may not use this power tool without supervision or instruction by a
responsible person.
Otherwise there is a risk of operating errors and injuries.
●
Only allow trained persons to use the power tool.
Apprentices may only use
the power tool when they are over 16, when this is necessary for their training
and when they are supervised b
y a trained operative.
●
Check the power cable of the electric al device and extension leads regularly
for damage.
Have these renewed by qualifi ed experts or an authorised REMS
customer service workshop in case of damage.
●
Only use approved and appropriate marked extension leads with a suffi cient
cable cross-section.
Use extension leads up to a length of 10 m with cable
cross-section 1.5 mm
²
, from 10 – 30 m with cable cross-section 2.5 mm
²
.
Explanation of symbols
WARNING
WARNING
Danger with a medium degree of risk which could result in
death or severe injury (irreversible) if not heeded.
CAUTION
CAUTION
Danger with a low degree of risk which could result in minor
injury (reversible) if not heeded.
NOTICE
NOTICE
Material damage, no safety note! No danger of injury.
Read the operating manual before starting
Use eye protection
Use hand protection
Power tool complies with protection class I
Environmentally friendly disposal
CE conformity mark
1 Technical data
Use for the intended purpose
WARNING
WARNING
Only use the power tool for the purpose intended. Failure to do so can result in death
or severe injury.
REMS Multi-Push is intended for
●
Flushing of drinking water installations with water
in accordance with EN
806-4:2010, according to Technical Rule – Worksheet DVGW W 557 (A) October
2012 “Cleaning and disinfection of drinking water installations” of the DVGW
German Gas and Water Association and according to information leafl et “Flushing,
disinfection and commissioning of drinking water installations” (August 2014)
Central Association for Sanitary, Heating, Air Conditioning (ZVSHK), Germany
and for fl ushing radiators and surface heating systems.
●
Flushing of drinking waterinstallations with water/air mixture with intermit-
tent compressed air
in accordance with EN 806-4:2010, according to Technical
Rule – Worksheet DVGW W 557 (A) October 2012 “Cleaning and disinfection of
drinking water installations” of the DVGW German Gas and Water Association
and according to information leafl et “Flushing, disinfection and commissioning
of drinking water installations” (August 2014) Central Association for Sanitary,
Heating, Air Conditioning (ZVSHK), Germany and for fl ushing radiators and
surface heating systems.
●
Flushing pipe systems with a water/air mixture with constant compressed air.
●
Flushing/desilting of radiators and area heating systems with/without
compressed air.
●
Disinfection with disinfection unit REMS V-Jet TW:
Disinfection of drinking
water installations in accordance with EN 806-4:2010, according to Technical
Rule – Worksheet DVGW W 557 (A) October 2012 “Cleaning and disinfection of
drinking water installations” of the DVGW German Gas and Water Association
and according to information leafl et “Flushing, disinfection and commissioning
of drinking water installations” (August 2014) of the Central Association for
Sanitary, Heating, Air Conditioning (ZVSHK), Germany and other pipe systems.
Use of active ingredient REMS Peroxi Color.
●
Cleaning and preservation with cleaning and preservation unit REMS V-Jet
H:
Cleaning and preservation of radiators and area heating systems. Use of the
active ingredients REMS CleanH and REMS NoCor.
●
Leak testing of drinking water installations with compressed air
in accord-
Leak testing of drinking water installations with compressed air in accord-Leak testing of drinking water installations with compressed air
ance with information leafl et “Leak Testing of Drinking Water Installations” (January
2011) of the German Central Association for Sanitary, Heating and Air Conditioning
(ZVSHK) and pressure and leak testing of other pipe systems and vessels (REMS
Multi-Push SL/SLW).
●
Load testing of drinking water installations with compressed air
in accord-
Load testing of drinking water installations with compressed air in accord-Load testing of drinking water installations with compressed air
ance with information leafl et “Leak Testing of Drinking Water Installations” (January
2011) of the German Central Association for Sanitary, Heating and Air Conditioning
(ZVSHK) and pressure and load testing of other pipe systems and vessels (REMS
Multi-Push SL/SLW).
●
Hydrostatic pressure testing of drinking water installations with water
in
accordance with EN 806-4:2010, Test Method A and for pressure and leak testing
of other pipe systems and vessels (REMS Multi-Push SLW).
●
Hydrostatic pressure testing of drinking water installations with water
in
Hydrostatic pressure testing of drinking water installations with water inHydrostatic pressure testing of drinking water installations with water
accordance with EN 806-4:2010, Test Method B, modifi ed in accordance with
information leafl et T 82-2011 “Leak Testing of Drinking Water Installations” of the
German Central Association for Sanitary, Heating and Air Conditioning and pres-
sure and leak testing of other pipe systems and vessels (REMS Multi-Push SLW).
●
Hydrostatic pressure testing of drinking water installations with water
in
Hydrostatic pressure testing of drinking water installations with water inHydrostatic pressure testing of drinking water installations with water
accordance with EN 806-4:2010, Test Method C and for pressure and leak testing
of other pipe systems and vessels (REMS Multi-Push SLW).
●
Load testing (strength testing) of gas pipes with compressed air
in accord-
ance with EN 1775:2007, according to Technical Rule – Worksheet G 600 April
2018 (DVGW-TRGI 2018) “Technical Rules for Gas Installations” of the DVGW
German Gas and Water Association (REMS Multi-Push SL/SLW).
●
Leak testing of gas pipes with compressed air
in accordance with EN 1775:2007,
according to Technical Rule – Worksheet G 600 April 2018 (DVGW-TRGI 2018)
“Technical Rules for Gas Installations” of the DVGW German Gas and Water
Association (REMS Multi-Push SL/SLW).
●
Compressed air pump
for controlled fi lling of all types of vessels with compressed
air ≤ 0.8 MPa/8 bar/116 psi (REMS Multi-Push SL/SLW),
●
Operation of compressed air tools
up to an air requirements of ≤ 230 Nl/min
All other uses are not for the intended purpose and are therefore prohibited.
Attention: Use for the intended purpose also includes consideration and
observance of the national safety provisions, rules and regulations valid for
the application site, especially the following standards and rules of technology,
see appendix 1) – 8).
1.1 Scope of Supply
REMS Multi-Push SL/SLW, electronic fl ushing and pressure testing unit with
compressor or REMS Multi-Push S, electronic fl ushing unit with compressor,
2 suction/pressure hoses 1", 1.5 m long, with 1" hose screw fi ttings,
1 compressed air hose 8 mm, 1.5 m long, with quick couplings NW 5, for
pressure testing with compressed air (REMS Multi-Push SL/SLW),
1 high-pressure hose ½", 1.5 m long, with ½” hose screw fi ttings, for pressure
testing with water (REMS Multi-Push SLW),
1 connecting hose compressor/water connections, 0.6 m long, with quick coupling
DN 7.2 and 1"hose screw fi tting, 1"double nipple, for blowing out water remains
from REMS Multi-Push and suction/pressure hoses at the end of work.
Caps and plugs for connecting the inputs and outputs of the REMS Multi-Push
and the hoses, to avoid contamination during transport and storage.
Operating instructions.
1.2 Article numbers
REMS Multi-Push S, electronic fl ushing unit, without accessories 115800
REMS Multi-Push SL, electronic fl ushing and pressure testing unit,
pressure test with compressed air, without accessories 115600
REMS Multi-Push SLW, electronic fl ushing and pressure testing unit,
pressure test with compressed air and water, without accessories 115601
REMS V-Jet TW, disinfection unit 115602
20
16
eng eng
REMS V-Jet H, cleaning and preservation unit 115612
Printer 115604
Paper roll, pack of 5 090015
Case with inserts for printer 115703
REMS Peroxi Color, dosing solution for disinfection 115605
REMS CleanH, cleaner for heating systems 115607
REMS NoCor, corrosion protection for heating systems 115608
Test strips 0 – 1000 mg/l H
2
O
2,
pack of 100 091072
Test strips 0 – 50 mg/l H
2
O
2,
pack of 100 091073
Suction/pressure hose Ø 1", 1.5 m long, with 1" hose screw fi ttings,
for fl ushing, disinfection, cleaning, preservation 115633
High-pressure hose Ø ½", 1.5 m long, with ½" hose screw fi ttings,
for pressure testing with water (REMS Multi-Push SLW) 115634
Pneumatic hose Ø 8 mm, 1.5 m long, with quick couplings NW 5 115637
Connecting hose compressor/water connections with 1" hose
screw fi tting and quick coupling NW 7.2 for pressure testing
with air (REMS Multi-Push SL/SLW) 115618
Compressed air hose pneumatic tools, 1.5 m long,
with quick couplings NW 7.2, for connecting pneumatic tools 115621
Compressed air hose Ø 8 mm, 7 m long, with quick coupling
DN 5 (plug) and G ½" hose screw fi tting, for pressure testing
with compressed air (REMS Multi-Push SL/SLW) 115667
Compressed air hose Ø 8 mm, 1.5 m long, with quick coupling
DN 5 (plug, socket) for gas testing with compressed air
(REMS Multi-Push SL/SLW) 115747
High-pressure hose Ø ½", 7 m long, with
G ½" hose screw fi ttings,
with caps, for pressure testing of pipe systems
and vessels
with water (REMS Multi-Push SLW) 115661
1" double nipple, for connecting 2 suction/pressure hoses 045159
Fine fi lter with fi lter cartridge 90 µm 115609
Fine fi lter cartridge 90 µm 043054
Caps 1" with chain (REMS Multi-Push) 115619
Plugs 1" with chain (suction/pressure hoses) 115620
Plugs ½" with chain (REMS Multi-Push SL/SLW) 115624
Caps ½" with chain (high-pressure hose) 115623
Pressure gauge 6 MPa/60 bar /870 psi 115140
Fine scaled pressure gauge 1.6 MPa/16 bar/232 psi, 115045
Fine scaled pressure gauge 250 hPa/250 mbar/3.6 psi, 047069
Hood 115677
XL-Boxx system case for hoses 579600
REMS CleanM
, Machine cleaner
140119
, Machine cleaner 140119, Machine cleaner
1.3 Applications
Device storage temperature ≥ 5°C (≥ 41 °F)
Water temperature 5°C – 35°C (41 °F – 95 °F)
Ambient temperature 5°C – 40°C (41 °F – 104 °F)
pH value 6,5 – 9,5
Smallest test volume approx. 10 l
Compressor
Compressor
Operating pressure ≤ 0.8 MPa/8 bar/116 psi
Oil separation rate oil-free
Extraction rate ≤ 230 Nl/min
Compressed air vessel volume (Fig. 1 (35)) 4.9 l
Condensation and particle fi lter 5 µm
Flushing of pipe systems
Flushing of pipe systems
Flushing water connections DN 25, 1"
Water pressure pipe network ≤ 1 MPa/10 bar/145 psi
Water pressure when fl ushing with compressed air ≤ 0.7 MPa/7 bar/101 psi
Water fl ow rate ≤ 5 m³/h
Pipe diameter installation ≤ DN 50, 2"
Pressure testing of drinking water installations
Pressure testing of drinking water installations
(REMS Multi-Push SL/SLW)
(REMS Multi-Push SL/SLW)
Pressure test with compressed air ≤ 0.4 MPa/4 bar/58 psi
Reading accuracy < 200 mbar 1 hPa/1 mbar/0.015 psi
Reading accuracy ≥ 200 mbar 100 hPa/0,1 bar/1.5 psi
Pressure test with water ≤ 1.8 MPa/18 ba r/261 psi
Reading accuracy 0.02 MPa/0.2 bar/3 psi
Pressure testing of gas installations
Pressure testing of gas installations
(REMS Multi-Push SL/SLW)
(REMS Multi-Push SL/SLW)
Pressure test with compressed air ≤ 0.3 MPa/3 bar/44 psi
Reading accuracy < 200 mbar 10 Pa/0,1 mbar/0.002 psi
Reading accuracy ≥ 200 mbar 100 hPa/0,1 bar/1.5 psi
1.4 Electrical/electronic data
230 V~; 50 Hz; 1,500 W
110 V~; 50 Hz; 1,500 W
Type of protection terminal box IP 44
Type of protection device, motor IP 20
Protection class I
Operating mode (continuous operation) S 1
Screen (LCD) 3.0"
Resolution 128 × 64
pixels
Data transfer with USB stick USB port
Printer, battery NiMH 6 V
–
---; 800 mAh
–
---; 800 mAh
–
Charger printer Input 100 – 240 V~; 50 – 60 Hz; 0.15 A
Output 5 V
–
---; 680 mA
–
---; 680 mA
–
1.5 Dimensions L × W × H
570 ×
370 × 530 mm (22.4"
× 14.6"
× 20.9")
Paper roll printer B × Ø 57 × ≤ 33 mm
1.6 Weight
REMS Multi-Push S 32.0 kg (71 lb)
REMS Multi-Push SL 36.7 kg (81 lb)
REMS Multi-Push SLW 39.0 kg (86 lb)
1.7 Noise information
Work place-related
Emission value L
PA
= 73 dB(A); L
PA
= 73 dB(A); L
PA
WA
= 73 dB(A); L
WA
= 73 dB(A); L
= 92 dB(A); K = ± 1 dB(A)
2 Start-up
CAUTION
CAUTION
Transport weights above 35 kg must be carried by at least 2 persons.
Compressed air line compressor/pressure vessel (47) gets hot and can cause
burns if touched.
NOTICE
NOTICE
REMS Multi-Push is not intended/suitable for permanent connection to the
installation. Disconnect all hoses from the installation after completing the work.
REMS Multi-Push may not be operated unattended.
2.1 Electrical connection
WARNING
WARNING
Caution: Mains voltage present!
Before connecting the electronic fl ushing
and pressure testing unit, check whether the voltage given on the rating plate
corresponds to the mains voltage. Only use sockets/extension leads with a
functioning PE conta
ct.
Check the function of the PRCD fault current circuit breaker
Th
e function of the PRCD fault current circuit breaker (Fig. 1 (1)) must be
checked every time before start-up and before beginning work:
1. Plug the mains plug into the socket.
2. Press the RESET button (2), the PRCD control lamp (Fig. 1 (39)) lights red
(operating state).
3. Pull out the mains plug, the PRCD control lamp (39) must go out.
4. Plug the mains plug back into the socket.
5. Press the RESET button (2), the PRCD control lamp (39) lights red (oper-
ating state).
6. Press the TEST button (3), the PRCD control lamp (39) must go out.
7. Press the RESET button (2) again, the PRCD control lamp (39) lights red.
The control lamp (Fig. 2 (5)) lights green. REMS Multi-Push is ready for
operation after about 10 s.
WARNING
WARNING
If the described functions of the PRCD fault current circuit breaker (Fig. 1 (1))
are not fulfi lled, the device may not be used. There is a danger of electric shock.
The PRCD fault current circuit breaker tests the connected device, not the
installation before the socket nor interconnected extension leads or cable reels.
On building sites, in a wet environment, indoors and outdoors or under similar
installation conditions, only operate the electronic fl ushing and pressure testing
unit on the mains with a fault current protection switch (FI switch) which interrupts
the power supply as soon as the leakage current to earth exceeds 30 mA for
200 ms. A cable cross-section that corresponds to the power of the electronic
fl ushing and pressure testing unit must be selected when using an extension lead.
2.2 Menu structure and on-screen displays
Press the On/Off button on the input and control unit's operating panel (Fig. 2
(4)) for approx. 2 s, then release it. REMS Multi-Push is switched on and the
compressor switches on. The screen (6) is illuminated and the Logo REMS
Multi-Push logo appears followed by the Start menu:
REMS Multi-Push S: REMS Multi-Push SL/SLW:
Flushing
Ingredients
Memory Manager
Flushing
Ingredients
Testing
Compressed Air Pump
Memory Manager
The screen display contains a maximum 5 lines with 20 characters each. Lines
with defaults or test values are displayed
language-independently
with phys-
ical formula symbols, a uniform verbal abbreviation and the value of the test
criterion in the sub-routines. These have the following meanings:
p refer bar xxx reference test pressure bar
p refer mbar xxx reference test pressure mbar
p actual bar xxx actual test pressure bar
p actual mbar xxx actual test pressure mbar
p diff bar xxx differential test pressure bar
p diff mbar xxx differential test pressure mbar
t stabi min xxx stabilisation/wait time min
t test min xxx test time min
Δ > 10K difference >10°C (10 Kelvin) water/environment
PfS press fi tting system (ZVSHK)
P+M load test plastic + metal
p H
2
O bar water pressure
v H
2
O m/s minimum fl ow speed
t H
2
O min fl ushing/disinfecting/cleaning/preservation time
21
17
eng eng
n H
2
O n-times water change
VA H
2
O l volume of the fl ushing section
VS H
2
O l/min volume fl ow
V H
2
O l used water volume
File no. memory location no. for measuring log
max. DN largest rated diameter
Enter next screen display
Esc previous screen display or cancel
Ver. Software version software
2.3 Settings menu
NOTICE
NOTICE
The defaults for the different test criteria in the Settings menu of the REMS
Multi-Push
SL/SLW
are taken from the EN 806-4:2010 or the information leafl et
SL/SLW
are taken from the EN 806-4:2010 or the information leafl et
SL/SLW
“Leak tests of drinking water installations with compressed air, inert gas or water”
(January 2011) of the German Central Association for Sanitary, Heating and Air
Conditioning (ZVSHK) as well as the Technical Rule “Technical Rule for Gas
Installations Worksheet G 600 April 2018 DVGW-TRGI 2018” of the DVGW
German Gas and Water Associati
on.
All
defaults for the test programs can be edited by the user in the Settings
menu
and in the Flushing, Test with compressed air, Test with water and Compressed
Air Pump
programs
programs
. Changes in the Settings
menu
are saved, i.e. they reappear
the next time the REMS Multi-Push
SL/SLW
is switched on. If the defaults are
SL/SLW
is switched on. If the defaults are
SL/SLW
only changed in one of the
programs
programs
, the original defaults appear again the next
time the REMS Multi-Push
SL/SLW
is switched on. Reset resets all defaults to
SL/SLW
is switched on. Reset resets all defaults to
SL/SLW
factory settings and the language to German and the date, time, units formats
to DD.MM.YYYY, 24 h, m/bar.
Attention:
The user is solely responsible for transferred or newly entered
test criteria (test sequences, pressures and times) or defaults in the
individual programs and the conclusions from the tests.
The respective national safety provisions, rules and regulations valid for
the application site must be considered and observ
ed.
Check and install the software version
Be
fore using the REMS Multi-Push, check whether the respective latest version
software is installed on the input and control unit.
For REMS Multi-Push S the
use of software version as of “03.40, Date 2020-04-08” is permitted.
Select the
Settings menu and then Device data to display the version software. The latest
version software (Ver. Software) for the input and control unit is available by USB
stick as a download:
www.rems.de → Downloads → Software → REMS Multi-
Push → Download
. Compare the number of the version software of the unit with
the latest version software number and install the latest version software if
necessary.
Download procedure:
1. Download fi le
2. Unpack the ZIP fi le
3. Save “update.bin” on USB stick
4. Plug the USB stick into the USB port of the REMS Multi-Push
REMS Multi-Push must be switched off for this, switch off with the On/Off button
(Fig. 2 (4)) and pull out the mains plug if necessary. Insert the USB stick with
the latest version software into the USB port (Fig. 2 (33)). Plug the mains plug
into the socket. Press the Reset button (Fig. 1 (2)) of the PRCD fault current
circuit breaker (1). The control lamp (5) lights green. The latest version software
is installed. When a USB stick with LED is used, the LED starts fl ashing. The
installation is fi nished when the LED no longer fl ashes. If the USB stick has no
LED, you should wait about 1 minute after switching on the PRCD. The latest
version software is then installed on the input and control unit. Pull out the USB
stick.Switch on REMS Multi-Push with the On/Off button (4). Press the “?”
button (7) within 5 s. Select Device data\Reset in the Settings menu with the
arrow buttons ↑ ↓ (8), press the Enter button (9) then press the Enter button
(9) again to confi rm the reset.
Before starting up for the fi rst time, the language, date and time should be set
in the Settings menu and the defaults for the individual programs checked and
changed if necessary.
If the “?” button (Fig. 2 (7)) is pressed within 5 s after switching on the REMS
Multi-Push, the Settings menu opens. The desired line is selected on the screen
with the arrow buttons ↑ ↓ (8). Displayed values can be changed with the arrow
buttons ← → (11). The value is increased with the arrow pointing to the right
and reduced with the arrow pointing to the left. The values change faster when
the arrow buttons ← → (11) are kept pressed. If more than 5 lines in a subrou-
tine are occupied, this is displayed by arrows ▼▲ in the top or bottom right
hand corner of the screen respectively. The complete selection of the screen
is confi rmed with the Enter button (9) and the next screen appears.
The previous screen appears if the Esc button (10) is pressed during the setting.
Already changed values are rejected.
If the Esc button (10) is pressed during the stabilisation/wait time (t stabi), the
program aborts, the values (useless) are still saved, appear on the screen and
“Cancel” appears additionally on the screen and possibly on the print strip.
If the Esc button (10) is pressed during the test time (t test), the values are still
saved, appear on the screen and “Cancel” appears additionally on the screen
and possibly on the print strip. In the test programs Enter provides a shortcut
for the adaptation of p actual to p refer.
Select language, Enter:
Select language, Enter:
Default German (deu) is preselected. Another language can be selected with
the arrow buttons ← → (11), press Enter.
Select date, Enter:
Select date, Enter:
Format “DD.MM.YYYY” is defaulted for the date. Another format for the date
can be selected with the arrow buttons ← → (11). The next line on the screen
is selected with the arrow buttons ↑ ↓ (8) and the year or month or day can be
selected with the arrow buttons ← → (11). Press Enter.
Select time, Enter:
Select time, Enter:
Default “24 hours” is preselected. Another format for the time can be selected
with the arrow buttons ← → (11). The next line on the screen is selected with
the arrow buttons ↑ ↓ (8) and hours or minutes can be selected with the arrow
buttons ← → (11). Press Enter.
Select defaults \ units, Enter:
Select defaults \ units, Enter:
Default “m / bar” is preselected. Other units can be selected with the arrow
buttons ← → (11).
Select Defaults \ Defaults \ Leak test with compressed air, Enter
Select Defaults \ Defaults \ Leak test with compressed air, Enter
(REMS Multi-
(REMS Multi-
Push SL/SLW)
Push SL/SLW)
:
Check defaults, edit with arrow buttons ↑ ↓ (8) or arrow buttons ← → (11) if
necessary.
Defaults \ Defaults \ Testing gas installations with compressed air \ Select load
Defaults \ Defaults \ Testing gas installations with compressed air \ Select load
testing, leak testing, Enter
testing, leak testing, Enter
(REMS Multi-Push SL/SLW)
(REMS Multi-Push SL/SLW)
:
Check defaults, edit with arrow buttons ↑ ↓ (8) or arrow buttons ← → (11) if
necessary.
Select Defaults \ Defaults \ Load test with compressed air \ DN, Enter
Select Defaults \ Defaults \ Load test with compressed air \ DN, Enter
(REMS
(REMS
Multi-Push SL/SLW)
Multi-Push SL/SLW)
:
Check defaults, edit with arrow buttons ↑ ↓ (8) or arrow buttons ← → (11) if
necessary.
Select Defaults \ Defaults \ Test with water, method A or B or C, Enter
Select Defaults \ Defaults \ Test with water, method A or B or C, Enter
(REMS
(REMS
Multi-Push SLW)
Multi-Push SLW)
:
Check defaults, edit with arrow buttons ↑ ↓ (8) or arrow buttons ← → (11) if
necessary.
Select device data, Enter:
Select device data, Enter:
Confi rm last line “Reset” with Enter. Confi rm the security prompt again with
Enter. “Reset” resets all defaults to factory settings and the language to German
(deu) and the date, time, units formats to “DD.MM.YYYY”, “24 h”, “m/bar”.
2.4 Flushing programs
2.4.1 Flushing EN 806-4
To fl ush drinking water installations with water, with water-air mixture with inter-
mittent compressed air and with water-air mixture with constant compressed
air, REMS Multi-Push must be connected to the water supply or the manifold
of the installation (Fig. 3) as follows:
To fl ush drinking water pipes after the house connection (water meter) (Fig. 3),
fi t the REMS fi ne fi lter (12) (Art. No. 115609) with fi lter cartridge 90 µm. Connect
the suction/pressure hose (13) to the fl ushing supply (14) after the fi ne fi lter.
Fit the second suction/pressure hose (13) to the fl ushing drain (Fig. 4 (15)) and
connect to the installation to be fl ushed.
2.4.2 Flushing
Proceed accordingly as in 2.4.1 and (Fig. 5) to fl ush/desilt heating systems.
However, it is necessary to fi t a system separator in accordance with EN
1717:2000 after the house connection (water meter) (Fig. 5) to prevent contam-
ination of drinking water by fl owback. Do not use suction/pressure hoses for
drinking water lines any more after they have been used for heating systems.
2.5 Program Ingredients/Disinfection
WARNING
WARNING
Observe the European standard EN 806-4:2010
10)
to avoid harm to persons,
property and the environment.
In Germany, hydrogen
peroxide H
2
O
2
, sodium hypochlorite NaOCl and chlorine
dioxide ClO
2
are recommended for the disinfection of drinking water installa-
tions
11)
.
The safety data sheets for REMS Peroxi and REMS Color under www.rems.
de → Downloads → Safety Data Sheets as well as other local and national
regulations must be observed.
User friendliness, work protection and environmental protection etc. must be
considered in the choice of disinfection chemicals. It should be noted that, when
using oxidants containing chlorine (sodium hypochlorite NaOCl and chlorine
dioxide ClO
2
), for example, chlorine organic compounds may form which are
to be considered harmful to the environment.
REMS therefore recommends disinfecting drinking water installations with
REMS Peroxi (hydrogen peroxide H
2
O
2
). Hydrogen peroxide offers the better
alternative with regard to use friendliness, work protection and environmental
protection because it decomposes into hydrogen and water when used and
therefore forms no critical decomposition products and can be drained into
sewers without problems because of its rapid decomposition. Besides, the
concentration of REMS Peroxi with 1.5 % hydrogen peroxide is not classifi ed
as dangerous (not a hazardous substance).
REMS Peroxi consists of a watery solution hydrogen peroxide corresponding
to the application concentration of the dosing solution of 1.5% H
2
O
2
, corresponding
to 15 g/l H
2
O
2
recommended in the named rules. When diluted with 100 l of
water a concentration of the disinfection solution of 150 mg H
2
O
2
/l resul
ts.
22
18
eng eng
We
advise against buying disinfectants, e.g. hydrogen peroxideH
2
O
2
, with higher
concentrations which the user then has to dilute to the recommended concen-
tration of the dosing solution. Such actions are dangerous due to the higher
concentrations of the disinfectants so that hazardous substance and chemical
prohibition directives and possibly other national laws must be observed. In
addition, errors in the preparation of the self-mixed dosing solution can cause
harm to persons and damage to the drinking water installati
on.
Preparing for installation
Fi
t the REMS fi ne fi lter (Fig. 3 (12)) (Art. No. 115609) with fi lter cartridge 90 µm
after the house connection (water meter). Connect the suction/pressure hose
(Fig. 1 (13)) to the fl ushing supply (14) before or after the fi ne fi lter. Fit the
REMS V-Jet TW with supply (Fig. 7 (16)) disinfection unit for drinking water
installations to the fl ushing drain of REMS Multi-Push (Fig. 4 (15)). Observe
the direction of fl ow arrows. The main line of the disinfection unit consists of
the supply, pressure limiting valve (17), non-return valve (18), drain to the
installation (19). This is connected to the installation to be infected by the
suction/pressure hose (Fig. 4 (13)). Part of the supply is pressed by the fl ow
head (Fig. 7 (20)) into the bottle (21) which contains the dosing solution. This
is fed to the drinking water installation to be disinfected.
NOTICE
NOTICE
The REMS V-Jet TW disinfection unit must be removed from REMS Multi-Push
to fl ush drinking water pipes after disinfection. Suction/pressure hoses used
for disinfection should be fl ushed thoroughly before using for pressure testing
of drinking water pipes. Hydrogen peroxide decomposes in time and loses its
effect depending on the environment in which it is stored. Therefore the concen-
tration of the dosing solution should be checked for effectiveness before every
disinfection. To do this, fi ll a clean, sealable container with 100 ml of water and
draw 1 ml of dosing solution from the bottle using the pipette provided with
every carton of REMS Peroxi Color and add it to the container (ratio 1:100).
Seal the container and shake well. The concentration of the container contents
is measured with the test strip (Art. No. 091072) according to the instructions
printed on the test strip package. This should be ≥ 150 mg/l H
2
O
2
.
The built-in nozzles for automatic dosing by REMS V-Jet TW and REMS V-Jet
H are different and are adapted to the properties of the REMS ingredients to
be injected. Therefore please always observe the intended use.
2.6 Testing programs (REMS Multi-Push SL/SLW)
2.6.1 Leak and load testing with compressed air according to information leafl et
2.6.1 Leak and load testing with compressed air according to information leafl et
“Leak tests of drinking water installations with compressed air, inert gas or
“Leak tests of drinking water installations with compressed air, inert gas or
water” (January 2011) of the German Central Association for Sanitary, Heating
water” (January 2011) of the German Central Association for Sanitary, Heating
and Air Conditioning (ZVSHK)
and Air Conditioning (ZVSHK)
(REMS Multi-Push SL/SL
(REMS Multi-Push SL/SL
(REMS Multi-Push SL/SL
W)
9)
WARNING
WARNING
Observe the information leafl et “Leak tests of drinking water installations
with compressed air, inert gas or water” (January 2011) of the German
Central Association for Sanitary, Heating and Air Conditioning (ZVSHK)
9)
to avoid harm to persons, property and the environment.
The respective national safety provisions, rules and regulations valid for
the application site must be considered and observ
ed.
Preparing for installation
Be
fore conducting a test with compressed air, it must be assessed whether the
installation to be tested will withstand the preset/selected test pressure “p refer”.
Connect the compressed air hose (Fig. 4 (23)) to the output Pressure test with
compressed air, Disinfection, Cleaning, Preservation, Compressed air pump
(22) and connect the compressed air hose (23) to the installation to be tested.
2.6.2 Pressure and leak testing of drinking water installations with water in
2.6.2 Pressure and leak testing of drinking water installations with water in
accordance with EN 806-4:2010 (REMS Multi-Push SLW)
accordance with EN 806-4:2010 (REMS Multi-Push SLW)
WARNING
WARNING
The hydro-pneumatic water pump installed additionally in the REMS Multi-Push
SLW for this test is fed by the built-in compressor of the REMS Multi-Push. The
hydro-pneumatic water pump generates a water pressure of max. 1.8 MPa/18
bar/261 psi. Before conducting one of the tests with water according to method
A, B, C, it must be assessed whether the installation to be tested will withstand
the preset/selected test pressure “p ref
er”.
Preparing for installation
Fi
t the REMS fi ne fi lter (12) (Art. No. 115609) with fi lter cartridge 90 µm after
the house connection (water meter) (Fig. 3). Connect the suction/pressure hose
(13) to the pressure test with water supply (Fig. 1 (24)) after the fi ne fi lter.
Connect the high-pressure hose (26) to the pressure test with water drain (Fig. 4
(25)) and connect to the installation to be tested. Feed the pressure relief water
drain (27) into a vessel (bucket).
2.6.3 Load and leak testing of gas pipe systems with compressed air in accord-
2.6.3 Load and leak testing of gas pipe systems with compressed air in accord-
ance with “Technical Rule Worksheet G 600 April 2018 DVGW-TRGI 2018” of
ance with “Technical Rule Worksheet G 600 April 2018 DVGW-TRGI 2018” of
the DVGW German Gas and Water Association, Germany
the DVGW German Gas and Water Association, Germany
(REMS Multi-Push
(REMS Multi-Push
SL/SL
W)
12)
WARNING
WARNING
Observe the “Technical Rules Worksheet G 600 April 2008 DVGW-TRGI
2008” of the DVGW German Gas and Water Association
12)
to avoid harm
to persons, property and the environment.
The respective national safety provisions, rules and regulations valid for
the application site must be considered and observ
ed.
Preparing for installation
Be
fore conducting a test with compressed air, it must be assessed whether the
installation to be tested will withstand the preset/selected test pressure “p refer”.
Connect the compressed air hose (Fig. 4 (23)) to the output Pressure test with
compressed air, Compressed air pump (22) and connect the compressed air
hose (23) to the installation to be tested.
2.7 Programs Ingredients \ Cleaning and preservation of heating syste
ms
Preparing for installation
Be
fore cleaning and preserving heating systems with REMS Multi-Push, safety
devices for the prevention of drinking water contamination by fl owback, e.g.
pipe network separator BA in accordance with EN 1717:2000 must be installed
to protect the drinking water against contamination.
Fit the REMS fi ne fi lter (Fig. 3 (12)) (Art. No. 115609) with fi lter cartridge 90
µm.
Connect the suction/pressure hose (Fig. 1 (13)) to the fl ushing supply (14)
after the fi ne fi lter. Fit the REMS V-Jet H (Fig. 7) cleaning and preservation unit
for heating systems with supply (Fig. 7 (16)) to the fl ushing drain of REMS Multi-
Push (Fig. 4 (15)). Observe the direction of fl ow arrows. The main line of the
cleaning and preservation unit consists of the supply, pressure limiting valve (17),
non-return valve (18), drain to the heating system (19). This is connected to the
heating system to be cleaned by the suction/pressure hose (Fig. 4 (13)).
Part of
the supply is pushed through the fl ow head (Fig. 7 (20)) into the bottle (21)
which contains the REMS CleanH cleaner or REMS NoCor corrosion protection
for heating systems. These are fed into the heating system to be cleaned or
protected against corrosion. The contents of the 1 l bottle of REMS CleanH or
REMS NoCor is suffi cient for a volume of approx. 100 l. REMS CleanH is dyed
green in order to be able to check fi lling and washout, REMS NoCor is dyed
blue to check fi lling. The safety data sheets for REMS CleanH and REMS
NoCor under www.rems.de → Downloads → Safety Data Sheets as well as
other local and national regulations must be observed.
NOTICE
NOTICE
Never allow cleaner or corrosion protection agent to fl ow though the pipes of
REMS Multi-Push.
Do not use suction/pressure hoses for drinking water lines any more after they
have been used for heating systems.
The built-in nozzles for automatic dosing by REMS V-Jet TW and REMS V-Jet
H are different and are adapted to the properties of the REMS ingredients to
be injected. Therefore please always observe the intended use.
2.8 Compressed air pump program (REMS Multi-Push SL/SLW)
Vessels of all types can be pumped up with this program. Connect the compressed
air hose (23) to the output Pressure test with compressed air, Compressed air
pump (Fig. 4 (22)) and connect it to the vessel to be pumped up, e.g. expansion
vessel, tyre. The value 0.02 MPa / 0.2 bar / 3 psi is preset.
2.9 Memory Manager program (data transfer)
The results of the fl ushing and test programs are saved with date, time and log
number in the selected language and can be transferred to a USB stick or
printer (accessory part no. 115604) (neither of which is included in the scope
of supply) for documentation (see 3.8).
2.10 Compressed air tools connection
Unlike the described “Compressed Air Pump” program in which the values are
controlled by the electronic control, compressed air tools up to an air requirement
of ≤ 230 Nl/min can be operated directly from the compressed air vessel at the
compressed air tools connection (Fig. 4 (28)).
A compressed air hose with quick
couplings NW 7.2 must be used (accessory part no. 115621).
3 Operation
NOTICE
NOTICE
REMS Multi-Push is not intended/suitable for permanent connection to the
installation. Disconnect all hoses from the installation after completing the work.
REMS Multi-Push may not be operated unattended.
The respective national safety provisions, rules and regulations valid for
the application site must be considered and observed.
Check the software version
See 2.3 Settings menu, check the software version and install the latest version
if necessary.
Setting defaults
The defaults for the different test criteria (test sequences, pressures and times)
in the settings menu of the REMS Multi-Push SL/SLW are taken from EN
806-4:2010 or the information leafl et “Leak tests of drinking water installations
with compressed air, inert gas or water” (January 2011) of the German Central
Association for Sanitary, Heating and Air Conditioning (ZVSH
K).
All
defaults for the test programs can be edited by the user in the Settings menu
and in the Flushing, Test with compressed air, Test with water and Compressed
Air Pump programs. Changes in the Settings menu are saved, i.e. they reappear
the next time the REMS Multi-Push SL/SLW is switched on. If the defaults are
only changed in one of the programs, the original defaults appear again the
next time the REMS Multi-Push SL/SLW is switched on. Reset resets all defaults
to factory settings and the language to German (deu) and the date, time, units
formats to DD.MM.YYYY, 24 h, m/bar.
23
19
eng eng
Attention:
The user is solely responsible for transferred or newly entered
test criteria (test sequences, pressures and times) or defaults in the
individual programs and the conclusions from the tests. Especially, the
user must decide whether a prescribed stabilisation/wit time is ended
and must confi rm this by \Enter.
The respective national safety provisions, rules and regulations valid for
the application site must be considered and observ
ed.
Electronic memory
Th
e electronic memory of REMS Multi-Push holds 40 fi les (logs). A soon as a
program has been selected from the Start menu and the selected data have
been confi rmed with Enter, a new fi le no. is created automatically even if the
program is then aborted e.g. with Esc. If the 40th memory location is occupied,
the message “Last fi le no. available”. After completing this process, all fi les
should be copied to a USB stick via the USB port (Fig. 2 (33)). The oldest fi le
no. in the memory is then overwritten when further fi les are saved.
Screen display (must be released by Enter):
000425
19.08.2013 10:13
Files 40/40
Last fi le no.
available
Consecutive fi le no. 000425
Date 19.08.2013
Time 10:13 (creation of a new fi le no.)
Files 40/40 (a max. of 40 fi les are saved)
Last fi le no.
available
3.1 Programs fl ush EN 806-4 drinking water installations, program fl ush/desilt
radiators and area heating systems
1), 4)
The REMS Multi-Push can be used for performing the fl ushing processes “fl ush
with water”, “fl ush with water-air mixture with intermittent pressure” and “fl ush
with water-air mixture with constant compressed air”.
3.1.1 Program fl ush EN 806-4 with water (without air supply)
1), 4)
Specifi cations for fl ushing with water are defi ned in EN 806-4:2010, and for
Germany additionally in accordance with the Technical Rules Worksheet DVGW
W 557 (A) October 2012 of the DVGW German Gas and Water Association and
the information leafl et “Flushing, disinfection and commissioning of drinking water
installations” (August 2014) of the Central Association for Sanitary, Heating, Air
Conditioning (ZVSHK), Germany.
The drinking water used for fl ushing must be fi ltered and must be of perfect
drinking water quality. Filters must hold back particles ≥ 150 µm (use REMS
fi ne fi lter with fi lter cartridge 90 µm, Art. No. 115609).
The system must be
fl ushed section for section depending on the size of the installation and the
arrangement and lay of the pipes. Flushing must be start on the bottom fl oor
of the building and continue upwards in lines, within a line fl oor by fl oor, i.e.
from the nearest to the furthest line and fl oor. The minimum fl ow velocity when
fl ushing the installation must be 2 m/s and the water in the system must be
replaced at least 20 times during fl ushing.
Within the fl oor and single lines, at least as many tapping points as listed in the
following table as a recommended value for a fl ushing section will be fully
opened for at least 5 minutes fl oor by fl oor.
Greatest rated width of the pipe in the
fl ushed section, DN
25
32
40
50
Greatest rated width of the pipe in the fl ushed
section, in inches
1"
1¼"
1½"
2"
Minimum number of tapping points to be
opened DN 15 (½")
2
4
6
8
Table 1: Recommended value for the minimum number of tapping points to be
opened related to the greatest rated width of the distribution line” (single tapping
rate at least 10 l/20 s) (Information leafl et “Flushing, disinfection and commis-
sioning of drinking water installations” (August 2014) of the German Central
Association for Sanitary, Heating and Air Conditioning, lines in italics added,
limiting to DN 50). Two or more REMS Multi-Push can be connected in parallel
to fl ush greater rated widt
hs.
Pr
ogram sequence ↑ ↓ (8):
1. Flush \ Enter
2. Flush EN 806-4 \ Enter
3. without compressed air \ Enter
4.
Check default max. DN according to table 1 and change if necessary (11) \ ↓
5. Enter water volume of the fl ushing section VA H
2
O (0-999 l) \ Enter (see
Fig. 6)
6. Open the water supply. The values fl ash as long as the minimum fl ow
velocity v H
2
O = 2 m/s and the water change n H
2
O = 20 have not been
reached. On reaching the values \ Enter
(If the defaults v H
2
O and n H
2
O are not reached: \ Esc = cancel, clarify the
cause, repeat the process)
7. Display screen: Water pressure (p H
2
O), minimum fl ow velocity (v H
2
O),
fl ushing time (t H
2
O), water change (n H
2
O), volume of used water (V H
2
O)
\ Enter
8. Esc >> Start menu \ Memory Manager, data transfer >> 3.
8
During the program run, the REMS Multi-Push displays the achieved fl ow
velocity and the achieved water change on the screen among other things.
3.1.2 Program fl ush EN 806-4 with water-air mixture with intermittent compressed
air
The cleaning effect by fl ushing can be reinforced by adding compressed air.
Specifi cations for fl ushing with water are defi ned in EN 806-4:2010 and in the
information leafl et “Flushing, disinfection and commissioning of drinking water
installations” (August 2014) of the Central Association for Sanitary, Heating,
Air Conditioning (ZVSHK), Germany.
The drinking water used for fl ushing must be fi ltrated whereby particles ≥ 150
µm must be held back and the water must be perfectly fi t for drinking (use
REMS fi ne fi lter with fi lter cartridge 90 µm, Art. No. 115609).
“The pipe system
can be fl ushed under pressure with a drinking water/air mixture intermittently
with a minimum fl ow velocity in every pipe section of 0.5 m/s. A certain minimum
number of tap fi ttings must be opened for this. If the minimum volume fl ow is not
reached with full fi lling of the distribution pipe in a section of the pipe system to
be fl ushed, a storage tank and a pump must be used for fl ushing.” “The system
must be fl ushed section by section depending on the size of the installation and
the lay of the pipes. No fl ushing section may exceed a pipe section length of 100
m.”
Greatest rated width of the pipe in the fl ushed
section, DN
25
32
40
50
Greatest rated width of the pipe in the fl ushed
section, in inches
1"
1¼"
1½"
2"
Minimum volume fl ow with fully fi lled pipe
section, in l/min
15
25
38
59
Minimum number of DN 15 (½") tapping
points to be opened fully or a corresponding
cross-sectional area
1
2
3
4
Table 2: Recommended minimum fl ow and minimum number of tapping points
depending on the greatest rated diameter of the pipe in the fl ushed section
which must be opened for the fl ushing process (for a minimum fl ow velocity of
0.5 m/s) (EN 806-4:2010, lines in italics added, limiting to DN 50). Two or more
REMS Multi-Push can be connected in parallel to fl ush greater rated widths.
The manual actuation of the setting fi ttings for the supply of intermittent
compressed air described in EN 806-4:2010 and in the information leafl et
“Flushing, Disinfection and Commissioning of Drinking Water Installations”
(August 2014) of the German Central Association for Sanitary, Heating and Air
Conditioning (ZVSHK) takes place automatically in REMS Multi-Push. The
compressed air is fed with an excess pressure of 0.5 bar above the measured
water pressure. The compressed air supply lasts 5 s, the stagnation phase
(without compressed air) lasts
2 s.
Pr
ogram sequence ↑ ↓ (8):
1. Flush \ Enter
2. Flush EN 806-4 \ Enter
3. Intermittent compressed air \ Enter
4.
Check default max. DN according to table 2 and change if necessary (11) \ ↓
5. Enter water volume of the fl ushing section VA H
2
O (0-999 l) (11) \ Enter
(see Fig. 6)
6. Open the water supply. If the minimum fl ow velocity v H
2
O = 0,5 m/s, the
minimum volume fl ow VS H
2
O and the fl ushing time are reached \ Enter
The fl ushing time (according to information leafl et T 84-2004 “Flushing,
Disinfection and Commissioning of Drinking Water Installations” of the
German Central Association for Sanitary, Heating and Air Conditioning)
depends on the pipe length and should not drop below 15 s per metre. The
fl ushing time must be at least 2 minutes per tapping point.
(If the defaults v H
2
O and VS H
2
O are not reached: \ Esc = cancel, clarify
the cause, repeat the process)
7. Display screen: Water pressure (p H
2
O), minimum fl ow velocity (v H
2
O),
fl ushing time (t H
2
O), volume of used water (V H
2
O), volume fl ow (VS H
2
O)
\ Enter
8. Esc >> Start menu \ Memory Manager, data transfer >> 3
.8
During the program run, the REMS Multi-Push displays the achieved fl ow
velocity and the achieved water change on the screen among other things.
NOTICE
NOTICE
In
order to feed in compressed air, water pressure of ≥ 0.2 bar must be applied
and a water quantity of ≥ 2 l must have fl owed through the machine.
3.1.3
Program fl ush EN 806-4 with water-air mixture with constant compressed air
Program fl ush EN 806-4 with water-air mixture with constant compressed air
The compressed air is fed continuously with an excess pressure of 0.5 bar above
the measured water pressure in this program. The compressed air pulses in the
program 3.1.2 fl ushing with water/air mixture with intermittent compressed air”
are omitted here. Although these considerably improve the cleaning effect, they
subject the pipes to greater stress. If there are any reservations about the strength
of the pipes to be fl ushed, this program at least achieves an improvement of the
cleaning effect in comparison with program 3.1.1 fl ushing with water (without air
supply) by a jolt-free turbulence due to the constantly fed compressed
air.
Pr
ogram sequence ↑ ↓ (8):
1. Flush \ Enter
2. Flush EN 806-4 \ Enter
3. Continuous air fl ow \ Enter
4. Check default max. DN according to table 2 and change if necessary
(11) \ ↓
24
20
eng eng
5. Enter water volume of the fl ushing section VA H
2
O (0-999 l) (11) \ Enter
(see Fig. 6)
6. Open the water supply. To exit \ Enter, (\ Esc = cancel)
7. Display screen: Water pressure (p H
2
O), fl ushing time (t H
2
O), used water
volume (V H
2
O) \ Enter
8. Esc >> Start menu \ Memory Manager, data transfer >> 3
.8
During the program run, the REMS Multi-Push displays the consumed volume
of water on the screen among other things.
NOTICE
NOTICE
In
order to feed in compressed air, water pressure of ≥ 0.2 bar must be applied
and a water quantity of ≥ 2 l must have fl owed through the machine.
3.1.4 Program fl ush/desilt with the possibility to switch over the air supply
3.1.4 Program fl ush/desilt with the possibility to switch over the air supply
This program is suitable for fl ushing/desilting radiators and area heating systems.
The compressed air supply can be switched on with an excess pressure of 0.5
bar or switched off during the fl ushing process. The program starts fl ushing/
desilting without compressed air. The compressed air can be switched on or
off intermittently or the constant air supply switched on and off as required with
the arrow keys ↑ ↓ (8). The water pressure and the minimum fl ow velocity are
displayed on the screen (LCD) (Fig. 2 (6)) during fl ushing/desilting.
Program sequence ↑ ↓ (8):
1. Flush \ Enter
2. Flush \ Enter
3. Open the water supply. Flushing/desilting starts without air supply
4. Switch the compressed air on and off as required with the arrow keys ↑ ↓
(8) and wait a few seconds until the air supply has switched over. It is not
necessary to confi rm the selection with Enter. The marking on the screen
(LCD) (6) shows the currently selected air supply.
5. To exit \ Enter, (\ Esc = cancel)
6. Display screen: Water pressure (p H
2
O), minimum fl ow velocity (v H
2
O),
fl ushing time (t H
2
O), volume of used water (V H
2
O) \ Enter
7. Esc >> Start menu \ Memory Manager, data transfer >> 3.8
NOTICE
NOTICE
In order to be able to feed in compressed air, a water pressure of ≥ 0,2 bar must
be av
ailable and a water volume of ≥ 2 l must have fl owed through the machine.
Before fl ushing/desilting, it is essential to assess whether the radiator and area
heating system to be fl ushed will withstand the water pressure during fl ushing/
desilting.
It can last up to one minute before the selected compressed air supply starts
when switching the air supply on or over.
3.2 Program Ingredients / Disinfection of drinking water installations
CAUTION
CAUTION
No drinking water may be be drawn off for consumers during disinfection
of drinking water installatio
ns!
Observe the specifi cations of the European standard EN 806-2:2010
10), 13)
,
“Technical Rules Worksheet DVGW W 557 (A) October 2012”
14)
and the infor-
mation leafl et “Flushing, disinfection and commissioning of drinking water
installations”
15)
.
De
pending on the volume of the individual pipe sections, several pipe sections
can be disinfected with one bottle of REMS Peroxi Color dosing solution (see
Accessories 1.2 Article Numbers). However, it is recommended not to use an
opened bottle for longer than one day because the dosing solution loses in
concentration. Hydrogen peroxide decomposes in time and loses its effect
depending on the environment in which it is stored. Therefore the concentration
of the dosing solution should be checked for effectiveness before every disin-
fection. To do this, fi ll a clean, sealable container with 100 ml of water and draw
1 ml of dosing solution from the bottle using the pipette provided with every
carton of REMS Peroxi Color and add it to the container (ratio 1:100). Seal the
container and shake well. The concentration of the container contents is meas-
ured with the test strip (Art. No. 091072) according to the instructions printed
on the test strip package. This should be ≥ 150 mg/l H
2
O
2
.
CAUTION
CAUTION
The dye is not harmful to the health but very intensive and is very diffi cult to
remove from the skin or clothing. Therefore pour the dye into the bottle carefully.
Op
en the bottle (21), remove the locking ring from the bottle cap and pour the
delivered dye (20 ml bottle) into the bottle (21) immediately before the disin-
fection process. Close the bottle and shake it so that the dye mixes evenly with
the hydrogen peroxide.
Fit bottle to the disinfection unit REMS V-Jet TW as shown in Fig. 7 (21).
The
nozzles installed in REMS V-Jet TW and REMS V-Jet H for automatic dosing
of dosing solution, cleaner and corrosion protection are different sizes and
adapted to the properties of the REMS ingredients to be injected.
Therefore
make absolutely sure that REMS V-Jet TW is connected for disinfection of
drinking water pipes. Select program Ingredients \ disinfection DW. During the
fi lling process, all tapping points on the drinking water installation must be
opened one after another, starting with the furthest away, until the dyed disin-
fection solution emerges at the respective tapping point. If the tapping point
is in a dark environment it is helpful to hold a white background (e.g. a sheet
of paper) behind the outlet in order to be able to see the disinfection solution
better.
The supply to the disinfection unit before REMS Multi-Push and the drain to the
drinking water installation must be shut off at the end of the disinfection process.
Then the bottle (21) must be removed slowly so that excess pressure can escape.
After 24 hours exposure (recommendation of the German Central Association
for Sanitary, Heating and Air Conditioning (ZVSHK) and recommendation of
the German Association of the Gas and Water Industry (DVGW), the disinfec-
tion solution must be fl ushed out of the drinking water installation with REMS
Multi-Push. To do this, all tapping points must be opened again one after another,
starting with the nearest, until there is no longer any trace of the dyed disinfec-
tion solution.
Additionally, peroxide test strips can be used if necessary to check the concen-
tration (accessories, see 1.2 Article numbers).
NOTICE
NOTICE
Hoses used for disinfection/cleaning should no longer be used for pressure
testing with water and for fl ushing drinking water pipes.
3.3 Testing drinking water installations with compressed air program (REMS
Multi-Push SL/SLW)
WARNING
WARNING
The following applies for Germany: Observe the information leafl et “Leak
tests of drinking water installations with compressed air, inert gas or
water” (January 2011) of the German Central Association for Sanitary,
Heating and Air Conditioning (ZVSHK)
16)
, “3.1 General” additionally to the
national regulations to avoid harm to persons, property and the environment.
Observe maximum test pressures of 0.3 MPa/3 bar/43.5 psi for load and leak
testing of gas pipes.
Th
e respective national safety provisions, rules and regulations valid for
the application site must be considered and observed.
Before conducting a test with compressed air, it must be assessed whether the
installation to be tested will withstand the preset/selected test pressure “p refer”.
The ambient temperature, the temperature of the test medium and the atmo-
spheric air pressure can infl uence the result of the test because they affect the
measured pressures. Changes in these parameters must be considered, if
necessary, in the evaluation of the test results.
Section 6 of EN 806-4:2010 defi nes among other things that: “Installations inside
buildings must be subjected to pressure testing. This can be done either with
water or, if national regulations allow, oil-free, clean air with low pressure or inert
gases may be used. The possible risk from high gas or air pressure in the system
must be considered.” However, apart from this note, the standard EN 806-4:2010
contains no test criteria whatsoever for testing with compressed air.
The tests described below and the defaults stored in the REMS Multi-Push
correspond to the information leafl et “Leak tests of drinking water installations
with compressed air, inert gas or water” (January 2011) of the German Central
Association for Sanitary, Heating and Air Conditioning (ZVSHK). Future changes
to this information leafl et or the respective valid provisions, rules and regulations
for the application site must be considered and changed test criteria (test
sequences, pressures and times) must be corrected in the defaults.
The programs can be aborted at any time with the Esc button (10). Then all
the valves open and the pressure in the installation is released. The tests are
saved but “Cancel” is shown in the fi le.
The pressure test must be repeated if necessary or the installation must be
checked and improved.
NOTICE
NOTICE
The controller ends the control process to set the selected test pressure for
tests with compressed air ≤ 200 mbar at a tolerance of ±3 mbar and for tests
≤ 3 bar (if necessary ≤ 4 bar) at a tolerance of ±0.1 bar. This means that the
control is ended, e.g. when setting p refer = 150 mbar at a value p actual
between 147 and 153 mbar or when setting p refer = 3 bar between 2.9 and
3.1 bar. This tolerance is safe because, in the pressure test with compressed
air, the
relative
pressure change of pressure p refer is decisive. If ENTER is
pressed, the value p actual is taken over as p refer. So the test can also be
begun at a p refer of 153 mbar for example.
3.3.1 Leak test with compressed air (ZVSHK
3.3.1 Leak test with compressed air (ZVSHK
)
Test pressure 150 hPa (150 mbar)
Program sequence ↑ ↓ (8):
1. Test \ Enter
2. Test with compressed air \ Enter
3. Leak test \ Enter
4.
Check reference test pressure default (p refer) and change if necessary (11) \ ↓
5. Check stabilisation default (t stabi) and change if necessary (11) \ ↓
6. Check test time default (t test) and change if necessary (11) \ ↓
7. Actual test pressure (p actual) is adjusted to reference test pressure (p refer)
\ Enter
8. Stabilisation/wait time (t stabi) running, actual test pressure (p actual) is
changed to reference test pressure (p refer) on expiring. The stabilisation/
wait time can be ended prematurely with Enter, the test time (t test) then
begins immediately (\ Esc = cancel).
9. Display screen: Reference test pressure (p refer), actual test pressure
(p actual), differential test pressure (p diff), test time (t test) \ Enter
10. Esc >> Start menu \ Memory Manager, data transfer >> 3.8
25
Other manuals for E-Push
1
This manual suits for next models
6
Other REMS Test Equipment manuals
