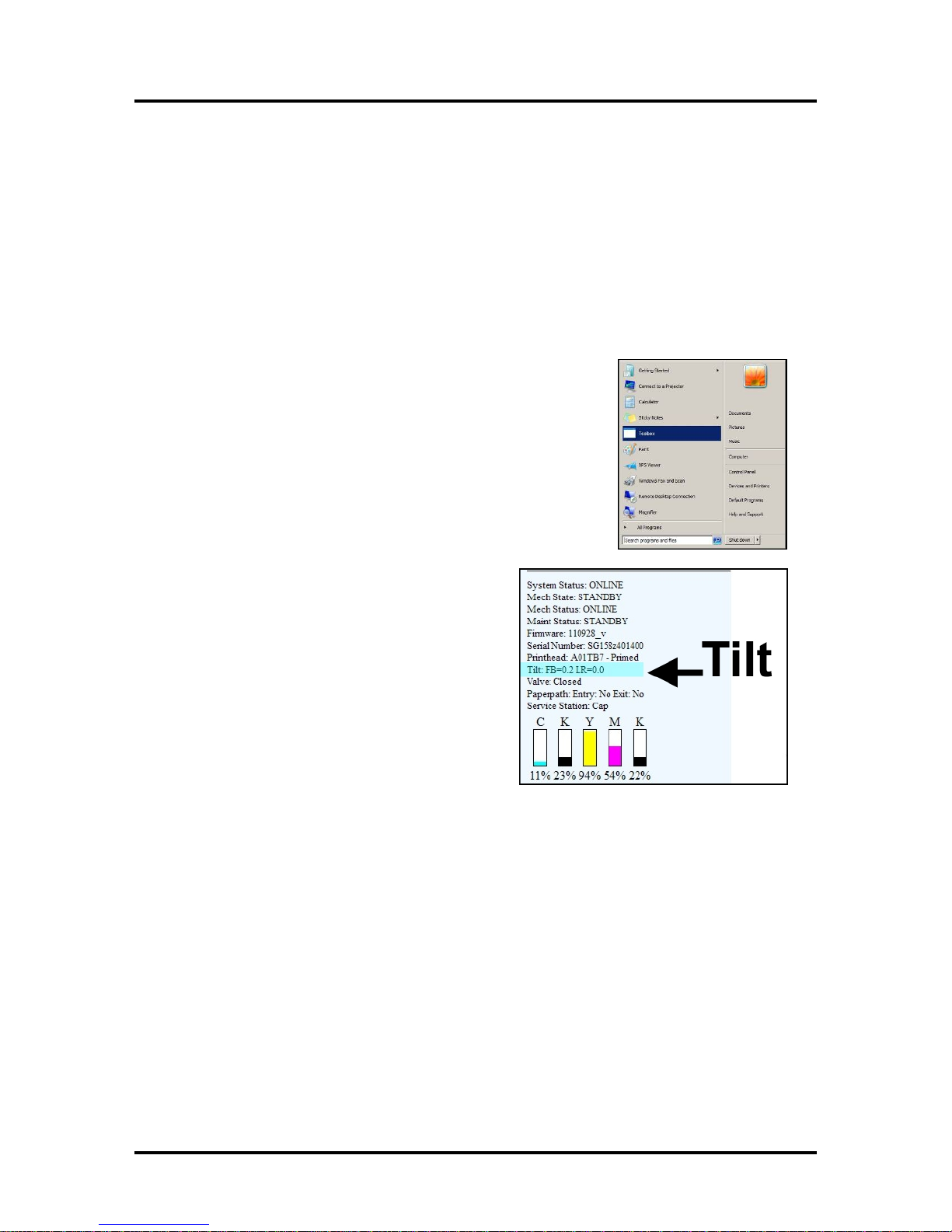

Checking the Tilt Readings 10
Connecting the Printer 11
Plugging in the Printer 11
Powering the Printer ON and OFF 11
Powering-Up the Printer: 11
Powering-Down the Printer: 11
Connecting to the Computer 12
Minimum Computer System Requirements 12
Installing the Printer Software (Driver & Toolbox) 13
Connecting the Printer via Network (Ethernet Port) 16
Installing the Ink Tanks 18
Ink Tank Anatomy 18
Procedure (Installing the Ink Tanks): 19
Installing the Printhead Cartridge 21
Printhead Cartridge Protective Packaging 21
Procedure (Installing the Printhead Cartridge) 23
Installing/Removing the Head Media Guide 27
SECTION 3 –Installing the Output Stacker (optional) 29
Unpacking 29
Contents of Packaging 29
Connecting/Aligning the Output Stacker 29
SECTION 4 – Operating the Printer 30
MACH 8 Control Panel Functions 30
For The Print Engine: 30
Print Engine Status Light (LED) Indicators 31
For the Feed Table: 34
Feed Table: Status Light (LED) Indicators 34
Setting up the Feed 35
Printer Driver Properties 38
General Tab 38
Layout Tab 41
Import/Export Tab 43
Services Tab 43
Using the Printer Toolbox Utility 44
System Status 44
Ink Level Status 45

TABLE OF CONTENTS
ii
User Interface Menu 46
Diagnostics Menu 49
Ink Usage Menu 50
Network Configuration Menu 50
Service Menus 51
Printing 52
Printhead Cartridge Conditioning 52
Section 5 – Software Setup Information 53
General Software Setup Info 53
Adobe®Acrobat/Reader Setup Tips 53
Setting Up a Job in Microsoft Word®(2007) 54
SECTION 6 – Operating the Stacker (optional) . 55
Output Stacker Control Panel Buttons 55
Output Stacker Status Light (LED) Indicators 56
Output Stacker Setup 57
SECTION 7 – Operator Maintenance 58
Replacing the Ink Tanks 58
Cleaning Ink Tank Contacts & Prism 58
Ink Tank Storage & Shelf Life 59
Ink Tank Service Life 59
Ink Tank Disposal 60
Cleaning the Printhead Cartridge 60
From the M Series Driver: 60
From the Toolbox: 60
Manual Printhead Cleaning: 61
Replacing the Printhead Cartridge 62
Printhead Storage & Shelf Life 63
Printhead Service Life 63
Printhead Disposal 63
Inspecting & Cleaning the Lip of the Capping Station 64
Inspecting the Wiper Roller 65
Cleaning/Replacing Service Station Items 66
Removing the Service Station 66
Cleaning the Service Station 68
Wiper Roller Removal and Cleaning or Replacement 68
Wiper Motor Assembly Removal and Cleaning 69
Printing Platen and Capping Station Removal and Cleaning 70
Cleaning the Service Station Tray 70
Suggestion for High Volume Users: 70
Installing the Service Station 71
Still Experiencing Print Quality Issues? 74
Inspecting/Replacing the Waste Ink Tray 75
Replacing the Sheet Separators 76
Jams in the Printer 77
Removing Jammed Media 77
Cleaning the Printer Body 79
Cleaning the Feed Rollers and Forwarding Rollers 79
Cleaning the Feed Sensor 80
Cleaning Other Items inside the Print Engine 81
Grit Rollers (Media Transport Rollers) 81
Media (Paperpath) Sensors 81
Capping Station Lip 81
Paperpath Surfaces 81
Printing Platen Surface 81
Cleaning the Ink Revolver Couplings 83

TABLE OF CONTENTS
iii
PRINTER MAINTENANCE SCHEDULE 84
Preparing Printer for Transport 85
Local relocation 85
Remote relocation or shipping 85
SECTION 8 – Troubleshooting Guide 88
Print Quality Issues: 88
Examples of Print Quality Issues (including possible causes and solutions) 89
Air in Printhead Nozzle Area: 89
Clogged/Damaged/Dead Nozzles: 90
Color Mixing Issues: 91
Scuff Marks and Smudging Issues: 92
Fuzzy/Distorted Print 94
The Ink Tank(s) 95
The Printhead Cartridge 96
The Printer 98
Dots or Lines Printed on Media 98
Power Problems 98
Service Station Problems 99
Interface Communication Problems 100
Feeding Problems 101
Errors and Warnings 102
Printer Alert Window Messages 102
Toolbox System Status Messages 103
Appendix A – Specifications 107
MACH 8 Specifications 107
Optional High Capacity Output Stacker Specifications 107
Appendix B – Supplies and Optional Hardware 108
Obtaining Supplies, Service and Support 109
Warranty Registration 109
Appendix C – Quick Reference Info 110
Printer Control Panel LED Sequences 110
Driver Properties Printing Adjustments - Quick Reference 111

TABLE OF CONTENTS
iv
NOTES
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________

SECTION 1
GETTING ACQUAINTED
1
SECTION 1 – Getting Acquainted
Front View
1.
Feed Table Controls – Raise and lower Feed Table for loading media.
2.
Print Engine Controls On/Off, Paper/Resume and Pause/Cancel Buttons.
3.
Storage Compartment – Holds media, ink and other supplies.
4.
Top Cover – Provides access to the Print Engine.
5.
Ink Tank Door – Provides access to the Ink Tanks and Service Station.

SECTION 1
GETTING ACQUAINTED
2
Rear View

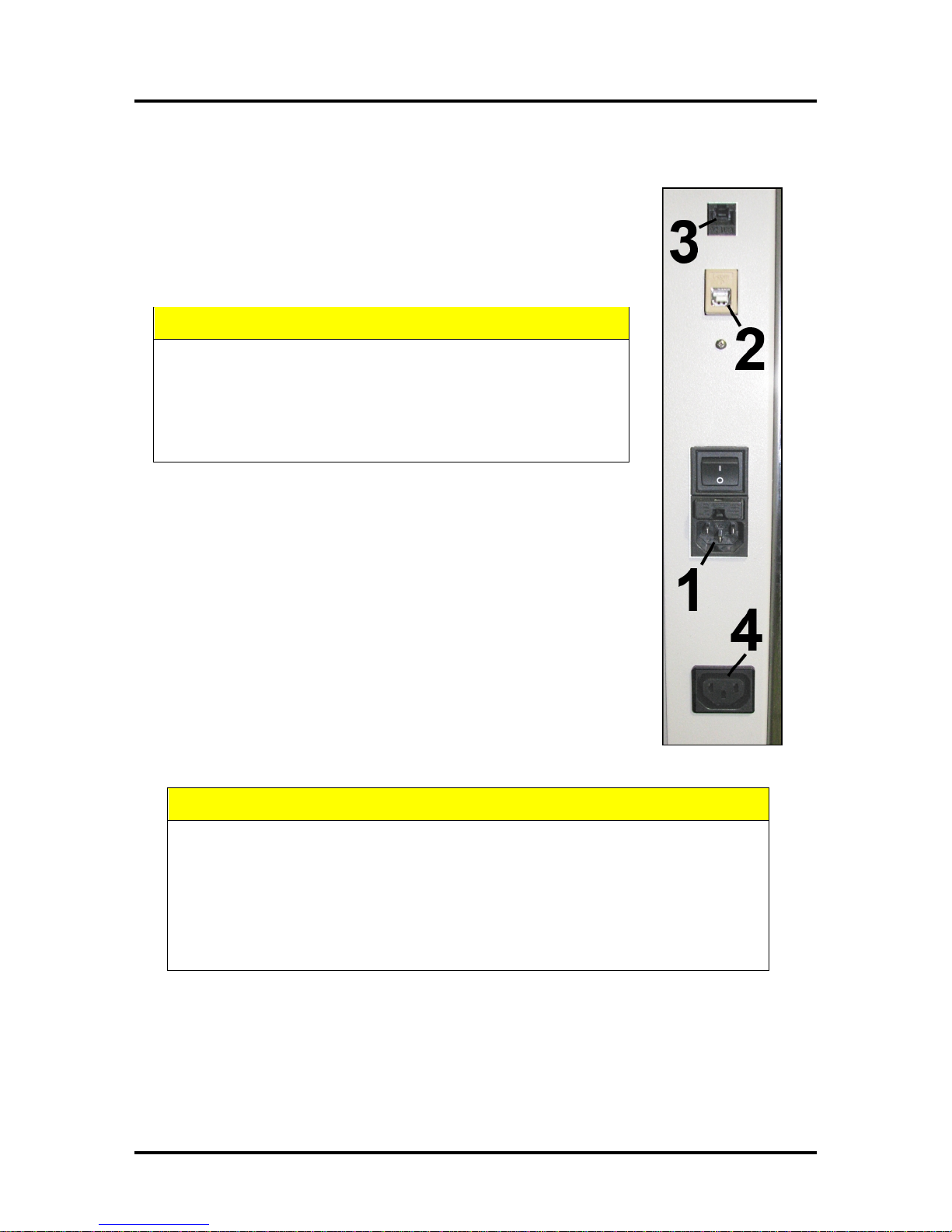

1. Output Stacker Power Out –Connect power cord from optional High Capacity
Output Stacker here. Outlet is rated for 1A, 115VAC.
2. Main Power Switch, Receptacle and Fuse–Plug in power cord here. Switch turns
main power ON/OFF. Fuse (2.5A, 250V, slow blow) provides over-current protection.
(IMPORTANT: Use Control Panel ON/OFF button to power-down Print Engine
before turning off main power.)
3.

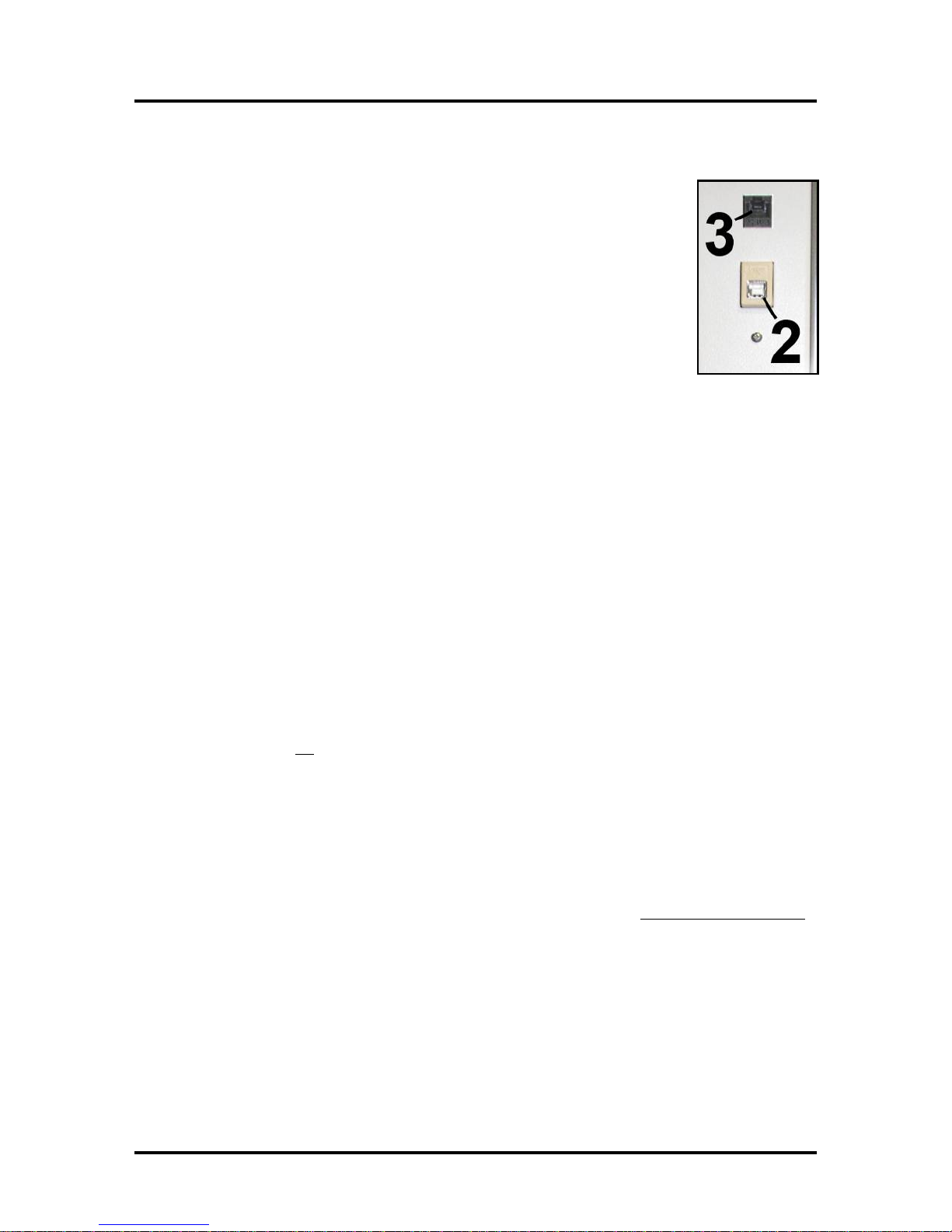

USB Port Connection –The USB cable, from the computer, attaches here.
4.
Network Connection – The network cable plugs in here.
5. Stacker Interface Port –Stacker Interface Cable for the optional, Automatic High
Capacity Output Stacker connects here.
6. Feed Rollers and Sheet Separators – Feeds and separates media; delivering one
piece at a time into the printing area.
7. Skew Control Bridge –Adjust so the Skew Control Guide can be positioned near
the trailing edge of the media.
8. Skew Control Guide–Adjust to the width of the media; to keep the media stack
square and control skew.
9.
Right Media Side Guide – Adjustable to fit different widths of media.
10.
Feed Table Extensions – Slide forward/back, using finger-hole, to support different
media widths. Slide one or both forward to support wider media. Slide one or both
back to support narrower media.
Tip: If Right Media Side Guide won’t move past a certain point; check to be sure the
Feed Table Extensions and Separator Lockdown/Release Tabs, aren’t interfering
with the guide.
11. Feed Table –Load up to 5,000 sheets (10 reams). Raises and lowers with load.
Media feeds from top of stack. Feed Table Sensor detects presence of media.
Feed Table Sensor

SECTION 1
GETTING ACQUAINTED
3
Print Engine View

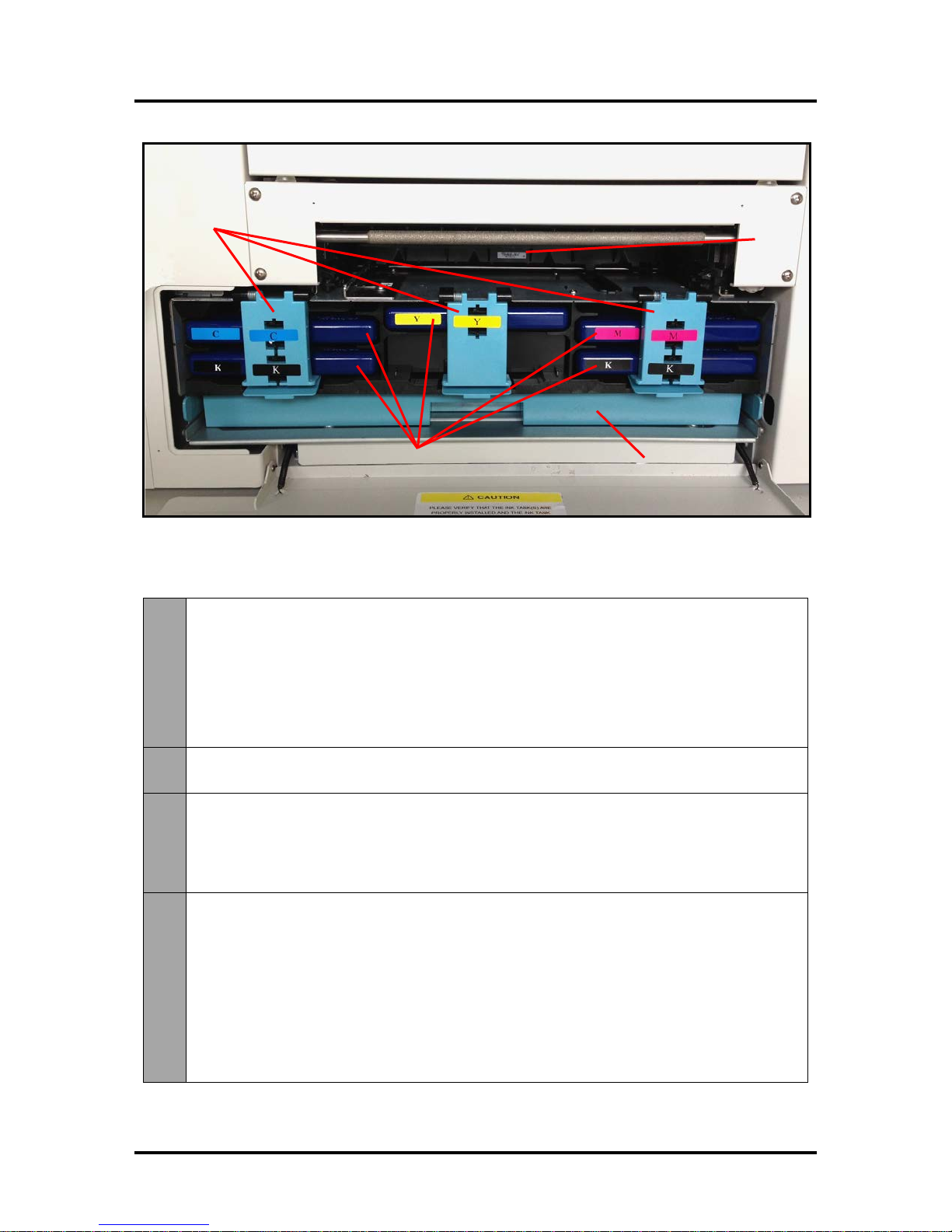

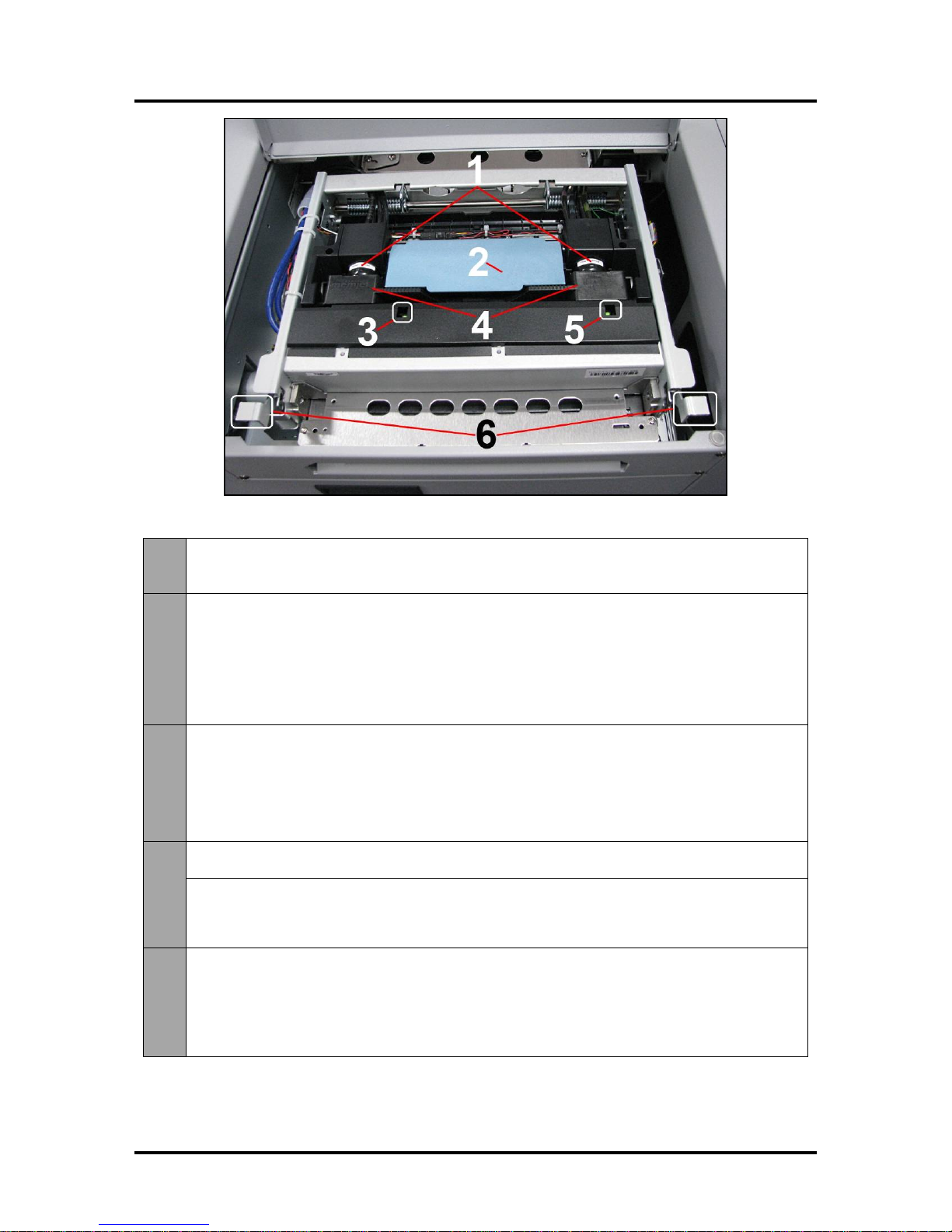

1. Ink Revolver Couplings – Connect the ink hoses to the Printhead Cartridge. The
Printhead Latch extends and retracts the couplings from the Printhead.
2.
Printhead Latch – When closed; the Ink Revolver Couplings extend/connect with the
Printhead Cartridge. When opened; the Ink Revolver Couplings retract/disconnect from
the Printhead Cartridge, providing access for Printhead Cartridge
installation/removal/replacement. (See #3 below).
WARNING! Never attempt to open the Printhead Latch manually, severe damage will
result. Use the Printhead Release button function in the Toolbox utility on your PC.
3.
Printhead Latch Release Button* – Initiates a Printhead Latch release cycle. If system
is primed with ink; a “System Deprime” cycle will occur before the Printhead Latch is
released. Lightly press the button with a non-conductive tool.
*Similar function can be accessed through the Printer Toolbox User Interface screen on your
computer. If you are replacing the printhead; it is best to use the “Release Printhead” button from the
Toolbox utility.
4.
Printhead Cartridge – MemjetTM Printhead. Produces an 8.5" wide full color print area.
5. Print Ink Channels Button* –Prints 5 bars (1 bar from each ink tank) to indicate how
well the Printhead Nozzles are working. Press the button with a non-conductive tool.
*Same function can be accessed through the Printer Toolbox Diagnostics screen on your computer.
6.
Clamshell Latches – Lift both latches at the same time to release and swing open the
“clamshell” (top section of the Print Engine).
Do NOT open while the Printer is operating.
Do NOT let the Clamshell drop. Close it gently and then release the latches slowly.
Make Sure the Clamshell is closed and locked before operating.

SECTION 1
GETTING ACQUAINTED
4
Ink Tank View
(Behind the Ink Tank Door)
1.
Ink Tank Securing Latches –Used to hold the Ink Tanks securely into the slots and
against the electrical contacts within the print engine.
CAUTION! Before removing/installing Ink Tanks; please be sure to power-down the
Print Engine or press the “Replace Ink Tanks” button, in the Toolbox. If this rule is not
followed damage to the Ink Tanks may result, rendering them unusable.
NOTE: Please be sure that both sides, at the bottom part of the latch, are engaged.
2. Ink Tanks – Five Ink Tanks are used in the printer.
Cyan (C), Yellow (Y), Magenta (M), Black (K), Black (K)
3.
Waste Ink Tray – The purpose of this tray is to catch the waste ink produced by the
system. This tray is filled with absorbent material. This tray must be replaced when it
becomes saturated. Please inspect routinely. The tabs located at the left and right sides
of the tray secure the tray to the print engine frame. Please be sure the tabs “click” into
the frame, to secure the tray's position.
4.
Service Station – Contains four major components.
- Wiper Roller Assembly - cleans the Printhead Cartridge of excess ink and debris.
- Capping Station - keeps the Printhead capped, hydrated and protected when not in
use.
- Printing Platen - provides the base to support media during feeding and printing.
- Tray – holds all of the above components and captures the waste ink. The waste ink
eventual makes its way from the Service Station Tray into the Waste Ink Tray.
Please refer to the “Operator Maintenance” section for information on how to properly
maintain the Service Station and its components.
4
2
1
3

SECTION 1
GETTING ACQUAINTED
5
High Capacity Output Stacker (optional)

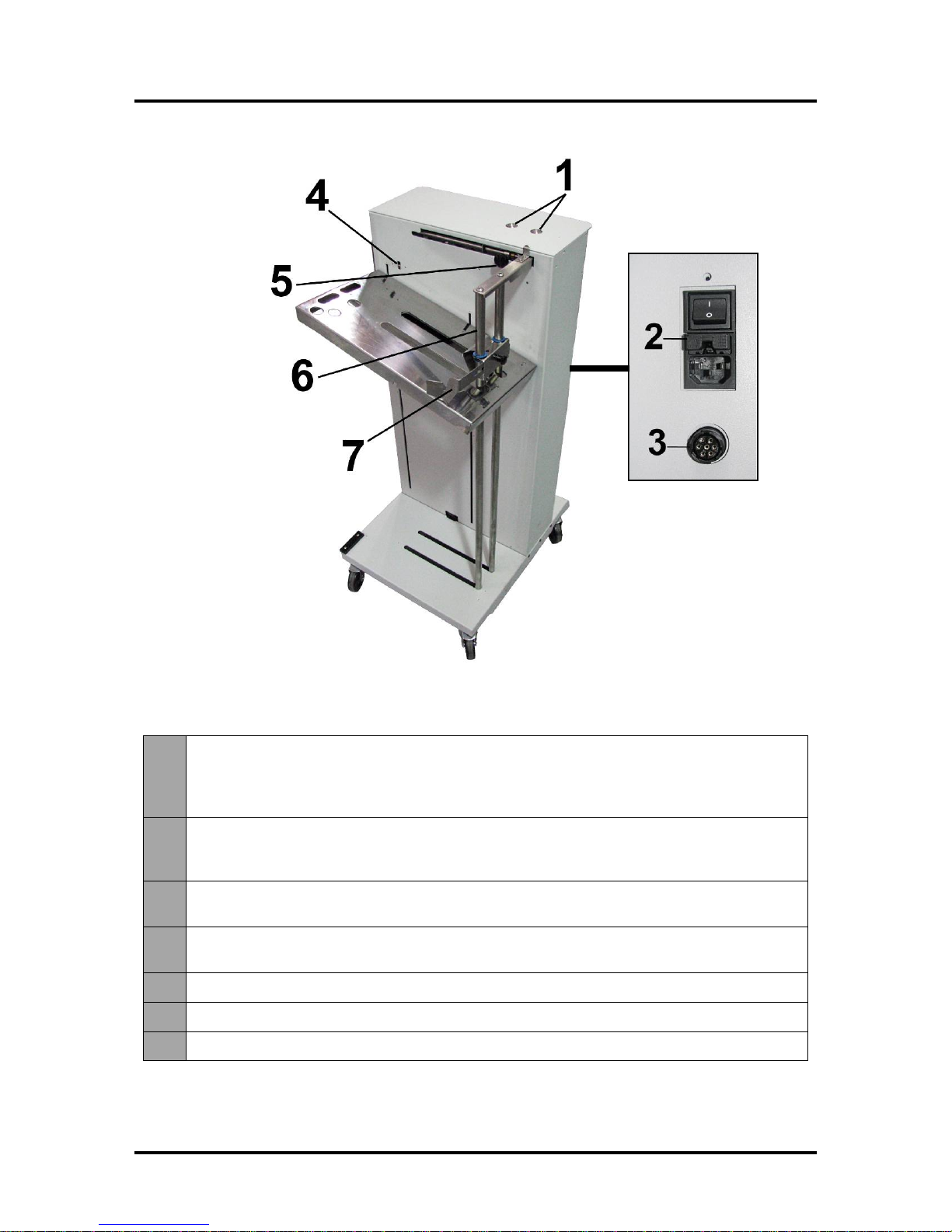

1. Control Panel –UP button raises Receiving Tray. DOWN button lowers Receiving
Tray. Pressing the same button a second time; stops the Tray at its current location.
Pressing both buttons simultaneously, for about 6 seconds, repositions the Tray to the
“ready”position.
2. Main Power Switch, Receptacle and Fuse –Plug in power cord here. Switch turns
main power ON/OFF. Fuse (2.5A, 250V, slow blow) provides over-current protection.
CAUTION: Disconnect power cord from Stacker before checking/replacing fuse.
3. Interface Port– Stacker Interface Cable, from the MACH 8 Printer to the Output
Stacker, plugs in here.
4. Stack Height Sensor–Senses the top of the paper stack, in Tray, and automatically
positions (raises or lowers) Tray as needed.
5.
Backstop Adjustment Knob – Locks and unlocks the Backstop for positioning.
6.
Backstop – Adjusts to accommodate media lengths from 5" to 13" long.
7.
Media Side Guide – Adjusts to accommodate media widths from 6.5” to 9" wide.

SECTION 2
INSTALLING THE PRINTER
6
SECTION 2 – Installing the Printer
Before using the MACH 8 Printer the following must be done:
•Choose a location for the Printer
•Unpack and assemble the Printer
•Remove the Service Station Transport Tab
•Position and Level the Printer (Print Engine)
•Plug in the Printer and connect it to the computer
•Install the Printer Driver
•Install the Ink Tanks
•Install the Printhead
•Setup the feed on the Printer
Transport Inspection
The printer is shipped in appropriate packaging so that, under normal shipping conditions, it reaches its
destination without damage.
NOTICE: Report damage to the carrier. The carrier is liable for any damage during transport.
Transport and storage should take place under the following conditions:
- At temperatures between -25°C and +50°C (-13 °F to 122 °F).
- At a relative air humidity between 5% and 95%, non-condensing.
- At an atmospheric pressure between 70 kPa and 105 kPa.
Exposure to conditions that are not permissible may lead to damage which is not externally visible.
IMPORTANT Please save the packaging materials for future use! It will be required if you ever need to
ship the printer. Before shipping; please refer to the section titled “Preparing the Printer for Transport”.
Tools Needed
•Knife and scissors to open packaging
•Carpenters Level (9” or smaller)
•Protective, nitrile powder-free gloves should be worn to avoid getting ink on hands when
removing protective packaging materials from the ink coupling areas, the Ink Tank areas, and
when installing/removing Printhead Cartridge and Ink Tanks.
•Distilled or de-ionized water
•Non-abrasive, lint free cloths
Choosing the Location
The Printer should be placed on a sturdy/level floor surface and it should be positioned at least 9 inches
from any walls. Protect the Printer from excessive heat, dust, and moisture – avoid placing it in direct
sunlight.
Printer (Print Engine) Must be Level: Please refer to “Leveling the Printer (Print Engine)”, below, for
details on why this is important and how to do this.

SECTION 2
INSTALLING THE PRINTER
7
Operating Conditions
Operation should take place under the following conditions:
- At temperatures between +15°C and +35°C (59 °F to 95 °F).
- At a relative air humidity between 20% and 80%, non-condensing.
- At an atmospheric pressure between 70 kPa and 105 kPa.
- Printer and Print Engine should be protected from excessive environmental debris/dust.
- Printer must be placed on a sturdy floor surface.
- Printer (Printer Engine) must be leveled, using adjustable casters, front to back and left to right.
Exposure to conditions that are not permissible may lead to damage which is not externally visible.
Allow the printer, printhead and ink tanks to acclimate to ambient temperature before using the printer.
Unpacking
Two or more people are required to lift the printer from its packaging.
Remove the Printer and its parts from the carton. Remove all packing tape.
Save the packaging in a safe place, for possible future use.
Contents of Packaging
NOTE: Items are shipped inside the Storage Compartment of the Printer.

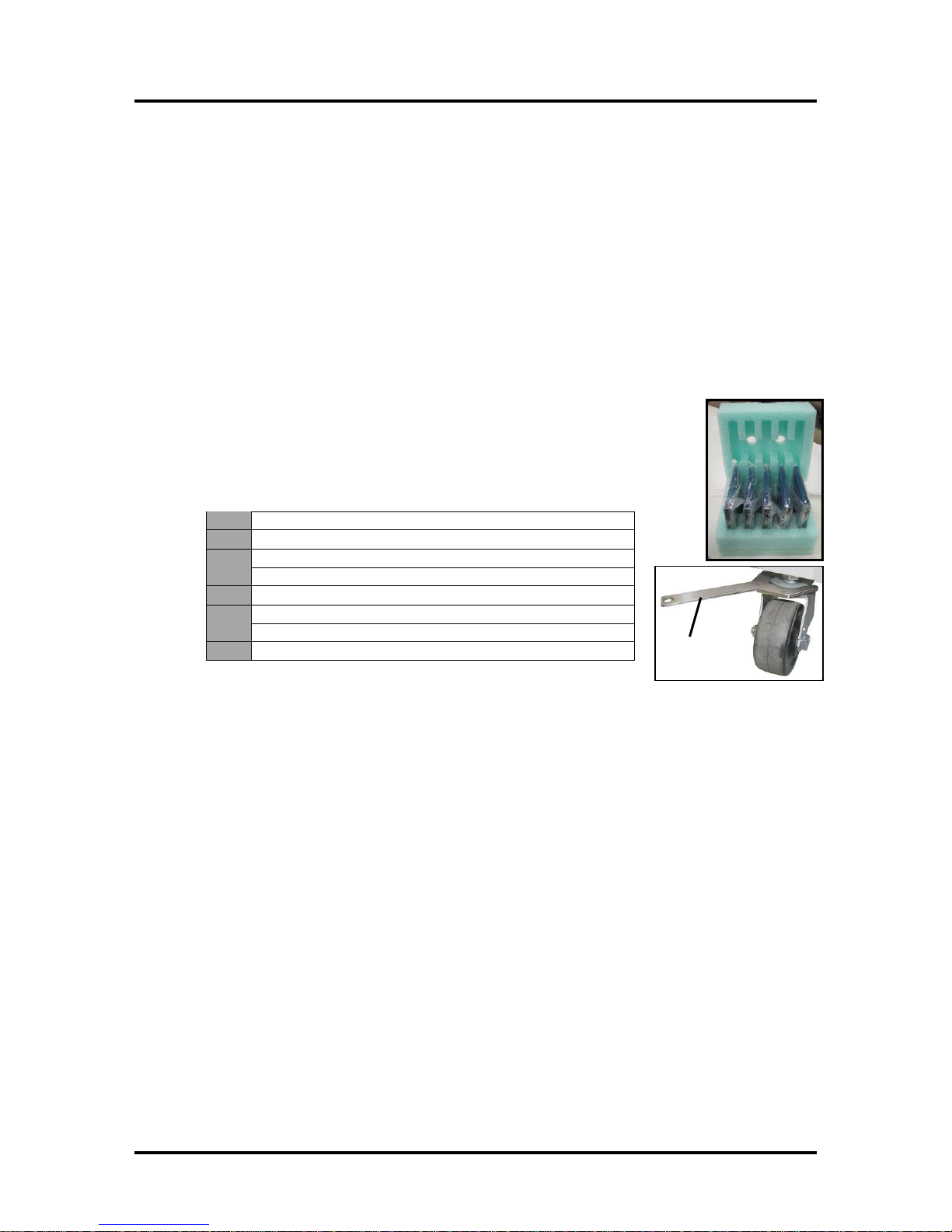

The following items are included with your printer:
1.
MACH 8 High Capacity Printer
2.
Ink Tanks – Cyan, Magenta, Yellow, Black, Black
3.
Printhead Cartridge
4.
AC Power Cord
5.
USB Cable
6.
Operations Manual
7.
Driver Software CD
8.
Caster Adjusting Wrench
Note: Ink Tanks and Printhead Cartridges can be purchased through your Dealer/Distributor.
See “Appendix B” for supplies information.
wrench

SECTION 2
INSTALLING THE PRINTER
8
Removing the cardboard Shipping Insert and Shipping Tape
WARNING! To avoid possible damage to the printer; do NOT plug-in, or power-up, the printer
until all shipping materials have been removed; as described below.
1. Open the Top Cover.
2. Carefully release both latches (one on either side of
the Print Engine), and lift up with both hands, to
gently swing open the Print Engine Clamshell.
CAUTION
TO PREVENT DAMAGE; HOLD ONTO (RELEASE) BOTH
LATCHES WHEN OPENING AND CLOSING THE CLAMSHELL.
DO NOT FORCE/SLAM THE CLAMSHELL CLOSED.
AFTER CARFULLY CLOSING THE CLAMSHELL, GENTLY
RELEASE BOTH LATCHES.
3. Remove the cardboard “Shipping Insert”
[A], by pulling up on both red tabs at the
same time. The “Shipping Insert” secures the
Service Station during printer transport.
4. Remove the Tape [B]. The tape wraps
around the underside of the Clamshell to
secure the Head Media Guide. (If necessary,
wipe off any tape residue from the Head
Media Guide surface [C].)
5. Gently close and latch the Clamshell.
6. Close the Top Cover.

SECTION 2
INSTALLING THE PRINTER
9
Leveling the Printer (Print Engine)
IMPORTANT! It is critical that the Printer Engine is level front-to-back and left-to-right.
Why is this Important?
The printer’s ink delivery systems, and waste ink drainage system, depend on the Print Engine being
level to perform properly. If this rule is not followed you will experience print quality issues and ink
waste draining issues that could cause damage to the printer.
- Try to insure that the floor surface you are going to place the Printer on is sturdy, flat and level.
- If the floor surface is not sturdy, flat and level then the printer should not be placed on it.
- Do NOT use the Toolbox utilities “Tilt” readings to level the Print Engine.
- Use an accurate level (i.e. bubble level), to check that the Print Engine is level (front to back and
left to right). It is not acceptable to use your “cell phone app” to check level.
- Do NOT place shims/blocks under the Casters or frame.
- If the Print Engine cannot be leveled at the current location, then the printer should be moved to a
different location (floor surface) where it can be leveled.
- Do NOT move the printer while the power is ON.
- If you move the printer, please be sure to re-check that it is level before powering it on.
Use the following procedure to check and level the Print Engine.
1. Open the Top Cover.

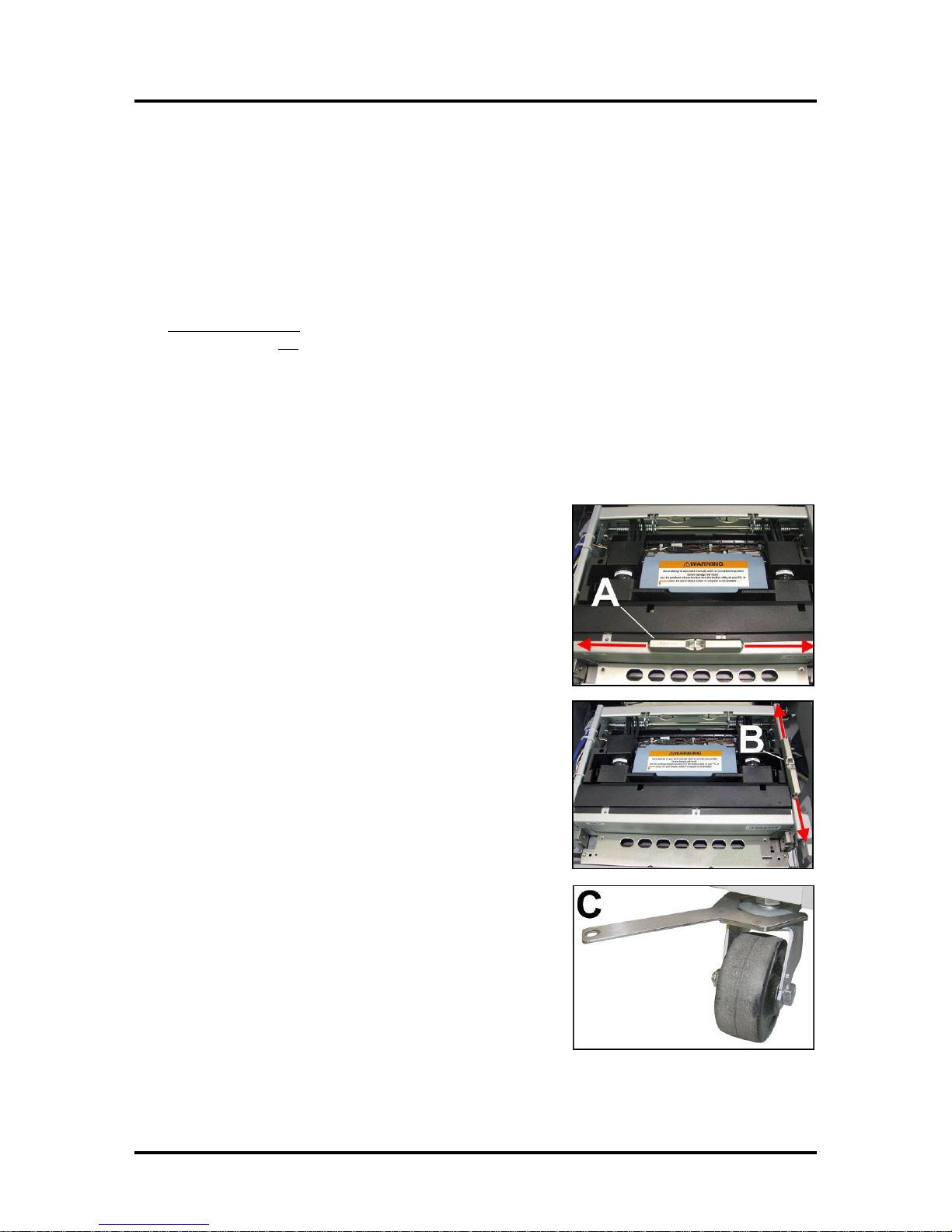

2. Left to Right:Place a small level (9" or smaller) across
the front bridge of the Print Engine as shown [A]. (If level
does not fit on front bridge, you can place the level on the
rear bridge frame on the Print Engine.)
Adjust the casters as necessary to level the Print Engine.
(See Step 4)
NOTE: Level must be placed on the Print Engine or Print
Engine frame (not on Printer Cabinet) to get an accurate
reading.
3. Front to Back: Place the level on the Print Engine Side
Frame [B].
Adjust the casters as necessary to level the Print Engine
(See Step 4).
NOTE: You may have to repeat Steps 2 & 3 to level the
Print Engine in both directions.
4. Adjusting Casters. Use the wrench (included) to loosen
the large nut on top of the caster [C]. Adjust the caster to
the desired height, then tighten the nut so it snugs-up
against the bottom of the Printer to lock the Caster in
place. Then recheck level.

SECTION 2
INSTALLING THE PRINTER
10
Checking the Tilt Readings
Once you have the Printer Driver installed, and the Print Engine has been powered-up for at least 15
minutes; you should return to this procedure to check the “Tilt” readings.
WARNING: You should NOT use the Toolbox utilities “Tilt” readings to level the Print Engine. However
once you are sure the Print Engine has been properly leveled, as described on the previous page, it is
important to routinely monitor the “Tilt” readings.
NOTE: When the Print Engine electronics are cold; the Tilt readings may not be accurate. You may see
them fluctuate/change as the electronics warm-up. Please allow the Print Engine to remain powered-up for
at least 15 minutes before checking/adjusting.
1. Go to the Start Menu, All Programs, Memjet, M Series Driver,
then open the “Toolbox”.
2. When the Toolbox opens; on the User Interface screen, find
“Tilt”, in the status information along the left side.
You will see readings for Front-to-Back (FB) and Left-to-Right
(LR).
These readings should be “0” or very close to zero.
NOTE: The FB and LR orientations are in reference to the print
engine, not the operator.
a. If the Tilt readings are (– 0.9 to 0.9) they will be shown in
black; indicating that the Print Engine is
nearly level (within normal tolerances).
b. If the Tilt readings reach -1.9 or 1.9 they
will be shown in purple. This is a
warning that the print engine is slightly
out of level (out of normal tolerances).
Please recheck the level of the Print
Engine.
c. If the Tilt readings reach -2.0 or 2.0 they
may be shown in red*; indicating that
the Print Engine is too far out of level.
Please stop using the printer and recheck
the level of the Print Engine.
NOTE: If you are sure the Print Engine is level, but the Tilt readings are still shown in purple or
red*; contact service support to have them verify level and possibly recalibrate the Tilt sensor.
* Character color may not change to red with some firmware versions. In this case monitor the
actual tilt reading. If it reaches -2.0 (or lower) or 2.0 (or higher); please stop using the printer and
recheck the level of the Print Engine.

SECTION 2
INSTALLING THE PRINTER
11
Connecting the Printer
Plugging in the Printer
•Check to make sure the Main Power Switch [1] is in the OFF (0) position.
•Plug the power cord into the receptacle [1] at the rear of the Printer.
•Connect the other end of the Power Cord to a compatible AC Outlet that
supplies 100-120 volts AC, 60 Hz and provides earth ground.
•Plug the optional High Capacity Output Stacker into the receptacle [4].
CAUTION
DO NOT USE AN ADAPTER PLUG OR EXTENSION CORD TO
CONNECT THE PRINTER TO THE WALL RECEPTACLE.
DO NOT USE OUTLETS CONTROLLED BY WALL SWITCHES.
DO NOT USE AN OUTLET THAT SHARES THE SAME CIRCUIT
WITH LARGE ELECTRICAL MACHINES OR APPLIANCES.
Powering the Printer ON and OFF
Powering-Up the Printer:
1. Turn ON the Main Power Switch [1].
2. Press the Control Panel’s ON/OFF Button.
Wait about 45 seconds for the print engine to power-up (ON/OFF
button will illuminate).
Powering-Down the Printer:
1. Press the Control Panel’s ON/OFF Button.
Wait for the print engine to power-down (all Control Panel Buttons
will turn OFF).
2. Turn OFF the Main Power Switch [1].
CAUTION
BEFORE POWERING OFF THE MAIN POWER SWITCH, ALWAYS POWER
DOWN THE PRINT ENGINE, USING THE ON/OFF BUTTON.
IF THIS RULE IS NOT FOLLOWED DAMAGE TO THE PRINTHEAD AND OR INK
SYSTEM CAN RESULT.
FOR BEST SYSTEM PERFORMANCE; IT IS RECOMMENDED TO KEEP THE
PRINT ENGINE POWERED-UP (ON/OFF LIGHT ILLUMINATED) AT ALL TIMES.

SECTION 2
INSTALLING THE PRINTER
12
Connecting to the Computer
The Printer connects to the computer through the USB port [2].
A Network port [3] is also provided; for connecting the printer to a network
environment.
IMPORTANT: Do NOT connect the printer to the computer, until prompted to do so,
during the printer driver installation process. See “Installing the Printer Software”
section.
Before installing the printer software (Toolbox and Driver); you should temporarily
disable all Antivirus programs and Firewalls. In addition; you must be logged onto the
system with full administrative privileges (admin rights).
Minimum Computer System Requirements
•Windows XP, Windows Vista, Windows 7 & *Windows 8/8.1
Supports 32 & 64 bit systems.
You must have administrative privileges on the system.
•Pentium II, 2 GHz minimum (Pentium Dual Core, 2.5 GHz or better, is optimal)
•System memory – 2 GB minimum; or as recommended for your operating system.
•At least 10 GB free hard-disk space.
•Microsoft Internet Explorer 6.0 or higher.
•Java version 6. (If you have Java 7 or higher installed; you may need to load Java 6 also, or the
Toolbox may not open properly.)
•CD/DVD drive
•USB 2.0 port (ports will be identified as “USB2” or “Enhanced” in the Device Manager)
•Microsoft .Net Framework version 3.5 (for 32 bit systems) or Microsoft .Net Framework version 4
(for 64 bit systems) must be installed.
Note: Even if you have a higher .NET Framework version installed; version 3.5 or 4 must also be
installed, or the Toolbox will not open.
*Windows 8/8.1 is supported in “Desktop Mode” only. “Metro Apps” (applications for the Windows 8/8.1
environment only) are not supported.
How to check your system for the minimum system requirements, shown above:
Right click on "My Computer" and select Properties. The system information, including Operating System,
Processor Info and Memory info will be displayed under the "General" tab.
How to check your system for the versions of "Microsoft .NET Framework” installed.
From the Control Panel; open "Add or Remove Programs" and look for "Microsoft .NET Framework 3.5..."
or "Microsoft .NET Framework 4..."in the list.
You can obtain "Microsoft .Net Framework 3.5 or 4" via the Microsoft website. http://www.microsoft.com
How to check your system for the version of "Java" installed.
From the Control Panel; open "Add or Remove Programs". Look for "Java(TM) ..." in the list.
You can obtain Java from the following website: www.java.com
There are also tools on the Java site to help you detect if you have java installed and what version is
installed.

SECTION 2
INSTALLING THE PRINTER
13
Installing the Printer Software (Driver & Toolbox)
For the Printer software to operate properly check that the computer system meets the minimum
requirements. See section titled “Minimum Computer System Requirements”, on previous page.
NOTE: If you are updating the Digital Color Printer (M Series) printer software (printer driver and toolbox
utility); please be sure to Uninstall the old software before installing the new software. Use the “Uninstall”
feature found on your computer system under All Programs, “Memjet”, “M Series Driver”.
IMPORTANT: Before installing the Printer software (Toolbox and Driver), you should temporarily
disable all antivirus programs and firewalls. In addition, you must be logged onto the system with full
administrative privileges (admin rights).
NOTE: Even if you plan to use the printer via an Ethernet Network Connection; your initial connection to
the printer must be done via USB; in order to access the Network Configuration Settings in the Toolbox.
Do NOT plug in the USB cable until prompted to do so.
PROCEDURE
NOTE: This process may take up to 20 minutes to complete; please be patient.
1. Disconnect the USB cable connection from the printer; if you plugged it in already.
2. Power-up the Printer. Turn ON the Main Power Switch, then press the Control Panel’s ON/OFF
button. Wait about 45 seconds for the print engine to power-up (ON/OFF button will illuminate).
3. Insert the CD, supplied with the printer, into your CD drive. If the “Launch Menu” window does
not automatically open in your browser. Locate and run the “MENU_LAUNCH.htm” file, located
on the root directory of the CD.
4. When the Digital Color Printer Operation CD “Launch Menu” window opens on the computer
screen; Click “Install Printer Software”.
NOTE: If you receive a Windows security or authorization warning, click on “YES” or “Continue
Anyway”.
Tip: If you are unable to start the software installation using the button in the “Launch Menu”;
browse to the CD. Locate and open the Printer Drivers folder. Located and run “WinSetup.exe” to
start the install.
5. The “Install Printer Software” window opens
on the computer screen.
Make sure the computer system meets the
minimum requirements and you have followed
the other instructions on the screen. Click
“Install Printer Software”.

SECTION 2
INSTALLING THE PRINTER
14
6. The License Agreement window opens. Carefully
read the “Software License Agreement”. If you
agree to the terms, check “I accept…” then click
Next>.
7. After a few moments the “Printer Connections”
window opens. Click “Configure to print using
USB”. Then click Next>.
NOTE: Even if you plan to use the printer via an
Ethernet Network Connection; your initial
connection to the printer must be done via USB;
in order to access the Network Configuration
Settings in the Toolbox.
8. After a few moments the “Installing Printer
Software” window opens and begins
downloading the software.
9. As the software loads, the “Would You Like to
Install This Device Software?” window
appears. Click Install.
10. The “Connect Device Now” window opens.
Connect the USB cable, from the computer to
the printer, at this time.
Don’t click on either button (Back or Cancel).
The software will automatically continue once it
recognizes the printer (printer powered on and
USB cable connected).
