Renault Trafic User manual

DRIVER’S HANDBOOK
TRAFIC

Photo credit: Total/DPPI Imacom group
ELF has developed a complete range of lubricants for RENAULT:
fengine oils
fmanual and automatic gearbox oils
Benefiting from the research applied to Formula 1,
lubricants are very high-tech products.
Updated with the help of RENAULT’s technical
teams, this range is perfectly compatible with the
specific features of the brand’s vehicles.
fELF lubricants enhance
your vehicle’s performance significantly.
RENAULT recommends approved ELF lubricants for oil changes and top-ups.
Contact your RENAULT Dealer or visit www.lubrifiants.elf.com
Warning: to ensure the engine operates optimally, the use
of a lubricant may be restricted to certain vehicles. Please
refer to your maintenance document.
RENAULT recommends ELF
Une marque de

0.1
ENG_UD19396_3
Bienvenue (X35 - X44 - X45 - X73 - X81 - J81 - X84 - X85 - B85 - C85 - S85 - X91 - X70 - X76 - X83 - X61 - TEST - X77 ph2 - K85 - X95 - X33 - X43 - X38 - X65 PH5 -ENG_NU_881-5_X83_Renault_0
Translated from French. Copying or translation, in part or in full, is forbidden unless prior written permission has been obtained from the vehicle manu-
facturer.
This Driver’s Handbook contains the information necessary:
– for you to familiarise yourself with your vehicle, to use it to its best advantage and to benefit fully from the all the functions and
the technical developments it incorporates.
– to ensure that it always gives the best performance by following the simple, but comprehensive advice concerning regular main-
tenance.
– to enable you to deal quickly with minor faults not requiring specialist attention.
It is well worth taking a few minutes to read this handbook to familiarise yourself with the information and guidelines it contains
about the vehicle and its functions and new features. If certain points are still unclear, our Network technicians will be only too
pleased to provide you with any additional information.
The following symbol will help you when reading this handbook:
Welcome to your new vehicle
The descriptions of the models given in this handbook are based on the technical specifications at the time of writing. This hand-
book covers all items of equipment (both standard and optional) available for these models but whether or not these are
fitted to the vehicle depends on the version, options selected and the country where the vehicle is sold.
This handbook may also contain information about items of equipment to be introduced later in the model year.
Throughout the manual, the “approved Dealer” is your RENAULT Dealer.
To indicate a hazard, danger or safety recommendation.
Enjoy driving your new vehicle.

0.2
ENG_UD4184_3
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84ENG_NU_881-5_X83_Renault_0

0.3
ENG_UD5250_4
Sommaire Général (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 -ENG_NU_881-5_X83_Renault_0
Getting to know your vehicle ...............................
Driving ...................................................................
Your comfort .........................................................
Maintenance .........................................................
Practical advice ....................................................
Technical specifications ......................................
Alphabetical index ...............................................
Sections
1
CONTENTS
2
3
4
5
6
7

tyre pressure..........................................................(current page)
tyre pressures........................................................ (current page)
0.4
ENG_UD2255_1
Pression de gonflages des pneumatiques (en bar ou kg/cm2, à froid) (X83 - Renault)ENG_NU_881-5_X83_Renault_0
TYRE PRESSURES (in bar, when cold)
Tyre dimensions
(original fittings) 195/65R 16 C 205/65 R 16 C 215/65 R 16 C 195/75 R 16 C
Wheel sizes 6 J 16
Front 3.4 3.8 3.1 3.8
Rear 3.7 4.2 3.4 4.2
Emergency spare wheel 3.7 4.2 3.4 4.2
Tyre safety and use of snow chains
Refer to the information on “Tyres” in Section 5 for the servicing conditions and, depending on the version, the use of chains.

1.1
ENG_UD25201_15
Sommaire 1 (X83 - Renault)ENG_NU_881-5_X83_Renault_1
Section 1: Getting to know your vehicle
Key–Remotecontrol–Deadlocking ................................................ 1.2
Doors......................................................................... 1.7
Tailgate ....................................................................... 1.16
Anti-intrusionalarm.............................................................. 1.17
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.19
Headrests ..................................................................... 1.20
Steeringwheel.................................................................. 1.21
Power-assistedsteering .......................................................... 1.21
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.22
Methods of restraint in addition to the front seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27
Sideprotectiondevices ..................................................... 1.31
Additionalmethodsofrestraint................................................ 1.32
Methods of restraint in addition to rear seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33
Childsafety:generalinformation.................................................... 1.34
Choosingachildseatmounting............................................... 1.37
Fittingachildseat ......................................................... 1.39
Deactivating/activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.63
Drivingposition................................................................. 1.66
Instrumentpanel................................................................ 1.70
On-boardcomputer ........................................................ 1.75
Clockandexteriortemperature..................................................... 1.84
Rear-viewmirrors ............................................................... 1.86
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.87
Electricbeamheightadjustment.................................................... 1.90
Windscreenwasher/wiper......................................................... 1.91
Audibleandvisualsignals......................................................... 1.94
Fueltank...................................................................... 1.95

keys .......................................................................(current page)
remote control door locking unit ............................(current page)
locking the doors ...................................................(current page)
1.2
ENG_UD21214_6
Clé / Télécommande à radiofréquence: généralité (X83 - Renault)ENG_NU_881-5_X83_Renault_1
Jaune Noir Noir texte
Key, remote control – Deadlocking
KEY/RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
ABC

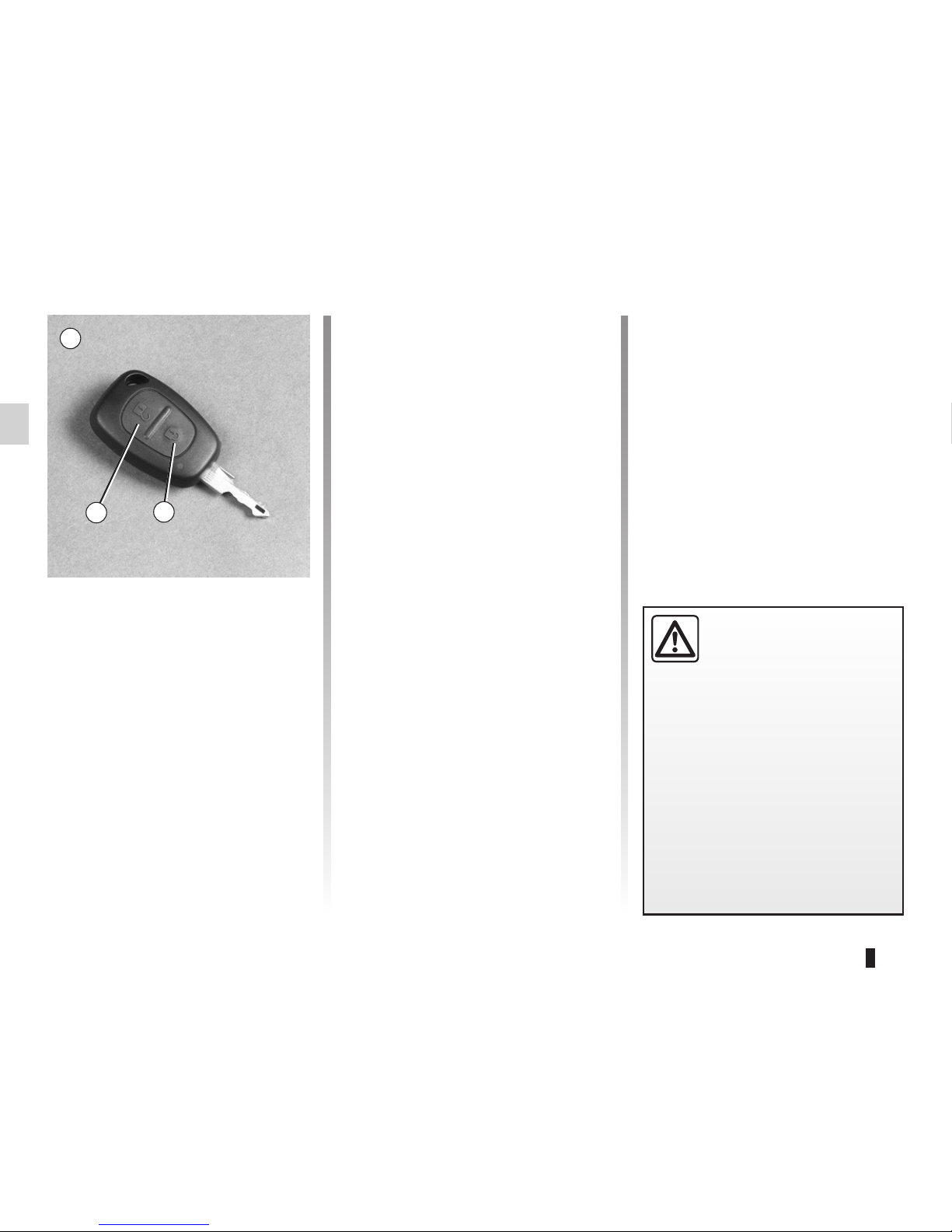

Key A
1 Key for ignition switch, doors and
fuel filler cap.
Radio frequency remote
control B
2Unlocking the front doors or all doors
and tailgate.
3Locking the front doors or all doors
and tailgate.

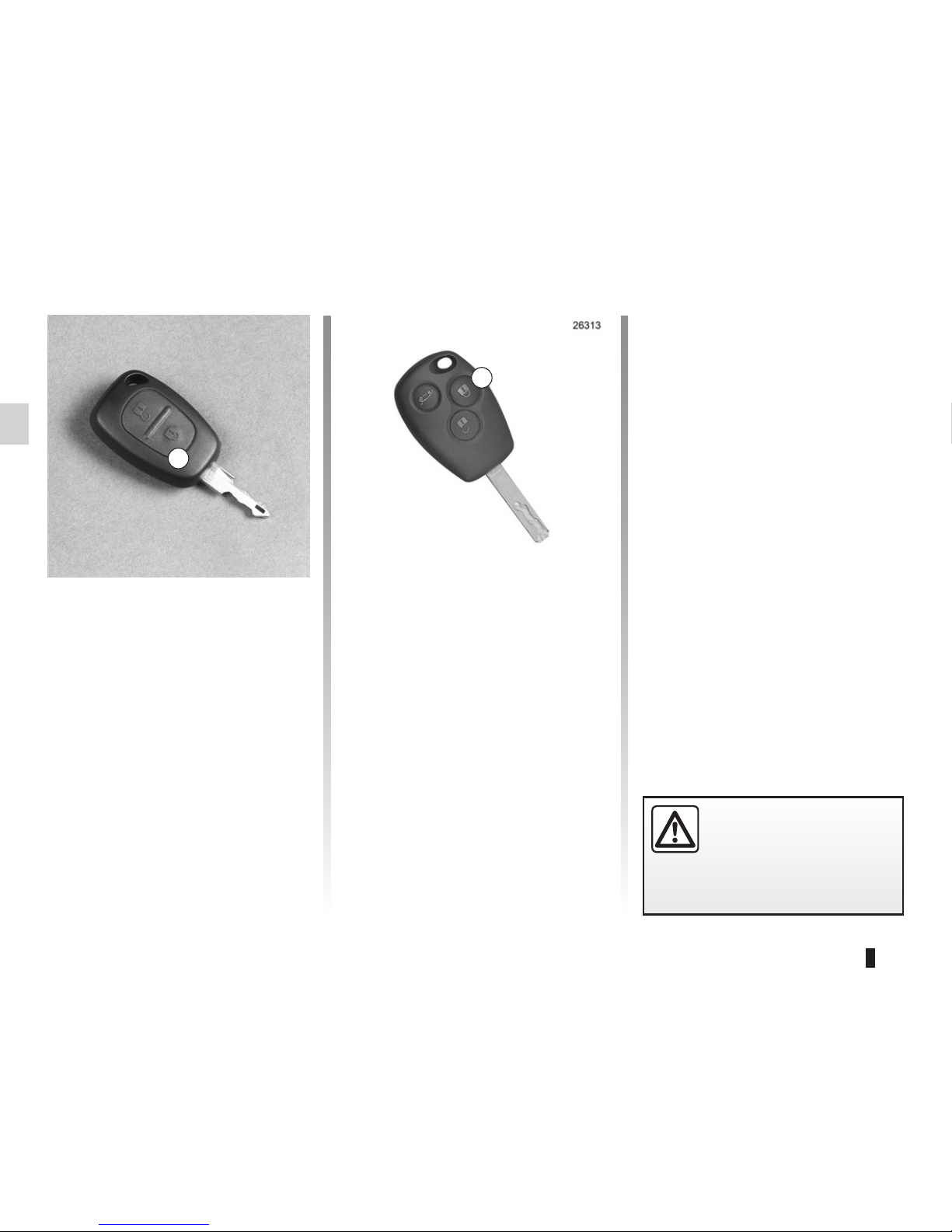

Radio frequency remote
control C
4 Locking/unlocking the tailgate and
the sliding side doors.
5 Locking all doors and tailgate.
6Unlocking the front doors or all doors
and tailgate.
1
45
6
1
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).
2
3
Driver’s responsibility
Never leave your vehicle with the key or remote control inside and never
leave a child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the doors.
Risk of serious injury.

Jaune Noir Noir texte
1.3
ENG_UD21214_6
Clé / Télécommande à radiofréquence: généralité (X83 - Renault)ENG_NU_881-5_X83_Renault_1
KEY/RADIO FREQUENCY REMOTE CONTROL: general information (2/2)
The remote control operating
range
This varies according to the environ-
ment: therefore take care when han-
dling the remote control that you do not
inadvertently lock or unlock the doors.
Note: on certain vehicles, if a door
is not opened within approximately
30 seconds of the door being unlocked
by remote control, the doors will lock
again automatically.
Interference
Interference by factors in the immediate
vicinity (external installations or the use
of equipment operating on the same
frequency as the remote control) may
affect the operation of the remote con-
trol.
Advice
Avoid leaving the remote control in
hot, cold or humid areas.
For replacement, additional keys
or remote controls, contact an ap-
proved Dealer.
– To replace a remote control, the
vehicle and all its keys must be
taken to an approved Dealer
as both the vehicle and all the
remote controls are needed to in-
itialise the system.
– Depending on the vehicle, you
have the option of using up to
four remote controls.
Remote control unit failure
Make sure that the correct battery
type is being used, and that the
battery is in good condition and in-
serted correctly. These batteries
should have a service life of approx-
imately two years.
Refer to the information on “Radio
frequency remote control: batteries”
in Section 5 for the battery changing
procedure.

central door locking ..............................(up to the end of the DU)
remote control door locking unit ...........(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.4
ENG_UD21215_4
Télécommande à radiofréquence: utilisation (X83 - Renault)ENG_NU_881-5_X83_Renault_1
Jaune Noir Noir texte
KEY/RADIO FREQUENCY REMOTE CONTROL: use (1/2)
Remote control Bis used to lock or
unlock the doors.
It is powered by a battery which must
be replaced (refer to the information on
the “Radio frequency remote control:
batteries” in Section 5).
Door locking/unlocking
Press the remote control for approxi-
mately one second to lock (side E) or
unlock (side D).
The side indicator lights and hazard
warning lights flash twice to indicate
that the doors have been locked.
Note: depending on the vehicle, if
either a door or the tailgate is open or
not properly closed, the hazard warning
lights will not flash.
The side indicator lights and hazard
warning lights flash once to indicate
that the doors have been unlocked.
B
E
D
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.

Jaune Noir Noir texte
1.5
ENG_UD21215_4
Télécommande à radiofréquence: utilisation (X83 - Renault)ENG_NU_881-5_X83_Renault_1
KEY/RADIO FREQUENCY REMOTE CONTROL: use (2/2)
Remote control Cis used to lock or
unlock the doors.
It is powered by a battery which must
be replaced (refer to the information on
the “Radio frequency remote control:
batteries” in Section 5).
Unlocking the doors
A short press on button 2unlocks the
front doors and, depending on the vehi-
cle, the sliding side doors.
Pressing and holding button 2unlocks
all the doors and the tailgate.
A short press on button 1locks/unlocks
the tailgate and, depending on the vehi-
cle, the sliding side doors.
The hazard warning lights and side in-
dicator lights flash once to indicate that
the doors have been unlocked.
Special notes (for some countries):
– pressing button 2unlocks the driv-
er’s door only.
– pressing and holding button 2un-
locks all the doors and the tailgate.
Locking the doors
Pressing button 3locks all the doors
and the tailgate.
Pressing and holding button 3deacti-
vates the alarm.
Pressing button 1locks/unlocks the
tailgate and, depending on the vehicle,
the sliding side doors.
The hazard warning lights and side in-
dicator lights flash twice to indicate that
the doors have been locked.
C
1
2
1
3

central door locking ...............................................(current page)
locking the doors ...................................................(current page)
1.6
ENG_UD4962_2
Super condamnation (X83 - Renault)ENG_NU_881-5_X83_Renault_1
DEADLOCKING
Never use deadlocking if
someone is still inside the
vehicle.
Deadlocking of the doors and
tailgate
(for some countries)
This allows you to lock the doors and
tailgate and to prevent the doors from
being unlocked with the interior handles
(for example, by breaking the window
and then trying to open the door from
the inside).
To activate deadlocking, press
button Aon the remote control unit
twice.
The hazard warning lights flash five
times to indicate locking.
Special note: deadlocking is not pos-
sible if the hazard warning lights or the
side lights are lit.
A
A

central door locking ...............................................(current page)
locking the doors ...................................................(current page)
1.7
ENG_UD18642_3
Commande électrique des portes de l’intérieur (X83 - Renault)ENG_NU_881-5_X83_Renault_1
Doors
INTERIOR ELECTRIC DOOR LOCKING CONTROL

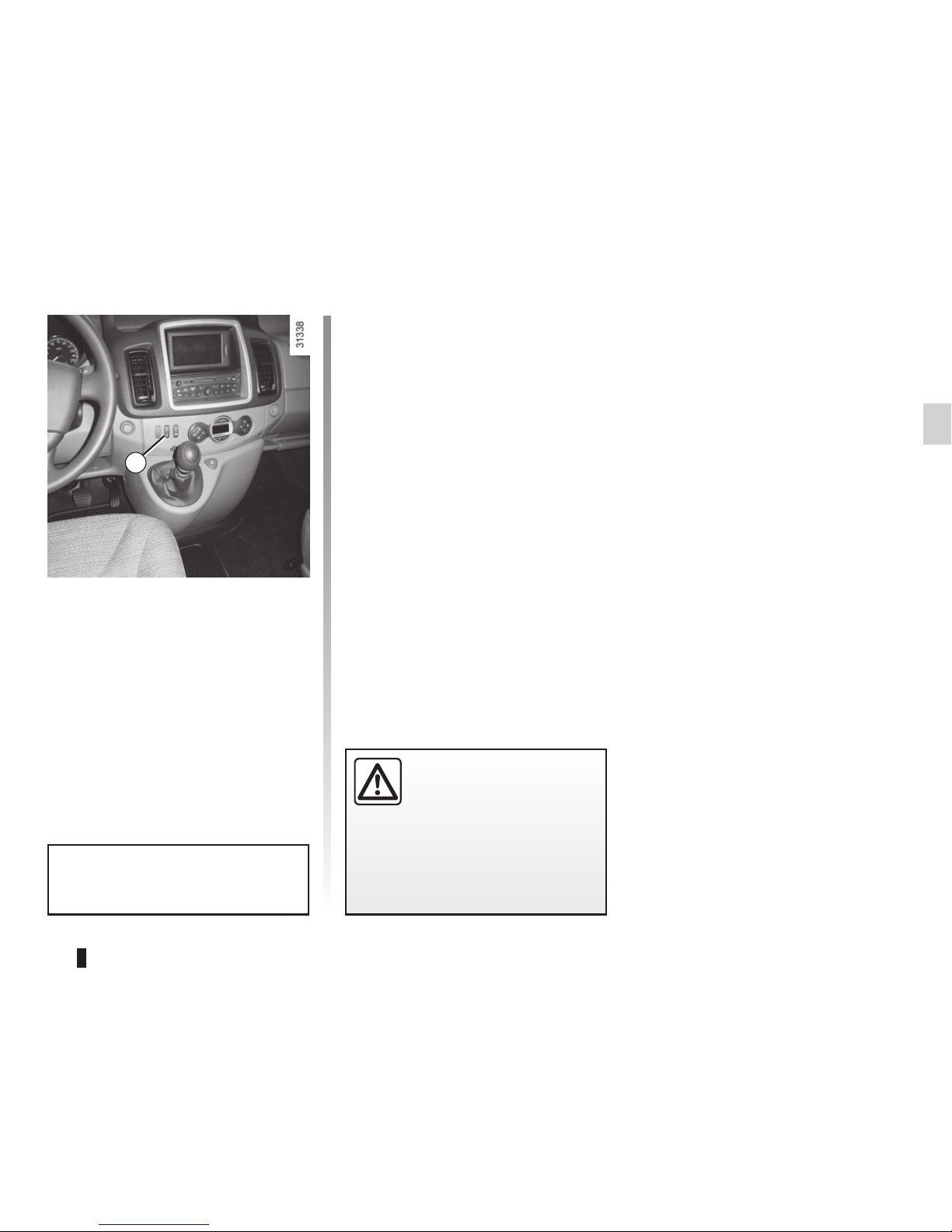

From inside with the electric
central locking 1
0This enables all the doors to
be locked simultaneously.
To lock, press the switch on
the side with the padlock symbol.
Note: the front doors cannot be
locked if a door is open.
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

central door locking ...............................................(current page)
locking the doors ...................................................(current page)
1.8
ENG_UD17004_2
Condamnation automatique des ouvrants en roulage (X83 - Renault)ENG_NU_881-5_X83_Renault_1
AUTOMATIC LOCKING WHEN DRIVING
You must first decide if you want to
activate this function.
To activate
With the ignition on, press central door
locking switch 1on the locking side
(padlock symbol) for approximately
5 seconds, until a beep sounds (un-
locking/locking).
To deactivate
With the ignition on, press central door
locking switch 1on the unlocking side
(vehicle symbol) for approximately
5 seconds, until a beep sounds (lock-
ing/unlocking).
Operating principle
When the vehicle moves off, the
system automatically locks the doors
as soon as a speed of 5 mph (8 km/h)
is reached.
The door can be unlocked:
– by opening a front door;
Note: if a rear door is opened, it will
lock again automatically when the
vehicle reaches a speed of approxi-
mately 5 mph (8 km/h).
– by pressing central door unlocking
switch 1.
Operating faults
If you notice that the system is not oper-
ating correctly (automatic locking does
not take place), first check that all the
doors have been properly closed. If
they are properly closed, contact an ap-
proved dealer.
Also make sure that locking has not
been deactivated inadvertently.
If this is the case, switch the ignition off
and on again and reactivate the system
as described above.
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.
Never leave your vehicle
with the key or remote con-
trol inside.

central door locking ...............................................(current page)
locking the doors ...................................................(current page)
1.9
ENG_UD21216_4
Portes avant (X83 - Renault)ENG_NU_881-5_X83_Renault_1
FRONT DOORS (1/2)
Opening from the outside
Unlock the driver’s door 2using the key
or, for vehicles fitted with the system,
use the remote control system. Pull
lever 1towards you and open the door.
Closing from the outside
Push the door. Lock 2with the key or
using the remote control.
Opening from the inside
Pull lever 4.
Closing from the inside
Pull the door until it catches automati-
cally.
Manual locking
(depending on vehicle)
With the door closed, lock the door by
pressing button 3.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
Note: the front doors cannot be
locked if a door is open.
1
2
3
4

lights-on warning buzzer........................................(current page)
1.10
ENG_UD21216_4
Portes avant (X83 - Renault)ENG_NU_881-5_X83_Renault_1
FRONT DOORS (2/2)
Lights-on warning buzzer
If you have left the lights switched on
after switching off the ignition, a warn-
ing buzzer will sound when a front door
is opened (to prevent the battery run-
ning down, etc.).
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

central door locking ...............................................(current page)
locking the doors ...................................................(current page)
doors.....................................................(up to the end of the DU)
1.11
ENG_UD21069_3
Portes latérales coulissantes (X83 - Renault)ENG_NU_881-5_X83_Renault_1
SLIDING SIDE DOORS (1/2)

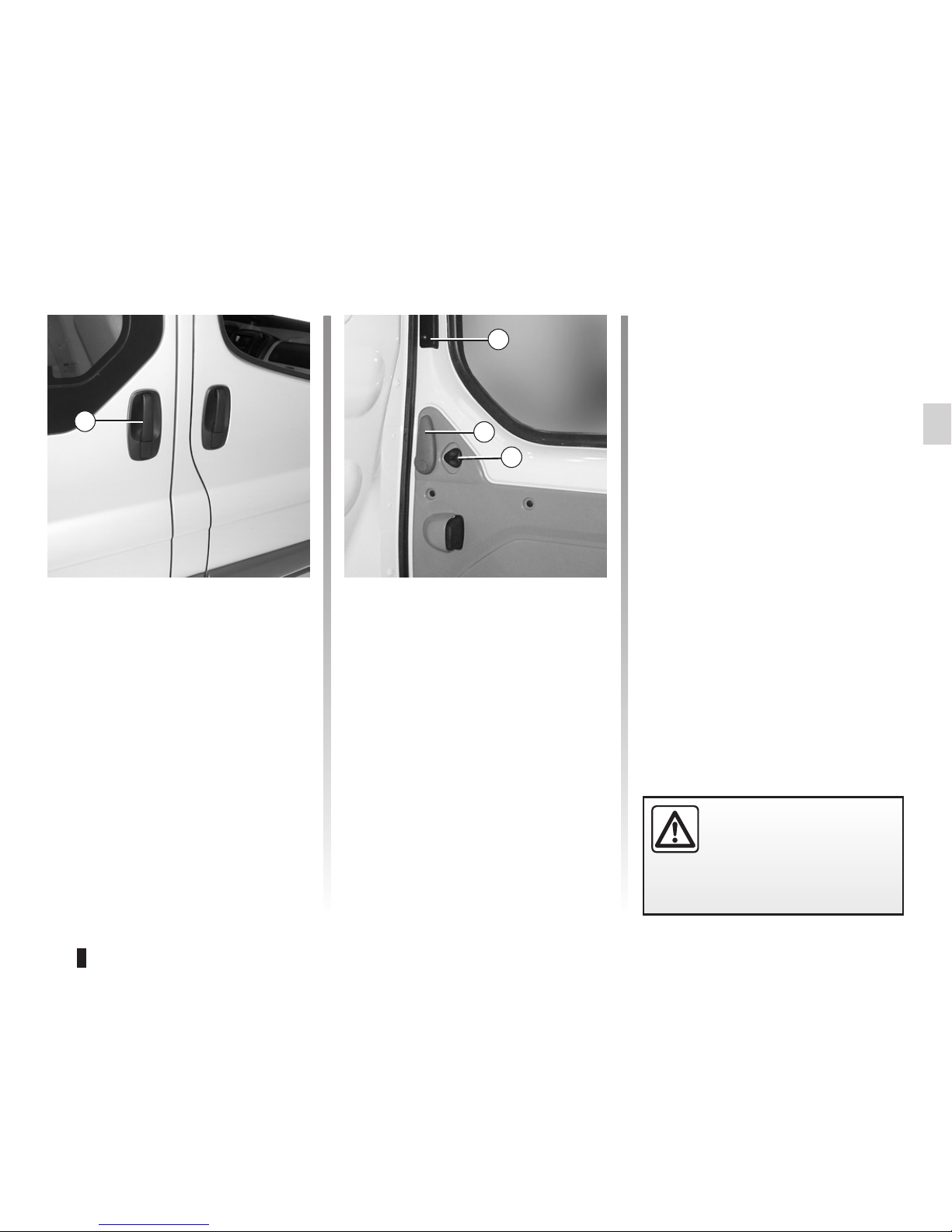

Opening from the outside
Unlock the front door using the key, or,
for vehicles fitted with the system, use
the remote control unit. Pull handle 1
towards you and slide the door towards
the rear.
Closing from the outside
Slide the door towards the front of the
vehicle, holding door handle 1until the
door is fully closed.
Lock with the key or using the remote
control.
Opening from the inside
Pull lever 3towards the rear and open
the sliding door until it locks into posi-
tion.
Closing from the inside
(depending on vehicle)
Pull handle 2towards the front of the
vehicle.
Manual locking
Move button 4.
1
2
3
4
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

child safety.............................................................(current page)
1.12
ENG_UD21069_3
Portes latérales coulissantes (X83 - Renault)ENG_NU_881-5_X83_Renault_1
SLIDING SIDE DOORS (2/2)
Child safety
To prevent the sliding side door from
being opened from the inside, turn
bolt 5clockwise through 90° (using a
tool such as a flat-blade screwdriver)
and check from the inside that the door
is properly locked.
Recommendations con-
cerning the sliding side
door
Care must be taken when
opening or closing the sliding door,
as is the case for any of the opening
elements on the vehicle:
– check that the door will not come
into contact with any person, part
of the body, animal or object;
– use only the handles on the
inside and outside of the door to
operate it;
– take care when opening and
closing the door;
– take particular care when the ve-
hicle is parked on a slope: open
the door with care until it is fully
open and latches into its locking
position;
– before moving off, always ensure
that the sliding door is properly
closed.
5
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

central door locking ..............................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.13
ENG_UD21217_3
Portes arrière battantes (X83 - Renault)ENG_NU_881-5_X83_Renault_1
HINGED REAR DOORS (1/3)
Opening from the outside
Unlock the rear door using the key or,
for vehicles fitted with the system, use
the remote control system. Pull lever 1
towards you and open the door.
Press handle 2and open the second
door.
1
2
If the vehicle is parked on
the hard shoulder with tail-
gate open, the rear lights
may be obscured. You
should make other road users aware
of your vehicle by using a warning
triangle or other equipment speci-
fied by the road traffic regulations of
the country you are driving in.

1.14
ENG_UD21217_3
Portes arrière battantes (X83 - Renault)ENG_NU_881-5_X83_Renault_1
Jaune Noir Noir texte
HINGED REAR DOORS (2/3)
Opening the doors to the
maximum position
For each door, pull handle 3to release
the door tie-rod 4. Open the door as far
as possible.
Closing from the outside
Return the doors to an almost-closed
position and slam them shut.
3
4
Do not leave the hinged
rear doors open in case of
strong winds. Risk of injury.
For your safety, check that
all the vehicle’s doors are
properly closed before
starting the engine.
