Renishaw RENGAGE RMP400 User manual

RMP400 high-accuracy radio machine
probe
Installation guide
H-6570-8501-02-A

© 2018–2021 Renishaw plc. All rights reserved.
This document may not be copied or reproduced in whole or in part, or transferred to any other media
or language, by any means, without the prior written permission of Renishaw.
Renishaw plc. Registered in England and Wales. Company no: 1106260. Registered office: New Mills,
Wotton-under-Edge, Gloucestershire, GL12 8JR, UK.
Renishaw part no: H-6570-8501-02-A
First issued: 11.2018
Revised: 08.2021

i
Contents
Before you begin .............................................................1.1
Disclaimer .................................................................1.1
Trade marks................................................................1.1
Warranty ..................................................................1.1
Changes to equipment .......................................................1.1
CNC machines .............................................................1.2
Care of the probe ...........................................................1.2
Patents ...................................................................1.2
Declaration of conformity......................................................1.3
Disposal of waste electrical and electronic equipment (WEEE) ........................1.3
Disposal of batteries .........................................................1.3
Intended use ...............................................................1.4
Safety ....................................................................1.4
REACH regulation ...........................................................1.5
China RoHS ...............................................................1.5
FCC information to user (USA only) .............................................1.6
Radio approval .............................................................1.7
RMP400 basics ...............................................................2.1
Introduction ................................................................2.1
Getting started ...........................................................2.2
System interface..........................................................2.2
Probe modes...............................................................2.3
Configurable settings.........................................................2.3
Switch-on / switch-off methods...............................................2.3
Enhanced trigger filter .....................................................2.5
Auto-reset function ........................................................2.5
Multiple probe mode.......................................................2.5
Acquisition mode .........................................................2.6
RMP400 dimensions .........................................................2.7

RMP400 installation guide
ii
Contents
RMP400 specification ........................................................2.8
Typical battery life.........................................................2.9
Recommended styli.........................................................2.10
System installation ...........................................................3.1
Installing the RMP400 with an RMI or RMI-Q ......................................3.1
Operating envelope .......................................................3.1
Positioning the RMP400 and RMI or RMI-Q ....................................3.2
Performance envelope .....................................................3.2
Preparing the RMP400 for use .................................................3.3
Fitting the stylus ..........................................................3.3
Installing the batteries .....................................................3.4
Mounting the probe on a shank ..............................................3.5
Stylus on-centre adjustment.................................................3.6
Calibrating the RMP400 ......................................................3.7
Why calibrate a probe? ....................................................3.7
Calibrating in a bored hole or on a turned diameter...............................3.7
Calibrating in a ring gauge or on a datum sphere ................................3.7
Calibrating the probe length .................................................3.8
Trigger Logic™ ...............................................................4.1
Reviewing the probe settings ..................................................4.1
Multiple probe mode settings ..................................................4.2
Probe settings record ........................................................4.3
Probe partnering function .....................................................4.4
Changing the probe settings ...................................................4.6
Master reset function.........................................................4.9
RMP400 – RMI partnership...................................................4.12
RMP400 – RMI-Q partnership.................................................4.13
Operating mode............................................................4.14
Maintenance .................................................................5.1
Maintenance ...............................................................5.1
Cleaning the probe ..........................................................5.1
Changing the batteries .......................................................5.2
Fault-finding .................................................................6.1
Parts list .....................................................................7.1

1.1
Before you begin
see Section 1, “Before you begin”
Disclaimer
WHILE CONSIDERABLE EFFORT WAS MADE TO VERIFY THE ACCURACY OF THIS DOCUMENT
AT PUBLICATION, ALL WARRANTIES, CONDITIONS, REPRESENTATIONS AND LIABILITY,
HOWSOEVER ARISING, ARE EXCLUDED TO THE EXTENT PERMITTED BY LAW.
RENISHAW RESERVES THE RIGHT TO MAKE CHANGES TO THIS DOCUMENT AND TO THE
EQUIPMENT, AND/OR SOFTWARE AND THE SPECIFICATION DESCRIBED HEREIN WITHOUT
OBLIGATION TO PROVIDE NOTICE OF SUCH CHANGES.
Trade marks
RENISHAW® and the probe symbol are registered trade marks of Renishaw plc. Renishaw
product names, designations and the mark ‘apply innovation’ are trade marks of Renishaw plc or its
subsidiaries.
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
AppStore is a service mark of Apple Inc., registered in the U.S. and other countries.
Other brand, product or company names are trade marks of their respective owners.
Warranty
Unless you and Renishaw have agreed and signed a separate written agreement, the equipment
and/or software are sold subject to the Renishaw Standard Terms and Conditions supplied with such
equipment and/or software, or available on request from your local Renishaw office.
Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms
and Conditions), provided that they are installed and used exactly as defined in associated Renishaw
documentation. You should consult these Standard Terms and Conditions to find out the full details of
your warranty.
Equipment and/or software purchased by you from a third-party supplier is subject to separate terms
and conditions supplied with such equipment and/or software. You should contact your third-party
supplier for details.
Changes to equipment
Renishaw reserves the right to change equipment specifications without notice.

RMP400 installation guide
1.2
Before you begin
CN 100416216
CN 100466003
CN 101142461
CN 101171493
CN 101198836
CN 101476859
CN 101482402
EP 1425550
EP 1457786
EP 1576560
EP 1613921
EP 1804020
EP 1866602
EP 1880163
EP 1893937
EP 1931936
EP 2154471
EP 2216761
IN 215787
IN 234921
IN 305341
IN 307453
IN 364693
IN 8707/DELNP/2008
WO 2004/057552
JP 4237051
JP 4575781
JP 4852411
JP 5238749
JP 5283501
JP 5308811
JP 5357541
JP 5390719
JP 5611297
KR 1001244
TW I333052
US 6941671
US 7145468
US 7285935
US 7316077
US 7441707
US 7486195
US 7603789
US 7665219
US 7689379
US 7792654
US 7812736
US 7821420
US 8140287
US 9140547
CNC machines
CNC machine tools must always be operated by fully trained personnel in accordance with the
manufacturer’s instructions.
Care of the probe
Keep system components clean and treat the probe as a precision tool.
Patents
Features of the RMP400, and other similar Renishaw products, are the subject of one or more of the
following patents and/or patent applications:

1.3
Before you begin
Declaration of conformity
Renishaw plc hereby declares that the RMP400 is in compliance with the essential requirements and
other relevant provisions of:
• the applicable EU directives
• the relevant statutory instruments under UK law
The full text of the declaration of conformity is available at:
www.renishaw.com/mtpdoc
Disposal of waste electrical and electronic equipment (WEEE)
The use of this symbol on Renishaw products and/or accompanying documentation indicates that the
product should not be mixed with general household waste upon disposal. It is the responsibility of the
end user to dispose of this product at a designated collection point for waste electrical and electronic
equipment (WEEE) to enable reuse or recycling. Correct disposal of this product will help to save
valuable resources and prevent potential negative effects on the environment. For more information,
contact your local waste disposal service or Renishaw distributor.
Disposal of batteries
The use of this symbol on the batteries, packaging or accompanying documents indicates that used
batteries should not be mixed with general household waste. Dispose of the used batteries at a
designated collection point. This will prevent potential negative effects on the environment and human
health which could otherwise arise from inappropriate waste handling. Contact your local authority or
waste disposal service concerning the separate collection and disposal of batteries. All lithium and
rechargeable batteries must be fully discharged or protected from short circuiting prior to disposal.
C

RMP400 installation guide
1.4
Before you begin
Intended use
The RMP400 is a radio spindle probe that enables automated workpiece inspection and job set-up on
multi-tasking machines, machining centres and gantry machining centres.
Safety
Information to the user
This product is supplied with non-rechargeable lithium metal batteries. Refer to the battery
manufacturer’s literature for specific battery operating, safety and disposal guidelines.
• Do not attempt to recharge the batteries.
• Replace the batteries only with the specified type.
• Do not mix new and used batteries in the product.
• Do not mix different types or brands of batteries in the product.
• Ensure that all batteries are inserted with the correct polarity in accordance with the instructions in
this manual and indicated on the product.
• Do not store the batteries in direct sunlight.
• Do not expose the batteries to water.
• Do not expose the batteries to heat or dispose of the batteries in a fire.
• Avoid forced discharge of the batteries.
• Do not short circuit the batteries.
• Do not disassemble, apply excessive pressure, pierce, deform or subject the batteries to impact.
• Do not swallow the batteries.
• Keep the batteries out of the reach of children.
• If the batteries are swollen or damaged do not use them in the product and exercise caution when
handling them.
• Dispose of waste batteries in accordance with your local environmental and safety laws.
Ensure that you comply with international and national battery transport regulations when transporting
the batteries or this product with the batteries inserted. Lithium metal batteries are classified as
dangerous goods for transportation and require labelling and packaging in accordance with the
dangerous goods regulations before being offered for transportation. To reduce the risk of shipment
delays, should you need to return this product for any reason, do not return any batteries.
In all applications involving the use of machine tools, eye protection is recommended.
The RMP400 has a glass window. Handle with care if broken to avoid injury.

1.5
Before you begin
Information to the machine supplier / installer
It is the machine supplier’s responsibility to ensure that the user is made aware of any hazards
involved in operation, including those mentioned in Renishaw product literature, and to ensure that
adequate guards and safety interlocks are provided.
If the probe fails, the probe signal may falsely indicate a probe seated condition. Do not rely on probe
signals to halt the movement of the machine.
Information to the equipment installer
All Renishaw equipment is designed to comply with the relevant EC and FCC regulatory requirements.
It is the responsibility of the equipment installer to ensure that the following guidelines are adhered to,
in order for the product to function in accordance with these regulations:
•any interface MUST be installed in a position away from any potential sources of electrical noise,
(for example power transformers, servo drives);
•all 0V/ground connections should be connected to the machine “star point” (the “star point” is a
single point return for all equipment ground and screen cables).This is very important and failure to
adhere to this can cause a potential difference between grounds;
•all screens must be connected as outlined in the user instructions;
•cables must not be routed alongside high current sources,(for example, motor power supply
cables), or be near high-speed data lines;
•cable lengths should always be kept to a minimum.
Equipment operation
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
REACH regulation
Information required by Article 33(1) of Regulation (EC) No1907/2006 (“REACH”) relating to products
containing substances of very high concern (SVHCs) is available at:
www.renishaw.com/REACH
China RoHS
For more information, on China RoHS visit:
www.renishaw.com/mtpchinarohs.

RMP400 installation guide
1.6
Before you begin
FCC information to user (USA only)
47 CFR Section 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
47 CFR Section 15.21
The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or
authorised representative could void the user’s authority to operate the equipment.

1.7
Before you begin
Radio approval
Australia:
Brazil:
Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar
interferência em sistemas devidamente autorizados
Canada: IC: 3928A-RMP400
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
EU:
India: ETA-949/2017-RLSO(SR)
Japan:
This device is granted pursuant to the Japanese Radio Law and the Japanese Telecommunications
Business Law This device should not be modified (otherwise the granted designation number will
become invalid).
Malaysia:
Mexico: ITF#RCPRERM18-1539
“La operación de este equipo está sujeta a las siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar
su operación no deseada.”
New Zealand:
Singapore:
C
205-180338
RAVG/22Y/0818/S(18-3048)
Complies with
IDA Standards
DA105282
06191-18-02812

RMP400 installation guide
1.8
Before you begin
South Africa:
South Korea:
Class A Equipment (Industrial Use)
이 기기는 업무용(A급) 전자파적합기기로서 판 매자 또는 사용자는 이 점을 주의하시기 바 라
며, 가정외의 지역에서 사용하는 것을 목적으 로 합니다.
Taiwan:
警語
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或
變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至
無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫
療用電波輻射性電機設備之干擾。
USA: FCC ID: KQGRMP400
Argentina Iceland Indonesia Liechtenstein Montenegro Norway Philippines Russia
Switzerland Turkey
Exempt: China Thailand Vietnam
TA-2018/1795
R-C-R1P-RMP400Q
CCAK18LP3120T0

2.1
RMP400 basics
Introduction
The RMP400 offers an unrivalled combination of size, accuracy, reliability and robustness, and allows
high-accuracy probing on small to medium machining centres or other machines where line-of-sight
problems affect optical signal transmission.
Successfully combining patented RENGAGE™ strain gauge technology with the patented frequency
hopping radio transmission system of the RMP40, the RMP400 provides existing probe users with a
simple upgrade to solid-state strain gauge technology and all the associated benefits this brings:
• excellent 3D performance to allow probing of contoured surfaces;
• improved repeatability in all probing directions;
• a low triggering force combined with low pre-travel variation to provide high accuracy, even when
used with long styli;
• a proven ten-fold improvement in life (10 million triggers);
• the elimination of reseat failures;
• high resistance to machine tool vibration;
• resistance to shock and false triggering through the use of solid state accelerometers.
In addition to providing high-accuracy measurement on your machine tool, the RMP400 also offers:
• Faster calibration:
On complex 3D parts, it is common to measure in several different directions. Each direction
of a standard mechanical probe must be calibrated, to ensure that the pre-travel variation is
compensated in the measurement.
Performing this calibration for every 3D direction can be time-consuming.
The RMP400 has almost no pre-travel variation, so a single calibration value may be used for any
probing angle in 2D or 3D. This results in a vastly reduced calibration time. An additional benefit is a
corresponding reduction in errors introduced by environmental changes within the machine during
a long calibration cycle.
• The ability to be used in applications where axial and radial reorientations are used, enabled by the
use of solid state accelerometers:
The auto-reset function is required and recommendations should be followed for optimum
metrology performance.
see Section 2, “RMP60 basics”

RMP400 installation guide
2.2
RMP400 basics
Getting started
Three multicolour probe LEDs provide visual indication of selected probe settings and status.
For example:
• Switch-on and switch-off methods
• Probe status – triggered or seated
• Battery condition
Batteries are inserted or removed as shown (for more information, see page 3.4, “Installing the
batteries”).
On insertion of batteries, the LEDs will begin to flash, starting with a LED check (for more information,
see page 4.1, “Reviewing the probe settings”).
System interface
The RMI and RMI-Q are integrated interfaces/receivers used to communicate between the RMP400
probe and the machine controller.
Trigger Logic™
Trigger Logic (for more information, see page 4.1, “Reviewing the probe settings”) is a method that
allows the user to view and select all available mode settings in order to customise a probe to suit
a specific application. Trigger Logic is activated by battery insertion and uses a sequence of stylus
deflections (triggering) to systematically lead the user through the available choices to allow selection
of the required mode options.
A Trigger Logic app is available that simplifies this process with clear, interactive instructions and
informative videos and is available for download on the App Store and Google Play.
or
Current probe settings can also be reviewed by simply removing the batteries for a minimum
of 5 seconds, and then replacing them to activate the Trigger Logic review sequence (for more
information, see page 4.1, “Reviewing the probe settings”).

2.3
RMP400 basics
Probe modes
The RMP400 probe can be in one of three modes:
Standby mode –Probe is waiting for a switch-on signal.
NOTE: The RMP400 will enter hibernation mode should the system interface be powered off or out of
range for a period of 30 seconds (hibernation mode is only applicable to “radio on”).
Operational mode –When activated by one of the switch-on methods, the probe is switched on and
ready for use.
Configuration mode – Ready to change the probe settings using Trigger Logic.
Configurable settings
Switch-on / switch-off methods
The following switch-on / switch-off options are user-configurable.
•Radio on / Radio off
•Radio on / Timer off
•Spin on / Spin off
•Spin on / Timer off

RMP400 installation guide
2.4
RMP400 basics
NOTES:
In “radio on” mode, the switch-on time is user selectable “fast” or “standard” when using RMI-Q
(selection is made in RMI-Q). Otherwise the switch-on time is 1.7seconds.
For more information on the user selectable switch-on time when operating with RMI-Q, refer to the
RMI-Q radio machine interface installation guide (Renishaw part no. H-5687-8504).
In “radio on” mode, the switch-on time assumes a good radio communication link. In a poor radio
frequency (RF) environment this may rise to a maximum of 3seconds.
In “spin on” mode, the 1 second starts from the moment the spindle reaches 500 r/min.
The RMP400 must be on for a minimum of 1second before being switched off.
RMP400 switch-on method
Switch-on options are configurable
RMP400 switch-off method
Switch-off options are configurable
Probe ready time
Radio on
Radio switch on is commanded by
machine input.
Radio off
Radio switch off is commanded by
machine input. A timer automatically
switches the probe off 90 minutes
after the last trigger or reseat if it is
not turned off by machine input.
Timer off (timeout)
Timeout will occur 12, 33 or 134
seconds (user configurable) after the
last probe trigger or reseat.
1.7 seconds
maximum.
Spin on
Spin at 500 r/min for 1 second
minimum.
Spin off
Spin at 500 r/min for 1 second
minimum. A timer automatically
switches the probe off 90 minutes
after the last trigger if it is not spun.
Timer off (timeout)
Timeout will occur 12, 33 or 134
seconds (user configurable) after the
last probe trigger or reseat.
2.5 seconds
minimum. (The probe
must be stationary for
2.5 seconds minimum
after it has stopped
spinning.)

2.5
RMP400 basics
Enhanced trigger filter
Probes subjected to high levels of vibration or shock loads may output signals without having
contacted any surface. The enhanced trigger filter improves the probe’s resistance to these effects.
When the filter is enabled, a constant 8 ms or 16 ms delay is introduced to the probe’s output. The
factory setting is 8 ms. If false triggering is noticed, then consider increasing the filter delay to 16 ms.
Auto-reset function
In previous strain gauge products, the probe was required to be turned off during reorientation moves.
The auto-reset function in the RMP400 can compensate for stylus forces, resulting from changes in
probe orientation, that can cause the probe to trigger.
This feature is controlled by solid state accelerometers and is suitable for applications where axial and
radial reorientation of the probe is applied.
To achieve optimum metrology performance when the auto-reset function is turned on, a dwell is
recommended before making a programmed move that follows any reorientation of the probe.
When using a recommended carbon fibre stylus of up to 150 mm in length, a 0.2 second dwell is
necessary. In most applications the machine response time will adequately provide this.
When using a stylus longer than 150 mm, a heavy stylus or any other stylus configuration, it is
recommended that the RMP400 should be turned off during reorientation moves. (see page 2.10,
“Recommended styli”, for further information).
When in “auto-reset” mode, the probe will not trigger when moved below a speed of 3 mm/min.
NOTE: Speeds below 3 mm/min commonly occur when manually moving the probe using the
handwheel with a very ne feedrate.
Multiple probe mode
The RMP400 can be configured, using Trigger Logic, to allow multiple radio probes in “spin on/spin
off” to be used with a single RMI or RMI-Q.
Up to four RMP400 probes can be used with a single RMI-Q in “radio on/radio off” mode. For further
details of this functionality, refer to the RMI-Q radio machine interface installation guide (Renishaw part
no. H-5687-8504).
NOTES:
Multiple probe mode is a function of the RMP400. As such, the option will not appear when the “radio
on” option has been selected.
RMP400 probes which are set to “multiple probe mode on” can coexist alongside any number of
RMP400 probes set to “multiple probe mode off”.

RMP400 installation guide
2.6
RMP400 basics
To allow multiple radio probes to work in close proximity, and with a single RMI or RMI-Q, 16choices
of “mode on” colours are available, each representing a different machine tool installation (for more
information, see page 4.2, “Multiple probe mode settings”).
All probes operating with a single RMI or RMI-Q must be set to the same “mode on” colour choice;
any multiple probes located on adjacent machines must all be set to an alternative “mode on” colour
choice.
NOTE: Each probe per “mode on” colour choice must be partnered with the RMI or RMI-Q. By
conguring multiple probes to a single “mode on” colour choice, all probes using this “mode on”
colour choice will have the same identity.
The probe to be partnered is partnered after selecting the multiple probe mode setting and choosing
the “mode on” option. (for more information, see page 4.6, “Changing the probe settings”).
There is no limit to the number of probes that can be used with a single RMI or RMI-Q so long as they
all have the same “mode on” colour choice. All RMP400 probes are factory set to “mode off”.
The addition of any further probe(s) into a single probe installation will require that all probes are
reconfigured to the same “mode on” colour choice and that one of the probes is then repartnered with
the RMI or RMI-Q.
The addition of any further probe(s), or replacements, into a multi-probe installation can be achieved
through the reconfiguration of the probe to the same “mode on” colour choice.
Acquisition mode
System set-up is achieved using Trigger Logic and powering-on the RMI or RMI-Q.
Partnering is required during initial system set-up. Further partnering is only required if the RMP400,
RMI or RMI-Q is changed.
NOTES:
Systems using the RMI-Q can be partnered with up to four RMP400 probes manually. Alternatively,
partnering to an RMI-Q, can be achieved by using ReniKey; a Renishaw machine macro cycle which
does not require the RMI-Q to be power cycled.
For more information or to download ReniKey free of charge visit:
www.renishaw.com/mtpsupport/renikey
Partnering by ReniKey is not available for the RMI.
Partnering will not be lost by reconfiguration of probe settings or when changing batteries, except
where multiple probe mode is selected.
Partnering can take place anywhere within the operating envelope.

2.7
RMP400 basics

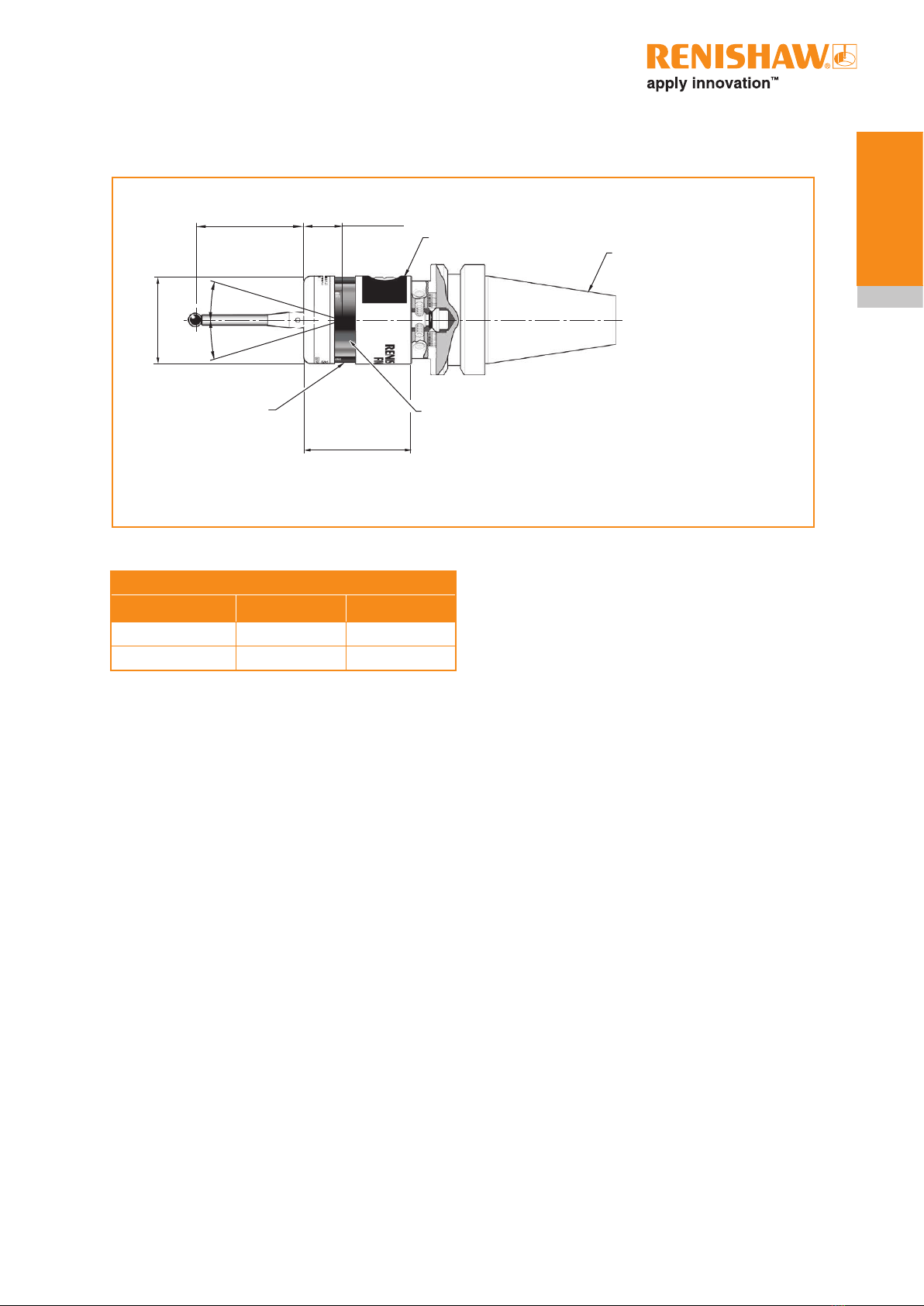

RMP400 dimensions
Dimensions given in mm (in)
Stylus overtravel limits
Stylus length ±X/±Y Z
50 (1.97) 12 (0.47) 6 (0.24)
100 (3.94) 22 (0.87) 6 (0.24)
A range of probe-ready shanks is
available from Renishaw
50.5 (1.99)
19 (0.75)
Battery cassette
RMP400 window
11°
11°
Ø40 (Ø1.57)
50 (1.97)
M4 stylus
Probe status LED

RMP400 installation guide
2.8
RMP400 basics
RMP400 specification
Principal application Workpiece inspection and job set-up on multi-tasking machines,
machining centres and gantry machining centres.
Dimensions Length
Diameter
50.5 mm (1.99 in)
40 mm (1.57 in)
Weight (without shank) With batteries
Without batteries
262 g (9.24 oz)
242 g (8.54 oz)
Transmission type Frequency hopping spread spectrum (FHSS) radio
Radio frequency 2400 MHz to 2483.5 MHz
Switch-on methods Radio M-code or spin on
Switch-off methods Radio M-code, timer or spin off
Probe feedrate (minimum) 3 mm/min (0.12 in/min) with auto-reset 1
Spindle speed (maximum) 1000 r/min
Operating range Up to 15 m (49.2 ft)
Receiver/interface RMI or RMI-Q combined interface and receiver unit
Sense directions ±X, ±Y, +Z
Unidirectional repeatability 0.25 µm (10 µin) 2s– 50 mm stylus length 2
0.35 µm (14 µin) 2s– 100 mm stylus length
X,Y (2D) form measurement
deviation
±0.25 µm (10 µin) 2s– 50 mm stylus length 2
±0.25 µm (10 µin) 2s– 100 mm stylus length
X,Y, Z (3D) form
measurement deviation
±1.00 µm (40 µin) 2s– 50 mm stylus length 2
±1.75 µm (70 µin) 2s– 100 mm stylus length
Stylus trigger force 3 and 4
XY plane (typical minimum)
+Z plane (typical minimum)
0.09 N, 9 gf (0.32 ozf)
3.34 N, 341 gf (12.01 ozf)
Stylus overtravel force
XY plane (typical minimum)
+Z plane (typical minimum)
1.04 N, 106 gf (3.74 ozf) 5
5.50 N, 561 gf (19.78 ozf) 6
Stylus overtravel XY plane
+Z plane
±11°
6 mm (0.23 in)
1Speeds below 3 mm/min commonly occur when manually moving the probe using the handwheel with a very ne
feedrate.
2 Performance specification is tested at a standard test velocity of 240 mm/min (9.45 in/min) with a 50 mm (1.97 in)
carbon fibre stylus. Significantly higher velocity is possible depending on application requirements.
3 Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the
probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends
on related variables including measuring speed, machine deceleration and latency.
RENGAGE equipped probes offer ultra-low trigger forces.
4 These are the factory settings; manual adjustment is not possible.
5Stylus overtravel force in the XY plane occurs 70 μm (2755.91 µin) after the trigger point and rises by 0.1 N/mm,
10gf/mm (9.1 ozf/in) until the machine tool stops (in the high force direction and using a 50 mm (1.97 in) carbon
fibre stylus).
6Stylus overtravel force in +Z direction occurs 1.0 μm (39.37 μin) after the trigger point and rises by 0.6 N/mm,
61 gf/mm (54.8 oz/in) until the machine tool stops.
