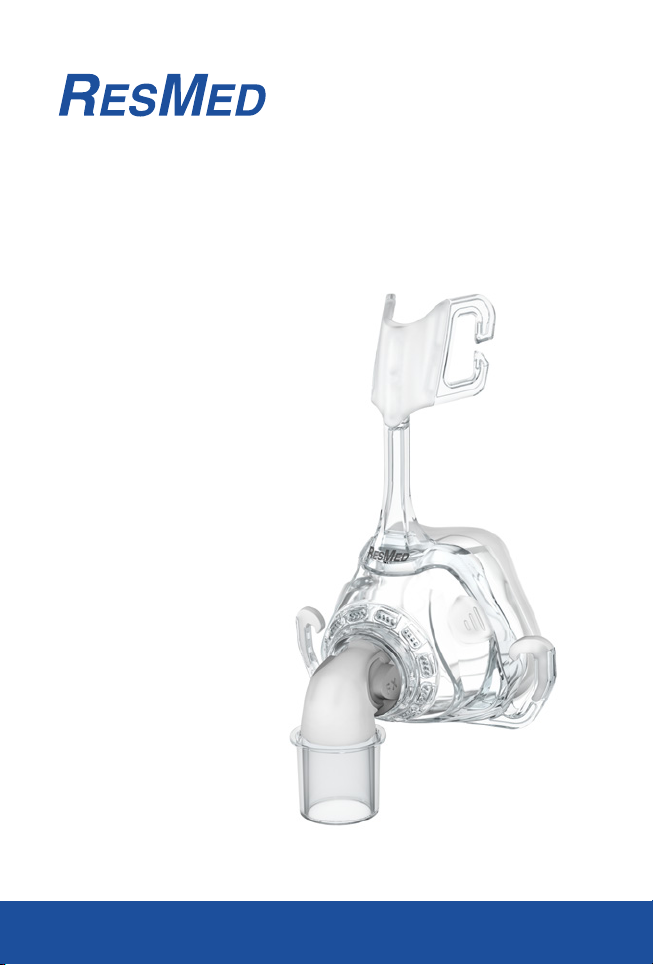

ResMed Mirage FX User manual

Mirage™ FX /
Mirage™ FX for Her
NASAL MASK
User Guide
English • Deutsch • Français • Italiano • Español • Português •
Nederlands • Ελληνικά • Polski • Magyar •
Русский • Slovencina • Türkçe • Česky

i
Mirage™ FX / Mirage™ FX for Her
NASAL MASK
Fitting/ Anlegen/ Mise en place/ Applicazione/
Colocación/ Colocação/ Opzetten/ Τοποθέτηση τη
άσκα/ Zakładanie/ A maszk felhelyezése/ /
Nasadzovanie/ Maskenin takılması/ Nasazení masky
3
1
45
6
Mirage FX
2

ii

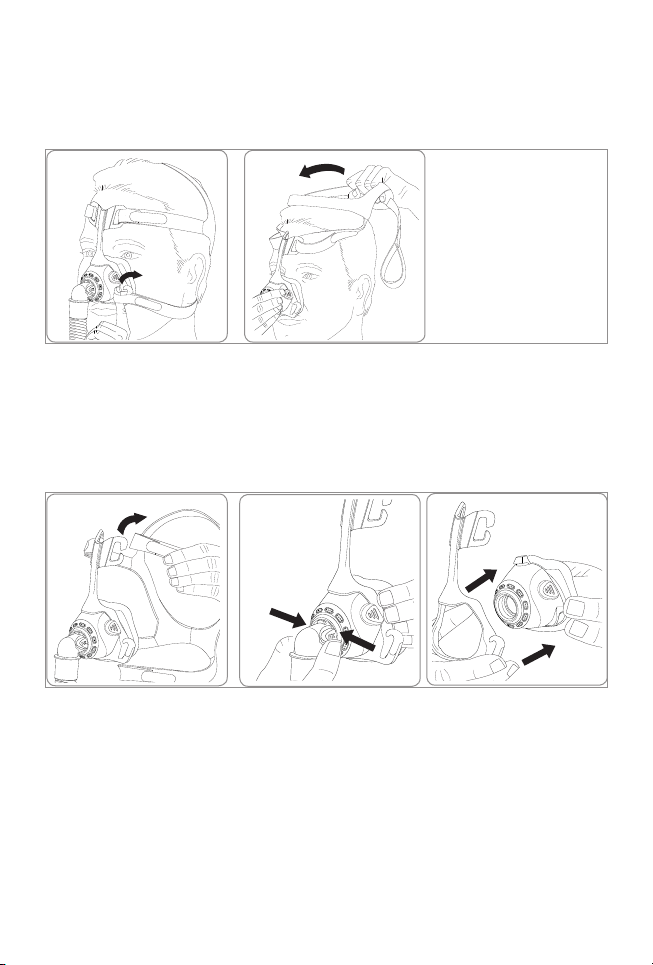

Removal/ Abnehmen/ Retrait/ Rimozione/ Para
quitarla/ Remoção/ Afzetten/ Αφαίρεση/ Zdejmowanie/
A maszk eltávolítása/ / Snímanie/ Çıkarma/
Sejmutí masky
12
Disassembly/ Auseinanderbau/ Démontage/
Smontaggio/ Desmontaje/ Desmontagem/
Demonteren/ Αποσυναρολόγηση/ Demontaż/
Szétszerelés/ / Rozobratie/ Sökme/
Demontáž masky
123

iii

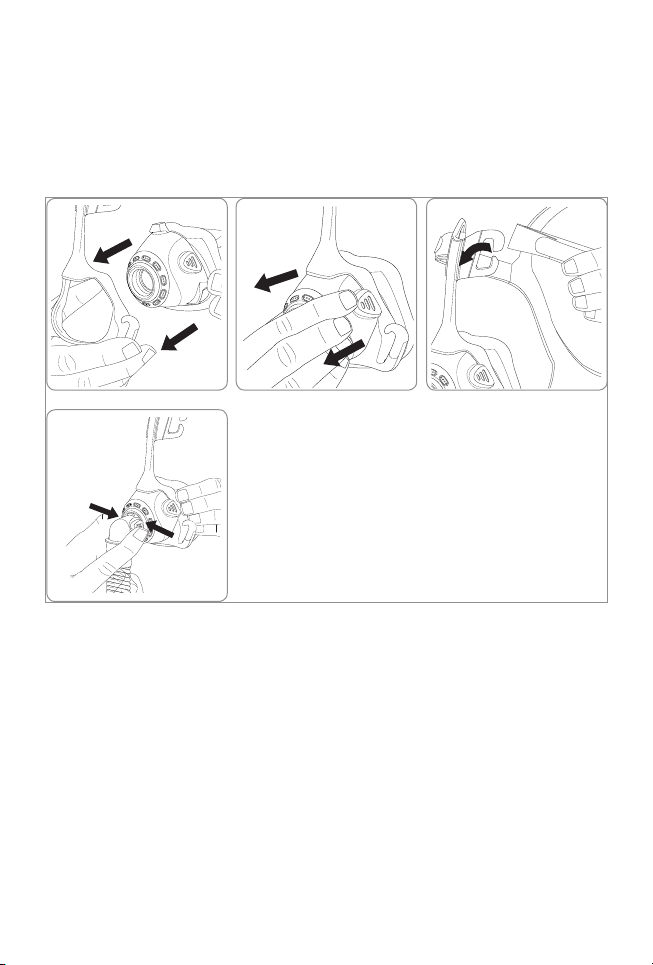

Reassembly/ Zusammenbau/ Remontage/
Riassemblaggio/ Nuevo montaje/ Nova montagem/
Opnieuw monteren/ Επανασυναρολόγηση/
Ponowny montaż/ Ismételt összeszerelés/ 
/ Opätovné zostavenie/Yeniden montaj/
Opětovnésestavenímasky
123
4

iv
Mirage FX / Mirage FX for Her
A
B
3
1
5
4
6
2
7

v
Mask components/ Maskenkomponenten/ Composants
du masque/ Componenti della maschera/ Piezas de la
mascarilla/ Componentes da máscara/ Maskeronderdelen/
Εξαρτήατα τη άσκα/ Elementy maski/ A maszk
alkatrészei/  / Komponenty masky/
Maske bileenleri/ Součásti masky
Mirage
FX Mirage FX for Her
1Mask frame/ Maskenrahmen/ Entourage rigide/
Telaio della maschera/ Armazón de la mascarilla/
Armação da máscara/ Maskerframe/ Πλαίσιο
μάσκας/ Ramka maski/ A maszk kerete/ Корпус
маски/ Rám masky/ Maske çerçevesi/ Tělo masky
62113
62127 (W) 62143
2Forehead support/ Stirnstütze/ Support frontal/
Supporto frontale/ Apoyo para la frente/ Suporte
da testa/ Voorhoofdsteun/ Στήριγμαμετώπου/
Wspornik czołowy/ Homloktámasz/ Лобный упор/
Čelná podpora/ Alın desteği/ Držák čelní příchytky
— —
3Cushion/ Maskenkissen/ Bulle/ Cuscinetto/
Almohadilla/ Almofada/ Kussentje/ Mαξιλάρι/
Uszczelka/ Párna/ Уплотнитель/ Poduška/ Yastık/
Polštářek
62111
62125 (W) 62136
4Vent/ Ausatemönung/ Orifice de ventilation/
Fori per l’esalazione/ Orificios de ventilación/
Respiradouro/ Ventilatiegedeelte/ Άνοιγμα
εξαερισμού/ Otwór odprowadzający powietrze/
Kifúvó nyílás/ Порт сброса воздуха/ Vetrací otvor/
Hava deliği/ Vĕtrací otvor
— —
5Headgear/ Kopfband/ Harnais/ Copricapo/
Arnés/ Arnês/ Hoofdstel/ Ιμάντες κεφαλής/
Część nagłowna/ Fejpánt/ Головной фиксатор/
Náhlavná súprava/ Başlık/ Náhlavní souprava
62110
62138 (S) 62129
6Elbow assembly/ Kniestück-Baugruppe/
Ensemble coude/ Gruppo del gomito/ Conjunto
del codo/ Conjunto do cotovelo/ Complete
bocht/ Συγκρότημα γωνιακού εξαρτήματος/ Zespół
kolanka/ Könyökidom-szerelvény/ Угловой
патрубок в сборе/ Sústava kolena/ Dirsek takımı/
Ramenomasky
— —

vi
Mirage
FX Mirage FX for Her
7Elbow side tabs/ Seitliche Knöpfe des Kniestücks/
Pattes d’attache latérales coude/ Alette laterali del
gomito/ Lengüetas laterales del codo/ Patilhas
laterais do cotovelo/ Vergrendelknoppen bocht/
Πλευρικές προεξοχές γωνιακού εξαρτήματος/ Boczne
zapadki kolanka/ A könyök oldalsó fülei/ Боковые
зажимы углового патрубка/ Bočné kolíky kolena/
Dirsek yan çıkıntıları/ Postranní příchytky
— —
AComplete system/ Komplettes System/ Masque
complet/ Sistema completo/ Sistema completo/
Sistema completo/ Volledig systeem/ Πλήρες
σύστημα/ Cały system/ Teljes rendszer/ Полная
система/ Kompletný systém/ Komple sistem/
Kompletní systém
62102
62117 (W) 62139
BElbow Assembly/ Kniestück-Baugruppe/
Ensemble coude/ Gruppo del gomito/ Conjunto
del codo/ Conjunto do cotovelo/ Complete
bocht/ Συγκρότημα γωνιακού εξαρτήματος/ Zespół
kolanka/ Könyökidom-szerelvény/ Угловой
патрубок в сборе/ Sústava kolena/ Dirsek Takımı/
Ramenomasky
62114 62114
S Small/ Small/ Petit/ Small/ Pequeña/ Pequena/ Small/ Μικρό/ Mała/ Kicsi/
Маленькая/ Malá/ Küçük/ malá
W Wide/ Wide/ Large/ Wide/ Ancha/ Grande/ Wide/ Πλατύ/ Szeroka/
Széles/ Широкая/ Široká/ Geniş/ široká

1
English
Mirage™ FX / Mirage™ FX for Her
NASAL MASK
Thank you for choosing the Mirage FX / Mirage FX for Her. Please read the
entire manual before use.
Intended use
The Mirage FX / Mirage FX for Her channels airflow noninvasively to a patient
from a continuous positive airway pressure (CPAP) or bilevel device.
The Mirage FX / Mirage FX for Her is:
• to be used by patients (> 30 kg) for whom positive airway pressure has
been prescribed
• intended for single-patient re-use in the home environment and
multipatient re-use in the hospital/institutional environment.
Clinical benefits
The clinical benefit of vented masks is the provision of effective therapy
delivery from a therapy device to the patient.
Intended patient population/medical
conditions
Obstructive pulmonary diseases (eg, Chronic Obstructive Pulmonary Disease),
restrictive pulmonary diseases (eg, diseases of the lung parenchyma, diseases
of the chest wall, neuromuscular diseases), central respiratory regulation
diseases, obstructive sleep apnoea (OSA) and obesity hypoventilation
syndrome (OHS).
WARNING
•The mask contains safety features, eg, exhaust vent and valve, to
enable normal breathing and exhaust exhaled breath. Occlusion of
the exhaust vent or valve needs to be prevented to avoid having an
adverse effect on the safety and quality of the therapy. Regularly
inspect the vent and valve to ensure it is kept clean, clear of blockages
and is not damaged.
•This mask should only be used with CPAP or bilevel devices
recommended by a physician or respiratory therapist.
•The mask should not be used unless the device is turned on. Once the
mask is fitted, ensure the device is blowing air.

2
Explanation: CPAP and bilevel devices are intended to be used
with special masks (or connectors) which have vent holes to allow
continuous flow of air out of the mask. When the device is turned on
and functioning properly, new air from the device flushes the exhaled
air out through the mask vent holes. However, when the device is not
operating, insufficient fresh air will be provided through the mask,
and the exhaled air may be rebreathed. Rebreathing of exhaled air
for longer than several minutes can, in some circumstances, lead to
suffocation.This applies to most models of CPAP or bilevel devices.
•Follow all precautions when using supplemental oxygen.
•Oxygen flow must be turned off when the CPAP or bilevel device is
not operating, so that unused oxygen does not accumulate within the
device enclosure and create a risk of fire.
•Oxygen supports combustion. Oxygen must not be used while
smoking or in the presence of an open flame. Only use oxygen in well
ventilated rooms.
•Remove all packaging before using the mask.
Note: For any serious incidents that occur in relation to this device, these
should be reported to ResMed and the competent authority in your country.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have mask
setting options, refer to the Technical specifications section in this user guide
for mask setting options.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com/downloads/masks. If you do not have
internet access, please contact your ResMed representative.
Note:
If you experience nasal dryness or irritation, using a humidifier is
recommended.

3
English
Fitting
The fitting illustrations section in this user guide show the sequence for
obtaining the best fit and comfort when using your mask.
Fitting steps
Prior to fitting your mask, remove the elbow from the mask by pressing the
side tabs. Connect the elbow to your device air tubing.
1. With both lower headgear straps released, hold the mask against
your face and pull the headgear over your head.
2. Bringing the lower straps below your ears, loop the headgear into
the lower hooks on the mask frame.
3. Unfasten the Velcro®, pull the upper headgear straps evenly until
they are comfortable and reattach the Velcro. Do not overtighten.
4. Repeat step 3 with the lower headgear straps.
5. Attach the combined elbow assembly and air tubing to the mask by
pressing the side-tabs and pushing into mask frame.
6. Your mask and headgear should be positioned as shown. Ensure
the headgear label is facing outwards.
Removing the mask
Refer to the removal illustrations section in this user guide.To remove your
mask, disconnect one of the lower headgear hooks and pull the mask and
headgear up over your head.
Disassembly
Refer to the disassembly illustrations in this user guide.
Disassembly steps
1. Unhook the upper headgear straps from the mask frame, there is
no need to undo the Velcro.
2. Remove the combined elbow assembly and air tubing from the
mask by pressing the side-tabs and pulling away from the mask
frame. Remove the elbow assembly from the air tubing.
3. Gently separate the cushion from the mask frame.
