Welcome
The ResMed AirMini™ system combines ResMed’s AirMini self-
adjusting pressure machine, masks and the AirMini by ResMed™ App.
WARNING
Read this entire guide before using the machine.
Indications for use
The AirMini self-adjusting system is indicated for the treatment of
obstructive sleep apnea (OSA) in patients weighing more than 30 kg.
It is intended for home and hospital use.
Clinical benefits
The clinical benefit of CPAP therapy is a reduction in apnoeas,
hypopnoeas and sleepiness, as well as improved quality of life.
The clinical benefit of humidification is the reduction of positive airway
pressure related side effects.
Contraindications
Positive airway pressure therapy may be contraindicated in some
patients with the following pre-existing conditions:
•severe bullous lung disease
•pneumothorax
•pathologically low blood pressure
•dehydration
•cerebrospinal fluid leak, recent cranial surgery, or trauma.
Adverse effects
You should report unusual chest pain, severe headache, or increased
breathlessness to your prescribing physician. An acute upper respiratory
tract infection may require temporary discontinuation of treatment.

2
The following side effects may arise during the course of therapy with
the machine:
•drying of the nose, mouth, or throat
•nosebleed
•bloating
•ear or sinus discomfort
•eye irritation
•skin rashes.
At a glance
The AirMini system includes the AirMini machine, a power supply unit,
a drawstring bag, and one of the following:
•AirMini setup pack - F30: air tubing and full face connector
•AirMini setup pack - F20: air tubing, full face connector and
HumidX™ F20
•AirMini setup pack - N20: air tubing, N20 connector, HumidX and
HumidX Plus
•AirMini mask pack for N30: air tubing, AirFit™ N30 for AirMini
mask (M), N30 cushion (S), N30 cushion (SW), HumidX and HumidX
Plus
•AirMini mask pack for P10: air tubing, AirFit P10 for AirMini mask
(M), P10 cushion (S), P10 cushion (L), HumidX, HumidX Plus and
AirFit P10 headgear clips

English 3

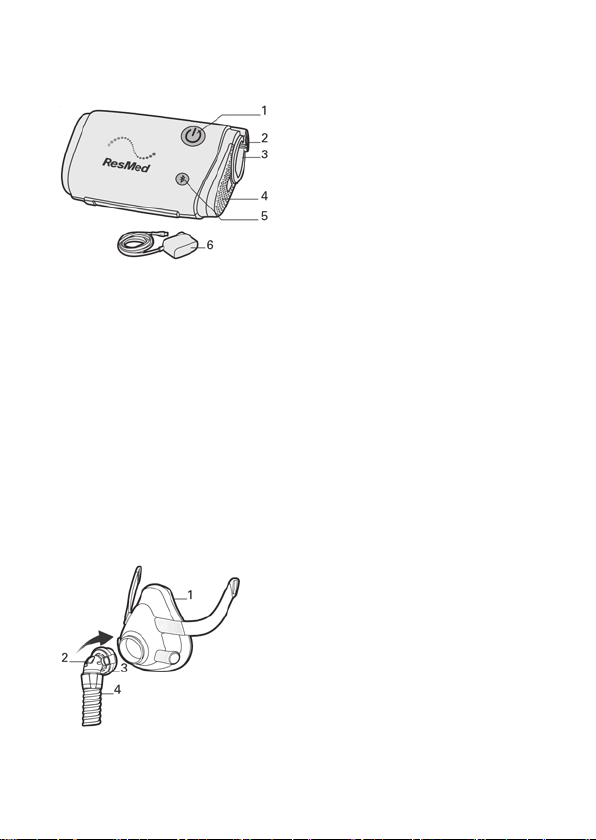

Your AirMini system
1. Start/Stop button
2. Power inlet
3. Power outlet
4. Air Filter cover
5. Bluetooth button
6. 20W Power supply unit
Your AirMini machine is designed to work with ResMed’s AirMini app.
However, the AirMini app is not essential to operate the machine. For
more information on the AirMini app, refer to Using your machine with
the AirMini app or the AirMini app Patient eHelp.
Make sure all parts and accessories used with the machine are
compatible. For compatibility information, refer to ResMed.com.
Mask Connectors
The AirMini machine is compatible with ResMed masks. For a full list,
see the Mask/Device Compatibility list on
ResMed.com/downloads/masks.
Note: Not all masks are available in all regions.
Full face mask connector (for use with compatible full face
masks)
1. Full face mask
2. Anti-Asphyxia Valve (AAV)
3. Vent
4. AirMini tubing

4

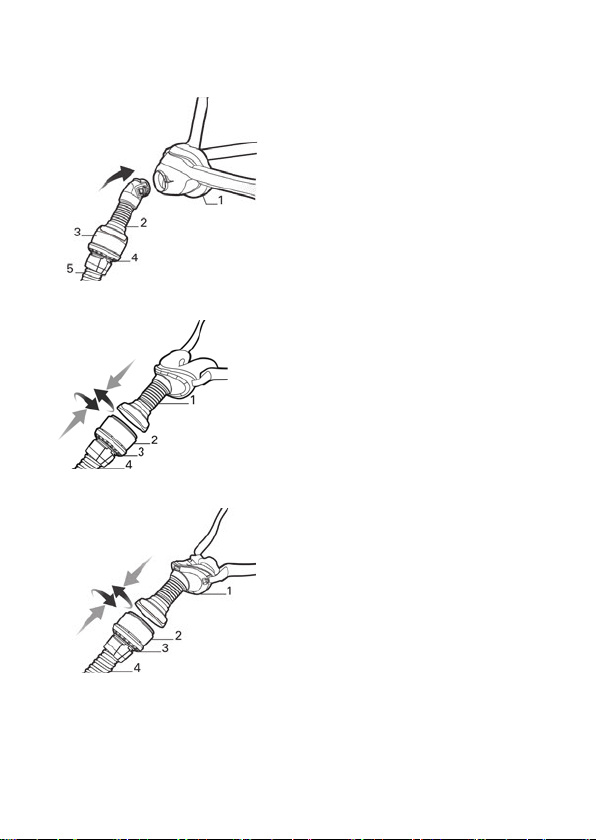

Nasal mask connector (for use with compatible nasal masks)
1. Nasal mask
2. Nasal connector
3. Vent module
4. Vent
5. AirMini tubing
AirFit N30 for AirMini
1. AirFit N30 for AirMini
2. Vent module
3. Vent
4. AirMini tubing
AirFit P10 for AirMini
1. AirFit P10 for AirMini
2. Vent module
3. Vent
4. AirMini tubing

English 5
Humidification
The AirMini system uses a waterless humidifier that is designed to
provide more comfort to your therapy. This will improve the moisture
level in the air you breathe and offer relief from possible dryness.

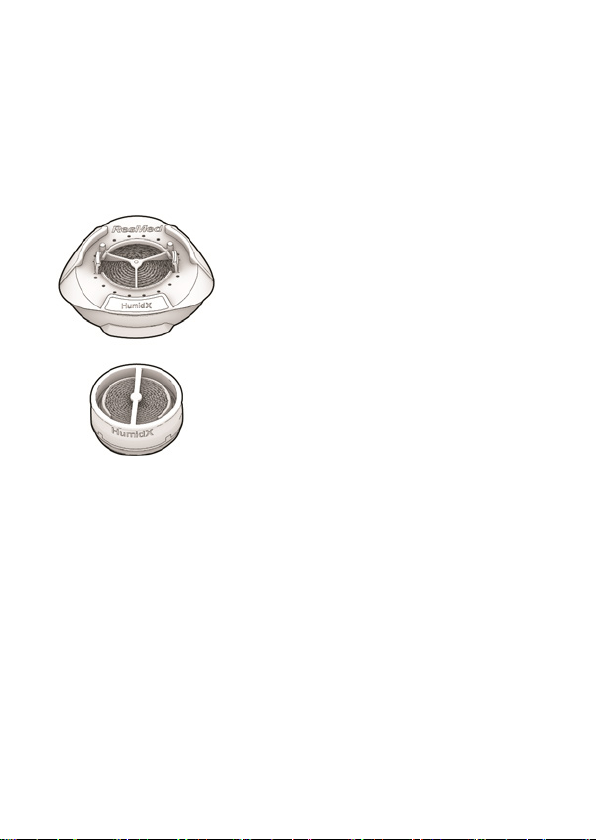

There are different types of waterless humidifiers that vary depending
on the mask and therapy requirements:
•HumidX F20 - used with the F20 series
masks to provide more comfort during
therapy.
•HumidX™ (blue) - starting point for
finding the right level of humidification.
•HumidX Plus (gray) -improves the
humidity level further and is useful when
the ambient humidity level is very low (eg
high altitudes, on an aircraft).
Notes:
•The waterless humidifier should not be washed or immersed in
water as this will affect the performance of therapy.
•The humidifier must be replaced within 30 days of opening the
sealed pack.
•The humidifier is for single-patient, multiple-use only.

6
Setting up and starting therapy
Use your AirMini machine only as directed by your physician or
healthcare provider. For information on fitting your mask, refer to the
mask user guide.

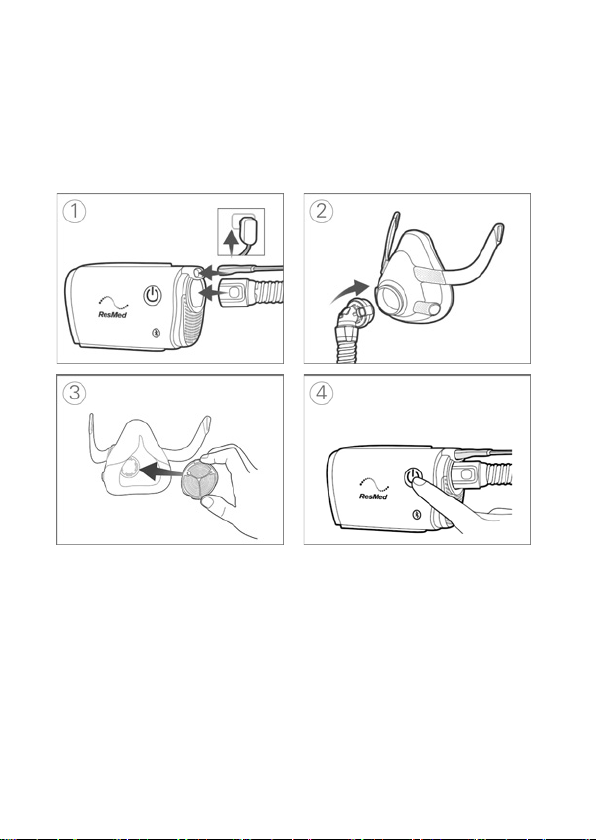

Using the full face connector
1. Plug the power supply unit into the machine and power outlet.
Connect the gray end of the AirMini tubing firmly to the air outlet.
2. Attach the connector to your mask.
3. To add optional humidification: With the ResMed logo facing away,
insert the HumidX F20 into the air inlet of the F20 mask until it clicks
in place.
4. Fit the mask as instructed in the mask user guide. Press the
Start/Stop button or breathe normally if SmartStart™ is enabled.

English 7

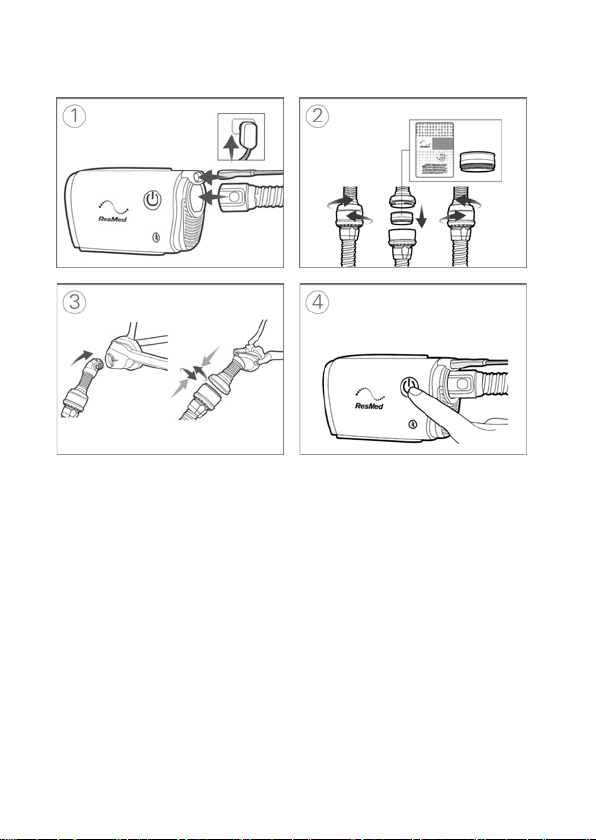

Using the nasal or the pillows connector
1. Plug the power supply unit into the machine and power outlet.
Connect the gray end of the AirMini tubing firmly to the air outlet.

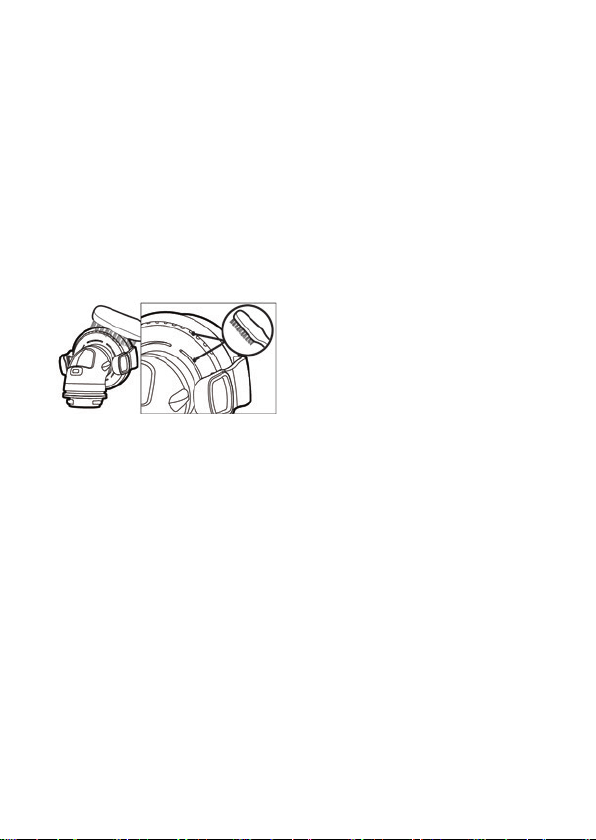

2. To add optional humidification: Open the connector by gently
twisting it. Hold the HumidX at the sides, colored side pointing
downwards and insert it. Gently push together the connector and
twist until it locks in place.
3. Fit the mask as instructed in the mask user guide. Attach the
connector to your mask.
4. Press the Start/Stop button or breathe normally if SmartStart™ is
enabled
Stop therapy
1. Remove your mask.
2. Press the Start/Stop button or wait until the machine stops if
SmartStop is activated.

8
Comfort features
Ramp Time, Pressure Relief and SmartStart are enabled on your
machine.
Ramp Time
Designed to make the beginning of therapy more comfortable, Ramp
Time is the period during which pressure gradually increases from a
lower start pressure to the prescribed treatment pressure.
SmartStart
When SmartStart is turned on, therapy starts automatically when you
breathe into your mask.
SmartStop
When SmartStop is turned on, therapy stops automatically after a few
seconds when you remove your mask.
Expiratory Pressure Relief
Designed to make therapy more comfortable, Expiratory Pressure Relief
(EPR) maintains optimal treatment during inhalation and reduces the
delivered mask pressure during exhalation.
Changing comfort features
Your AirMini machine has been set up for your needs by your provider,
but you may find that you want to make small adjustments to comfort
settings to make your therapy more comfortable.
For more information about comfort settings, or for information on
changing these settings, refer to the AirMini app Patient eHelp.

English 9
Using your machine with the AirMini app
Your AirMini machine can be used with ResMed’s AirMini app. Once
you have paired and connected your machine to your smart device via
Bluetooth, you can start and stop therapy, change comfort settings and
view your therapy data via the AirMini app. Data sent via Bluetooth is
encrypted to protect your privacy.
Connecting your machine and smart device
Before connecting the AirMini machine to a smart device, ensure that
the latest version of the AirMini app is installed on the smart device. If
not, download the app from the App StoreSM or the Google Play store.
1. Ensure your machine is set up correctly and plugged into a power
source.
2. On your smart device, enable Bluetooth.
3. Open the AirMini app.
The first time you open the AirMini app, you will be asked to:
•provide consent for the use of analytics
•accept ResMed’s terms of use and privacy notice
•provide consent for the AirMini app to upload data to the cloud.
Select the necessary check boxes to provide consent and accept
policies.
Notes:
•The check box for analytics consent is selected by default.
•From time to time, the terms of use may be updated and you
may be required to provide consent again.
•If you agree to allow the AirMini app to upload your data to the
cloud, it will be uploaded from the AirMini app to a secure server.
•There are two distinct data upload features:

10
Background data upload – allows the app to upload all data that
has not already been uploaded to the cloud without any user
interaction (ie, app automatically uploads data whenever new
data is available and active internet connection is present). You
must provide consent to enable this feature as it is disabled by
default. This feature can be enabled or disabled anytime on the
More screen.
On-demand data upload – clinician or patient-initiated feature that
uploads all data that has not already been sent to the cloud. This
feature can be used by clinician or patient regardless if
background data upload consent has been provided. To use this
feature, the app must have active Bluetooth connection with the
AirMini.
For additional information, links are also provided on the Welcome
page:
•Learn More – explanation of the way analytics are used
•Terms – ResMed’s terms of use
•Privacy – ResMed’s privacy notice
•my data – information about data privacy.
4. Once selections are complete on the Welcome page, tap Continue.
5. On your machine, press the Bluetooth button when prompted by
the AirMini app.
When the light starts to flash blue , Bluetooth is enabled on your
AirMini machine and ready to connect.
6. On your smart device, tap Connect.
When your AirMini machine is discovered, the machine name
appears in the machine selection list.
7. Select the machine name from the list to connect.
8. The first time you pair your AirMini machine with your smart device,
you will need to perform the authentication procedure.
When prompted by the AirMini app, authenticate by entering the
four-digit key located on the back of your machine.

English 11
Alternatively, you can tap Scan code. If permission has not been
granted already, you will be prompted by the AirMini app to allow
the use of your smart device's camera and then to position the
machine’s QR code within the camera's viewing frame.
Note: The QR code is located on the back of your AirMini machine.
9. Tap Done.
When successfully connected, the Bluetooth connection icon is
displayed in the top right corner of the AirMini app.
Bluetooth status indicators
Bluetooth indicator light is flashing
blue.
Your machine is in discoverable mode and
ready for pairing.
Bluetooth indicator light is constantly
blue.
Your machine is connected to your
smartphone.
Bluetooth indicator light is constantly
white (airplane mode).
Bluetooth on your machine is disabled.
Bluetooth indicator light is off. Your machine is not connected to your
smartphone.
Note: Once therapy starts, the indicator light will start to fade.

12

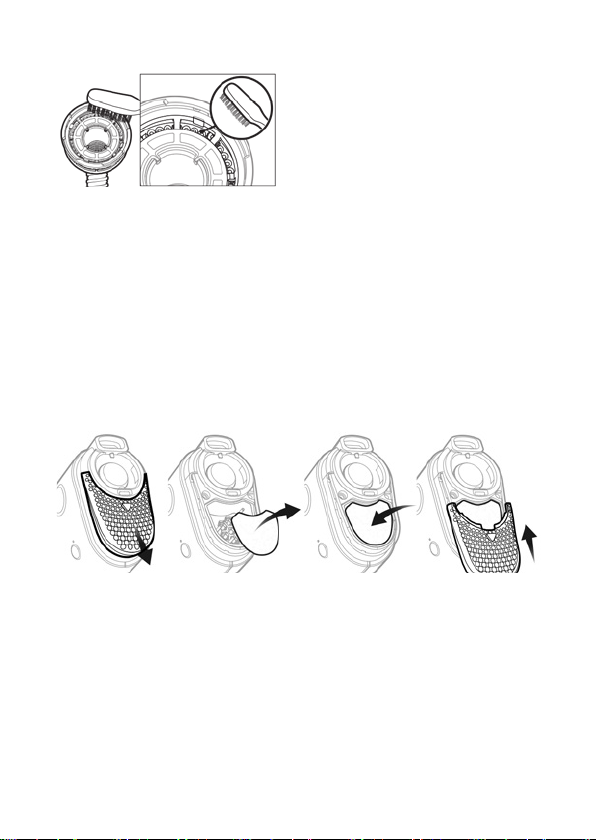

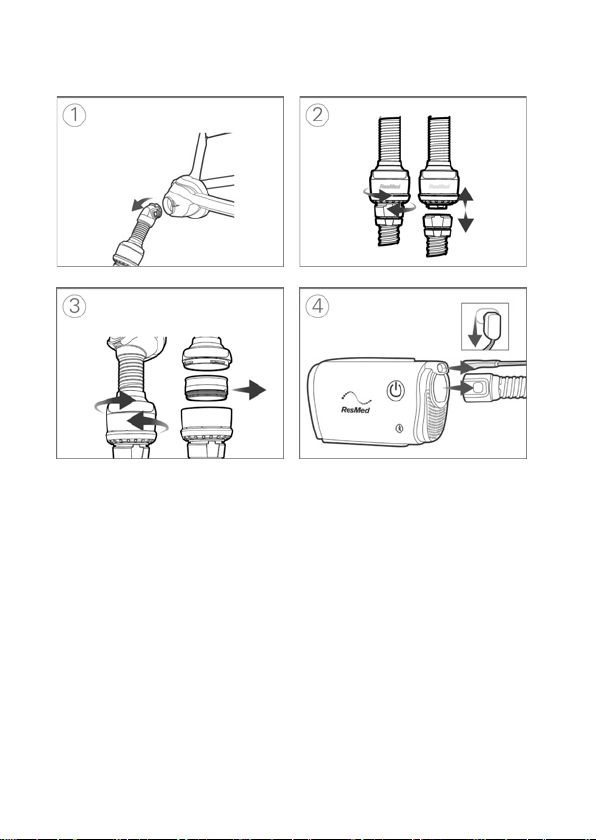

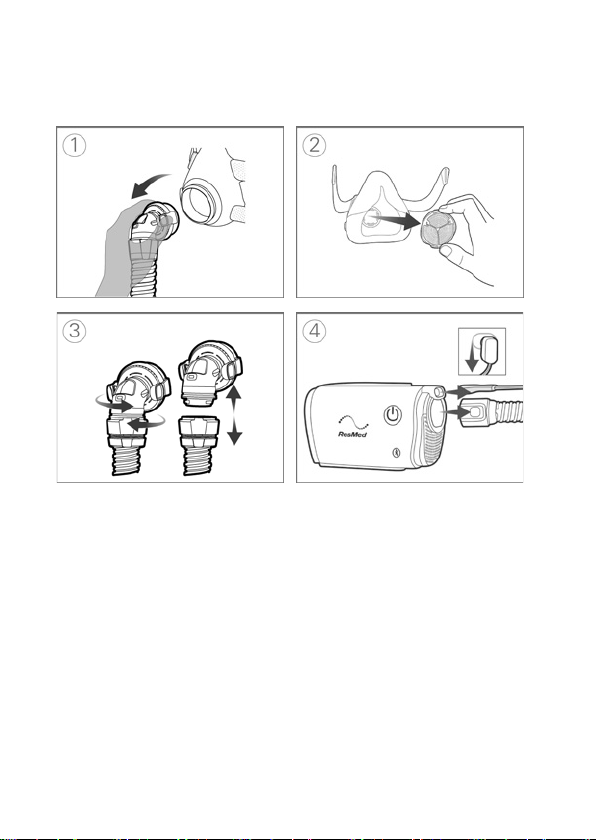

Cleaning and maintenance
It is important that you regularly clean your AirMini machine to make
sure you receive optimal therapy. The following sections will help you
with disassembly, cleaning and checking your machine.
WARNING
•As part of good hygiene, always follow cleaning instructions.
Some cleaning products may damage the air tubing and affect
its function, or leave harmful residual vapours that could be
inhaled if not rinsed thoroughly.
•The AirMini connectors, AirFit P10 for AirMini and AirFit N30 for
AirMini contain a vent system to prevent carbon dioxide build-
up in the mask. The vent system must be kept clean and clear of
contamination in order to function correctly. Blocking or
modifying the vent system may result in excessive carbon
dioxide rebreathing.
•Regularly clean your AirMini tubing, connectors and mask
components to receive optimal therapy and to prevent the
growth of germs that can adversely affect your health.
•Regularly inspect the humidifier and follow the cleaning and
maintenance instructions to prevent the growth of germs that
can adversely affect your health.
CAUTION
If any visible deterioration of a system component is apparent
(cracking, discoloration, tears etc.), the component should be
discarded and replaced.

English 13
Disassembling
Full face masks
1. Squeeze the side buttons on the connector and detach from the
mask.
2. Remove the HumidX F20 from the mask.
Note: The humidifier cannot be washed as this will affect the
performance of therapy.
3. Disconnect the full face connector from the AirMini tubing by gently
twisting and pulling it away.
4. Disconnect the AirMini tubing from the machine by pressing the
side buttons on the cuff and pulling it away. Unplug the power
supply unit from the power outlet and the machine.

14
Nasal masks, AirFit P10 for AirMini, AirFit N30 for AirMini
1. For nasal masks: squeeze the side buttons on the connector and
detach from the mask.
2. For nasal and pillow masks: disconnect the vent module from the air
tubing by gently twisting it and pulling the two pieces apart.
3. Gently twist and pull the two pieces apart. If you are using the
humidifier remove it from the vent module.
Note: The humidifier cannot be washed as this will affect the
performance of therapy.
4. Disconnect the AirMini tubing from the machine by pressing the
side buttons on the cuff and pulling it away. Unplug the power
supply unit from the power outlet and the machine.

English 15
Cleaning and replacing parts
Detach all components according to the disassembly instructions and
make sure that the humidifier is removed and stored in a clean, dry
location.
Inspect the waterless humidifier (HumidX, HumidX Plus, HumidX
F20)
1. Check daily for any signs of damage or blockages caused by dirt or
dust.
2. It must be replaced within 30 days after opening the sealed pack.
3. When the humidifier is not being used, store it in a clean, dry
location.
Note: The humidifier cannot be washed.
Clean the AirMini tubing
1. Clean and check the air tubing each week. AirMini tubing should be
replaced at least every six months.
2. Wash the AirMini tubing in warm water using a mild liquid
detergent.
3. Rinse thoroughly and allow to dry out of direct sunlight and/or heat.
4. Check the AirMini tubing and replace it if there are any holes, tears
or cracks.
Note: Do not wash the AirMini tubing in a dishwasher or washing
machine.

16
Clean the F20 connector for AirMini
1. Clean and check the F20 connector daily. The connector should be
replaced at least every six months.
2. Wash in warm water using a mild liquid detergent.
3. Clean with a soft bristle brush paying particular attention to the vent
holes.
4. Rinse well under running water. Shake to remove excess water and
allow to dry out of direct sunlight.
5. Check that there is no dirt or dust in the vent holes.
Note: Do not wash in a dishwasher or washing machine.
Clean the N20 connector for AirMini
1. Clean and check the N20 connector daily. The connector should be
replaced at least every six months.
2. Wash the connector in warm water using a mild liquid detergent.
3. Clean with a soft bristle brush paying particular attention to the vent
holes inside the connector.
4. Rinse well under running water. Shake to remove excess water and
allow to dry out of direct sunlight.
5. Check that there is no dirt or dust in the vent holes.
Note: Do not wash in a dishwasher or washing machine.

English 17
Cleaning the mask
Refer to the relevant mask user guide for instructions on cleaning the
AirFit P10 for AirMini and AirFit N30 for AirMini masks.
Change the air filter
Replace at least every 6 months. It cannot be washed.
Check and replace it more often if there are any holes or blockages
caused by dirt or dust.
To change the air filter:
1. Slide the air filter cover off and remove the old air filter.
2. Insert a new air filter and replace the air filter cover.
Notes:
•Make sure the air filter cover is fitted at all times to prevent water
and dust from entering the machine.
•The use of ResMed approved hypoallergenic filter will result in a
small reduction in the accuracy of the delivered pressure at high
leaks.

18
Cleaning the machine
Wipe the exterior with a dry cloth each week.
For mask cleaning instructions, see your mask user guide.
Reprocessing
The AirMini tubing, AirMini connectors, vent module and waterless
humidifiers must be discarded and replaced, as they cannot be
disinfected and cannot be used between other patients.
Traveling
You can take your AirMini machine with you wherever you go. Make
sure you have the appropriate power supply for the region you are
traveling to. For information on purchasing, contact your care provider.
Traveling by airplane
For some airlines, medical devices do not count toward carry-on
luggage limits. Please check with your airline for their policy regarding
medical equipment.
You can use your AirMini machine on a plane as it meets the Federal
Aviation Administration (FAA) requirements. Air travel compliance
letters can be downloaded and printed from ResMed.com.
When using the machine on an airplane:
•When connected to power, disable Bluetooth (enter airplane mode)
by pressing and holding the Bluetooth button for at least ten
seconds until the indicator light is white.
•Do not use the AirMini app.
•Use the Start/Stop button on your machine to start therapy.
•To reconnect Bluetooth (exit airplane mode), press the Bluetooth
button.
