Radio Face Quick Start Guide
What’s in the Box Installation
New York Face
Shafts Knobs
x(2)
x(4)
x(2)x(2)
x(4) x(4)
Hardware
Backstrap must be
mounted securely
Top Control Shaft
Modern Sound For Your Classic
[email protected] | help.retromanufacturing.com
Refer to the user manual included in your motor box or on our website for more comprehensive instructions.
Plug the ribbon cable from the Radio Motor into the Radio Face. Attach the Radio Face to the Radio
Motor with the four small screws. With the Radio facing towards you, plug the top Control Shaft into
the left side of the Radio Motor. Plug the bottom Control Shaft into the right side of the Radio Motor.
Refer to Kit Installation
Instructions for use.
Place a metal spacer
on each shaft. Slide the
shafts into the Radio
Face.
Place the white plastic
spacer and thin metal
washer onto the shaft, then
secure with the shaft nut.
DO NOT OVERTIGHTEN.
Install the
rear knob
first, then the
front knob.
x(2)
x(2)
Bottom
Control Shaft
A
B
C
D E F G H
F
A
D
D
B
C

Radio Presets
Control Layout Basic Operation
Modern Sound For Your Classic
[email protected] | help.retromanufacturing.com
*Some features are not available on all radios.

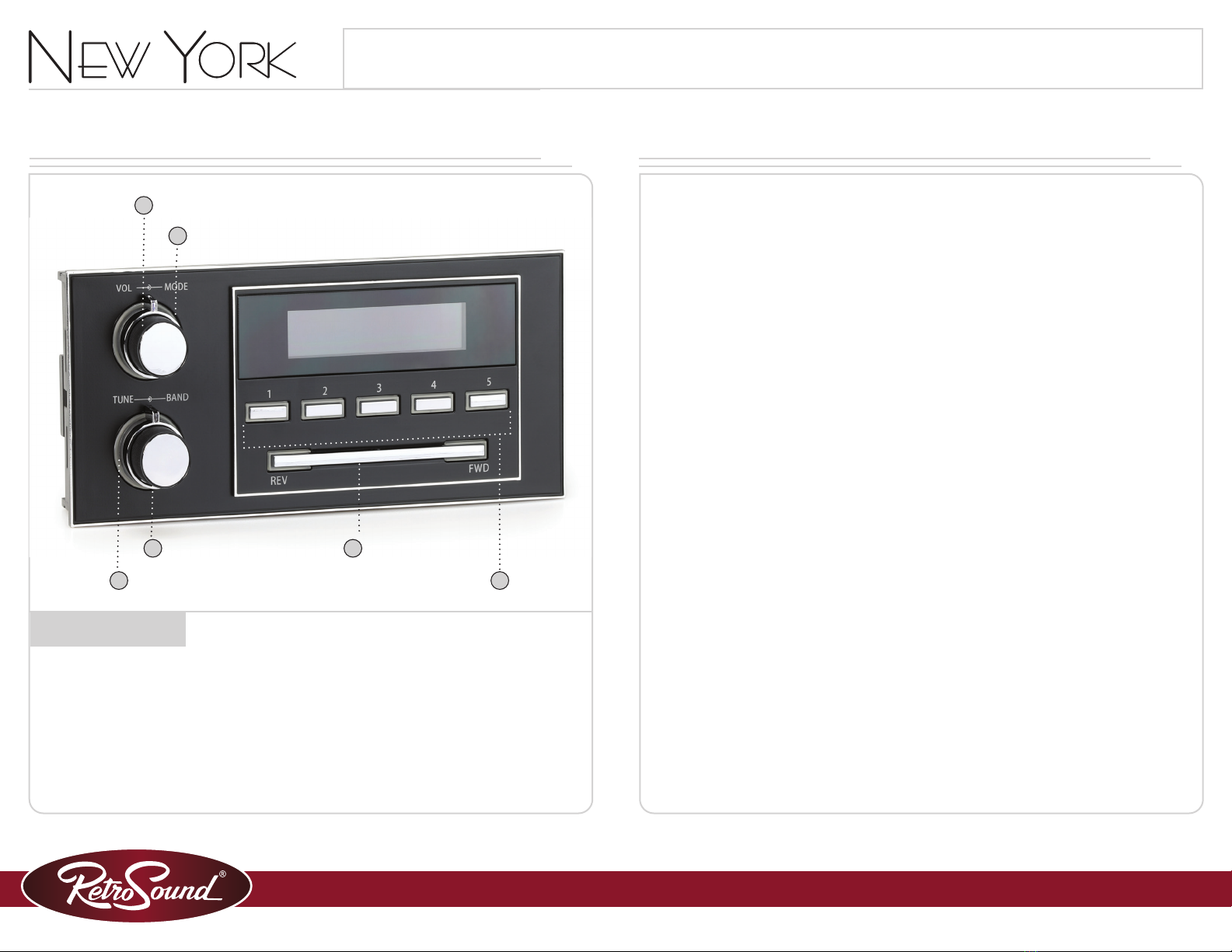

1 Top-Front Knob
4 Bottom-Rear Knob Preset Buttons 5
2 Top-Rear Knob
3 Bottom-Front Knob 6 Seek Bar
Setting Radio Presets
To set a preset, tune to the station you want to set the preset to, and then press and hold the
desired Preset Button(5) for two seconds.
Recalling Radio Presets
To recall a preset, simply press the Preset Button(5) your station was set to previously.
Power On/O󰀨
Press the Top-Front Knob(1) to power the unit on.
Press and hold the Top-Front Knob(1) to power the unit o󰀨.
Volume
Rotate the Top-Front Knob(1) to change the volume.
Changing Source Modes
Rotate the Top-Rear Knob(2) clockwise to cycle through the source modes.
Changing Radio Bands
Rotate the Bottom-Rear Knob(4) counter-clockwise to cycle through the radio bands.
Tune
Rotate the Bottom-Front Knob(3) to scroll through the stations.
Seek Bar
Press the Seek Bar(6) to nd the previous/next station, or skip to the previous/next track.
Mute On/O󰀨
Press the Bottom-Front Knob(3) to mute and unmute.
Equalizer (EQ)
Press the Top-Front Knob(1) to enter the Tone Control sub-menu. Press and release the Top-
Front Knob(1) until you see the EQ setting you’d like to adjust. Rotate the Top-Front Knob(1) to
adjust the setting. Press the Top-Front Knob(1) to move to the next item, and repeat to adjust
each option. Let the unit time out to set.
Setting the Clock
Press and hold the Bottom-Front Knob(3) to enter the System Settings sub-menu. Rotate the
Bottom-Front Knob(3) to cycle through the choices until you see CLK, then press the Bot-
tom-Front Knob(3) to select. Rotate the Bottom-Front Knob(3) to adjust the hours. Then press
the Bottom-Front Knob(3) again to move on to minutes. Rotate the Bottom-Front Knob(3) to
adjust the minutes. Let the unit time out to set.
Display Color*
Press and hold the Bottom-Front Knob(3) to enter the System Settings sub-menu. Rotate
the Bottom-Front Knob(3) to cycle through the choices until you see SCAN, then press the
Bottom-Front Knob(3) to cycle through the colors. Let the unit time out to set.
Beep On/O󰀨
Press and hold the Bottom-Front Knob(3) to enter the System Settings sub-menu. Rotate the
Bottom-Front Knob(3) to cycle through the choices until you see BEEP ON/OFF, then press the
Bottom-Front Knob(3) to choose between BEEP ON or BEEP OFF. Let the unit time out to set.
Radio Face Quick Start Guide
