Reverie 3E Power Base User manual

Reverie 3E™ Power Base
Owner’s Manual and Reference Guide
REV: 2015-08-03
Manual Part No. D1103-301-3E
Copyright © 2015. All Rights Reserved.
Ascion LLC.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
2
Reverie 3E™ Power Base
Table of Contents
Safety Precautions.............................................................................................3
Parts List............................................................................................................8
Power Base Assembly Instructions ..................................................................9

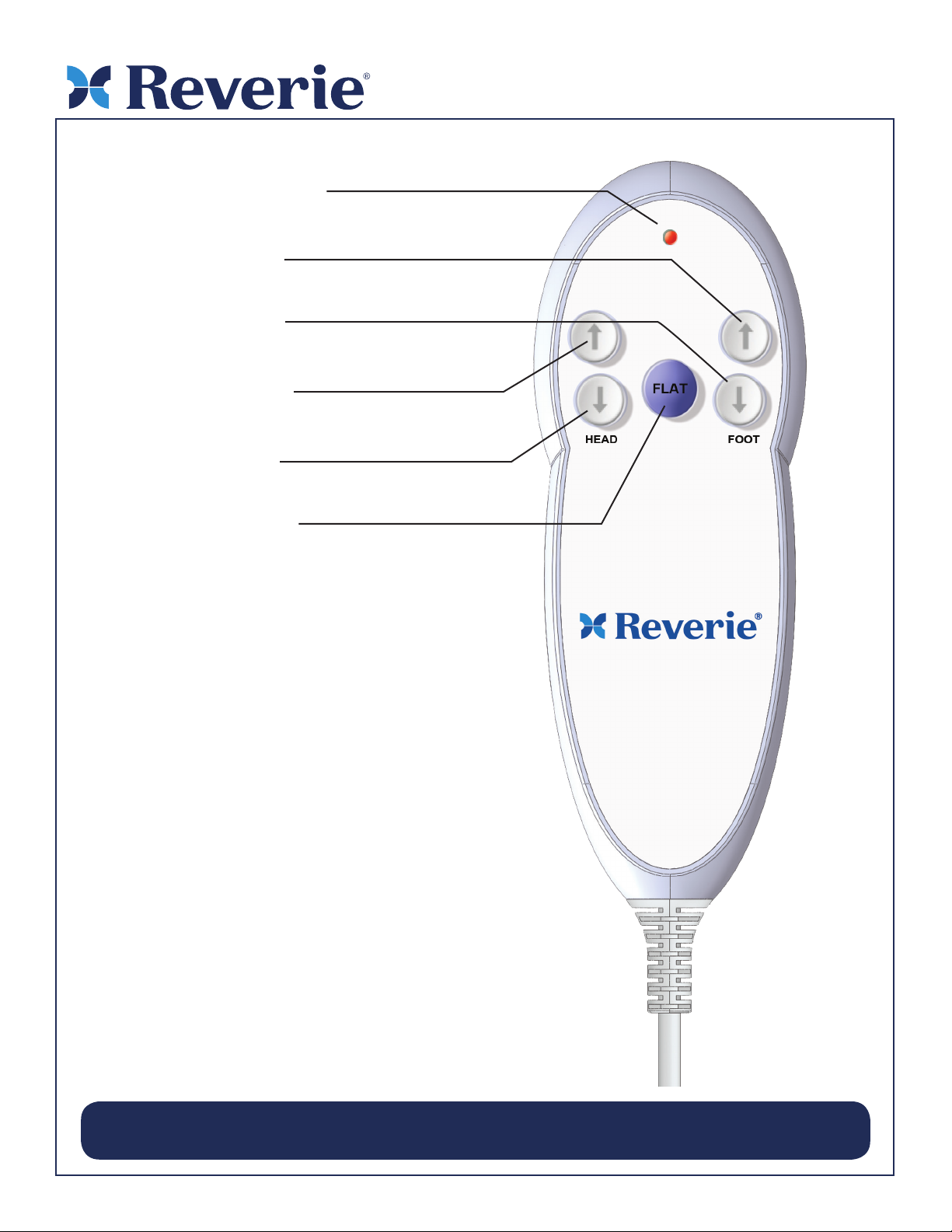

Wired Hand Held Control...................................................................................14
Wired Hand Held Control Operation Guide.......................................................15
Pairing Instruction for Joining 2 Bases..............................................................16
Troubleshooting.................................................................................................19
Warranty.............................................................................................................20
Warranty Information: Please see the warranty that came with your
product. Reverie 3E™ Power Base

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
3
Safety Precautions
SAFETY PRECAUTIONS
WARNING! IMPORTANT SAFETY INSTRUCTIONS.
PLEASE READ THESE INSTRUCTIONS
THOROUGHLY BEFORE USING THIS PRODUCT.
SAVE THESE INSTRUCTIONS!
When using an electrical furnishing basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING)
DANGER: To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING:
To reduce the risk of burns, re, electric shock, or injury to persons:
• Unplug from outlet before putting on or taking off parts.
• Close supervision is necessary when this furnishing is used by or near children, invalids or
disabled persons.
• Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
• Never operate this furnishing if it has a damaged cord or plug, or if it is not working properly,
dropped or damaged, or dropped into the water. Return the furnishing to a service center for
examination and repair.
• Keep the cord away from heated surfaces.
• Never operate the furnishing with the air openings blocked. Keep the air openings free of lint,
hair and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
4
Safety Precautions
WARNING: Risk of Injury:
Keep children away from extended foot support (or other similar parts).
WARNING: Risk of electric shock:
Connect this furnishing to a properly grounded outlet only.
See Grounding instructions.
GROUNDING INSTRUCTIONS:
This product must be grounded. If it should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is
properly grounded.
Do not modify the plug provided with the product. If it will not t the outlet, have a proper outlet
installed by a qualied electrician.
SAVE THESE INSTRUCTIONS!
L’AVERTISSEMENT:
LE RISQUE DE CHOC ÉLECTRIQUE
L’AVERTISSEMENT:
N’UTILISE PAS PRÉS DE L’UTILISATION DE GENS OU DU PORTAGE DES ARTIFICES
MÉDICAUX
POUR L’UTILISATION DU MÉNAGE/RÉSIDENTIELLE SEULEMENT
N’UTILISEZ PAS DEHORS

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
5
Safety Precautions

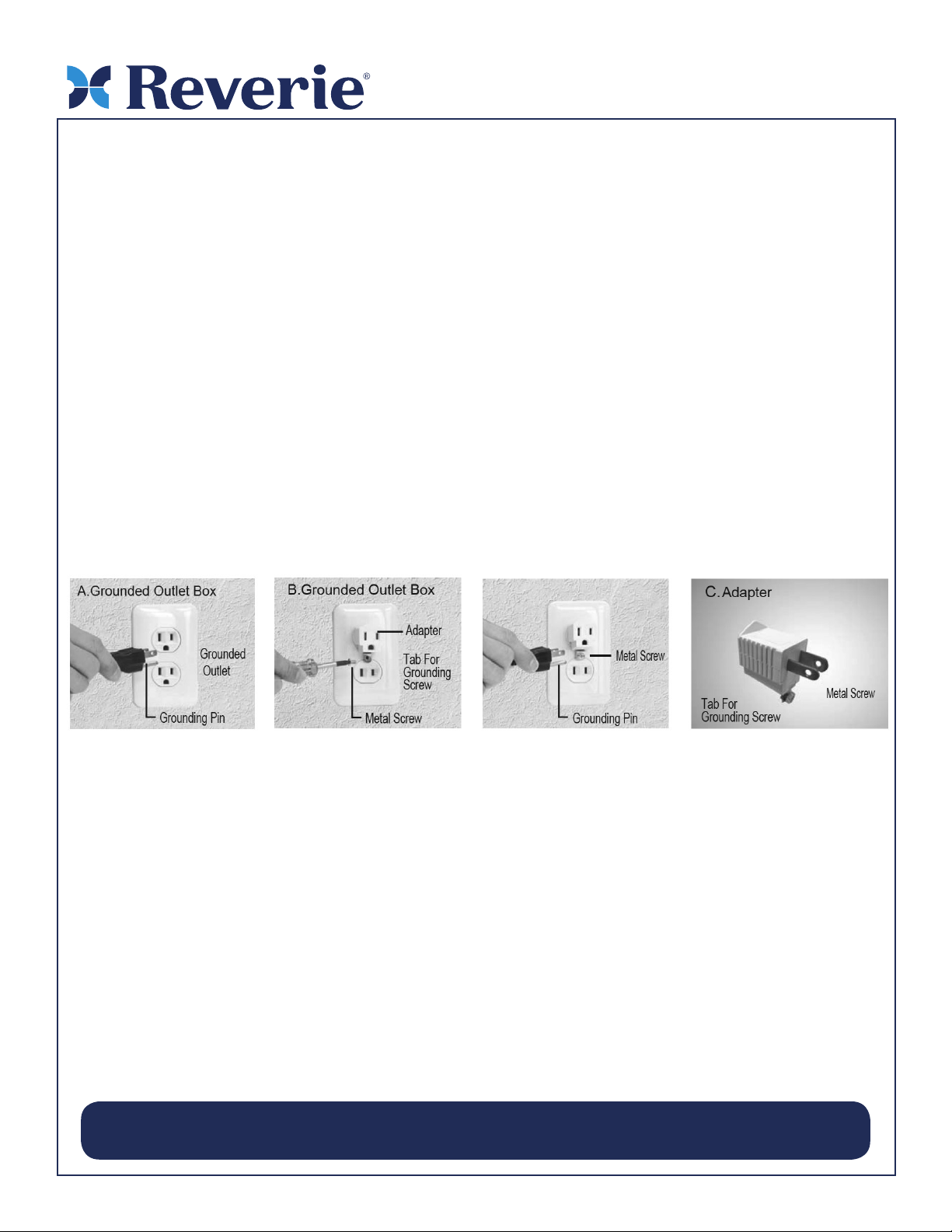

This product is for use on a standard 120-volt circuit, and has a grounding plug that looks
like the plug illustrated in photo A (see Figure). A temporary adapter that looks like the
adapter illustrated in photo B and C can be used to connect this plug to a 2-pole receptacle
as shown in photo B if a properly grounded outlet is not available. The temporary adapter
should be used only until a properly grounded outlet (photo A) can be installed by a
qualied electrician. The green colored rigid ear, lug or the like extending from the adapter
must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by a metal screw.
This product is for use on a circuit having a standard rating of 120 volts and is factory equipped
with a specic electric cord and plug to permit connection to a proper electric circuit. Make sure
that the product is connected to an outlet having the same conguration as the plug. No adapter
should be used with this product. If the product must be reconnected for use on a different type of
electric circuit, the reconnection should be made by qualied service personnel.
Unauthorized modications could void the electrical portion of your warranty. Failure to use a
properly grounded outlet for this product or modication of the plug will compromise this important
grounding safety feature and may result in electrical shock, electrical re, or faulty operation of the
product.
FOR BEST RESULTS, YOUR POWER BASE SHOULD BE PLUGGED INTO A SURGE
PROTECTOR (not included).
WARRANTY PRECAUTION:
Do not open control box, motors or wireless remote controls (with the exception of the battery
compartment if equipped). The warranty is void if these units are tampered with. Any repair or
replacement of power base parts must be performed by an authorized technician.
IN-HOME USE AND HOSPITAL DISCLAIMER:
Your power base is strictly designed for in-home use only. It is NOT designed for hospital use
and is NOT designed to meet hospital standards. Do not use this base with TENT TYPE oxygen
therapy equipment or near explosive gases.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
6
Safety Precautions
WARNING!
DO NOT USE NEAR PEOPLE USING OR WEARING MEDICAL DEVICES. FOR HOUSEHOLD /
RESIDENTIAL USE ONLY. DO NOT USE OUTDOORS.
This product conforms to UL STD 962
IMPORTANT SAFETY FEATURES:
Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
If there is an overload weight condition on the head or foot mechanism, the control unit will
automatically stop all functions. Once the excess weight is removed the control unit will
automatically allow all functions to resume operation after 30 seconds.
As with any product that produces a vibrating motion, it is possible that some pacemakers may
interpret this motion as a false sense of movement and/or exercise. This may or may not affect
your pacemaker. If you have any concerns, please consult your physician. For more information
please contact customer service by calling 800-973-8374.
USER-SERVICEABLE PARTS:
This product is specically designed to have no maintenance by you, the user. Therefore, you are
encouraged not to open any motors, alter the wiring, adjust, modify or change the structure of the
product, as it will void the warranty.
POWER RATINGS:
MODEL NO: T120-24-2
INPUT: AC 120V - 60Hz
OUTPUT: DC 24V
Rated Current : 3A
Control Actuator : 2
The input transformer voltage is AC120V (1.5 Amp) 60HZ, and the output voltage is DC24V
(3Amp). When there is a short-circuit, the customer should seek professional assistance by
calling a licensed electrician or by contacting customer service at 800-973-8374.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
7
Safety Precautions
SMALL CHILDREN AND PETS WARNING:
After your Reverie 3E™ Power Base has been unboxed, immediately dispose of packaging as it
can smother small children and pets. To avoid injury, children and pets should not be allowed to
play on or under the power base.
Children should not operate this product without adult supervision. Close supervision is necessary
when this furnishing is used by, or near children, invalids, or disabled persons.
SAVE THESE INSTRUCTIONS:
Your Reverie 3E Power Base has been designed to provide you with the reliable
operation and durability you expect. This product has been inspected and tested prior to shipment.
PRODUCT RATINGS
The lift motor in your Reverie 3E™ Power Base is NOT designed for continuous use. Reliable
operation and full life expectancy will be attained as long as the lift motor does not operate more
than two (2) minutes over an eighteen (18) minute period, or approximately 10% duty cycle. Any
attempt to circumvent or exceed this rating will shorten the life expectancy of this product and
may void the warranty. The recommended weight restrictions for your Reverie 3E™ Power Base
is up to 850 lbs. total weight, including people and the mattress for all sizes of power bases.
Lift speed will vary due to weight and mattress conguration, as well as the mattress type. The
weight must be evenly distributed across the base. This Product is not designed to support or lift
850 lbs of total weight in the head or foot sections of your Reverie 3E™ Power Base alone, or in
any unevenly distributed fashion. Some mattresses are not designed for Power Bases because
they do not bend or ex well when adjusted. When using such a mattress with your Reverie 3E™
Power Base the weight limits set forth herein do not apply, as the bending of the mattress requires
signicant force and puts signicant strain on the motors and the p itself.
Note: Exceeding the recommended weight restrictions could damage your power base
and void your warranty and using a mattress on top of your power base that is
not designed for adjustability may also void your warranty.
For best performance, you should enter and exit the Power Base while it is in the at or fully
lowered position.
DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION.
INTENDED USAGE
The electric power base should be installed with the head board brackets and/or the head
of the frame positioned close to a wall.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
8
Parts List for Reverie
3E™ Power Base
Note: Before discarding any packing materials, check the power base carton and verify the
following items in the parts list are included:
REVERIE 3E™ POWER BASE
PARTS LIST
A. Wired Remote Control - hardwired to base (1)*
B. Mattress Retainer Bar (1)*
C. Base Legs (4)
D. Retainer Bar Bolt (4 )*
E. Retainer Bar Plate (2)*
F. Allen Wrench (1)
G. Y-Cable (For use with King and CA King)†
H. 9-Volt Batteries (2)
*Attached to base for shipping
†Not in box with accessories; connected to base
A. B.*
D.*
F.E.*
C.
G.† H.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
9
Frame Assembly Instructions
IMPORTANT UNPACKING INSTRUCTIONS
To avoid damage to the power base, always
open the carton while the power base is
laying in the FLAT position on the oor.
OPEN FLAT
STEP 1
STEP 3
STEP 4
STEP 2
Carefully lift the power base unit out of the
shipping carton, keeping the unit top side
down. For safety reasons, this should be
performed by 2 people.
Remove the extend the power cord from the
frame.
Remove the plastic packaging from the power
base.
Assembling power base legs: Open the
accessories box, take out the 4 legs,
and thread them in a clockwise direction into
the threaded holes in the frame.
NOTE: Tighten the legs securely to the frame.
Leave no space between the leg and frame.
WARNING:
POWER CORDS MUST NOT INTERFERE
WITH ANY POWER BASE MECHANISMS.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
10
Frame Assembly Instructions

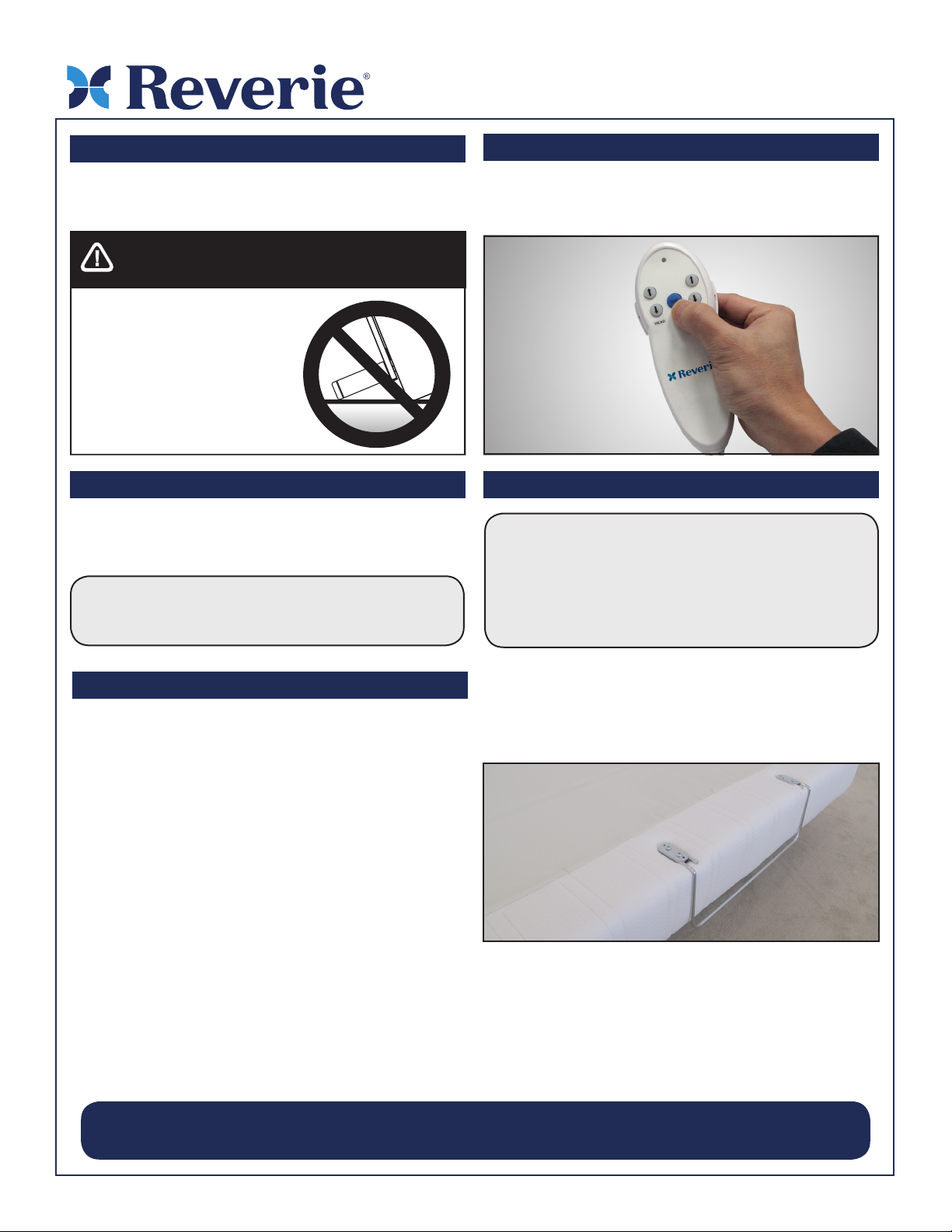

STEP 7
STEP 8
STEP 9
This hand unit is a wired unit, and does not
require batteries. Briey activate all functions
on the hand control to verify that all of the
features are operational. If your Reverie 3E™
Power Base does NOT operate, please refer to
the Troubleshooting section beginning on page
18 of this manual.
Return the base to the at position and proceed
to assemble the Mattress Retainer Brackets.
Use the Retainer Bolts (D) and Retainer Bar
Plate (E) to fasten the Mattress Retainer
Bracket (B) to the front of the power base. (As
shown in the diagram below).
NOTE: Use only a manual screwdriver to
install the retainer bolts. DO NOT use a
power screwdriver to tighten the bolts. DO
NOT over tighten the mattress retainer
hardware.
STEP 5
STEP 6
Carefully rotate the power base over the
topside up position.
Plug the power cord into a grounded electrical
outlet.
NOTE: An electrical surge protection unit is
recommended (not included)
ATTENTION! Improper handling
DO NOT
lean the power base
against the installed
legs to ip it over.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
11
Frame Assembly Instructions
STEP 10
Place your mattress on top of your power base.
Typical Reverie 3E™ Power Base installation
is now complete. If the base is equipped with
a programmable setting or options, refer to the
Remote Control Guide for more information.
NOTE: If the power base is to be set
up without a headboard, simply install a
mattress on the frame. If a headboard is
to be installed, please follow headboard
installation instruction.
NOTE: It is important to position the bottom
of the headboard cross member a maximum
distance of 3 inches (76.2 mm) between the
headboard and the top of the mattress. Do
not exceed 3 inches (76.2 mm).
ATTENTION: Failure to follow the proper
installation instructions may result in
damage to your power base.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
12
Frame Assembly Instructions
Optional Parts List for Headboard Bracket Installation
PARTS LIST
A. Leg Clamp Bracket (2)
B. Inner Headboard Bracket (2)
C. Outer Headboard Bracket (2)
D. 45 L Bracket Bolt (4)
E. 40 L Bracket Bolt (8 )
F. 5 / 16 Inch Washer (16 )
G. 5 / 16 Inch Locking Nut (12)
H. Allen Key (1)
I. Wrench (1)
A.
D.
G.
B.
E.
H.
C.
F.
I.
D
D
A
A
F
F
B
B
G
E
E
C
C
E

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
13
Frame Assembly Instructions
Headboard Bracket Installation
STEP 1
STEP 2
Install the headboard brackets to the power base.
Place one bracket on the left-hand side of the
base and one bracket on the right-hand side of
the base.
1. Use the hand control to raise the head of the
base in order to gain access to the power
base.
2. Bolt the Leg Clamp Bracket (A) to the leg
using the headboard bracket bolts (D), and
the 5/16” lock nut (G).
3. Bolt the inner Headboard Bracket (B) to the
Leg Clamp Bracket (A) using the Headboard
Bracket Bolts (E), the 5/16” washer (F), and
the 5/16” lock nut (G).
4. Place the open side of the outer headboard
bracket (C) onto the exposed square tube of
the inner head board bracket (B). This will
create a tight t between (B) and (C). Place a
Headboard Bracket Bolt (E) with a 5/16 Inch
Washer (F) through the Outer Headboard
Bracket (C) and into the Inner Headboard
Bracket (B). Use a 5/16 Inch Washer (F) and
5/16 Inch Locking Nut (G) and hand tighten to
allow for adjustment. Repeat same procedure
for opposing side of the power base.
5. Ensure the headboard bracket is assembled
a distance of 1.5 (38.1 mm) to 2 inches
(50.8 mm) between the edge of the
power base and the headboard bracket
assemblies.
6. Firmly tighten the headboard bolts (not
included) to the end of the headboard
bracket assembly.
7. Measure the distance of the center to center
mounting holes in the headboard.
8. Measure the distance of the center to center
mounting holes in the headboard bracket
assemblies.
9. If the headboard brackets require
adjustments, loosen the bolts that are
holding the outer headboard brackets and
move them to the necessary distance.
Reinstall the bolts and rmly tighten.
Place your mattress on top of your power base.
Typical Reverie 3E™ Power Base is
Headboard installation now complete. If the
base is equipped with a programmable setting
or options, refer to the Hand Control Guide for
more information.
G
AD
I
I
HD
AG
BC
E
H
F
FAB
B
A
CFE
G
E

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
14
Wired Hand Held Control
LED SIGNATURE LIGHT
A. RAISE FOOT SECTION OF
THE BASE
B. LOWER FOOT SECTION OF
THE BASE
C. RAISE HEAD SECTION OF
THE BASE
D. LOWER HEAD SECTION OF
THE BASE
E. RETURN ALL SECTIONS TO
THE FLAT POSITION

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
15
Wired Hand Held
Control Operation Guide
OPERATING INSTRUCTIONS
HEAD AND FOOT ADJUSTMENT (A,B,C,D)
• Adjusts the head and foot sections to the
desired positions.
BASE “FLAT” BUTTON (E)
• Return both head and food the at position.
Safety
The input transformer voltage is AC120V 60HZ, the output voltage is DC24V 3A. When there
is a short circuit, a fuse on the transformer will automatically be blown in order to protect the
electrical equipment. When this occurs, the customer MUST seek professional assistance.
NOTICE:
Changes or modications not expressly approved by the party responsible for
compliance could avoid the user’s authority to operate the equipment.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
16
Instructions for Joining Two Bases
Instructions For Joining Two Bases
ONE WIRED REMOTE CONTROL AND TWO BASES
Assembling Split Dual 3E™ Bases (Base A and Base B) to be used together as a single King or
CA King system.
NOTE: The use of “Base A” and “Base B” is for description purposed only and the bases
will no actually be labeled “Base A” or “Base B”.
NOTE: Wired remote and wired cable are attached to the underside of 3E for shipping.
STEP 1 STEP 6
STEP 7
STEP 8
STEP 2
STEP 3
STEP 4
STEP 5
Carefully unplug the control from Base A and
Base B.
Plug one of the provided hardwired remote
controls into the “Control Input” side of the
Y-Cable.
Pick up and carefully ip both of the bases over
to the topside up position. Remove the plastic
packaging from the product.
Route the control cable to your preferred side of
the base.
Remove both wired remote controls and set
aside. Place the spare remote control in a safe
place for any future use.
Remove and extend one of the provided
Y-cables from the Base (See Diagram A).
Plug in the “A” output of the Y-Cable into Base
A control port (See Diagram A).
Plug in the “B” output of the Y-Cable into Base
B control port (See Diagram A).
BASE A
BASE B

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
17
Installation

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
18

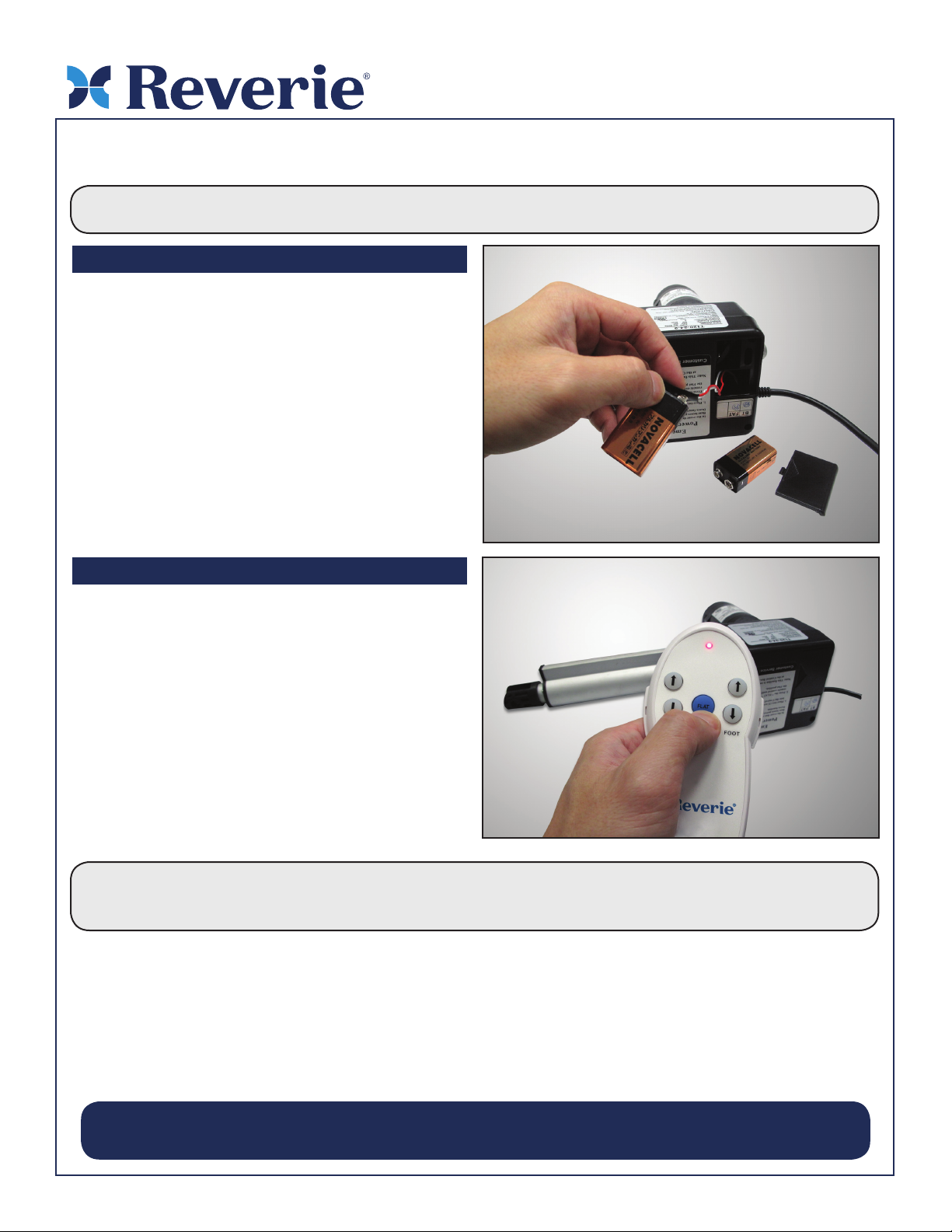

Emergency Power Down
Cycle Instructions
In the event that your Reverie 3E™ Power Base loses power, there is an Emergency Power
Down Function.
STEP 1
STEP 2
Place two (2) new alkaline 9-Volt batteries.
Press the button on the wired remote control
until the base fully lowers to the at position.
Notice: This function is only there if there is no power at the control box.
Notice: Lowering the Reverie 3E Power Base using this method is slower than the
standard process

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
19
Troubleshooting
In the Event the Reverie 3E™ Power Base fails to operate, investigate the symptoms and
possible solutions provided in the chart below:
Symptom Solution
Hand control LED will not illuminate or LED
illuminates and appears to be operable but will not
activate the base.
• Verify the power cord is plugged into a working,
grounded electrical outlet. A grounded, electrical
surge protection device is recommended.
Test the outlet by plugging in another working
appliance.
• Verify that the hand held control wire is securely
plugged into the hand held control port located
in the control unit on bottom of base or Y-Cable.
No features of the Reverie 3E Power Base will
activate.
• Unplug the power cord, wait 45 seconds and
plug it in to reset the electronic components.
• The electrical circuit breaker may be tripped.
Check the electrical service breaker box to
verify.
• The surge protection device or electrical outlet
is defective. Test the outlet by plugging in
another working appliance.
• If base has been paired, conrm that all cables
are properly connected, especially the Y-Cable
line that plugs into the bases control port.
Head or foot section will elevate but will not return
to the horizontal (at) position.
• The base mechanism may be obstructed.
Elevate the base and check for an obstruction.
Remove the obstruction.
• The head section may be too close to the wall.
• The headboard may be too close to the edge of
the mattress.
• Verify a 1.5” (38.1 mm) to 2” (50.Bmm) distance
is between the headboard brackets and the
mattress. Adjust if required.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
20
Warranty
20 Year Limited Warranty for Reverie Power Bases
Ascion, L.L.C. d/b/a Reverie (hereinafter referred to as “Reverie”) warrants to the end user
(hereinafter referred to as “Purchaser”) that during the twenty (20) year term of this Limited
Warranty, Reverie will, at its sole discretion and option, repair or replace Purchaser’s motorized
bed frame or motorized bed foundation parts (hereinafter referred to as “adjustable bed” or
“adjustable beds”) that are found to be defective due to faulty workmanship or materials, subject
to the limitations set forth herein.
This Limited Warranty begins on the “warranty commencement date” which is the date of
purchase for new unused adjustable beds and the date of manufacture for adjustable beds that
have been used as oor or display models. Thus, on a oor model adjustable bed, the warranty
is a portion of the 20-year Limited Warranty. If original proof of purchase is not provided by
Purchaser, Reverie reserves the right to determine that the adjustable bed is not covered by this
Limited Warranty or to use the manufacturing date as the warranty commencement date. This
Limited Warranty extends only to the original Purchaser and may not be transferred.
YEAR 1: FULL COVERAGE OF PARTS AND LABOR
Upon receiving reasonable notice during the rst year from the warranty commencement date,
Reverie will send replacement parts (at no cost to the Purchaser) for any defective adjustable
bed part to the Purchaser, and Reverie will pay all pre-authorized labor and transportation costs
associated with the repair or replacement of any parts Reverie determines to be defective. This
one (1) year Limited Warranty shall not apply if Purchaser does not return any and all defective
parts to Reverie within 15 days of Purchaser’s receipt of replacement part(s).
YEARS 2-5: FULL COVERAGE OF PARTS ONLY
Upon receiving reasonable written notice at any point in time that is more than one (1) year and
up to ve (5) years from the warranty commencement date, Reverie will offer replacement parts
for any defective adjustable bed part to the Purchaser. This four (4) year Limited Warranty shall
not apply if Purchaser does not return any and all defective parts to Reverie within 15 days of
Purchaser’s receipt of replacement part. Purchaser shall bear all service, transportation, labor and
shipping costs related to the delivery and/or replacement of the defective part.
