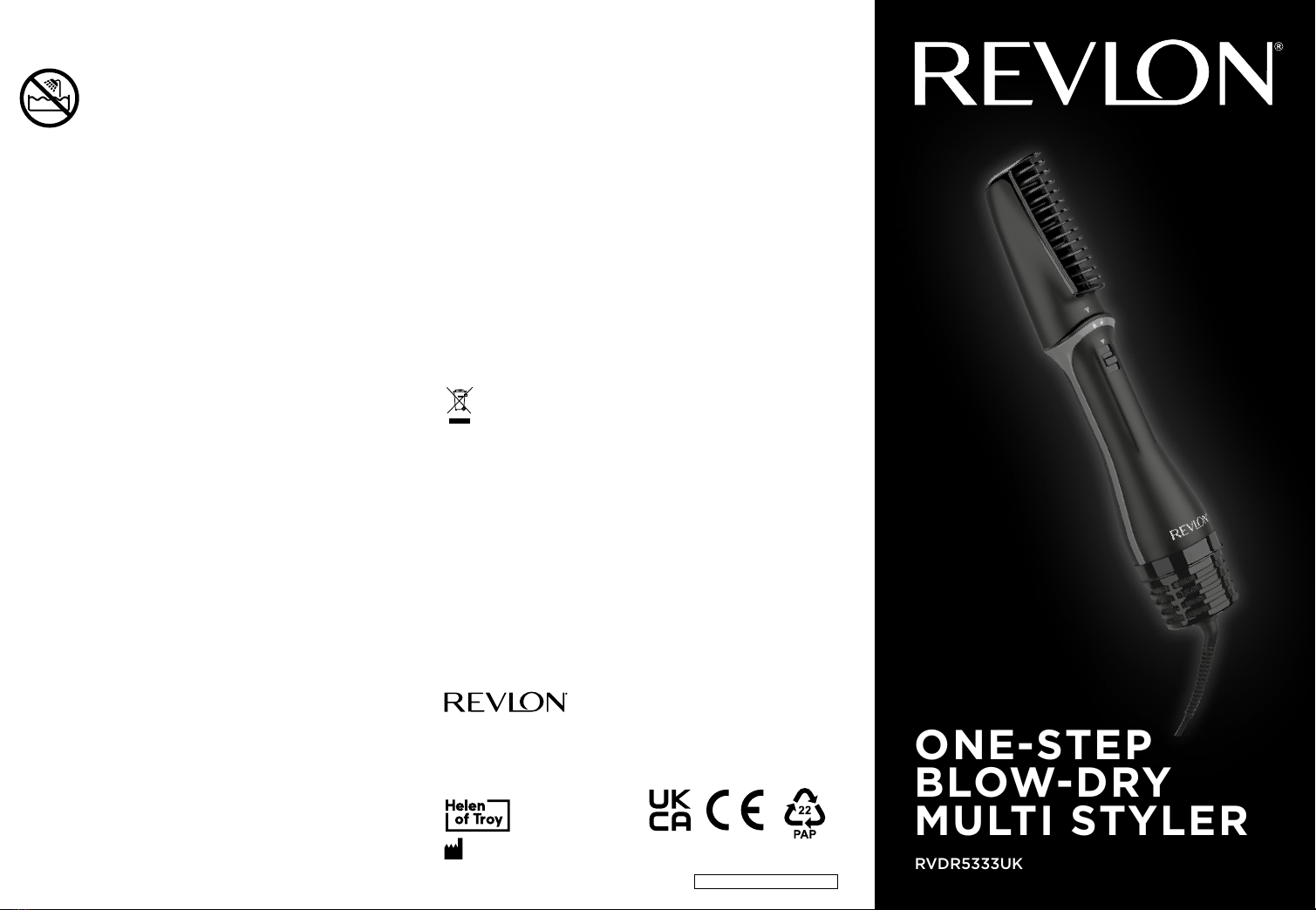

REVLON RVDR5333UK User manual

RVDR5333UK
ONE-STEP
BLOW-DRY
MULTI STYLER
KEEP THESE IMPORTANT SAFETY INSTRUCTIONS
Please read all instructions before using this appliance.
This appliance is intended for household use only.
WARNING: Do not use this appliance
near bathtubs, showers, basins or
other vessels containing water.
WARNING: When the hairdryer is used
in a bathroom, unplug it after use since the
proximity to water presents a hazard even
when the hairdryer is switched OFF.
For additional protection the installation of a
residual current device (RCD) having a rated
residual operating current not exceeding
30mA is advisable in the electrical circuit
supplying the bathroom. Ask your installer for
advice.
This appliance can be used by children aged
from 8 years and above, and by persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
WARNING: Do not leave the appliance
unattended. Do not allow bare skin or the eyes
to come into contact with any heated surface
on the appliance when in use. Do not place the
appliance on any heat-sensitive surfaces when
hot or plugged into the mains. Always unplug
the appliance when not in use.
WARNING: Do not block the air inlet or outlet
during use. When using the appliance, care
must be taken to prevent hair entering the
air inlet opening. The air outlet opening of
this appliance will become hot during use,
avoid touching the outlet or any accessories
attached to the outlet.
NOTE: Use on towel dried hair only.
WARNING: This appliance has no user-
serviceable parts or components.
GUARANTEE AND SERVICE SECTION:
Your REVLON appliance is guaranteed against defects under normal use for 4 years from the
original date of purchase. If your product does not perform satisfactorily because of defects in
materials or manufacture, within the warranty period, it will be replaced.
Please retain your till receipt or other proof of purchase for all claims within the warranty
period. The guarantee becomes void if the proof of purchase is not presented. Simply take
the appliance back to the retailer from where purchased, along with a valid till receipt, for
exchange free of charge. This guarantee does not cover defects which have occurred due to
misuse, abuse or are caused by failure to follow the instructions contained within this manual.
UK only: This does not affect your consumer statutory rights.
The manufacturing date is given by the 4 digit Batch Number marked on the rear of the
product. The first 2 digits represent the week of manufacture, and the last 2 digits represent
the year of manufacture. Example: 3421 - product manufactured week 34 of the year 2021.
The appearance of this appliance may differ from the illustration.
For product support, please visit us at: www.HelenofTroy.com/emea-en/Support
Or contact us by phone: [phone]
For product information, visit us at: www.revlonhairtools.shop
These instructions are also available on our website.
Please visit www.HelenofTroy.com/emea-en/Support
This appliance complies with EU legislation 2012/19/EU on end of life recycling.
Products showing the‘Crossed Through’wheeled bin symbol on either the rating
label, gift box or instructions must be recycled separately from household waste at
the end of their useful life.
Please DO NOT dispose of appliance in normal household waste. Your local appliance retailer
may operate a‘take-back’ scheme when you are ready to purchase a replacement product,
alternatively contact your local government authority for further help and advice on where to
take your appliance for recycling.
This product carries the CE mark and is manufactured in conformity with the Electromagnetic
Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, the ERP Directive 2009/125/EC,
and the ROHS Directive 2011/65/EU.
220-240V ~ 50-60Hz 3.41-3.72A
Type#. EH5298FD
The REVLON® trademark is used under licence
from Revlon by Helen of Troy Limited.
Kaz Europe Sàrl
Q-Center, Chaux 4
CH-1030 Bussigny - Switzerland
© 2022 Helen of Troy. All rights reserved. (AW016647) AW ISSUE No#: 1 Date: 05SEP22
Made and printed
in China

OPERATING INSTRUCTIONS
This appliance is intended for household use only.
The appearance of this appliance may differ from the illustration.
Only use this appliance for its intended purpose as described in this manual.
Do not use attachments not recommended by the manufacturer.
ONE-STEP BLOW-DRY MULTI STYLER
The revolutionary One-Step Blow-Dry Multi Styler is designed to deliver multiple styles for all
hair. It’s gentle on your hair as it dries, curls and styles without extreme heat, creating shiny,
healthy-looking styles with less damage.
CERAMIC TOURMALINE TECHNOLOGY
Helps to reduce static and frizz and enhances shine for silky-smooth results.
TRIPLE CERAMIC COATING
Triple ceramic coating helps reduce damage from over-styling with even heat distribution,
making styling fast and easy.
OVERHEATING CUT-OFF
This appliance is equipped with a thermostat that will cycle OFF (0) should the heat of the
dryer exceed the optimum drying level, due to partially blocked air inlet or outlet openings.
In the event that the appliance stops or releases only cool air during use, turn the appliance
OFF (0) and allow it to cool down. Once the appliance cools, the thermostat will automatically
reset and usage may resume.
STYLING
• Always towel-dry hair to remove excess water and smooth it with a comb
or brush to untangle. Styling hair will be faster if it is slightly damp, not wet.
• Plug the appliance into an electrical outlet and turn the temperature dial to LOW (I).
Gradually increase to a comfortable temperature.
• Using the Root Drying Concentrator attachment, begin blow-drying and combing your
fingers through your hair, lifting sections and aiming the concentrator at the roots.
Continue until the roots are dry.
• Remove the concentrator and attach the 32mm curling barrel or the oval brush attachment
(for directions, see below and the illustrations)..
• For best results, separate hair into manageable sections.
• Holding the appliance vertically, clamp a 25mm section at the ends and roll toward your
crown. For best results, spread hair across the barrel to avoid overlap.
• Continue holding the appliance vertically until hair feels dry. (If more drying is needed,
repeat with same section.)
• Lightly press the clamp to release hair and pull the appliance downward to unroll the curl.
• Repeat until hair has been dried into bouncy spiral curls.
• Turn the appliance off when styling is complete.
Styling tip: While hair is still clamped, twist the temperature dial to COOL and hold for
10–15 seconds.
HOW TO CHANGE THE ATTACHMENTS
Press the release button down and slightly twist the handle to the right as you pull the
attachment away from the handle of the appliance (illustration 1). To attach one of the other
attachments, align the attachment with the handle and insert it with a slight twist to the left
until you hear a CLICK to secure and lock attachment in place (illustration 2).
CLEANING
Always unplug the appliance from the mains after use and allow it to cool before cleaning.
Wipe the outer surface of the appliance with a slightly moist cloth, then wipe dry.
Dust and lint can be removed from air intake openings with a small brush or vacuum cleaner
attachment.
STORAGE
Always unplug when not in use.
Allow the appliance to cool before storing. Always store in a dry location. Do not pull or twist
the cord. Do not wrap the cord around the appliance, as this may cause the cord to wear
prematurely and break. Regularly check the power cord for wear and damage (particularly
where it enters the appliance and the plug).
FEATURES
A. Root drying concentrator
B. 32mm curling barrel
1. Cool tip
2. 360° Vented airflow barrel
3. Clamp
4. Thumb grip
C. 64mm Oval Brush
1. Cool tip
2. Vents
3. Activated charcoal bristles
D. Attachment release button
E. Lightweight ergonomic sleek handle
F. 4 Settings (Off, Cool, I, II, III )
G. Air inlets
H. 2.5m Tangle free swivel cord
H
G
F
1.
1.
2.
3.
2.
3.
4.
CB
D
E
A
OFF
COOL
LOW
MED
HIGH
1
OFF
COOL
LOW
MED
HIGH
2
