Revo Uno User manual

Operating Guide
DAB DIGITAL RADIO
www.revo.co.uk

Copyright and
Acknowledgements
Copyright © 2006 Revo Technologies Ltd.
All rights reserved.
Revo Technologies Ltd
The Inox Building
Caldwellside
Lanark
Scotland
United Kingdom
ML11 7SR
Tel. [phone]
Fax. [phone]
Email. [email protected]
Website: www.revo.co.uk
The information in this guide is believed to
be correct at the time of publication.
However, our policy is one of continuous
development and so the information is
subject to change without notice.
Revo®, Uno™ and M-Port™ are trademarks
or registered trademarks of Revo
Technologies Limited.
iPod®is a registered trademark of Apple
Computer, Inc.
Safety Warnings
Do not operate this radio near water.
Avoid small objects and liquids from getting
into this product.
Do not remove screws or casing parts.
Use only the power supply unit supplied.
EEC: This product has been designed and
type-tested to comply with EU requirements
and carries a CE mark.
Technical Support
Should you encounter any difficulties with
the operation of your radio, or should you
suspect that it may be faulty in some way,
please call our technical support
department on the number below:
01555 666 161
Alternatively, email [e-mail] or
visit the troubleshooting section of our
website at: www.revo.co.uk/support
Preface
2

Contents
Welcome to Revo! 4
Benefits of DAB radio 4
Uno™ overview and key features 4
Warranty 4
Warranty registration 4
Controls and Connections 5
Powering Uno™ 5
DAB Operation 6
Change display mode 7
Show signal strength 7
Finding and adding new stations 7
Removing ‘unavailable’ stations 7
Menu Options 8
To change station order 8
Manual Tuning 9
Set DRC 9
Display software version 9
Alarm 10
FM Operation 11
M-Port™ 12
Trouble-Shooting 13
Technical Specification 14
Accessories and Spares 15
3

Benefits of DAB Radio
Clear, interference free digital sound
Many more stations, much more choice
No frequencies, select by station name
No re-tuning
Text information via LCD screen
Uno™ Overview
Uno™ combines high quality DAB and FM
radio reception with sophisticated alarm
clock functionality including ‘snooze’.
Uno™ can also be used as a high quality
speaker system for your iPod™(or other
MP3 player of external sound source).
Simply connect your device to Uno’s
M-Port™ using the audio lead supplied.
Warranty
Revo Technologies Ltd warrants to the
purchaser that this product will be free
from parts and manufacturing defects in
the course of normal use for a period of
one year from the date of purchase.
This warranty does not apply in cases of
accidental damage, where the case has
been removed, wear and tear, negligence,
modification or inappropriate use.
Should you encounter problems with this
product, please contact your supplier or
alternatively see page 2 of this guide for
technical support contact details.
Warranty Registration
It is a warranty condition that you register
your purchase by either completing the
warranty card enclosed with your radio or
alternatively registering online at
www.revo.co.uk/register
Thank you for buying our Uno™ DAB Digital Radio, we feel sure that it will
provide you with years of enjoyment and reliable service.
This guide has been designed to quickly get you up-and-running and listening
to DAB digital radio, offer guidance on the more complex features of this
product and provide information on safety, warranty and registration.
Welcome to Revo DAB
4

Controls and Connectors
Powering Uno™

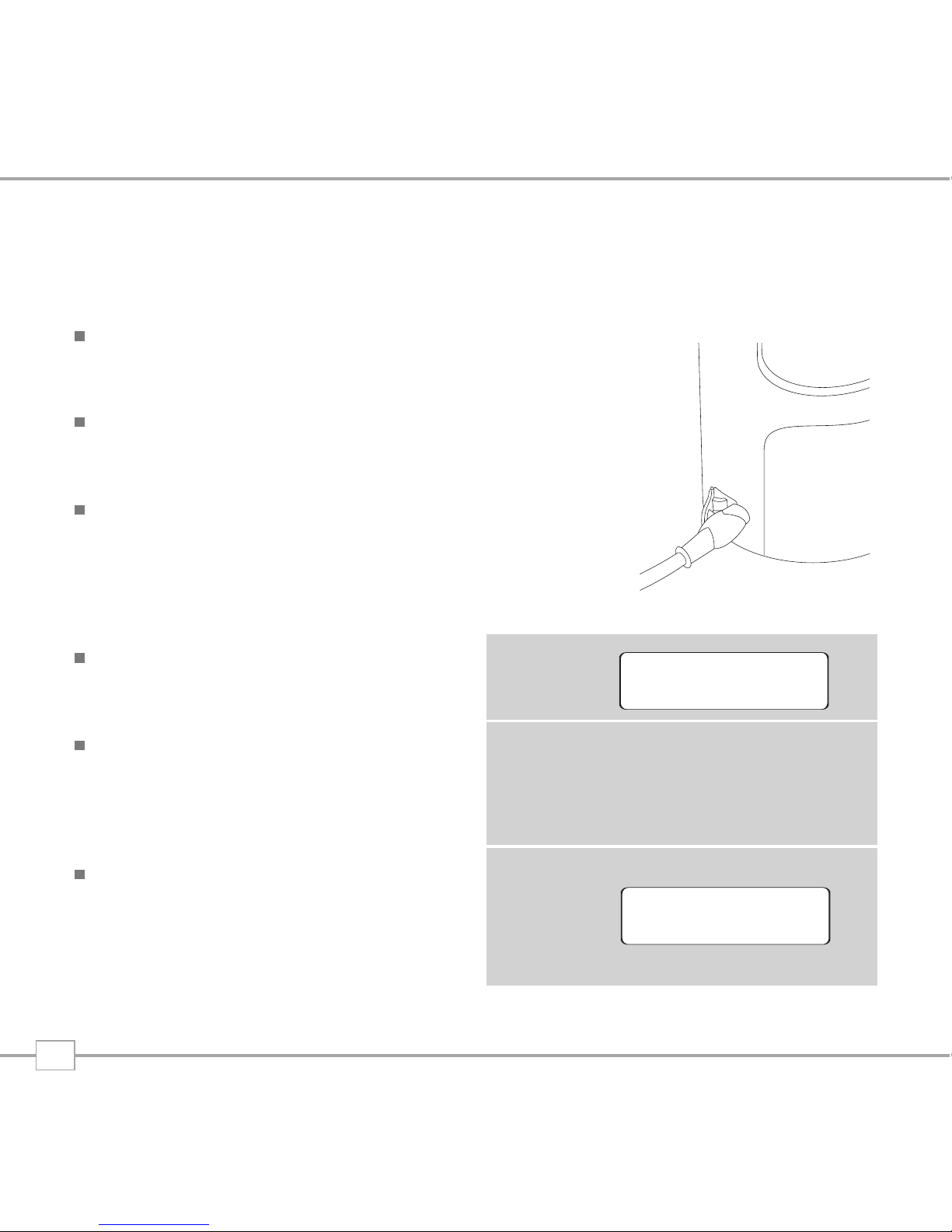

Your Uno™ radio is powered from the mains
using the power adaptor supplied.
Insert the power adaptor plug into the DC
power socket on the rear of Uno™.
Pressing the button will switch Uno™ on.
Only use the power adaptor supplied.
Replacements are available, see page 15
for further details.
1. M-Port
2. Snooze
3. LCD Screen
4. Remote Control Sensor
1. Power
2. Scroll Left
3. Select
4. Scroll Right
5. Volume Up / Down
6. DAB/FM
7. Menu
8. Info/Scan
9. Alarm
10. Presets 1-5
1. Telescopic Antenna
2. 3.5mm Headphone Socket
3. DC Power Socket
1.
1.
2. 3. 4.
6.
7. 9.
8.
10.
5.
1.
4.
2.
2.
3.
3.
5

Extend the telescopic antenna found on
the rear of Uno™.
Uno™ will now set its clock automatically
then go into standby mode.
Press the power button to switch on
your radio.
If this is the first time Uno™ has been
used, press and hold the SCAN button.
Uno™ will now scan for DAB stations in
your area and store them in memory.
When the station scan has been
completed, stations will be displayed in
numeric then alphabetic order. The first
station in the list will be selected.
If no DAB signal is found, it may be
necessary for you to relocate your radio.
Or visit www.ukdigitalradio.com/coverage
to check that DAB coverage is available in
your area.
The top line of Uno’s LCD screen shows
the name of the station currently selected.
Press the <and >buttons to scroll
through the available stations. Press
SELECT to select the chosen station.
DAB Operation
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz
99.50MHz
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz
99.50MHz
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
6
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
SCAN
SELECT

To Change the Display Mode
Uno™ has seven different display modes.
Press the INFO/SCAN button to cycle
through each mode.
These display modes are explained in the
table below:
BBC Radio 1
Sig strength 96
Normal display
with scrolling text
Display option Example
Type of broadcast
Broadcaster
Time and date
Station name and
frequency
Data rate and
stereo/mono
Signal strength
To Show the Signal Strength
Press SELECT
The display shows a signal bar with the
strength of the current station:
The indicator on the signal bar shows the
minimum acceptable signal level.
Stations with a signal strength below this
level will not provide a steady stream of
unbroken audio.
Finding and Adding New
Stations
As time passes, new stations will become
available in your area. To find them and
add them to your station list, simply
press and hold the SCAN button for at
least two seconds.
Removing ‘Unavailable’
Stations
To remove ‘unavailable’ stations from Uno’s
station list, ie. those that display a ?
before the station name, see the ‘Menu
Options’ section on page 8.
Strength of signal
Minimum signal level
7

Uno™ has a number of functions that are accessed through the MENU button.
The following table describes the options
available under the ‘Station Order’ menu:
To change station order
Press MENU, then press <or >until the
name of the option is displayed:
Press SELECT to select your choice.
To specify the order in which stations are
displayed
Select the Station order option.
The top line of the display shows the
currently selected station order and allows
you to change it.
Press <or >to step between the station
order options:
Press SELECT to select the current option.
Menu Options
¯ ˘ or SELECT
¯Station order ˘
Alphanumeric
¯Fav station ˘
¯ ˘ or SELECT
¯Station order ˘
Alphanumeric
¯Fav station ˘
Fav station Lists the most frequently
selected stations first.
Alphanumeric Displays all stations in
alphanumeric order.
Active station Lists active stations
[ones that are currently
broadcasting] before
inactive ones.
Prune stations Remove inactive stations
from the station list.
Station order Description
8

To use manual tuning
Select the Manual tune option.
The display shows the current station number
and frequency:
Press <or >to step between the stations
and press SELECT to select the current
station.
If there is a station corresponding to this
station number and frequency the display will
show the station name, and a tuning meter
showing the signal strength.
To set the dynamic range control
Uno™ includes a dynamic range control that
automatically boosts the volume of quieter
sounds for listening in noisy environments.
Select the DRC value option.
The display shows the current DRC value and
allows you to adjust it:
¯12B 225.64MHz˘
¯12C 227.36MHz˘
••••°••••••
12B BBC DAB
DRC 1
¯DRC fi ˘
¯12B 225.64MHz˘
¯12C 227.36MHz˘
••••°••••••
12B BBC DAB
DRC 1
¯DRC fi ˘
¯12B 225.64MHz˘
¯12C 227.36MHz˘
••••°••••••
12B BBC DAB
DRC 1
¯DRC fi ˘
The DRC value can be switched between the
following options:
To display the software
version number
Press the MENU button then use the
<and > buttons to scroll across to SW
VERSION. The software version number
is displayed on the top line of the display.
You should specify this when speaking to
Revo Technical Support.
DRC 0 Dynamic Range Control is
switched off
DRC 1/2 Dynamic Range Control is
set to half normal level.
DRC 1 Dynamic Range Control is
switched on; the default
setting recommended for
noisy environments.
DRC Description
9

10
Press the button to switch on your
radio then press the ALARM button.
Uno™ allows you to store up to four
different alarm programmes.
To set an alarm press the SELECT
button. Uno™ will now ask you to set the
wake-up time. Use the <>and SELECT
buttons to set the hour, then minute.
Uno™ allows you to set a Daily, Weekday,
Weekend or one-off alarm. If you select a
one-off alarm, Uno™ will ask you to enter
the year, month and day.
Finally, Uno™ will ask you what type of
alarm you would like, DAB, FM or Buzzer.
When an alarm has been set, Uno™ will
display the alarm details. These can be
reviewed by using the <>buttons.
To halt an alarm, press any button on
Uno’s keypad. Alternatively, tap the snooze
panel (zzZzz) to mute the alarm for a
period of 5 minutes. The alarm will repeat
again after this time has elapsed.
To cancel a pre-set alarm, press the
ALARM button, cycle through the options
until ‘Alarm Off’ is displayed, then SELECT.
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm ¯1˘
Not in use
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
¯ ˘ or SELECT
¯Alarm off˘
Alarm ¯1˘
08:00 Daily
Alarm
>
SELECT

FM Operation
To listen to FM radio stations switch
Uno™ on and press the DAB/FM button.
If this is the first time Uno™ has been in
FM mode, it will start at the beginning of
the FM frequency range. Otherwise, the
last FM station you were listening to will
be selected.
To scan through the FM frequency range
press the <or >buttons.
To ‘SEEK’ next active station, press and
hold the SCAN button.
Uno™ can store five FM presets. To store
the current station press and hold one of
the preset buttons (1 - 5).
To select a stored FM station, simply
press the corresponding preset key (1-5).
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz FM
99.50MHz FM
94.50MHz
Preset 1
BBC 7
????
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
1
1
DAB/FM
>
11
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz FM
99.50MHz FM
94.50MHz
Preset 1
BBC 7
????
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
1Xtra
txt us...on 0203
6 Music
Now tuning...
87.50MHz FM
99.50MHz FM
94.50MHz FM
Preset 1 saved
BBC 7
????????????????
Searching...˘
6 Music
Now tuning...
87.50MHz FM
99.50MHz FM
94.50MHz FM
Preset 1 saved
BBC 7
????????????????
87.50MHz FM
99.50MHz FM
94.50MHz FM
Preset 1 saved
BBC 7
SCAN

M-Port™
Using M-Port™
Revo’s M-Port™technology allows for
quick and easy connection of an iPod®,
similar MP3 player or sound source.
Using the connection lead supplied, Uno™
is transformed into a high quality digital
audio speaker system.
Connect one end of the supplied audio
lead to the headphone (or auxiliary out)
socket of your source device, then
connect the other end to the M-Port™
on the side of Uno™.
Uno’s LCD screen will now display the
words “M-Port Active”.
You should adjust the output volume level
on both the source device and on Uno™
itself to gain optimal volume levels and
sound performance.
We suggest that you set Uno’s volume to
‘18’, then control the overall volume of
your music by adjusting the volume level
on the source device.
12
6 Music
•••Volume 18•••
M-Port Active
6 Music
•••Volume 18•••

Trouble-Shooting
Q. I hear a ‘burbling’ noise on some
stations.
A. If the signal strength is too low, a break-
up in reception can occur. This sound is
the result. Make sure that Uno’s
antenna is fully extended and in an
upright position. If the problem persists,
move Uno™ to another location or check
that you are in an area where reception
of this station is possible (visit
www.ukdigitalradio.com/coverage to
check).
Q. I get a ‘?’ before some stations in my
station list, and don’t seem to be able to
select them.
A. ‘?’ before a station name means that it is
either inactive or unavailable. This can
be because they are not currently
broadcasting, you are outside their
broadcast area or you have simply lost
reception. To remove inactive or
unavailable stations press the MENU
button and go to the ‘Prune Stations’
option (available through the Station
Order menu).
Q. I get a ‘No stations available’ message?
A. Make sure that your antenna is fully
extended and vertical. Check the signal
strength and move your Uno™ to
another location if necessary.
Q. I get a ‘clock not set’ message.
A. Uno™ needs to be able to pick-up a DAB
signal to set its clock, since the time is
taken from a radio station broadcast.
Try turning Uno™ on and pressing the
SCAN button. If Uno™ can find a DAB
station, it can then set its clock.
13

Technical Specification
General: Mono DAB and FM radio with full Band III reception.
Speaker: 2” full-range neodymium, 8W power handling
Audio Power Output: 2W
Frequency Ranges: DAB Band III (174 - 240 MHz)
FM (87.5 - 108 MHz)
Antenna: Integral telescopic aerial
Input Connectors: DC power adaptor socket (230V adapter supplied)
3.5mm line-in for auxiliary devices (M-Port)
Output Connector: 3.5mm headphone socket
LCD Display: High resolution 2 x 16 character negative display
Alarm Clock: Alarm clock functionality with ‘snooze’ function
Controls: Power, left, right, select, volume up/down, alarm,
scan/info, menu, DAB/FM, presets (x5)
Remote Control: Infra-red remote control (optional accessory)
Mains Power Supply: 12V 1.2mA
Approvals: CE marked and RoHS compliant.
Dimensions: 167mm (H) x 105mm (W) x 105mm (D)
14

Accessories and Spares
15
Remote Control:
Control your Uno™ with our compact infra-red remote control
Mains Power Supply Unit:
Replacement power supply as supplied with Uno™.
M-Port™ Lead:
Used to connect an iPod® (or similar device) to Uno™.
The following optional accessories and spare parts are available for Uno™.
Please contact your local retailer or alternatively call us on 01555 666 161.
Accessories and spare parts can also be purchased online at www.revo.co.uk

Revo Technologies Ltd The Inox Building Caldwellside Lanark Scotland United Kingdom ML11 7SR
Telephone Support 01555 666 161
Online Support www.revo.co.uk/support suppor[email protected]
DAB DIGITAL RADIO
