Rhima RP 3 User manual

Operator’s Manual
RP 3 & RP 3 HR Washer
Australia Tel: [phone] | New Zealand Tel: [phone] | Singapore Tel: [phone]

INSTRUCTION MANUAL FOR DISHWASHERS
●The appliance must be connected to water and electrical supplies by qualified
tradespersons only and according to local regulations.
●The appliance must be used by adults only. Do not let children play with, or operate
this machine.
●Only persons trained to use this dishwasher are permitted to operate it.
●This appliance has been designed to wash food preparation and eating utensils. It has
NOT been designed to wash objects soiled with petrol, paint, remnants of steel or iron,
corrosive chemical products such as acids, alkalis, or solvents or any item that cannot be
immersed in water.
●Do not open the appliance door or lift hood while the appliance is operating. The
appliance has a safety device which stops operation if the door or hood is accidentally
opened.
●After using the appliance, isolate the electric and water supply.
●Do not attempt to repair the appliance. Repairs made by unqualified persons may cause
further damage and will void warranty.
●Repairs and servicing of this appliance must be carried out by Rhima personnel only.
GENERAL INSTRUCTIONS
It is important to keep this instruction manual near the appliance for
future consultation.
If the appliance is sold or transferred to another user, make sure this
manual remains with the appliance so that the new owner is informed
about the warnings and operation of the appliance. These instructions
are given for safety reasons and they must be read carefully before
installing or using the appliance.
IMPORTANT CUSTOMER INFORMATION
●To request a service, detergents or rinse additive contact your local Rhima Service centre
below:
Australia: 1300 347 944
New Zealand: 0800 902 054
Singapore: [phone]
2

3
ELECTRICAL INSTALLATION
The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA).
This appliance should be connected to a hot water supply (Max 65°C ) for in accordance
with Australian Standard AS/NZS 3500.1. for optimum performance.
The water supply pressure should be a minimum 200 kPa at all times and flow rate should
be at least 10 litres per minute. A static pressure higher than 600 kPa (73.5 psi) requires a
pressure reducing valve upstream of the supply line. If water pressure is below 150 kPa,
the use of a rinse booster pump is recommended.
This appliance is designed to drain to a tundish. Waste connection to a spigot is not
recommended and may cause draining issues.
The drainpipe should withstand 70°C (158°F) in continuous duty conditions.
The grey water drain hose must have a fixed watertight seal above the tundish in
accordance with the Australian Standard AS/NZS 3500.2.
A DIAGRAM SHOWING THE CORRECT METHOD OF WASTE INSTALLATION IN ACCORDANCE
WITH THE AUSTRALIAN STANDARD AS/NZS 3500.2 IS BELOW
PLUMBING INSTALLATION
WMTS-101
WM-022203
This appliance is intended to be connected to a 3 x 20 Amps electrical supply and must be
earthed.

Multi-chromatic button:
4
CONTROL PANEL AND RELATIVE SYMBOLS
BDCEF
G
A
A: Cycle Start/Stop
heating;
Flashing red light: alarm signal (check the code on the alarm
chart);
Flashing blue light: machine in stand-by.
B: Machine power ON/OFF (in stand-by only)
C: Cycle Selection
D: Cycle Selection
E: Drain Valve Control
F: Info
G: LCD Display
OPERATION
Machine start-up
Start-up
• Put the surface filters in place. DO NOT use the appliance without the filters..
• Close the dishwasher door.
• Open the water valve.
• Turn the main power switch ON. The message Firmware is displayed for a few seconds.
• The machine is on STAND-BY. The display will show STAND-BY or LOGO.
• Turn the button B..
FW.DISPLAY: .....
FW.POWER: .....
S/N: .....
MODEL: .....
OPTIONAL: .....
12:00 01/01/21
- +
ON DRAINING
The machine start will be active when the Abutton will light.
On the display the STAND-BY message will be off.
The button Awill light in white for a few seconds, while loading the software.After loading is complete, the button will light in red.
At this moment, the water filling starts. The display will read FILLING WATER.
Should the machines be equipped with the WRAS certified Break Tank, the tank filling phase is extended.
Once the filling is done, the heating phase will start on the display will appear the reading HEATING. The reading will stay until
both boiler and wash-tank will reach the set temperatures. During this process, the machine will not allow any cycle selection
or start.
During this phase the AUTOMATIC START function can be enabled (see paragraph Operation).
After the filling/heating is completed, the key Aand the display will turn green.
12:00 01/01/21
EXIT + -
FILLING WATER
12:00 01/01/21
EXIT + -
HEATING
Firm red light: machine filling/
Green light: machine ready. Select cycle;
Firm blue light: machine in operation;

5
Operation
• Insert the rack filled with objects to wash (see paragraph Objects loading).
• Select the desired wash program by the keys Cand Dor by keeping pressed the Akey. Release the key when the selected
program is selected. To start the selected cycle press the Akey, the button Awill turn blue
• All wash-time long the display will read the wash-tank temperature and the boiler temperature.
Beneath the Temperatures Display will appear the Cycle Progress Bar (in percentage).
At the end of the washing cycle, a hot rinse cycle will take place.
A blue/green flashing on the button Awill indicate the cycle ended.
The display shows CYCLE ENDED message.
B
B
12:00 01/01/21
INFO+-EXIT
55°C 88°C
DRAINING
WASHING 1
B
B
C°88C°55
12:00 01/01/21
+-EXIT
3%
WASHING
WASHING 1
B
B
C°88C°55
12:00 01/01/21
+-EXIT
100%
WASHING
WASHING 1
Note: At cycle-end, keeping the door closed, objects will not dry. Extract the rack or keep the door open to allow evaporation,
helping the drying of the objects.
When opening the door, the button Awill turn green, indicating that the machine is ready for a new wash-cycle.
Note: The last cycle used remain in the memory of the electronic board.
We recommend to change water at least twice a day, or whenever needed.
AUTOMATIC START: This function enables a self-activated wash cycle, when the filling/heating phase is completed.
B
B
12:00 01/01/21
55°C 79°C
79
C
INFO+-EXIT
AUTOMATIC START
WASHING 1
DRAINING
AUTOMATIC START activation:
• Keep pressed for 10 seconds the Key Aduring the filling or heating phase.
• Within 30 seconds select the wash cycle by pressing either Cor DKeys and
confirm by pressing A. The display will show AUTOMATIC START.
• If this does not happen, repeat the procedure.

6

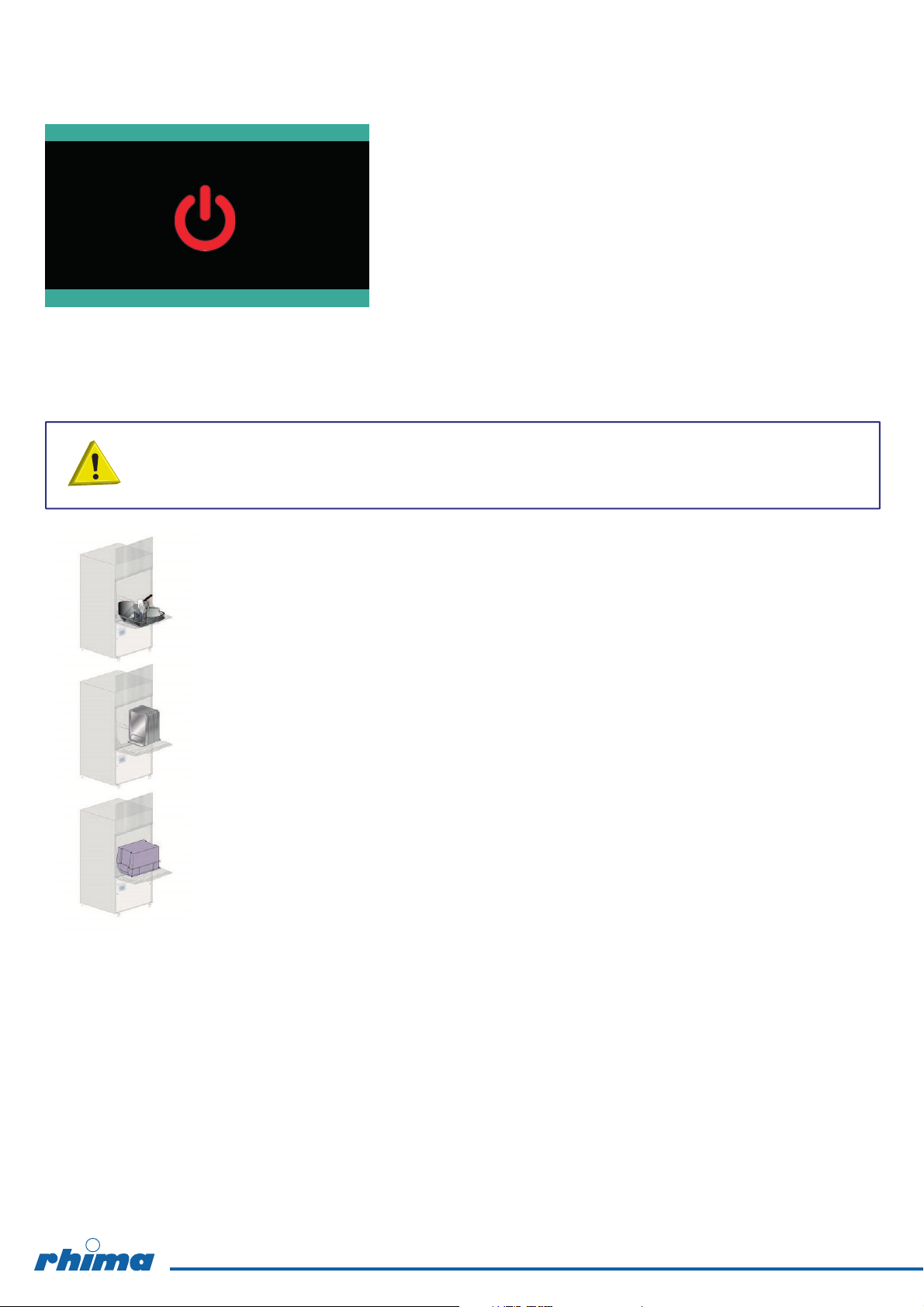

Switching OFF
12:00 01/01/21
- +
ON DRAINING
• Turn the button B. The display will show STAND-BY or LOGO.
• At the end of the day, clean the machine (see chapter MAINTENANCE).
• Shut the water valve.
• Turn off the main wall switch.
• At the end of the day, it is advisable to leave the dishwasher door open.
Objects loading
Before objects loading in the machine, coarsely clean them from the leftover food.
It isn't necessary to rinse the objects under water.
WARNING: Do not wash articles polluted with petrol, paint, chips of steel or iron, ash, sand, wax,
lubricant grease. These substances damage the machine. Do not wash fragile objects or material not
resistant to the washing process.
Note the following recommendations:
• Objects should not be inserted inside one another, covering each other.
• Place the objects in order to all surfaces can be reached by water; otherwise the objects are not
washed.
• Make sure all the objects are in a stable position and that the hollow containers don't overturn
(baskets, pots, pans, bowls, etc.) .
• Place in the rack all the hollow containers such as baskets, pots, pans, bowls, etc. upside-down.
• Place the objects with deep hollow with upper face downwards, so that water can flow out.
• Make sure the smaller objects do not fall from the rack.
• Check all the wash arms runs freely and they are not blocked by too tall or too prominent objects.
Eventually, run a manual rotation of the arms to check it.
Some foods, such as carrots, tomatoes, and others, may contain some natural dyes substances, that
in large amounts, can alter the objects and plastic parts colors.
Any discoloration does not mean that the plastic is not heat resistant.
Objects not suitable for dishwasher
Not suitable for dishwasher:
• Wooden objects or with wooden parts; water at high temperature causes deformation to wood.Also the adhesives used are
not suitable for treatment in the dishwasher; a consequence could be the handles detachment
• Crafts or precious vases
• Not heat-resistant plastic objects.
• Copper, brass, pewter or aluminum objects: they may become discolored or opaque.
• The decorations on glass, after a certain number of washes, can lose gloss.
We recommend to buy exclusively objects suitable for dishwashing.
It is mandatory to repeat the washing cycle if at the end of the cycle the objects are not well clean or if there are
washing residues (baskets, pots, pans, bowls, etc. with liquid inside).

7
Use of detergent
The machine can be equipped with the detergent dispenser. If provided, the machine will automatically take the needed
detergent amount
The detergent shall be the NO FOAM type, suitable for industrial dishwashers.
The detergent must be introduced in the tank. The use of good quality liquid detergents is recommended. By request the
dishwasher can be equipped with an electric detergent dispenser (always recommended).
Follow the manufacturer’s recommendations for chemical dosage, related to the local water hardness. 1cm. of the product
drawn into the tube is equal to about 0.15 g. A correct amount of detergent is very important for a successful wash.
Should the detergent lack, the display will show DETERGENT LEVEL (only with optional "Sensor for Chemicals Low Level").
B
B
12:00 01/01/21
55°C 79°C
INFO+-EXIT
DETERGENT LEVEL
WASHING 1
DRAINING
Use of rinse aid
The machine has a standard rinse aid dispenser. The machine automatically sucks the product.
The rinse-aid chemical, shall be suitable for professional dishwashers.
Should the detergent lack, the display will show RINSE-AID LEVEL (only with optional "Sensor for Chemicals Low Level").
B
B
12:00 01/01/21
55°C 79°C
INFO+-EXIT
RINSE-AID LEVEL
WASHING 1
DRAINING
MAINTENANCE
WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning system against
the machine. Do not use bleach or chlorine based detergents.
It is recommended to contact the seller of chemicals for proper cleaning instructions, in order to have detailed
indications on methods and products for the correct periodical machine sanitation.
Regular Maintenance
In order to ensure perfect performance, the appliance must be completely cleaned at least once a day in the following way:
• Turn the machine in STAND-BY mode, by pressing the push-button Bon the control panel (see chapter OPERATION).
• Remove the surface filters and clean them under running water (see Pict. 6).
• Drain the sump water by pressing button Eon the control panel to select DRAINING.
• Remove the rotors by loosening the fixing screws, and thoroughly clean the nozzles and cleaning and rinsing arms under
running water (see Pict. 7).
• Remove the heat exchanger filter (if installed) and clean it under running water (see Pict. 8).
If the drain hose is elevated above the drain point of the machine the machine will not drain.

8
• Reassemble the parts and reposition the wash pipes. Take extreme care to re-assemble the nozzles in the right position
(open and / or closed nozzles) and that the arms are installed with the right axial angle.
• Clean the tub thoroughly using specific products.
• At the end of the day, it is advisable to leave the dishwasher door open.
• Automatic cycle of machine self-cleaning/rinsing: recommended at each day end.With the machine on STAND-BY
mode and, when the tank is empty, press the Akey; an automatic cycle of 60 seconds will start, after this the machine will be
in STAND-BY mode.
• Turn off the water tap.
• Turned off the machine by switching the main power switch OFF.
Special Maintenance
Once or twice a year have a qualified technician inspect the machine:
1 To clean the electrovalve filter.
2 To remove residual deposits.
3 To check the watertight of the seals for water loading and unloading connections.
4 Check the perfect state and/or wear of the components.
5 The operation of the dispensers.
6 Check the efficiency of the door safety switch.
7 A qualified electrician, should check all electric connections inside the machine, at least once a year.
Every 3-4 years of machine use, double-check the tightening and the efficiency of all electrical contacts, with special
attention to the contacts of starters and relays.
Increase controls frequency if the machine is operating in heavy or intensive conditions.
6.tciP7.tciP Pict. 8
Compliance with hygiene regulations and H.A.C.C.P.
• When starting the machine ON, no wash-cycle will be starting until the set boiler and wash-tank temperatures are reached.
During operation, the machine will not start the rinse cycle till the set boiler temperature is reached.
• Scrape food from the dishes carefully in order not to clog the filters, nozzles and pipes.
• Unload the wash tub and clean the filters at least twice a day.
• Check if the detergent and rinse-aid dosage are correct (as recommended by the manufacturer). In the morning, before
starting the machine, check that the quantity of chemicals in the canisters is enough for daily supply.
• Always clean the support floor of the dishes.
• Extract the rack with clean hands or gloves to avoid finger marks.
• Do not dry or polish the dishes with non-sterilized cloths, brushes, or dusters.

9
ECOLOGICAL ASPECTS
Recommendations for optimum use of energy, water and additives
• If possible, use the machine at full load: This will avoid wasting detergent, rinse aid, water and energy.
• Detergents and rinse aids: Use detergents and rinse aids having the highest biodegradability so that the environment is
better respected. Have the correct dosage according to the water hardness checked at least once a year. An excess of
product pollutes rivers and seas, whereas an insufficient amount compromises dish washing and/or hygiene.
• Tank and boiler temperatures: The temperatures of the tank and boiler are set by the manufacturer so as to get the best
washing results with the majority of detergents on the market. These can be reset by the installer according to the detergent
used..
• Cleaning off: Carefully clean off the kitchenware using water at ambient temperature with moderation so as to make removal
of animal fats easier. To remove encrusted matter, soaking in hot water is recommended.
Notes: Wash the objects as soon as possible in order to prevent the deposits from drying and jeopardizing the effectiveness of
the washing.
To get an efficient wash, it is advisable to regularly clean and maintain the dishwasher (see chapter MAINTENANCE).
Non-compliance with the above recommendations or with any and all information within the manual could result in
a waste of energy, water, and detergent, further causing an increase in user costs and/or a reduction in
performance.
SIGNALS AND ALARMS
Signals
During the operation, the machine signals other situations in addition to alarms that need the operator attention.
In any case the relative information automatically appears on the display and remains visible until the operator execute the
necessary actions.
Signals description
The signals messages are displayed, based upon their meaning.
When displaying DETERGENT LEVEL add detergent in the detergent tank (only with optional "Sensor for Chemicals Low
Level").
When displaying RINSE-AID LEVEL add rinse-aid chemical in the rinse-aid tank (only with optional "Sensor for Chemicals Low
Level").
When displaying DOOR OPEN means that the open door does not allow the maneuver tried, or a wash cycle was in progress,
when lifting the door.
When the display shows DRAIN VALVE OPEN it indicates that the drain valve does not close.
B
B
12:00 01/01/21
55°C 79°C
INFO+-EXIT
RINSE-AID LEVEL
WASHING 1
DRAINING
Signal screen example.

10
Alarms
The alarms are displayed on a dedicated screen that overlap the current display at the time the alarm occurs.
Each alarm screen gives precise information about the meaning of the alarm and which are the operation the
operator can run.
12:00 01/01/21
BOILER FILLING FAIL
ALARM B1
Alarm screen example.
Alarms description
SEIDEMERESUACMRALAFOEPYT
DELLIFTONRELIOB1B
Open the water supply tap and verify a
proper water supply flow. Contact the
Rhima Service Department.
Contact the Rhima Service Department.ERULIAFROSNESRELIOB2B
Contact the Rhima Service Department.DETAEHTONRELIOB3B
Contact the Rhima Service Department.GNISNIRNIERULIAF
4B
Contact the Rhima Service Department.ERUTAREPMETREVORELIOB5B
Contact the Rhima Service Department.TATSOMREHTYTEFASRELIOB9B
DELLIFTONKNAT-HSAW1E Open the water supply tap. Contact the
Rhima Service Department.
Contact the Rhima Service Department.ERULIAFROSNESKNAT-HSAW2E
Contact the Rhima Service Department.DE
TAEHTONKNAT-HSAW3E
Contact the Rhima Service Department.ERUTAREPMETREVOKNAT-HSAW5E
Check the overflow pipe. Contact theERULIAFGNINIARDKNAT6E
Contact the Rhima Service Department.1YALERLAMREHTPMUPHSAW7E
Contact the Rhima Service Department.TATSOMREH
TYTEFASKNAT8E
Contact the Rhima Service Department.2YALERLAMREHTPMUPHSAW7F
Contact the Rhima Service Department.NOITCETORPLAMREHTROTOMROTCARTXE3U
Contact the Rhima Service Department.:LEVELWOLKNAT6Z
Rhima Service Department.

11
TROUBLESHOOTING
eruCsesuaCelbissoPmelborPfoepyT
The appliance does
not draw water
p.atretawehtnepOd.esolcsipatretawehT
Solenoid-valve filter blocked Contact the Rhima Service Department.
Faulty pressure switch. Contact the Rhima Service Department.
Flashing of the cycle
lamp ---.r AlarmsetpahceeS
Unsatisfactory
washing results
The washing nozzles are clogged or the washing
arms do not rotate.
Unscrew and clean the nozzles and the rotating
column, refit them correctly in their seats.
Unremoved grease or starch Detergent concentration too low.
Presence of foam. Use non-foaming detergent or use less of same
detergent.
The filter is too dirty. Remove the filter, clean it with a brush under
running water and refit in its seat.
Check tank temperature (which must be between
50°C and 60°C).
Contact the Rhima Service Department.
Length of washing cycle inadequate for type of
grime build-up.
Choose a longer cycle if possible, otherwise
repeat wash cycle.
Wash water too dirty. Empty water from the tub, clean filters; refill the
tub and correctly reposition the filters.
The objects are not
properly dried.
Insufficient rinse aid.
Increase the amount of rinse aid. Contact the
Rhima Service Department.
The rack is not suitable for the objects. Use the suitable rack which gives the objects an
inclined position so that water can rinse away.
The washed items may have been sitting in the
wash chamber too long.
As soon as the cycle stops, remove the rack with
the objects so that they can dry more quickly in
the air.
Rinse temperature under 80°C. Contact the Rhima Service Department.
Surface of objects too rough or porous for
material wear.
Replace type of objects used. If the dirt on the
Streaks and spots on
glasses and dishes
Too much rinse aid.
Decrease the amount of rinse aid. Contact the
Rhima Service Department.
The water is too hard. Check the water hardness. Water should not be
harder than 2-8 °f.
During wash cycle
the machine stops
and draws water
Water from the previous day has not been
replaced. Empty the tub and refill it.
The tub water temperature is too high. Contact the Rhima Service Department.
Faulty pressure switch.
Machine will not
drain
Object stuck in drain pump*. Contact the Rhima Service Department.
Blocked drain. Check sink’s drain correctly.
If not contact licenced plumber.
* If drain pump is supplied.
objects is dry and old, soak before washing.

Australia Tel: [phone]
New Zealand Tel: [phone]
Singapore Tel: [phone]
DETERGENTS
To request detergents or rinse additive contact your local Rhima Service centre
below:
Australia: 1300 347 944
New Zealand: 0800 902 054
Singapore: [phone]
Final rinse
5 Litre
Superwash
10 Litre
For all other washing
Version 1.0
