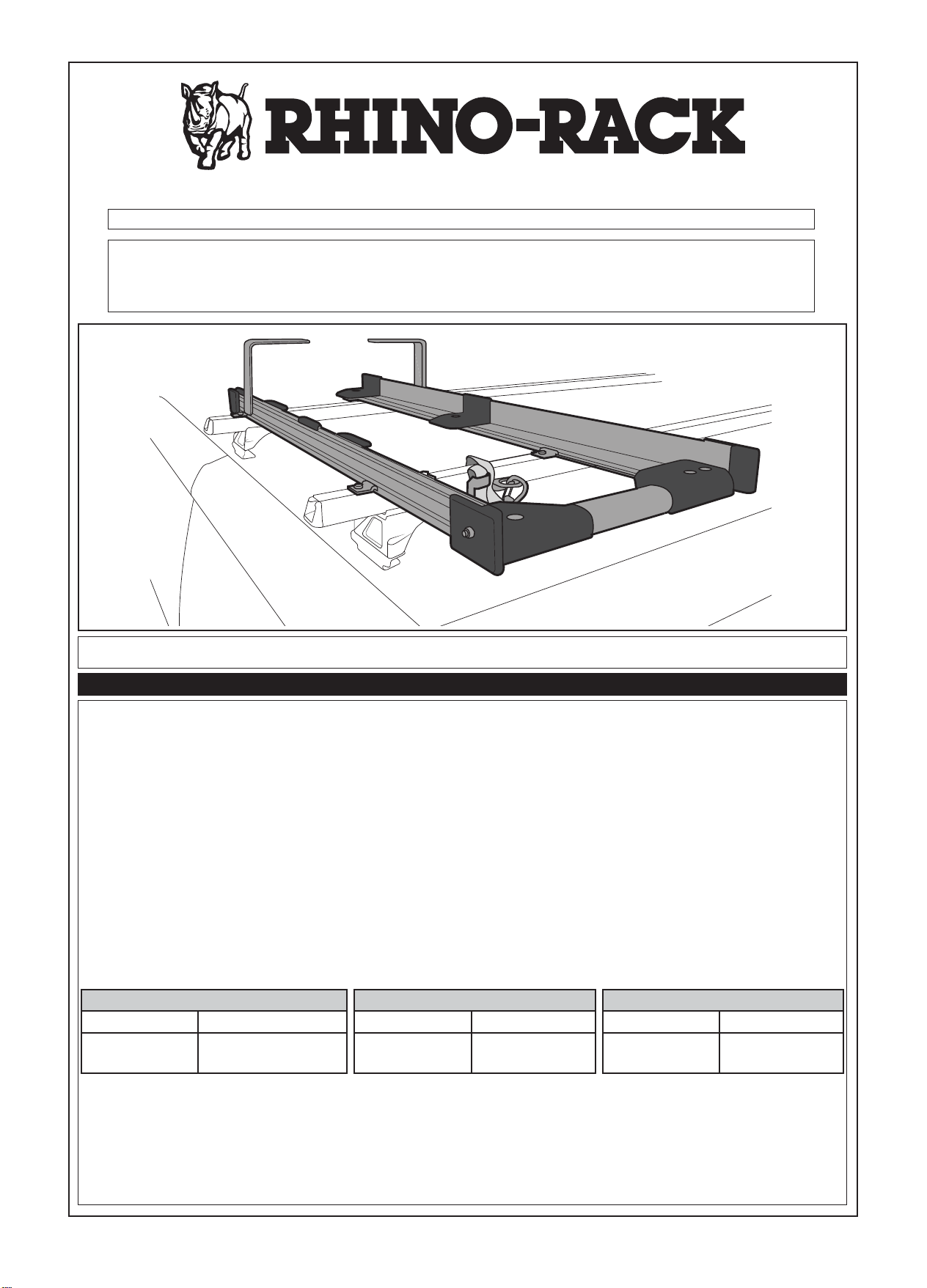

Rhino-Rack MS15-680 User manual

Important Information
Maximum carrying capacity: 35kg (including frame and roof bars)
Recommendations: It is essential that all bolt connections be checked after driving a short distance when you first
install your crossbars. Bolt connections should be checked again at regular intervals (probably once a week is enough,
depending on road conditions, usage, loads and distances travelled). You should also check the crossbars each time
they are re-fitted. Make sure to fasten your load securely. Please ensure that all loads are evenly distributed and that
the centre of gravity is kept as low as possible.
Use only non-stretch fastening ropes or straps. Sensitivity to cross winds, behaviour in curves and braking.
The handling characteristics of the vehicle, changes when you transport a load on the roof. For safety reasons, we
recommend you exercise extreme care when transporting wind-resisting loads; special consideration must be taken
into account when braking.
Please remove cross bars when putting vehicle through an automatic car wash.
Load Ratings:
Maximum permissible load is 35kg per ladder rack.
Note for Dealers and Fitters:
It is your responsibility to ensure instructions are given to the end user or client.
Rhino-Rack
3 Pike Street, Rydalmere, Document No: R710 Fit Time: 30min
NSW 2116, Australia. Prepared By: Kayle Everett Issue No: 03
(Ph) [phone] Authorised By: Chris Murty Issue Date: 01/05/2017
(Fax) [phone]
These instructions remain the property of Rhinorack Australia Pty Ltd and may not be used or changed for any other purpose than intended.
Care Instruction: Wash vehicle roof prior to installing Rhino roof racks.
Tab Kit Required (Sold as separate).
Vortex Crossbar 1 x RLTABM6-8
Heavy Duty
Crossbar 1 x RLTAB-8
Strap Kit Required (Sold as separate).
Vortex Crossbar SLS5
Heavy Duty
Crossbar RLS5
Hoop Kit Required (Sold as separate).
Vortex Crossbar SUH
Heavy Duty
Crossbar RUH
Page 1 of 6
MS15-680 Short Multi Slide Step Ladder System
Place these instructions in the vehicle’s glove box after installation is complete.
Important: Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the roof racks are installed in the correct locations.
Check the contents of this kit before commencing fitment and report any discrepancies.
Place these instructions in the vehicle’s glove box after installation is complete.
CONTROLLED

Parts List:
*[E] RLS5 Strap
No. ID Description Qty
A MSGPK Guide Plate Kit
1 B096 M8 x 20mm T-Bolt 6
2 M068 Front Ladder Rail End Cap 2
3 M069 Side Ladder Rail End Cap 4
4 W020 M8 x 17mm Flat Washer 6
5 N028 M8 Nyloc Nut 6
B MSB680
6 A197 Bullnose Cross Bar 620mm 1
7 B096 M8 x 20 Steel T Bolt 2
8 N028 M8 Nyloc Cut 2
9 R013-160 PVC Extrusion 1
10 W020 M8 x 17 Flat Washer 2
C Ladder Rail + SUB0620
11 A198 1.5m Multislide Rail 2
12 M070 Ladder Slide Flat 4
13 N013 M6 Nyloc Nut 4
14 W031 M6 x 16 Flat Washer 4
15 B095 M6 x 15 T Bolt 4
D MSRBK Multislide Rear Bullnose
16 B095 M6 x 15 T Bolt 4
17 M066 Rear Bullnose - Left 1
18 M067 Rear Bullnose - Right 1
19 N013 M6 Nyloc Nut 4
20 W031 M6 x 16 Flat Washer 4
*E RLS5 Ladder Restrain Strap (sold separately)
21 B003 M10 x 20 Hex Setscrew 1
22 B019 M8 x 16 Hex Setscrew 1
23 B024 M6 x 50 Hex Bolt Thread 1
24 C033 U-Section Strap Bracket 1
25 C087 Camlock Strap + Snap Hook 1
26 C122 RLS5 Snap Hook Bracket 1
27 N003 M8 Channel Nut 1
28 N013 M6 Nyloc Nut 1
29 N024 M10 Channel Nut 1
30 W021 M10 Shake Proof Washer 1
31 W033 M8 Shake Proof Washer 1
[A] MSGPK Guide Plate Kit
1
2
4
5
3
5
4
1
[B] MSB680 7
6
9
10
8
[C] Ladder Rail + SUB0619
13
14
12
11
15
[D] MSRBK Multislide Rear Bullnose
16
17
18
19
20
27
25
23
31
22
25
21
30
26
29
28
(sold separately)
Page 2 of 6
MS15-680 Short Multi Slide Step Ladder System

1Assembly
Slide 2 M6 T Bolts onto the ladder rail in the
outer slot. Assemble the slides for each rail, 2
x M070, flat washers and nyloc nuts for each.
Finger Tighten.
Note: Rail assembly must adhere the
following sequence so that parts do not have to
be removed fit others.
36
37
39
38
[F] Ladder Hoop Kit
F MSLHK Ladder Hoop Kit
32 C066 Ladder Hoop Bracket 2
33 N028 M8 Nyloc Nut 4
34 B096 M8 x 20mm T-Bolt 4
35 W020 M8 x 17mm Flat Washer 4
G MSSLS Step Ladder Support Kit
36 B096 M8 x 20 Steel T Bolt 2
37 C065 Step Ladder Support 2
38 N028 M8 Nyloc Nut 2
39 W020 M8 x 17 Washer 2
40 R710 Instructions 1 [G] Step Ladder Support Kit
34
35
33
32
C
F
Slide the Ladder Loop Bracket [F] into the top
and bottom side channels of Ladder Rail [C].
Make sure the Ladder Hoop Brackets [F] are
facing inwards as shown. The angle of the
brackets can be adjusted to suit (fig A). Finger
tighten only at this stage, adjustments may be
required at a later step.
2
33
35 34
3Slide 2 M8 T-Bolts into the underside of the
ladder as shown. Attach the step Ladder
Support Brackets to these with an M8 washer
and nyloc nut.
Position the supports along the rail to support
the ladder length being carried.
Finger tighten only at this stage, adjustments
may be required at a later step.
(fig A).
Page 3 of 6
MS15-680 Short Multi Slide Step Ladder System

C
J
I
Front ONLY
Using the M8 x 20 T Bolts, flat washers and
nyloc nuts, secure the Front [I] and Side [J] End
Caps to each Ladder Rail [C] as shown.
Securely tighten T-Bolts with a 13mm Socket.
4
5Slide an M6 T Bolt into slots on the base section
of the rail as shown. Slide an M8 Steel T Bolt
into the underside of each rail.
Place the left and right Bullnose over the T Bolts
on top of the rail. Ensure the Bullnose is fully
located up against the end of the ladder rail.
Fix in place with M6 washers and nyloc nuts.
Tighten with a 10mm socket.
6Using the M8 x 20 T Bolts, flat washers and
nyloc nuts, fix the Side End Caps to each Ladder
Rail as shown.
Securely tighten T-Bolts with a 13mm Socket.
7Attach the MSB620 Bullnose Crossbar to the 2
M8 x 20 Steel T Bolts, installed in step 5.
Secure the crossbar with M8 washers and nyloc
nuts. Tighten with a 13mm socket wrench.
Page 4 of 6
MS15-680 Short Multi Slide Step Ladder System

8Note: RLTAB-8 (HD) or RLTABM6-8 (VA) required (sold as separate)
Position the MS15-680 Multi Slide Ladder Rack onto the vehicle’s
crossbars in the desired position. Be sure to allow clearance for the rear
door of the vehicle.
Slide 4 channel nuts into the crossbars at the front and rear of the ladder
rack. The assemblies provided in the chosen RLTAB kit will fix to these.
The Tabs will lock onto the outer and inner edge of each ladder rail.
When in position, tighten in place with a socket wrench.
RLTAB-8 Shown (HD).
9
Side View:
RLTAB-8
Ladder Rail
Adjust the positioning of the ladder slides,
supports and hoops as required. Tighten in place
with a 10 and 13mm socket wrench.
Check all fixtures are secure before use.
Page 5 of 6
MS15-680 Short Multi Slide Step Ladder System

8
Wrap the snap hook end of the strap around the ladder
rungs and crossbar ensuring the safety latch is fully
closed. Pull strap to tighten. Check ladder is secure. To
release tension, press the camlock latch and pull the strap
back through the camlock, unhook the snap hook. When
travelling without a ladder, locate the snap hook onto the
hook bracket.
Pull Strap
to tighten
RLS5 Ladder Restrain Strap (Recommended Fitment): Insert the camlock and hook bracket to the
underside of the rear crossbar 15-20mm apart. Push the attachment bolts up and turn each bolt so that the
channel nut is fully located across the cross bar as shown below. Position the Camlock and Hook bracket to
suit the ladder. Tighten the bolts.
Camlock
Hook Bracket
15-20mm
Both Channel Nuts
must locate fully
across the cross bar.
DO NOT fully tighten
the M6 nut, the latch
bracket must move
freely.
Side View:
Page 6 of 6
