RHINO 2500 Series User manual

Maximum carrying capacity: 75kg (165lbs) evenly distributed over crossbars. Please refer to your vehicle
 manufacturershandbookandDKSpecicationsheetformaximumroofloading.
 Alwaysusethelowerofthetwogures.
Recommendations:
It is essential that all bolt connections be checked after driving a short distance when you rst install your crossbars. Bolt con-
nections should be checked again at regular intervals (probably once a week is enough, depending on road conditions, usage,
loads and distances travelled). You should also check the crossbars each time they are retted. Make sure to fasten your load
securely. Please ensure that all loads are evenly distributed and that the centre of gravity is kept as low as possible.
Use only non-stretch fastening ropes or straps.
Load Ratings
When these roof racks are to be used on a vehicle that is driven off sealed roads, the manufacturer maximum roof load rating (to
be found in the vehicles User Manual) should be halved. For example, if the vehicles maximum roof load rating is 70kgs (sub-
tract 5kg = weight of crossbar and legs), these racks, when tted to this vehicle should have no more than 35kgs loaded on them
Caution:
The handling characteristics of the vehicle changes when you transport a load on the roof. For safety reasons we recommend
you exercise extreme care when transporting wind-resistant loads. Special consideration must be taken into account when cor-
nering and braking.Please remove crossbars when putting vehicle through an automatic car wash.
Note for Dealers and Fitters:
It is your responsibility to ensure instructions are given to the end user or client.
IMPORTANT Care Instruction: WashandcleanthevehicleroofpriortottingtheRoofracks.
PLEASE READ THROUGH INSTRUCTIONS BEFORE FITTING.
Rhino 2500 series for Euro Crossbar.
Important: Please refer to your tting instruction to ensure that the roof racks are installed in the correct locations.
Check the contents of kit before commencing tment and report any discrepancies.
Place these instructions in the vehicle’s glove box after installation is complete.

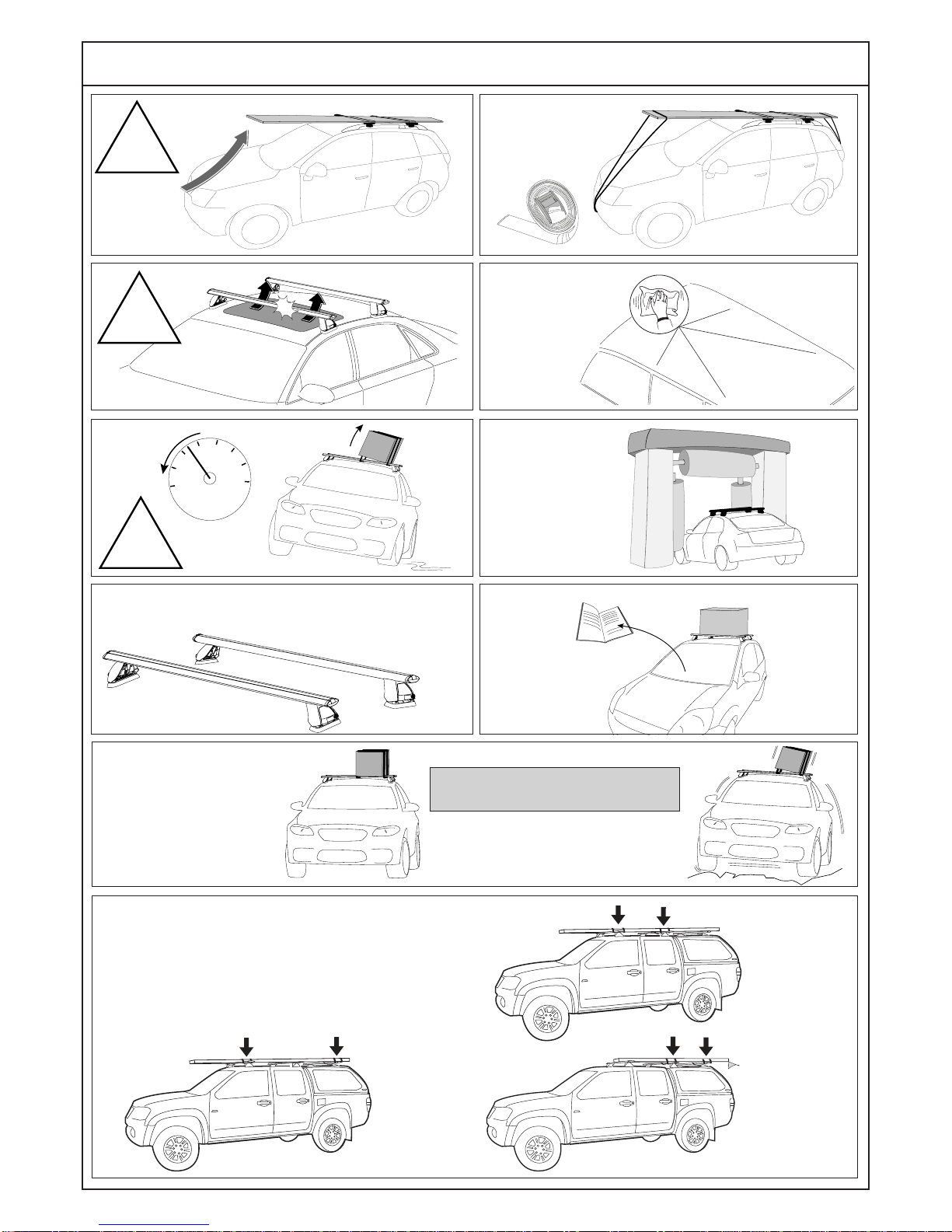

WARNING! Important Load Carrying Instructions
With utility vehicles, the cabin and the canopy move
independently. Roofracks and vehicle can be damaged if the
item transported is rigidly xed at points on both the cabin and
canopy. Instead, rigidly x to either the cabin roofracks or the
canopy roofracks.
When these roof racks are to be
used on a vehicle that is driven off
sealed roads, the manufacturer
maximum roof load rating (to be
found in the vehicles User Manual)
should be halved. Do not forget to
subtract 5kg from your maximum
carrying capacity due to the weight
of the crossbars and legs.
!
!
!
ü
ü
km/h X
YES
YES
NO
ü
ü
X
? kg
2 x Crossbars = 5kg
70kg load rating
(Urban road) 35 kg load rating (Off road - 70kg / 2)
=
Rhino 2500 series for Euro Crossbar.

Rhino 2500 series for Euro Crossbar.
Rhino 2500 series for Euro Crossbar.
MXXX
3Clip the rubber pad onto the foot pad , ensure the center tube is fully located in the foot plate and the
ends are clipped in.
Center tube
pushed through. Ends clip in.
1Fasten the M6 x 25mm screw, at and spring washer
assembly to the M6 Square nut as shown. Leave loose at
this stage.
Inside of LEG.
Insert the euro crossbar adaptor (4) legs
into the leg square holes and snap the
adaptor inplace.
2
NOTE:RefertotheDKSpecicationsheetforcorrectplacement(FrontorRear,LeftorRight)oftheFOOTPLATE,
RUBBER PAD and METAL STRAP. Also refer for sizes to cut the BAR MEASUREMENT STRIP.
NOTE : ALL MEASUREMENTS AND FITMENTS SHOWN APPLY FOR THE EURO CROSSBAR.
11
9
1
2
3
4
5
6
78
10
12 13
14
15
16
Item Component Name Qty
1Euro End Cap 4
2Euro Crossbar 2
3Front Cover 4
4Key 2
5M8 Clamp Bolt 4
6Clamp 4
7Rubber Base Pad 4
8Foot Plate 4
9Leg 4
10 Euro Crossbar Adaptor 1
11 M6 x 25mm Security Screw 4
12 M6 Spring Washer 4
13 M6 Flat Washer 4
14 M6 Square Nut 4
15 Allen Key - Long 1
16 Leg Position Labels 4
17 Fitting Instructions 1
Tools Required;
Security key (inc. in kit) Side Cutters/Scissors,Tape Measure, Rubber Mallet.

Rhino 2500 series for Euro Crossbar.
7
MXXX
Turn the crossbar over and clip the bar measuring strip into the cut out, ensure the end of the strip locates
against the end of the cut out. Slide assembled leg into the cut out untill it butts up against the end of
the Bar measurement strip.
Ensure the Square nut locates
into the Euro crossbar.
Refer the DK Specica-
tion sheet for bar strip
cut length.
6
Insert the M8 clamp bolt through the clamp and from the front of the leg, screw the bolt into the pivot nut.
DO NOT TIGHTEN AT THIS STAGE.
5
If the nut is removed, insert the pivot nut into the back of the leg. Ensure the nut snaps inplace. Note: large
portion of the nut to face the rear of the leg.
This face to rear of
Leg.
Clip the foot plate onto the leg with the arrow facing in the correct direction
IN or Out according to your vehicle listed in the DK specication sheet.
Diagram shows arrow facing OUT).
Foot pad must swing
freely.
4

Rhino 2500 series for Euro Crossbar.
Rhino 2500 series for Euro Crossbar.
9
Press the endcaps onto the ends of the crossbars, a rubber mallet may be needed to gently
tap the end caps on.
MXXX
8Tighten the leg security screw to 3-4N/m with the allen key provided.
DO NOT OVERTIGHTEN .
MXXX
FR
Front Right
RR
Rear Right
FL
Front Left
RL
Rear Left
Note: The front and rear
leg positoning labels
provided are stuck onto
the legs to identify front
and rear crossbar positons
when retting the racks.
11
MXXX
Stick the leg position labels inside the leg. The
labels identify the position of the leg on the vehicle
roof and are used as a guide when retting the
crossbars after removal. Refer layout below.
Label.
10

Rhino 2500 series for Euro Crossbar.
Insert the two lugs on the side of the front cover into the leg, using the key provided turn the lock barrel
to the open position (O), engage the locking tab into the leg and turn to lock. Refer instruction 14 below
for lock positions.
13
12
14
Check that the assembly
is tight by shaking the
crossbars vertically and
horizontally
!
Open. Closed.
Wipe the roof clean before placing the assembled roof racks on. Open the doors and hook the metal strap
in at the top of the door jam underneath any rubber seals that may be there. Tighten the M8 Clamp bolt
TENSIONTHEBOLTSONEACHSIDEOFTHEVEHICLEEVENLY,DONOTTIGHTENONESIDEATA
TIME. TIGHTEN TO 4-5N/M. DO NOT OVER TIGHTEN.

Rhino Rack 2500 Series - DK321
FRONT
VEHICLE Date Crossbar Pad / Clamp Pad / Clamp Foot plate Bar measurement HD Crossbar
FRONT RIGHT FRONT LEFT arrow direction strip. Length per side. distance ( x ).
Toyota Camry 50R 4dr sedan 2012- 1180mm M282 / SUB0372 M281 / SUB0372 OUT 118mm 914mm / 35,63/64”
Toyota Aurion 50R 4dr sedan 2012- 1180mm M282 / SUB0372 M281 / SUB0372 OUT 118mm 914mm / 35,63/64”
VEHICLE Date Crossbar Pad / Clamp Pad / Clamp Foot plate Bar measurement HD Crossbar
REAR RIGHT REAR LEFT arrow direction strip. Length per side. distance ( x ).
Toyota Camry 50R 4dr sedan 2012- 1180mm M527 / SUB0373 M528 / SUB0373 OUT 100mm 878mm / 34,9/16”
Toyota Aurion 50R 4dr sedan 2012- 1180mm M527 / SUB0373 M528 / SUB0373 OUT 100mm 878mm / 34,9/16”
REAR

Rhino Rack 2500 Series - DK321
Measurement A: CENTRE of door jamb to CENTRE arrow of leg foot plate.
Measurement B: CENTRE of Front leg foot plate arrow to CENTRE of Rear leg foot plate arrow.
Carrying capacity: Roof rack is rated to 75kg. Please refer to manufacturers handbook for your vehicles maximum roof load capacity. Always use the lower of the two gures.
A
B
REARFRONT
Front Left Rear Left
REAR
M528
M282
M527
M281 FRONT
VEHICLE Date Measurement A Measurement B Load rating (includes racks 5kg / 11lbs)
Toyota Camry 50R 4dr sedan 2012- 290mm / 11,27/64” 660mm / 25,63/64” 60kg / 132lbs
Toyota Aurion 50R 4dr sedan 2012- 290mm / 11,27/64” 660mm / 25,63/64” 60kg / 132lbs
