Rhino Ranch pro User manual

Highest Quality Post Drivers and Post Pullers

OWNERS MANUAL

Form No. 300800-09/2015

Effective Serial No.: 002270

Form No. 300800-09/2015

Effective Serial No.: 002270

Rhino Tool Company, Inc.

620 Andrews Avenue

Kewanee, IL 61443

P: 309.853.5555 or Toll Free 866-707-1808

F:309.856.5905

www.rhinotool.com E: [email protected]

Rhino Tool Company, Inc.

620 Andrews Avenue

Kewanee, IL 61443

P: 309.853.5555 or Toll Free 866-707-1808

F:309.856.5905

www.rhinotool.com E: [email protected]

Manufacturing Quality Post Drivers and Post Pullers Since 1975

Gas Powered Driver

Ranch Pro™

P/N: 300001

Your safety, and the safety of others, is very important. The proper and safe use of your Rhino®post

driver is an important responsibility and should be taken seriously. This owner’s manual contains

important safety information. Please read it carefully. The information and specications included in

this publication were in effect at the time of approval for printing. Rhino Tool Company, Inc. reserves

the right, however, to discontinue or change specications or design at any time without notice and

without incurring any obligation whatever. No part of this publication may be reproduced without written

permission from Rhino Tool Company, Inc.

Your safety, and the safety of others, is very important. The proper and safe use of your Rhino® post

driver is an important responsibility and should be taken seriously. This entire book is lled with

important safety information. Please read it carefully. The information and specications included in

this publication were in effect at the time of approval for printing. Rhino Tool Company, Inc. reserves

the right, however, to discontinue or change specications or design at any time without notice and

without incurring any obligation whatever. No part of this publication may be reproduced without written

permission from Rhino Tool Company, Inc.

TAKE SAFETY SERIOUSLY

Ranch Pro™Trouble Shooting

Symptom Explanation/Procedure

Post lodged in

the driver

In the event that a driven post ares and becomes lodged within the chuck, follow these steps:

1. Turn engine off. Remove the four 5/16” lower body bolts and separate the lower body casting from the driver body.

2. Slide the lower body casting down the post to expose the ared top of the post. With the proper cutting tool for the

type of post, cut through the post below the ared portion.

3. Once the ared portion is removed, slide the lower body casting off the post and reassemble it to the driver. Please

follow bolt tightening procedure and use thread locker solution.

Drives post slow

or sluggish

engine

performance

Typically this is resulting from improper driver storage or over-lling the oil causing the oil to seep into the combustion

chamber.

Position the driver vertically, remove the dipstick to check oil level. (See page 6) If you need to remove some oil, dispose

of it properly.

If oil is at proper level, follow the procedure listed in “Pull-start is frozen or hard to pull.” It also is good practice to wipe

clean the engine after use.

Pull-start is

frozen or hard to

pull

This typically results from oil seeping into the combustion chamber from improper driver storage or overlling the oil

reservoir of the engine.

Remove spark plug and pull hand grip a several times until it pulls freely.

Replace the spark plug. Check the oil level in oil reservoir to ensure proper level (page 6). Follow starting procedure. It is

not unusual, for blue smoke to be emitted from the engine, let the engine run until smoke clears.

Proper Storage: When storing your Ranch Pro™ do not lay it horizontally on the driver side or resting on the engine.

If the unit cannot be stored securely in the upright position, place the chuck on the at surface, lean it toward the engine

side until it is supported by the shroud and chuck. This will position the driver on an angle with the top handle at the

topmost point.

Other problems

or technical

questions

Have your serial number handy and contact Rhino Tool Company. Phone: 309.853.5555 or Toll Free 866-707-1808,

Fax:309.856.5905, Email: [email protected].

To help you make informed decisions about safety,

you will nd important safety information in a

variety of forms, including:

• Safety Labels on the post driver

• Safety Headings such as IMPORTANT SAFETY

INFORMATION.

• Safety Section such as POST DRIVER SAFETY.

• Instructions how to use this post driver correctly

and safely.

• Safety Messages Preceded by a safety

alert symbol and one of three signal words,

DANGER, WARNING, or CAUTION.

These signal words mean:

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Immediate hazards that will result in severe

personal injury or death.

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Hazards or unsafe practices that could result in

personal injury.

!WARNING

!DANGER

CAUTION

IMPORTANT

NOTE

Hazards or unsafe practices that could result in

injury, product or property damage.

To help you make informed decisions about safety,

you will nd important safety information in a

variety of forms, including:

• Safety Labels on the post driver

• Safety Headings such as IMPORTANT SAFETY

INFORMATION.

• Safety Section such as POST DRIVER SAFETY.

• Instructions how to use this post driver correctly

and safely.

• Safety Messages Preceded by a safety

alert symbol and one of three signal words,

DANGER, WARNING, or CAUTION.

These signal words mean:

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Immediate hazards that will result in severe

personal injury or death.

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Hazards or unsafe practices that could result in

personal injury.

!WARNING

!DANGER

CAUTION

IMPORTANT

NOTE

Hazards or unsafe practices that could result in

injury, product or property damage.

This owner’s manual is

considered a permanent part

of the post driver and should

remain with the post driver

if resold.

This owner’s manual is

considered a permanent part

of the post driver and should

remain with the post driver

if resold.

Safety Symbol Description ..........................................................................................................................i

Table of Contents ....................................................................................................................................... 1

Introduction................................................................................................................................................. 2

Post Driver Safety....................................................................................................................................... 3

Ranch Pro™Operating Instructions.......................................................................................................... 6

Starting the Engine ....................................................................................................................................... 6

Hot Restart ................................................................................................................................................... 8

Ranch Pro™Maintenance............................................................................................................................. 9

Ranch Pro™Service Instructions ............................................................................................................ 10

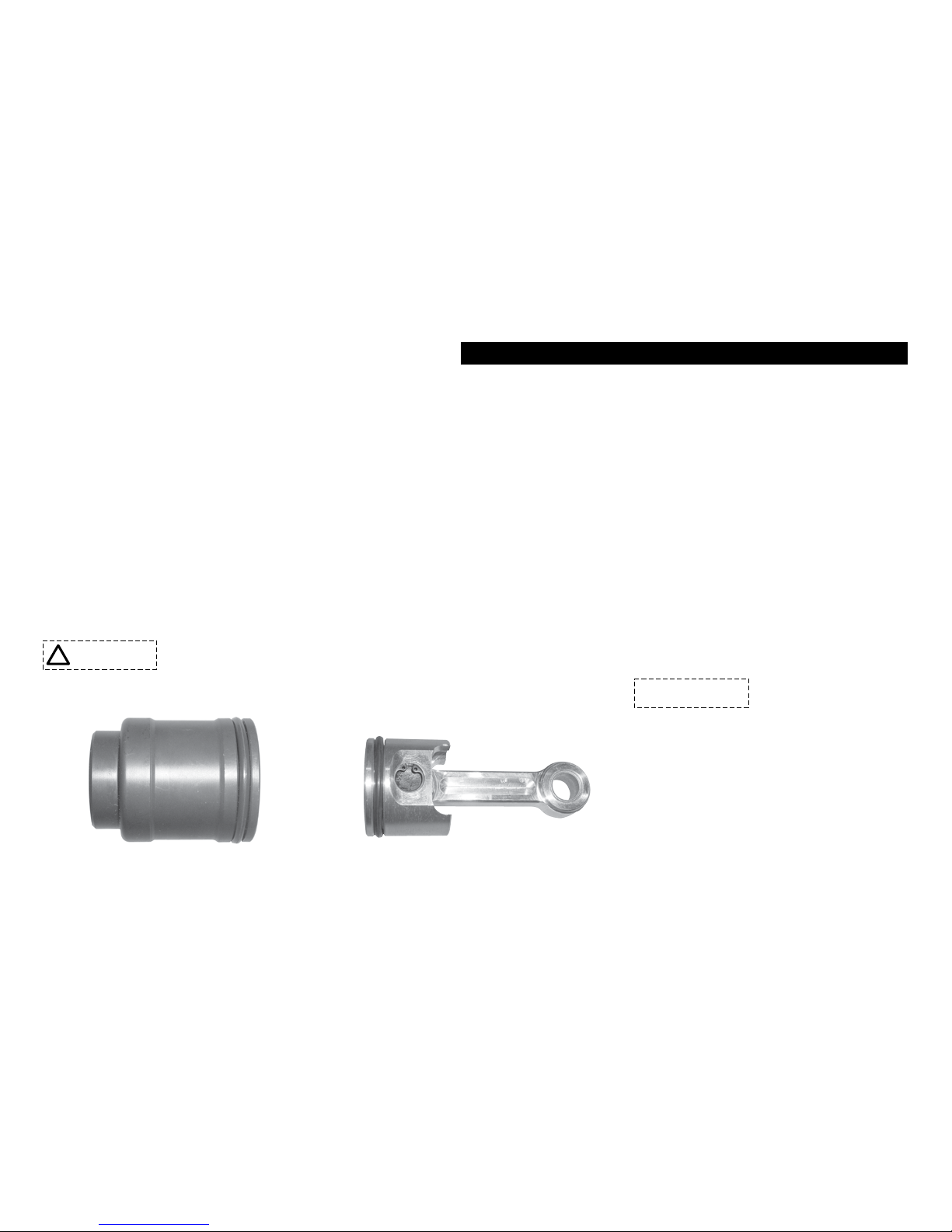

Servicing Crankshaft and Piston .................................................................................................................11

Service of the Hammer and Anvil ............................................................................................................... 12

Ranch Pro™Parts List .............................................................................................................................. 16

Limited Warranty and Registration ......................................................................................................... 20

Troubleshooting ....................................................................................................................................... 21

CONTENTS

Congratulations on your selection of the Rhino®Ranch Pro™post

driver. We are certain that you will be pleased with your pur-

chase. This post driver was built with the Honda GX35 engine.

Honda supplies its own owner’s manual that covers all the opera-

tor and service issues associated with the Honda engine. Please

read this manual as closely as you do the Rhino manual. The

success that you experience with this tool is dependent upon your

knowledge and understanding of how to properly operate and

care for the Honda engine installed on your new post driver.

As you read this manual, you will nd information preceded by a

NOTICE symbol. That information is intended to help you avoid

damage to your post driver, other property, or the environment.

We suggest you read the warranty information fully and under-

stand its coverage and your responsibilities of ownership. Fill

out the warranty registration card or online registration to receive

Rhino®Lifetime Impact Warranty. (See Page 20)

Please read and understand the Honda warranty policy. The

Honda warranty is separate from the Rhino®warranty and is

subject to its own coverage conditions and responsibility require-

ments. The warranty is a separate document and should have

been included with the Honda owner’s manual.

When your Rhino®Post Driver needs scheduled maintenance, the

technical service staff here at Rhino Tool Company is standing by

to assist you if you require assistance. Our fully trained staff can

ensure that you receive the correct service kit or direct you to the

nearest Rhino Servicing Dealer.

If it is the engine that requires scheduled maintenance, keep in

mind that your Honda service dealer is fully equipped and spe-

cially trained in servicing the Honda engine. Your Honda servic-

ing dealer is dedicated to your satisfaction, and will be pleased to

answer your questions and concerns.

Kindest Regards

The Rhino Tool Company Team

INTRODUCTION

The Rhino®Ranch Pro™gas powered

driver is designed to drive fence posts,

ground rod, form pins, and other like items

into the ground. Uses, other than those

intended, can result in injury to the opera-

tor as well as those around the operator.

Damage to the driver and to the surround-

ing area may result as well.

This post driver is intended for use by pro-

fessional installers. Never allow children

to operate this tool.

Most accidents can be prevented if you

follow all instructions in this manual and

on the post driver. The most common haz-

ards are discussed below, along with the

best method to protect yourself and others.

UNDERGROUND

UTILITIES: Driving

a post into an underground utility can be

EXTREMELY DANGEROUS, exposing

the operator and those around to poten-

tially life threatening danger. Damage to

surrounding property can also occur as a

result of a post being driven into an under-

ground utility. Be absolutely certain that

you are aware of all underground utilities

in the area in which you intend to drive

posts. Ensure that a certied locating ser-

vice has identied all underground utilities

prior to beginning your project. Failure to

do so can be catastrophic. Underground

utilities include but are not limited to:

Electric, Gas, Telephone, Water, Sewer,

TV Cable, Lawn Sprinklers, etc.

GASOLINE: Gaso-

line is HIGHLY

FLAMMABLE and EXPLOSIVE. You

can be burned or seriously injured when

handling fuel.

EXHAUST: The ex-

haust from the engine

contains poisonous carbon monoxide gas

that can build up to dangerous levels in

closed areas. Breathing carbon monoxide

can cause unconsciousness or death. Never

run the engine in a closed or even partly

closed area where people may be present.

The engine exhaust

from this product

contains chemicals known to the State of

California to cause cancer, birth defects or

other reproductive harm.

ENGINE

MAINTENANCE:

Improperly maintaining the engine on this

power tool, or failure to correct a problem

before operation, can cause a malfunc-

tion in which you can be seriously hurt or

killed.

In accordance with the engine owner’s

manual, always perform a pre-operation

inspection of the engine before each use

and correct any problem.

DRIVER

MAINTENANCE:

Improperly maintaining the driving

mechanism on this power tool, or failure

to correct a problem before operation, can

cause a malfunction in which you can be

seriously hurt or killed.

In accordance with this manual, always

perform a pre-operation inspection of the

driving mechanism before each use and

correct any problem.

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

POST DRIVER SAFETY IMPORTANT SAFETY INFORMATION

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Do not lend or rent

your post driver with-

out the instruction manuals. Be sure that

anyone using it understands the informa-

tion contained in these manuals.

Do not use this post

driver for any purpose

other than driving posts into the ground.

Misuse may result in personal injury or

property damage, including damage to the

machine.

Minors should never

be allowed to use this

power tool. Bystanders, especially chil-

dren, and animals should not be allowed in

the area where it is in use.

NEVER let your

power tool run unat-

tended. When it is not in use, shut it off

and make sure that unauthorized persons

do not use it.

Do not operate this

post driver unless the

operator is wearing safety glasses, safety

shoes, hearing protection, gloves or any

other safety equipment advised by, ANSI,

NIOSH, OSHA, or any other safety

regulatory agency, or the employer or the

owner of this post driver.

Hearing protection is required as the

post driver emits noise at 100 dB level.

Bystanders should, at a minimum, wear

safety glasses and hearing protection while

in the presence of this power tool during

operation. If not wearing protective gear,

bystanders should keep a distance of 20

feet (6.00m) from the post driver while in

operation.

Prolonged use of a

power tool (or other

machines) exposing the operator to vibra-

tions may produce white nger disease

(Raynaud’s phenomenon) or carpal tunnel

syndrome. These conditions reduce the

hand’s ability to feel and regulate tem-

perature, produce numbness and burning

sensations and may cause nerve and circu-

lation damage and tissue necrosis.

Not all factors contributing to white nger

disease are known, but cold weather,

smoking and diseases or physical condi-

tions that affect blood vessels and blood

transport, as well as high vibration levels

and long periods of exposure to vibration

are mentioned as factors in the develop-

ment of white nger disease. In order to

reduce the risk of white nger disease and

carpal tunnel syndrome, please note the

following:

• Ranch Pro™has been designed with

Rhino®CIS™anti-vibration handles to

reduce the transmission of vibrations

created by the machine to the opera-

tor’s hands. An anti-vibration system is

recommended for those persons using

power tools on a regular or sustained

basis.

• The handle opposite the throttle handle

has been tted with an EPDM foam

grip further dampening vibrations.

• Wear gloves and keep your hands

warm.

• Ensure that the EPDM foam and the

spring dampening system are in good

working condition.

POST DRIVER SAFETY... continued

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

IMPORTANT SAFETY INFORMATION

• Ensure the post driver has no loose

components. Loose components lead to

high vibration levels.

• Maintain a rm grip at all times, but do

not squeeze the handles with constant,

excessive pressure. Take frequent breaks.

All of the above mentioned precautions

do not guarantee that you will not sustain

white nger disease or carpal tunnel syn-

drome. Therefore, continual and regular

users should closely monitor the condi-

tion of their hands and ngers. If any of

the above symptoms appear, seek medical

advice immediately.

DO NOT modify this

power tool in any way.

DO NOT put anything

other than a post into

the chuck on the driver.

DO NOT operate your

post driver unless it

is on a post to be driven. Operation of the

driver without it driving on a post could

damage the power tool.

SURROUNDINGS:

This power tool emits

noise at 100 Db, which may be disturbing

to animals and livestock. Ensure prior to

operation, that any livestock are cleared

from the operational area to prevent a situ-

ation in which startled livestock become a

safety hazard.

WARNING LABELS

If your post driver’s warning label is

marred or destroyed, replace it immedi-

ately. Simply contact your Rhino Tool

Company representative to replace your

warning label at no expense to you.

End of Life Cycle

When you’re your Rhino®gas powered

driver is coming to the end of its life

cycle, destruction of the unit should to be

conducted according to international and

local environmental regulations.

The gas powered post driver contains:

• Fuel

• Oil

• Grease

• Electric components

• Plastic-steel and aluminum components.

POST DRIVER SAFETY... continued

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

IMPORTANT SAFETY INFORMATION

Specications imperial (metric)

Overall

Dimensions

13 x 14 x 20.5 in.

(330 x 355 x 528 mm)

Weight 33.5 lb (15.2 kg)

Engine

Conguration

4-stroke, 35.8 cc

Performance 1720 bpm

Fuel Unleaded Gas, US 86 Octane

(>Euro 91)

Fuel Capacity 0.67 US qt. (0.63 ltr)

Engine Oil SAE 10W-30

Grease Rhino Pro Series Grease

Noise ≤ 100 Db

Vibration TBC

Your Rhino®Ranch Pro™Gas Powered

Post Driver is an efcient and effective

power tool designed and developed to

tackle a difcult and time consuming task,

driving posts.

It is very important to understand that your

post driver is a powerful machine; it has to

be to do the very difcult job it is designed

to perform. With proper care and mainte-

nance, your Rhino®Ranch Pro™will give

you many years of trouble free service.

You must read and understand your post

driver operating instructions before using

the post driver. It is also very important

that you make sure all operators are

trained to operate your post driver safely.

If you or any operator doesn’t understand

any of the instructions in this manual, call

Rhino Tool Company at 866-707-1808

or 309-853-5555 and we will answer any

questions you may have, or visit our web-

site at www.rhintool.com to locate your

nearest Rhino dealer or distributor.

AVOID SERIOUS

INJURY OR DEATH

READ THIS MANUAL BEFORE US-

ING YOUR POST DRIVER

Visually inspect your Ranch Pro™Post

Driver before use. The interior of the

chuck tube should be checked for obstruc-

tions, damage or wear to the chuck tube

and anvil inside. The outer surfaces of the

driver should also be inspected for any de-

fects. Do not use the Ranch Pro™if there

is any damage or wear until the damage or

wear is corrected and repaired.

Check all uid levels, i.e. engine oil and

fuel and ll as needed as per manufac-

turer’s specications. (Fig. 1)

Proper oil level is essential

to the proper operation of

the post driver. Overlling of the oil will

result in loss of power and may cause

permanent damage to the engine.

USE ALL RECOM-

MENDED SAFETY

EQUIPMENT.

Rest the driver on a solid surface, i.e.

tailgate, bench, or clear, solid ground and

posture your body in a safe position. DO

NOT start the driver anywhere but an

open, well-ventilated area. It is recom-

mended that the Ranch Pro™only be used

outdoors and never inside an enclosed

building.

Starting the Engine:

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Ranch Pro™Operating Instructions

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

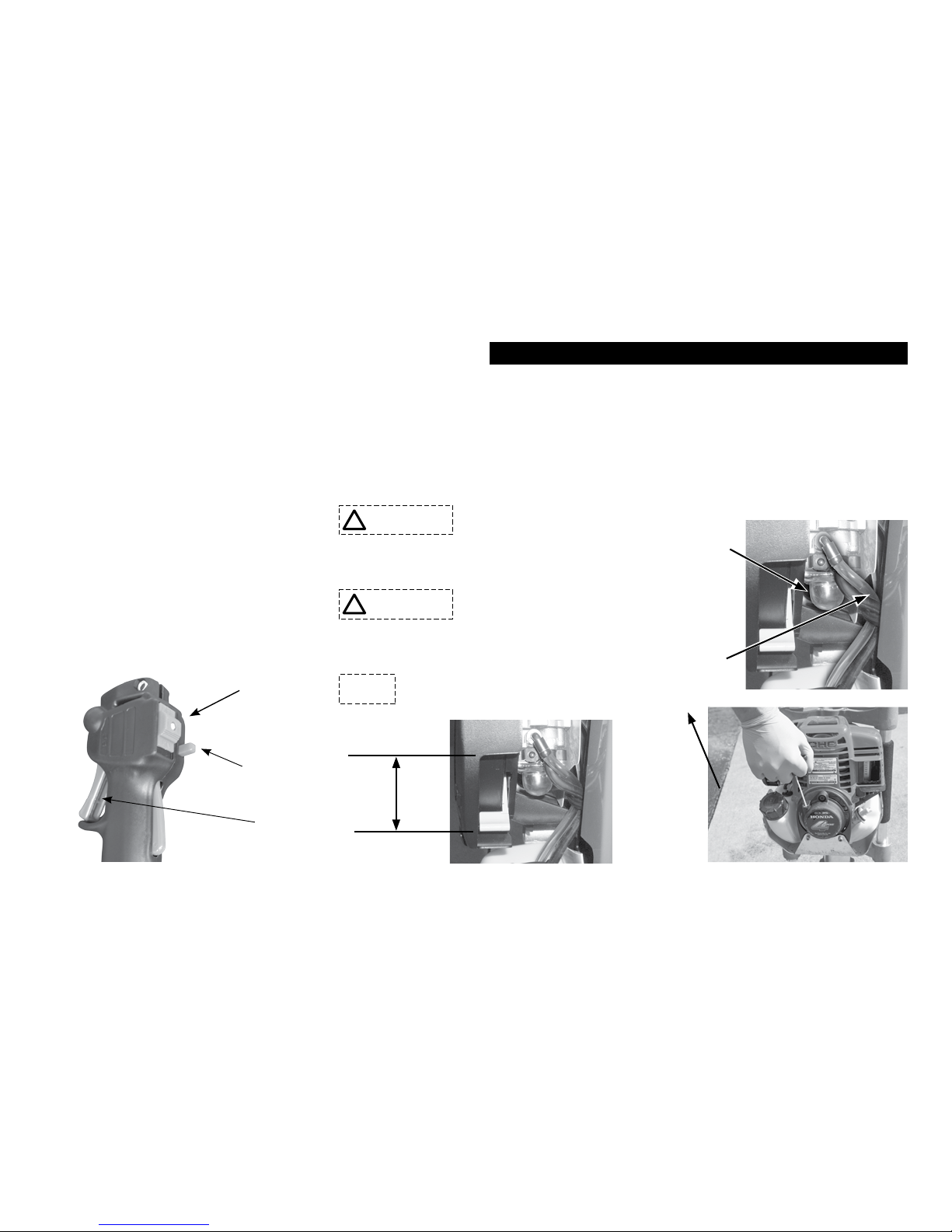

Upper limit of

engine oil.

Lower limit of

engine oil is end

of dipstick.

Fig. 1

To start a COLD engine, move the choke

lever to the CLOSED position (Fig. 3).

Lock the throttle by depressing the trigger

and while the trigger is depressed, push in

the button next to the thumb switch. Hold

the button in and release the trigger. The

throttle is now in the high idle position

(Fig 2).

To start a WARM engine, leave the choke

lever in the OPEN position and do not

lock the throttle into the high idle position.

Press the priming bulb repeatedly until

fuel can be seen in the clear-plastic fuel

return tube (Fig 4).

Slide thumb switch on throttle handle

down or into the ON position.

Grasp the starter grip lightly until you

feel resistance, then pull briskly in the

direction of the arrow as shown in Fig. 5.

Return the starter grip gently.

Do not extend the

starter rope to its full

length as it can cause damage the recoil

mechanism.

An operator should

never wrap the starter

rope around their hand. This will cause

serious injury.

Do not allow the starter grip

to snap back against the

engine. Return it gently to prevent

damage to the starter.

If the choke lever was moved to the

CLOSED position to start the engine,

gradually move it to the open position

as the engine warms up. As the engine

warms up also release the high idle lock

Choke Closed

Choke Open

Priming Bulb

Fuel Return

Line (clear

plastic tube)

Fig. 4

Fig. 3

Ranch Pro™Operating Instructions... continued

Thumb Switch

High Idle Lock

Trigger

Fig. 2 Fig. 5 - Starter Grip

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

by slightly depressing the trigger and then

immediately releasing it. Use caution as to

not engage the clutch.

Hot Restart

If the engine is operated at higher ambient

temperatures, then turned off and allowed

to sit for a short time, it may not restart on

the rst pull. If necessary, use the follow-

ing procedure: Failure to follow instruc-

tions can result in personal injury.

IMPORTANT

SAFETY

PRECAUTION

Turn the engine switch to the OFF position

before performing the following proce-

dure. This will prevent the engine for start-

ing and running at maximum speed when

the throttle is in the MAX. speed position.

If the engine starts with the throttle in the

MAX. speed position, the post driver will

operate at maximum power. This may

result in personal injury and damage to the

post driver.

1. Turn the engine switch on the post

driver to the OFF position.

2. Move the choke lever to the OPEN

position.

3. Hold the throttle in the MAX speed

position.

4. Pull the starter grip 3 to 5 times.

Follow the STARTING THE ENGINE

procedure on the previous page and start

the engine with the choke lever in the

OPEN position.

Driving A Post:

Holding the post driver with your left

hand on the foam grip and your right hand

on the throttle will position the driver to

direct the engine exhaust away from the

operator (Fig 6). (See Exhaust Warning)

Insert a post into the Ranch Pro™making

sure the end of the post to be driven is in

the correct location on the ground. (Fig. 7)

Position the driver aligned centered to the

post. If not aligned properly, damage could

be caused to the driver or the post.

Apply steady downward pressure to the

handles and apply enough throttle to en-

gage the clutch and hammer.

Once you are condent that the post is

driving straight, apply full throttle to the

Ranch Pro™Operating Instructions... continued

Post

Driver

Post

RIGHT WRONG

Fig. 7

Fig. 6

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

driver until the post is driven to the desired

depth.

Release the trigger dropping the engine

RPM back to idle before removing from

the post. When the engine has returned to

idle, proceed to the next post repeating the

previous method of driving a post.

Installing a Chuck Adapter

(Fig. 8) For driving up to 3/4"(19mm)

ground rod, stakes, or anchors the Ranch

Pro™is designed with Rhino®Quick Lock

Adapter System. Applying an adapter

snuggly aligns the rod or post to optimum

striking position and prevents damage to

the driver from bouncing around in a loose

tting chuck. Simply insert the adapter

inside the chuck tube and push the lock

clip through lock path openings on the

chuck. Then stretch the clip latch over the

end of the pin to secure the adapter into

place. See parts list to specify available 1"

(25.4mm) adapter.

Maintenance of the Ranch Pro™

NEVER REFUEL

WITH THE ENGINE

HOT OR RUNNING

Never refuel your Ranch Pro™with the en-

gine hot or running as there is a possibility

the ammable fumes from the gasoline

can ignite, causing severe injury and/or

damage to your post driver and surround-

ing area. Follow engine manufacturer’s

instructions for the refueling of the engine.

DO NOT OPEN

CRANKCASE COV-

ER WHILE ENGINE IS RUNNING.

With each use check the engine oil level,

air lter, and all fasteners. If necessary,

add oil, clean or replace the air lter and

tighten any loose nuts, bolts, or any other

fastener.

Change engine oil as per engine manu-

facturer’s specications. Dispose of used

oil in accordance with any local, state, or

federal regulations.

To help insure years of operation, wipe

down the Ranch Pro™with a clean cloth

after each days use.

Refer to the Service Instructions for

more detail regarding maintenance of

the post driver.

Ranch Pro™Operating Instructions... continued

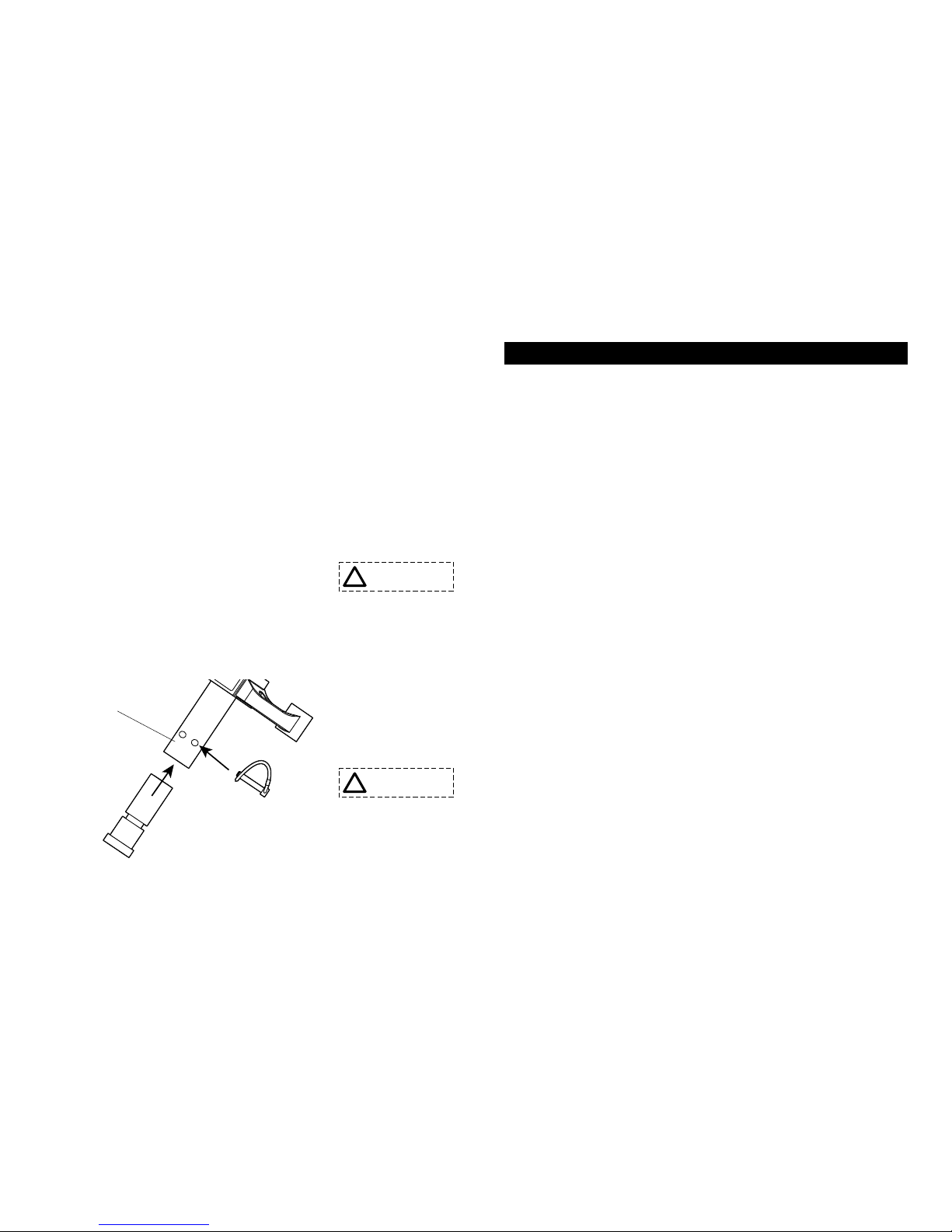

Lock Path

Openings

Insert adapter

into the mas-

ter chuck Apply the lock clip

in position to secure

the adapter

Fig. 8

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Following the service requirements for the

Ranch Pro™will insure years of trouble

free post driving. Always refer to the

Honda GX35 manual for maintenance

and service on the engine. The following

instructions are for the Rhino®Ranch Pro™

specically with general instructions for

the Honda GX35. Before any service is

preformed, remove the spark plug wire

from the spark plug and ground it to the

engine body to prevent any accidental

start-up of the engine.

Each Use

1. Check engine oil level. Use SAE 10W-

30 to top oil level off, if necessary.

2. Check engine air cleaner. If soiled,

clean or replace.

3. Check crankshaft and piston lubrication.

(See page 11 for instructions.)

4. Check all engine and post driver fasten-

ers. Retighten to proper specications if

necessary. (See Bolt Torque Specica-

tions on page 19)

First 10 Hours Use of a New or Rebuilt

Ranch Pro™

1. Change engine oil following the

requirement for the Honda GX35. Dis-

pose of used oil according to all local,

state, and federal regulations.

2. Check crankshaft and piston lubrica-

tion. (See page 11 for instructions.)

3. Check all engine and post driver fasten-

ers. Retighten to proper specications if

necessary.

Every 3 Months or 25 Hours of Use

1. Change engine oil following the

requirement for the Honda GX35. Dis-

pose of used oil according to all local,

state, and federal regulations.

2. Replace air cleaner elements. This

should be performed more often if oper-

ated in dusty areas.

3. Check crankshaft and piston lubrica-

tion. (See page 11 for instructions.)

4. Check all engine and post driver fasten-

ers. Retighten to proper torque speci-

cations if necessary. (See page 19)

Every 3 Months or 50 Hours of Use

1. Change engine oil following the

requirement for the Honda GX35. Dis-

pose of used oil according to all local,

state, and federal regulations.

2. Replace air cleaner elements. This

should be performed more often if oper-

ated in dusty areas.

3 Check crankshaft and piston lubrica-

tion. (See page 11 for instructions.)

4. Check all engine and post driver fasten-

ers. Retighten to proper torque speci-

cations if necessary. (See page 19)

Every 12 Months or 250 Hours of Use

1. Change engine oil following the

requirement for the Honda GX35. Dis-

pose of used oil according to all local,

state, and federal regulations.

2. Replace air cleaner elements. This

should be performed more often if oper-

ated in dusty areas.

3. Check crankshaft and piston lubrica-

tion. (See page 11 for instructions.)

Operating Instructions ...continued Ranch Pro™Service Instructions

Ranch Pro™Service Instructions... continued

4. Remove and service the hammer and

anvil. See page 12 for instructions.

5. Check all engine and post driver fasten-

ers. Retighten to proper torque speci-

cations if necessary. (See page 19)

Servicing Crankshaft and Piston

Lubrication

(Fig. 9) The crankcase cover is designed

for easy, “no tool” inspection and mainte-

nance. To remove the cover, grip it tightly

with your hand and twist it left (counter-

clockwise.)

DO NOT USE A

HAMMER OR

WRENCHES TO LOOSEN THE COV-

ER AS IT MAY CAUSE DAMAGE TO

THE DRIVER.

Visually inspect the color and amount of

grease inside the crankcase. There should

be a ring of grease collected to the wall in-

side the crankcase. Should the depth of the

ring from the wall inward measure 1/4"

or less (Fig. 10) this indicates the grease

is low. The maximum level should not be

more than 1/2".

If ridge of grease measures 1/4" (6mm)

or less, add a small amount. At maximum

level it should measure 1/2" (12.5mm)

Use only Rhino Pro Series Grease (p/n

300500.)

DO NOT OVERFILL

GREASE AS IT CAN

DAMAGE THE DRIVER AND THE

HONDA ENGINE.

If the grease is discolored, very dark or

black, the post driver will need further

maintenance. This is detailed in the sec-

tion titled “Service of the Hammer and

Anvil.”

In the event of complete removal of old

grease and adding fresh grease (Fig. 11)

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Fig. 9 - Crankcase Cover Fig. 10 - Inspect color and amount of

grease.

Fig. 11 - After completely cleaning out old

grease, add new grease till level with the

bottom edge of the crank pin head.

Rotate

Crankshaft

until crank pin

is in 12:00

o'clock posi-

tion.

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Rotate crankshaft with connecting rod, and

crankpin until the crank pin is in the 12:00

o'clock position. Add of Rhino®Pro Series

Grease (p/n 300500). The level of grease

should be to the bottom of the crank pin

head. When the required service has been

performed in the crankcase, inspect the

o-ring seal and replace it on the crankcase

cover. Position the crankcase cover on

the Fence Pro™body carefully to start the

threads and once in the thread groove,

with your hand twist to the right (clock-

wise) until it is securely in contact with

the post driver body.

HAND TIGHTEN

ONLY. DO NOT

OVERTIGHTEN. Do not use tools,

such as a hammer or wrench, to tighten

the crankcase cover as it will damage the

driver.

Service of the Hammer and Anvil

The tools required for servicing the ham-

mer and anvil are, a 9/64" hex wrench, a

1/4" hex wrench, a 7/8" deep well socket

with handle, a torque wrench that reads in

inch/pounds (Nm), and threadlocker.

Remove the four (4) bolts (p/n 300702-4)

in the bottom of the lower driver body (p/n

300031). Use caution as the handle tubes

(p/n 301232) have anti-vibration springs

(p/n 610010-4) installed and they are

under tension. When the lower driver body

is removed, it should appear as shown

in Fig. 12. The anvil o-ring retainer (p/n

300110) will sometimes be removed with

the lower driver body or remain in place.

Remove the anvil o-ring cup (p/n 300090)

and the anvil (p/n 300160). This can be

easily accomplished by pushing a 1”dowel

rod or hammer handle into the chuck tube

from the opposite side. When the parts

are removed, note the order and disas-

semble for inspection. Check the anvil for

any wear. The anvil o-ring (p/n 300606)

should be replaced at this time. Clean the

anvil and carefully replace the anvil o-

ring. (Fig 13).

Remove the large retainer o-ring seals

(p/n 300604-2) and the large retainer (p/n

300100) from the anvil o-ring cup.

Inspect the large retainer. The large retain-

er o-ring seals should be replaced at this

time. Replace the large retainer if there are

any signs of damage or excessive wear.

The anvil o-ring retainer can be removed

from the end of the cylinder in the post

Ranch Pro Service Instructions... continued

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Fig. 13 - Anvil with O-ring in place.

Fig. 12 - View when Lower Driver Body

removed.

driver body (p/n 300015) by hand. Use

caution as it can become sharp with use of

the driver.

Remove the hammer (p/n 300080), piston

and connecting rod assembly (p/n 300075)

by removing the crank pin (p/n 300050).

Access to the crank pin is achieved by

removing the crankcase cover, which is

described in the section titled “Servicing

Crankshaft and Piston Lubrication” shown

in the previous pages of this manual.

Remove the crank pin using the 7/8" deep

well socket.

THE CRANK PIN

HAS LEFT-HAND

THREADS.

Use caution holding the connecting rod

and crankshaft (p/n 300040). The con-

necting rod and crankshaft can be dam-

aged. Use a small wood or plastic block to

keep the crankshaft from rotating. When

the crank pin is removed, the piston and

connecting rod assembly, hammer can be

removed by pushing the connecting rod

down into the cylinder until it can be re-

moved from the bottom of the post driver

body. Note orientation of the hammer.

The small end of the hammer is toward

the anvil as shown in Fig. 14. Clean and

inspect the hammer for damage or exces-

sive wear. The hammer o-ring Seal should

be replaced at this time.

Clean and inspect the piston and con-

necting rod. Insert the crank pin into the

bearing on the connecting rod. If there is

excessive play or side movement between

the two, the connecting rod and piston

assembly and possibly the crank pin

should be replaced. Check the movement

in the bearing in the piston side. If there

is excessive play the connecting rod and

piston assembly should be replaced. The

piston o-ring seal (p/n 300600-2) should

be replaced at this time. (See Fig. 15.)

Clean and inspect the cylinder and crank-

case for any damage or wear. Replace any

damaged parts. Lubricate the cylinder,

piston, and connecting rod with Rhino ap-

proved grease (p/n 300500.)

RECOMMENDED

THREADLOCKER

PROCEDURE: Clean any residue from

the bolts and internal bolt threads with

acetone or solvent. Apply threadlocker

primer to the bolt holes and bolt threads

and allow the primer to dry. Follow

with an application of threadlocker to

the bolt hole threads.

Follow threadlocker procedure for install-

Ranch Pro™Service Instructions... continued

Fig. 14 - Small end of Hammer is toward

the anvil.

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

Fig. 15 - Piston with Connecting Rod and

O-ring Seal in place.

!WARNING

!DANGER

!CAUTION

IMPORTANT

NOTE

ing the crank pin. Insert the connecting

rod, with the piston attached, into the

cylinder. Push the piston up the cylinder

until the bearing in the connection rod

aligns with the threaded hole for the crank

pin. Insert the Crank Pin through the bear-

ing and start the threads into the Crank-

shaft by hand. These are LEFT-HAND

THREADS. Tighten the crank pin using

the 7/8" deep well socket. Torque to 360

inch/pounds (40.6 Nm).

(Fig. 10) Rotate crankshaft with con-

necting rod, piston and crankpin until the

crankpin is in the 12:00 o'clock position.If

grease has been completely removed add

2.75 oz or 81.32 ml of Rhino®Pro Series

Grease or until level with the bottom of

the crankpin head. (See Caution: Do not

overll grease on page 12) Close the

crankcase by placing the crankcase cover

o-ring seal onto the crankcase cover. Place

the crankcase cover onto the post driver

body, start the thread, and twist to the

right (clockwise) with your hand until it is

secure against the post driver body. (See

Caution: Do Not Overtighten on page

12)

Lubricate the cylinder and hammer with

Rhino approved grease (p/n 300500.)

Insert the hammer into the cylinder, taking

note of the small end to the anvil as shown

in Fig. 13. Push the hammer into the

cylinder making room to insert the anvil

o-ring retainer. Apply grease to the anvil

o-ring retainer and place the small end into

the cylinder. The grease should hold it in

place.

Lubricate with grease and assemble the

large retainer and the two (2) large retainer

o-ring seals in the order shown in Fig. 16

and assemble into the anvil o-ring cup.

Insert o-ring into anvil o-ring cup, then

insert large retainer, followed by inserting

the other o-ring.

Clean and inspect the chuck tube (p/n

300156) and lower driver body (p/n

300031) for any damage or excessive

wear. Replace if necessary. Lubricate

chuck tube with grease. Lubricate the

anvil with grease. Insert the anvil with

new anvil o-ring into chuck tube, mak-

ing certain that the anvil is seated into the

chuck tube. Insert the anvil o-ring cup into

the chuck tube. Replace the chuck tube

o-ring (p/n 300608) and insert the chuck

tube o-ring onto the chuck tube. It should

Fig. 16 - Insert O-ring into Anvil O-ring cup, then insert Large Retainer, followed by

inserting the other O-ring.

Anvil Cup O-ring Large Retainer O-ring

Ranch Pro™Service Instructions... continued

look like Fig. 12 on page 12.

Remove the handle tubes (p/n 301232)

from the handle cups and remove and

clean and lubricate with grease all four

(4) anti-vibration springs (p/n 610010-4.)

Check all handle cups for wear. Clean and

lubricate the upper and lower cups the

handle tubes t into with a small amount

of grease. Insert the anti-vibration springs

into the handle tubes.

Assemble the handle tubes into the upper

handle cups. Insert the chuck tube into the

post driver body, taking care to insert the

handle tubes into the handle cups on the

lower driver body. When parts are inserted

in the proper position, there will be resis-

tance from the anti-vibration springs to

seat the lower driver body on to the post

driver body. This is normal.

Follow the threadlocker procedure on

page 13. Insert and hand thread the four

(4) lower body bolts through the lower

driver body into the post driver body. Use

a 1/4" hex wrench to tighten the bolts in a

star pattern until the lower driver body is

seated on the post driver body. Check for

any misalignment or binding when joining

the parts. DO NOT USE EXCESSIVE

FORCE. Torque the lower body bolts to

132 inch/pounds (14.91 Nm).

Perform a visual check of the post driver.

Reconnect the spark plug wire to the spark

plug. Check that the engine has the proper

amount of oil. Start the engine using the

proper procedure and test the post driver.

Ranch Pro™Service Instructions... continued

Rhino®Ranch Pro™Parts List

1415

195

521

8910 1

Rhino®Ranch Pro™Parts List ...continued

No. P/N Description

1 300015 Post Driver Body with Cylinder and Bearings

2300715-4 Top Handle Bolt Set

3 301222 Top Handle w/Foam Grip

4301221-2 Handle Collar (2 Qty.)

5610010-4 Handle Anti-Vibration Spring (4 Qty.)

6 300214 Top Handle Bracket

7 300075 Piston and Connecting Rod Assembly

8300600-2 Piston O-ring Seal and Hammer O-ring Seal

9300080 Hammer

10 300110 Anvil O-ring Retainer

11 300712 Ground Bolt

12 300604-2 Large Retainer O-ring Seal (2 Qty.)

No. P/N Description

13 300100 Large Retainer

14 300090 Anvil O-ring Cup

15 300160 Anvil

16 300606 Anvil O-ring

17 300608 Chuck Tube O-ring Seal

18 300156 Ranch Pro Chuck Tube

19 300031 Lower Driver Body

20 300702-4 Lower Body Bolts (4 Qty.)

21 301232 Handle (2 Qty.)

22 300221 EPDM Handle Grip

23 300250 Throttle Control

24 300897 1" Adapter with Lock Pin (1 per driver)

Rhino®Ranch Pro™Driver Parts List ...continued

Table of contents

Other RHINO Power Tools manuals

RHINO

RHINO 501056 User manual

RHINO

RHINO 240P User manual

RHINO

RHINO 130P User manual

RHINO

RHINO 440P User manual

RHINO

RHINO Ranch Pro 300001 User manual

RHINO

RHINO Pro Series 301250 User manual

RHINO

RHINO GPD-40 Fence Pro User manual

RHINO

RHINO PD-55 User manual

RHINO

RHINO Fence Pro User manual

RHINO

RHINO PD-110 User manual

RHINO

RHINO 501066 User manual

Popular Power Tools manuals by other brands

Taylor

Taylor C2 operating guide

Woodstock

Woodstock SHOP FOX W1668 owner's manual

Klein Tools

Klein Tools BAT20-716 instruction manual

Hitachi

Hitachi RH 650V Handling instructions

Makita

Makita VR001C user manual

Makita

Makita 1806B instruction manual

Black & Decker

Black & Decker BCRTA601WP instruction manual

Cramer

Cramer 82P manual

Ryobi

Ryobi RJS950 Original instructions

Signode

Signode Josef Kihlberg a.560M22 operating instructions

Hitachi

Hitachi CJ 90VST Handling instructions

Hafco Metalmaster

Hafco Metalmaster HM-32B instruction manual

jbc

jbc TE-QD manual

Makita

Makita DHG180 instruction manual

Hakko Electronics

Hakko Electronics B5166 instruction manual

Black & Decker

Black & Decker RTX instruction manual

Maktec

Maktec M420 instruction manual

Sealey

Sealey STW804 quick start guide

RHINO Ranch Pro User manual

Popular Power Tools manuals by other brands
