Rhopoint Novo-Shade Duo+ User manual

Novo-Shade Duo+
Thank you for purchasing this Rhopoint product.
Please read these instructions carefully before operating this product and retain them for
future reference.
The images shown in this manual are for illustrative purposes only.
English
Operating Instructions

1
This instruction manual contains important information about the setup and use of
your ovo-Shade Duo+. It is essential that the contents be read before powering up
and operating the instrument.
If this instrument is passed to other users you must ensure that the instruction
manual is supplied with the instrument. If you have any questions or require
additional information about the ovo-Shade Duo+ please contact the Rhopoint
Authorised Distributor for your region.
The technology and components used in the device are based on state-of-the art
optic and electronics. As part of Rhopoint Instruments commitment to continually
improving the technologies used in their products, they reserve the right to change
information included in this document without prior notice.
© Copyright 2015 Rhopoint Instruments Ltd. All Rights Reserved.
ovo-Shade Duo+ and Rhopoint™ are registered trademarks of Rhopoint
Instruments Ltd. in the UK and other countries.
Other product and company names mentioned herein may be trademarks of their
respective owner.
o portion of the software, documentation or other accompanying materials may be
translated, modified, reproduced, copied or otherwise duplicated (with the exception
of a backup copy), or distributed to a third party, without prior written authorization
from Rhopoint Instruments Ltd.
Rhopoint Instruments Ltd.
Enviro 21 Business Park
Queensway Avenue South
St Leonards on Sea
T 38 9AG UK
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.rhopointinstruments.com
Revision A
May 2015

2
Contents
About the ovo-Shade Duo+ 4
Accessories 4
Functional overview 5
Power 6
Switching on the unit 6
Operation 7
Menu Screen 8
Setup Screen 10
Data & Batch Screen 11
Calibration Screen 12
Measurement Screen 13
Opacity 14
Shade 15
Cleanliness 16
Pass/Fail Setup Screen 17
Control Screen 18
Bluetooth Communication and Pairing 19
Pairing Procedure 19
Bluetooth Data Widget Installation Instructions 21
Maintenance Screen 25
About Screen 25
Instrument Specification 27

3
Storage and Handling
• This instrument contains precision optics and electronics. You should avoid
knocking or dropping the device as the resulting impact could cause serious
damage.
• In some circumstances the optical components in the instrument could
become misted as a consequence of temperature change. It is
recommended that the instrument is not used until it has stabilised to
ambient temperature.
• Ensure that the instrument is not exposed to moisture, chemicals or to any
corrosive vapours.
• Do not interfere or place any objects inside the measuring aperture as
damage to the measuring system could occur.
• The instrument housing and screen are normally resistant to a variety of
solvents however it is not possible to guarantee resistance to all chemicals,
therefore the surfaces of the instrument should only be cleaned using a soft,
moist cloth.
• Prevent exposure of the instrument to direct sunlight for prolonged periods
and to continuous humidity and condensation.

4
About the Novo-Shade Duo+
The ovo-Shade Duo+ is a portable 45/0° reflectometer that can be used to assess
either the shade of a surface (a simple indication of colour based on lightness /
darkness) or calculate the opacity of a coating, plastic film or paper sample.
Measuring using 0/45º the ovo-Shade Duo measures the colour of a surface and
not the specular reflectance (gloss). In Shade Mode the ovo-Shade Duo can help
maintain the production quality of the following:
• Shade of paints, inks and coatings
• Fading of textiles and plastics
• Chalking of paint
• Efficiency of detergents and bleaching agents
• Whiteness of recycled paper
• Cleanliness and oxidisation on metal surfaces
In Opacity Mode the ovo-Shade Duo+ can help maintain the production quality of
the following:
• Hiding power of paints, inks and coatings
• Transparency of plastic film
• Opacity of paper
Accessories

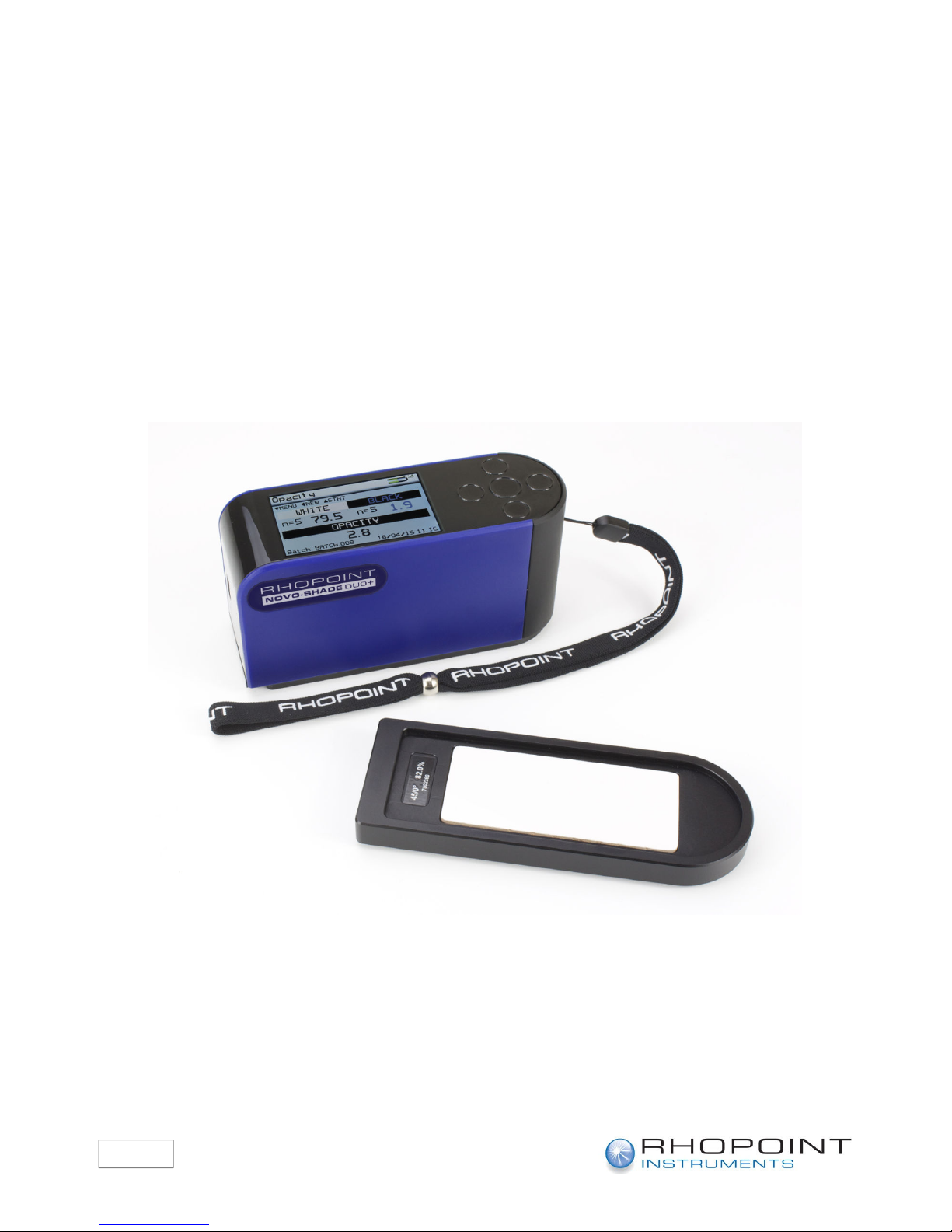

The instrument is supplied as a standard package complete with all accessories
required to calibrate and recharge the unit including:-
ovo-Shade Duo+ 45/0° Reflectometer
Calibration tile including certificate
Cleaning cloth for calibration tile
USB Mains Charger with four selectable mains input connectors (UK / Europe / US
/ Australia)
USB PC cable
Quick Start Operating Instructions
Protective instrument carry case

5
Functional overview
The instrument is controlled by pressing the relevant touch sensitive button.
Functionality is dependent on whether the instrument is in menu or operate mode
as detailed in the operation sections that follow.
Label o. Function
1 On / Off Button
2 High Resolution Graphic Display
3 Up/Down/Left/Right Buttons
4 Operate / Enter Button
5 Mains / USB Charger Input Connector
6 Calibration Tile
5
4
2
3
1
6

6
ower
The ovo-Shade Duo+ is powered by an integrated high capacity lithium ion cell.
Fully charged the instrument will operate continuously for >17 Hours or >20,000
readings.
A mains powered USB charger is provided with the unit, this will fully charge the unit
when connected to the units USB input (6) using the USB cable provided in under 4
hours.
Alternatively the ovo-Shade Duo+ can be powered and charged using the USB cable
attached to any compatible USB host (e.g. laptop etc.), however due to the lower
current available from these devices, the charge time will be a minimum of 6 – 8 hours.
Do not operate the instrument whilst it is charging
Switching on the unit

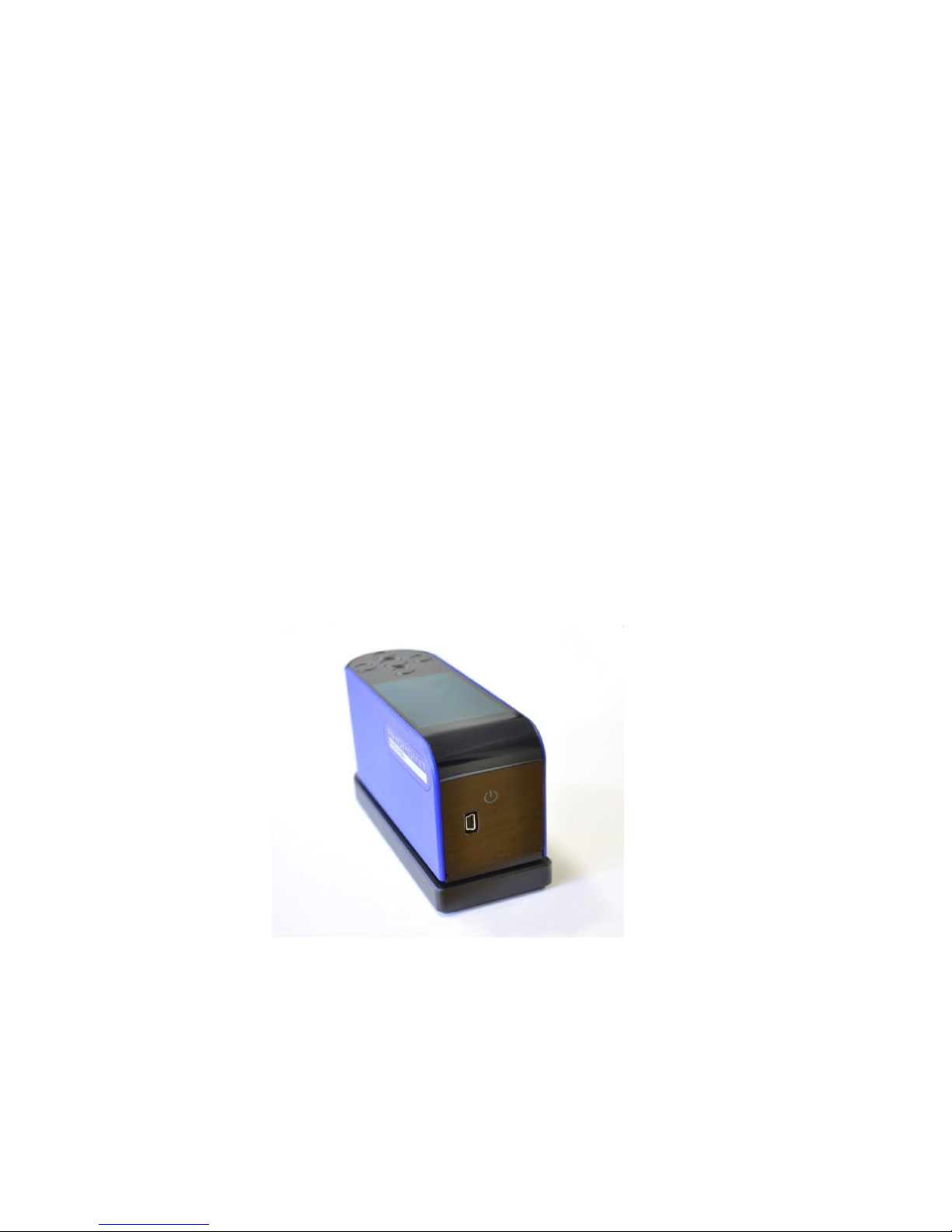

To switch on the unit touch the On/Off button located near the USB socket.
The instrument will display the ovo-Shade Duo + logo and then enter into the home
screen displaying measurement parameters according to the instruments default
settings or those previously configured.
Similarly the instrument is powered off by pressing the On/Off button for three seconds.

7
Sample Number
Batch information
Instrument Ready Indicator
Battery Indicator
Bluetooth Enabled
Operation
With the unit switched on and initialised the instrument will, depending on the mode
selected, display the home screen as shown below.
Measurements can be made by simply pressing the operate button (4) on the
instruments keypad.
Should the Auto Calibration option be set to O in the settings menu (detailed later
in the Instrument Settings section of this manual) and the calibration tile is in place
underneath the instrument a dialogue box will appear when the operate button is
pressed as shown below
Two options are available: either to “Calibrate” the instrument on the calibration tile
before making the measurement or to “Measure” without performing a calibration.
Using the Left/ Right (3) and Enter (4) buttons on the keypad the required option
can be selected.
By selecting “Calibrate” the instrument will perform a calibration and display a
confirmation dialogue box when completed. Selecting the “Confirm” option will save
the calibration information to the instruments memory, which will also be confirmed
by the calibration tile 45/0° readings appearing on the instruments display.
Navigation Options
Measurement Mode

8
Alternatively if “Cancel” is selected the display will return to the home screen.
By selecting “Measure” the instrument will perform a measurement and after 3 -4
seconds display the results.
Pressing the Down button accesses the Menu Screen.
Menu Screen

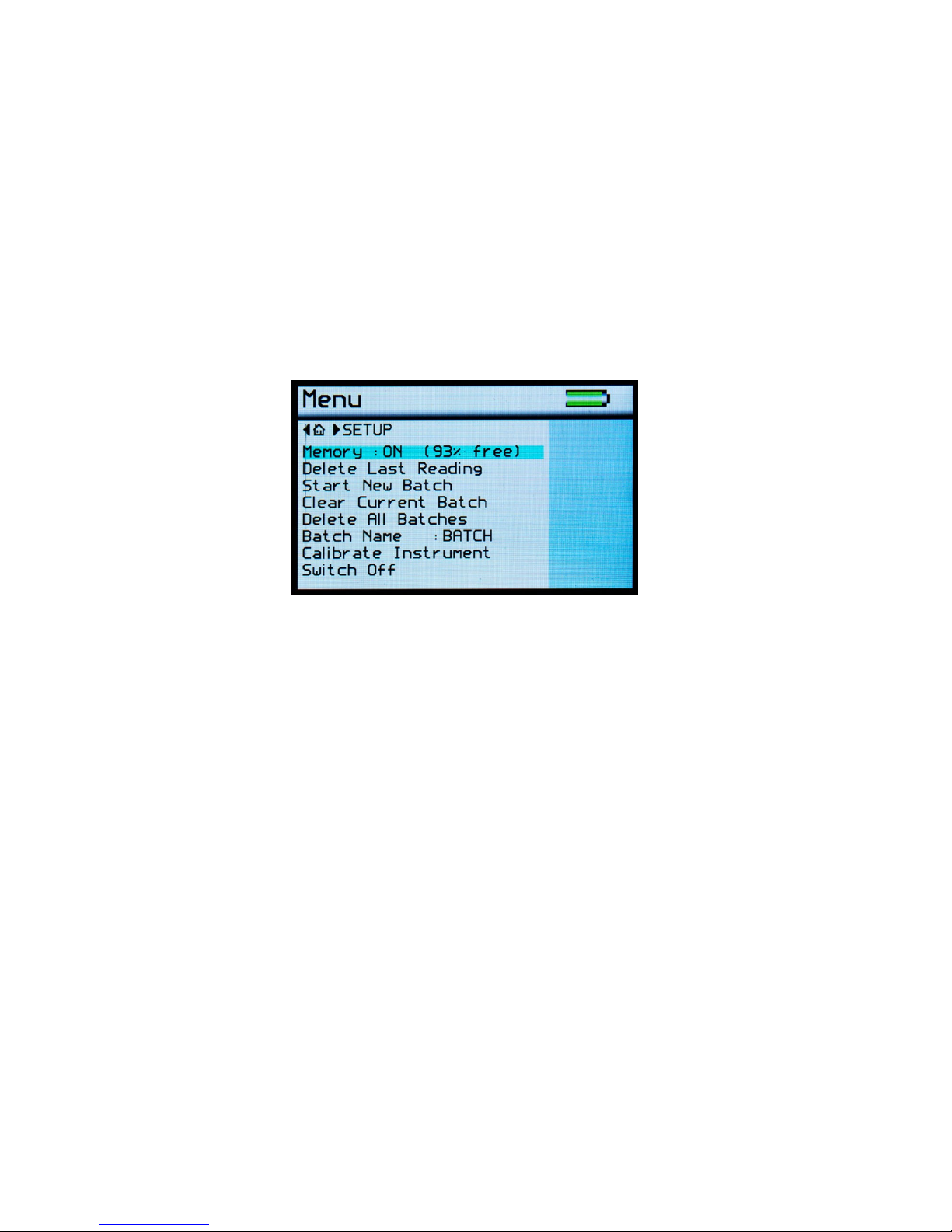

The Menu Screen is used for quick access to often used options. Pressing the Up
and Down buttons navigates through the options, pressing the Enter button selects
that option.
Selectable settings in the menu screen are:-
Memory – Set to O , enables storage and batching of measurement results.
The amount of available storage memory is also displayed.
Set to OFF – disables result storage.
With Memory O :
Delete Last Reading – Delete last measurement, no. of measurements and statistics
data updated to previous values.
Start ew Batch – Start new batch of readings, Batch name is incremented by 1.
Clear Current Batch – Delete entire batch of measurements for current batch.
Delete All Batches – Delete all batches and measurements stored.
Batch ame – Default name is BATCH, a maximum of 8 user defined batch names can
be used as detailed in the “Batching Options” section.
Calibrate Instrument – Perform a calibration of the instrument as detailed under
“Operation”.
Switch Off – Turn off the instrument.

9
Pressing the Left button returns the display to the home screen.
Pressing the Right button will access the Setup screen.
Batching Options
The batching feature allows the user to group measurements together in batches. Each
batch has associated statistics; the data for each batch can be accessed by connecting
the instrument to a PC.
The current batch name is displayed on the home screen in the bottom left corner, the
sample number within that batch is shown in the top right of the screen indicated with
n=(sample number).
A new batch is started using the Start ew Batch option in either the Menu screen or
the Data menu, note that the batch name will increment as will the ‘n’ indicator.
The current batch can be cleared in the either the Menu screen or the Data Menu, the
batch name will remain the same but the ‘n’ indicator will reset to zero.
Auto batch size is user defined using the Auto Batch option in the Data Menu. When the
number of readings in the current batch reach the number set by the user the
instrument will automatically increment the batch name and set the ‘n’ indicator to zero.
Viewing Batch Data
To access the stored batch information connect the instrument to a PC using the USB
data cable supplied.
A new device name “DUO-PLUS” can be viewed and accessed via “MY COMPUTER”,
in this device open the DATA folder. This folder contains subfolders which contain the
data for each individual saved batch. Each reading is saved as an individual comma
separated value (.csv) that contains Measurement Data, Time and Date of Reading,
and Serial umber.
Each reading also contains the statistics for the batch up to and including that reading.
To access the STATISTICS for the whole batch, the last reading in the batch should be
examined.
User Defined Batch Names
Batch names are user definable. With the instrument connected to a PC, open the
folder named “CO FIG”. Within this folder there is a document named “batches”.
This is a .csv file that can be opened in otepad, Excel or Wordpad.
User defined names should be saved in this document each name listed on a separate
line. Ensure that the final line is terminated with a carriage return.
The format of these names should only contain letters, no numbers, spaces or other
characters can be used. Once completed save the file then switch the instrument off
and on again to initialize the new batch names.

10
Setup Screen
The Setup Screen is used to customise the instrument to the user’s preference.
Pressing the Up and Down buttons navigates through the options, pressing the Enter
button selects that option.
Data and Batch Menu - Batch / Data options (See Data & Batch Menu Screen)

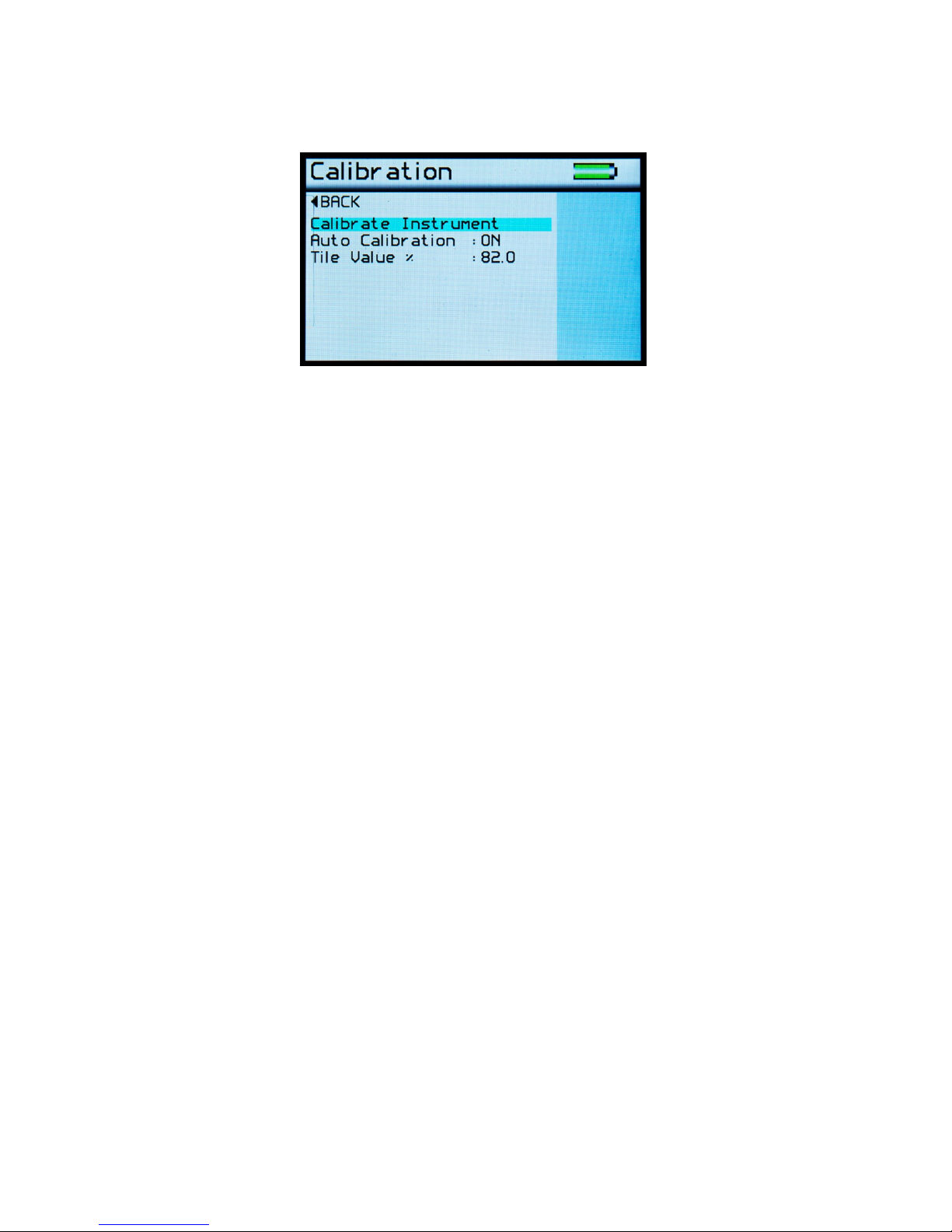

Calibration Menu - Calibration options (See Calibration Menu Screen)

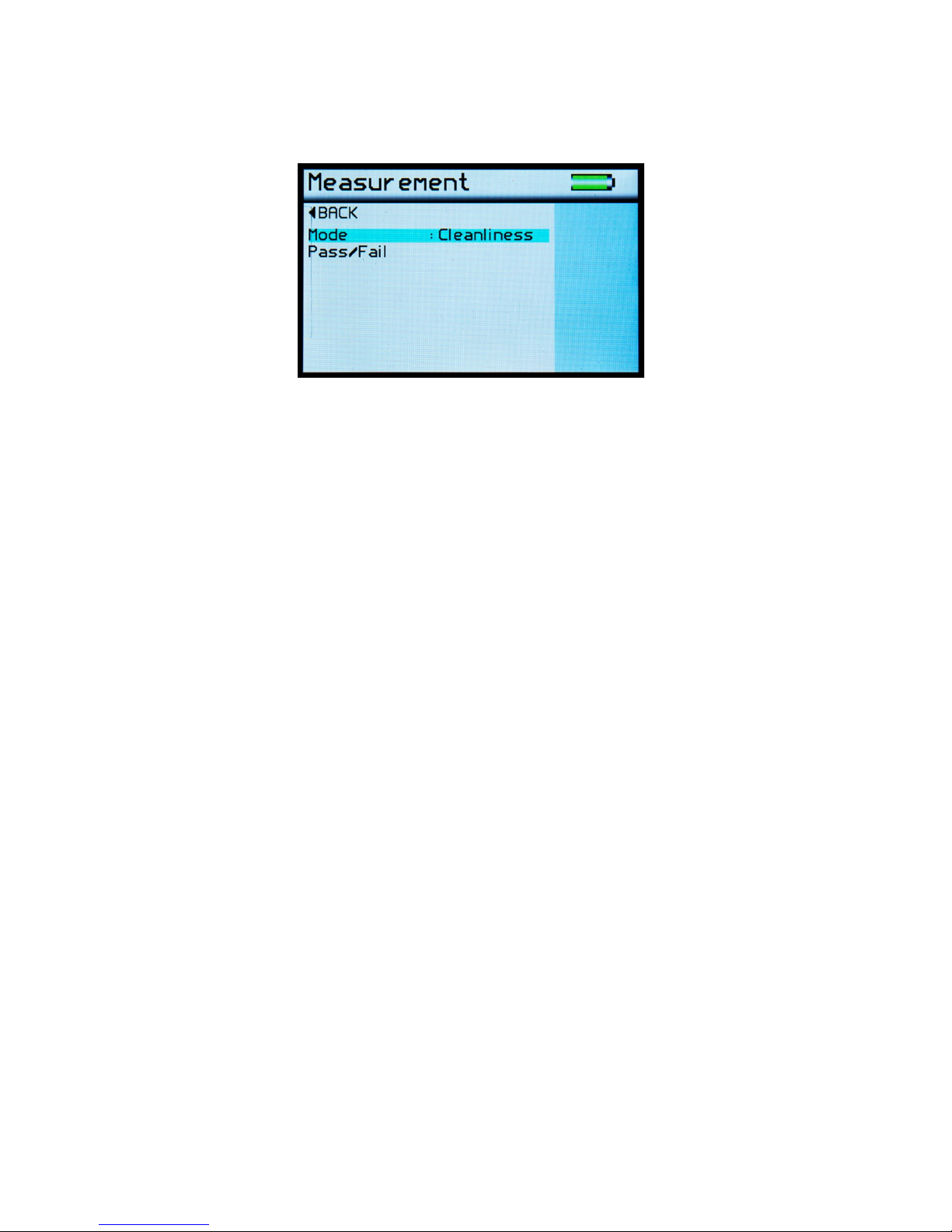

Measurement Menu – Measurement mode setup (See Measurement Menu Screen)
Control Menu - Bluetooth setup (See Control Menu Screen)
Instrument Setup - Language, Date / Time and Power options (Setup Menu Screen)
Factory Menu - Pin locked menu options for Rhopoint authorised service centres
Pressing the Left button returns the display to the home screen.

11
Data & Batch Screen
The Data Screen is similar in functionality to that of the menu screen but also allows the
selection and setting of the Auto Batch size.
By selecting Auto Batch to O the batch size can be selected between 1 - 999 by
pressing the Left and Right buttons to select the relevant digit and the Up and Down
buttons to increment / decrement the value. Pressing the Enter button saves the batch
size.
If Batch names have been user defined, as detailed under Batching Options, selection
of the Batch ame required is achieved by repeatedly pressing the Enter button with
Batch ame selected.
Pressing the Left button returns the display to the home screen.

12
Calibration Screen
The Calibration Screen is used to setup the instrument calibration to the user’s
preference. Pressing the Up and Down buttons navigates through the options, pressing
the Enter button selects that option.
Selectable settings in the Calibration screen are:-
Calibrate instrument - Performs an instant calibration of the instrument; a dialogue box
being displayed upon completion to either “Cancel” or “Confirm”.
Auto Calibration - Set to O , a dialogue box appears each time a measurement is
taken as detailed under Operation.
Set to OFF, the dialogue box is disabled; measurements are made.
Tile Value % - Set t the calibration value for the standard being used for calibration.
Pressing the Enter button selects the value. Pressing the Left and Right buttons selects
the relevant digit and the Up and Down buttons increment / decrement the value.
Pressing the Enter button again saves the value.

13
Measurement Screen
The Measurement Screen is used to configure the instruments measurement mode to
the user’s preference. Pressing the Up and Down buttons navigates through the
options, pressing the Enter button selects that option.
Selectable settings in the Measurement screen are:-
Mode- selects one of the following operation modes:-
Opacity – Selects Opacity mode (Operation as detailed under Opacity)
Shade – Selects Shade mode (Operation as detailed under Shade)
Cleanliness – Selects Cleanliness mode (Operation as detailed under
Cleanliness)
Pass/Fail – enters the Pass/Fail setting screen (Operation as detailed under Pass/Fail
Screen)
Pressing the Left button returns the display to the home screen.

14
Opacity
In Opacity mode the above screen is displayed.
To measure the opacity of a coating it must be drawn down on a Leneta type
opacity chart at the required film weight and allowed to fully dry. To measure the
opacity of plastic film, paper, textile or any other semi-opaque material, place the
sample to be measured over a black and white test bed.
Ensure the instrument is correctly calibrated.
With the instrument set to White (using the left / right arrow buttons) make 6
measurements of the sample on the White substrate, then repeat changing the
setting to Black on the Black substrate.
The Opacity will be calculated automatically and displayed at the bottom of the
screen.
Press the Up button to display the statistics for this measurement.
Press the Left button to start a new batch.
Press Down to return to the Menu Screen.

15
Shade
In Shade mode the above screen is displayed.
Ensure the instrument is correctly calibrated.
To measure the shade of a coating simply place the instrument on the surface of
the sample to be measured and press the Centre button. The value is displayed on
the screen. The shade measurement is based on a greyscale value where Black is
zero and White is the value of the calibration standard.
Press the Up button to display the statistics for this measurement.
Press the Left button to start a new batch.
Press Down to return to the Menu Screen.

16
Cleanliness
In Cleanliness mode the above screen is displayed.
Ensure the instrument is correctly calibrated.
To measure cleanliness clear tape is used to collect debris from the surface under
test. This is then stuck to any suitable white substrate along with a sample of tape
that is perfectly clean.
With the instrument set to Reference (using the left / right arrow buttons) make up
to 9 measurements of the reference sample on the substrate, then repeat changing
the setting to Tape on the sample containing the debris.
The Cleanliness will be calculated automatically and displayed at the bottom of the
screen.
Press the Up button to display the statistics for this measurement.
Press the Left button to start a new batch.
Press Down to return to the Menu Screen.

17
ass/Fail Setup Screen
The Pass/Fail setup screen is used to enable/disable on-screen pass/fail indication and
set min/max tolerancing.
The down key should be used to navigate to the Pass/Fail option and the center button
pressed to toggle the feature on and off.
Pressing the right navigation button allows the user to edit pass & fail criteria.
Once the Pass/Fail feature is enabled, any measurement which falls between the max
and min values will be considered a pass and its header text will be coloured green.
Readings above the max value or below min value will be deemed a fail and header
text will be coloured red. Saved data and data transmitted by Bluetooth will also contain
a pass/fail field.
Select the done option to complete this process.

18
Control Screen
The Control Screen is used to configure the instruments Bluetooth parameters to the
user’s preference. Pressing the Up and Down buttons navigates through the options,
pressing the Enter button selects that option.
Selectable settings in the Control screen are:-
ID – Sends instrument ID via Bluetooth
SOF/EOF – Selects whether or not flow control commands are sent
Bluetooth – Selects Bluetooth O or OFF
Bluetooth mode - Data - Basic data transfer mode (transmits On-Screen Parameters)
Pressing the Left button returns the display to the home screen.

19
Bluetooth Communication and airing
The ovo-Shade Duo + has a Bluetooth function that allows readings to be instantly
transmitted to a compatible PC.
Measurement data including instrument serial number and service/calibration
information can be instantly accessed by many PC applications including Excel,
Word, Wordpad, OpenOffice or SPC packages.
airing rocedure
Switch on the ovo-Shade Duo +.
1. The Bluetooth icon must be visible to allow pairing.
2. If the Bluetooth icon is not visible, enable it as detailed
in Control Screen.
Ensure that Bluetooth mode is set to either Data or
Data+
3. In Windows, go to START menu and select “Devices and
Printers.”
4. In Devices and Printers screen Click "Add a device"
