Rice lake Iqube2-aa User manual

iQUBE²®

Digital Diagnostic Junction Box

Version 1.03

Installation Manual

PN 106113 Rev E

Compatible with:

1280 Enterprise™ Indicator

920i® Programmable HMI Indicator

VIRTUi ®² PC-based HME

August 19, 2020

An ISO 9001 registered company

Rice Lake Weighing Systems® is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete and

accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make

changes to the technology, features, specifications and design of the equipment without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Contents

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com/training

or obtained by calling 715-234-9171 and asking for the training department.

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2.1 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2.2 System Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2.3 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2.4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2.5 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2.6 Transient Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 System Configurations and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.3.1 Communications Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.3.2 Power Supply Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.4 Support Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.4.1 VIRTUi² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.4.2 Supporting Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.5 Printed Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Installation Check Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1.1 Location Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1.2 Wiring Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 Power Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3.1 System Current Draw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3.2 System Voltage Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.4 Transient Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.4.1 Single Point Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.5 Mounting the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5.1 UL Equipment Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5.2 UL Power Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.6 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.6.1 Cable Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.6.2 Stripping Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.7 iQUBE² Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.8 Load Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.8.1 Load Cell Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.9 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.1 Port 1 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.2 Communications Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.9.3 Communications Cable Distance Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.11 Primary/Secondary Wiring and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.11.1 Assigning Board Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.2 Manual Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.3 Start Auto Assign Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.4 Push-Button Address Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.5 Manual Assignment with VIRTUi² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

iQUBE2 Digital Diagnostic Junction Box

ii Visit our website www.RiceLake.com

Rice Lake continually offers web-based video training on a growing selection

of product-related topics at no cost. Visit www.ricelake.com/webinars

2.12 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.12.1 Truck Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.12.2 Four Scale Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.12.3 Tanks and Hoppers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.12.4 Floor Scale with Remote Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.13 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.0 1280 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.1 Manual Configuration Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.2 Establish Communication between the iQUBE² and the 1280 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.2.1 Enter 1280 Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.2.2 Configure 1280 Serial Port to Communicate with the iQUBE² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.2.3 Add 1280 Scale to Read iQUBE² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.2.4 Initiate Communication Between iQUBE² and 1280 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.3 Configure iQUBE² Load Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.3.1 Set Board Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.3.2 Set Load Cell Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.3.3 Set Load Cell Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.3.4 Send Settings to iQUBE² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4 Calibrate the Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.4.1 Calibrate the Scale by Section Match in 1280 Calibration Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.4.2 Calibrate the Scale by Corner Match in 1280 Calibration Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4.3 Send Settings to iQUBE² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.5 Additional Helpful Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.5.1 Add Diagnostics Soft Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.5.2 Adjust Default iQUBE² Warm up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.5.3 Tweak Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.6 iQUBE² Menu Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.6.1 iQUBE² Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.6.2 Base Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.6.3 Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3.6.4 Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

3.6.5 Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

3.7 iQUBE² Configuration Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.0 920i Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.1 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.1.1 Connect to 920i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

4.1.2 Manual Assignment with the 920i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

4.1.3 920i–iQUBE² Menu Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4.2 Set COMM Parameters and Download Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.2.1 Associating a Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.2.2 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.3 920i Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

4.3.1 Front Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

4.3.2 Advanced Calibration Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Contents

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com/training

or obtained by calling 715-234-9171 and asking for the training department.

5.0 VIRTUi² Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

5.1 Device Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

5.1.1 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

5.1.2 Define Load Cells. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

5.1.3 Load Cell Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

5.1.4 Scale Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5.1.5 Additional iQUBE² System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5.1.6 Print Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5.1.7 Sending Configuration to iQUBE² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

5.2 Configuration Utility Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

5.2.1 2-Point Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

5.2.2 Corner Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

5.2.3 Section Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

5.2.4 Theoretical Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

5.2.5 Temporary Zero Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

6.0 Serial Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

7.0 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.1 Diagnostic Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.1.1 Diagnostic Error Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.1.2 Retrieving Diagnostic Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.2 Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

7.2.1 System Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

7.2.2 Cell Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

7.2.3 Scale Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

7.2.4 Diagnostic Flag Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

8.0 Data Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

8.1 Weight Data Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

8.1.1 Data Format Tokens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

8.1.2 Weight Data Status Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

8.1.3 Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

8.2 Data Formatting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

8.2.1 Formatting Data from Multiple Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

8.2.2 Using the Start/Stop Streaming Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

8.2.3 Encapsulating Data with Prefix and Postfix Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

9.0 Maintenance and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.1 Cell Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.1.1 Section Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.1.2 Corner Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.1.3 2-Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.1.4 Cell Emulation in VIRTUi² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

9.1.5 Cell Emulation with 920i Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

9.2 Restore System Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

9.3 Installing Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

9.4 Replacing CPU Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

9.4.1 Replacing the Primary CPU Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

9.4.2 Replacing a Secondary CPU board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

iQUBE2 Digital Diagnostic Junction Box

iv Visit our website www.RiceLake.com

Rice Lake continually offers web-based video training on a growing selection

of product-related topics at no cost. Visit www.ricelake.com/webinars

9.5 Replacing Transient Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

9.6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

9.6.1 General Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

9.6.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

10.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Introduction

1.0 Introduction

This manual is intended for use by service technicians responsible for installing and servicing iQUBE®² digital diagnostic

junction boxes. This manual applies to Version 1.0 or later of the iQUBE² software.

For applications using the 1280 Enterprise™ Series Indicator as a host device, Version 1.03 or later of the 1280 indicator

software must be installed.

For applications using the 920i® Programmable HMI Indicator as a host device, Version 4.0 or later of the 920i indicator

software must be installed.

For installations using the 920i indicator, the indicator can be configured using the iRev, Version 4 or later, configuration utilities,

serial commands, or the indicator front panel keys.

Configuration and calibration of the iQUBE² can also be accomplished using VIRTUi®² software.

Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com

Warranty information can be found on the website at www.ricelake.com/warranties

1.1 Safety

Safety Signal Definitions:

Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes

hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes

hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.

Indicates information about procedures that, if not observed, could result in damage to equipment or corruption

to and loss of data.

General Safety

Do not operate or work on this equipment unless this manual has been read and all instructions are understood.

Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake

Weighing Systems dealer for replacement manuals.

Failure to heed could result in serious injury or death.

Some procedures described in this manual require work inside the iQUBE² or indicator enclosure. These procedures are to be

performed by qualified service personnel only.

Do not allow minors (children) or inexperienced persons to install/operate this unit.

Do not operate without enclosure completely assembled.

Do not place fingers into slots or possible pinch points.

Do not use this product if any of the components are cracked.

Do not make alterations or modifications to the unit.

Do not remove or obscure warning labels.

Do not submerge.

Before opening the unit, ensure all power is disconnected.

DANGER

WARNING

CAUTION

IMPORTANT

WARNING

iQUBE² Digital Diagnostic Junction Box

2 Visit our website www.RiceLake.com

1.2 Overview

The iQUBE² is a digital programmable junction box with advanced diagnostic and multi-scale capabilities. A single 4-channel

iQUBE² board can be configured to support up to four individual scales plus their sum. The modular design allows for the

connection of up to four iQUBE² circuit boards to define a scale system of up to 16 full bridge analog load cells. An ASCII-based

command set allows the iQUBE² to be configured and controlled by any programmable host that supports the command set.

1.2.1 Hardware

The CPU board (PN 106390) provides four load cell input channels, four configurable I/O channels, a selectable multi-protocol

communications port (RS-232, 2- or 4-wire RS-485) and an additional port that accepts various Rice Lake Weighing Systems

option cards (see Table 1-2 on page 3) for simultaneous communications with multiple hosts.

1.2.2 System Models

The enclosures are available in both fiberglass and stainless steel, with or without a power supply, and in a variety channel

configurations. See Section 1.3 on page 3.

1.2.3 Digital I/O

Each CPU board provides four channels of digital I/O.

Digital inputs can be set to provide indicator functions, including four keys plus cell health and setpoints. The primary CPU

board has four digital inputs/outputs; any secondary CPU boards are used for cell health only.

1.2.4 Configuration

The iQUBE² is designed for use with any host device capable of sending and receiving ASCII text. A simple communications

program, such as HyperTerminal, can be used to configure the most complex system and monitor all diagnostic capabilities.

In addition, Rice Lake Weighing Systems provides three additional interfaces for configuring and controlling:

• The 1280 Enterprise indicator, using the iQUBE² configuration screens, using the front panel or Revolution configuration

utility (Revolution module for the 1280 which includes iQUBE² configuration or an iQUBE² Revolution module which can

connect directly to the iQUBE²), see Section 3.0 on page 24.

• The 920i Programmable HMI Indicator/Controller, using the 920i menus or the iRev 4 configuration utility, see

Section 4.0 on page 48.

• The VIRTUi² PC-based HMI, PC-based indicator and configuration utility, see Section 5.0 on page 59.

Any indicator capable of operation as a serial scale can be configured and used as the indicating element.

1.2.5 Diagnostics

Advanced diagnostic capabilities include:

• Power supply and excitation voltage monitoring

• Load cell connection faults

• Load cell overload, under-load, balanced load, load cell drift, peak-to-peak noise and zero reference errors

Diagnostic information can be included in weight data or monitored on a communications channel separate from weight data.

See Section 7.0 on page 77 for more information about diagnostics.

1.2.6 Transient Protection

Transient protection boards are designed to protect the power supply lines by minimizing the effects of nearby lightening strikes

and other extreme transients.

Transient protection boards are recommended on each end of a power supply run when an external DC supply is used, or on

power supply cables to secondary units where the secondary enclosure runs are longer than 75'.

The transient protection board option (PN 110949) includes a mounting bracket.

Note

Introduction

1.3 System Configurations and Options

The iQUBE² is available in fiberglass or stainless steel enclosures.

• 8'' x 10'' – accommodates 1-2 CPU boards, up to 8 channels

• 10'' x 12'' – accommodates 1-3 CPU boards, up to 12 channels

• Maximum system configuration – accommodates 4 CPU boards, up to 16 channels and requires at least two enclosures.

1.3.1 Communications Option Cards

The option cards listed in Table 1-2 are available to extend the communications capabilities of the iQUBE². The option cards are

installed in connector J9 on the CPU board (see Figure 2-4 on page 11).

1.3.2 Power Supply Options

The iQUBE² can be powered by either the internal 7.5 VDC power supply (PN 76556) or by an external 12 VDC power supply

(PN 108434). The external DC power supply is mounted in its own 8'' x 6'' x 4'' enclosure and includes a transient protection

board for circuit protection.

See Section 2.3 on page 6 for information about calculating power requirements for particular system configurations.

1.4 Support Software

The iQUBE² allows several methods of configuration, calibration and operation. In addition to support software listed in this

section, serial commands can be used for system configuration via a PC attached to a serial port.

1.4.1 VIRTUi²

VIRTUi² is a virtual indicator interface for scale operations using the iQUBE². It contains the VIRTUi² Configuration Utility, a

separate windows application, which supports configuration and calibration for the iQUBE². Use the Toolkit CD (PN 108435) to

install VIRTUi²; it is included in the parts kit.

Minimum system requirements for VIRTUi²: 1GHz processor, 1GB RAM, 400MB disk space, serial port or Ethernet, 1024x768

or greater resolution monitor. Windows XP SP3 (32-bit), Windows Vista (32-bit or 64-bit).

See Section 5.0 on page 59 for more information.

1.4.2 Supporting Indicators

The iQUBE² supports any indicator as a serial scale. The 1280 and 920i provide special functionality to work in conjunction with

the iQUBE², allowing for configuration, calibration, and diagnostics.

Model Part No. Channels

Enclosure

Material

Enclosure Size

(inches)

Power Supply

(PN 76556)

iQUBE²-AA 108425 4 FRP 8 x 10 Yes

iQUBE²-AB 108429 4 FRP 8 x 10 No

iQUBE²-AA 108426 4 FRP 10 x 12 Yes

iQUBE²-AB 108430 4 FRP 10 x 12 No

iQUBE²-AA 108427 8 FRP 10 x 12 Yes

iQUBE²-AB 108431 8 FRP 10 x 12 No

iQUBE²-BA 108428 4 SST 8 x 10 Yes

iQUBE²-BB 108432 4 SST 8 x 10 No

Table 1-1. Available System Models

Model / Option Part No.

Fiber-optic interface option card 77143

Ethernet interface option card 77142

Wireless Ethernet option card 108671

USB interface option card 93245

Serial interface option card 108579

Table 1-2. Communications Option Cards

iQUBE² Digital Diagnostic Junction Box

4 Visit our website www.RiceLake.com

1.5 Printed Information

iQUBE² Options

• Fiber-Optic Interface Installation Instructions, PN 80230

• Ethernet Communications Installation Manual, PN 77224

• USB Communications Card Installation Instructions, PN 95490

• Serial Communications Expansion Card Installation Instructions, PN 110892

• Remote Power Supply Installation Instructions, PN 110564

920i System Manuals

• 920i Technical Manual, PN 67887

1280 System Manuals

• 1280 Technical Manual, PN 167659

Installation

2.0 Installation

This section describes procedures for connecting load cell, power and serial communications cables to the iQUBE² junction

box. Assembly drawings and replacement parts lists for the iQUBE² are included.

Some procedures described in this manual require work inside the iQUBE² or indicator enclosure. These

procedures are to be performed by qualified service personnel only.

Before opening the unit, ensure all power is disconnected.

Use a wrist strap for grounding and protection of components from electrostatic discharge (ESD) when working

inside the iQUBE² enclosure.

2.1 Installation Check Lists

The following check lists should be followed to ensure that the iQUBE² is fully prepared to be connected to an indicator.

2.1.1 Location Check List

The iQUBE² must be located and installed in an adequate location

___ Unpack and assemble (See Section 2.2 on page 6)

___ Determine power needs (See Section 2.3 on page 6)

___ Select location

___ Provide transient protection (See Section 2.4 on page 8)

___ Mount the enclosure (See Section 2.5 on page 9)

2.1.2 Wiring Check List

All cords must be properly grounded (See Section 2.6 on page 9)

Minimum Requirements

iQUBE² will not communicate with an indicator unless the following wiring has been installed

___ Connect load cells (See Section 2.8 on page 12)

___ Connect serial communication (See Section 2.9 on page 13)

Additional Options

___ Digital input/output (See Section 2.10 on page 15)

___ Option cards

Wiring Multiple iQUBE² boxes

___ Wire primary iQUBE² to secondary iQUBE² boxes

___ Provide transient protection between iQUBE² boxes

___ Wire load cells to correspond correctly with load cell sequencing

See Section 2.12 on page 18 for more information about specific applications.

WARNING

Note

iQUBE² Digital Diagnostic Junction Box

6 Visit our website www.RiceLake.com

2.2 Unpacking and Assembly

Immediately after unpacking, visually inspect the iQUBE² and the parts list to ensure all parts are included and undamaged. If

any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.

Parts kit contents for 4- and 8-channel models of the iQUBE².

2.3 Power Considerations

The iQUBE² can be powered either by the internal power supply (PN 76556) or by an external DC power supply. iQUBE² CPU

boards accept input voltages in the range 6–12 VDC.

AC Powered Option (PN 76556)

The iQUBE² circuit boards are optimized to receive power from the internal 7.5 VDC power supply (PN 76556). This option

provides 25 W of power, with continuous current of 3.33 A. The internal power supply requires AC power to be available at the

scale, but offers the greatest protection from inductive transients.

DC Powered Option (PN 108434)

The approved remote 12 VDC power supply for the iQUBE² (PN 108434) provides 44.4 watts of power, with continuous current

of 3.7 A, to power a full system over typical distances from scale-house to scale. The remote power supply is mounted in an 8 x

6 x 4-inch NEMA Type 4X FRP enclosure and includes a transient protection board, PN 110949.

The transient boards will handle the maximum current provided by the power supply, but large current loads increase the

voltage drop across the inductive chokes and could reduce the input voltage to the iQUBE² system below the 6 VDC minimum.

See Section 2.3.2 on page 7.

Part No. Description

Quantity

4-ch 8-ch

14861 Machine screws, 8-32NC x 3/8 8 12

15134 Lock washers, No. 8 Type A 8 12

15631 Cable ties, 3-in. 5 5

15665 Reducing glands, 1/2 NPT 2 2

19538 Slotted posts, 1/4 x 1 8 10

53075 Ground cable clamps 8 12

66730 Ferrite EMI suppression filters 4 8

76513 4-position screw terminal connector 1 2

76514 6-position screw terminal connectors 6 12

94422 Capacity label 1 1

108435 Toolkit CD 1 1

Table 2-1. Parts Kit Contents

Installation

2.3.1 System Current Draw

The tables below show the current requirements for the iQUBE² CPU board and communication option cards. System current

draw is the sum of the individual current requirements.

Current Draw Example:

The current requirements for a truck scale system using 10 x 700  load cells and a fiber-optic communications card would be

calculated as follows:

• 3 x CPU boards @ 360 mA each = 1080 mA

• 10 x 700  load cells @ 17 mA each = 170 mA

• 1 x fiber-optic card @ 25 mA = 25 mA

The sum of these current requirements gives:

1080 mA + 170 mA + 25 mA = 1275 mA

2.3.2 System Voltage Drop

Once the current draw of the system is calculated, the voltage input to an externally-powered iQUBE² system can also be

calculated.

The primary sources of voltage drop in an externally powered iQUBE² system are the transient boards and the power cable.

Both voltage drops are directly proportional to the current draw of the system being powered.

Transient Board Voltage Drop

The inductive chokes on the transient boards have a resistance value of 0.08. With two chokes per board (voltage source and

return path), the effective resistance per board is 0.16.

CPU Board Loads Current Draw

Nominal CPU board load 360 mA

Per 700 load cell 17 mA

Per 350 load cell 24 mA

Per summed platform (4 x 350load cells) 60 mA

Per I/O channel (maximum) 25 mA

Table 2-2. CPU Board Current Draw

Option Card

PN Option Description Current Draw

77143 Fiber-optic card 25 mA

77142 Ethernet card 195 mA

108671 Wireless LAN card 320 mA

93245 USB card 27 mA

108579 Serial expansion card 100 mA

Table 2-3. Communications Option Card Current Draw

Current Load

Transient Board

Voltage Drop

1.0 A 0.16 V

1.5 A 0.24 V

2.0 A 0.32 V

2.5 A 0.40 V

3.0 A 0.48V

Table 2-4. Transient Board Voltage Drop

iQUBE² Digital Diagnostic Junction Box

8 Visit our website www.RiceLake.com

Power Cable Voltage Drop

Power cable voltage drop is a function of the type of cable used and the length of the cable run.

The run length includes both the supply and return lengths. Cable resistance is also a function of temperature.

Values given assume an ambient temperature of 25°C (77°F).

Voltage Drop Example

Using the total system current draw from the truck scale current draw example above (Section 2.3.1 on page 7), the voltage

drop for an externally-powered system can be calculated.

Given that the current draw is 1.275A (1275 mA); the power cable is 20-gauge stranded wire; and the iQUBE² at the scale is

located 200' from the 12 VDC supply in the scale house, three voltage drops can be calculated:

• Power supply transient board voltage drop: 1.275A x 0.16W = 0.204V

• Power cable voltage drop: 1.275A x 0.01015W/ft x (2 x 200ft) = 5.177V

• iQUBE² transient board voltage drop: 1.275A x 0.16W = 0.204V

Total voltage drop is: 0.204V + 5.177V + 0.204 V = 5.585 V

Effective power supply voltage seen at the iQUBE² is then: 12V – 5.585V = 6.415V

This voltage is acceptable, but the power cable voltage drop could be cut in half by using two 20-gauge wires for the supply and

return cable runs. Cabling can be doubled by wiring to both V+ terminals and both V– terminals on the transient board

connectors. In this example, reducing the cable voltage drop to 2.589V would result in an effective input voltage of 9.003V.

2.4 Transient Protection

Improper grounding systems can cause costly lightening damage to electronics. Always strive for a

single-point grounding system. Refer to the product manual for proper grounding techniques.

2.4.1 Single Point Grounding System

Figure 2-1 illustrates a generic single point grounding system.

Figure 2-1. Truck Scale Single Point Grounding Example

Stranded Wire Gauge  per Foot

20 0.01015

18 0.00639

16 0.00402

Table 2-5. Common Cable Resistance Values (/ft)

Note

IMPORTANT

Power Company Ground Rod

NOTE: Always verify that installed wiring is properly grounded

Junction

Box

Printer

Remote

Display NOTE: Power only applies for junction

boxes containing an internal

power supply

Indicator

Transient

Protection

NOTE: Connection for analog junction boxes or

iQube with an internal transient protection power supply

10 gauge wire recommended

12 gauge wire recommended

Fuse

Panel

Installation

2.5 Mounting the Enclosure

The iQUBE² can be mounted either vertically or horizontally to a flat surface.

If the iQUBE² will be attached to the building surface, a power supply cord mat be used for connection to the AC main supply,

provided the conditions in this section are met.

2.5.1 UL Equipment Considerations

The iQUBE² should not be installed as a permanent part of the building structure. This includes Equipment For Building-In (per

UL Document 1.2.3.5). The iQUBE² must be removable from the building surface.

2.5.2 UL Power Considerations

The power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings

in the building structure.

Installation measures must be taken to prevent physical damage to the power supply cord. Properly route the power supply

cord and position the iQUBE² near an outlet, to allow for quick disconnect in case of an emergency.

2.6 Cable Connections

All models of the iQUBE² provide cord grips for cabling into the unit, plus a dedicated cord grip for a ground wire. Up to 12 load

cells can be cabled into the iQUBE² (in large FRP model only); other cord grips allow cabling for serial communications, digital

I/O, and AC power. Install plugs in all unused cord grips to prevent moisture from entering the enclosure.

2.6.1 Cable Grounding

Except for the power cord, all cables routed through the cord grips must be shield grounded against the enclosure.

• Use hardware provided in the parts kit to install shielding clamps on the grounding bracket at the bottom of the enclosure

• Install only the necessary amount of shielding clamps for the cord grips to be used

• Remove the insulated jackets and shielding per the following instructions

Shielding Procedure

1. Install the shielding clamps on the grounding rail using the clamp screws. Finger tighten the screws at this time.

2. Route the cables through the cord grips and the shielding clamps to determine the cable lengths required to reach the

appropriate cable connectors.

3. Mark cables to remove the insulated jacket as described below for Foil Shielded Cables and Braid Shielded Cables in

Section 2.6.2 on page 10.

iQUBE² Digital Diagnostic Junction Box

10 Visit our website www.RiceLake.com

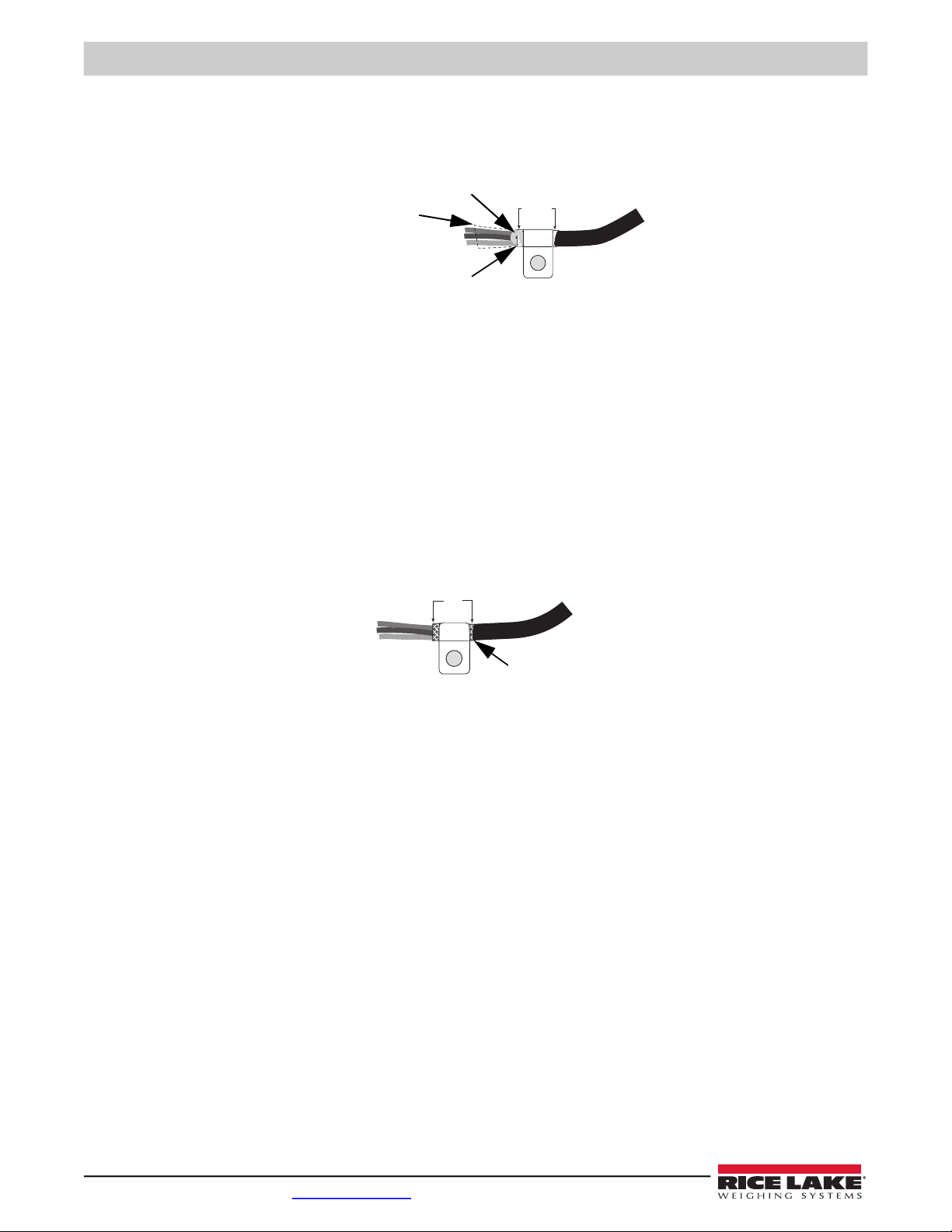

2.6.2 Stripping Cables

Foil Shielded Cables

Figure 2-2. Foil Shielded Cable

1. Strip the insulated jacket and foil 1/2'' (15 mm) past the shielding clamp.

2. Strip another 1/2'' of the insulated jacket, leaving the foil shielding exposed.

3. Fold the foil shielding back on the cable where the cable passes through the clamp.

4. Ensure the silver (conductive) side of the foil is turned outward.

5. Wrap the shield wire around the cable, ensuring it contacts the foil where the cable passes through the clamp.

6. Torque the shielding clamp screw to 10 in-lb (1.1 N-m), ensuring the clamp is around the cable and contacting the

shield wire.

Braid Shielded Cables

Figure 2-3. Braid Shielded Cable

1. Strip the insulated jacket and braided shielding from a point just past the shielding clamp.

2. Strip another 1/2'' (15 mm) of the insulated jacket, leaving the braid exposed where the cable passes through the clamp.

3. Torque the shielding clamp screw to 10 in-lb (1.1 N-m), ensuring the clamp is contacting the braided shielding of the

cable.

Load Cell Cables

Cut the shield wire just past the grounding clamp. Shield wire function is provided by contact between the cable shield and the

grounding clamp.

Length of foil before

folding back on

cable insulation

Silver

side out

Cut insulated jacket here

for foil shielded cables

Shield wire

Braid

Cut insulated

jacket here

Installation

2.7 iQUBE² Board

Figure 2-4. CPU Board

HB1 is a heartbeat monitor which monitors processor activity. Blinking once per second indicates normal operation.

As either errors or COM port activity increases, HB1’s blinking may slow down to reflect the added activity.

Port Description

S1 The S1 is pressed to reset the iQUBE² to default factory settings (Section 9.2 on page 89) and to assign board ID during Board setup

S2 The S2 DIP switch reads only at Power-up; To allow iQUBE² to operate with RS-422 serial connection to 1280, switch both S2 DIP switches

to Off. Double check that SW-1 is switched to CFG. Disconnect and reconnect power supply.

SW-1 When resetting iQUBE² to default settings or making changes to the iQUBE² unit, set SW-1 to CFG. For regular operation and 1280

communication, SW-1 must be switched to OFF.

Table 2-6. CPU Board Switches

Port

J1 Load Cell Connections See Section 2.8 on page 12

J5 Digital I/O See Section 2.10 on page 15

J6 Power Supply Connector See Section 2.3 on page 6

J7 Serial Port 1 See Section 2.9.1 on page 13

J8 RLWS CPLD Port Factory Use Only

J9 Communications Port 2 See Section 2.9.2 on page 14

J10 Communications Port 3

J12 M/S Port See Section 2.11 on page 16

J14 Flash Updater See Section 9.3 on page 90

Table 2-7. CPU Board Connections

+SIG

–SIG

+EXC

–EXC

+TD

–TD

GND

CFG

OFF

+SIG

–SIG

+EXC

–EXC

+TD

–TD

+TD

–EXC

+EXC

–SIG

+SIG

–TD

+TD

–EXC

+EXC

–SIG

+SIG

DIO4

DIO3

DIO2

DIO1

GND

+5V

TMS

TDI

TDO

TCK

GND

+3.3

CHANNEL 2 CHANNEL 1

CHANNEL 4 CHANNEL 3

485 232

HDPLX FDPLX

1 2

RTS

DTR

RxD

TxD

GND1

GND

########

6 5 4 3 2 1

J7 J5J12

SW-1

J14

HB1

J10

Note

iQUBE² Digital Diagnostic Junction Box

12 Visit our website www.RiceLake.com

2.8 Load Cells

Diagnostics may not function properly with load cells having a bridge resistance greater than 700 .

Customers wanting to use load cells with a higher bridge resistance than 700  can consult the Rice Lake

Weighing Systems service department for additional options.

When load cells are wired to iQUBE² connectors, J1-J4 are assigned by default as channels 1-4 (5-8, 9-12, 13-16 for secondary

units). The graphic representations of the weighing platform shown when configuring the scale, assumes particular locations for

each load cell, based on the connector used. Load cells can be renamed during configuration.

While load cells can be wired to any connector on the iQUBE² connector board, platforms defined as paired sections (including

most truck scale applications) must correctly associate these pairs to ensure valid calibration and diagnostic functions.

2.8.1 Load Cell Wiring

To attach load cell cables to the CPU board:

1. Route the cables through the cord grips on the load cell connector end of the enclosure.

2. Strip 1/4'' of insulation from the ends of the load cell wires.

3. Install wires into the connectors as shown in Table 2-8.

4. Use cable ties and mounts to secure the load cell cables to the enclosure, when connections are complete.

Pins 5 and 6 provide connections for load cells that provide TEDS (Transducer Electronic Data Sheet) information.

Do not connect sense wires to the TD terminals.

For load cells with a resistance greater than 2,200 Ohms, a high precision 2k Ohm resistor should be placed between

the EXC+ and EXC- pins of the load cell connection to maintain correct operation of the Cell Connect diagnostic.

Precision resistor properties: Temperature Coefficient ±10 ppm/°C; Tolerance ±1%

Pins (J1–J4) Function

1 +SIG

2 –SIG

3 +EXC

4 –EXC

5 +TD (TEDS)

6 –TD (TEDS)

Table 2-8. Load Cell Connector Pin Assignments

IMPORTANT

WARNING

Note

Installation

2.9 Serial Communications

Serial communications between the iQUBE² and host or peripheral devices is provided by two ports.

•Port 1 – Provides onboard RS-232 (full-duplex) or RS-485 (full- or half-duplex) communications on connector J7; S2 on

the CPU board is a pair of switches that are used to select the required setting

•Port 2 – Uses an option card installed in connector J9 to expand the communication capabilities of the iQUBE²; Available

option cards support fiber-optic, wired and wireless Ethernet, USB, and RS-232/RS-485 communications

To attach serial communications cables, route the cable through the cord grip and wire to the connector on the CPU board.

Use cable ties to secure serial cables to the inside of the enclosure.

2.9.1 Port 1 Communications

Table 2-9 shows the pin assignments for Port 1 connector J7.

The iQUBE² only reads switches at power-up. If switch settings are changed, cycle power to the iQUBE² before

attempting to communicate using Port 1.

Figure 2-5. Detail of S2 DIP Switch

RS-485/422 Connections to Host Indicators

See Section 3.0 on page 24 for connection to the 1280.

See Section 4.0 on page 48 for connection to the 920i.

Selecting Communication Type for Port 1

To select communication protocols on Port 1:

1. Remove power from the iQUBE².

2. Place the S2 switches in the proper position for the communication type to be used. See Table 2-10.

3. Place SW1 in the CFG position.

4. Apply power to the iQUBE².

5. Place SW1 in the OFF position.

J7 Pin RS-232 Signal

RS-485 2-Wire

Signal

RS-485 4-Wire

Signal

1 GND1 GND1 GND1

2 RxD — Rx+

3 — — Rx–

4 — A / + Tx+

5 TxD B / – Tx–

6 — — —

Table 2-9. Port 1 Pin Assignments

DIP Switch Selections Settings

1 RS-232

RS-485

Off

2 RS-485/422

Only

Half-Duplex

Full-Duplex

Table 2-10. S2 Switch Settings

Note

Switch 1

ONOFF

Switch 2

iQUBE² Digital Diagnostic Junction Box

14 Visit our website www.RiceLake.com

2.9.2 Communications Option Cards

Table 1-2 on page 3 lists communications option cards available for the iQUBE². Communications option cards are installed in

the J9 connector of the primary CPU board for the iQUBE² system. All option cards use Port 3 except for wireless Ethernet,

which uses Port 2.

Each option card is shipped with installation instructions specific to card. Follow general procedures for installation into iQUBE².

Option cards are not hot-pluggable. Disconnect power to the iQUBE² before installing option cards.

1. Disconnect the power to the iQUBE².

2. Loosen the top screws and remove the cover from the iQUBE².

3. Insert plastic standoffs, included with the option card, into the mounting holes in the CPU board.

4. Carefully align the option card connector with J9 on the CPU board (Figure 2-4 on page 11) and the standoffs.

5. Press down to seat the option card in the CPU board connector, then press to seat the standoffs in the option card

mounting holes.

6. Make connections to the option card as required.

7. Use cable ties to secure loose cables inside the enclosure.

The iQUBE² automatically recognizes all installed option cards when the unit is powered on. No hardware-specific

configuration is required to identify the newly installed card to the system.

2.9.3 Communications Cable Distance Limitations

The maximum cable lengths that can be used for the communication types depend on a number of factors.

• Output impedance of the transmitter

• Electrical noise in the environment

• Cable capacity, wire gauge, termination, shielding and baud rates

Use the distances in Table 2-11 as a general guide for communication cabling.

Data rate decreases with distance. See Table 2-12.

Ethernet port is not suitable for connection to circuits used outside the building and is subject to lightning or power faults.

Cable Type Distance

RS-232 50' (15 m) @ 19,200 Baud (10' @ 115,200 Baud)

RS-485 1000' (300 m) twisted pair cable @ 115,200 Baud

Fiber-optic 375' (114 m)

Ethernet Cat5 330' (100 m)

USB 16.5' (5 m)

802.11g 330' (100 m) under optimal conditions

Table 2-11. Communication Cable Limitations

Data Rate Approx. Range

54 Mbps 65'

48 Mbps 80'

36 Mbps 115'

24 Mbps 140'

18 Mbps 170'

11 Mbps 180'

9 Mbps 190'

5.5 Mbps 215'

3 Mbps 260'

1 Mbps 330'

Table 2-12. Approximate 802.11g Data Rate/Range

CAUTION

Note
